CSCL AFRICA
9286011 | VRBI3 | 9286011 by ********* Last update: Fri Apr 26 2024

General Info

Ship Name:CSCL AFRICA
IMO Code:9286011
Call Sign:VRBI3
Line Operator:9286011
Class Name for Sister Ships:CSCL AFRICA
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:077
Max ISO Row:16
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:8,111

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

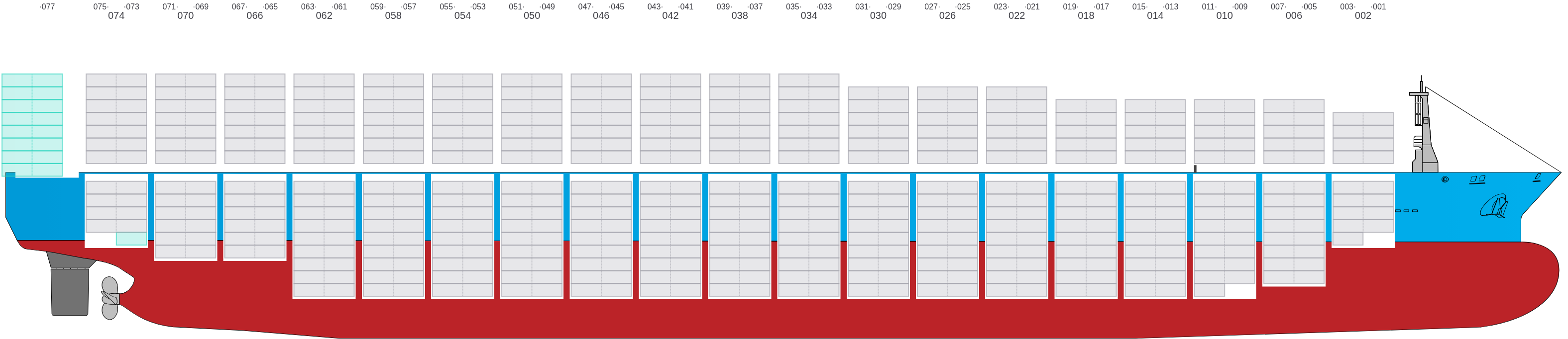

Side view of CSCL AFRICA

Hatch-Covers View

Deck view of CSCL AFRICA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

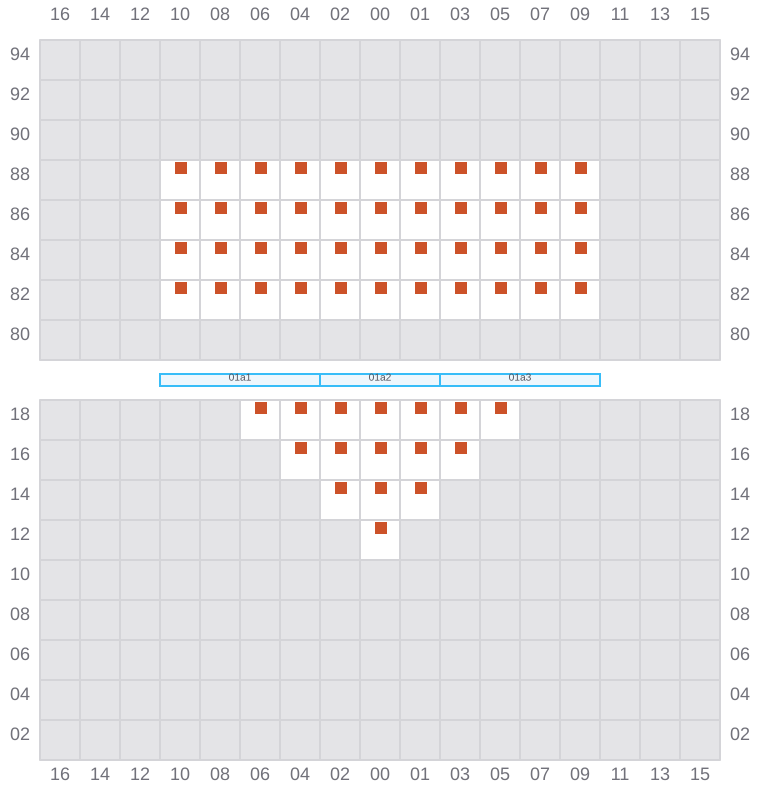

Bay 001 view and slots of CSCL AFRICA

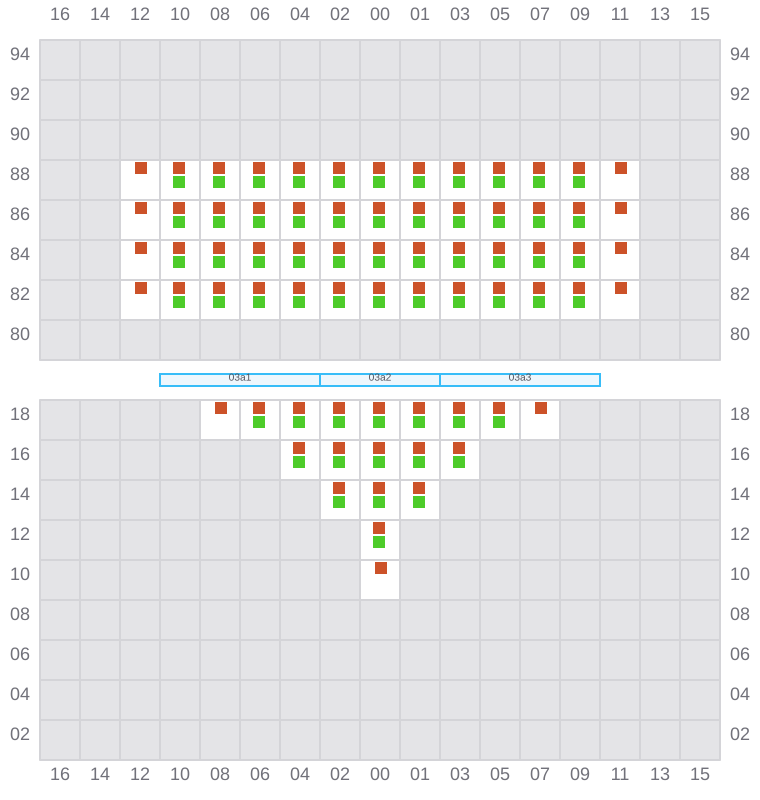

003 (002)

Bay 003 view and slots of CSCL AFRICA

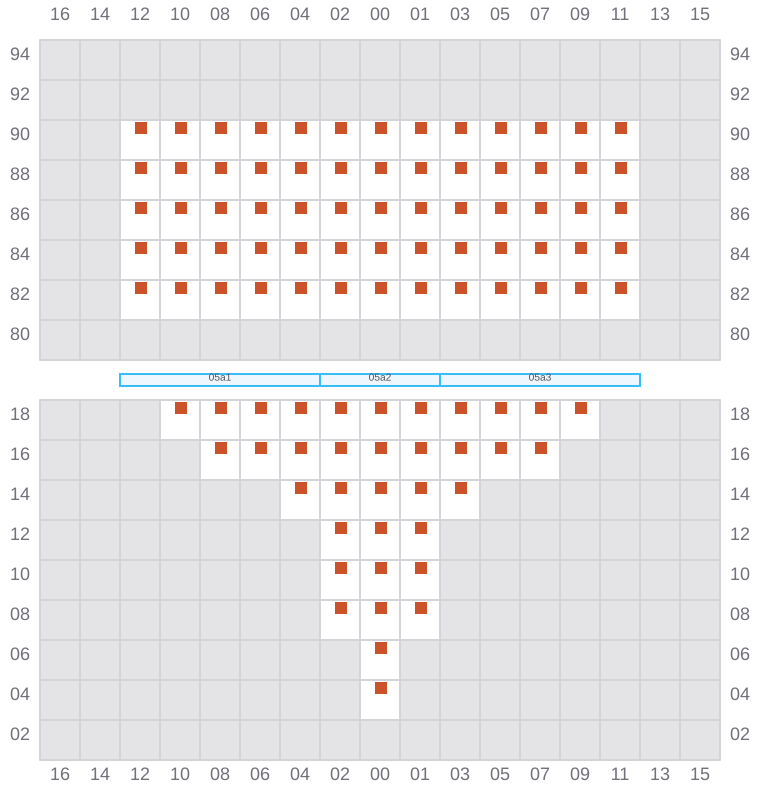

005

Bay 005 view and slots of CSCL AFRICA

007 (006)

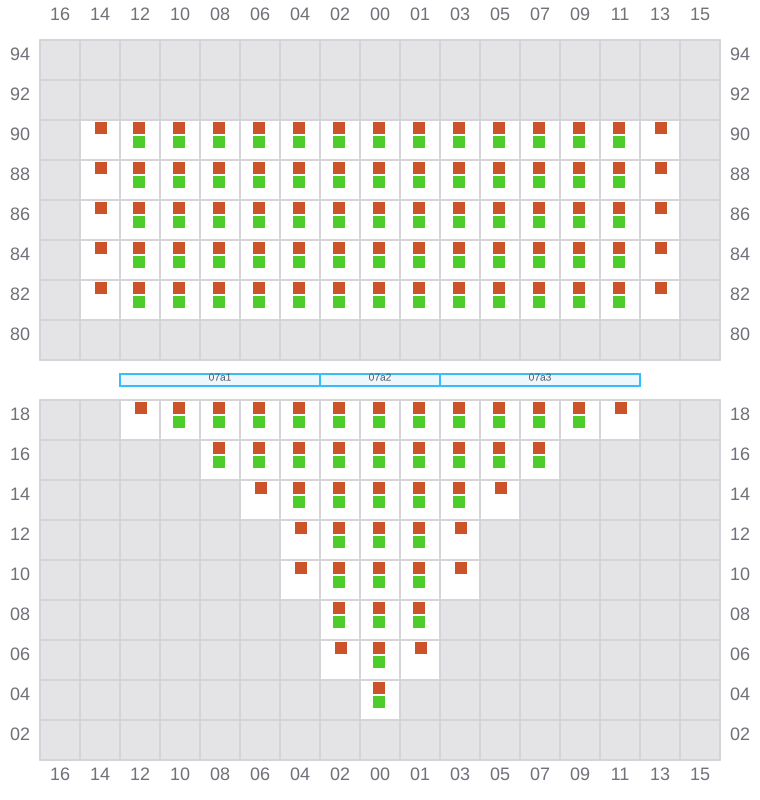

Bay 007 view and slots of CSCL AFRICA

009

Bay 009 view and slots of CSCL AFRICA

011 (010)

Bay 011 view and slots of CSCL AFRICA

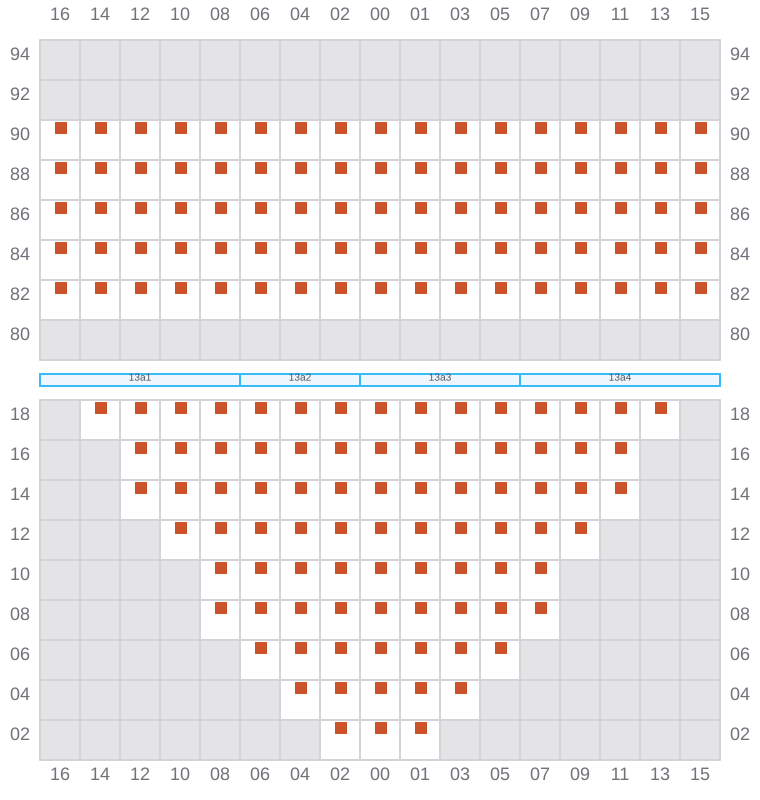

013

Bay 013 view and slots of CSCL AFRICA

015 (014)

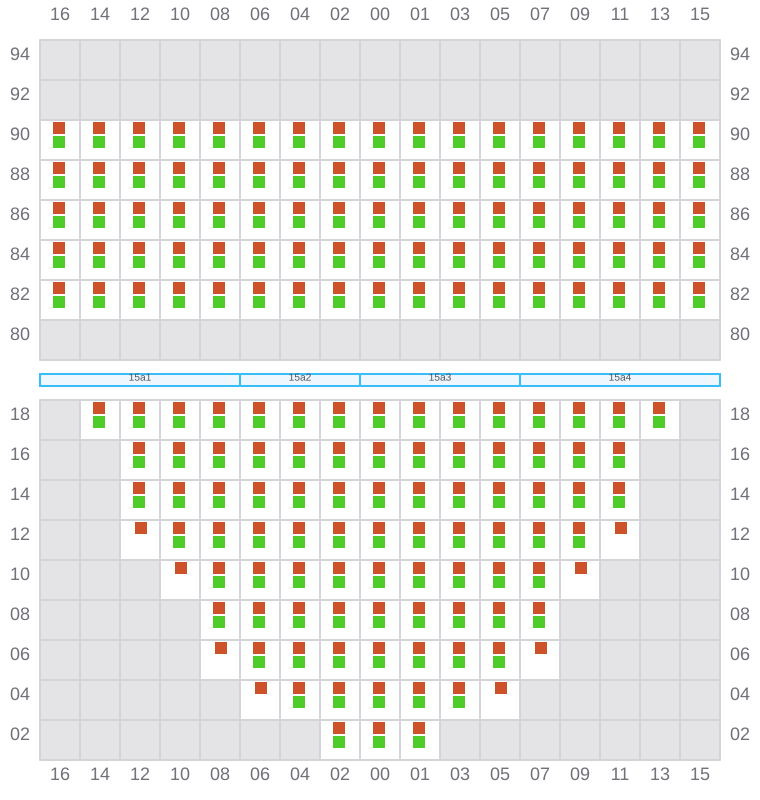

Bay 015 view and slots of CSCL AFRICA

017

Bay 017 view and slots of CSCL AFRICA

019 (018)

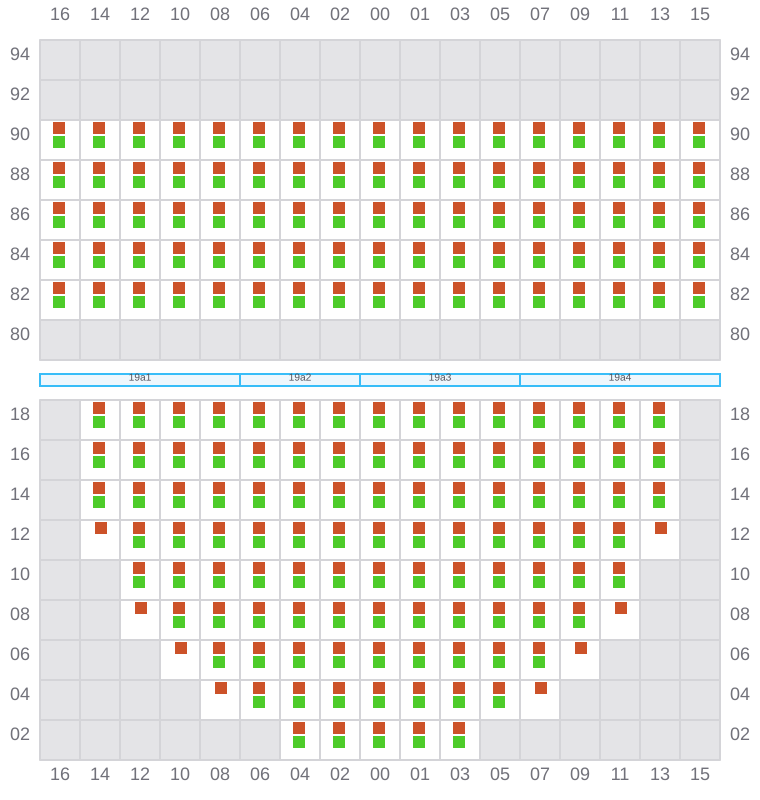

Bay 019 view and slots of CSCL AFRICA

021

Bay 021 view and slots of CSCL AFRICA

023 (022)

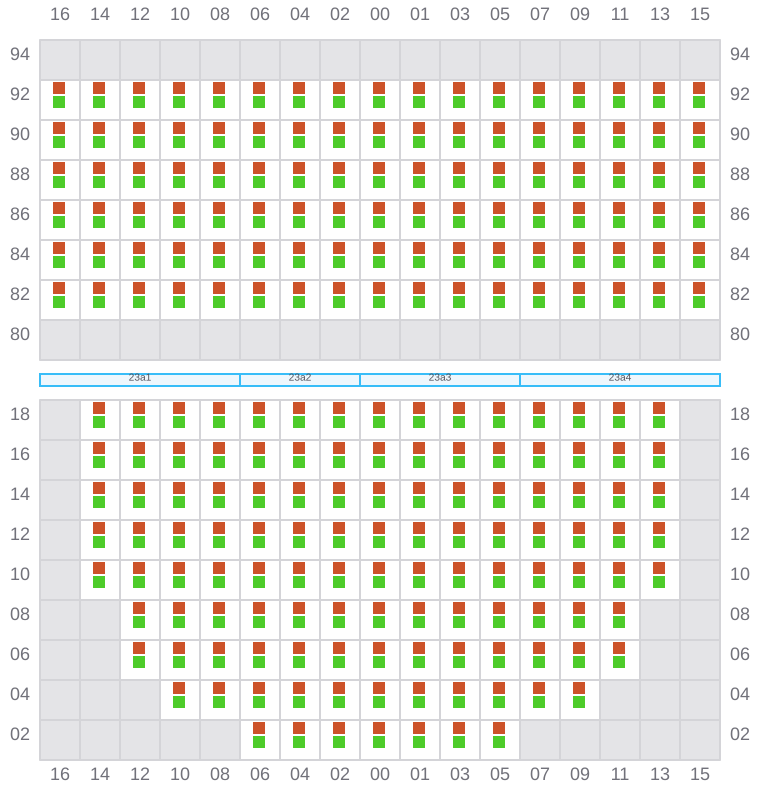

Bay 023 view and slots of CSCL AFRICA

025

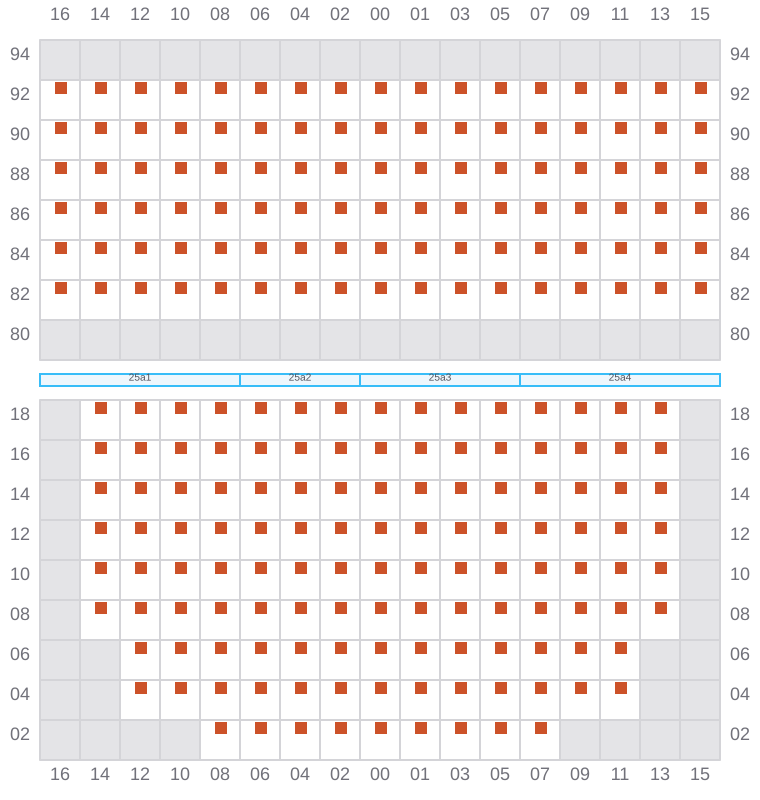

Bay 025 view and slots of CSCL AFRICA

027 (026)

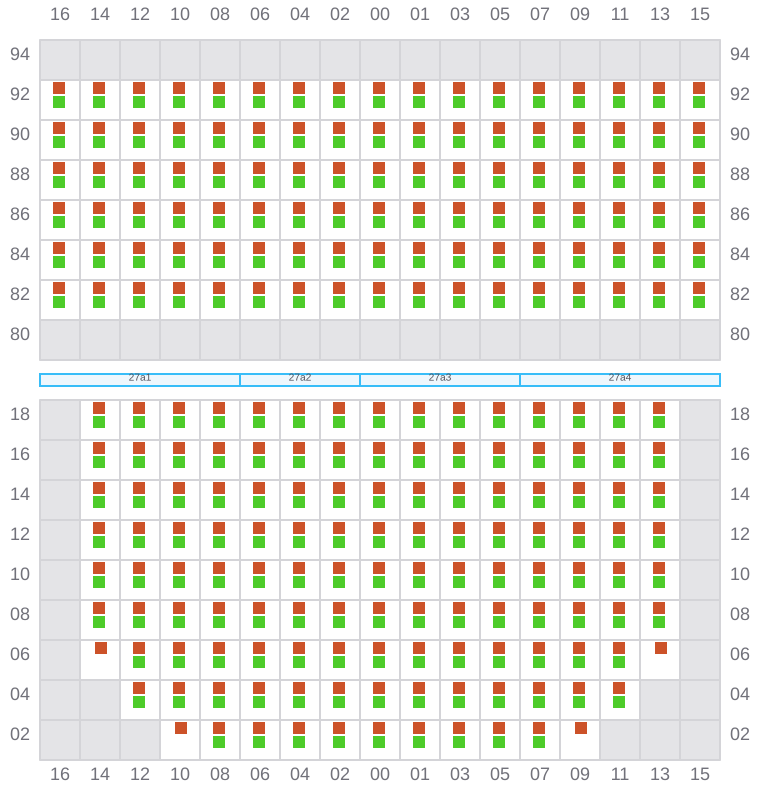

Bay 027 view and slots of CSCL AFRICA

029

Bay 029 view and slots of CSCL AFRICA

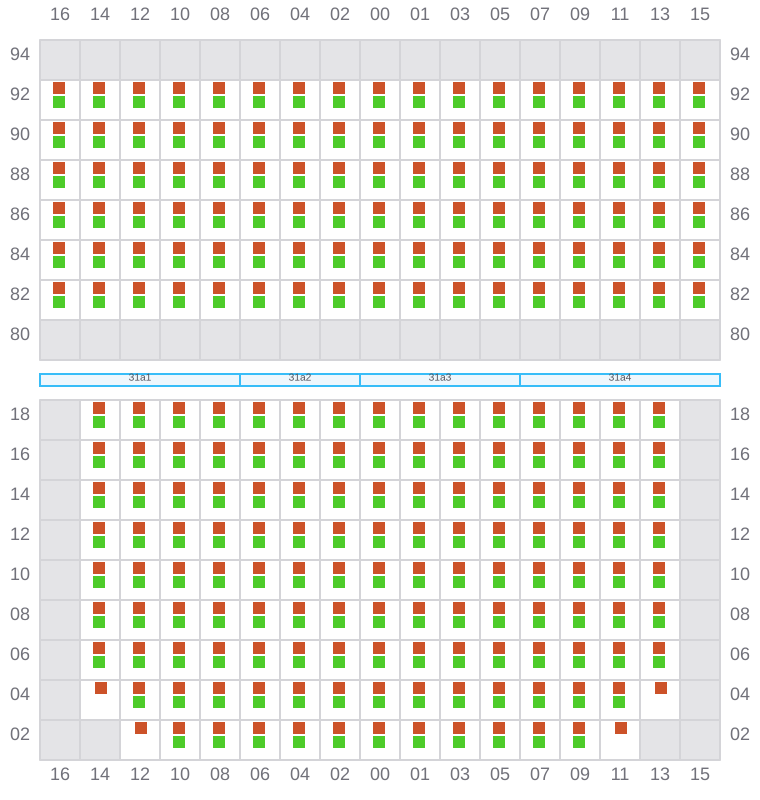

031 (030)

Bay 031 view and slots of CSCL AFRICA

033

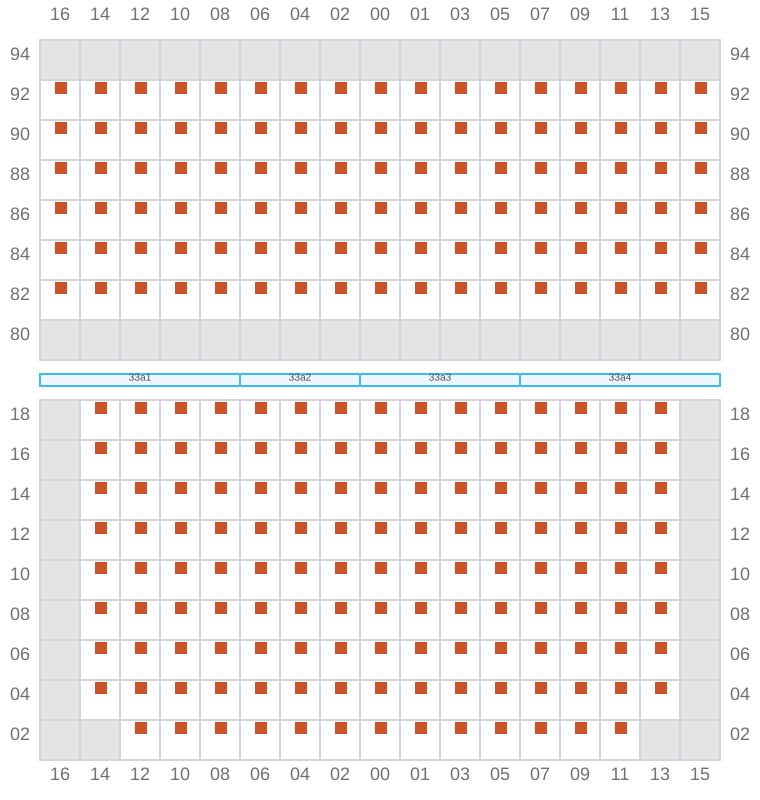

Bay 033 view and slots of CSCL AFRICA

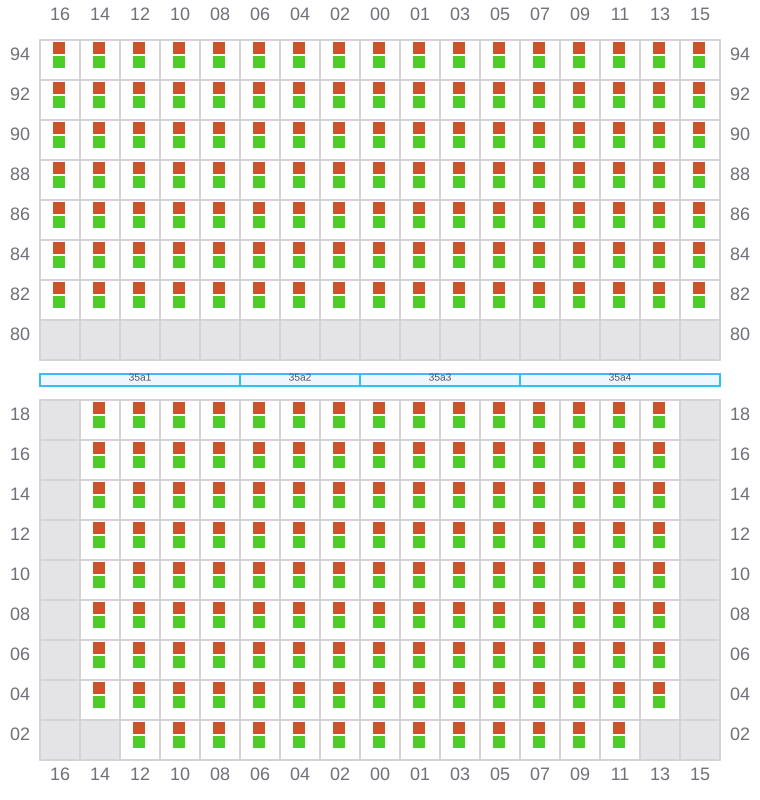

035 (034)

Bay 035 view and slots of CSCL AFRICA

037

Bay 037 view and slots of CSCL AFRICA

039 (038)

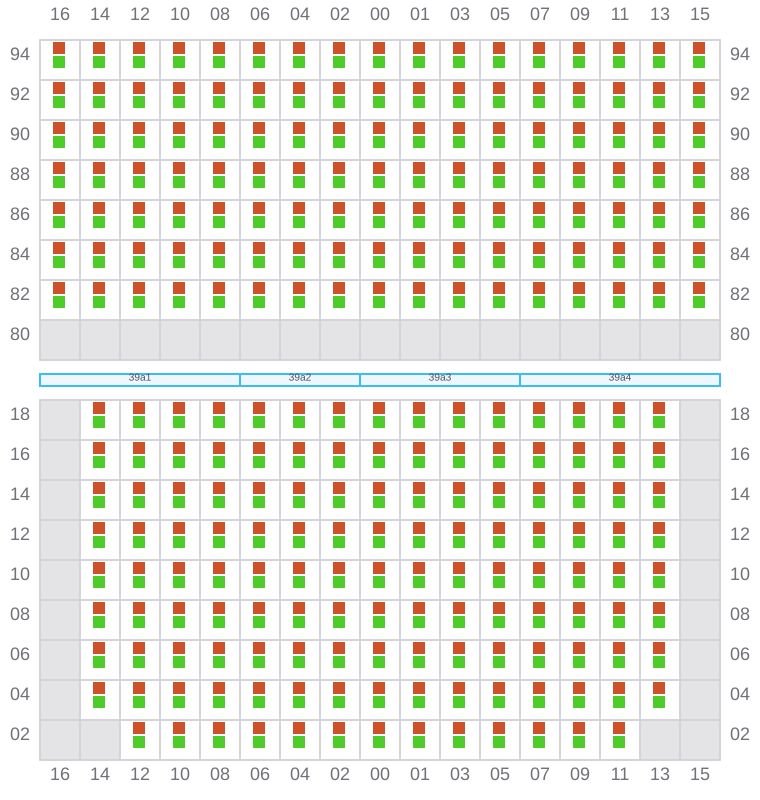

Bay 039 view and slots of CSCL AFRICA

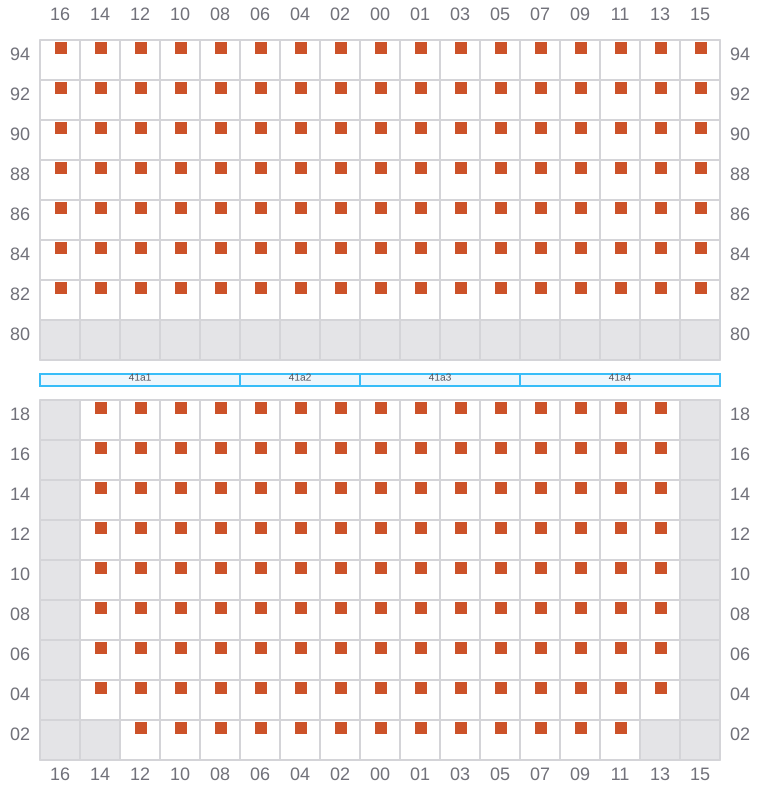

041

Bay 041 view and slots of CSCL AFRICA

043 (042)

Bay 043 view and slots of CSCL AFRICA

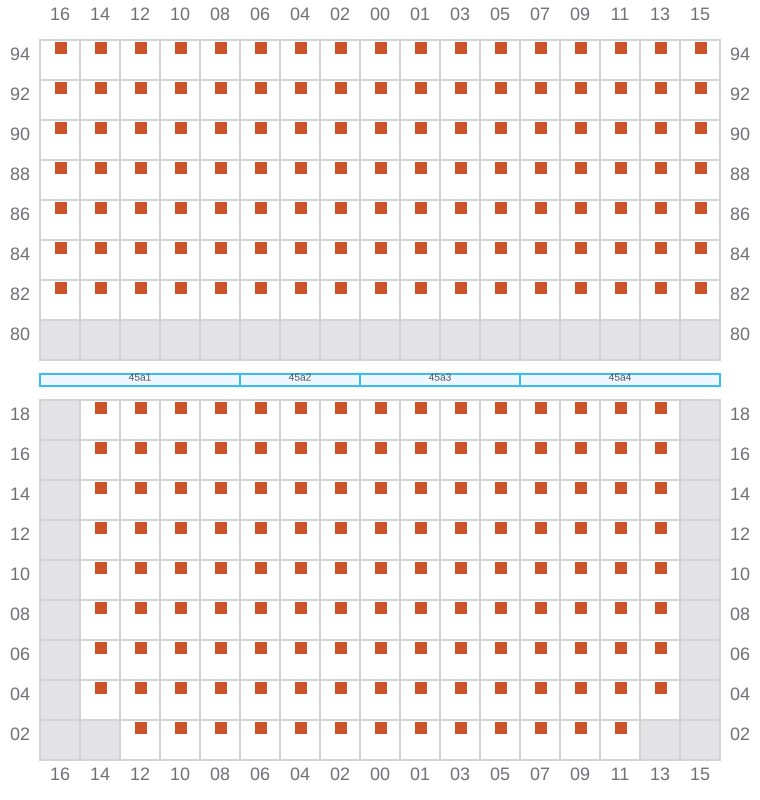

045

Bay 045 view and slots of CSCL AFRICA

047 (046)

Bay 047 view and slots of CSCL AFRICA

049

Bay 049 view and slots of CSCL AFRICA

051 (050)

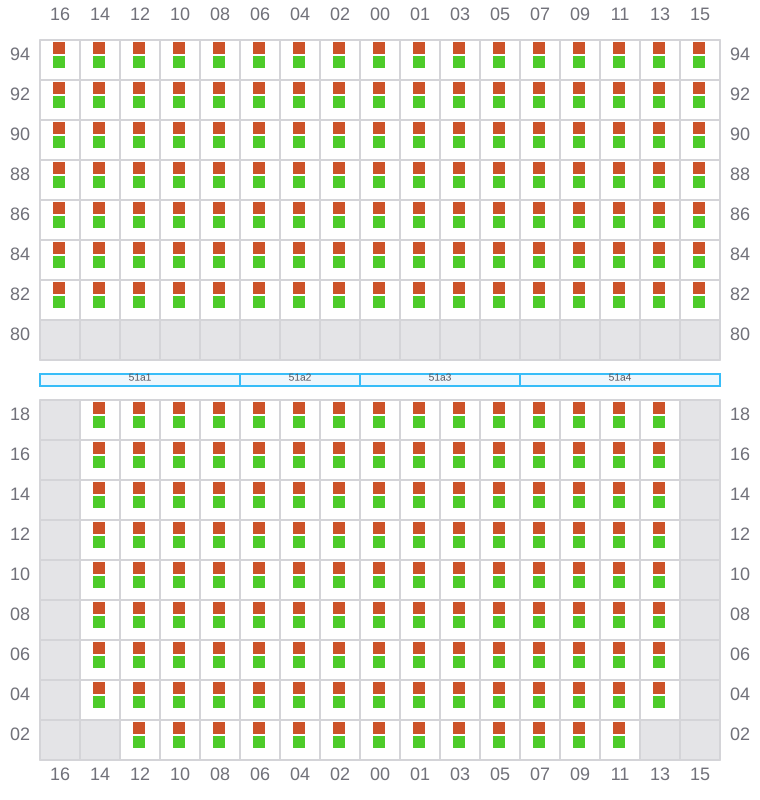

Bay 051 view and slots of CSCL AFRICA

053

Bay 053 view and slots of CSCL AFRICA

055 (054)

Bay 055 view and slots of CSCL AFRICA

057

Bay 057 view and slots of CSCL AFRICA

059 (058)

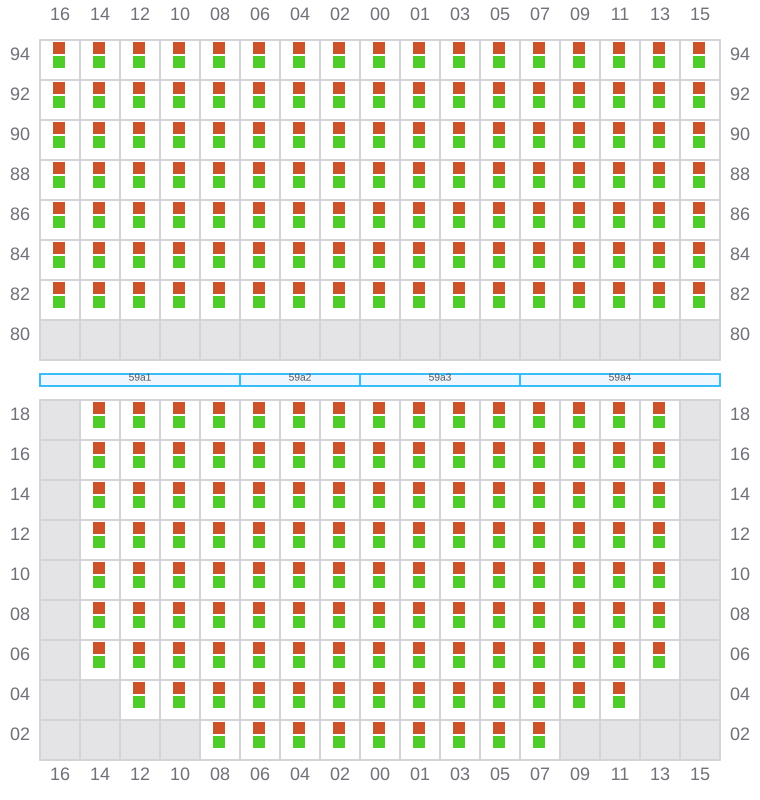

Bay 059 view and slots of CSCL AFRICA

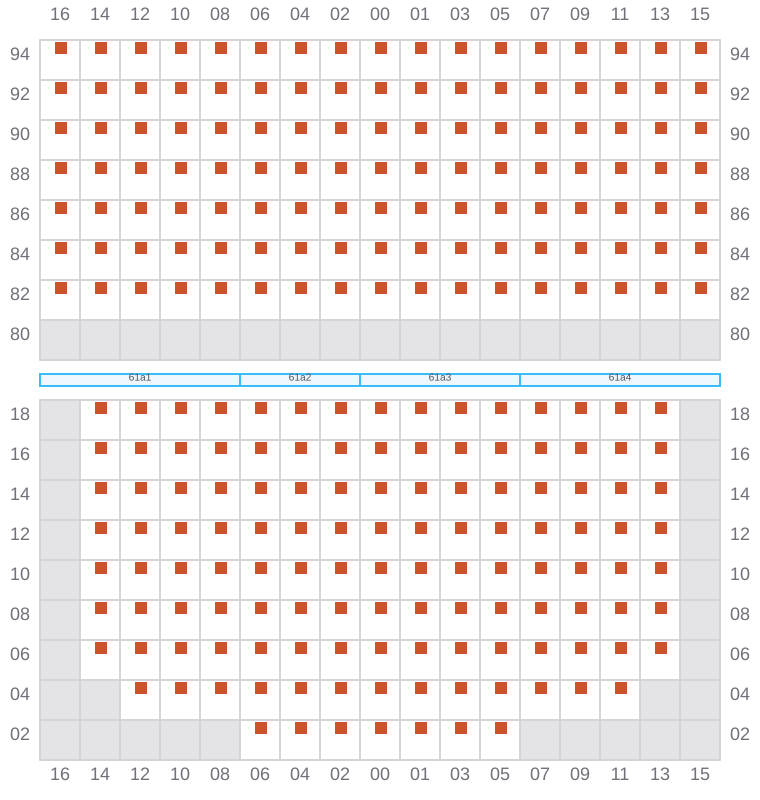

061

Bay 061 view and slots of CSCL AFRICA

063 (062)

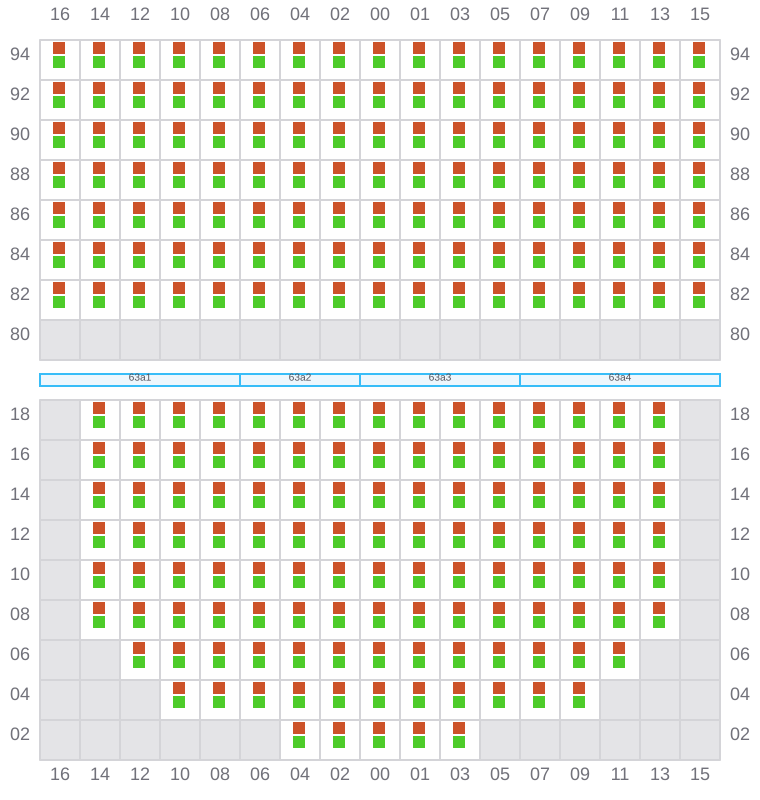

Bay 063 view and slots of CSCL AFRICA

065

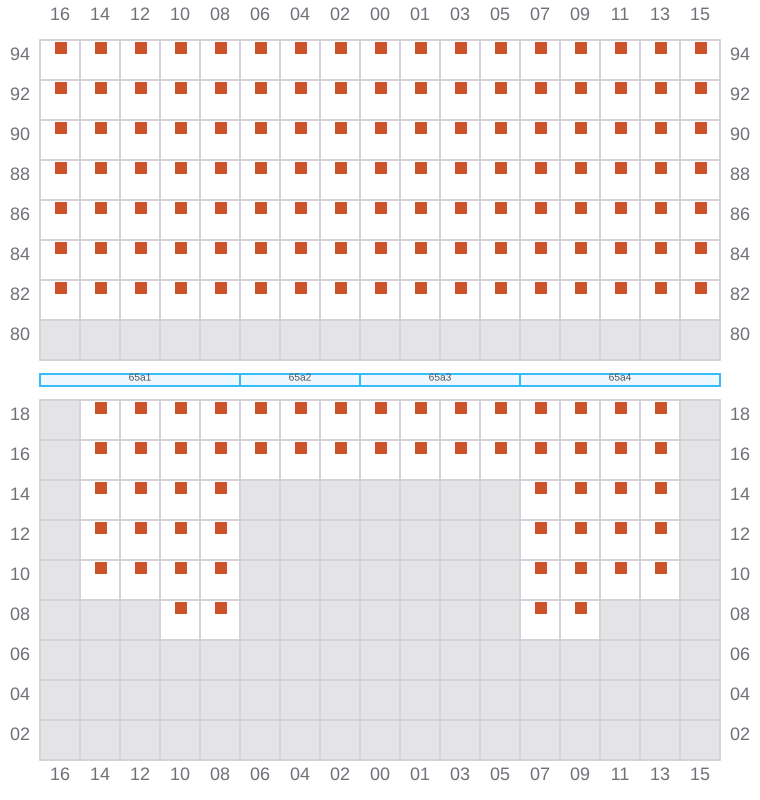

Bay 065 view and slots of CSCL AFRICA

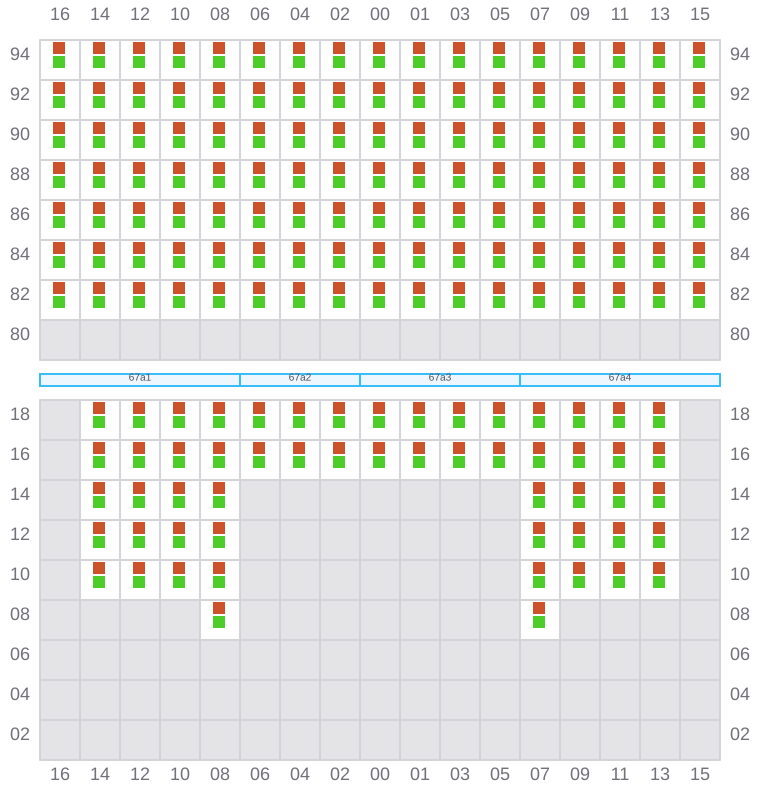

067 (066)

Bay 067 view and slots of CSCL AFRICA

069

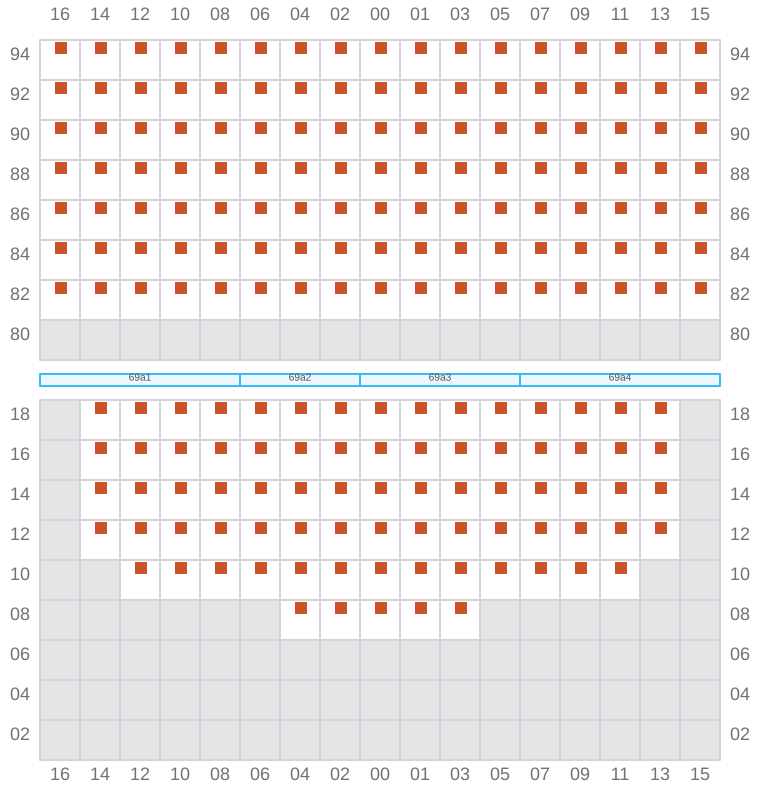

Bay 069 view and slots of CSCL AFRICA

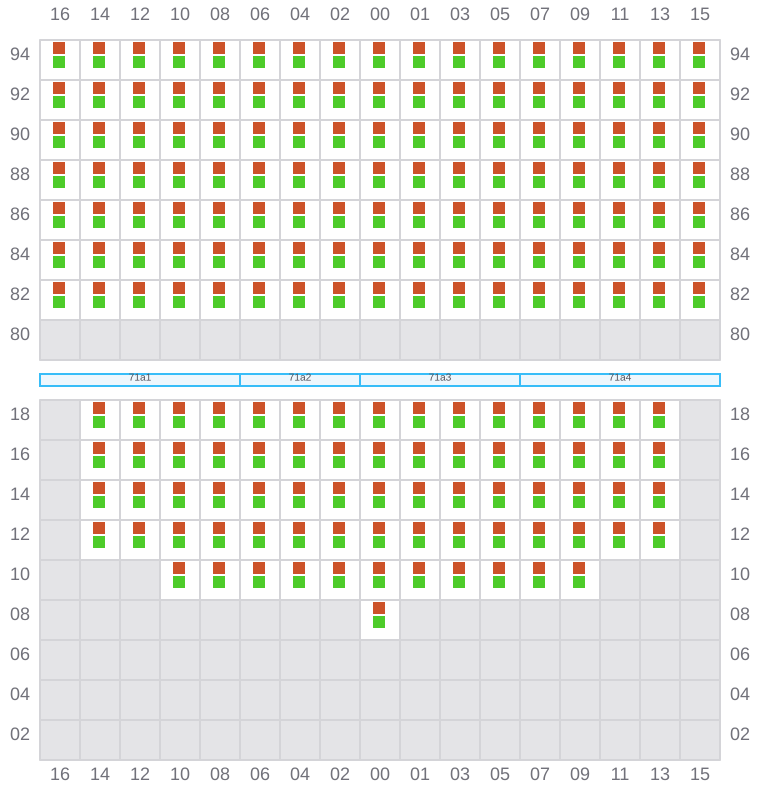

071 (070)

Bay 071 view and slots of CSCL AFRICA

073

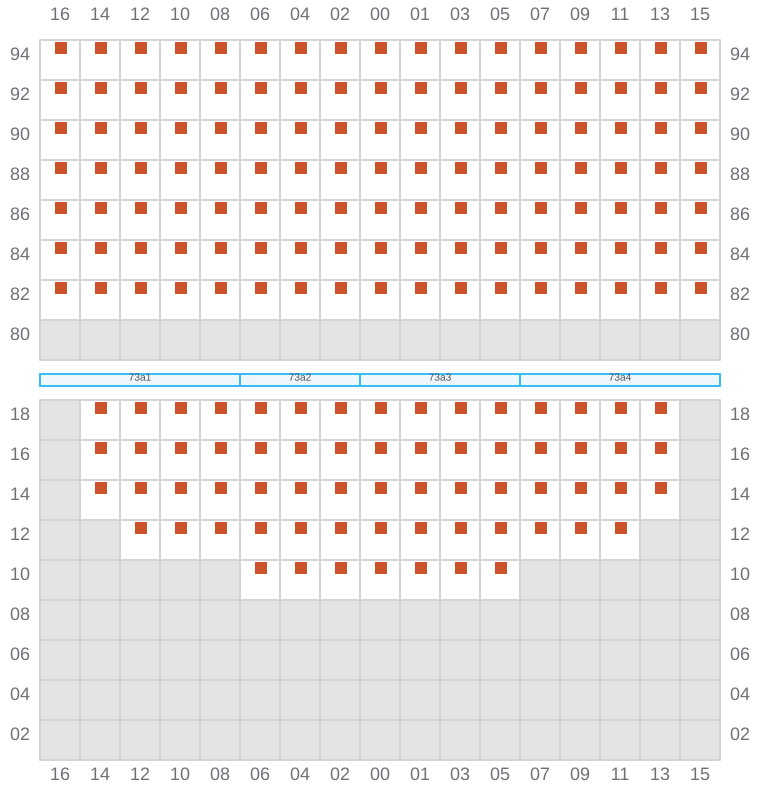

Bay 073 view and slots of CSCL AFRICA

075 (074)

Bay 075 view and slots of CSCL AFRICA

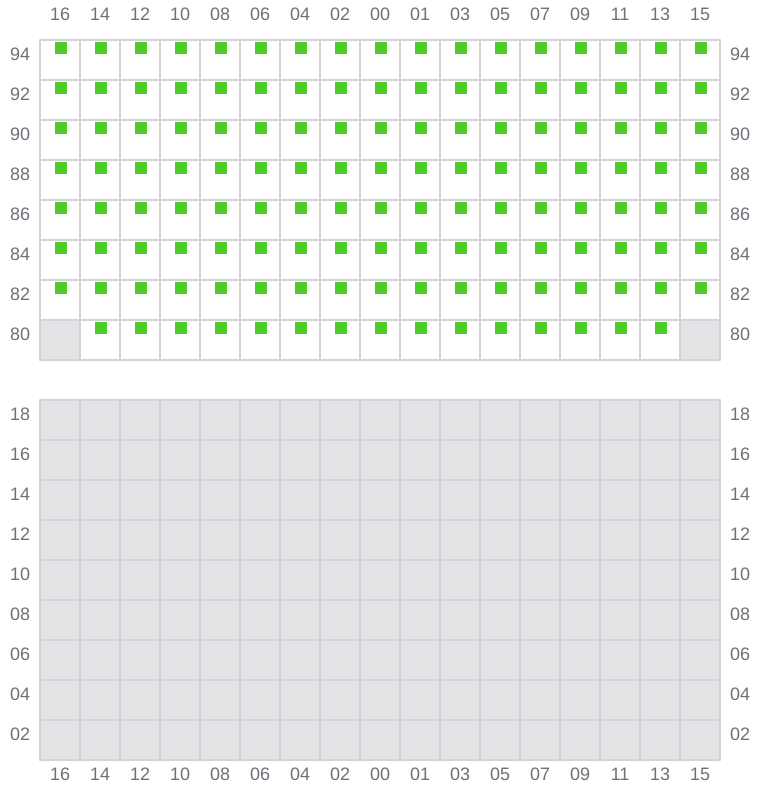

077 (078)

Bay 077 view and slots of CSCL AFRICA
