CSCL SOUTH CHINA SEA
9645920 | VRNT8 | 964592 by ********* Last update: Wed Jul 03 2024

General Info

Ship Name:CSCL SOUTH CHINA SEA
IMO Code:9645920
Call Sign:VRNT8
Line Operator:964592
Class Name for Sister Ships:CSCL
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:079
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:10,160

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

Side view of CSCL SOUTH CHINA SEA

Hatch-Covers View

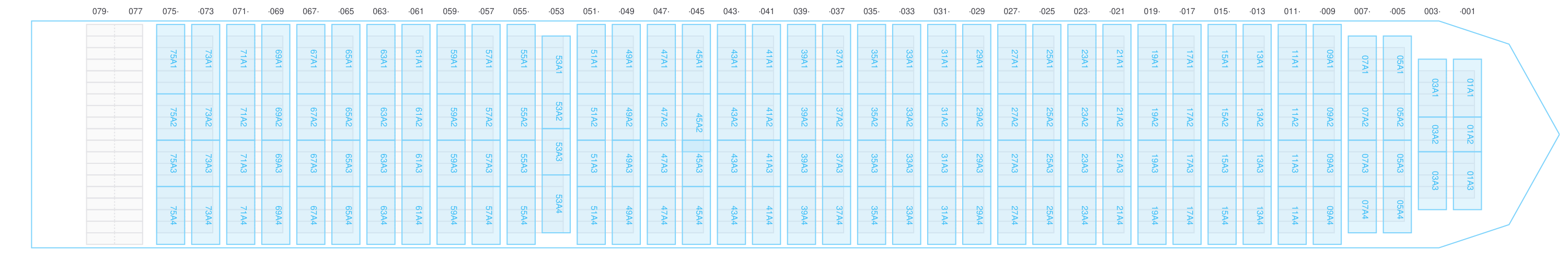

Deck view of CSCL SOUTH CHINA SEA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

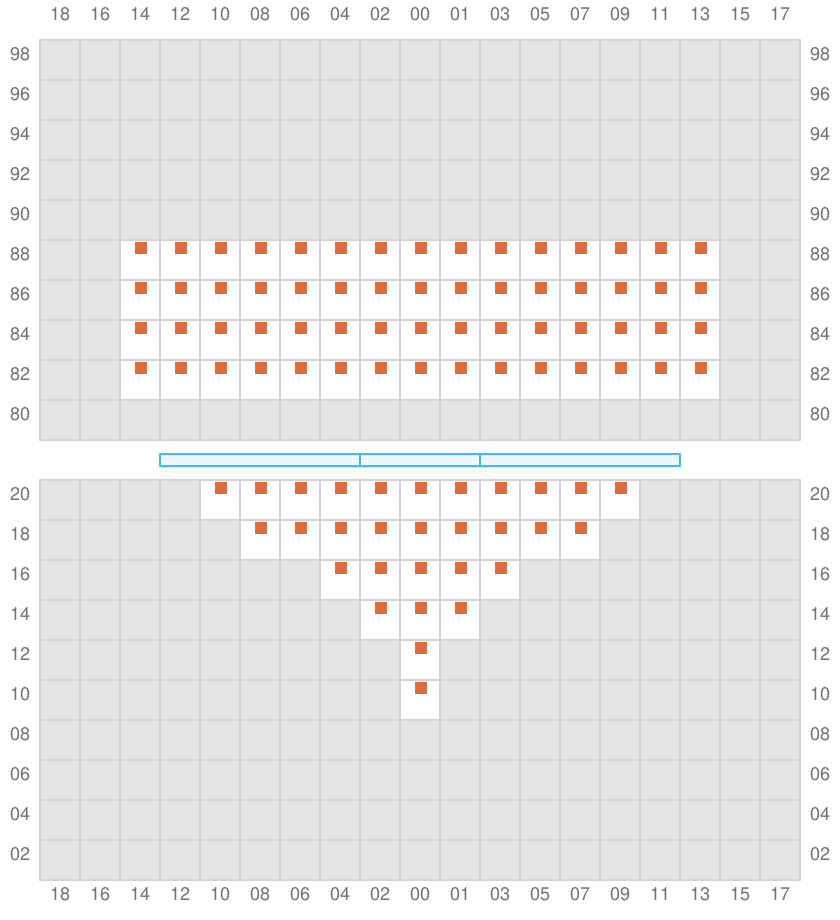

Bay 001 view and slots of CSCL SOUTH CHINA SEA

003 (002)

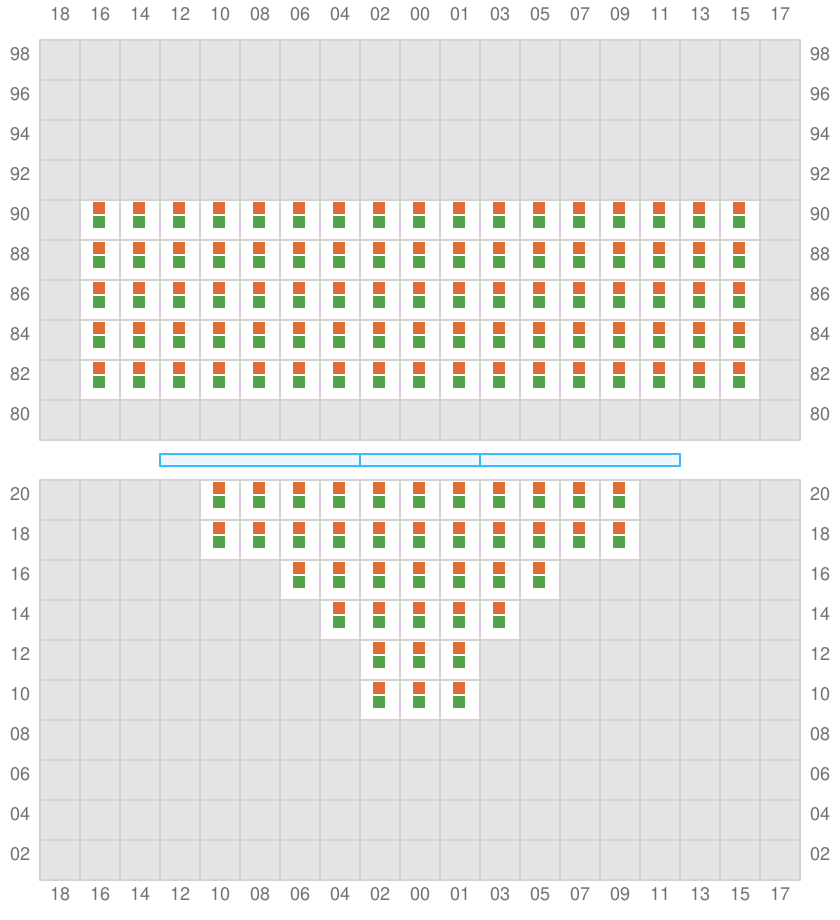

Bay 003 view and slots of CSCL SOUTH CHINA SEA

005

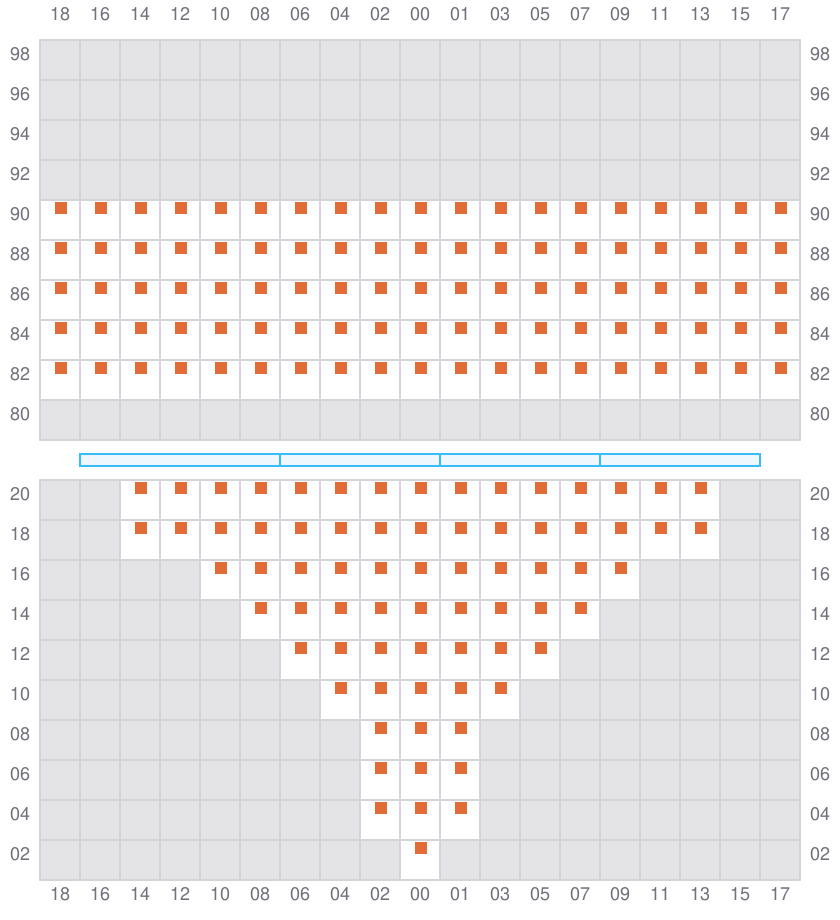

Bay 005 view and slots of CSCL SOUTH CHINA SEA

007 (006)

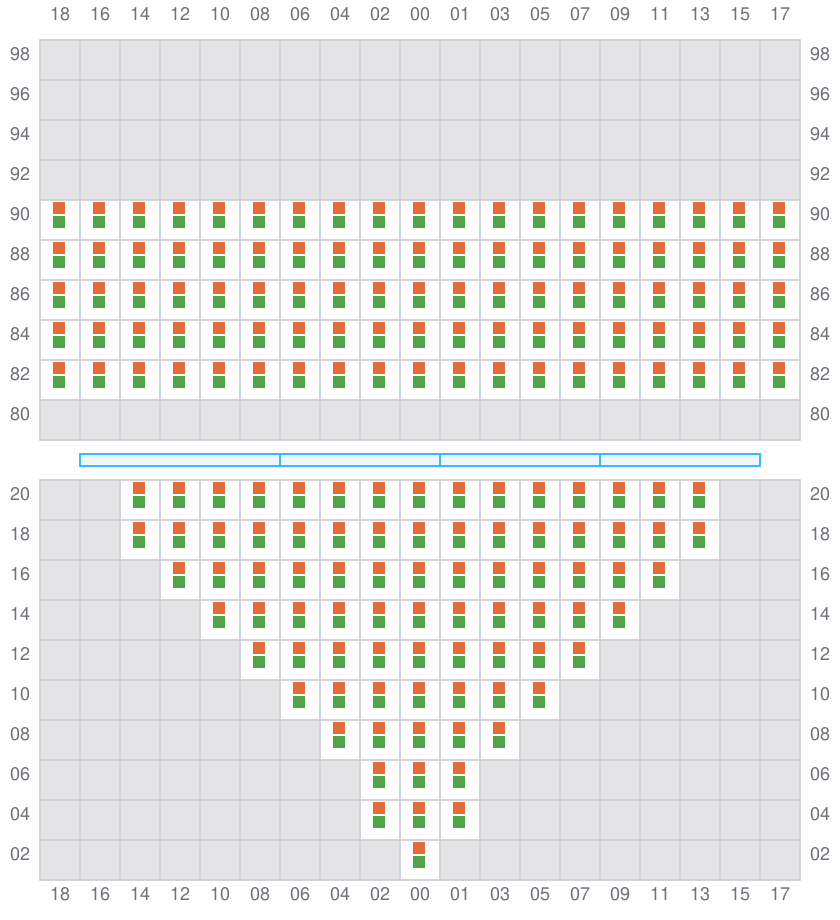

Bay 007 view and slots of CSCL SOUTH CHINA SEA

009

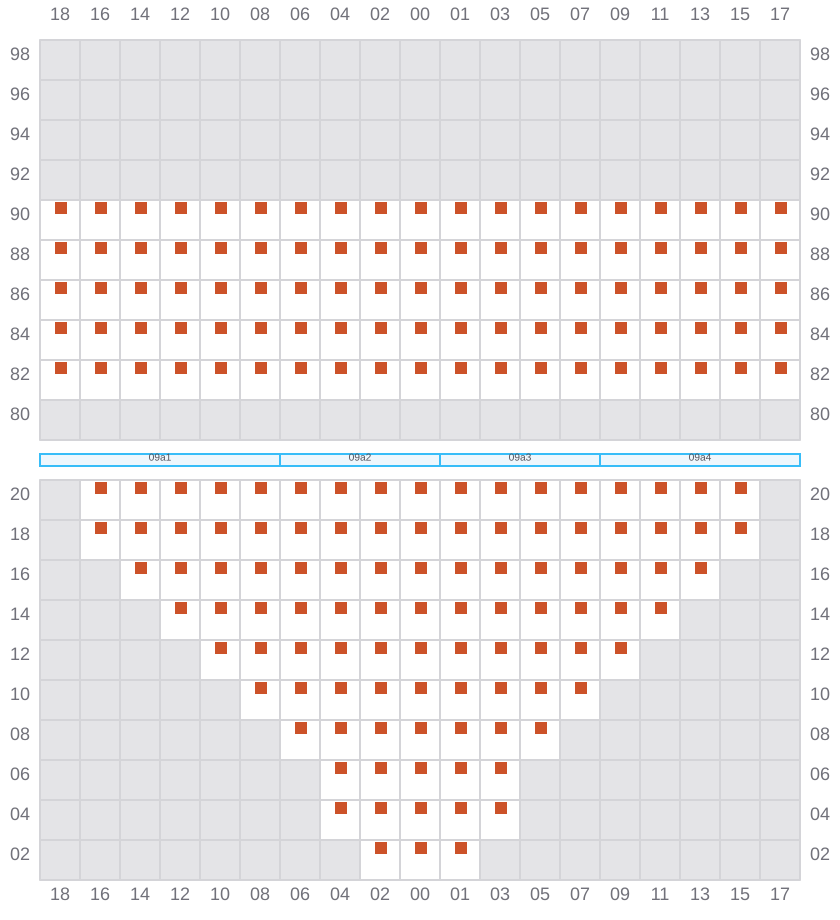

Bay 009 view and slots of CSCL SOUTH CHINA SEA

011 (010)

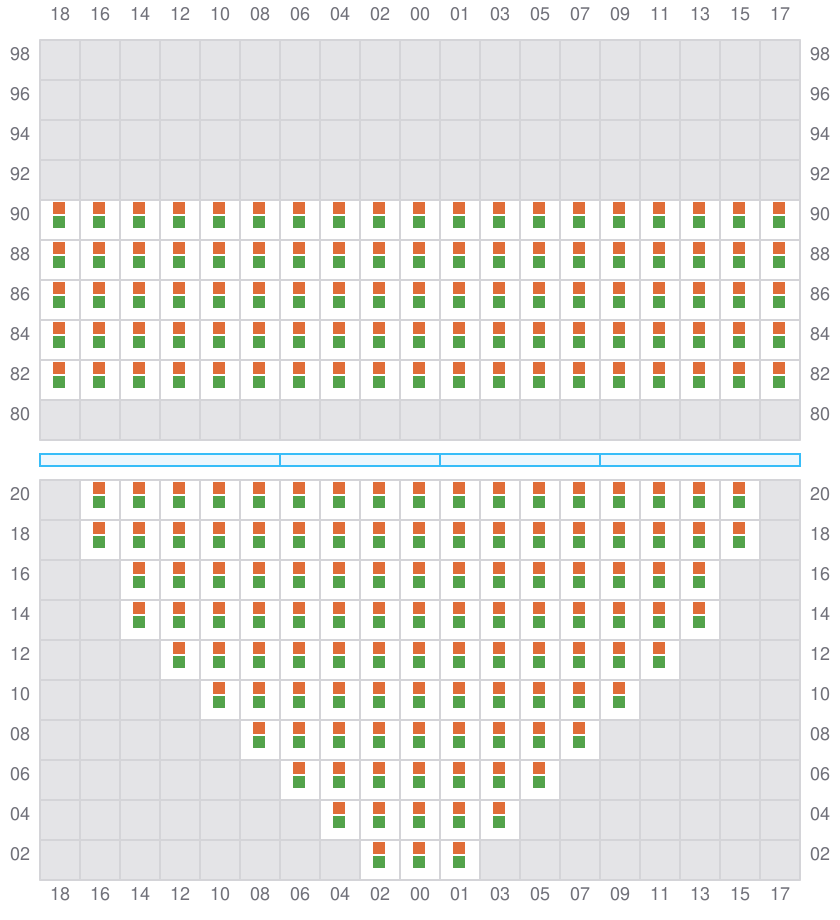

Bay 011 view and slots of CSCL SOUTH CHINA SEA

013

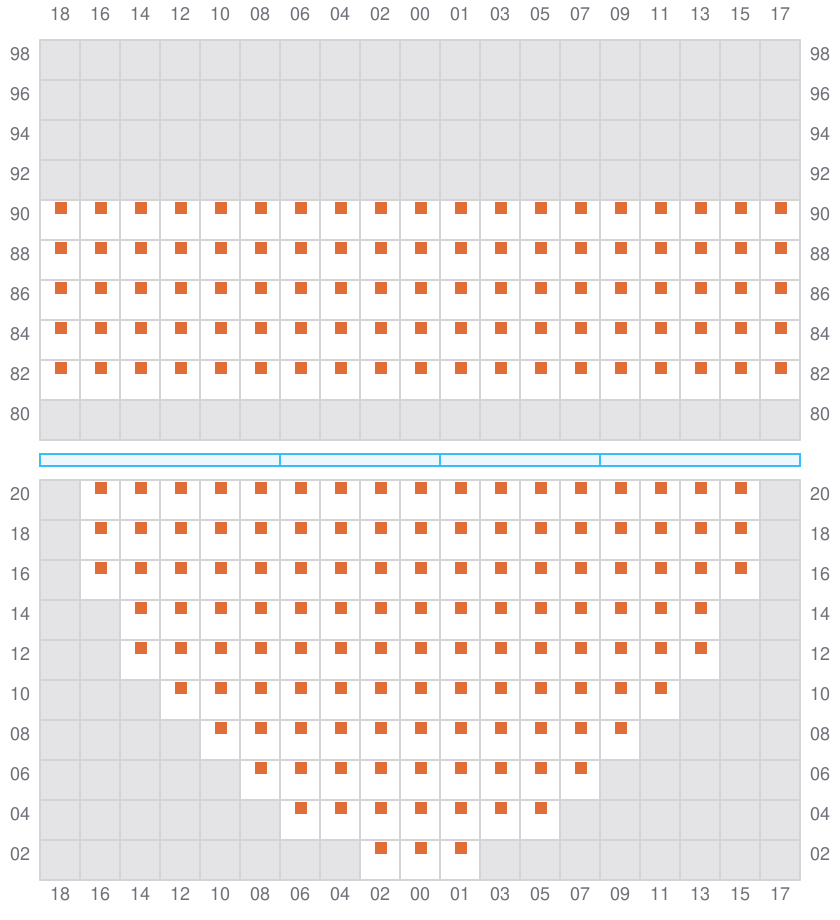

Bay 013 view and slots of CSCL SOUTH CHINA SEA

015 (014)

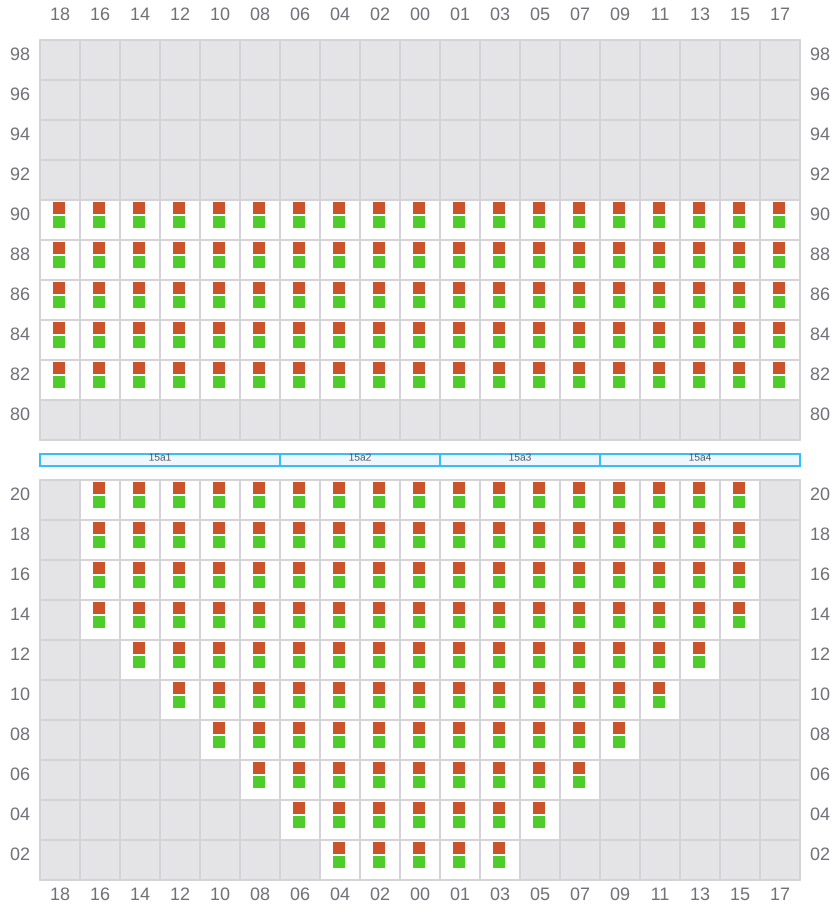

Bay 015 view and slots of CSCL SOUTH CHINA SEA

017

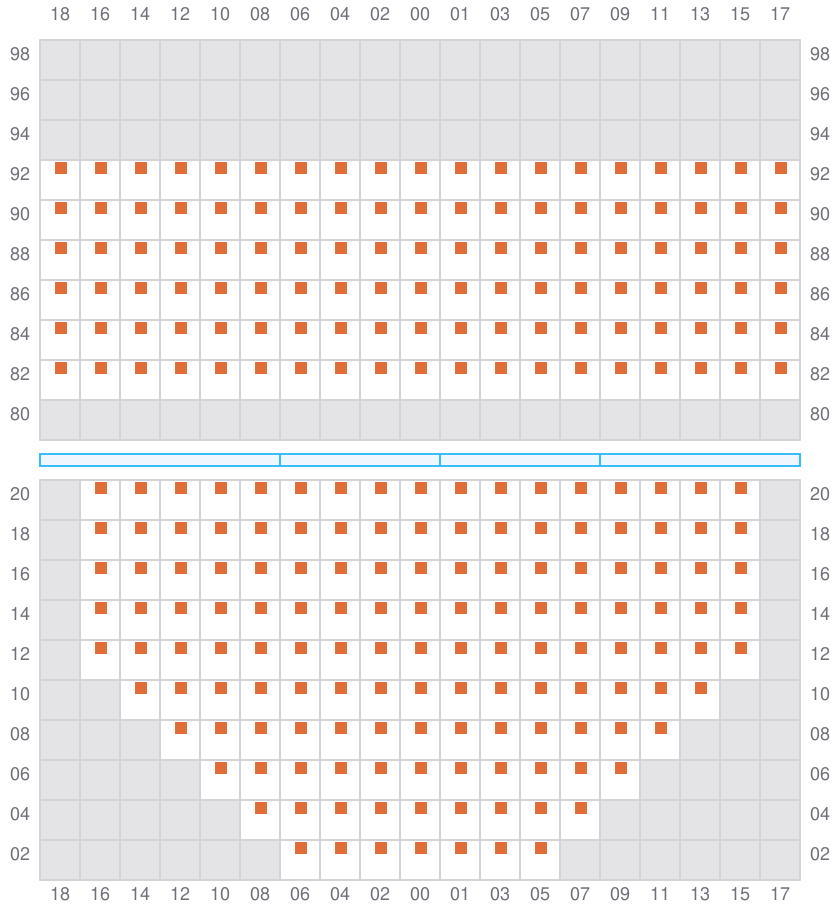

Bay 017 view and slots of CSCL SOUTH CHINA SEA

019 (018)

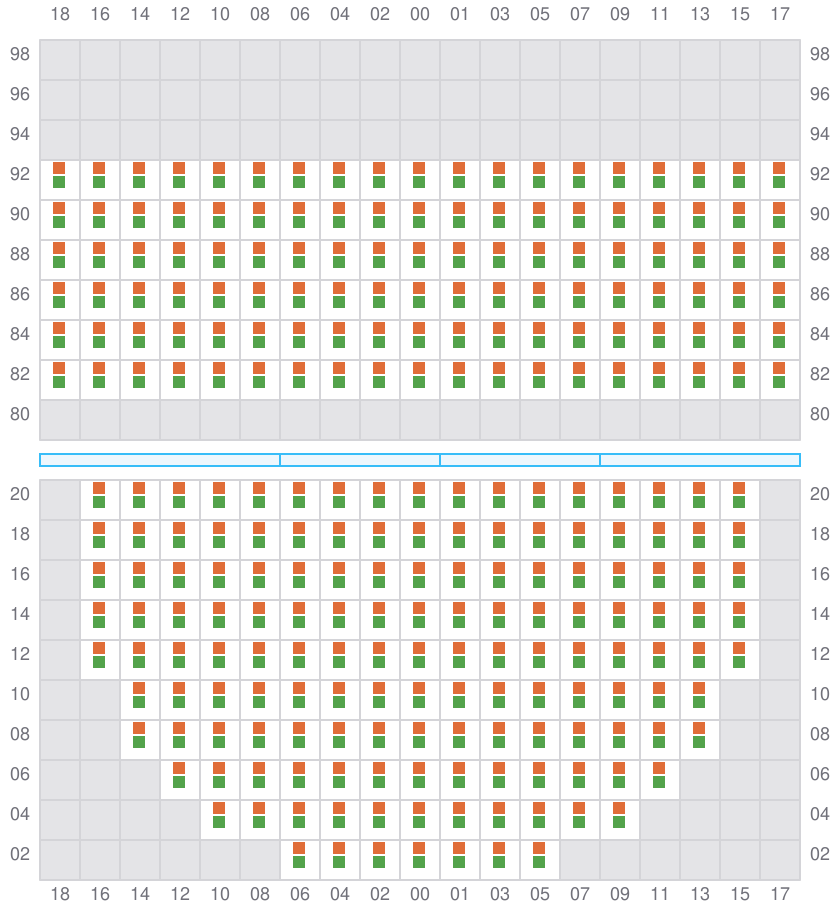

Bay 019 view and slots of CSCL SOUTH CHINA SEA

021

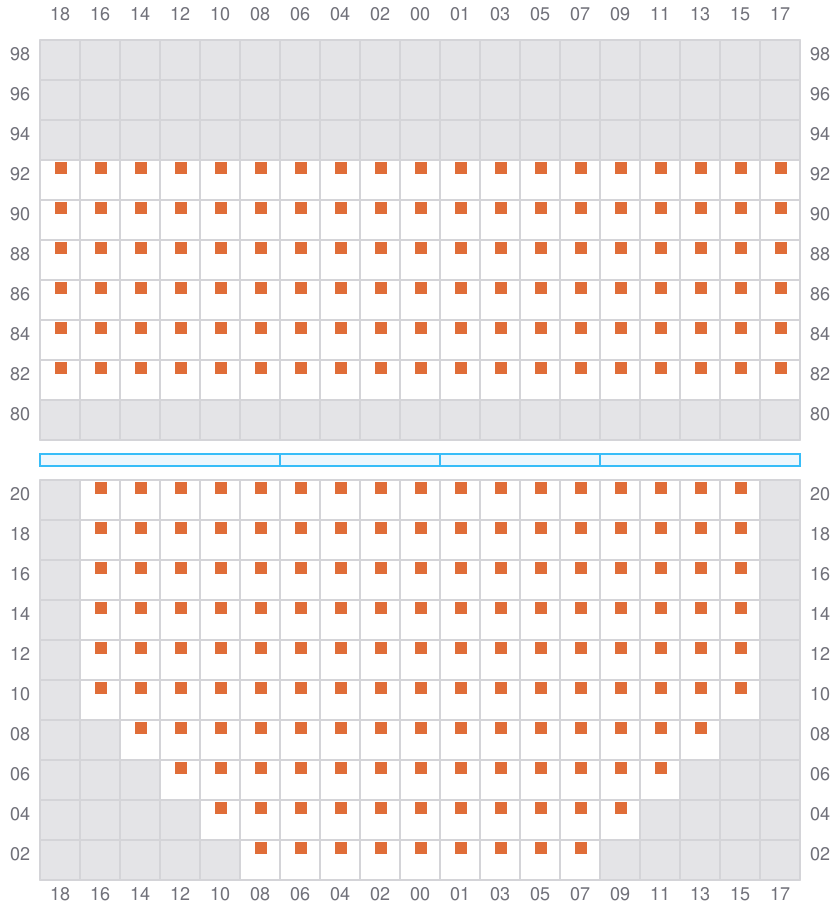

Bay 021 view and slots of CSCL SOUTH CHINA SEA

023 (022)

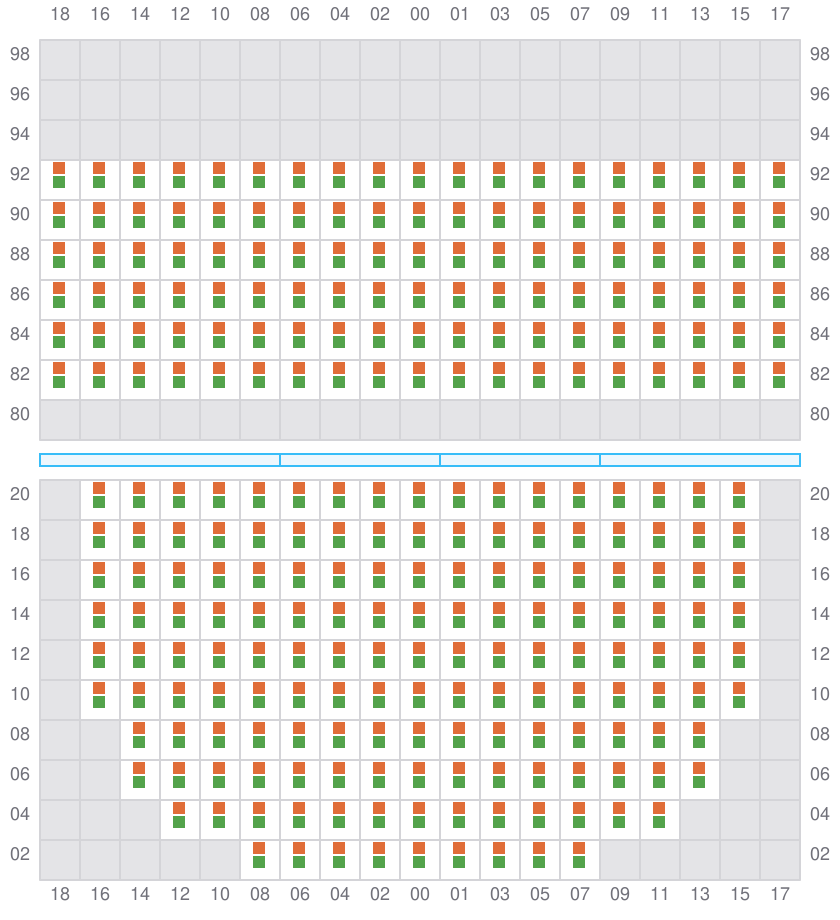

Bay 023 view and slots of CSCL SOUTH CHINA SEA

025

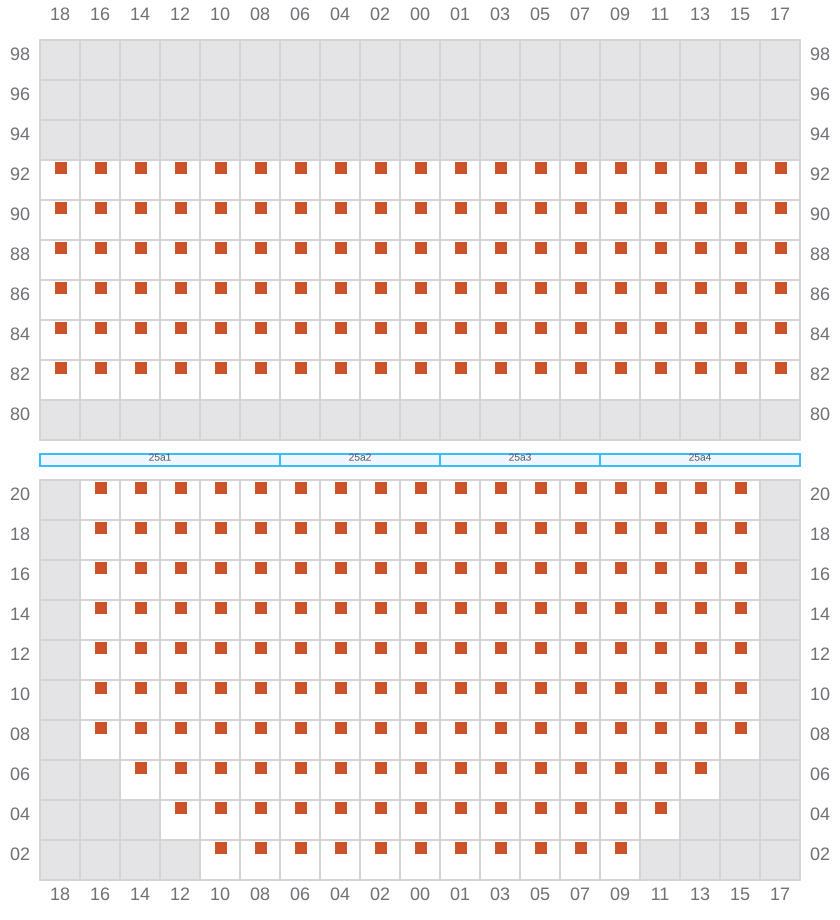

Bay 025 view and slots of CSCL SOUTH CHINA SEA

027 (026)

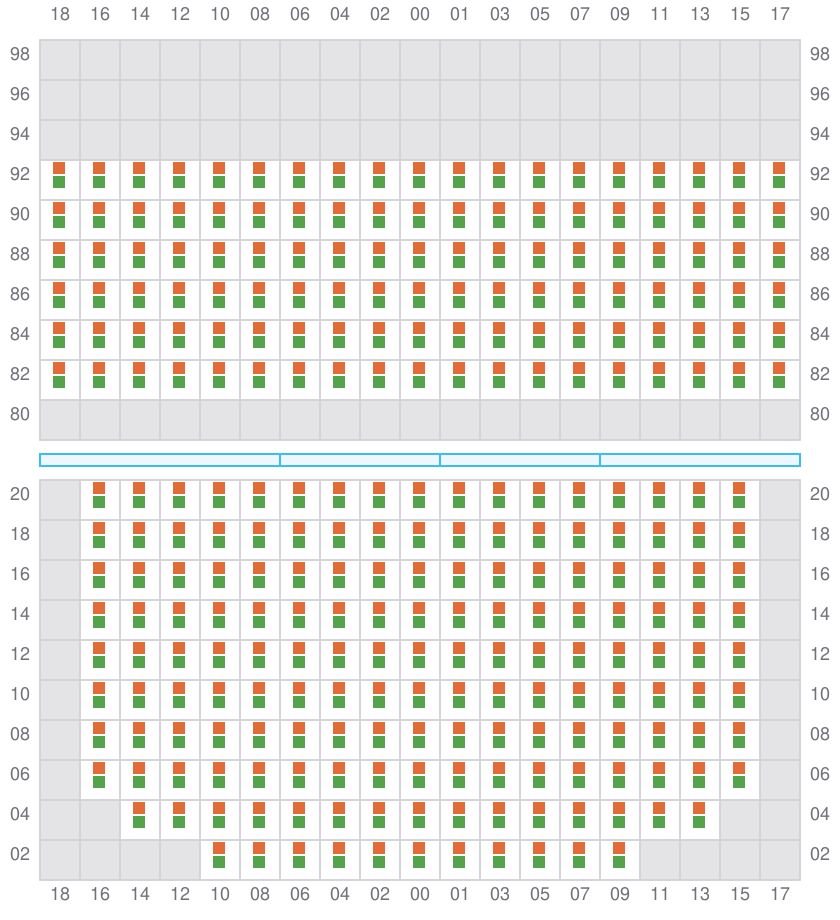

Bay 027 view and slots of CSCL SOUTH CHINA SEA

029

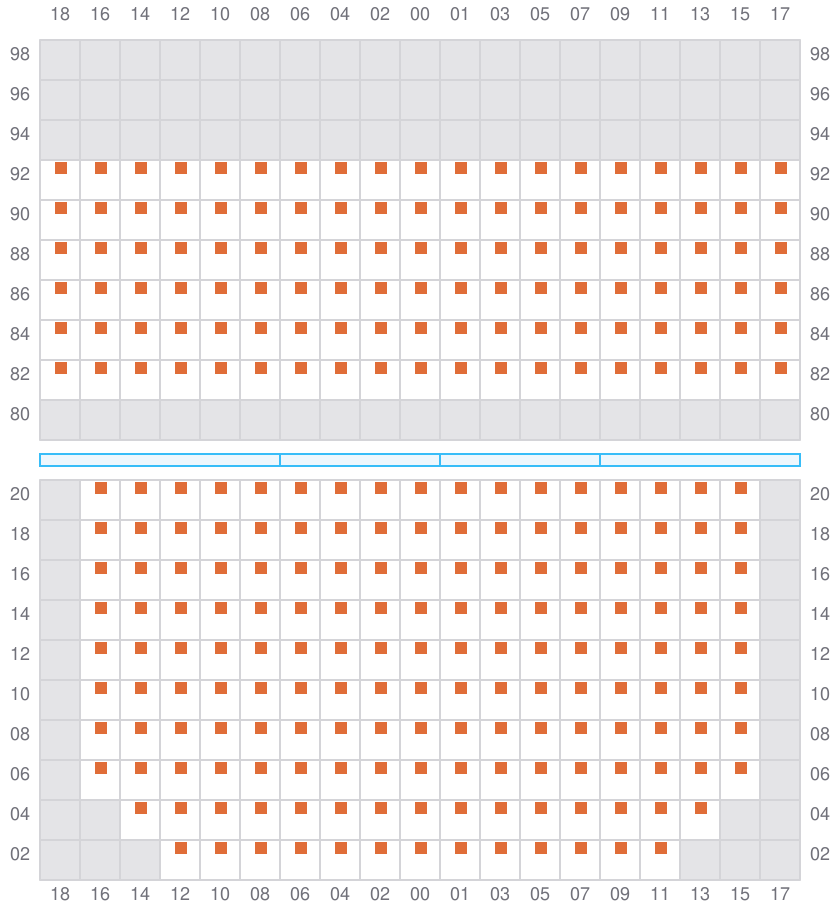

Bay 029 view and slots of CSCL SOUTH CHINA SEA

031 (030)

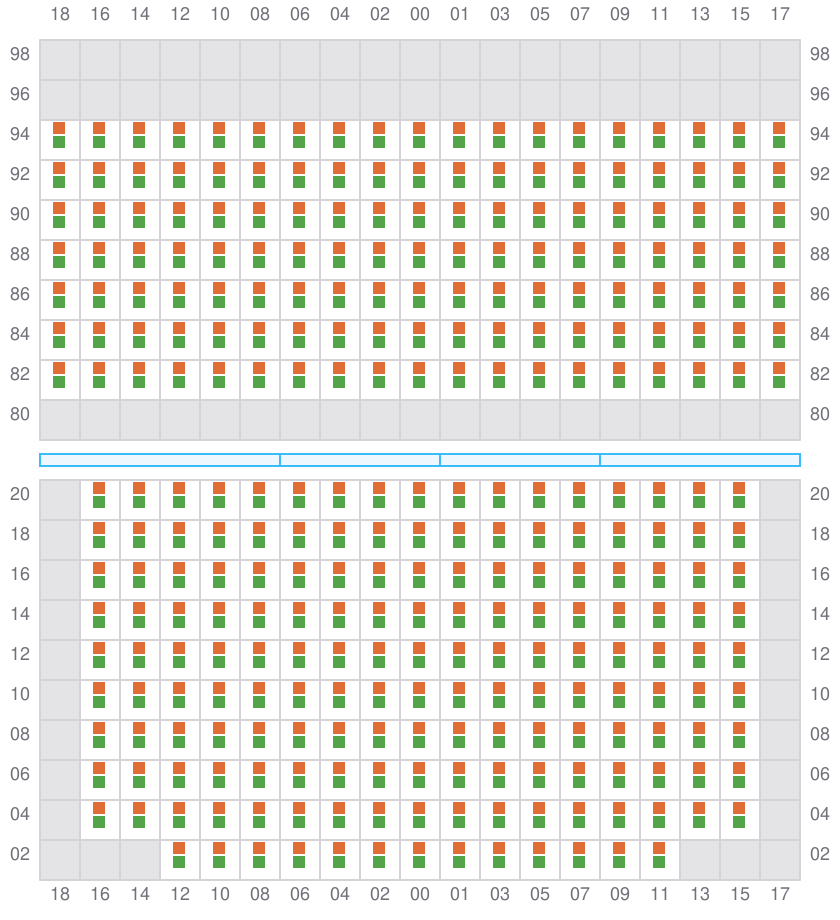

Bay 031 view and slots of CSCL SOUTH CHINA SEA

033

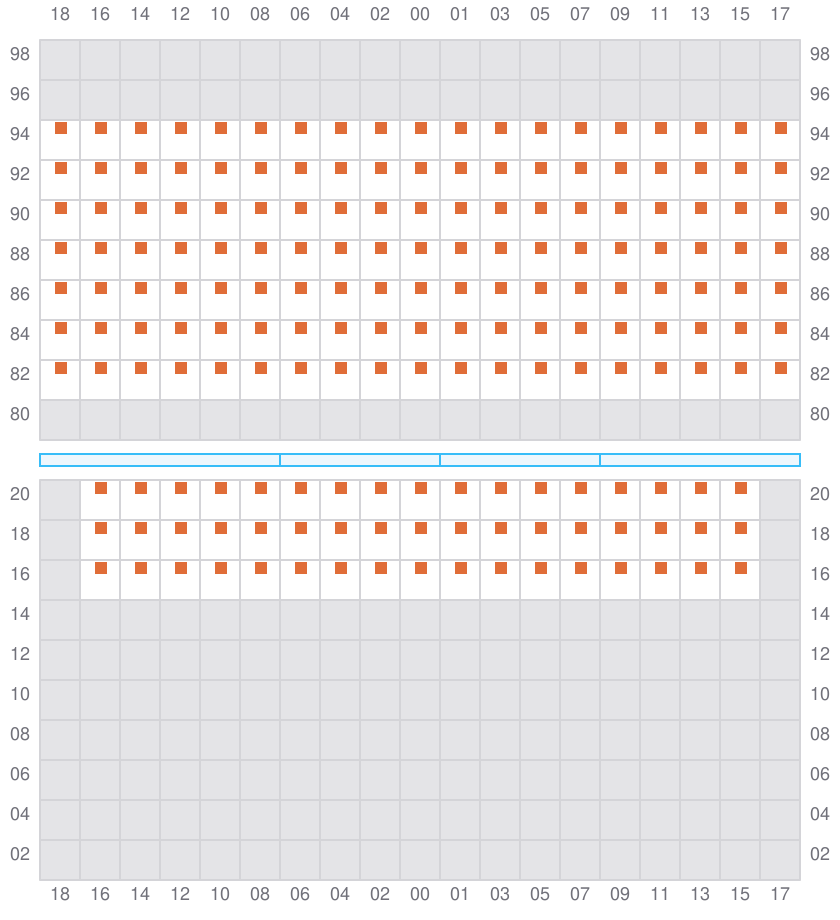

Bay 033 view and slots of CSCL SOUTH CHINA SEA

035 (034)

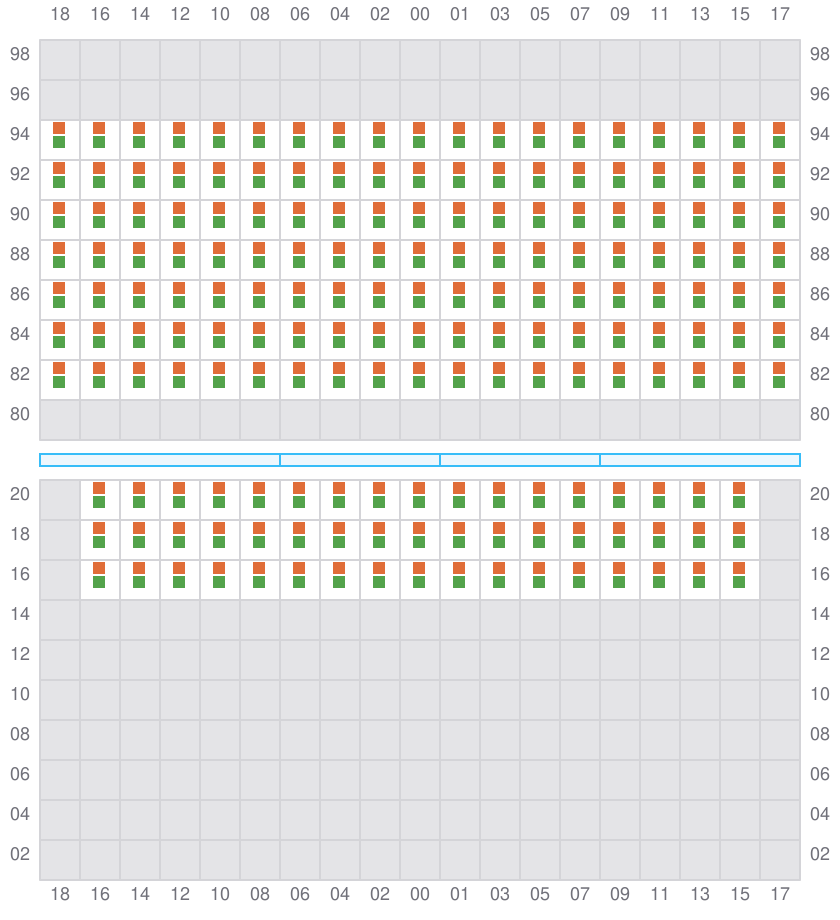

Bay 035 view and slots of CSCL SOUTH CHINA SEA

037

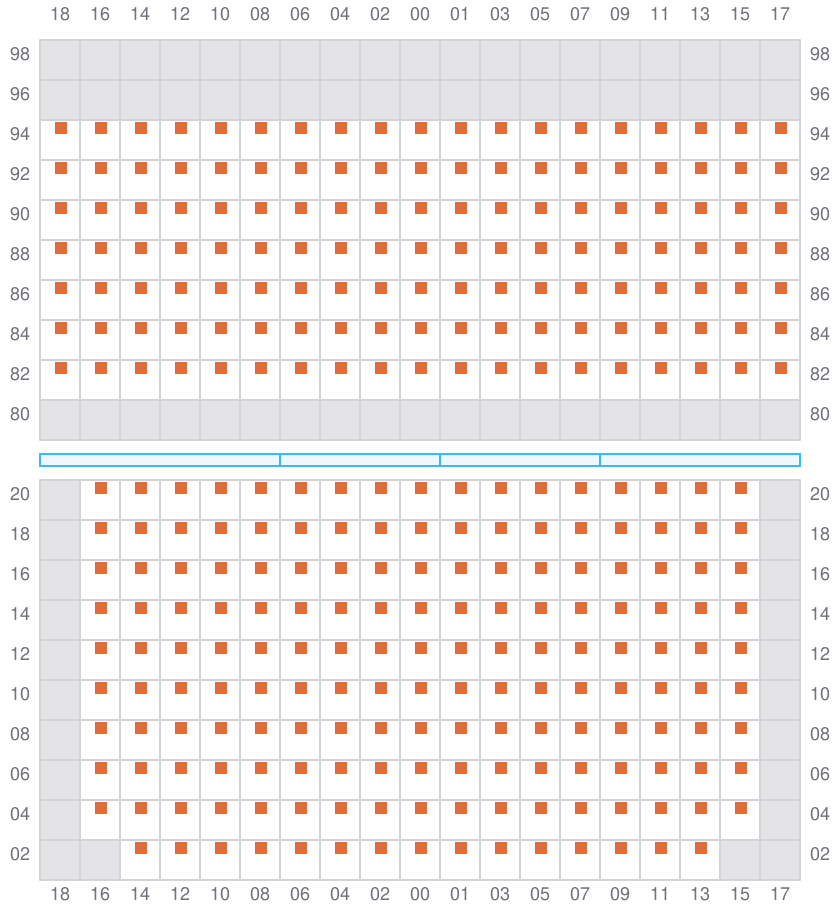

Bay 037 view and slots of CSCL SOUTH CHINA SEA

039 (038)

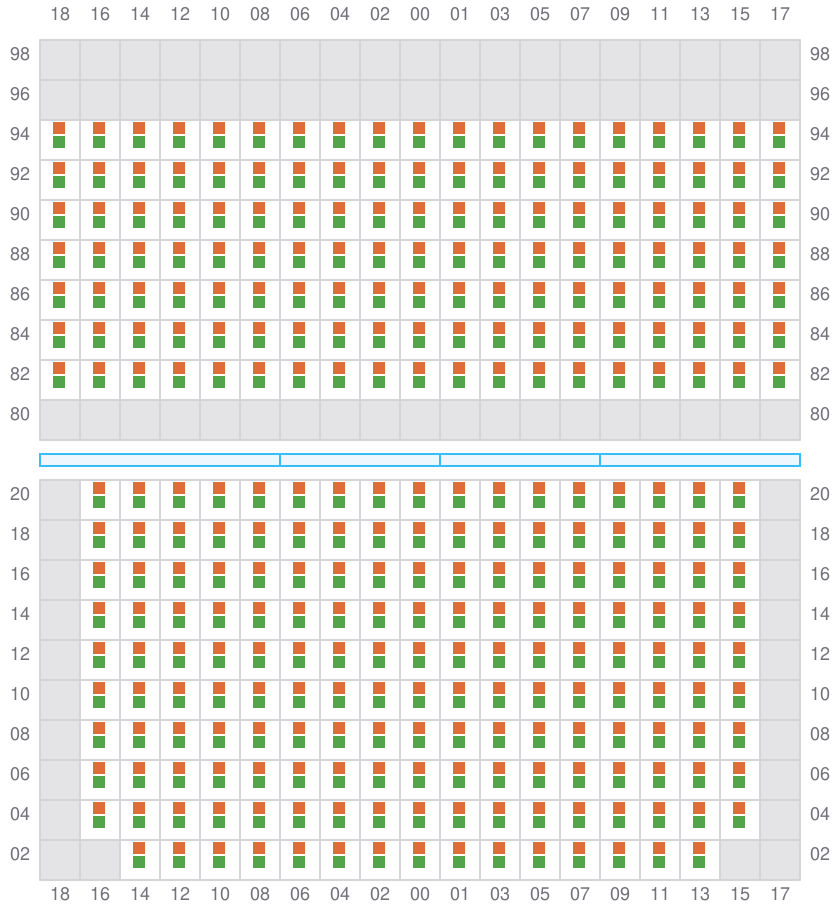

Bay 039 view and slots of CSCL SOUTH CHINA SEA

041

Bay 041 view and slots of CSCL SOUTH CHINA SEA

043 (042)

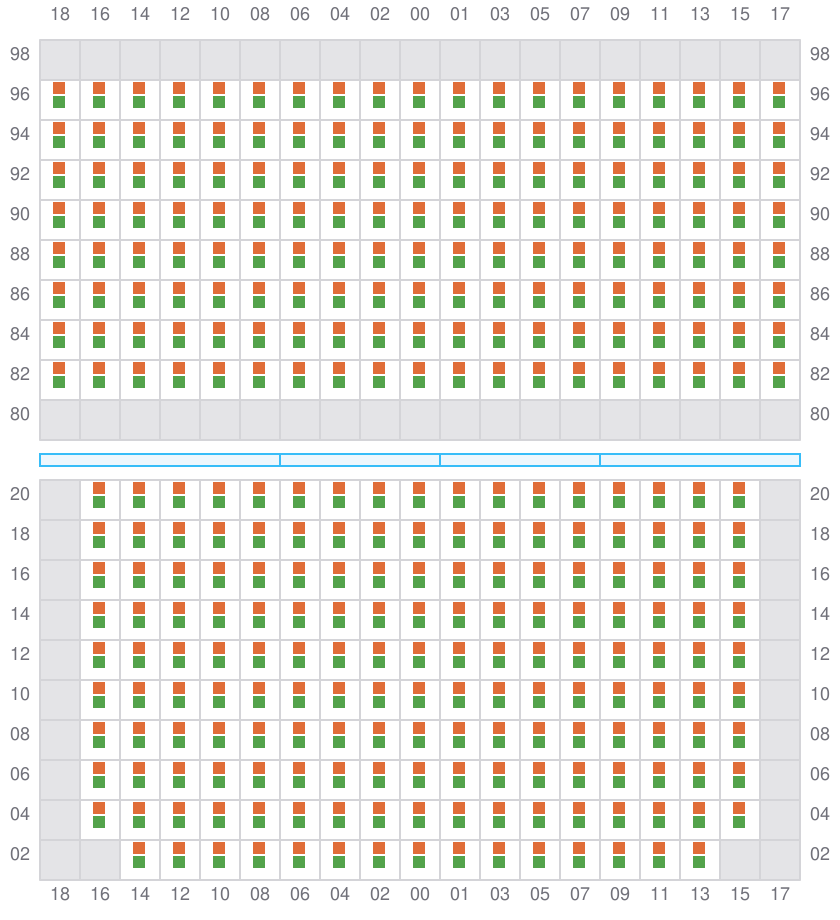

Bay 043 view and slots of CSCL SOUTH CHINA SEA

045

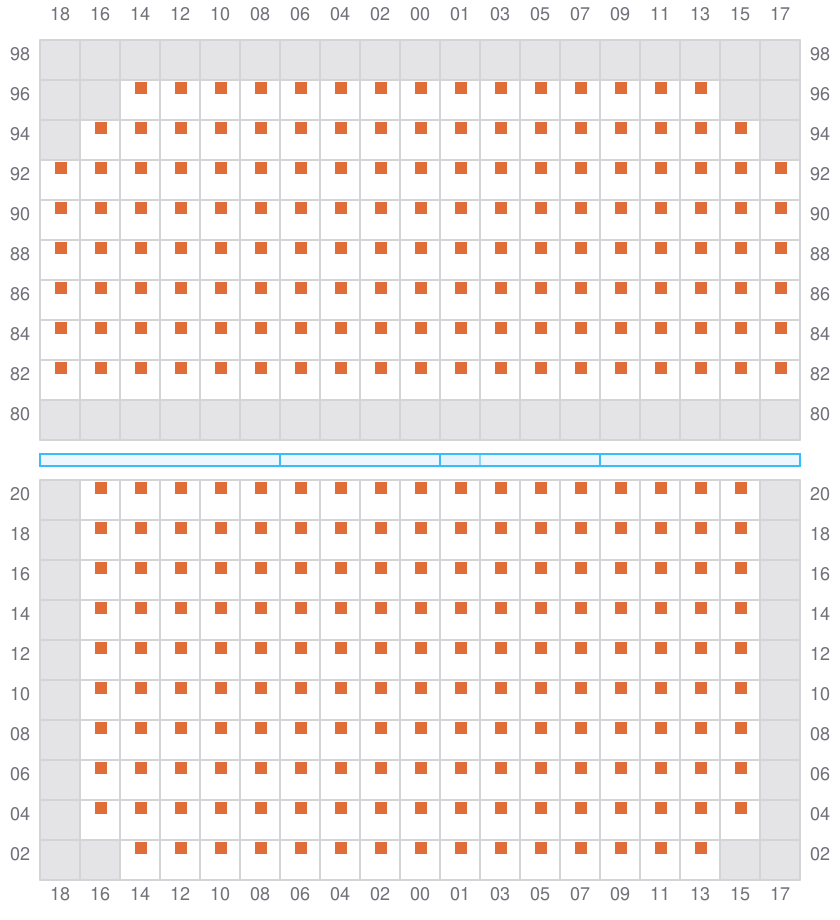

Bay 045 view and slots of CSCL SOUTH CHINA SEA

047 (046)

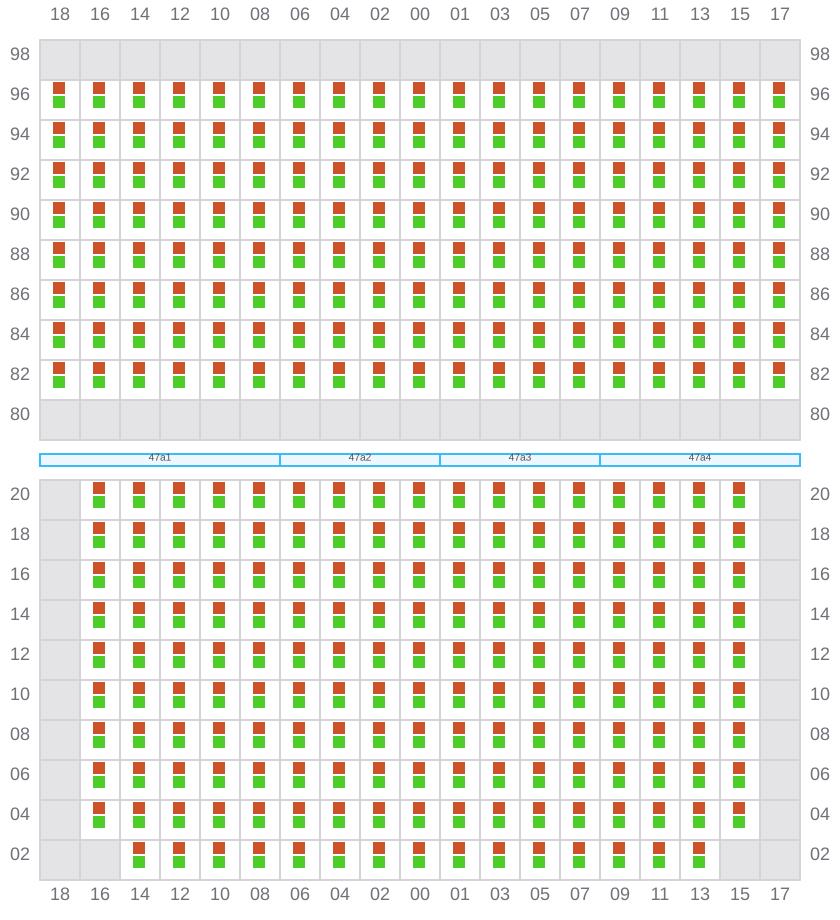

Bay 047 view and slots of CSCL SOUTH CHINA SEA

049

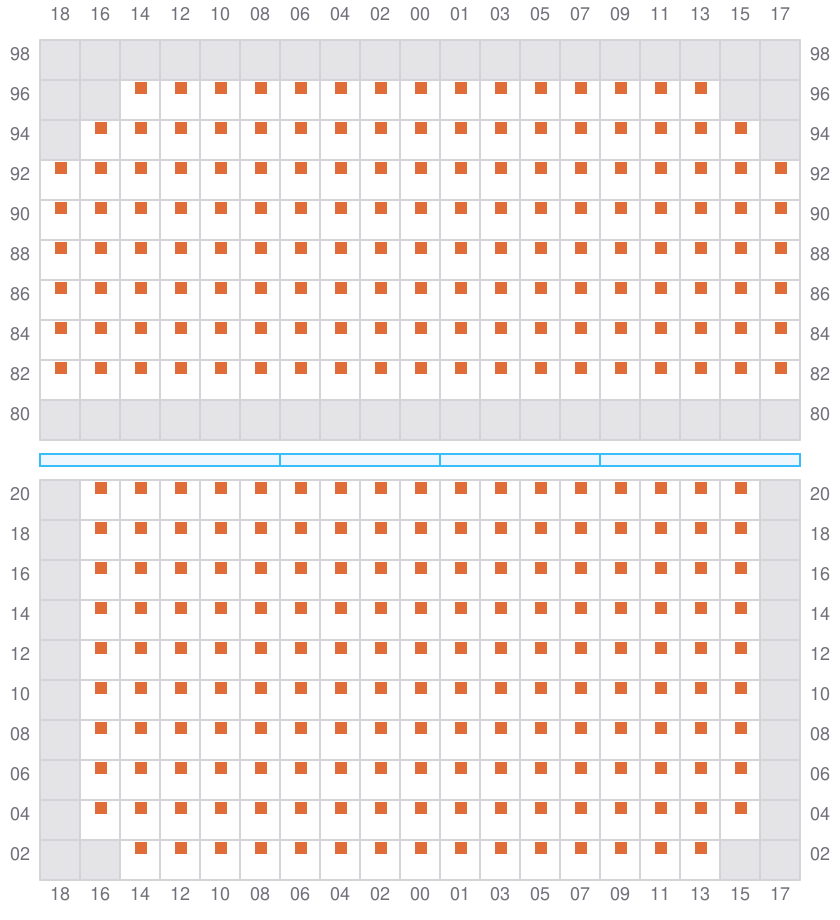

Bay 049 view and slots of CSCL SOUTH CHINA SEA

051 (050)

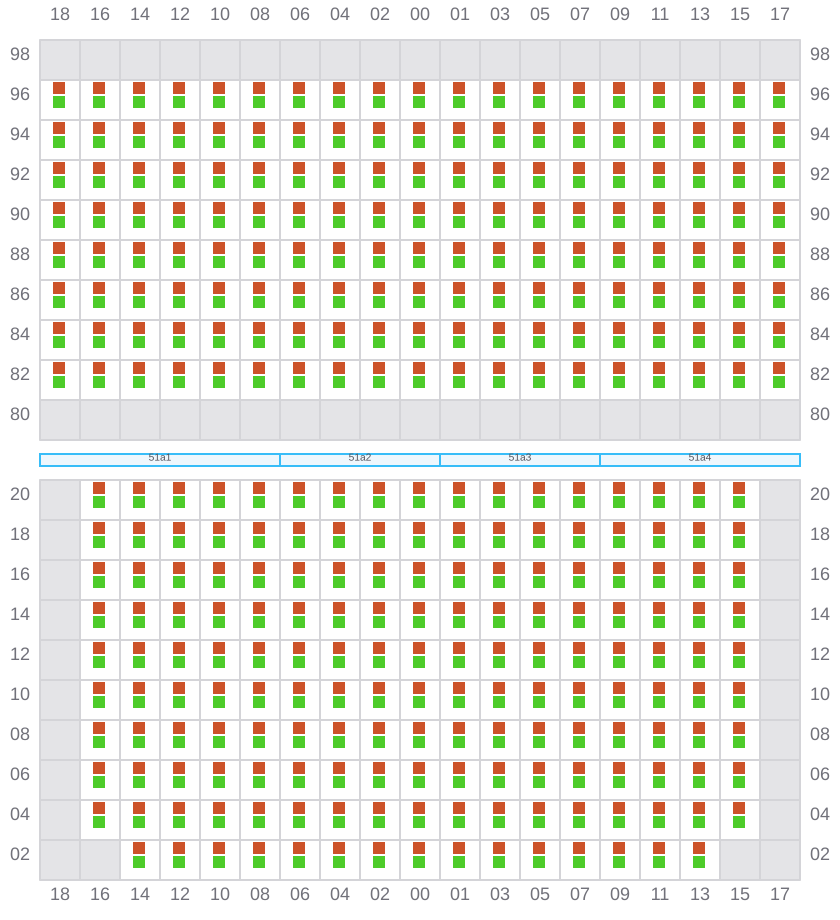

Bay 051 view and slots of CSCL SOUTH CHINA SEA

053

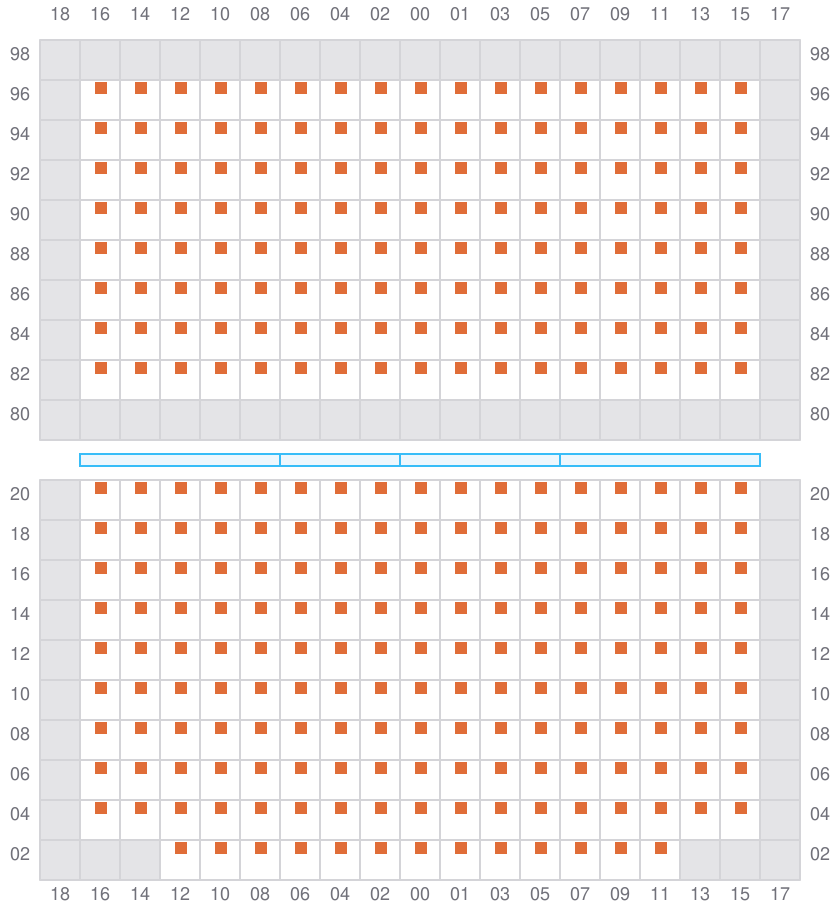

Bay 053 view and slots of CSCL SOUTH CHINA SEA

055 (054)

Bay 055 view and slots of CSCL SOUTH CHINA SEA

057

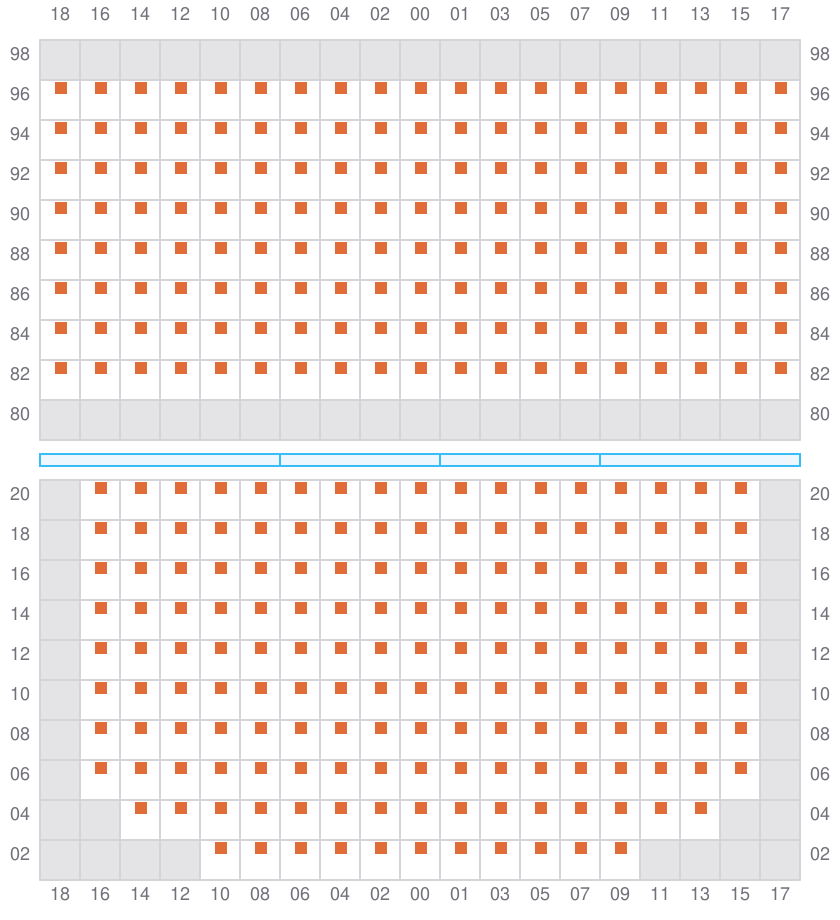

Bay 057 view and slots of CSCL SOUTH CHINA SEA

059 (058)

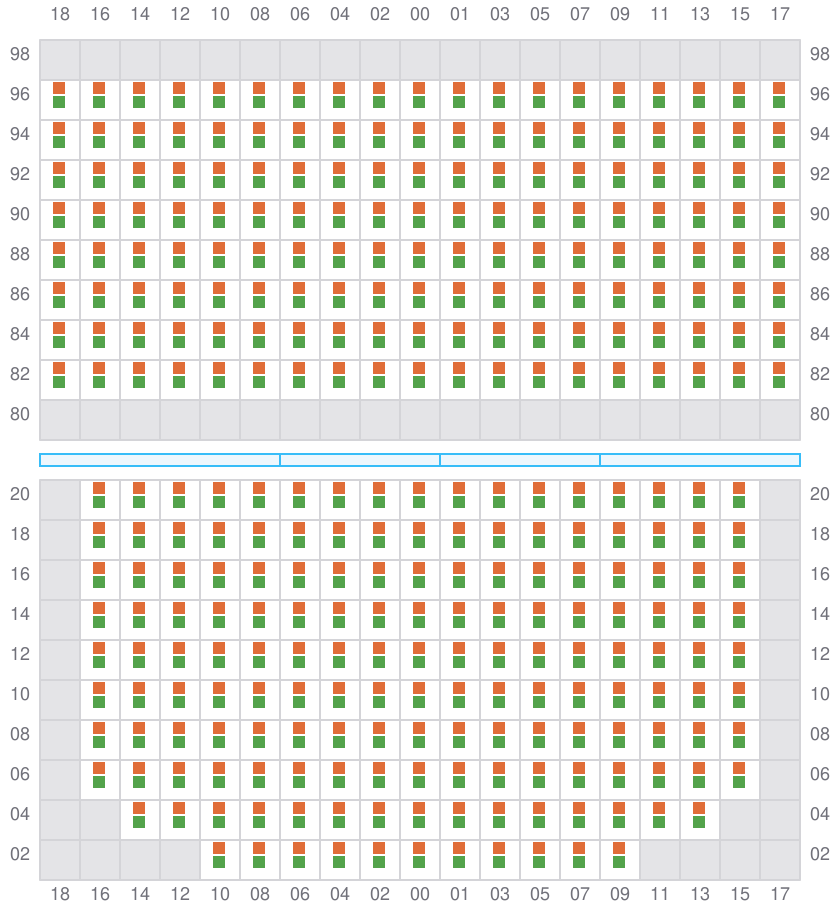

Bay 059 view and slots of CSCL SOUTH CHINA SEA

061

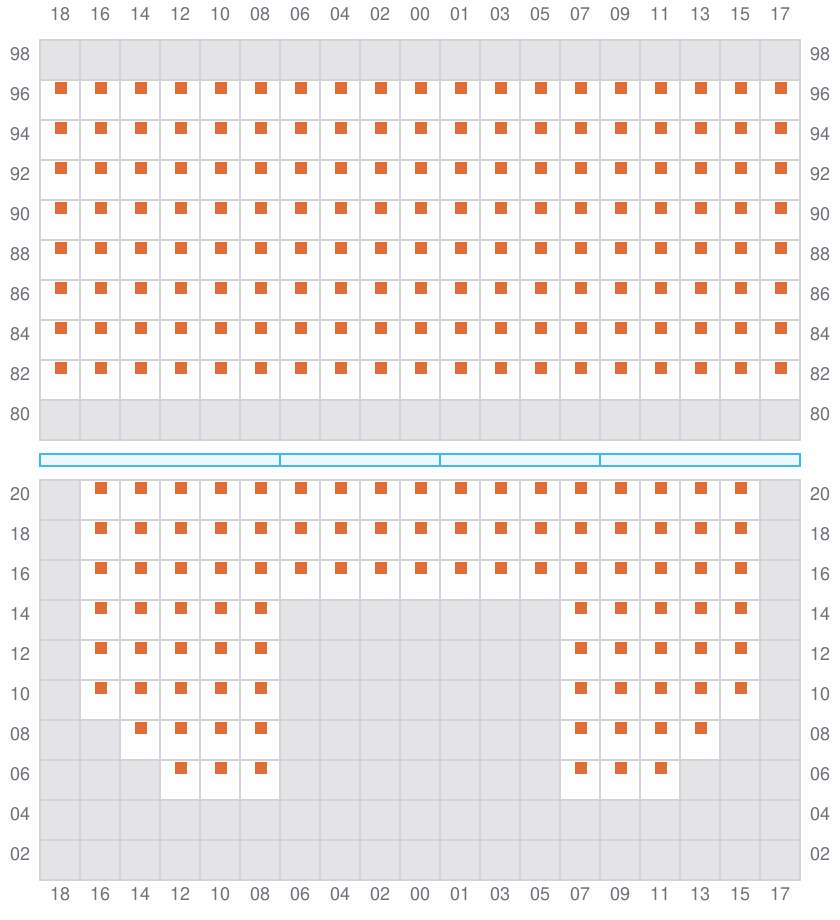

Bay 061 view and slots of CSCL SOUTH CHINA SEA

063 (062)

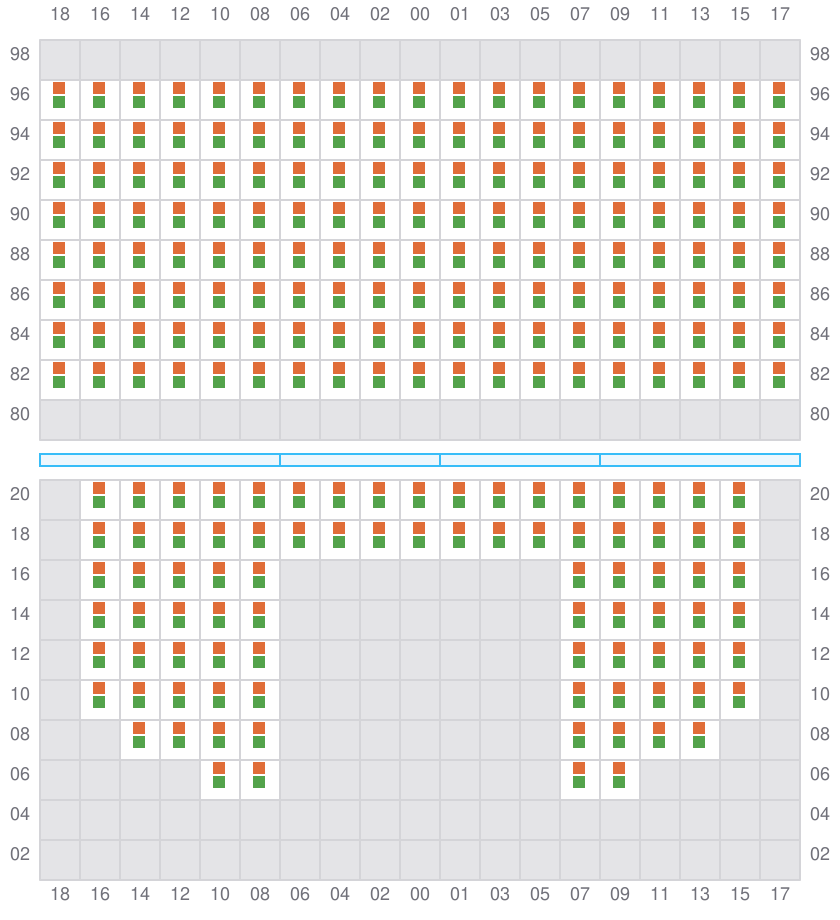

Bay 063 view and slots of CSCL SOUTH CHINA SEA

065

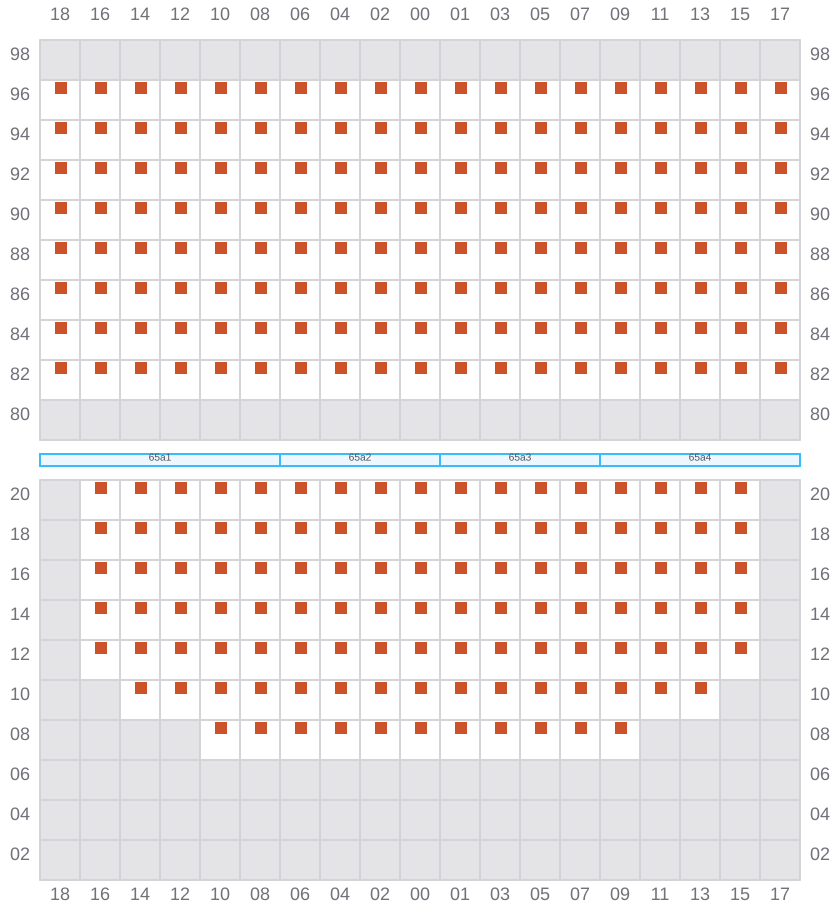

Bay 065 view and slots of CSCL SOUTH CHINA SEA

067 (066)

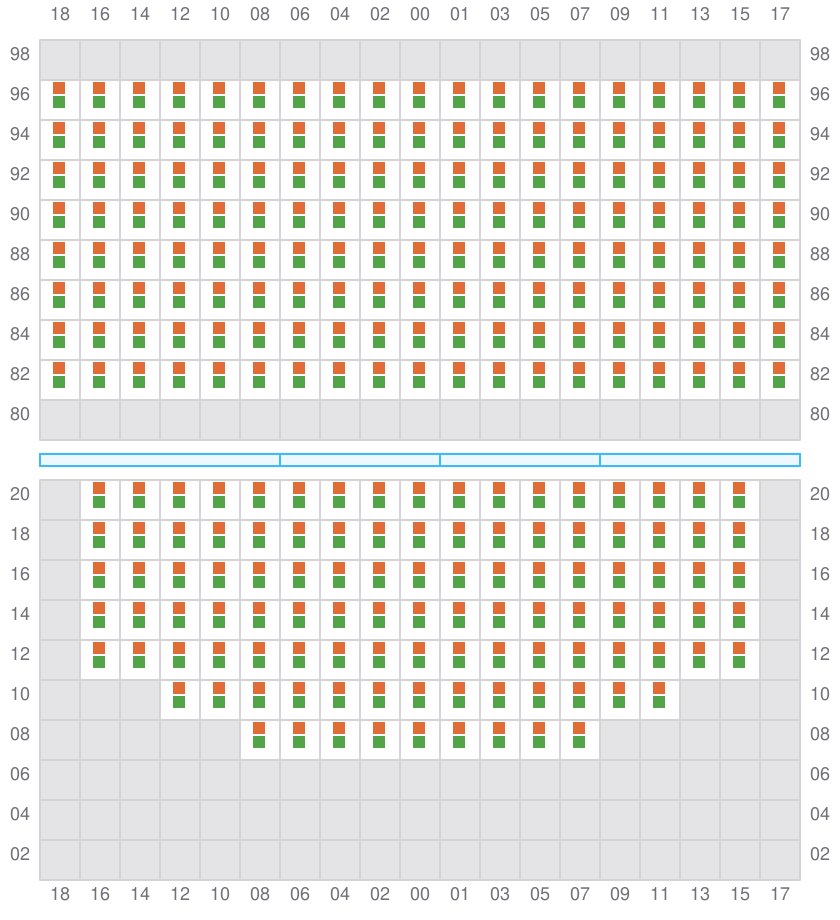

Bay 067 view and slots of CSCL SOUTH CHINA SEA

069

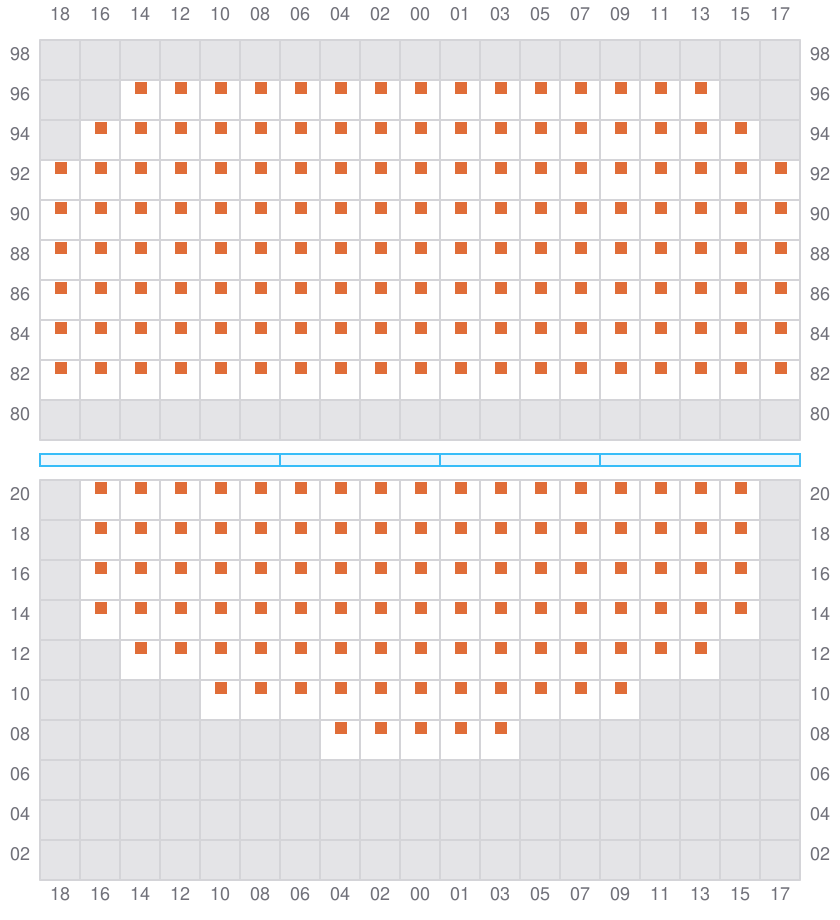

Bay 069 view and slots of CSCL SOUTH CHINA SEA

071 (070)

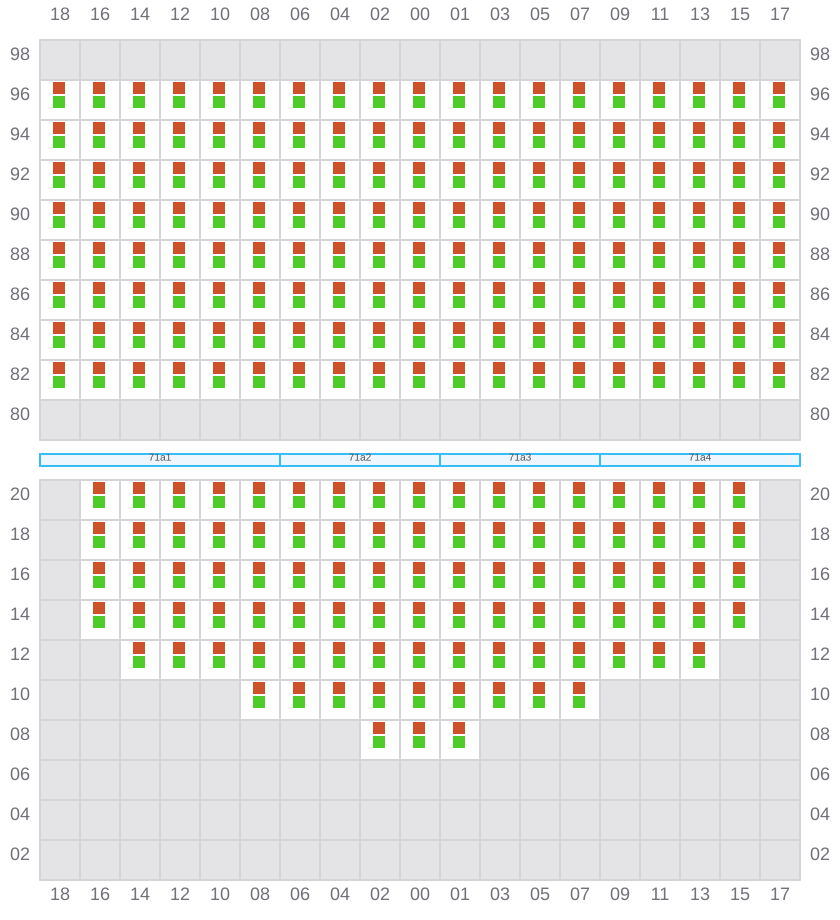

Bay 071 view and slots of CSCL SOUTH CHINA SEA

073

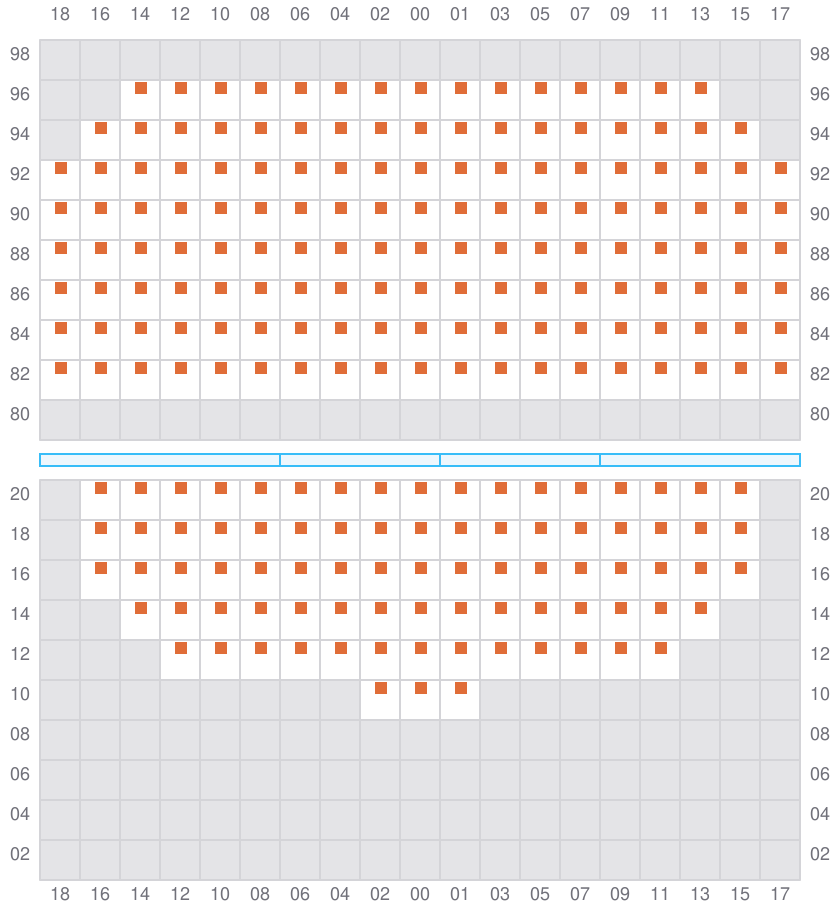

Bay 073 view and slots of CSCL SOUTH CHINA SEA

075 (074)

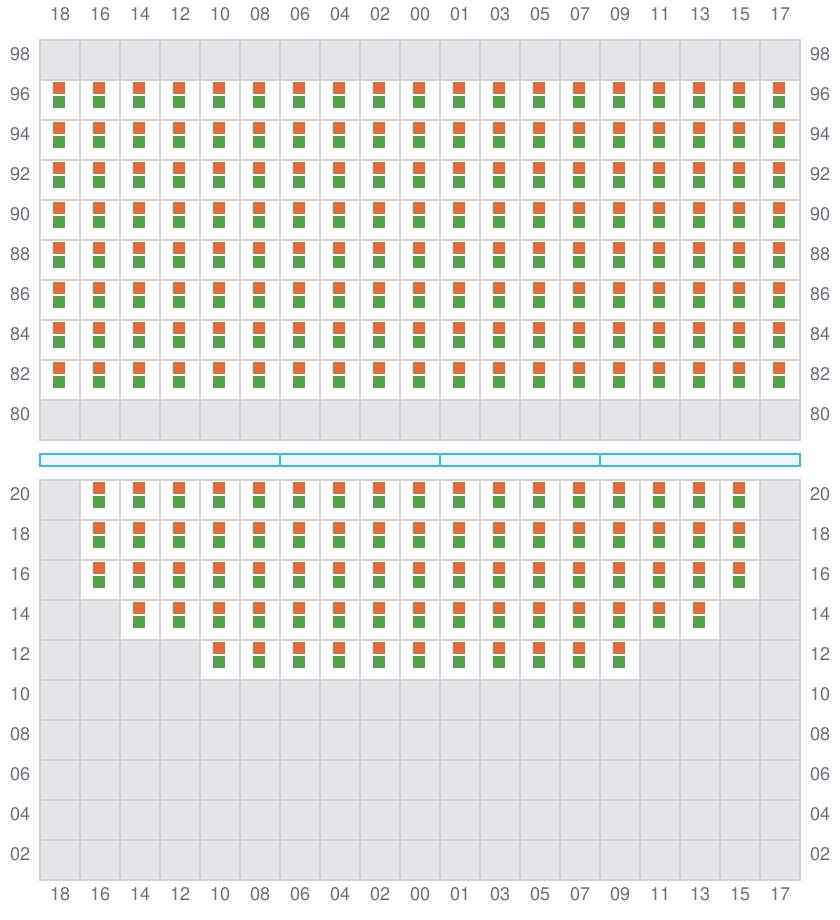

Bay 075 view and slots of CSCL SOUTH CHINA SEA

077

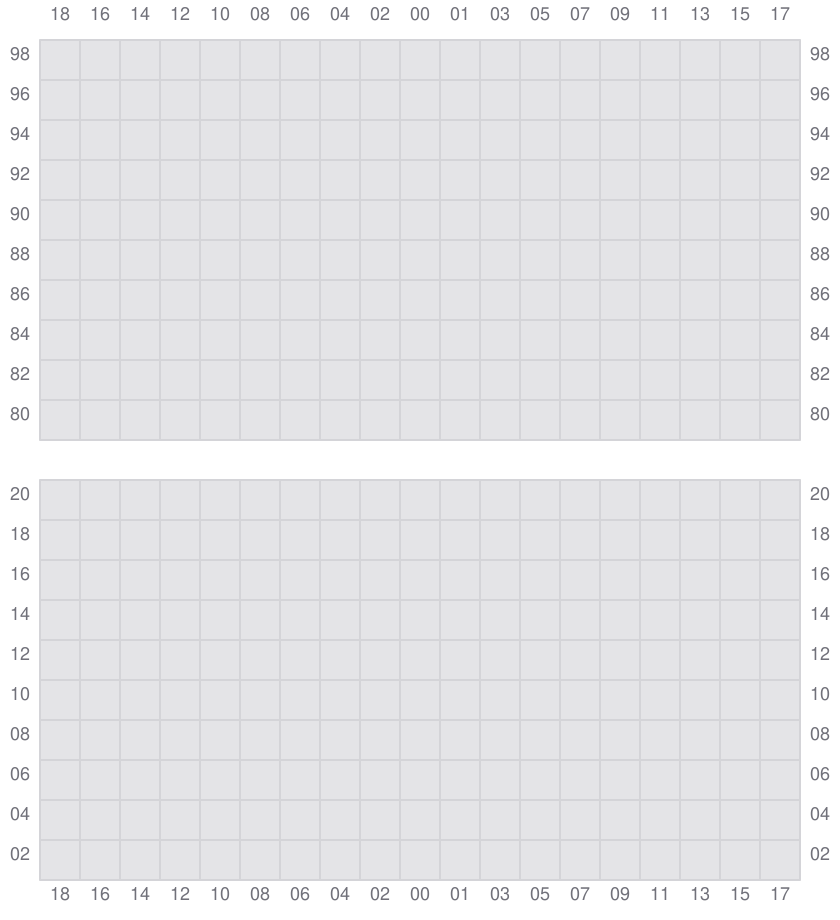

Bay 077 view and slots of CSCL SOUTH CHINA SEA

079 (078)

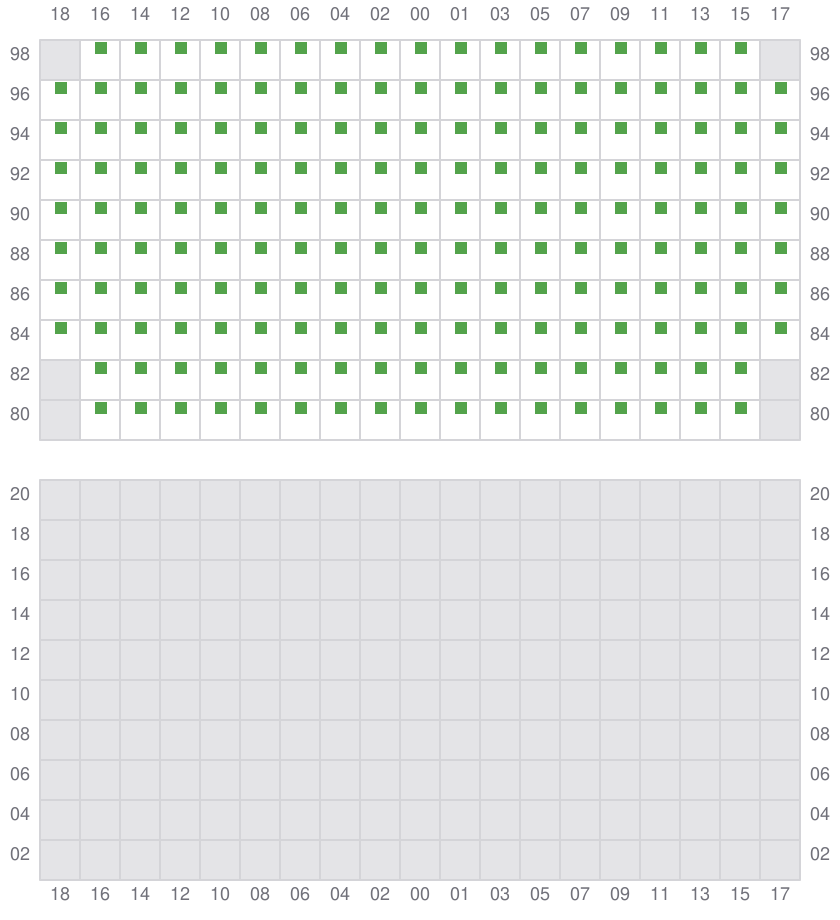

Bay 079 view and slots of CSCL SOUTH CHINA SEA
