CSCL URANUS
9467304 | VRKD5 | 9467304 by ********* Last update: Fri May 10 2024

General Info

Ship Name:CSCL URANUS
IMO Code:9467304
Call Sign:VRKD5
Line Operator:9467304
Class Name for Sister Ships:CSCL URANUS
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:087
Max ISO Row:20
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:80
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:14,067

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

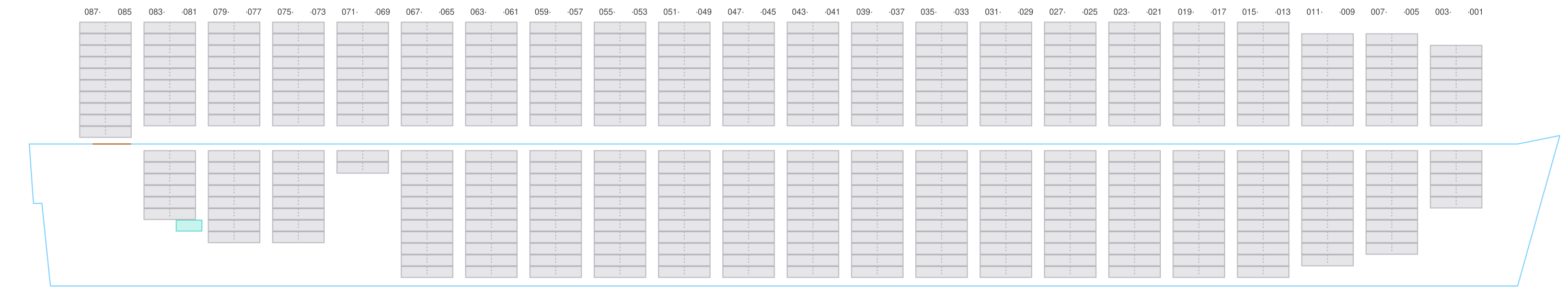

Side View

Side view of CSCL URANUS

Hatch-Covers View

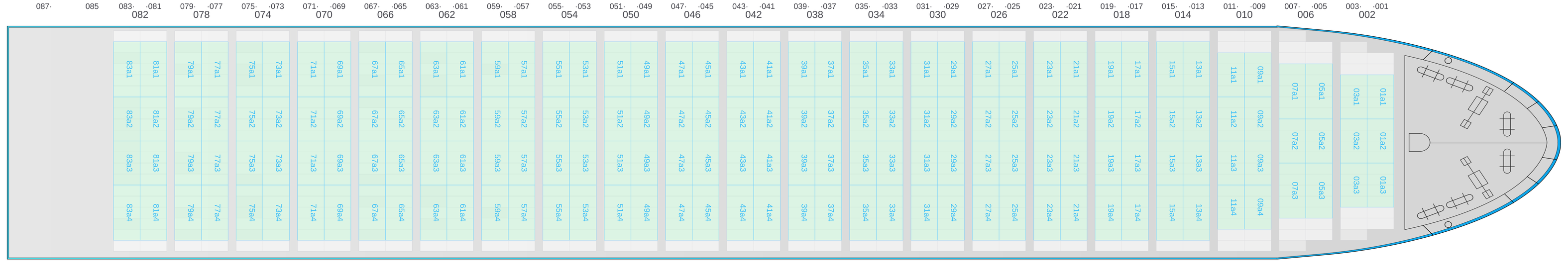

Deck view of CSCL URANUS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

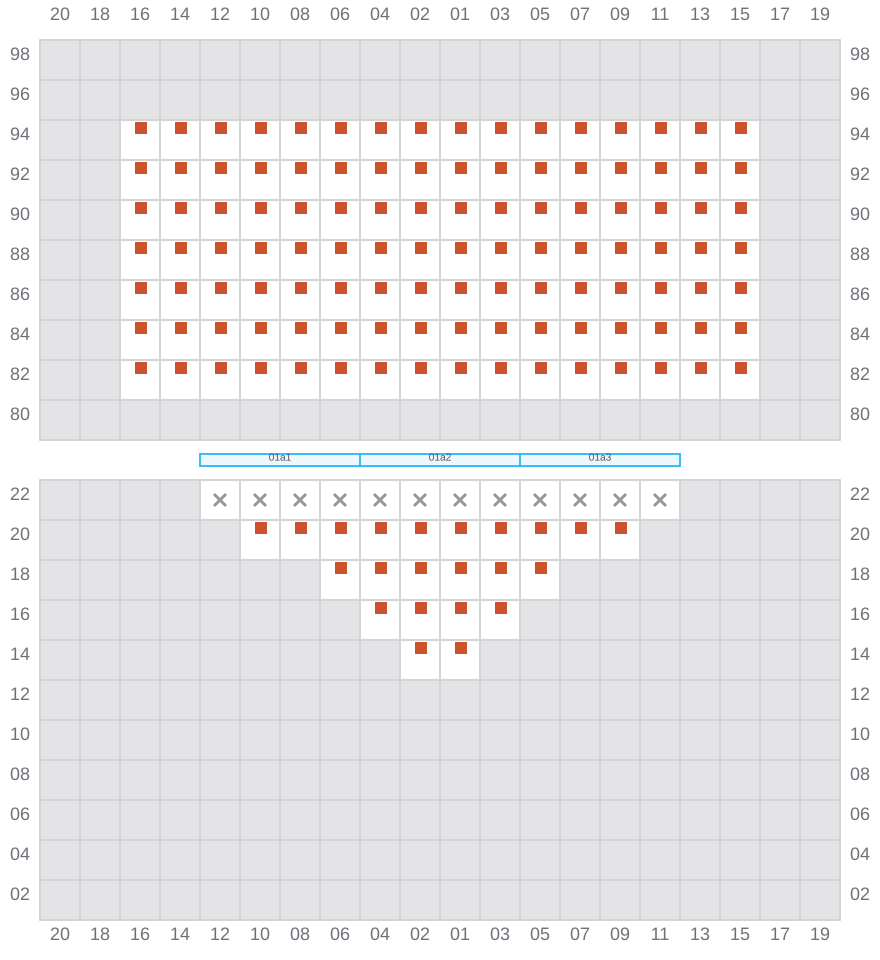

Bay 001 view and slots of CSCL URANUS

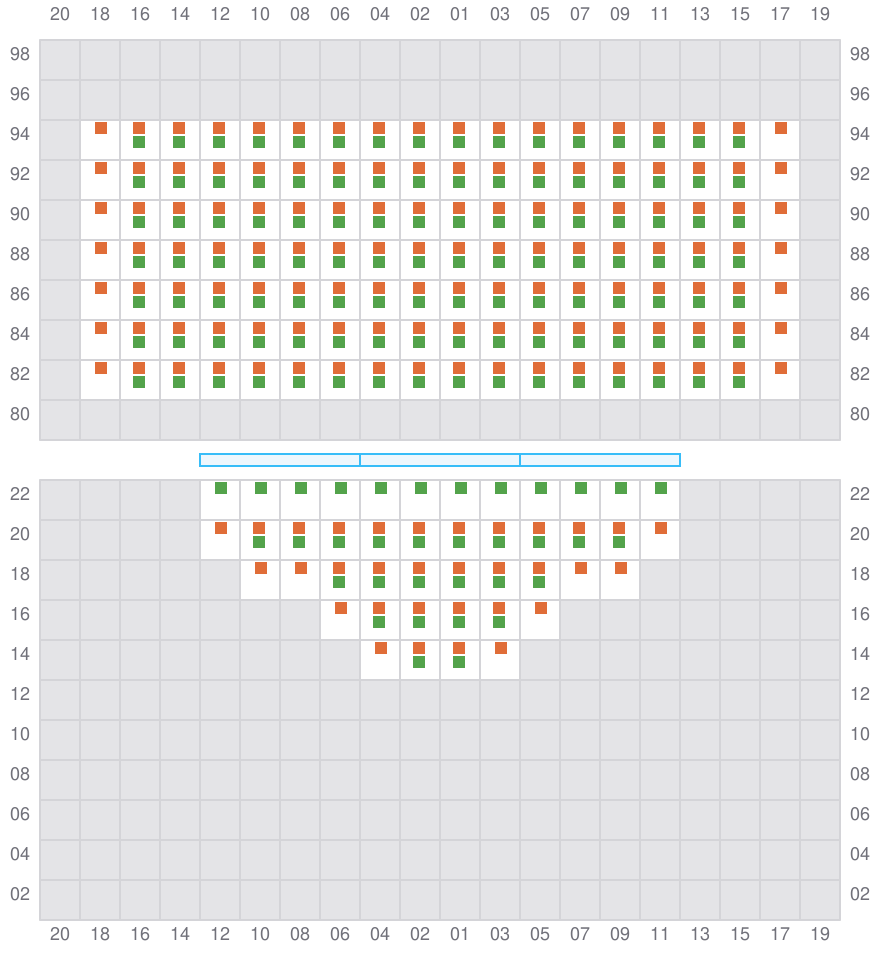

003 (002)

Bay 003 view and slots of CSCL URANUS

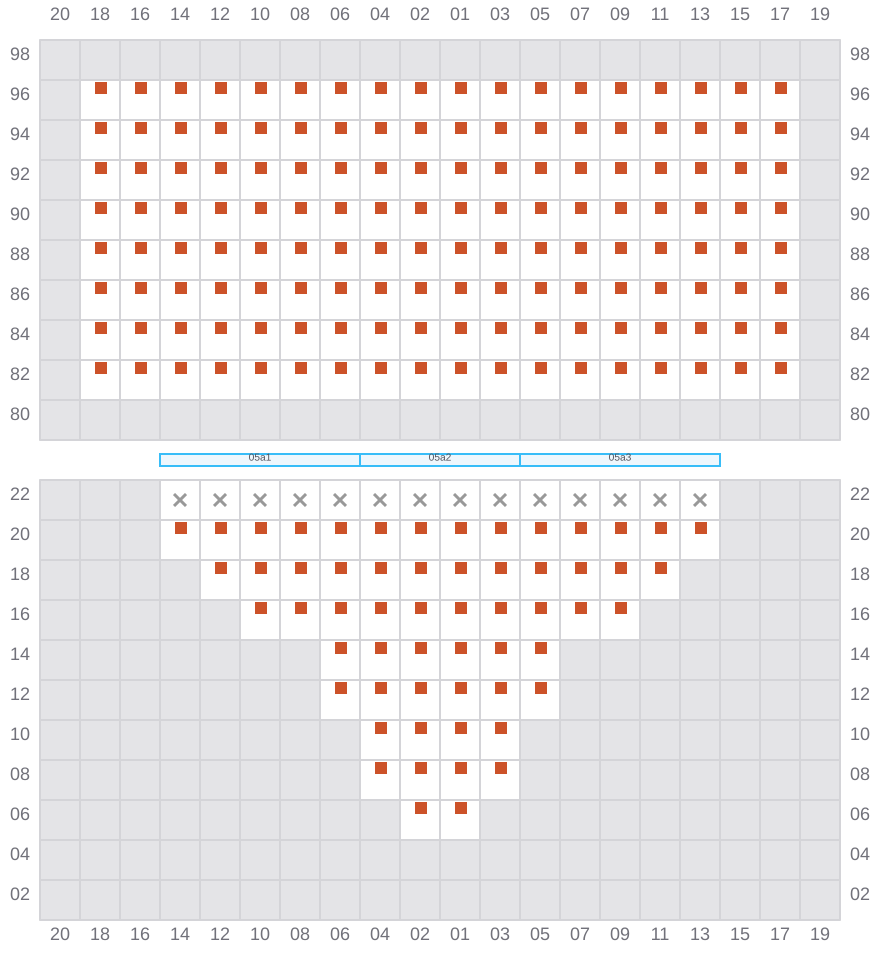

005

Bay 005 view and slots of CSCL URANUS

007 (006)

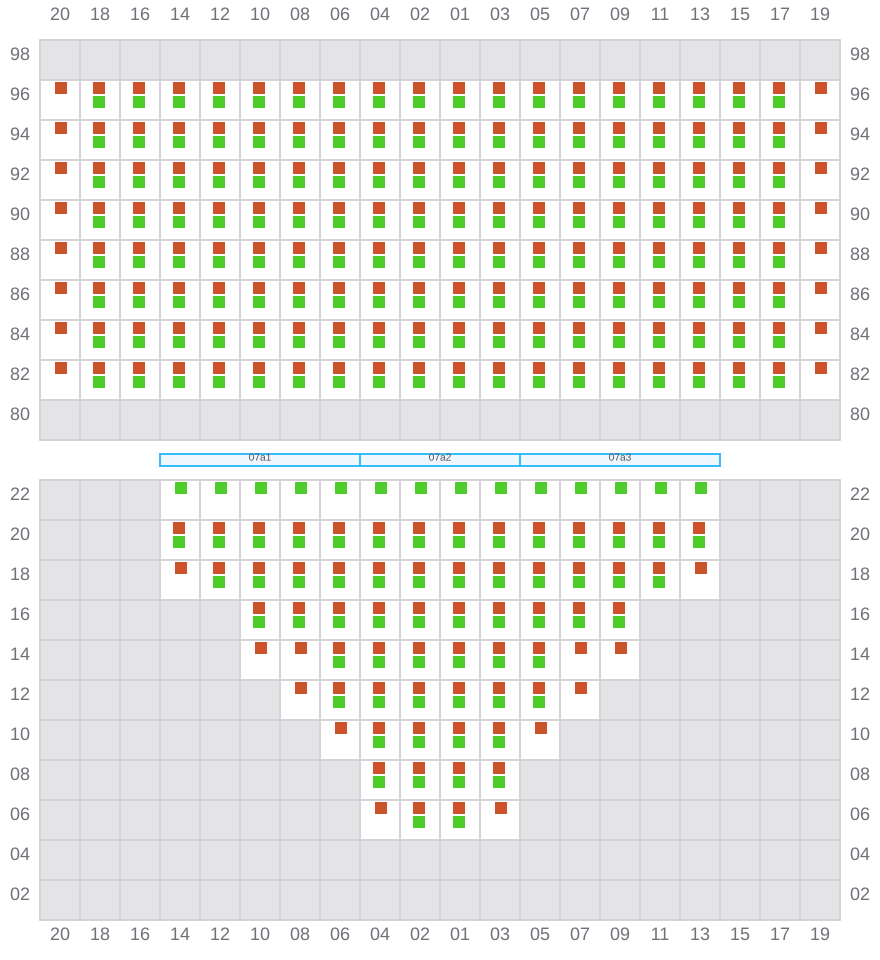

Bay 007 view and slots of CSCL URANUS

009

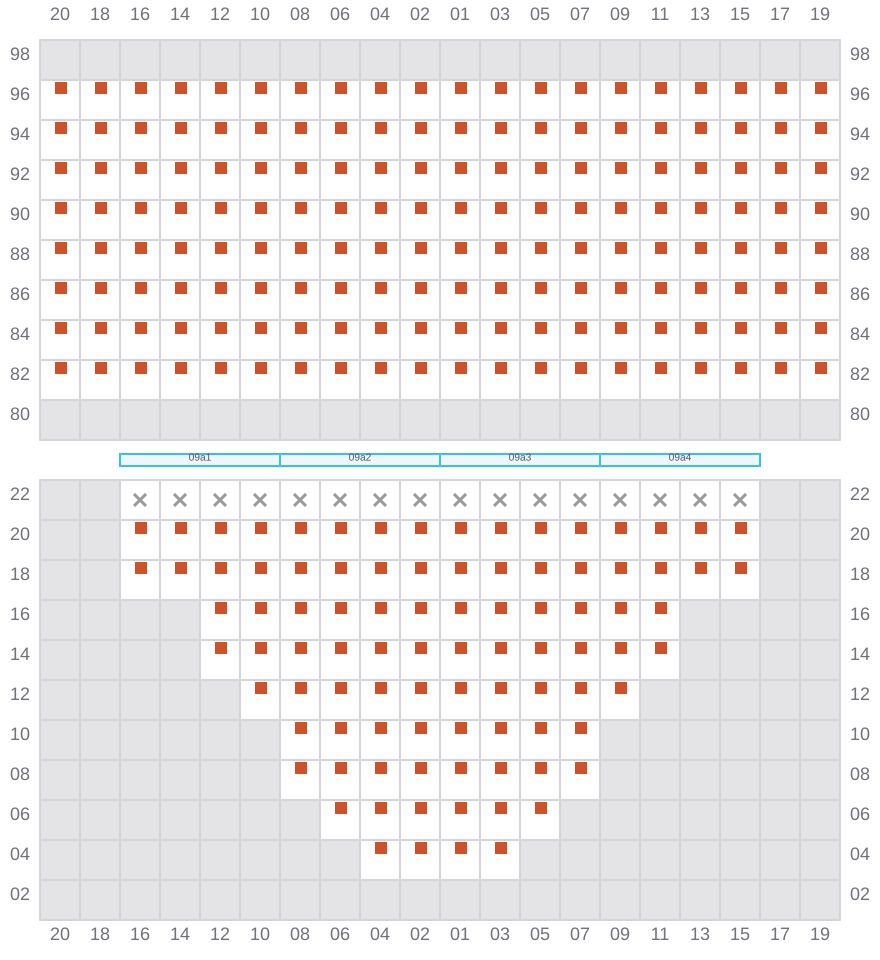

Bay 009 view and slots of CSCL URANUS

011 (010)

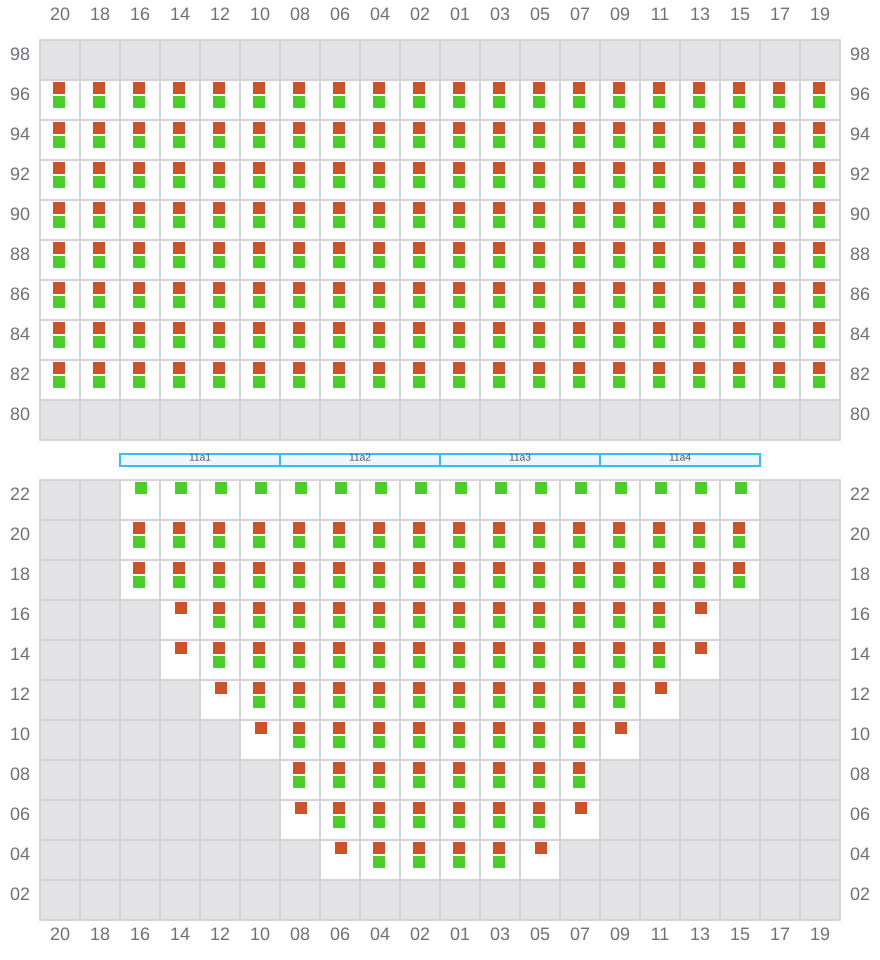

Bay 011 view and slots of CSCL URANUS

013

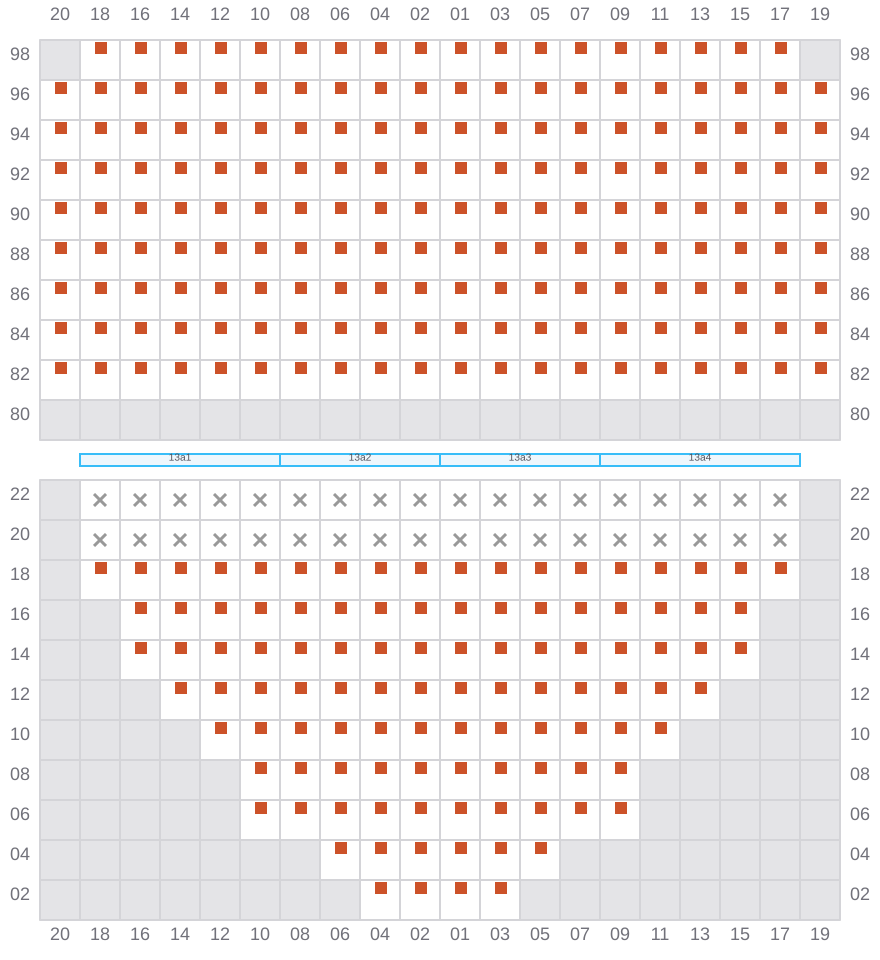

Bay 013 view and slots of CSCL URANUS

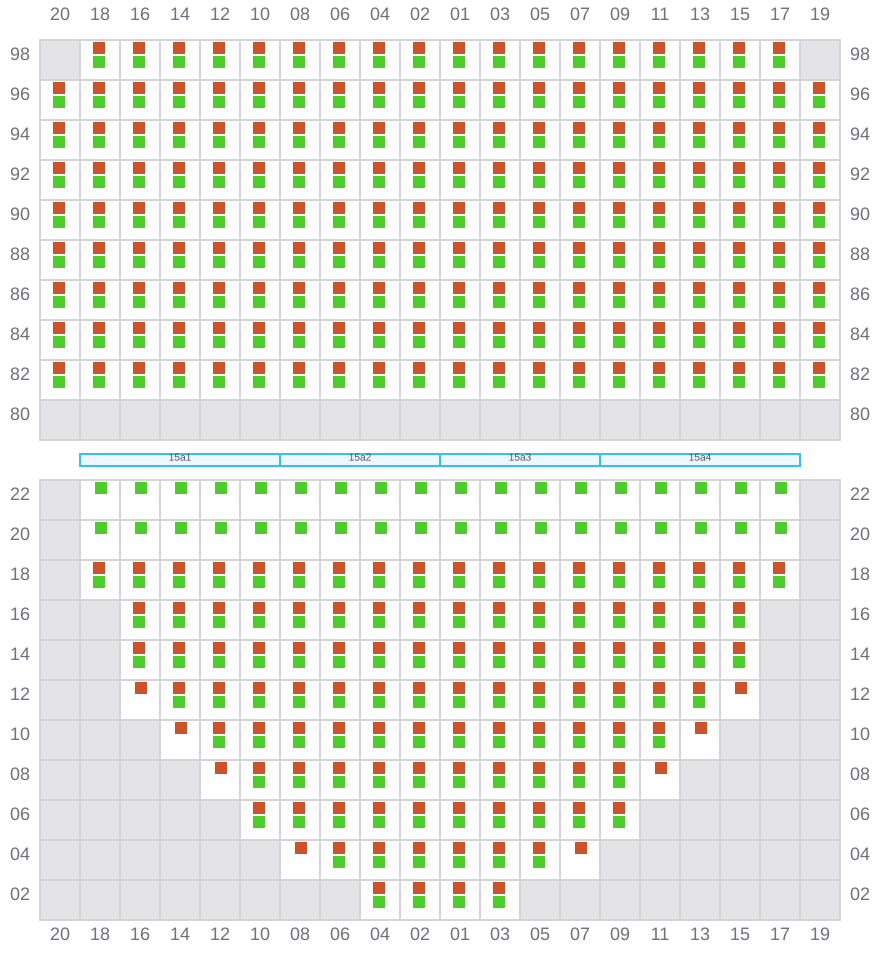

015 (014)

Bay 015 view and slots of CSCL URANUS

017

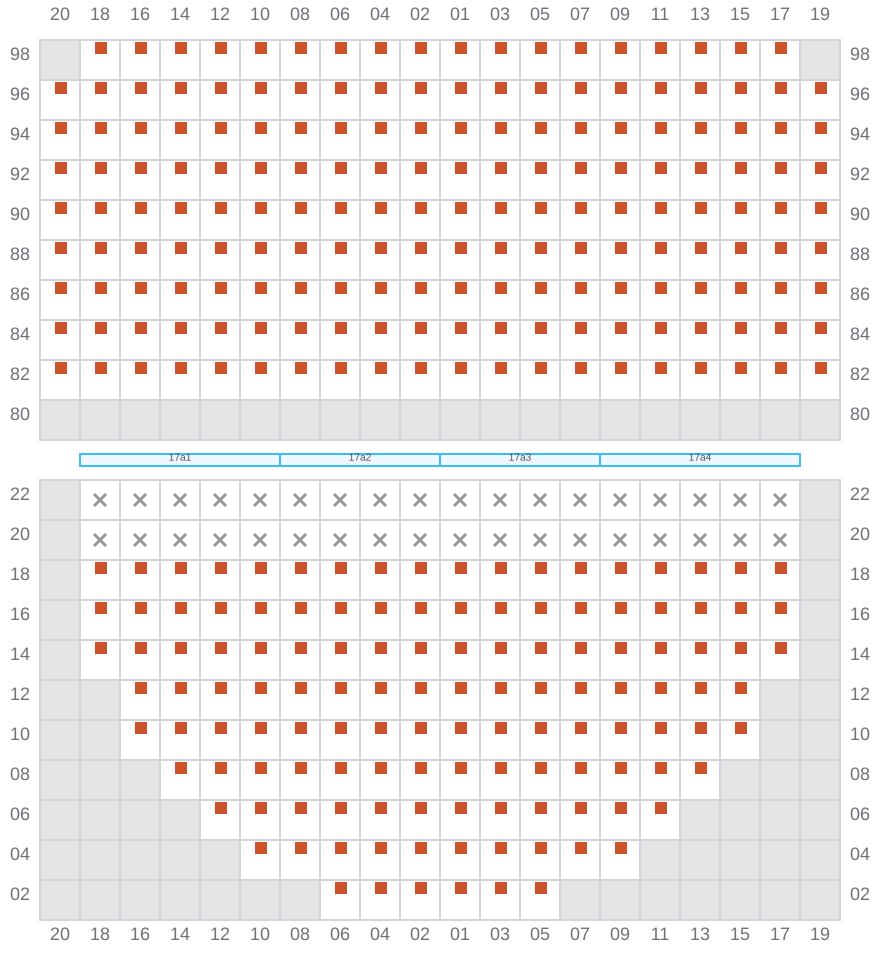

Bay 017 view and slots of CSCL URANUS

019 (018)

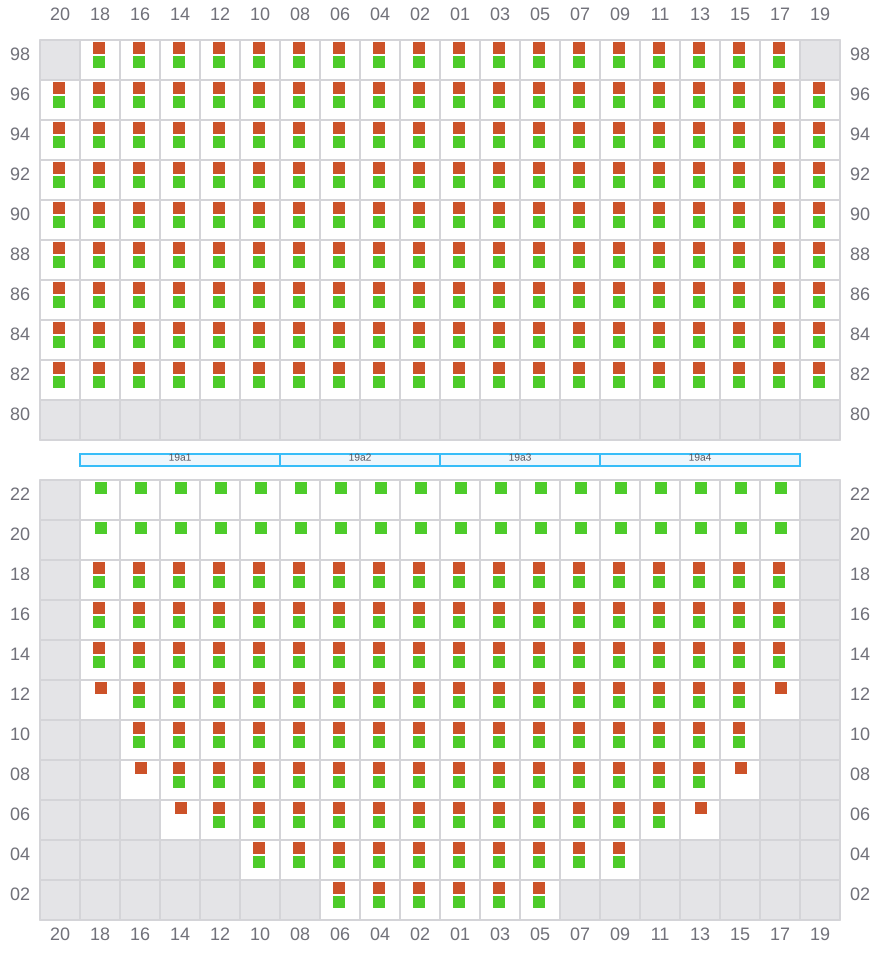

Bay 019 view and slots of CSCL URANUS

021

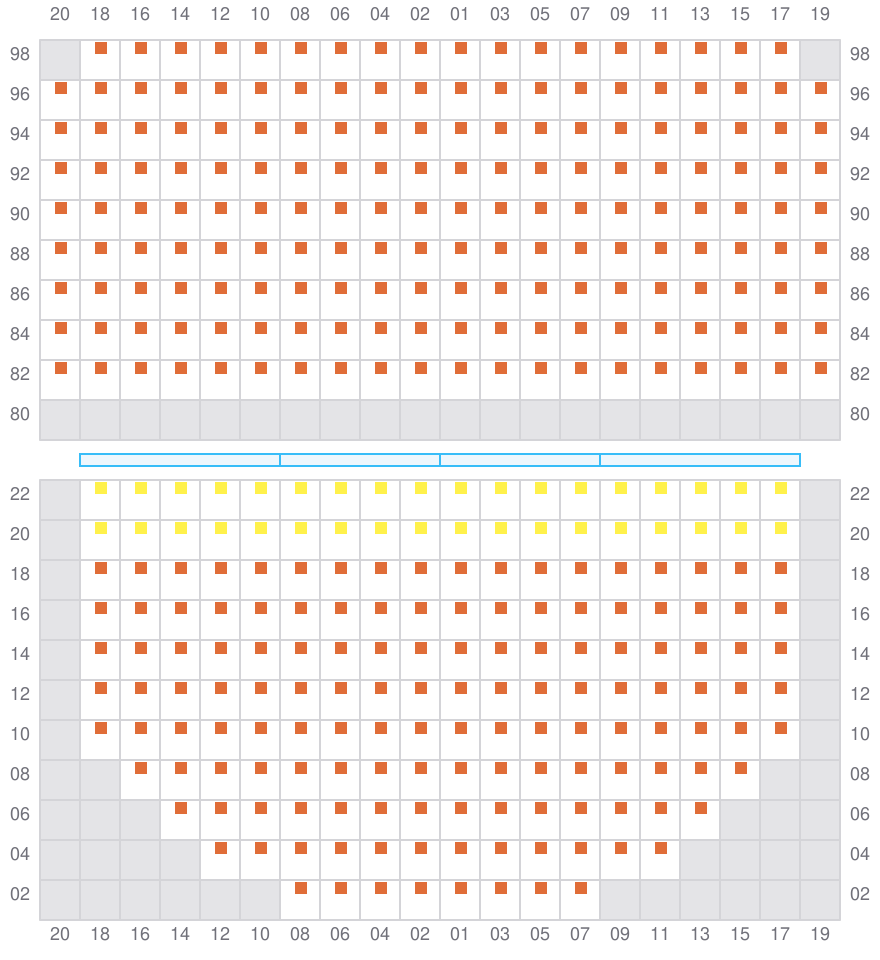

Bay 021 view and slots of CSCL URANUS

023 (022)

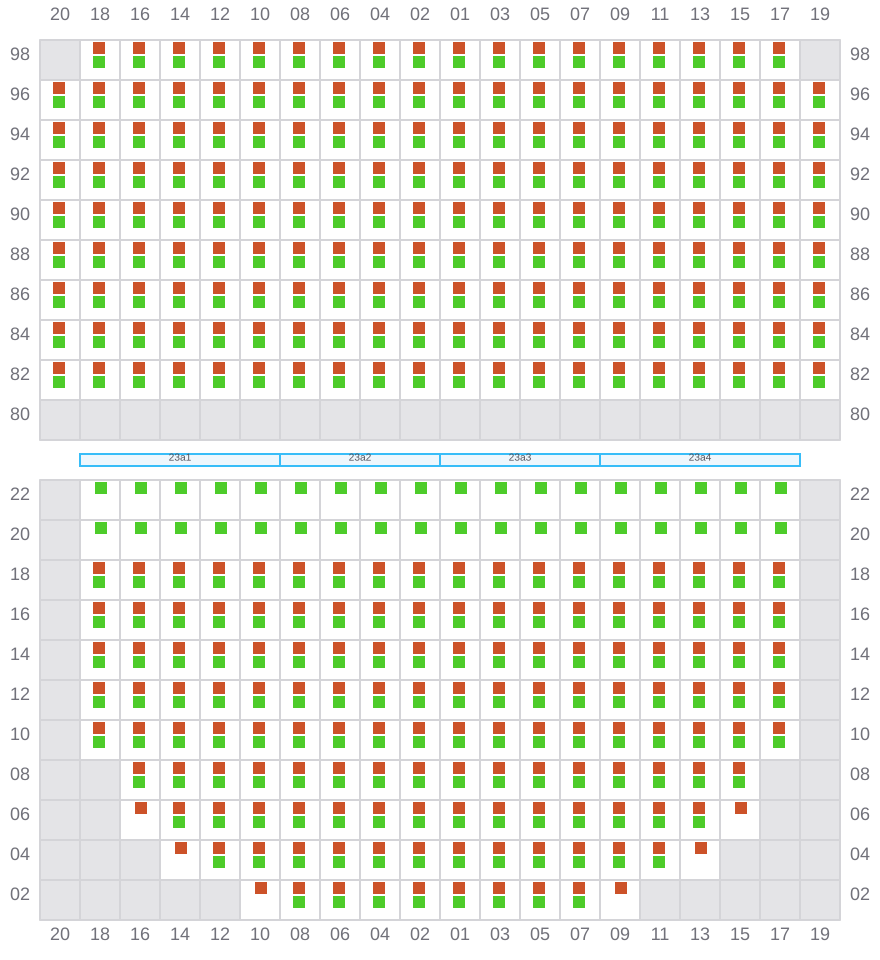

Bay 023 view and slots of CSCL URANUS

025

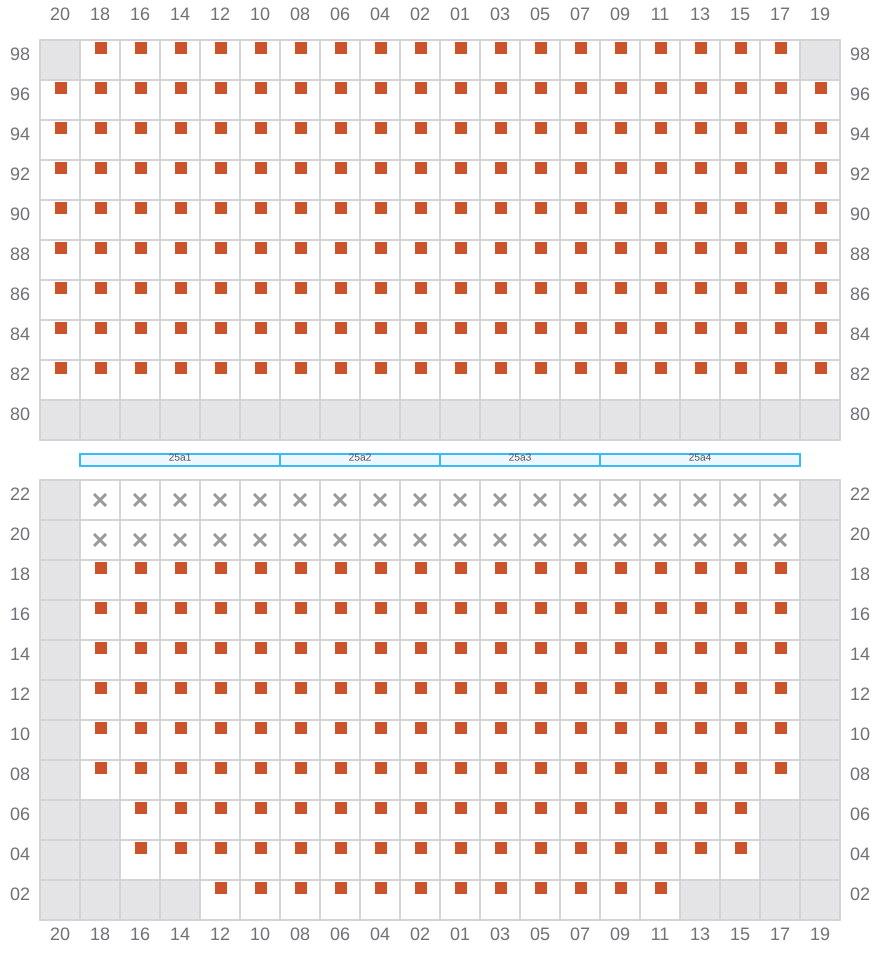

Bay 025 view and slots of CSCL URANUS

027 (026)

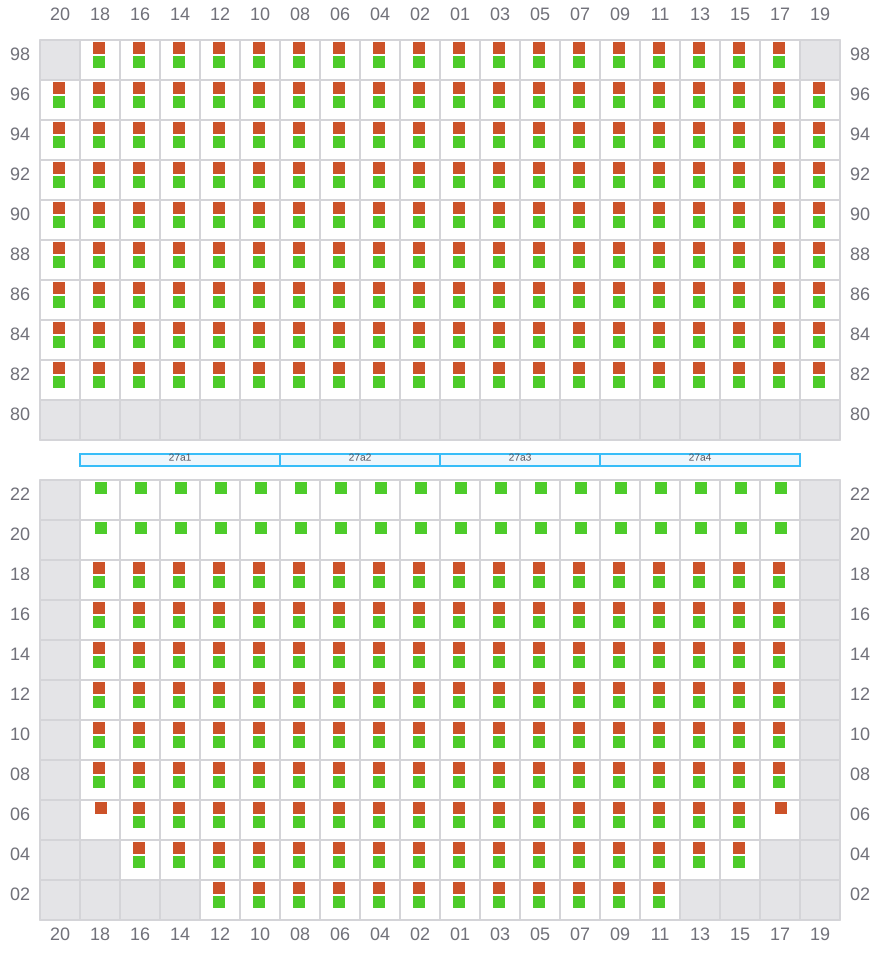

Bay 027 view and slots of CSCL URANUS

029

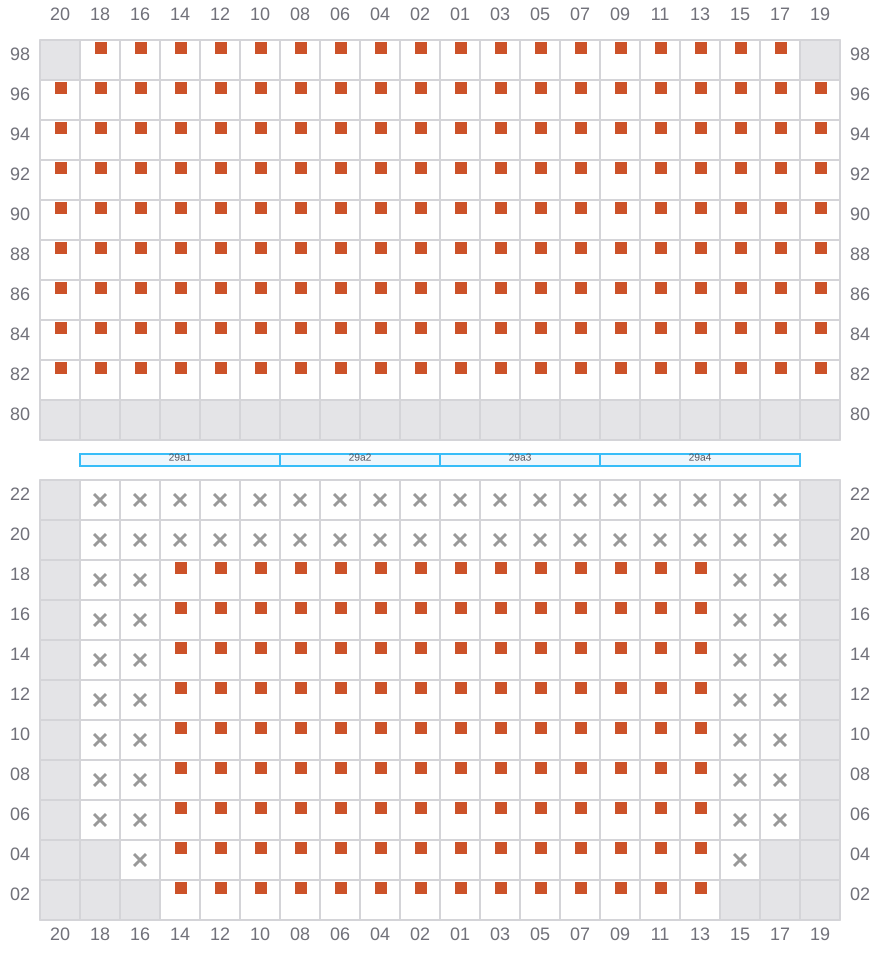

Bay 029 view and slots of CSCL URANUS

031 (030)

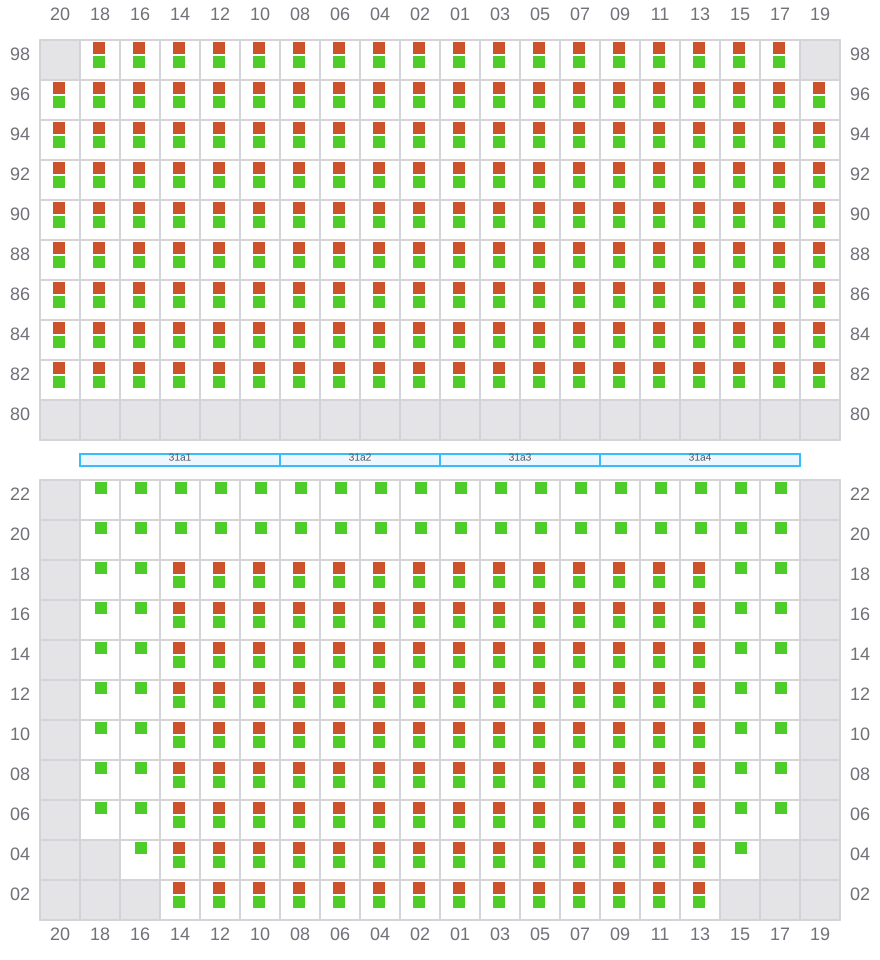

Bay 031 view and slots of CSCL URANUS

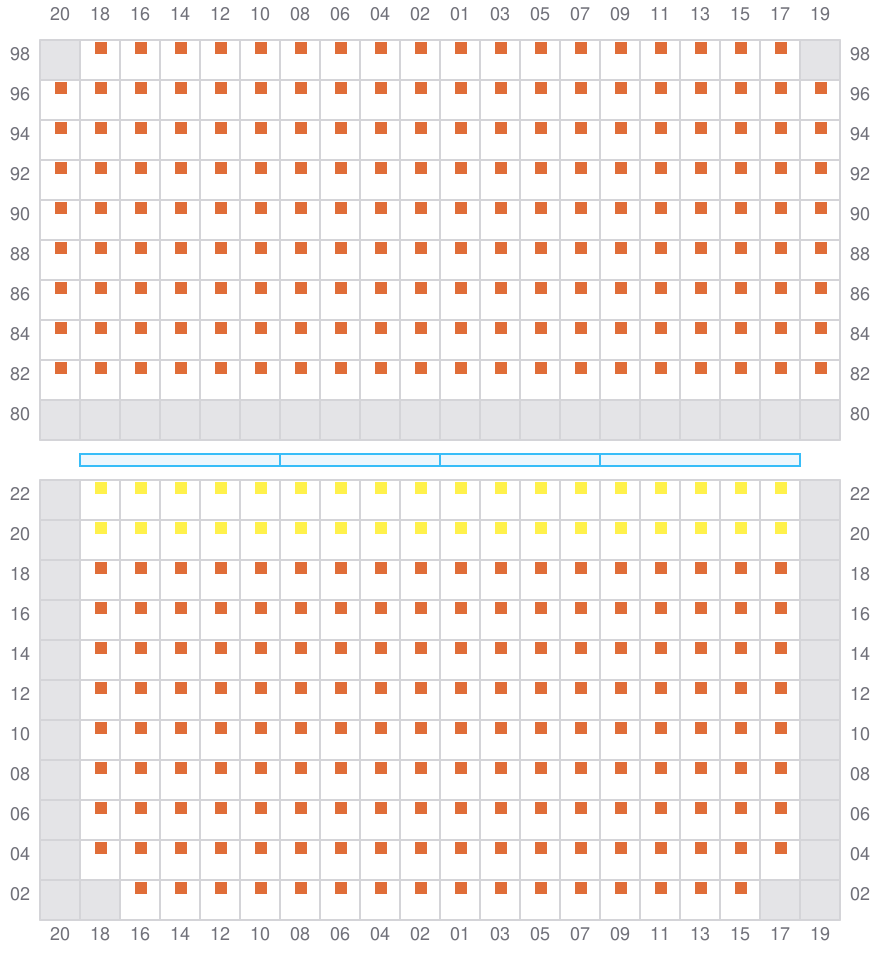

033

Bay 033 view and slots of CSCL URANUS

035 (034)

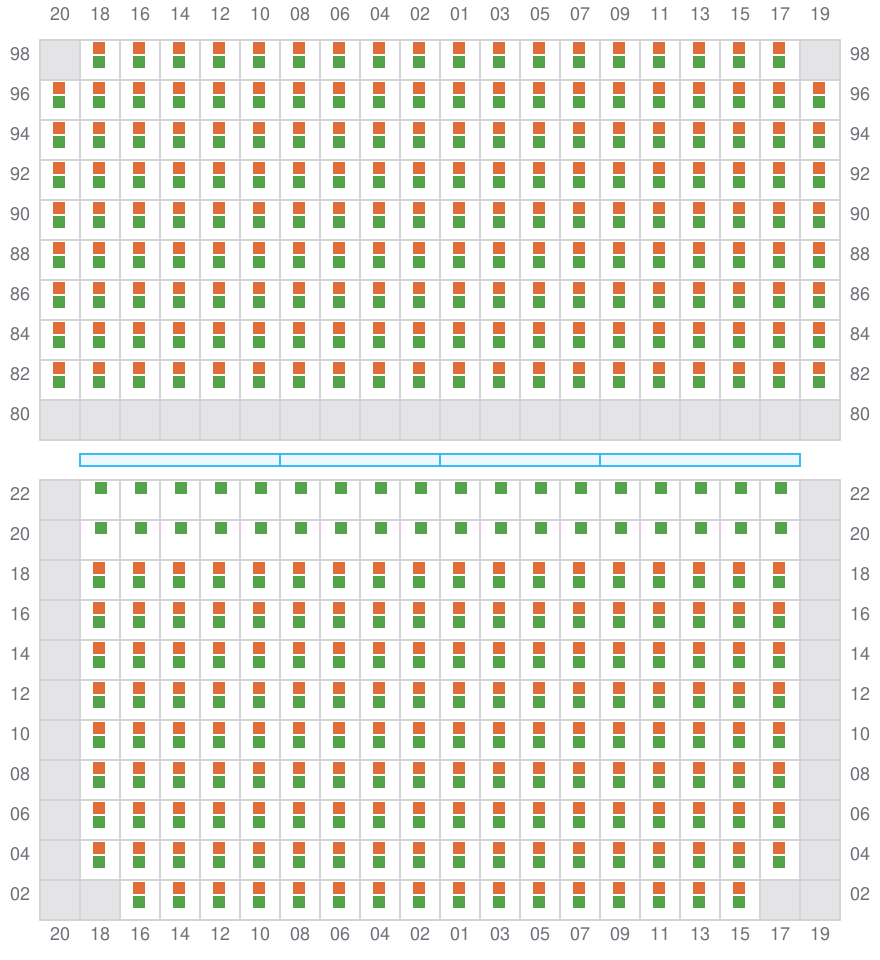

Bay 035 view and slots of CSCL URANUS

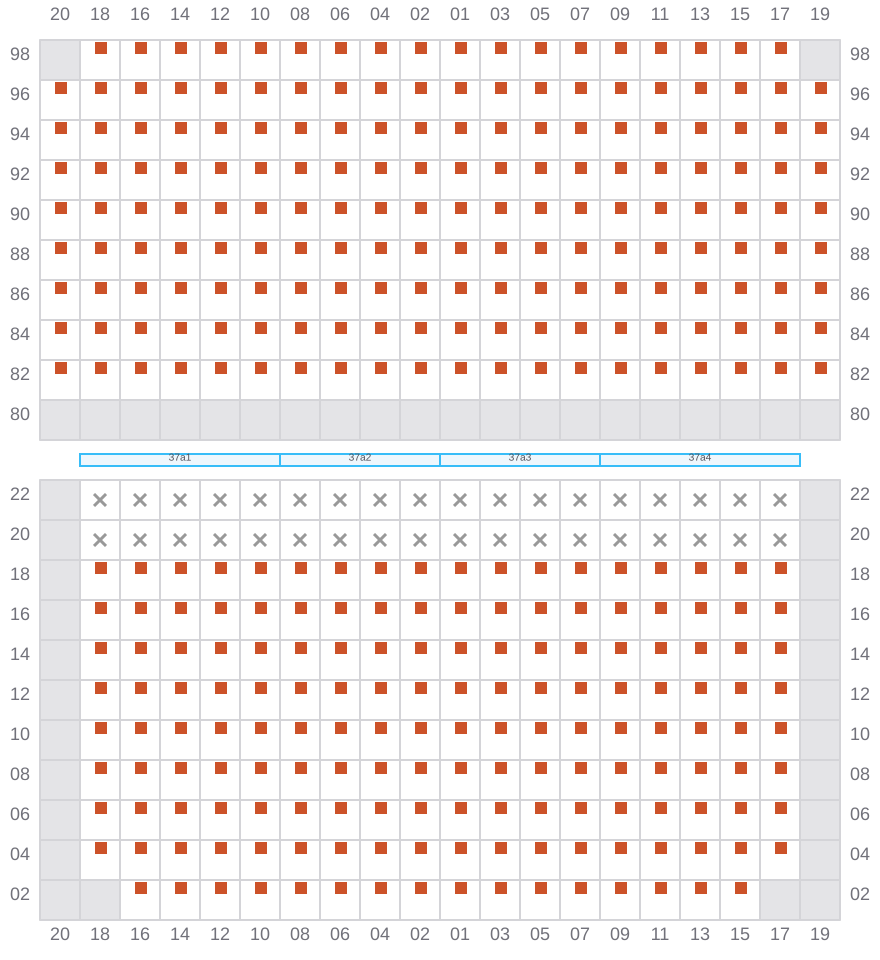

037

Bay 037 view and slots of CSCL URANUS

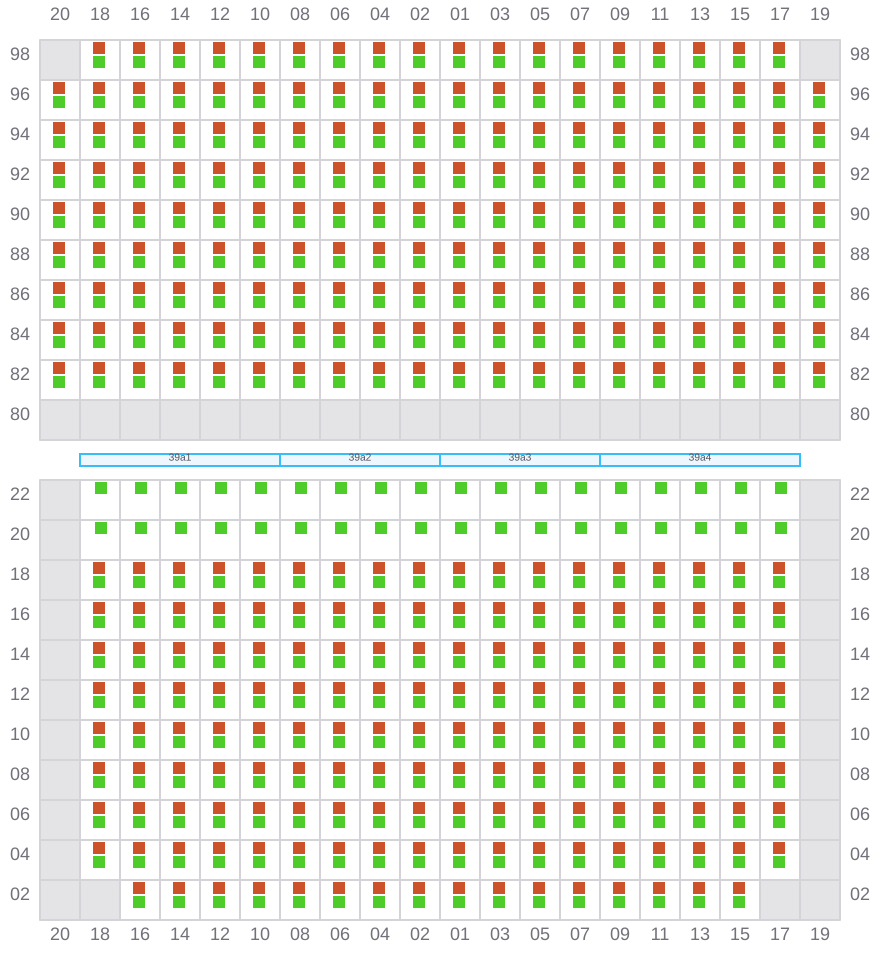

039 (038)

Bay 039 view and slots of CSCL URANUS

041

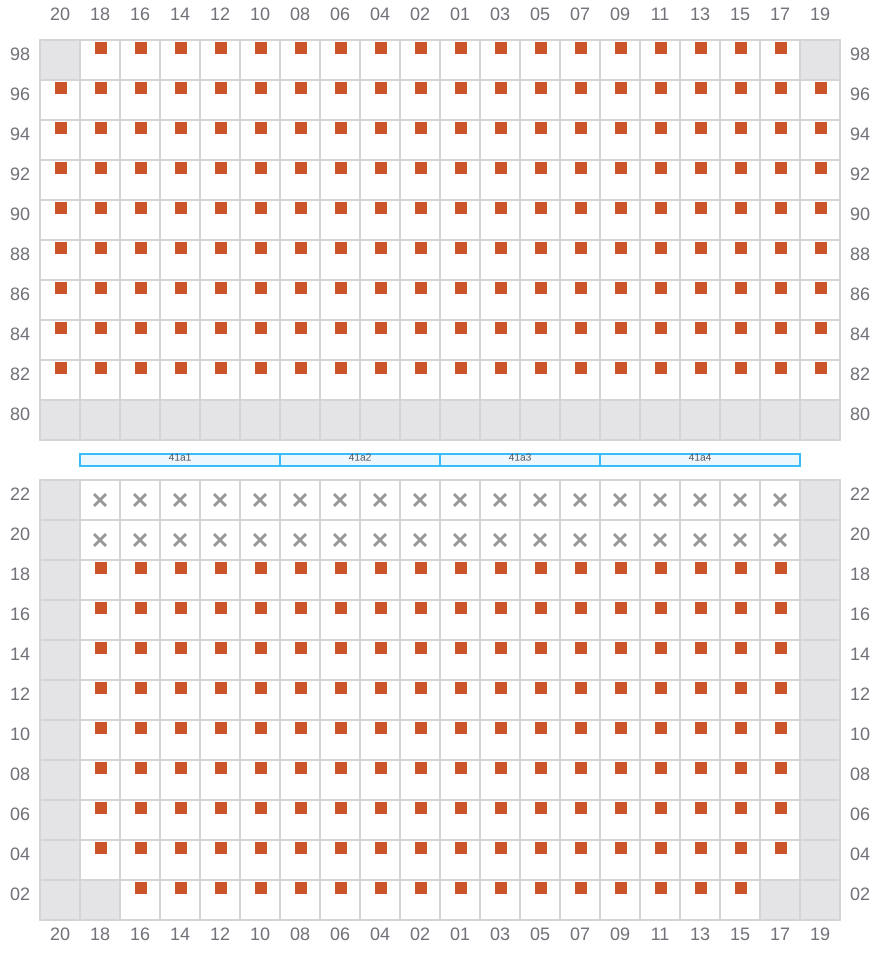

Bay 041 view and slots of CSCL URANUS

043 (042)

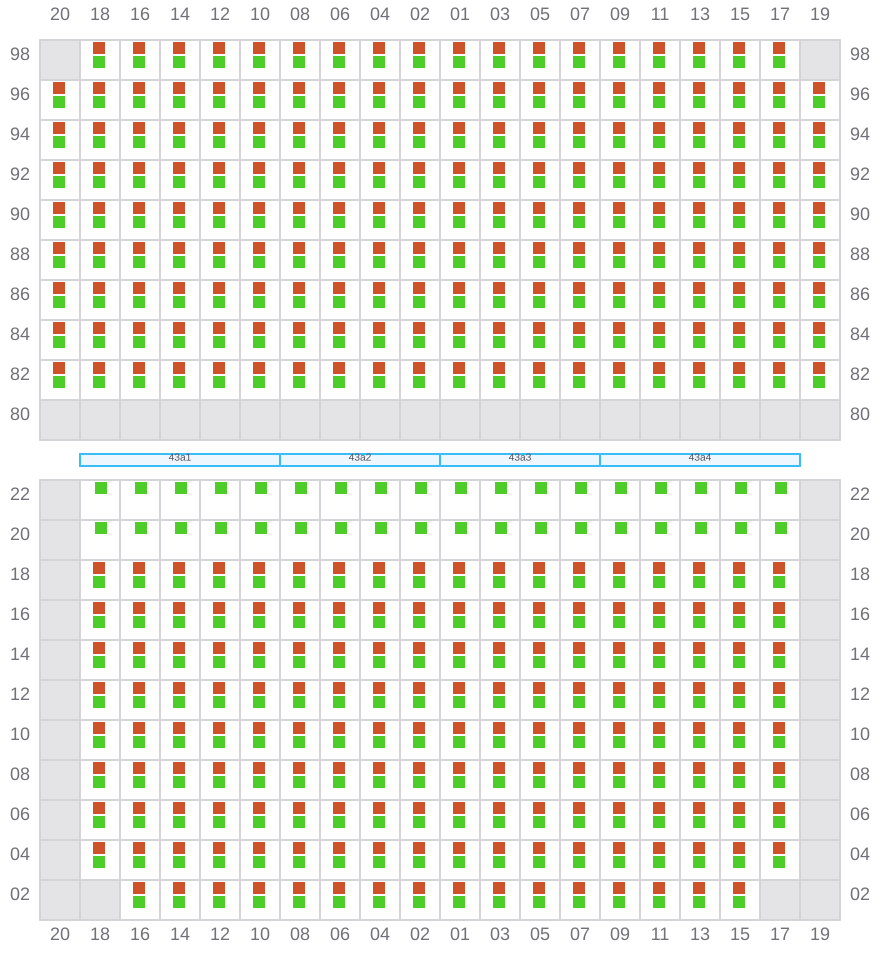

Bay 043 view and slots of CSCL URANUS

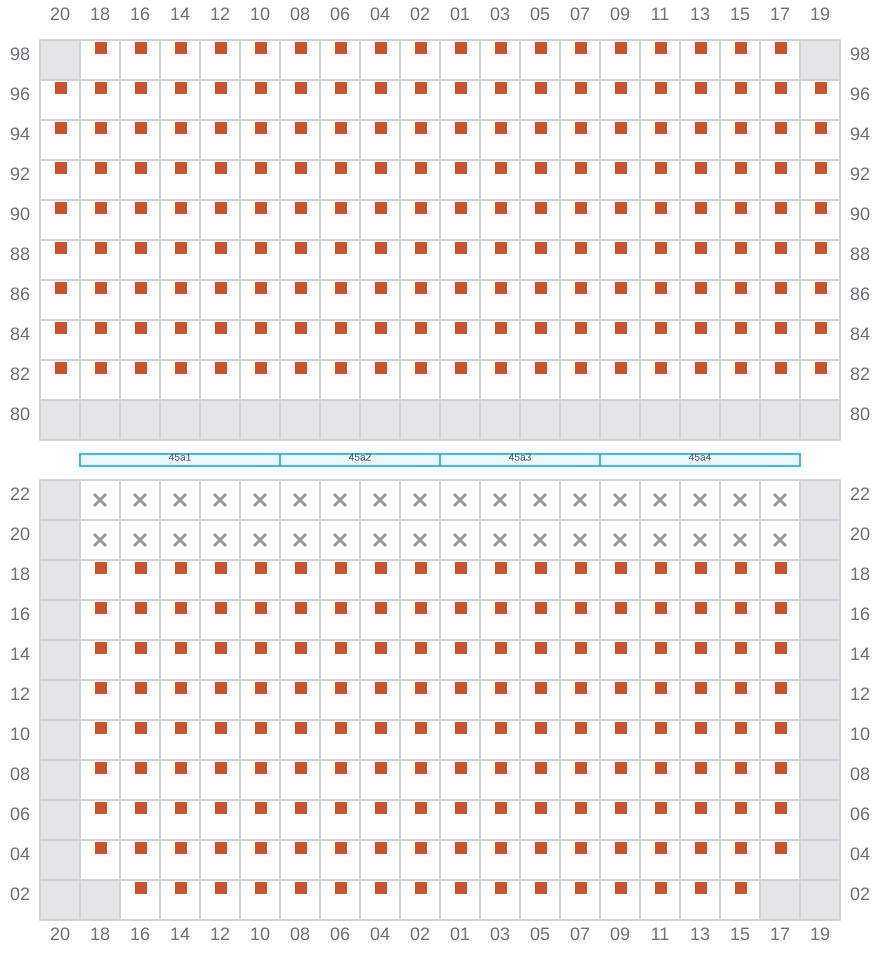

045

Bay 045 view and slots of CSCL URANUS

047 (046)

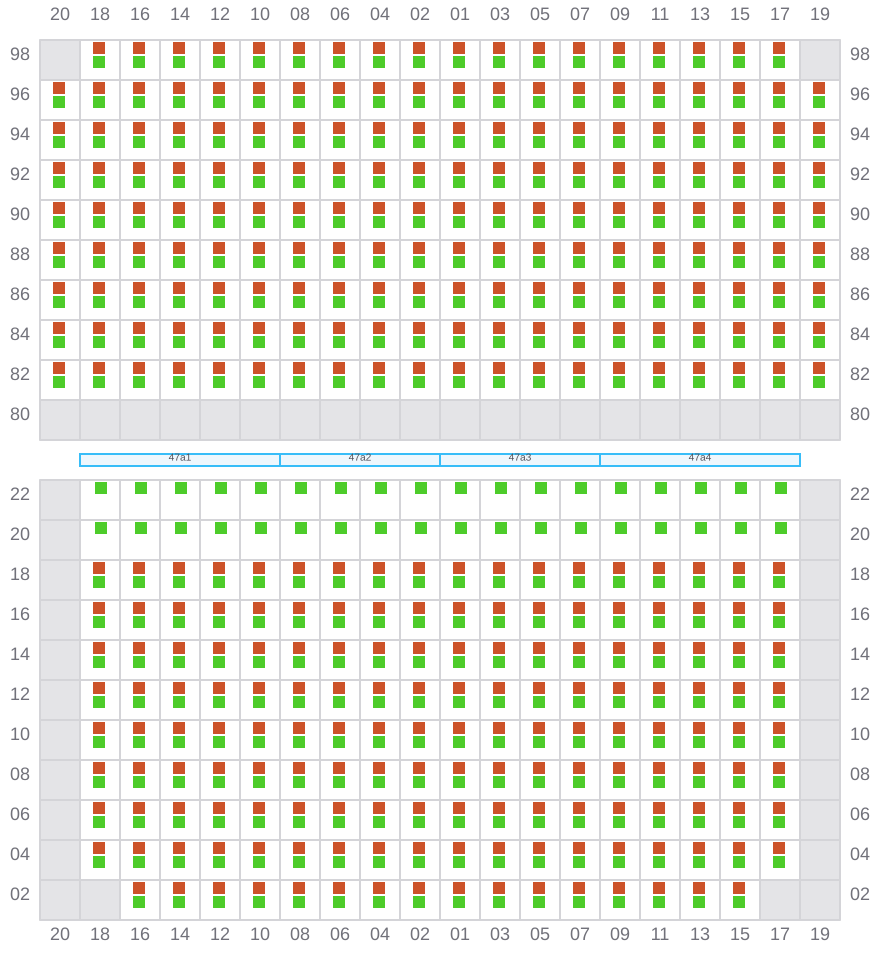

Bay 047 view and slots of CSCL URANUS

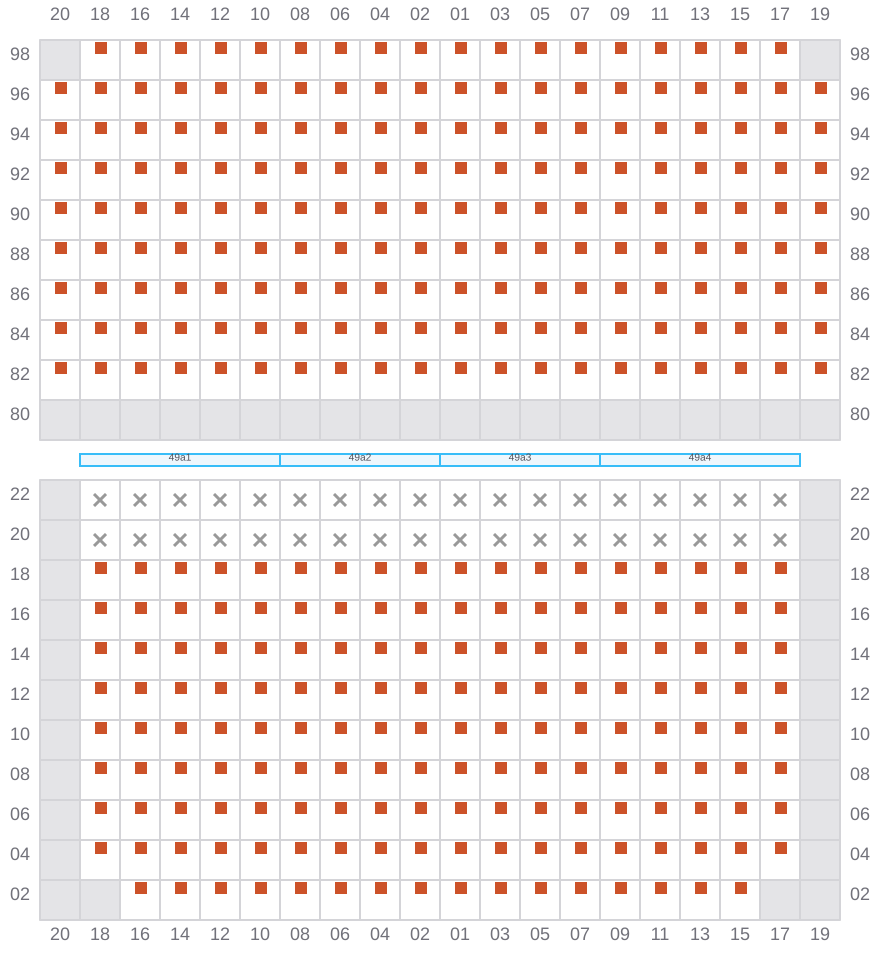

049

Bay 049 view and slots of CSCL URANUS

051 (050)

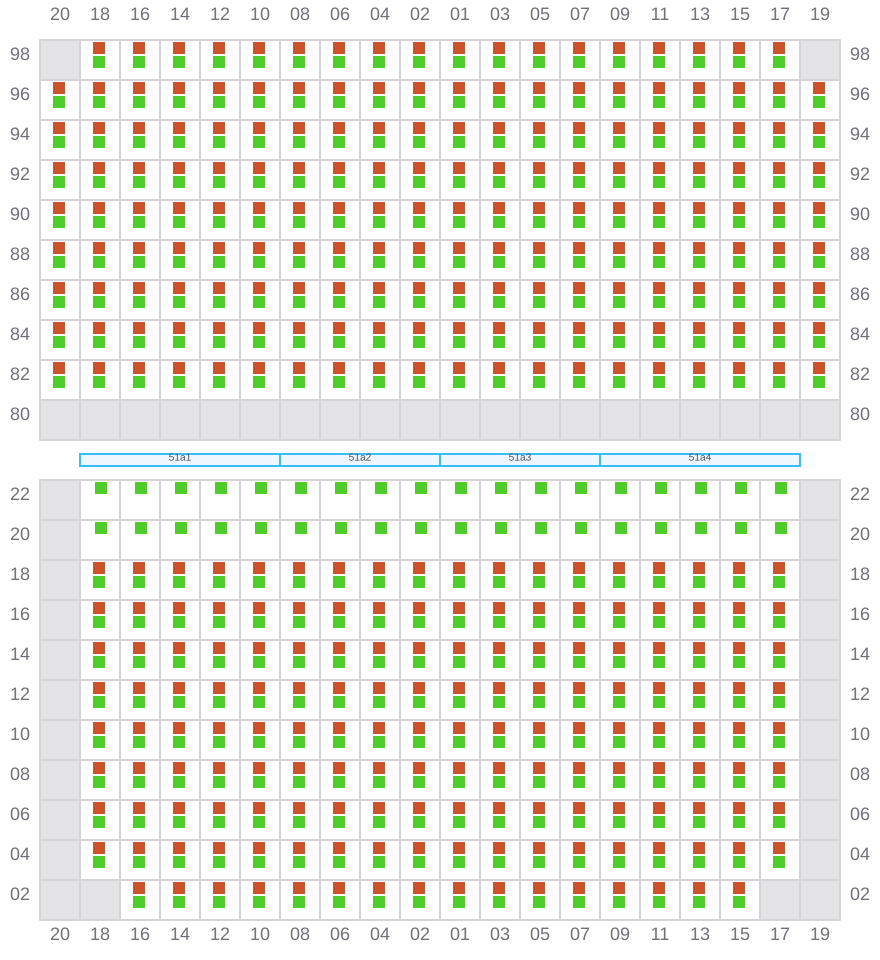

Bay 051 view and slots of CSCL URANUS

053

Bay 053 view and slots of CSCL URANUS

055 (054)

Bay 055 view and slots of CSCL URANUS

057

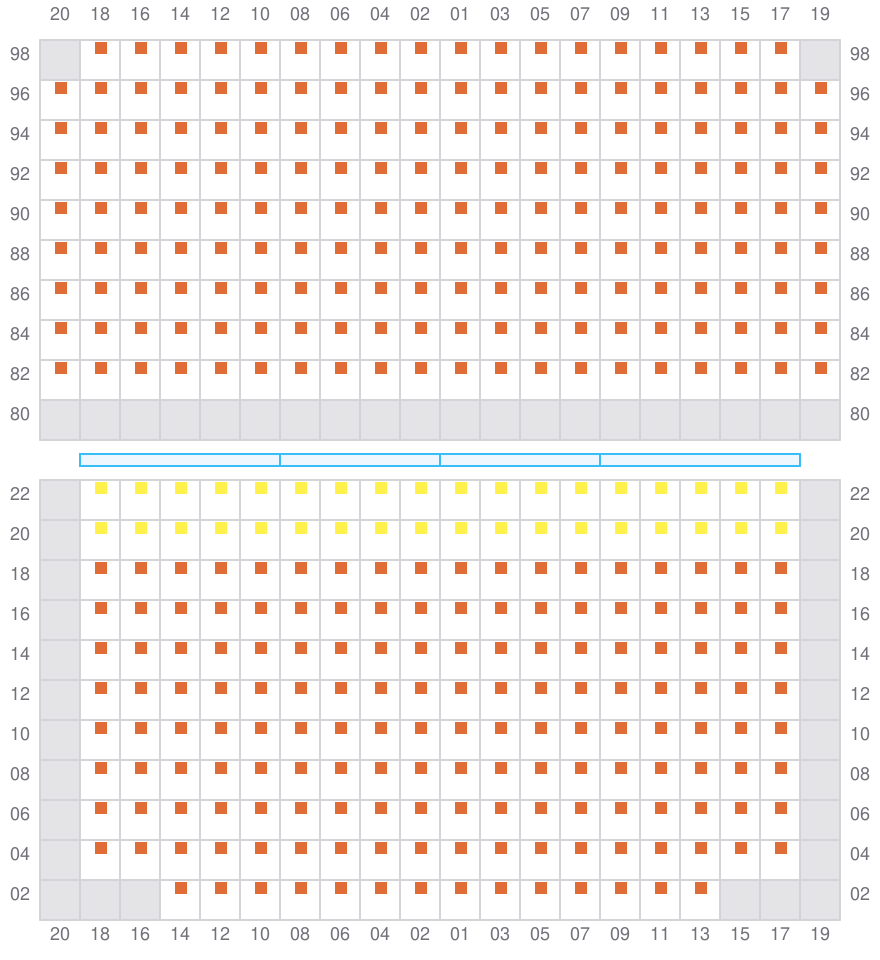

Bay 057 view and slots of CSCL URANUS

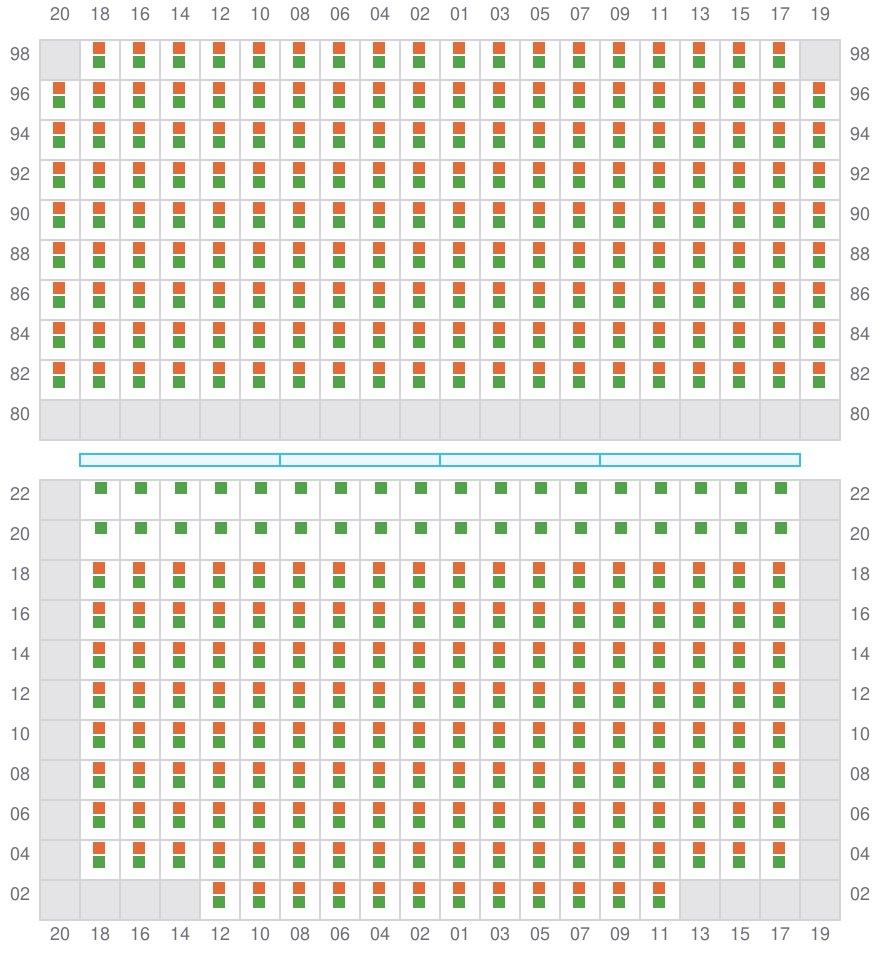

059 (058)

Bay 059 view and slots of CSCL URANUS

061

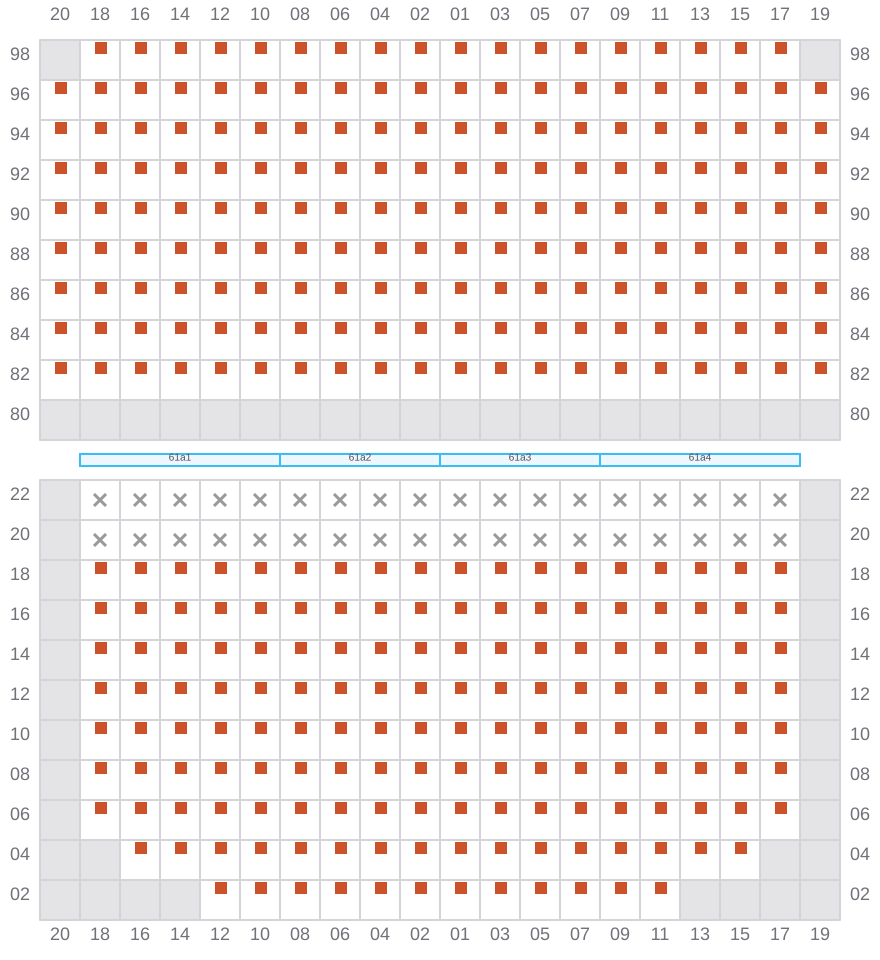

Bay 061 view and slots of CSCL URANUS

063 (062)

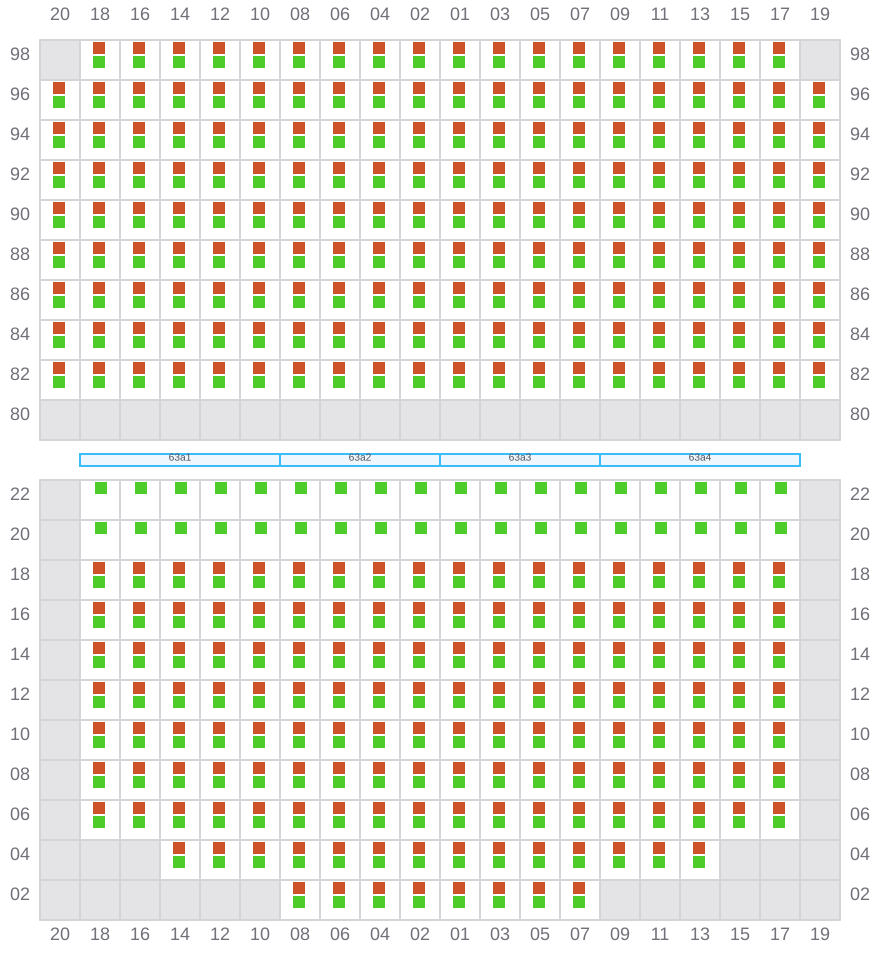

Bay 063 view and slots of CSCL URANUS

065

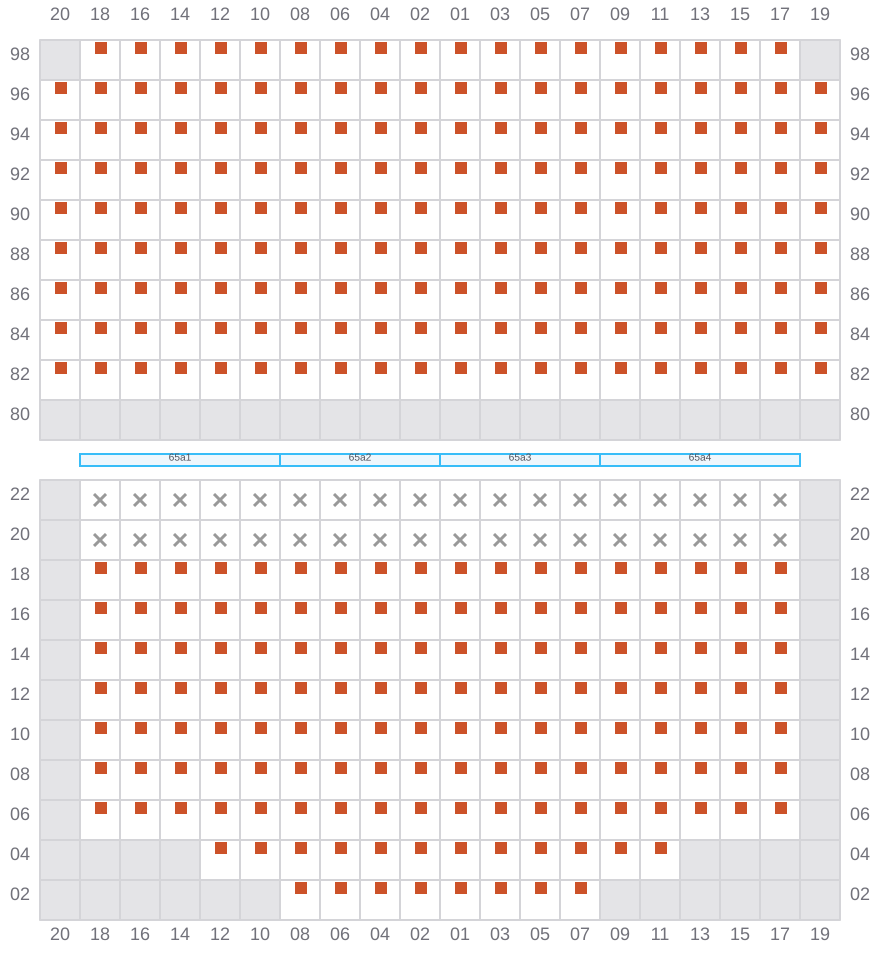

Bay 065 view and slots of CSCL URANUS

067 (066)

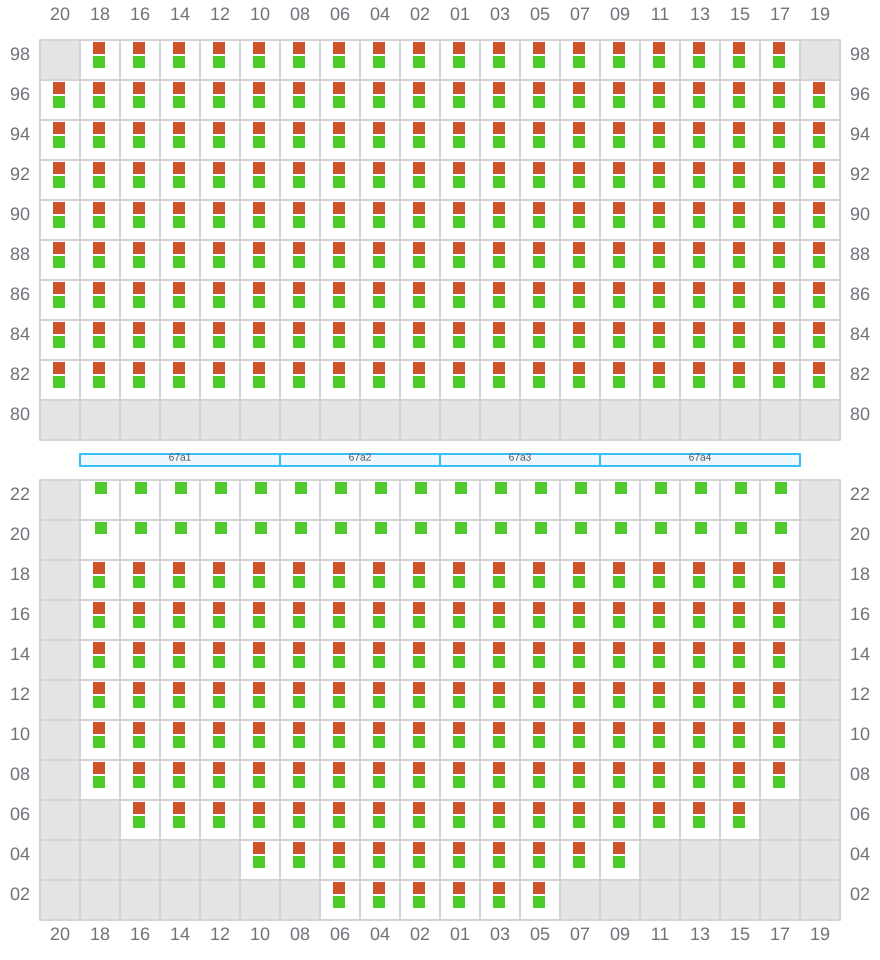

Bay 067 view and slots of CSCL URANUS

069

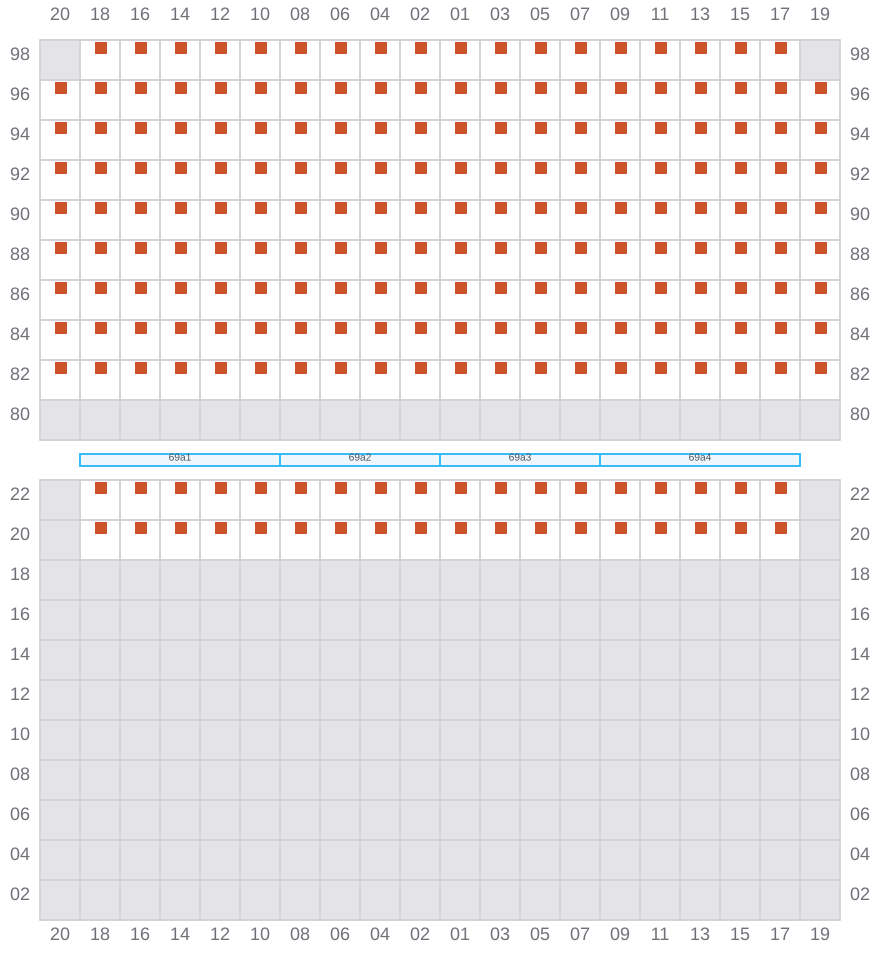

Bay 069 view and slots of CSCL URANUS

071 (070)

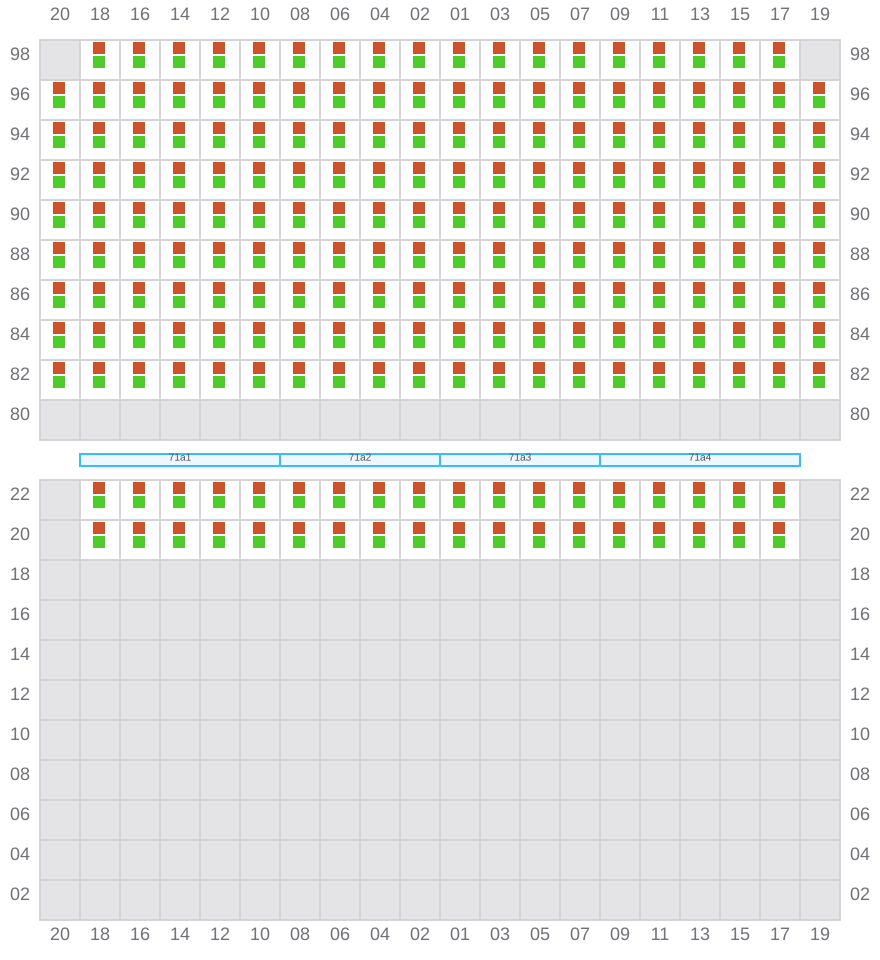

Bay 071 view and slots of CSCL URANUS

073

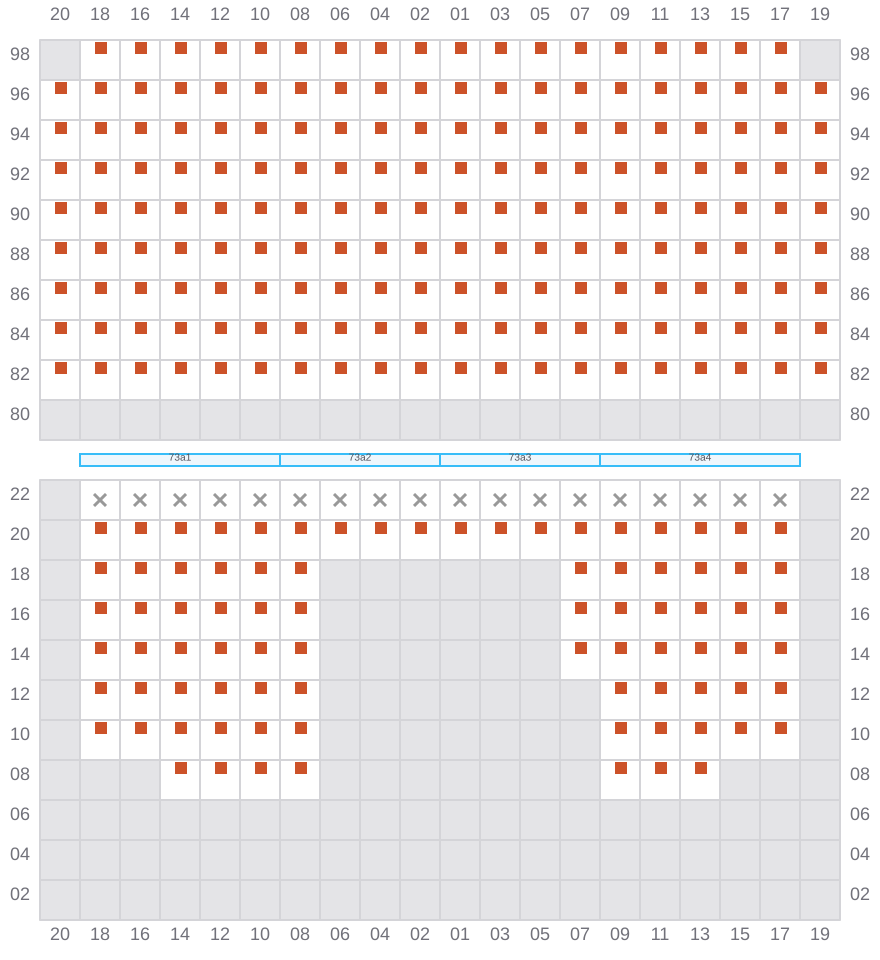

Bay 073 view and slots of CSCL URANUS

075 (074)

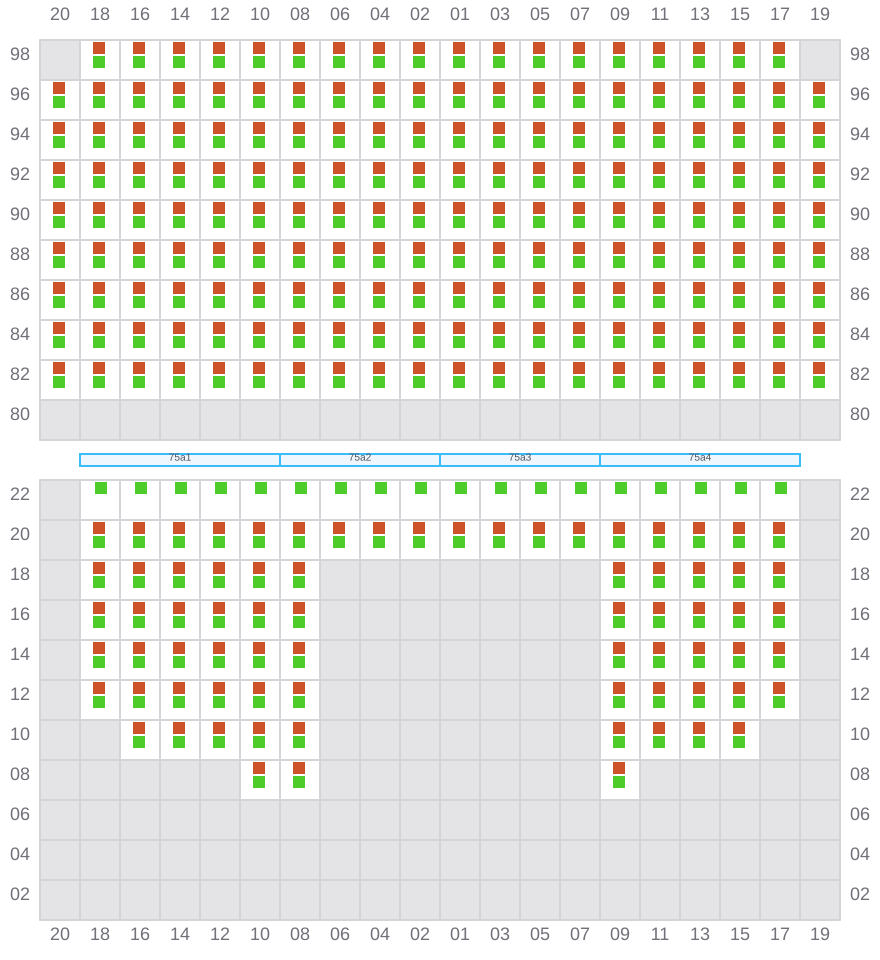

Bay 075 view and slots of CSCL URANUS

077

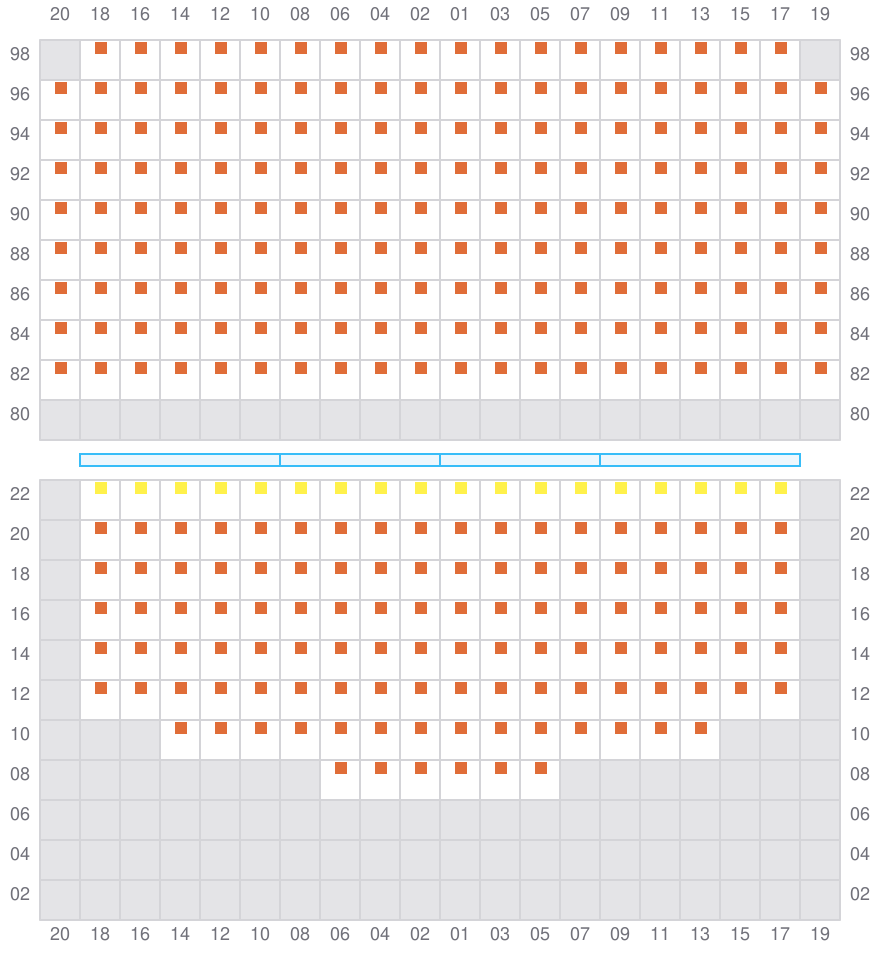

Bay 077 view and slots of CSCL URANUS

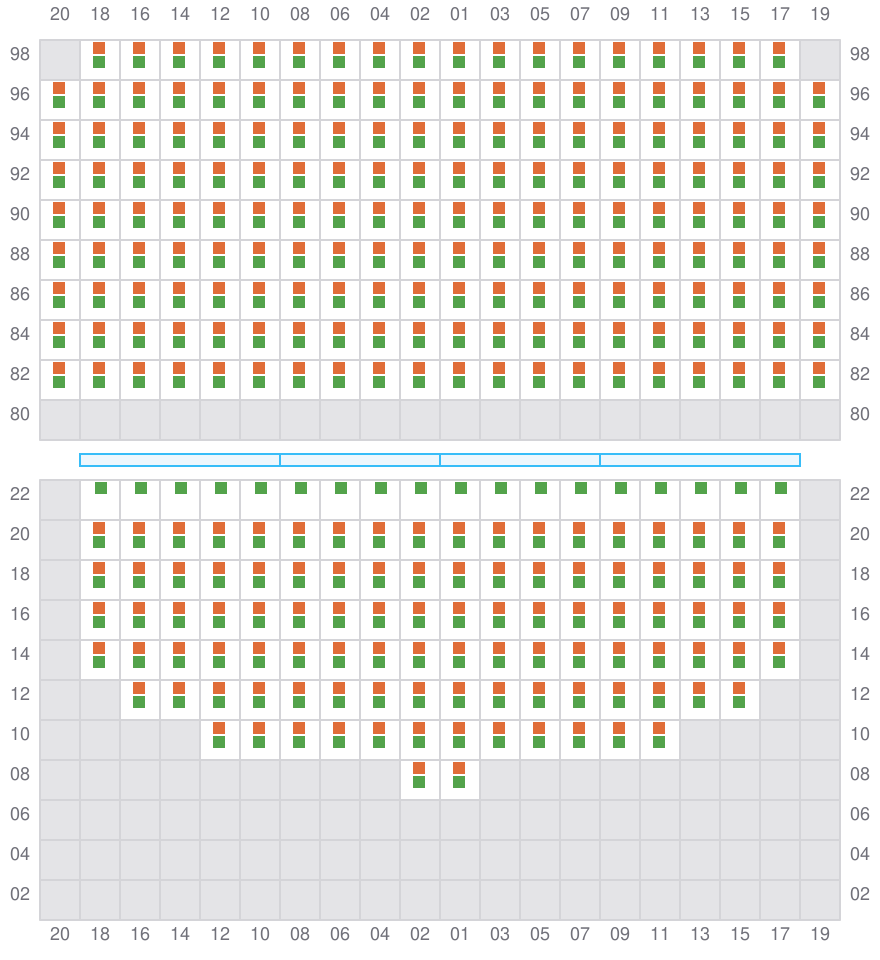

079 (078)

Bay 079 view and slots of CSCL URANUS

081

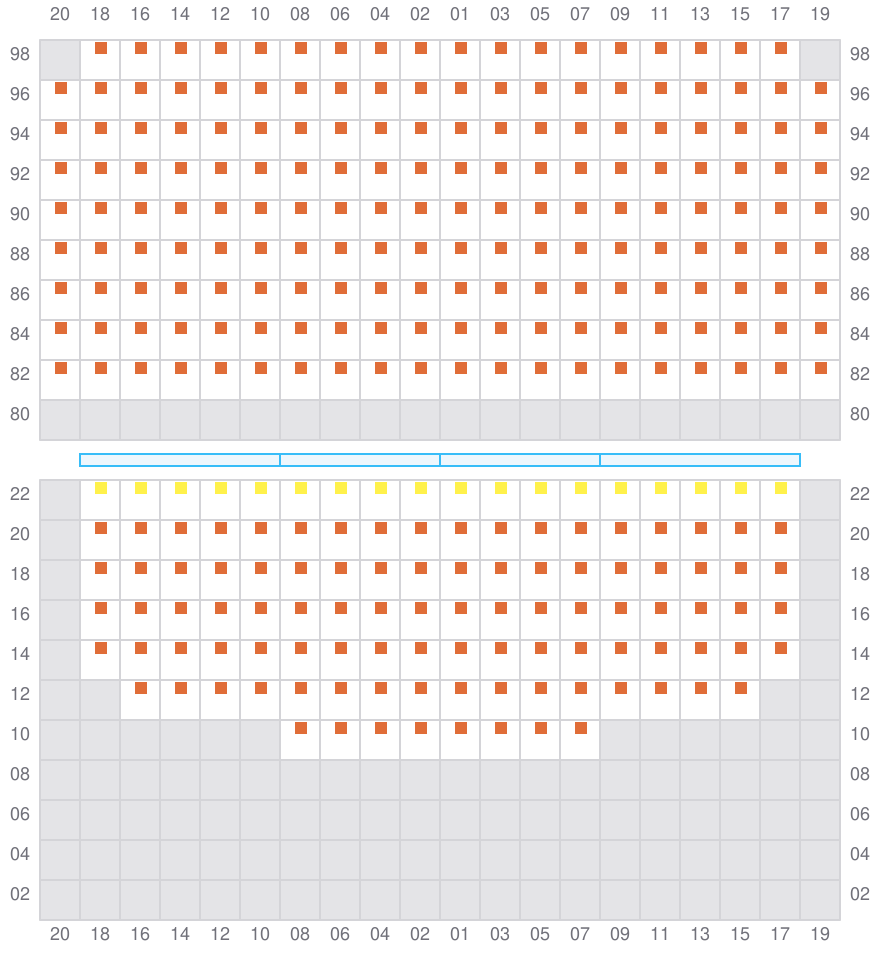

Bay 081 view and slots of CSCL URANUS

083 (082)

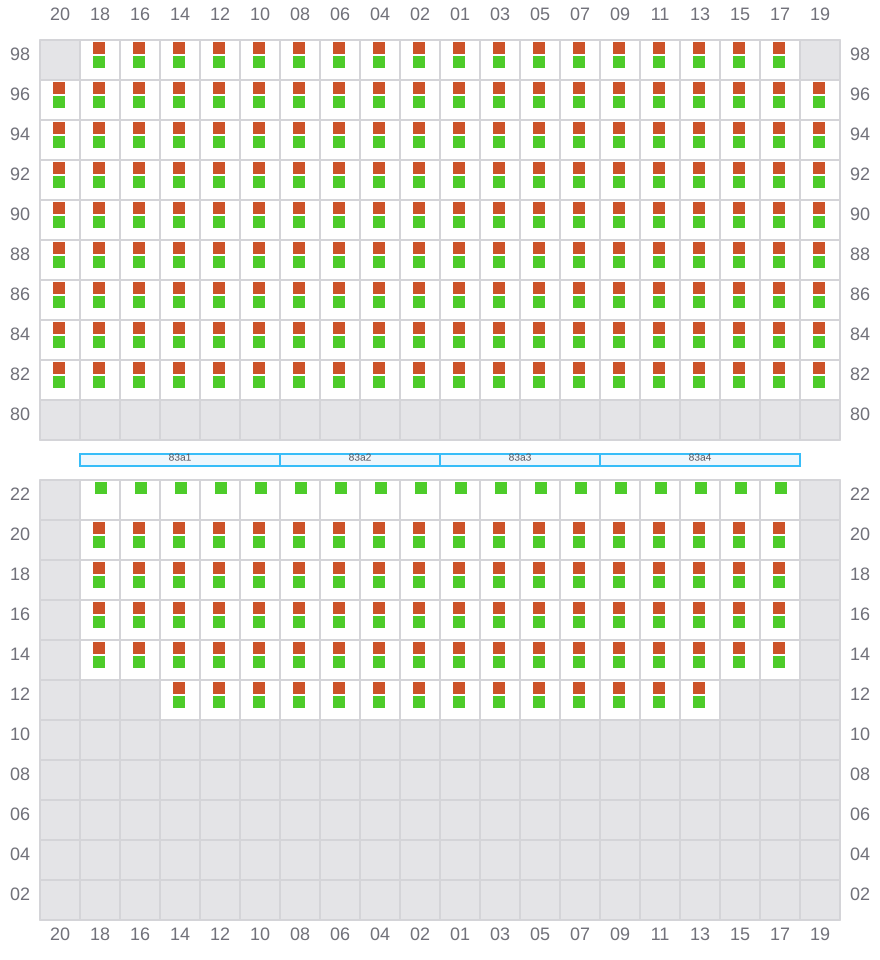

Bay 083 view and slots of CSCL URANUS

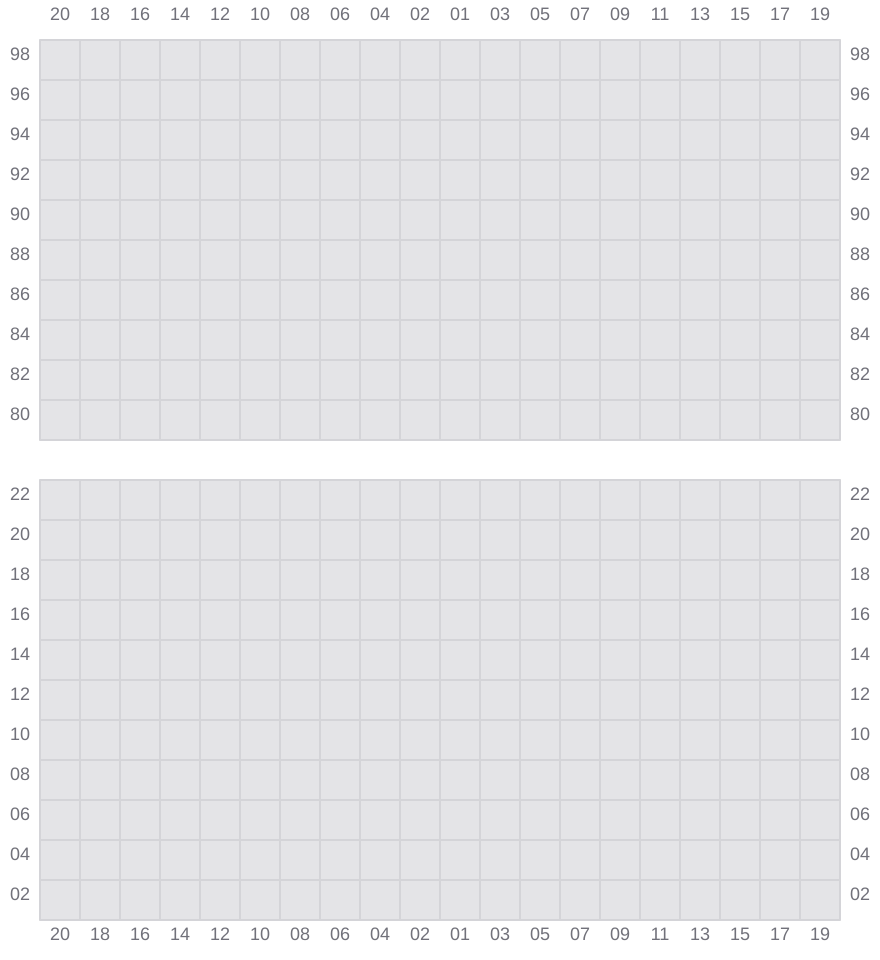

085

Bay 085 view and slots of CSCL URANUS

087 (086)

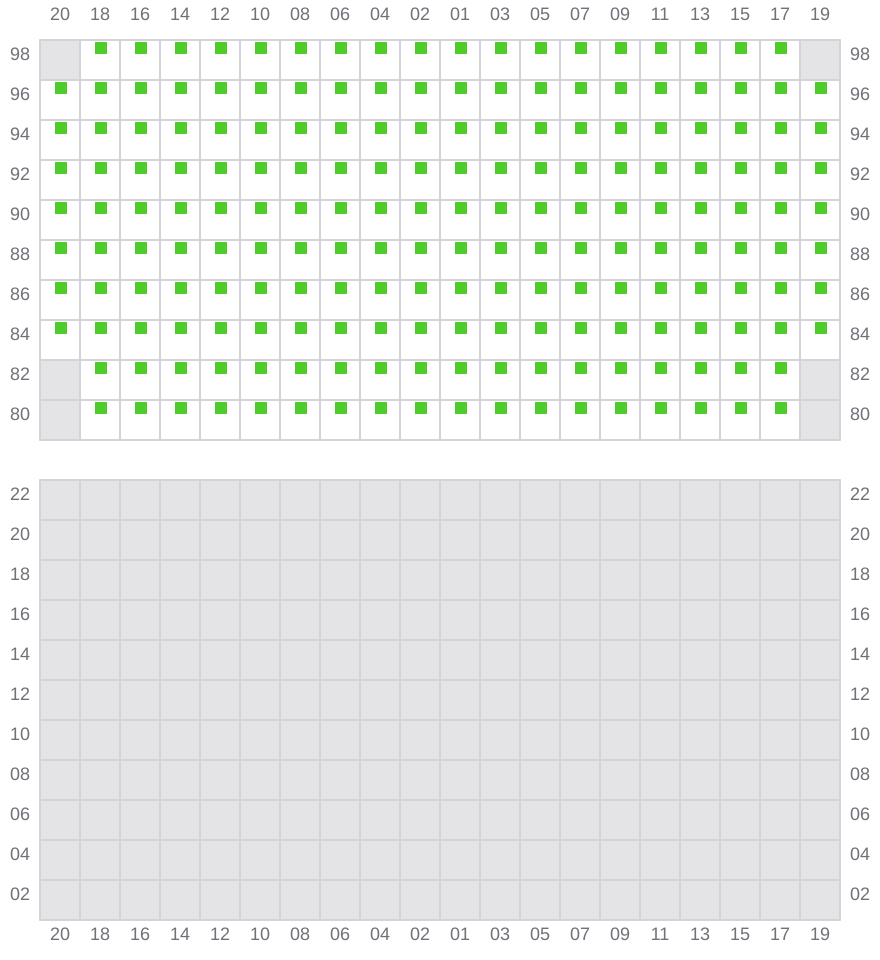

Bay 087 view and slots of CSCL URANUS
