CSCL ZEEBRUGGE
9314234 | VRCS2 | 9314234 by ********* Last update: Fri May 10 2024
General Info
Ship Name:CSCL ZEEBRUGGE
IMO Code:9314234
Call Sign:VRCS2
Line Operator:9314234
Class Name for Sister Ships:CSCL ZEEBRUGGE
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:079
Max ISO Row:18
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:20
Min Below ISO Tier:02
Total TEU:9,346
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

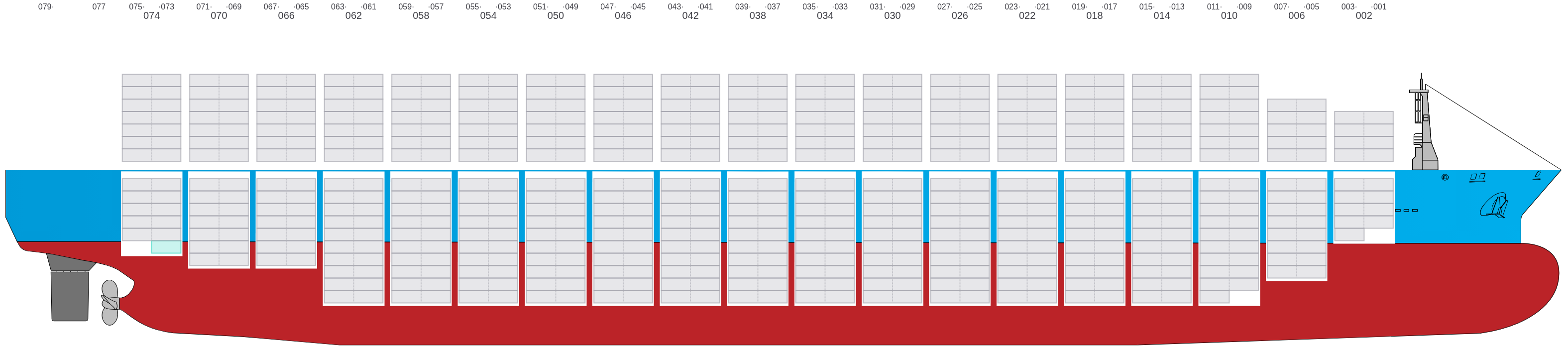

Side View
![Side view of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-sideView.png?v=1715373272255)
Hatch-Covers View
![Deck view of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-deckView.png?v=1715373272255)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
![Bay 001 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b001.png?v=1715373272255)

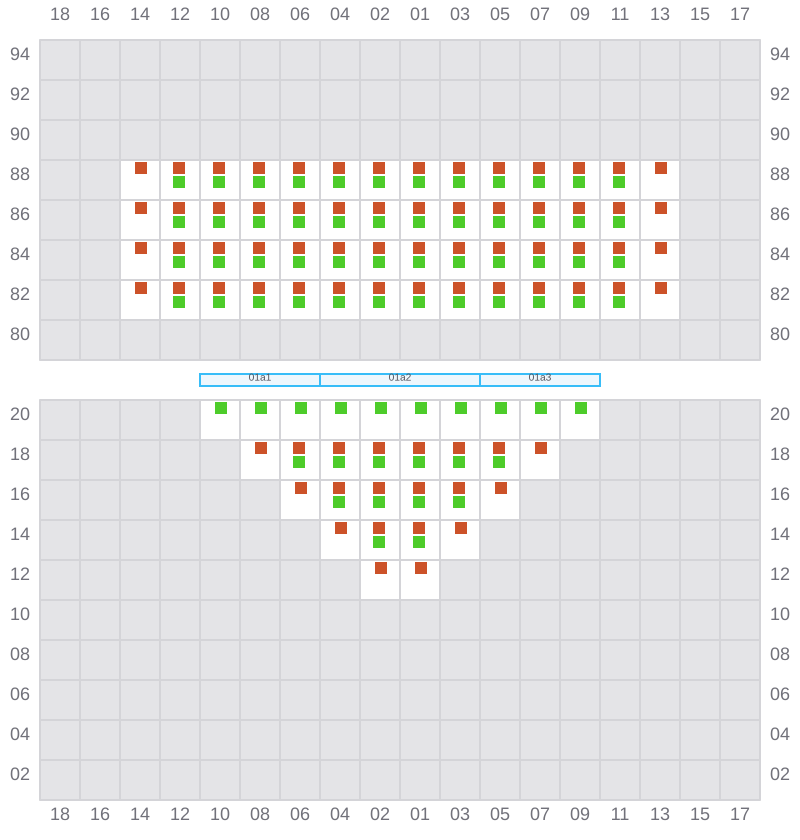

003 (002)
- ←
![Bay 003 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b003.png?v=1715373272255)

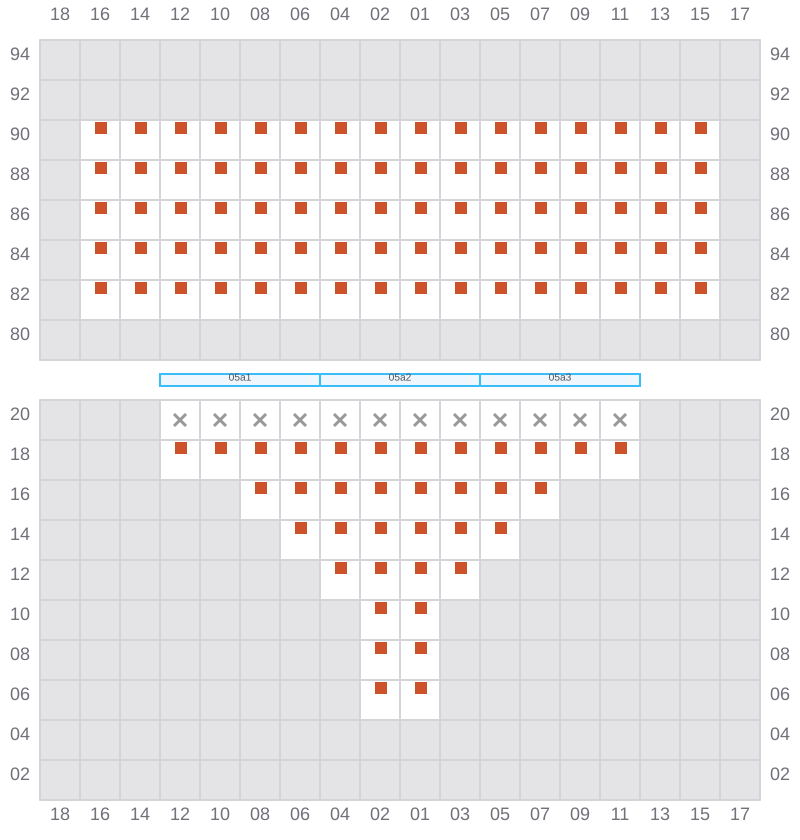

005
- →
![Bay 005 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b005.png?v=1715373272255)

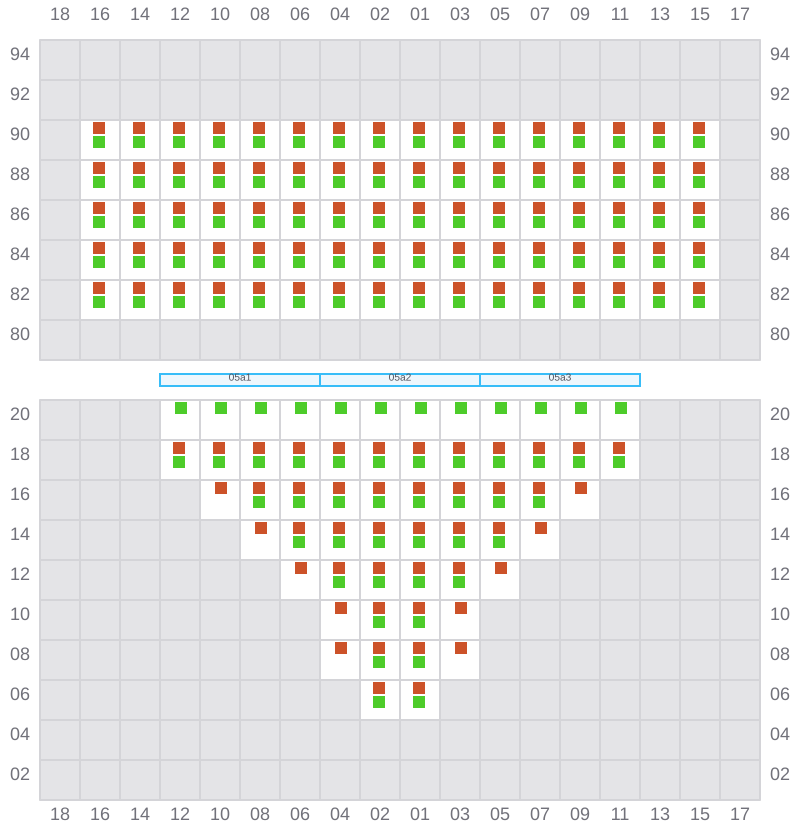

007 (006)
- ←
![Bay 007 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b007.png?v=1715373272255)

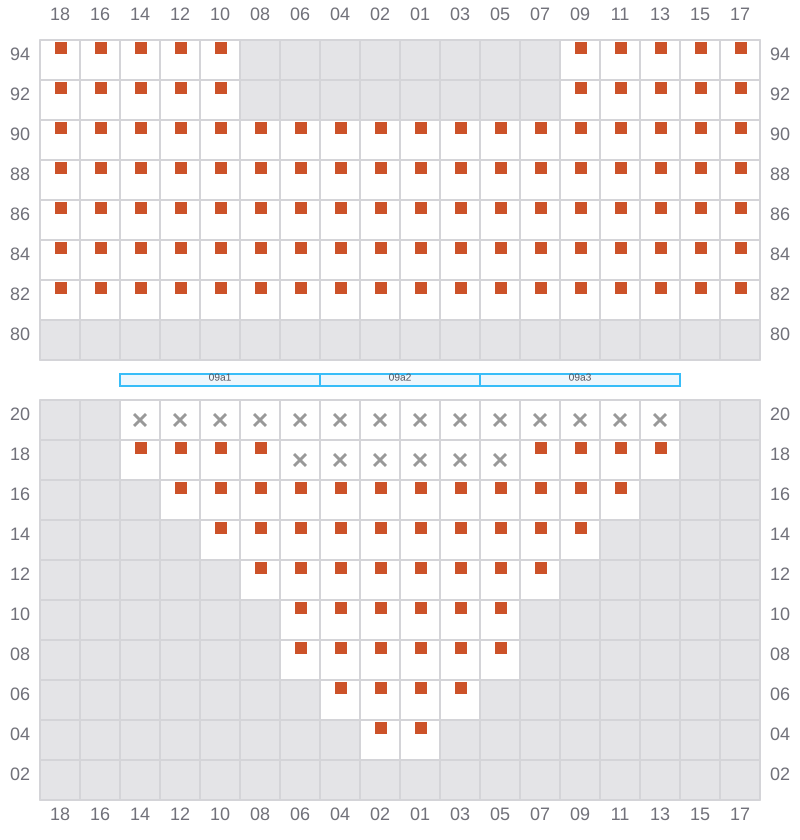

009
- →
![Bay 009 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b009.png?v=1715373272255)

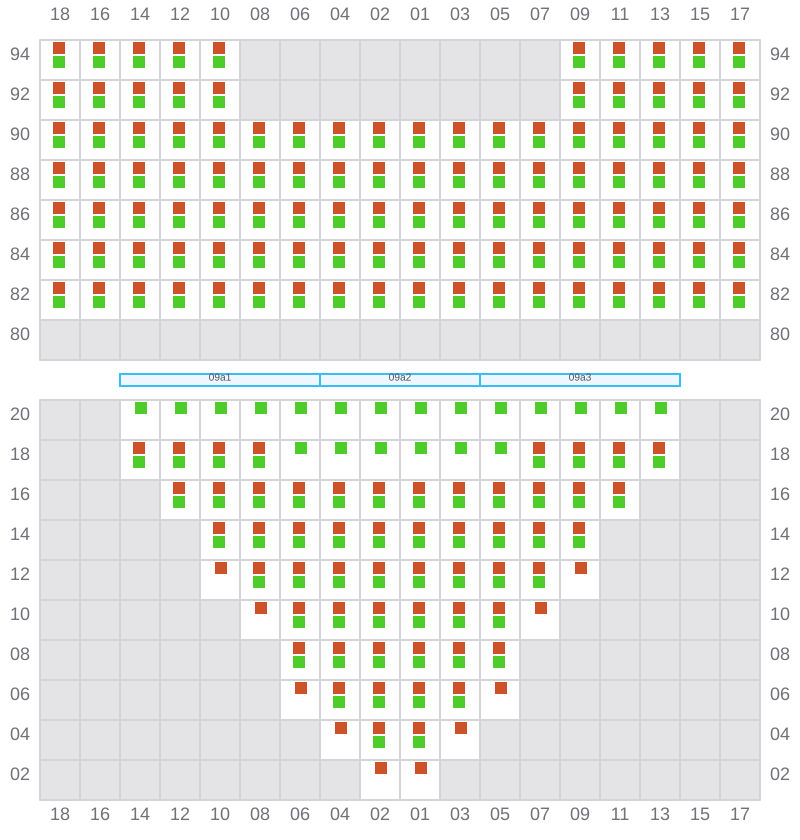

011 (010)
- ←
![Bay 011 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b011.png?v=1715373272255)
013
- →
![Bay 013 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b013.png?v=1715373272255)

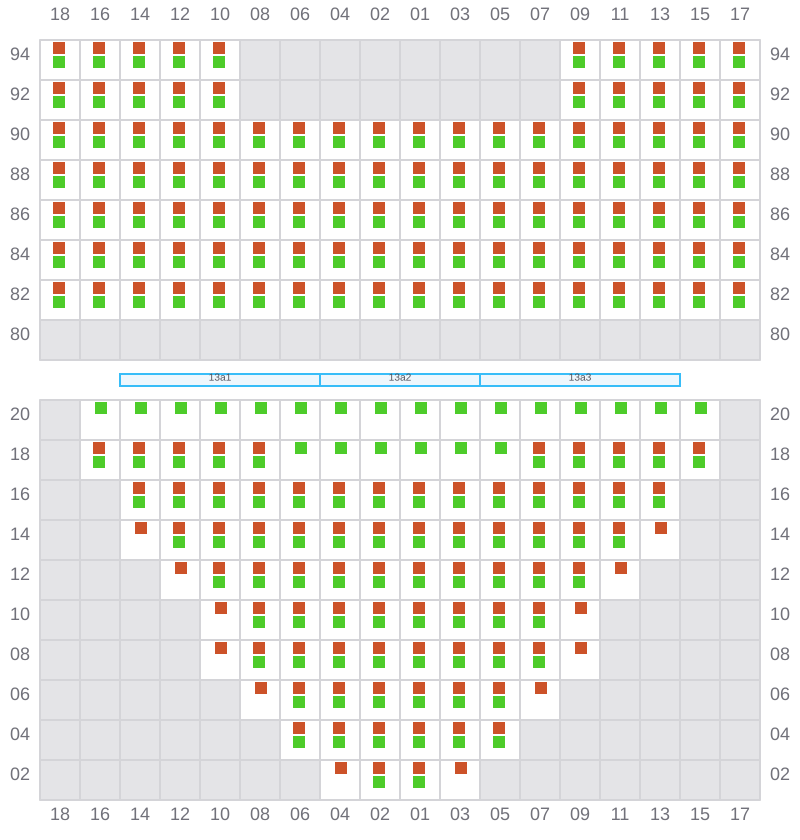

015 (014)
- ←
![Bay 015 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b015.png?v=1715373272255)

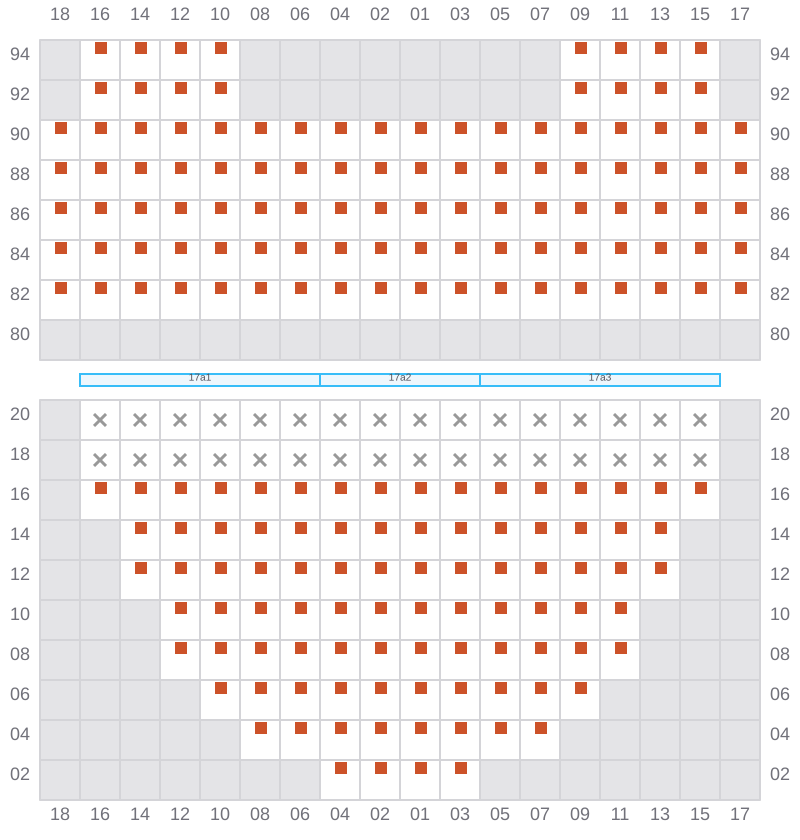

017
- →
![Bay 017 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b017.png?v=1715373272255)

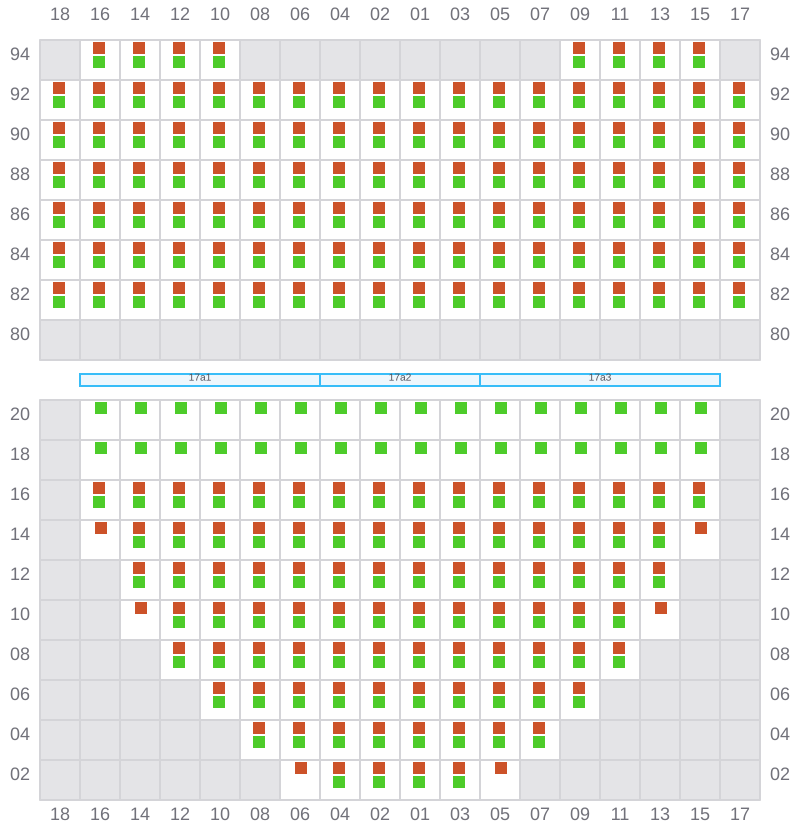

019 (018)
- ←
![Bay 019 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b019.png?v=1715373272255)

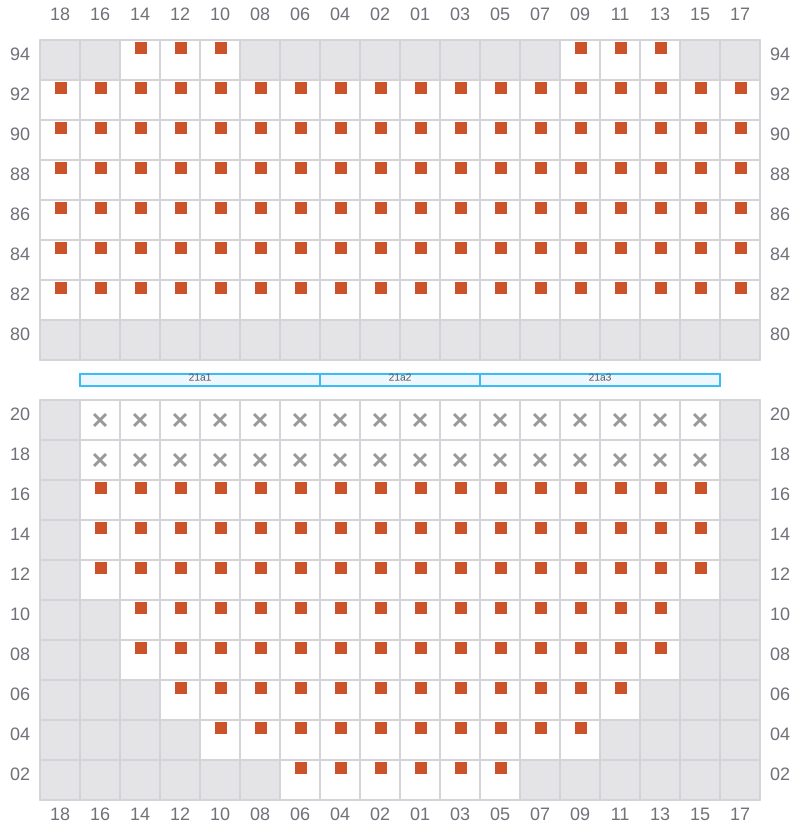

021
- →
![Bay 021 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b021.png?v=1715373272255)

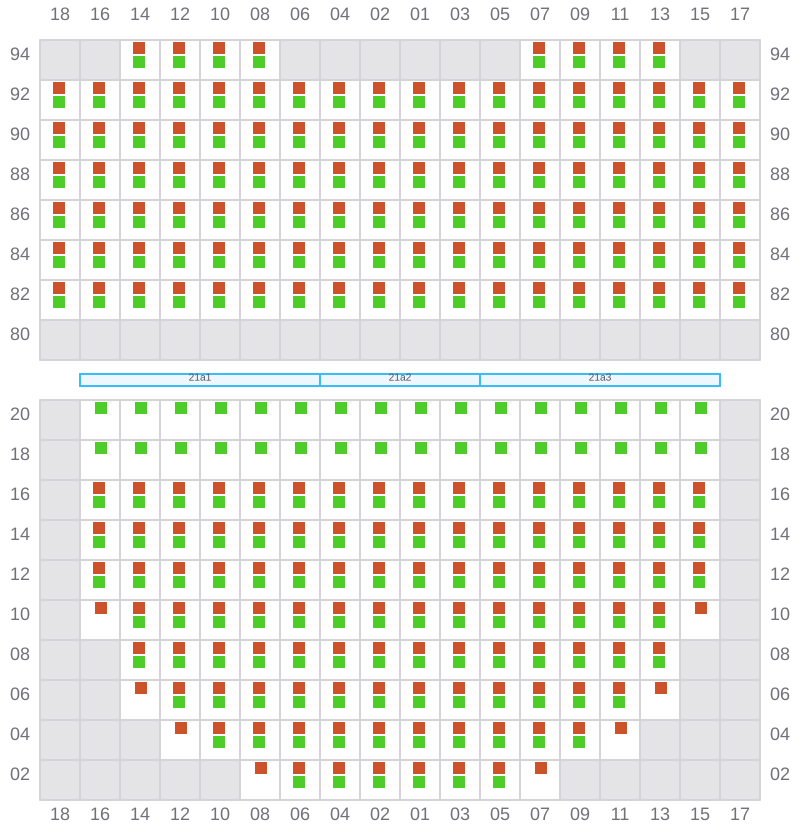

023 (022)
- ←
![Bay 023 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b023.png?v=1715373272255)

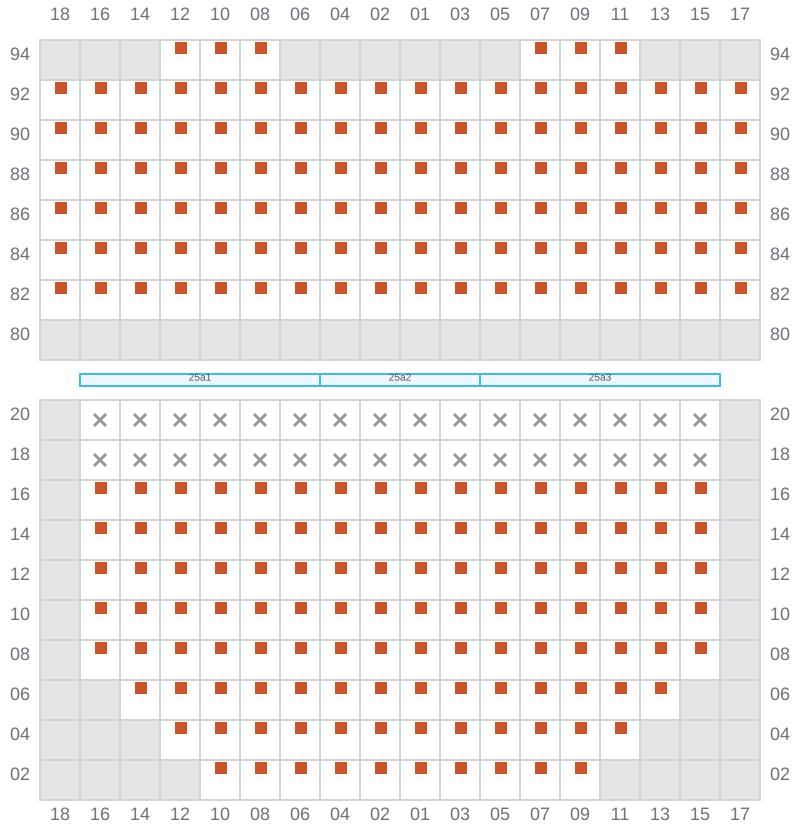

025
- →
![Bay 025 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b025.png?v=1715373272255)
027 (026)
- ←
![Bay 027 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b027.png?v=1715373272255)

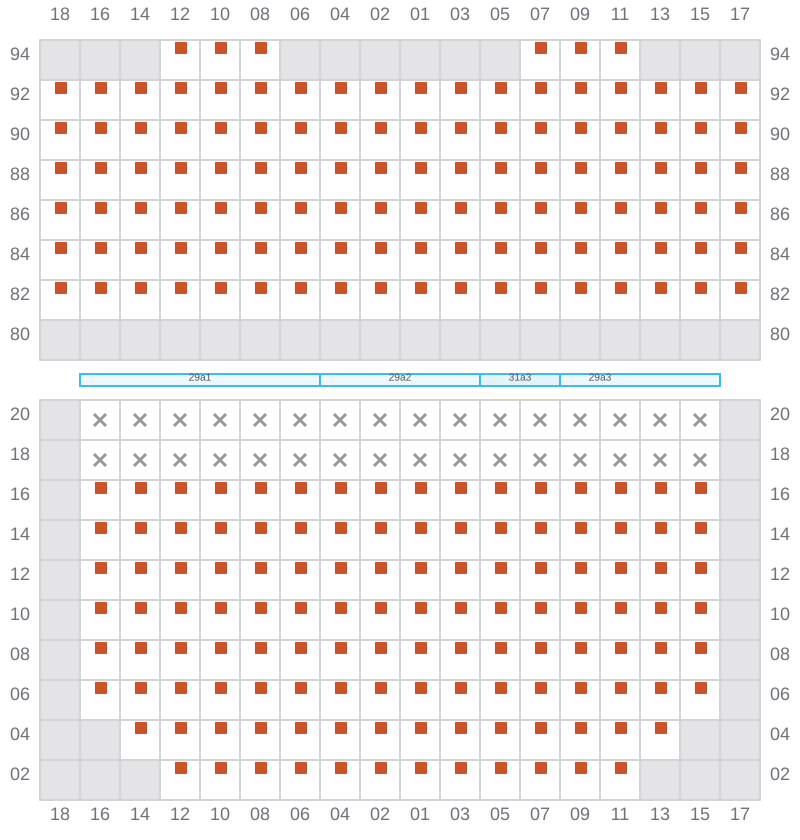

029
- →
![Bay 029 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b029.png?v=1715373272255)
031 (030)
- ←
![Bay 031 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b031.png?v=1715373272255)
033
- →
![Bay 033 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b033.png?v=1715373272255)
035 (034)
- ←
![Bay 035 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b035.png?v=1715373272255)
037
- →
![Bay 037 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b037.png?v=1715373272255)

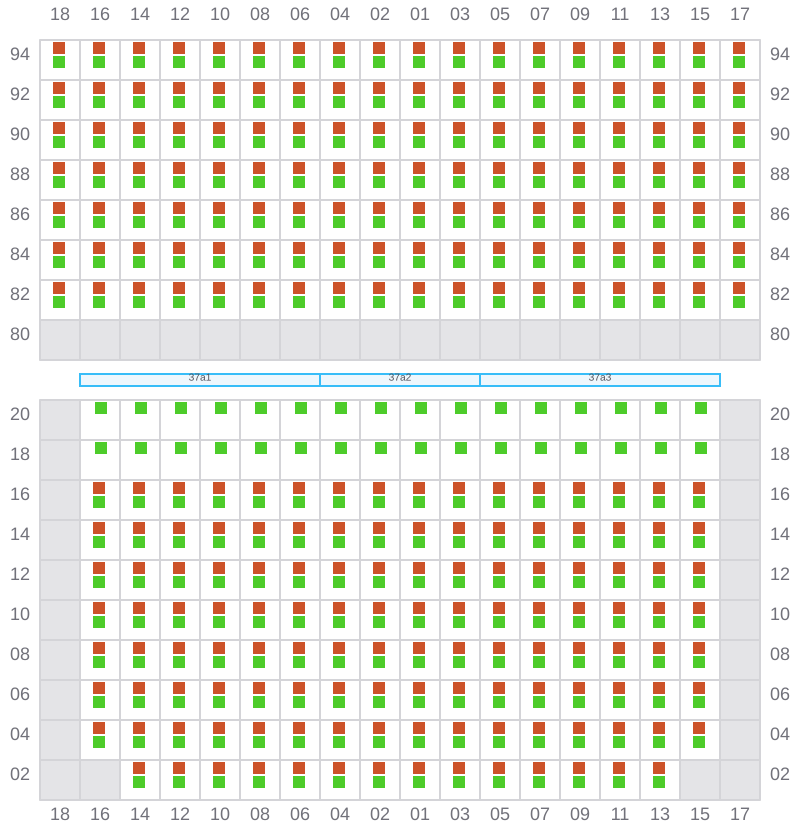

039 (038)
- ←
![Bay 039 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b039.png?v=1715373272255)

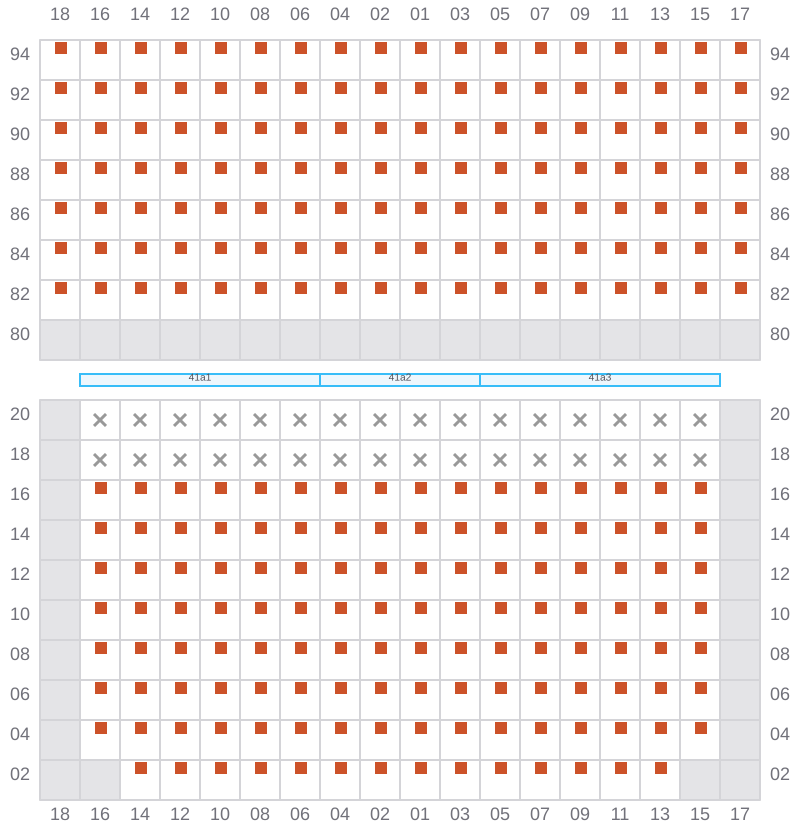

041
- →
![Bay 041 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b041.png?v=1715373272255)
043 (042)
- ←
![Bay 043 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b043.png?v=1715373272255)
045
- →
![Bay 045 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b045.png?v=1715373272255)
047 (046)
- ←
![Bay 047 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b047.png?v=1715373272255)

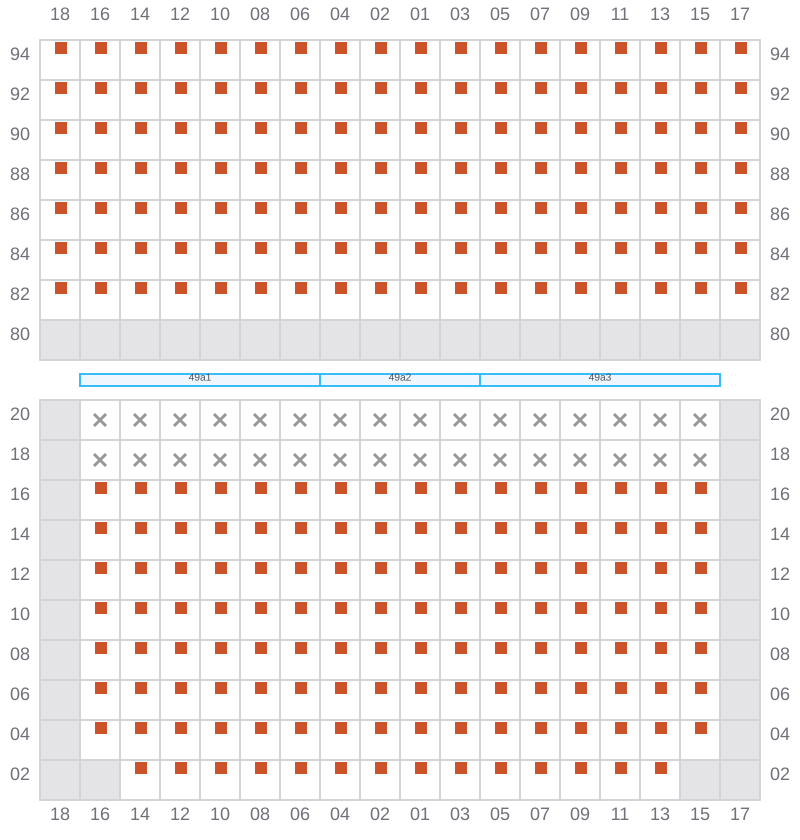

049
- →
![Bay 049 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b049.png?v=1715373272255)
051 (050)
- ←
![Bay 051 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b051.png?v=1715373272255)
053
- →
![Bay 053 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b053.png?v=1715373272255)
055 (054)
- ←
![Bay 055 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b055.png?v=1715373272255)
057
- →
![Bay 057 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b057.png?v=1715373272255)
059 (058)
- ←
![Bay 059 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b059.png?v=1715373272255)
061
- →
![Bay 061 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b061.png?v=1715373272255)

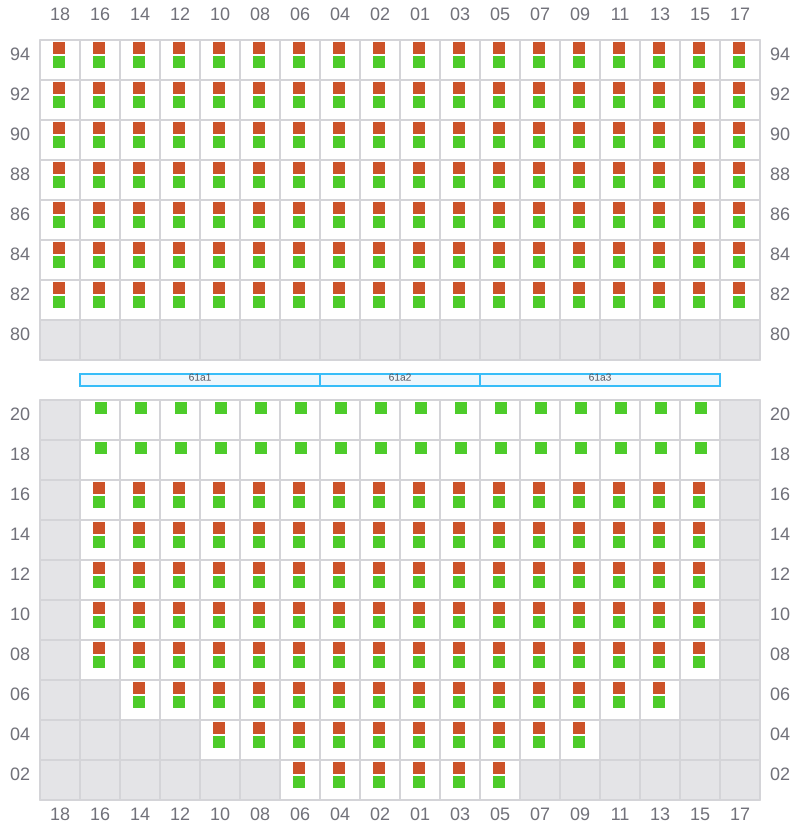

063 (062)
- ←
![Bay 063 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b063.png?v=1715373272255)

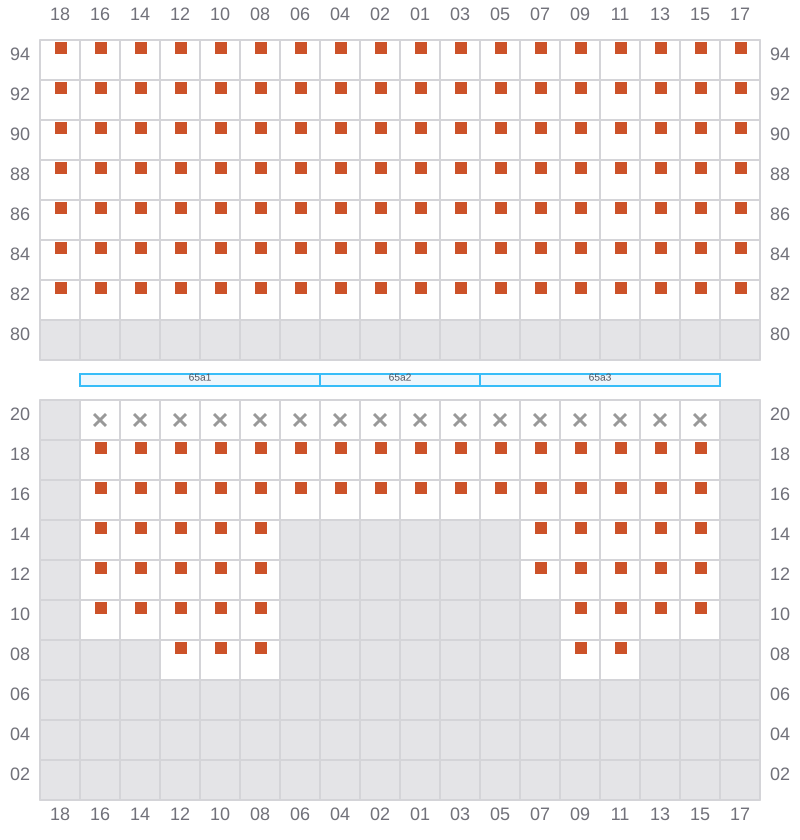

065
- →
![Bay 065 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b065.png?v=1715373272255)
067 (066)
- ←
![Bay 067 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b067.png?v=1715373272255)
069
- →
![Bay 069 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b069.png?v=1715373272255)

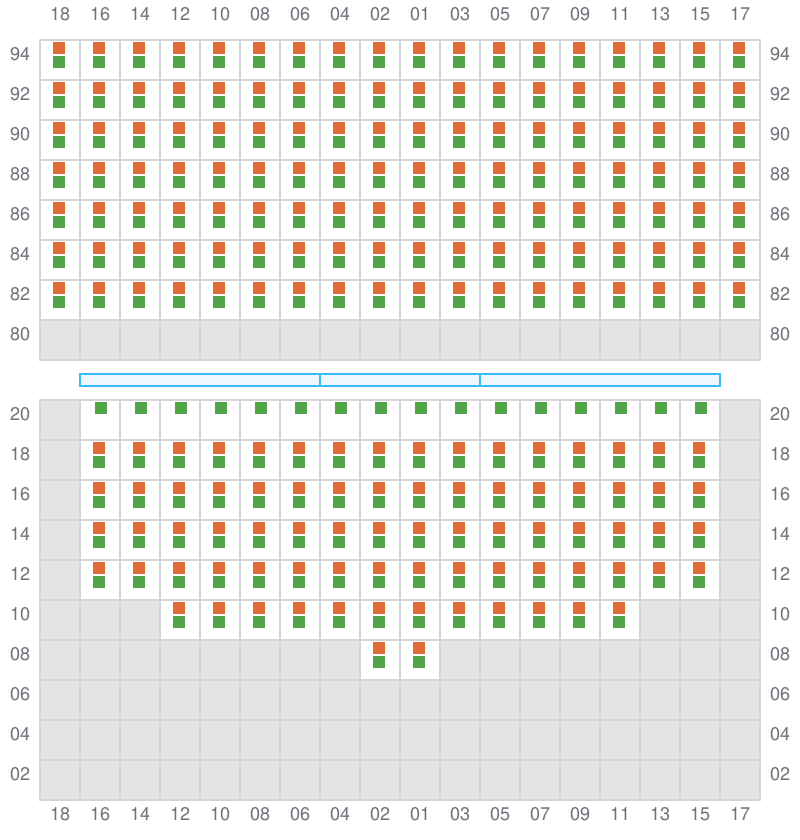

071 (070)
- ←
![Bay 071 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b071.png?v=1715373272255)

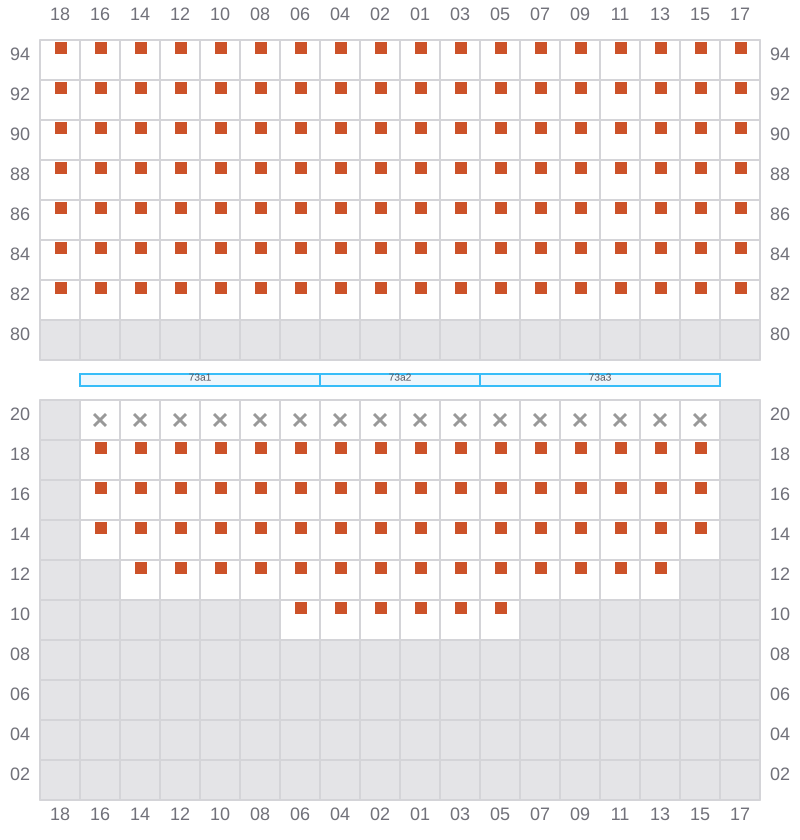

073
- →
![Bay 073 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b073.png?v=1715373272255)

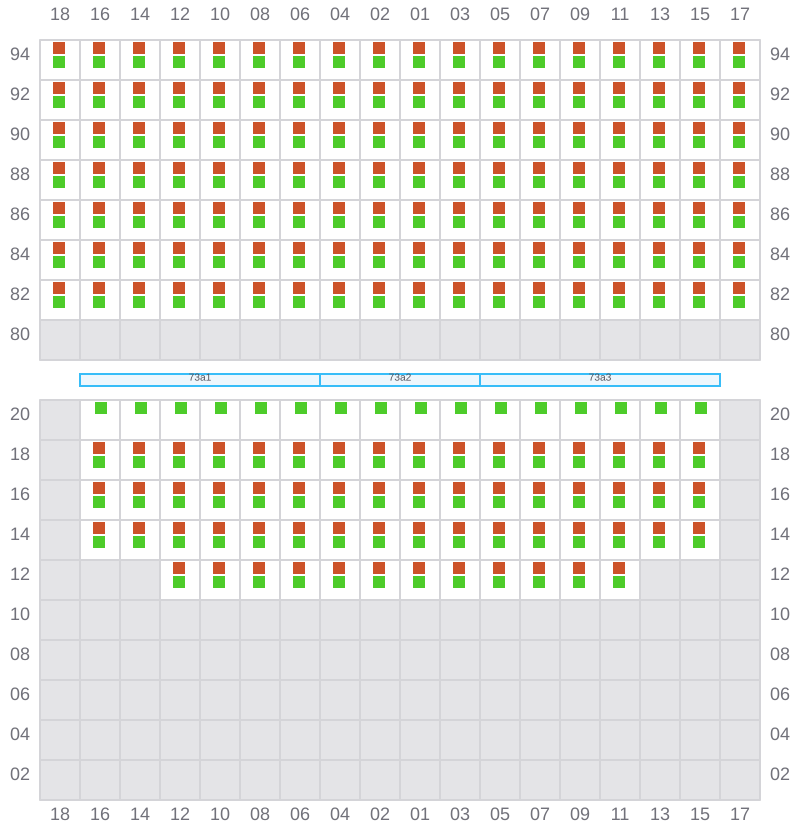

075 (074)
- ←
![Bay 075 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b075.png?v=1715373272255)

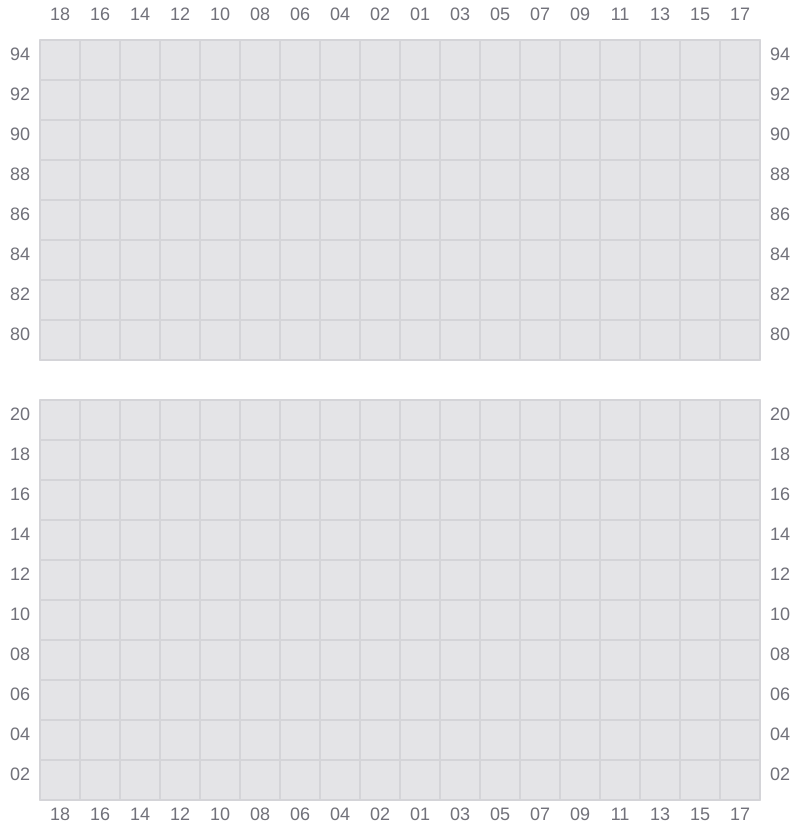

077
![Bay 077 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b077.png?v=1715373272255)

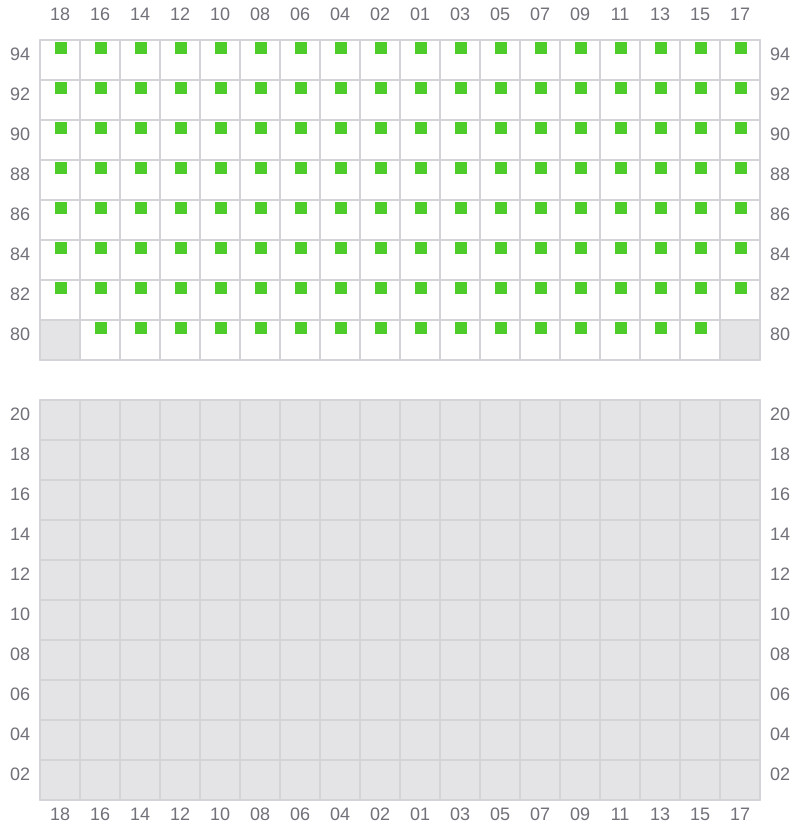

079 (078)
- ← / ?
![Bay 079 view and slots of CSCL ZEEBRUGGE](/vessel-images/e814c687-b2f2-4619-8e70-be662e461bc6-b079.png?v=1715373272255)
