CTP HONOUR
9150925 | PNVP | 9150925 by ********* Last update: Fri Mar 08 2024
General Info
Ship Name:CTP HONOUR
IMO Code:9150925
Call Sign:PNVP
Line Operator:9150925
Class Name for Sister Ships:82N
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:946
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

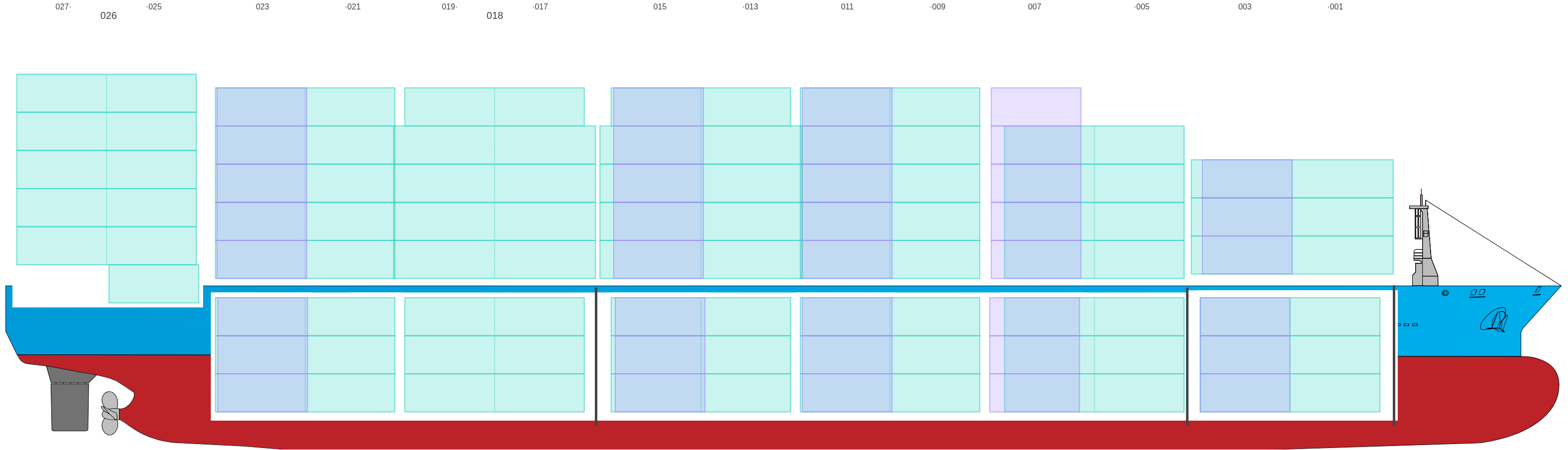

Side View

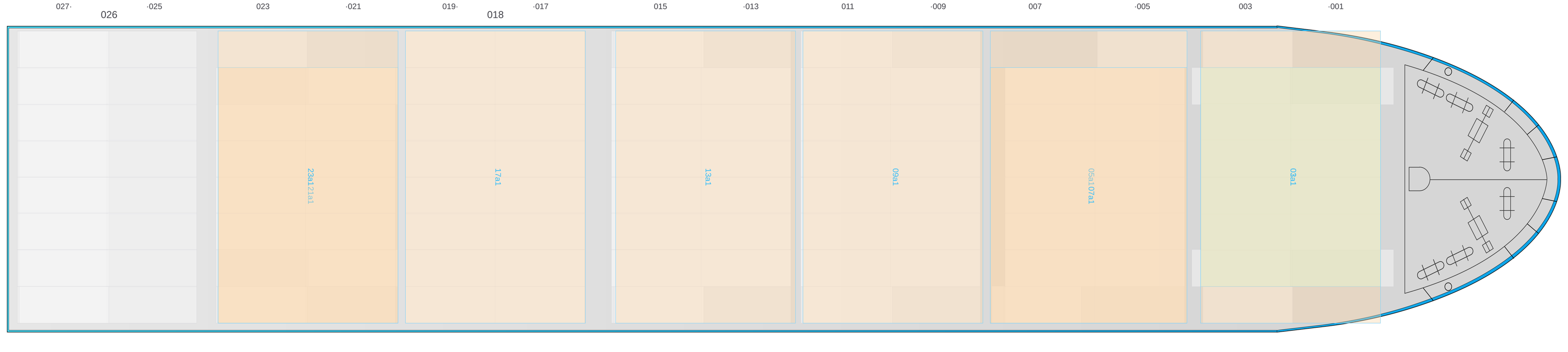

Hatch-Covers View

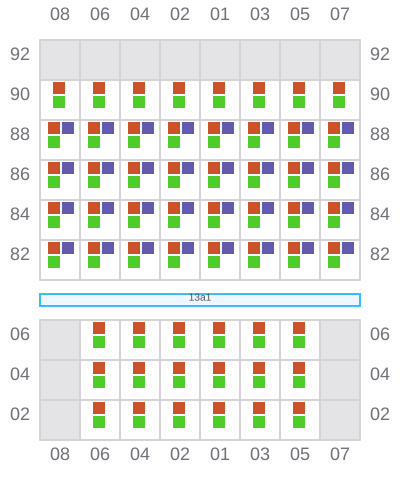

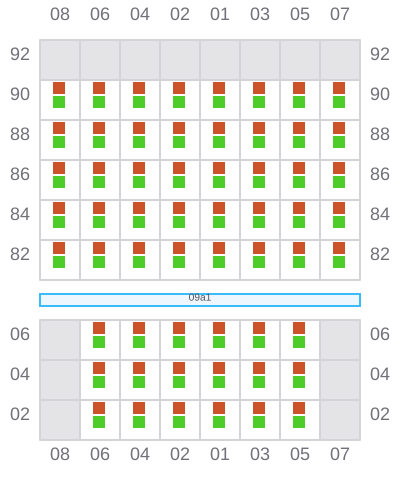

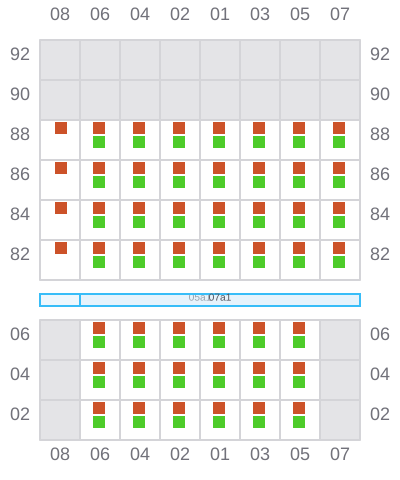

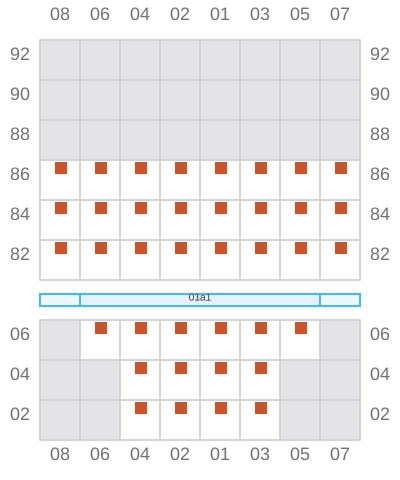

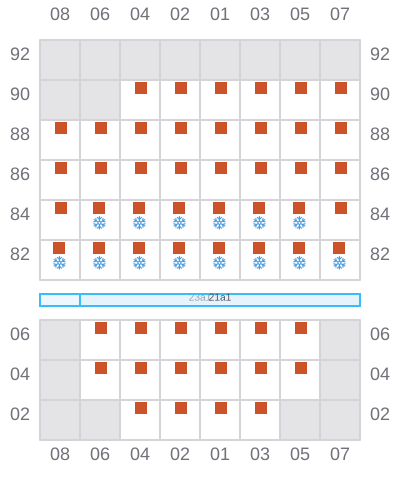

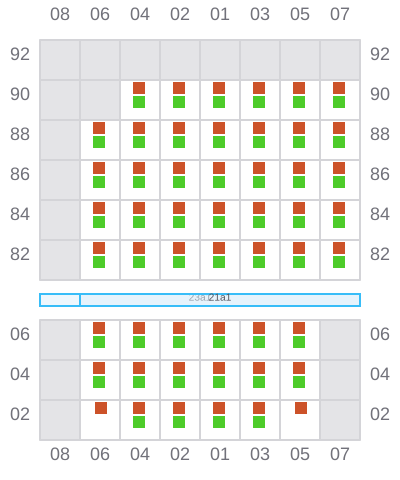

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

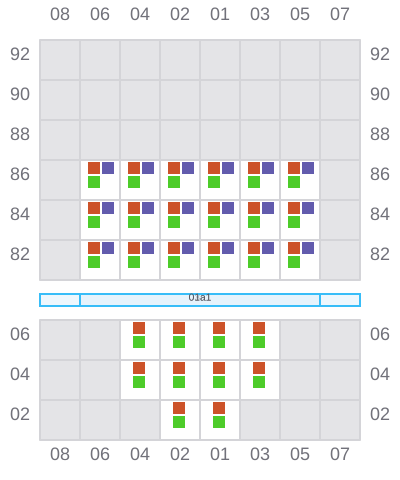

001 (002)
- →
003
- → / ?

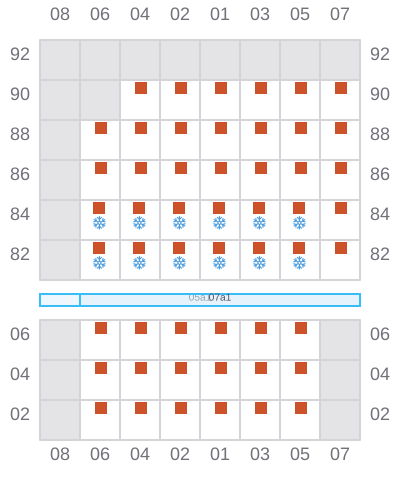

005 (006)
- →
- ← / ?
- →
007
- → / ?

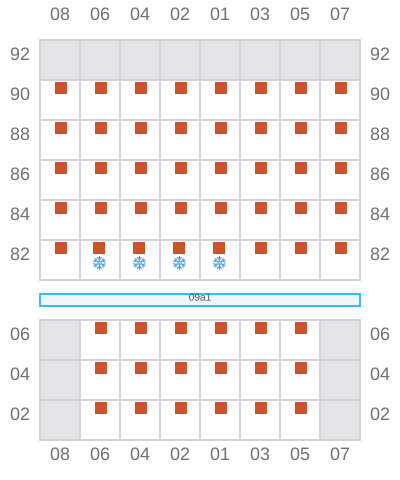

009 (010)
- →
- ← / ?
011
- → / ?

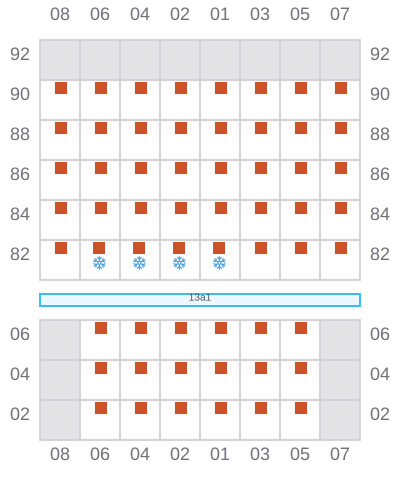

013 (014)
- →
- ← / ?
015
- → / ?

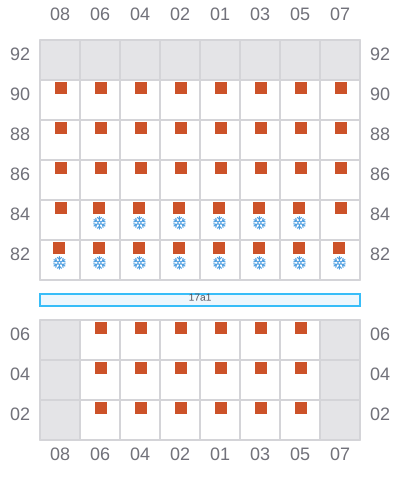

017 (018)
- →
- ← / ?
019
- ←
- → / ?
- → / ?
021 (022)
- →
023
025 (026)
- → / ?
- ← / ?

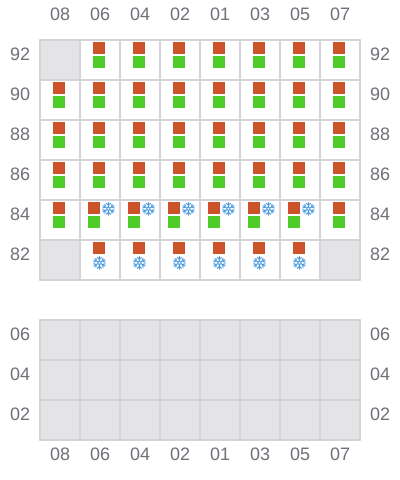

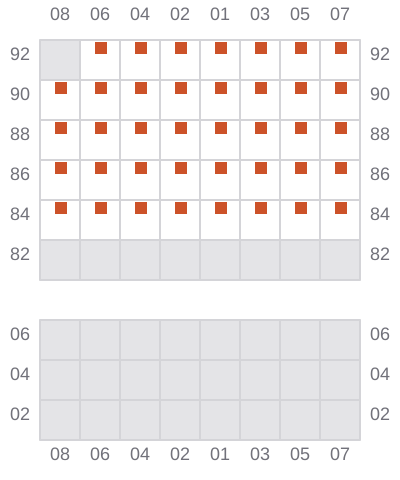

027
- ← / ?
