CUL SHEKOU
9964596 | 9V8955 | ONE by ******************** Last update: Fri Jun 20 2025

General Info

Ship Name:CUL SHEKOU
IMO Code:9964596
Call Sign:9V8955
Line Operator:ONE
Class Name for Sister Ships:CUSK
Year Built:2023
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):148.00
LOA (Length Overall):189.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:043
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,689

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

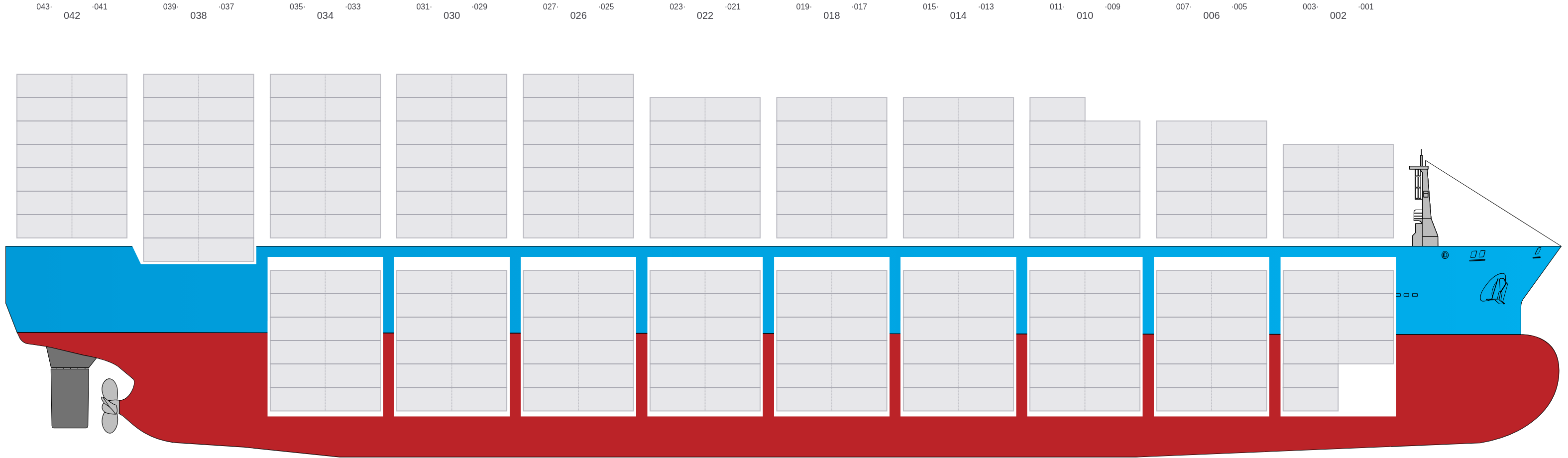

Side view of CUL SHEKOU

Hatch-Covers View

Deck view of CUL SHEKOU

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

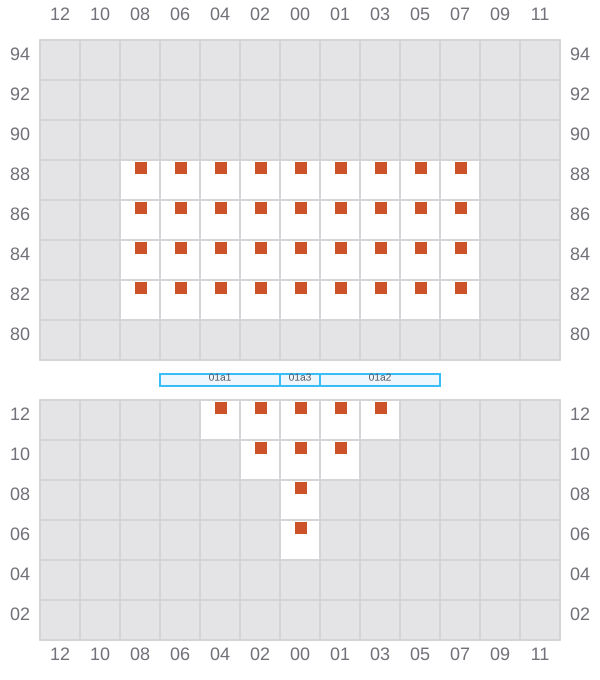

001

  • →
  • ✓
Bay 001 view and slots of CUL SHEKOU

003 (002)

  • ←
  • ✓

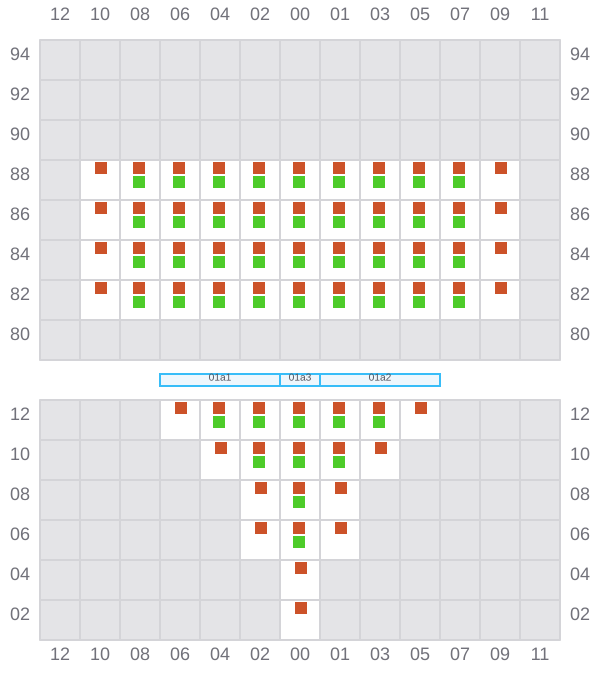

Bay 003 view and slots of CUL SHEKOU

005

  • →
  • ✓

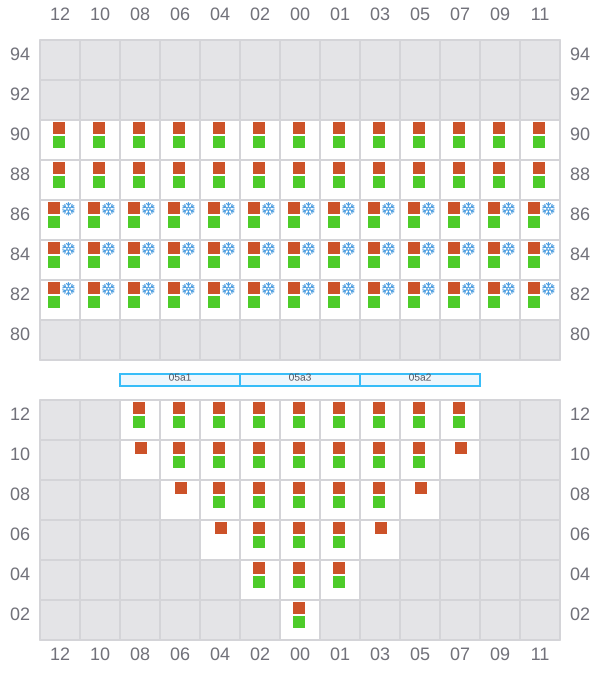

Bay 005 view and slots of CUL SHEKOU

007 (006)

  • ←
  • ✓
Bay 007 view and slots of CUL SHEKOU

009

  • →
  • ✓

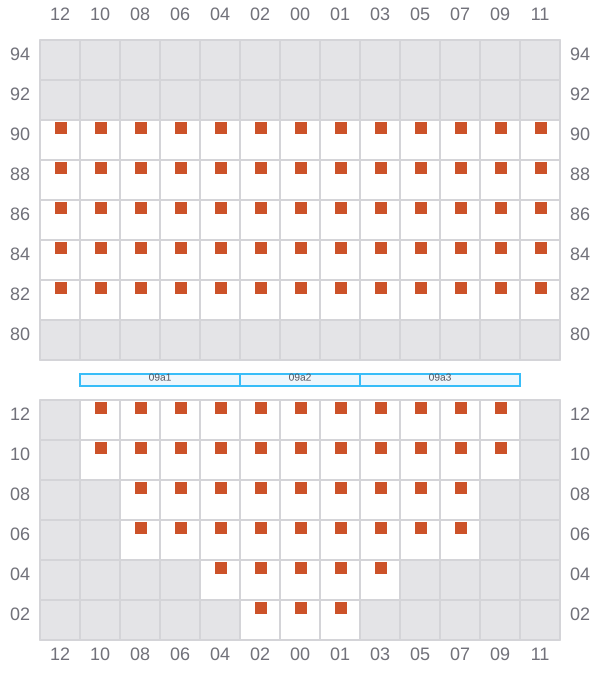

Bay 009 view and slots of CUL SHEKOU

011 (010)

  • ←
  • ✓
Bay 011 view and slots of CUL SHEKOU

013

  • →
  • ✓
Bay 013 view and slots of CUL SHEKOU

015 (014)

  • ←
  • ✓
Bay 015 view and slots of CUL SHEKOU

017

  • →
  • ✓
Bay 017 view and slots of CUL SHEKOU

019 (018)

  • ←
  • ✓
Bay 019 view and slots of CUL SHEKOU

021

  • →
  • ✓

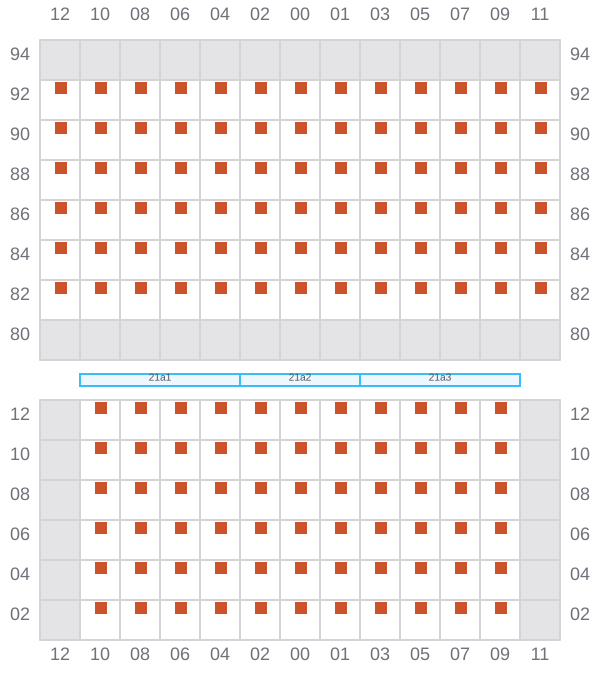

Bay 021 view and slots of CUL SHEKOU

023 (022)

  • ←
  • ✓

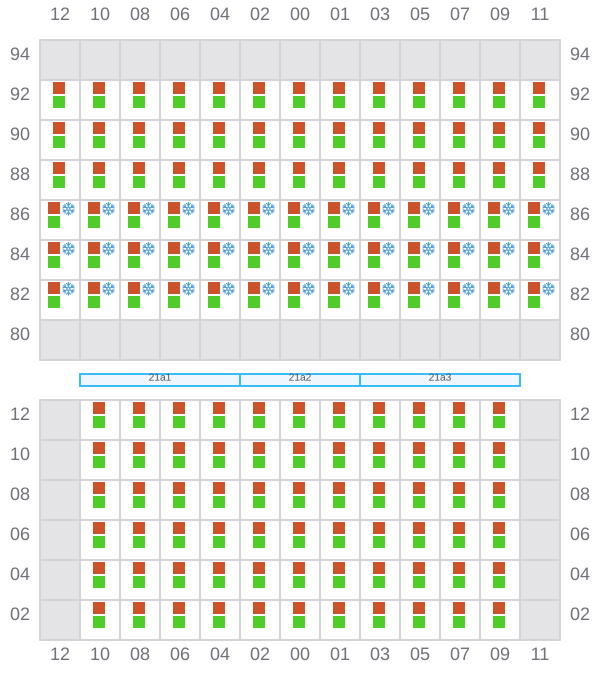

Bay 023 view and slots of CUL SHEKOU

025

  • →
  • ✓
Bay 025 view and slots of CUL SHEKOU

027 (026)

  • ←
  • ✓

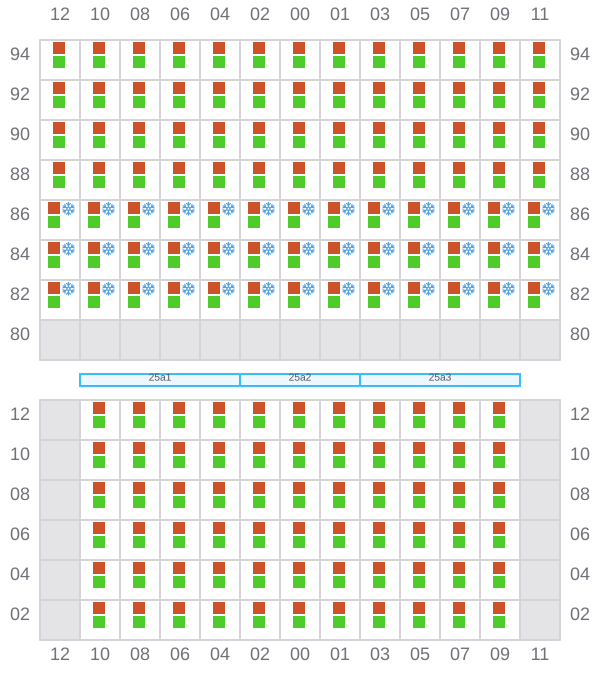

Bay 027 view and slots of CUL SHEKOU

029

  • →
  • ✓

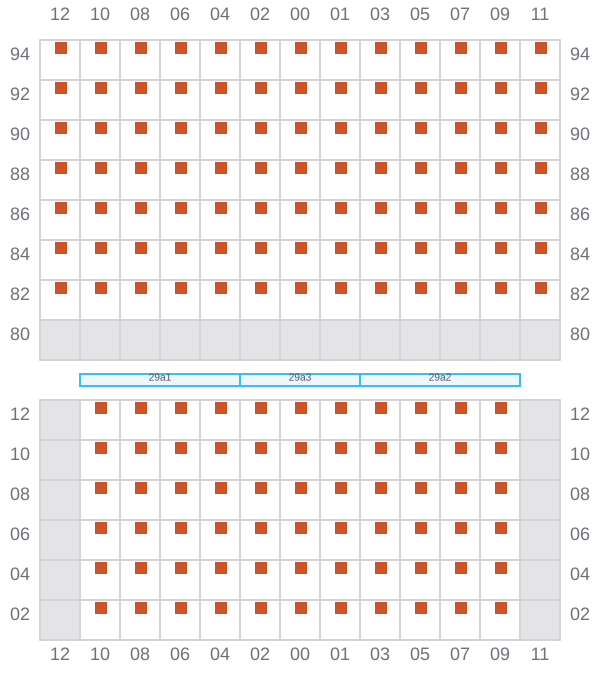

Bay 029 view and slots of CUL SHEKOU

031 (030)

  • ←
  • ✓

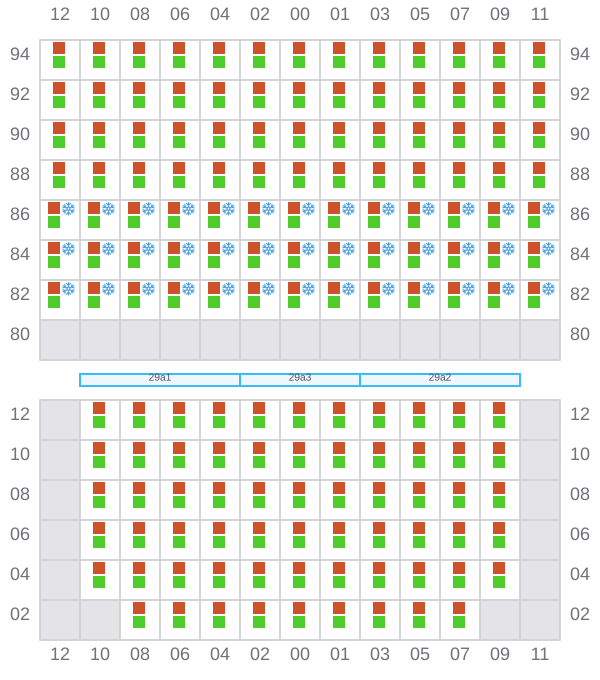

Bay 031 view and slots of CUL SHEKOU

033

  • →
  • ✓

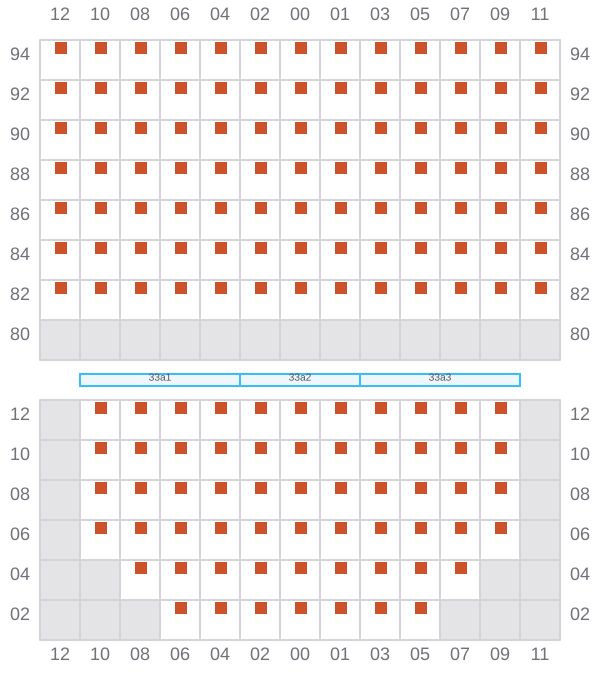

Bay 033 view and slots of CUL SHEKOU

035 (034)

  • ←
  • ✓

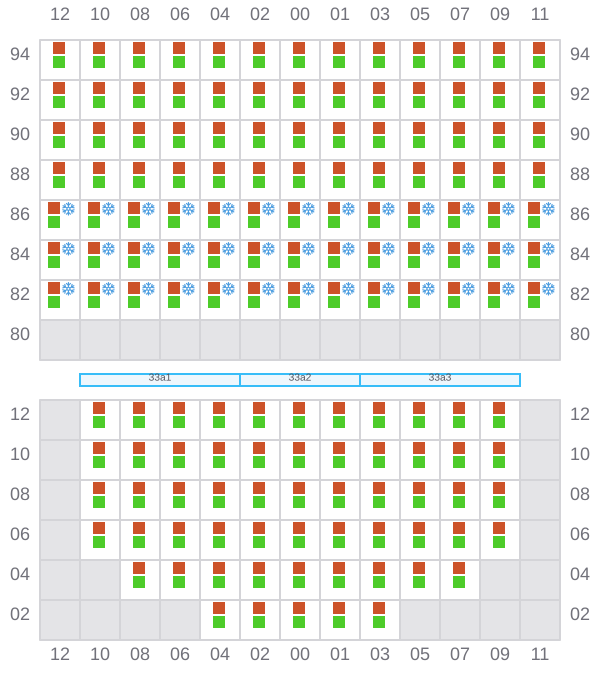

Bay 035 view and slots of CUL SHEKOU

037

  • →
  • ? / ?
  • ? / ?
  • ✓

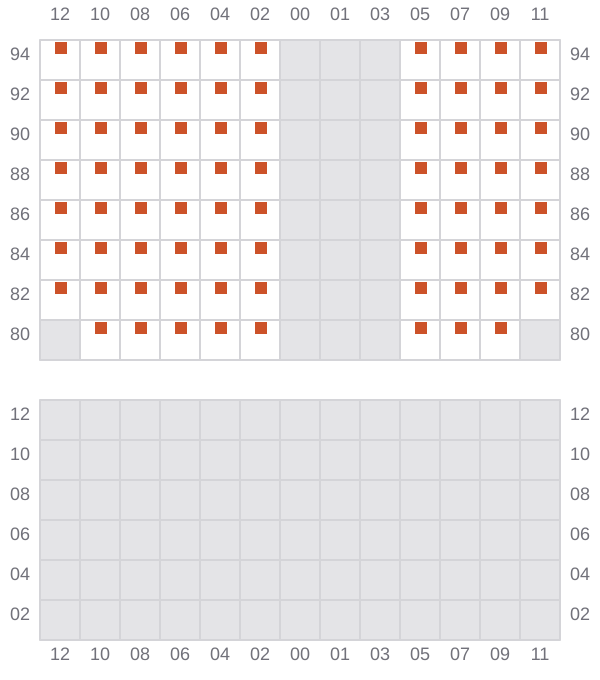

Bay 037 view and slots of CUL SHEKOU

039 (038)

  • ←
  • ? / ?
  • ? / ?
  • ✓

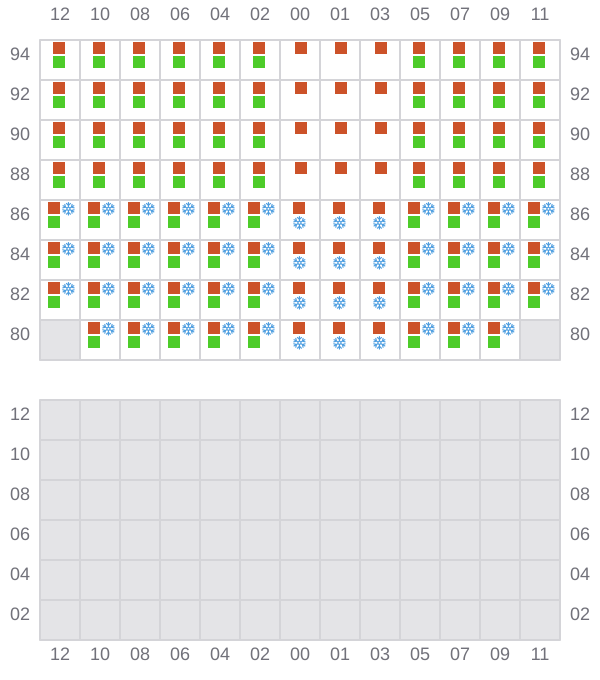

Bay 039 view and slots of CUL SHEKOU

041

  • →
  • ✓

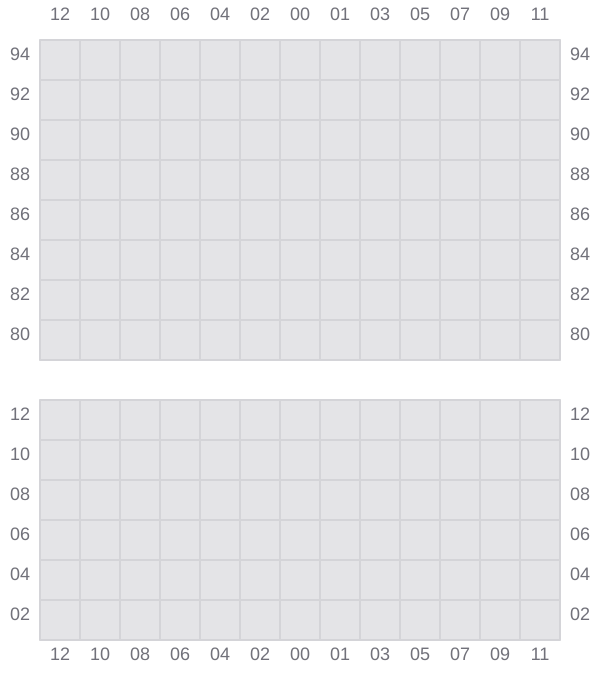

Bay 041 view and slots of CUL SHEKOU

043 (042)

  • ←
  • ? / ?
  • ? / ?
  • ✓

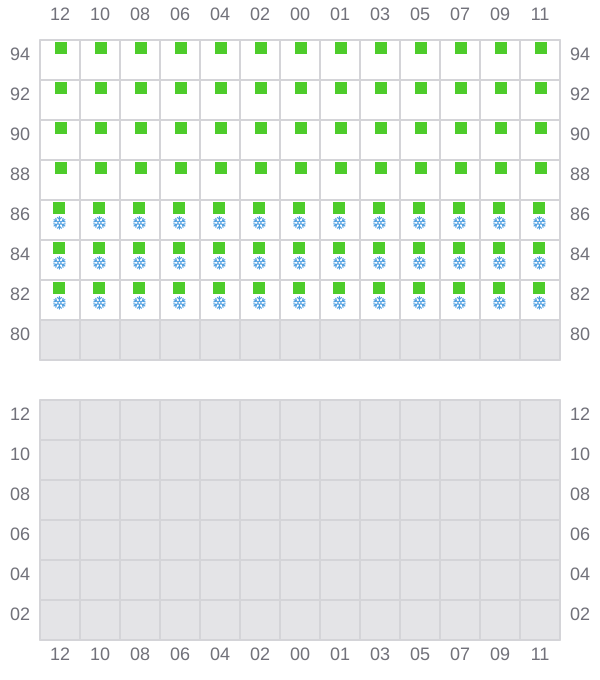

Bay 043 view and slots of CUL SHEKOU
