CUSSLER
9314997 | V7YA2 | 93149 by ********* Last update: Tue Apr 30 2024
General Info
Ship Name:CUSSLER
IMO Code:9314997
Call Sign:V7YA2
Line Operator:93149
Class Name for Sister Ships:SLX
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):210.00
LOA (Length Overall):222.17
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:049
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,824
Centers of Gravity
LCG Values:Known
LCG Data:92%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

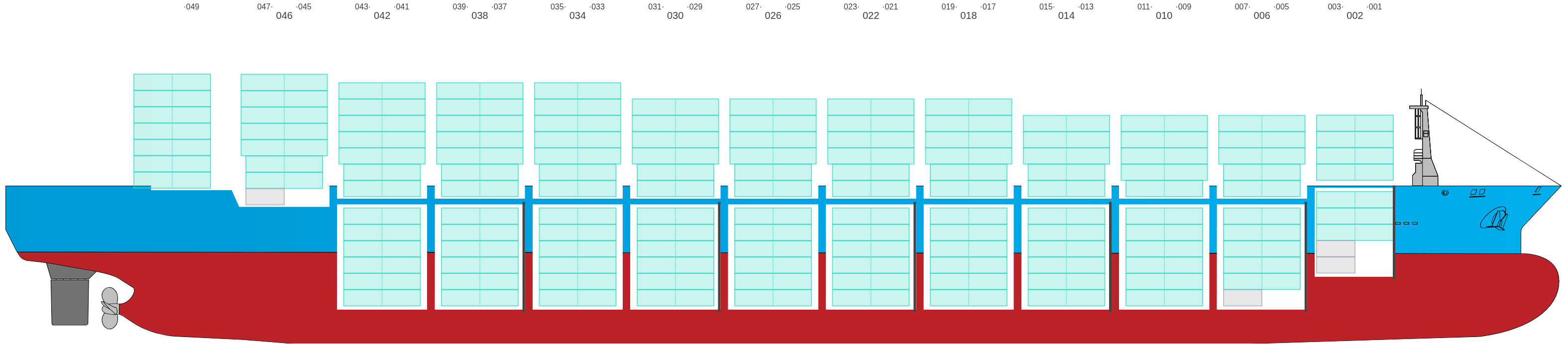

Side View
![Side view of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-sideView.png?v=1714501547660)
Hatch-Covers View
![Deck view of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-deckView.png?v=1714501547660)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b001.png?v=1714501547660)

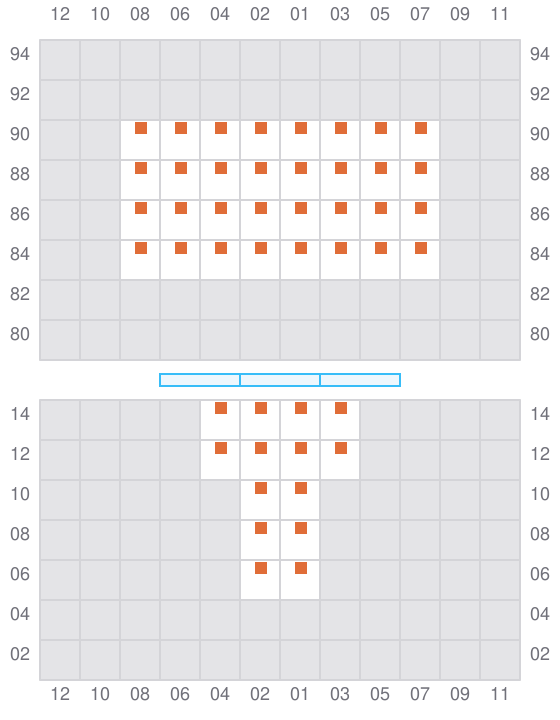

003
- ←
![Bay 003 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b003.png?v=1714501547660)

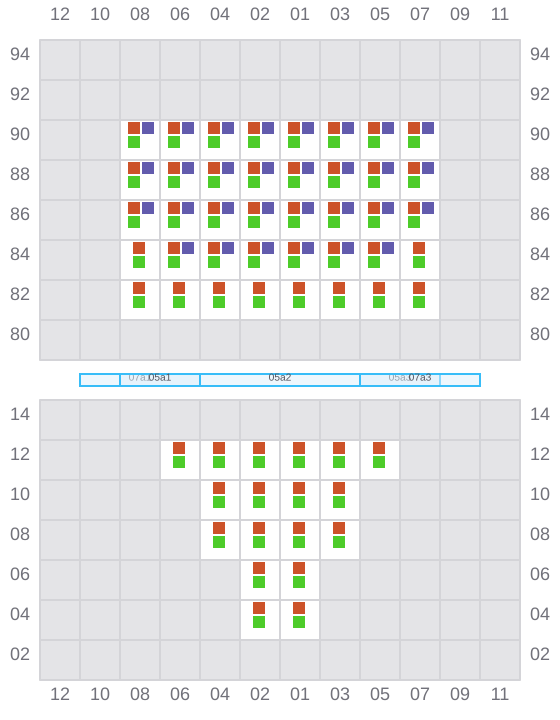

005 (006)
- →
- ← / ?
![Bay 005 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b005.png?v=1714501547660)
007
- ←
![Bay 007 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b007.png?v=1714501547660)

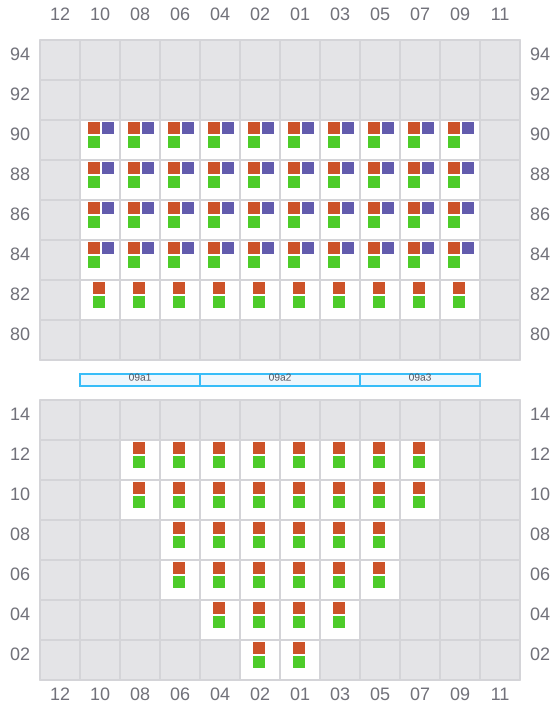

009 (010)
- →
- ← / ?
![Bay 009 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b009.png?v=1714501547660)

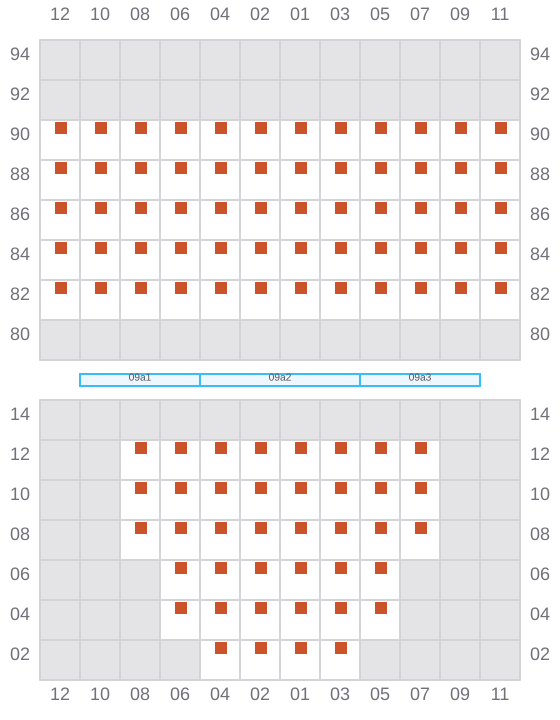

011
- ←
![Bay 011 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b011.png?v=1714501547660)
013 (014)
- →
- ←
![Bay 013 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b013.png?v=1714501547660)

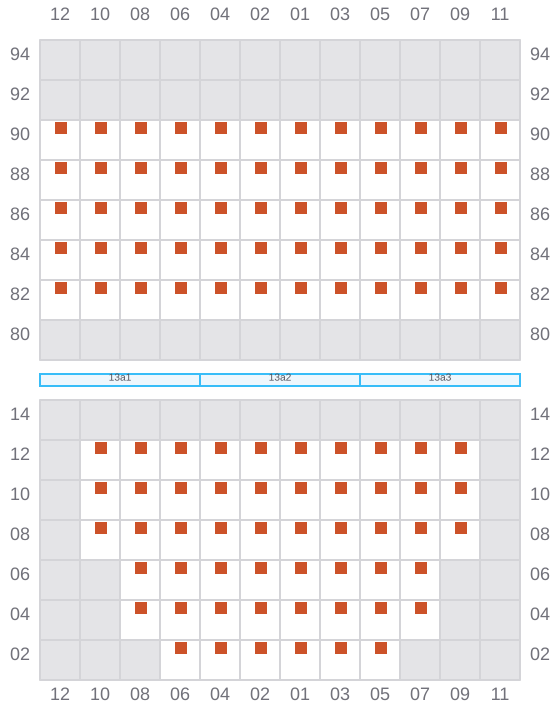

015
- ←
![Bay 015 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b015.png?v=1714501547660)

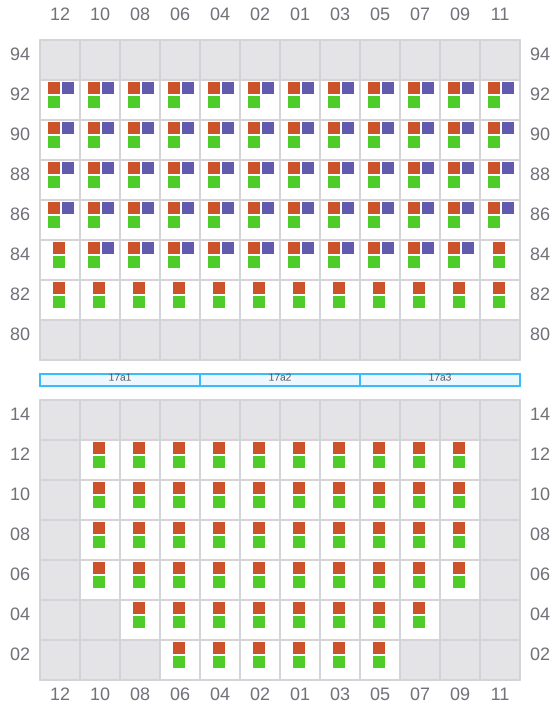

017 (018)
- →
- ←
![Bay 017 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b017.png?v=1714501547660)

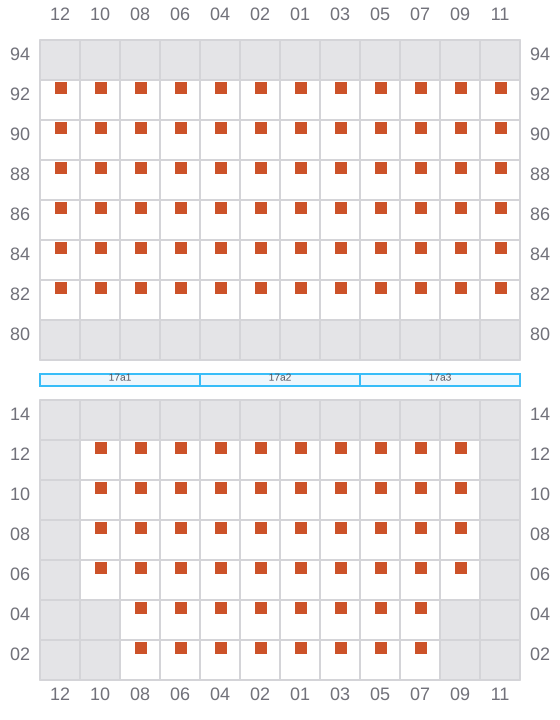

019
- ←
![Bay 019 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b019.png?v=1714501547660)
021 (022)
- →
- ←
![Bay 021 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b021.png?v=1714501547660)
023
- ←
![Bay 023 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b023.png?v=1714501547660)
025 (026)
- →
- ←
![Bay 025 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b025.png?v=1714501547660)
027
- ←
![Bay 027 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b027.png?v=1714501547660)

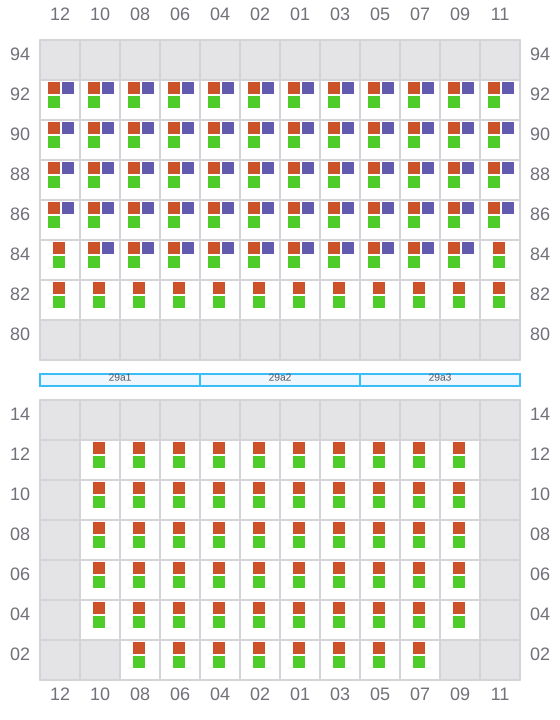

029 (030)
- →
- ←
![Bay 029 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b029.png?v=1714501547660)

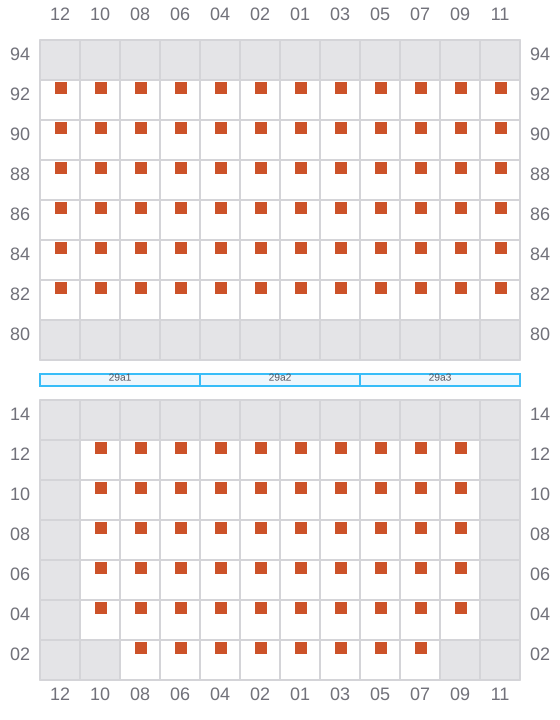

031
- ←
![Bay 031 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b031.png?v=1714501547660)

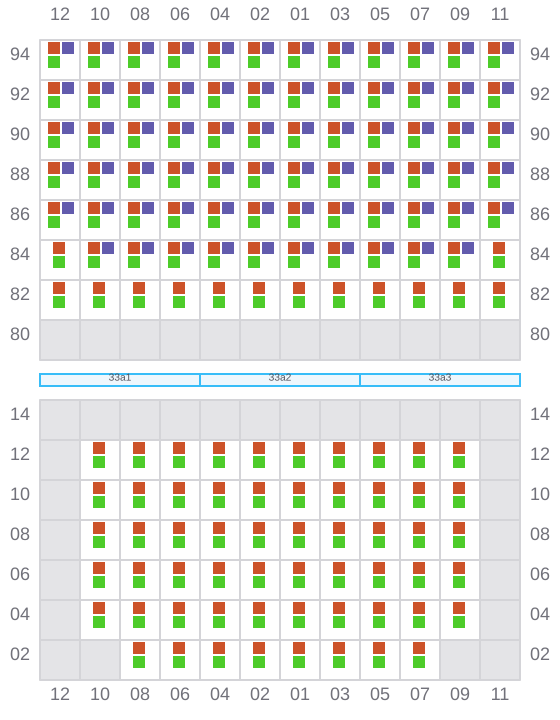

033 (034)
- →
- ←
![Bay 033 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b033.png?v=1714501547660)
035
- ←
![Bay 035 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b035.png?v=1714501547660)

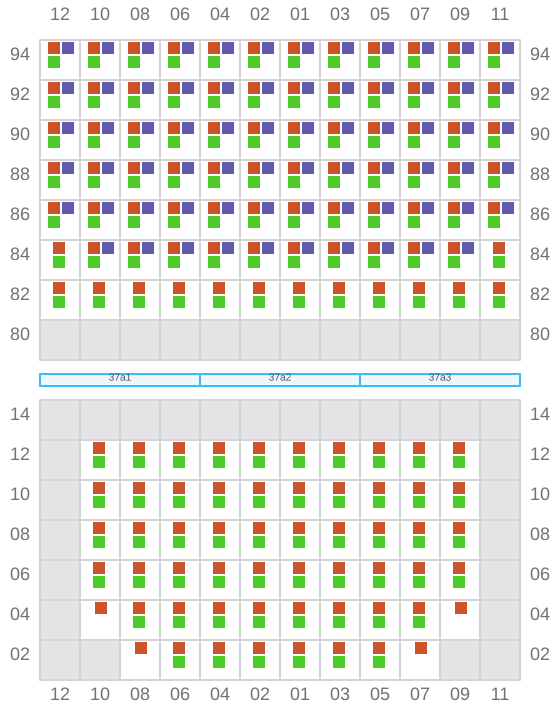

037 (038)
- →
- ←
![Bay 037 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b037.png?v=1714501547660)

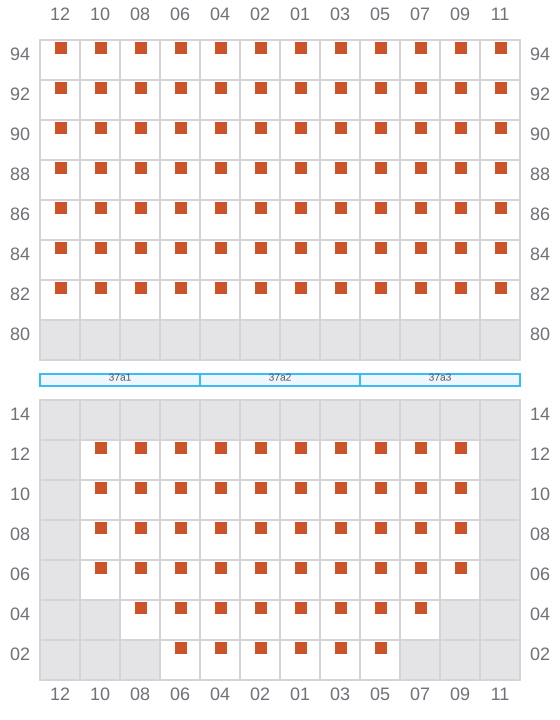

039
- ←
![Bay 039 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b039.png?v=1714501547660)

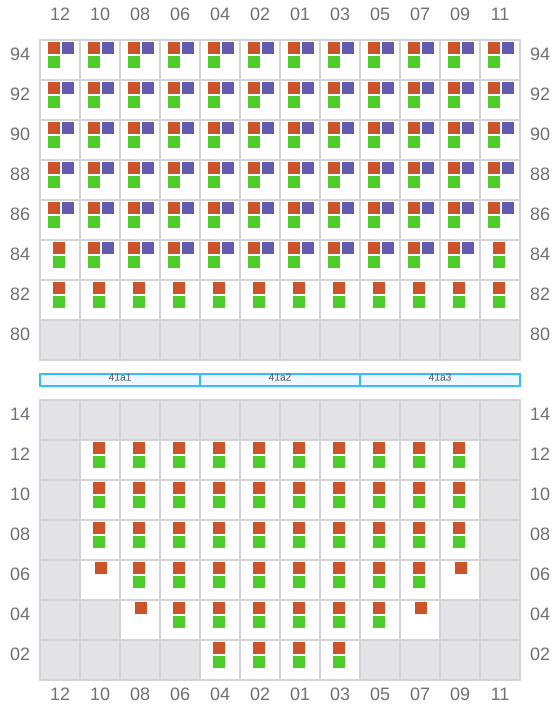

041 (042)
- →
- ←
![Bay 041 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b041.png?v=1714501547660)

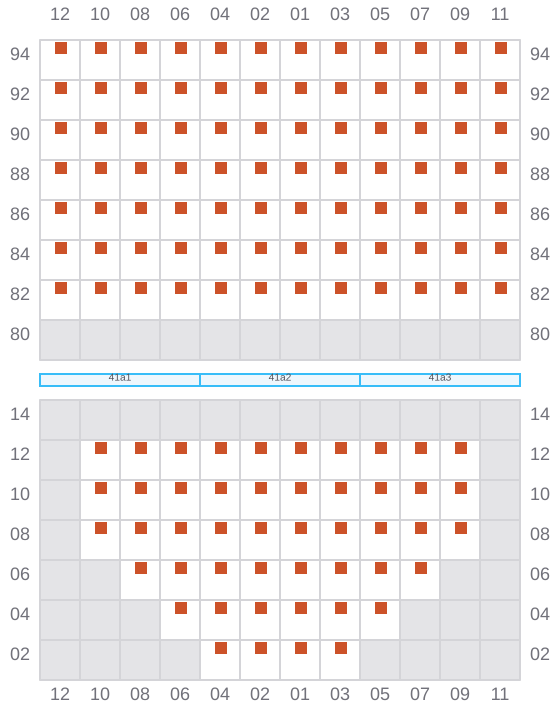

043
- ←
- → / ?
![Bay 043 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b043.png?v=1714501547660)

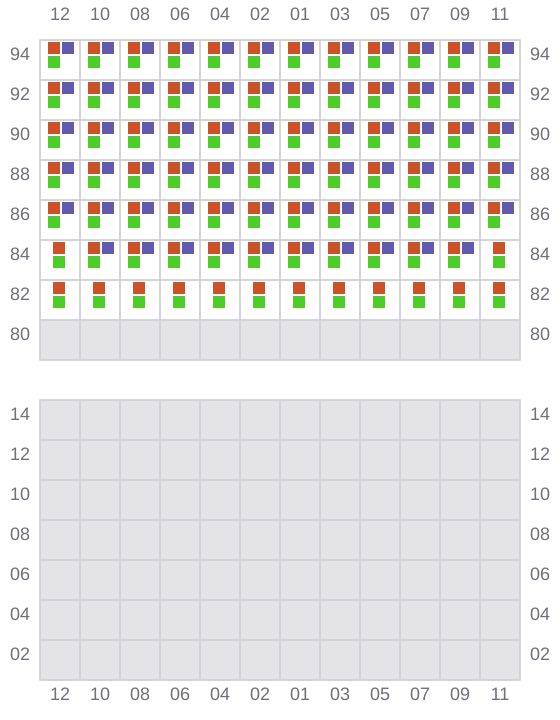

045 (046)
- → / ?
- ← / ?
![Bay 045 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b045.png?v=1714501547660)

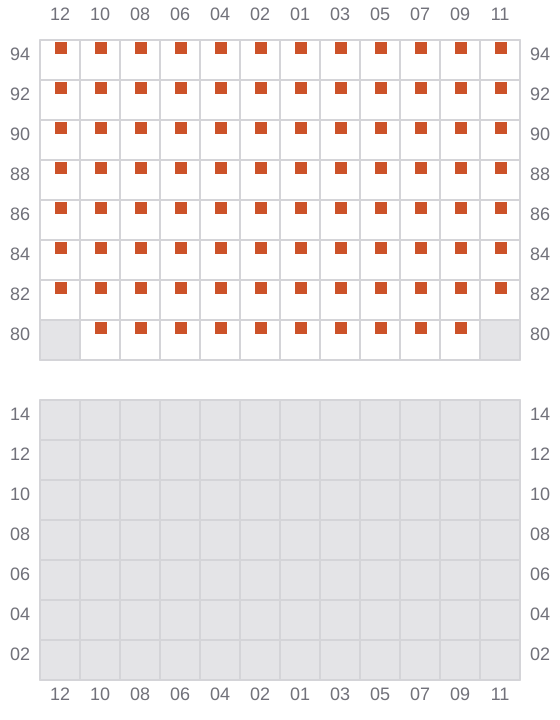

047
- ← / ?
- → / ?
![Bay 047 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b047.png?v=1714501547660)

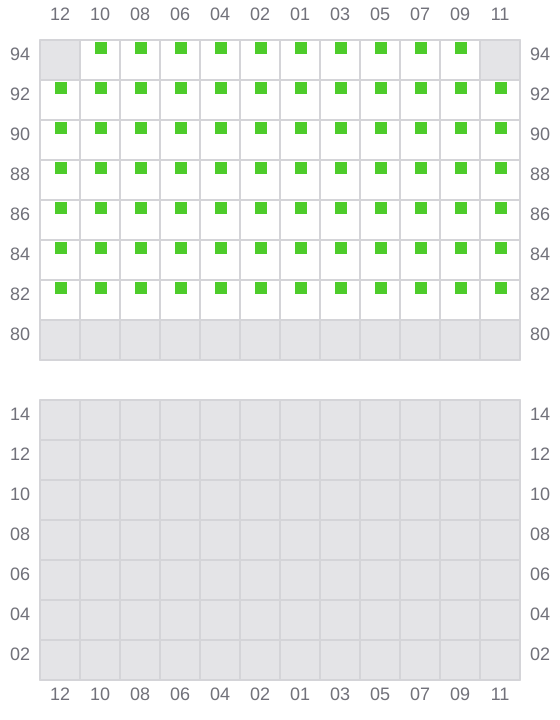

049 (050)
- → / ?
- ← / ?
![Bay 049 view and slots of CUSSLER](/vessel-images/a0c599a3-dbaa-4e7e-a629-dee52ee62954-b049.png?v=1714501547660)
