D ANGELS
9252357 | HOFM | 9252357 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:D ANGELS
IMO Code:9252357
Call Sign:HOFM
Line Operator:9252357
Class Name for Sister Ships:KOTA GEMAR
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:047
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,603
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

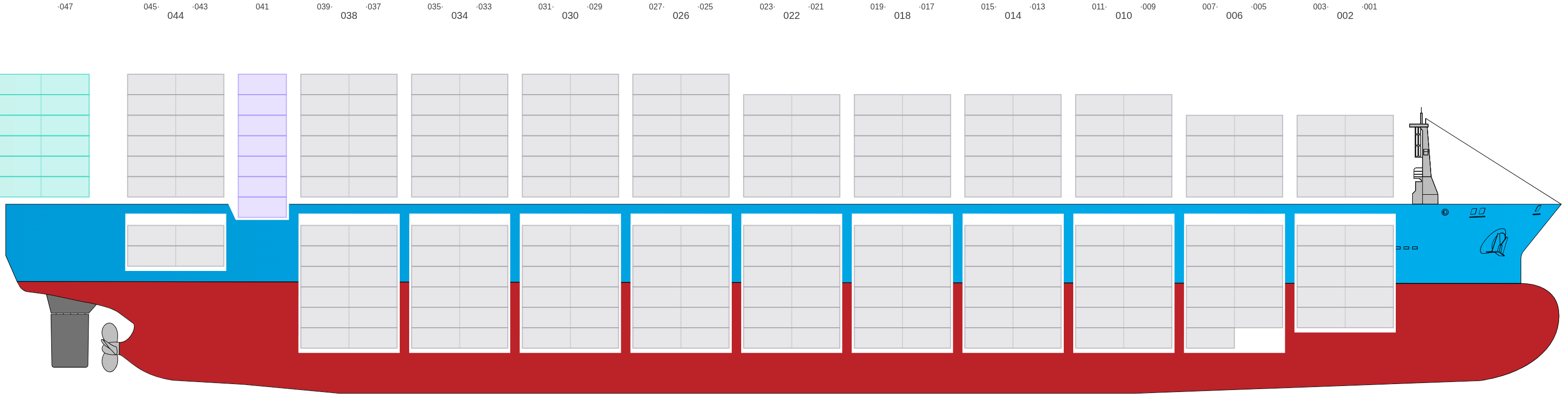

Side View
![Side view of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-sideView.png?v=1713974575422)
Hatch-Covers View
![Deck view of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-deckView.png?v=1713974575422)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

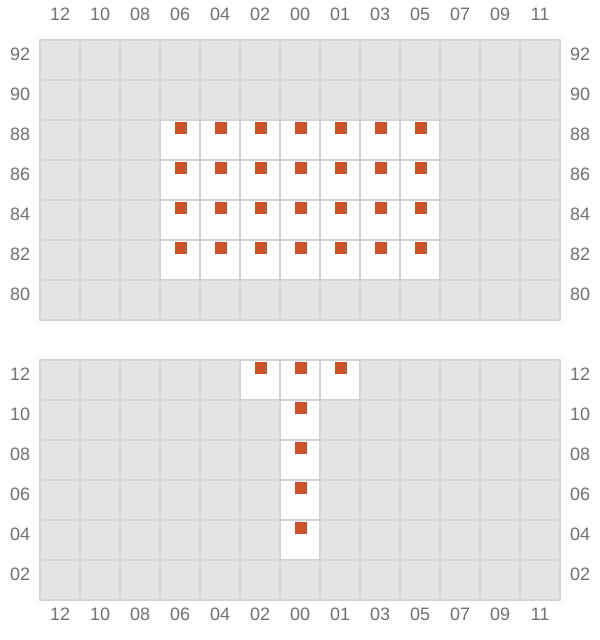

001
- →
![Bay 001 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b001.png?v=1713974575422)

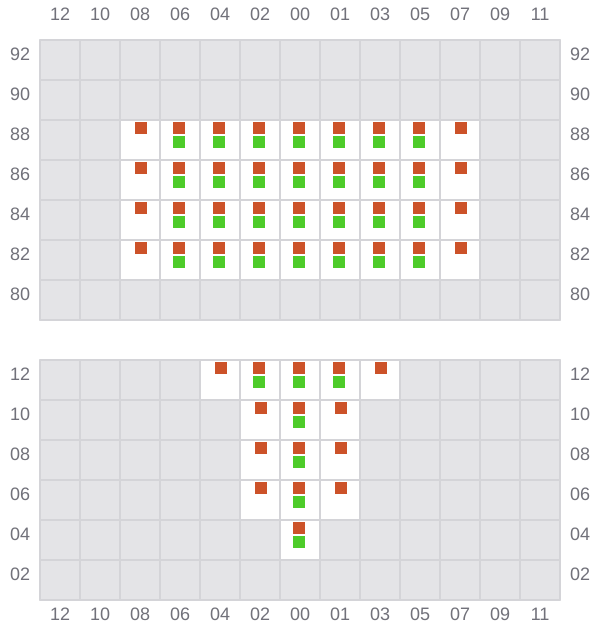

003 (002)
- ←
![Bay 003 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b003.png?v=1713974575422)

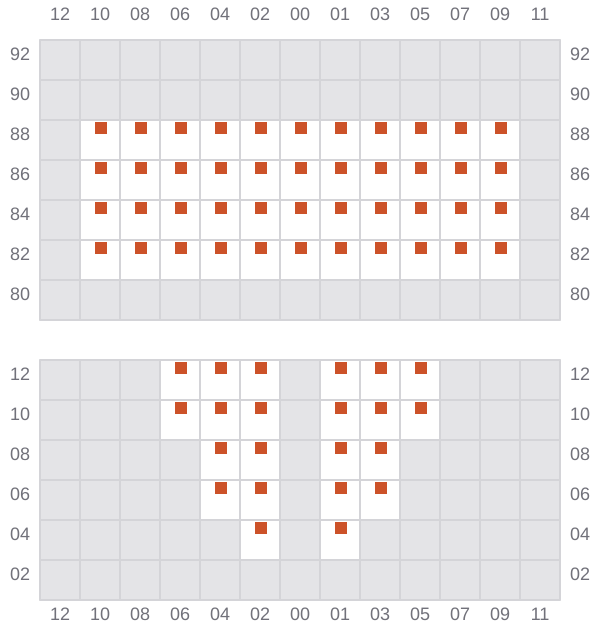

005
- →
![Bay 005 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b005.png?v=1713974575422)

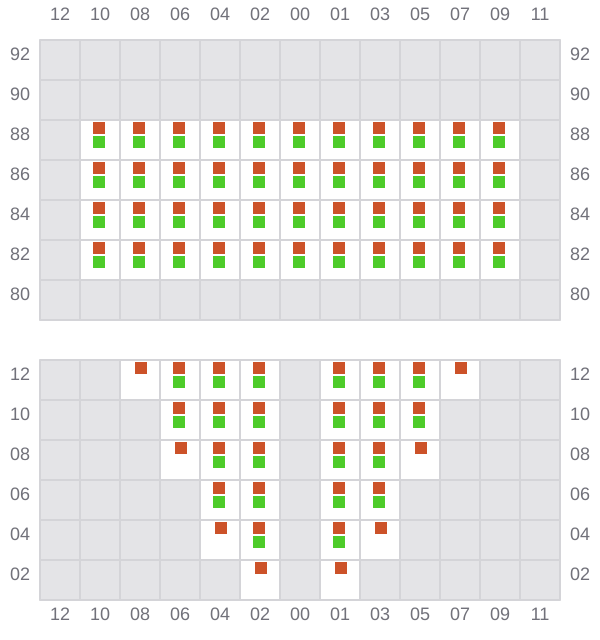

007 (006)
- ←
![Bay 007 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b007.png?v=1713974575422)

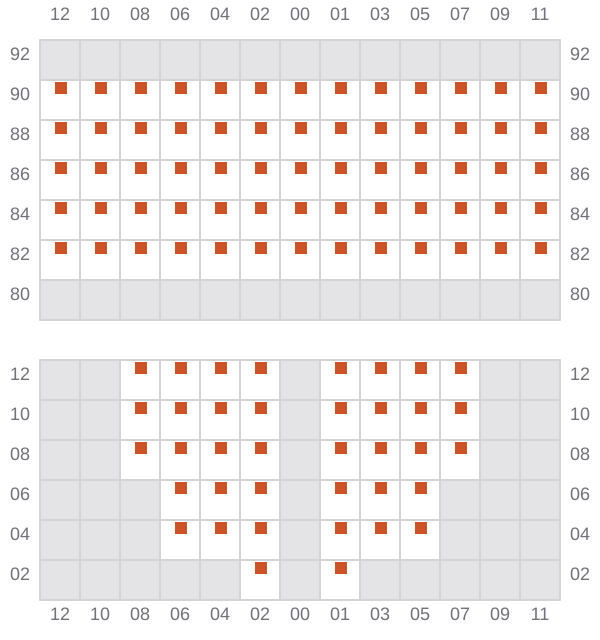

009
- →
![Bay 009 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b009.png?v=1713974575422)

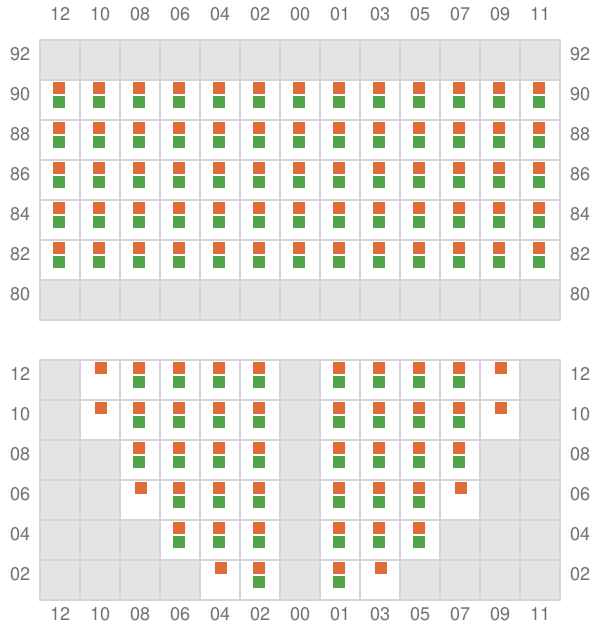

011 (010)
- ←
![Bay 011 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b011.png?v=1713974575422)
013
- →
![Bay 013 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b013.png?v=1713974575422)

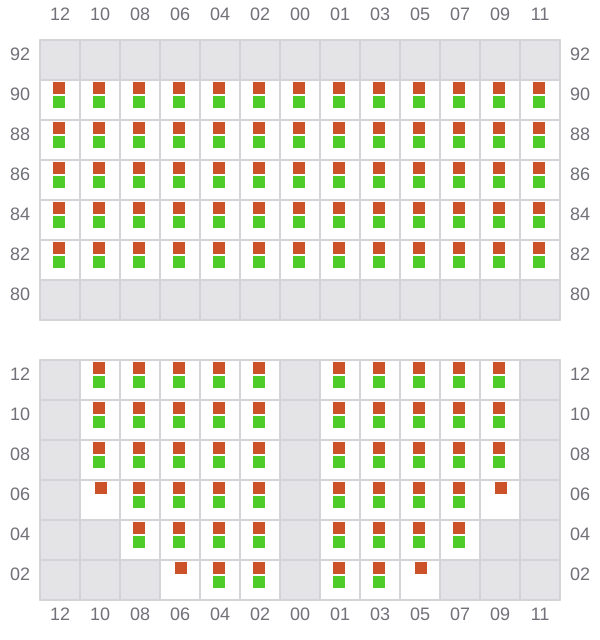

015 (014)
- ←
![Bay 015 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b015.png?v=1713974575422)

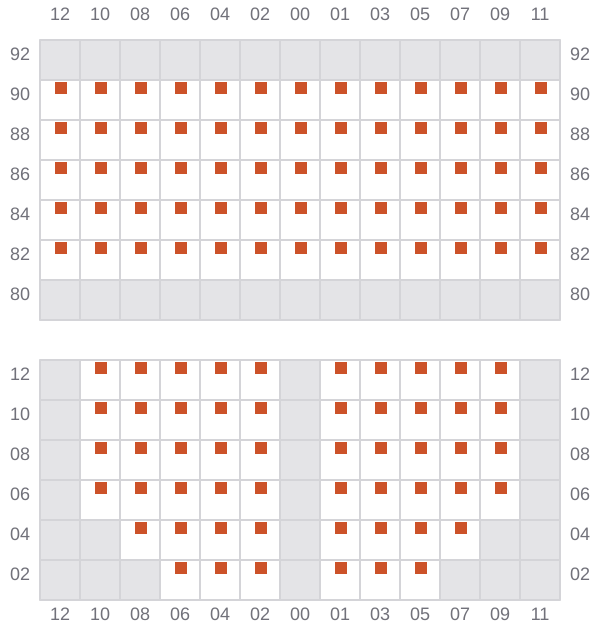

017
- →
![Bay 017 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b017.png?v=1713974575422)

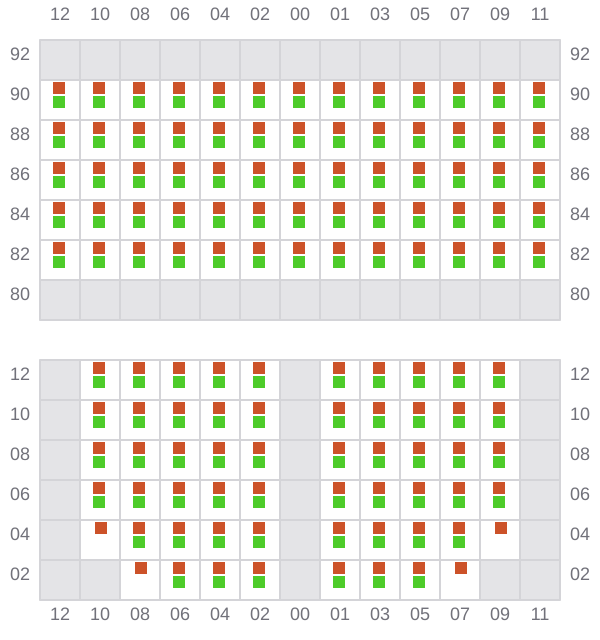

019 (018)
- ←
![Bay 019 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b019.png?v=1713974575422)

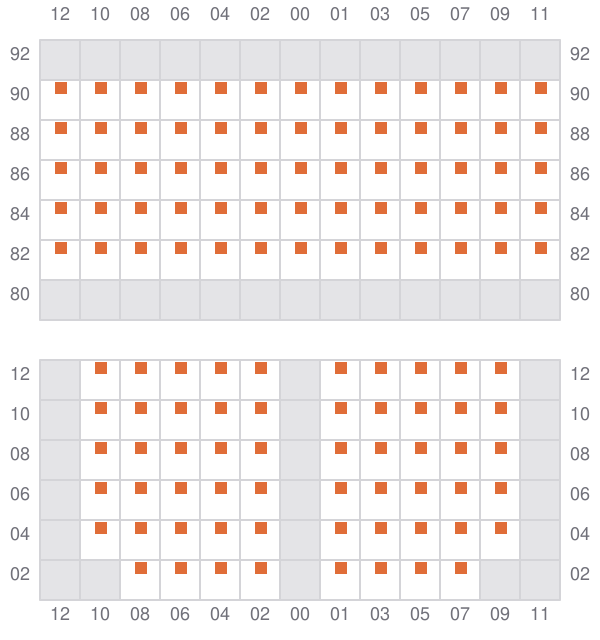

021
- →
![Bay 021 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b021.png?v=1713974575422)

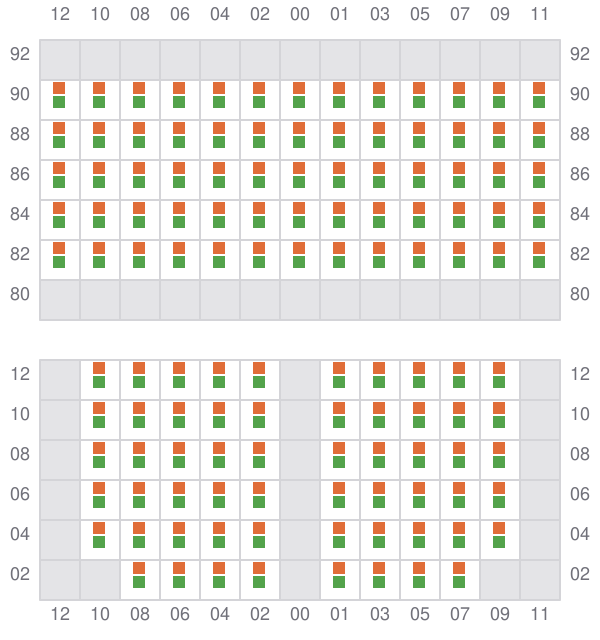

023 (022)
- ←
![Bay 023 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b023.png?v=1713974575422)

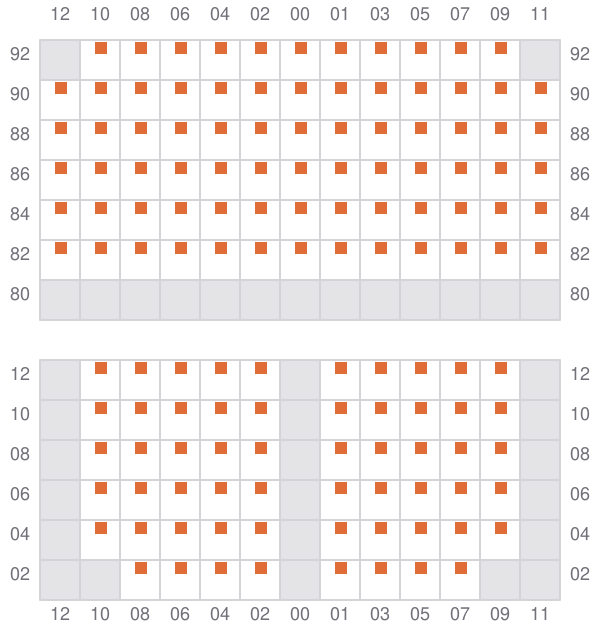

025
- →
![Bay 025 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b025.png?v=1713974575422)

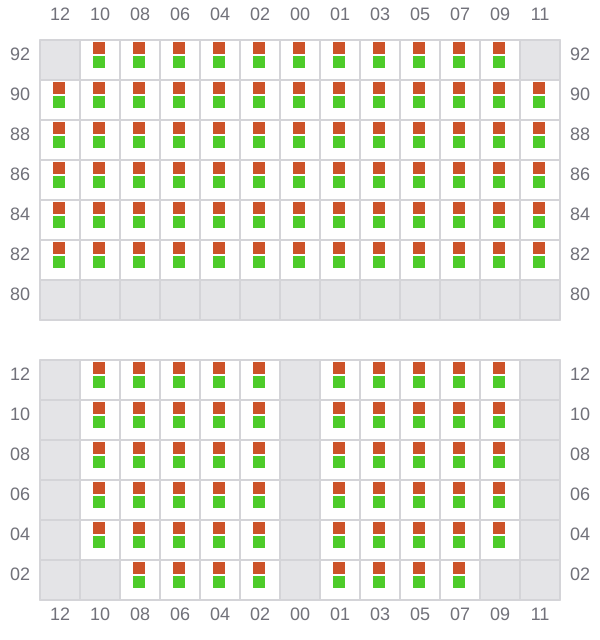

027 (026)
- ←
![Bay 027 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b027.png?v=1713974575422)

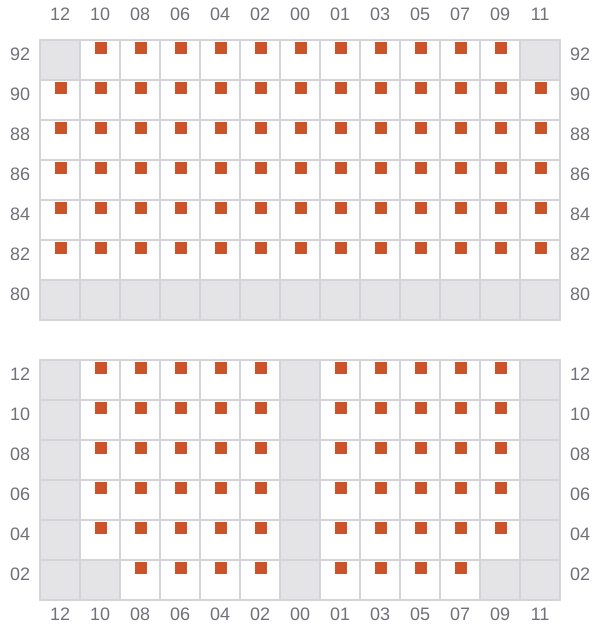

029
- →
![Bay 029 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b029.png?v=1713974575422)
031 (030)
- ←
![Bay 031 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b031.png?v=1713974575422)

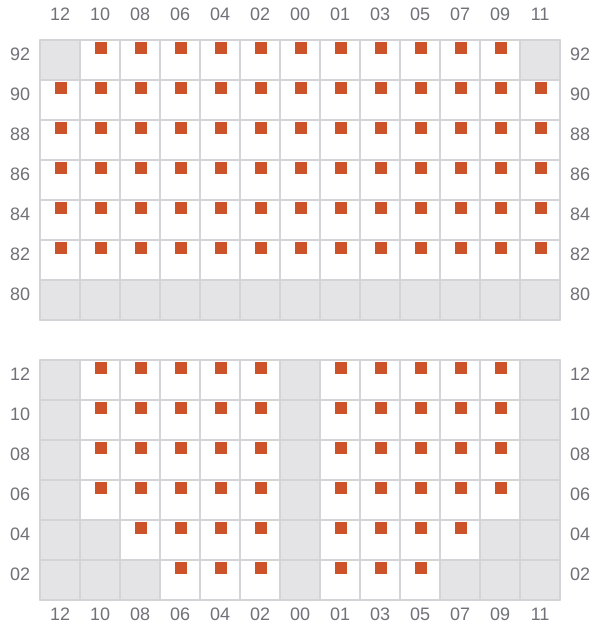

033
- →
![Bay 033 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b033.png?v=1713974575422)
035 (034)
- ←
![Bay 035 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b035.png?v=1713974575422)

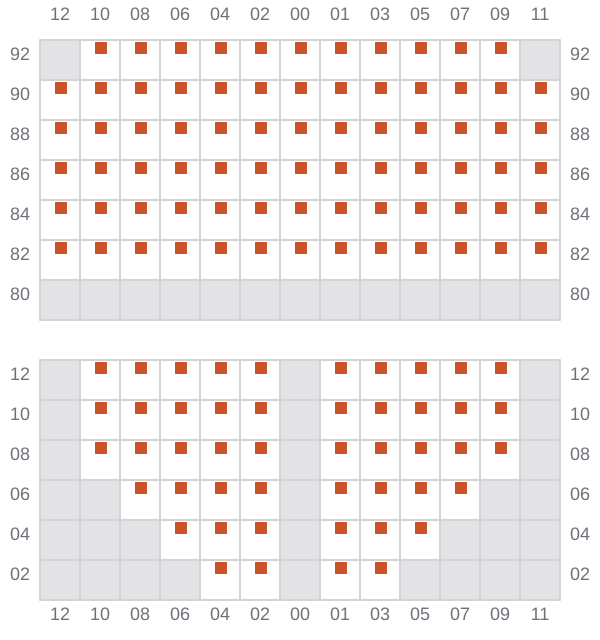

037
- →
![Bay 037 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b037.png?v=1713974575422)

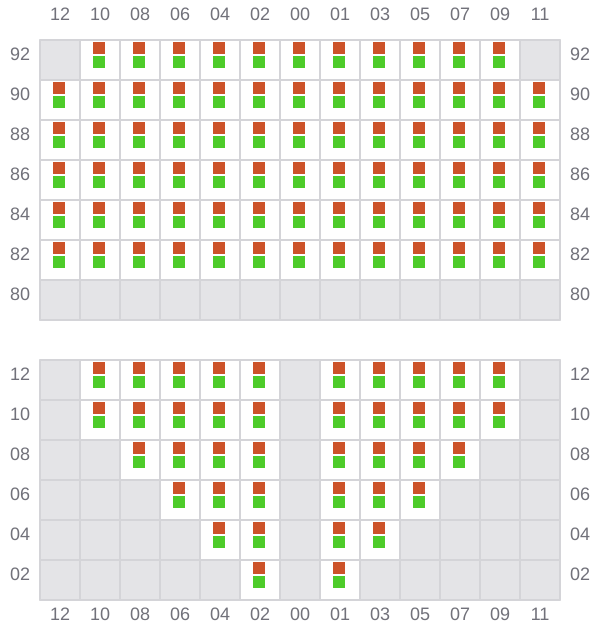

039 (038)
- ←
![Bay 039 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b039.png?v=1713974575422)

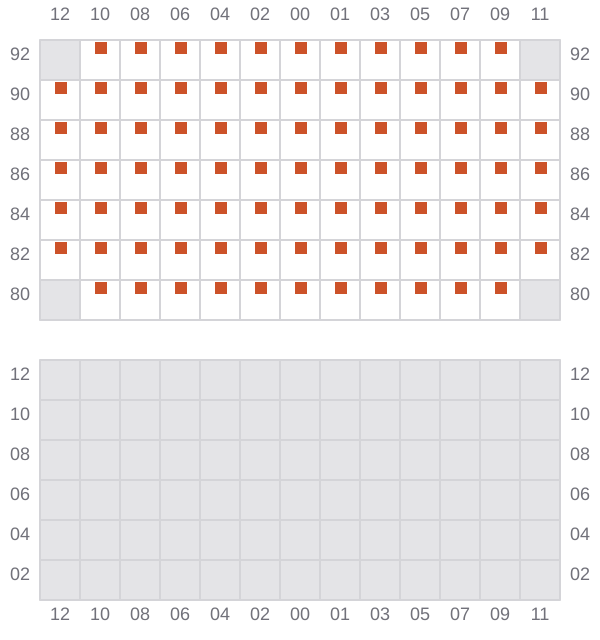

041
![Bay 041 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b041.png?v=1713974575422)

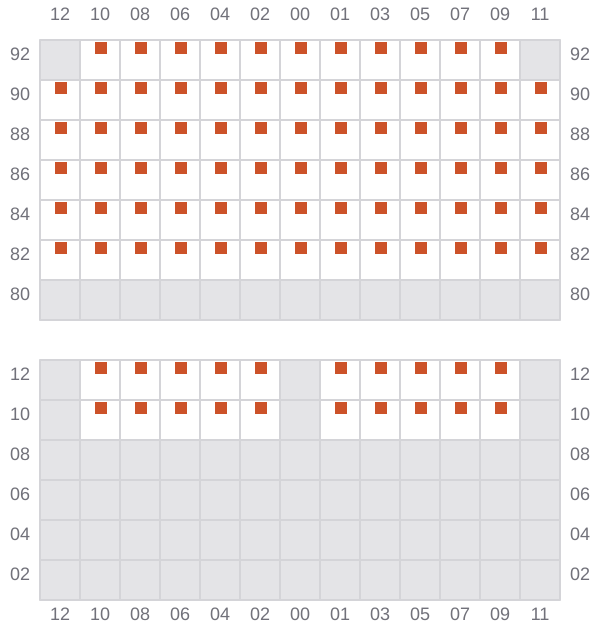

043
- →
![Bay 043 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b043.png?v=1713974575422)

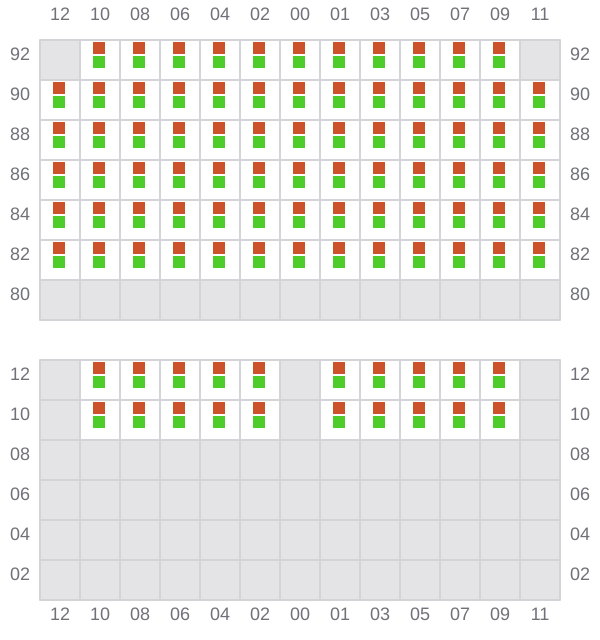

045 (044)
- ←
![Bay 045 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b045.png?v=1713974575422)

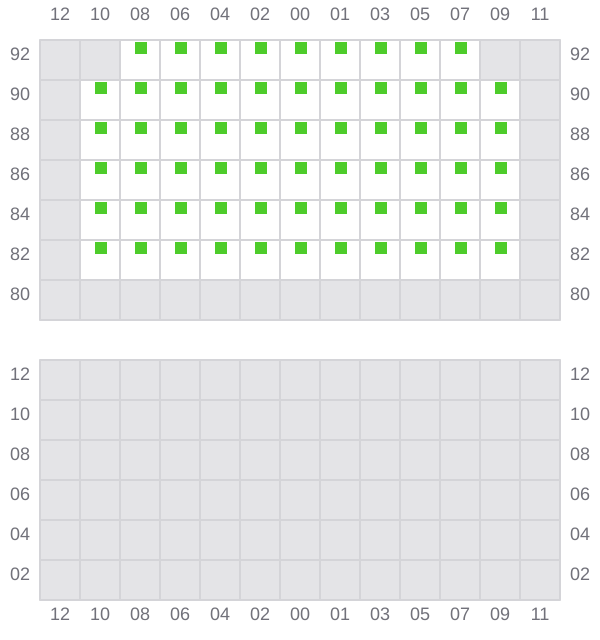

047 (048)
- → / ?
![Bay 047 view and slots of D ANGELS](/vessel-images/d7db47fc-7240-4f42-a170-748660c35384-b047.png?v=1713974575422)
