D QUEENS
9300130 | 3E2280 | 9300130 by ********* Last update: Wed Apr 24 2024
General Info
Ship Name:D QUEENS
IMO Code:9300130
Call Sign:3E2280
Line Operator:9300130
Class Name for Sister Ships:TEERABHUM
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:043
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,858
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

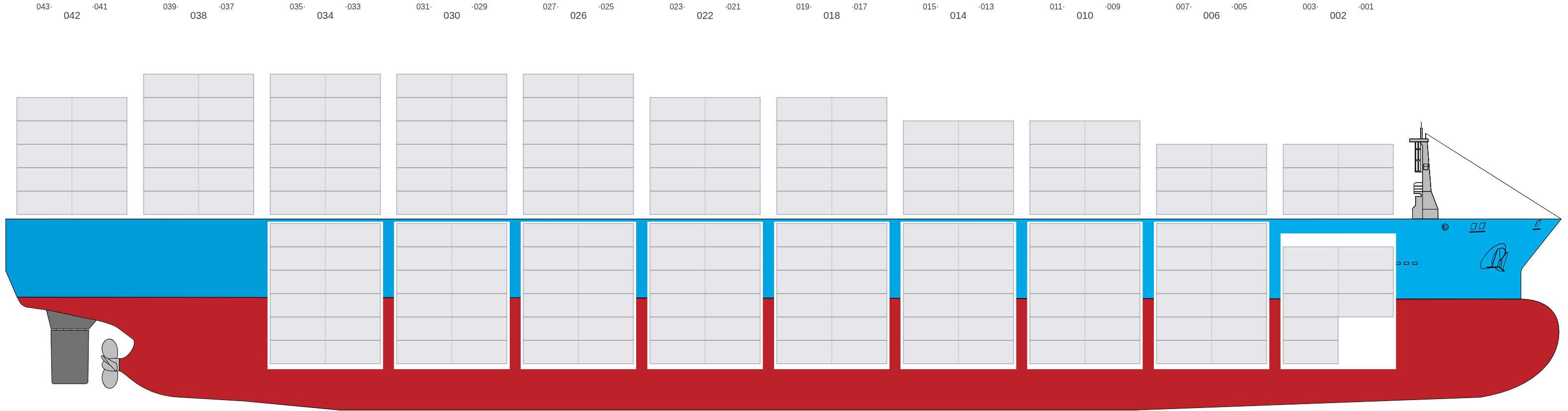

Side View
![Side view of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-sideView.png?v=1713981643756)

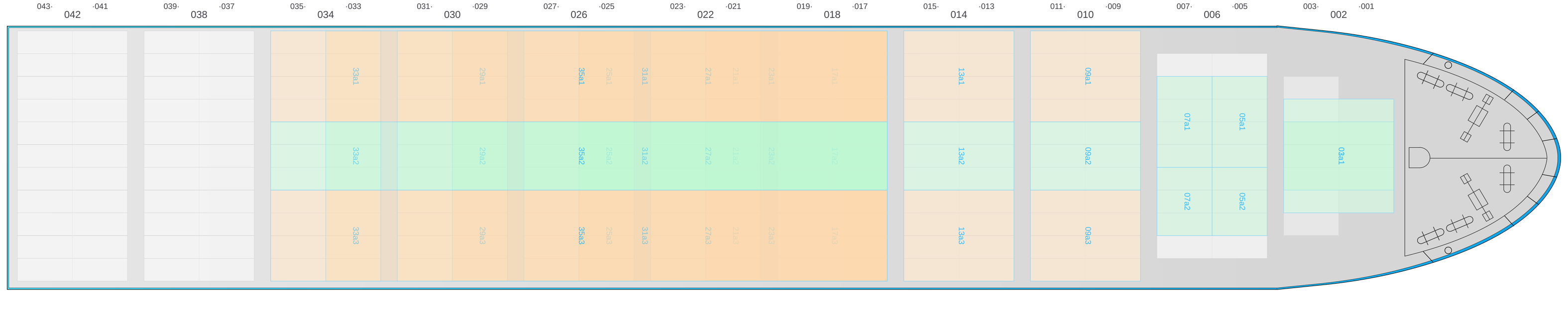

Hatch-Covers View
![Deck view of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-deckView.png?v=1713981643756)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

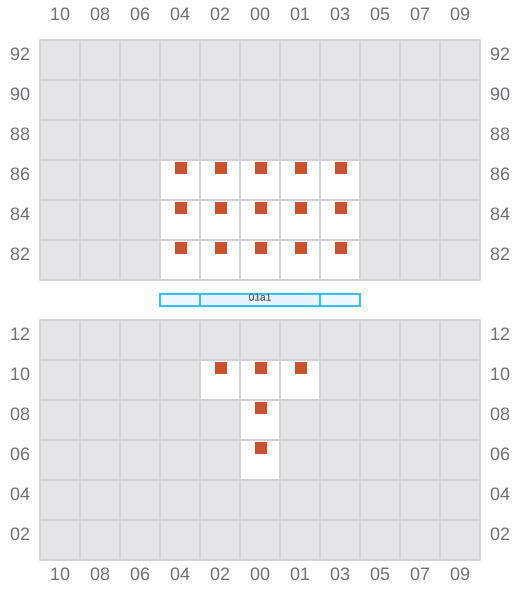

001
- →
![Bay 001 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b001.png?v=1713981643756)

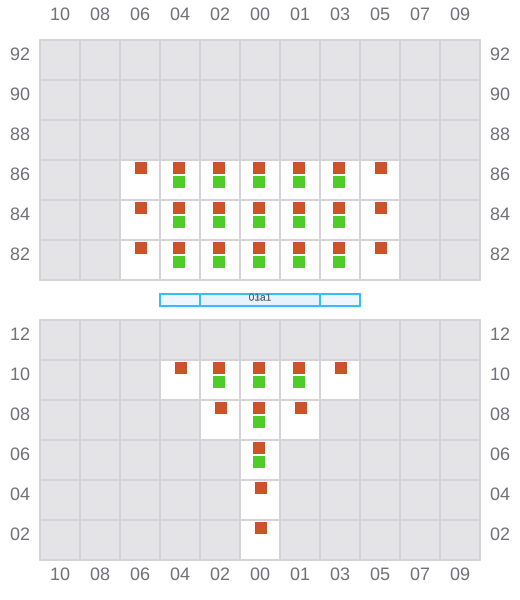

003 (002)
- ←
![Bay 003 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b003.png?v=1713981643756)

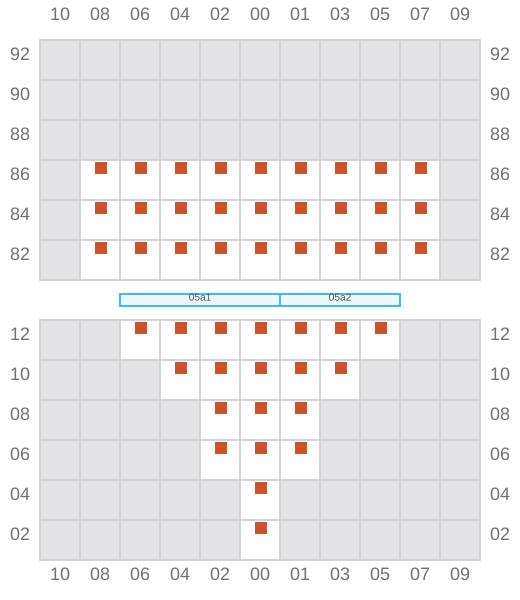

005
- →
![Bay 005 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b005.png?v=1713981643756)

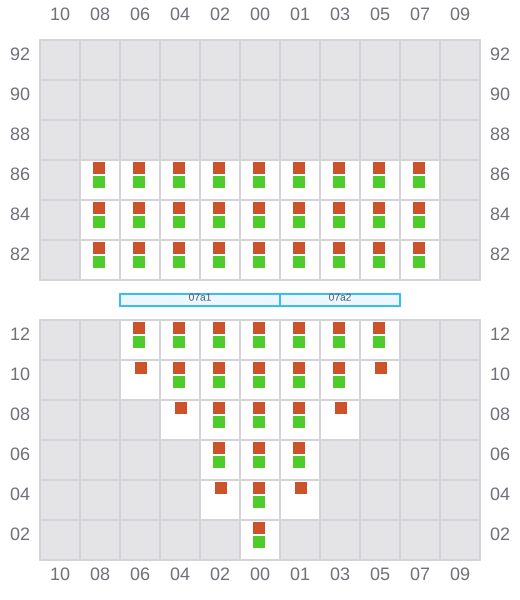

007 (006)
- ←
![Bay 007 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b007.png?v=1713981643756)

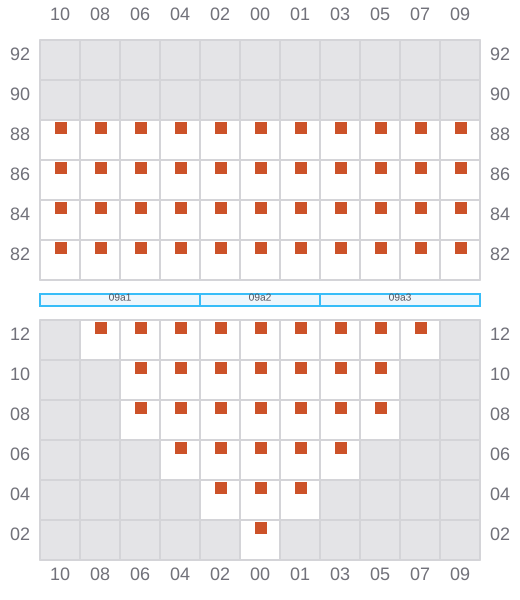

009
- →
![Bay 009 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b009.png?v=1713981643756)
011 (010)
- ←
![Bay 011 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b011.png?v=1713981643756)

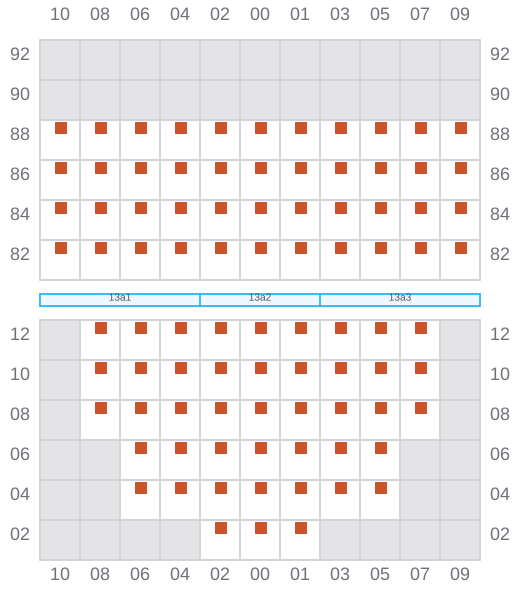

013
- →
![Bay 013 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b013.png?v=1713981643756)
015 (014)
- ←
![Bay 015 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b015.png?v=1713981643756)

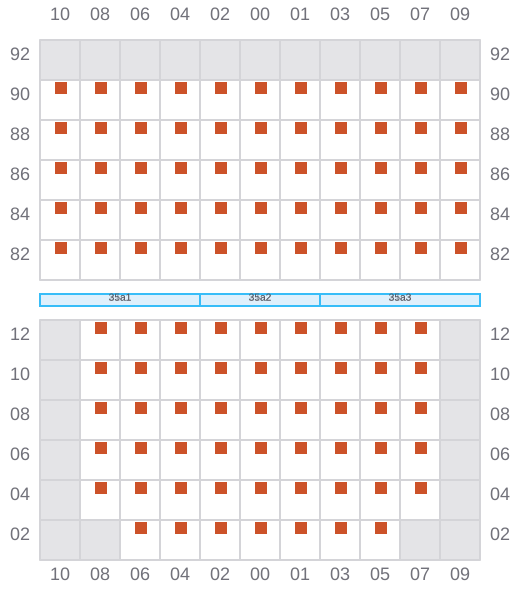

017
- →
![Bay 017 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b017.png?v=1713981643756)

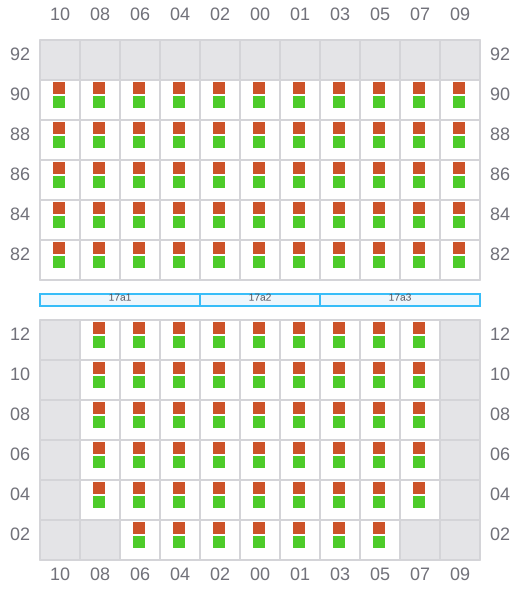

019 (018)
- ←
![Bay 019 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b019.png?v=1713981643756)
021
- →
![Bay 021 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b021.png?v=1713981643756)
023 (022)
- ←
![Bay 023 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b023.png?v=1713981643756)
025
- →
![Bay 025 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b025.png?v=1713981643756)

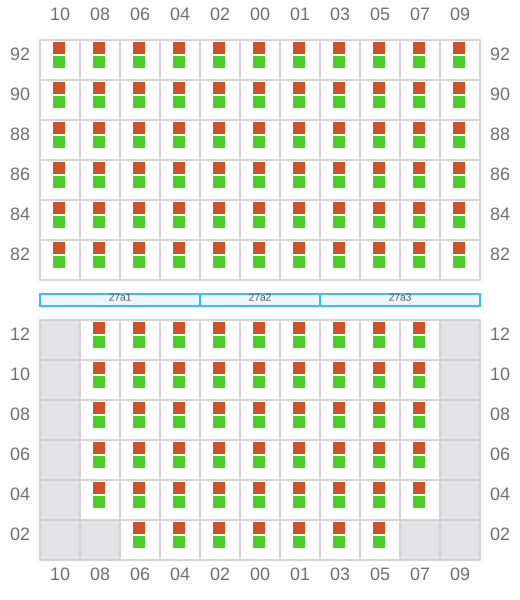

027 (026)
- ←
![Bay 027 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b027.png?v=1713981643756)

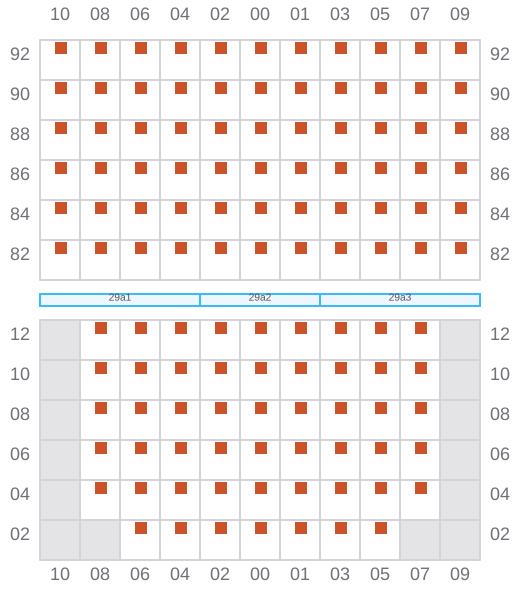

029
- →
![Bay 029 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b029.png?v=1713981643756)

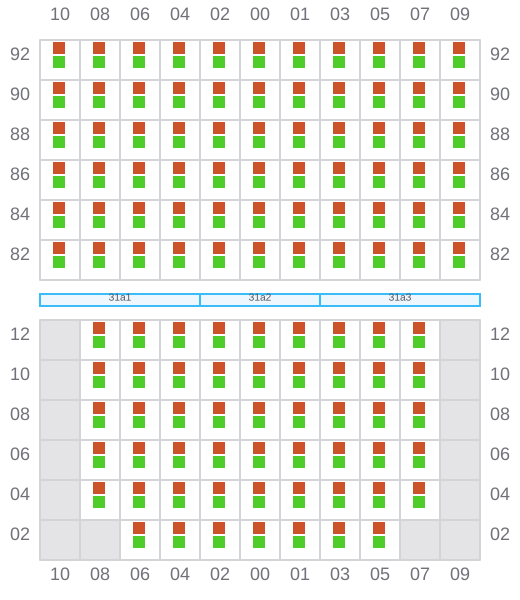

031 (030)
- ←
![Bay 031 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b031.png?v=1713981643756)

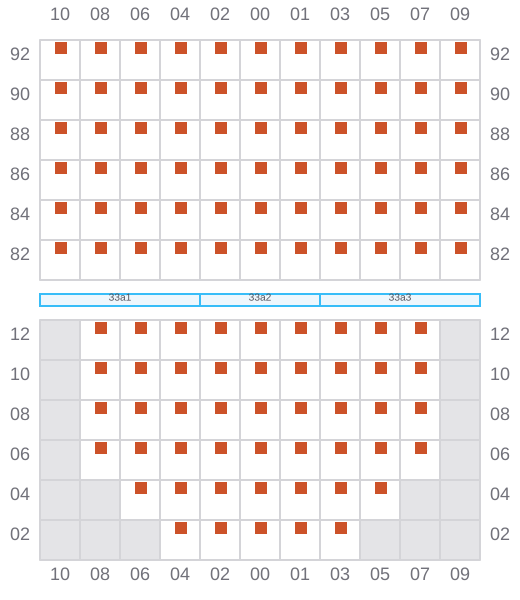

033
- →
![Bay 033 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b033.png?v=1713981643756)
035 (034)
- ←
![Bay 035 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b035.png?v=1713981643756)

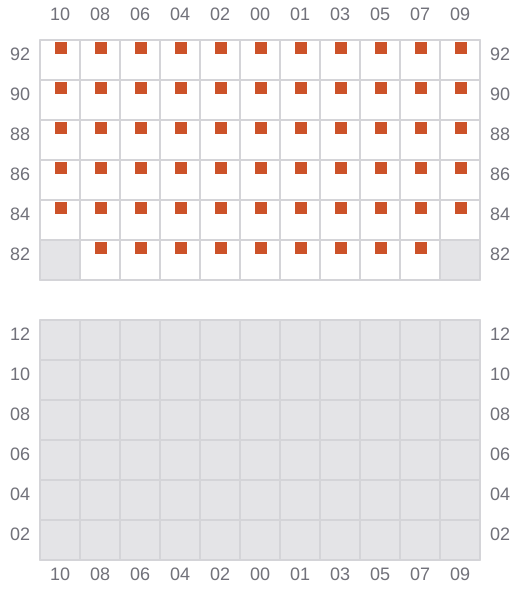

037
- → / ?
![Bay 037 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b037.png?v=1713981643756)

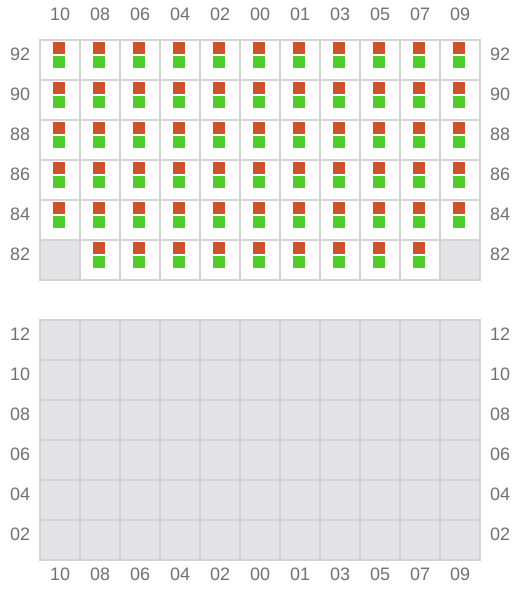

039 (038)
- ← / ?
![Bay 039 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b039.png?v=1713981643756)

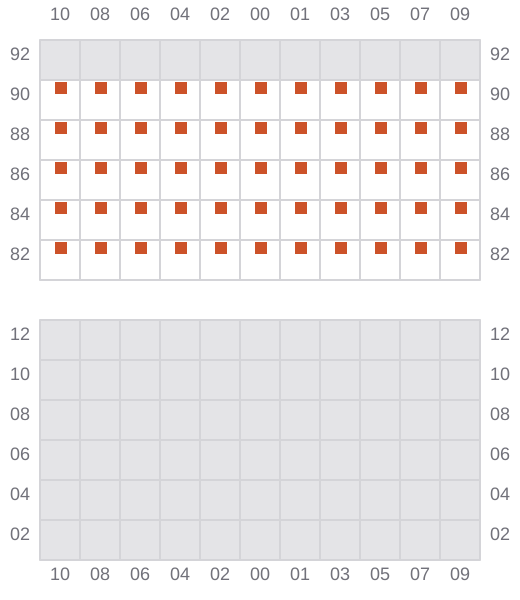

041
- → / ?
![Bay 041 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b041.png?v=1713981643756)

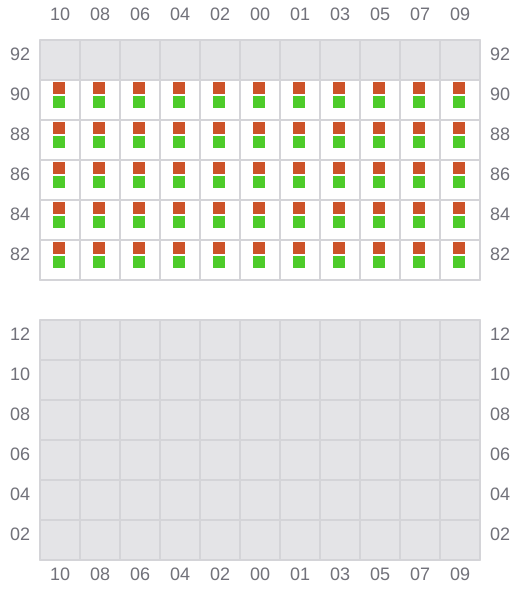

043 (042)
- ← / ?
![Bay 043 view and slots of D QUEENS](/vessel-images/dc997f54-5759-48f5-8ccc-fad6f07cc296-b043.png?v=1713981643756)
