DACHAN BAY EXPRESS
9539664 | D5KV5 | 9539664 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:DACHAN BAY EXPRESS
IMO Code:9539664
Call Sign:D5KV5
Line Operator:9539664
Class Name for Sister Ships:MAE
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:057
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,690

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of DACHAN BAY EXPRESS

Hatch-Covers View

Deck view of DACHAN BAY EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

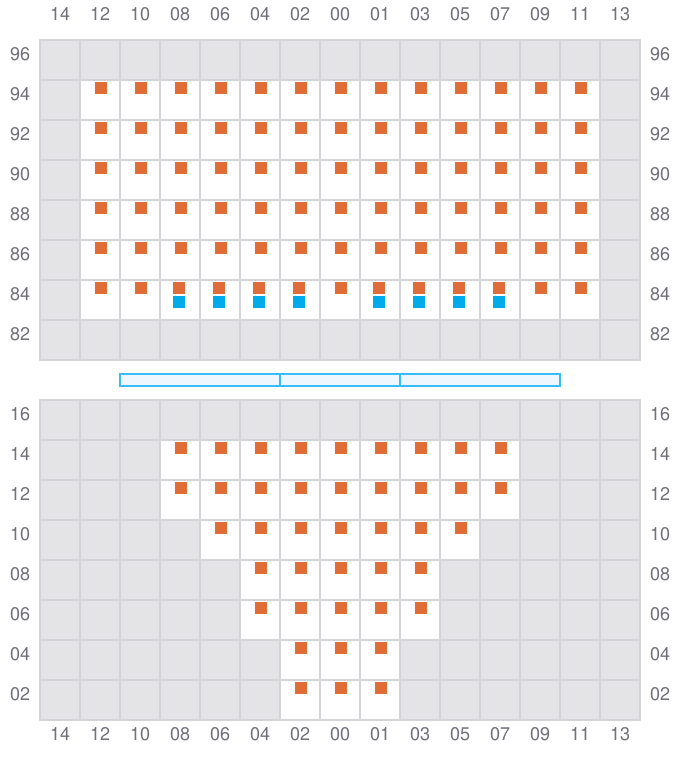

001 (002)

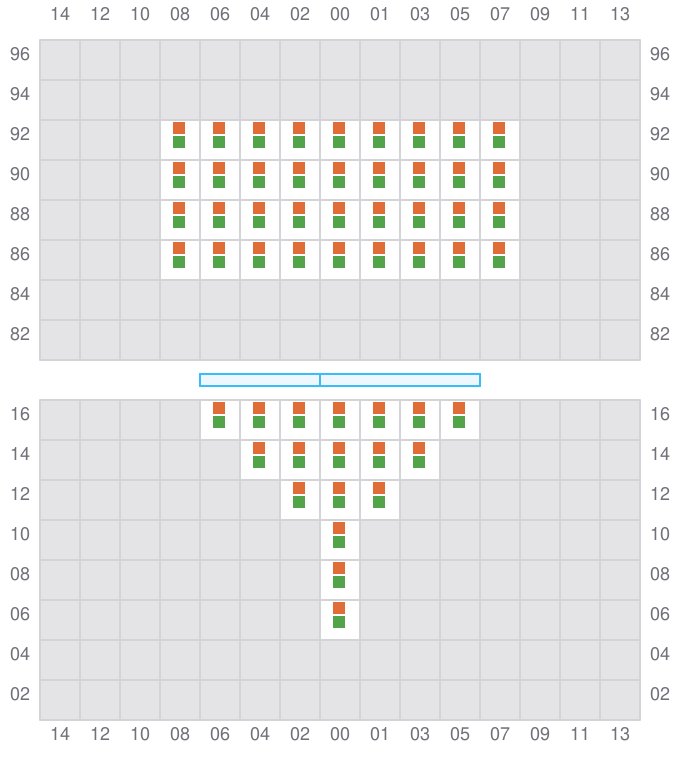

Bay 001 view and slots of DACHAN BAY EXPRESS

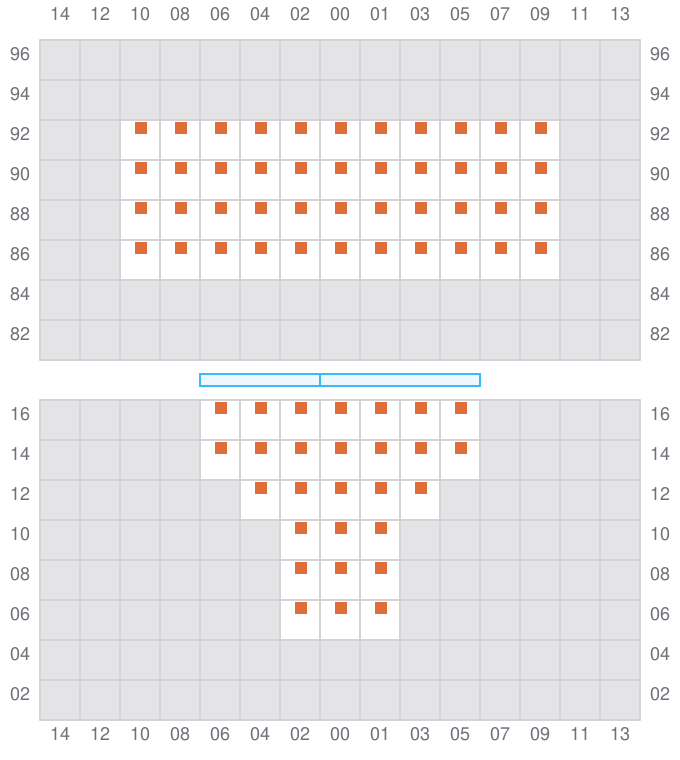

003

  • / ?
Bay 003 view and slots of DACHAN BAY EXPRESS

005 (006)

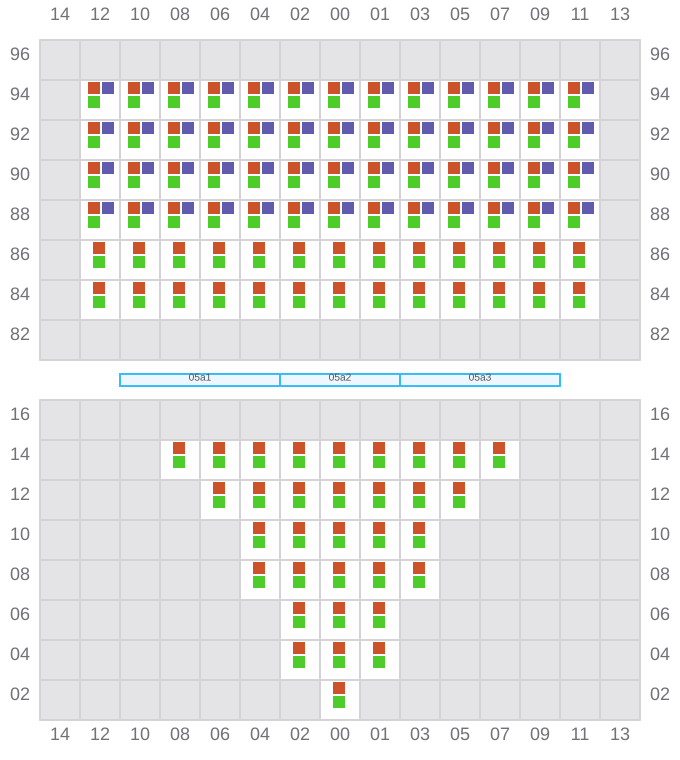

Bay 005 view and slots of DACHAN BAY EXPRESS

007

  • / ?
Bay 007 view and slots of DACHAN BAY EXPRESS

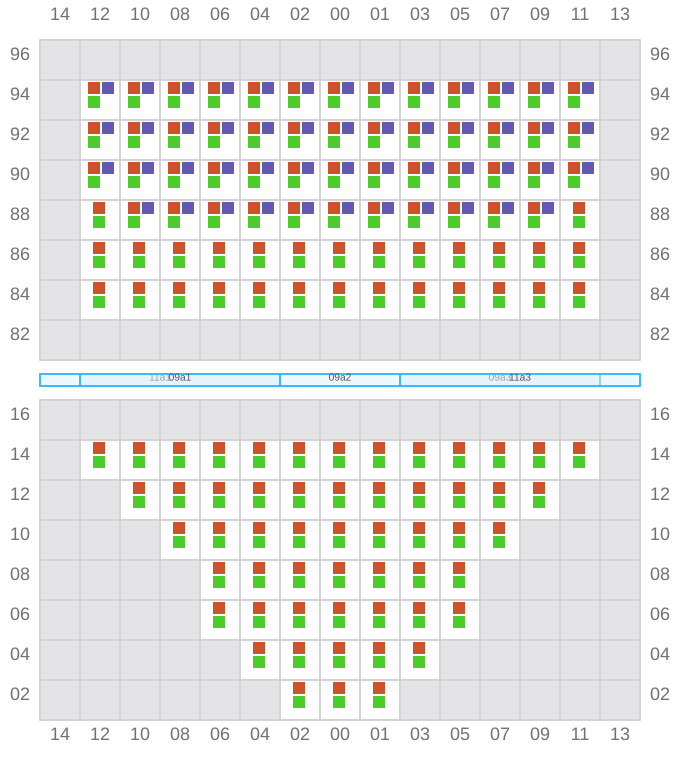

009 (010)

Bay 009 view and slots of DACHAN BAY EXPRESS

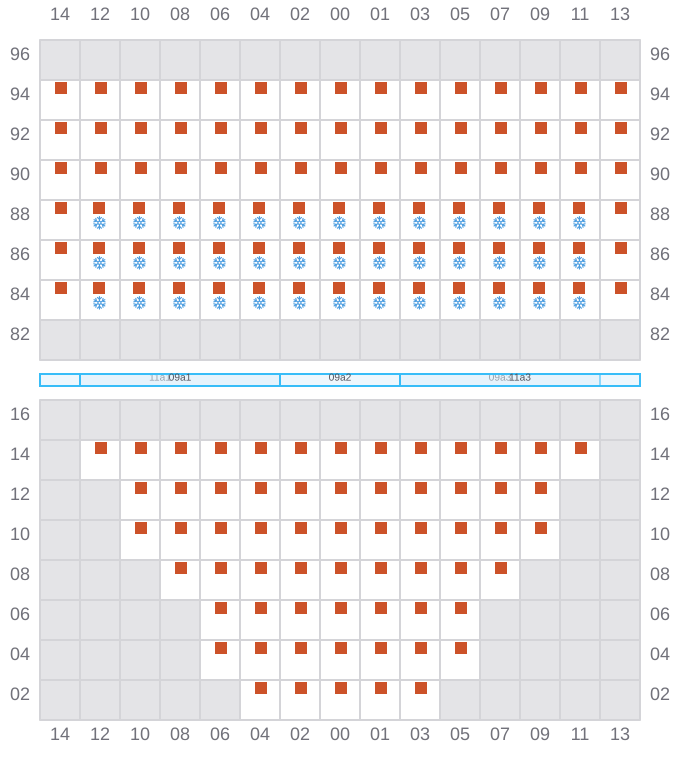

011

  • / ?
Bay 011 view and slots of DACHAN BAY EXPRESS

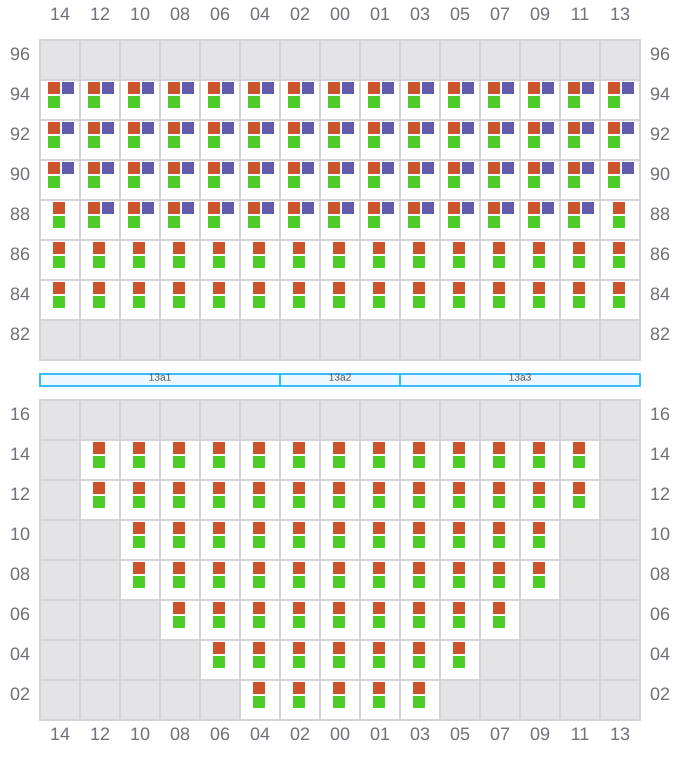

013 (014)

Bay 013 view and slots of DACHAN BAY EXPRESS

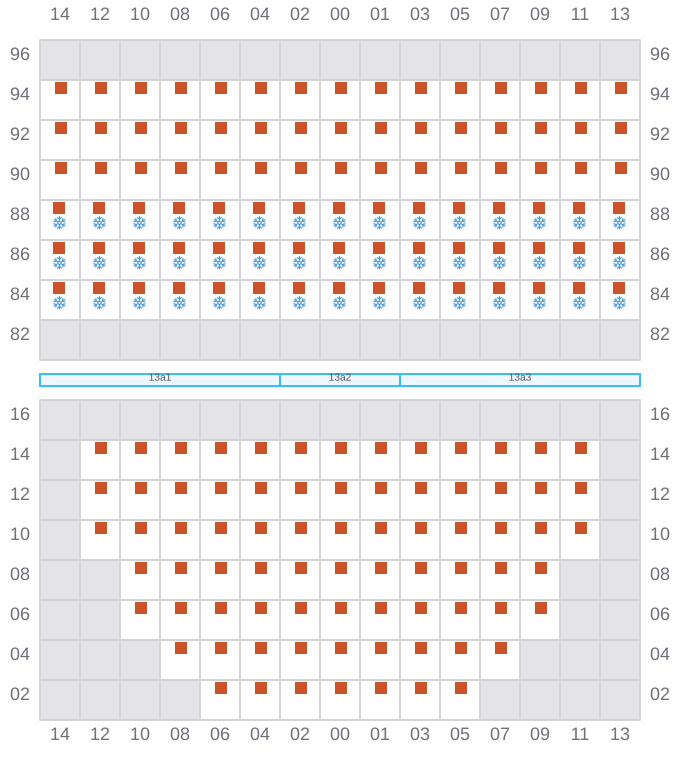

015

  • / ?
Bay 015 view and slots of DACHAN BAY EXPRESS

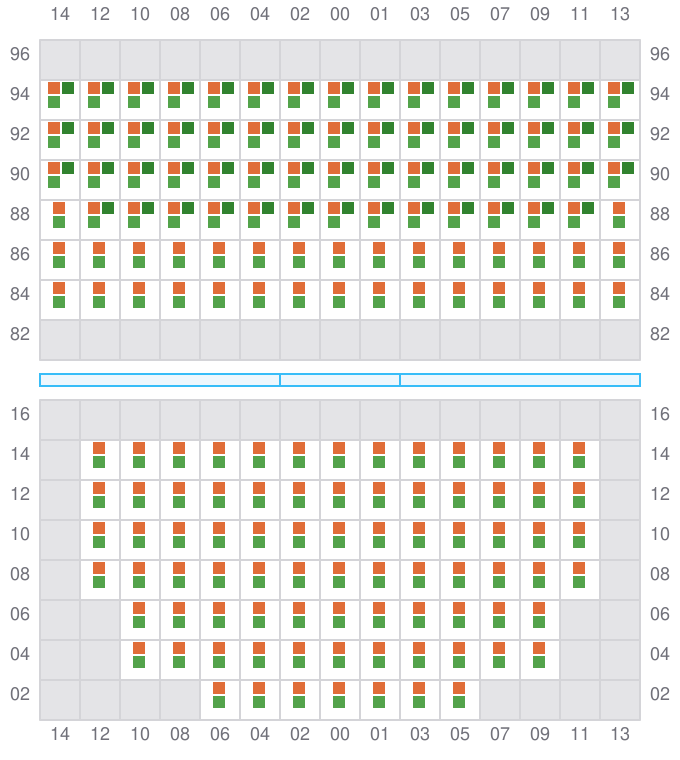

017 (018)

Bay 017 view and slots of DACHAN BAY EXPRESS

019

  • / ?

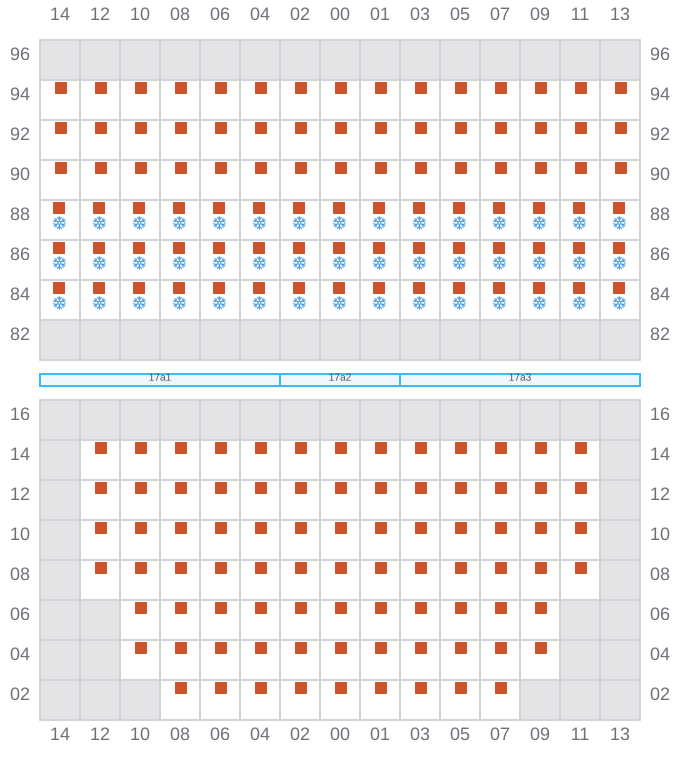

Bay 019 view and slots of DACHAN BAY EXPRESS

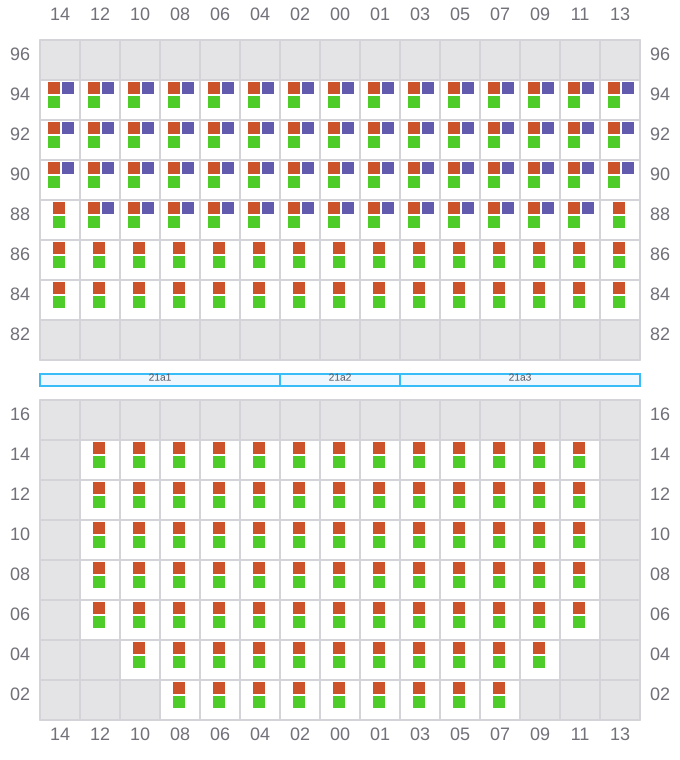

021 (022)

Bay 021 view and slots of DACHAN BAY EXPRESS

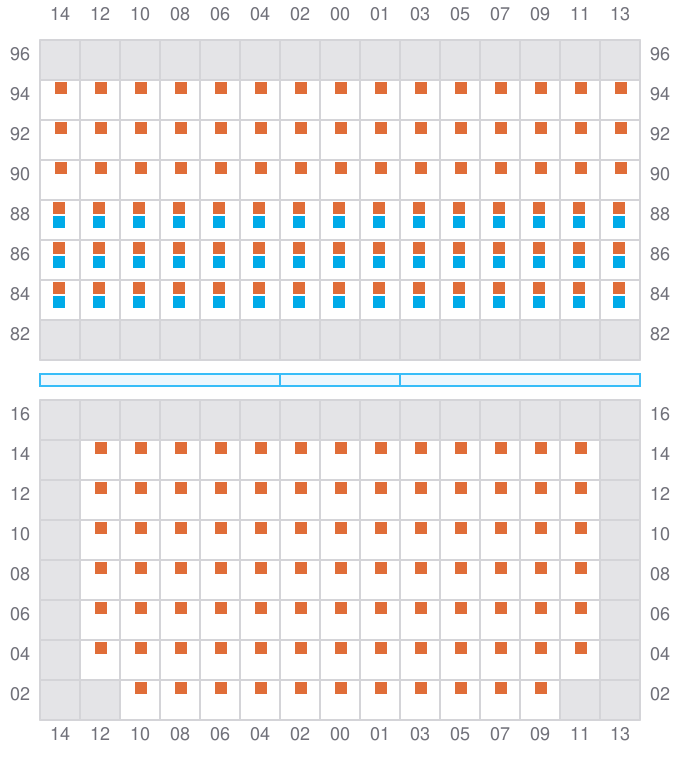

023

  • / ?
Bay 023 view and slots of DACHAN BAY EXPRESS

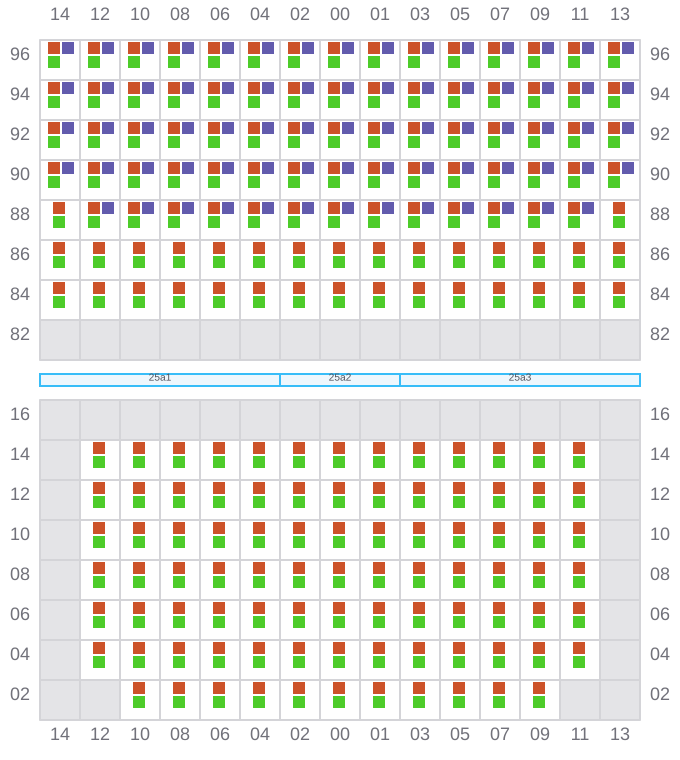

025 (026)

Bay 025 view and slots of DACHAN BAY EXPRESS

027

  • / ?
Bay 027 view and slots of DACHAN BAY EXPRESS

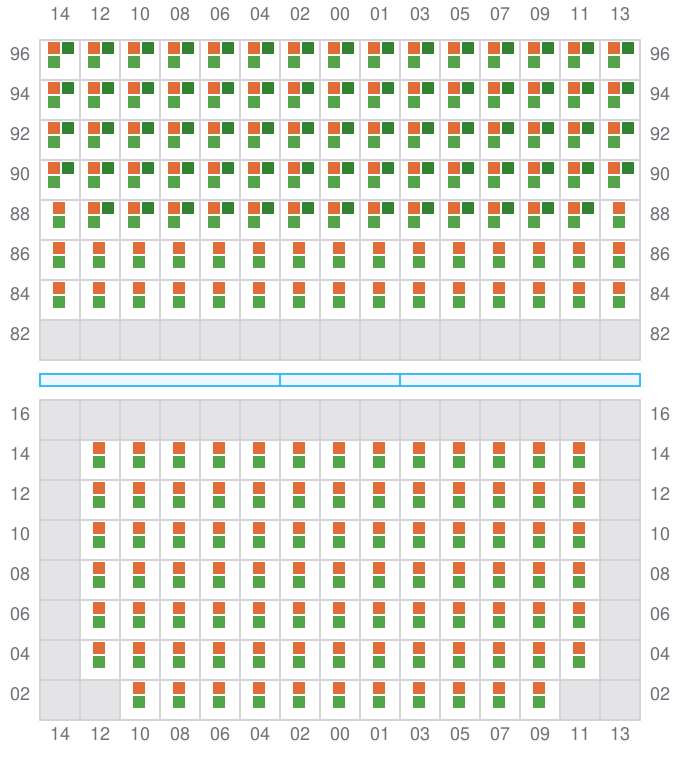

029 (030)

Bay 029 view and slots of DACHAN BAY EXPRESS

031

  • / ?
Bay 031 view and slots of DACHAN BAY EXPRESS

033 (034)

Bay 033 view and slots of DACHAN BAY EXPRESS

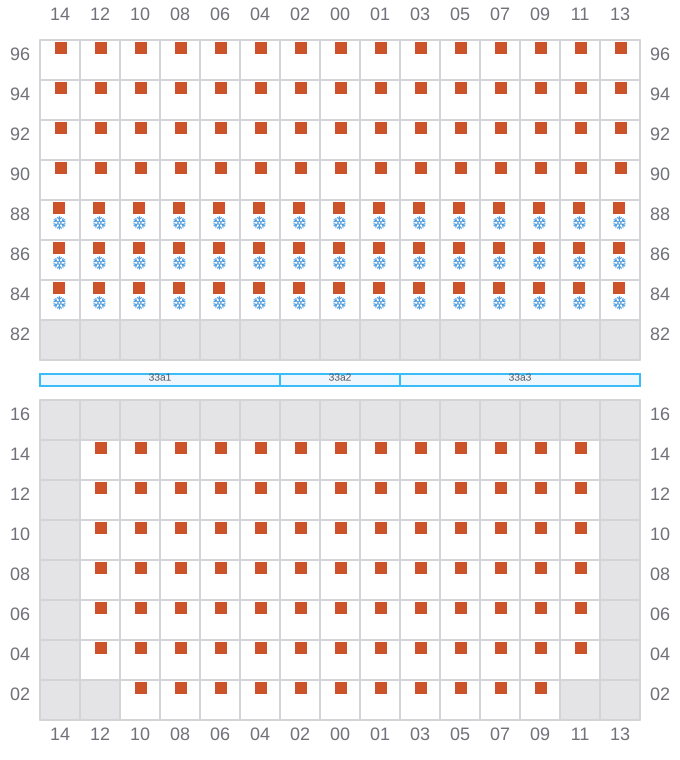

035

  • / ?
Bay 035 view and slots of DACHAN BAY EXPRESS

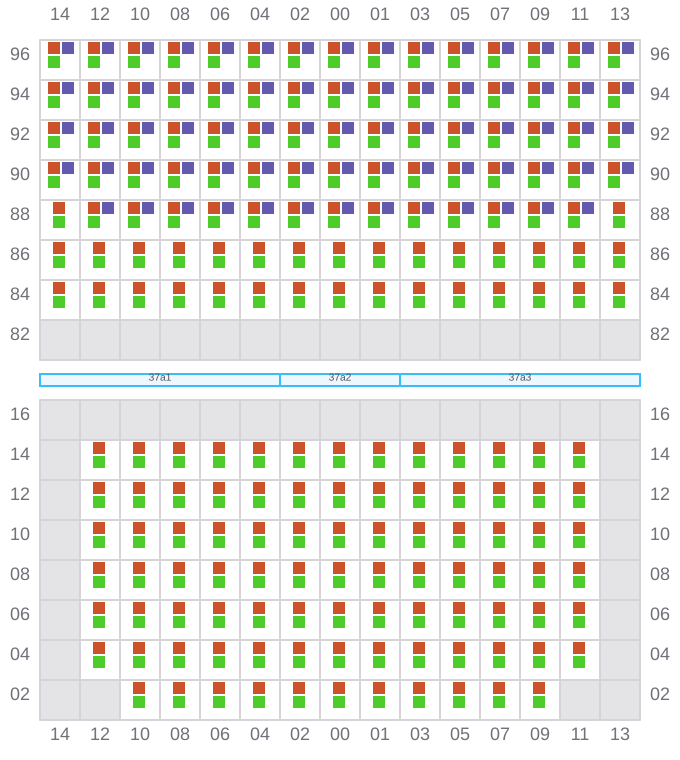

037 (038)

Bay 037 view and slots of DACHAN BAY EXPRESS

039

  • / ?
Bay 039 view and slots of DACHAN BAY EXPRESS

041 (042)

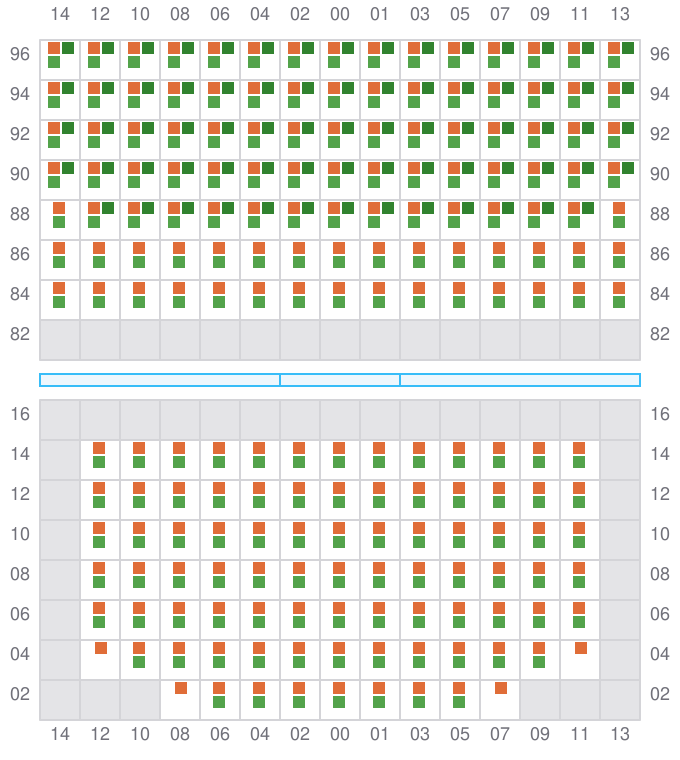

Bay 041 view and slots of DACHAN BAY EXPRESS

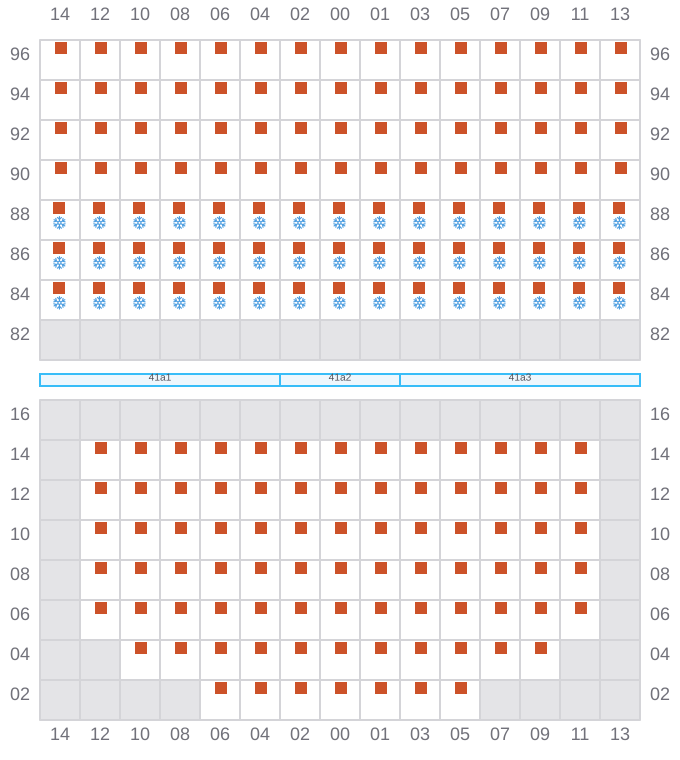

043

  • / ?
Bay 043 view and slots of DACHAN BAY EXPRESS

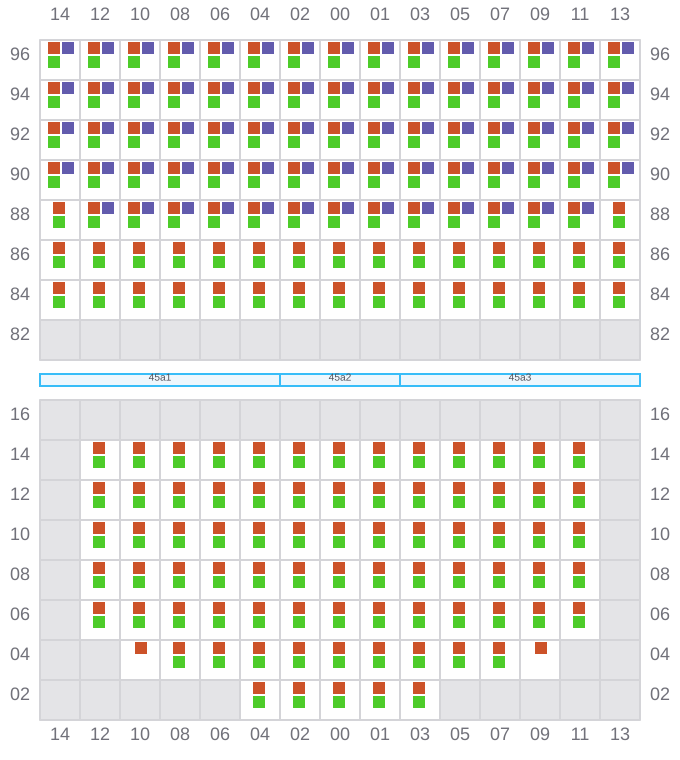

045 (046)

Bay 045 view and slots of DACHAN BAY EXPRESS

047

  • / ?
Bay 047 view and slots of DACHAN BAY EXPRESS

049 (050)

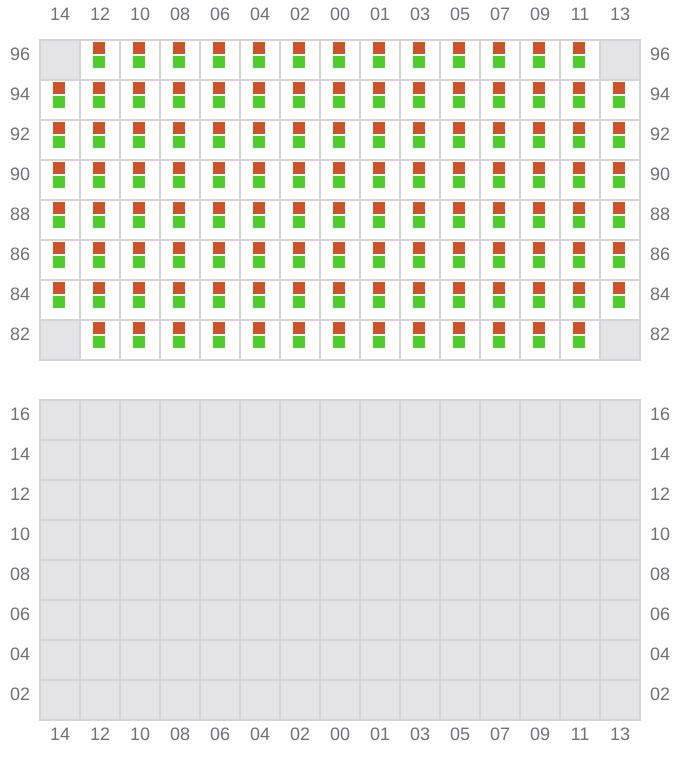

Bay 049 view and slots of DACHAN BAY EXPRESS

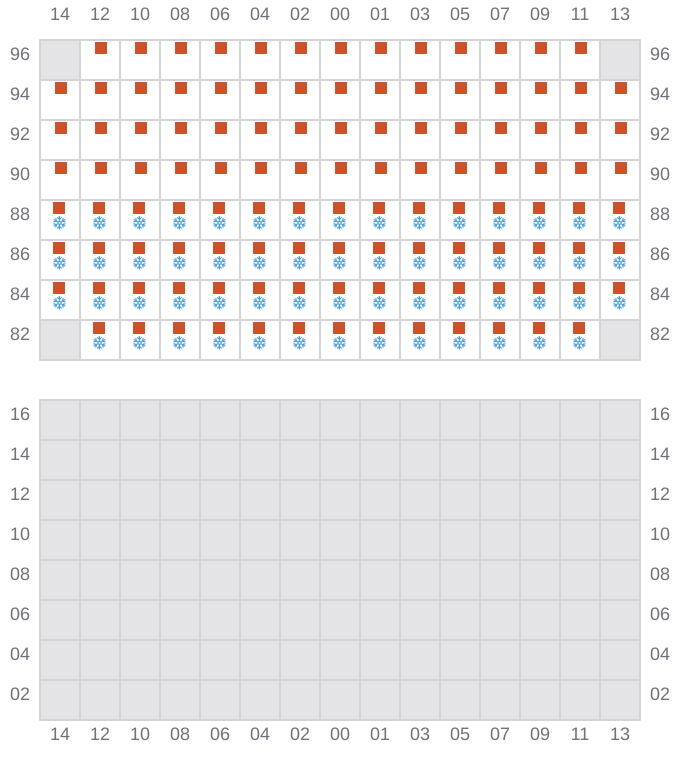

051

  • / ?
Bay 051 view and slots of DACHAN BAY EXPRESS

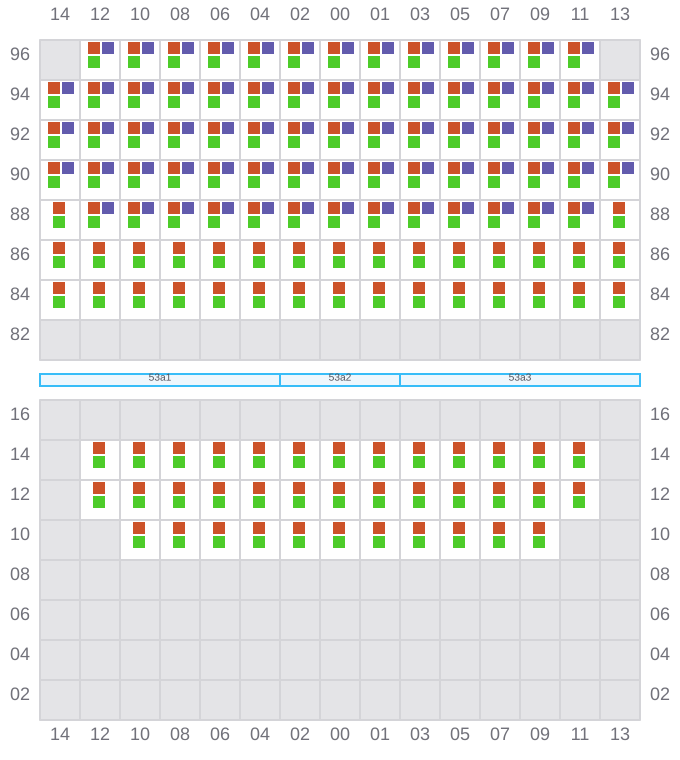

053 (054)

Bay 053 view and slots of DACHAN BAY EXPRESS

055

  • / ?

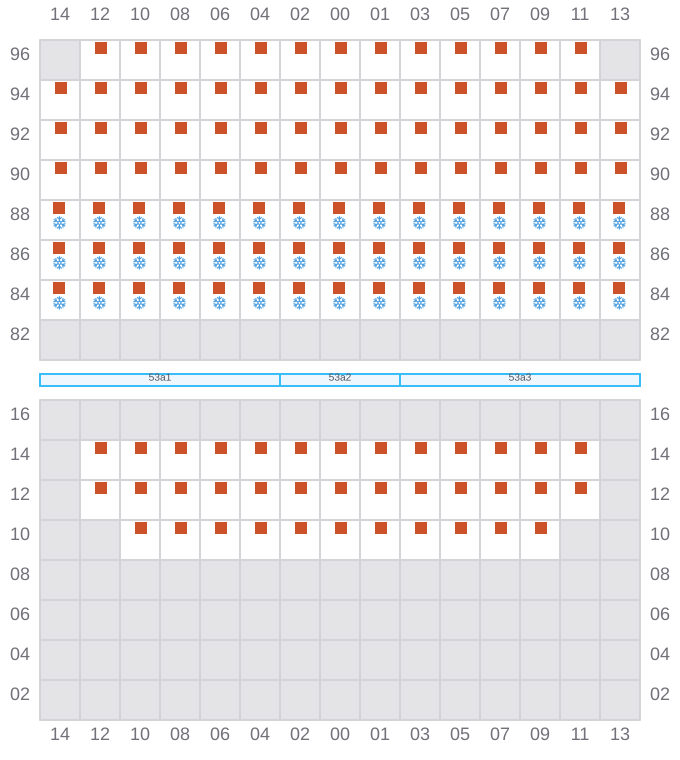

Bay 055 view and slots of DACHAN BAY EXPRESS

057 (058)

  • / ?

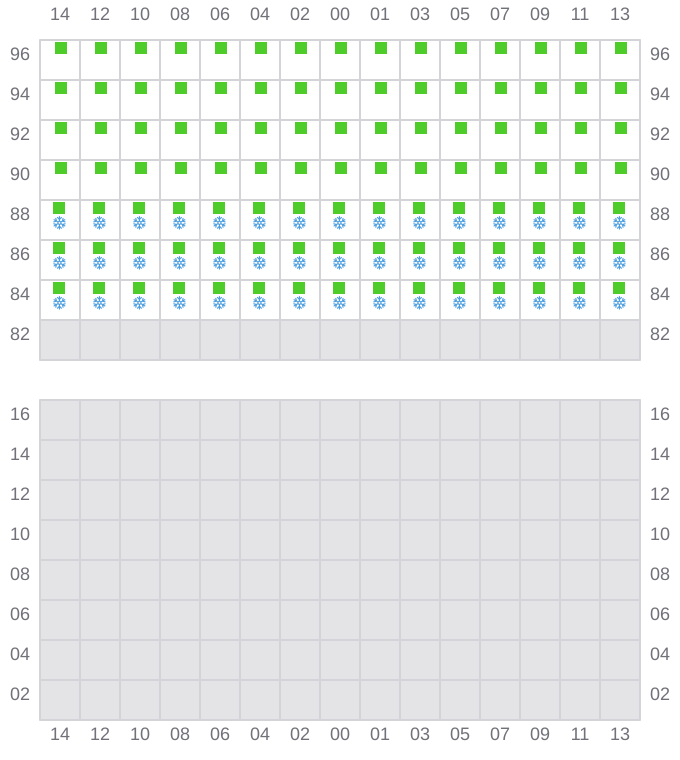

Bay 057 view and slots of DACHAN BAY EXPRESS
