DANU BHUM
9112698 | 9VCB | 9112698 by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:DANU BHUM
IMO Code:9112698
Call Sign:9VCB
Line Operator:9112698
Class Name for Sister Ships:CNC
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:033
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:963

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

Side View

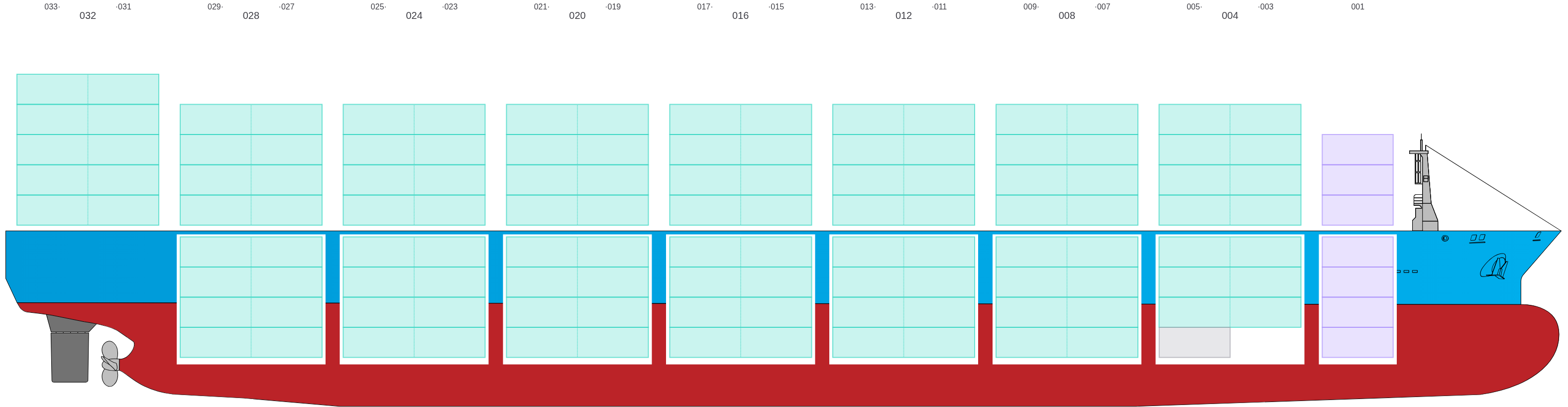

Side view of DANU BHUM

Hatch-Covers View

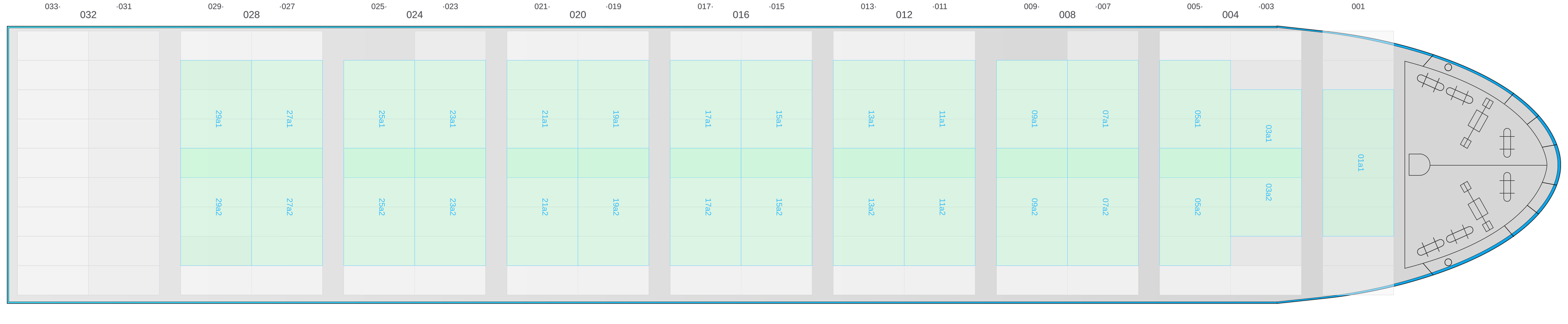

Deck view of DANU BHUM

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

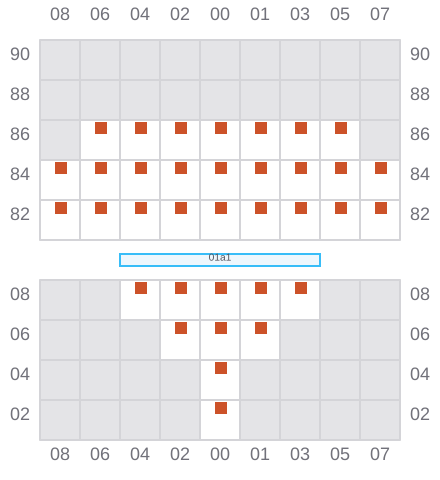

Bay 001 view and slots of DANU BHUM

003 (004)

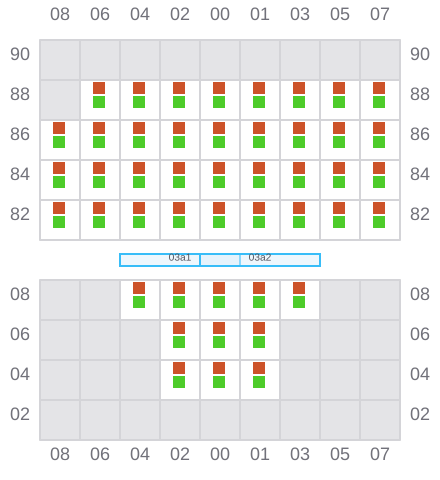

Bay 003 view and slots of DANU BHUM

005

Bay 005 view and slots of DANU BHUM

007 (008)

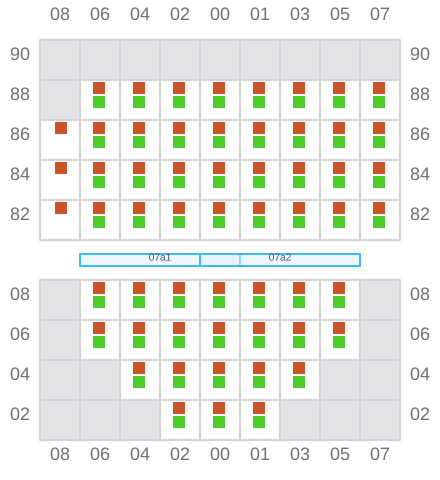

Bay 007 view and slots of DANU BHUM

009

Bay 009 view and slots of DANU BHUM

011 (012)

Bay 011 view and slots of DANU BHUM

013

Bay 013 view and slots of DANU BHUM

015 (016)

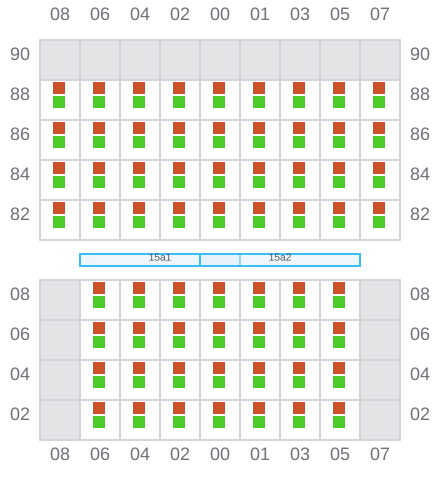

Bay 015 view and slots of DANU BHUM

017

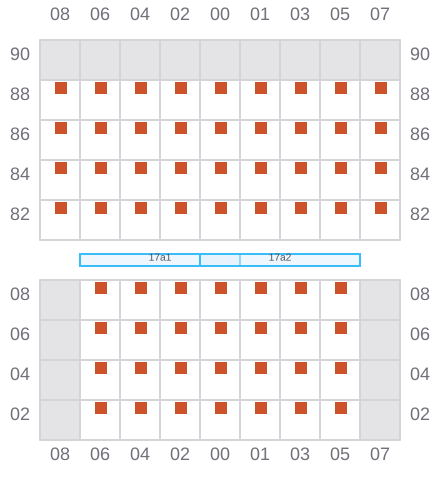

Bay 017 view and slots of DANU BHUM

019 (020)

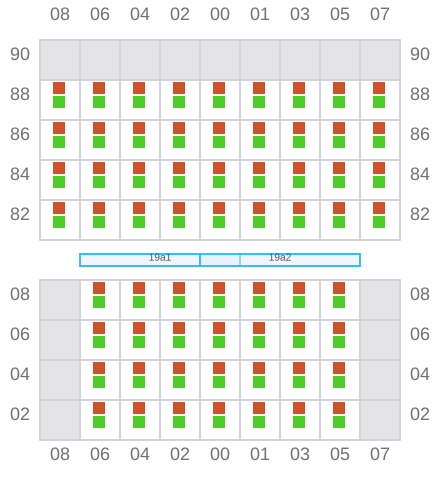

Bay 019 view and slots of DANU BHUM

021

Bay 021 view and slots of DANU BHUM

023 (024)

Bay 023 view and slots of DANU BHUM

025

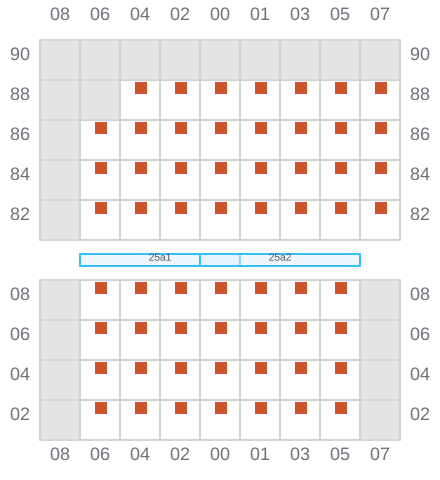

Bay 025 view and slots of DANU BHUM

027 (028)

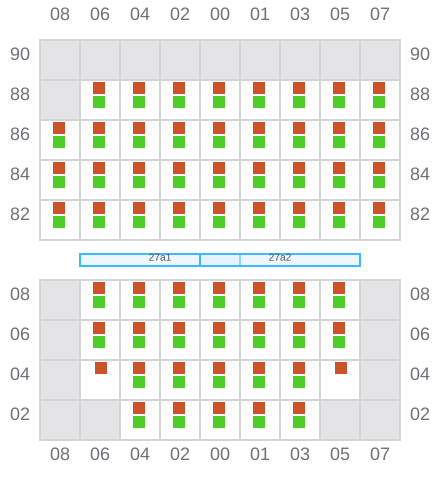

Bay 027 view and slots of DANU BHUM

029

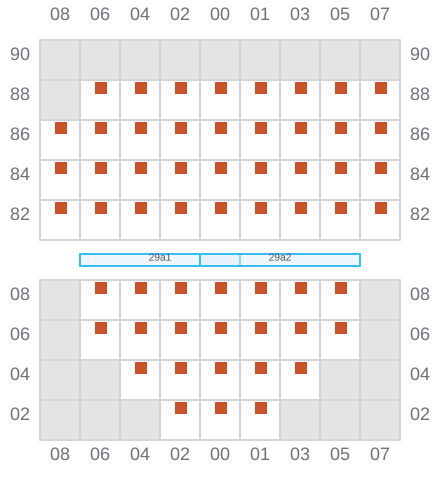

Bay 029 view and slots of DANU BHUM

031 (032)

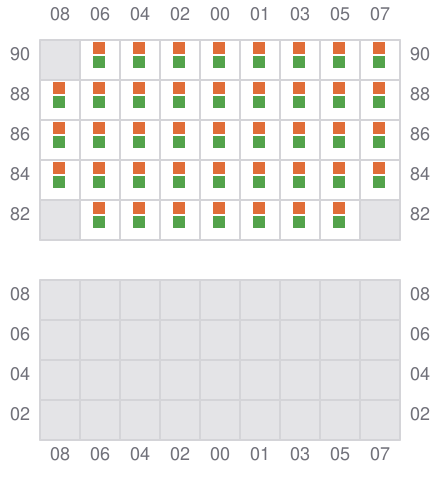

Bay 031 view and slots of DANU BHUM

033

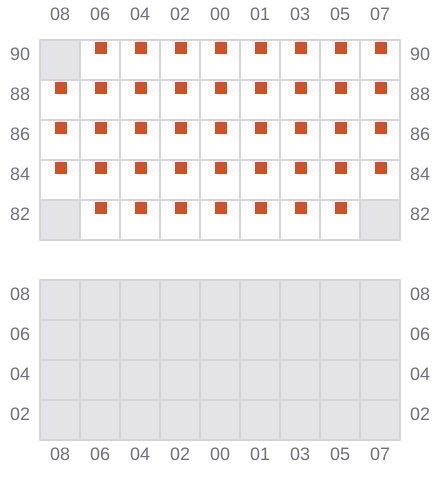

Bay 033 view and slots of DANU BHUM
