DANUM 168
9238870 | 9WSY9 | 9238870 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:DANUM 168
IMO Code:9238870
Call Sign:9WSY9
Line Operator:9238870
Class Name for Sister Ships:MCC
Year Built:2001
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):145.00
LOA (Length Overall):154.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,078

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of DANUM 168

Hatch-Covers View

Deck view of DANUM 168

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

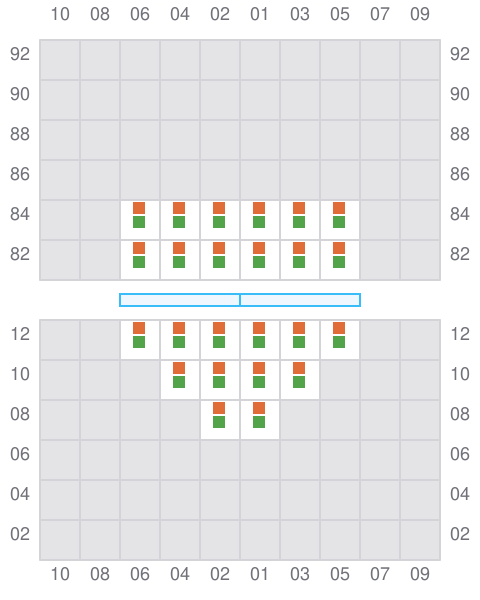

001 (002)

Bay 001 view and slots of DANUM 168

003

  • / ?

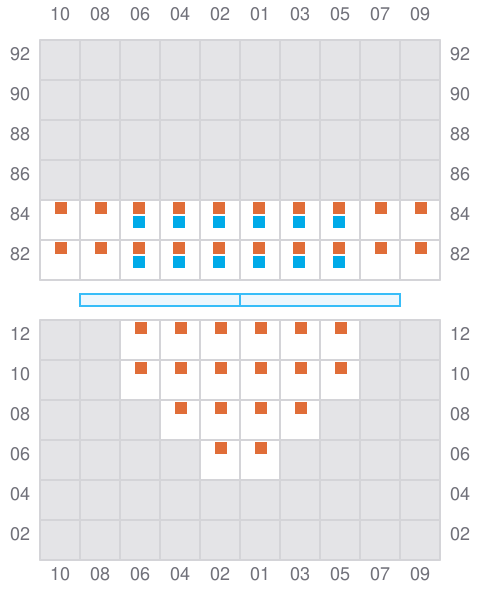

Bay 003 view and slots of DANUM 168

005 (006)

Bay 005 view and slots of DANUM 168

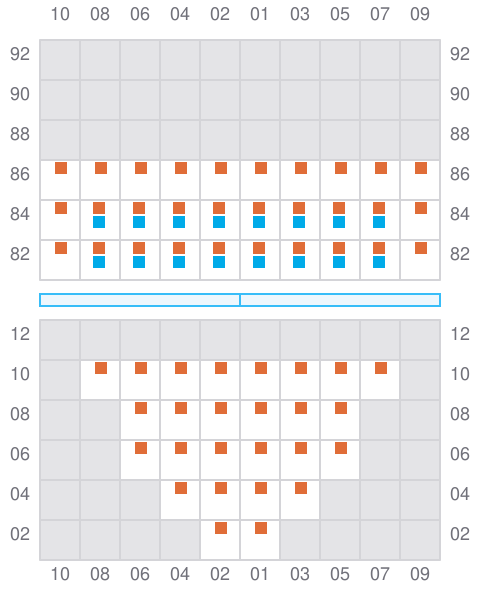

007

  • / ?
Bay 007 view and slots of DANUM 168

009 (010)

Bay 009 view and slots of DANUM 168

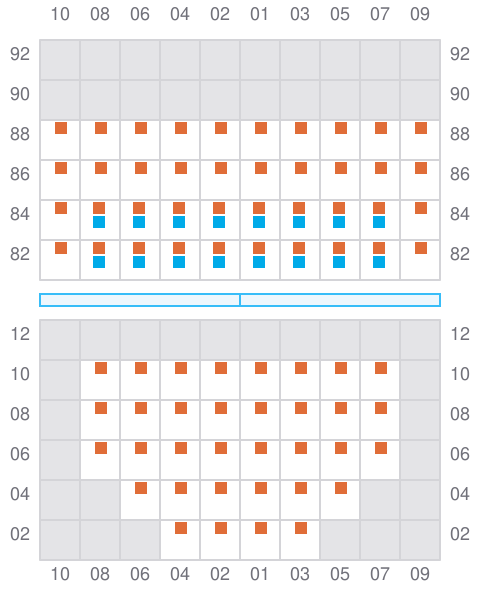

011

  • / ?
Bay 011 view and slots of DANUM 168

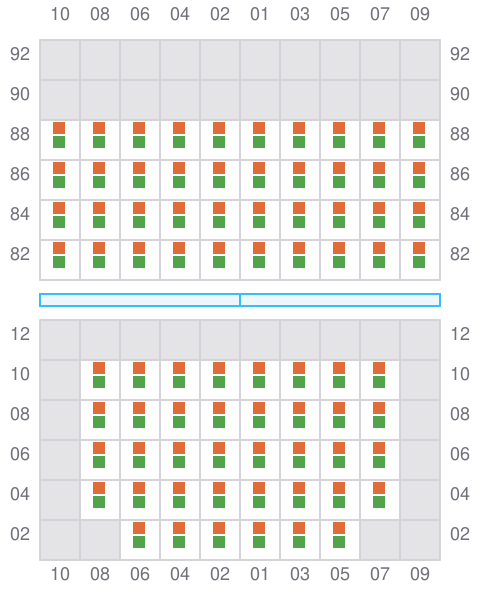

013 (014)

Bay 013 view and slots of DANUM 168

015

  • / ?
Bay 015 view and slots of DANUM 168

017 (018)

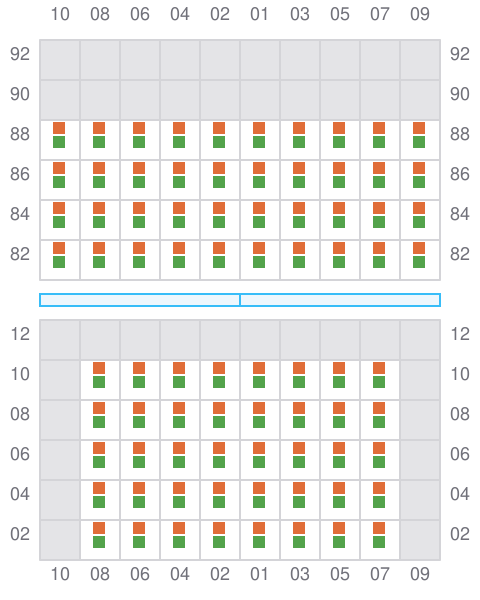

Bay 017 view and slots of DANUM 168

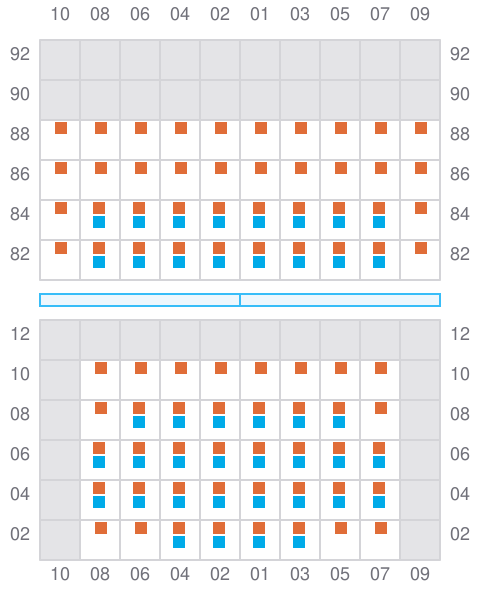

019

Bay 019 view and slots of DANUM 168

021 (022)

  • ? /

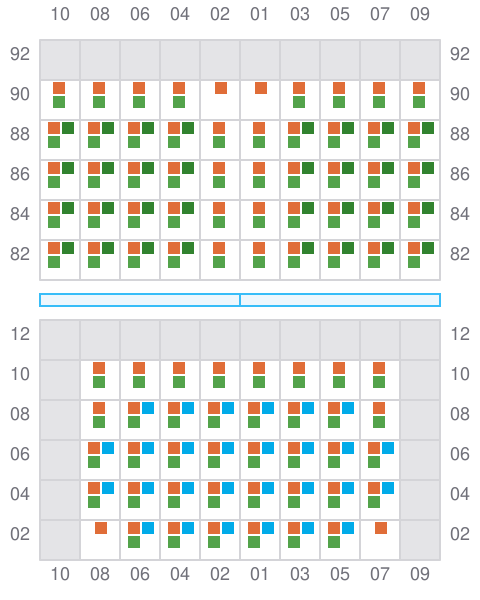

Bay 021 view and slots of DANUM 168

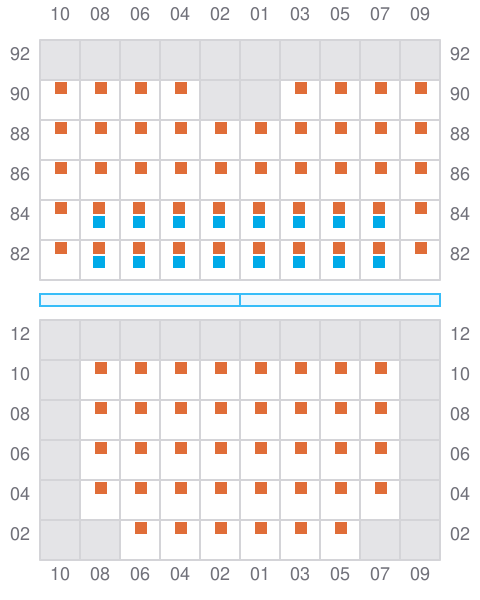

023

  • / ?
Bay 023 view and slots of DANUM 168

025 (026)

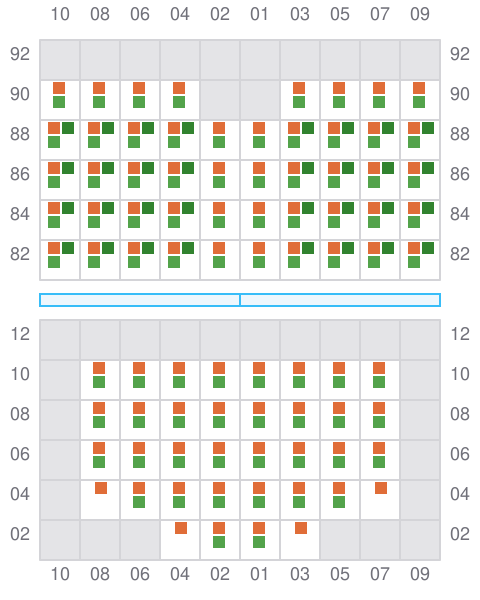

Bay 025 view and slots of DANUM 168

027

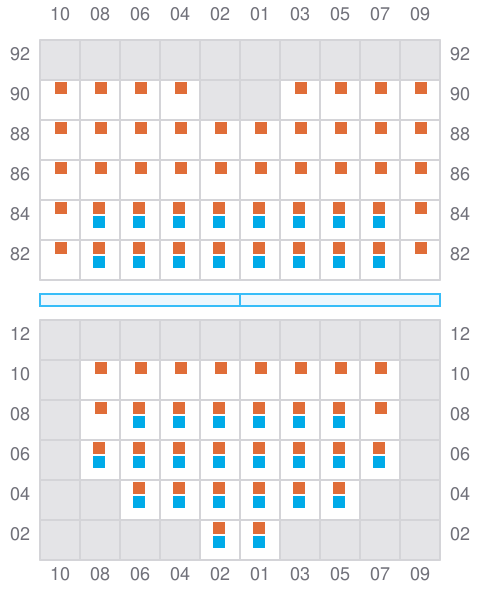

Bay 027 view and slots of DANUM 168

029 (030)

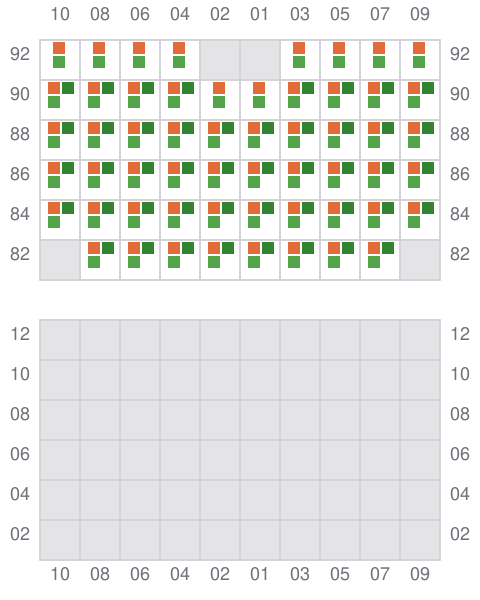

Bay 029 view and slots of DANUM 168

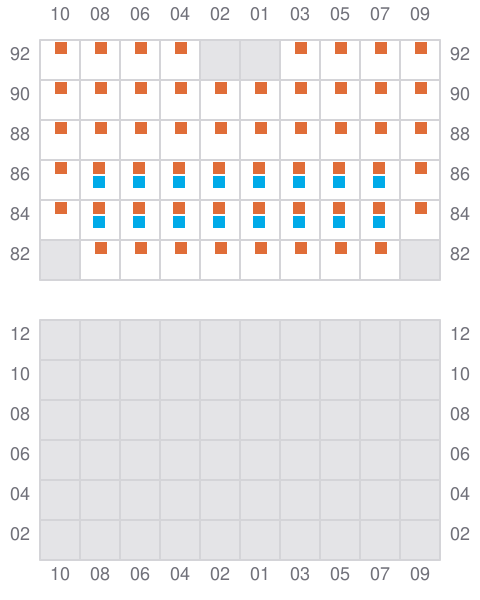

031

  • / ?
Bay 031 view and slots of DANUM 168
