DANUM 175
9248930 | 9WUS7D | 9248930 by ********* Last update: Wed Apr 10 2024
General Info
Ship Name:DANUM 175
IMO Code:9248930
Call Sign:9WUS7D
Line Operator:9248930
Class Name for Sister Ships:CAPE FRIO
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:10
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,332
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

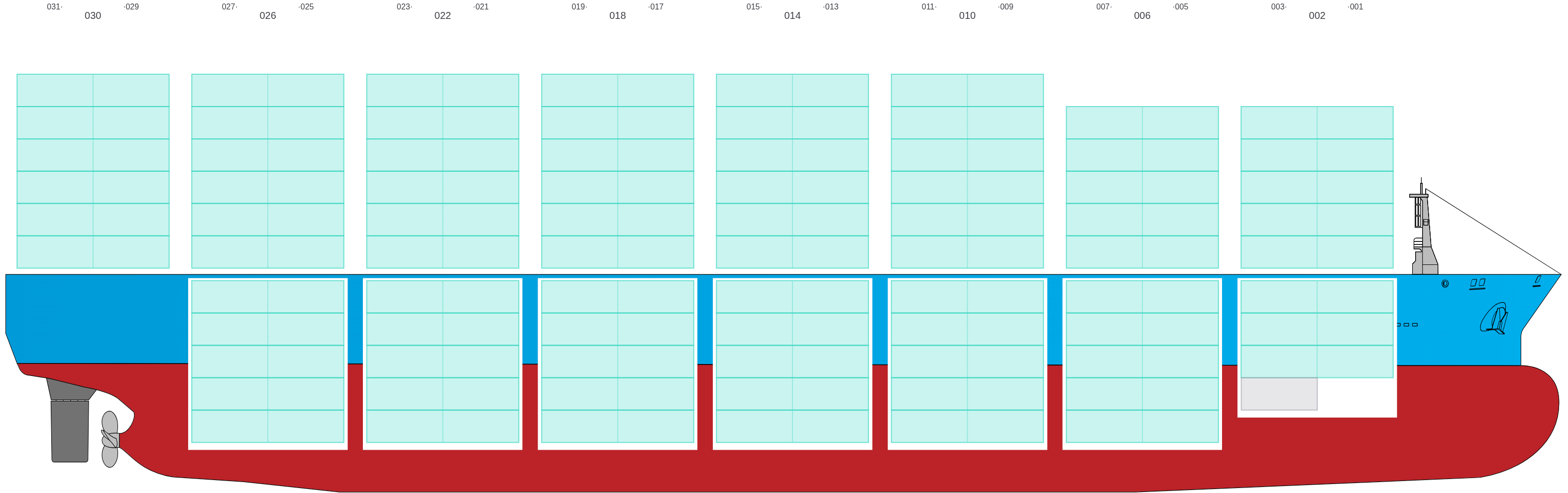

Side View

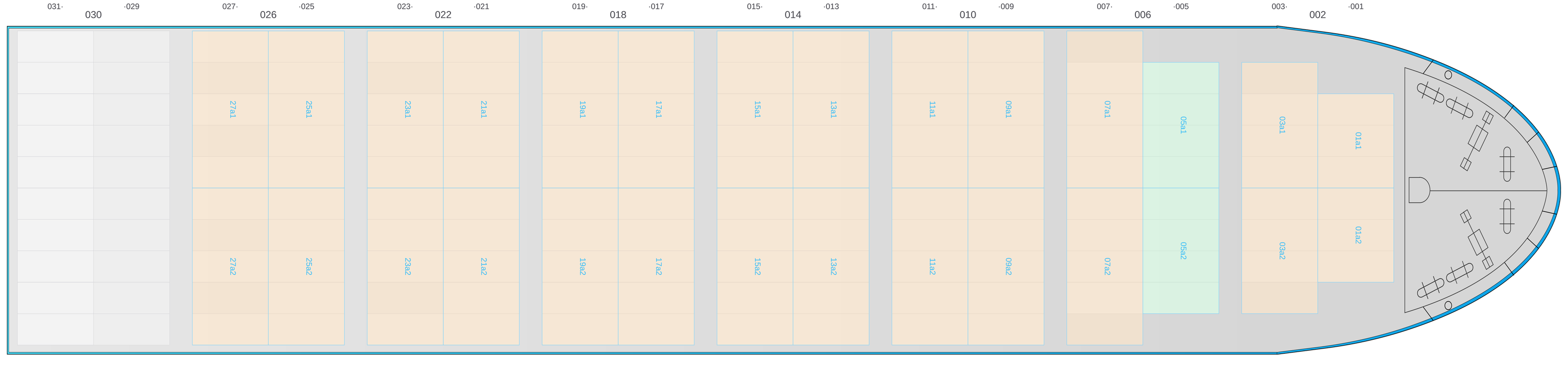

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

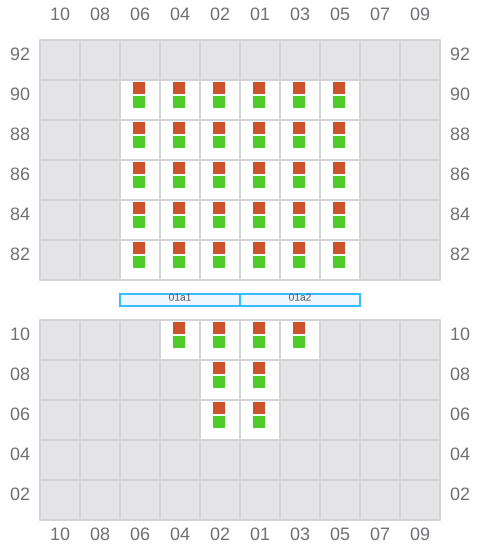

001 (002)
- →

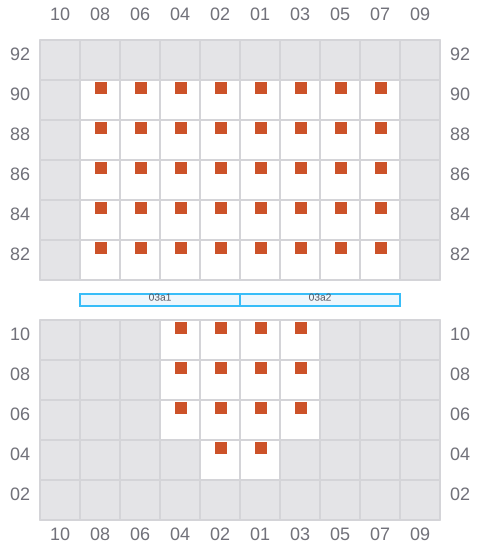

003
- ←

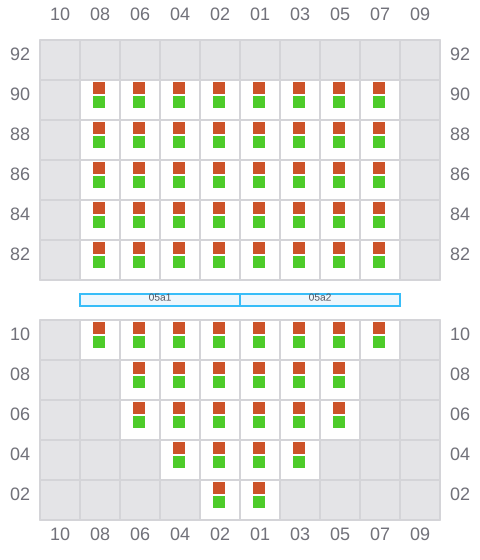

005 (006)
- →

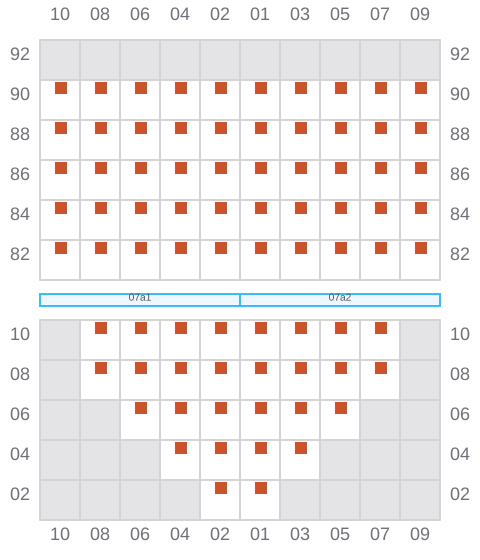

007
- ←

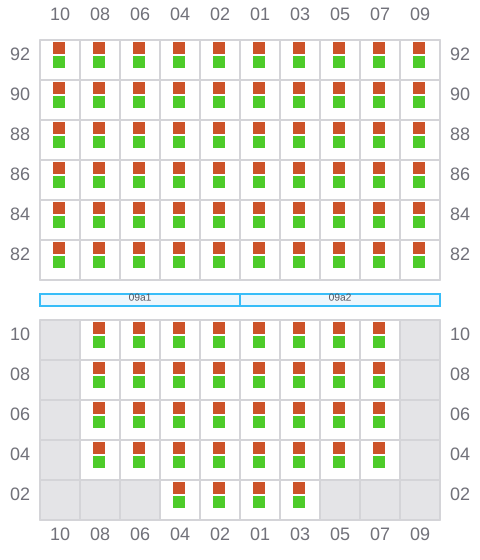

009 (010)
- →
011
- ←
013 (014)
- →
015
- ←

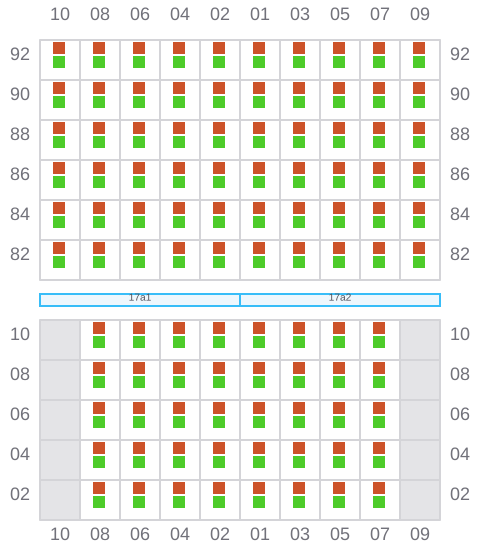

017 (018)
- →

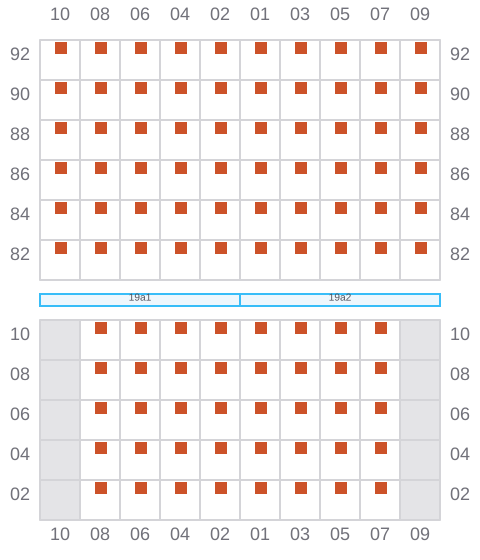

019
- ←

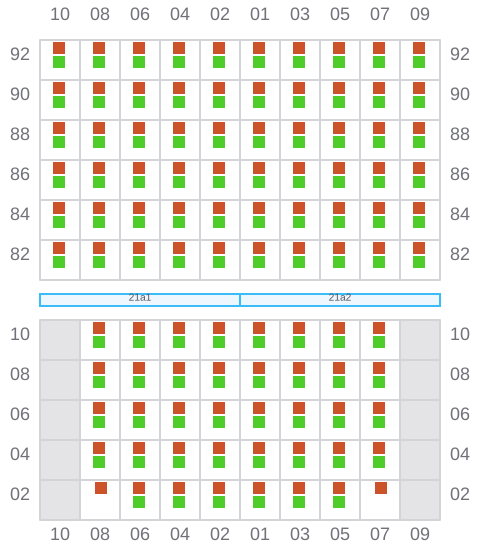

021 (022)
- →

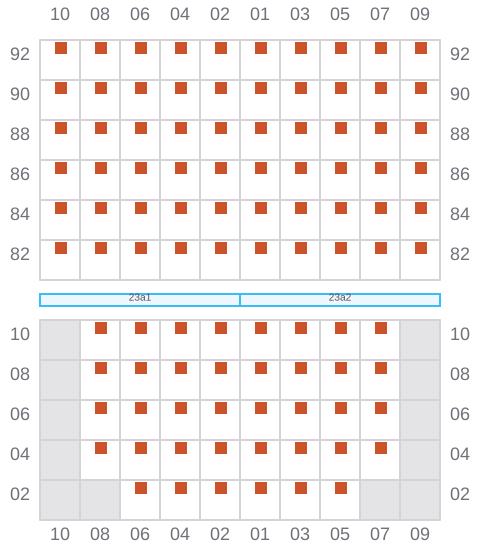

023
- ←

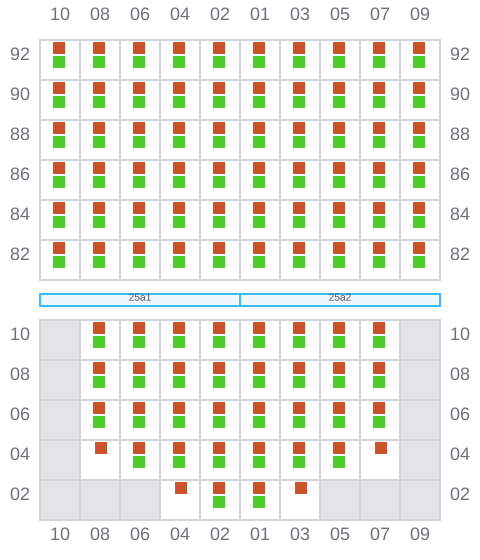

025 (026)
- →
027
- ←

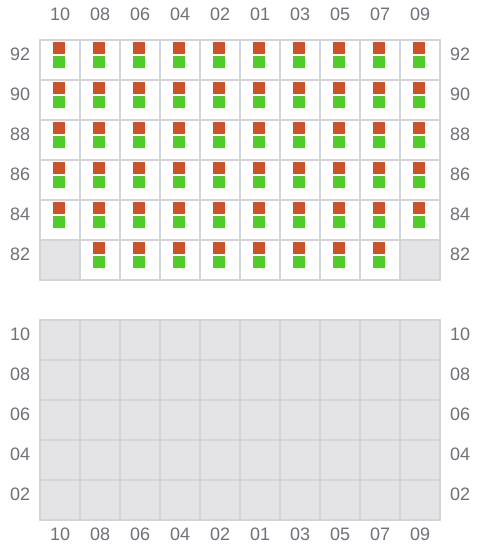

029 (030)
- → / ?

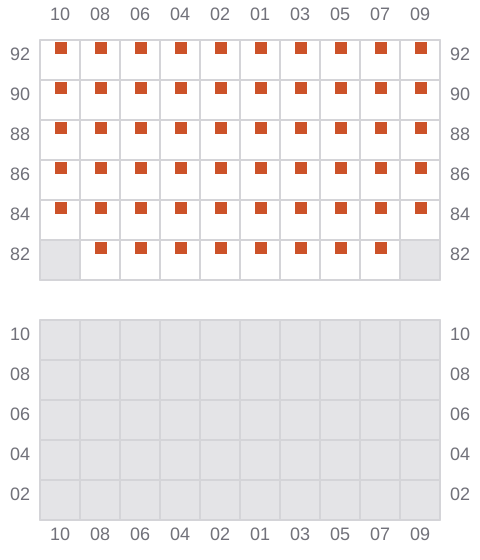

031
- ← / ?
