DEBBIE
9128415 | 9LU2251 | 9128415 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:DEBBIE
IMO Code:9128415
Call Sign:9LU2251
Line Operator:9128415
Class Name for Sister Ships:75M
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):114.50
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:021
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:522
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

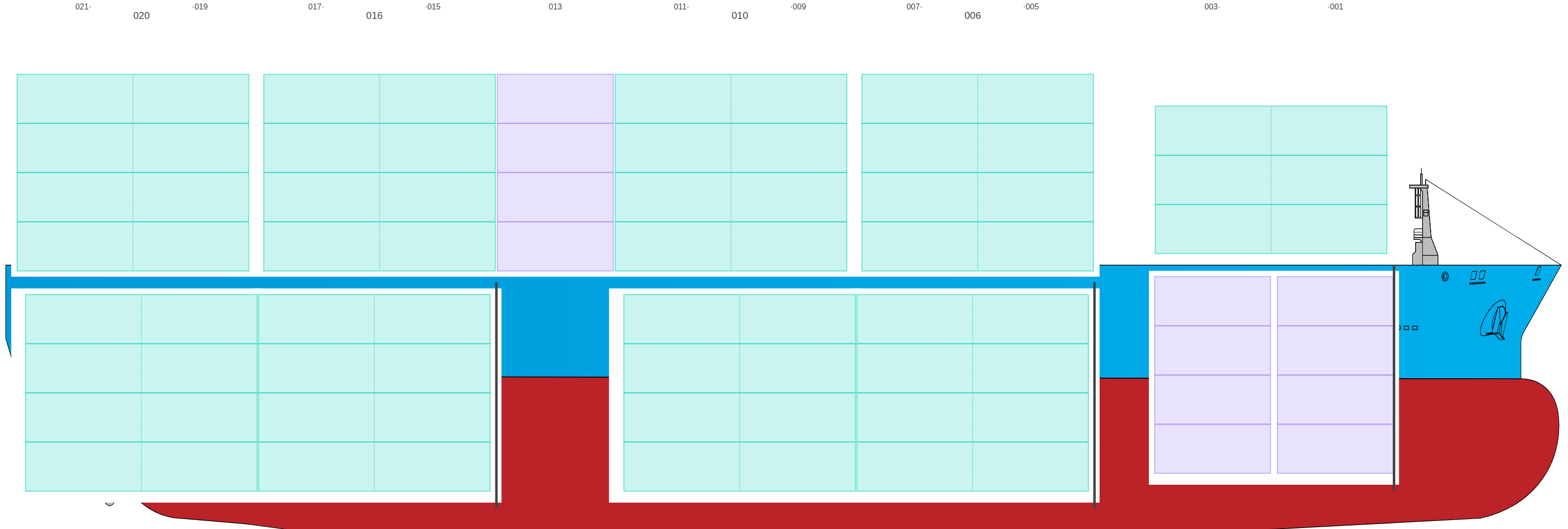

Side View
![Side view of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-sideView.png?v=1709847073679)
Hatch-Covers View
![Deck view of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-deckView.png?v=1709847073679)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

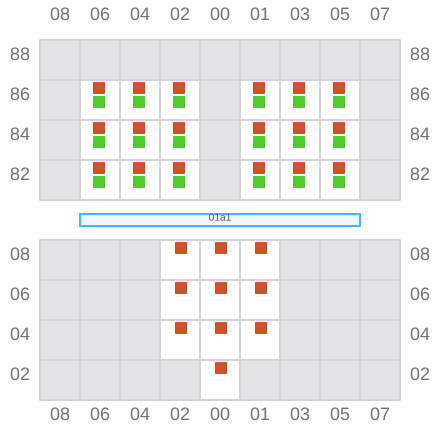

001 (002)
- → / ?
![Bay 001 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b001.png?v=1709847073679)

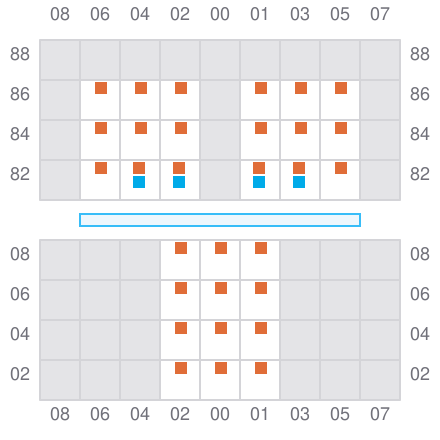

003
- ← / ?
- → / ?
![Bay 003 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b003.png?v=1709847073679)

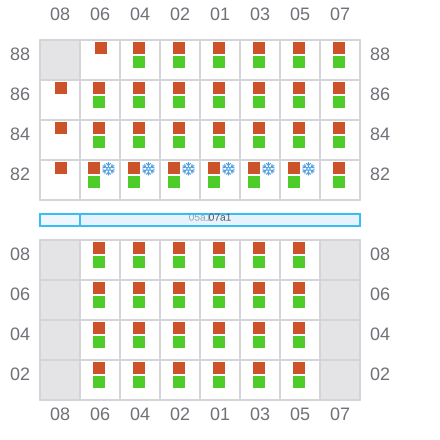

005 (006)
- →
- ← / ?
![Bay 005 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b005.png?v=1709847073679)
007
- ←
![Bay 007 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b007.png?v=1709847073679)

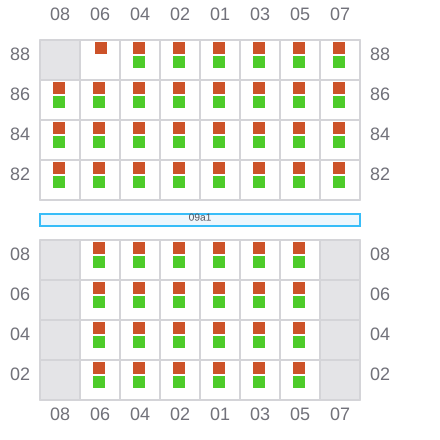

009 (010)
- →
![Bay 009 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b009.png?v=1709847073679)

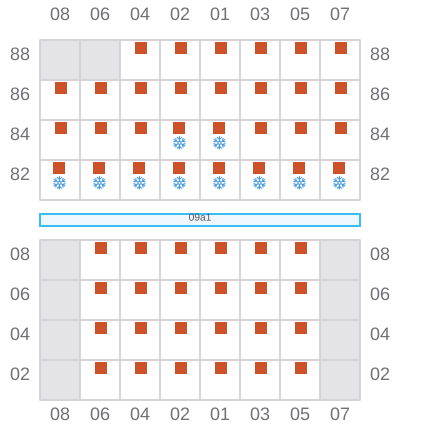

011
- ←
- → / ?
![Bay 011 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b011.png?v=1709847073679)

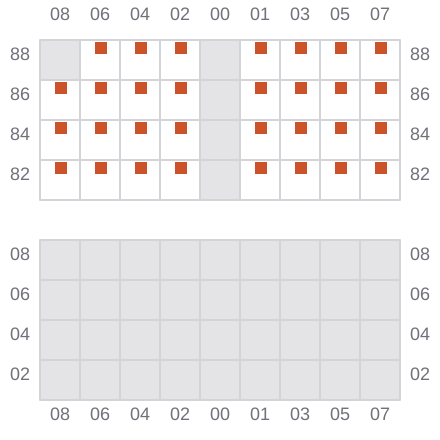

013
![Bay 013 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b013.png?v=1709847073679)

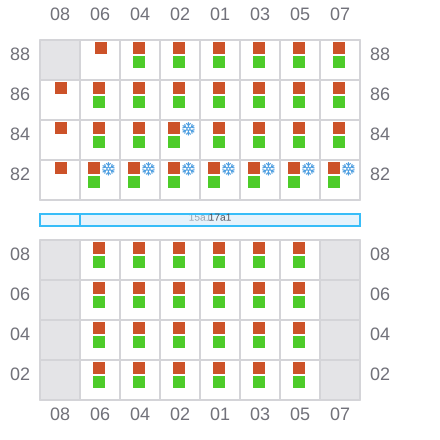

015 (016)
- →
- ← / ?
![Bay 015 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b015.png?v=1709847073679)

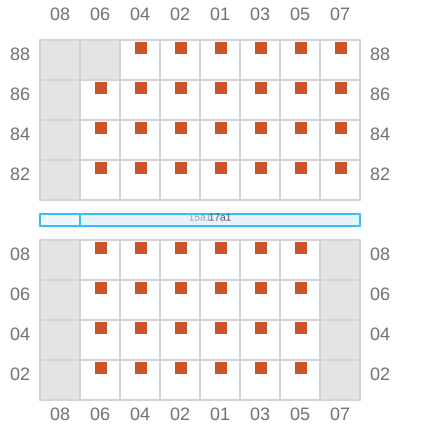

017
- ←
![Bay 017 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b017.png?v=1709847073679)
019 (020)
- →
![Bay 019 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b019.png?v=1709847073679)

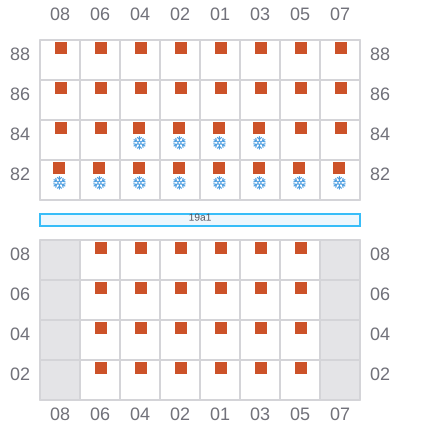

021
- ←
- → / ?
![Bay 021 view and slots of DEBBIE](/vessel-images/bc9ff913-8097-42e8-ae87-52a655bd206e-b021.png?v=1709847073679)
