DEBUSSY
9445576 | A8UL5 | 9445576 by ********* Last update: Thu May 09 2024
General Info
Ship Name:DEBUSSY
IMO Code:9445576
Call Sign:A8UL5
Line Operator:9445576
Class Name for Sister Ships:UASC JEDDAH
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.02
LOA (Length Overall):262.06
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,271
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

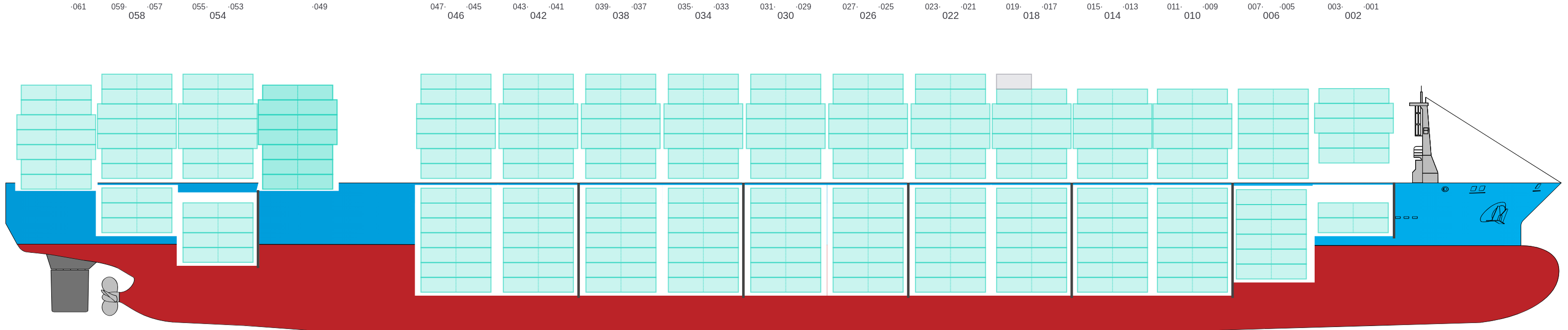

Side View
![Side view of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-sideView.png?v=1715280077375)
Hatch-Covers View
![Deck view of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-deckView.png?v=1715280077375)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

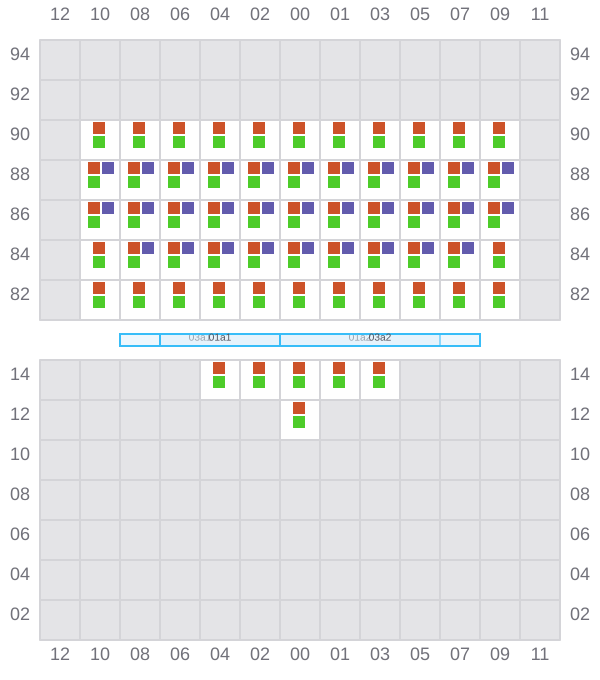

001 (002)
- →
![Bay 001 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b001.png?v=1715280077375)

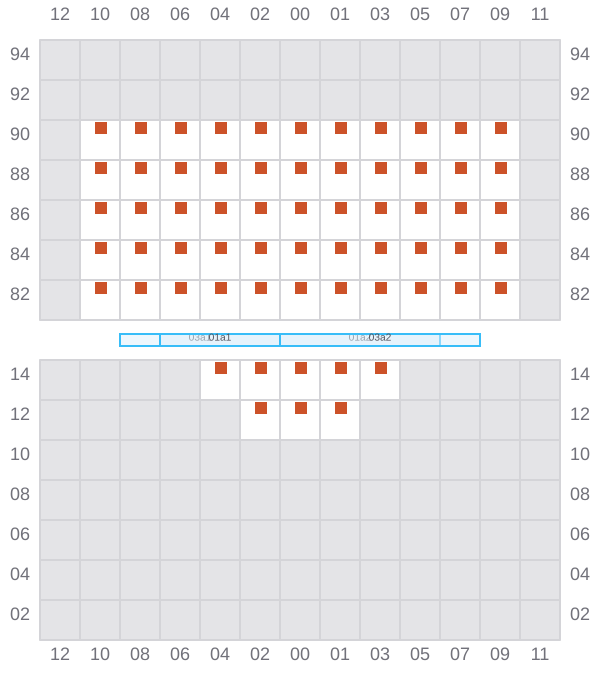

003
- ←
![Bay 003 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b003.png?v=1715280077375)

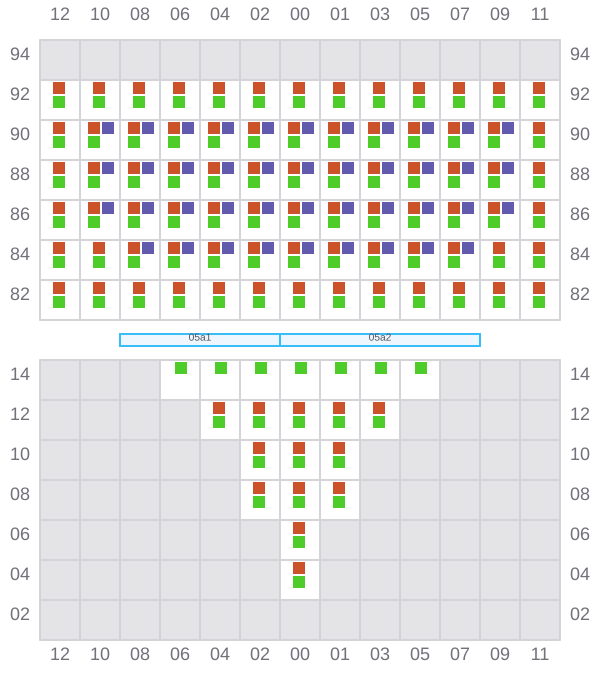

005 (006)
- →
![Bay 005 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b005.png?v=1715280077375)

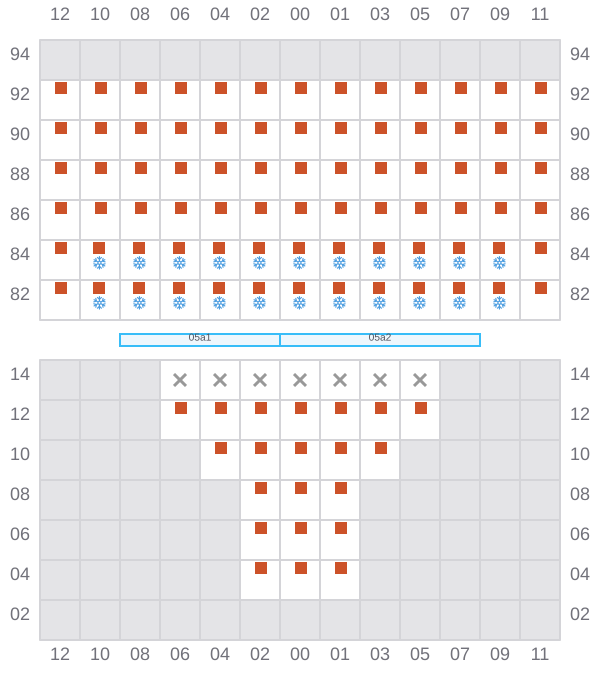

007
- ←
- → / ?
![Bay 007 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b007.png?v=1715280077375)

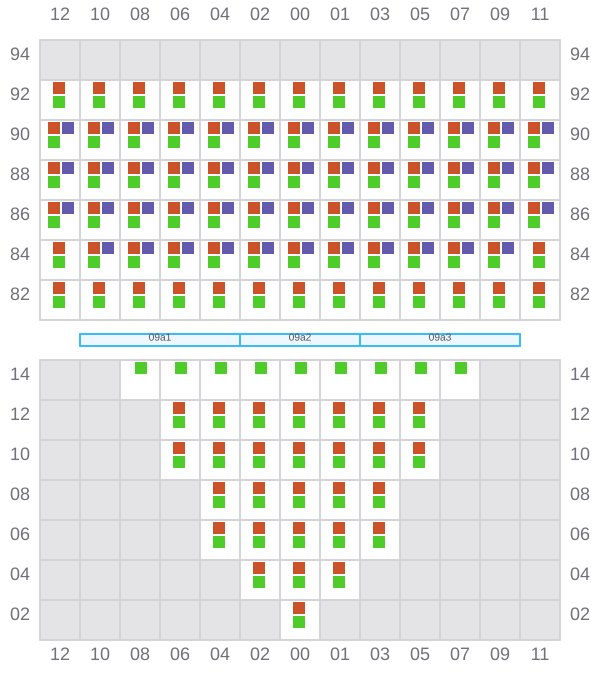

009 (010)
- →
![Bay 009 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b009.png?v=1715280077375)

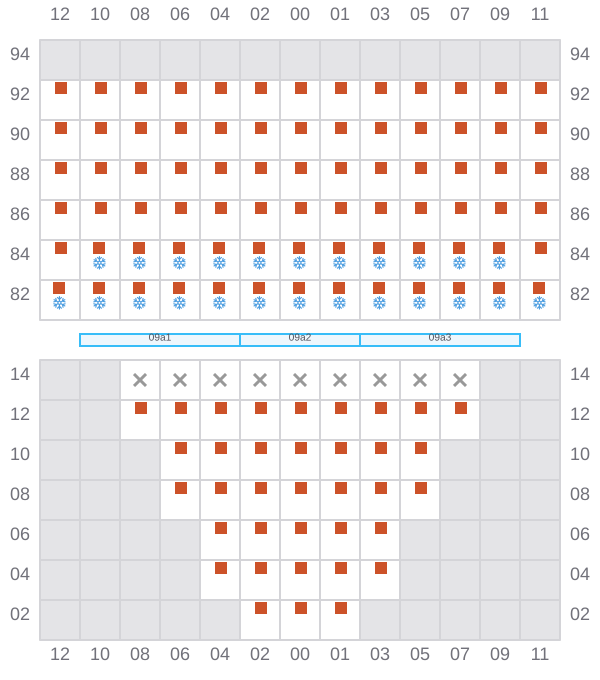

011
- ←
- → / ?
![Bay 011 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b011.png?v=1715280077375)

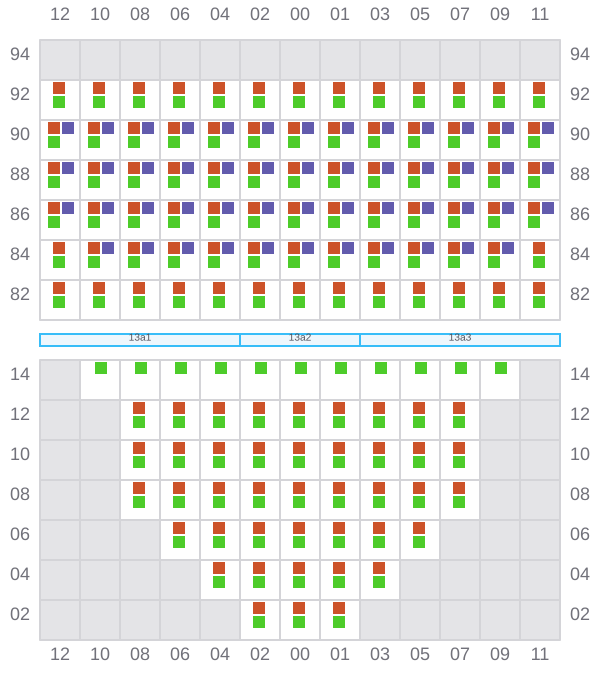

013 (014)
- →
![Bay 013 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b013.png?v=1715280077375)

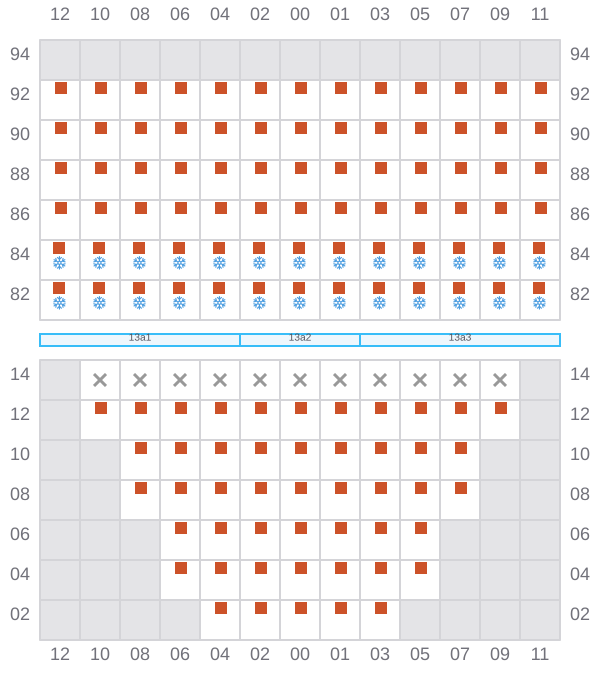

015
- ←
- → / ?
![Bay 015 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b015.png?v=1715280077375)

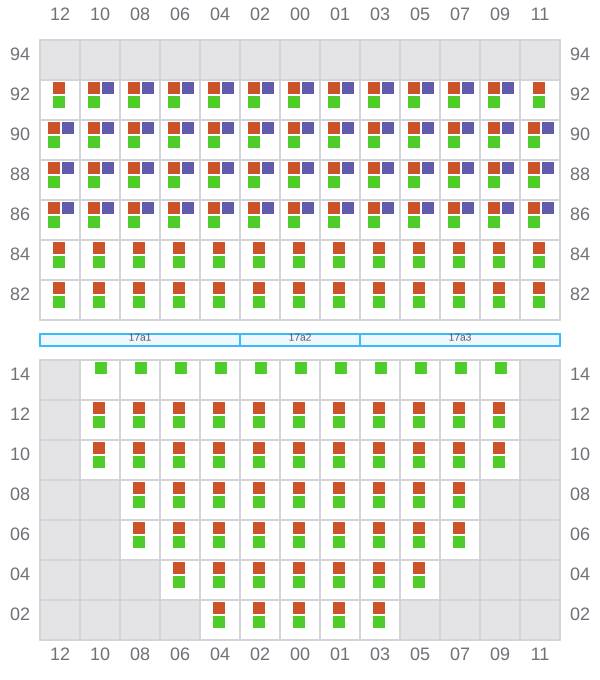

017 (018)
- →
![Bay 017 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b017.png?v=1715280077375)

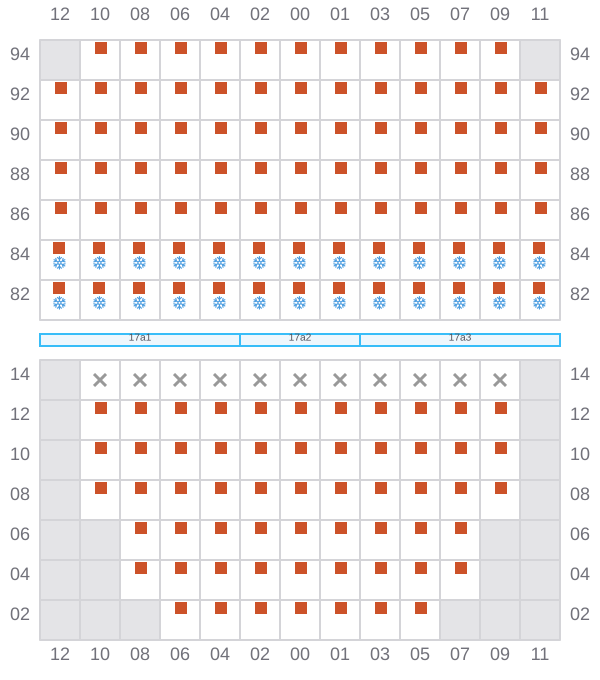

019
- ←
- → / ?
![Bay 019 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b019.png?v=1715280077375)

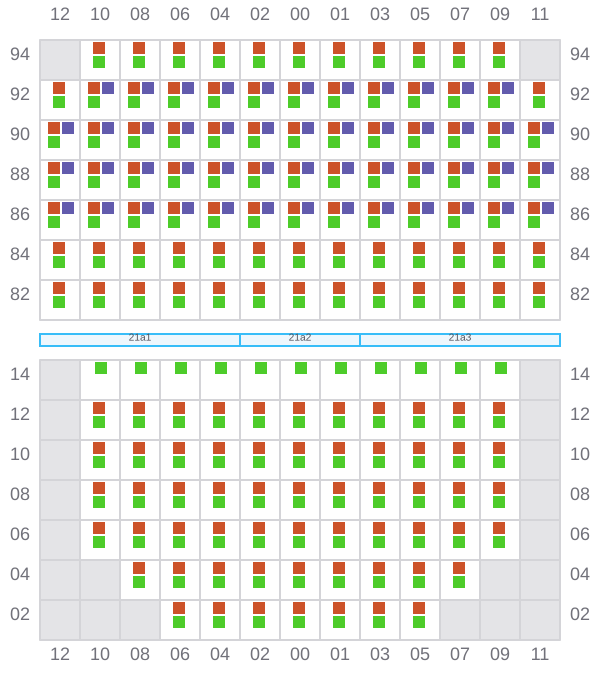

021 (022)
- →
![Bay 021 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b021.png?v=1715280077375)

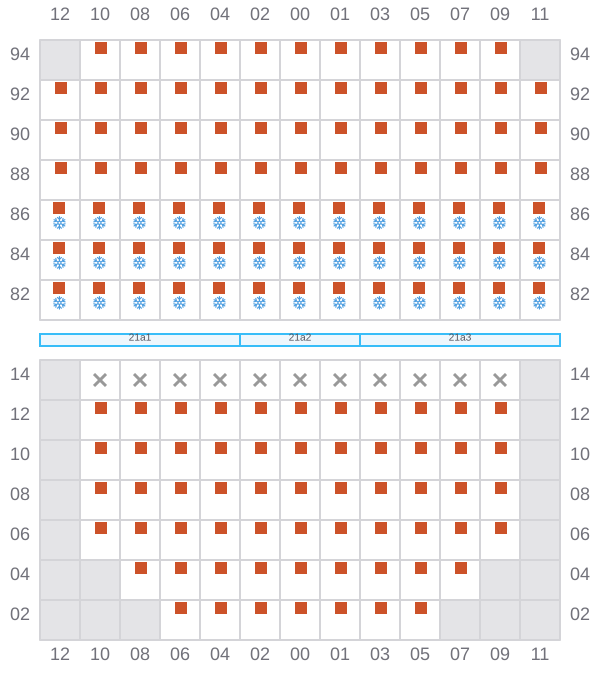

023
- ←
- → / ?
![Bay 023 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b023.png?v=1715280077375)
025 (026)
- →
![Bay 025 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b025.png?v=1715280077375)
027
- ←
- ? / →
![Bay 027 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b027.png?v=1715280077375)

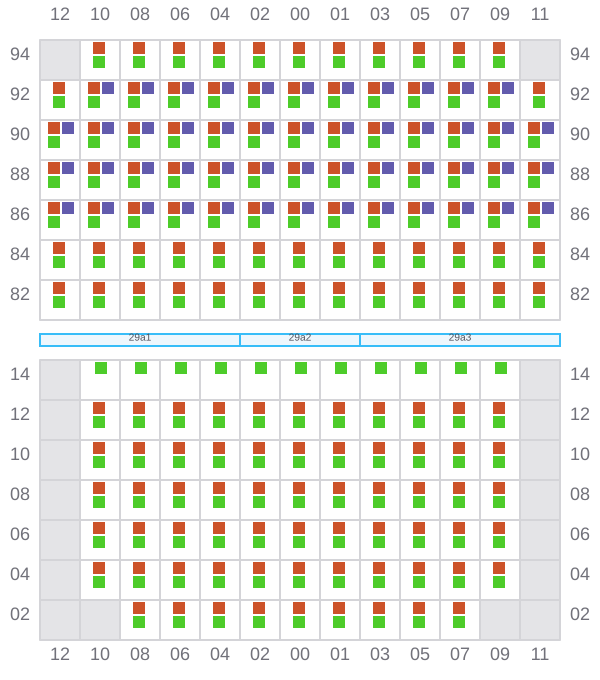

029 (030)
- →
![Bay 029 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b029.png?v=1715280077375)
031
- ←
- →
![Bay 031 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b031.png?v=1715280077375)

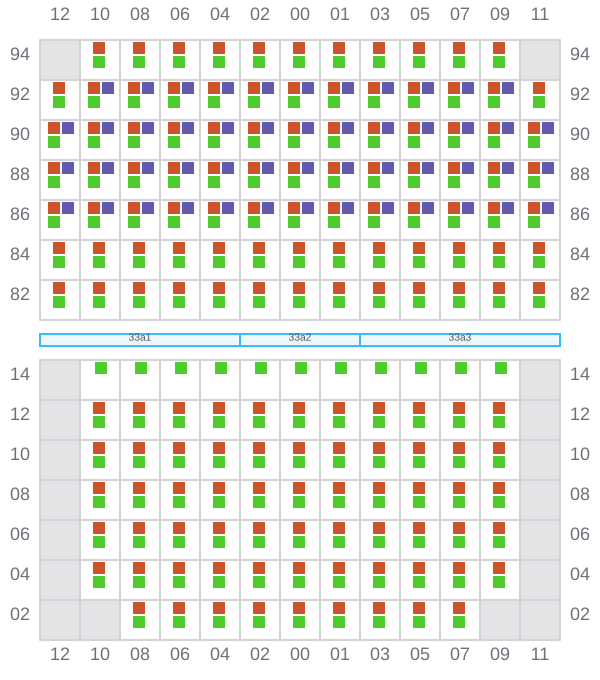

033 (034)
- →
![Bay 033 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b033.png?v=1715280077375)

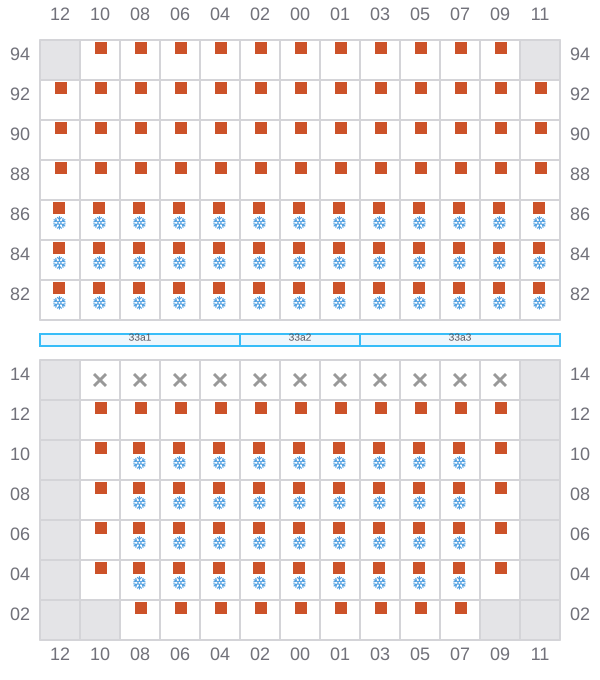

035
- ←
- →
![Bay 035 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b035.png?v=1715280077375)
037 (038)
- →
![Bay 037 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b037.png?v=1715280077375)
039
- ←
- →
![Bay 039 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b039.png?v=1715280077375)
041 (042)
- →
![Bay 041 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b041.png?v=1715280077375)

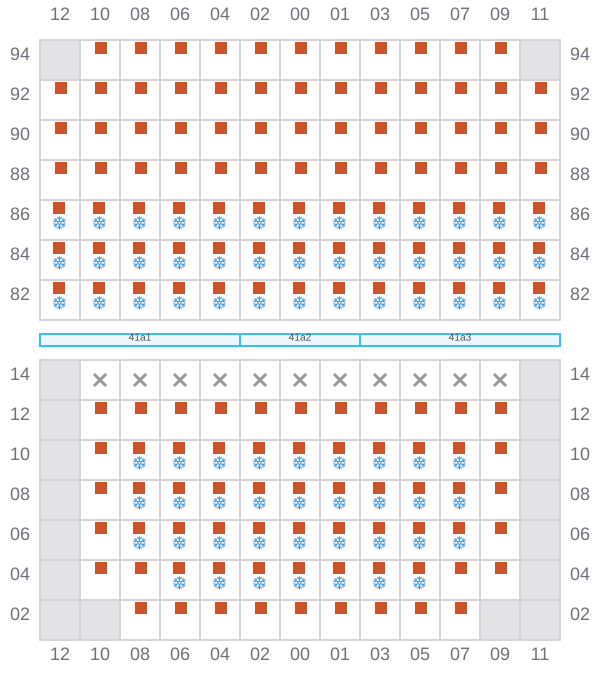

043
- ←
- →
![Bay 043 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b043.png?v=1715280077375)

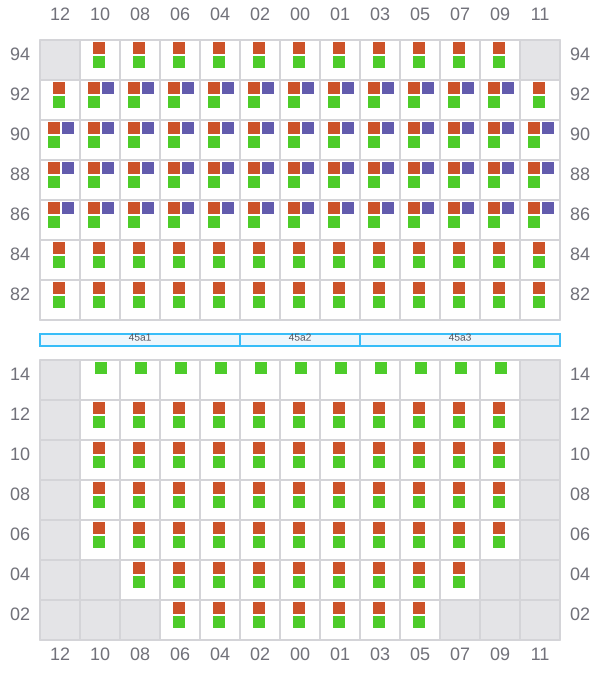

045 (046)
- →
![Bay 045 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b045.png?v=1715280077375)

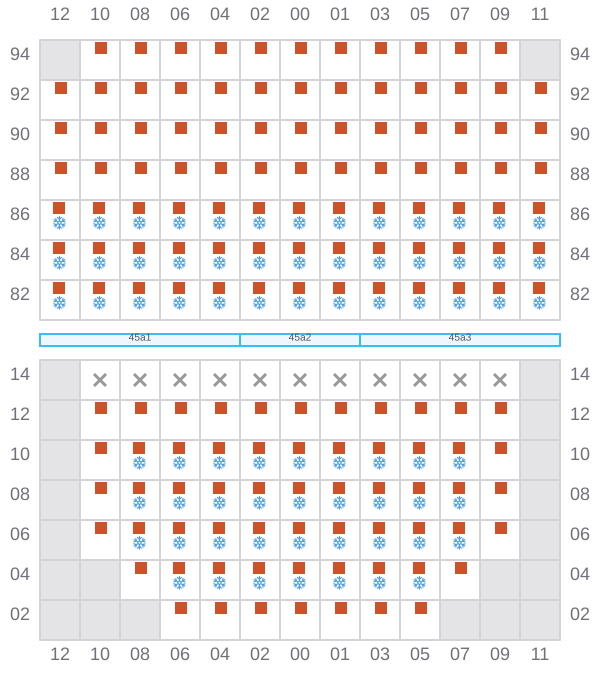

047
- ←
- →
![Bay 047 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b047.png?v=1715280077375)

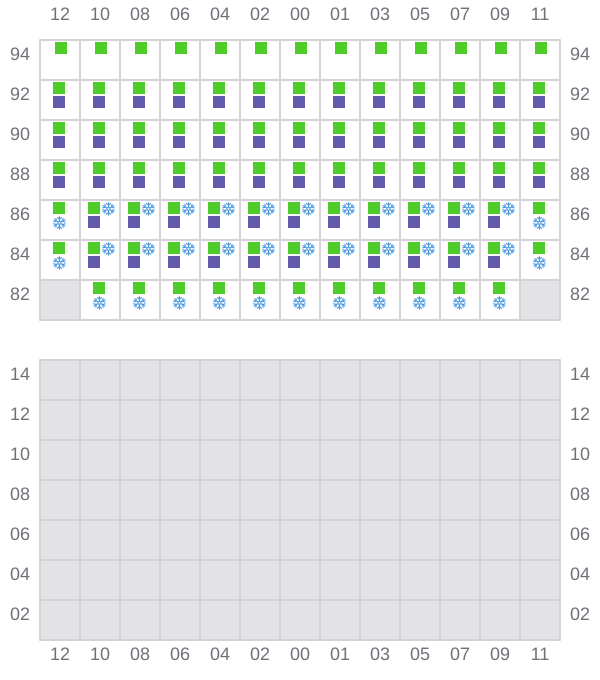

049 (050)
- → / ?
- → / ?
![Bay 049 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b049.png?v=1715280077375)

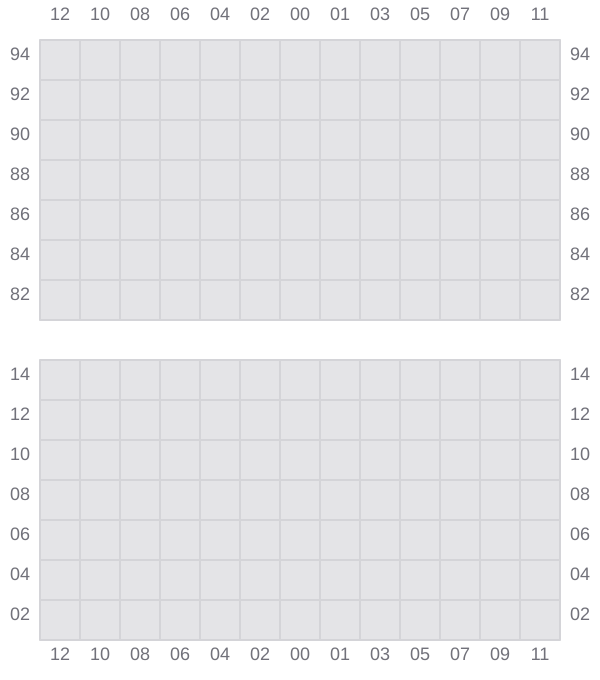

051
![Bay 051 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b051.png?v=1715280077375)

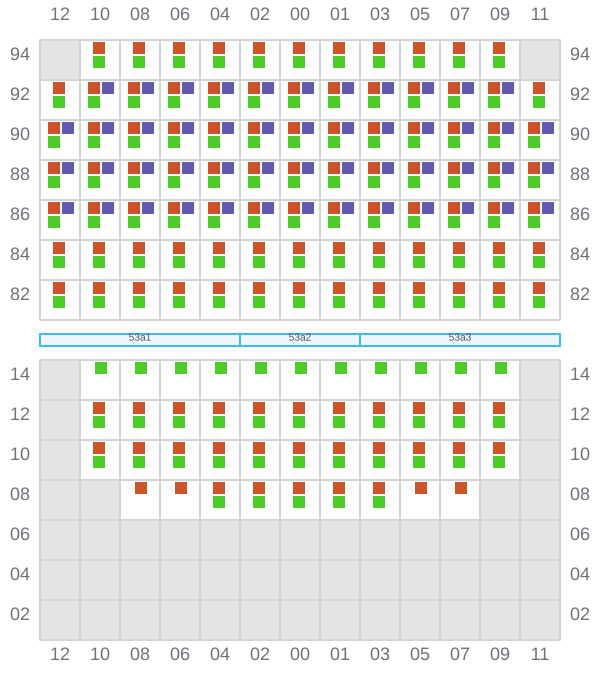

053 (054)
- →
![Bay 053 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b053.png?v=1715280077375)

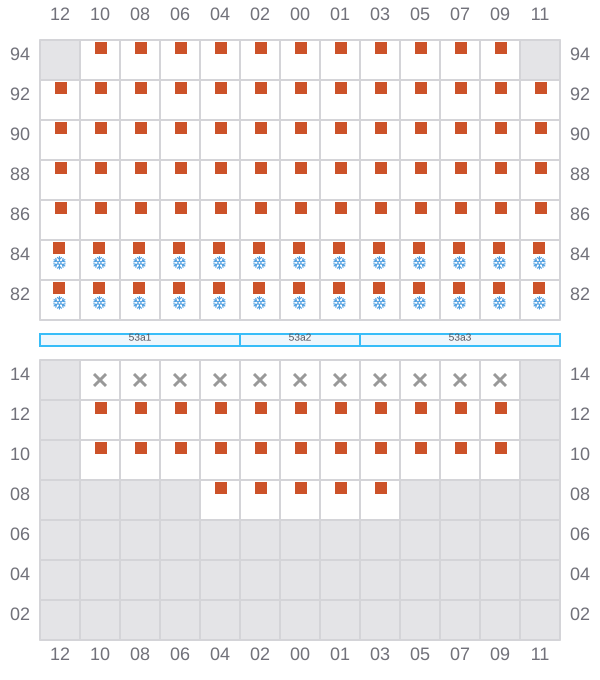

055
- ←
- → / ?
![Bay 055 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b055.png?v=1715280077375)

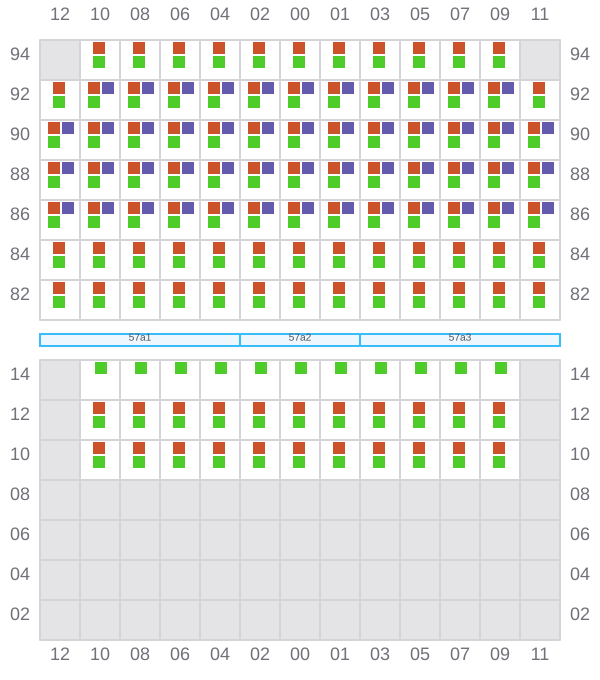

057 (058)
- →
![Bay 057 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b057.png?v=1715280077375)

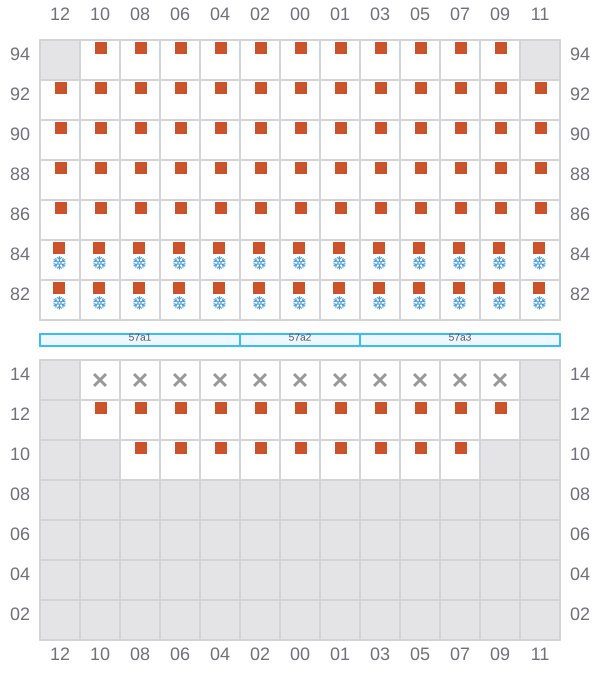

059
- ←
- → / ?
![Bay 059 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b059.png?v=1715280077375)

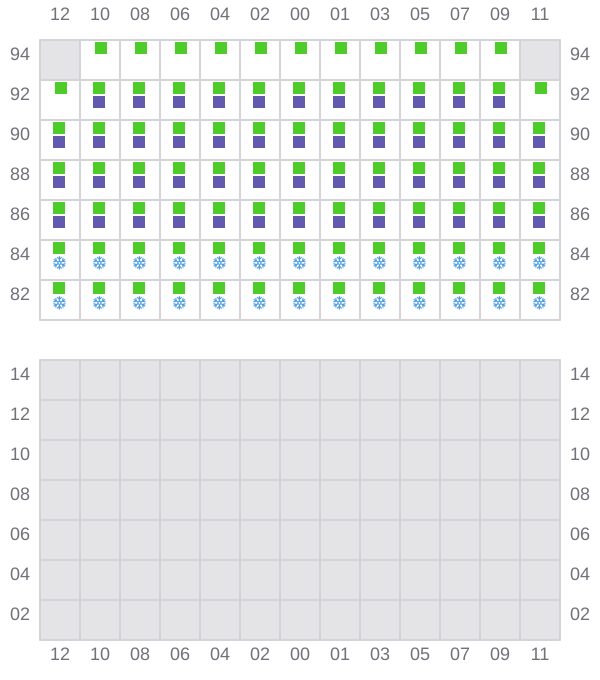

061 (062)
- → / ?
- → / ?
![Bay 061 view and slots of DEBUSSY](/vessel-images/29a80fcf-456b-404c-af06-9b6bade16e77-b061.png?v=1715280077375)
