DEL MONTE ROSE
9849655 | V7A4892 | NORBULK SHIPPING UK LTD by ********** Last update: Thu Sep 10 2026
General Info
Ship Name:DEL MONTE ROSE
IMO Code:9849655
Call Sign:V7A4892
Line Operator:NORBULK SHIPPING UK LTD
Class Name for Sister Ships:
Year Built:2020
Position Format:Bay, Row, Tier
Allowed Containers:20, 40
LPP (LBP):0.00
LOA (Length Overall):0.19
Stern to AFT PP:0.00
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:86
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,268
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

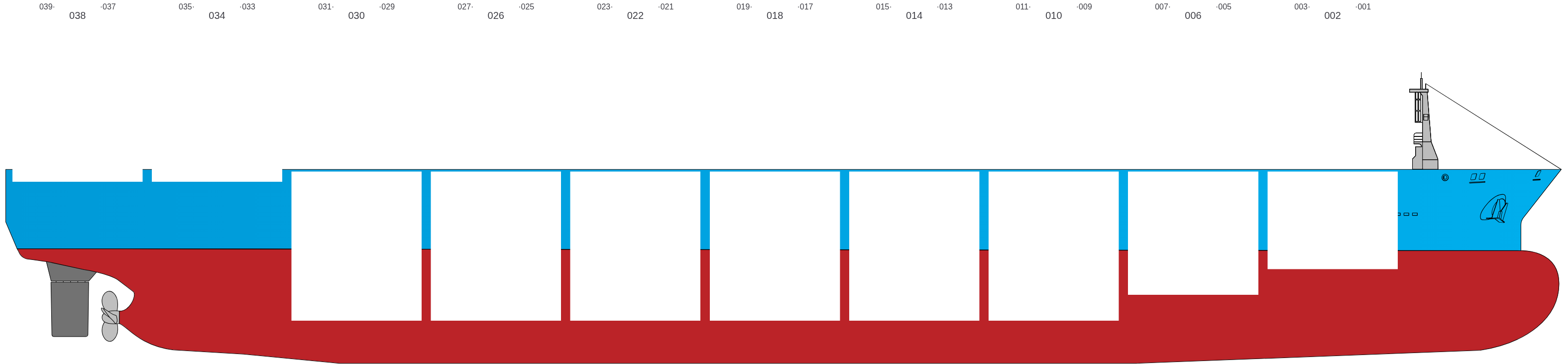

Side View

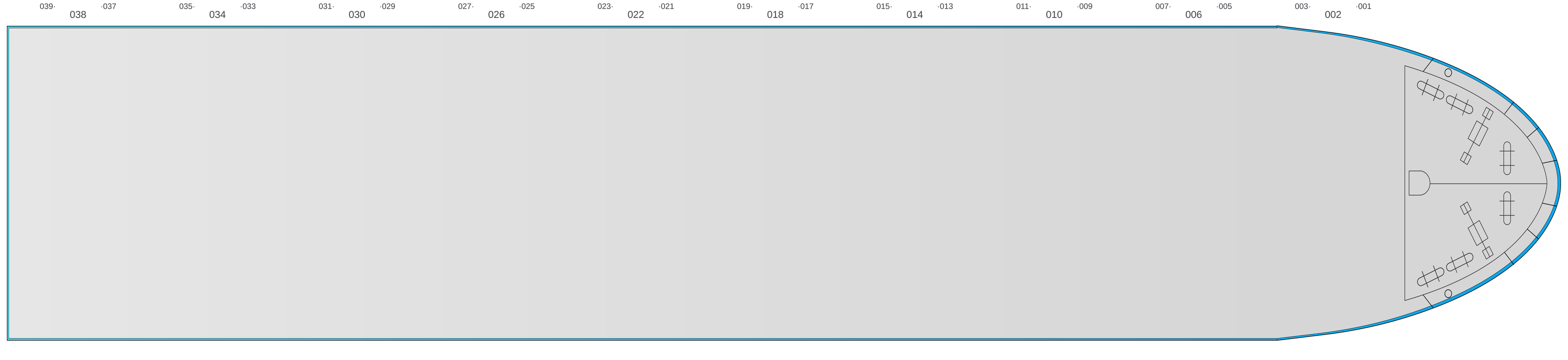

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- Reefer
- Restricted slot ×

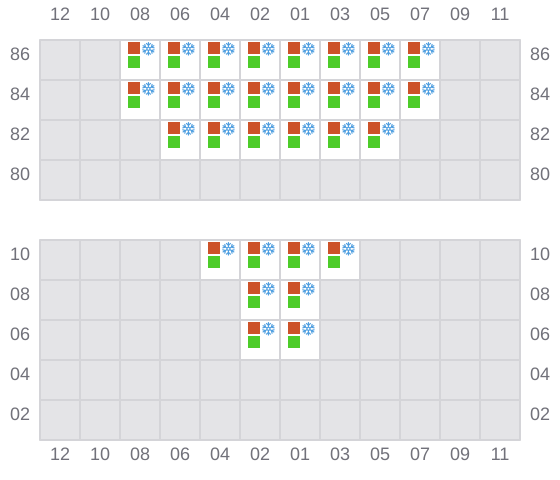

001 (002)
- →

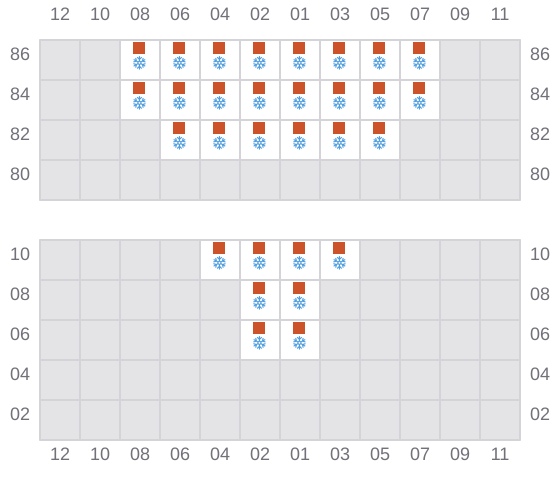

003
- ←

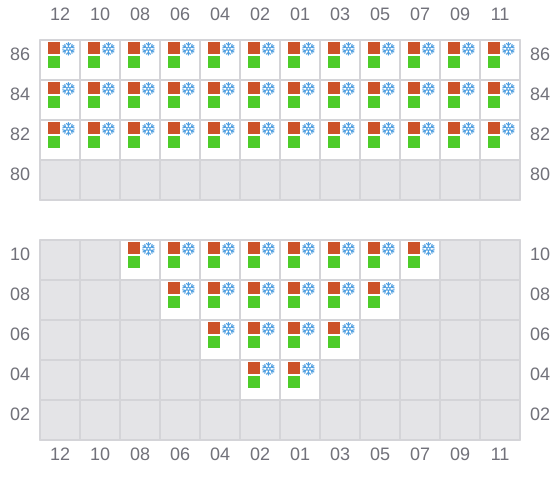

005 (006)
- →

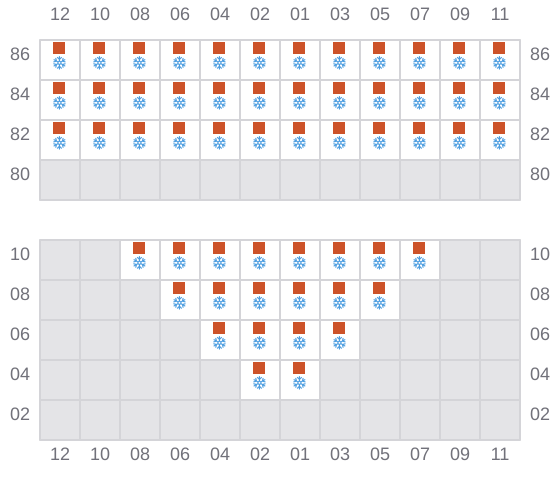

007
- ←

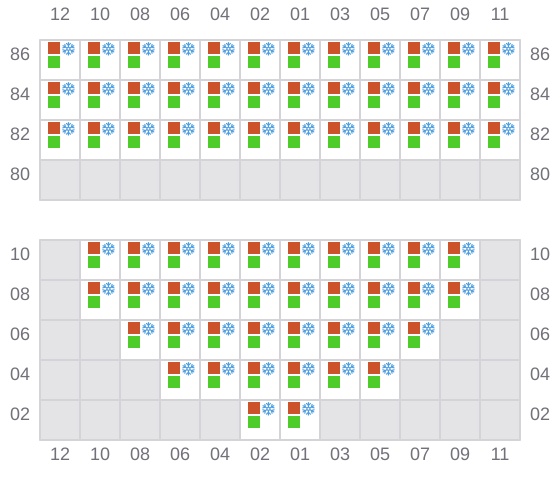

009 (010)
- →

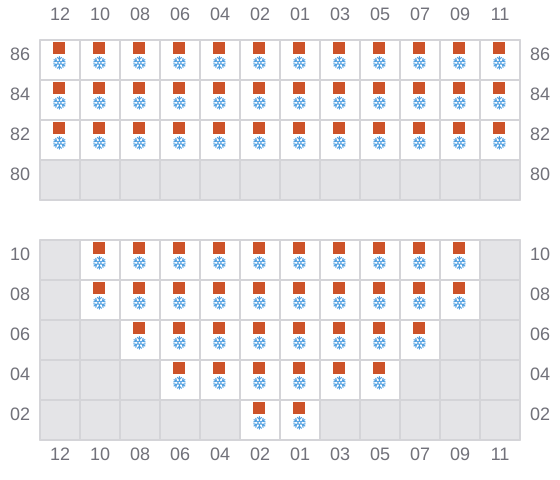

011
- ←

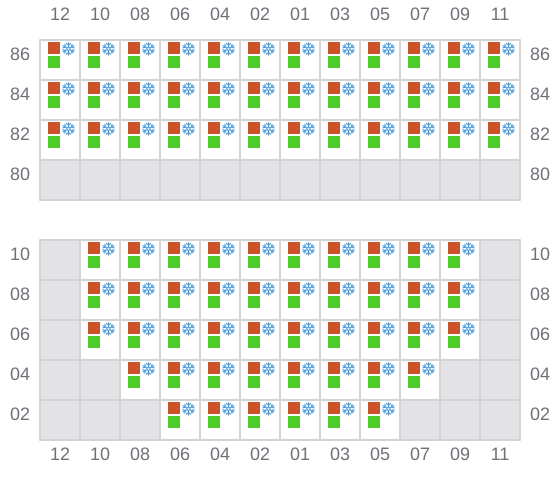

013 (014)
- →

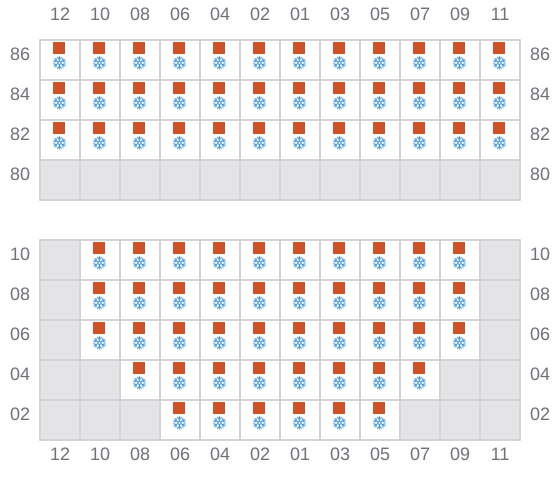

015
- ←
017 (018)
- →
019
- ←

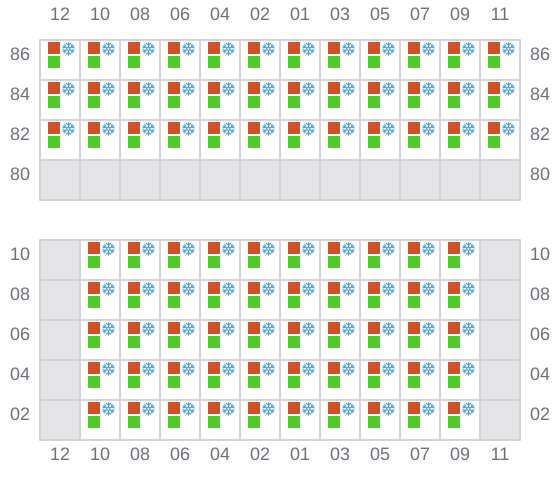

021 (022)
- →
023
- ←

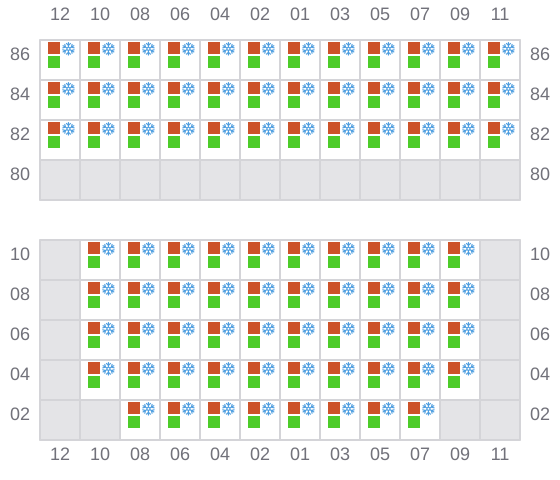

025 (026)
- →

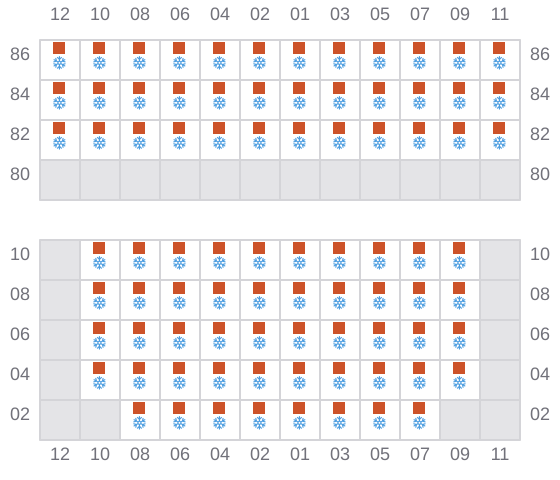

027
- ←

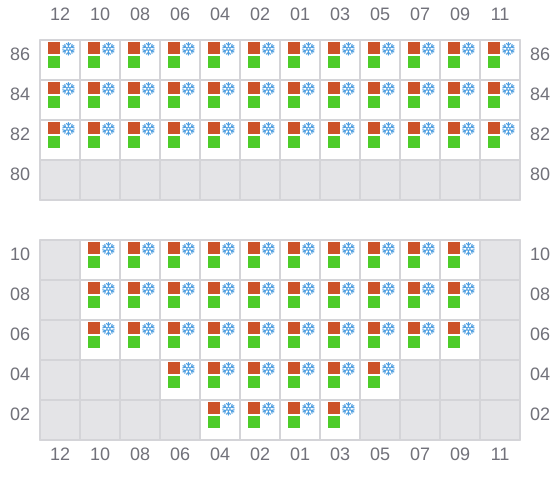

029 (030)
- →

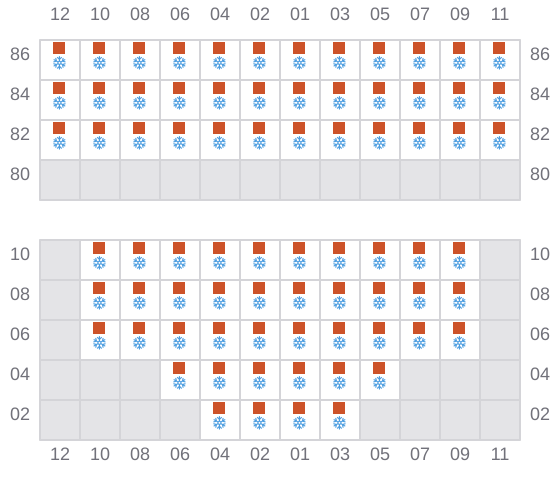

031
- ←

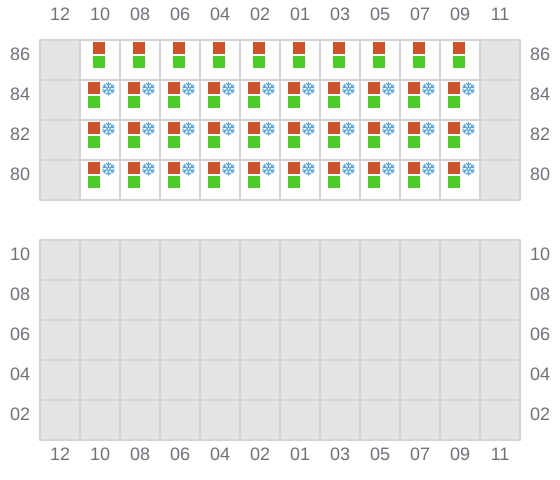

033 (034)
- →

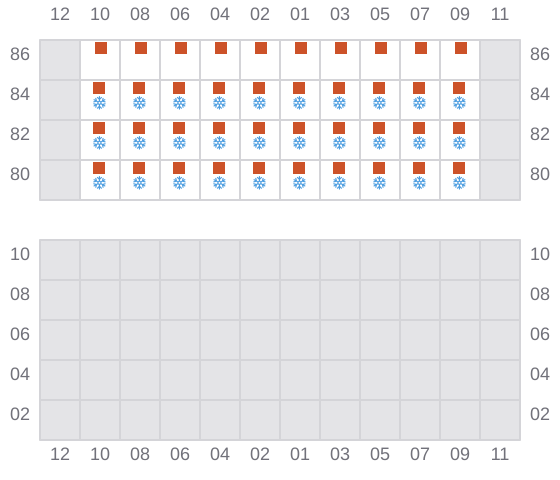

035
- ←

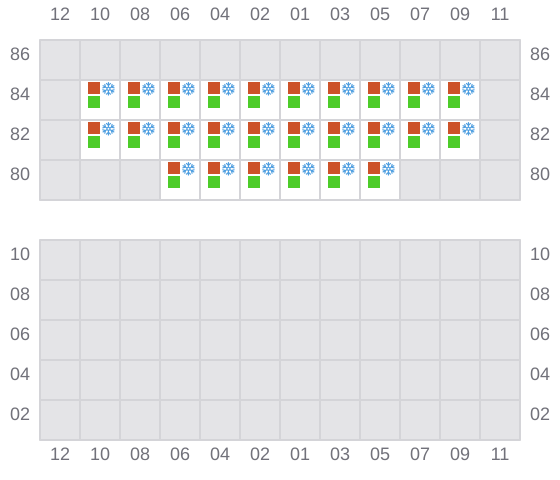

037 (038)
- →

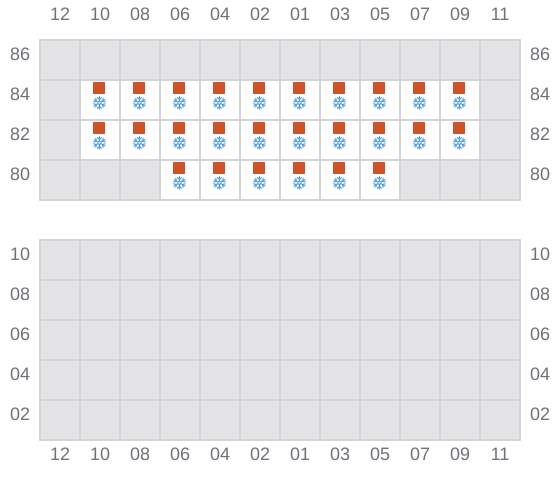

039
- ←
