DELPHINUS C
9337652 | D5OS3 | 9337652 by ********* Last update: Tue May 14 2024
General Info
Ship Name:DELPHINUS C
IMO Code:9337652
Call Sign:D5OS3
Line Operator:9337652
Class Name for Sister Ships:NYK DELPHINUS
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:071
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,888
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

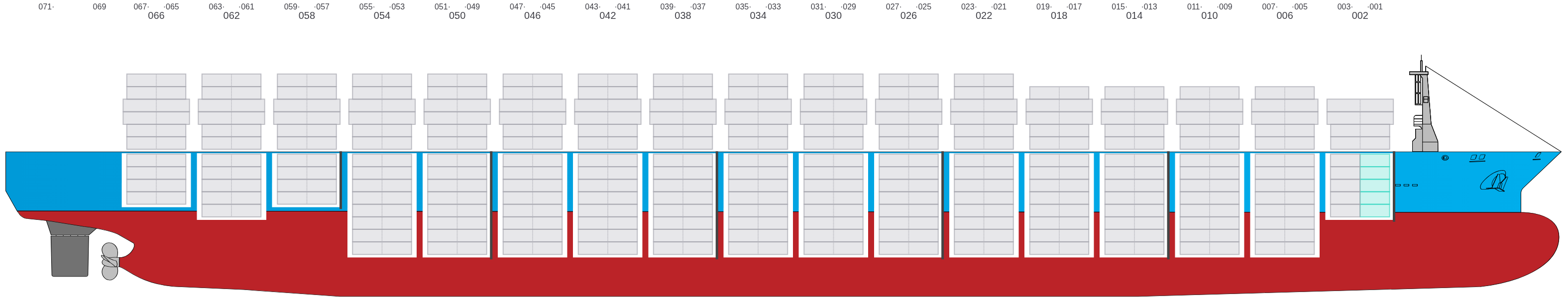

Side View

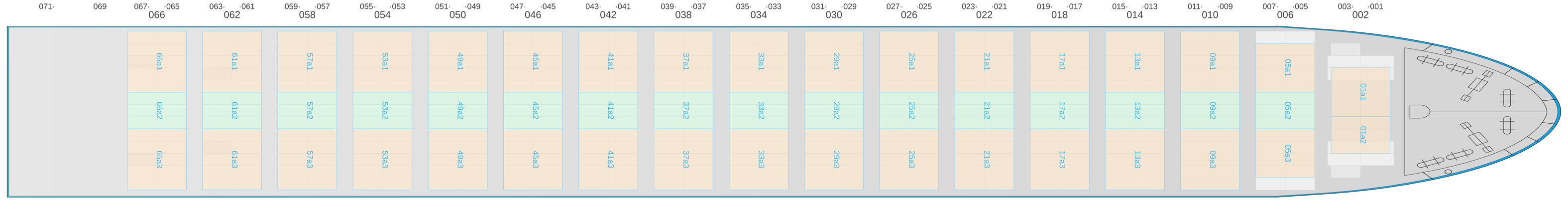

Hatch-Covers View

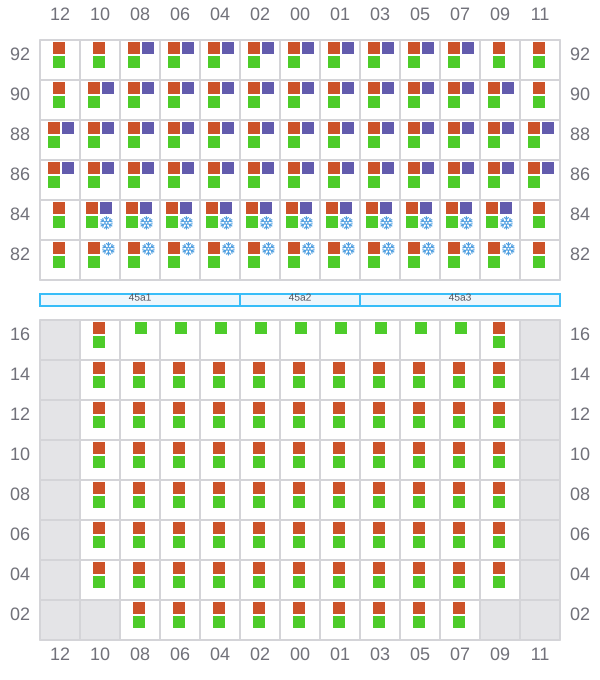

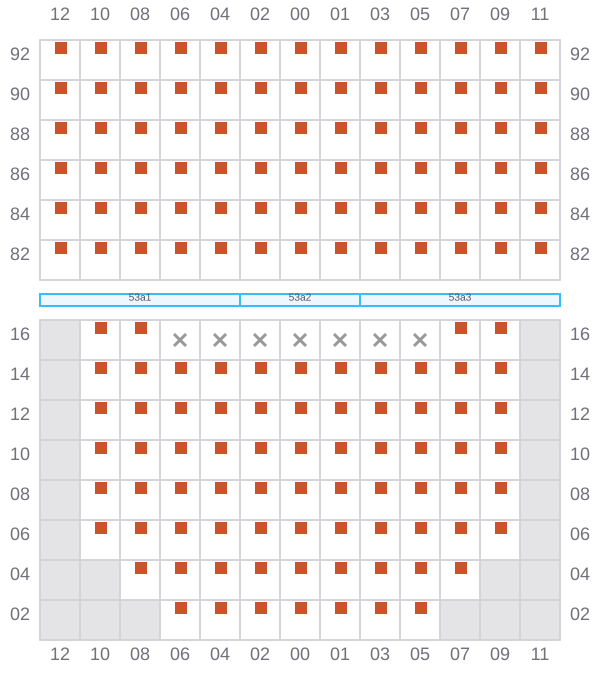

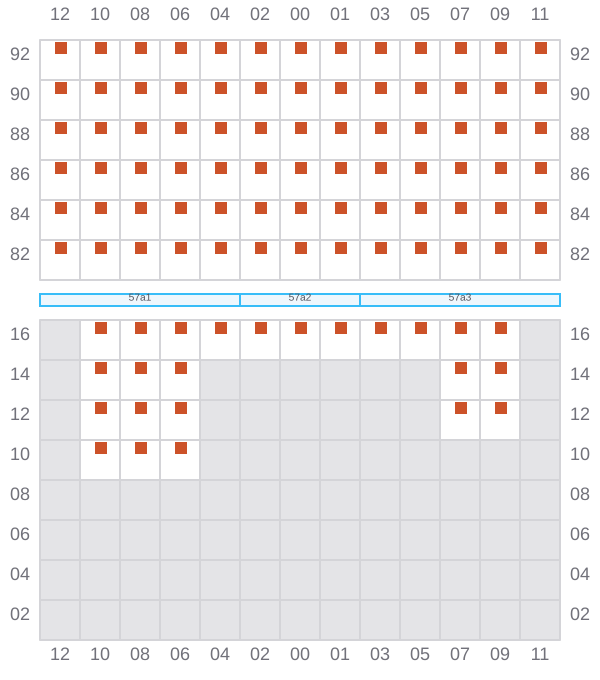

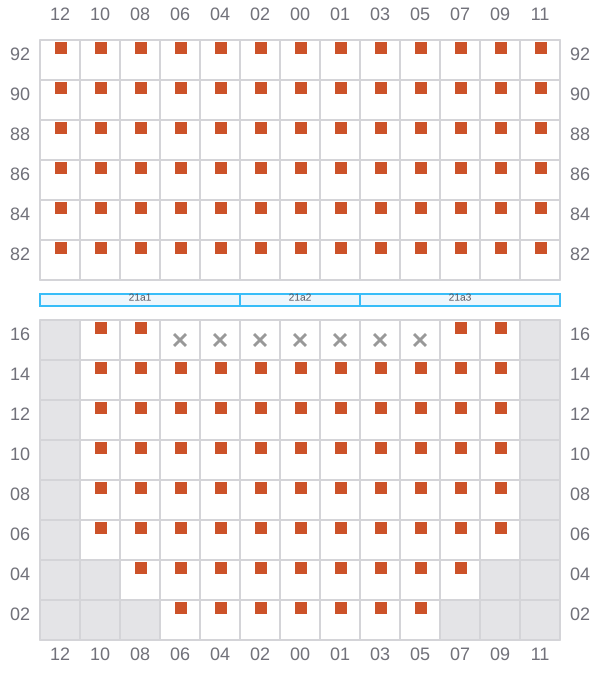

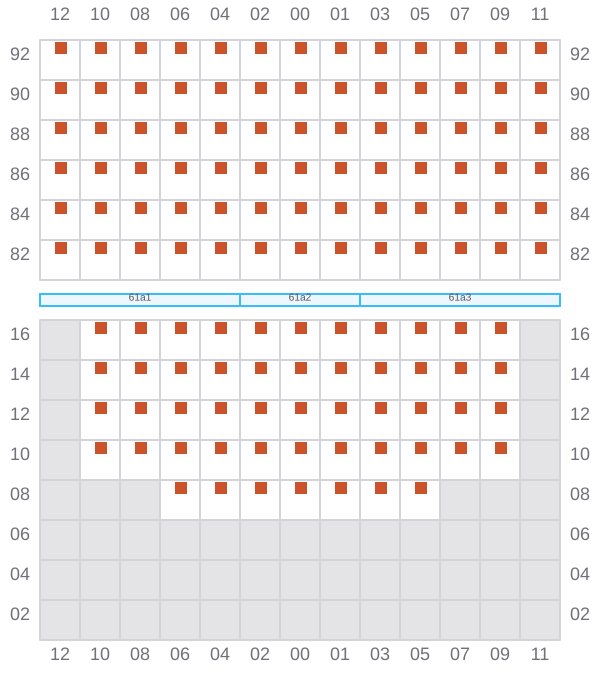

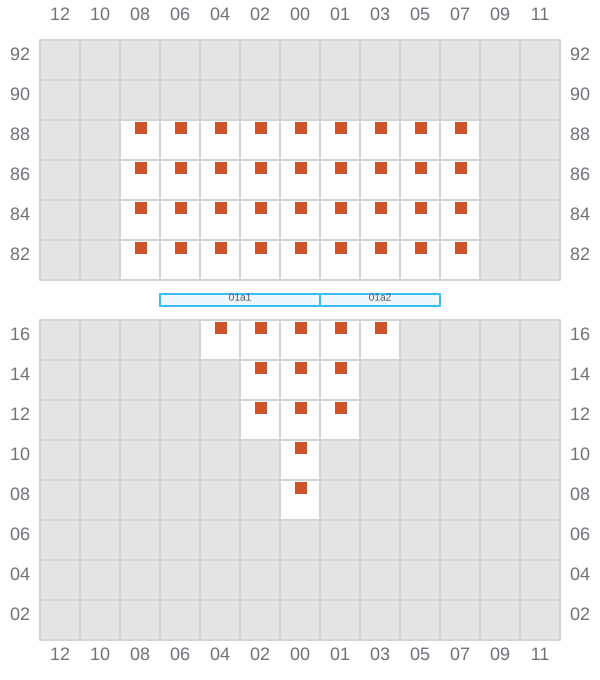

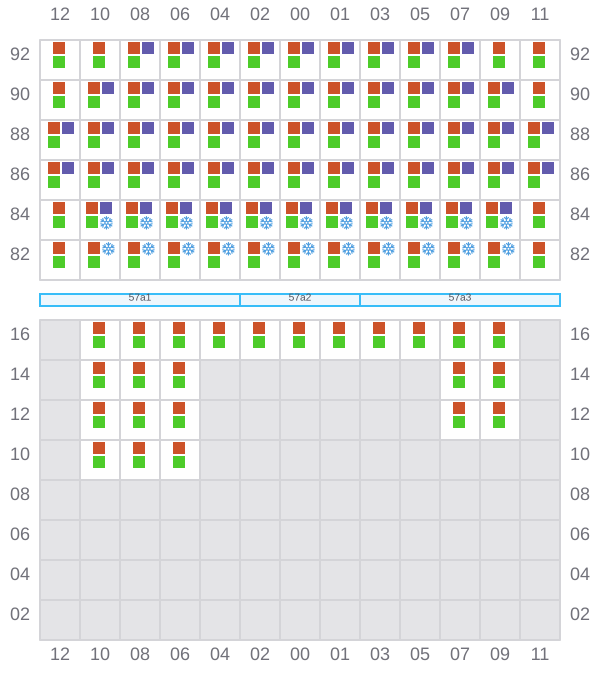

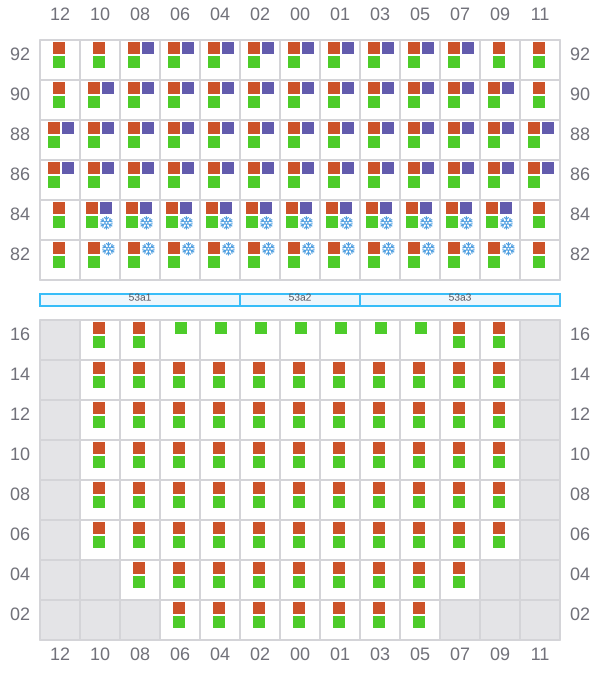

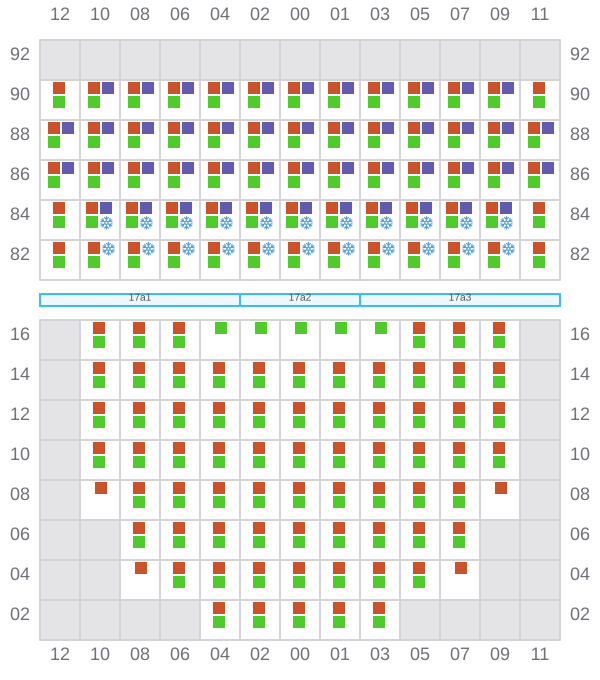

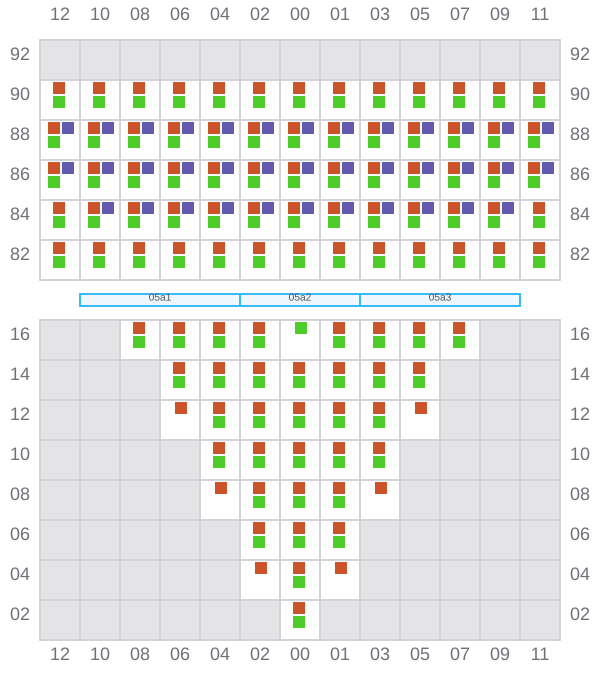

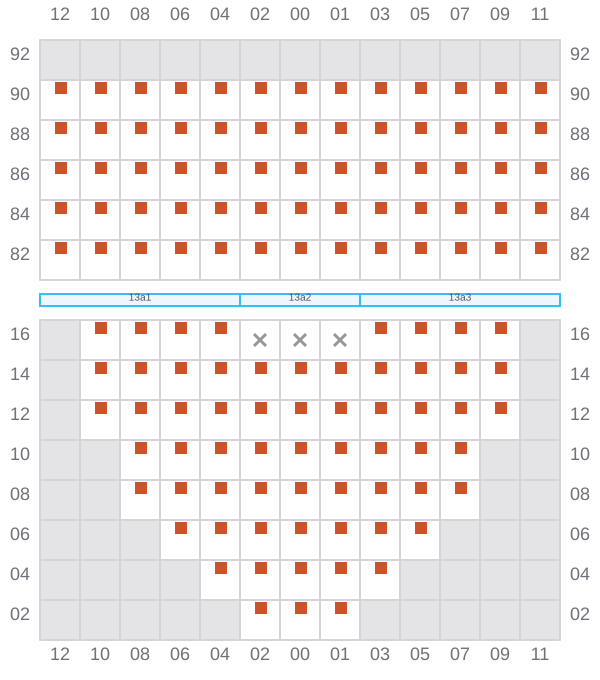

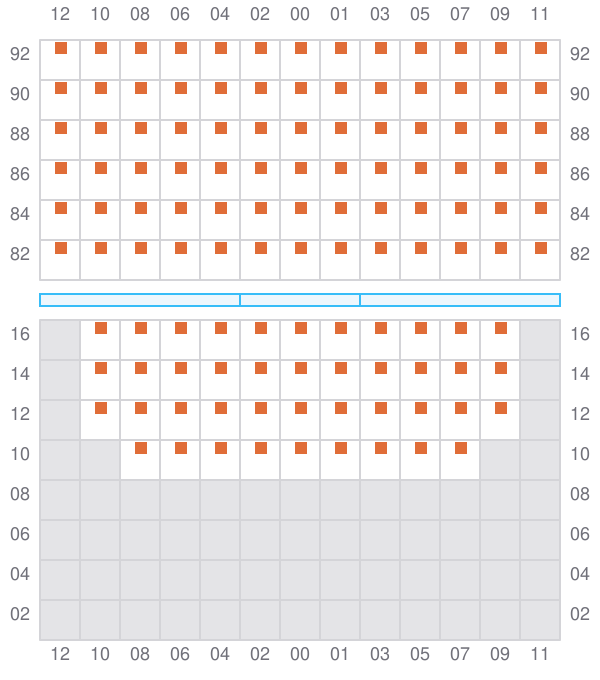

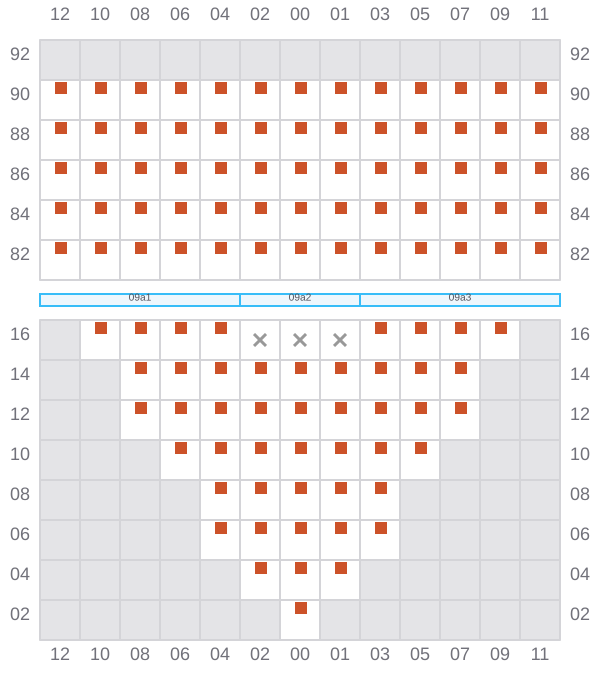

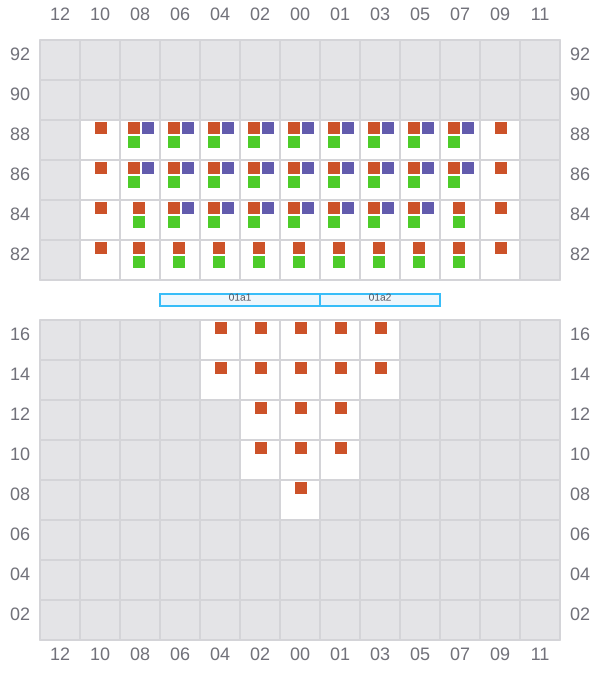

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001
- →
003 (002)
- ←

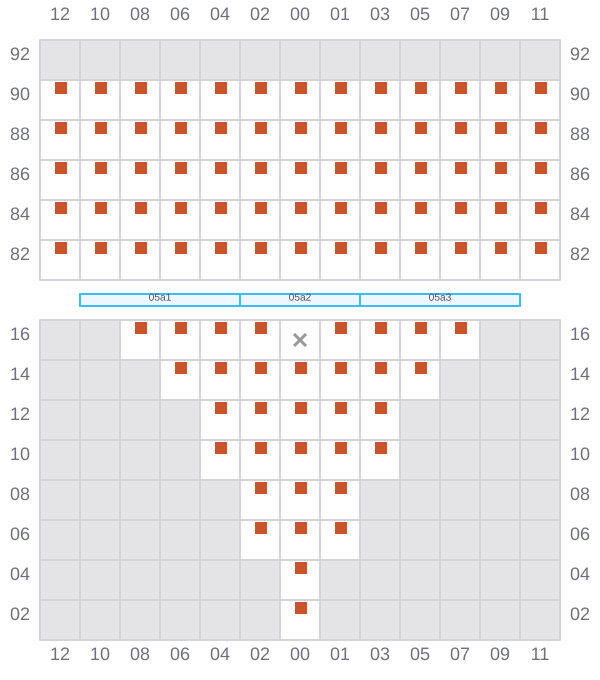

005
- →
007 (006)
- ←

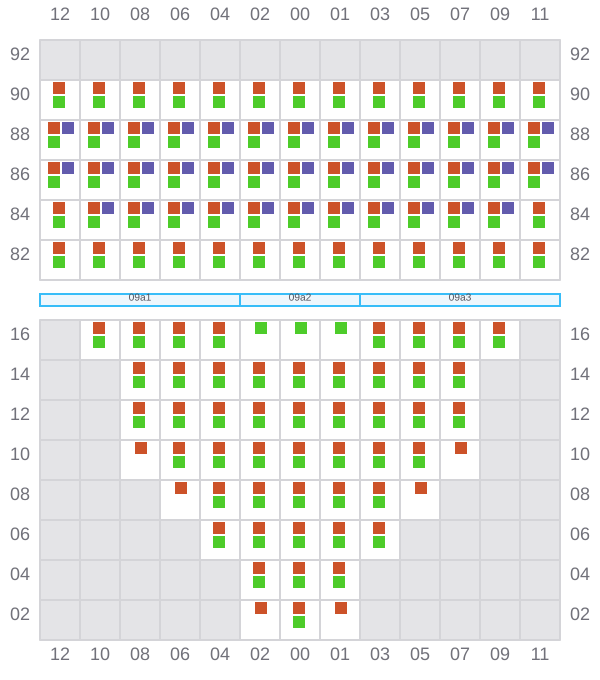

009
- →
011 (010)
- ←

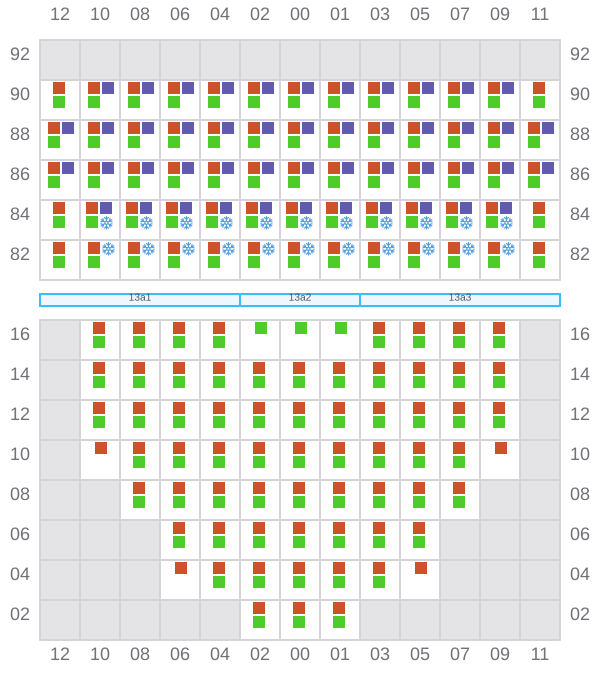

013
- →
- ← / ?
015 (014)
- ←
- → / ?

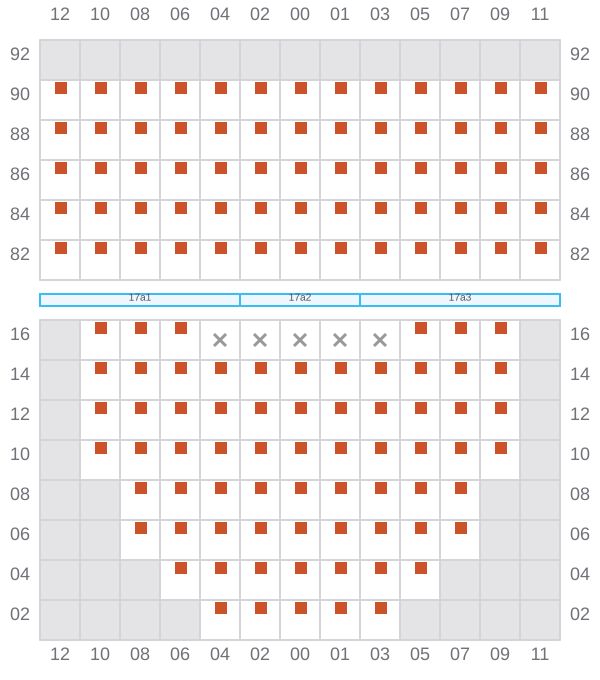

017
- →
- ← / ?
019 (018)
- ←
- → / ?

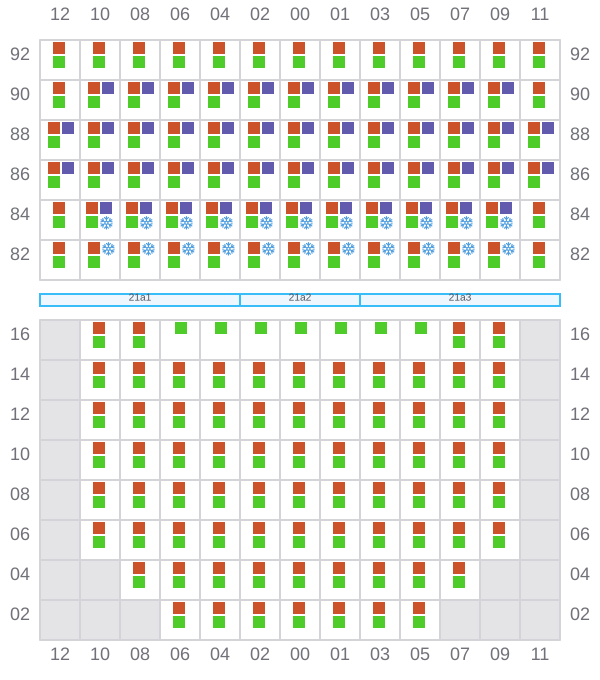

021
- →
- ← / ?
023 (022)
- ←
- → / ?

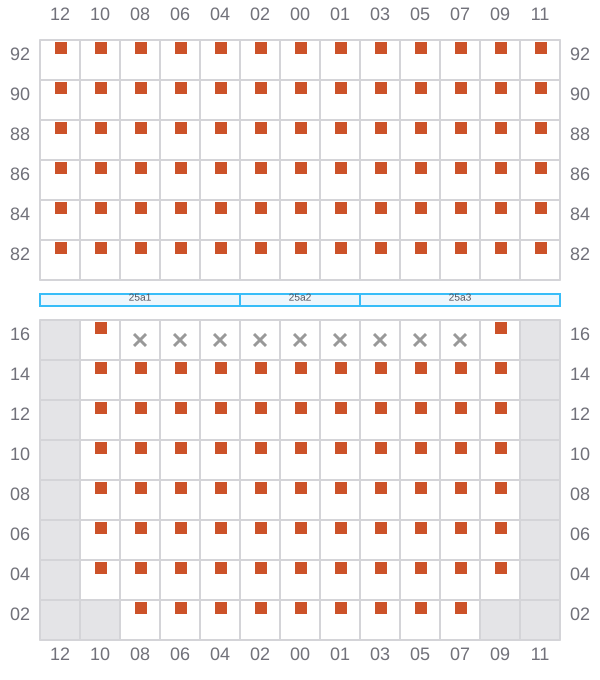

025
- →
- ← / ?
027 (026)
- ←
- → / ?

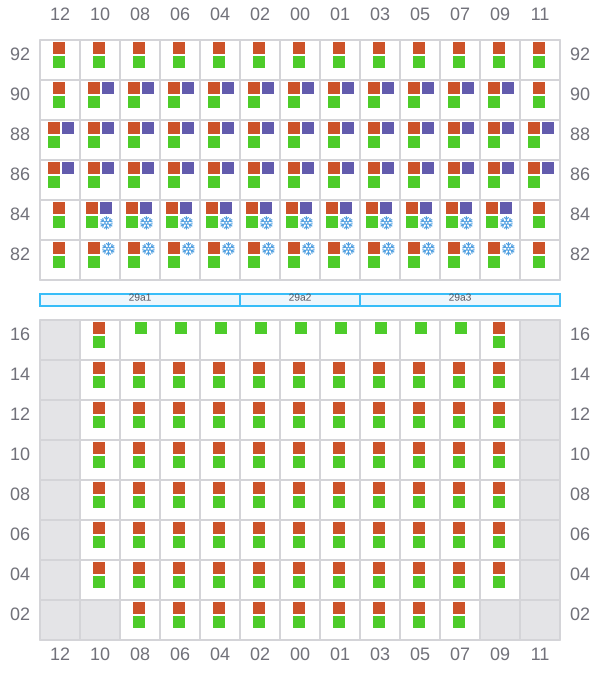

029
- →
- ← / ?
031 (030)
- ←
- → / ?
033
- →
- ← / ?
035 (034)
- ←
- → / ?
037
- →
- ← / ?
039 (038)
- ←
- → / ?
041
- →
- ← / ?
043 (042)
- ←
- → / ?

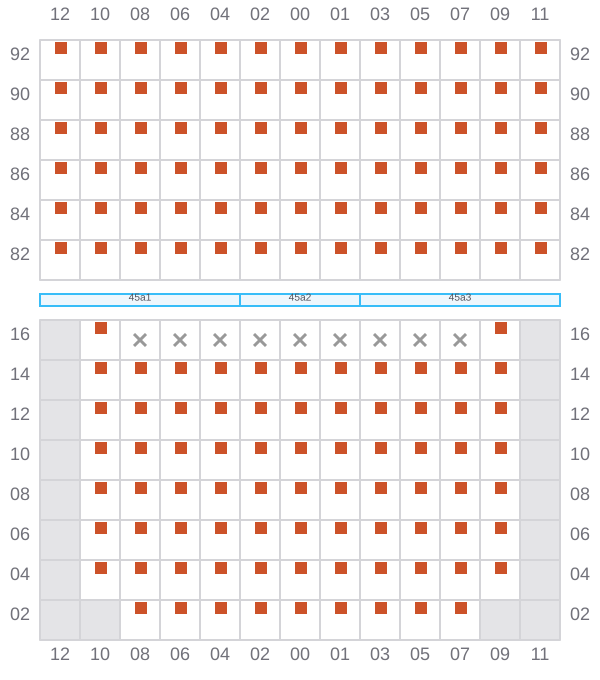

045
- →
- ← / ?
047 (046)
- ←
- → / ?

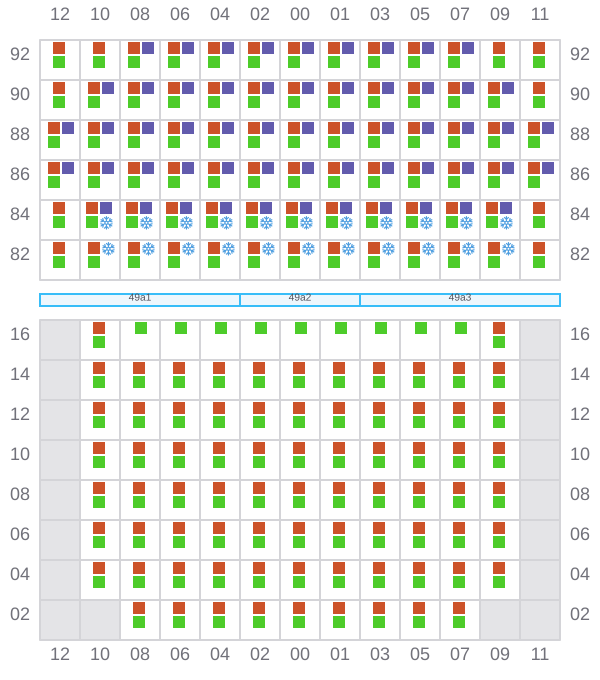

049
- →
- ← / ?
051 (050)
- ←
- → / ?
053
- →
- ← / ?
055 (054)
- ←
- → / ?
057
- →
- ← / ?
059 (058)
- ←
- → / ?

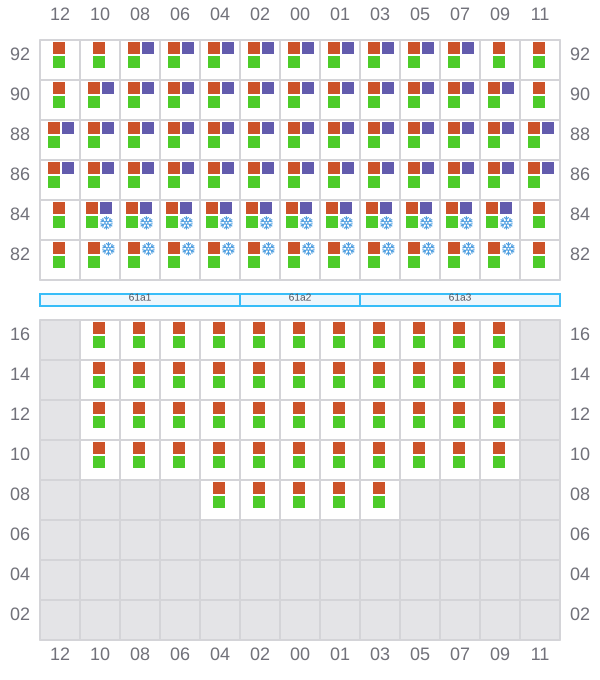

061
- →
- ← / ?
063 (062)
- ←
- → / ?

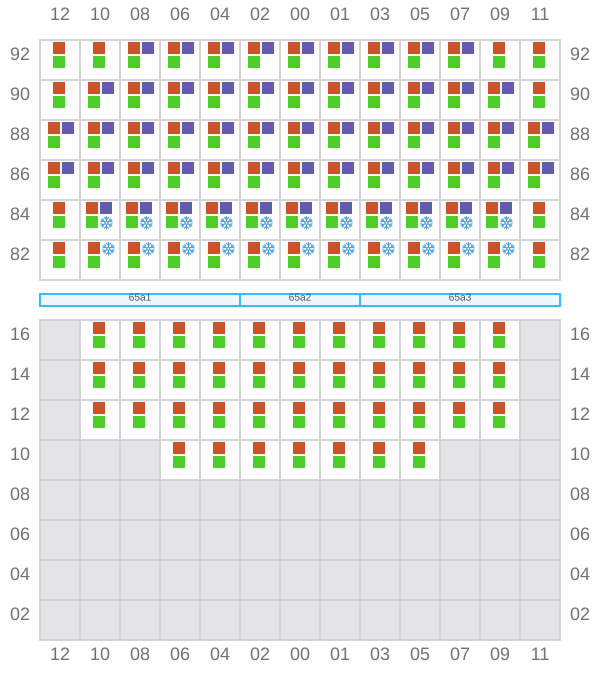

065
- →
- ← / ?
067 (066)
- ←
- → / ?
069

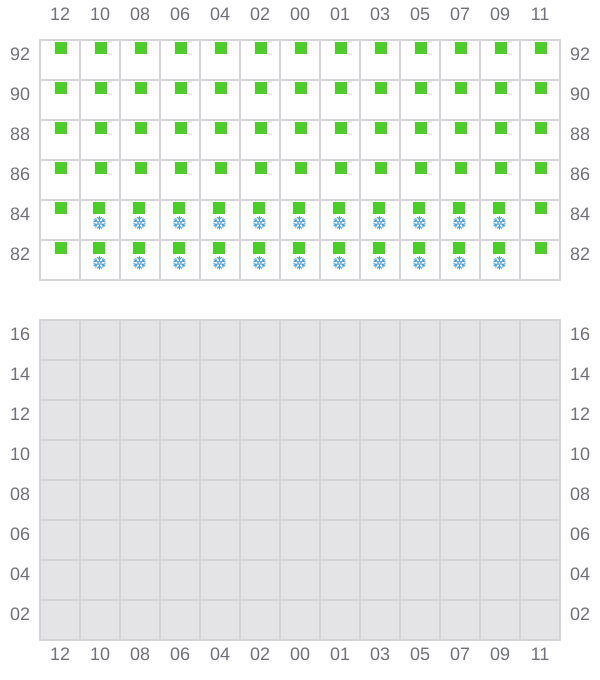

071 (070)
- ← / ?
- ← / ?
