DELPHIS BOTHNIA
9763710 | VRPU4 | 9763710 by ********* Last update: Thu Jun 13 2024

General Info

Ship Name:DELPHIS BOTHNIA
IMO Code:9763710
Call Sign:VRPU4
Line Operator:9763710
Class Name for Sister Ships:MSL
Year Built:2016
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):169.53
LOA (Length Overall):177.56
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:035
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,926

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

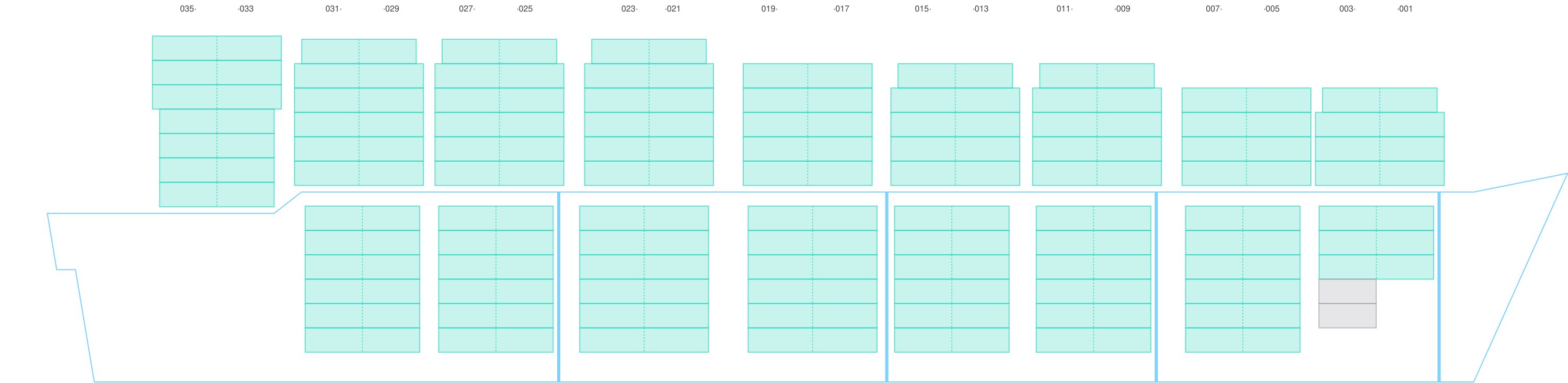

Side View

Side view of DELPHIS BOTHNIA

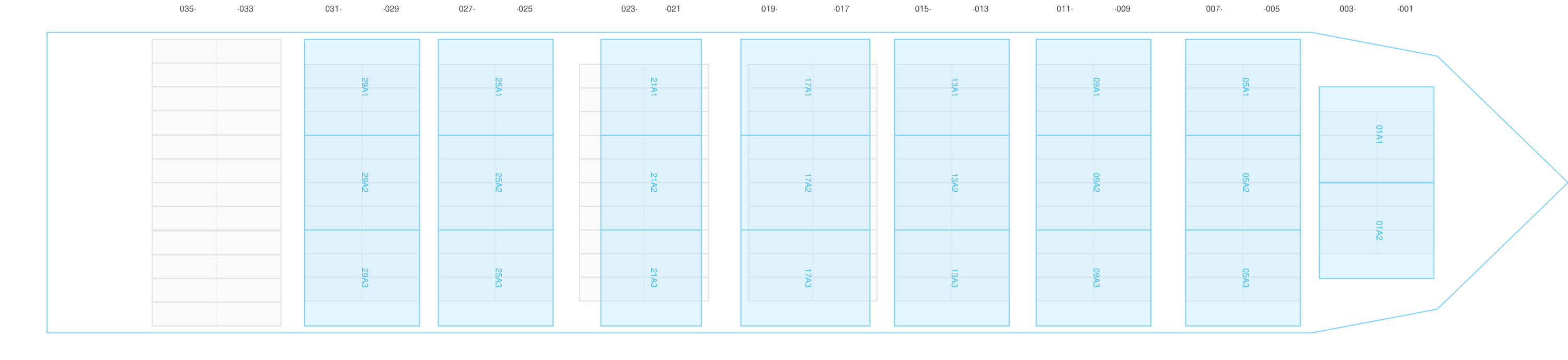

Hatch-Covers View

Deck view of DELPHIS BOTHNIA

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

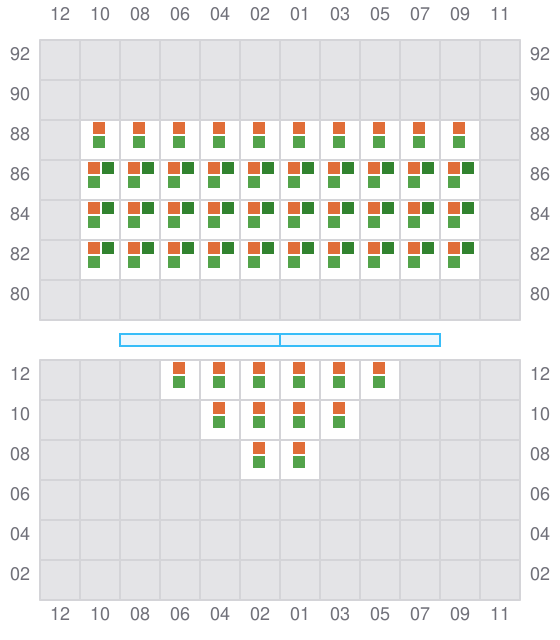

001 (002)

  • →
Bay 001 view and slots of DELPHIS BOTHNIA

003

  • ←
  • → / ?
Bay 003 view and slots of DELPHIS BOTHNIA

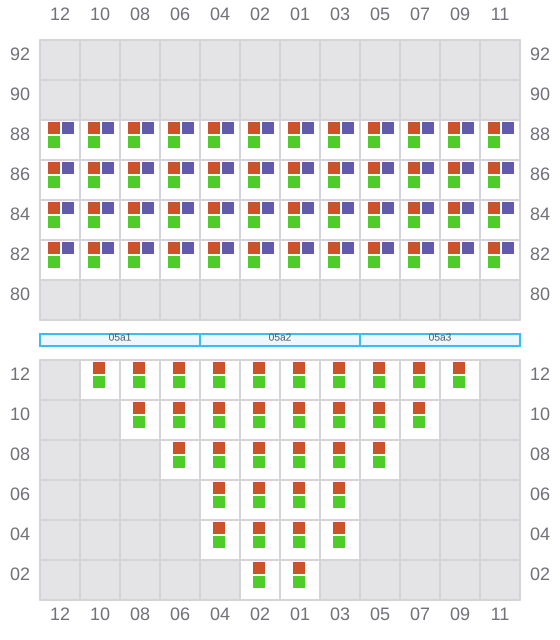

005 (006)

  • →
Bay 005 view and slots of DELPHIS BOTHNIA

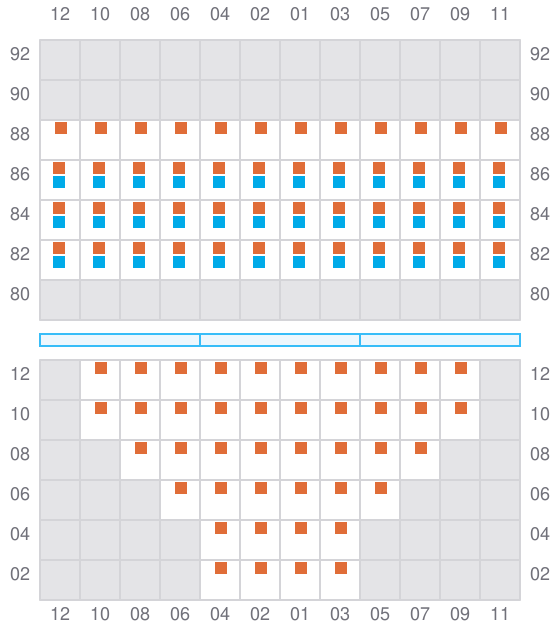

007

  • ←
  • → / ?
Bay 007 view and slots of DELPHIS BOTHNIA

009 (010)

  • →

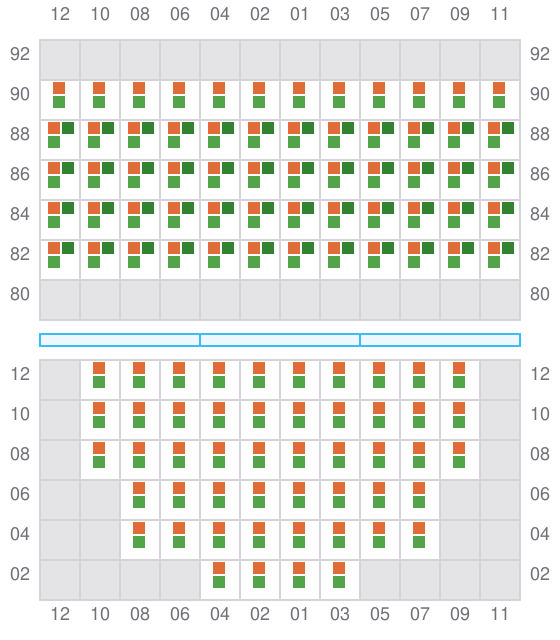

Bay 009 view and slots of DELPHIS BOTHNIA

011

  • ←
  • →

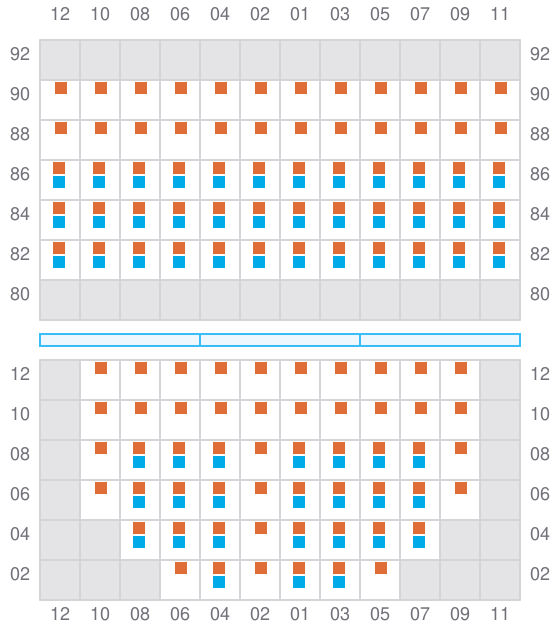

Bay 011 view and slots of DELPHIS BOTHNIA

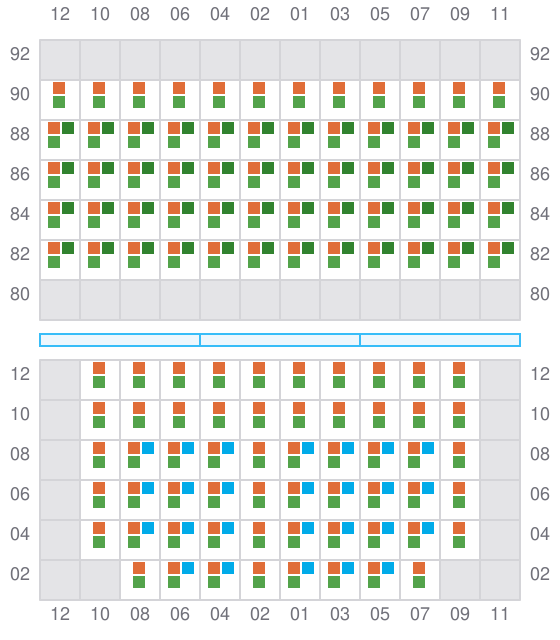

013 (014)

  • →
  • ? / ←
Bay 013 view and slots of DELPHIS BOTHNIA

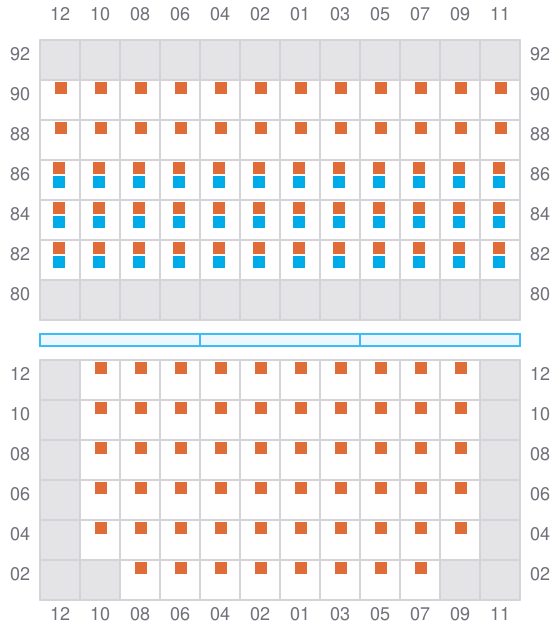

015

  • ←
  • → / ?
Bay 015 view and slots of DELPHIS BOTHNIA

017 (018)

  • →

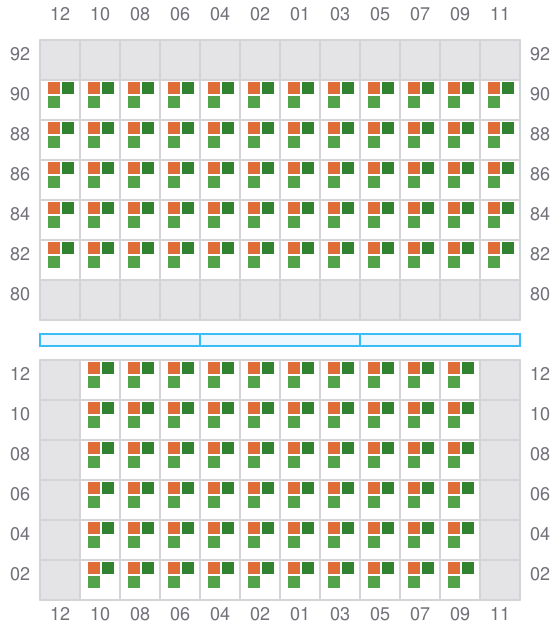

Bay 017 view and slots of DELPHIS BOTHNIA

019

  • ←
  • →

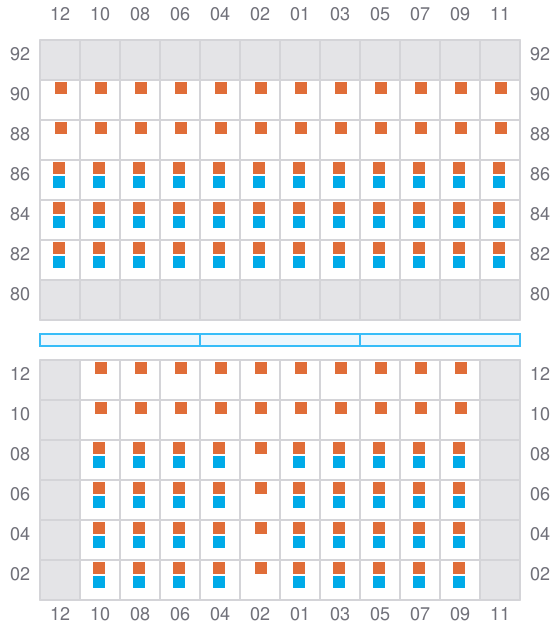

Bay 019 view and slots of DELPHIS BOTHNIA

021 (022)

  • →
  • ? / ←

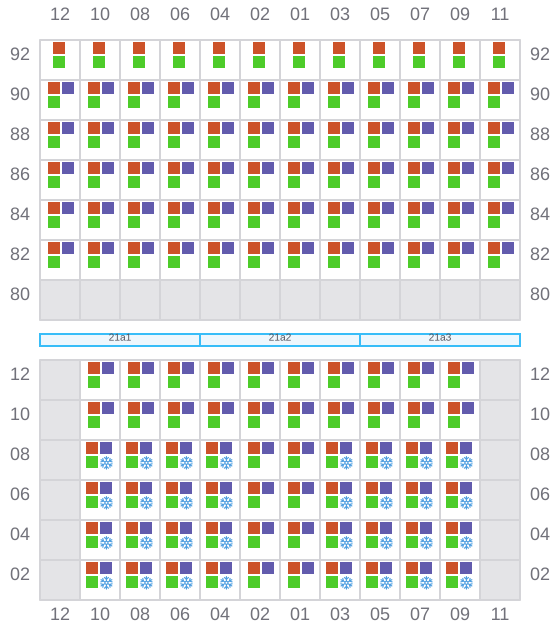

Bay 021 view and slots of DELPHIS BOTHNIA

023

  • ←
  • → / ?
Bay 023 view and slots of DELPHIS BOTHNIA

025 (026)

  • →
Bay 025 view and slots of DELPHIS BOTHNIA

027

  • ←
  • →

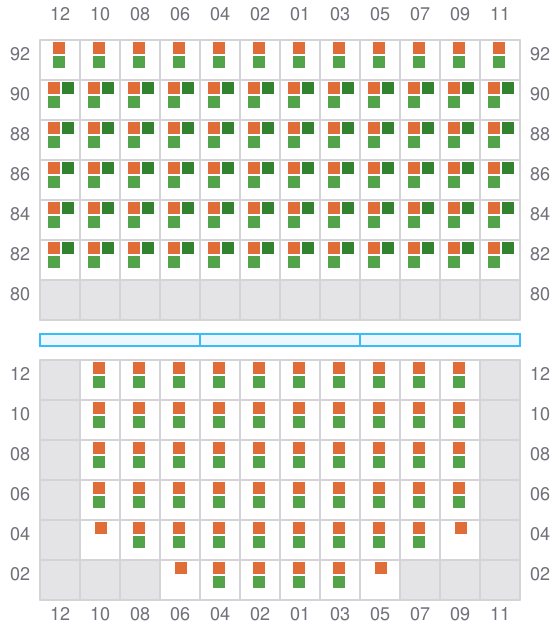

Bay 027 view and slots of DELPHIS BOTHNIA

029 (030)

  • →

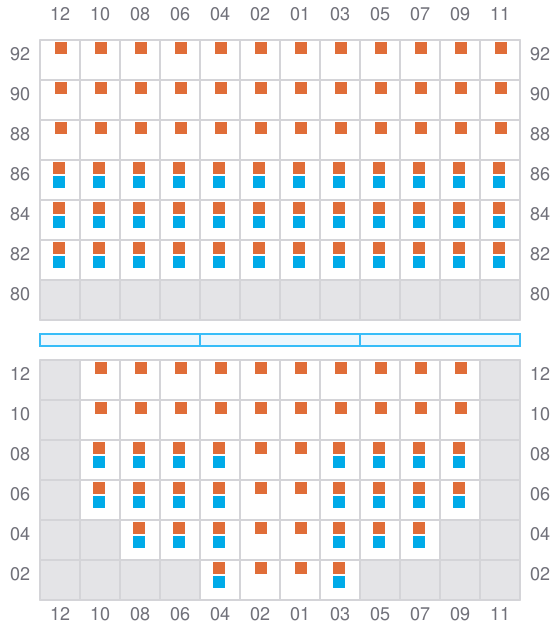

Bay 029 view and slots of DELPHIS BOTHNIA

031

  • ←
  • → / ?
Bay 031 view and slots of DELPHIS BOTHNIA

033 (034)

  • → / ?
  • ← / ?

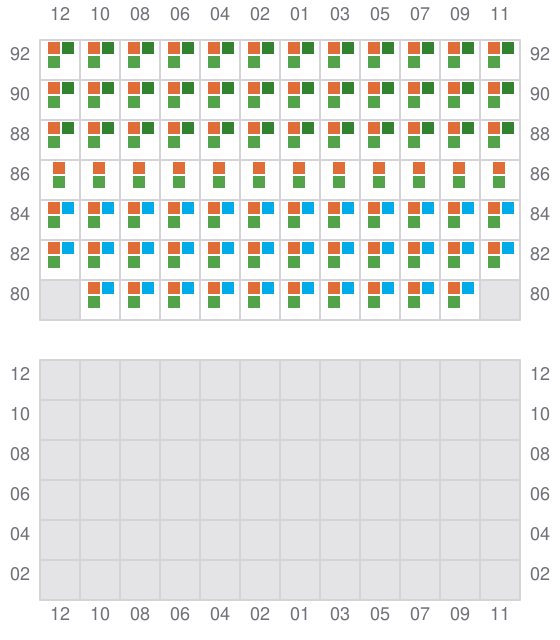

Bay 033 view and slots of DELPHIS BOTHNIA

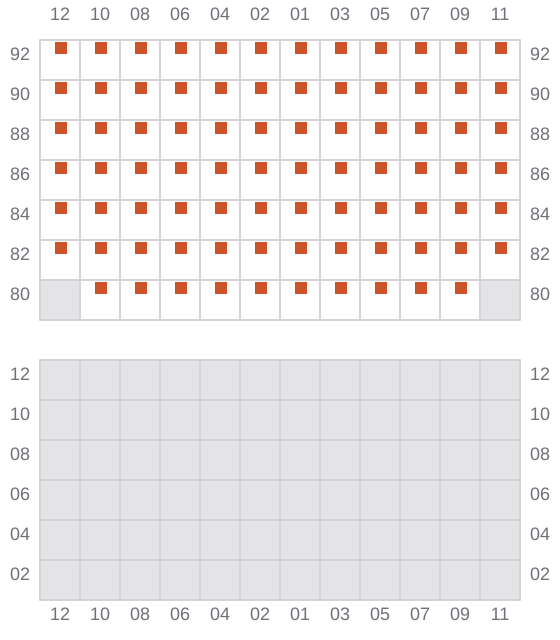

035

  • ← / ?
  • → / ?
Bay 035 view and slots of DELPHIS BOTHNIA
