DELPHIS GDANSK
9780653 | VRQJ5 | 9780653 by ********* Last update: Mon Jul 08 2024

General Info

Ship Name:DELPHIS GDANSK
IMO Code:9780653
Call Sign:VRQJ5
Line Operator:9780653
Class Name for Sister Ships:MAE
Year Built:2017
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):169.52
LOA (Length Overall):177.55
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:035
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,926

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of DELPHIS GDANSK

Hatch-Covers View

Deck view of DELPHIS GDANSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

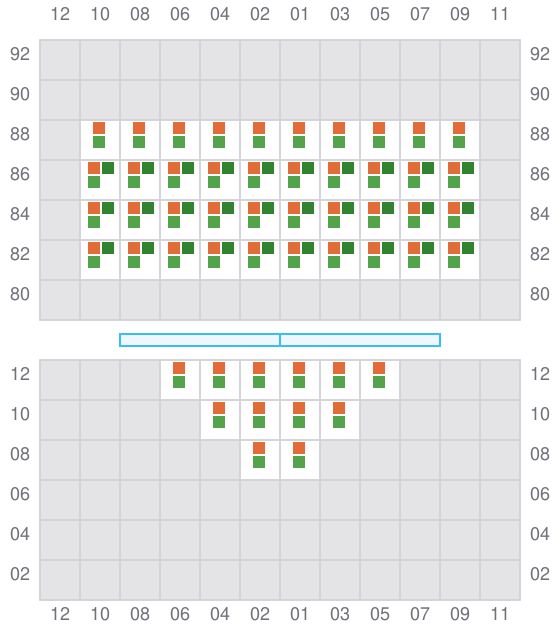

001 (002)

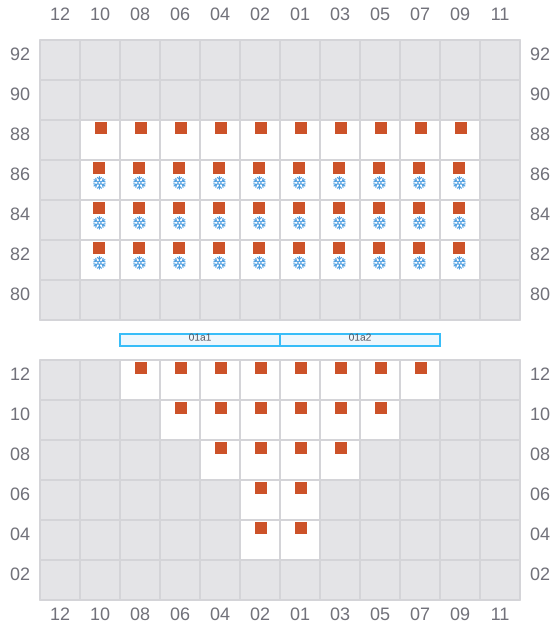

Bay 001 view and slots of DELPHIS GDANSK

003

  • / ?
Bay 003 view and slots of DELPHIS GDANSK

005 (006)

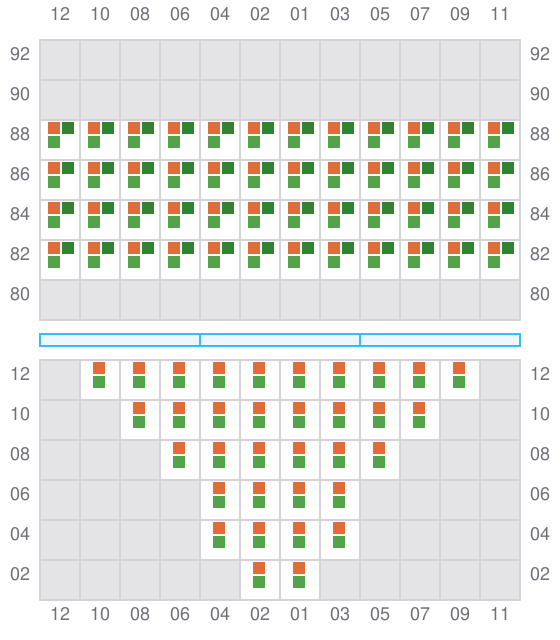

Bay 005 view and slots of DELPHIS GDANSK

007

  • / ?

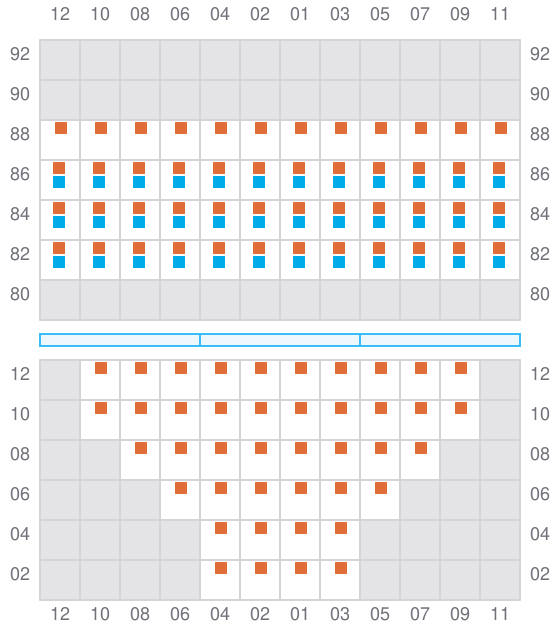

Bay 007 view and slots of DELPHIS GDANSK

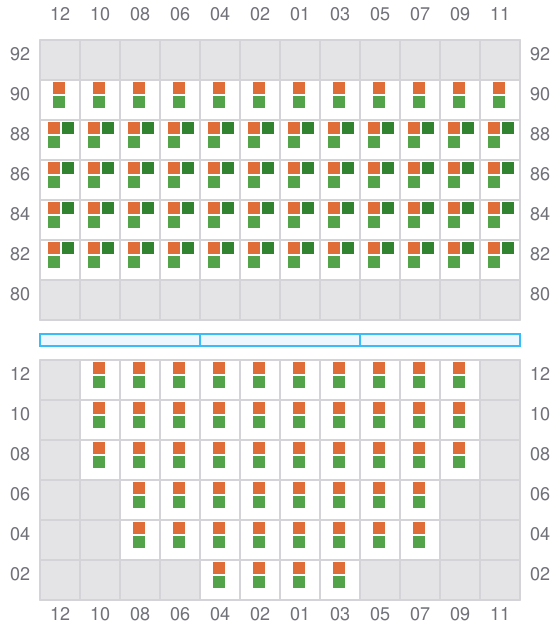

009 (010)

Bay 009 view and slots of DELPHIS GDANSK

011

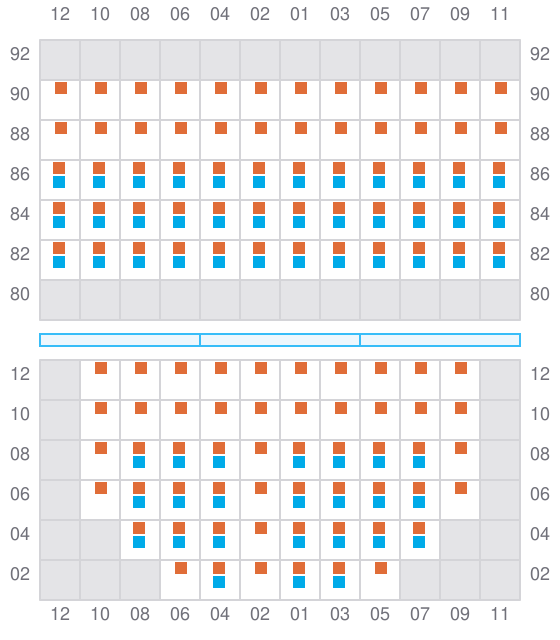

Bay 011 view and slots of DELPHIS GDANSK

013 (014)

  • ? /

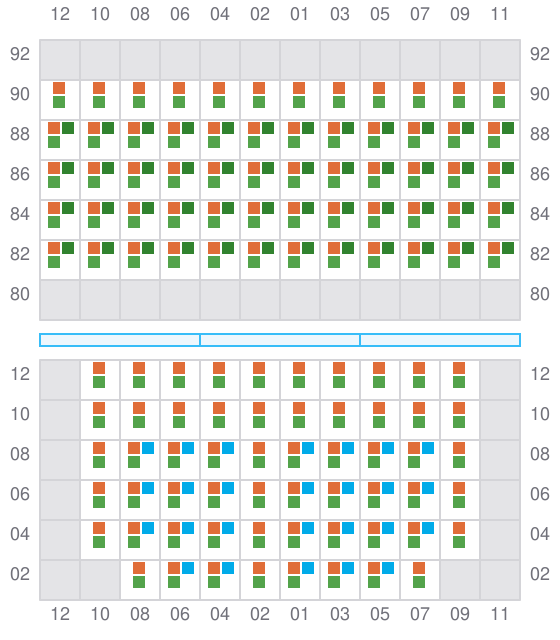

Bay 013 view and slots of DELPHIS GDANSK

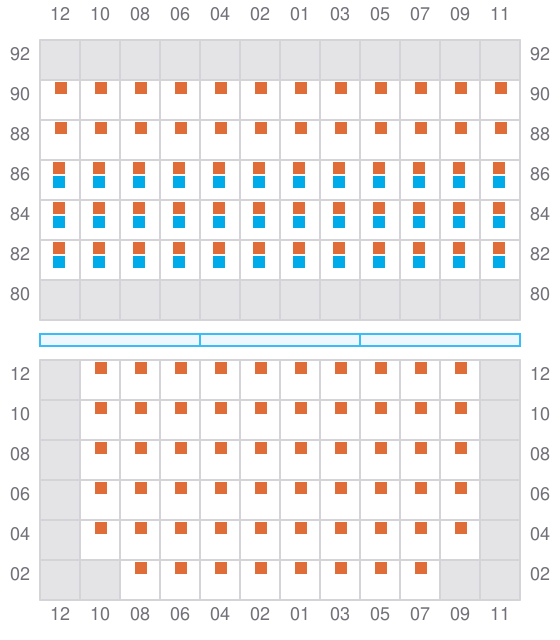

015

  • / ?
Bay 015 view and slots of DELPHIS GDANSK

017 (018)

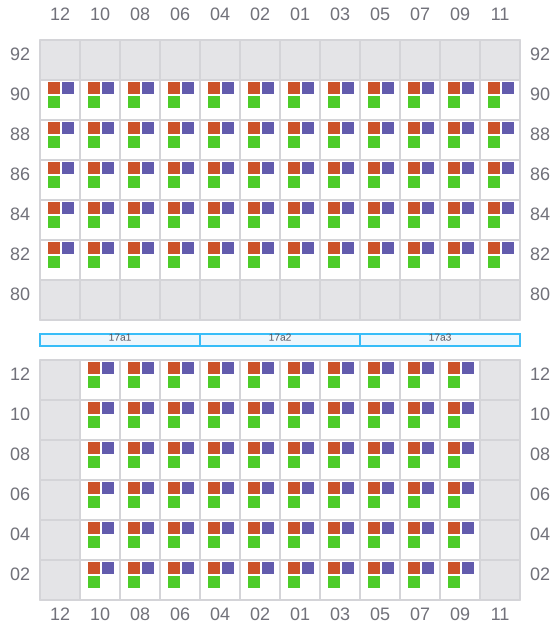

Bay 017 view and slots of DELPHIS GDANSK

019

Bay 019 view and slots of DELPHIS GDANSK

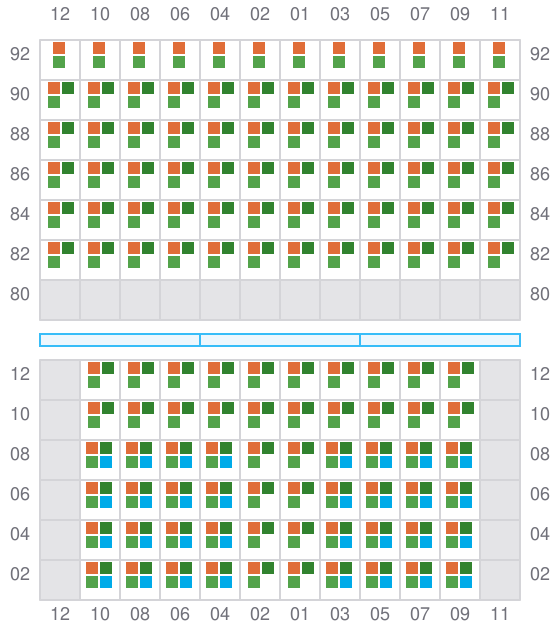

021 (022)

  • ? /
Bay 021 view and slots of DELPHIS GDANSK

023

  • / ?

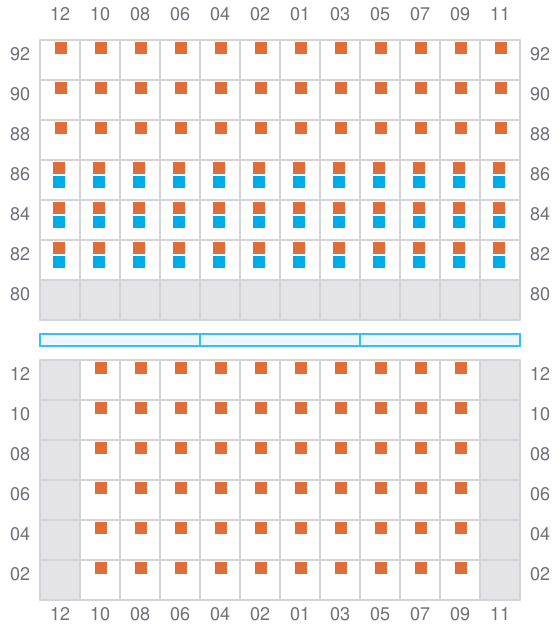

Bay 023 view and slots of DELPHIS GDANSK

025 (026)

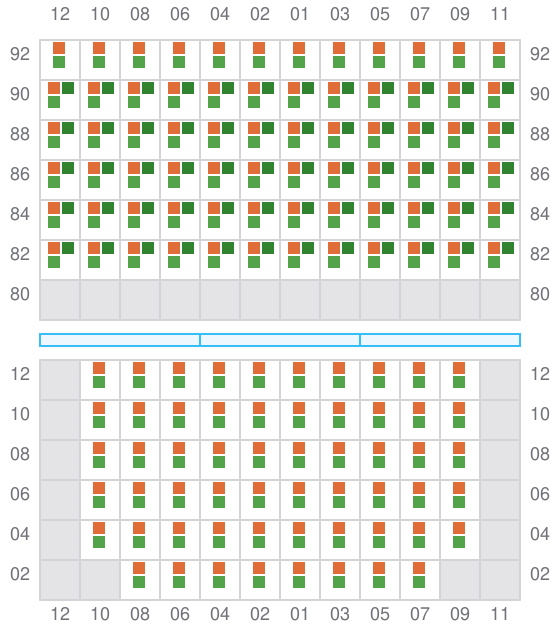

Bay 025 view and slots of DELPHIS GDANSK

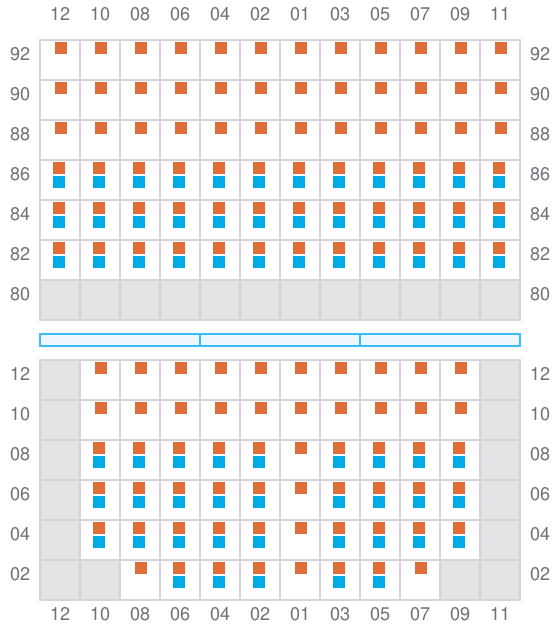

027

Bay 027 view and slots of DELPHIS GDANSK

029 (030)

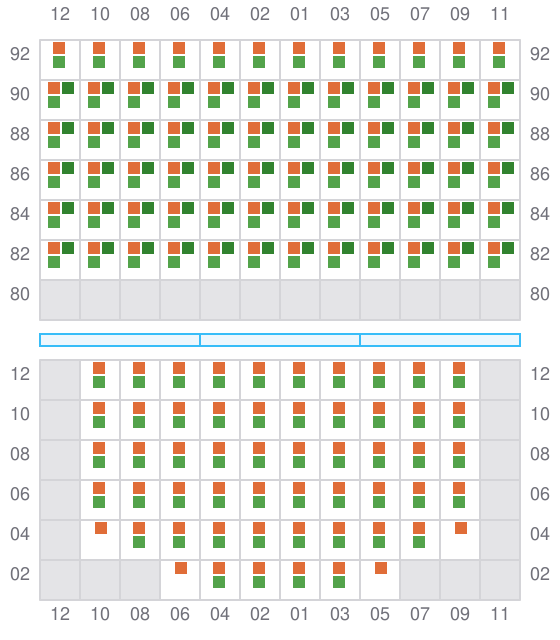

Bay 029 view and slots of DELPHIS GDANSK

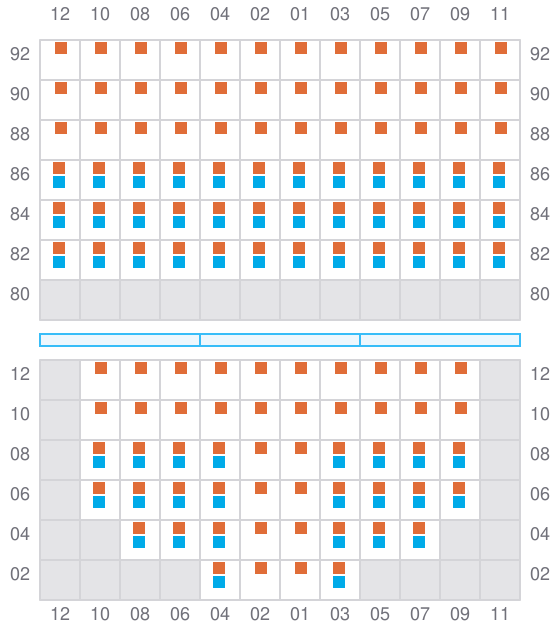

031

  • / ?
Bay 031 view and slots of DELPHIS GDANSK

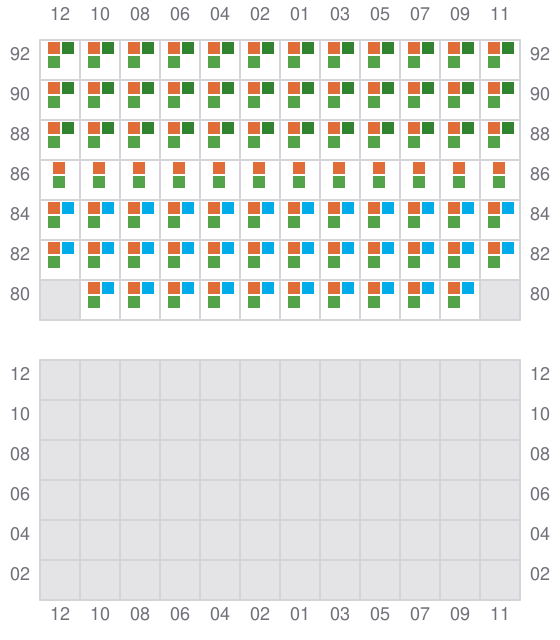

033 (034)

  • / ?
Bay 033 view and slots of DELPHIS GDANSK

035

  • / ?

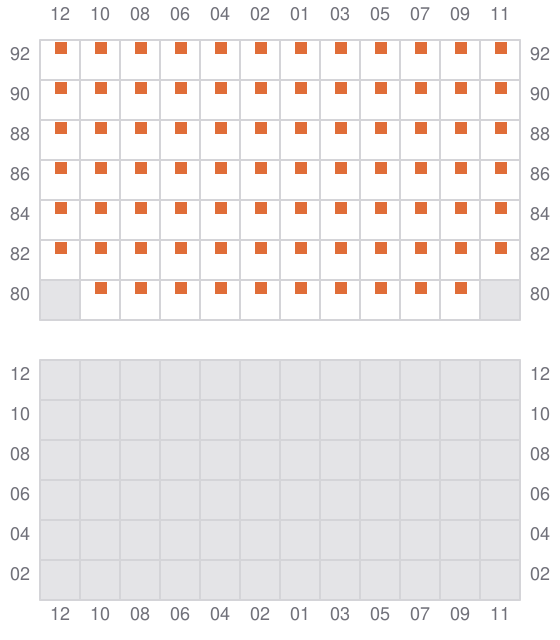

Bay 035 view and slots of DELPHIS GDANSK
