DETROIT EXPRESS
9610169 | VRLX4 | 9610169 by ********* Last update: Tue May 07 2024

General Info

Ship Name:DETROIT EXPRESS
IMO Code:9610169
Call Sign:VRLX4
Line Operator:9610169
Class Name for Sister Ships:MOL NAIMA
Year Built:2014
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):217.30
LOA (Length Overall):227.97
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:051
Max ISO Row:14
Center Line Row:Yes
Max Above ISO Tier:93
Min Above ISO Tier:81
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:3,833

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

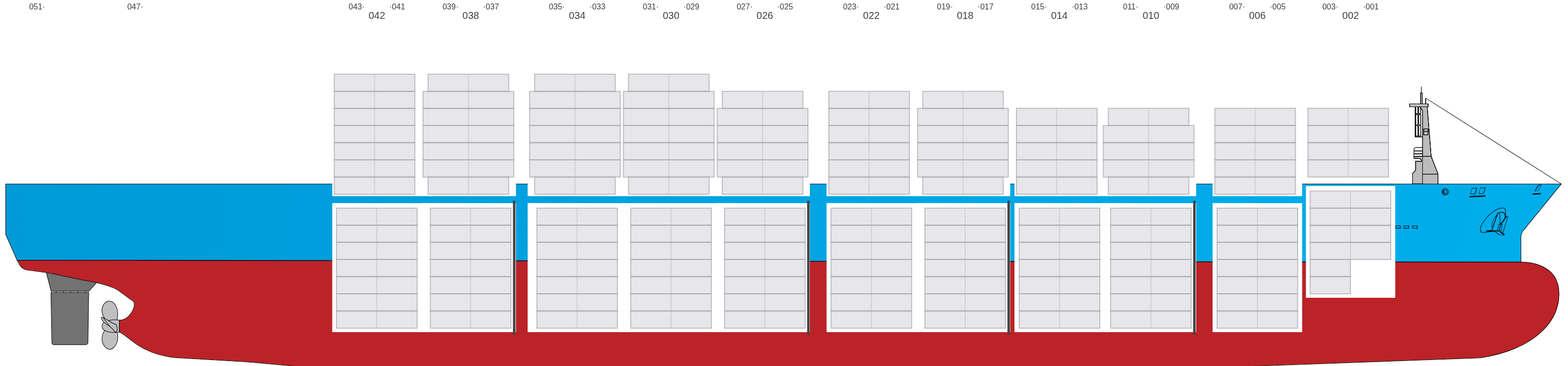

Side view of DETROIT EXPRESS

Hatch-Covers View

Deck view of DETROIT EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001

  • →
  • →

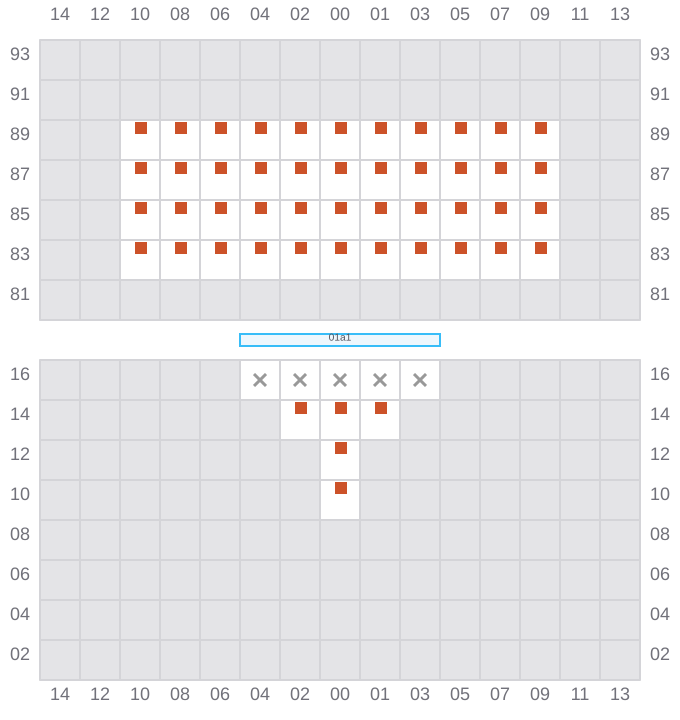

Bay 001 view and slots of DETROIT EXPRESS

003 (002)

  • ←
  • → / ?
  • →

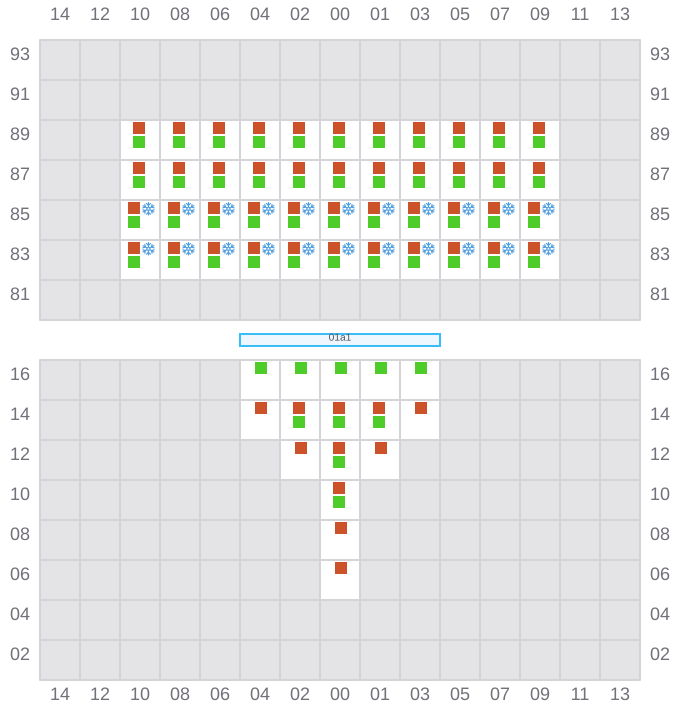

Bay 003 view and slots of DETROIT EXPRESS

005

  • →
  • →

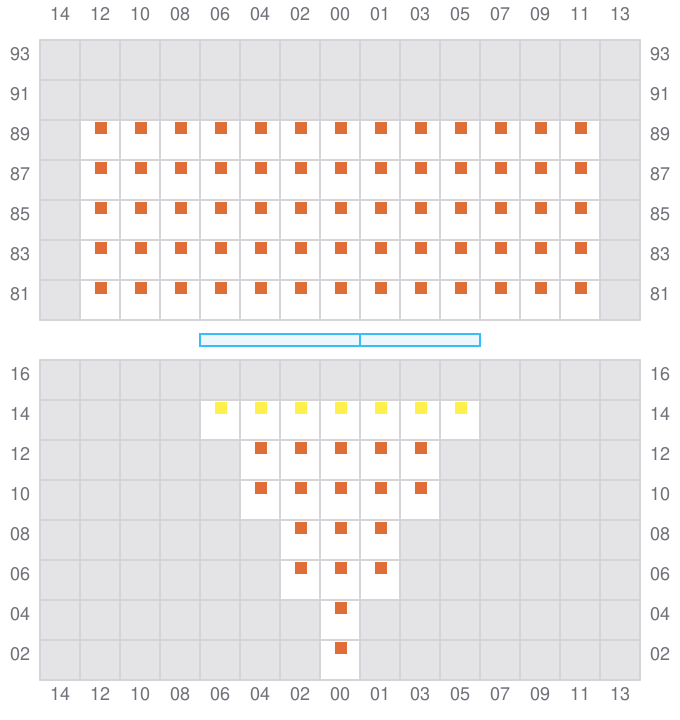

Bay 005 view and slots of DETROIT EXPRESS

007 (006)

  • ←
  • →

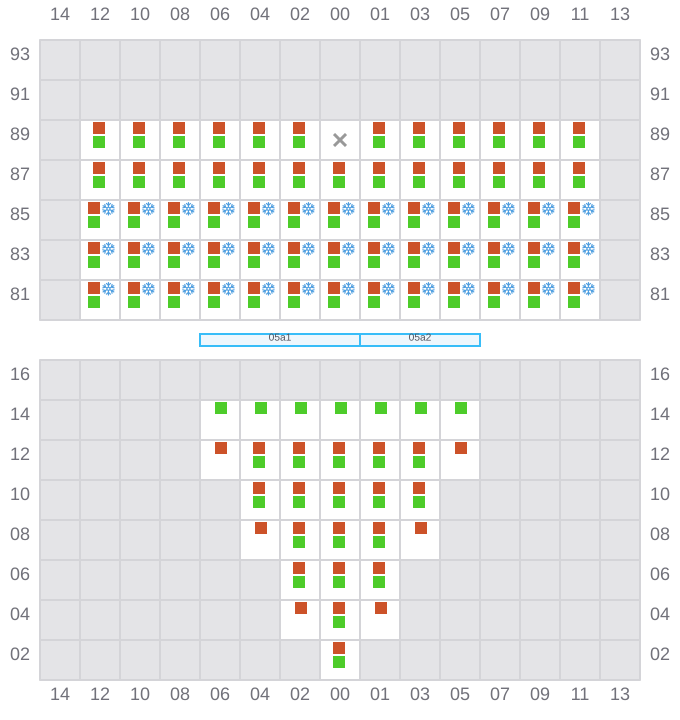

Bay 007 view and slots of DETROIT EXPRESS

009

  • →
  • →

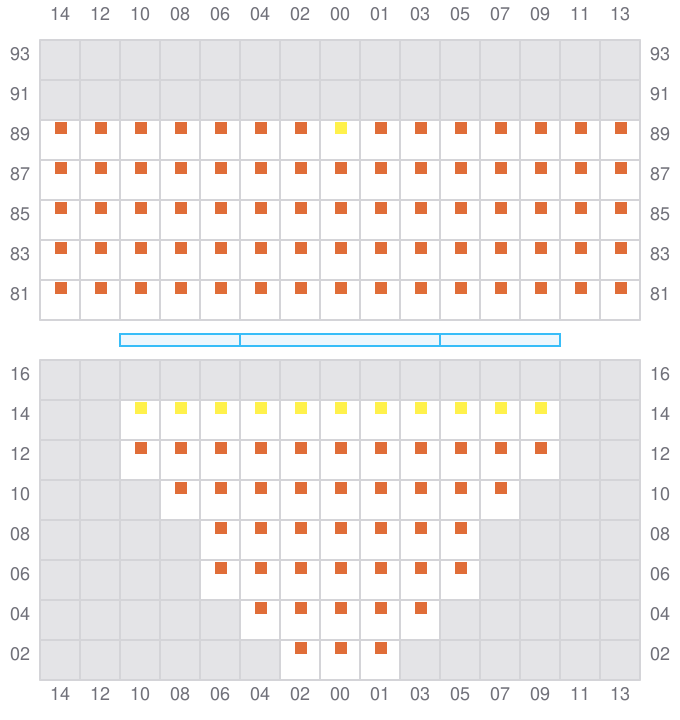

Bay 009 view and slots of DETROIT EXPRESS

011 (010)

  • ←
  • → / ?
  • →

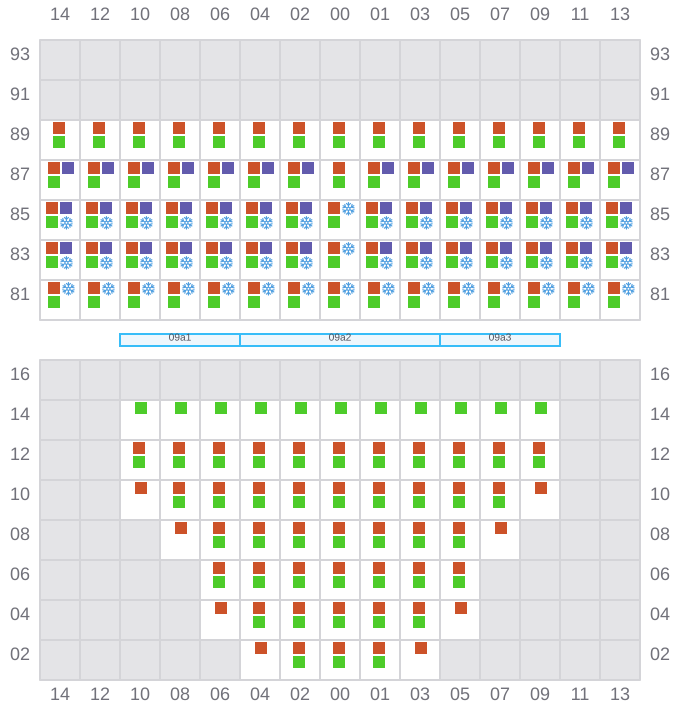

Bay 011 view and slots of DETROIT EXPRESS

013

  • →
  • →

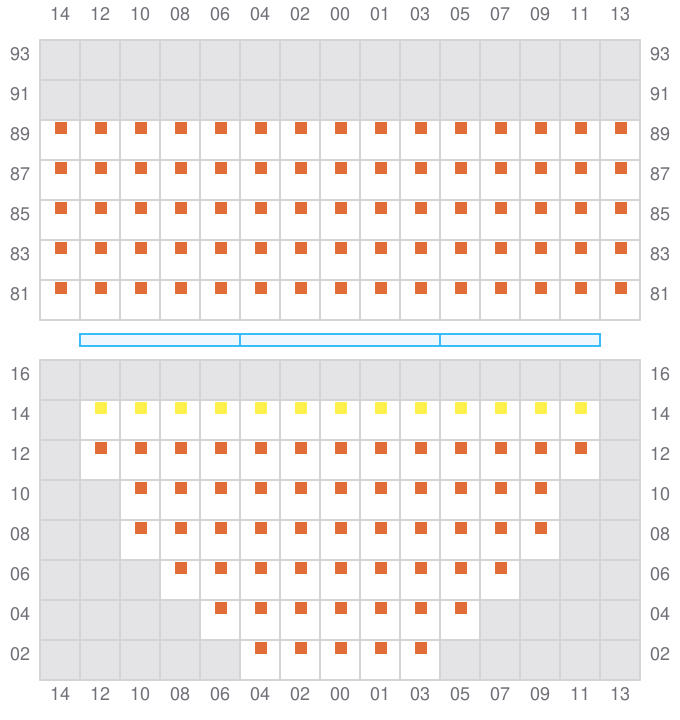

Bay 013 view and slots of DETROIT EXPRESS

015 (014)

  • ←
  • →
  • ? / →

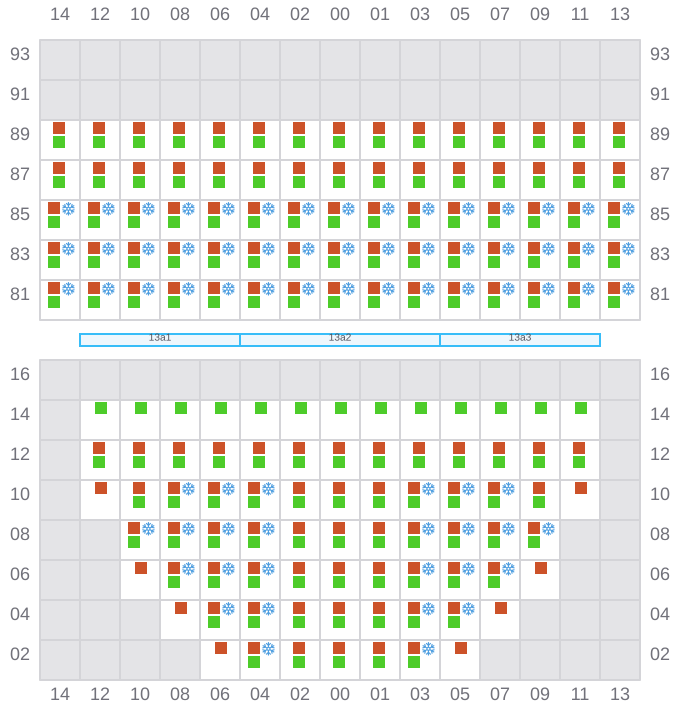

Bay 015 view and slots of DETROIT EXPRESS

017

  • →
  • →

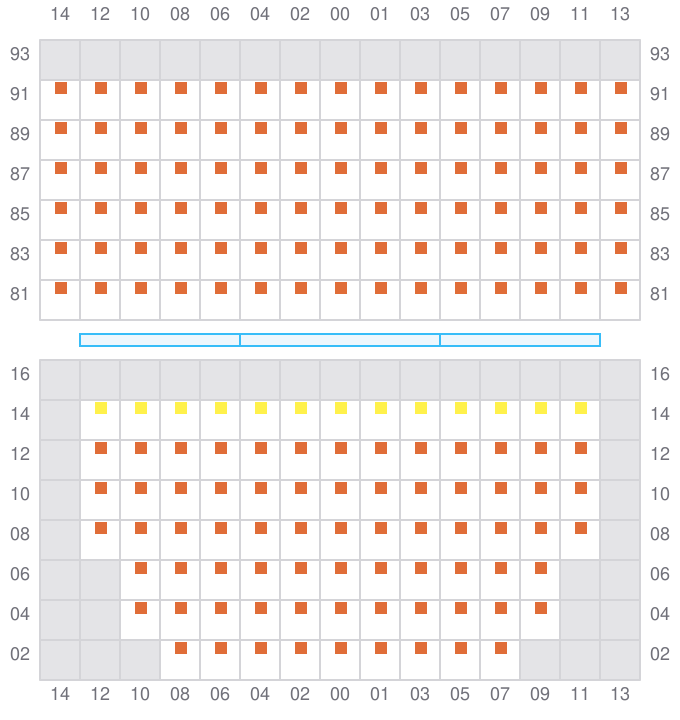

Bay 017 view and slots of DETROIT EXPRESS

019 (018)

  • ←
  • →
  • →
Bay 019 view and slots of DETROIT EXPRESS

021

  • →
  • →
Bay 021 view and slots of DETROIT EXPRESS

023 (022)

  • ←
  • → / ?
  • →

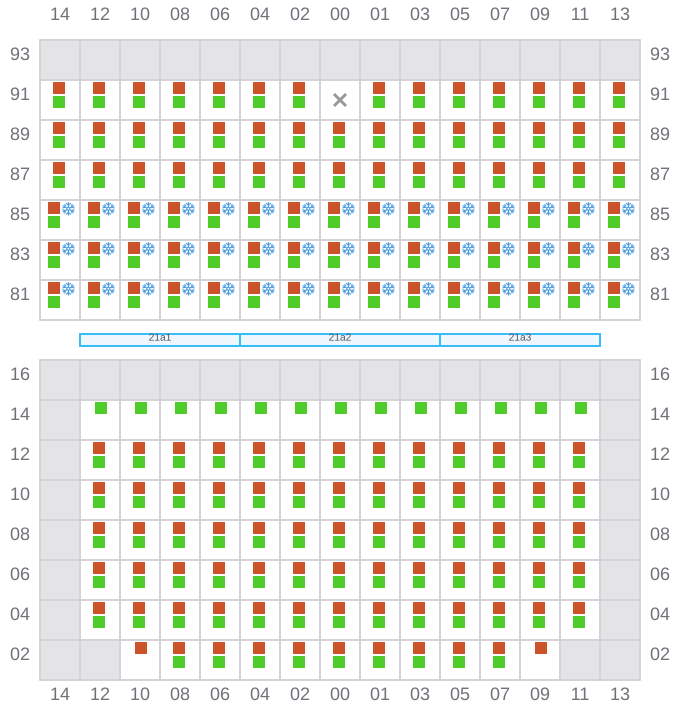

Bay 023 view and slots of DETROIT EXPRESS

025

  • →
  • →

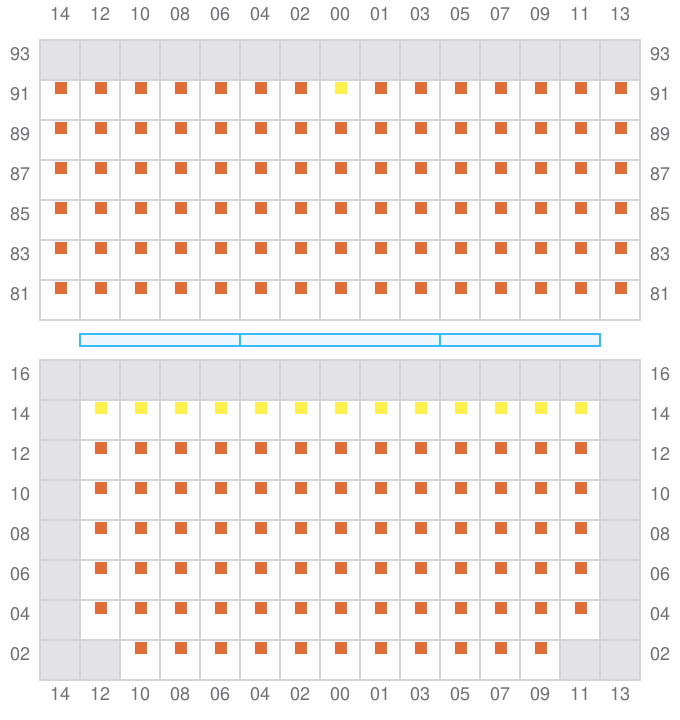

Bay 025 view and slots of DETROIT EXPRESS

027 (026)

  • ←
  • →
  • →

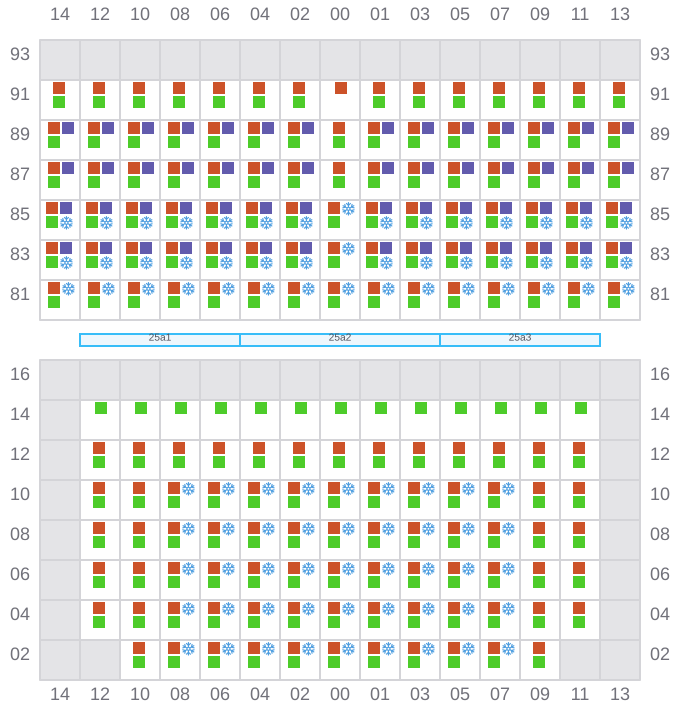

Bay 027 view and slots of DETROIT EXPRESS

029

  • →
  • →

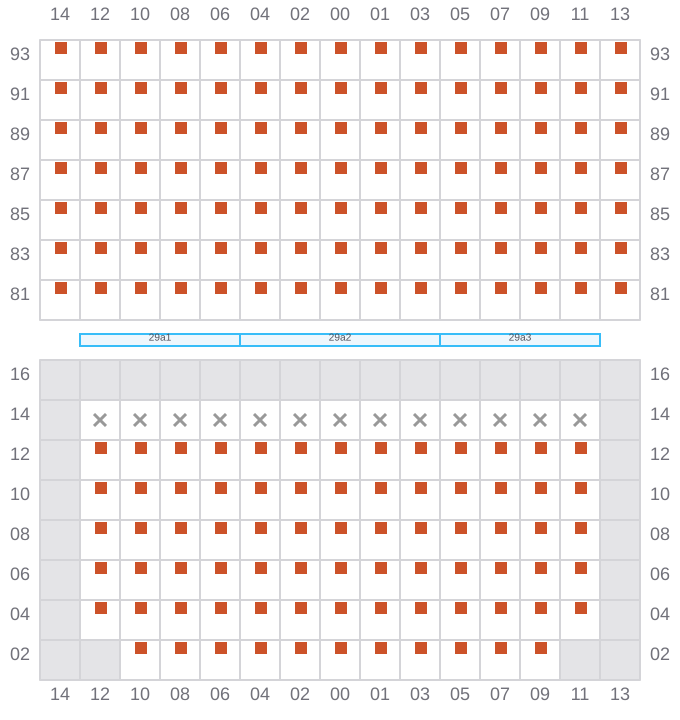

Bay 029 view and slots of DETROIT EXPRESS

031 (030)

  • ←
  • →
  • →

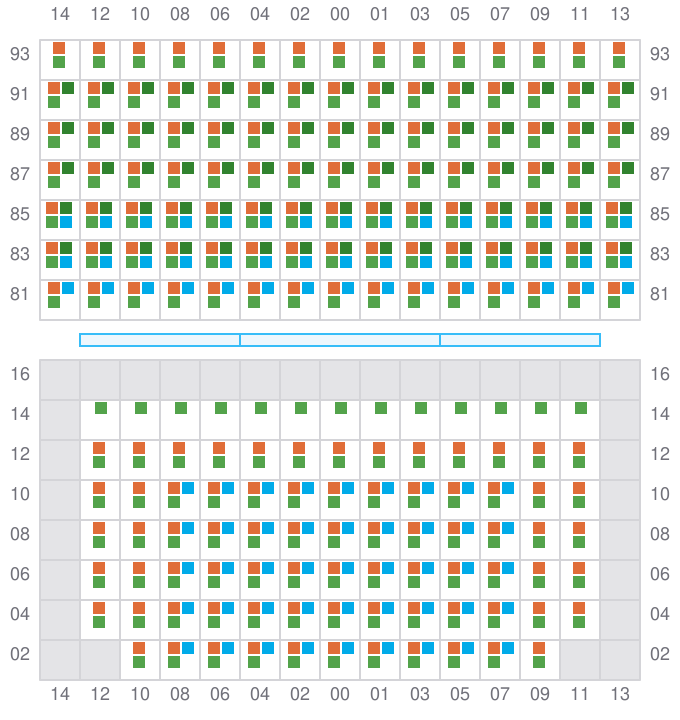

Bay 031 view and slots of DETROIT EXPRESS

033

  • →
  • →

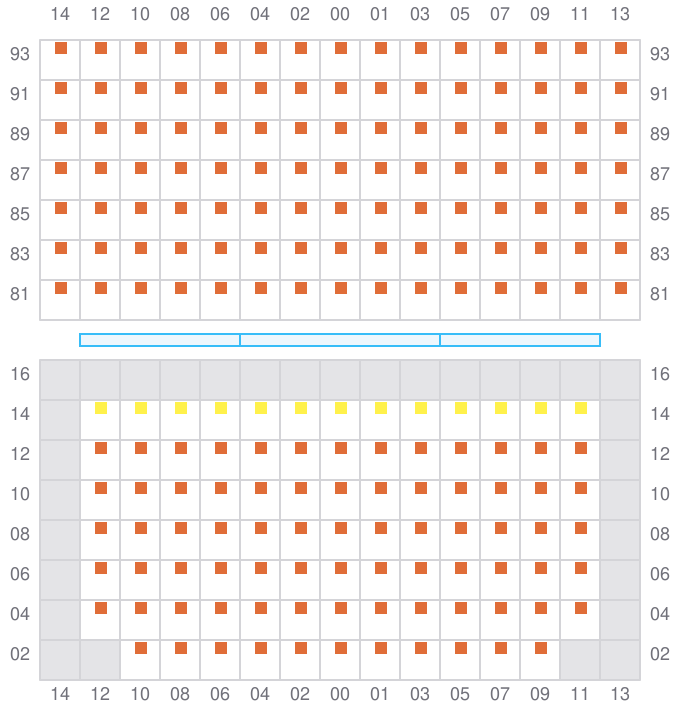

Bay 033 view and slots of DETROIT EXPRESS

035 (034)

  • ←
  • → / ?
  • →

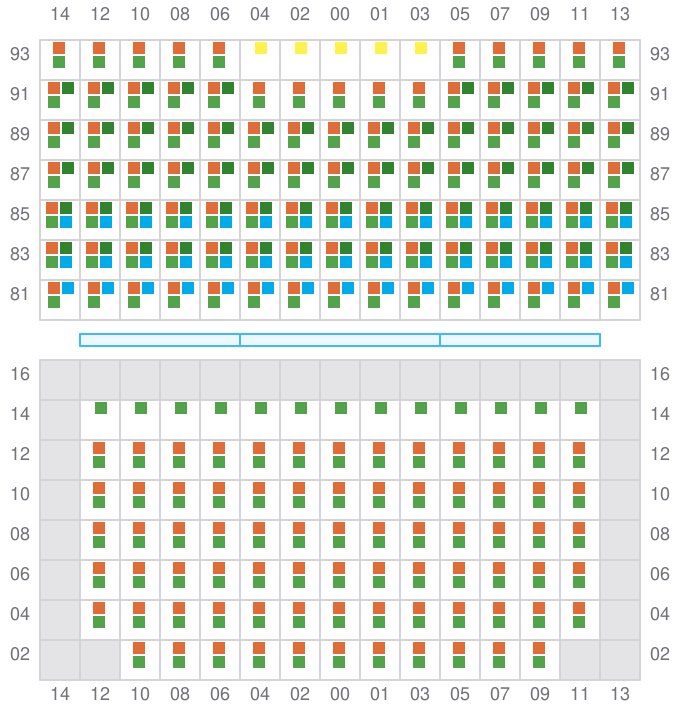

Bay 035 view and slots of DETROIT EXPRESS

037

  • →
  • →

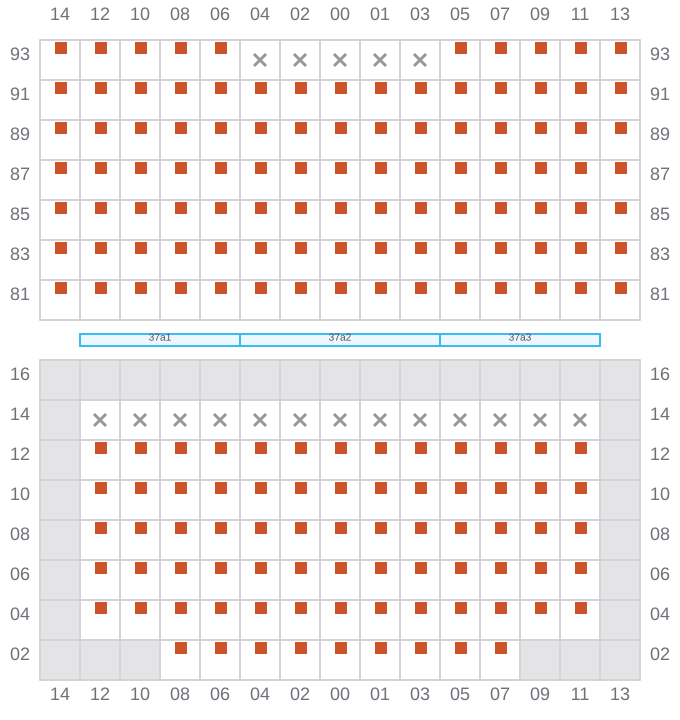

Bay 037 view and slots of DETROIT EXPRESS

039 (038)

  • ←
  • →
  • →

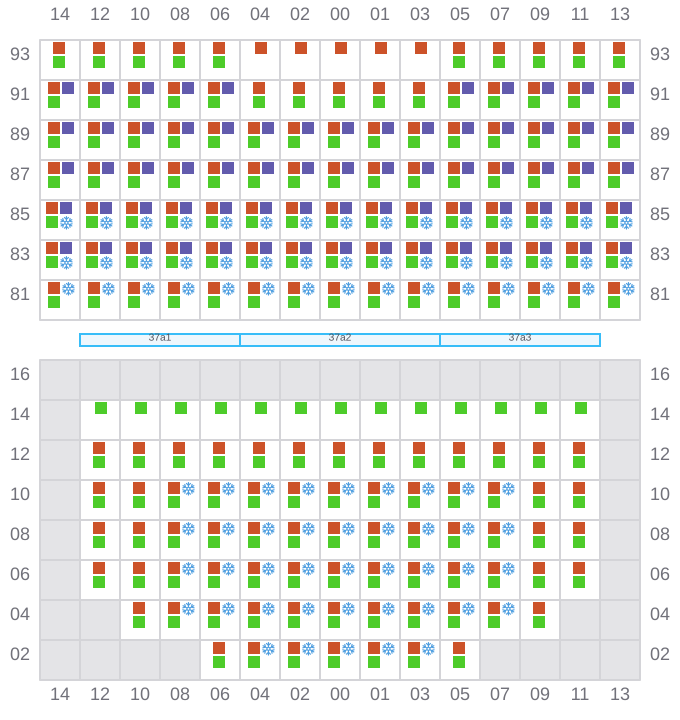

Bay 039 view and slots of DETROIT EXPRESS

041

  • →
  • →

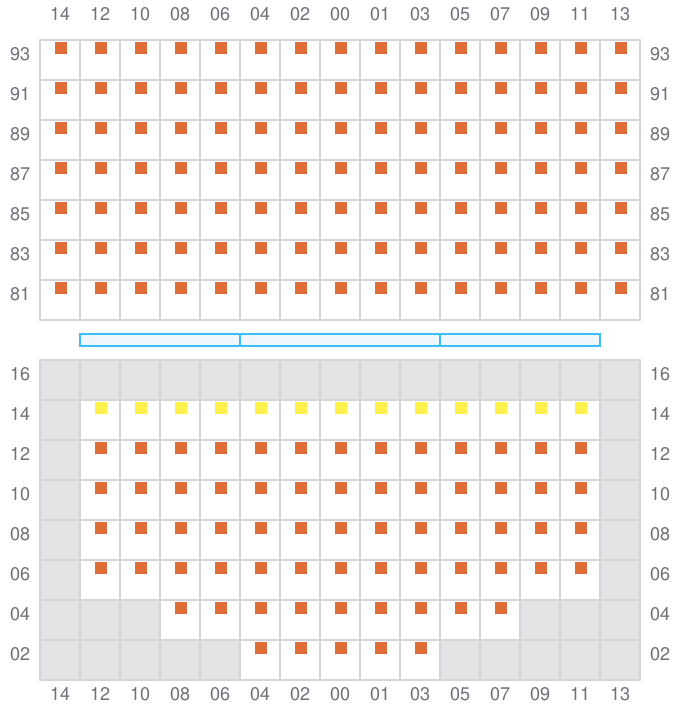

Bay 041 view and slots of DETROIT EXPRESS

043 (042)

  • ←
  • → / ?
  • →

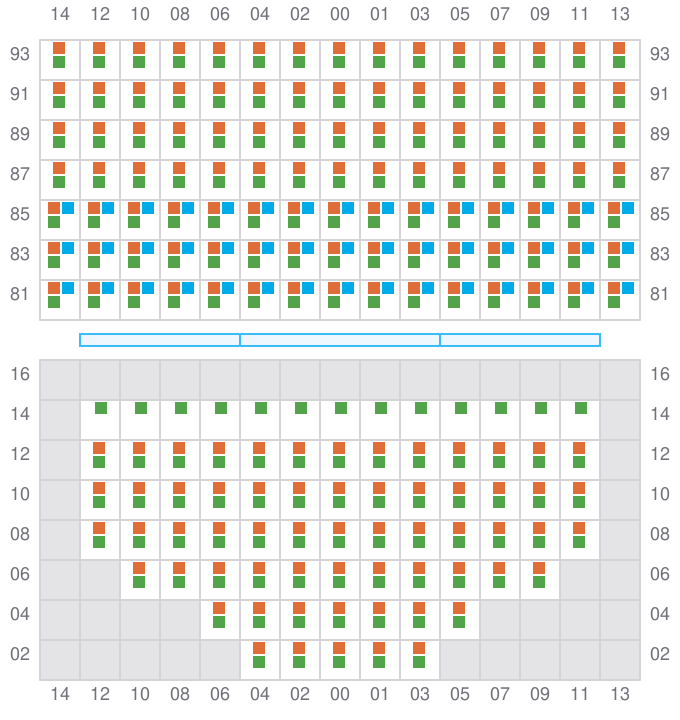

Bay 043 view and slots of DETROIT EXPRESS

045

Bay 045 view and slots of DETROIT EXPRESS

047 (046)

  • ← / ?
  • → / ?
  • → / ?

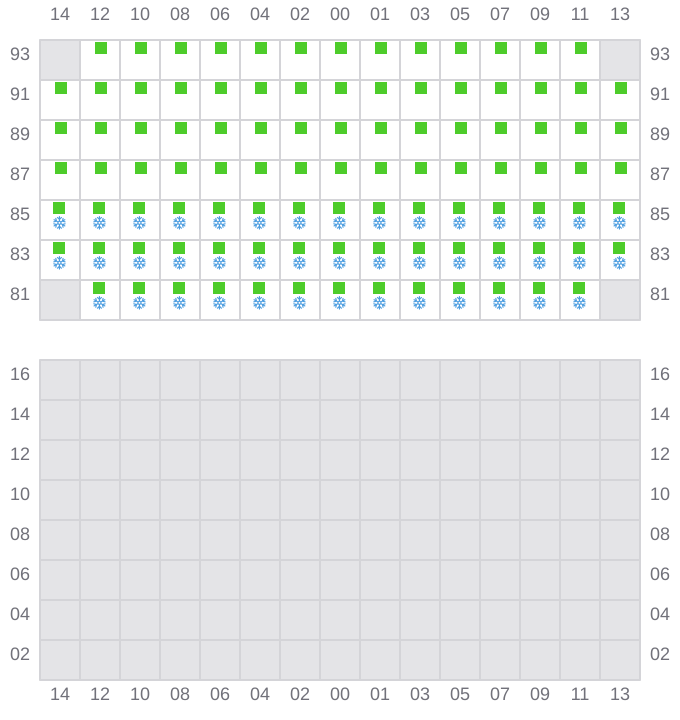

Bay 047 view and slots of DETROIT EXPRESS

049

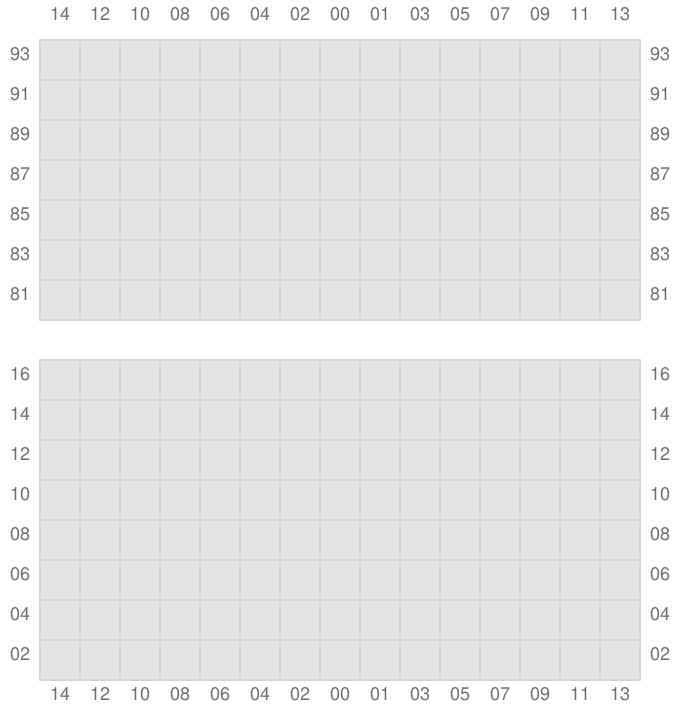

Bay 049 view and slots of DETROIT EXPRESS

051 (050)

  • ← / ?
  • → / ?
  • → / ?

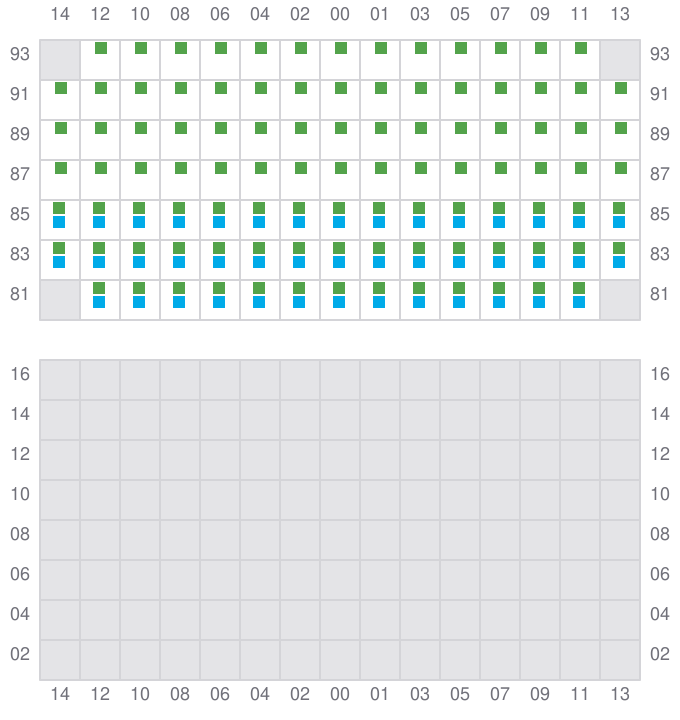

Bay 051 view and slots of DETROIT EXPRESS
