DIAMANTIS P.
9146314 | A8WA2 | 9146314 by ********* Last update: Wed May 08 2024
General Info
Ship Name:DIAMANTIS P.
IMO Code:9146314
Call Sign:A8WA2
Line Operator:9146314
Class Name for Sister Ships:CMA CGM TUCANO
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:039
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,080
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

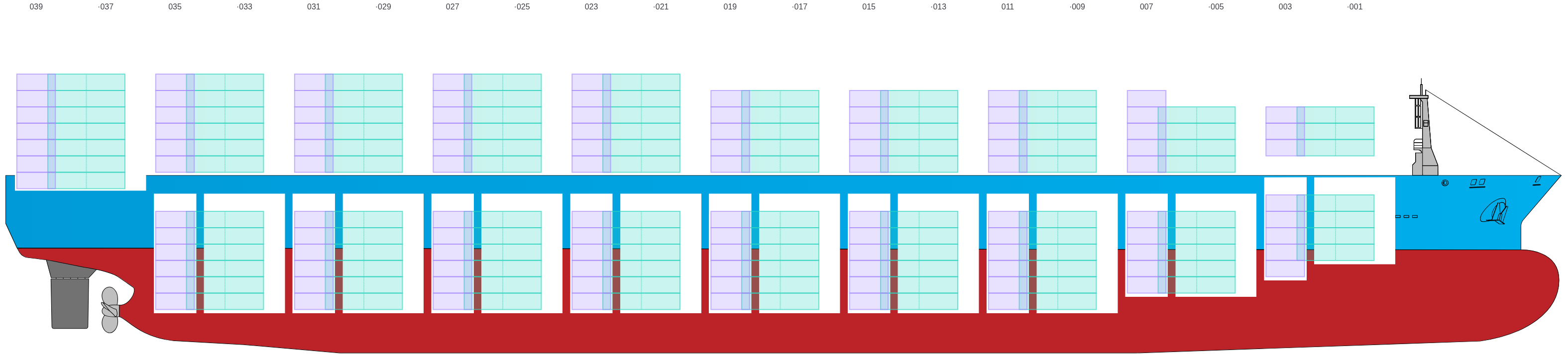

Side View
![Side view of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-sideView.png?v=1715192735277)
Hatch-Covers View
![Deck view of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-deckView.png?v=1715192735277)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

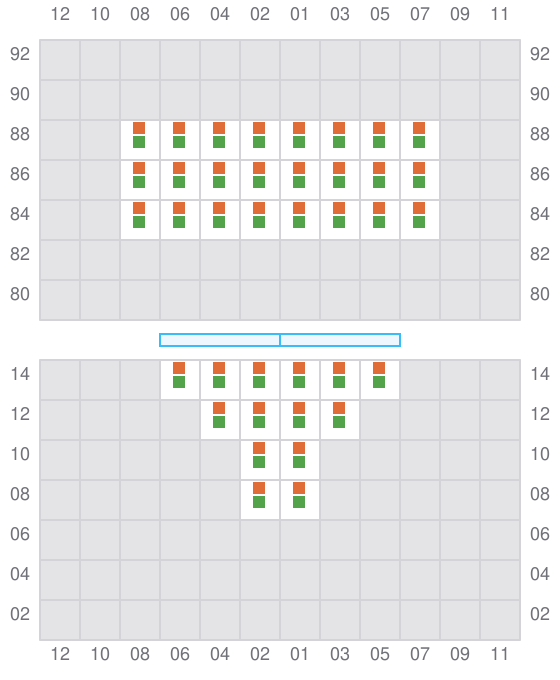

001 (002)
- →
![Bay 001 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b001.png?v=1715192735277)

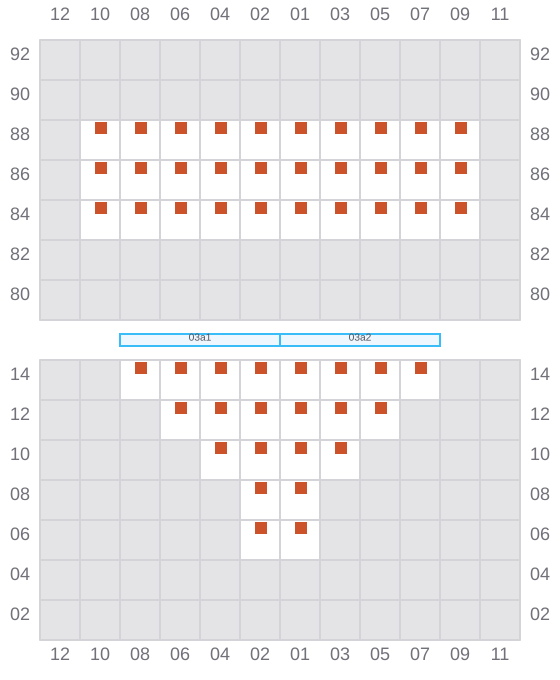

003
![Bay 003 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b003.png?v=1715192735277)

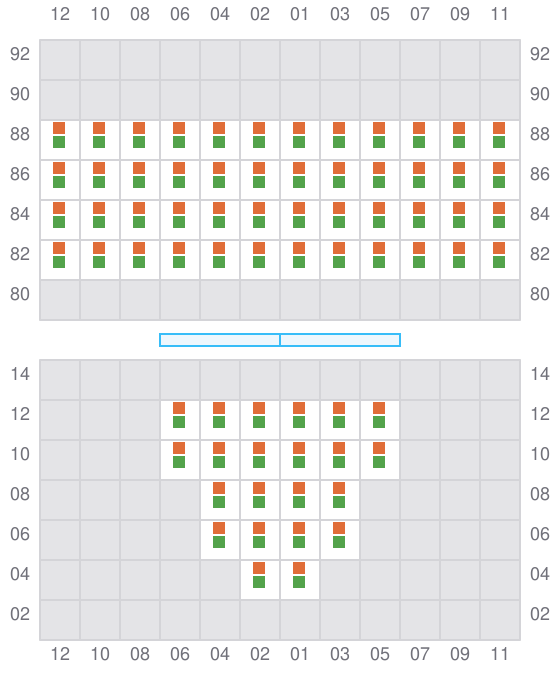

005 (006)
- →
![Bay 005 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b005.png?v=1715192735277)

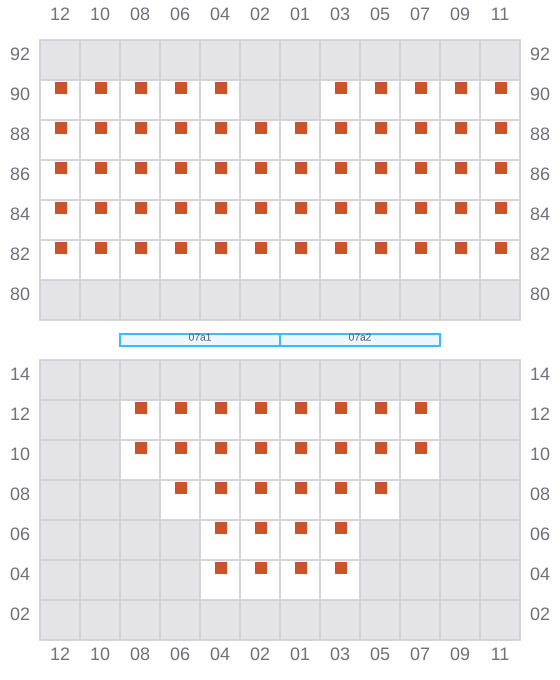

007
![Bay 007 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b007.png?v=1715192735277)

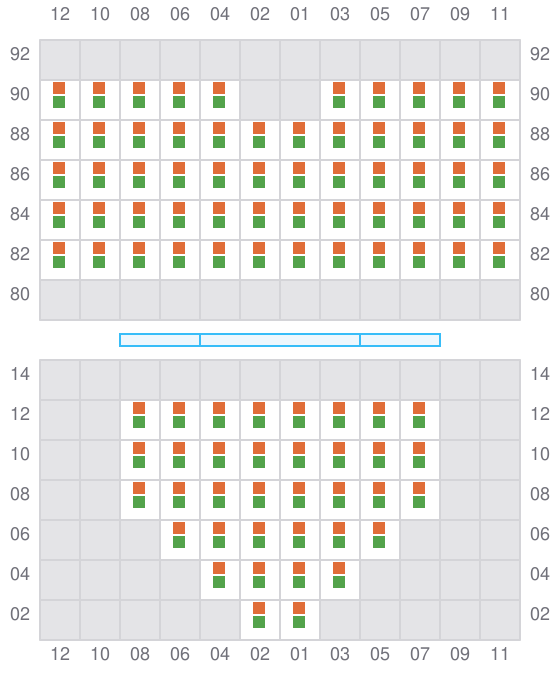

009 (010)
- →
![Bay 009 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b009.png?v=1715192735277)

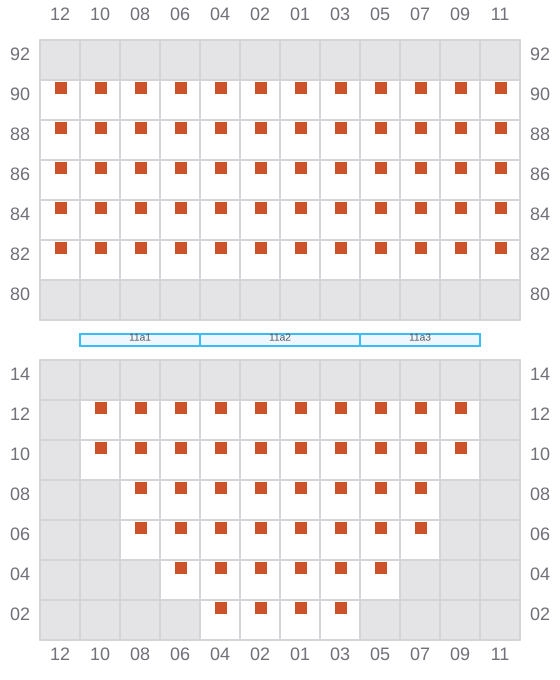

011
![Bay 011 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b011.png?v=1715192735277)

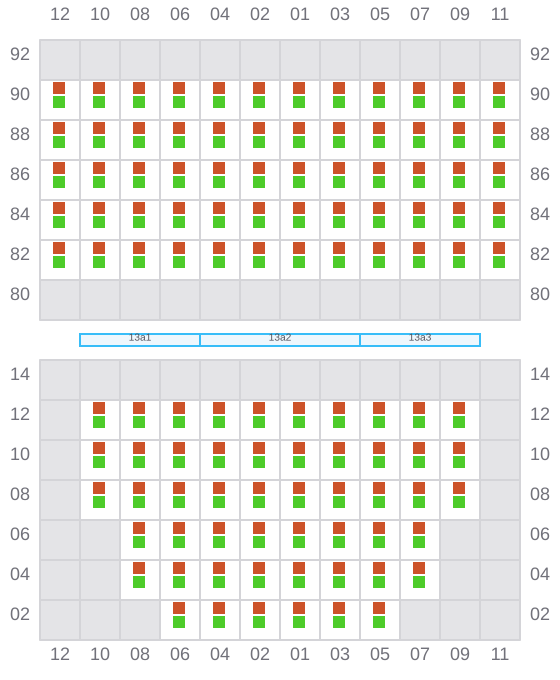

013 (014)
- →
![Bay 013 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b013.png?v=1715192735277)

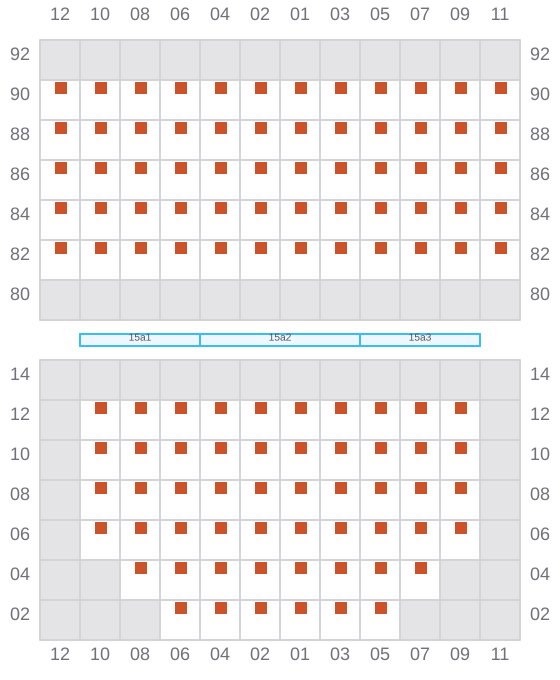

015
![Bay 015 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b015.png?v=1715192735277)

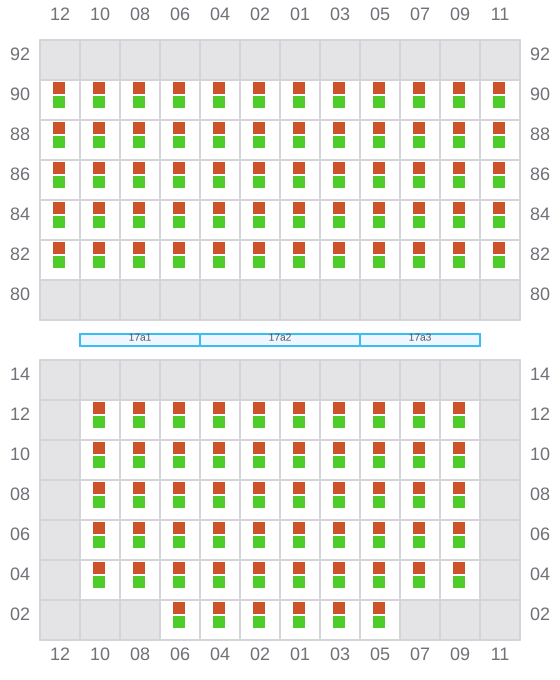

017 (018)
- →
![Bay 017 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b017.png?v=1715192735277)

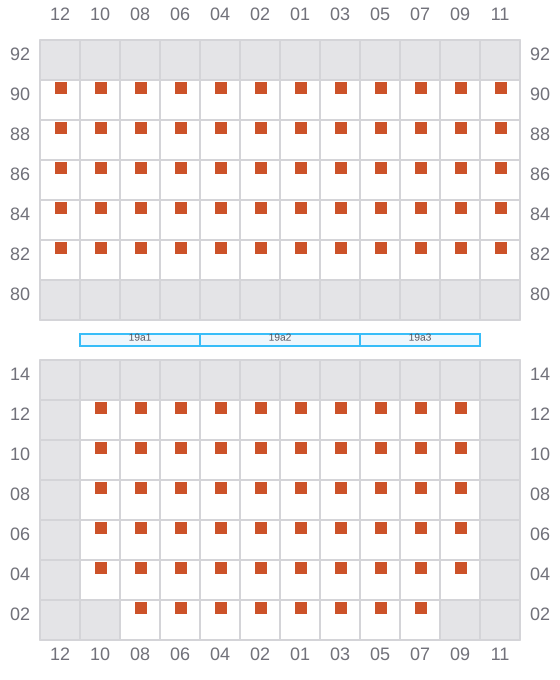

019
![Bay 019 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b019.png?v=1715192735277)

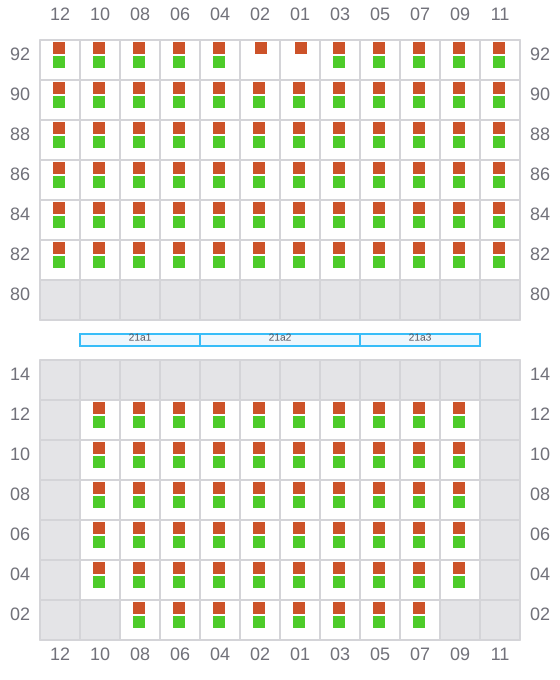

021 (022)
- →
![Bay 021 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b021.png?v=1715192735277)
023
![Bay 023 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b023.png?v=1715192735277)

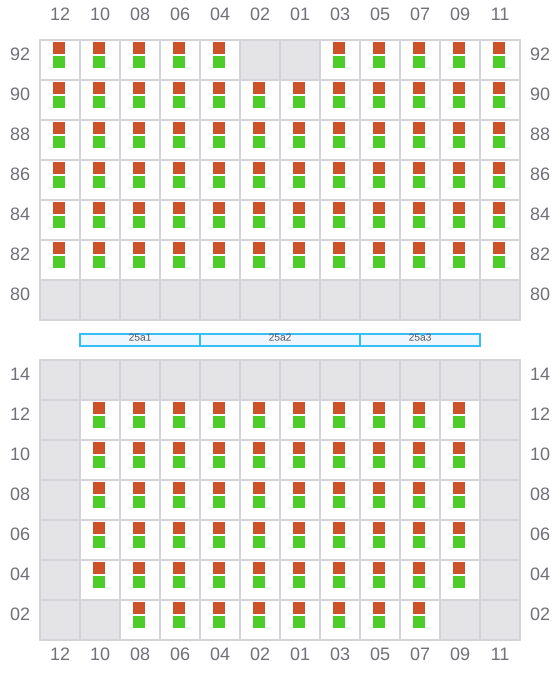

025 (026)
- →
![Bay 025 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b025.png?v=1715192735277)

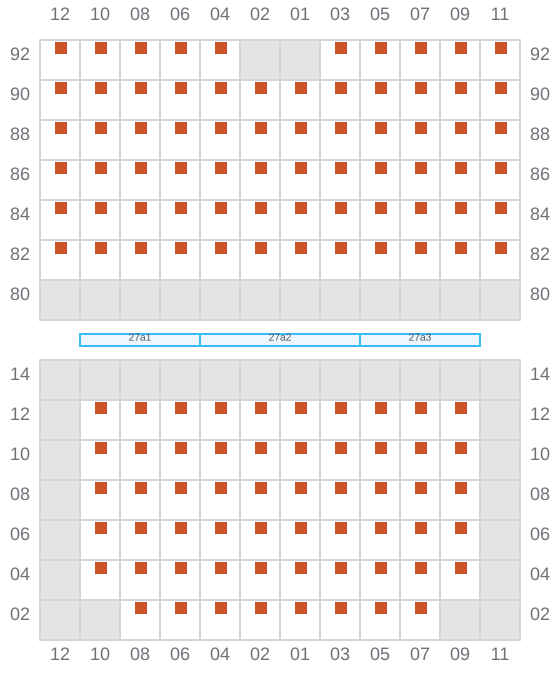

027
![Bay 027 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b027.png?v=1715192735277)

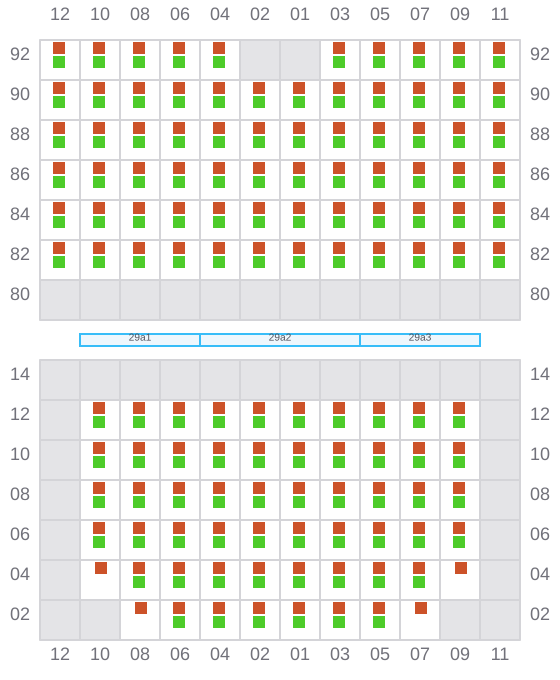

029 (030)
- →
![Bay 029 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b029.png?v=1715192735277)
031
![Bay 031 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b031.png?v=1715192735277)

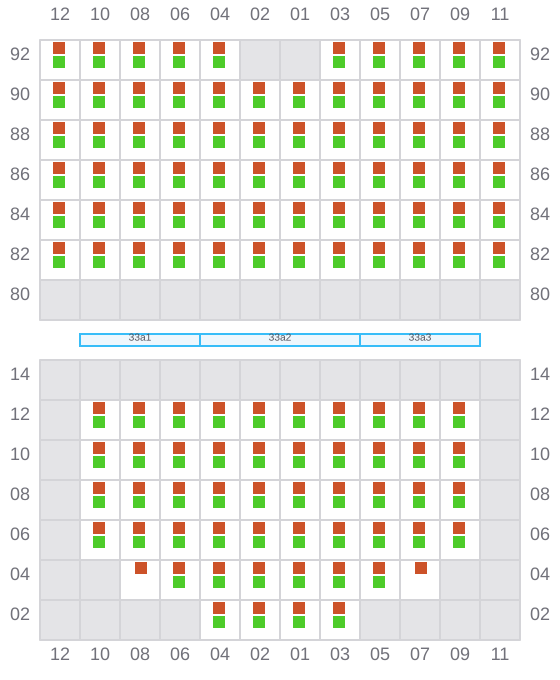

033 (034)
- →
![Bay 033 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b033.png?v=1715192735277)

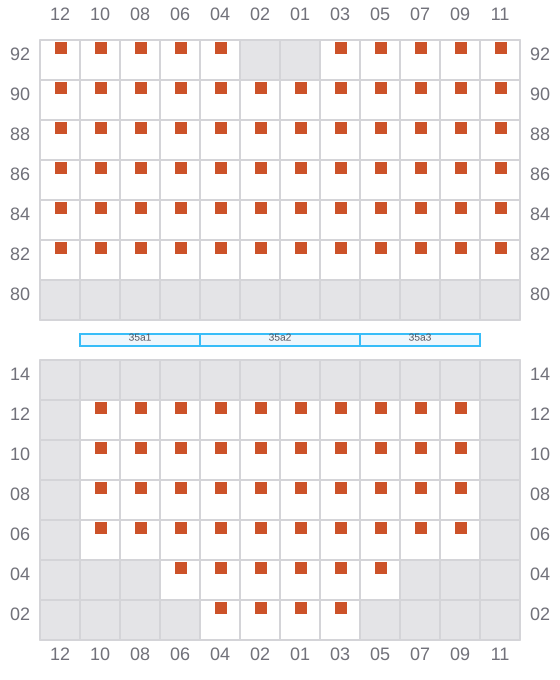

035
![Bay 035 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b035.png?v=1715192735277)

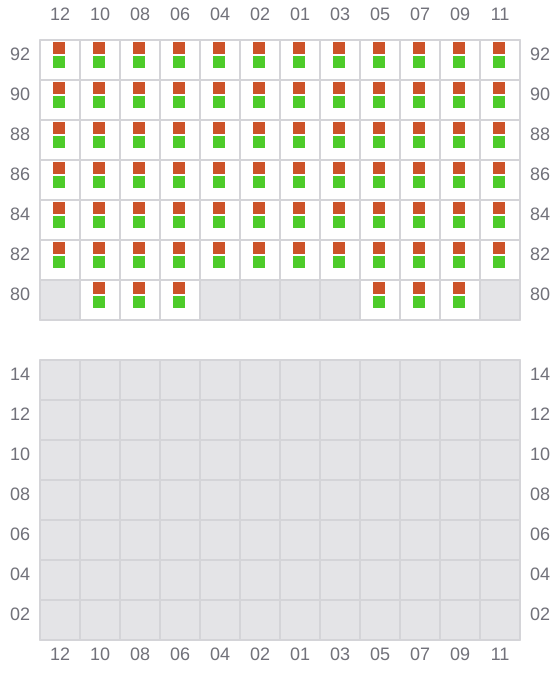

037 (038)
- → / ?
![Bay 037 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b037.png?v=1715192735277)

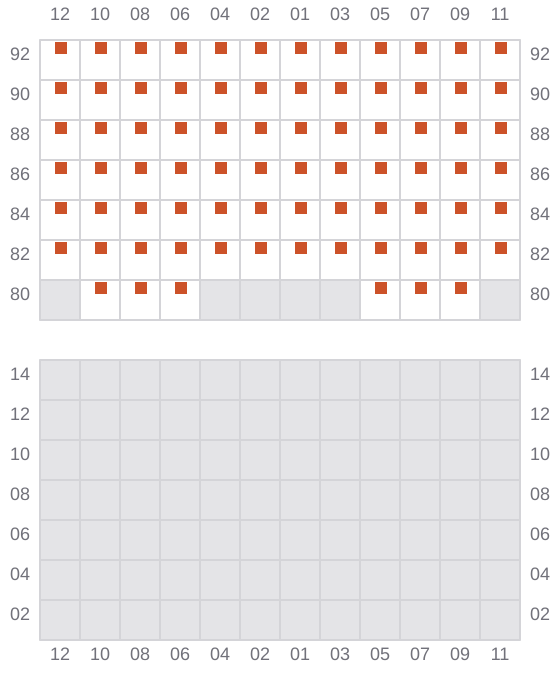

039
![Bay 039 view and slots of DIAMANTIS P.](/vessel-images/b5cebdfa-a66d-4871-8498-8afa269de525-b039.png?v=1715192735277)
