DIMITRA C
9250995 | 9HA3802 | 9250995 by ********* Last update: Mon May 20 2024
General Info
Ship Name:DIMITRA C
IMO Code:9250995
Call Sign:9HA3802
Line Operator:9250995
Class Name for Sister Ships:MOL PRIORITY
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):281.40
LOA (Length Overall):293.87
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:16
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:18
Min Below ISO Tier:02
Total TEU:6,402
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
Side View
![Side view of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-sideView.png?v=1716229607103)
Hatch-Covers View
![Deck view of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-deckView.png?v=1716229607103)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

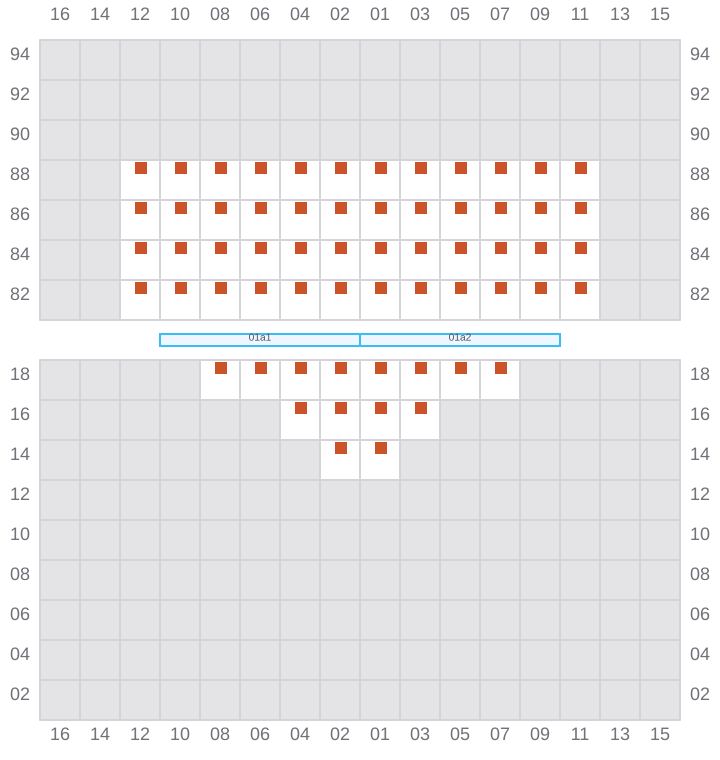

001
![Bay 001 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b001.png?v=1716229607103)

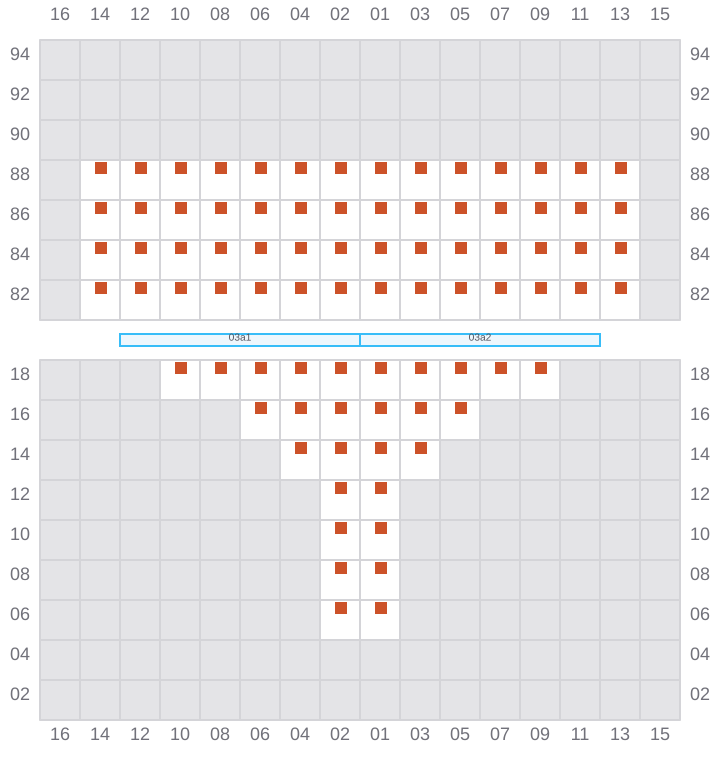

003
- → / ?
![Bay 003 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b003.png?v=1716229607103)

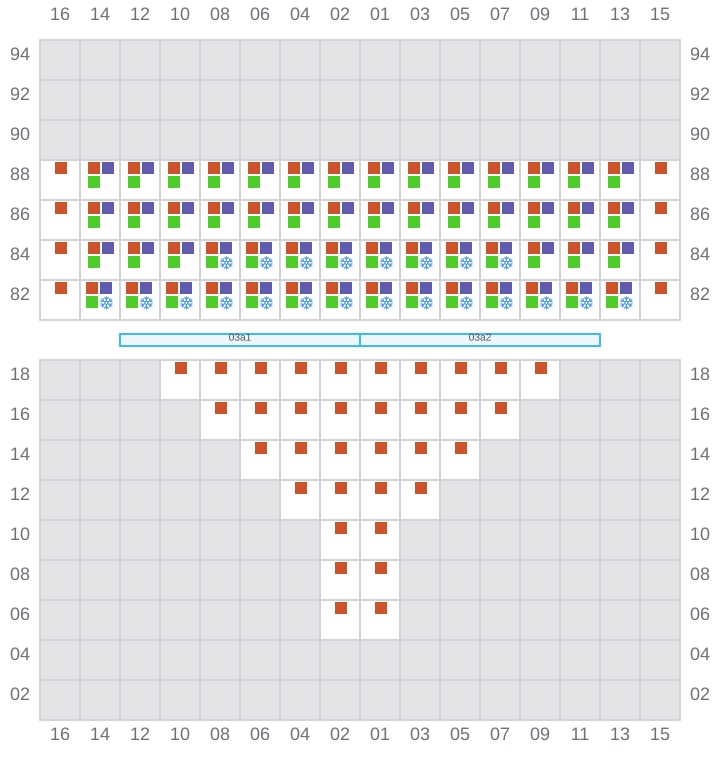

005 (004)
- ← / ?
- → / ?
![Bay 005 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b005.png?v=1716229607103)

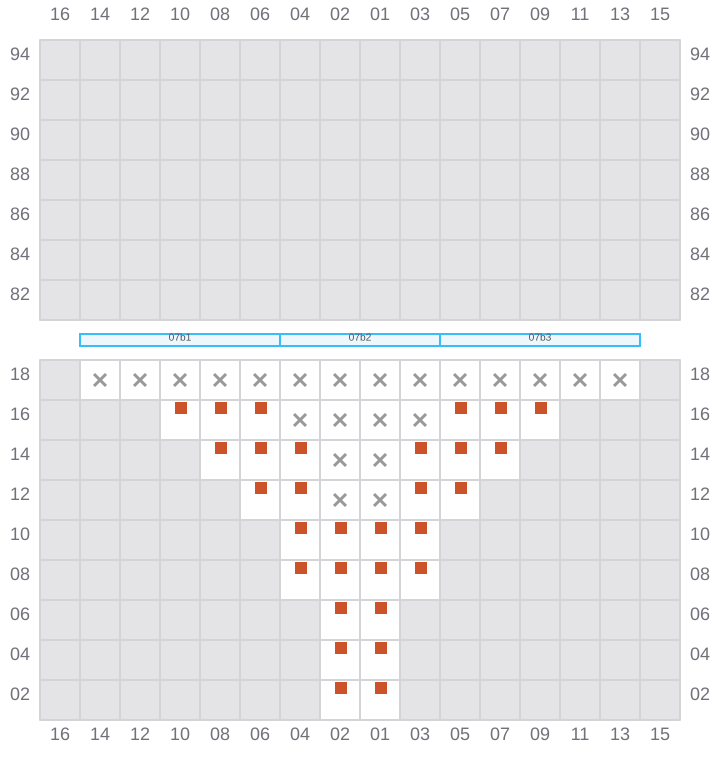

007
- ? / →
![Bay 007 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b007.png?v=1716229607103)

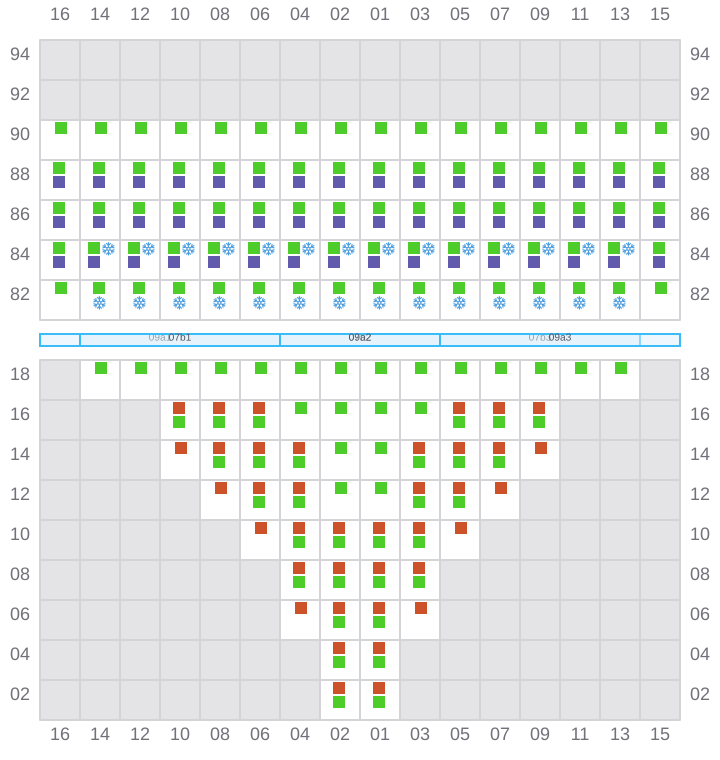

009 (008)
- ←
- → / ?
![Bay 009 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b009.png?v=1716229607103)

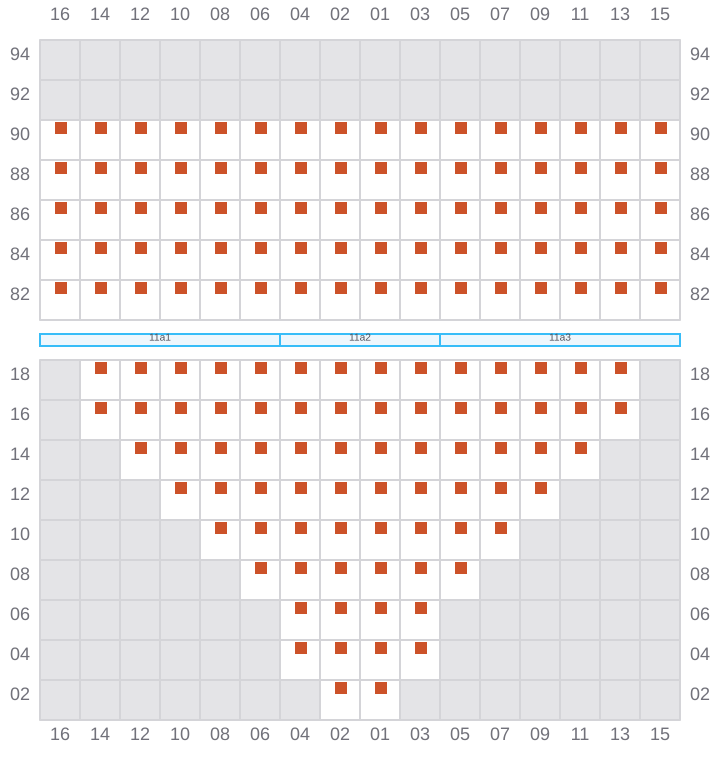

011
- → / ?
![Bay 011 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b011.png?v=1716229607103)

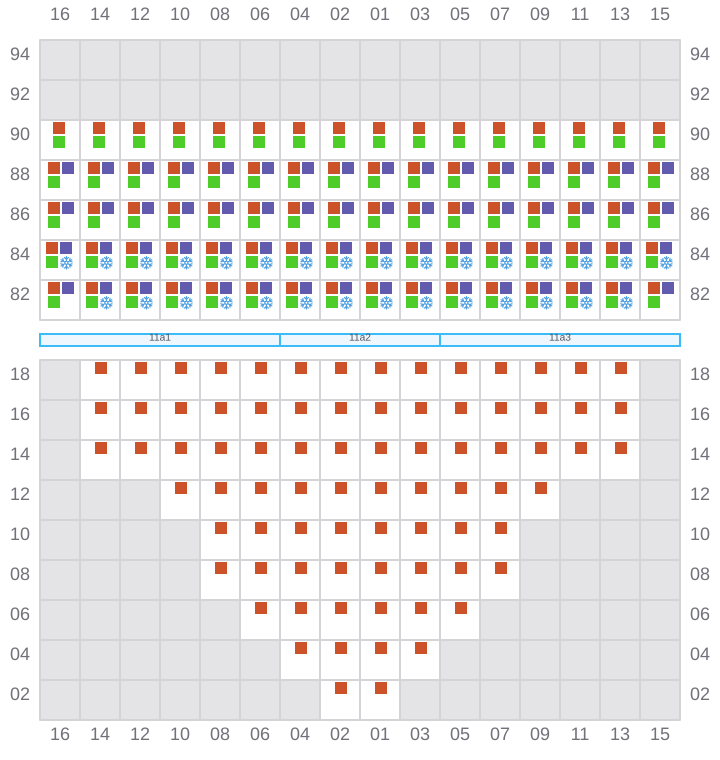

013 (012)
- ← / ?
- → / ?
![Bay 013 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b013.png?v=1716229607103)

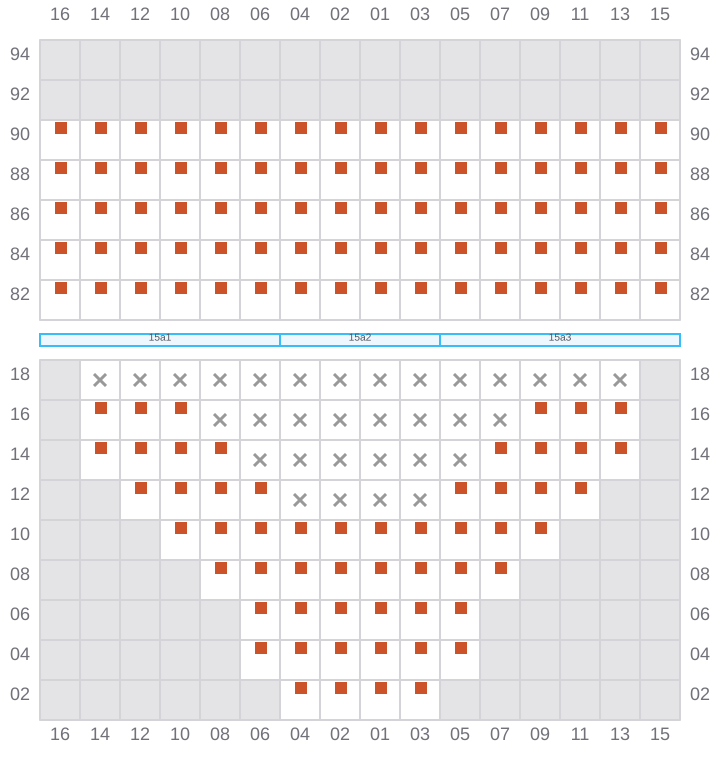

015
- →
![Bay 015 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b015.png?v=1716229607103)

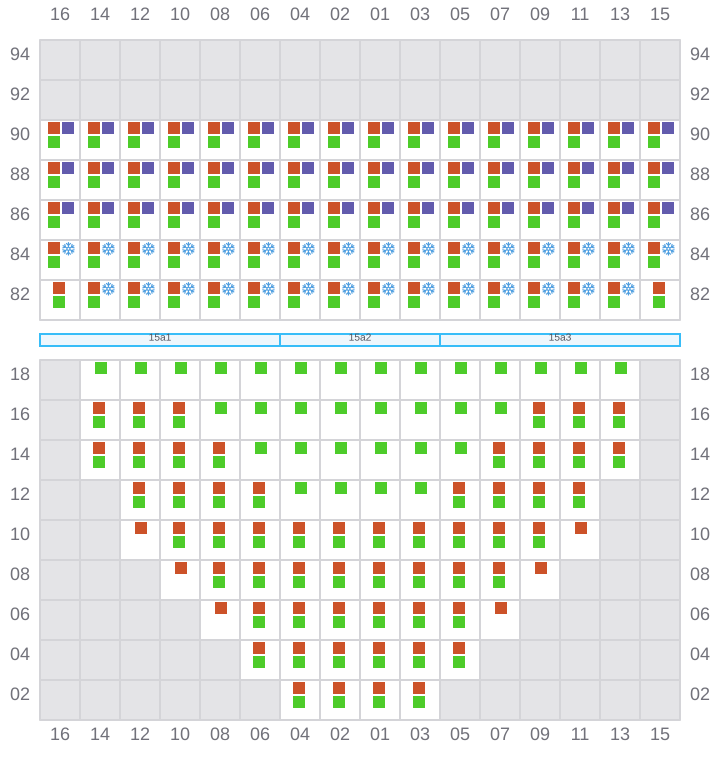

017 (016)
- ←
- → / ?
![Bay 017 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b017.png?v=1716229607103)

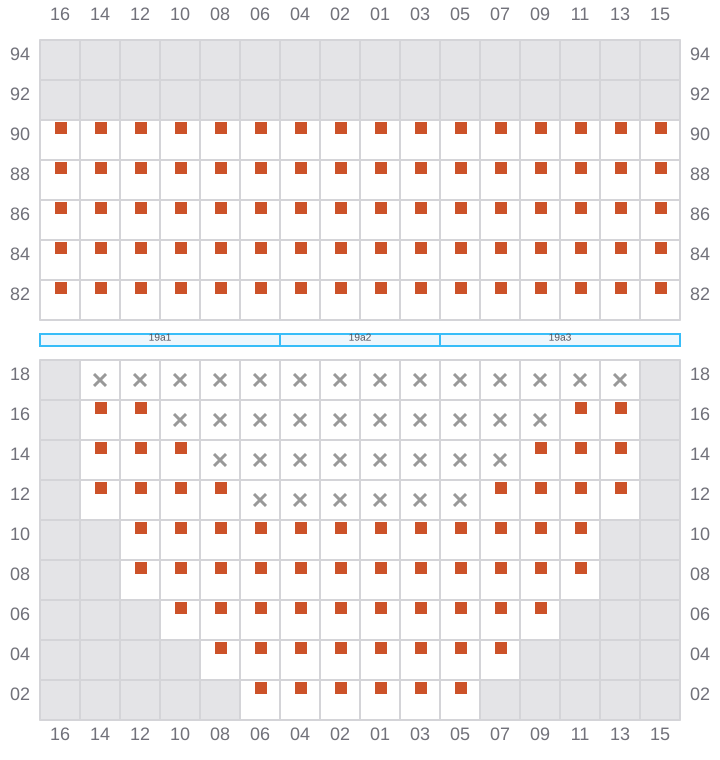

019
- →
![Bay 019 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b019.png?v=1716229607103)

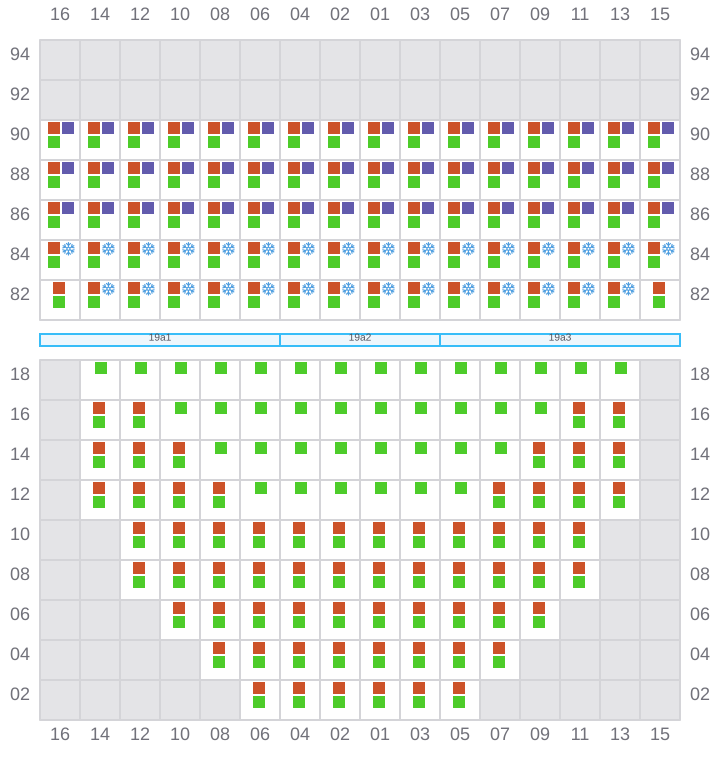

021 (020)
- ←
- → / ?
![Bay 021 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b021.png?v=1716229607103)

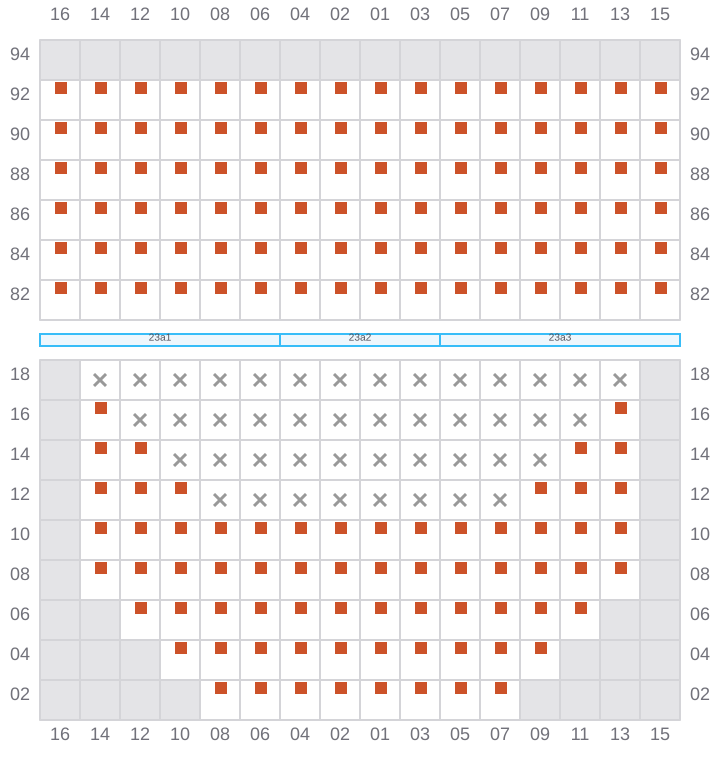

023
- →
![Bay 023 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b023.png?v=1716229607103)

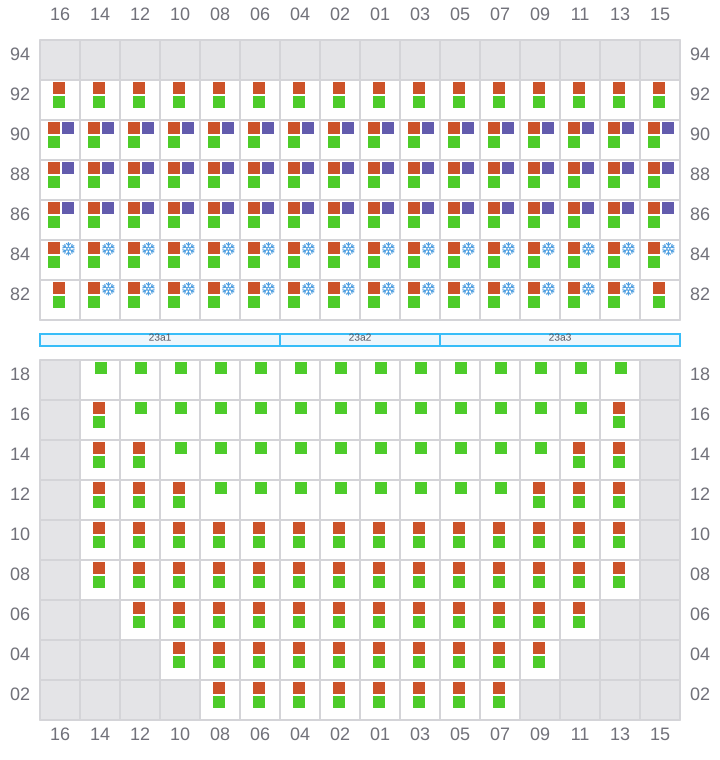

025 (024)
- ←
- → / ?
![Bay 025 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b025.png?v=1716229607103)

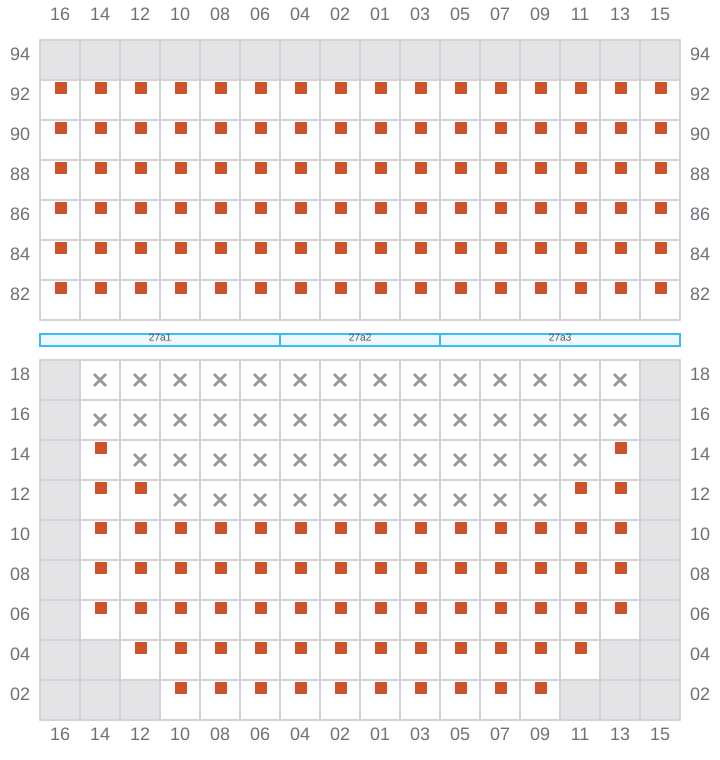

027
- →
![Bay 027 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b027.png?v=1716229607103)

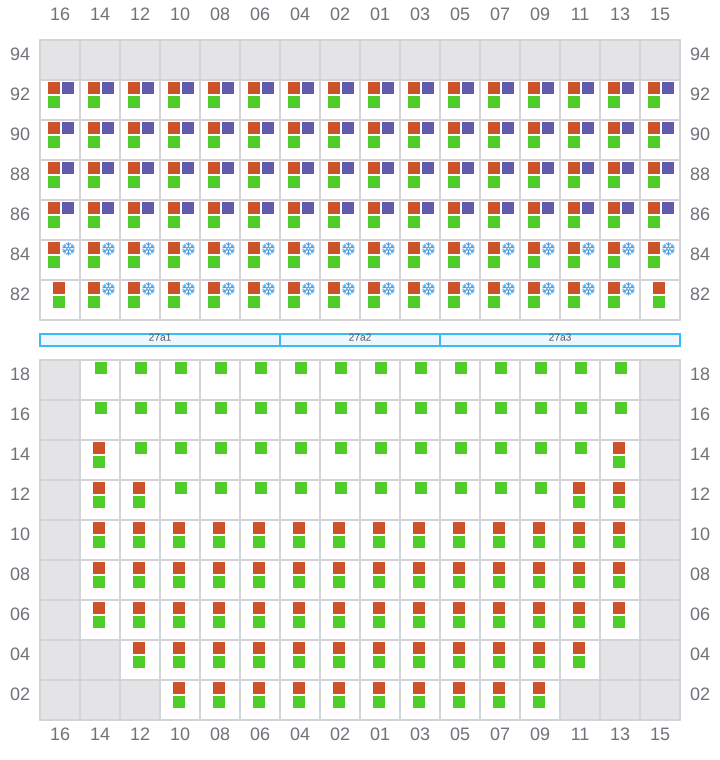

029 (028)
- ←
- → / ?
![Bay 029 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b029.png?v=1716229607103)

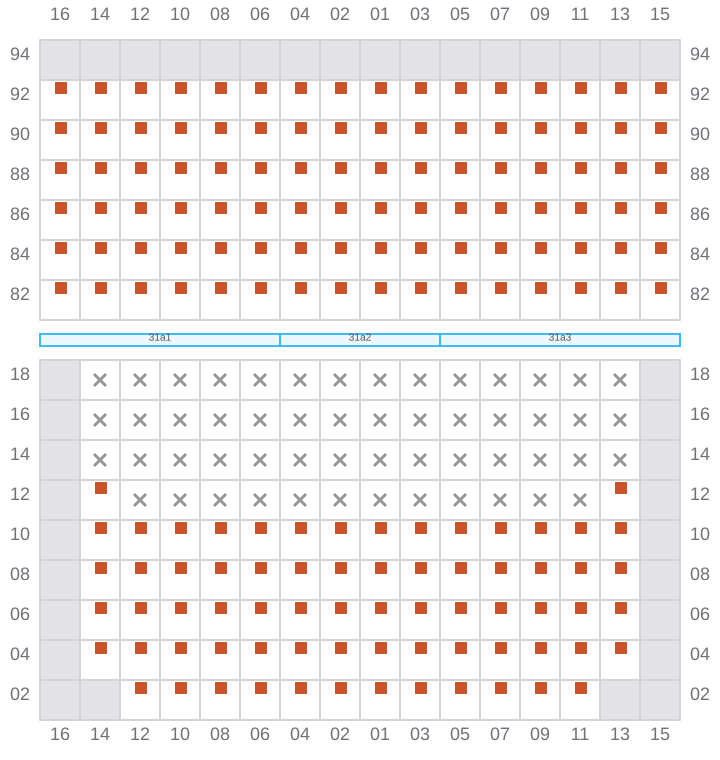

031
- →
![Bay 031 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b031.png?v=1716229607103)

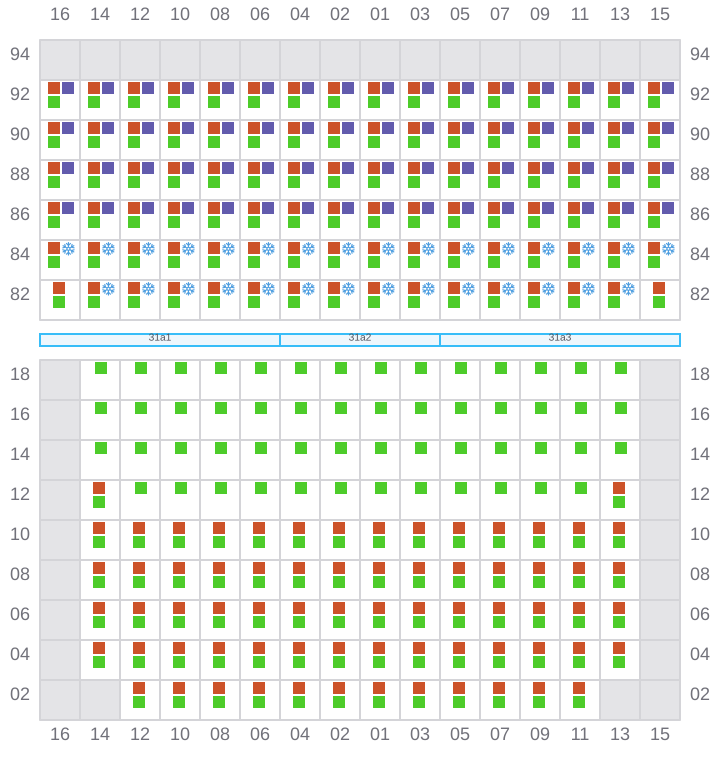

033 (032)
- ←
- → / ?
![Bay 033 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b033.png?v=1716229607103)

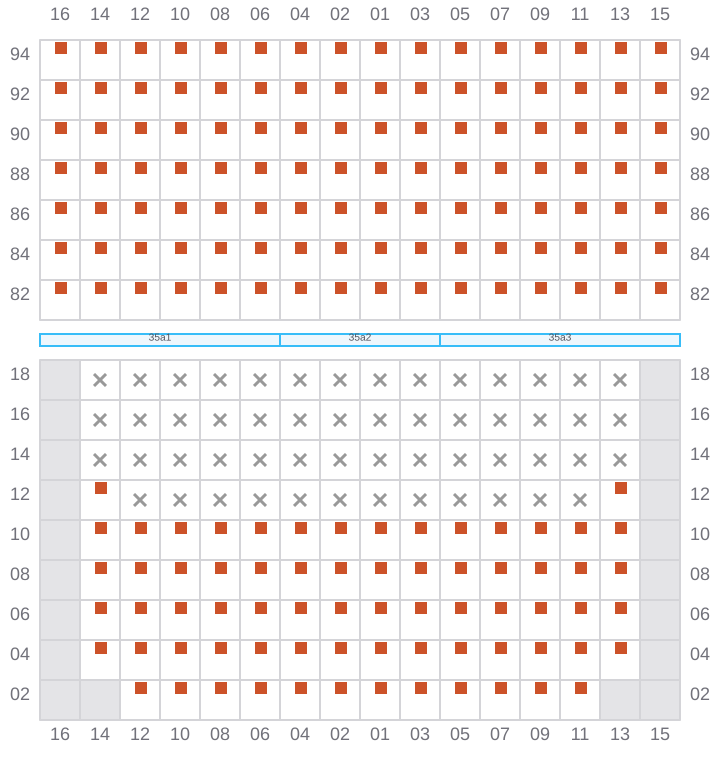

035
- →
![Bay 035 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b035.png?v=1716229607103)
037 (036)
- ←
- → / ?
![Bay 037 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b037.png?v=1716229607103)

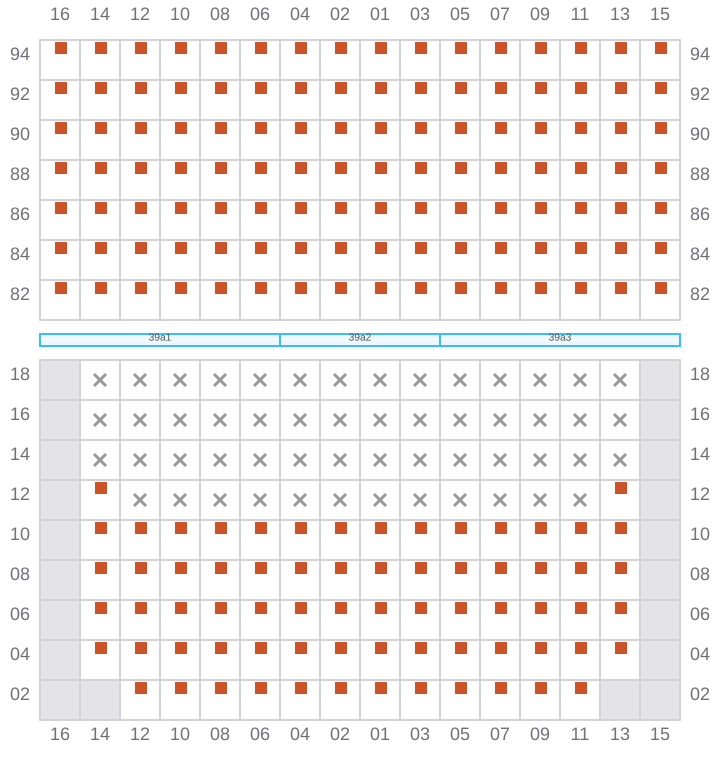

039
- →
![Bay 039 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b039.png?v=1716229607103)

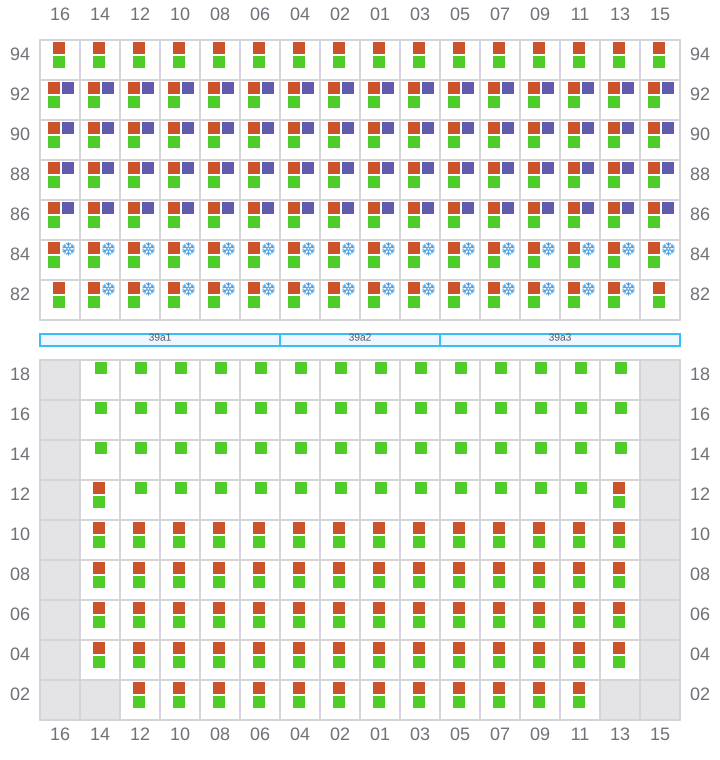

041 (040)
- ←
- → / ?
![Bay 041 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b041.png?v=1716229607103)

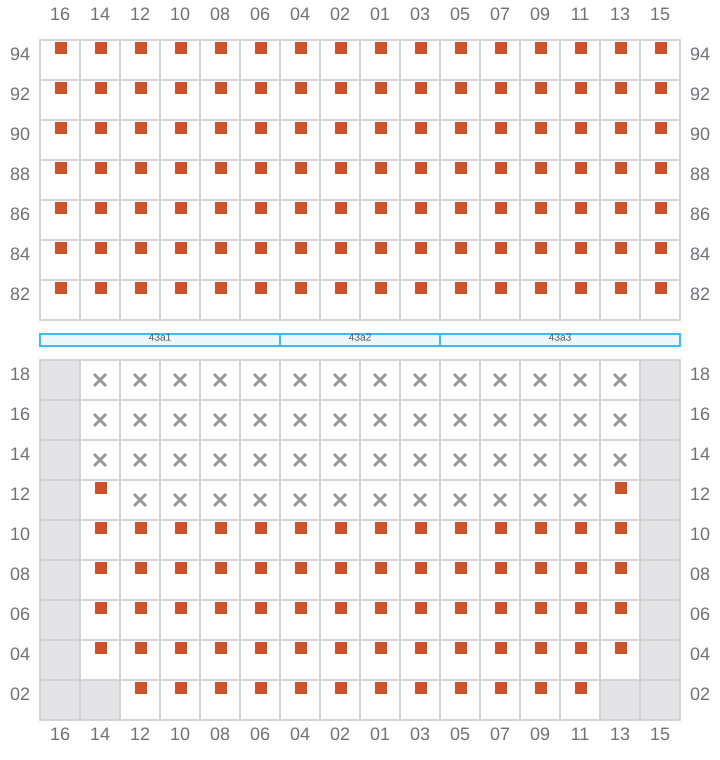

043
- →
![Bay 043 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b043.png?v=1716229607103)
045 (044)
- ←
- → / ?
![Bay 045 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b045.png?v=1716229607103)
047
- →
![Bay 047 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b047.png?v=1716229607103)

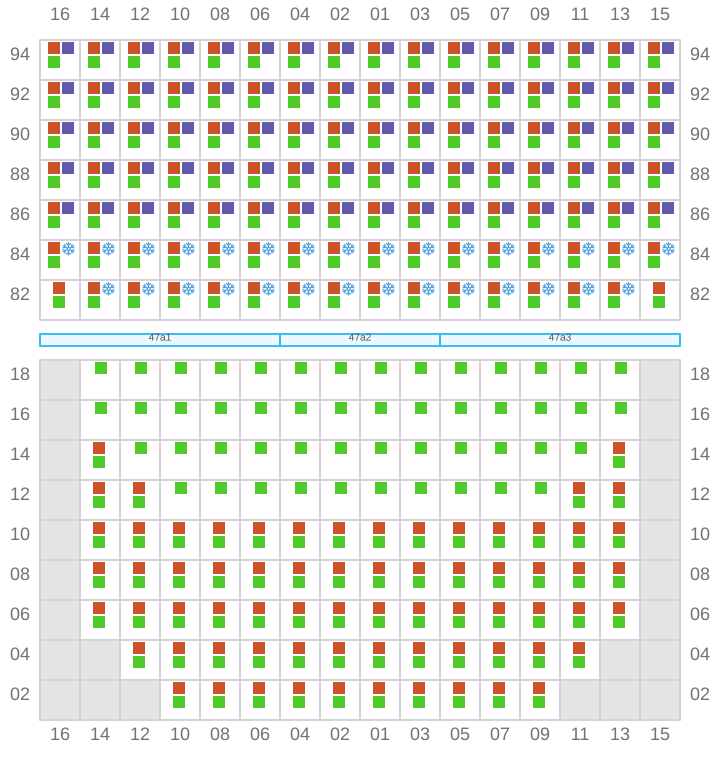

049 (048)
- ←
- → / ?
![Bay 049 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b049.png?v=1716229607103)

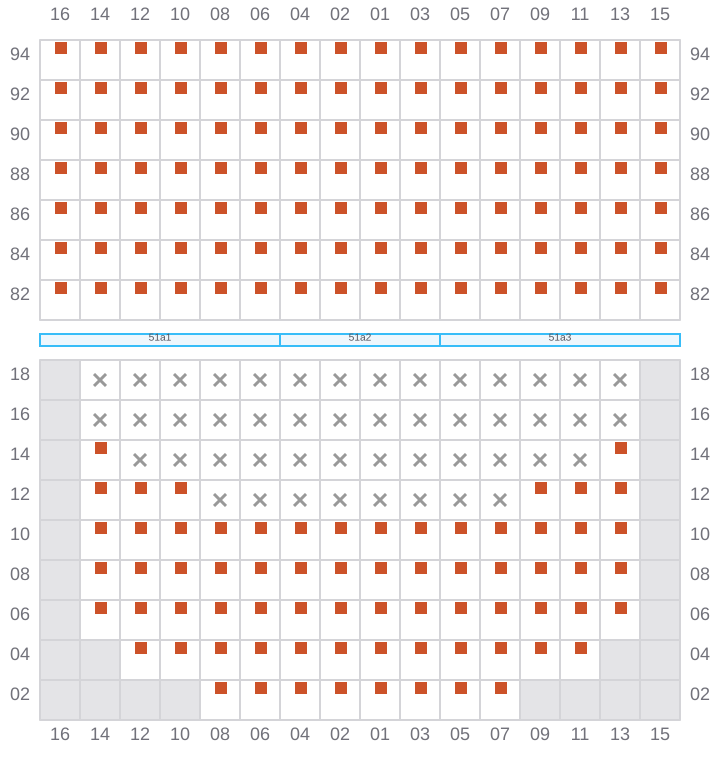

051
- →
![Bay 051 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b051.png?v=1716229607103)

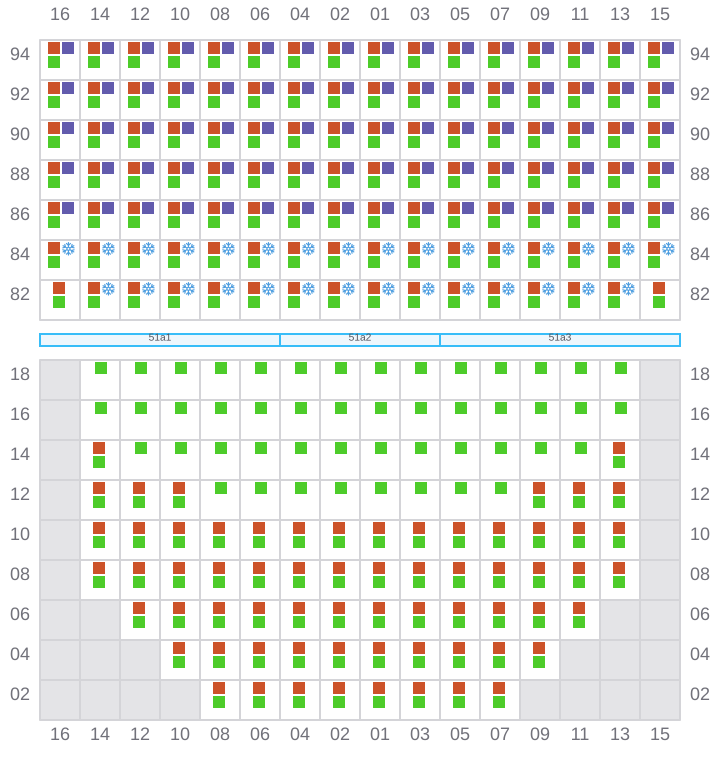

053 (052)
- ←
- → / ?
![Bay 053 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b053.png?v=1716229607103)

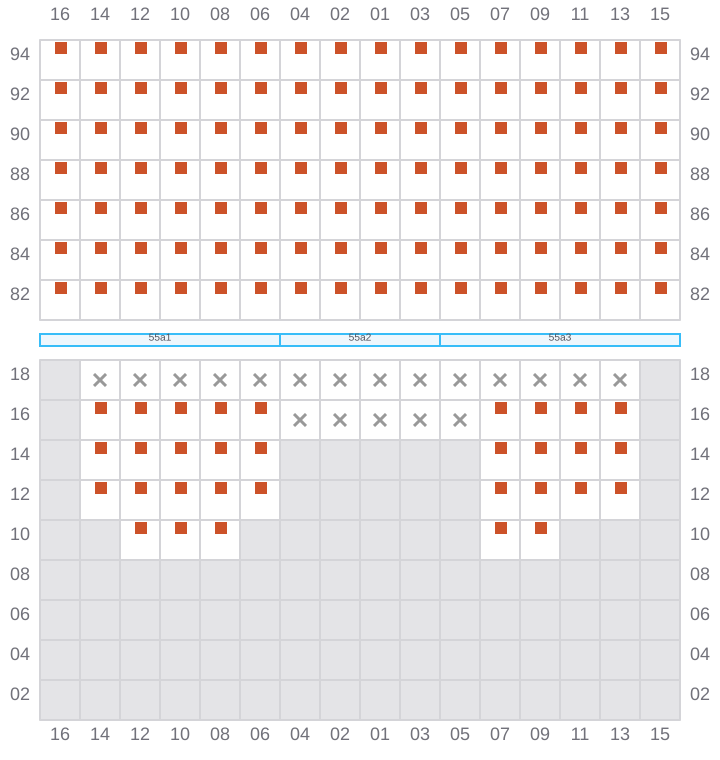

055
- →
![Bay 055 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b055.png?v=1716229607103)

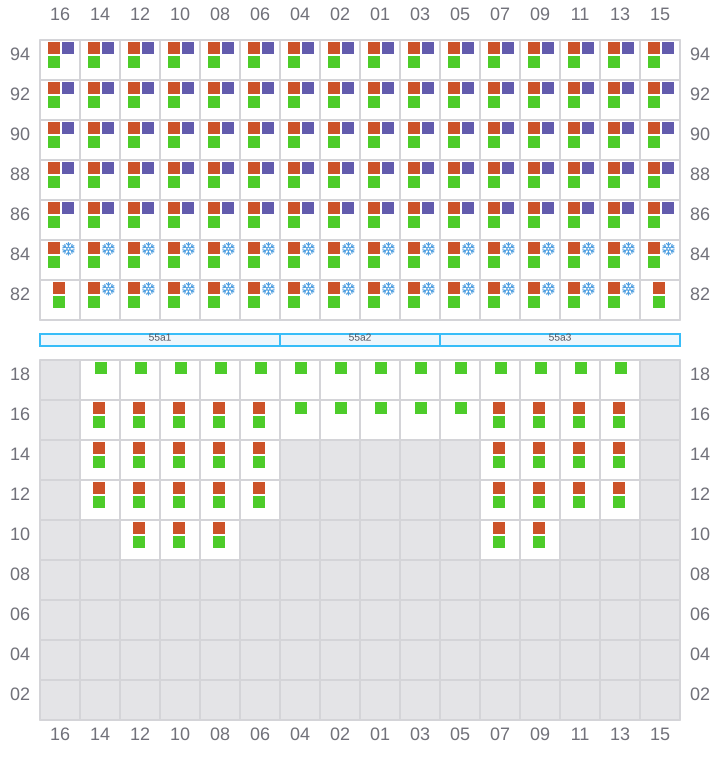

057 (056)
- ←
- → / ?
![Bay 057 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b057.png?v=1716229607103)

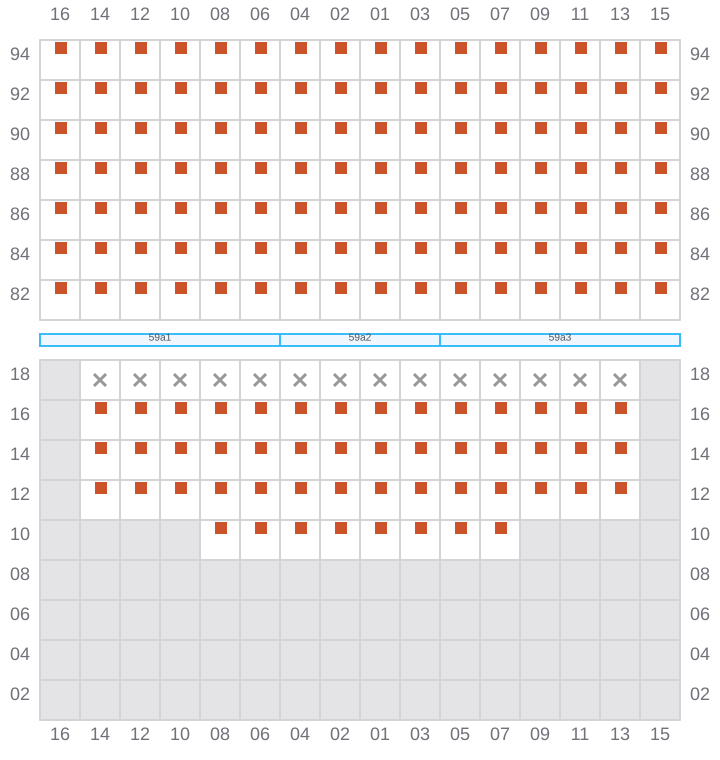

059
- →
![Bay 059 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b059.png?v=1716229607103)

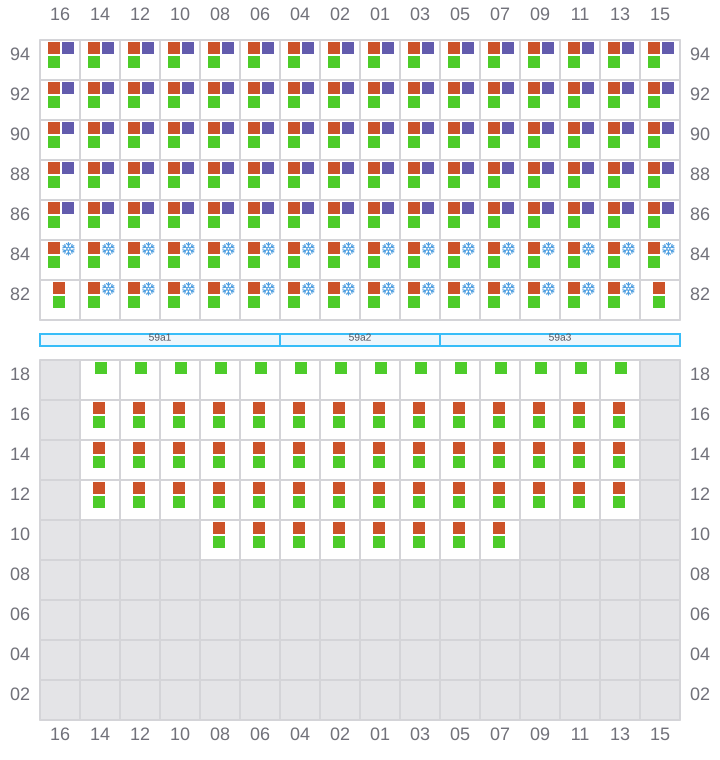

061 (060)
- ←
- → / ?
![Bay 061 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b061.png?v=1716229607103)

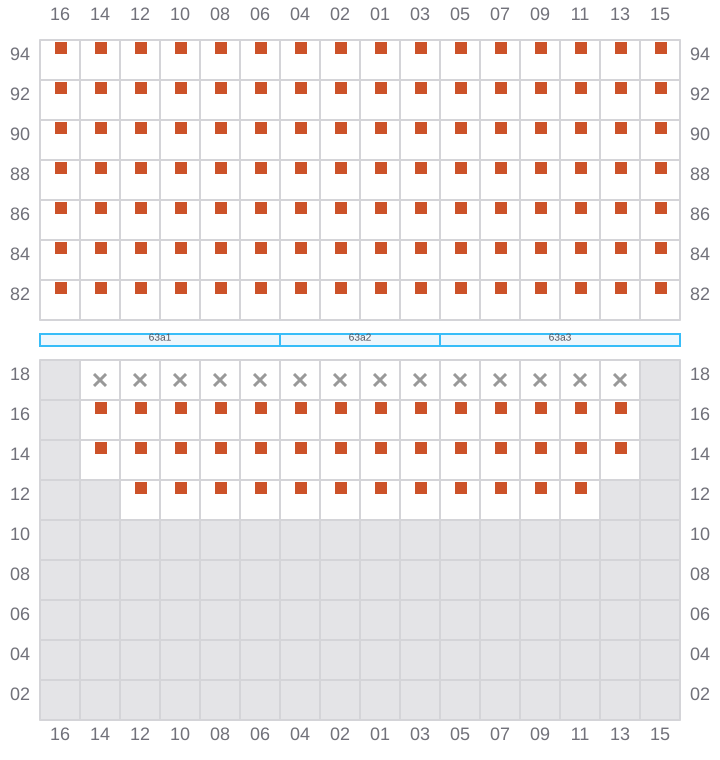

063
- →
![Bay 063 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b063.png?v=1716229607103)

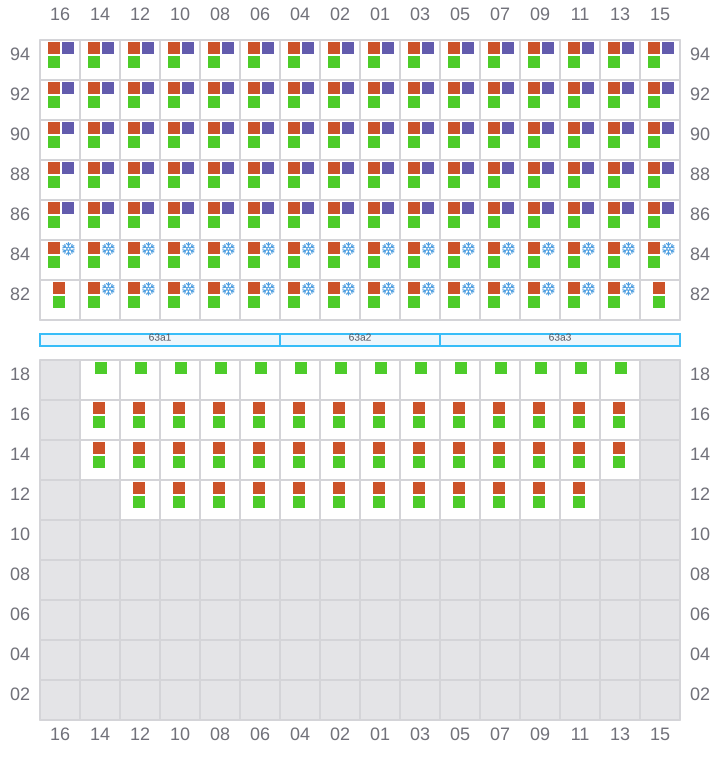

065 (064)
- ←
- → / ?
![Bay 065 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b065.png?v=1716229607103)

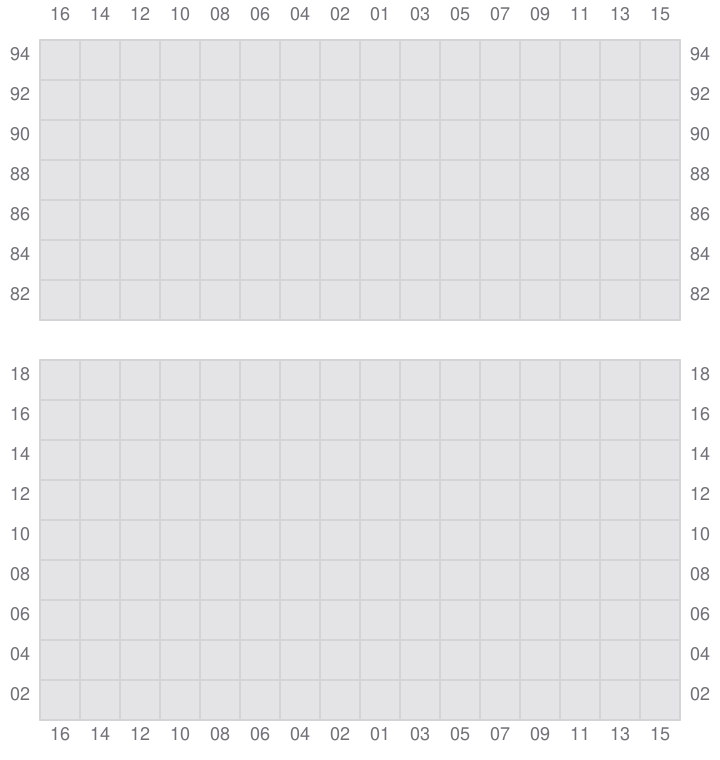

067
![Bay 067 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b067.png?v=1716229607103)

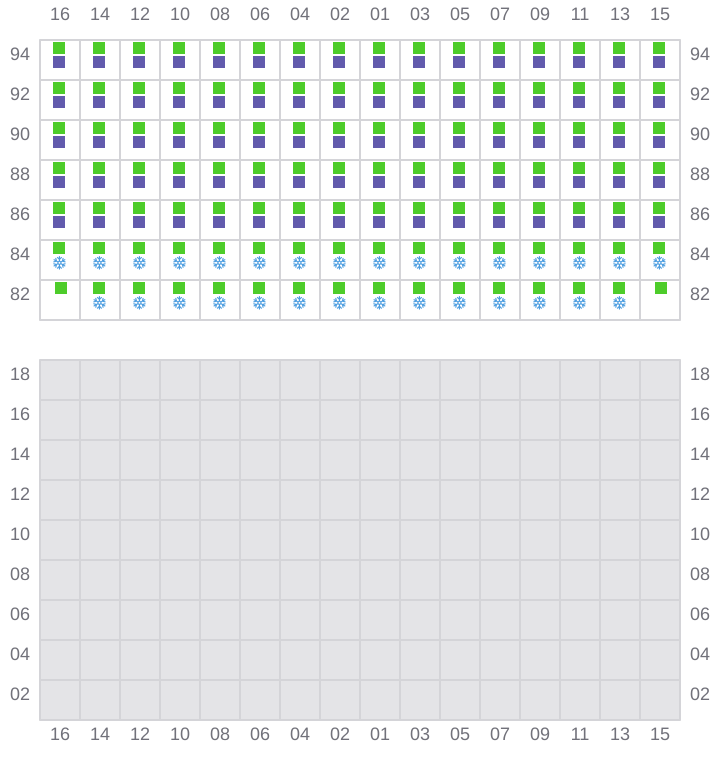

069 (068)
- ← / ?
- ← / ?
![Bay 069 view and slots of DIMITRA C](/vessel-images/2be79e1c-12d4-4cc3-81b7-b9553300d58f-b069.png?v=1716229607103)
