DIONYSSIS A
9356660 | TCA7129 | 9356660 by ********* Last update: Tue Jun 18 2024

General Info

Ship Name:DIONYSSIS A
IMO Code:9356660
Call Sign:TCA7129
Line Operator:9356660
Class Name for Sister Ships:MSL
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:039
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:1,022

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

Side view of DIONYSSIS A

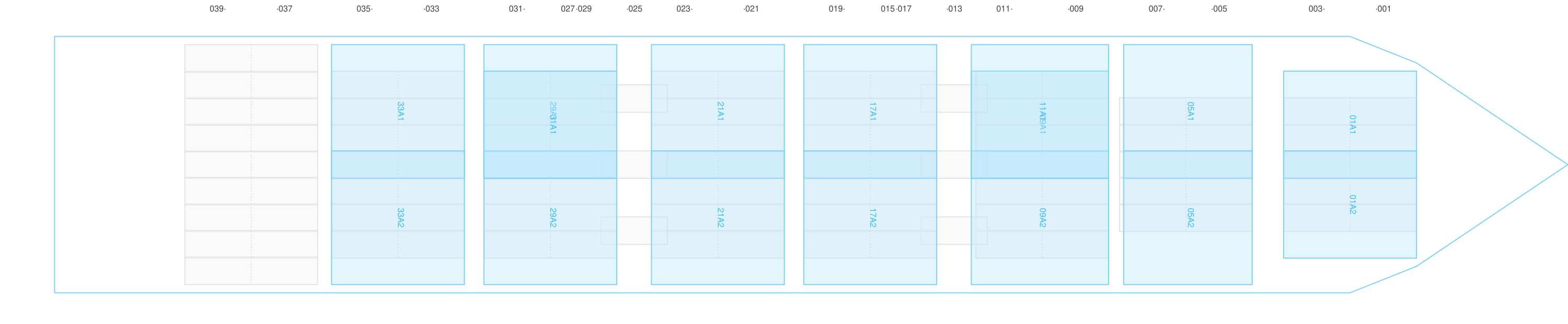

Hatch-Covers View

Deck view of DIONYSSIS A

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

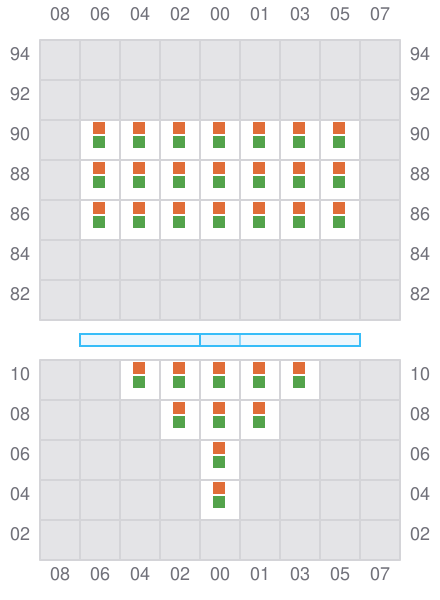

001 (002)

Bay 001 view and slots of DIONYSSIS A

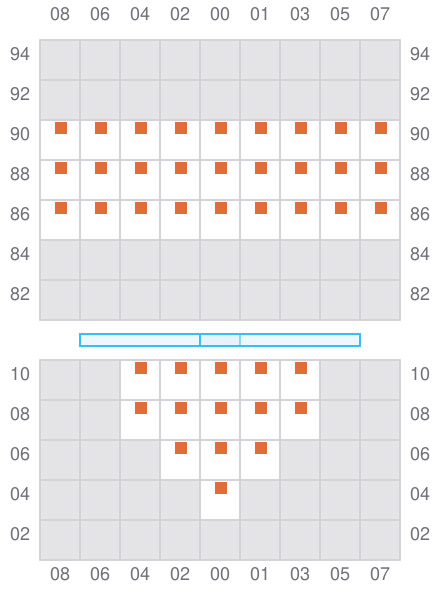

003

Bay 003 view and slots of DIONYSSIS A

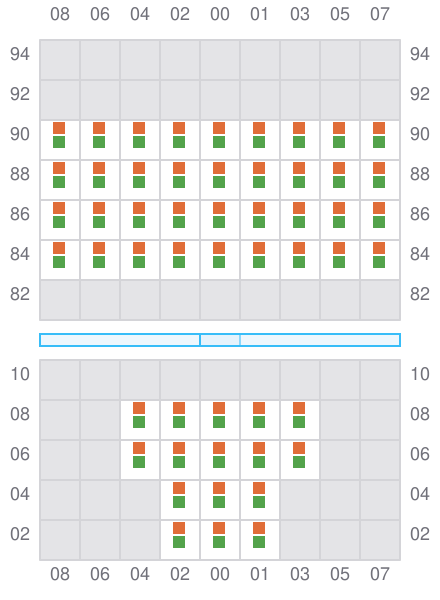

005 (006)

Bay 005 view and slots of DIONYSSIS A

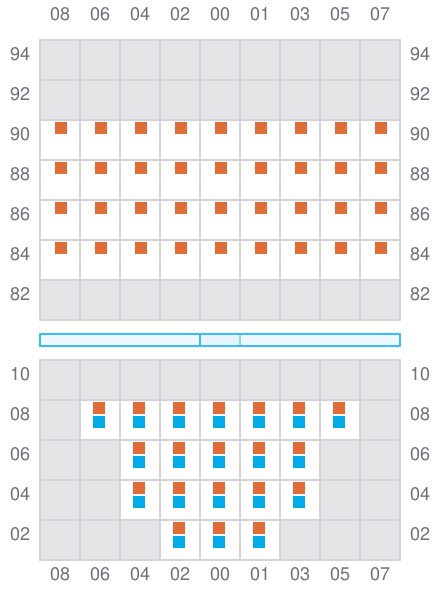

007

  • ? /
Bay 007 view and slots of DIONYSSIS A

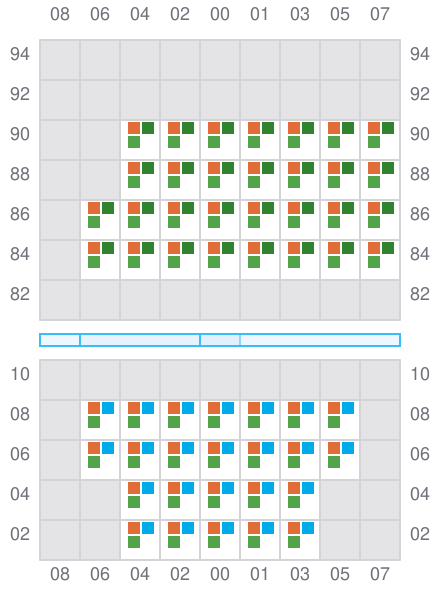

009 (010)

  • ? /
Bay 009 view and slots of DIONYSSIS A

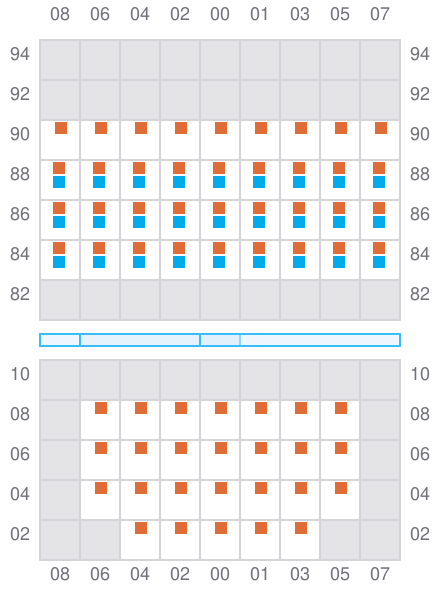

011

  • / ?
Bay 011 view and slots of DIONYSSIS A

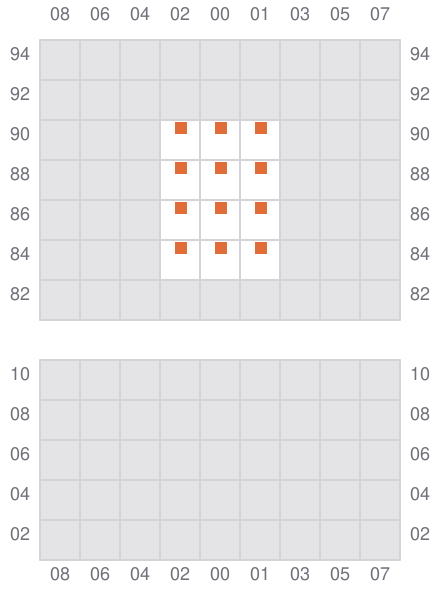

013

Bay 013 view and slots of DIONYSSIS A

015

Bay 015 view and slots of DIONYSSIS A

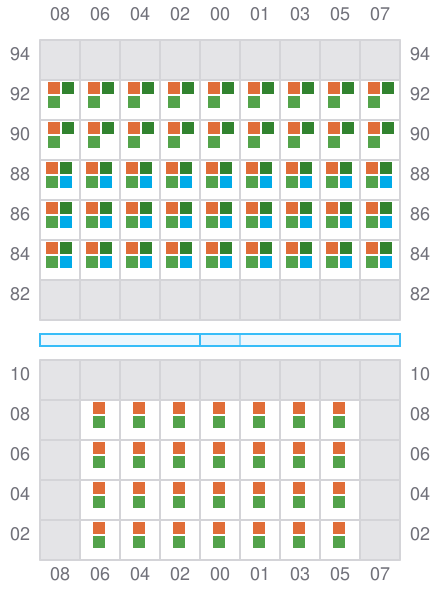

017 (018)

  • / ?
Bay 017 view and slots of DIONYSSIS A

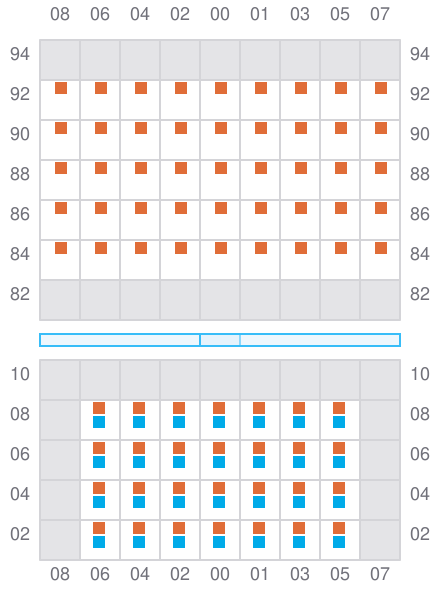

019

  • ? /
Bay 019 view and slots of DIONYSSIS A

021 (022)

  • ? /
Bay 021 view and slots of DIONYSSIS A

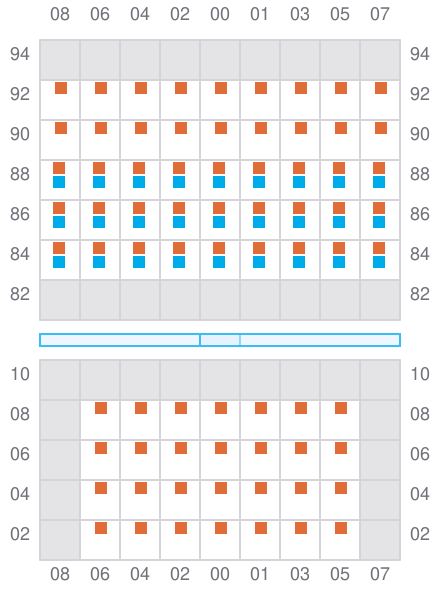

023

  • / ?
Bay 023 view and slots of DIONYSSIS A

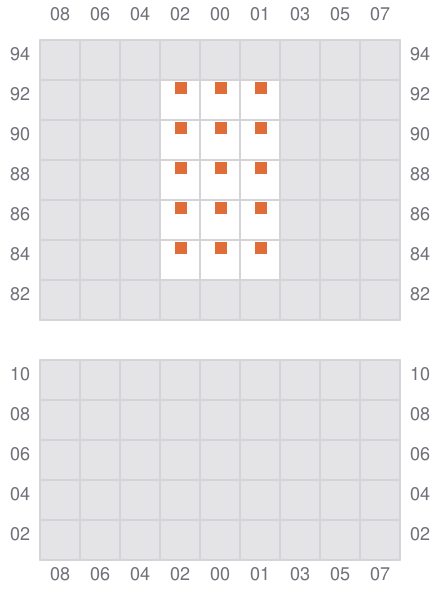

025

Bay 025 view and slots of DIONYSSIS A

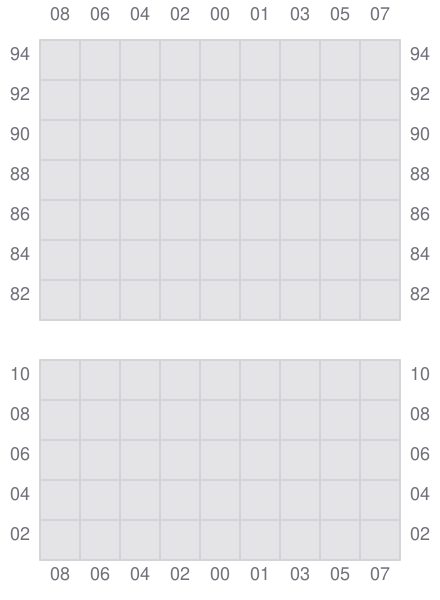

027

Bay 027 view and slots of DIONYSSIS A

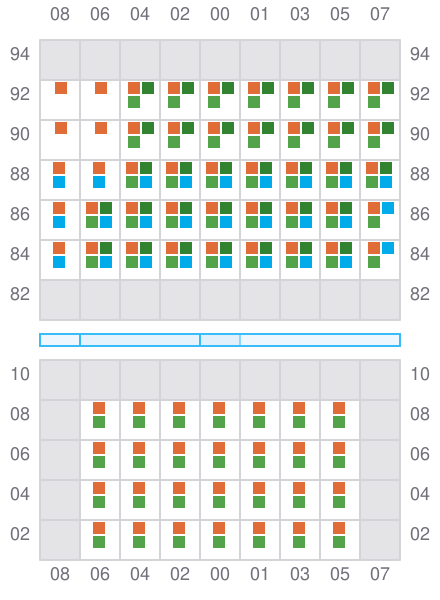

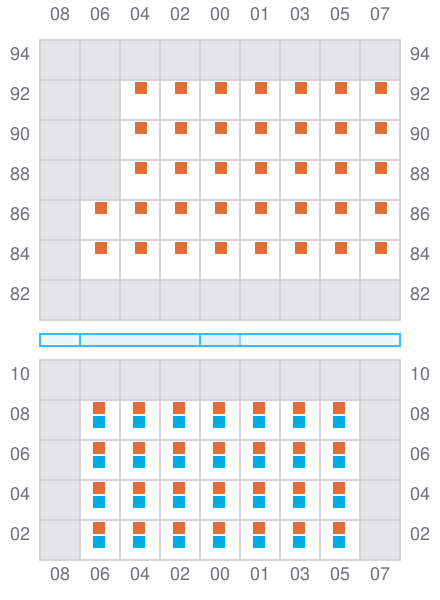

029 (030)

  • / ?
Bay 029 view and slots of DIONYSSIS A

031

  • ? /
Bay 031 view and slots of DIONYSSIS A

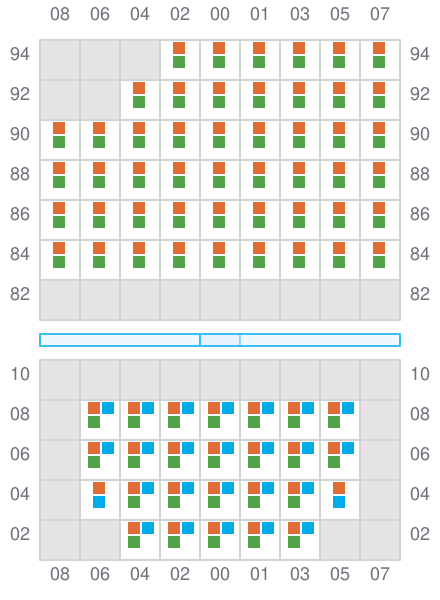

033 (034)

  • ? /
Bay 033 view and slots of DIONYSSIS A

035

  • / ?
Bay 035 view and slots of DIONYSSIS A

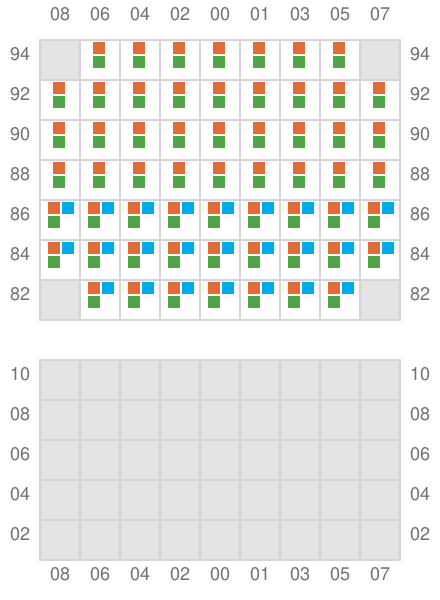

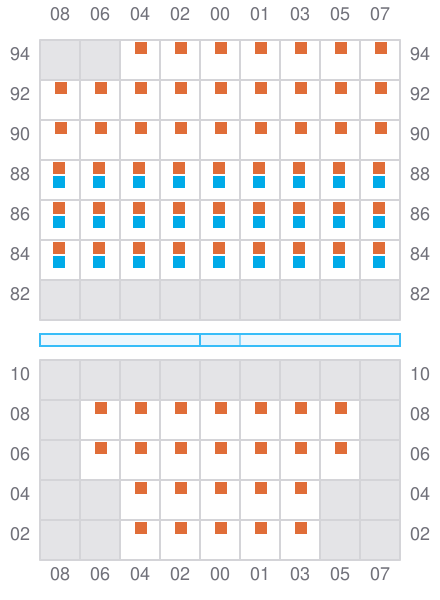

037 (038)

  • / ?
Bay 037 view and slots of DIONYSSIS A

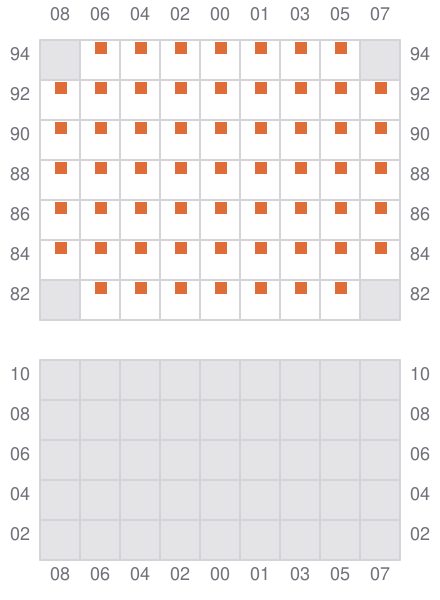

039

Bay 039 view and slots of DIONYSSIS A
