DJILOR
9118305 | 6WMC | 9118305 by ********* Last update: Tue Apr 09 2024
General Info
Ship Name:DJILOR
IMO Code:9118305
Call Sign:6WMC
Line Operator:9118305
Class Name for Sister Ships:CMACGM
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:061
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,124
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

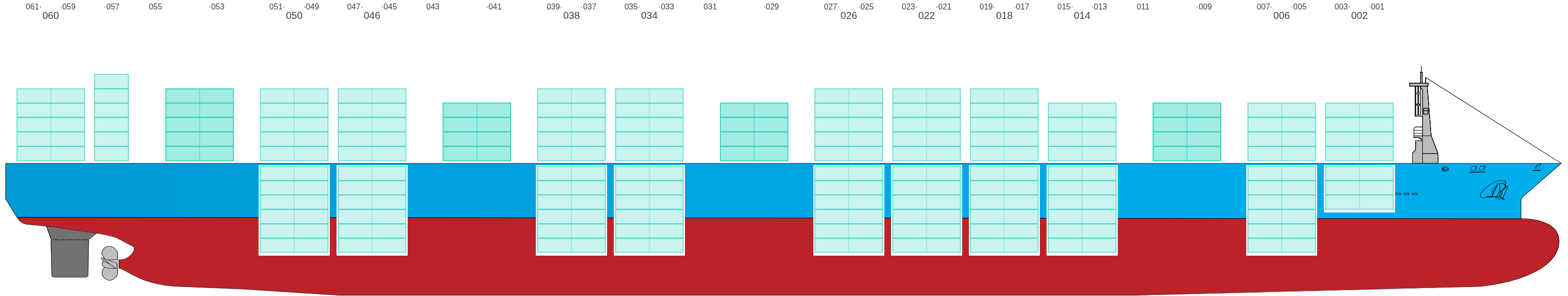

Side View
![Side view of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-sideView.png?v=1712683266082)

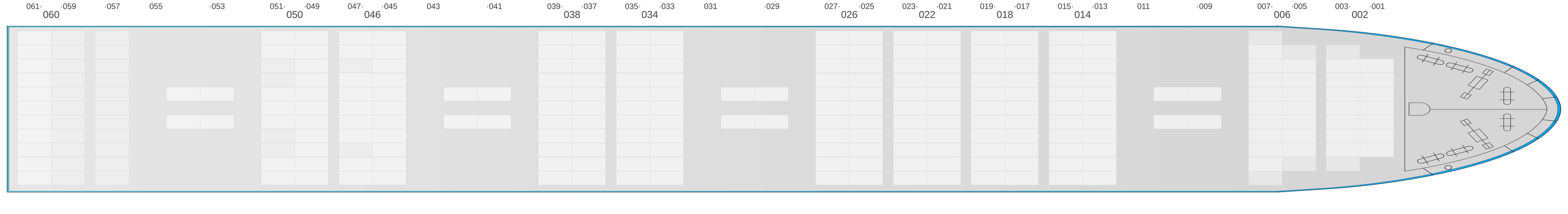

Hatch-Covers View
![Deck view of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-deckView.png?v=1712683266082)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

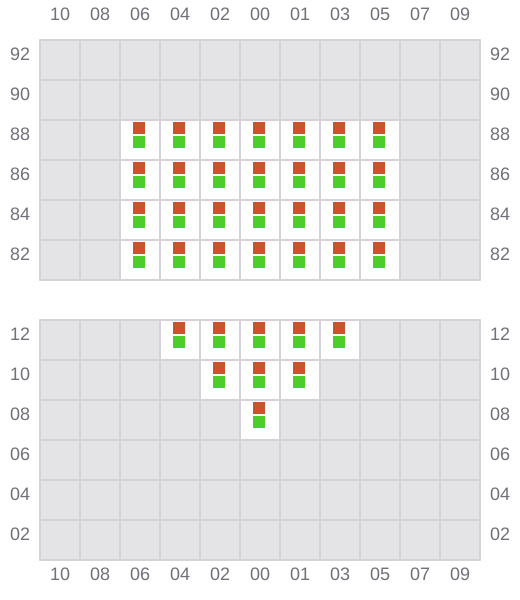

001 (002)
- →
![Bay 001 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b001.png?v=1712683266082)

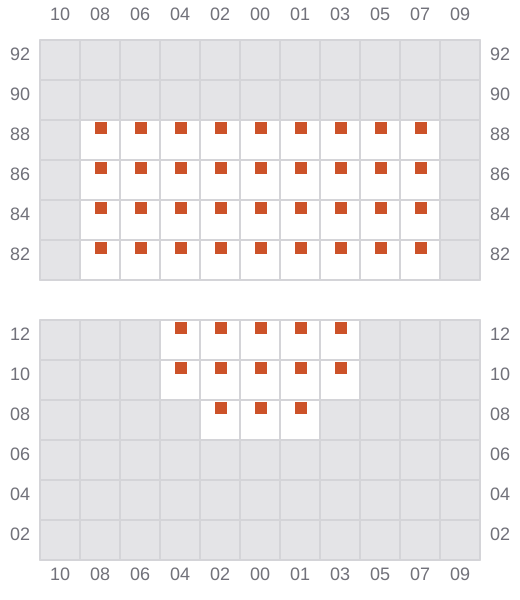

003
- ←
![Bay 003 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b003.png?v=1712683266082)

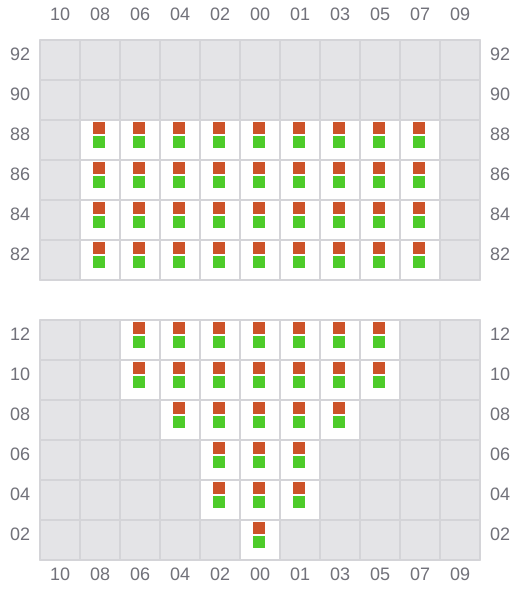

005 (006)
- →
![Bay 005 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b005.png?v=1712683266082)

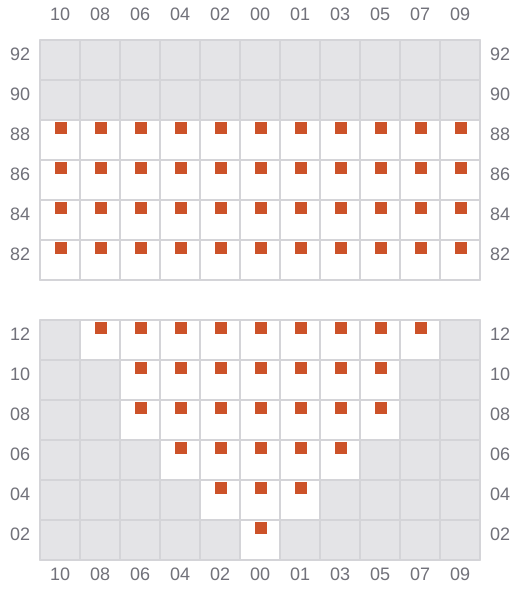

007
- ←
![Bay 007 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b007.png?v=1712683266082)
009 (010)
- → / ?
![Bay 009 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b009.png?v=1712683266082)
011
![Bay 011 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b011.png?v=1712683266082)

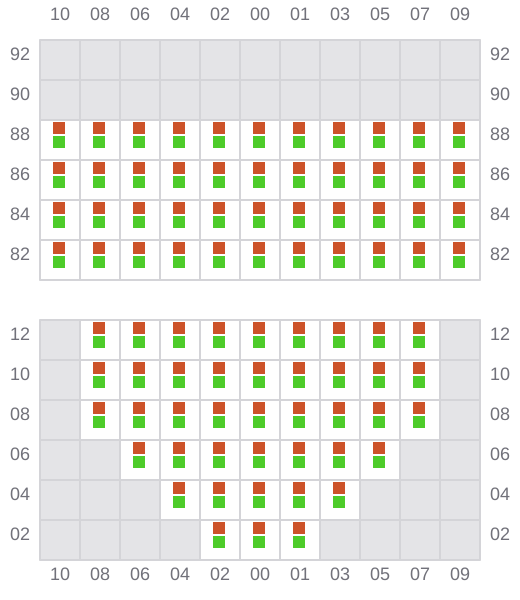

013 (014)
- →
![Bay 013 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b013.png?v=1712683266082)

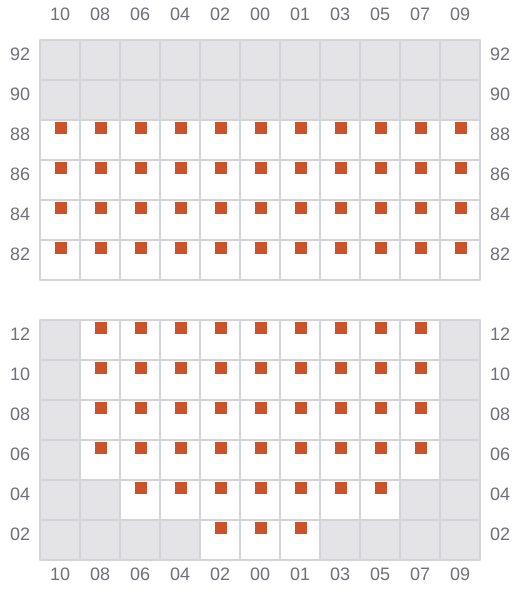

015
- ←
![Bay 015 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b015.png?v=1712683266082)

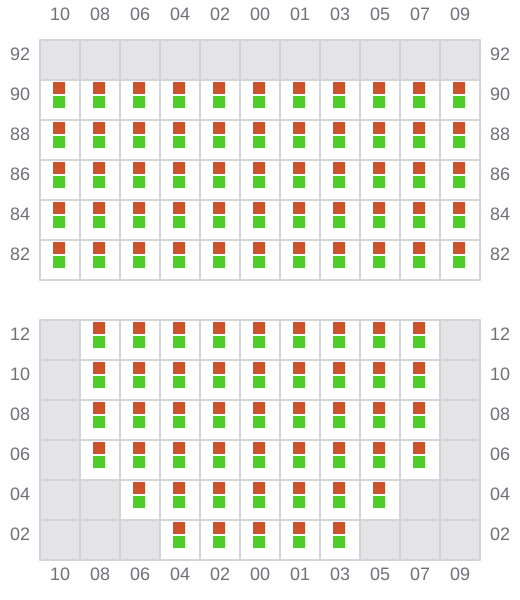

017 (018)
- →
![Bay 017 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b017.png?v=1712683266082)
019
- ←
![Bay 019 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b019.png?v=1712683266082)
021 (022)
- →
![Bay 021 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b021.png?v=1712683266082)

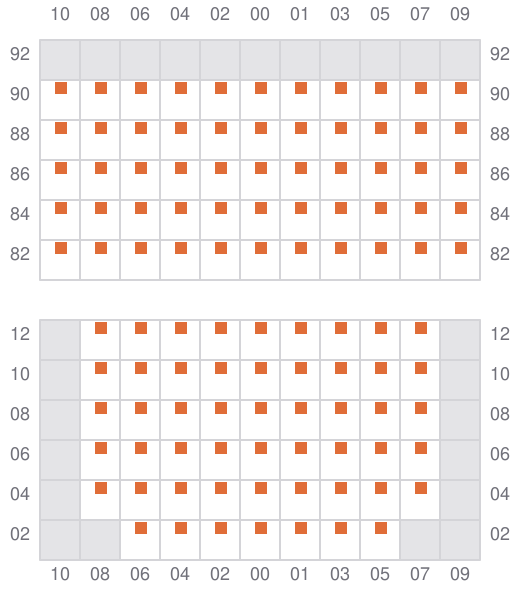

023
- ←
![Bay 023 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b023.png?v=1712683266082)

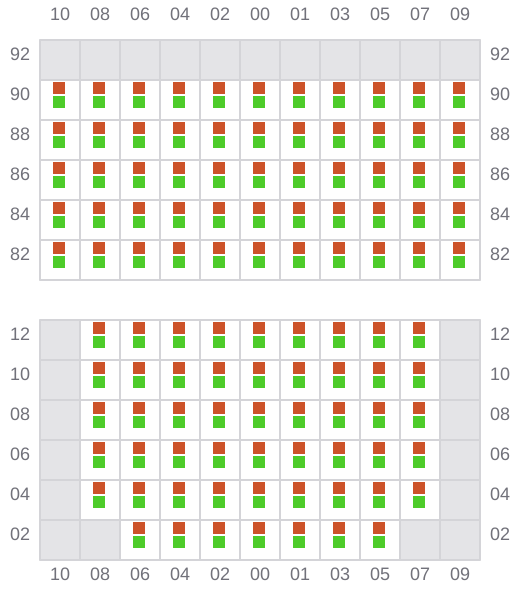

025 (026)
- →
![Bay 025 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b025.png?v=1712683266082)

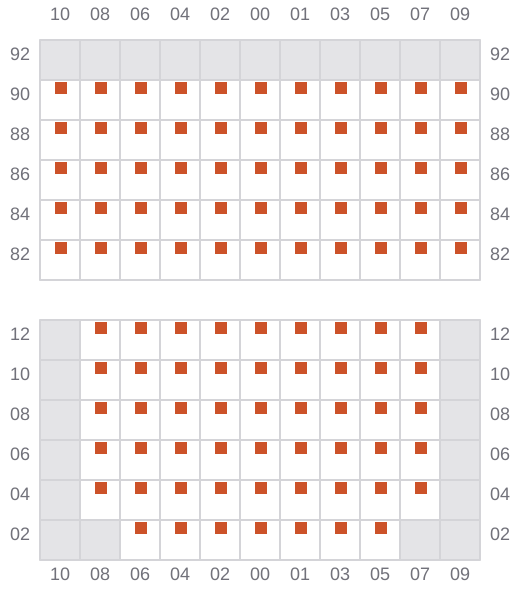

027
- ←
![Bay 027 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b027.png?v=1712683266082)
029 (030)
- → / ?
![Bay 029 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b029.png?v=1712683266082)
031
![Bay 031 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b031.png?v=1712683266082)
033 (034)
- →
![Bay 033 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b033.png?v=1712683266082)
035
- ←
![Bay 035 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b035.png?v=1712683266082)

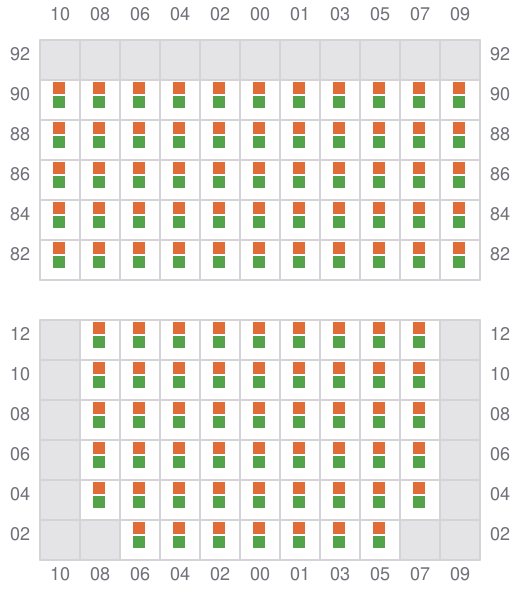

037 (038)
- →
![Bay 037 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b037.png?v=1712683266082)
039
- ←
![Bay 039 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b039.png?v=1712683266082)

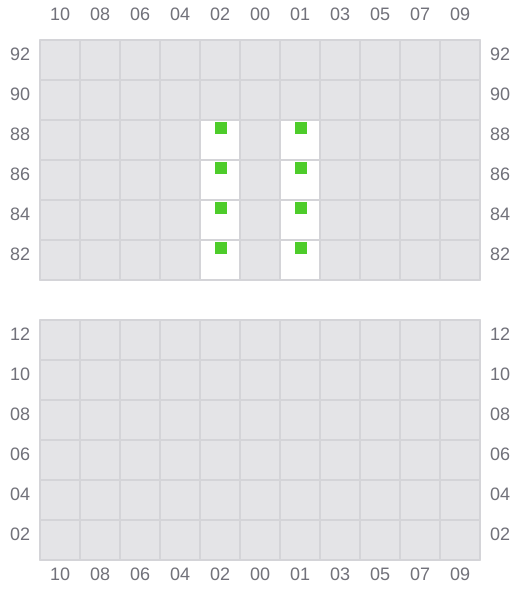

041 (042)
- → / ?
![Bay 041 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b041.png?v=1712683266082)
043
![Bay 043 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b043.png?v=1712683266082)

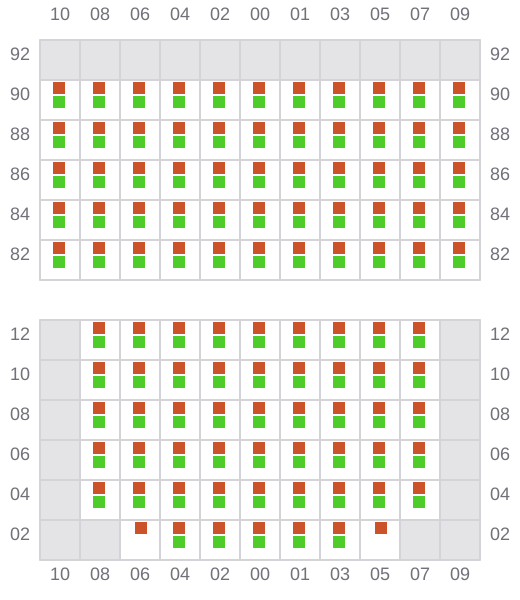

045 (046)
- →
![Bay 045 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b045.png?v=1712683266082)

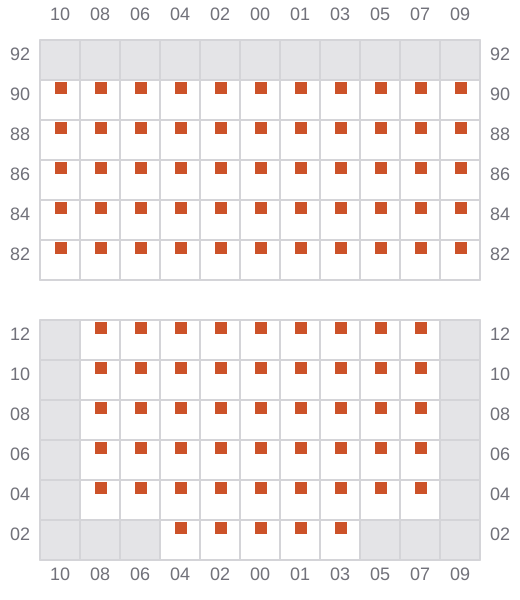

047
- ←
![Bay 047 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b047.png?v=1712683266082)

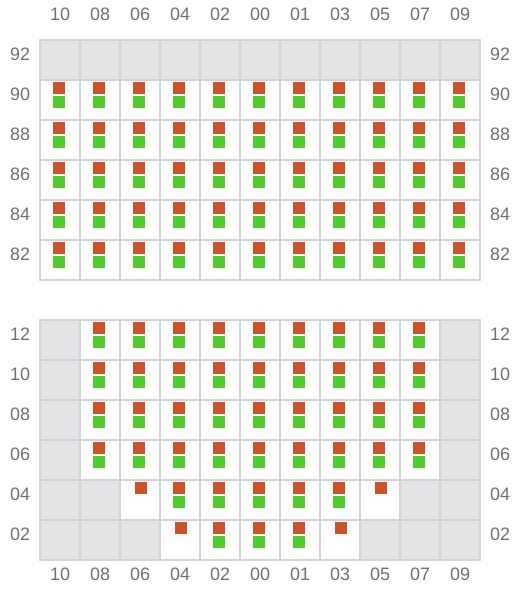

049 (050)
- →
![Bay 049 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b049.png?v=1712683266082)

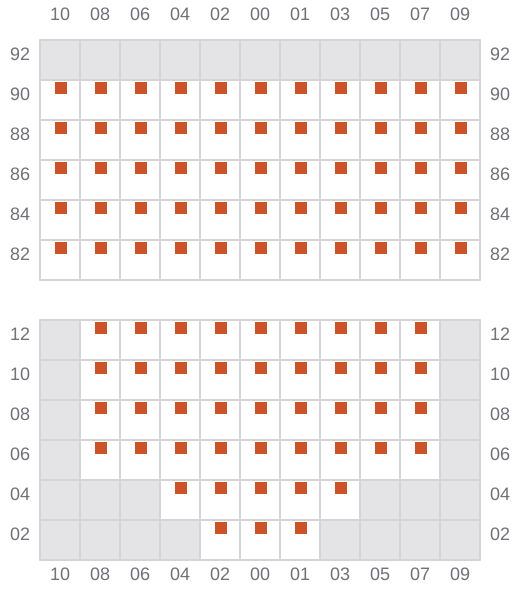

051
- ←
![Bay 051 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b051.png?v=1712683266082)

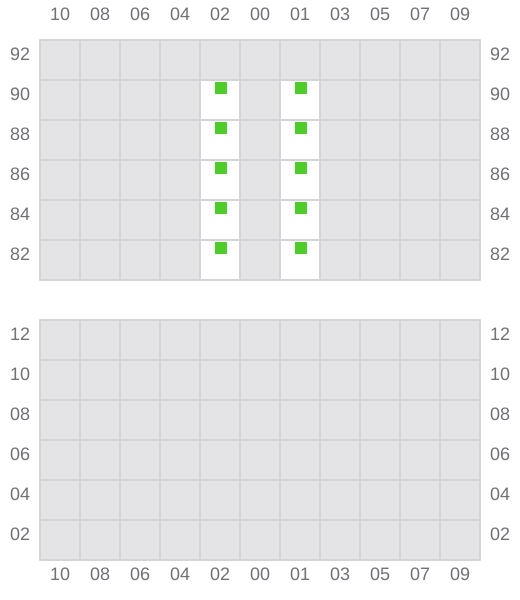

053 (054)
- → / ?
![Bay 053 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b053.png?v=1712683266082)

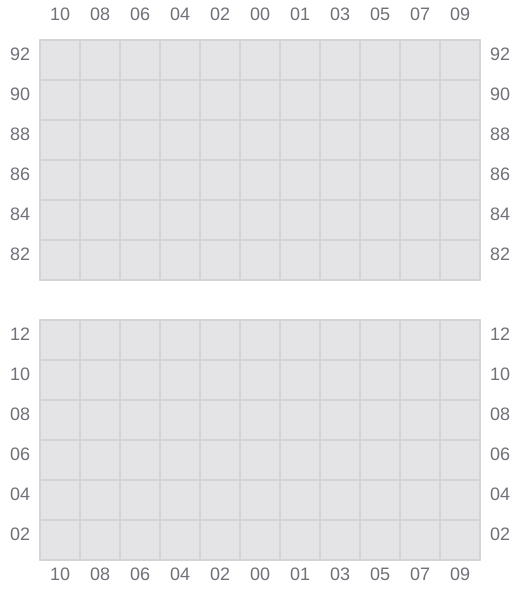

055
![Bay 055 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b055.png?v=1712683266082)

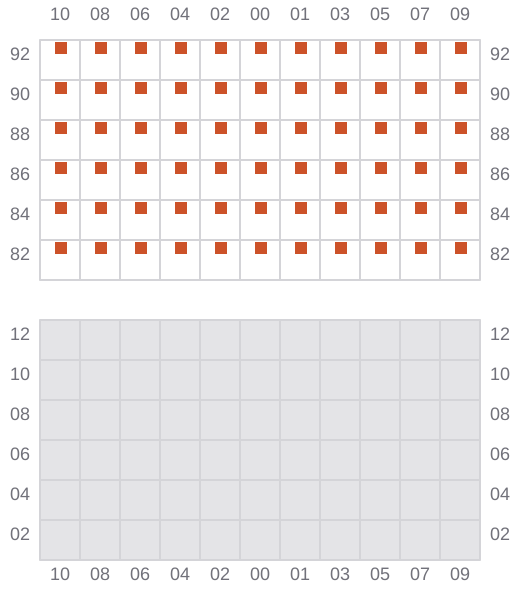

057
- → / ?
![Bay 057 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b057.png?v=1712683266082)

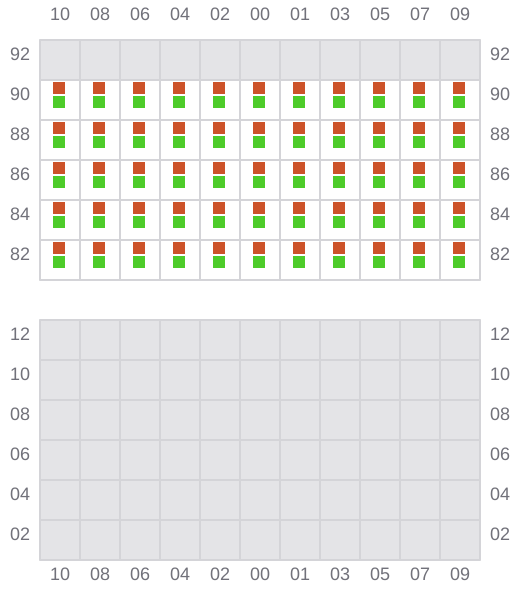

059 (060)
- → / ?
![Bay 059 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b059.png?v=1712683266082)

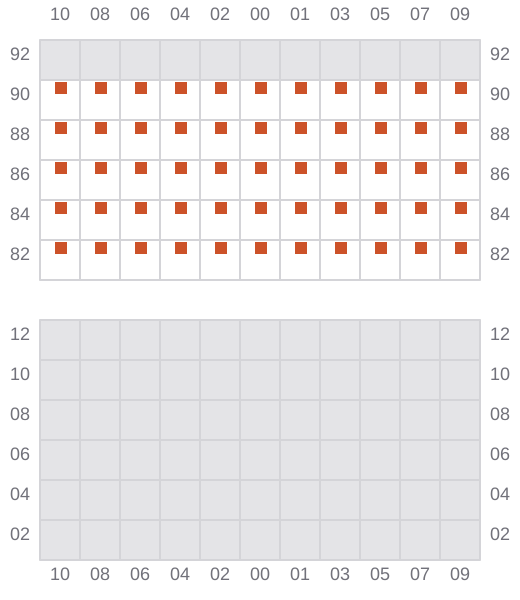

061
- ← / ?
![Bay 061 view and slots of DJILOR](/vessel-images/a6a05f3e-fecb-4759-8943-bd62e4ca2f97-b061.png?v=1712683266082)
