DOA GLORY
9125152 | 3FDF6 | 9125152 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:DOA GLORY
IMO Code:9125152
Call Sign:3FDF6
Line Operator:9125152
Class Name for Sister Ships:2HE
Year Built:1995
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:023
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:80
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:421
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-sideView.png?v=1709842320515)
Hatch-Covers View
![Deck view of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-deckView.png?v=1709842320515)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

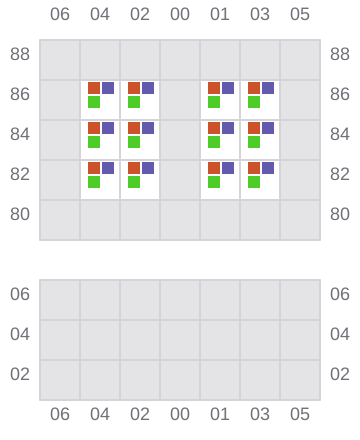

001 (002)
- → / ?
![Bay 001 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b001.png?v=1709842320515)

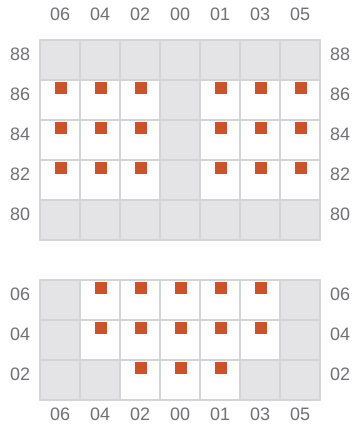

003
- ← / →
![Bay 003 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b003.png?v=1709842320515)

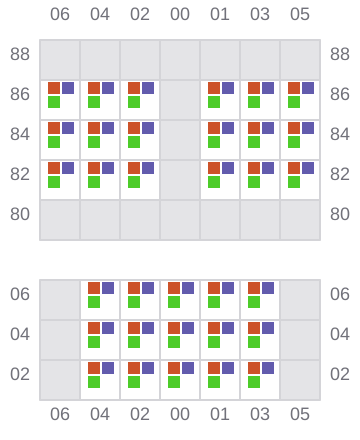

005 (006)
- →
![Bay 005 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b005.png?v=1709842320515)

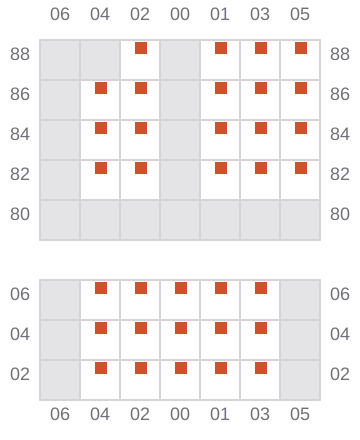

007
- ← / →
![Bay 007 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b007.png?v=1709842320515)

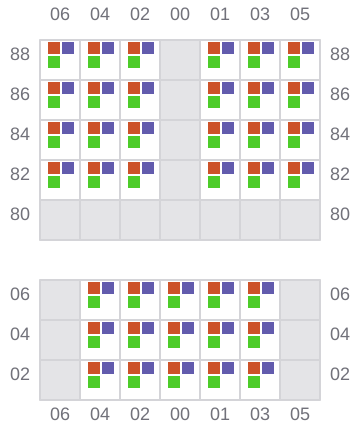

009 (010)
- →
![Bay 009 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b009.png?v=1709842320515)
011
- ← / →
![Bay 011 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b011.png?v=1709842320515)

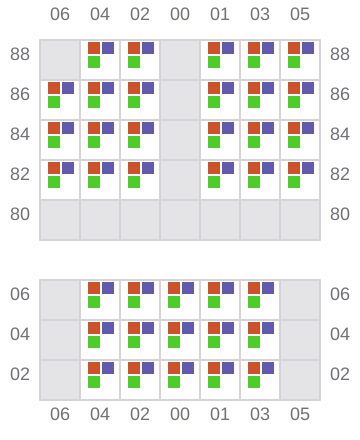

013 (014)
- →
![Bay 013 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b013.png?v=1709842320515)

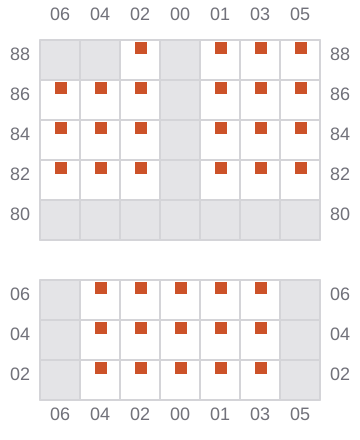

015
- ←
![Bay 015 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b015.png?v=1709842320515)

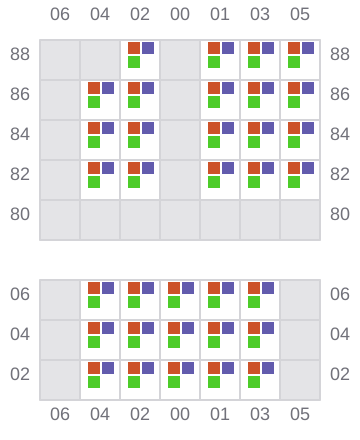

017 (018)
- →
![Bay 017 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b017.png?v=1709842320515)

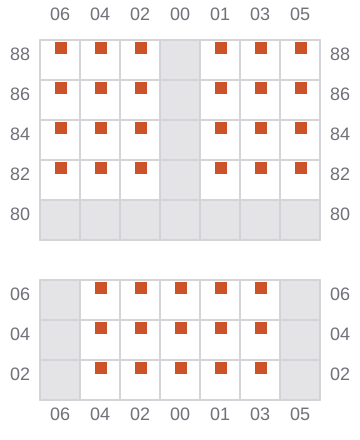

019
- ← / ?
![Bay 019 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b019.png?v=1709842320515)

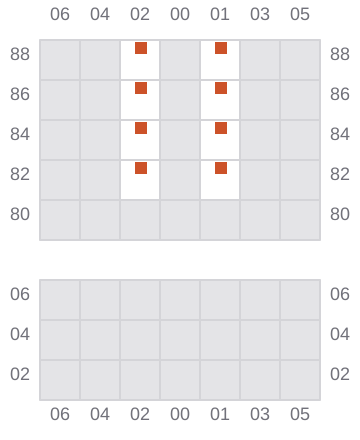

021
![Bay 021 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b021.png?v=1709842320515)

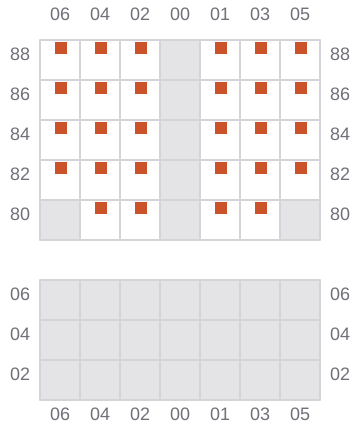

023
![Bay 023 view and slots of DOA GLORY](/vessel-images/5840933c-9129-4935-ae20-bae95b13db06-b023.png?v=1709842320515)
