DODO
8322040 | 5VFO4 | 8322040 by *********** Last update: Sun Mar 03 2024
General Info
Ship Name:DODO
IMO Code:8322040
Call Sign:5VFO4
Line Operator:8322040
Class Name for Sister Ships:53Q
Year Built:1985
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:027
Max ISO Row:06
Center Line Row:Yes
Max Above ISO Tier:88
Min Above ISO Tier:82
Max Below ISO Tier:06
Min Below ISO Tier:02
Total TEU:405
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

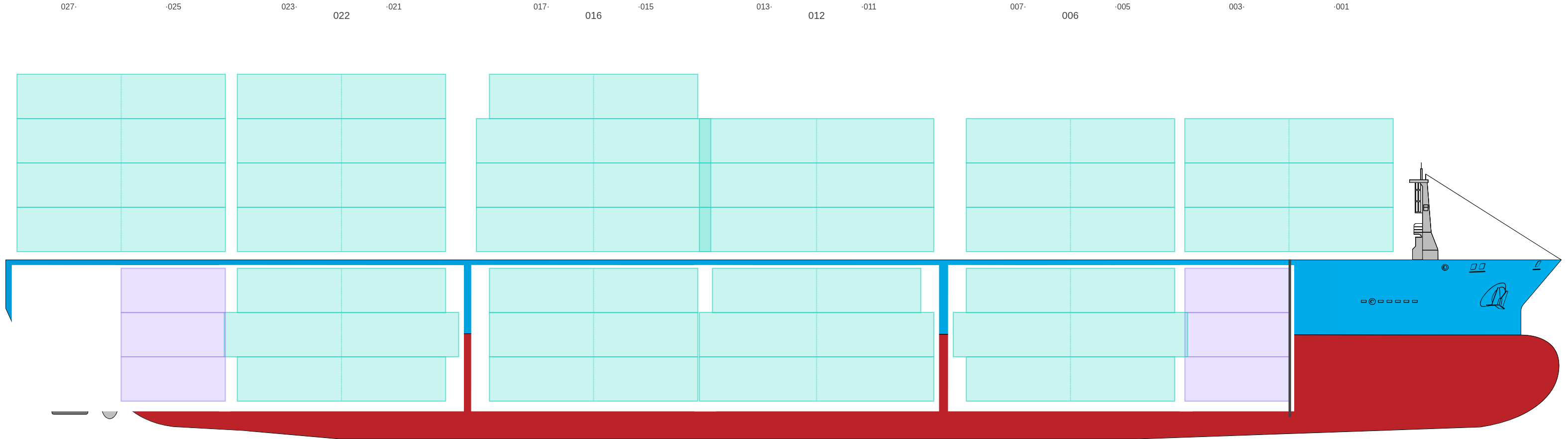

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

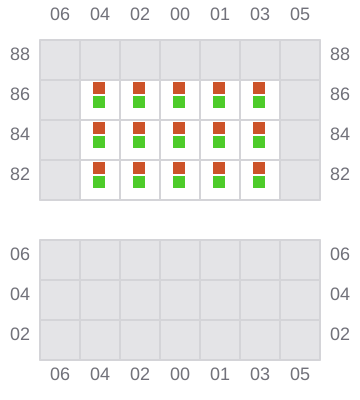

001 (002)
- → / ?

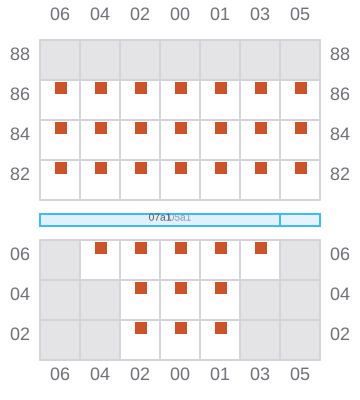

003
- ← / ?

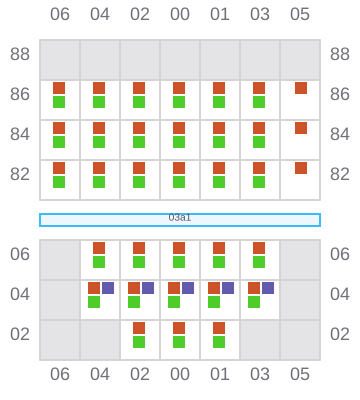

005 (006)
- →
007
- ←
- → / ?
009

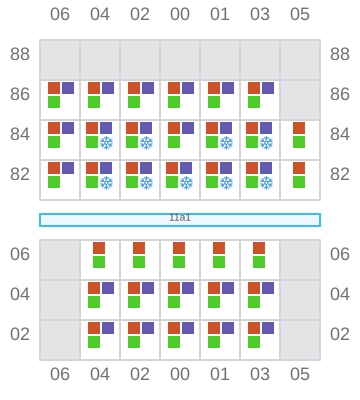

011 (012)
- →
- ← / ?

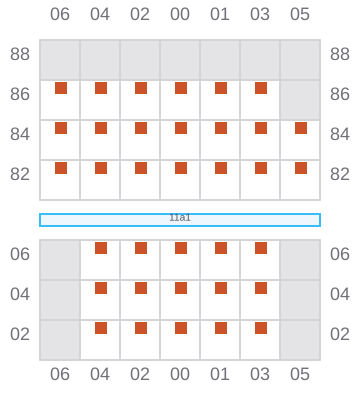

013
- ←

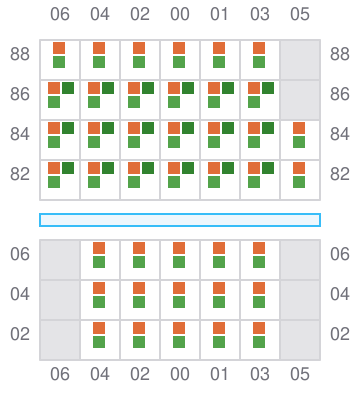

015 (016)
- →

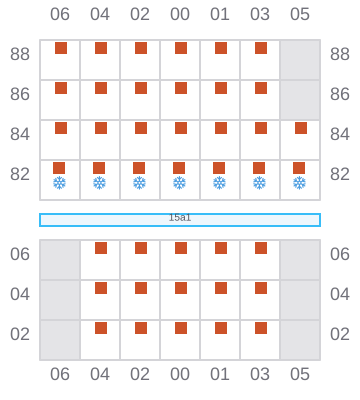

017
- ←
- → / ?

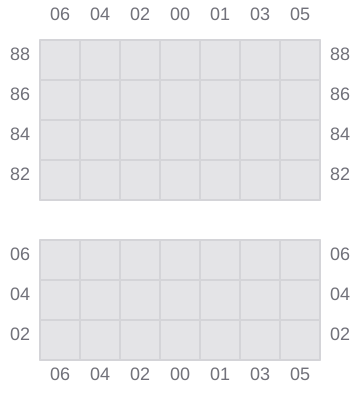

019

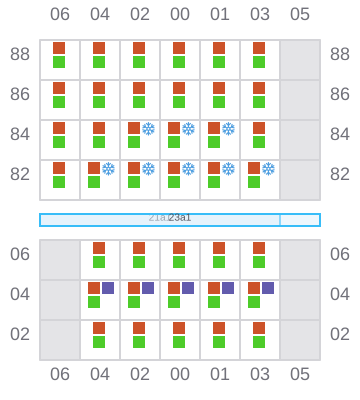

021 (022)
- →
- ← / ?

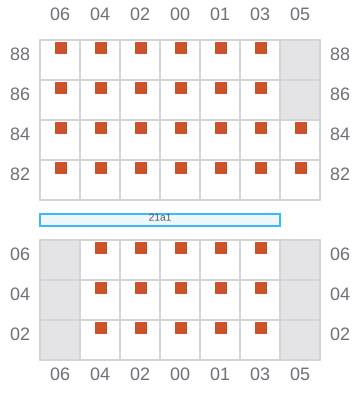

023
- ←

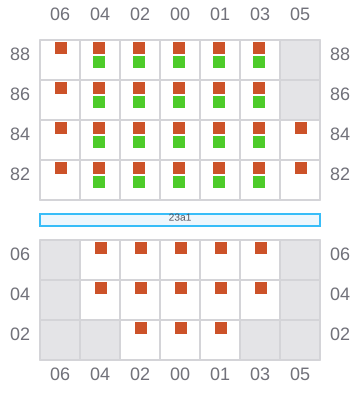

025 (026)
- → / ?

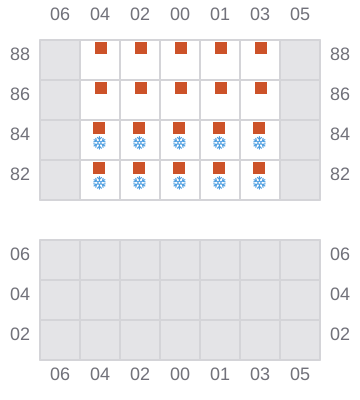

027
- ← / ?
- → / ?
