DOLE CHILE
9185281 | C6QX4 | DOLE by ********* Last update: Wed Jul 03 2024
General Info
Ship Name:DOLE CHILE
IMO Code:9185281
Call Sign:C6QX4
Line Operator:DOLE
Class Name for Sister Ships:DOLE
Year Built:1999
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:039
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:86
Min Above ISO Tier:82
Max Below ISO Tier:24
Min Below ISO Tier:02
Total TEU:2,020
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

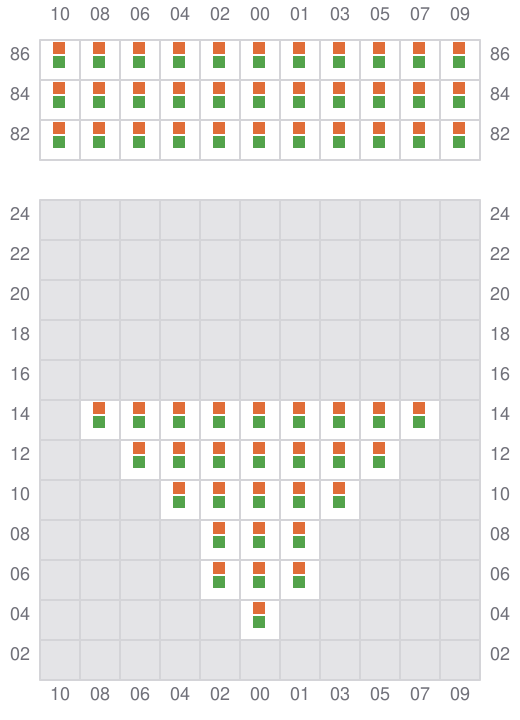

001 (002)
- →

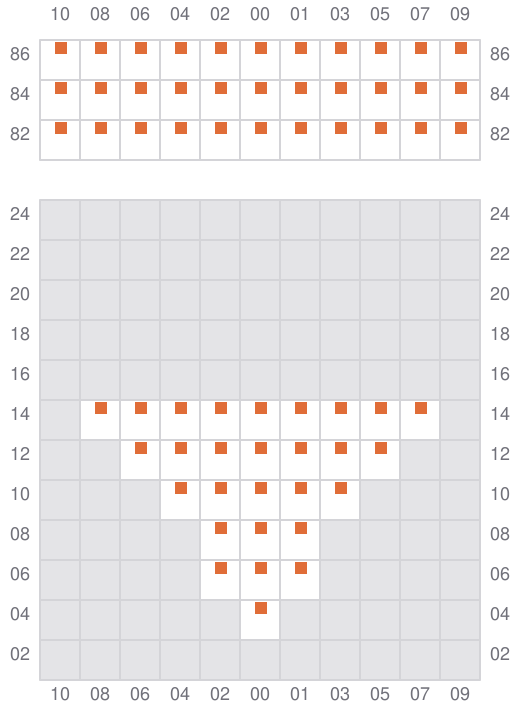

003
- ←

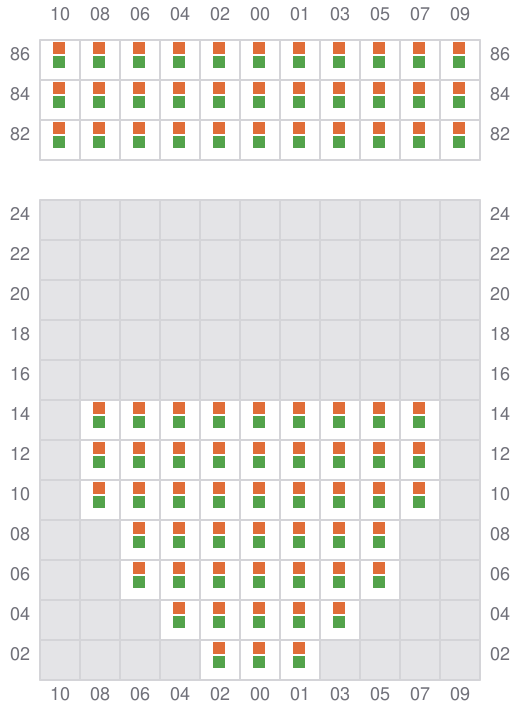

005 (006)
- →

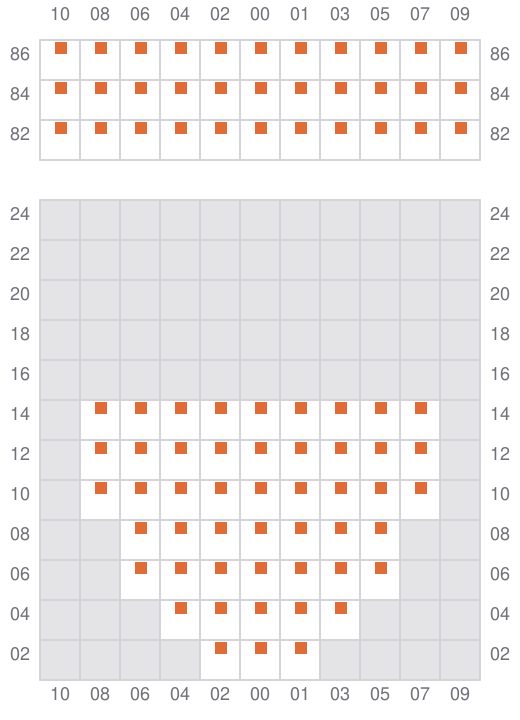

007
- ←

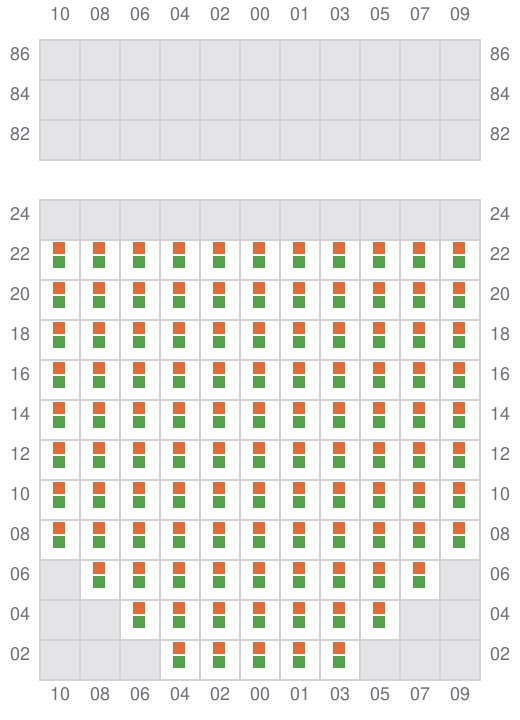

009 (010)
- ? / →

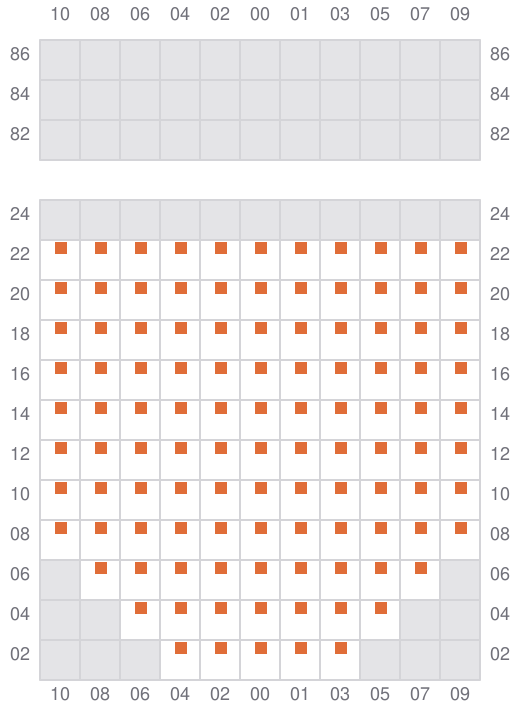

011
- ? / ←

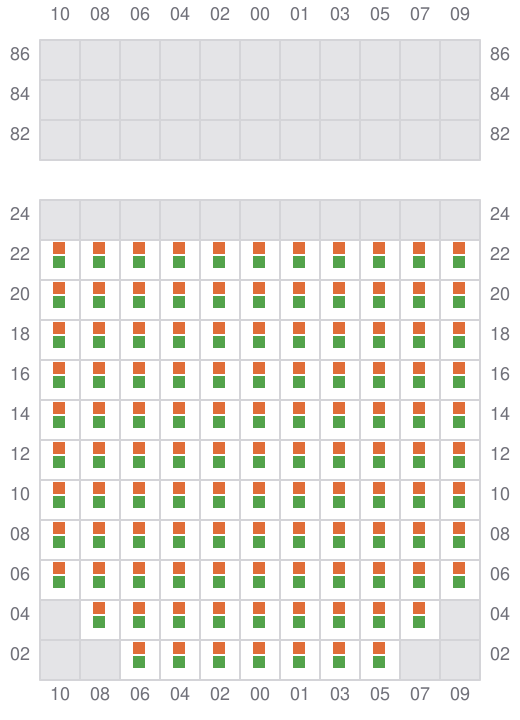

013 (014)
- ? / →

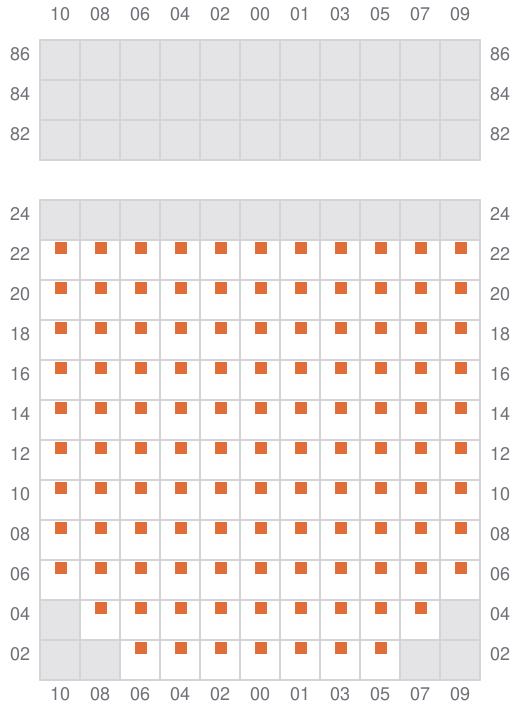

015
- ? / ←
017 (018)
- ? / →

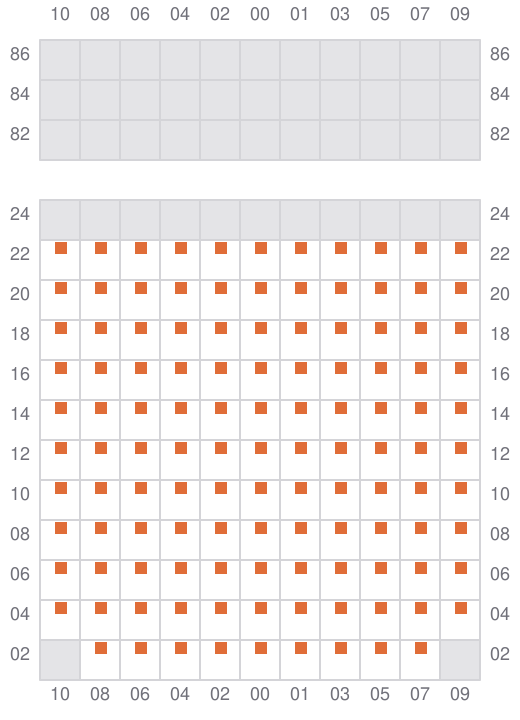

019
- ? / ←

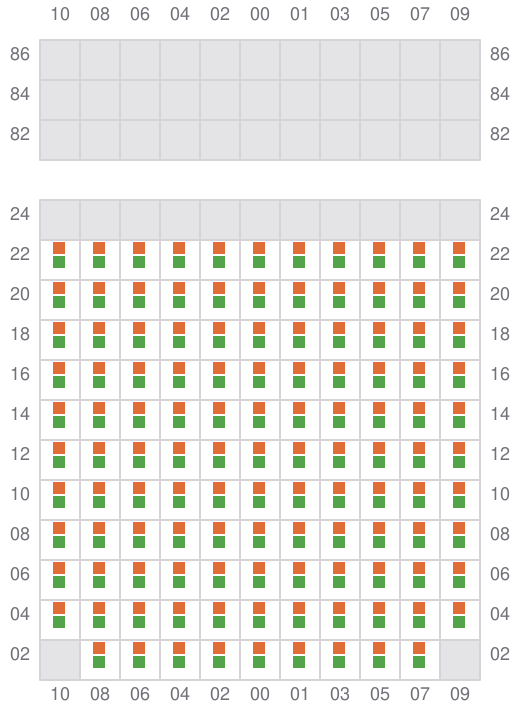

021 (022)
- ? / →
023
- ? / ←

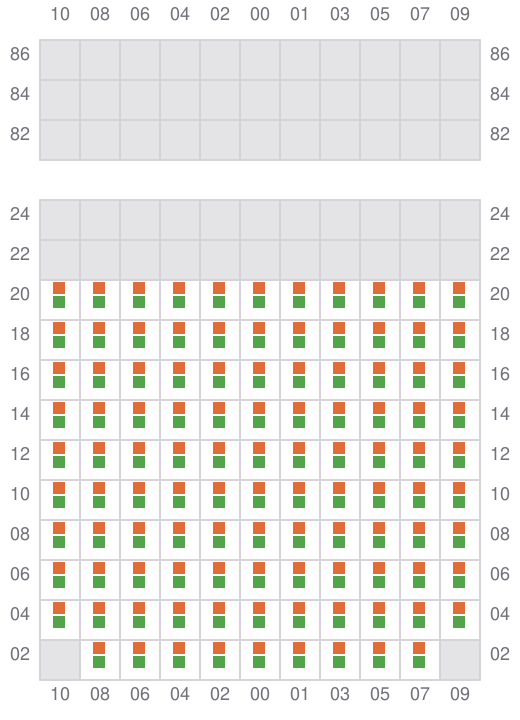

025 (026)
- ? / →
027
- ? / ←
029 (030)
- ? / →

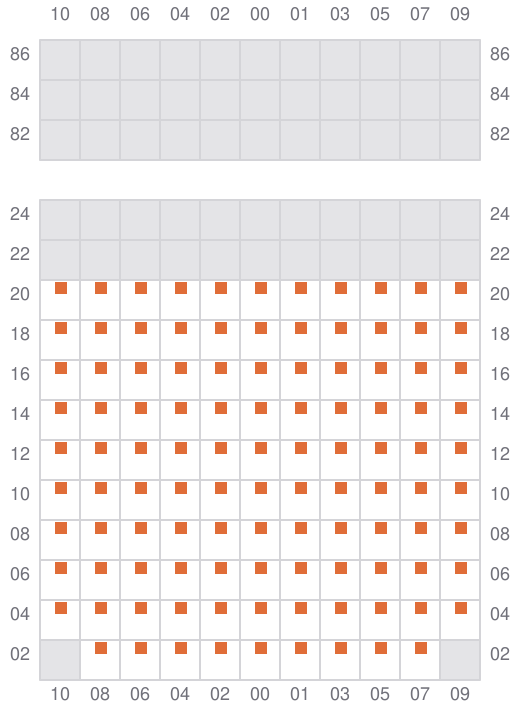

031
- ? / ←
033 (034)
- ? / →

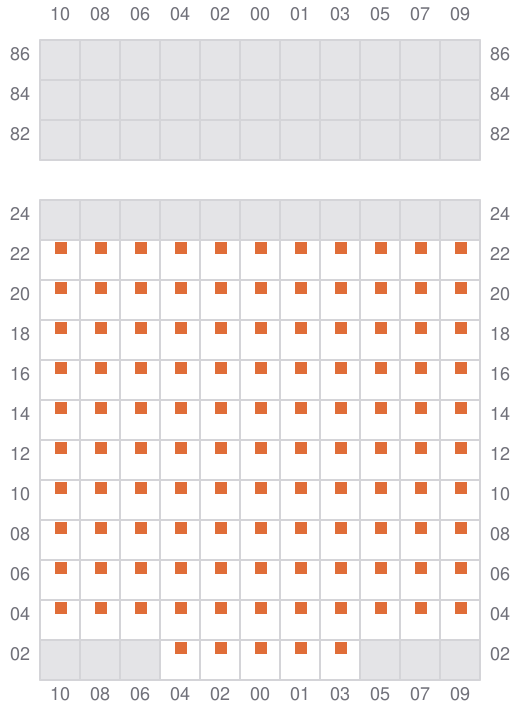

035
- ? / ←

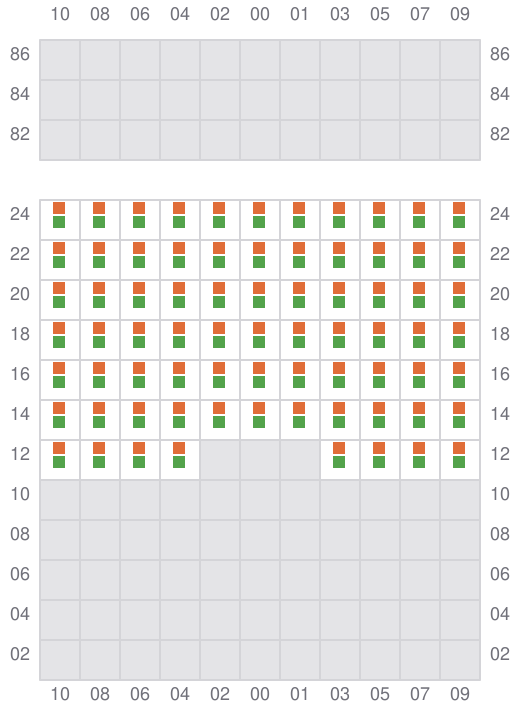

037 (038)
- ? / →

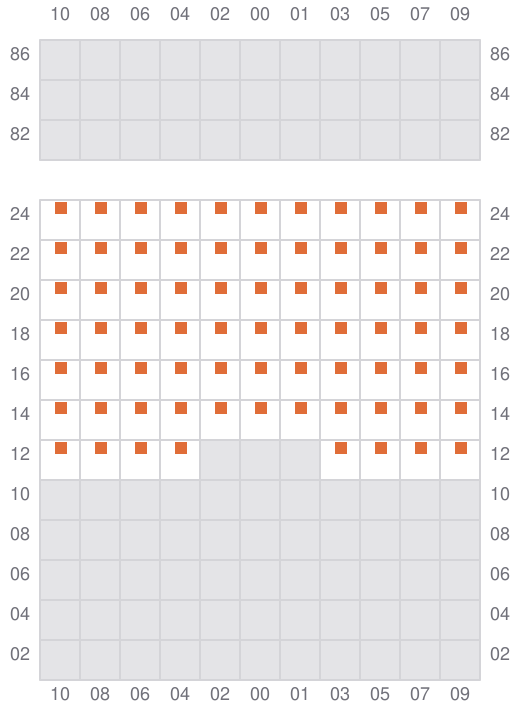

039
- ? / ←
