DOLPHIN II
9318125 | 3EZI3 | 9318125 by ********* Last update: Wed Apr 10 2024
General Info
Ship Name:DOLPHIN II
IMO Code:9318125
Call Sign:3EZI3
Line Operator:9318125
Class Name for Sister Ships:CMA CGM DOLPHIN
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:5,095
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

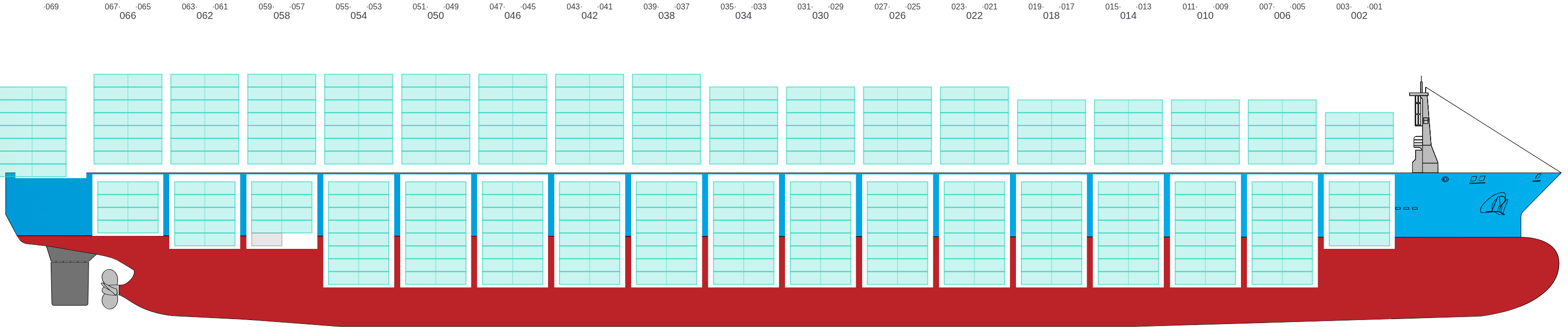

Side View
![Side view of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-sideView.png?v=1712777843761)

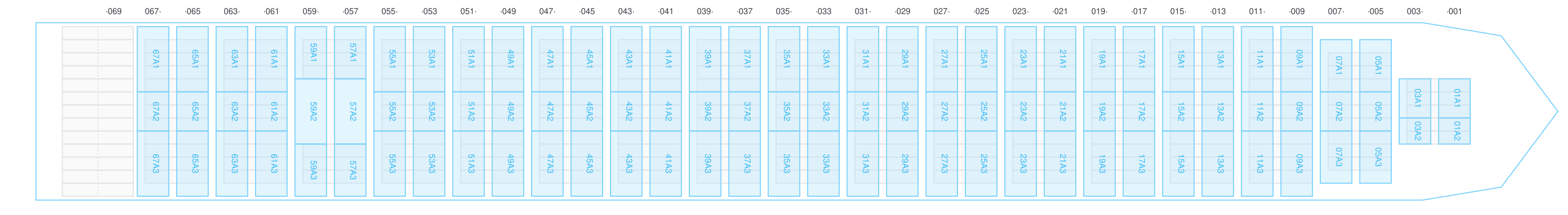

Hatch-Covers View
![Deck view of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-deckView.png?v=1712777843761)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b001.png?v=1712777843761)
003
- ←
![Bay 003 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b003.png?v=1712777843761)

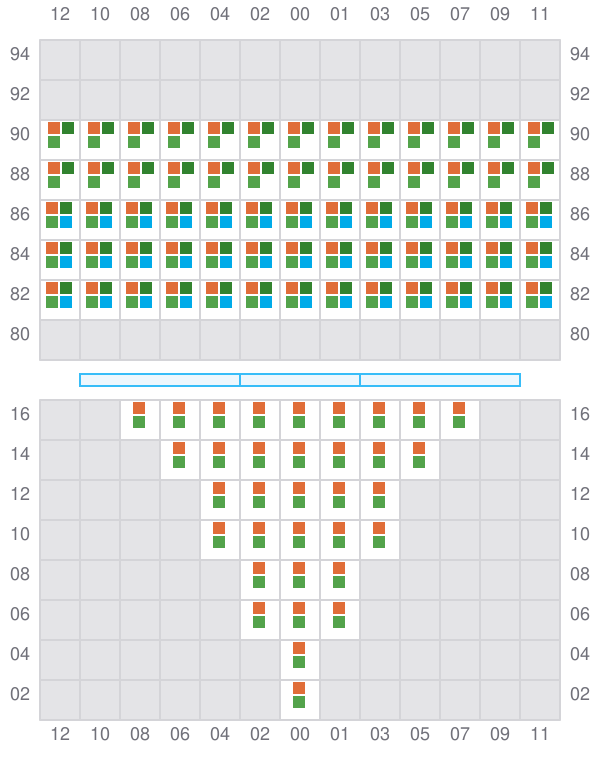

005 (006)
- →
![Bay 005 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b005.png?v=1712777843761)

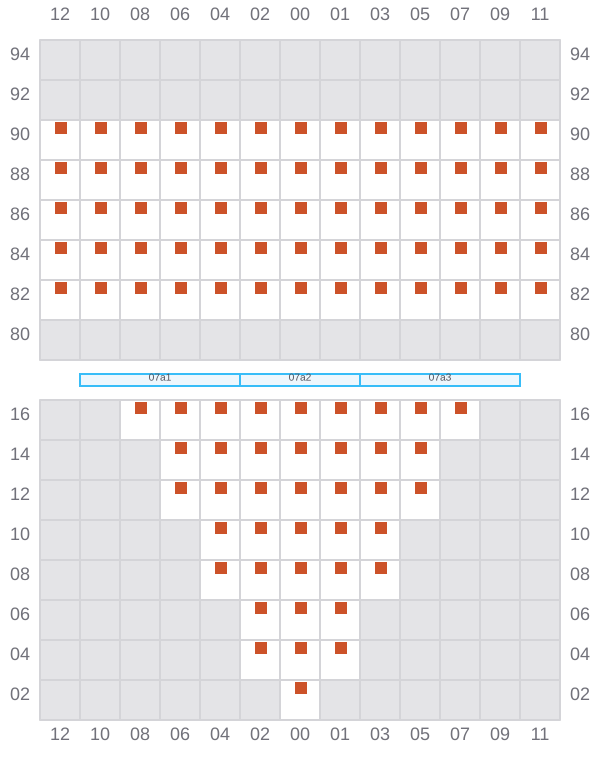

007
- ←
![Bay 007 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b007.png?v=1712777843761)

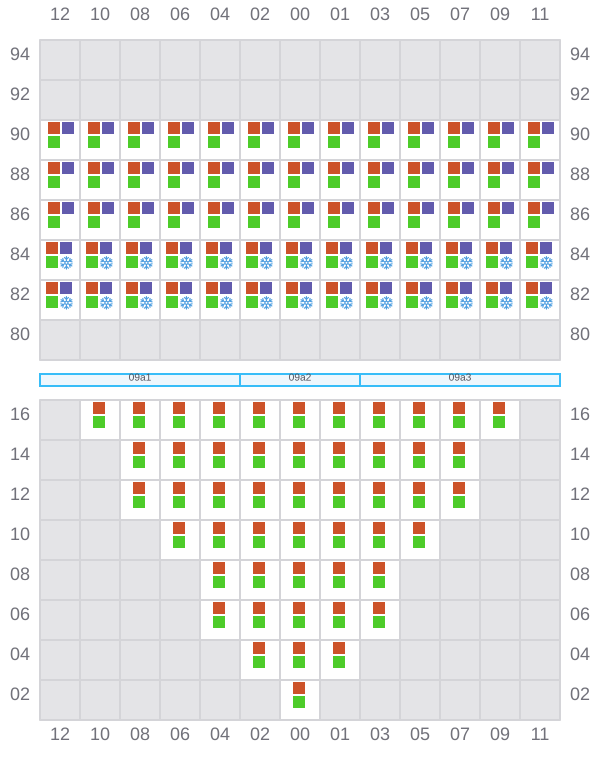

009 (010)
- →
![Bay 009 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b009.png?v=1712777843761)
011
- ←
![Bay 011 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b011.png?v=1712777843761)
013 (014)
- →
![Bay 013 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b013.png?v=1712777843761)

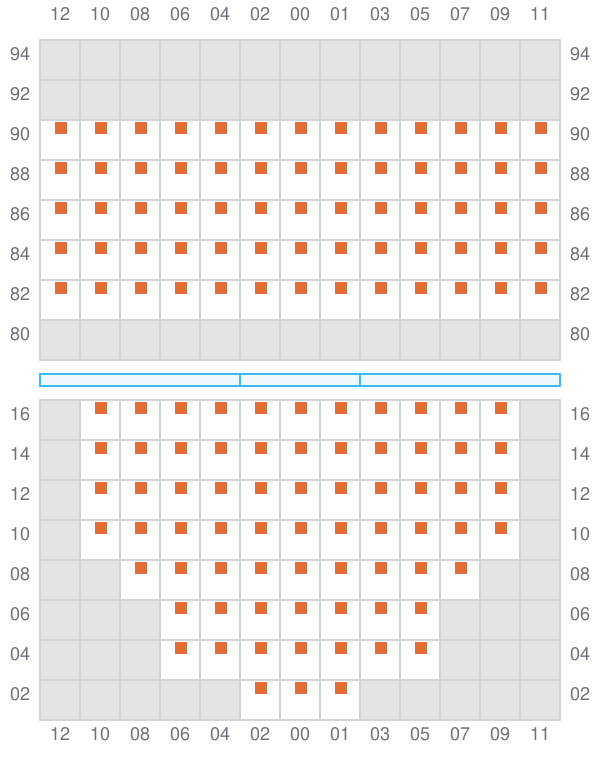

015
- ←
![Bay 015 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b015.png?v=1712777843761)
017 (018)
- →
![Bay 017 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b017.png?v=1712777843761)

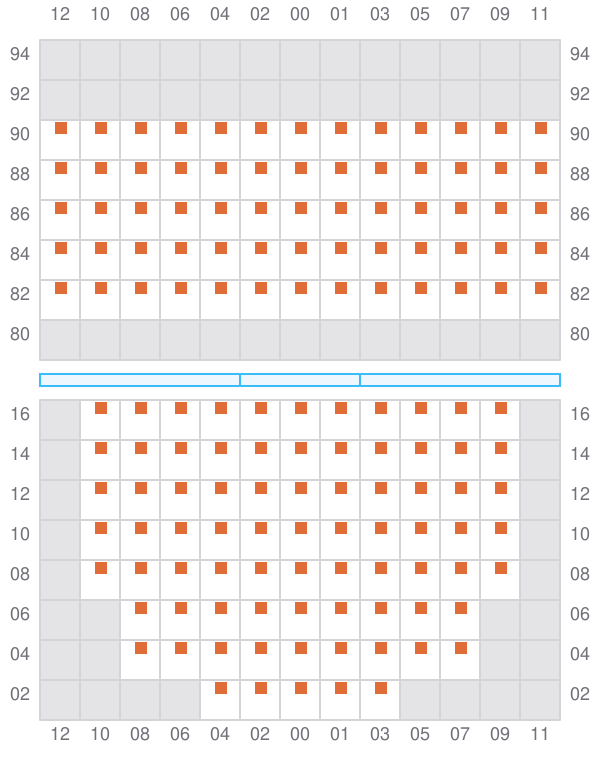

019
- ←
![Bay 019 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b019.png?v=1712777843761)

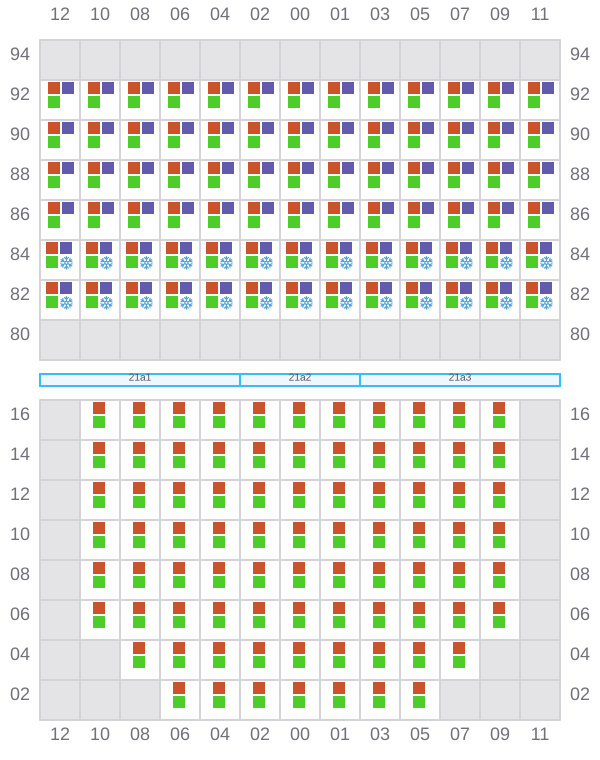

021 (022)
- →
![Bay 021 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b021.png?v=1712777843761)
023
- ←
![Bay 023 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b023.png?v=1712777843761)
025 (026)
- →
![Bay 025 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b025.png?v=1712777843761)
027
- ←
![Bay 027 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b027.png?v=1712777843761)
029 (030)
- →
![Bay 029 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b029.png?v=1712777843761)
031
- ←
![Bay 031 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b031.png?v=1712777843761)

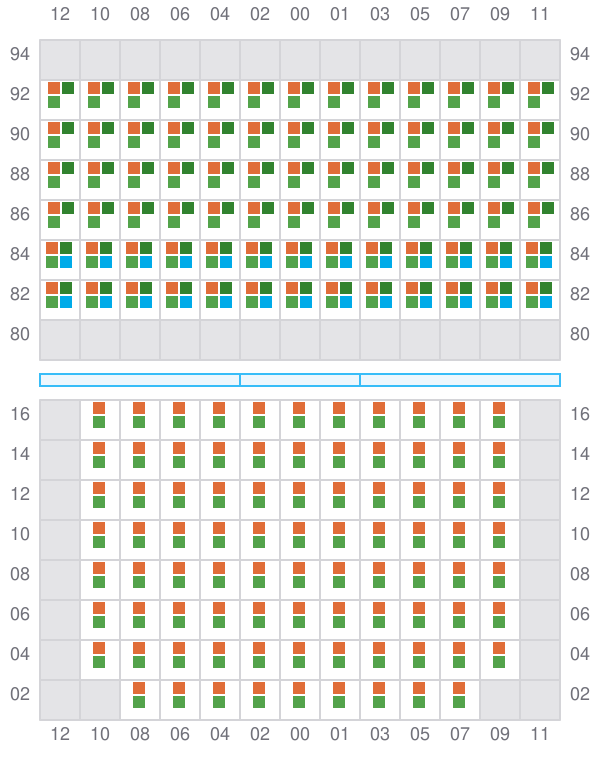

033 (034)
- →
![Bay 033 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b033.png?v=1712777843761)

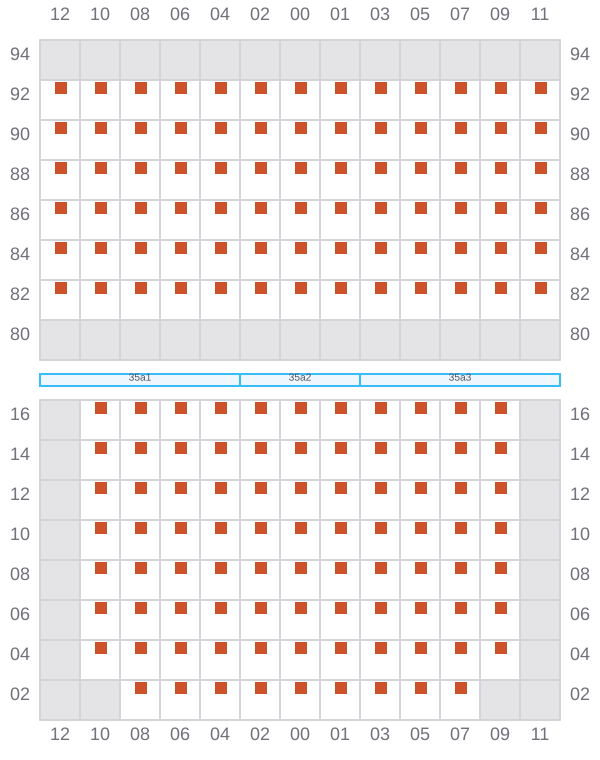

035
- ←
![Bay 035 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b035.png?v=1712777843761)

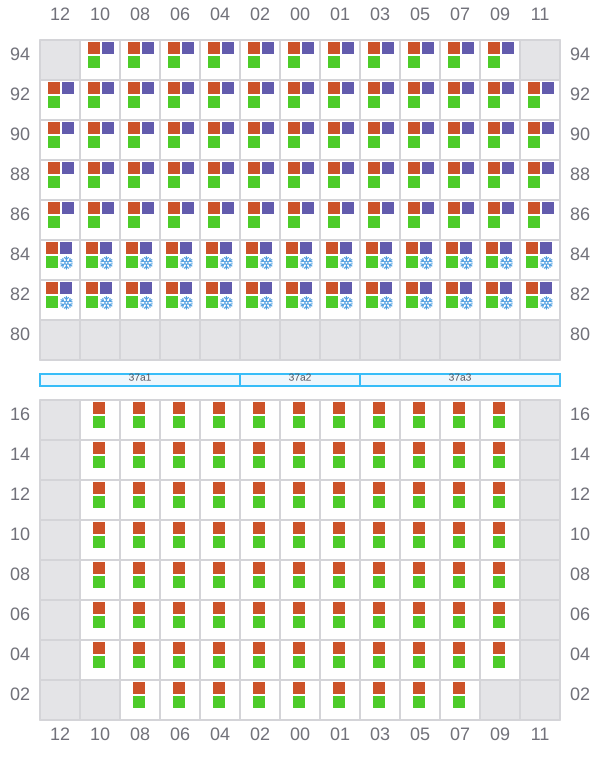

037 (038)
- →
![Bay 037 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b037.png?v=1712777843761)

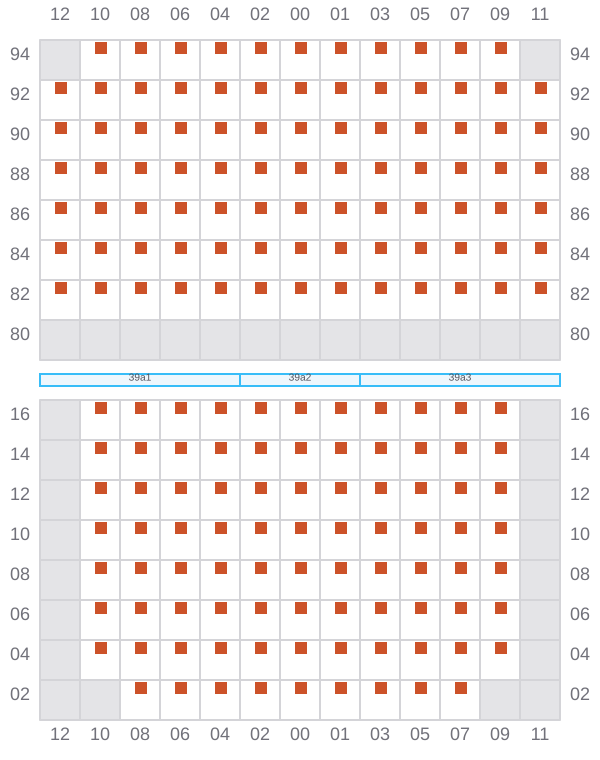

039
- ←
![Bay 039 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b039.png?v=1712777843761)

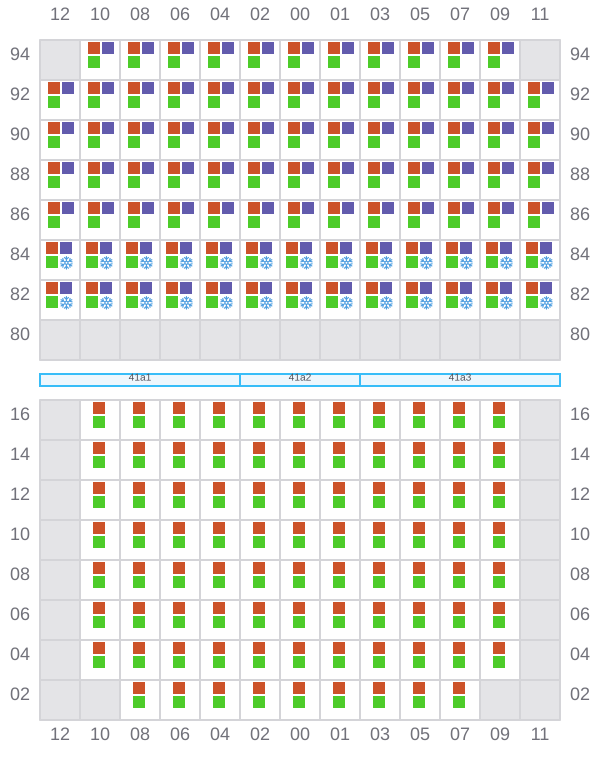

041 (042)
- →
![Bay 041 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b041.png?v=1712777843761)
043
- ←
![Bay 043 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b043.png?v=1712777843761)

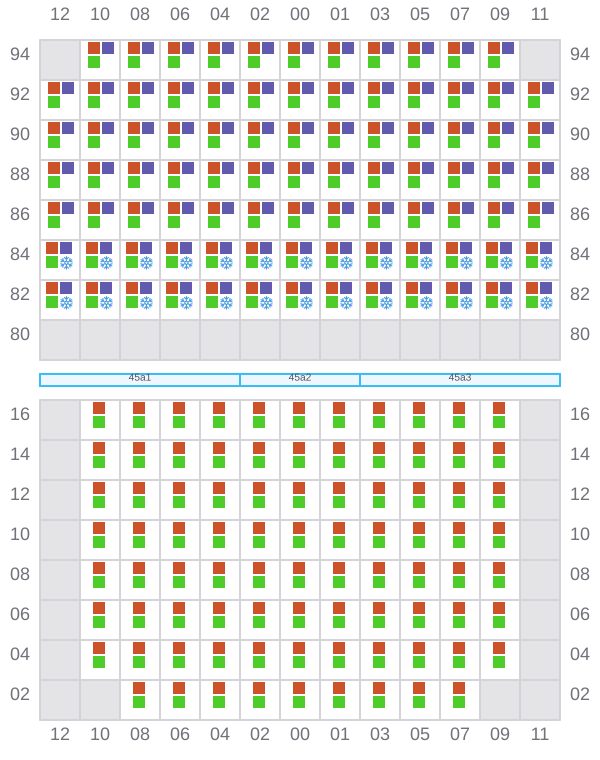

045 (046)
- →
![Bay 045 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b045.png?v=1712777843761)

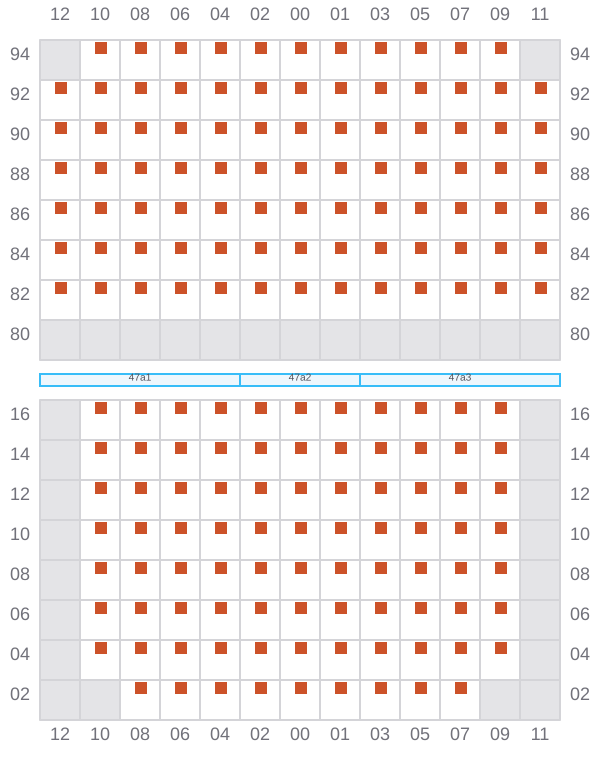

047
- ←
![Bay 047 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b047.png?v=1712777843761)

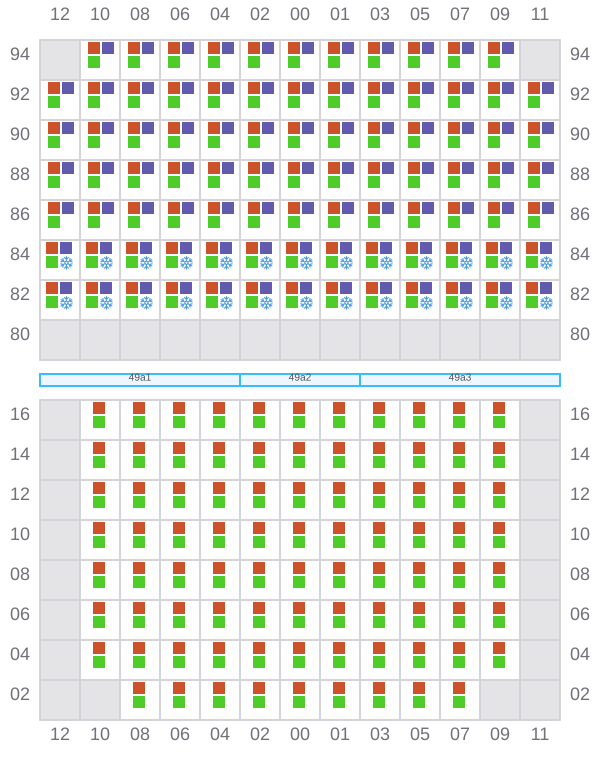

049 (050)
- →
![Bay 049 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b049.png?v=1712777843761)
051
- ←
![Bay 051 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b051.png?v=1712777843761)

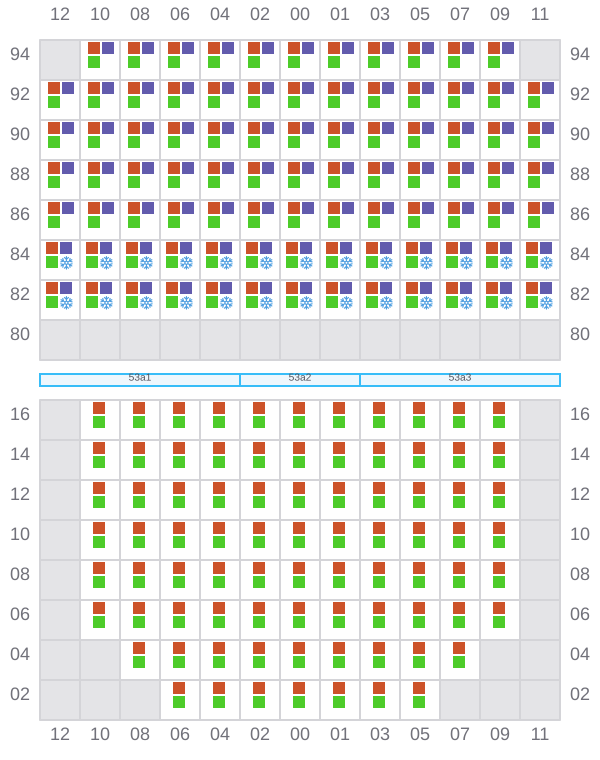

053 (054)
- →
![Bay 053 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b053.png?v=1712777843761)
055
- ←
![Bay 055 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b055.png?v=1712777843761)

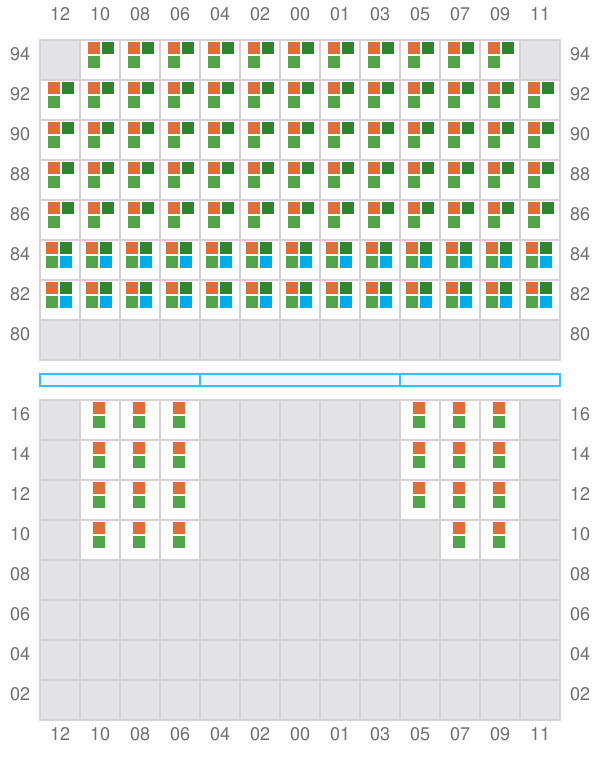

057 (058)
- →
![Bay 057 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b057.png?v=1712777843761)

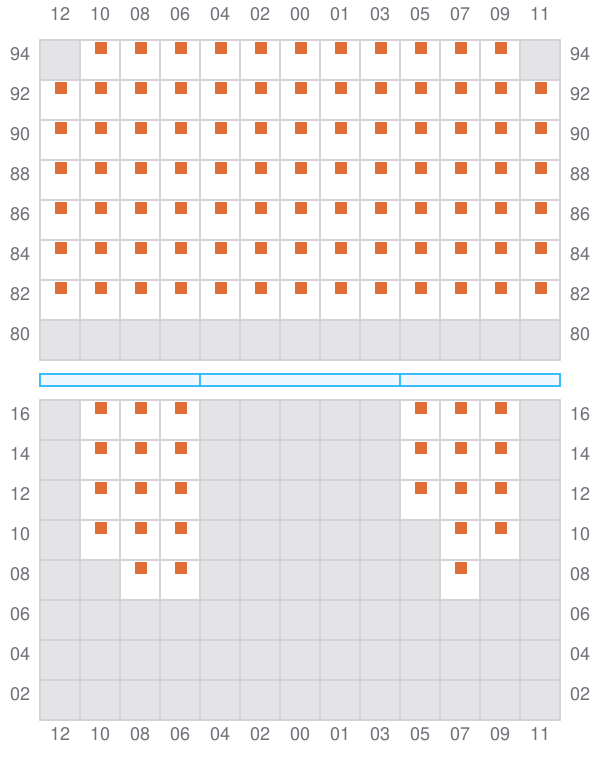

059
- ←
![Bay 059 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b059.png?v=1712777843761)

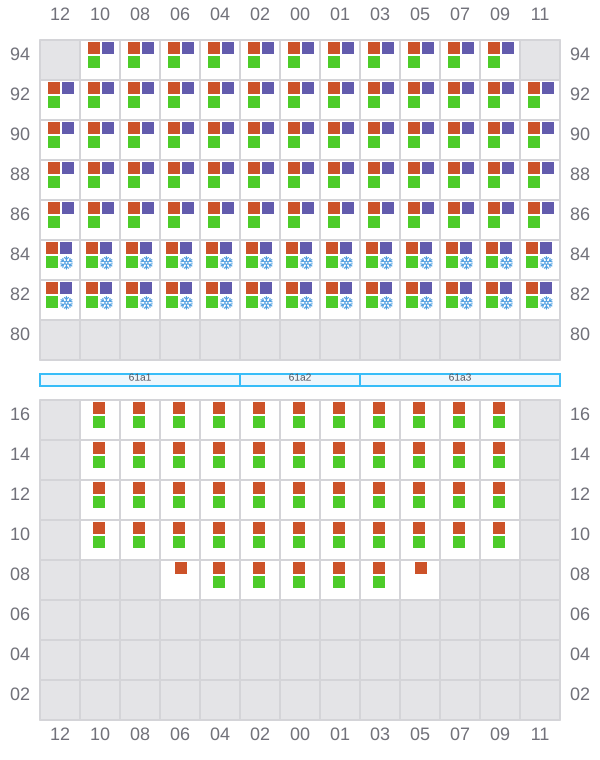

061 (062)
- →
![Bay 061 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b061.png?v=1712777843761)

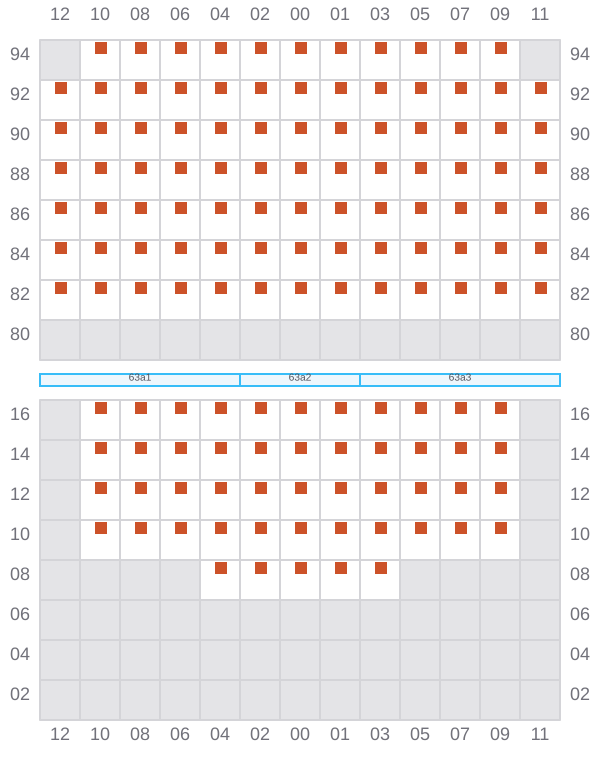

063
- ←
![Bay 063 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b063.png?v=1712777843761)

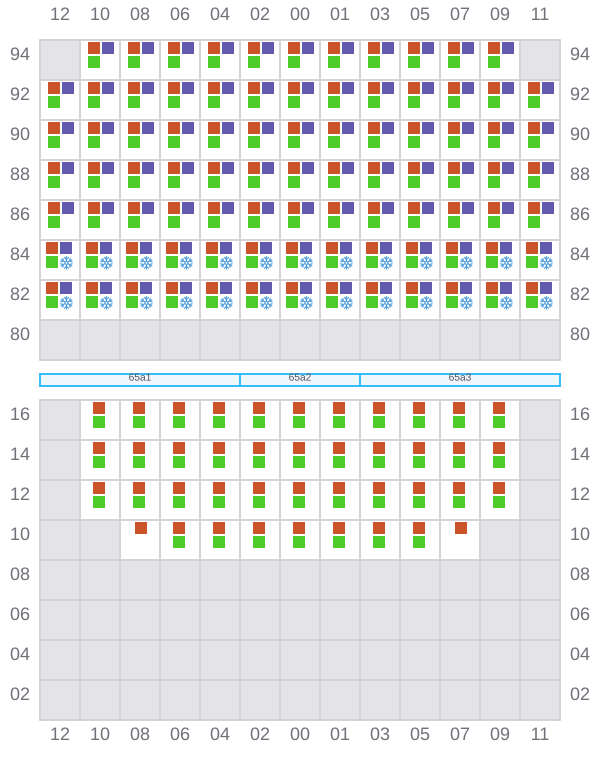

065 (066)
- →
![Bay 065 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b065.png?v=1712777843761)
067
- ←
![Bay 067 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b067.png?v=1712777843761)
069 (070)
- → / ?
![Bay 069 view and slots of DOLPHIN II](/vessel-images/650e742a-fc56-444c-bd4c-cead4edbc64c-b069.png?v=1712777843761)
