DONG FANG QIANG
9122538 | BPCC9 | 9122538 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:DONG FANG QIANG
IMO Code:9122538
Call Sign:BPCC9
Line Operator:9122538
Class Name for Sister Ships:38R
Year Built:1996
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:2,000
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

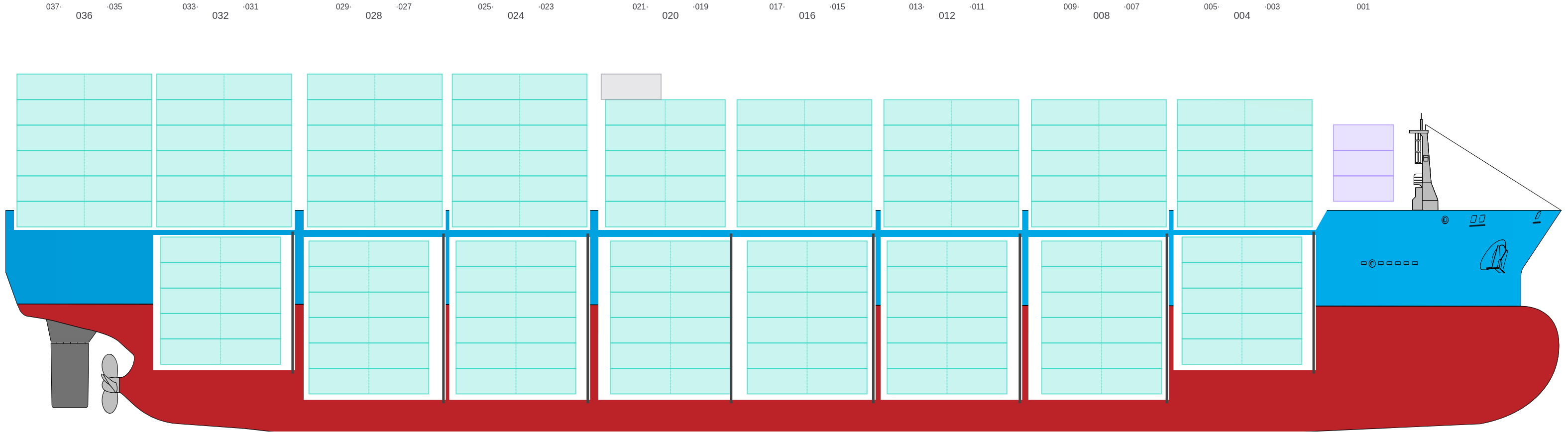

Side View
![Side view of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-sideView.png?v=1709839861060)
Hatch-Covers View
![Deck view of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-deckView.png?v=1709839861060)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

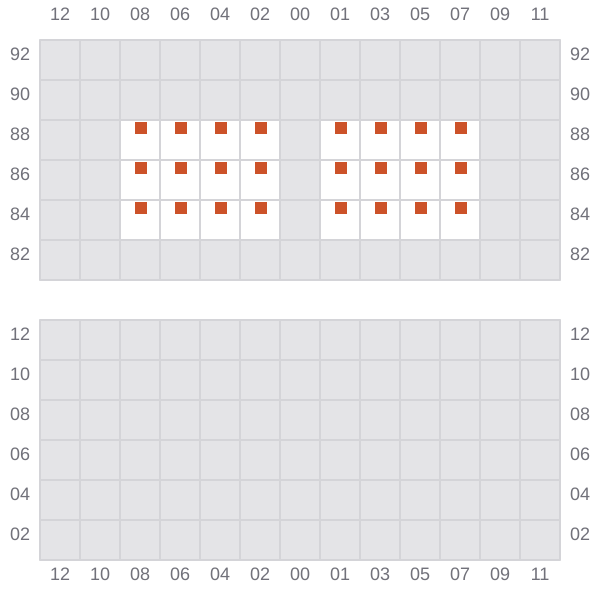

001
![Bay 001 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b001.png?v=1709839861060)

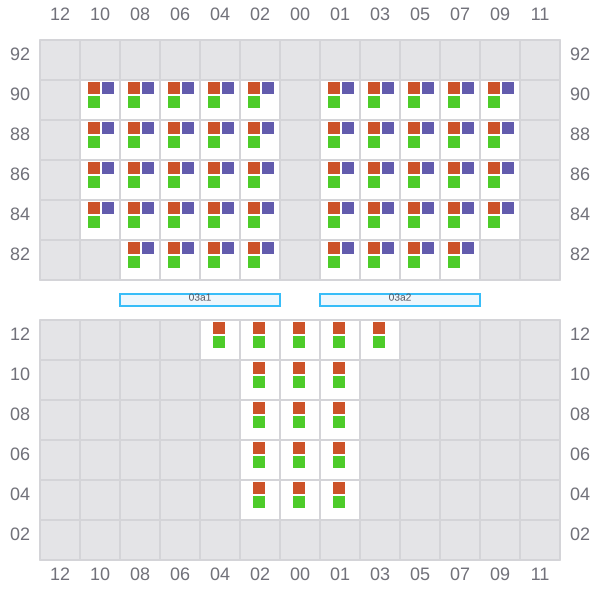

003 (004)
- →
![Bay 003 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b003.png?v=1709839861060)
005
- ←
- → / ?
![Bay 005 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b005.png?v=1709839861060)

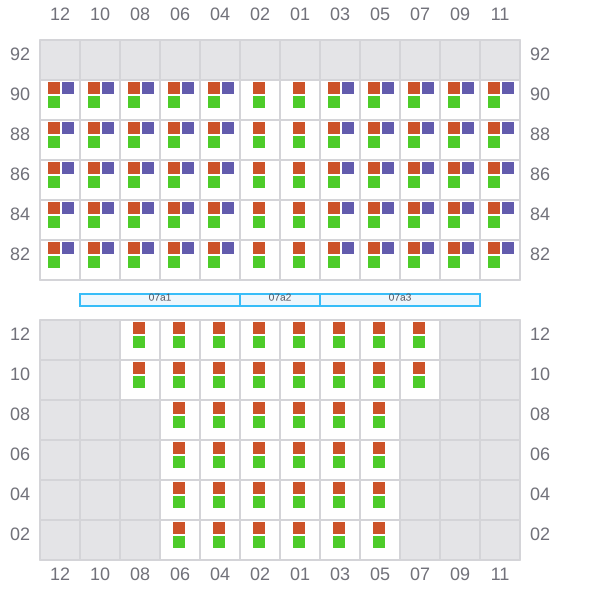

007 (008)
- →
![Bay 007 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b007.png?v=1709839861060)

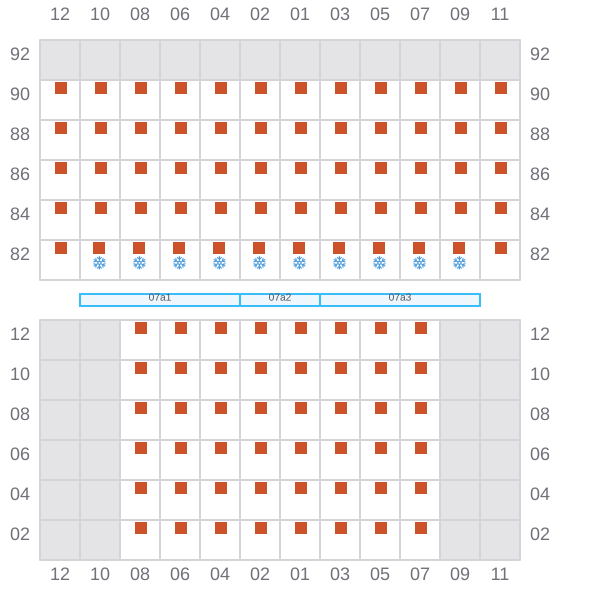

009
- ←
- → / ?
![Bay 009 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b009.png?v=1709839861060)

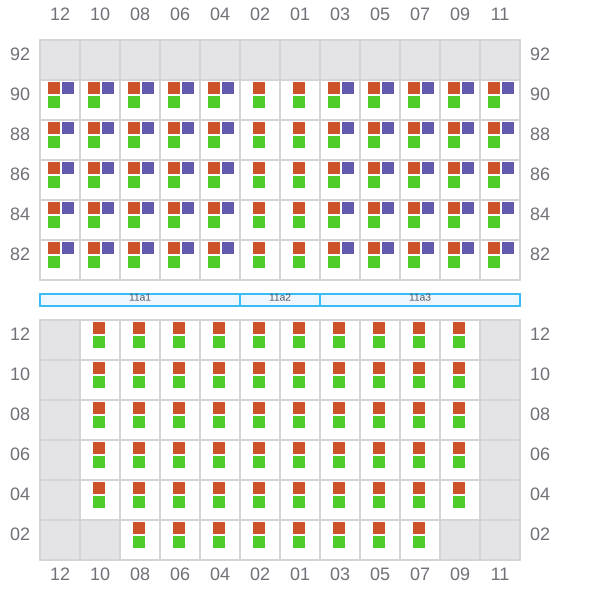

011 (012)
- →
![Bay 011 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b011.png?v=1709839861060)
013
- ←
- → / ?
![Bay 013 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b013.png?v=1709839861060)

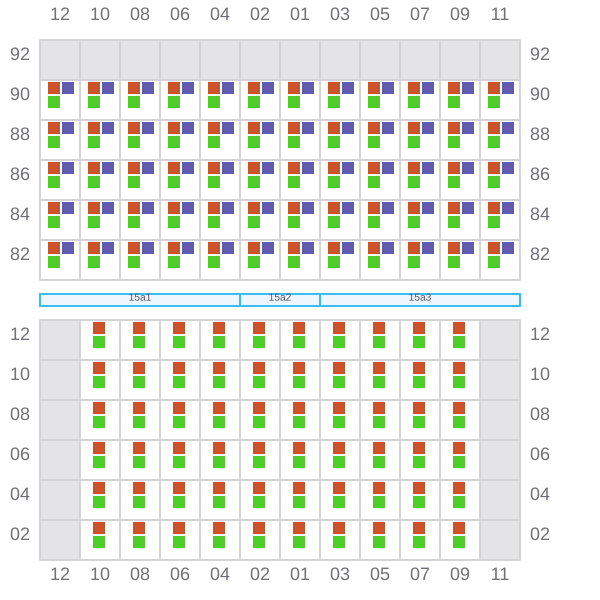

015 (016)
- →
![Bay 015 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b015.png?v=1709839861060)

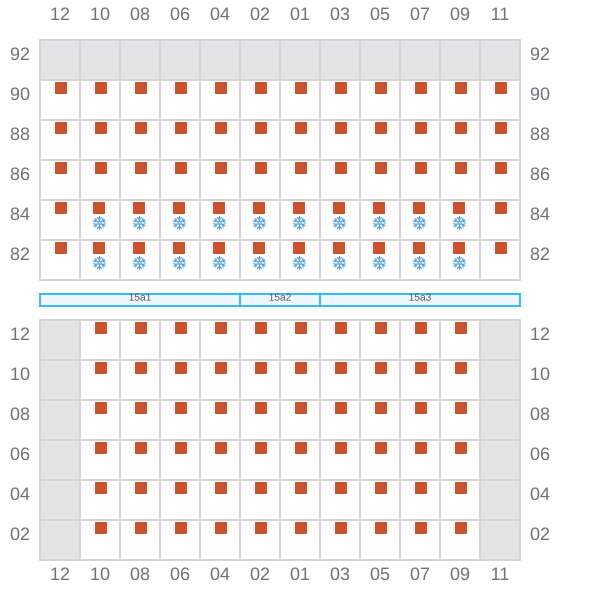

017
- ←
- → / ?
![Bay 017 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b017.png?v=1709839861060)
019 (020)
- →
![Bay 019 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b019.png?v=1709839861060)

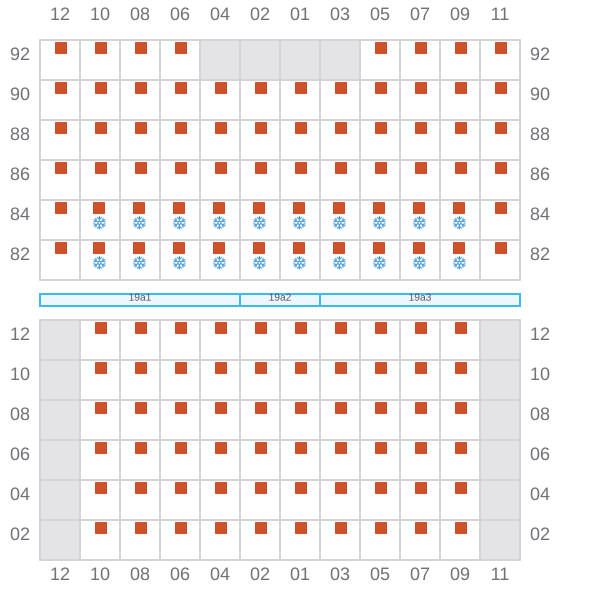

021
- ←
- → / ?
![Bay 021 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b021.png?v=1709839861060)

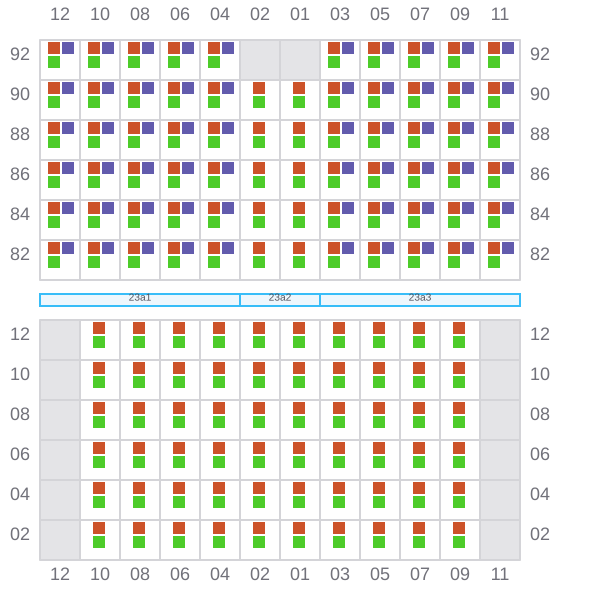

023 (024)
- →
![Bay 023 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b023.png?v=1709839861060)
025
- ←
- → / ?
![Bay 025 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b025.png?v=1709839861060)

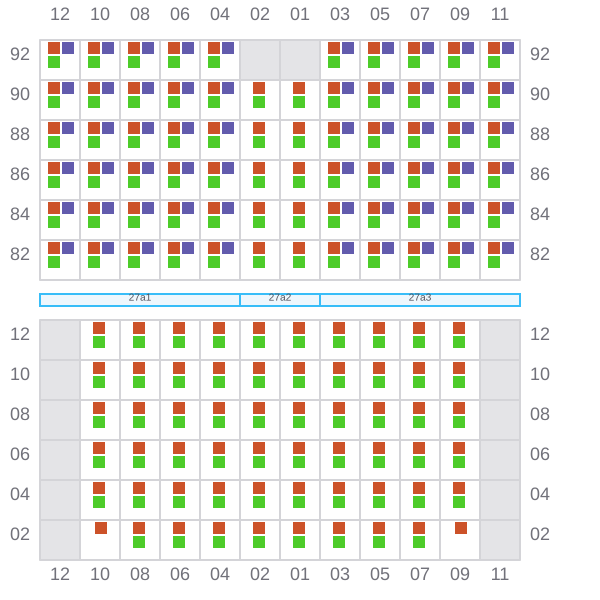

027 (028)
- →
![Bay 027 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b027.png?v=1709839861060)

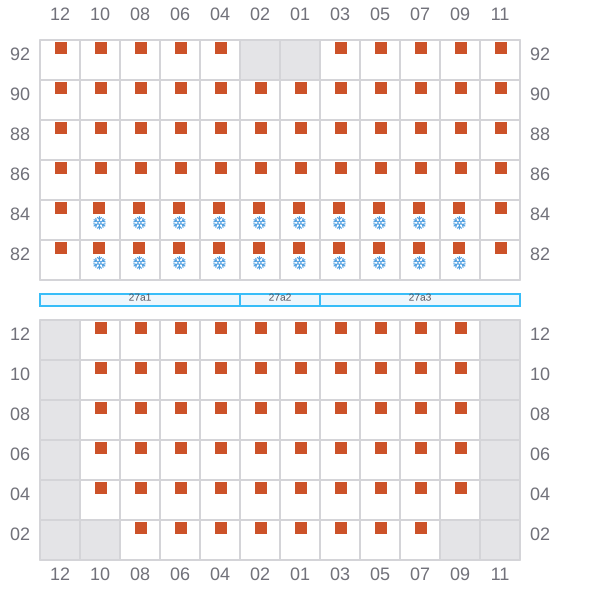

029
- ←
- → / ?
![Bay 029 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b029.png?v=1709839861060)

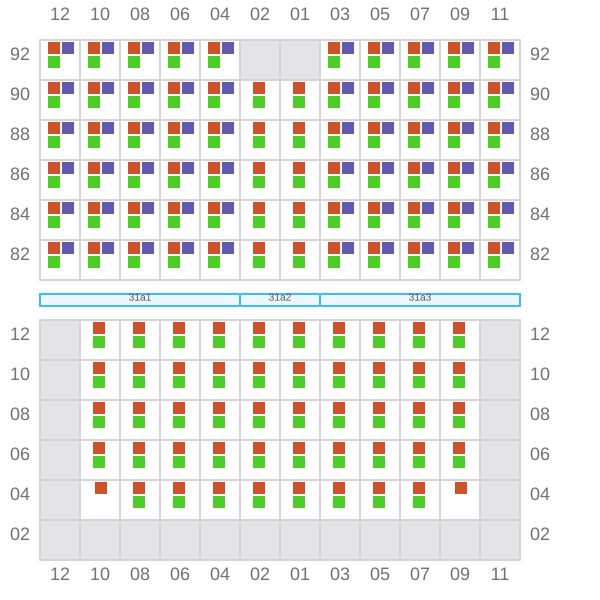

031 (032)
- →
![Bay 031 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b031.png?v=1709839861060)

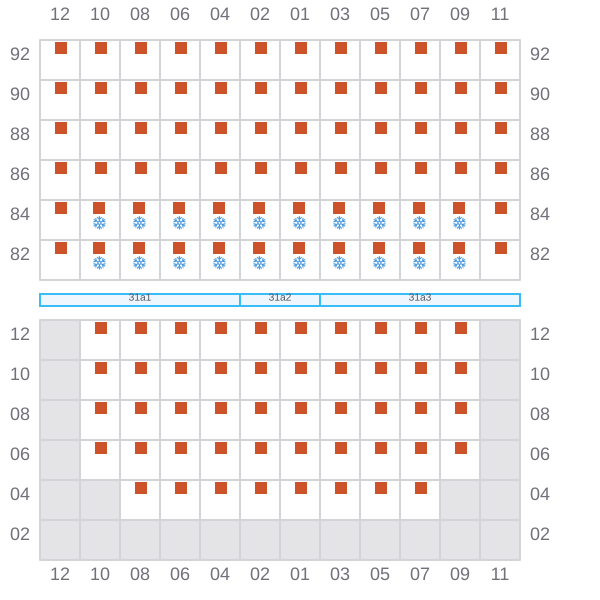

033
- ←
- → / ?
![Bay 033 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b033.png?v=1709839861060)

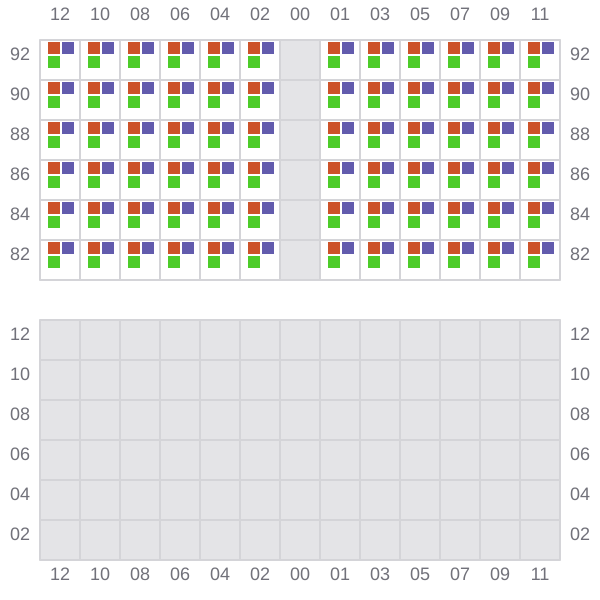

035 (036)
- → / ?
![Bay 035 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b035.png?v=1709839861060)

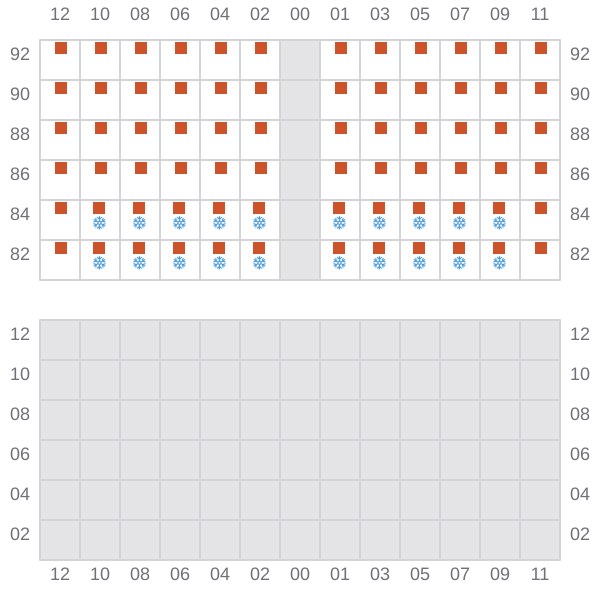

037
- ← / ?
- → / ?
![Bay 037 view and slots of DONG FANG QIANG](/vessel-images/4d4a90aa-ed9c-4ec7-b3cd-d2876fb81324-b037.png?v=1709839861060)
