DONG HAI
9169811 | 3ERO9 | 9169811 by ********* Last update: Fri Mar 08 2024

General Info

Ship Name:DONG HAI
IMO Code:9169811
Call Sign:3ERO9
Line Operator:9169811
Class Name for Sister Ships:0BX
Year Built:1997
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:023
Max ISO Row:08
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:654

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

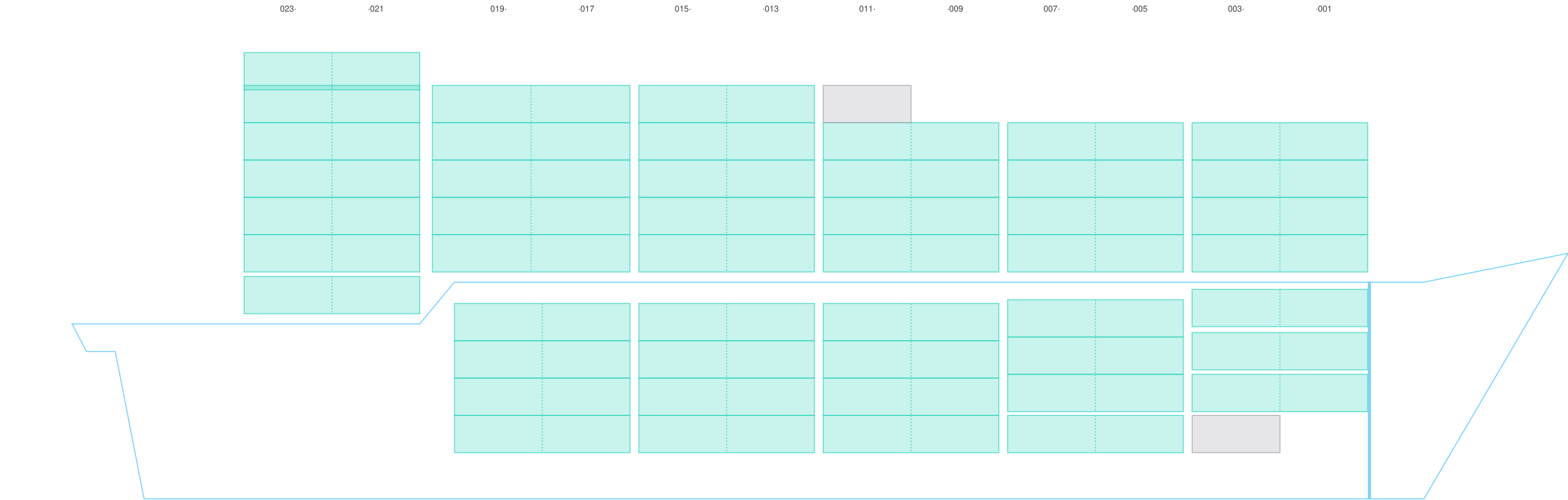

Side View

Side view of DONG HAI

Hatch-Covers View

Deck view of DONG HAI

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

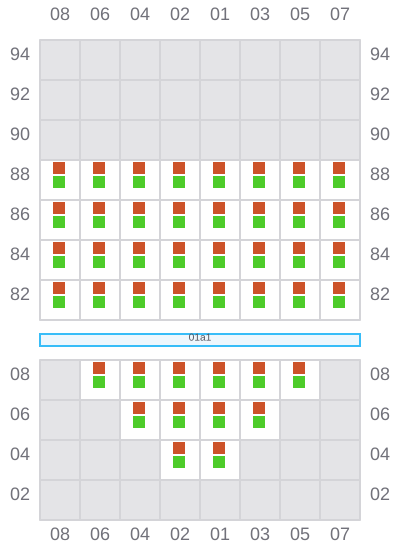

Bay 001 view and slots of DONG HAI

003

  • / ?

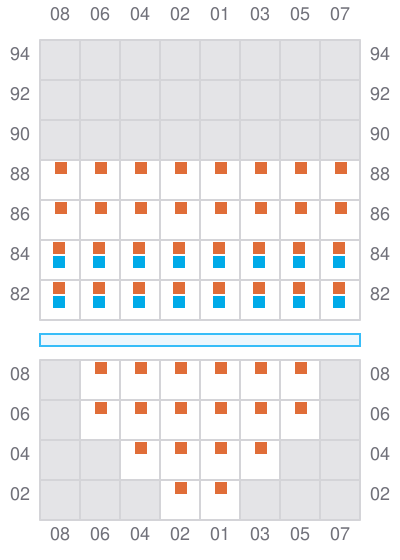

Bay 003 view and slots of DONG HAI

005 (006)

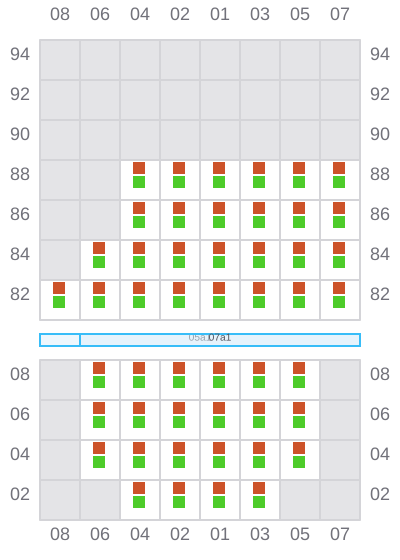

Bay 005 view and slots of DONG HAI

007

  • / ?

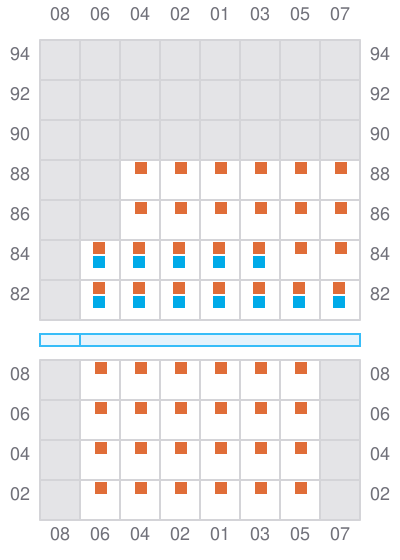

Bay 007 view and slots of DONG HAI

009 (010)

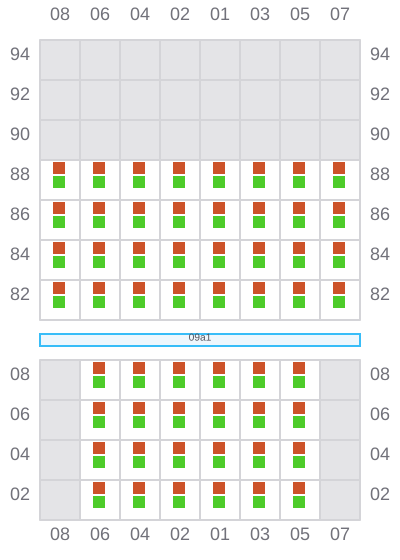

Bay 009 view and slots of DONG HAI

011

  • / ?

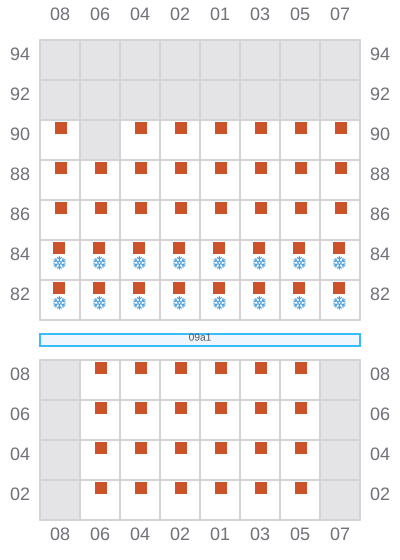

Bay 011 view and slots of DONG HAI

013 (014)

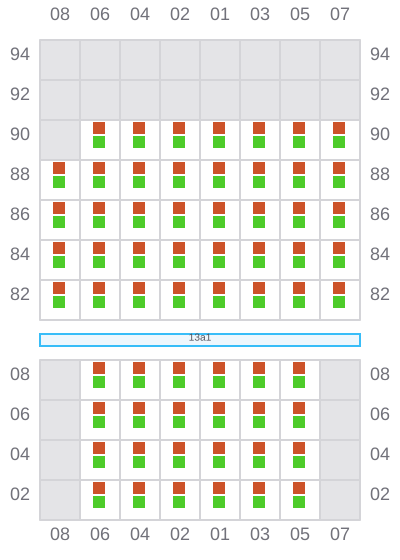

Bay 013 view and slots of DONG HAI

015

  • / ?

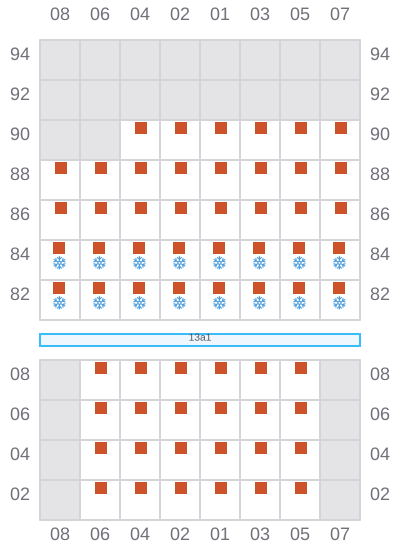

Bay 015 view and slots of DONG HAI

017 (018)

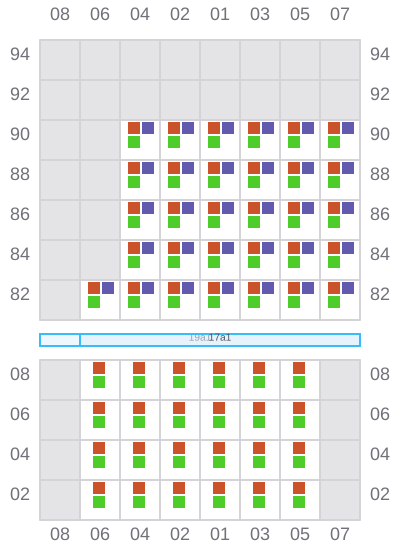

Bay 017 view and slots of DONG HAI

019

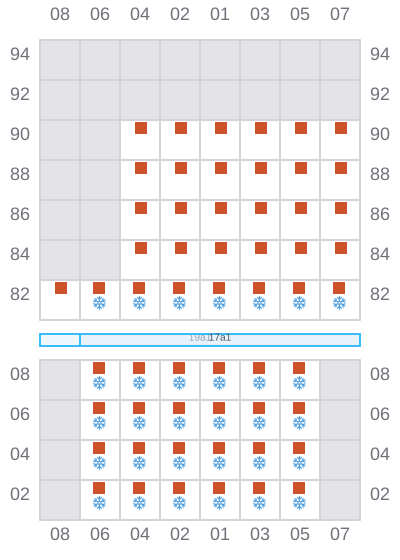

Bay 019 view and slots of DONG HAI

021 (022)

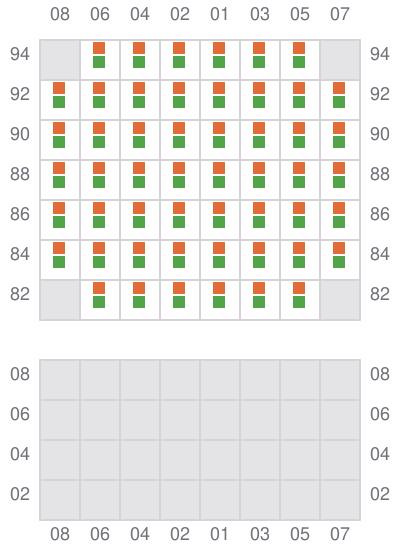

Bay 021 view and slots of DONG HAI

023

  • / ?

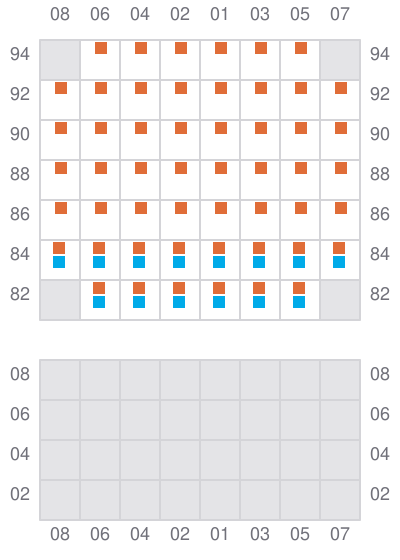

Bay 023 view and slots of DONG HAI
