DORIS OCEAN
9312432 | 5LVX6 | 9312432 by ******************** Last update: Fri Jun 13 2025

General Info

Ship Name:DORIS OCEAN
IMO Code:9312432
Call Sign:5LVX6
Line Operator:9312432
Class Name for Sister Ships:DRON
Year Built:2005
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):205.28
LOA (Length Overall):215.29
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:GABRIELA A

Size Summary

ISO Bays:047
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:96
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,702

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

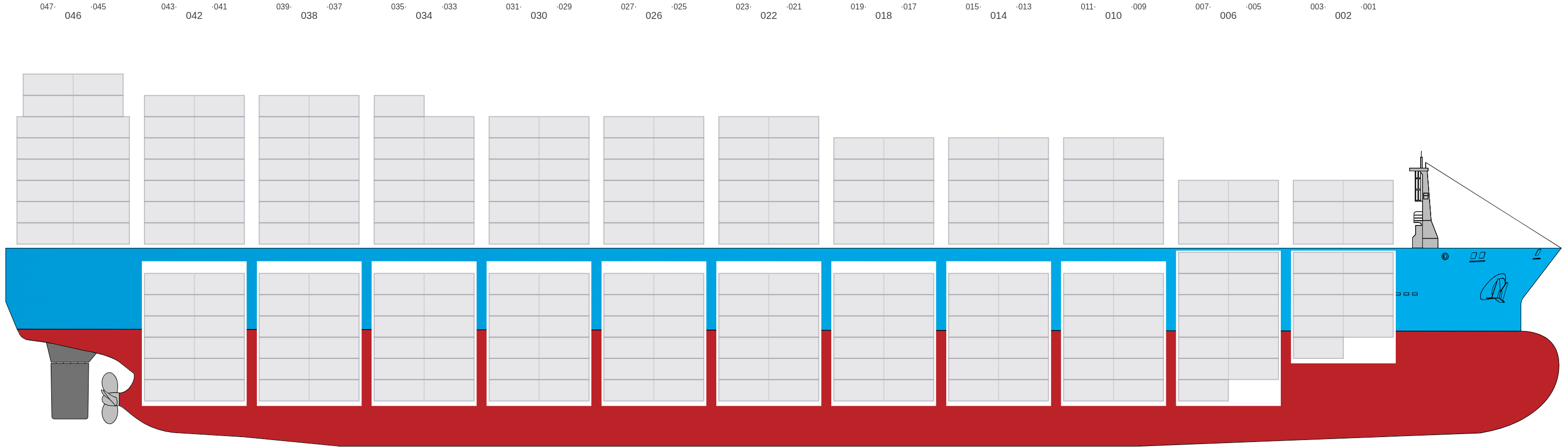

Side View

Side view of DORIS OCEAN

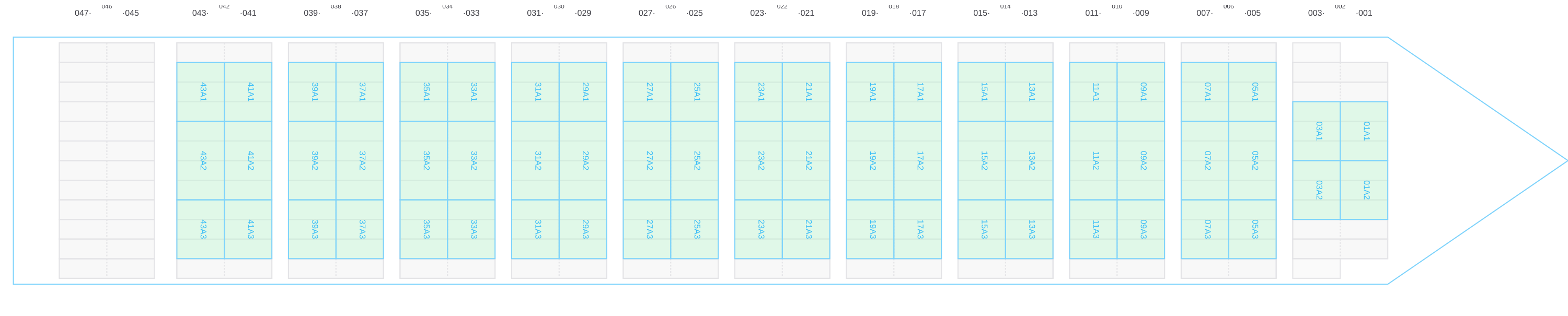

Hatch-Covers View

Deck view of DORIS OCEAN

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot ×

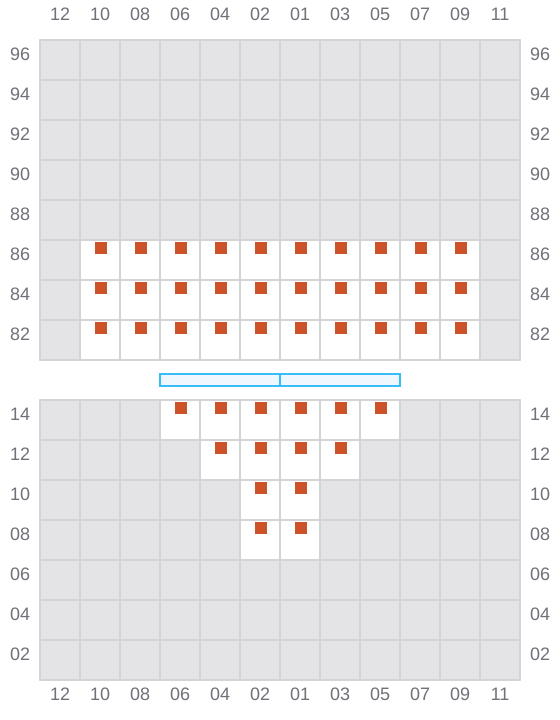

001

  • →
Bay 001 view and slots of DORIS OCEAN

003 (002)

  • ←

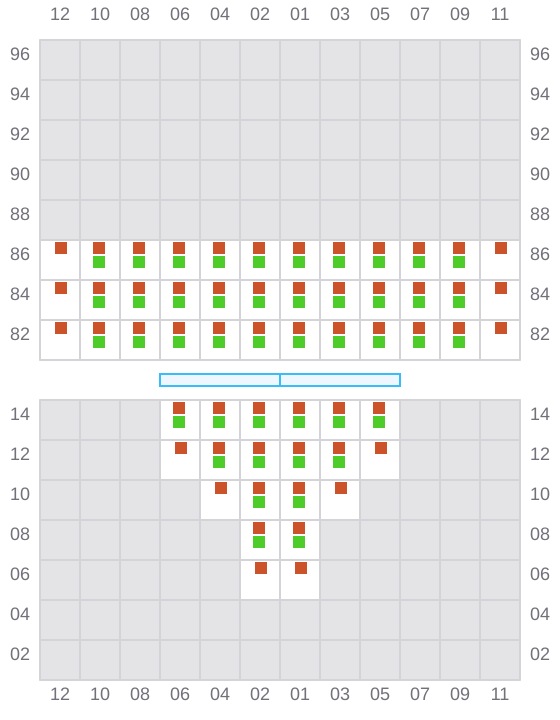

Bay 003 view and slots of DORIS OCEAN

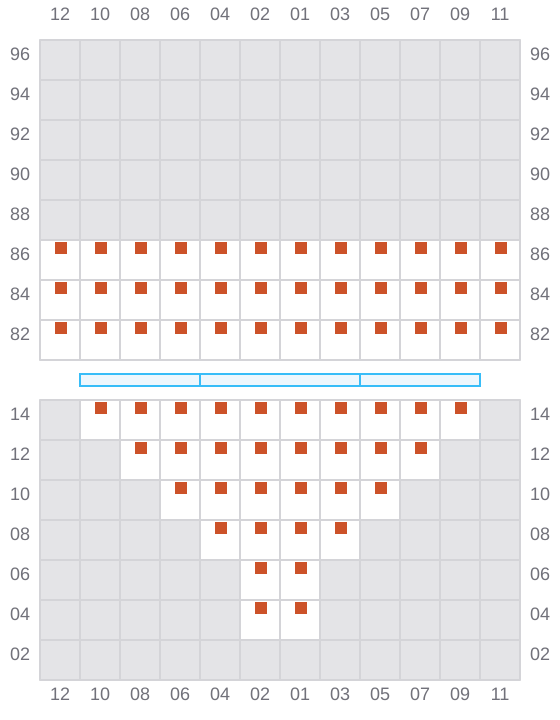

005

  • →

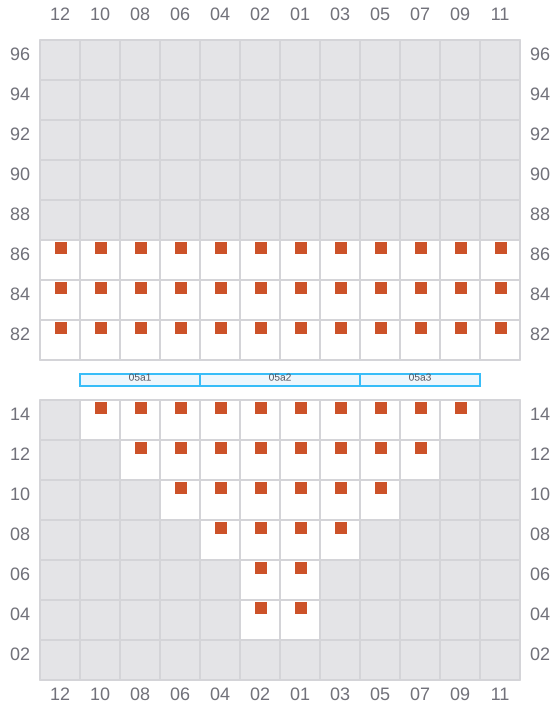

Bay 005 view and slots of DORIS OCEAN

007 (006)

  • ←

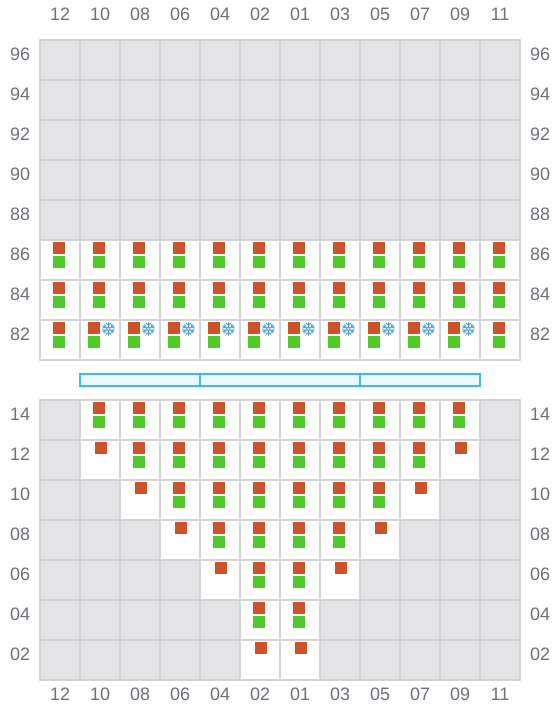

Bay 007 view and slots of DORIS OCEAN

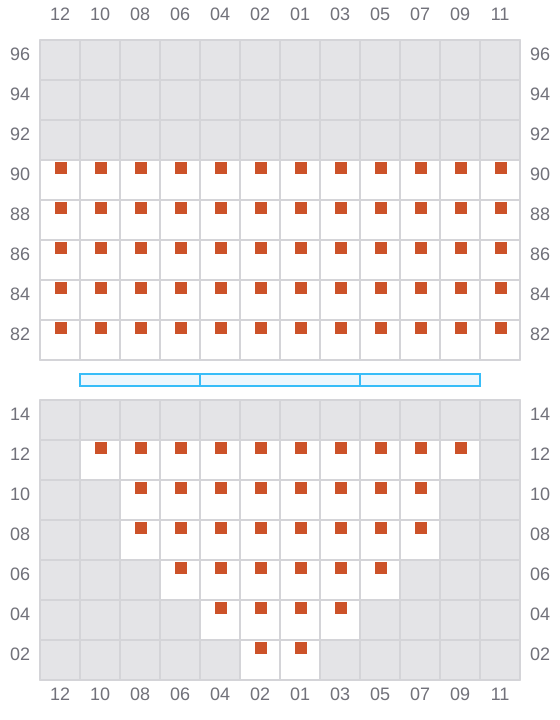

009

  • →

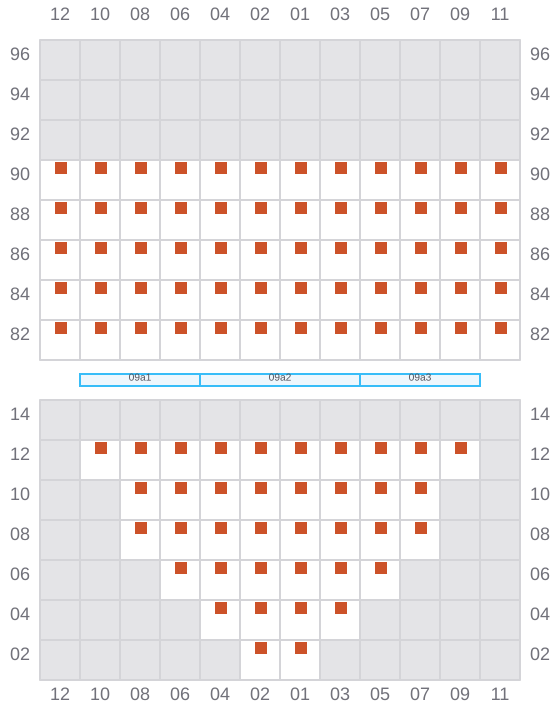

Bay 009 view and slots of DORIS OCEAN

011 (010)

  • ←
Bay 011 view and slots of DORIS OCEAN

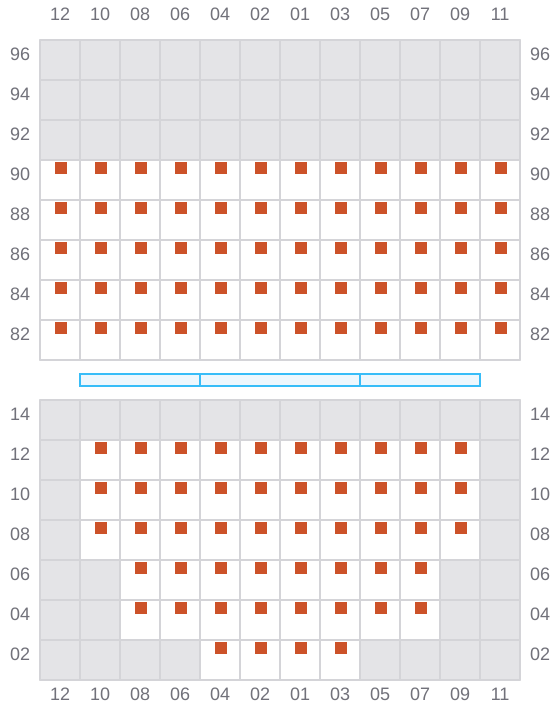

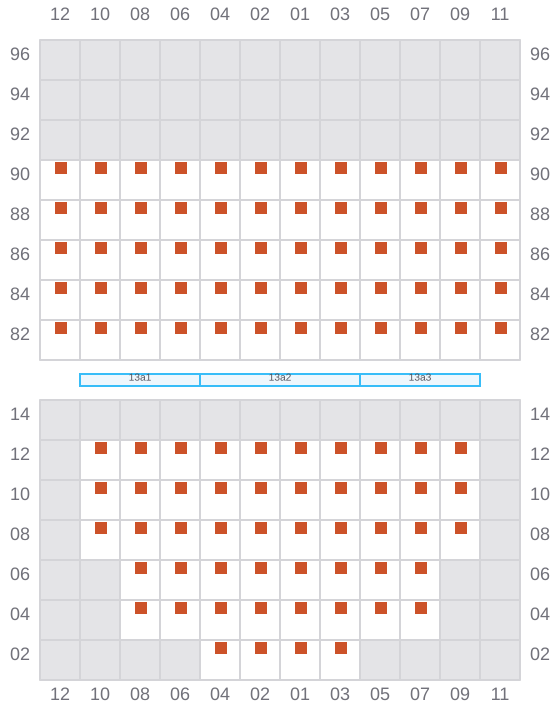

013

  • →
Bay 013 view and slots of DORIS OCEAN

015 (014)

  • ←
Bay 015 view and slots of DORIS OCEAN

017

  • →

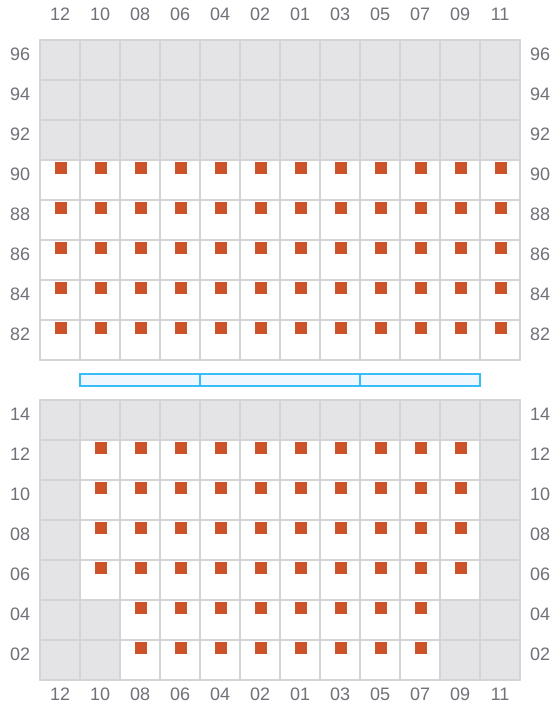

Bay 017 view and slots of DORIS OCEAN

019 (018)

  • ←

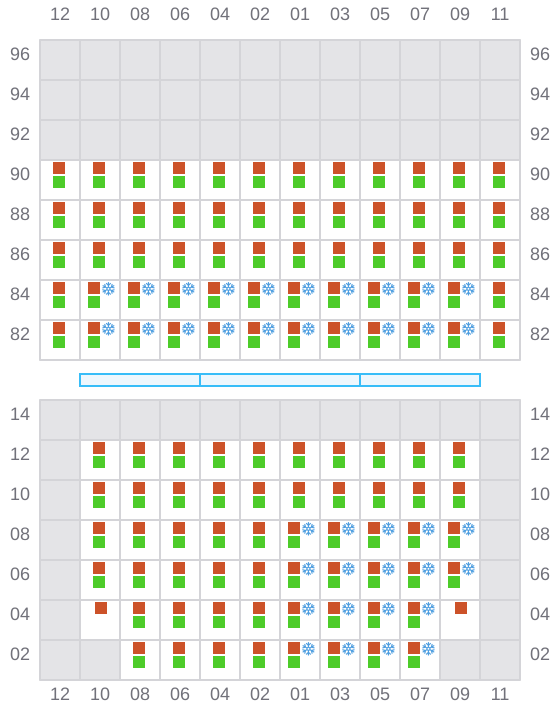

Bay 019 view and slots of DORIS OCEAN

021

  • →
Bay 021 view and slots of DORIS OCEAN

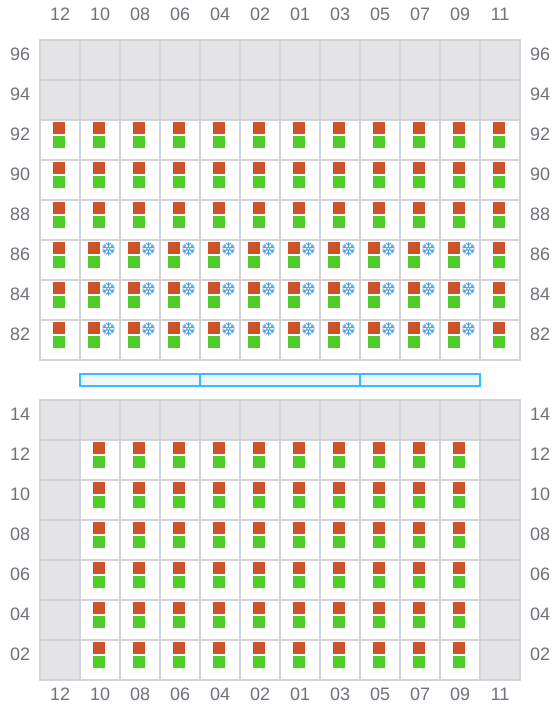

023 (022)

  • ←
Bay 023 view and slots of DORIS OCEAN

025

  • →
Bay 025 view and slots of DORIS OCEAN

027 (026)

  • ←
Bay 027 view and slots of DORIS OCEAN

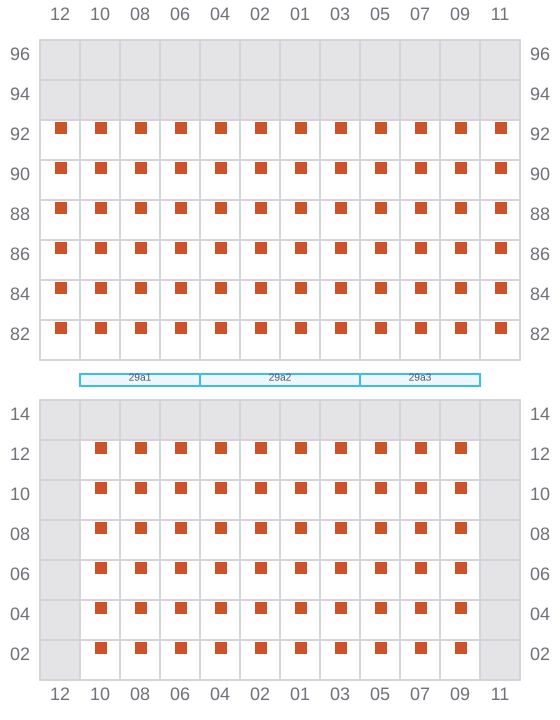

029

  • →
Bay 029 view and slots of DORIS OCEAN

031 (030)

  • ←
Bay 031 view and slots of DORIS OCEAN

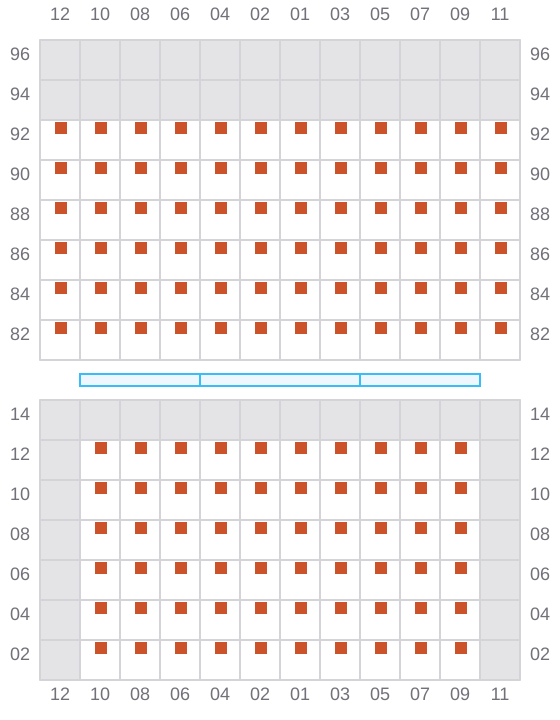

033

  • →
Bay 033 view and slots of DORIS OCEAN

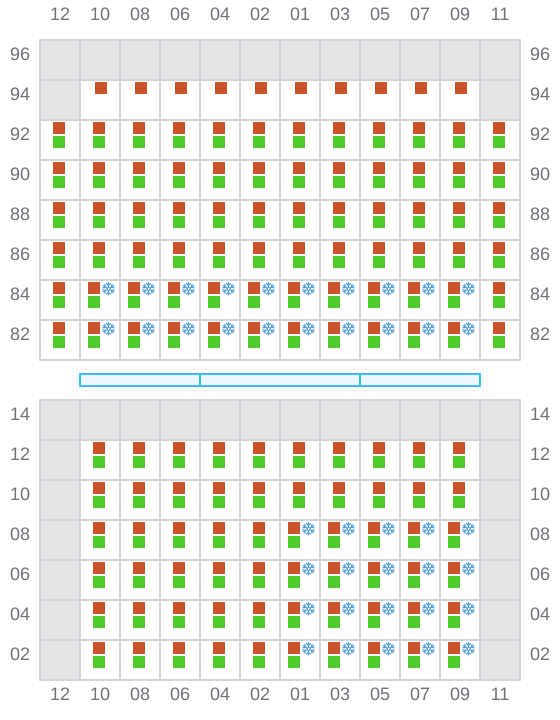

035 (034)

  • ←
Bay 035 view and slots of DORIS OCEAN

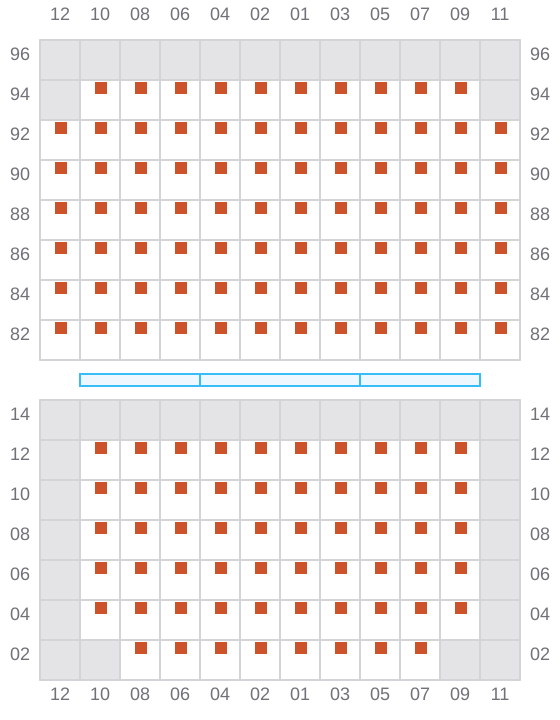

037

  • →
Bay 037 view and slots of DORIS OCEAN

039 (038)

  • ←
Bay 039 view and slots of DORIS OCEAN

041

  • →

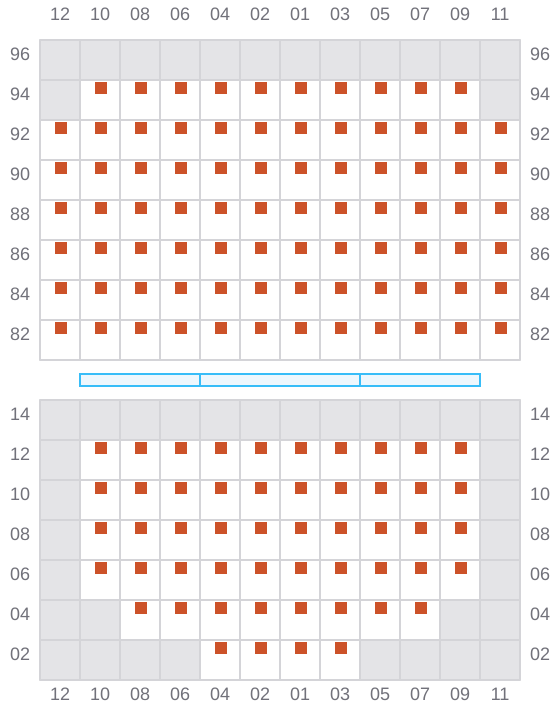

Bay 041 view and slots of DORIS OCEAN

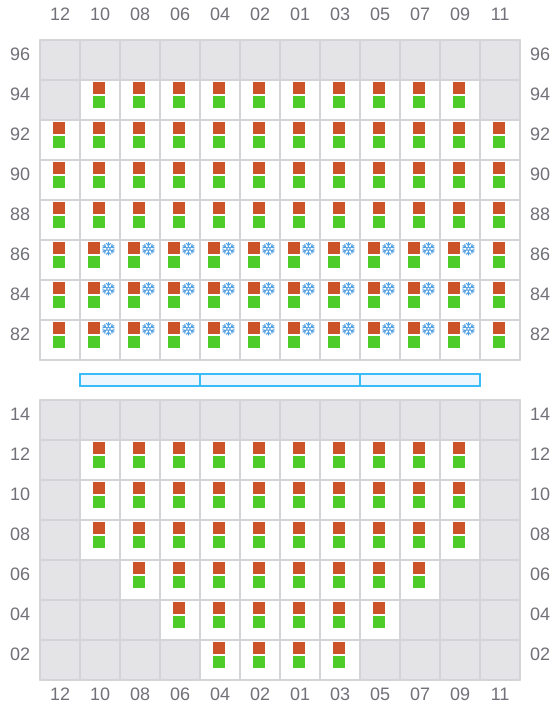

043 (042)

  • ←
Bay 043 view and slots of DORIS OCEAN

045

  • →

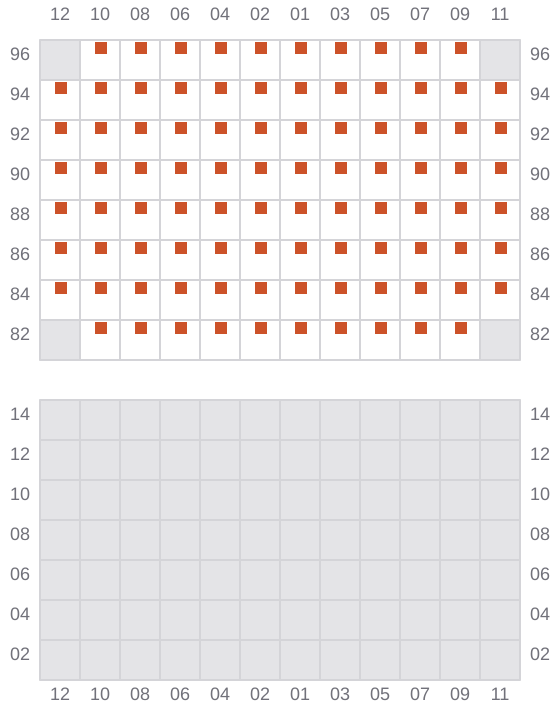

Bay 045 view and slots of DORIS OCEAN

047 (046)

  • ←

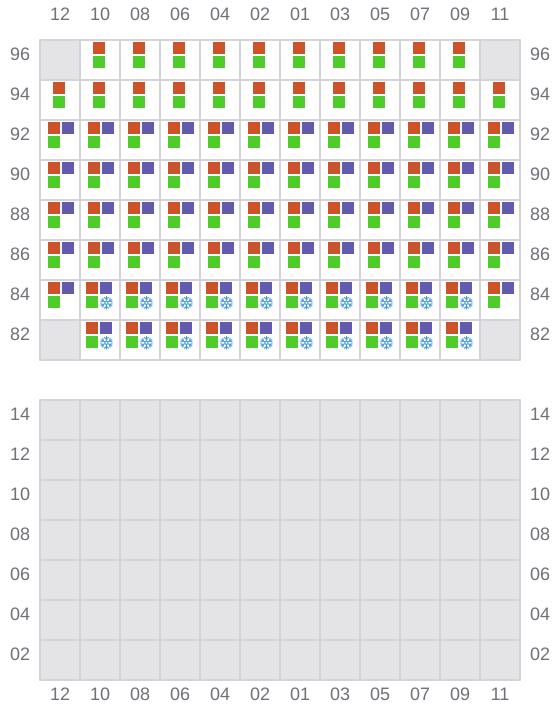

Bay 047 view and slots of DORIS OCEAN
