DUBAI EXPRESS
9440825 | 5LIT9 | 9440825 by ********* Last update: Tue May 14 2024

General Info

Ship Name:DUBAI EXPRESS
IMO Code:9440825
Call Sign:5LIT9
Line Operator:9440825
Class Name for Sister Ships:UASC RAMADI
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):248.01
LOA (Length Overall):262.09
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:061
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:4,259

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

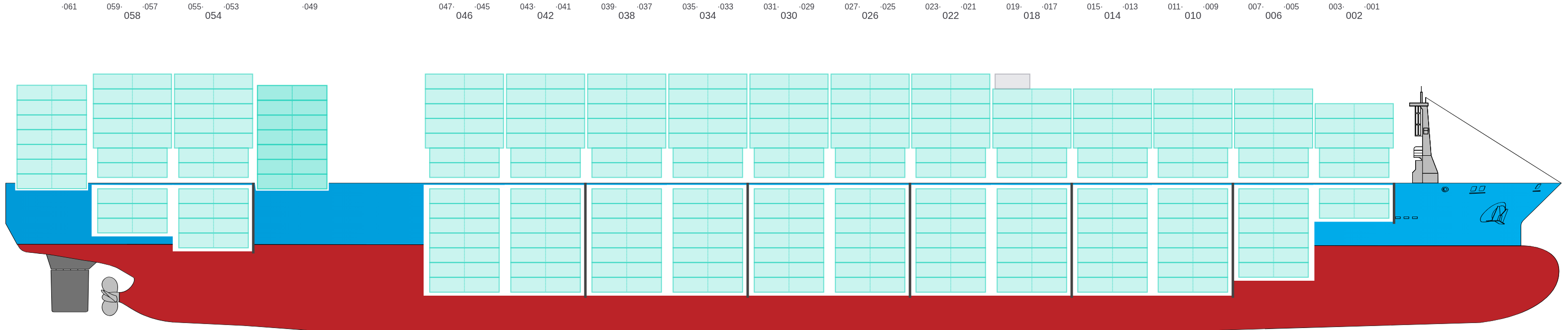

Side View

Side view of DUBAI EXPRESS

Hatch-Covers View

Deck view of DUBAI EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

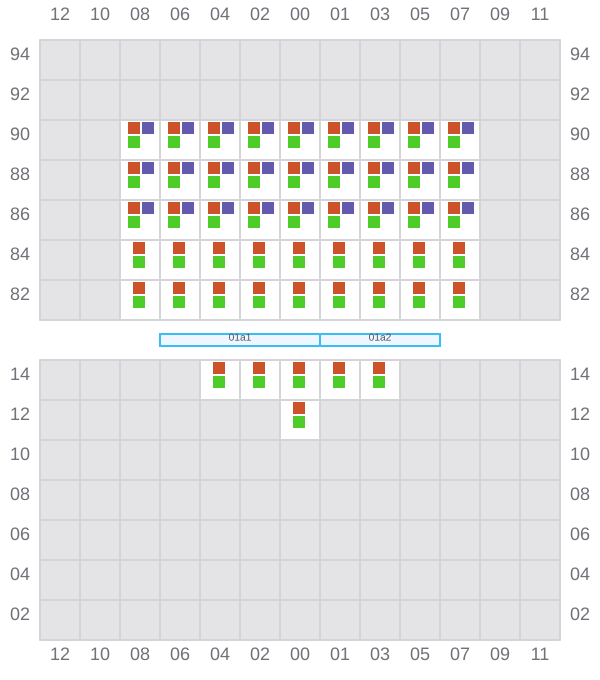

001 (002)

  • →
Bay 001 view and slots of DUBAI EXPRESS

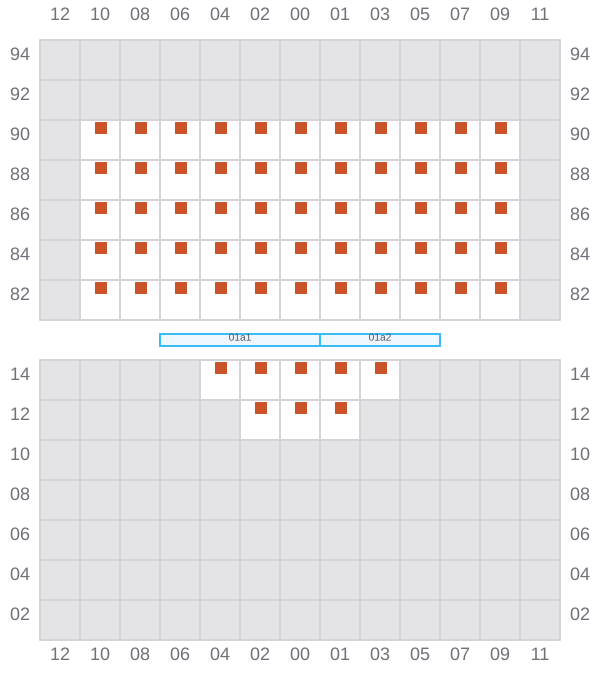

003

  • ←
  • → / ?
Bay 003 view and slots of DUBAI EXPRESS

005 (006)

  • →

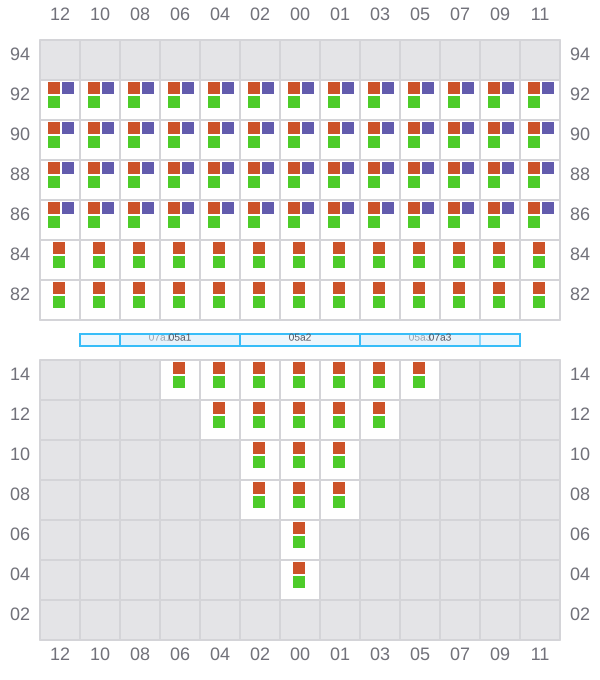

Bay 005 view and slots of DUBAI EXPRESS

007

  • ←
  • → / ?

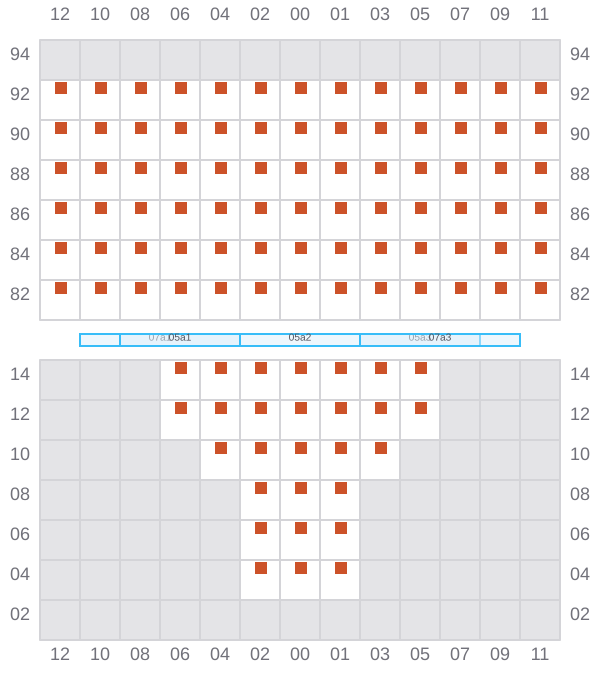

Bay 007 view and slots of DUBAI EXPRESS

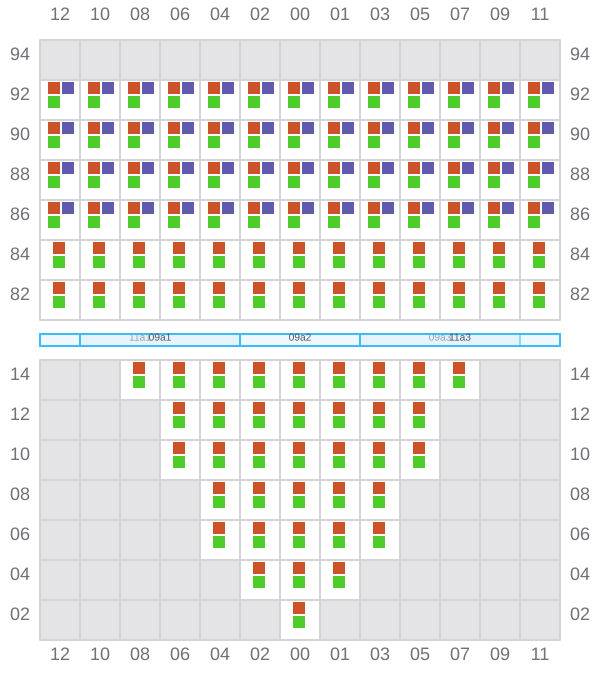

009 (010)

  • →
Bay 009 view and slots of DUBAI EXPRESS

011

  • ←
  • → / ?

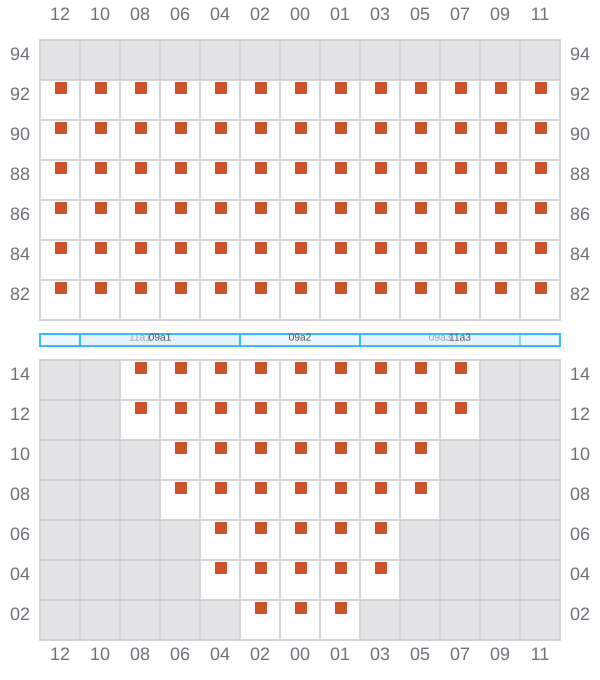

Bay 011 view and slots of DUBAI EXPRESS

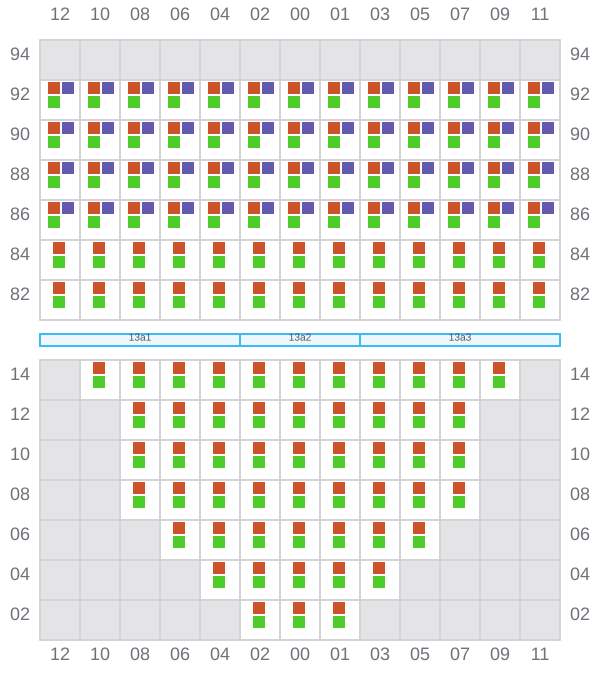

013 (014)

  • →
Bay 013 view and slots of DUBAI EXPRESS

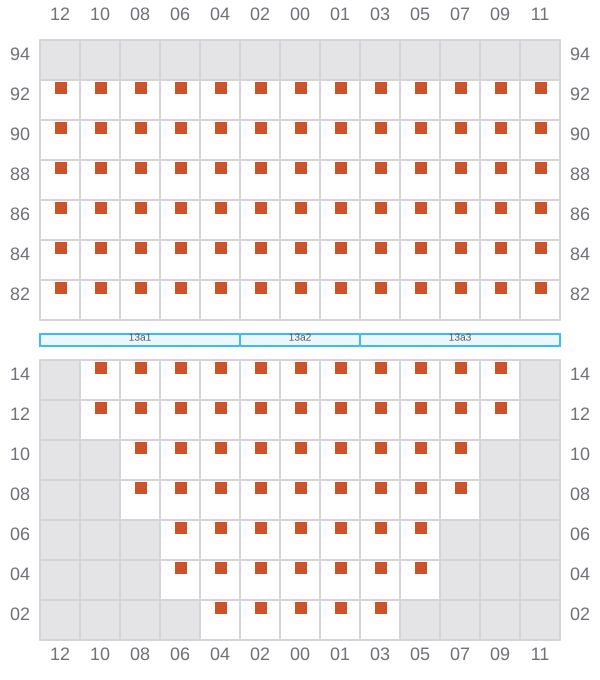

015

  • ←
  • → / ?
Bay 015 view and slots of DUBAI EXPRESS

017 (018)

  • →
Bay 017 view and slots of DUBAI EXPRESS

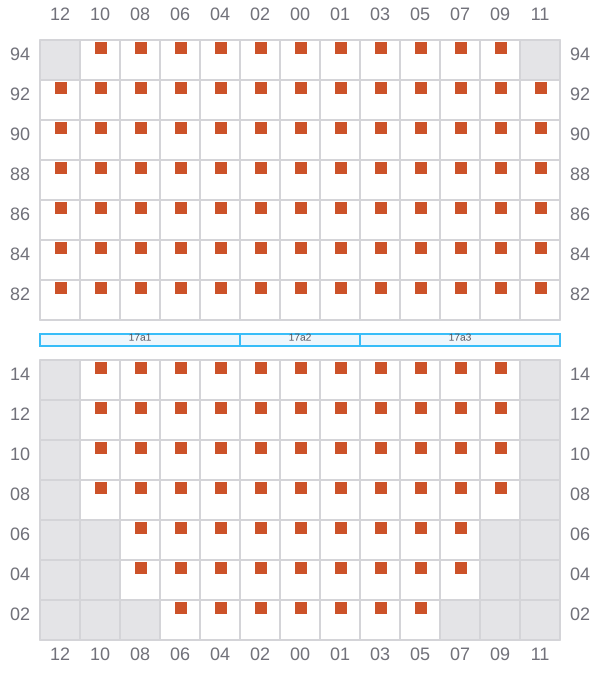

019

  • ←
  • →
Bay 019 view and slots of DUBAI EXPRESS

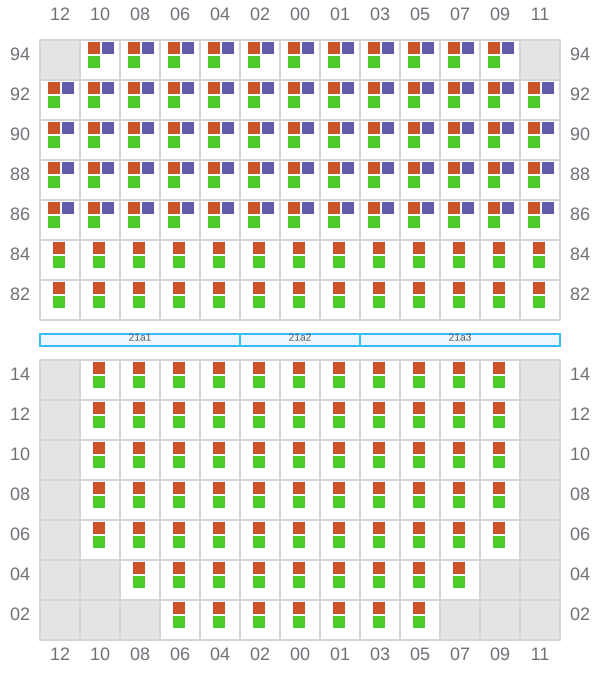

021 (022)

  • →
Bay 021 view and slots of DUBAI EXPRESS

023

  • ←
  • → / ?
Bay 023 view and slots of DUBAI EXPRESS

025 (026)

  • →
Bay 025 view and slots of DUBAI EXPRESS

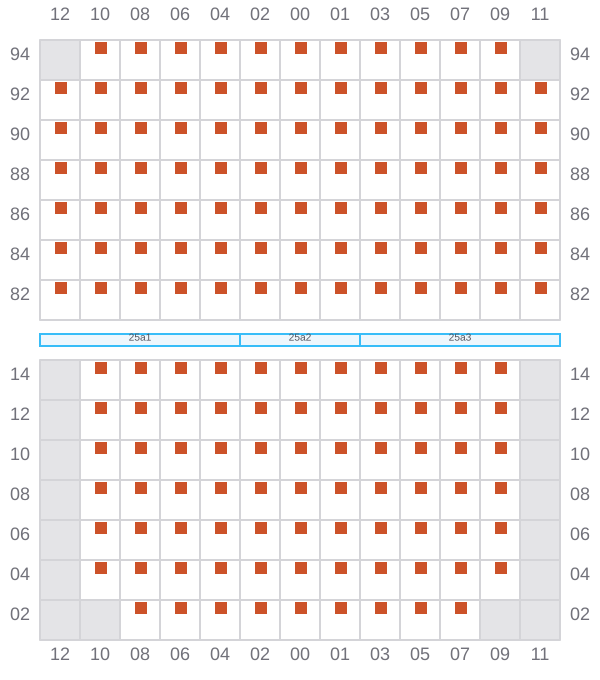

027

  • ←
  • →
Bay 027 view and slots of DUBAI EXPRESS

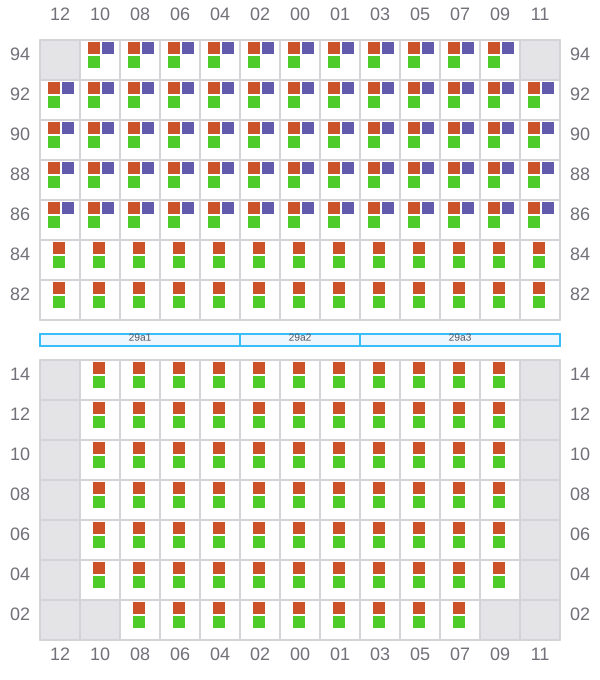

029 (030)

  • →
Bay 029 view and slots of DUBAI EXPRESS

031

  • ←
  • →
Bay 031 view and slots of DUBAI EXPRESS

033 (034)

  • →
Bay 033 view and slots of DUBAI EXPRESS

035

  • ←
  • →
Bay 035 view and slots of DUBAI EXPRESS

037 (038)

  • →
Bay 037 view and slots of DUBAI EXPRESS

039

  • ←
  • →
Bay 039 view and slots of DUBAI EXPRESS

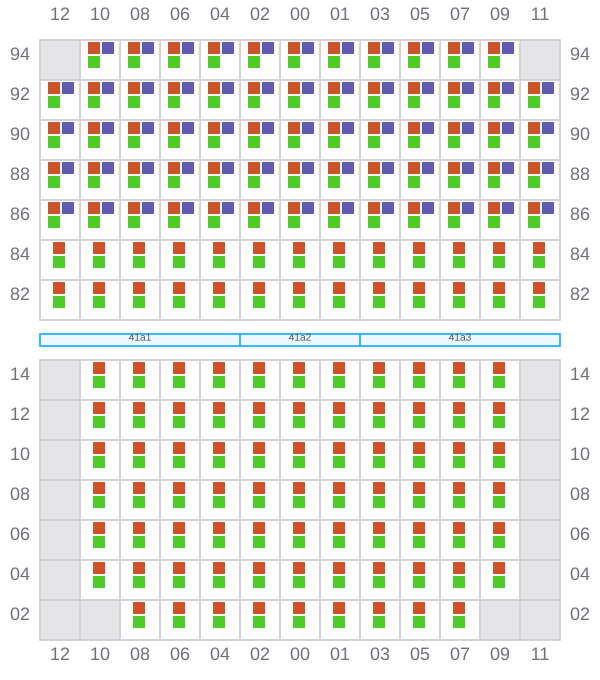

041 (042)

  • →
Bay 041 view and slots of DUBAI EXPRESS

043

  • ←
  • →
Bay 043 view and slots of DUBAI EXPRESS

045 (046)

  • →
Bay 045 view and slots of DUBAI EXPRESS

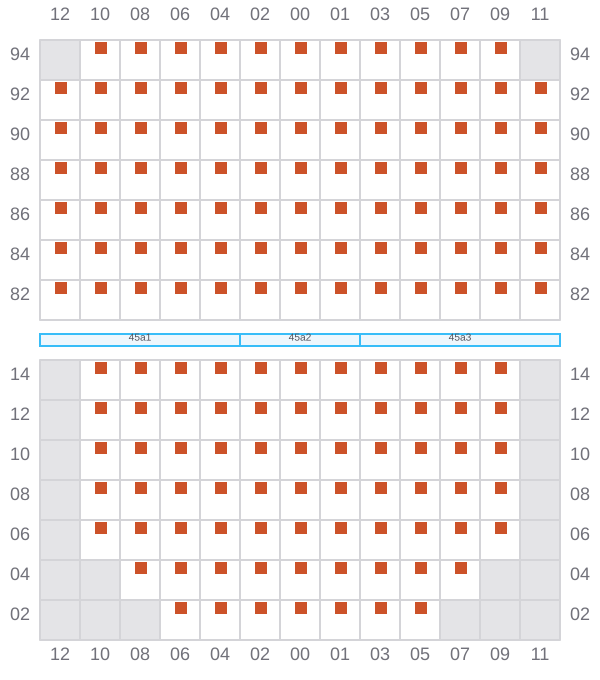

047

  • ←
  • →
Bay 047 view and slots of DUBAI EXPRESS

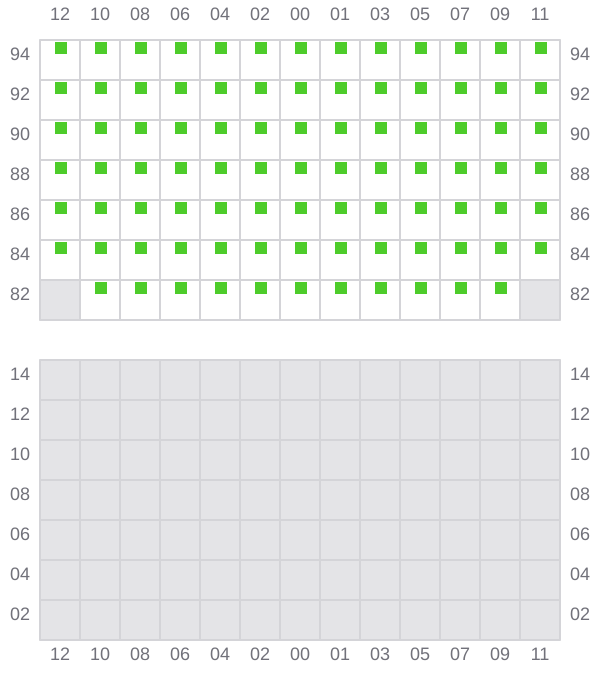

049 (050)

  • → / ?
  • → / ?
Bay 049 view and slots of DUBAI EXPRESS

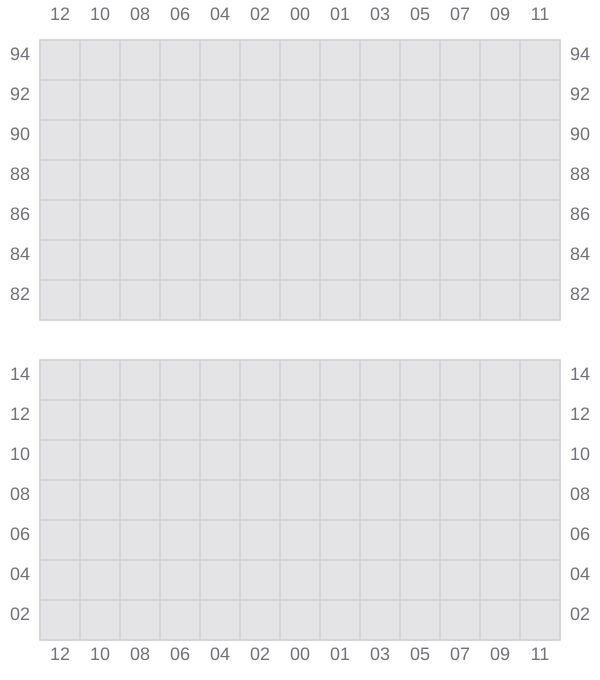

051

Bay 051 view and slots of DUBAI EXPRESS

053 (054)

  • →

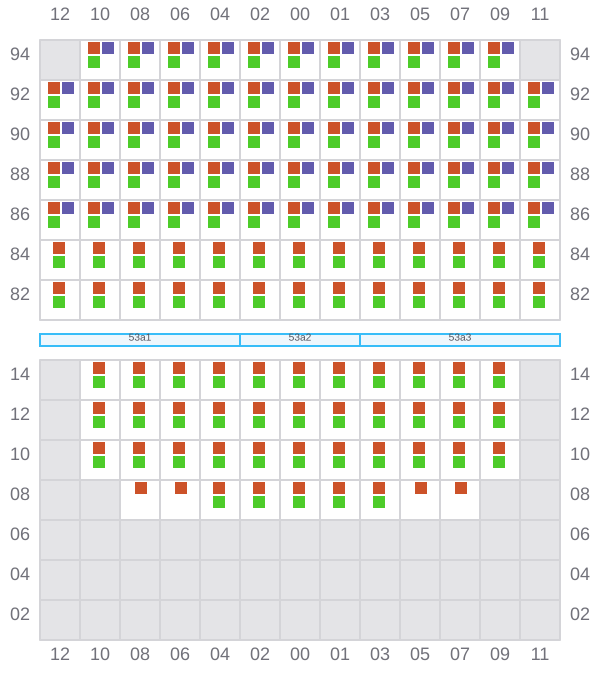

Bay 053 view and slots of DUBAI EXPRESS

055

  • ←
  • → / ?

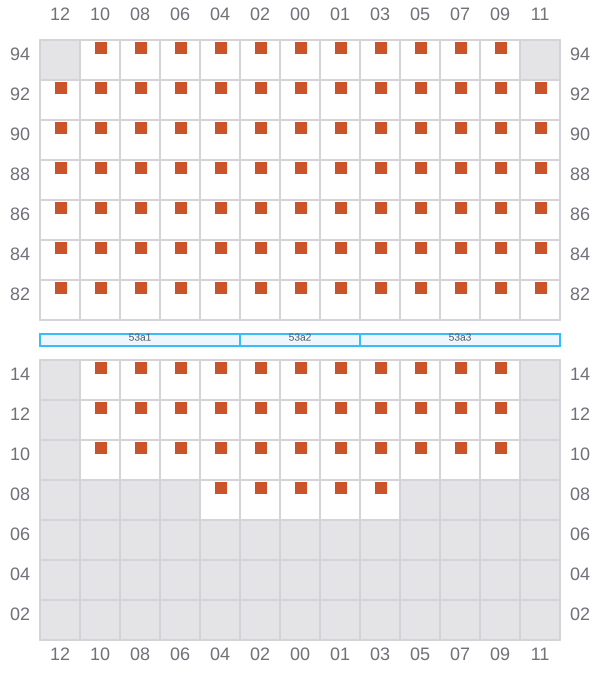

Bay 055 view and slots of DUBAI EXPRESS

057 (058)

  • →

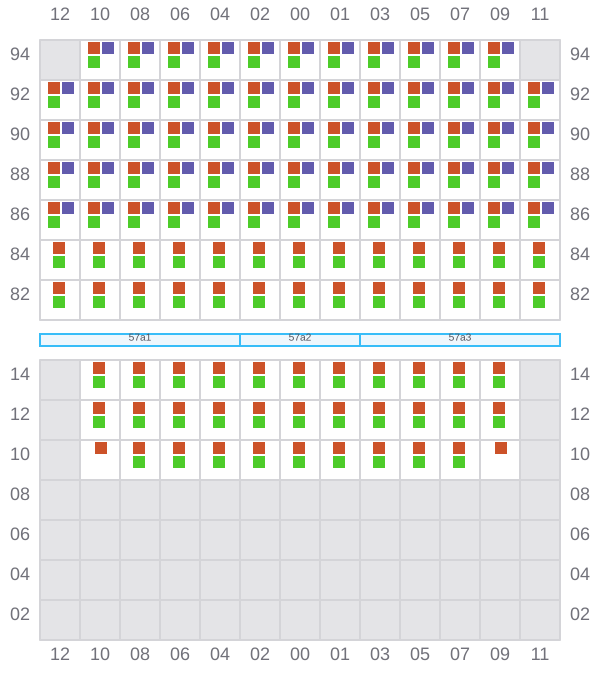

Bay 057 view and slots of DUBAI EXPRESS

059

  • ←
  • → / ?

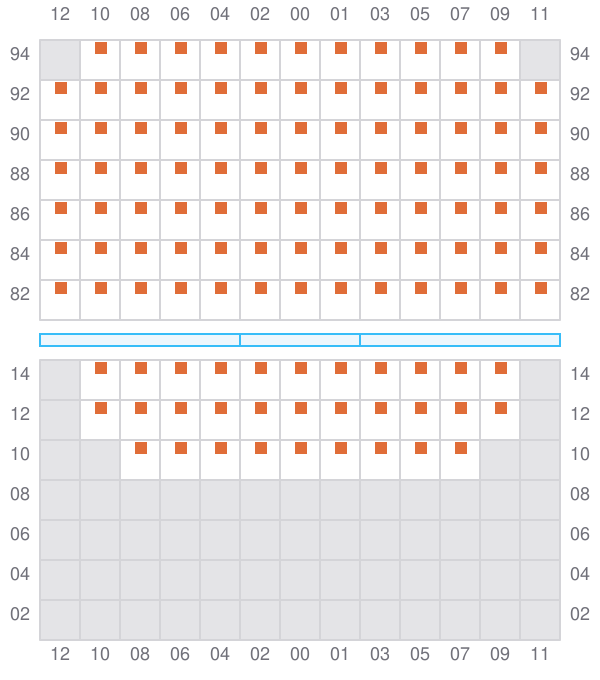

Bay 059 view and slots of DUBAI EXPRESS

061 (062)

  • → / ?
  • ← / ?

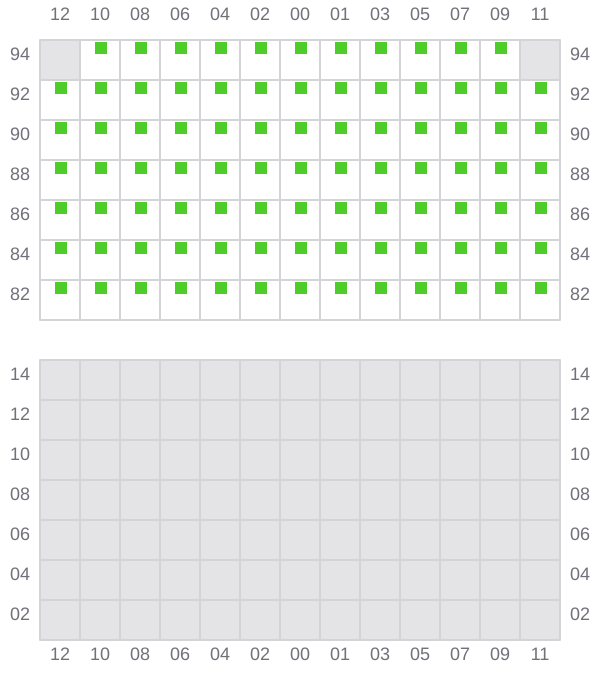

Bay 061 view and slots of DUBAI EXPRESS
