DUBLIN EXPRESS
9232577 | ZCHC7 | HAPAG-LLOYD by ********* Last update: Fri Mar 15 2024
General Info
Ship Name:DUBLIN EXPRESS
IMO Code:9232577
Call Sign:ZCHC7
Line Operator:HAPAG-LLOYD
Class Name for Sister Ships:DUBLIN EXPRESS
Year Built:2002
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):268.86
LOA (Length Overall):281.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:063
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,121
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

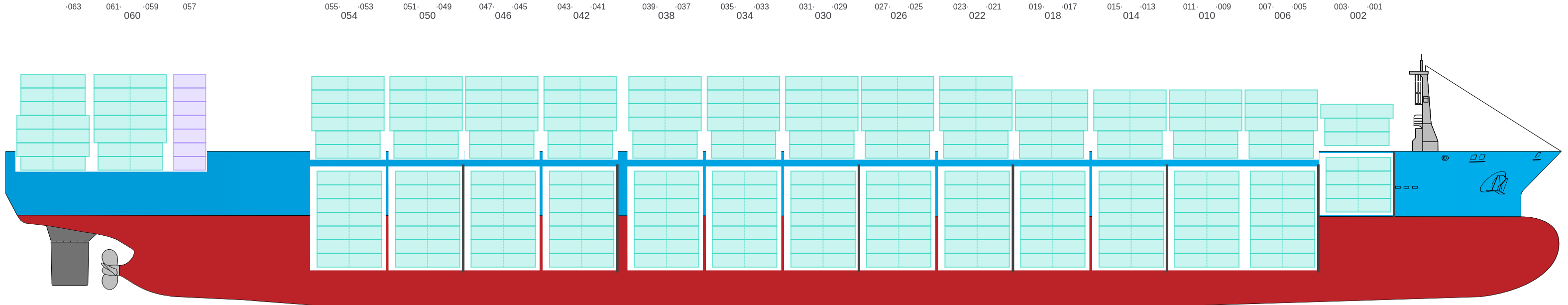

Side View
![Side view of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-sideView.png?v=1710529027754)

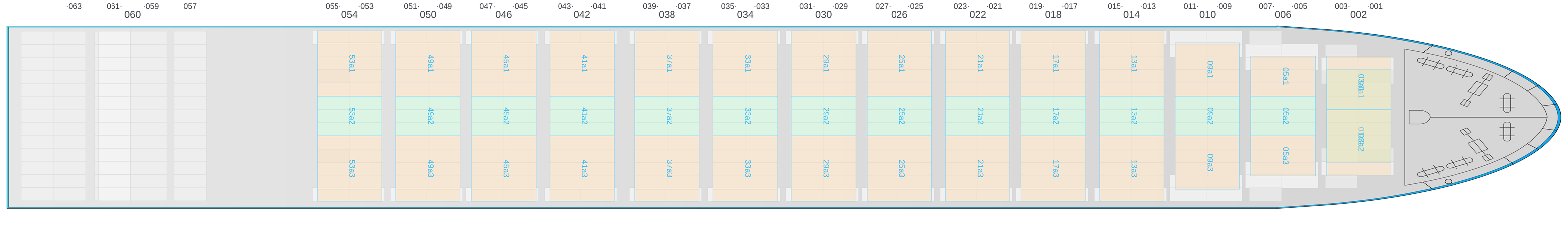

Hatch-Covers View
![Deck view of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-deckView.png?v=1710529027754)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

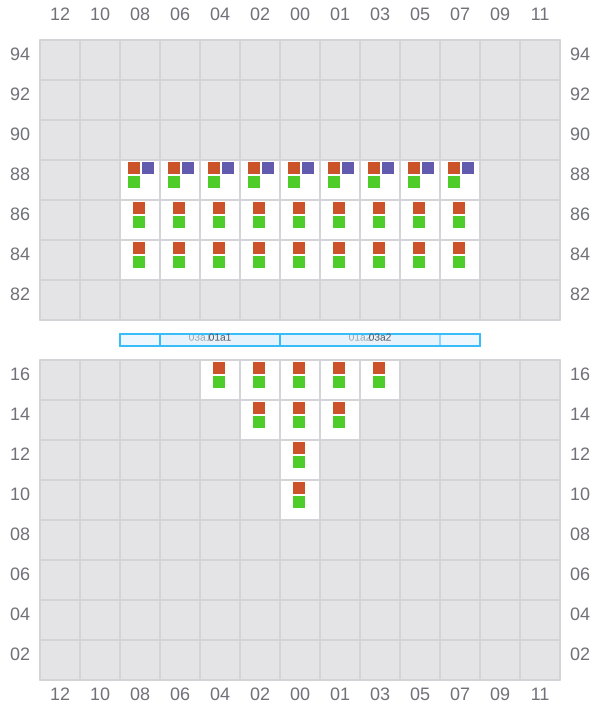

001 (002)
- →
![Bay 001 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b001.png?v=1710529027754)

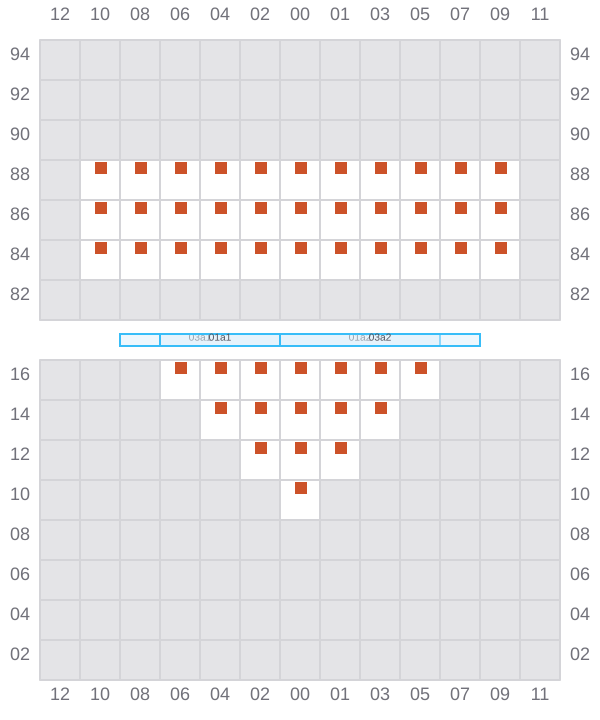

003
- ←
![Bay 003 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b003.png?v=1710529027754)

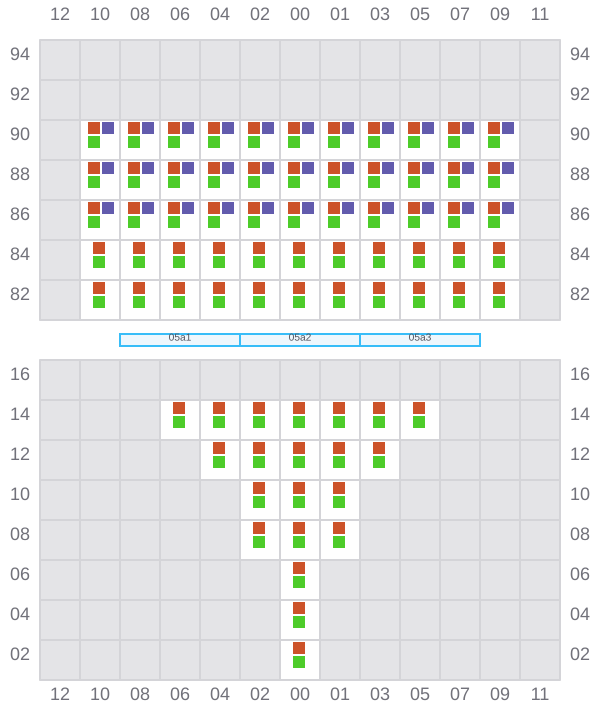

005 (006)
- →
![Bay 005 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b005.png?v=1710529027754)

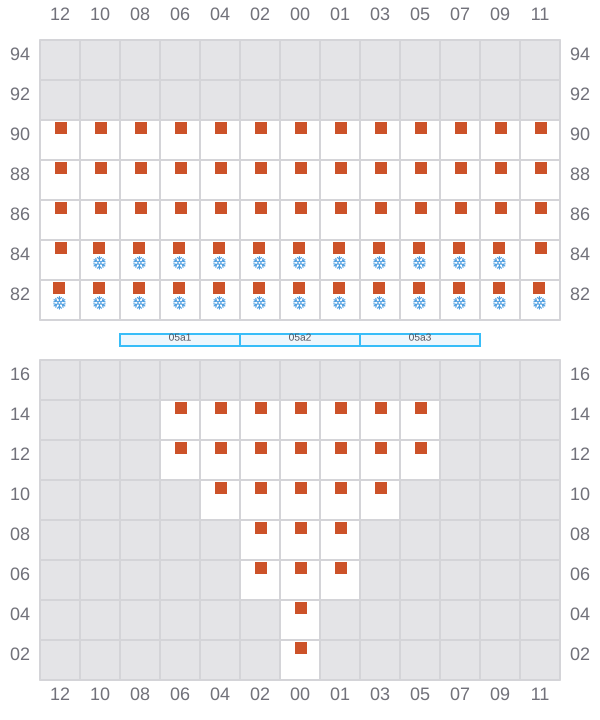

007
- ←
- → / ?
![Bay 007 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b007.png?v=1710529027754)

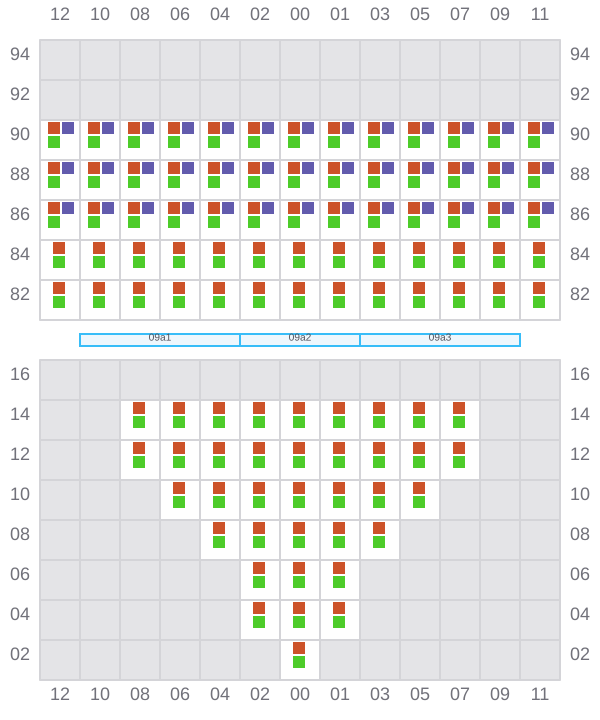

009 (010)
- →
![Bay 009 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b009.png?v=1710529027754)

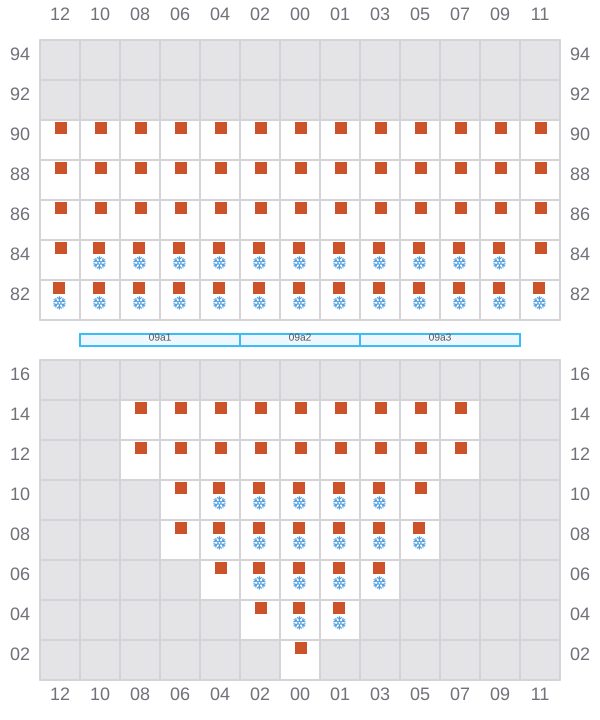

011
- ←
- →
![Bay 011 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b011.png?v=1710529027754)

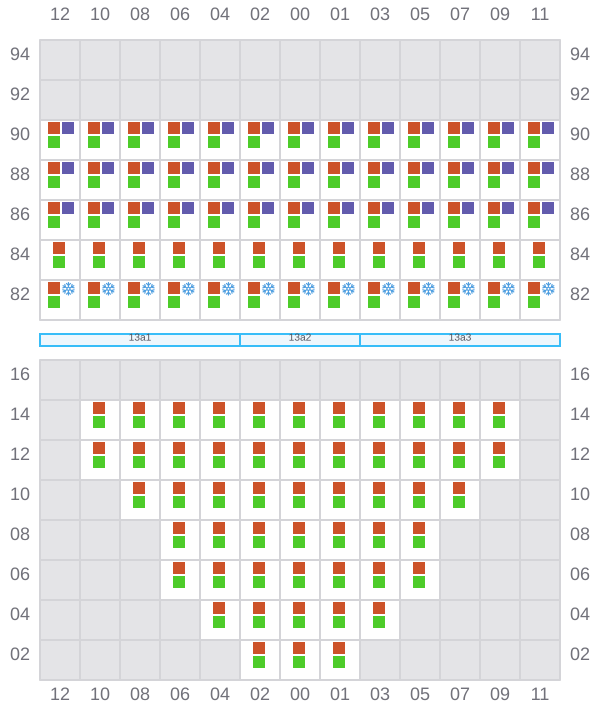

013 (014)
- →
- ← / ?
![Bay 013 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b013.png?v=1710529027754)

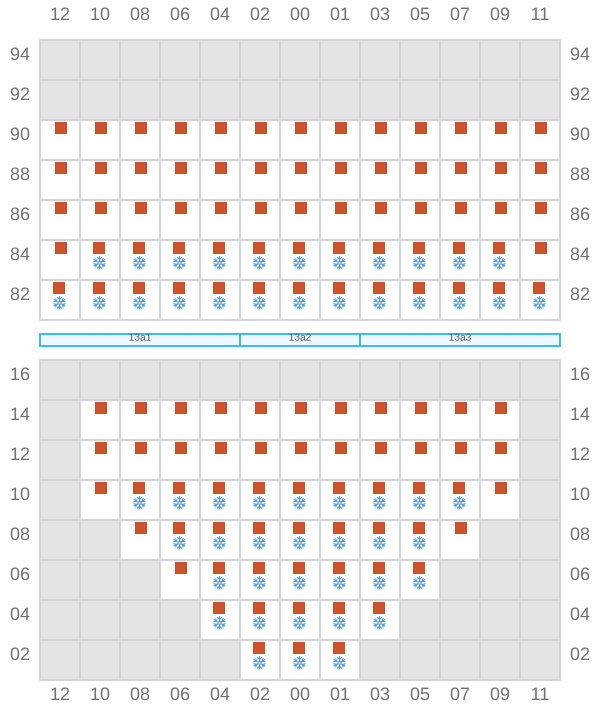

015
- ←
- →
![Bay 015 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b015.png?v=1710529027754)

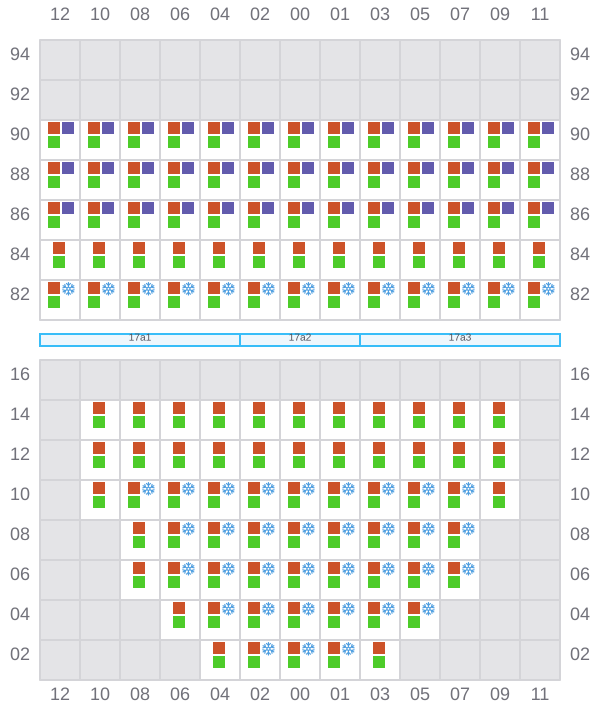

017 (018)
- →
- ←
![Bay 017 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b017.png?v=1710529027754)

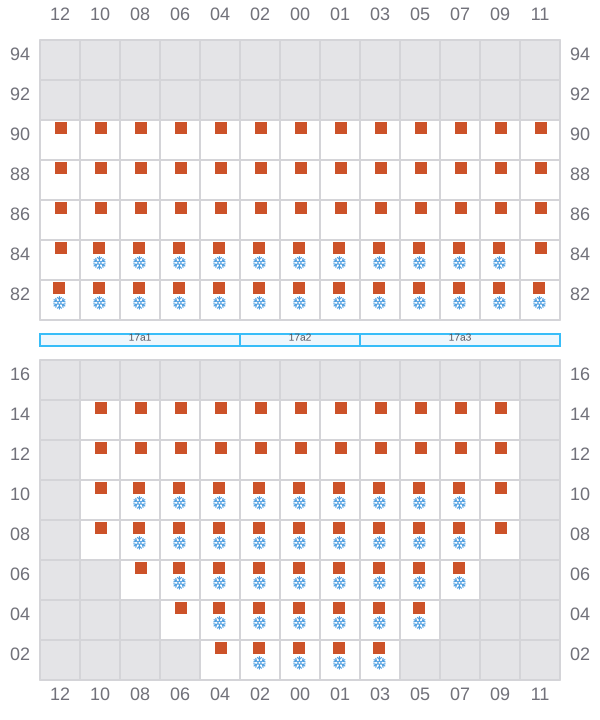

019
- ←
- →
![Bay 019 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b019.png?v=1710529027754)

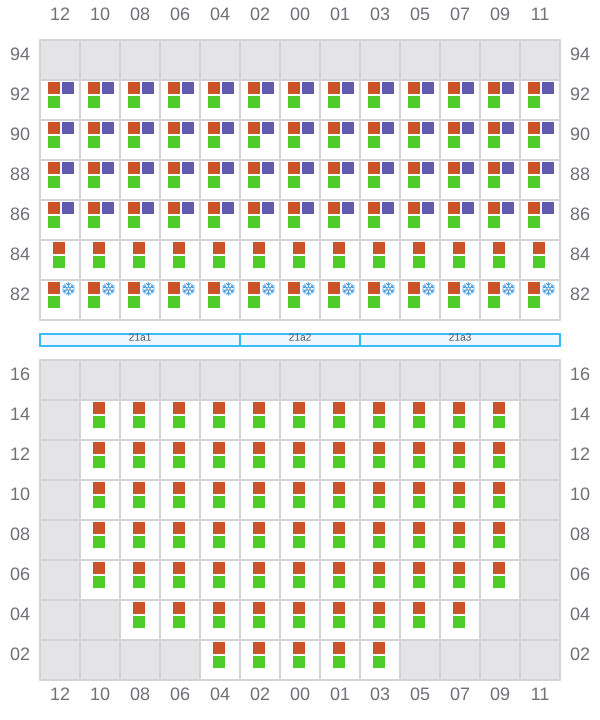

021 (022)
- →
- ← / ?
![Bay 021 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b021.png?v=1710529027754)
023
- ←
- →
![Bay 023 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b023.png?v=1710529027754)

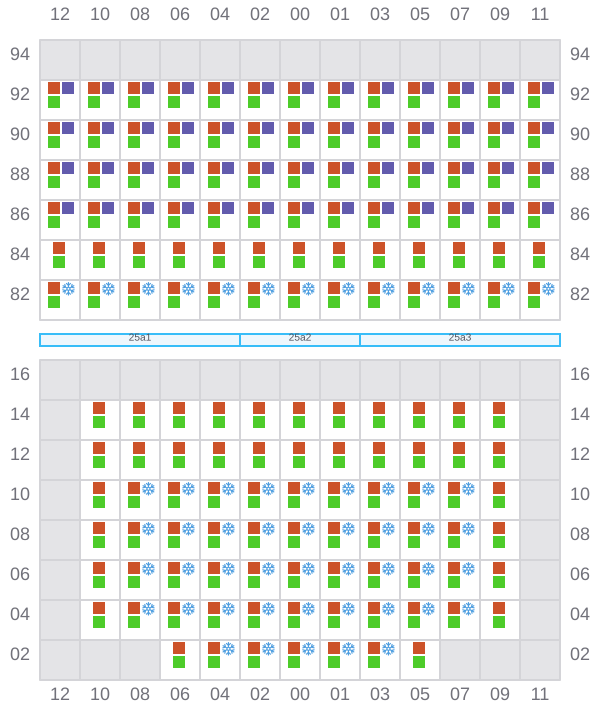

025 (026)
- →
- ←
![Bay 025 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b025.png?v=1710529027754)
027
- ←
- →
![Bay 027 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b027.png?v=1710529027754)

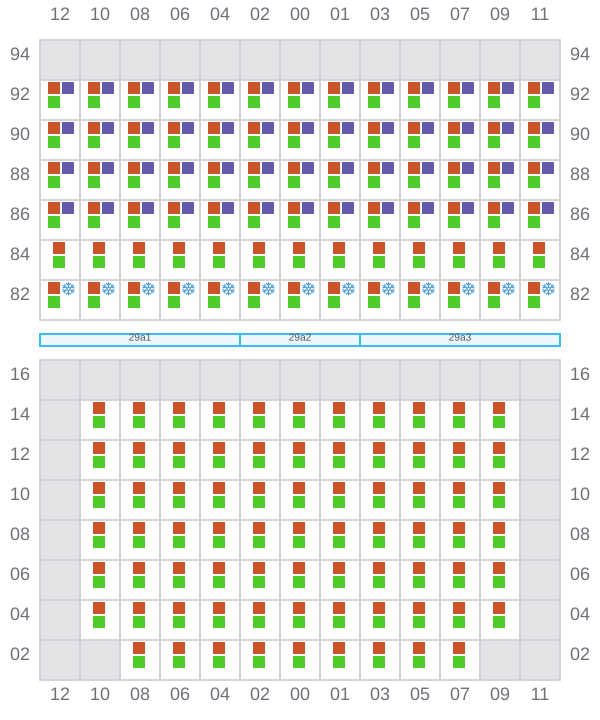

029 (030)
- →
- ← / ?
![Bay 029 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b029.png?v=1710529027754)

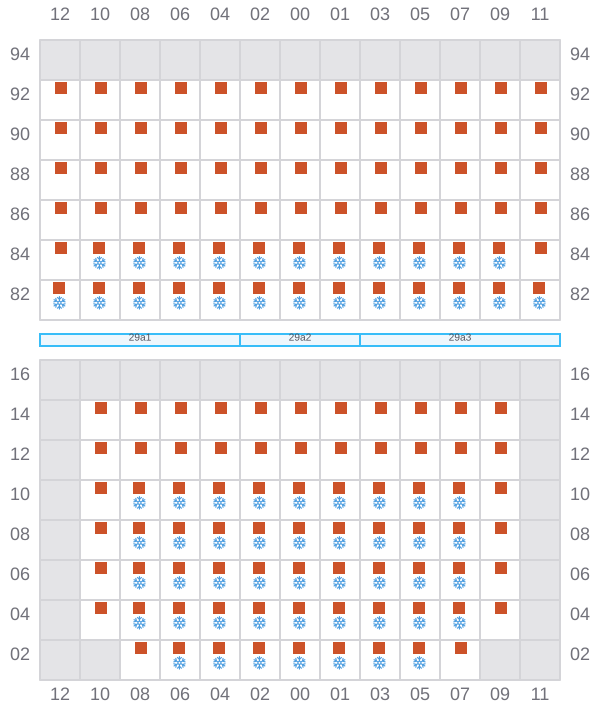

031
- ←
- →
![Bay 031 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b031.png?v=1710529027754)

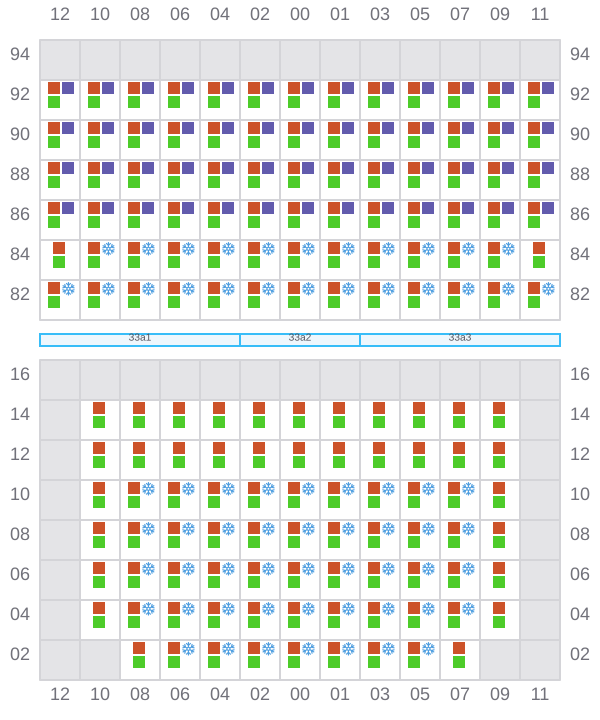

033 (034)
- →
- ←
![Bay 033 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b033.png?v=1710529027754)
035
- ←
- →
![Bay 035 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b035.png?v=1710529027754)

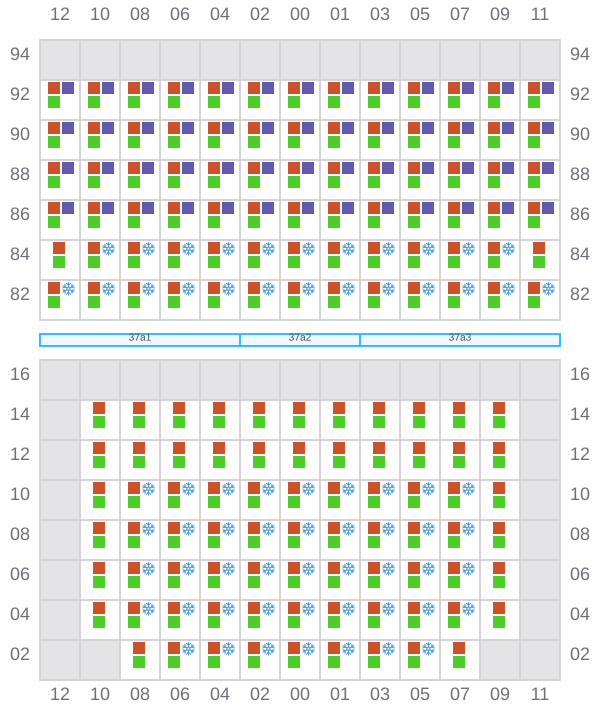

037 (038)
- →
- ←
![Bay 037 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b037.png?v=1710529027754)
039
- ←
- →
![Bay 039 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b039.png?v=1710529027754)
041 (042)
- →
- ←
![Bay 041 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b041.png?v=1710529027754)
043
- ←
- →
![Bay 043 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b043.png?v=1710529027754)

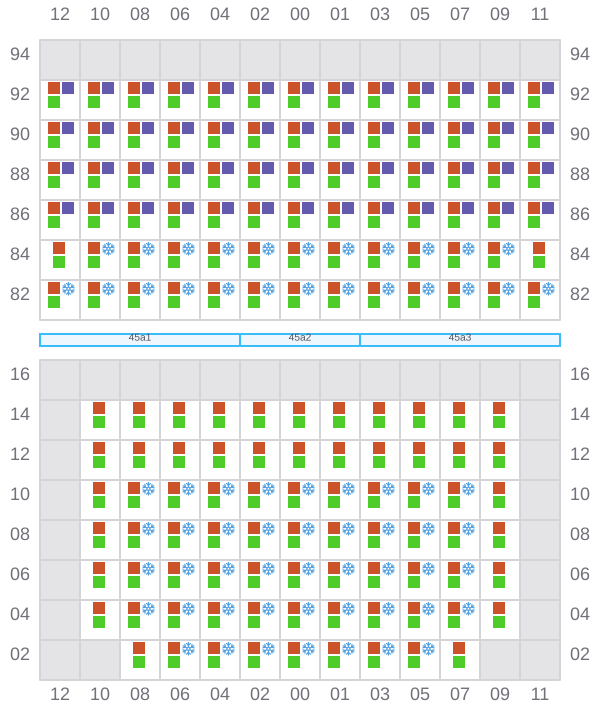

045 (046)
- →
- ←
![Bay 045 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b045.png?v=1710529027754)
047
- ←
- →
![Bay 047 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b047.png?v=1710529027754)

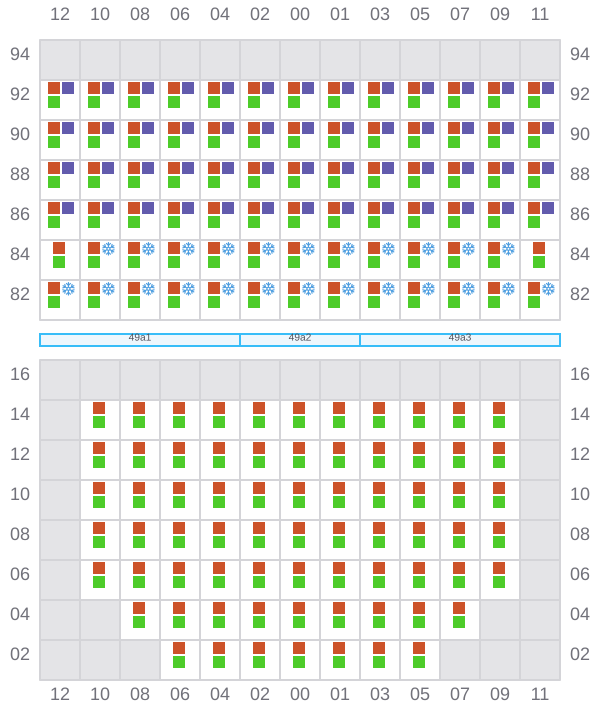

049 (050)
- →
- ← / ?
![Bay 049 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b049.png?v=1710529027754)

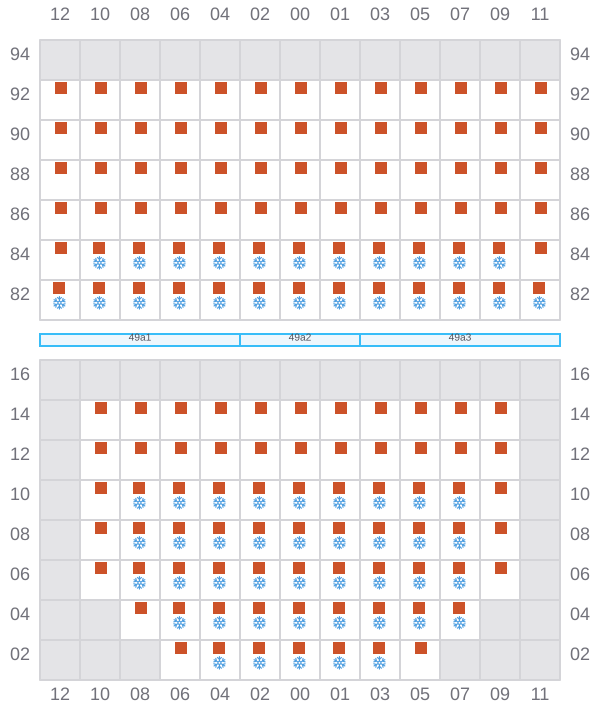

051
- ←
- →
![Bay 051 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b051.png?v=1710529027754)

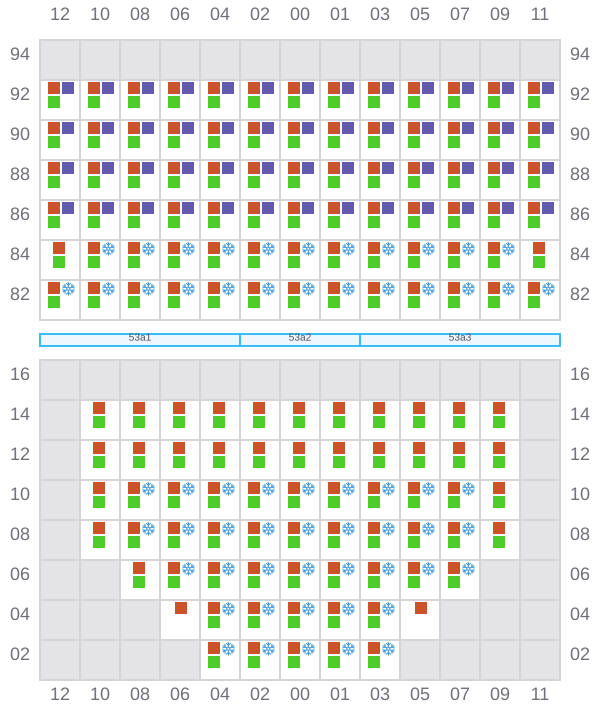

053 (054)
- →
- ←
![Bay 053 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b053.png?v=1710529027754)

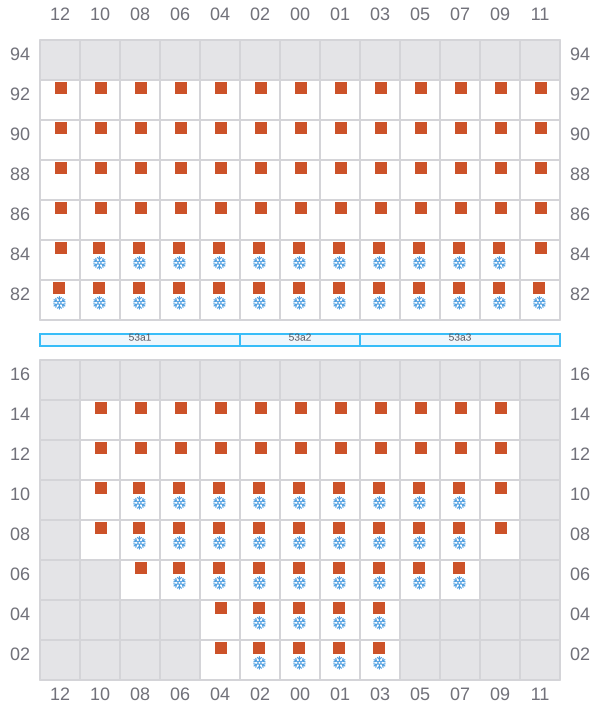

055
- ←
- →
![Bay 055 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b055.png?v=1710529027754)

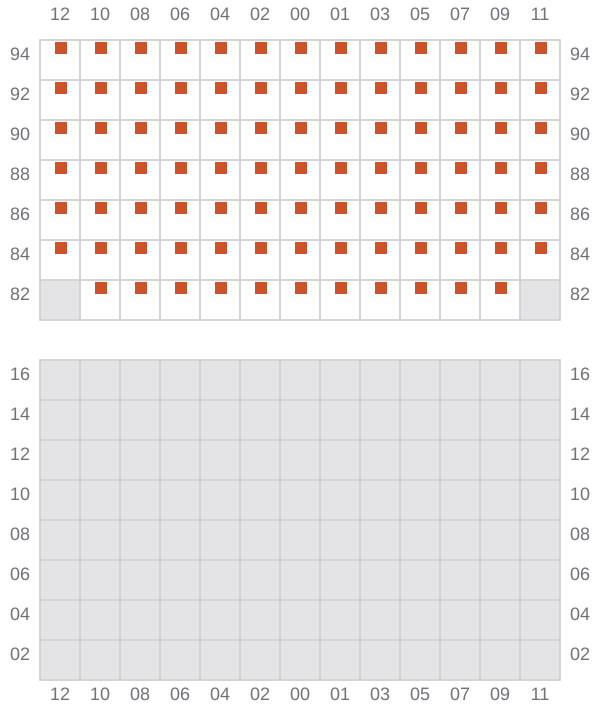

057
![Bay 057 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b057.png?v=1710529027754)

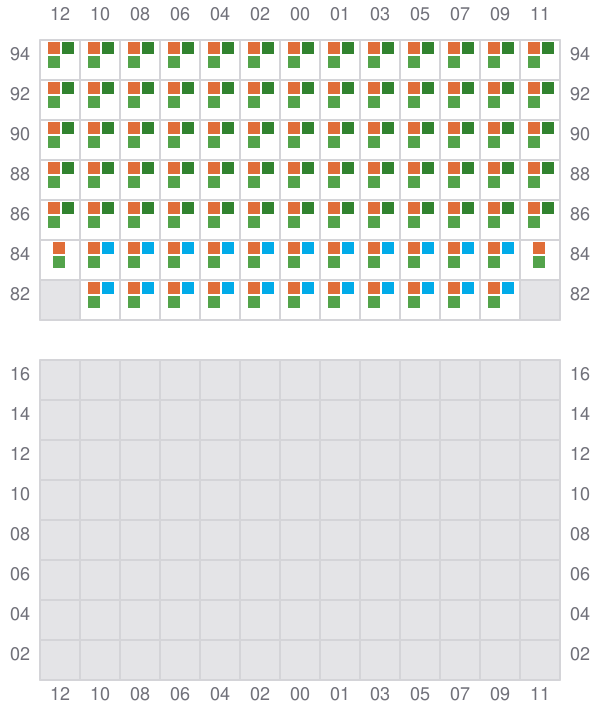

059 (060)
- → / ?
- ← / ?
![Bay 059 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b059.png?v=1710529027754)
061
- ← / ?
![Bay 061 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b061.png?v=1710529027754)

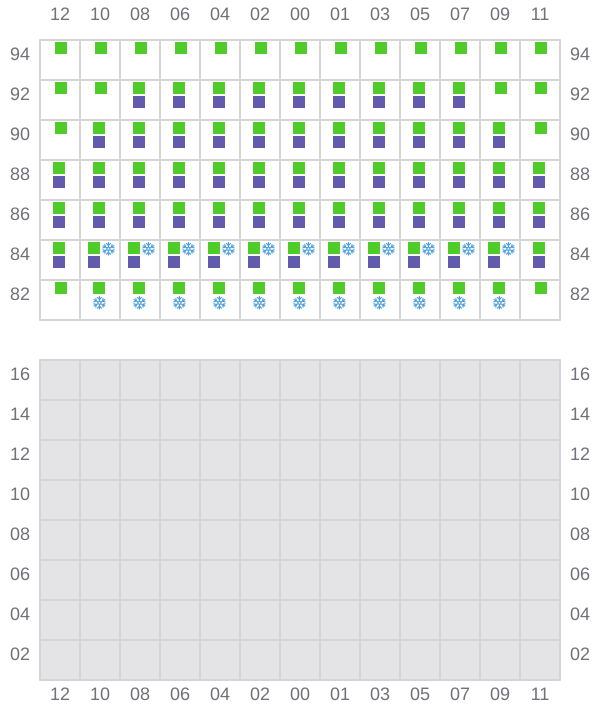

063 (064)
- → / ?
- ← / ?
![Bay 063 view and slots of DUBLIN EXPRESS](/vessel-images/89a12266-0d4e-4199-8917-fcb71592b56e-b063.png?v=1710529027754)
