DURANDE
9256365 | LXDU | CMA by ************************** Last update: Wed Jun 14 2023
General Info
Ship Name:DURANDE
IMO Code:9256365
Call Sign:LXDU
Line Operator:CMA
Class Name for Sister Ships:DRN
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,736
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-sideView.png?v=1686765274851)

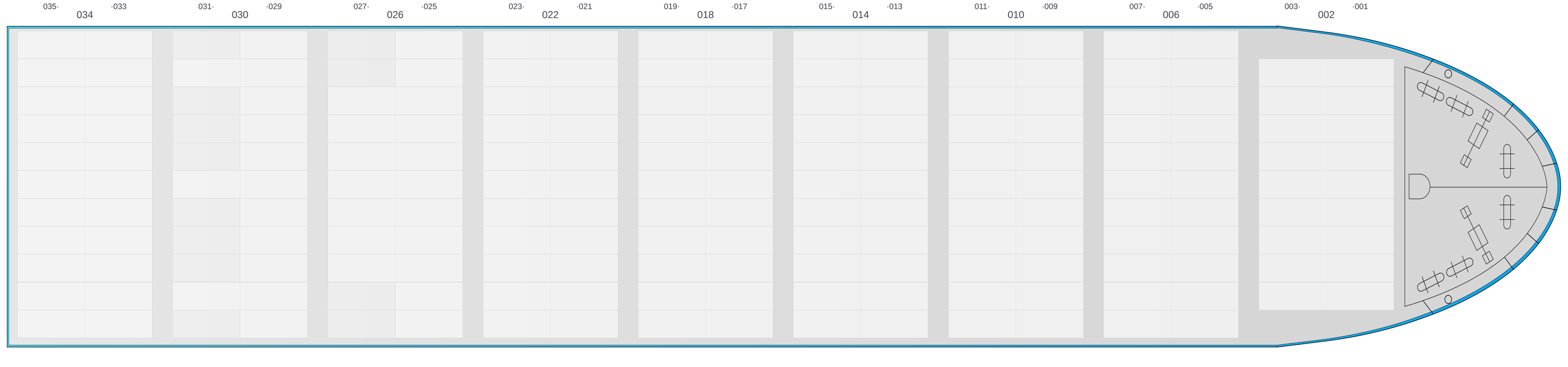

Hatch-Covers View
![Deck view of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-deckView.png?v=1686765274851)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

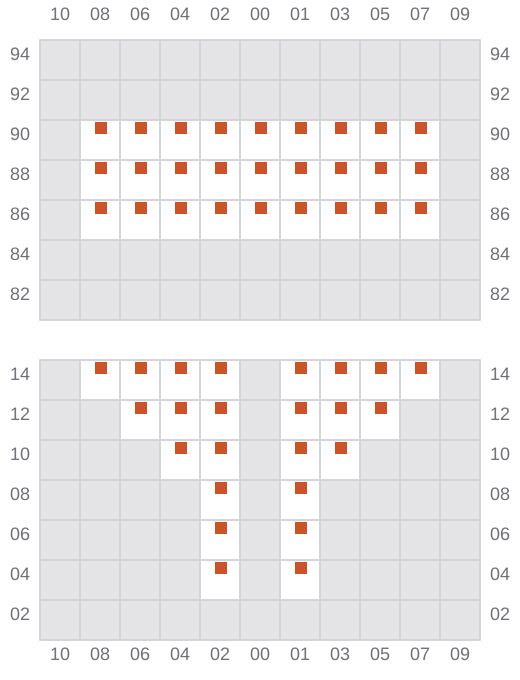

001
- →
![Bay 001 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b001.png?v=1686765274851)

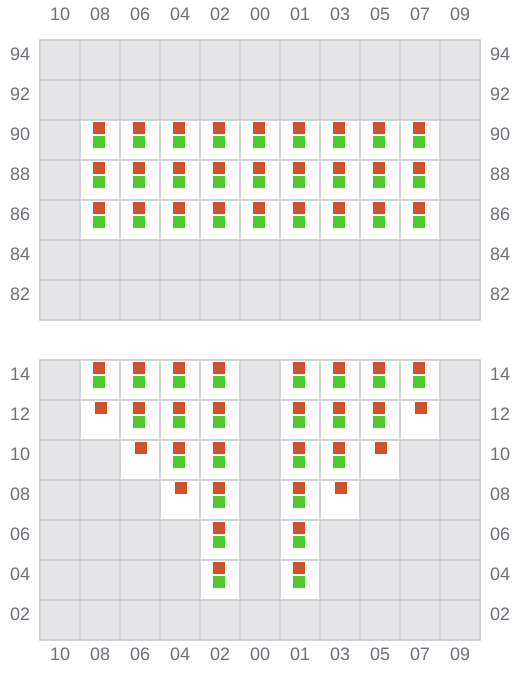

003 (002)
- ←
![Bay 003 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b003.png?v=1686765274851)
005
- →
![Bay 005 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b005.png?v=1686765274851)

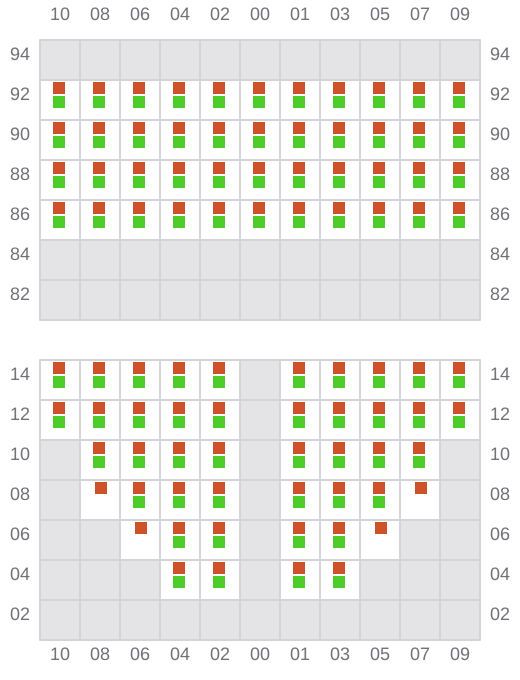

007 (006)
- ←
![Bay 007 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b007.png?v=1686765274851)

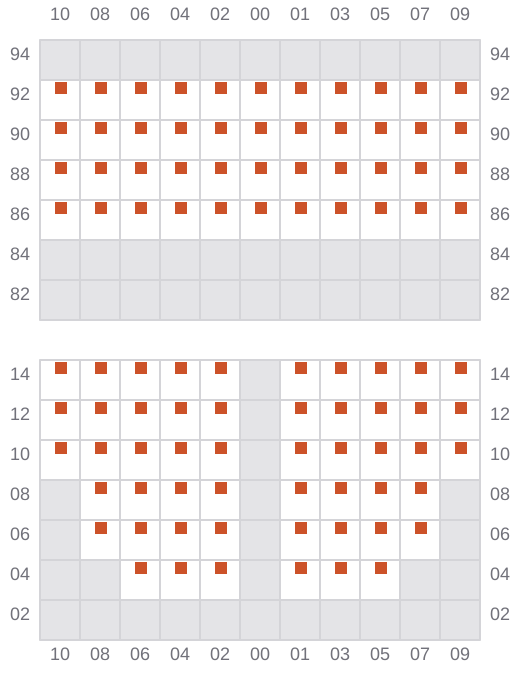

009
- →
![Bay 009 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b009.png?v=1686765274851)

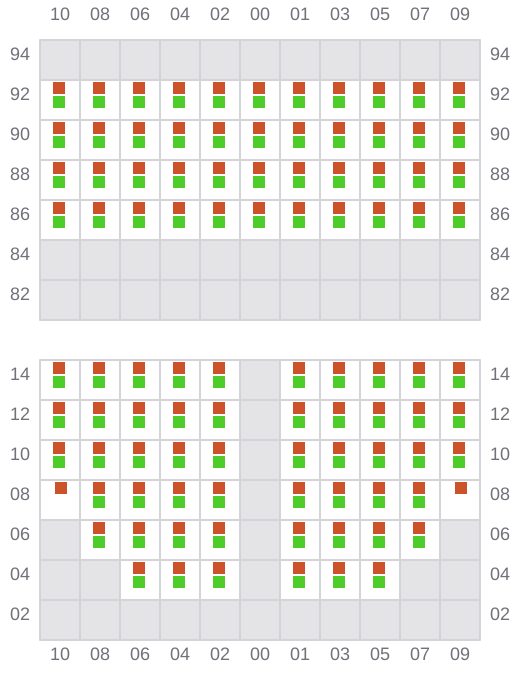

011 (010)
- ←
![Bay 011 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b011.png?v=1686765274851)
013
- →
![Bay 013 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b013.png?v=1686765274851)
015 (014)
- ←
![Bay 015 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b015.png?v=1686765274851)
017
- →
![Bay 017 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b017.png?v=1686765274851)

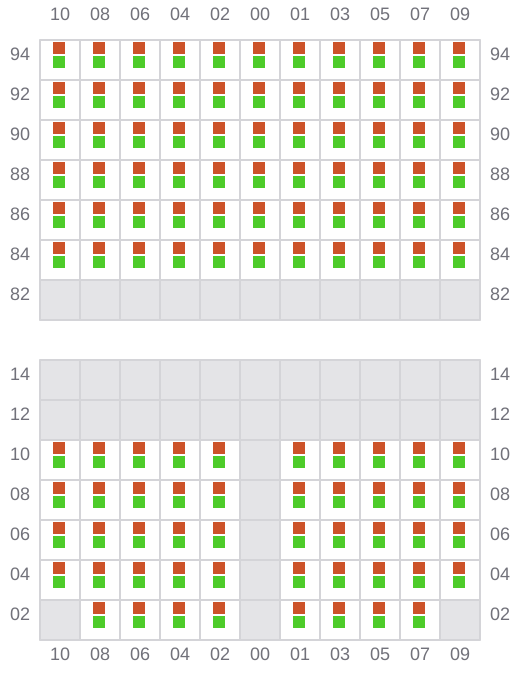

019 (018)
- ←
![Bay 019 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b019.png?v=1686765274851)

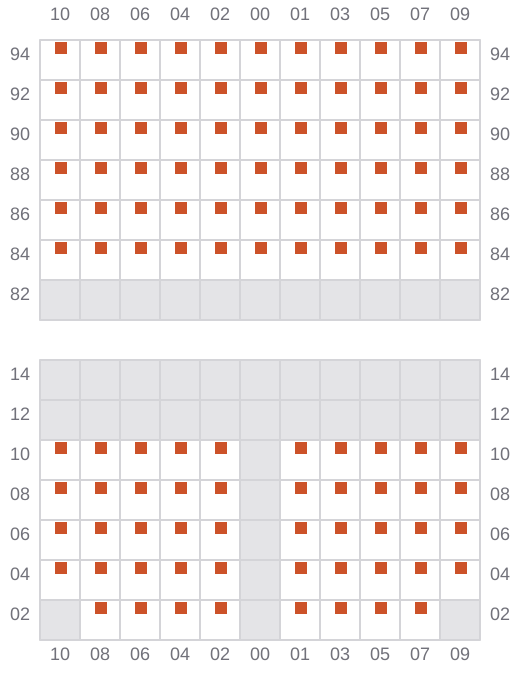

021
- →
![Bay 021 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b021.png?v=1686765274851)
023 (022)
- ←
![Bay 023 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b023.png?v=1686765274851)
025
- →
![Bay 025 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b025.png?v=1686765274851)

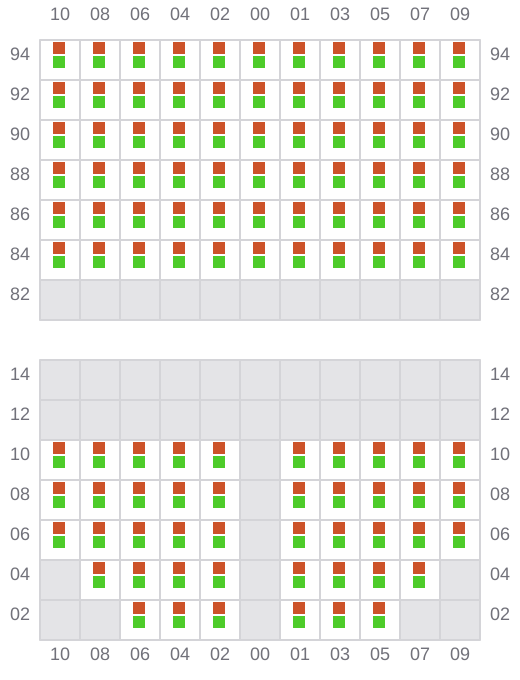

027 (026)
- ←
![Bay 027 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b027.png?v=1686765274851)

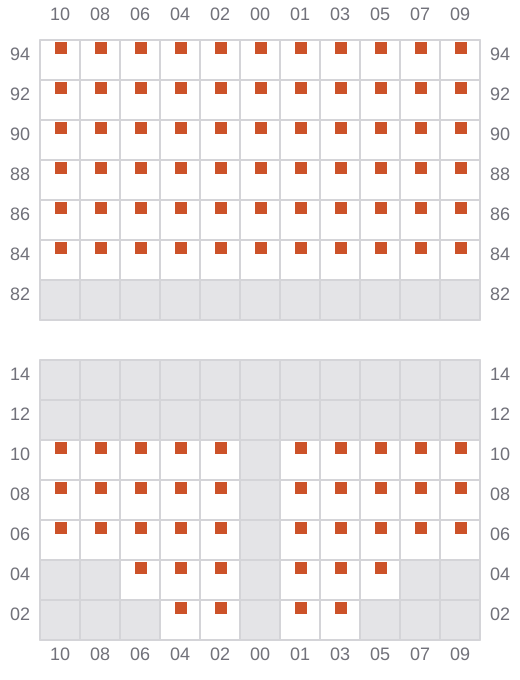

029
- →
![Bay 029 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b029.png?v=1686765274851)

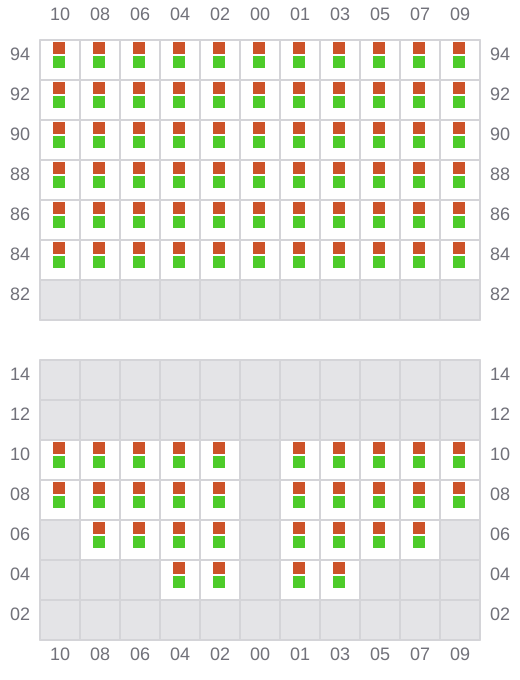

031 (030)
- ←
![Bay 031 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b031.png?v=1686765274851)

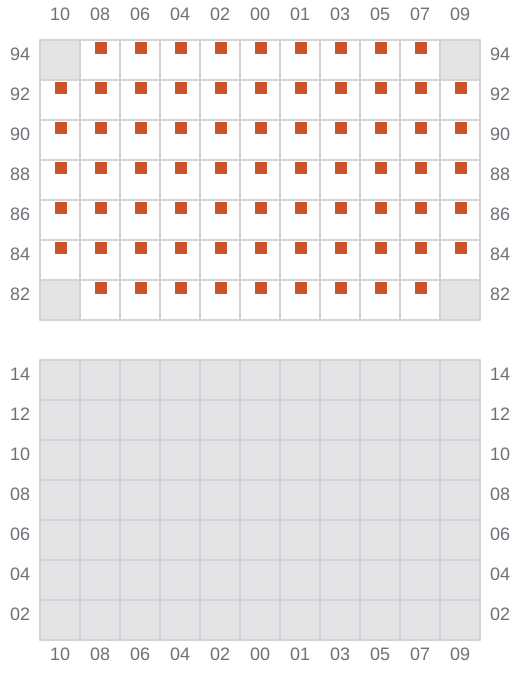

033
- → / ?
![Bay 033 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b033.png?v=1686765274851)

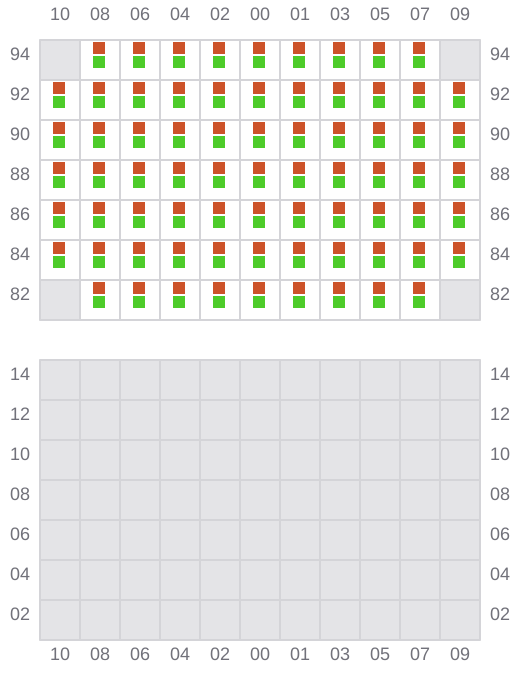

035 (034)
- ← / ?
![Bay 035 view and slots of DURANDE](/vessel-images/3ff1f448-8ce6-4bab-8107-e2b4e6d4181c-b035.png?v=1686765274851)
