DURANDE
9256365 | LXDU | HLC by *********************** Last update: Thu Jan 16 2025
General Info
Ship Name:DURANDE
IMO Code:9256365
Call Sign:LXDU
Line Operator:HLC
Class Name for Sister Ships:FDUR
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):166.00
LOA (Length Overall):175.49
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,752
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

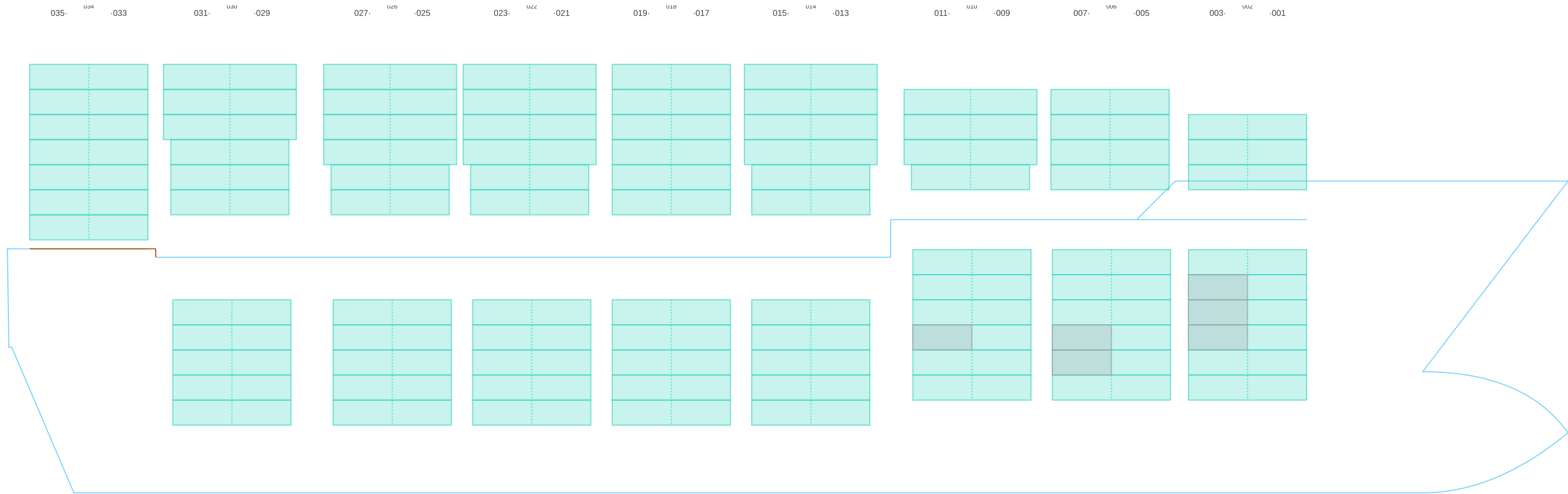

Side View

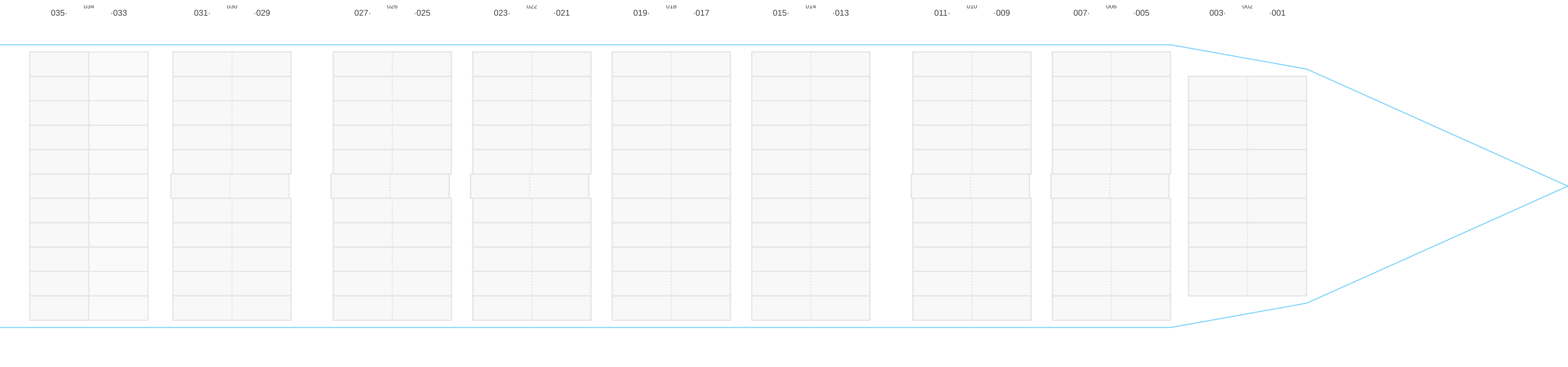

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot ×

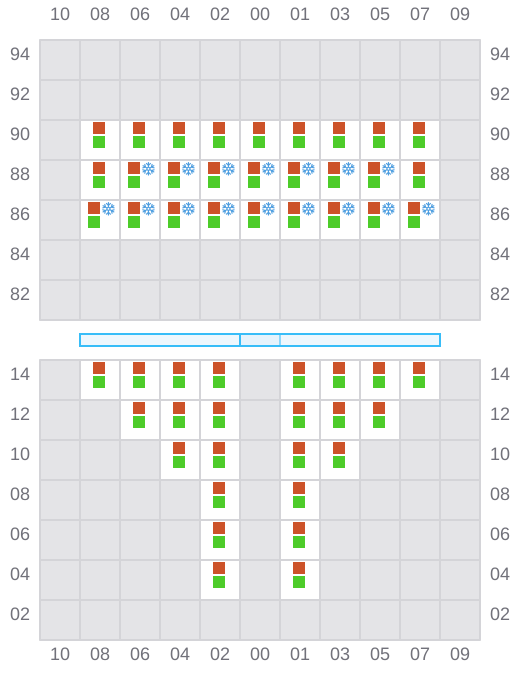

001 (002)
- →
- → / ?
- →

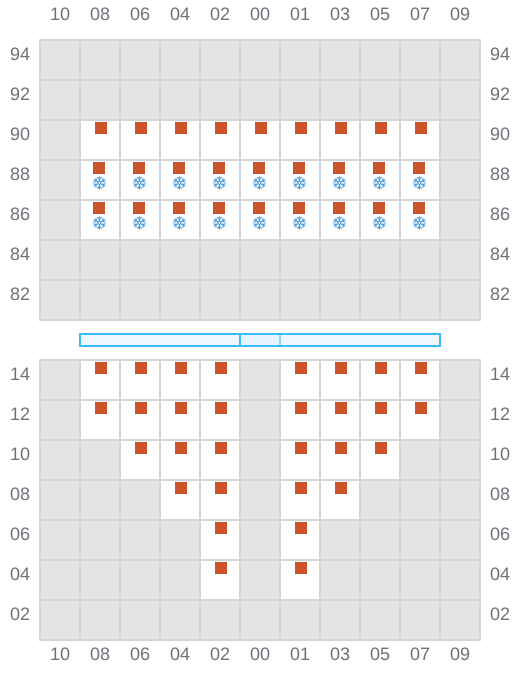

003
- ←
- → / ?
- →

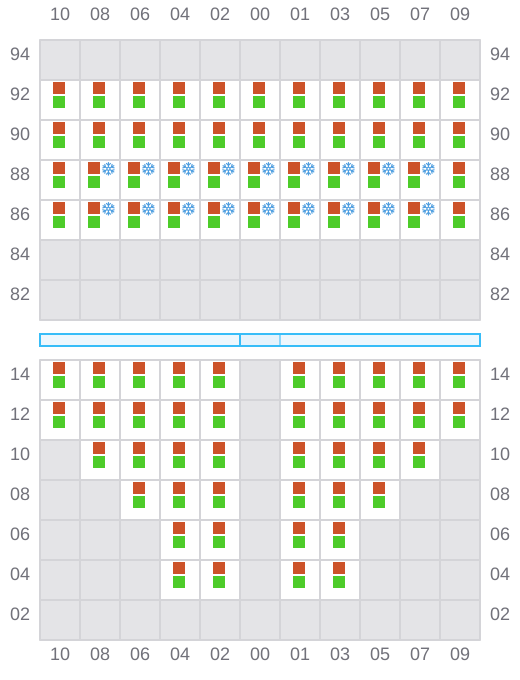

005 (006)
- →
- → / ?
- →

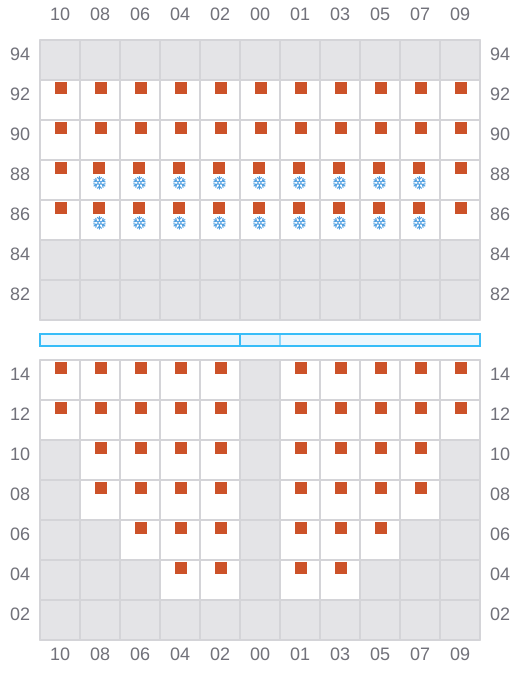

007
- ←
- → / ?
- →

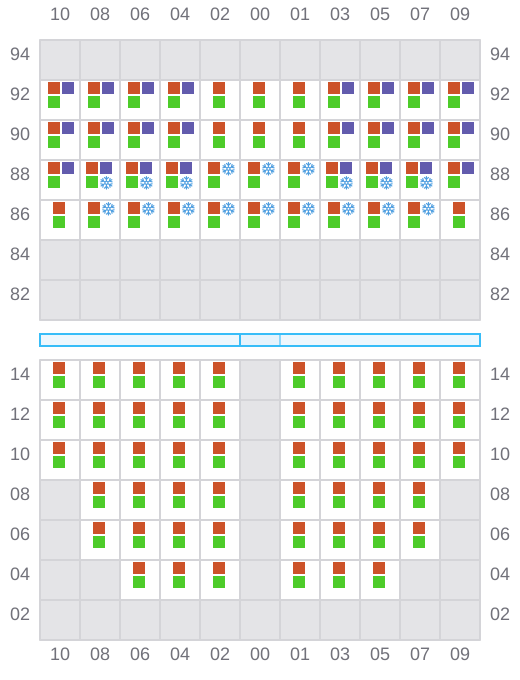

009 (010)
- →
- → / ?
- →

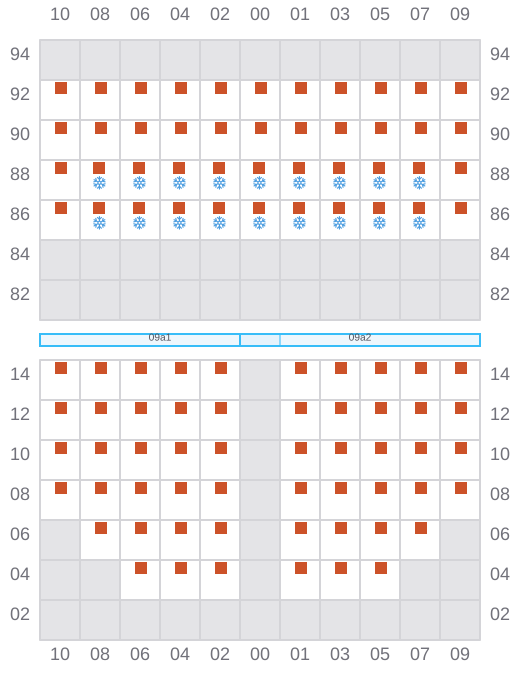

011
- ←
- → / ?
- →

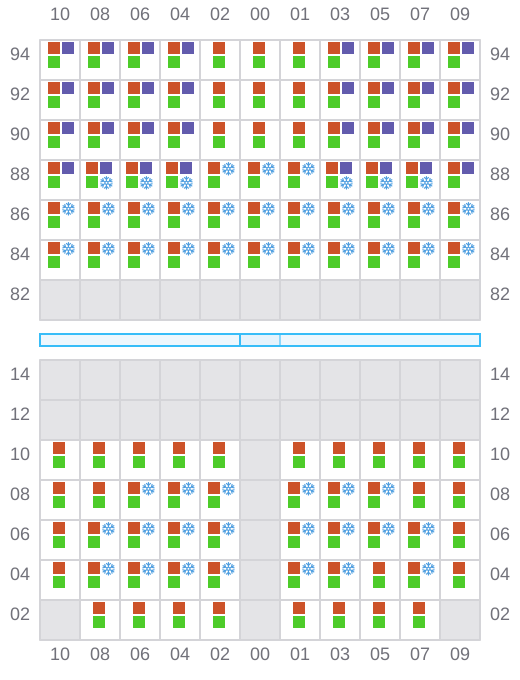

013 (014)
- →
- →
- →
015
- ←
- → / ?
- →

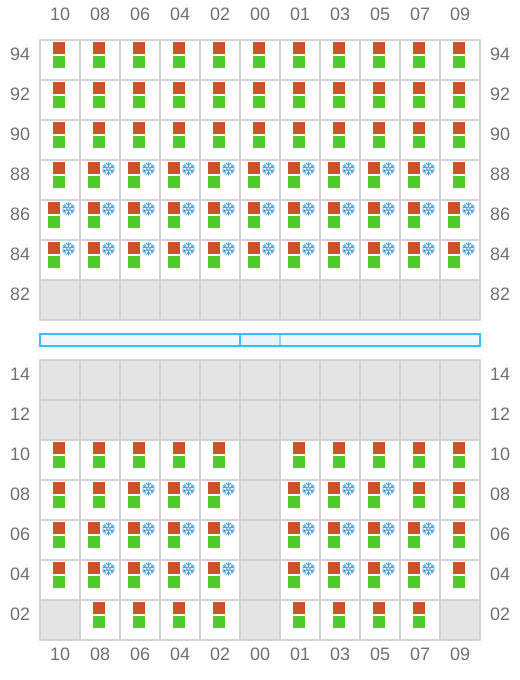

017 (018)
- →
- → / ←
- →

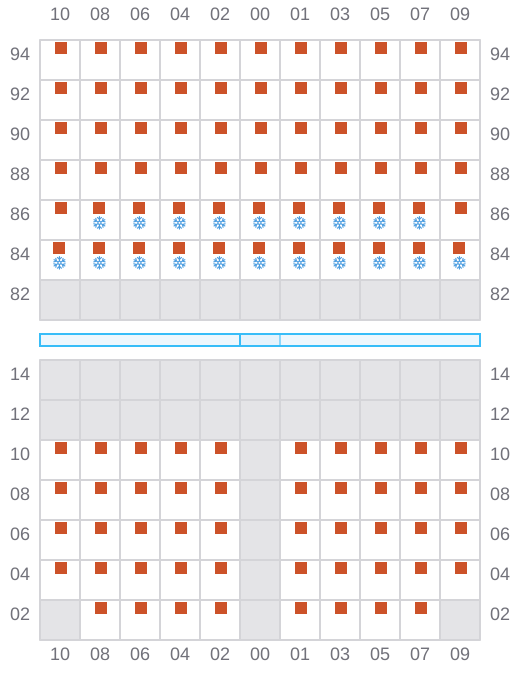

019
- ←
- → / ?
- →
021 (022)
- →
- →
- →
023
- ←
- → / ?
- →

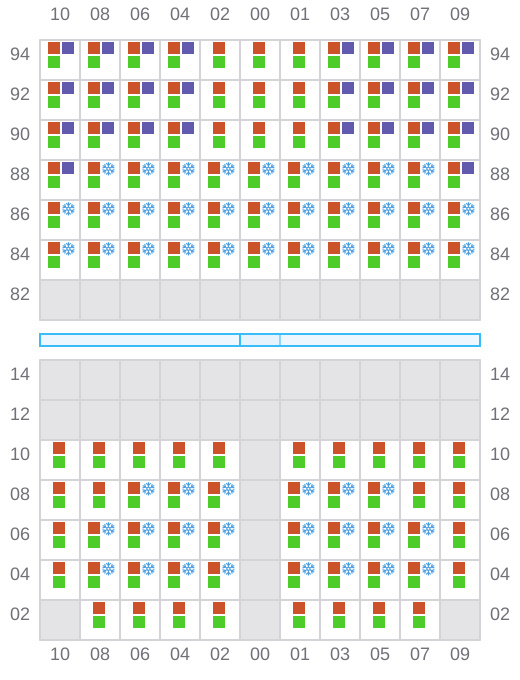

025 (026)
- →
- → / ←
- →

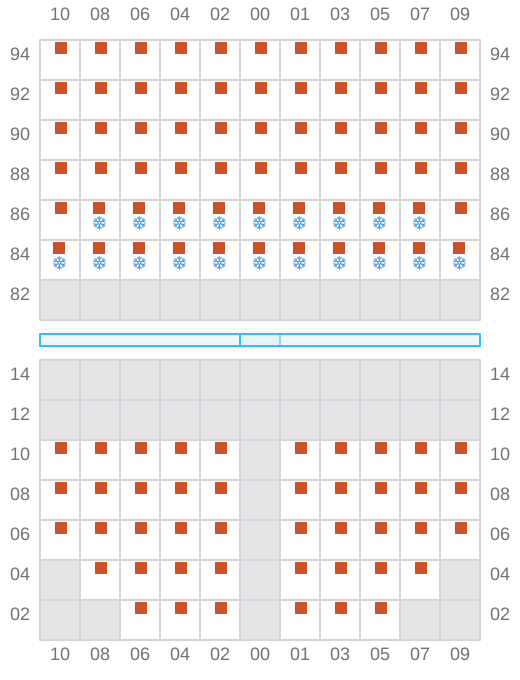

027
- ←
- → / ?
- →
029 (030)
- →
- → / ?
- →

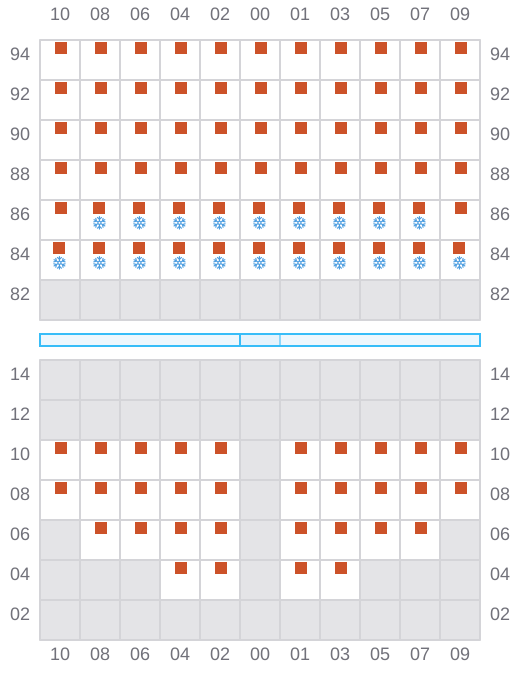

031
- ←
- → / ?
- →

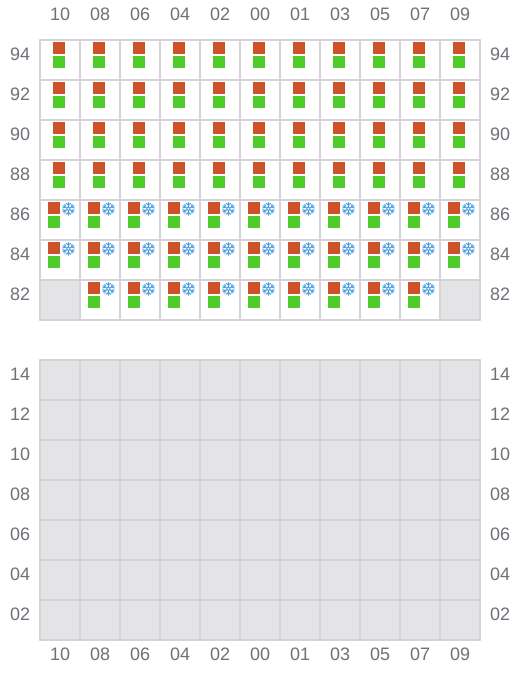

033 (034)
- → / ?
- → / ?
- → / ?

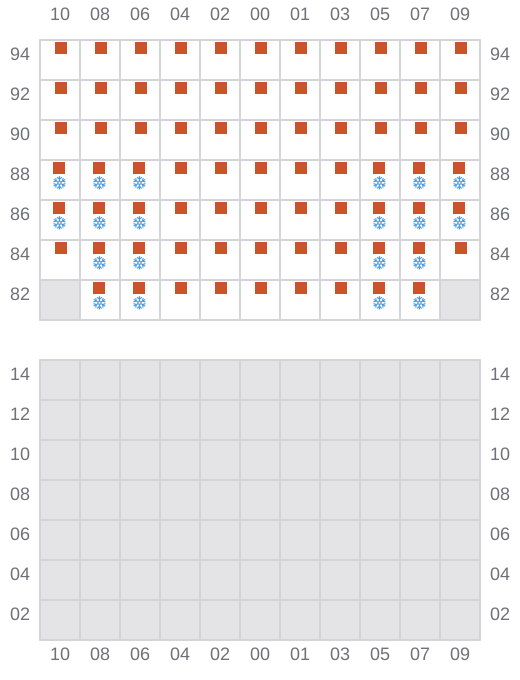

035
- ← / ?
- → / ?
- → / ?
