DUSSELDORF EXPRESS
9143556 | ZCEV4 | HLP by ********* Last update: Thu Jun 27 2024

General Info

Ship Name:DUSSELDORF EXPRESS
IMO Code:9143556
Call Sign:ZCEV4
Line Operator:HLP
Class Name for Sister Ships:HLP
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

Size Summary

ISO Bays:069
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:16
Min Below ISO Tier:02
Total TEU:4,579

Centers of Gravity

LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%

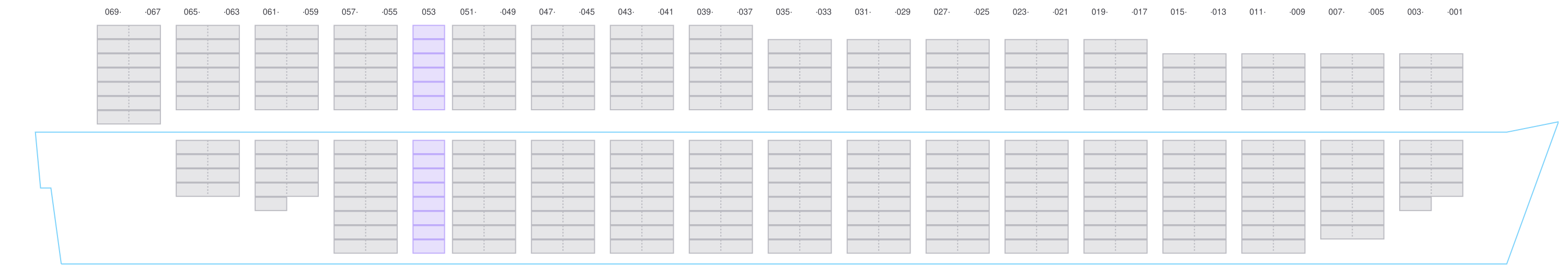

Side View

Side view of DUSSELDORF EXPRESS

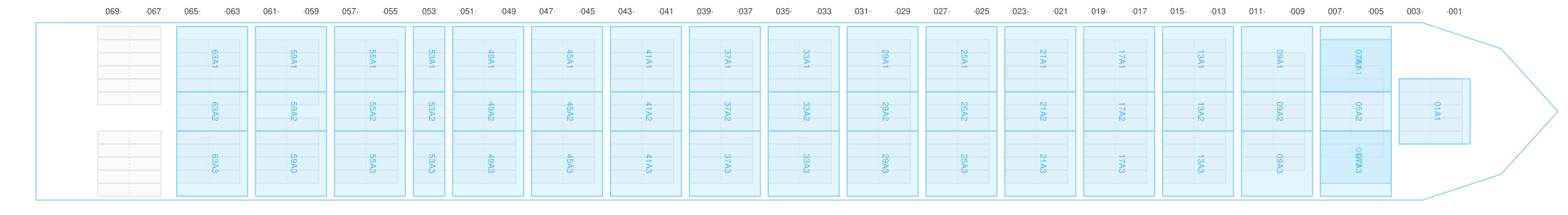

Hatch-Covers View

Deck view of DUSSELDORF EXPRESS

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

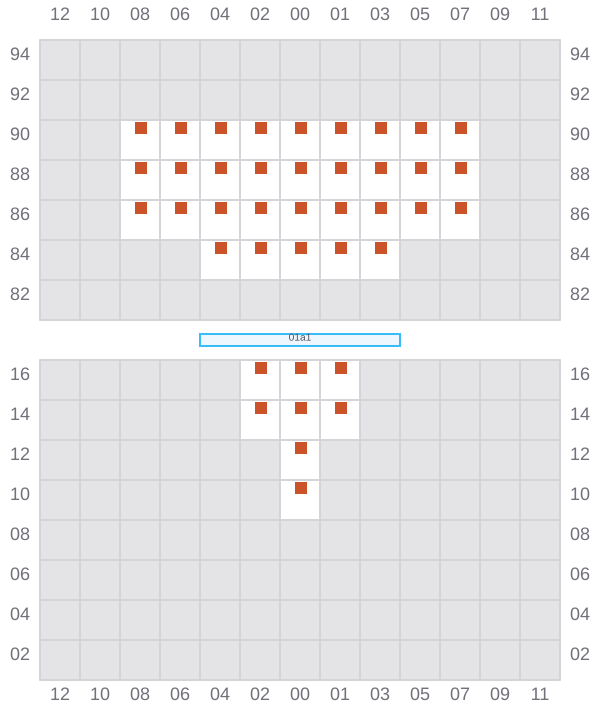

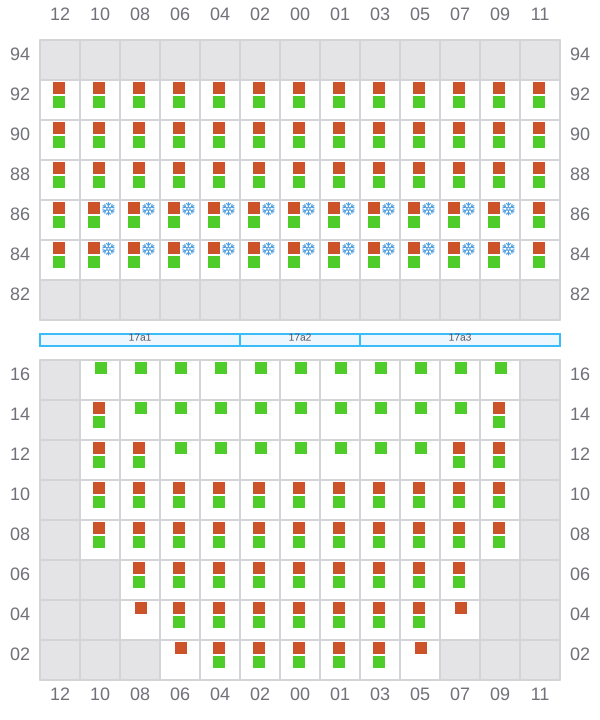

001

  • →
Bay 001 view and slots of DUSSELDORF EXPRESS

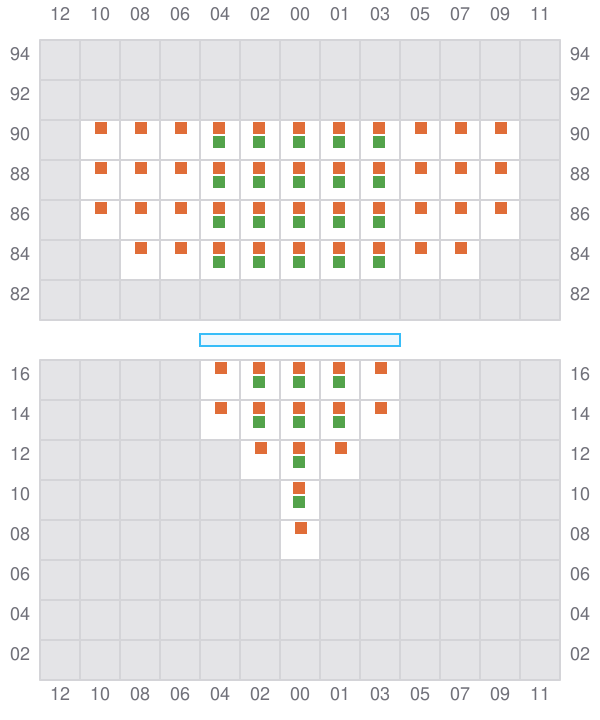

003 (002)

  • ←
Bay 003 view and slots of DUSSELDORF EXPRESS

005

  • →

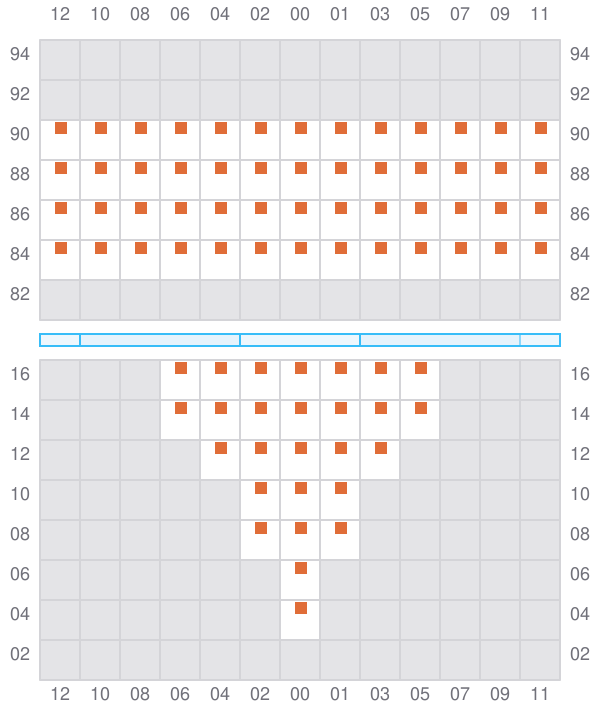

Bay 005 view and slots of DUSSELDORF EXPRESS

007 (006)

  • ←
  • → / ?

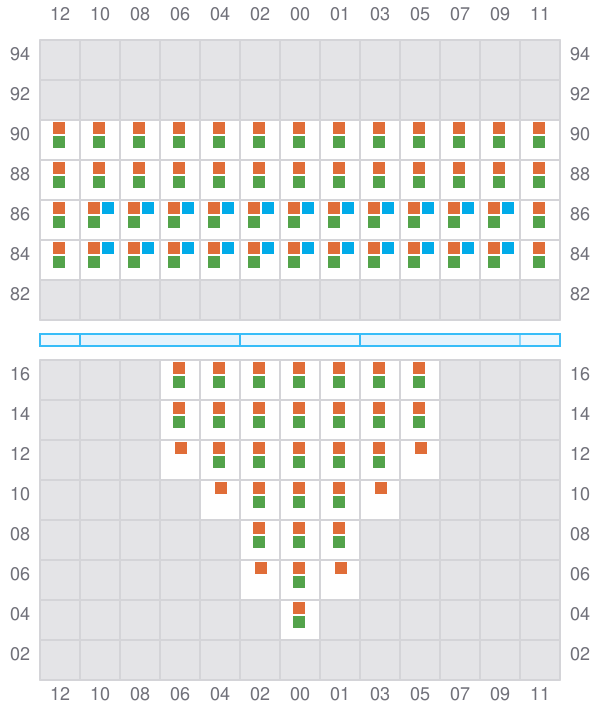

Bay 007 view and slots of DUSSELDORF EXPRESS

009

  • →

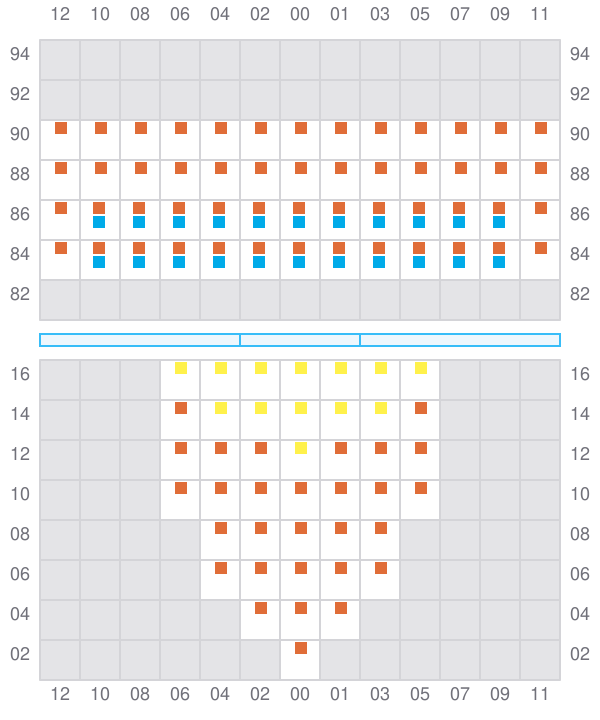

Bay 009 view and slots of DUSSELDORF EXPRESS

011 (010)

  • ←
  • ← / ?

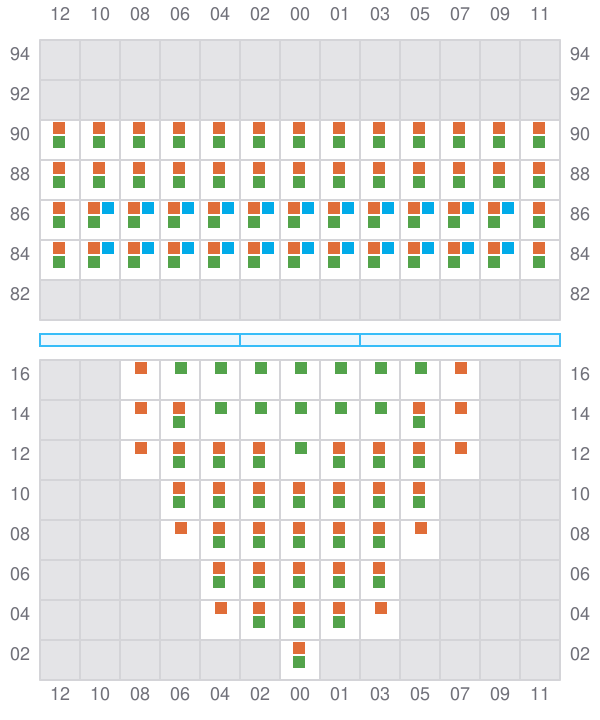

Bay 011 view and slots of DUSSELDORF EXPRESS

013

  • →

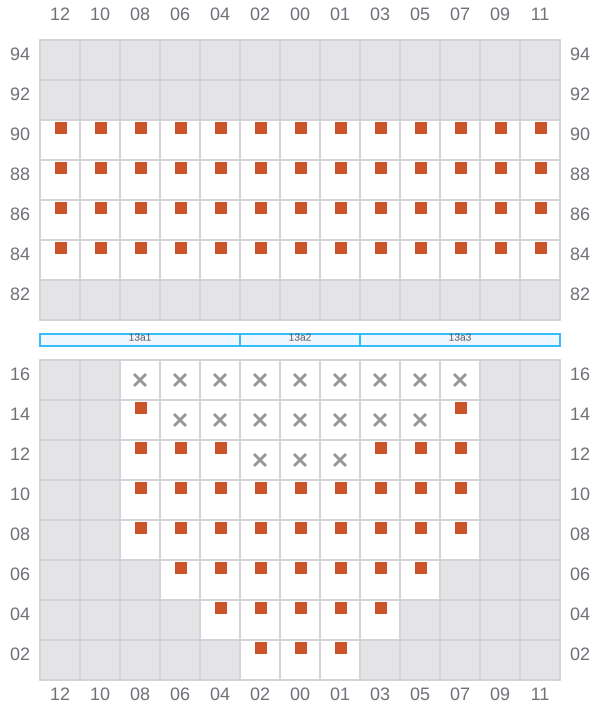

Bay 013 view and slots of DUSSELDORF EXPRESS

015 (014)

  • ←
  • → / ?

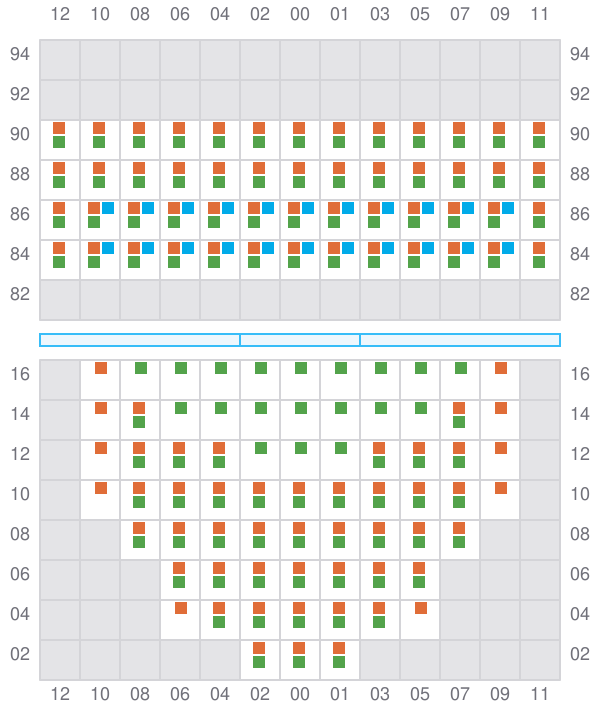

Bay 015 view and slots of DUSSELDORF EXPRESS

017

  • →
  • ← / ?

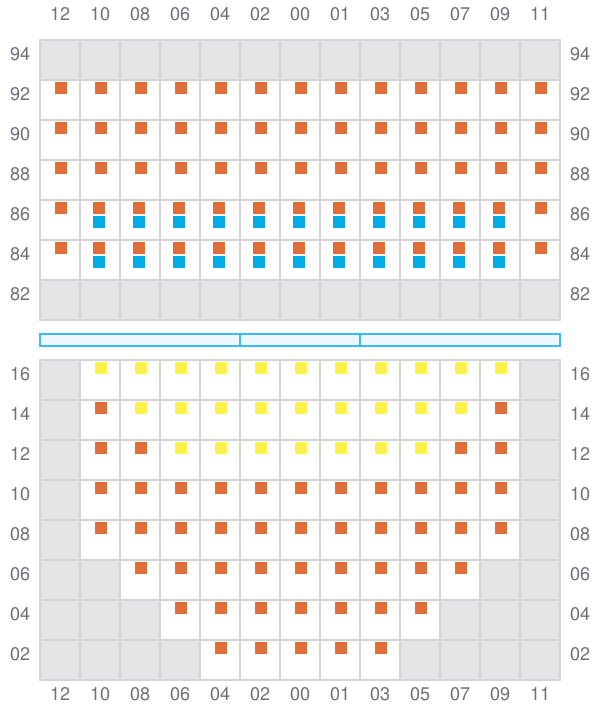

Bay 017 view and slots of DUSSELDORF EXPRESS

019 (018)

  • ←
  • ← / ?
Bay 019 view and slots of DUSSELDORF EXPRESS

021

  • →

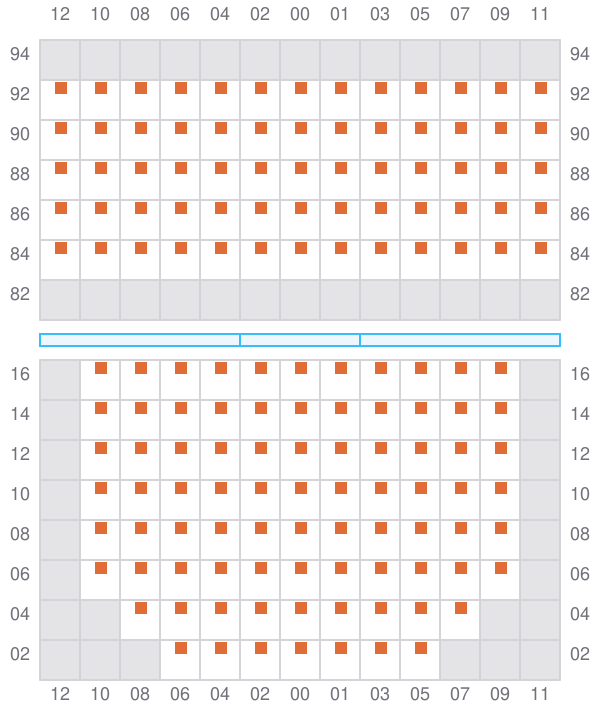

Bay 021 view and slots of DUSSELDORF EXPRESS

023 (022)

  • ←
  • ← / ?

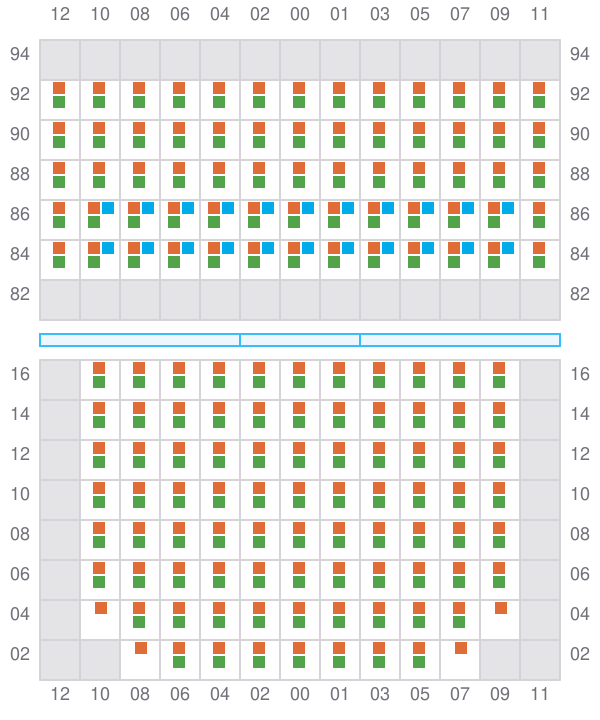

Bay 023 view and slots of DUSSELDORF EXPRESS

025

  • →
  • ← / ?

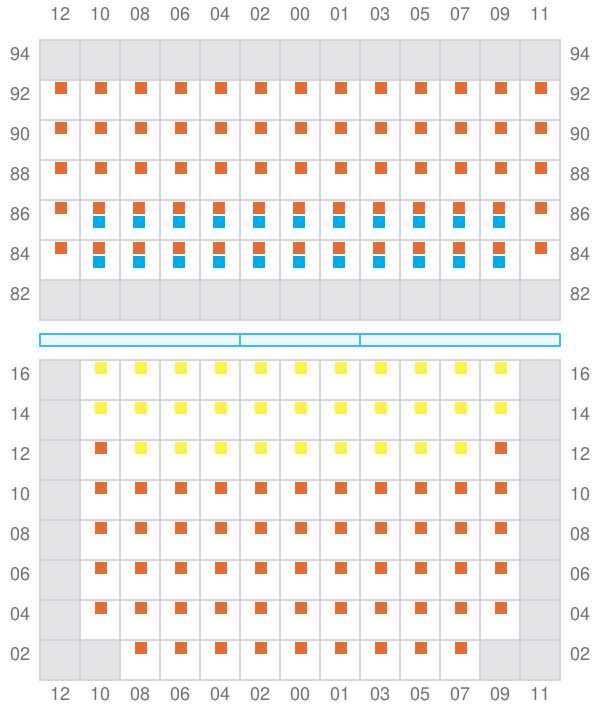

Bay 025 view and slots of DUSSELDORF EXPRESS

027 (026)

  • ←
  • ← / ?
Bay 027 view and slots of DUSSELDORF EXPRESS

029

  • →
  • → / ?

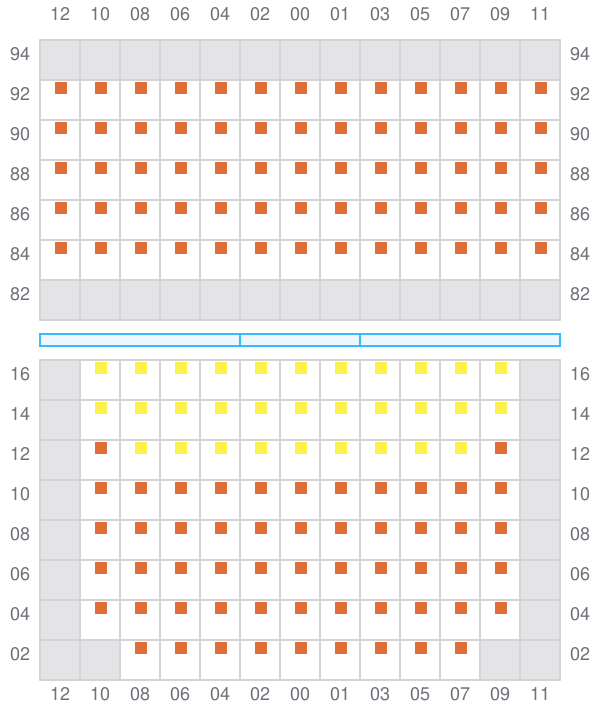

Bay 029 view and slots of DUSSELDORF EXPRESS

031 (030)

  • ←
  • → / ?

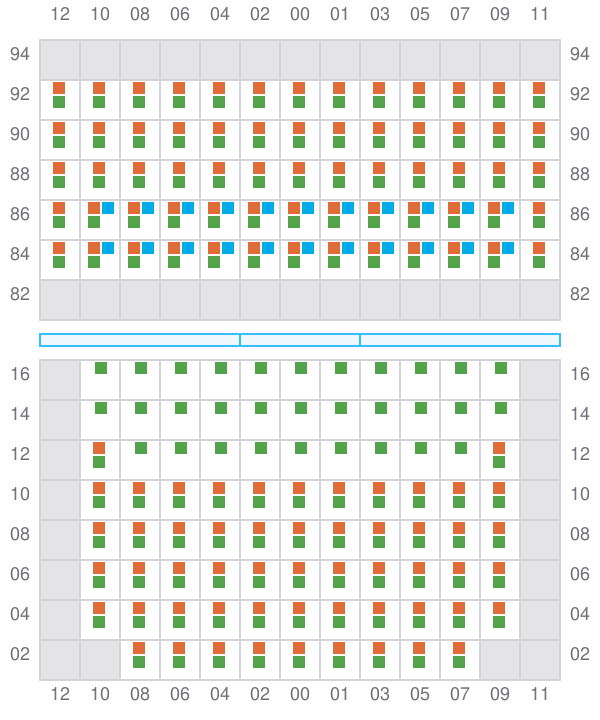

Bay 031 view and slots of DUSSELDORF EXPRESS

033

  • →
  • ← / ?
Bay 033 view and slots of DUSSELDORF EXPRESS

035 (034)

  • ←
  • ← / ?
Bay 035 view and slots of DUSSELDORF EXPRESS

037

  • →

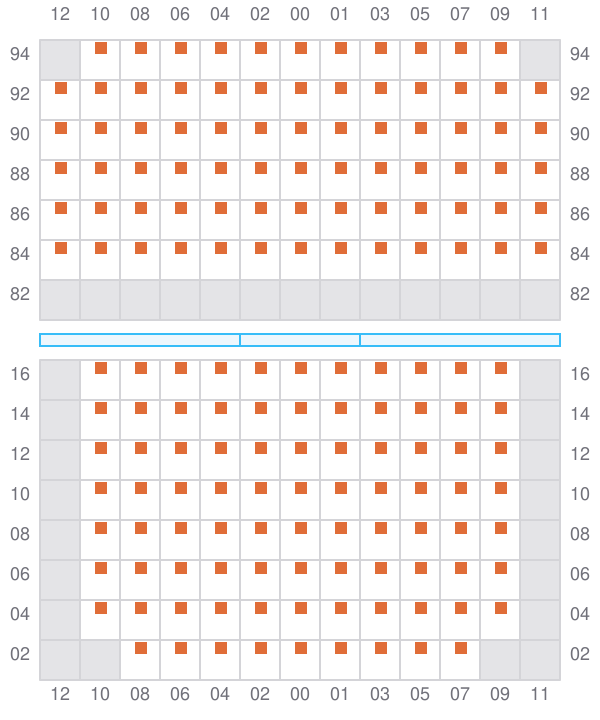

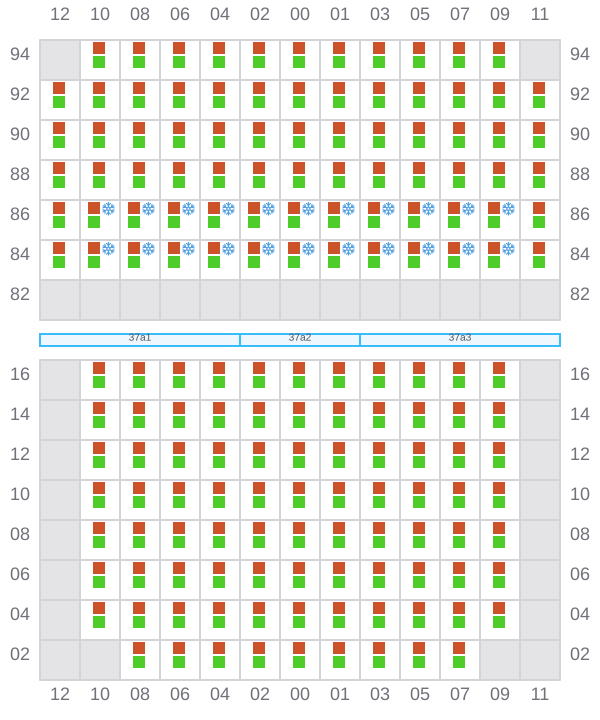

Bay 037 view and slots of DUSSELDORF EXPRESS

039 (038)

  • ←
  • → / ?
Bay 039 view and slots of DUSSELDORF EXPRESS

041

  • →
  • ← / ?

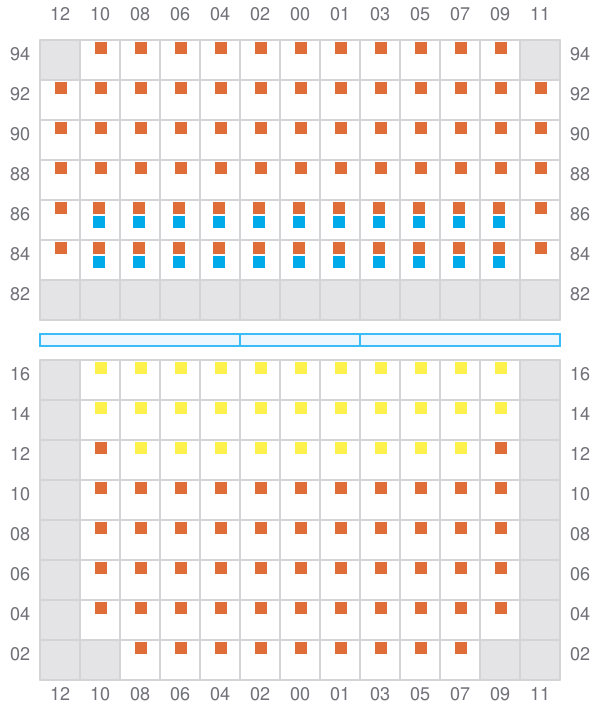

Bay 041 view and slots of DUSSELDORF EXPRESS

043 (042)

  • ←
  • ← / →
Bay 043 view and slots of DUSSELDORF EXPRESS

045

  • →
  • ? / ←

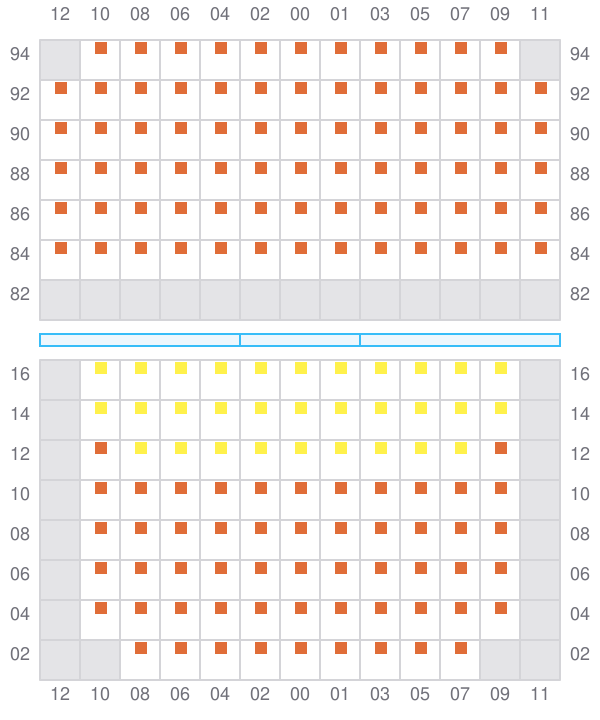

Bay 045 view and slots of DUSSELDORF EXPRESS

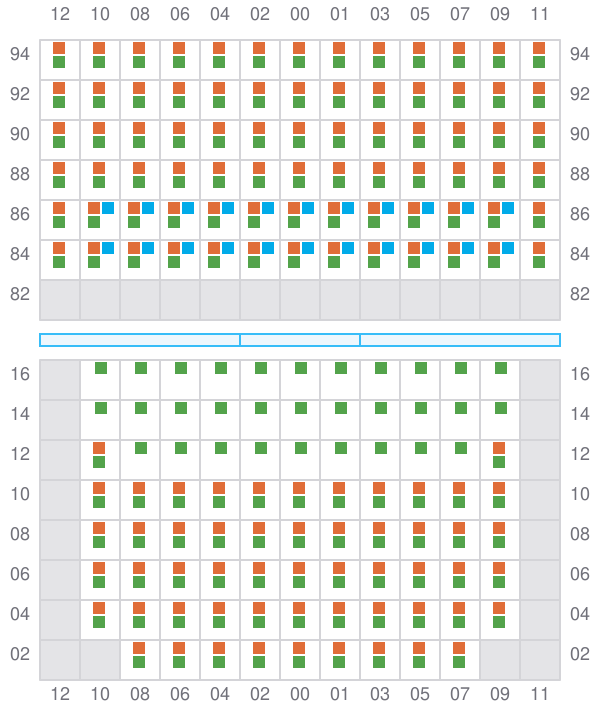

047 (046)

  • ←
  • → / ?
Bay 047 view and slots of DUSSELDORF EXPRESS

049

  • →
  • ← / ?

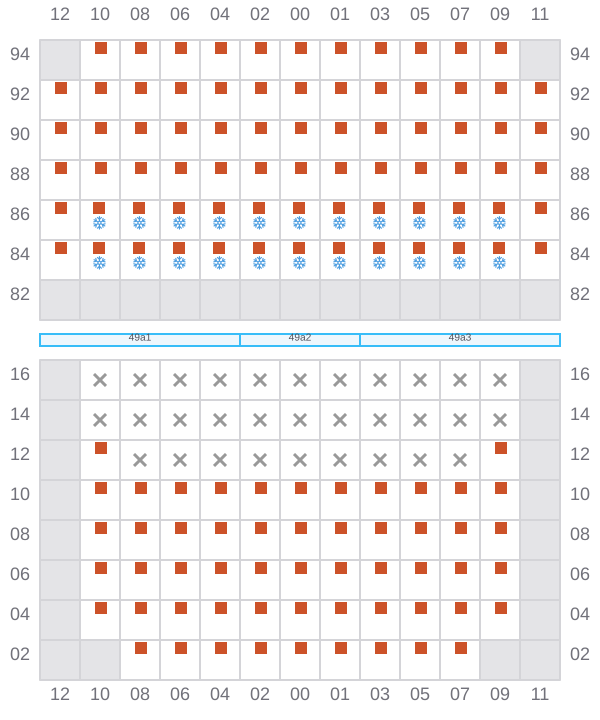

Bay 049 view and slots of DUSSELDORF EXPRESS

051 (050)

  • ←
  • ← / ?

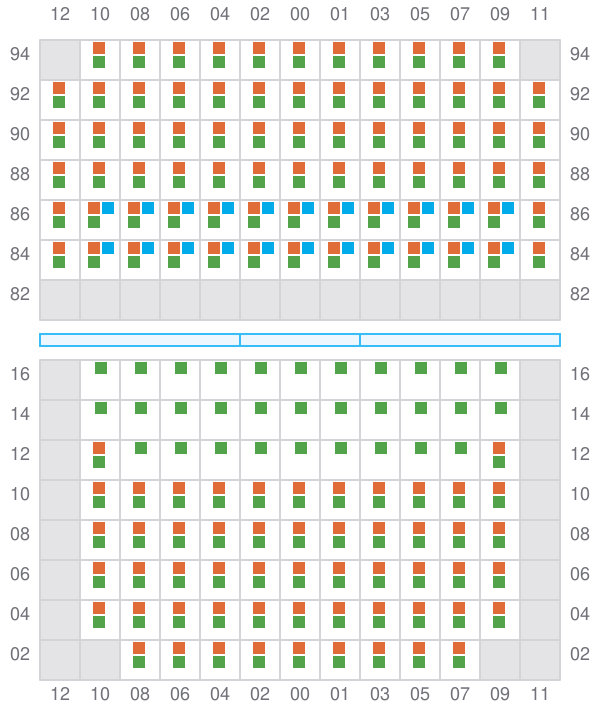

Bay 051 view and slots of DUSSELDORF EXPRESS

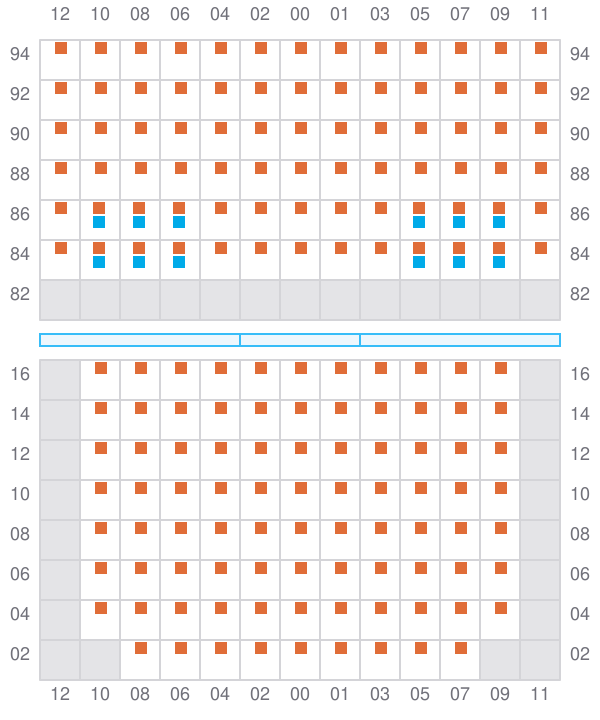

053

Bay 053 view and slots of DUSSELDORF EXPRESS

055

  • →
Bay 055 view and slots of DUSSELDORF EXPRESS

057 (056)

  • ←
  • → / ?

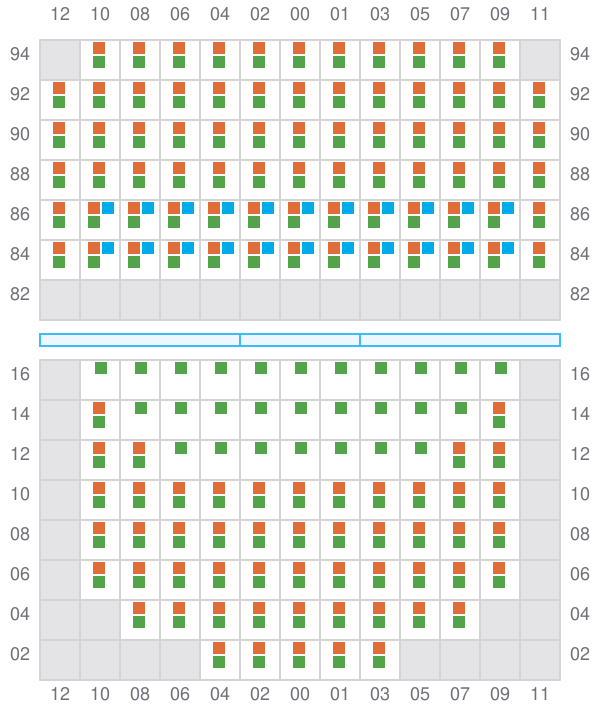

Bay 057 view and slots of DUSSELDORF EXPRESS

059

  • →

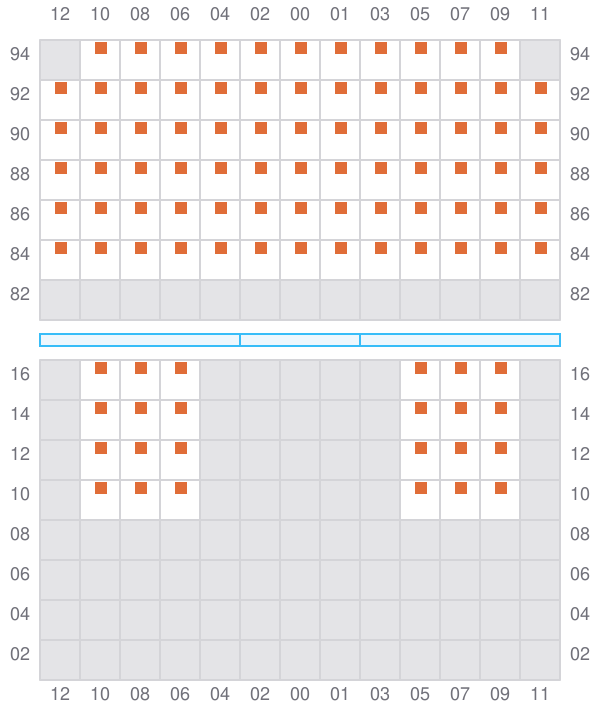

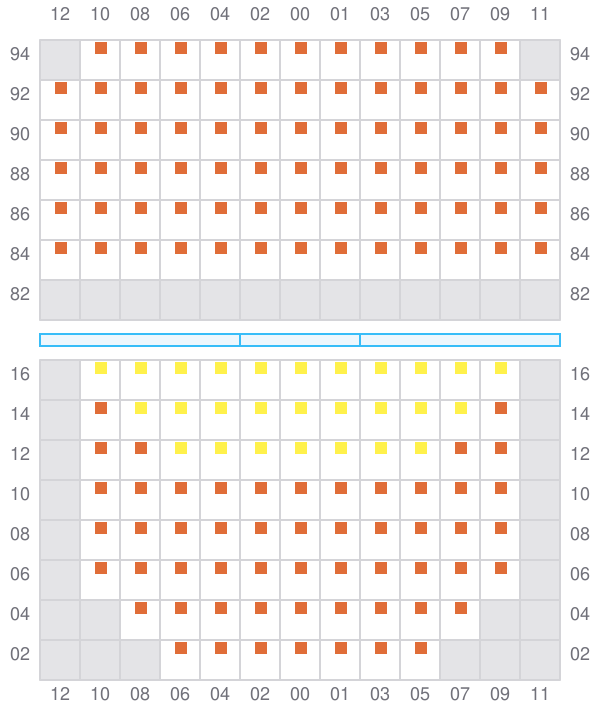

Bay 059 view and slots of DUSSELDORF EXPRESS

061 (060)

  • ←
  • → / ?

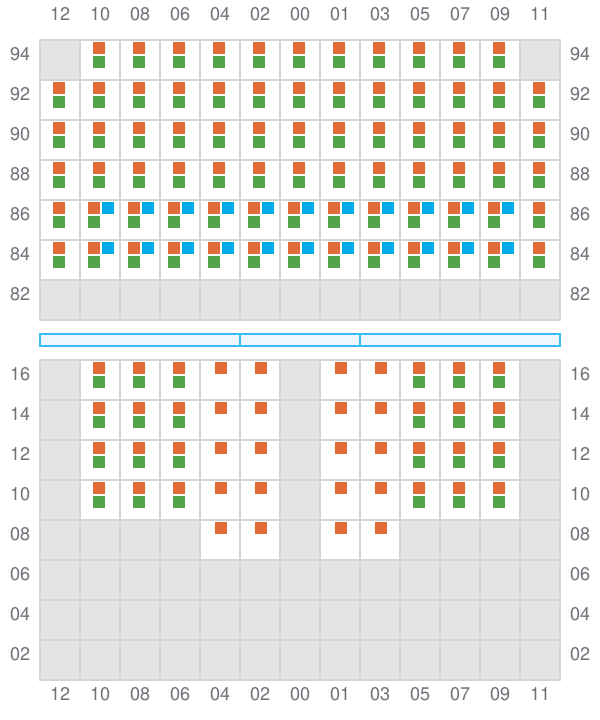

Bay 061 view and slots of DUSSELDORF EXPRESS

063

  • →
  • ← / ?

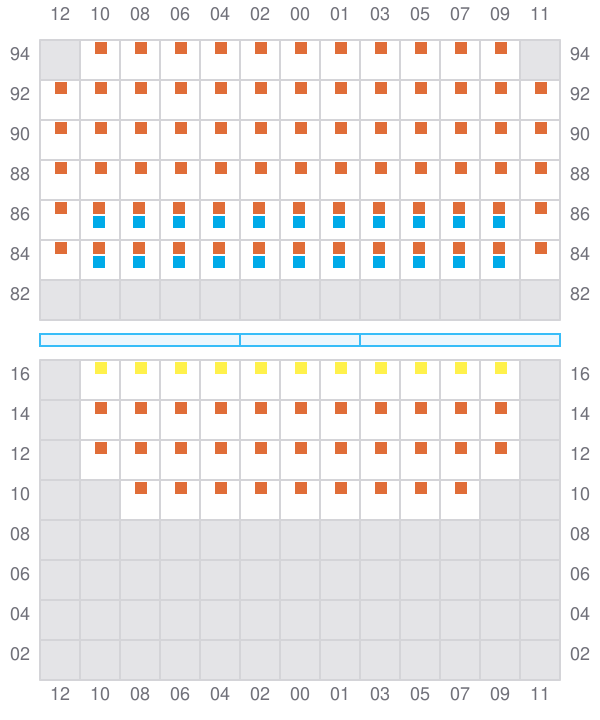

Bay 063 view and slots of DUSSELDORF EXPRESS

065 (064)

  • ←
  • ← / ?

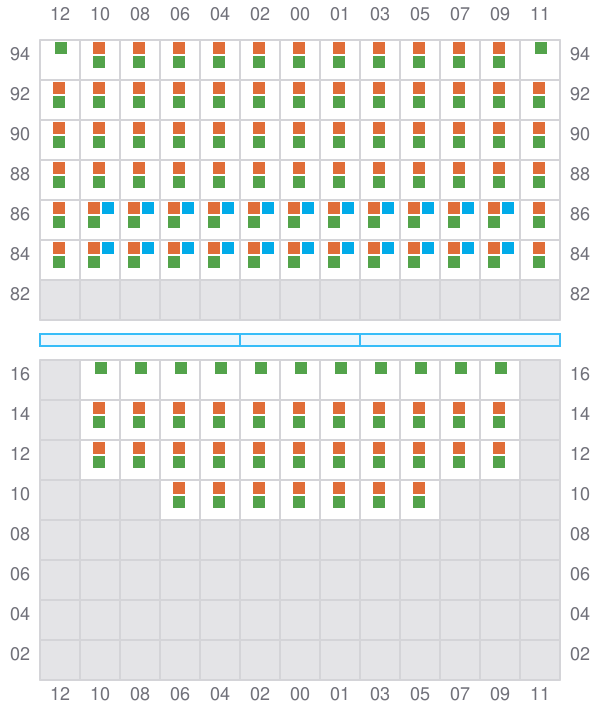

Bay 065 view and slots of DUSSELDORF EXPRESS

067

  • → / ?

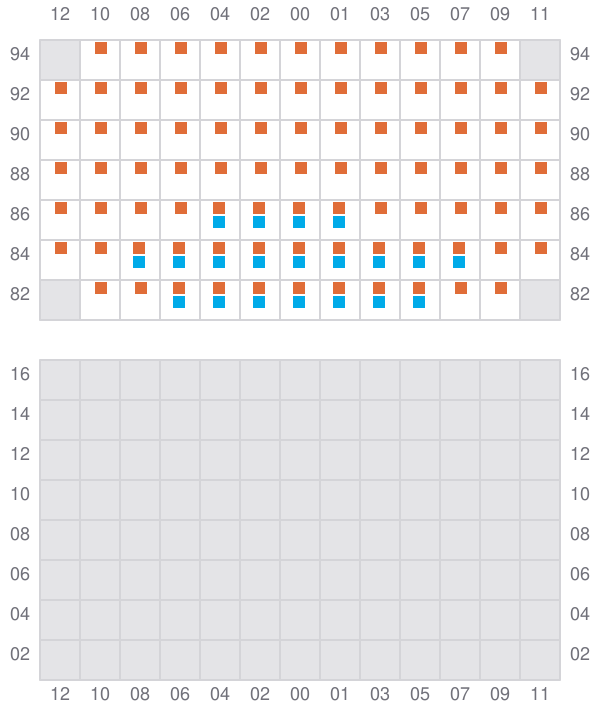

Bay 067 view and slots of DUSSELDORF EXPRESS

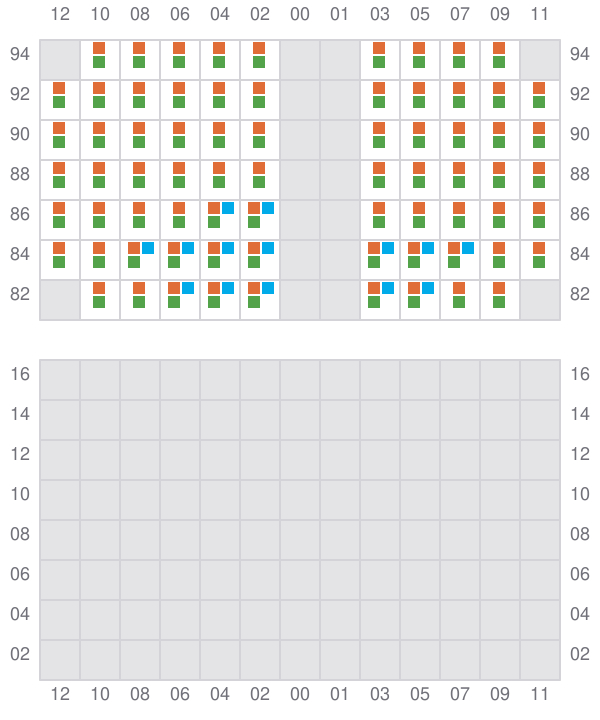

069 (068)

  • ← / ?
  • ← / ?
Bay 069 view and slots of DUSSELDORF EXPRESS
