EBBA MAERSK
9321524 | OXHW2 | 9321524 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:EBBA MAERSK
IMO Code:9321524
Call Sign:OXHW2
Line Operator:9321524
Class Name for Sister Ships:MAERSK E
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:089
Max ISO Row:22
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,788
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

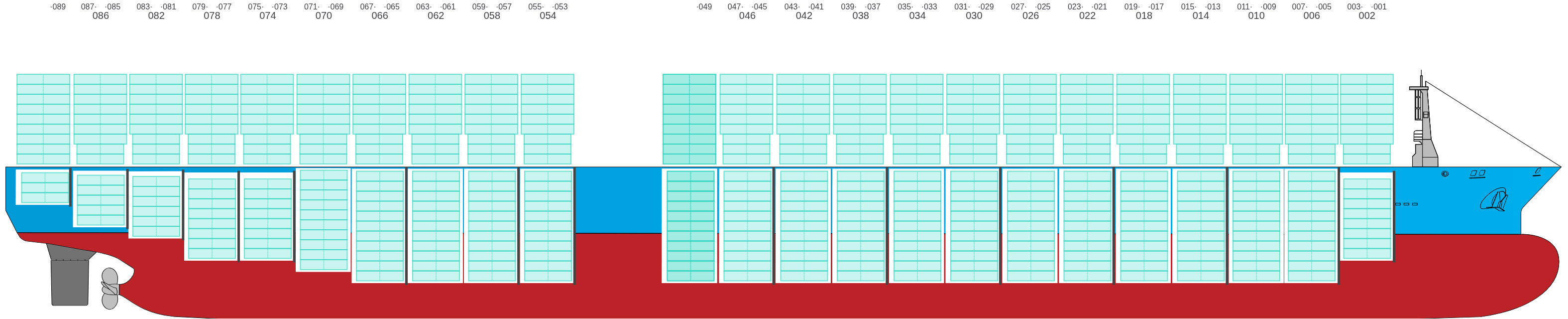

Side View
![Side view of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-sideView.png?v=1711046965110)
Hatch-Covers View
![Deck view of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-deckView.png?v=1711046965110)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b001.png?v=1711046965110)
003
- ←
![Bay 003 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b003.png?v=1711046965110)
005 (006)
- →
![Bay 005 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b005.png?v=1711046965110)

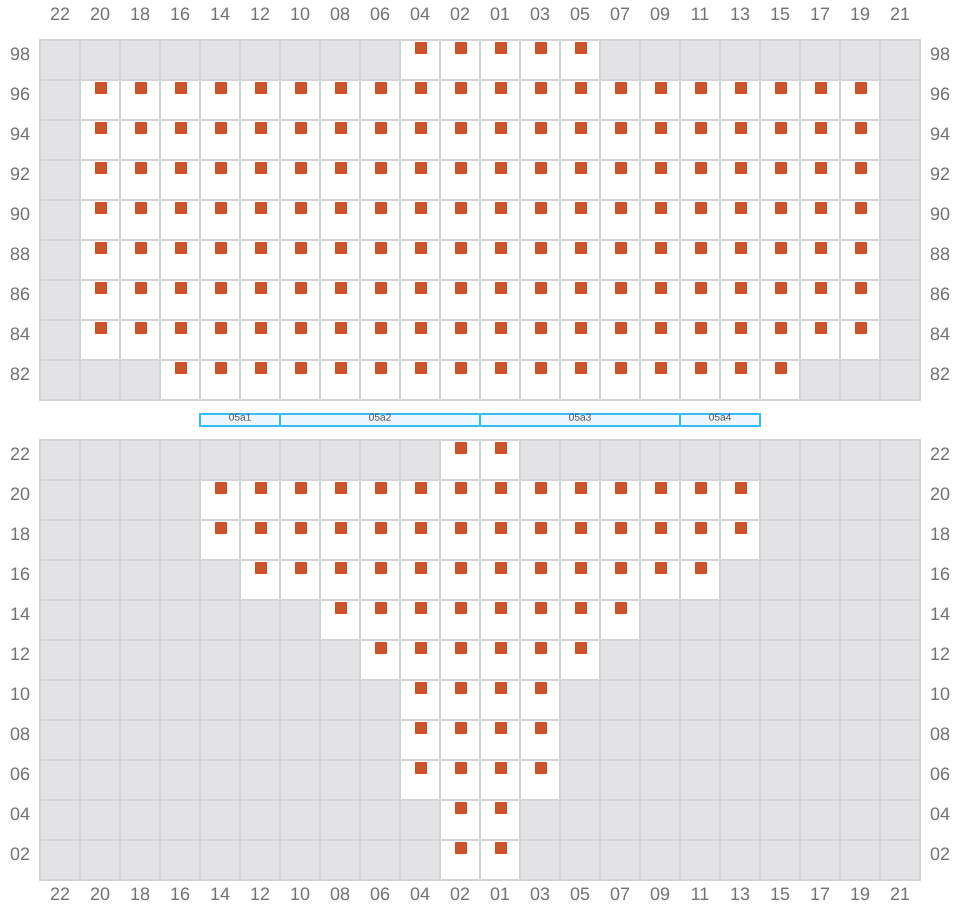

007
- ←
![Bay 007 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b007.png?v=1711046965110)

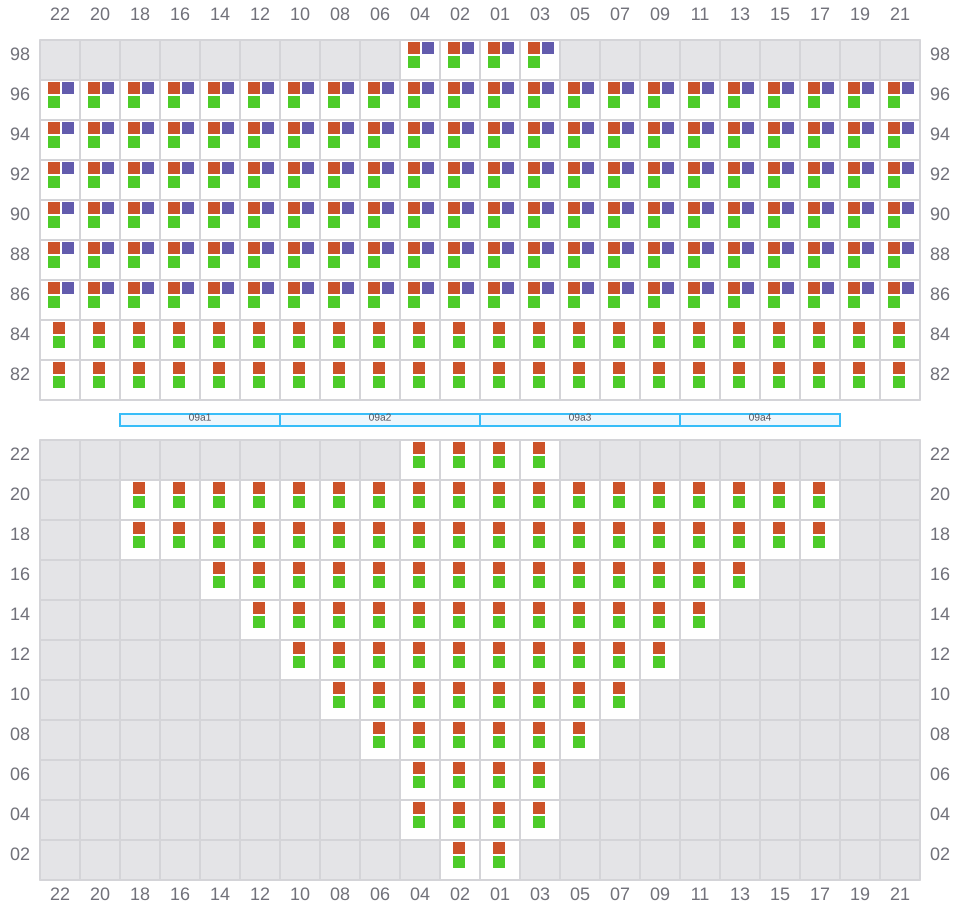

009 (010)
- →
![Bay 009 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b009.png?v=1711046965110)

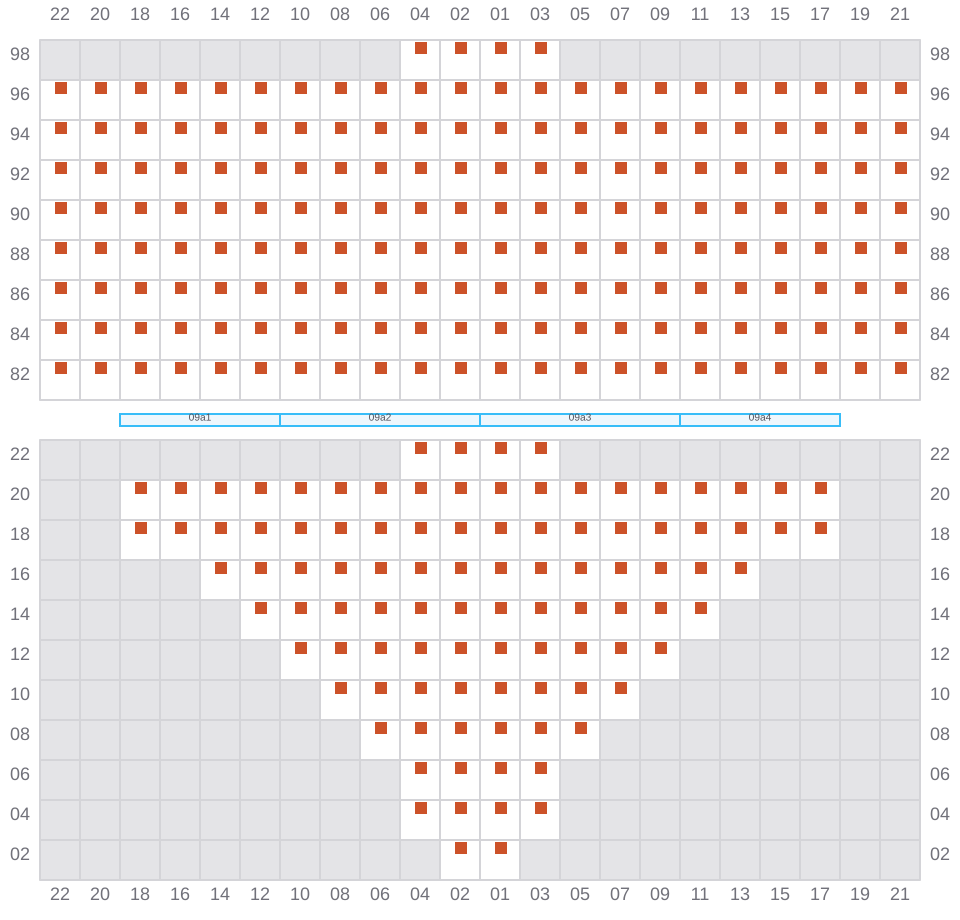

011
- ←
![Bay 011 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b011.png?v=1711046965110)
013 (014)
- →
![Bay 013 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b013.png?v=1711046965110)

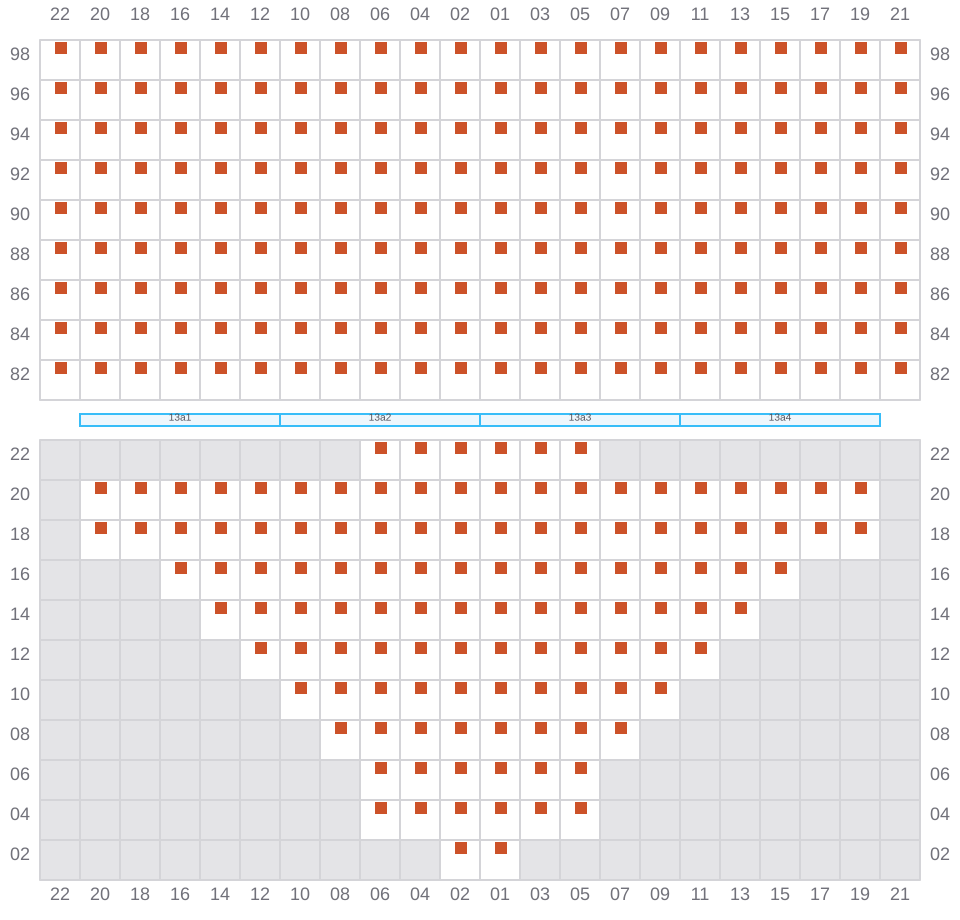

015
- ←
![Bay 015 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b015.png?v=1711046965110)

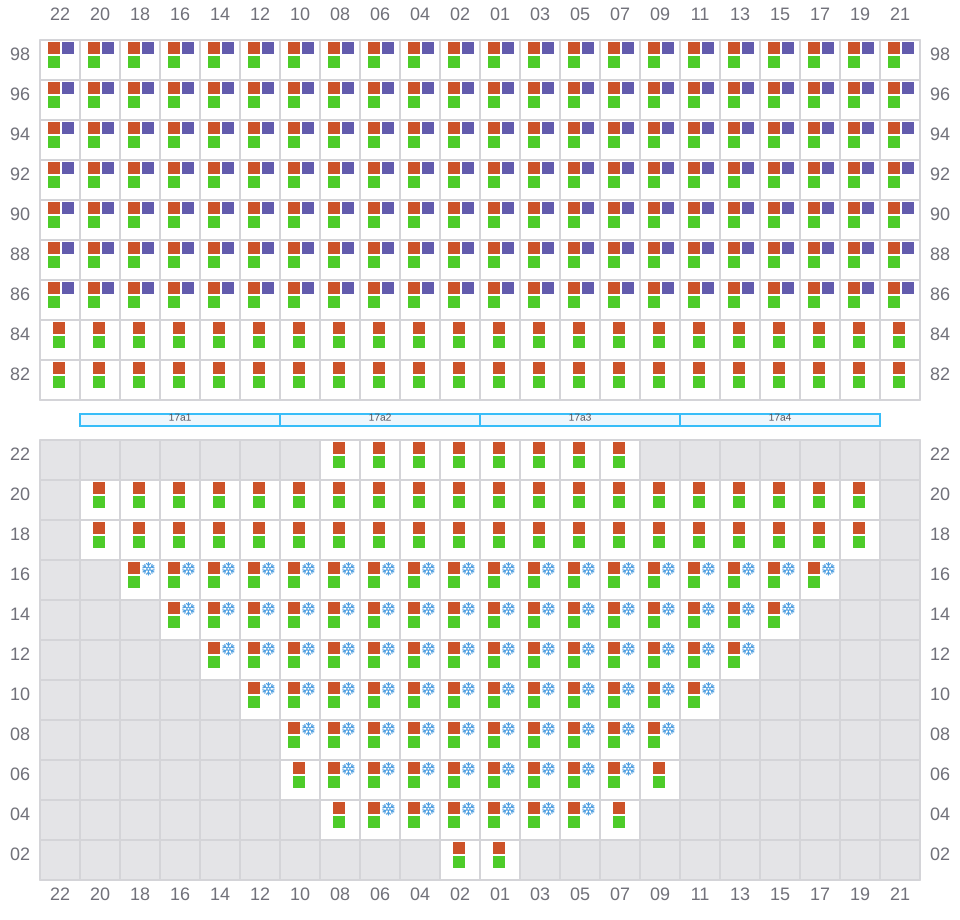

017 (018)
- →
- ? / ←
![Bay 017 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b017.png?v=1711046965110)
019
- ←
- → / ?
![Bay 019 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b019.png?v=1711046965110)

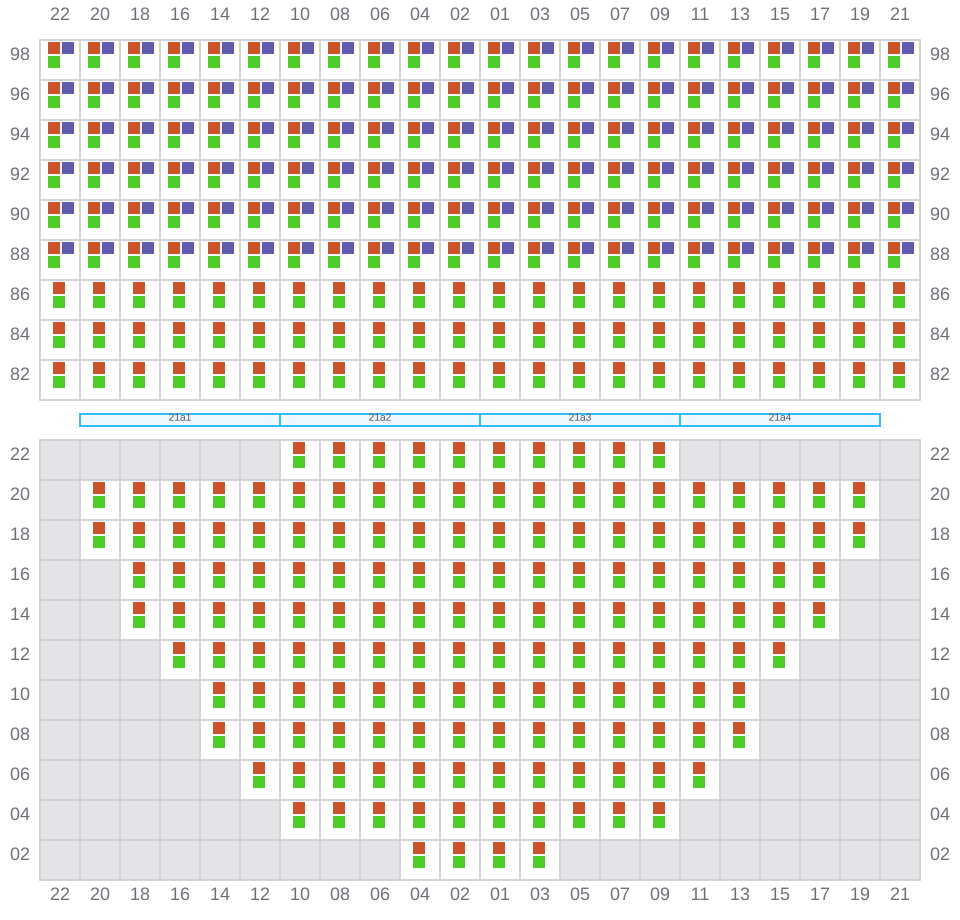

021 (022)
- →
![Bay 021 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b021.png?v=1711046965110)
023
- ←
![Bay 023 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b023.png?v=1711046965110)
025 (026)
- →
- ? / ←
![Bay 025 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b025.png?v=1711046965110)
027
- ←
- → / ?
![Bay 027 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b027.png?v=1711046965110)

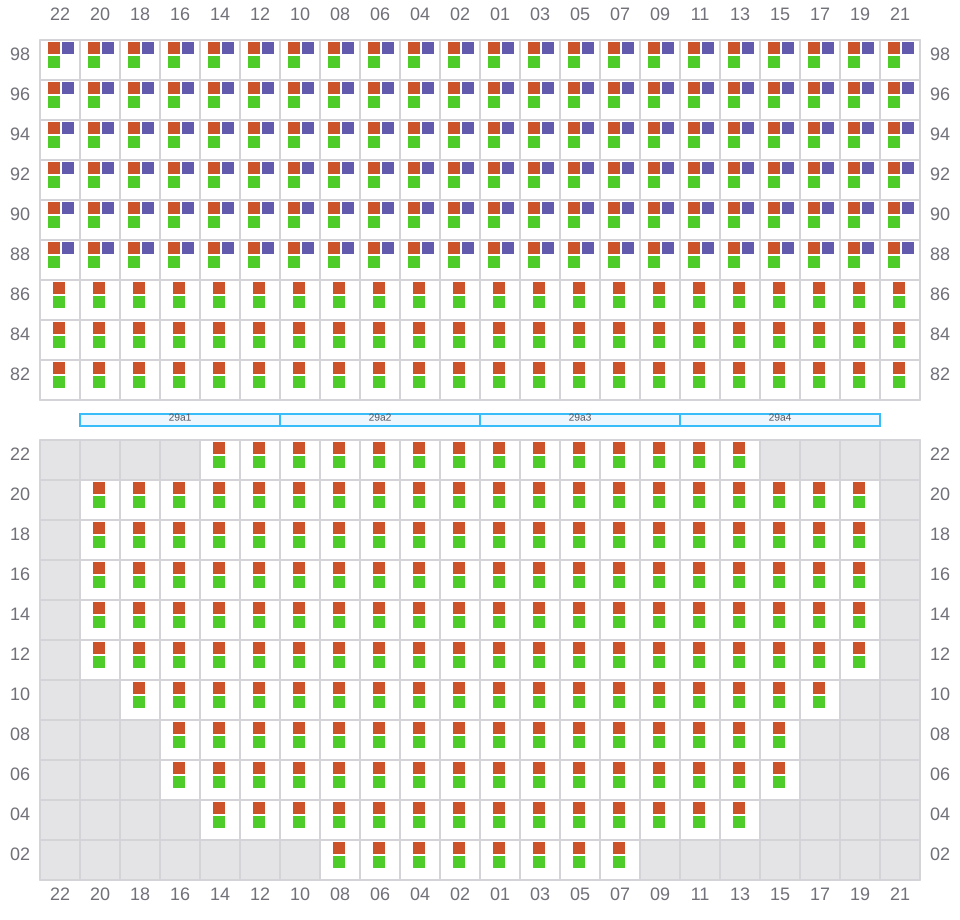

029 (030)
- →
![Bay 029 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b029.png?v=1711046965110)

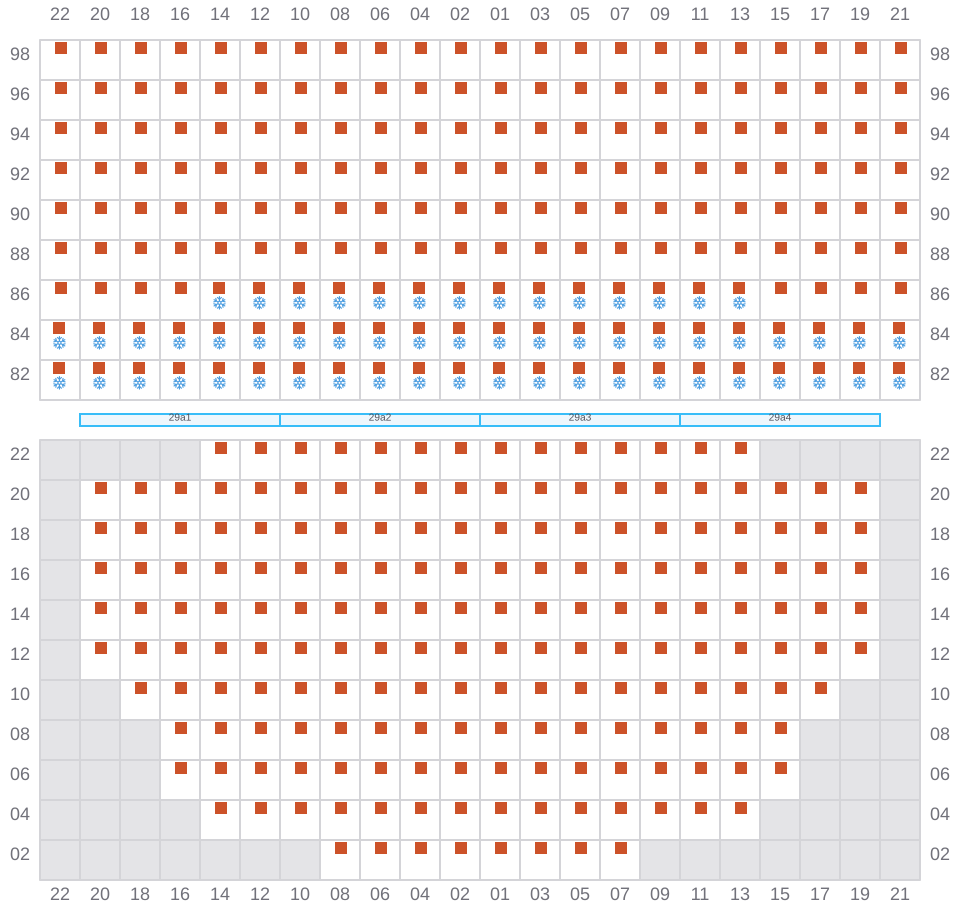

031
- ←
- → / ?
![Bay 031 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b031.png?v=1711046965110)

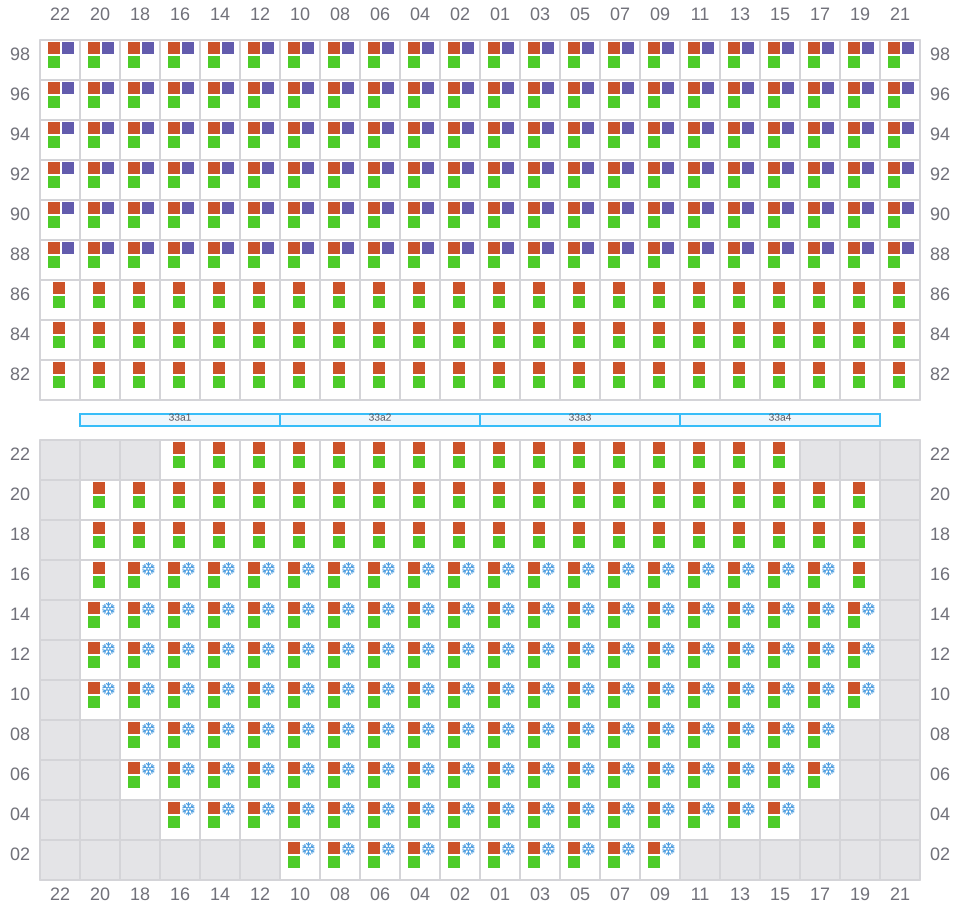

033 (034)
- →
- ? / ←
![Bay 033 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b033.png?v=1711046965110)

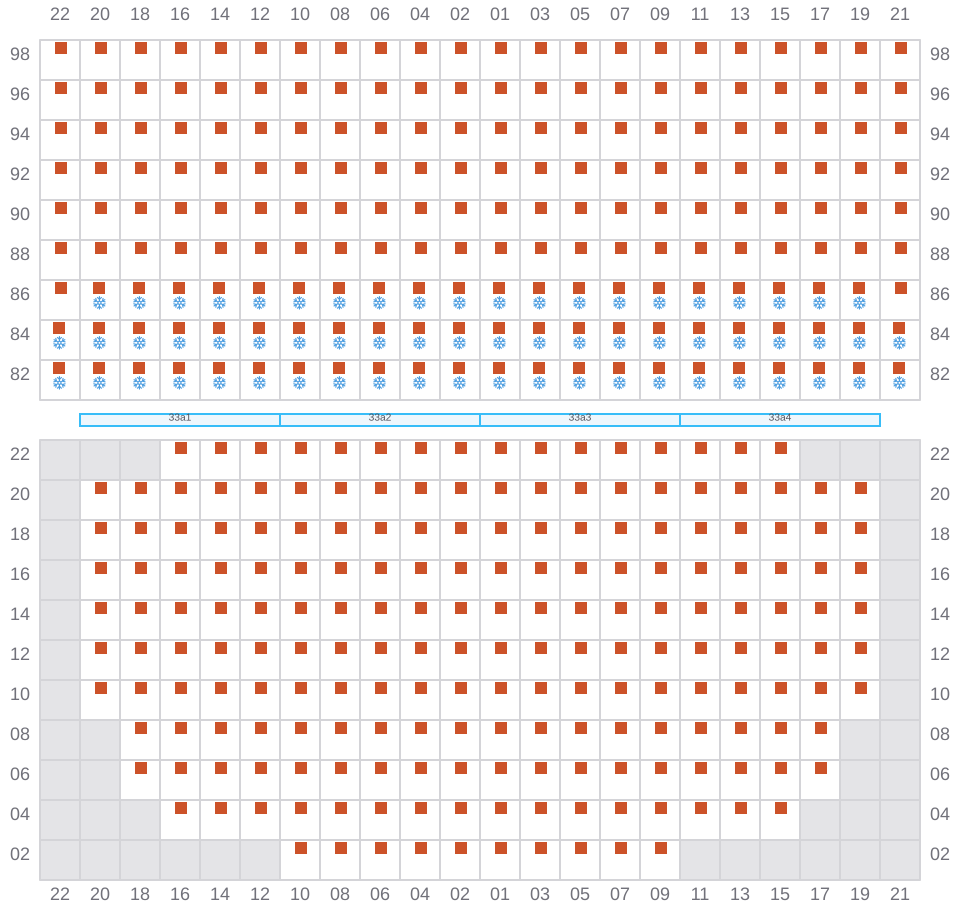

035
- ←
- → / ?
![Bay 035 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b035.png?v=1711046965110)

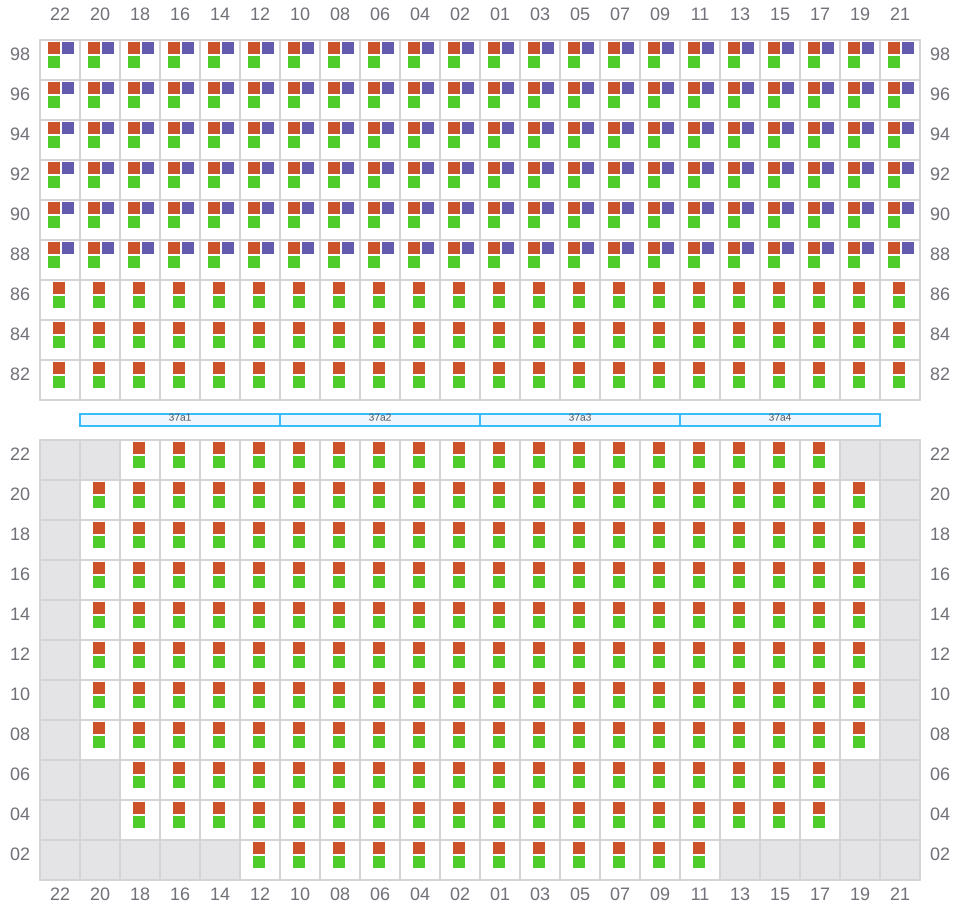

037 (038)
- →
![Bay 037 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b037.png?v=1711046965110)

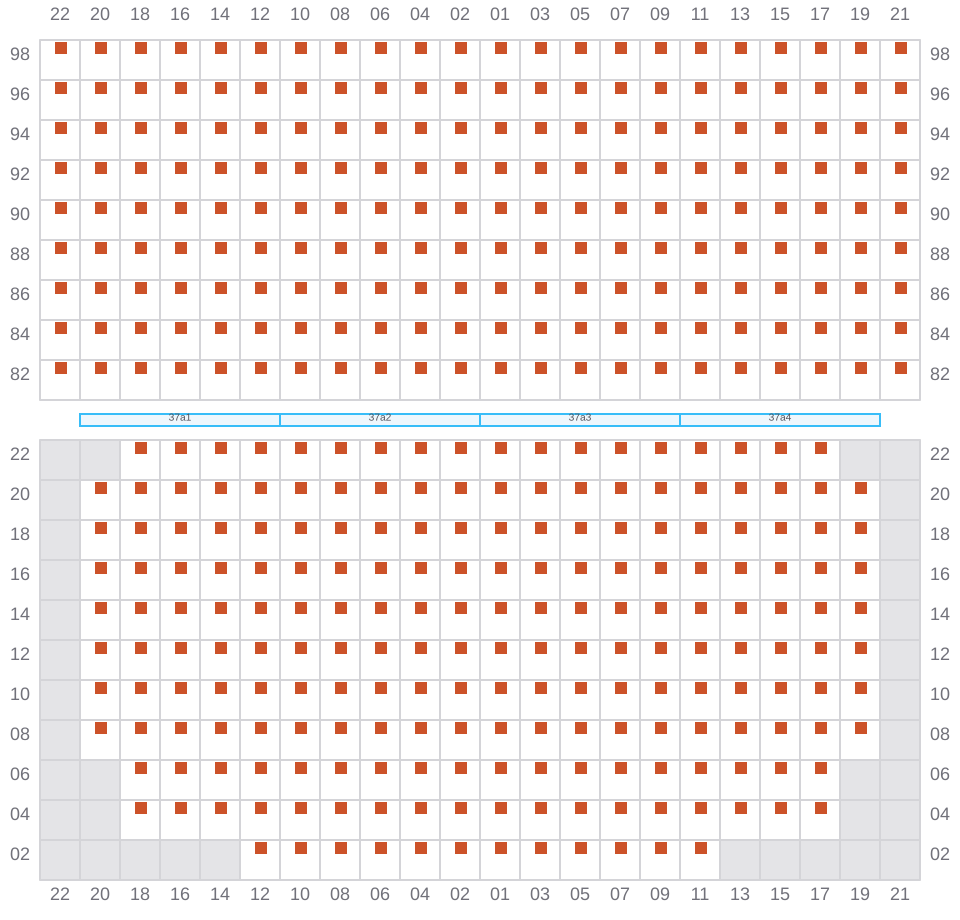

039
- ←
![Bay 039 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b039.png?v=1711046965110)
041 (042)
- →
![Bay 041 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b041.png?v=1711046965110)

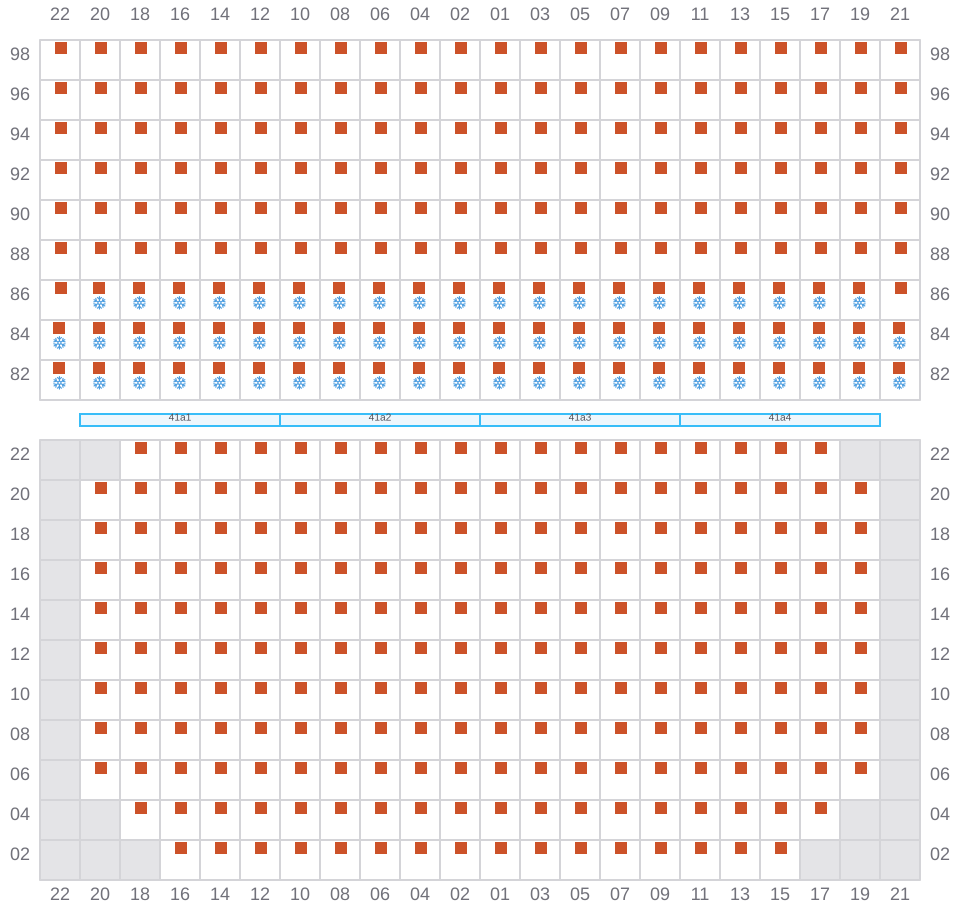

043
- ←
- → / ?
![Bay 043 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b043.png?v=1711046965110)

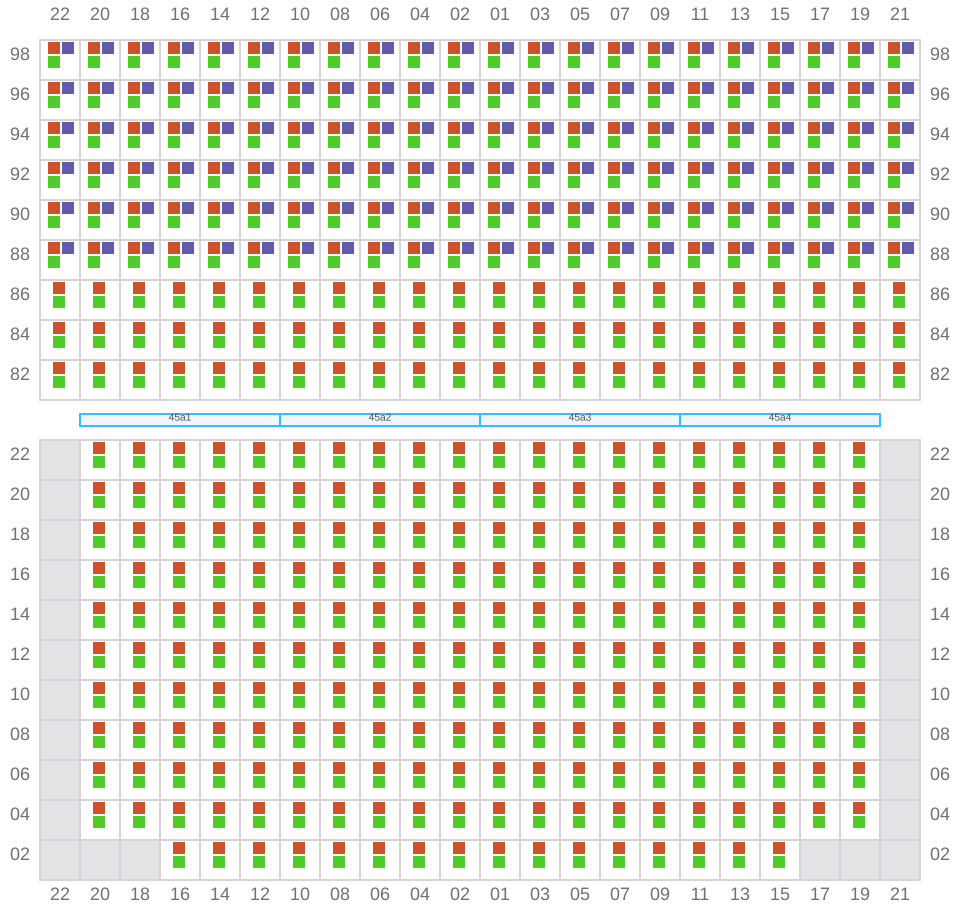

045 (046)
- →
![Bay 045 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b045.png?v=1711046965110)
047
- ←
- → / ?
![Bay 047 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b047.png?v=1711046965110)
049 (050)
- →
- ? / ←
![Bay 049 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b049.png?v=1711046965110)

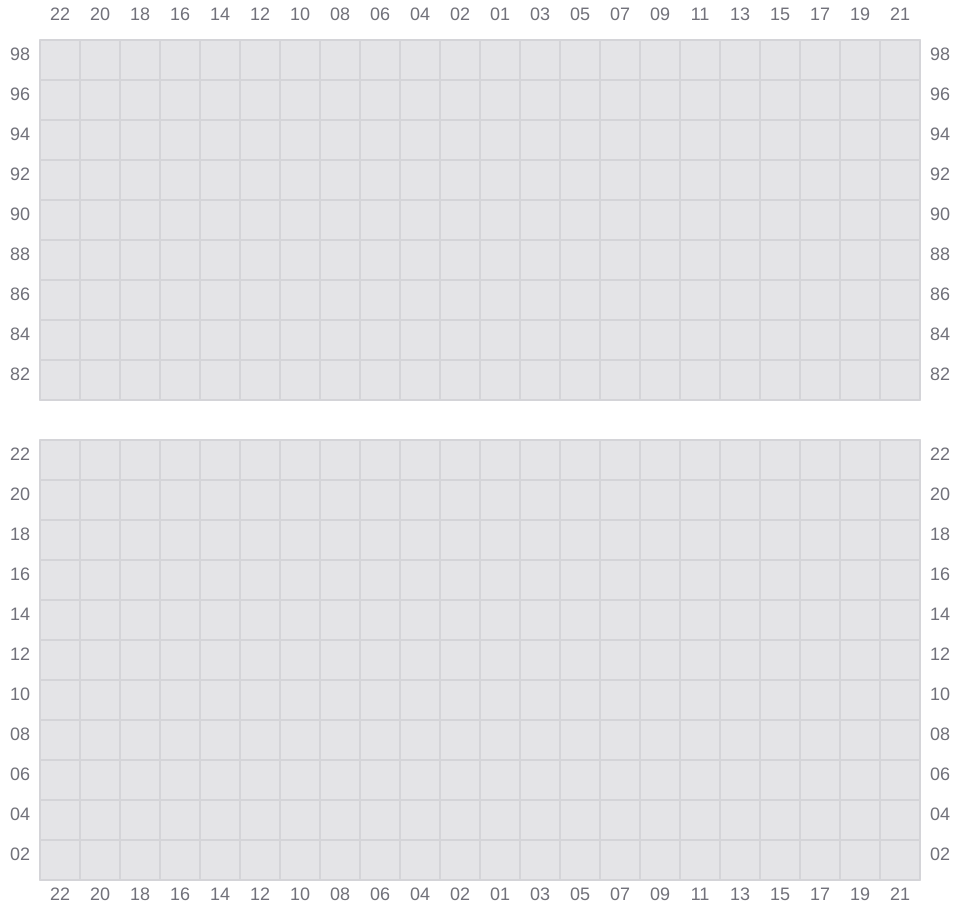

051
![Bay 051 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b051.png?v=1711046965110)

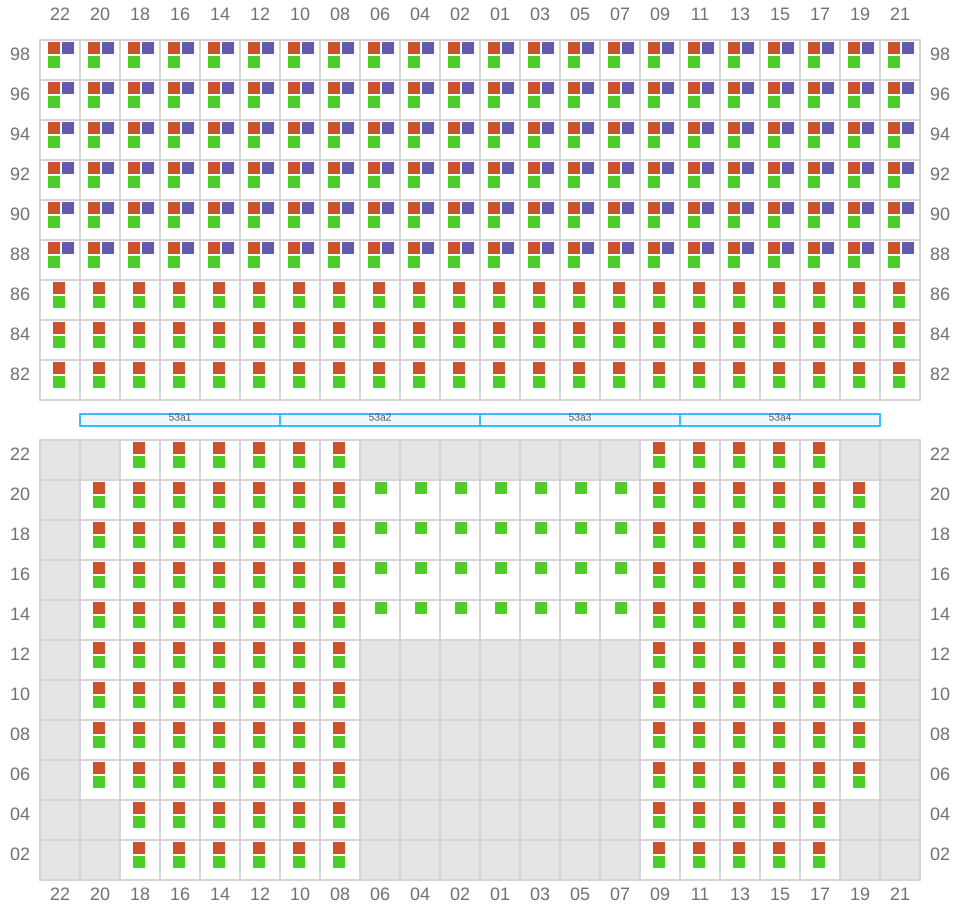

053 (054)
- →
![Bay 053 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b053.png?v=1711046965110)
055
- ←
![Bay 055 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b055.png?v=1711046965110)
057 (058)
- →
![Bay 057 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b057.png?v=1711046965110)

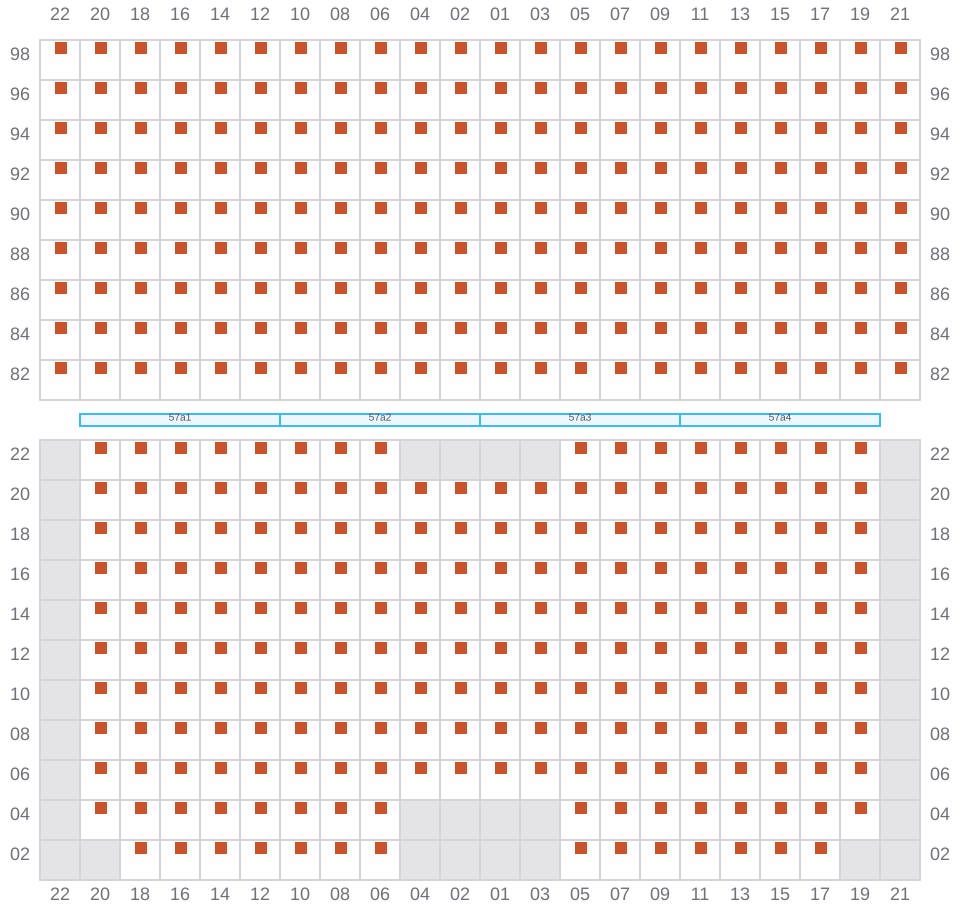

059
- ←
![Bay 059 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b059.png?v=1711046965110)
061 (062)
- →
![Bay 061 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b061.png?v=1711046965110)

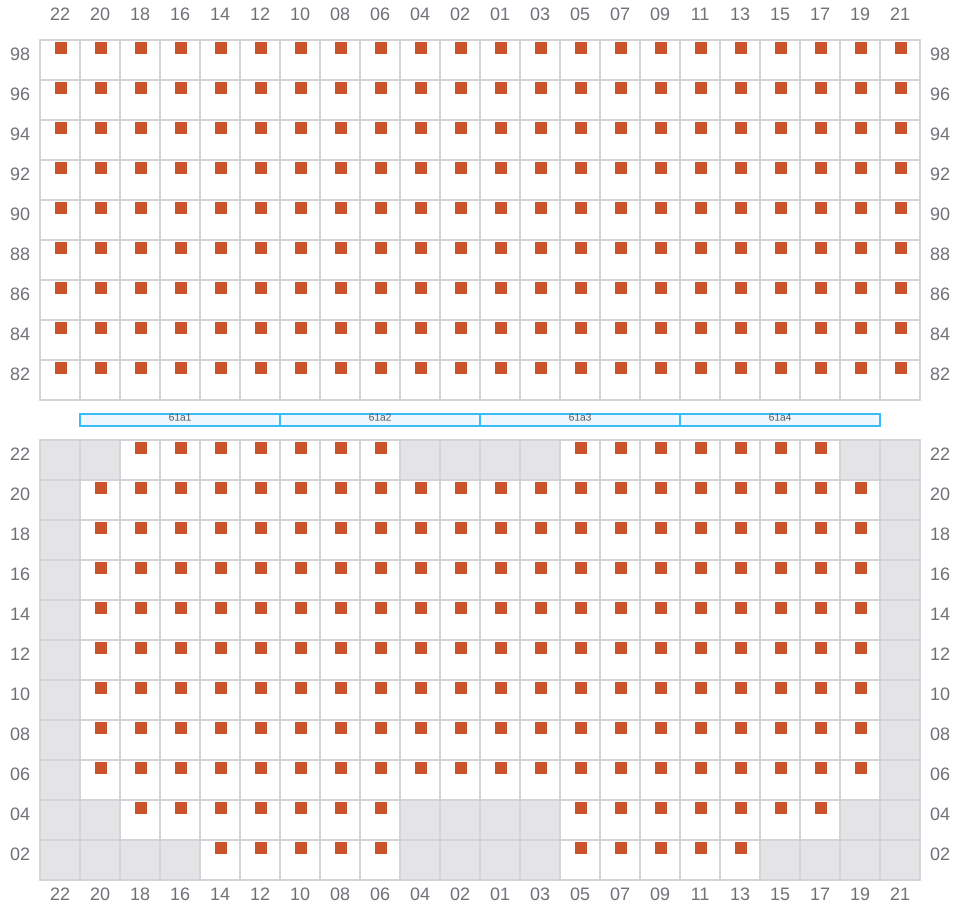

063
- ←
![Bay 063 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b063.png?v=1711046965110)
065 (066)
- →
![Bay 065 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b065.png?v=1711046965110)

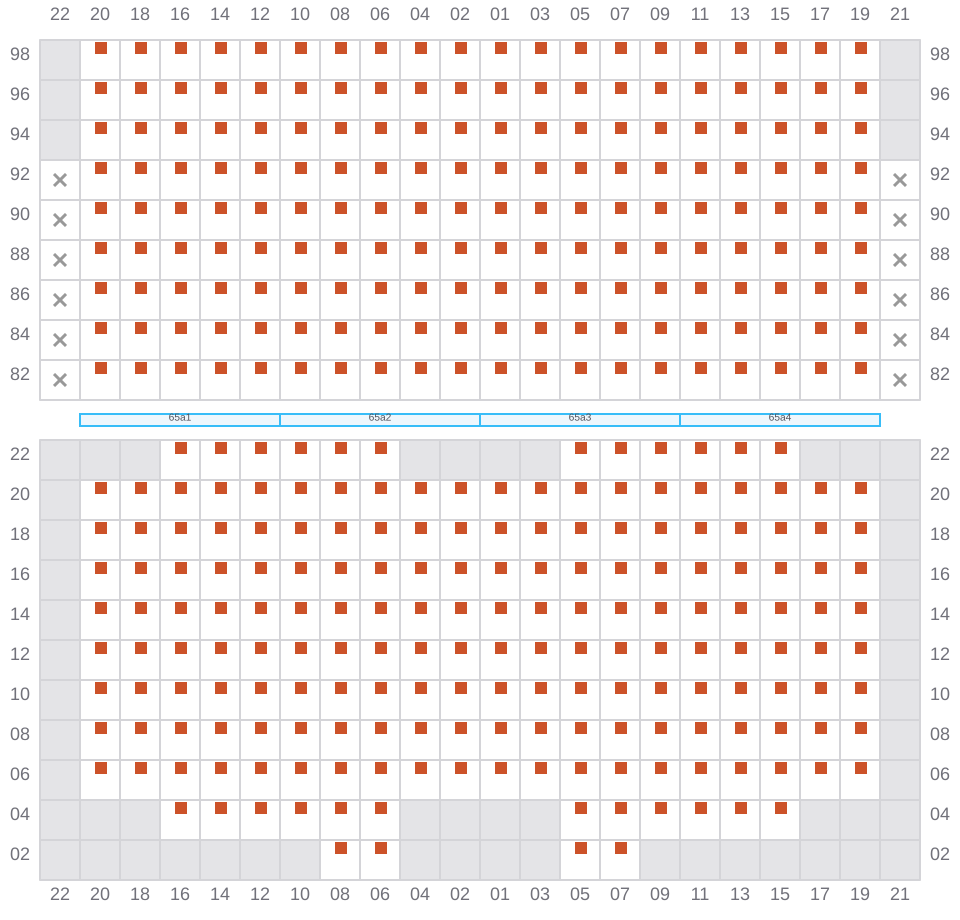

067
- ←
![Bay 067 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b067.png?v=1711046965110)

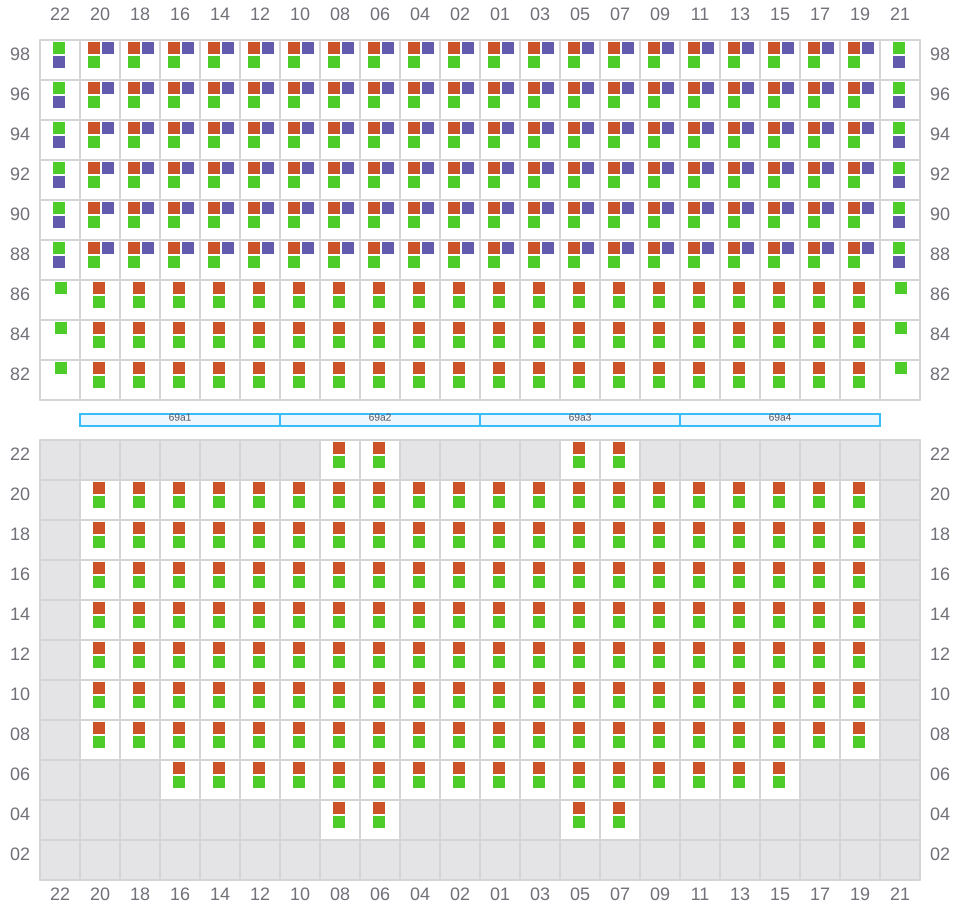

069 (070)
- →
![Bay 069 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b069.png?v=1711046965110)

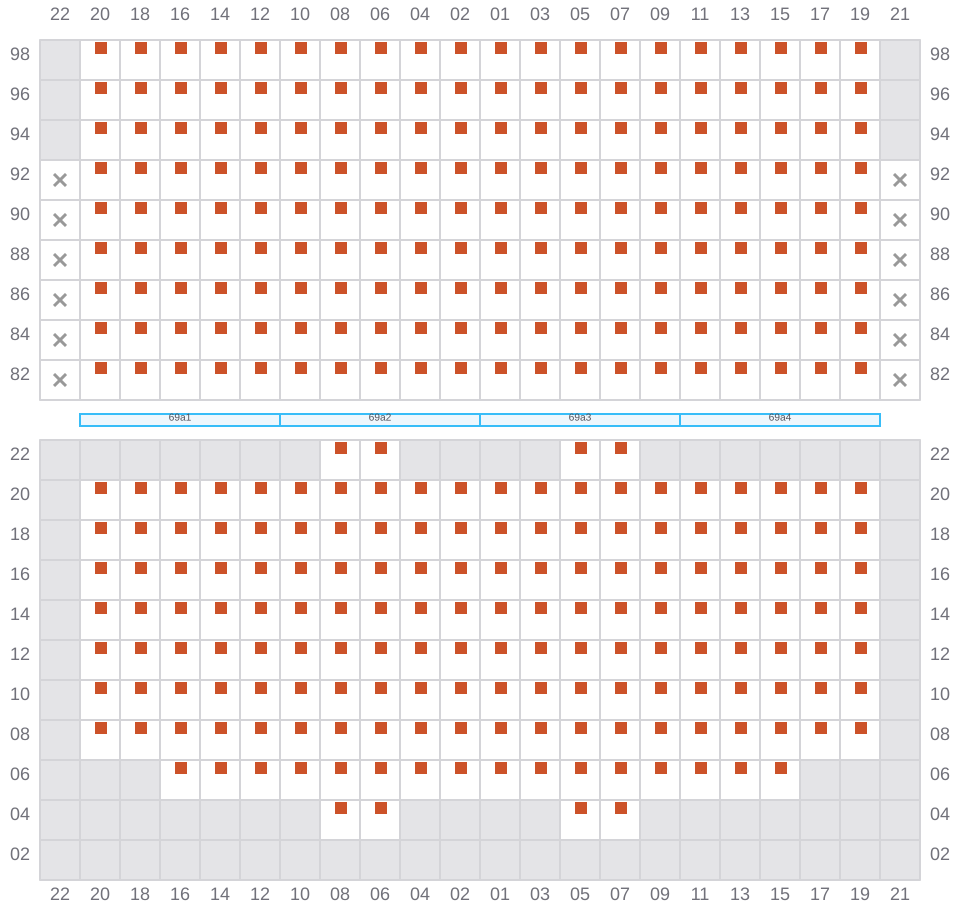

071
- ←
![Bay 071 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b071.png?v=1711046965110)
073 (074)
- →
![Bay 073 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b073.png?v=1711046965110)

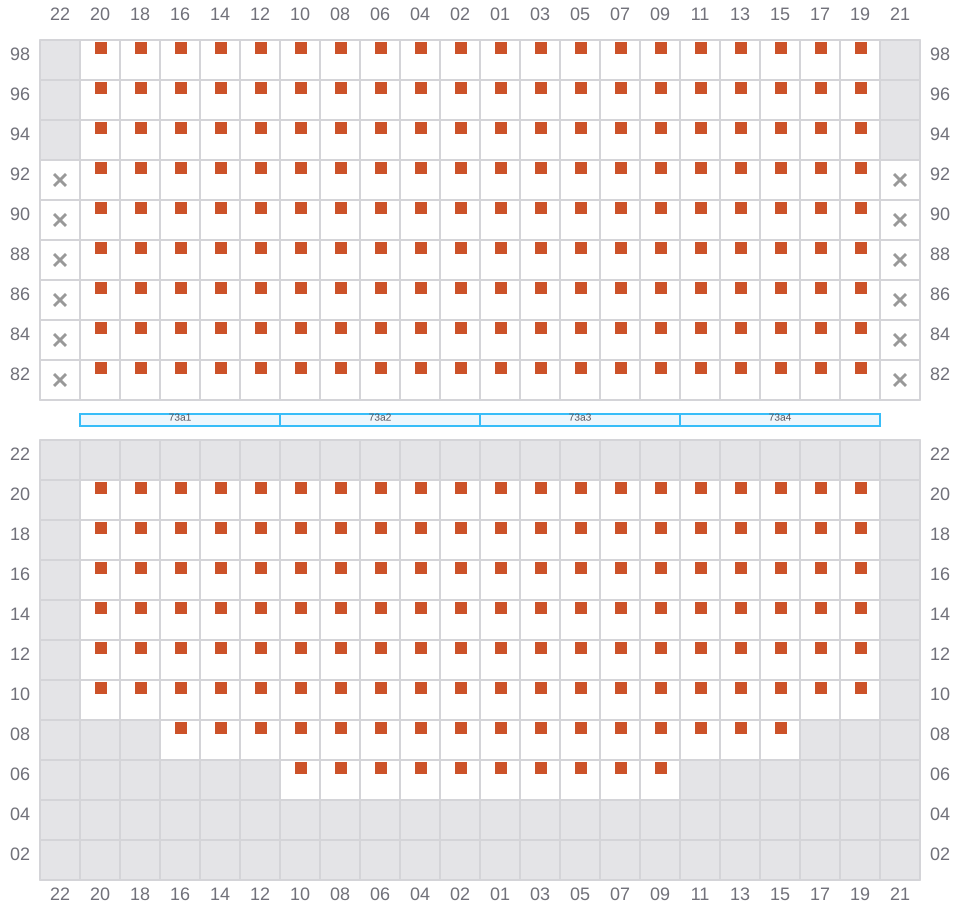

075
- ←
![Bay 075 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b075.png?v=1711046965110)

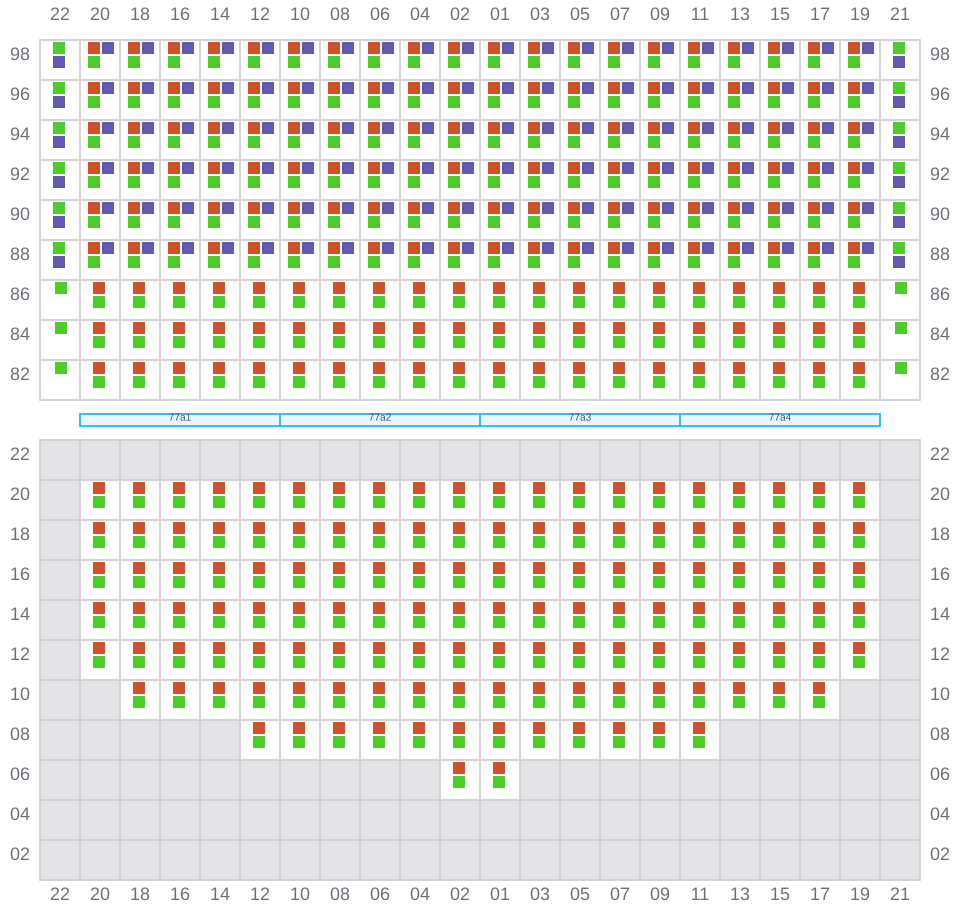

077 (078)
- →
![Bay 077 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b077.png?v=1711046965110)

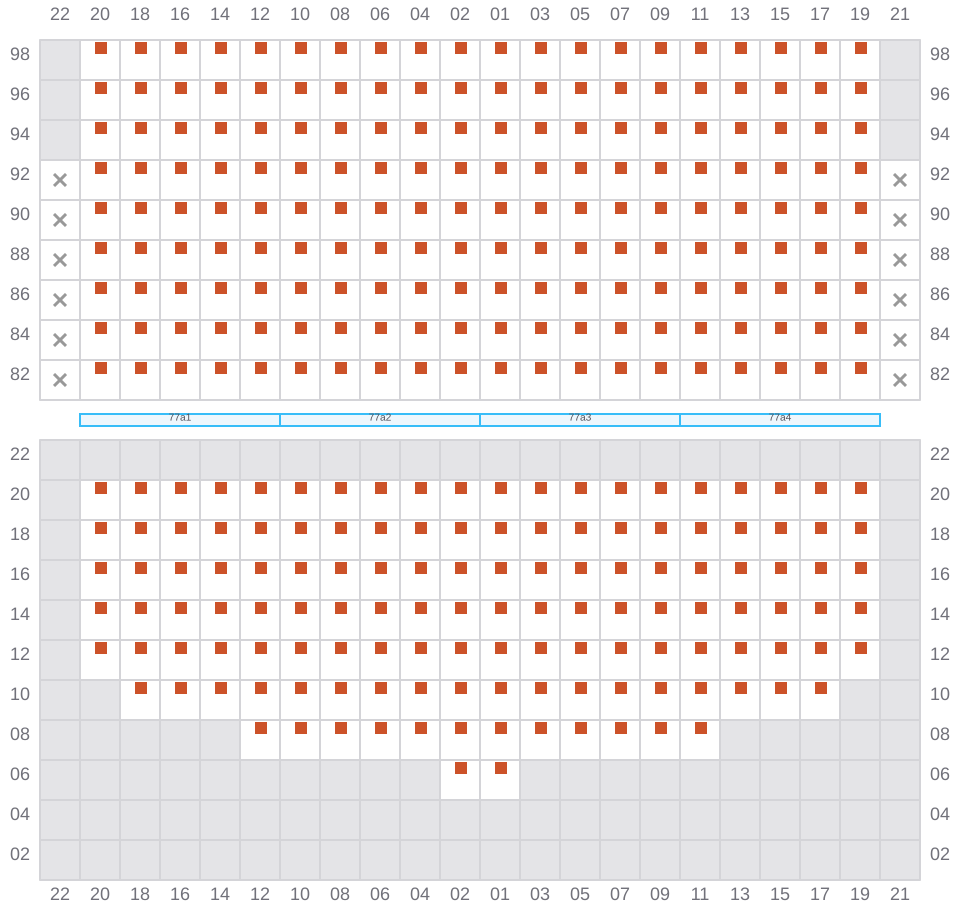

079
- ←
![Bay 079 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b079.png?v=1711046965110)

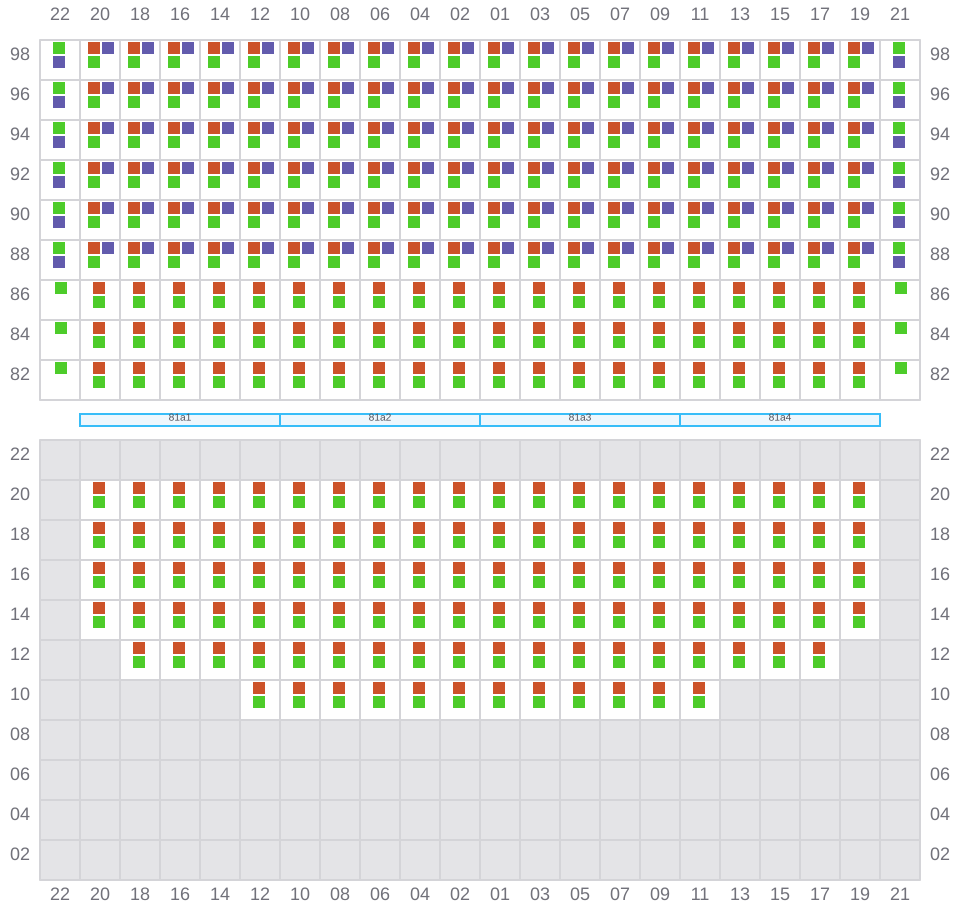

081 (082)
- →
![Bay 081 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b081.png?v=1711046965110)
083
- ←
![Bay 083 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b083.png?v=1711046965110)

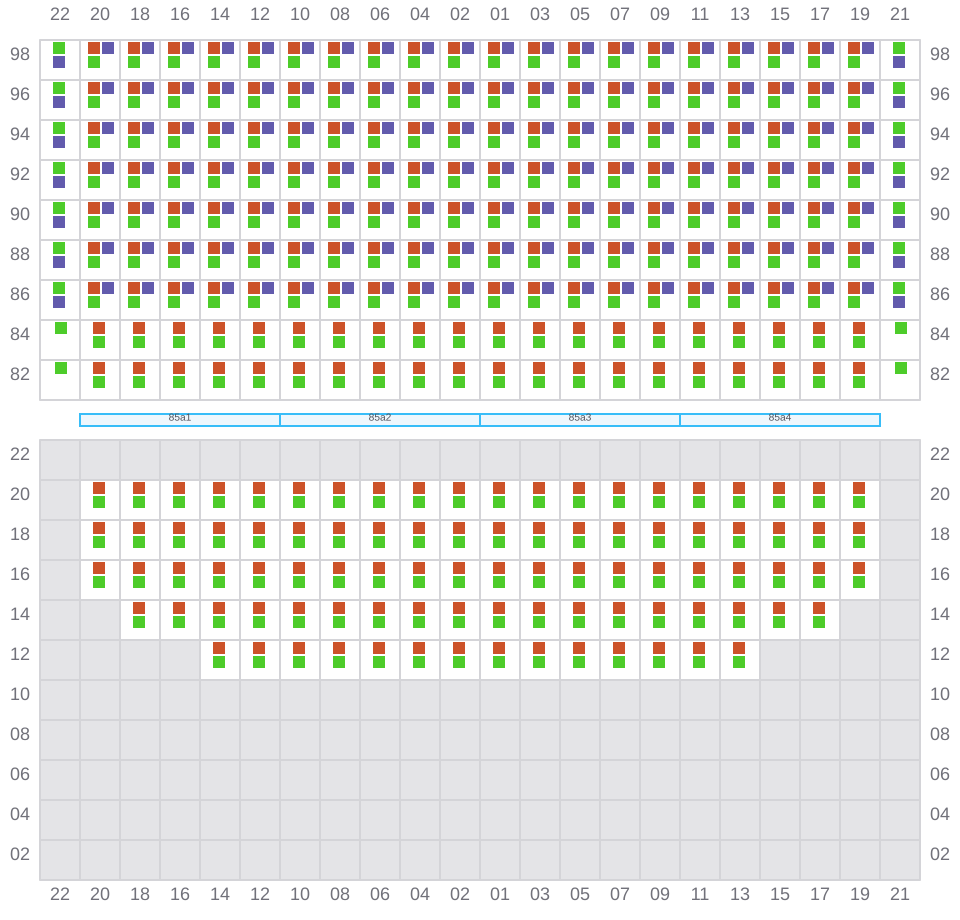

085 (086)
- →
![Bay 085 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b085.png?v=1711046965110)

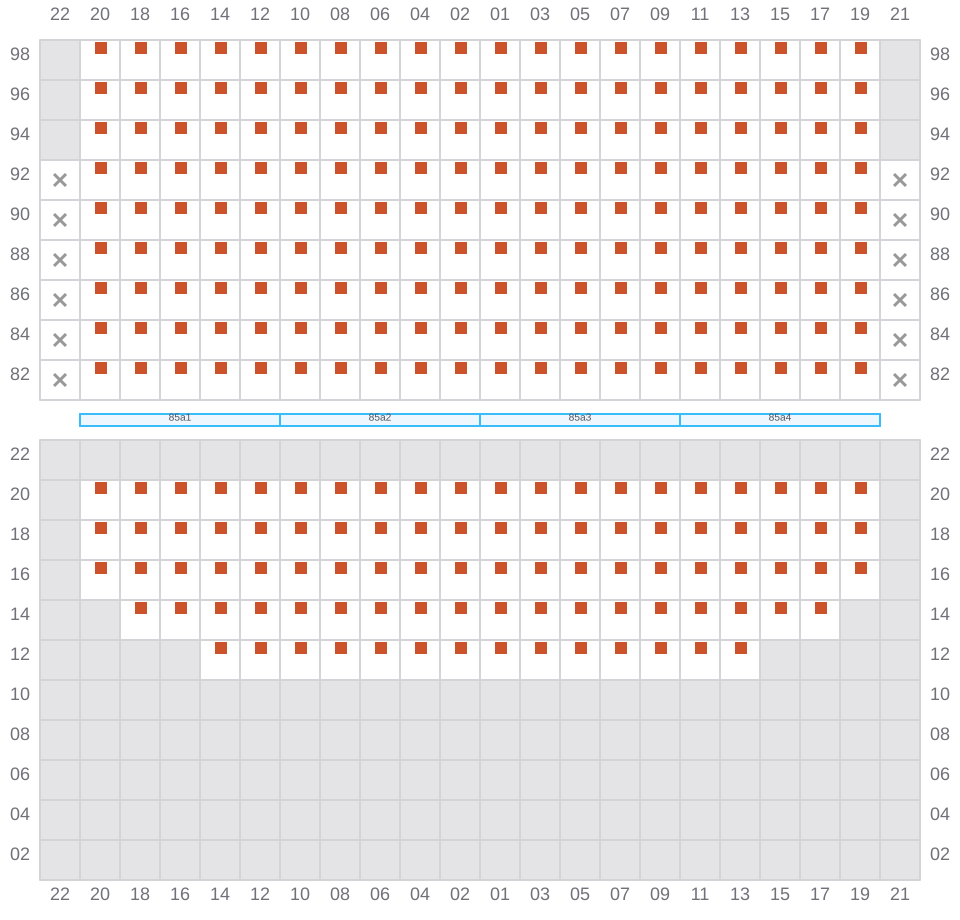

087
- ←
![Bay 087 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b087.png?v=1711046965110)

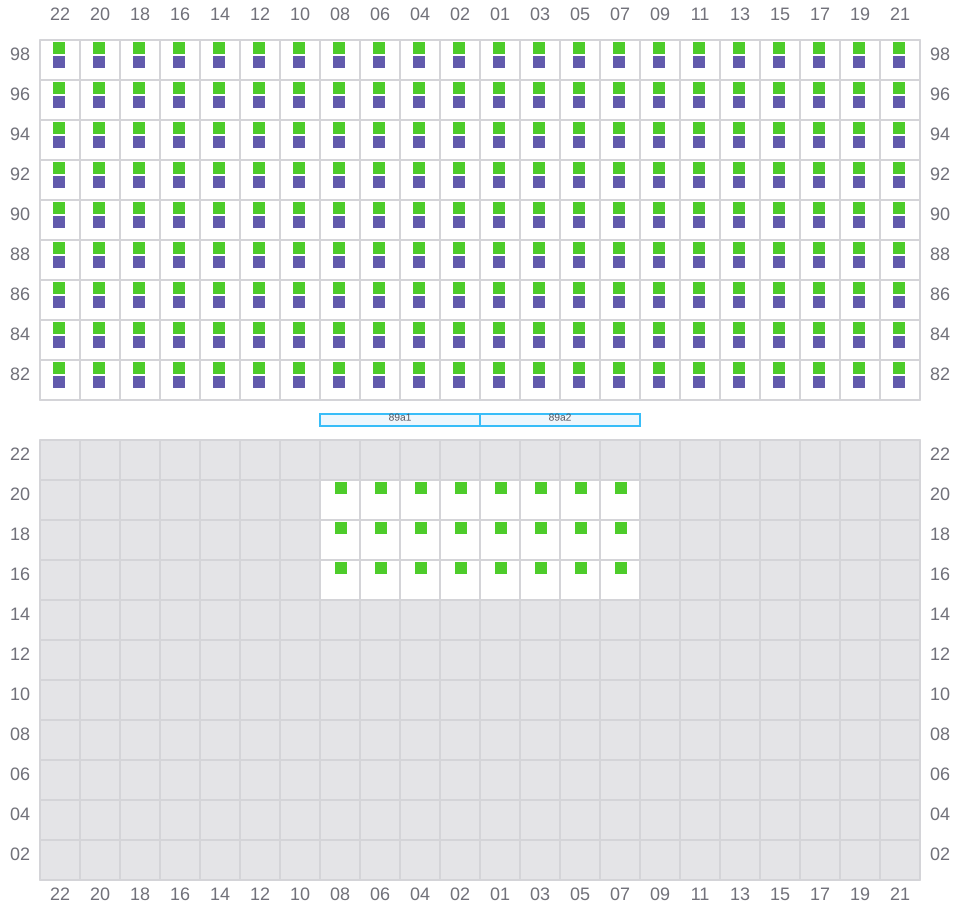

089 (090)
- →
![Bay 089 view and slots of EBBA MAERSK](/vessel-images/ee3b445f-11e6-4d31-a7d6-b2d32e371e73-b089.png?v=1711046965110)
