EDISON
9463011 | 2DXY2 | MAERSK by ********* Last update: Wed Mar 27 2024
General Info
Ship Name:EDISON
IMO Code:9463011
Call Sign:2DXY2
Line Operator:MAERSK
Class Name for Sister Ships:EDINBURGH
Year Built:2011
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):350.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:085
Max ISO Row:18
Center Line Row:Yes
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:13,102
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

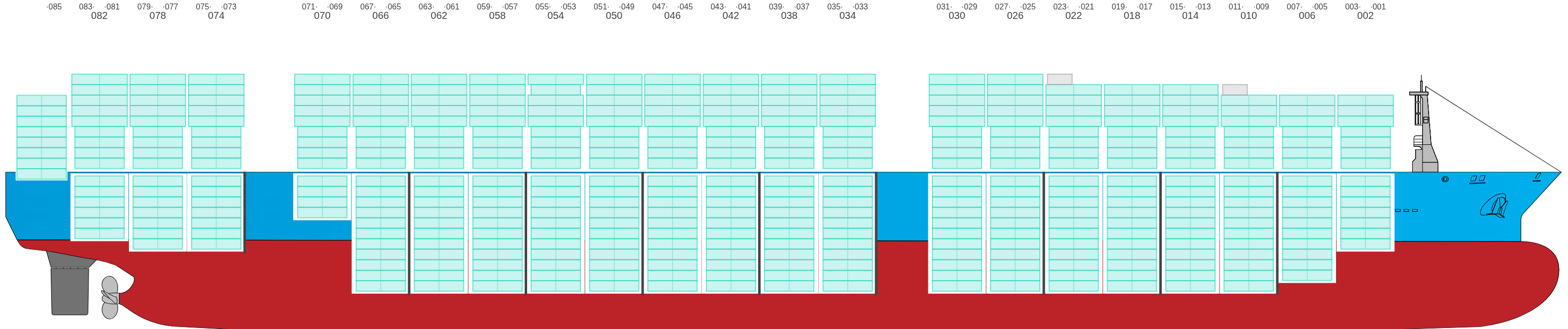

Side View
Hatch-Covers View

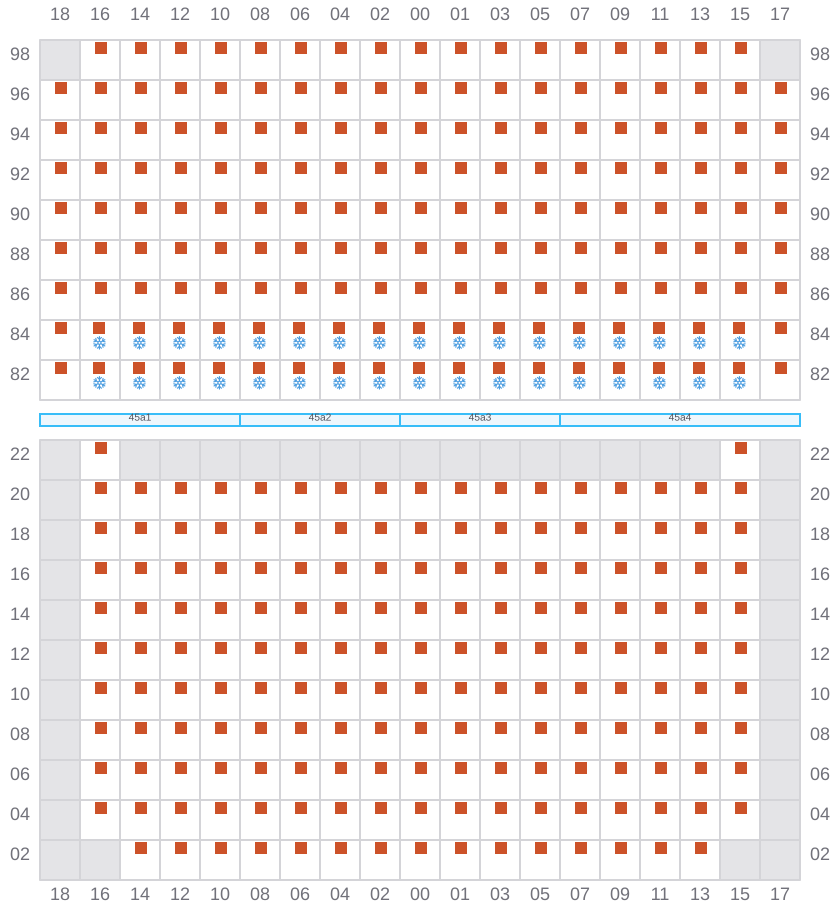

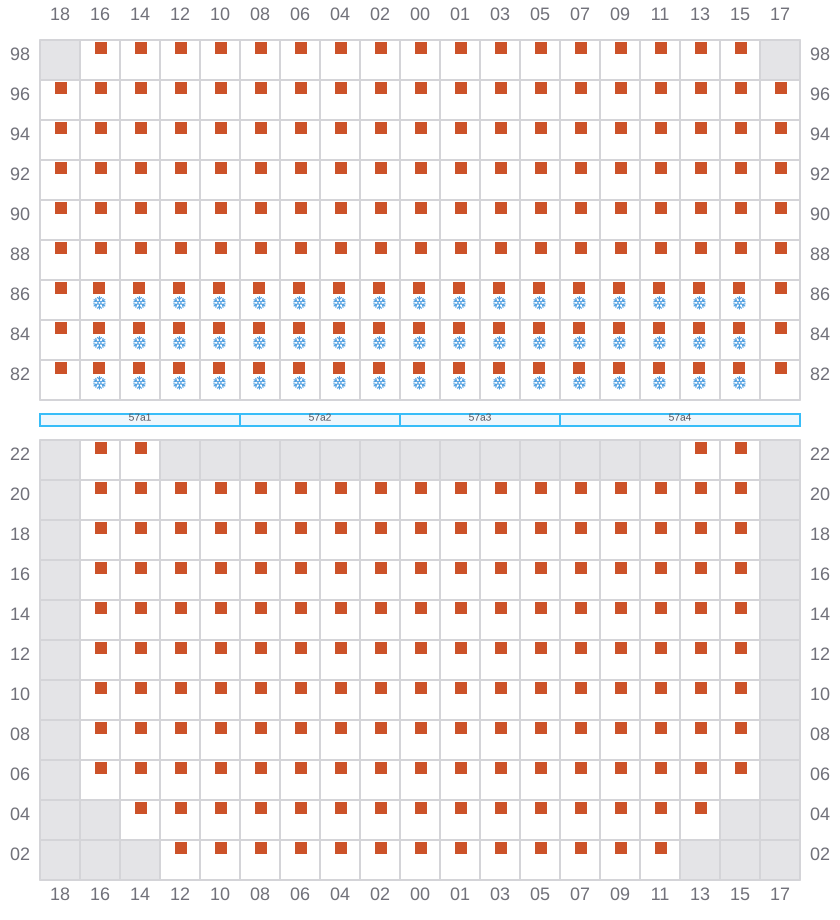

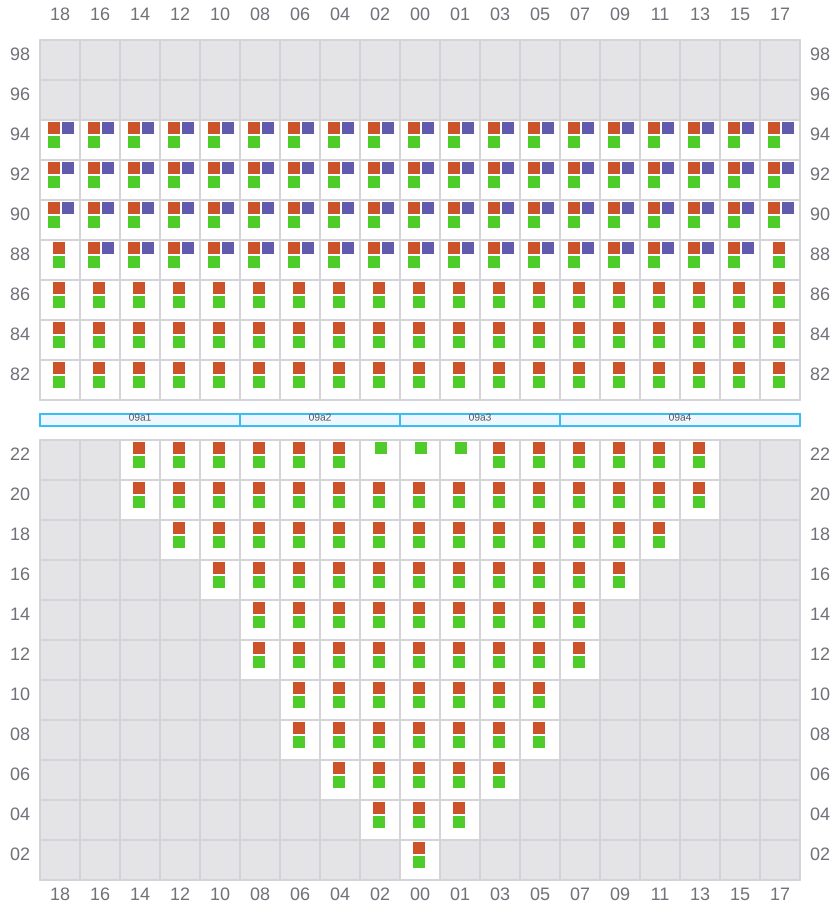

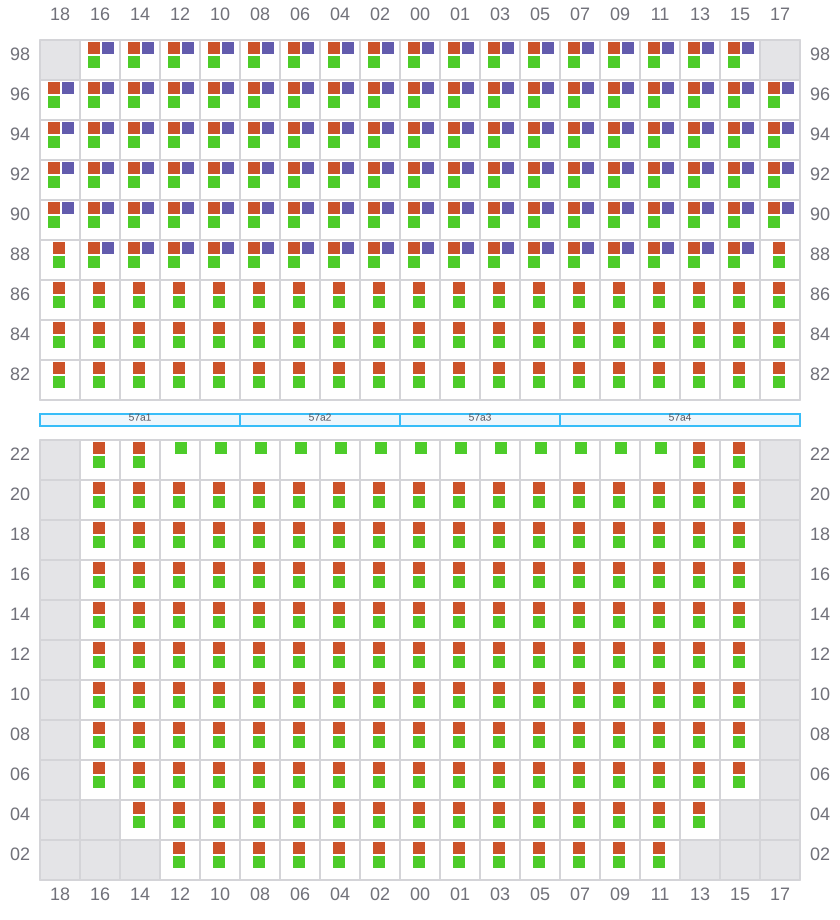

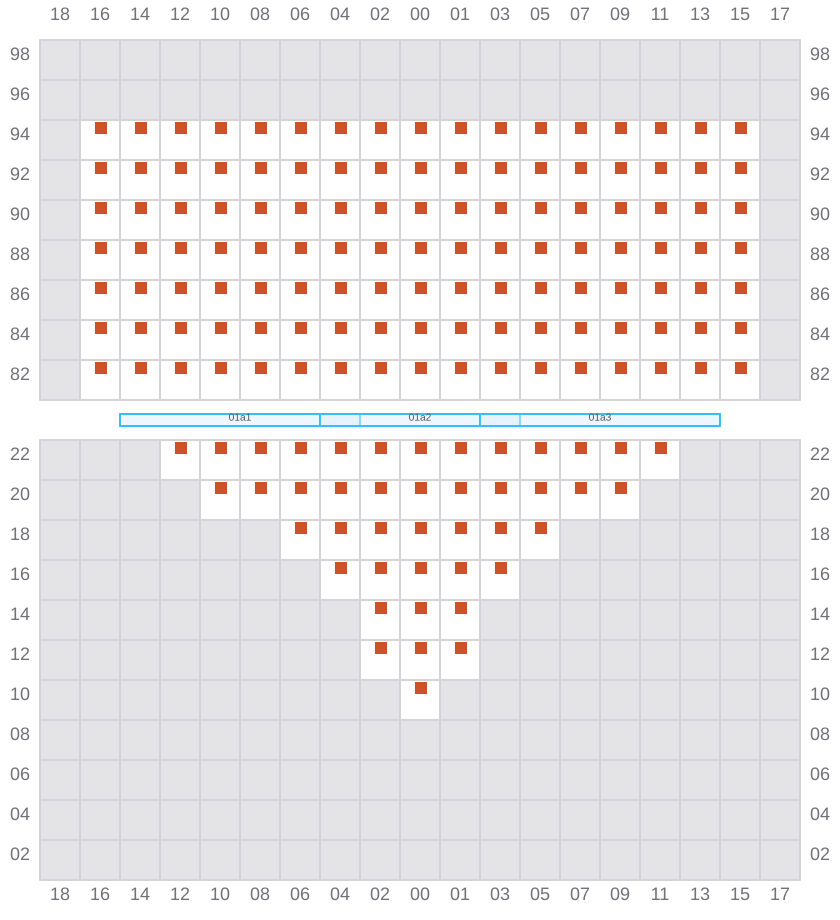

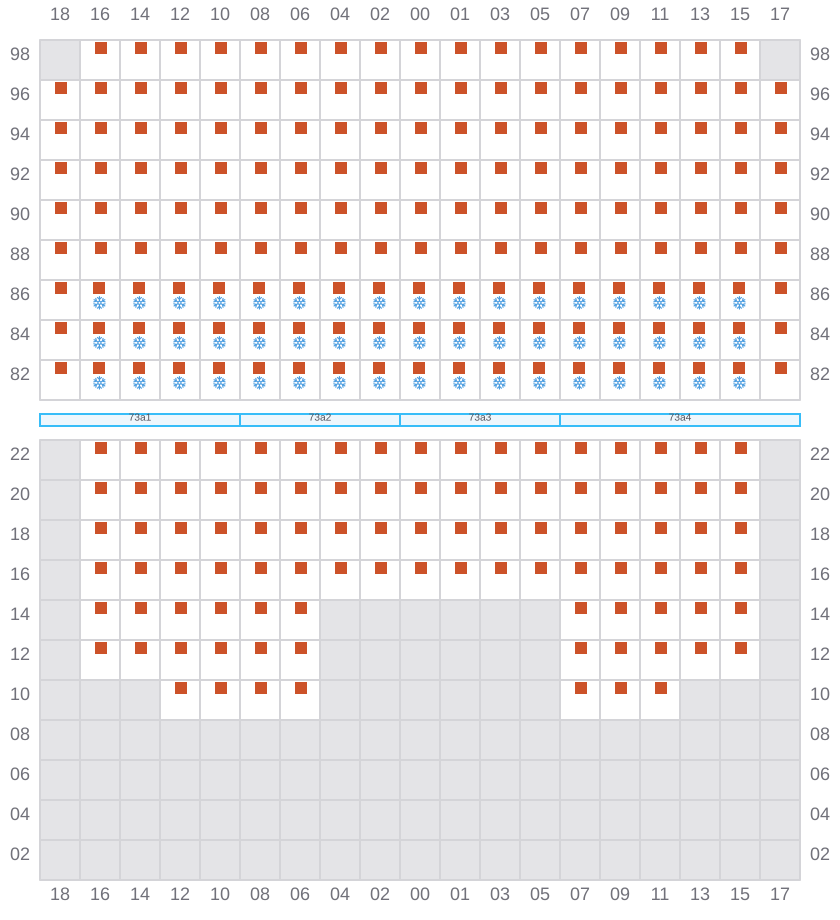

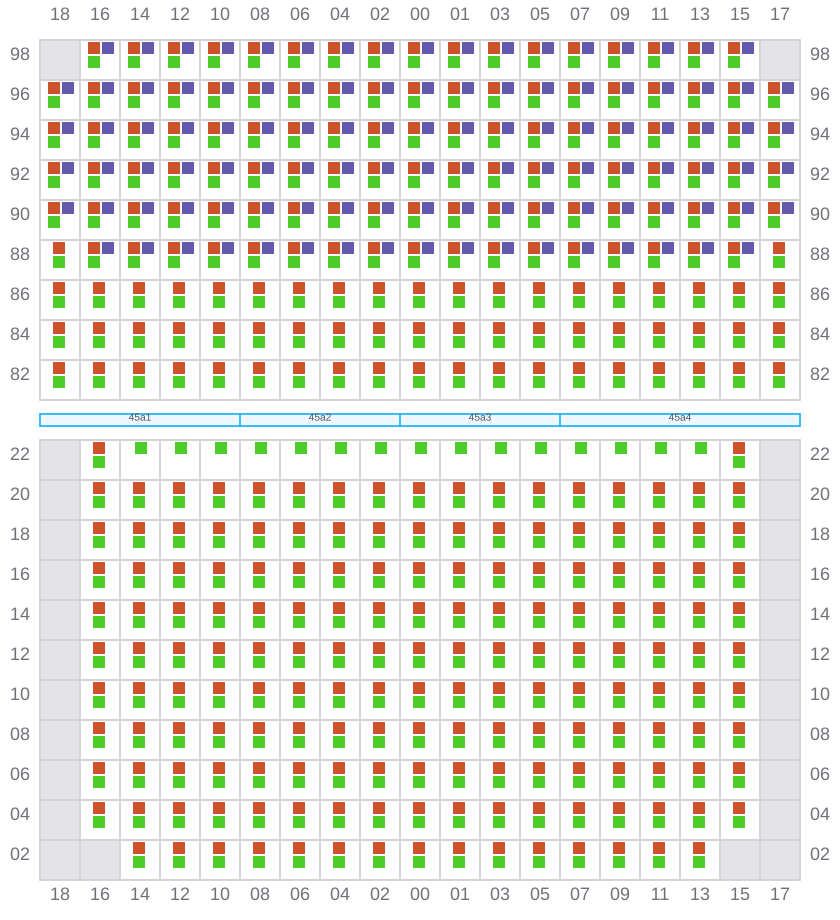

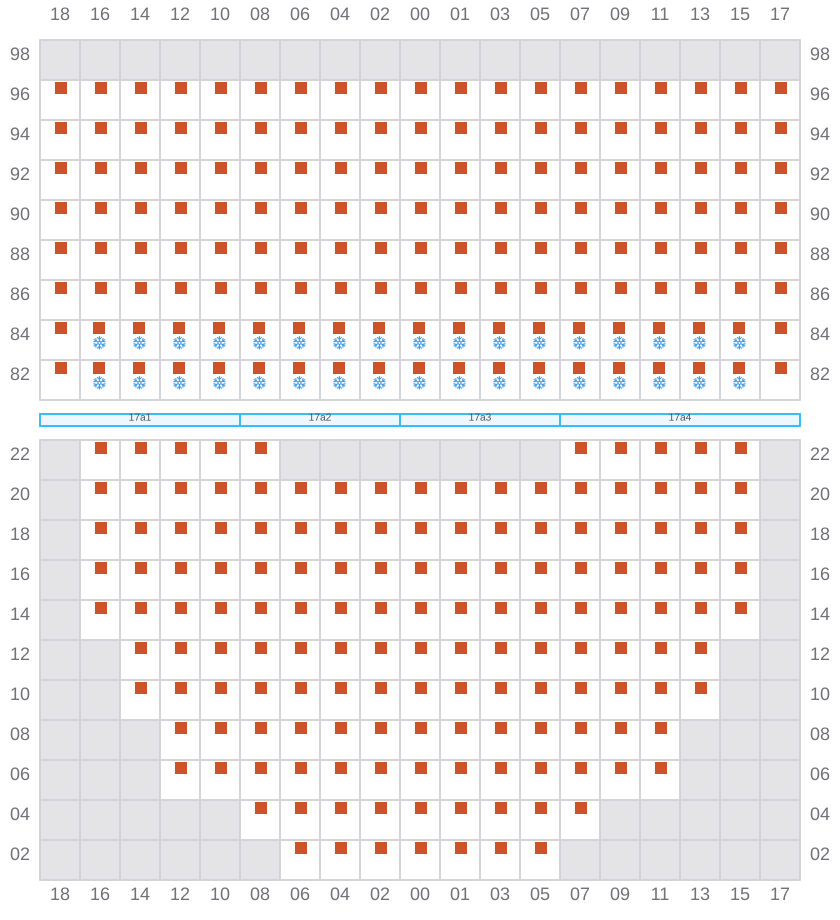

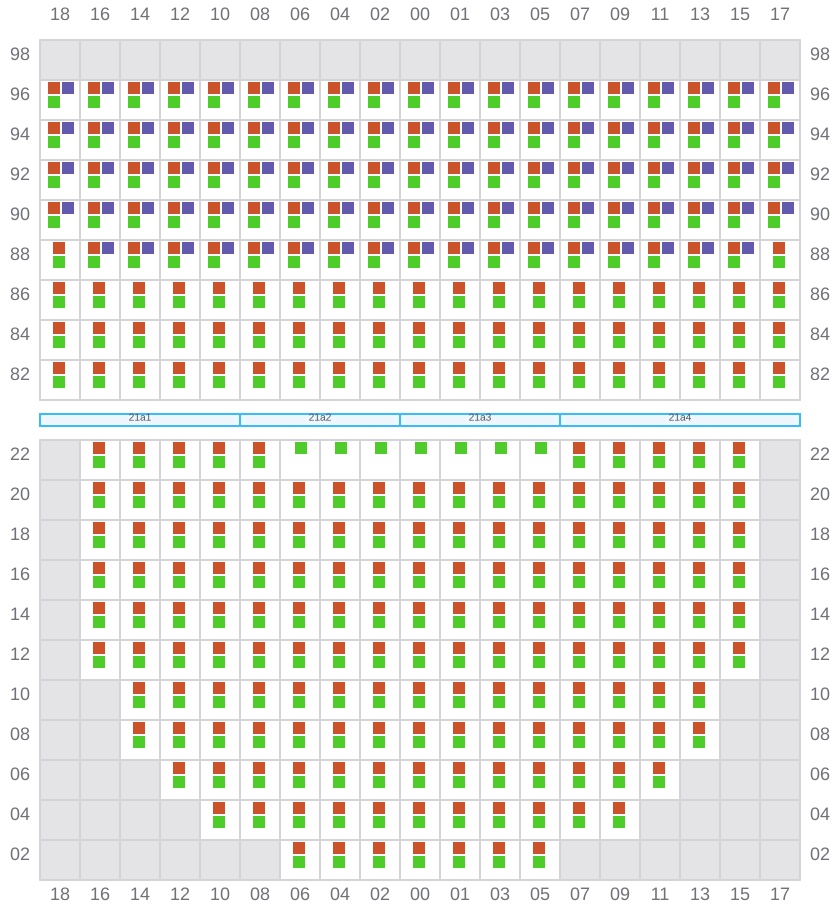

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

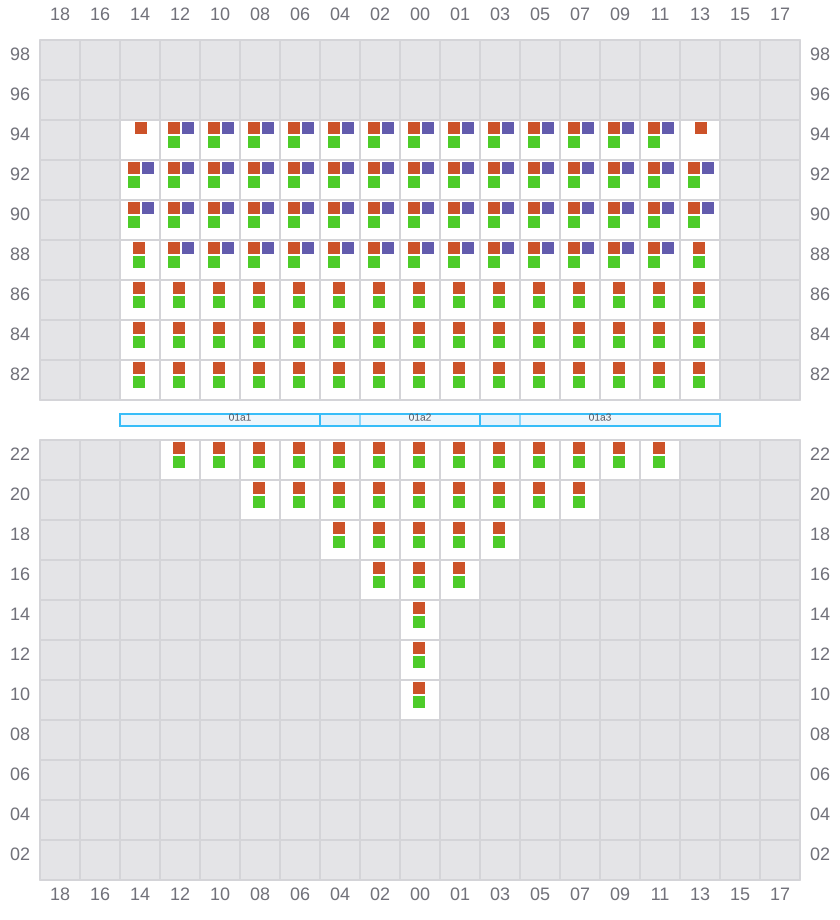

001 (002)
- →
003
- ←

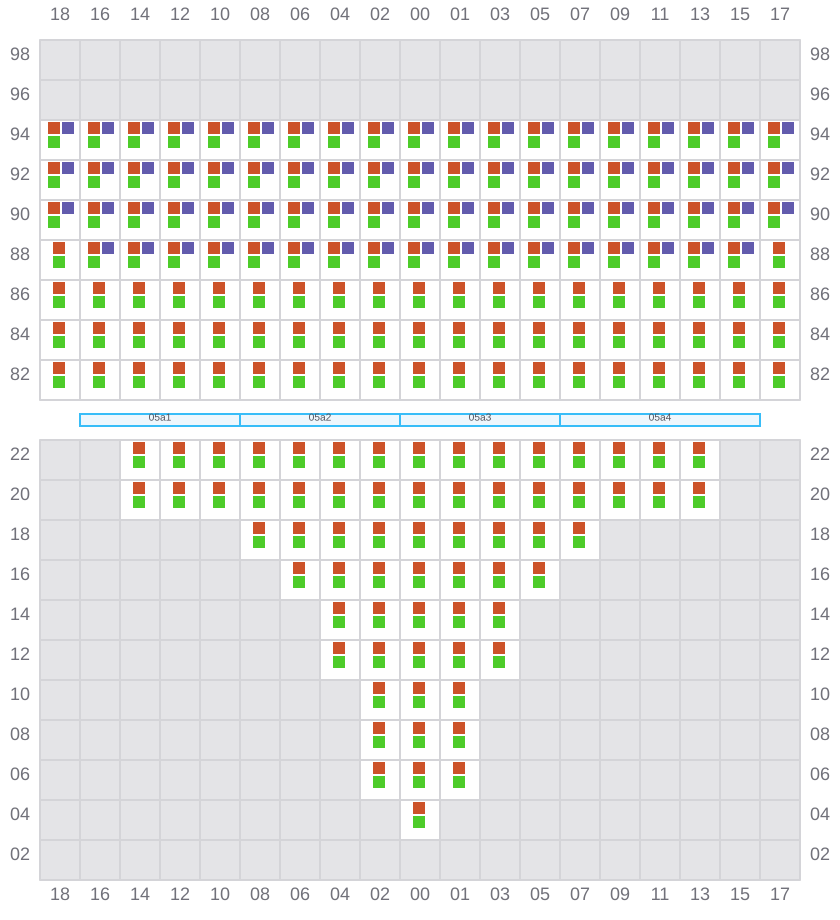

005 (006)
- →

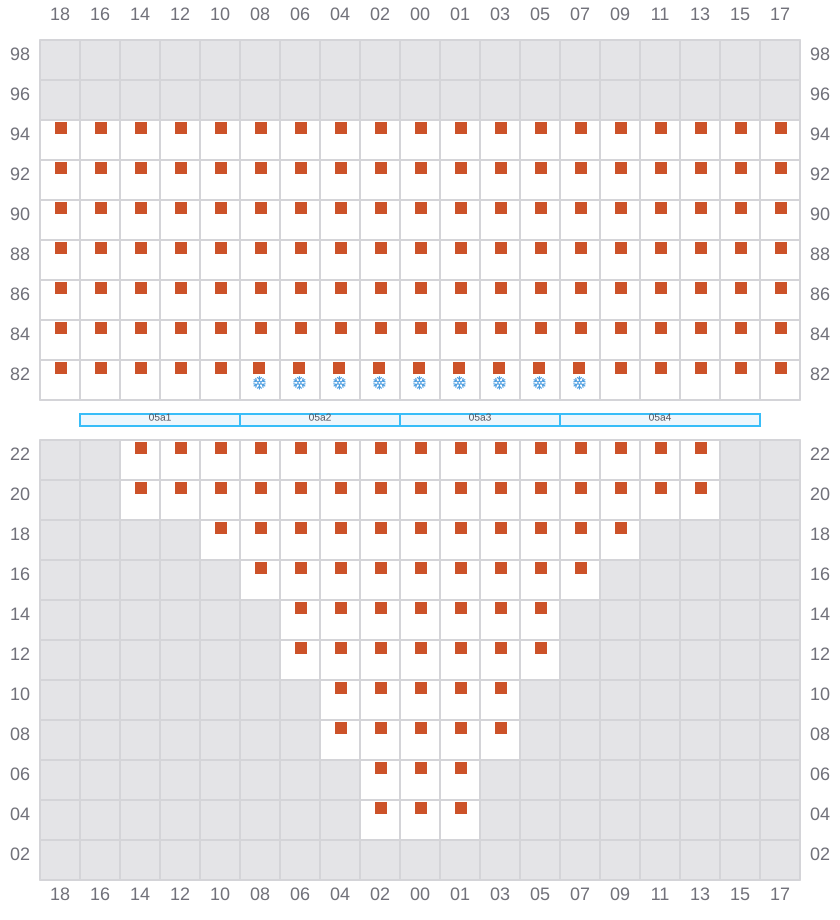

007
- ←
- → / ?

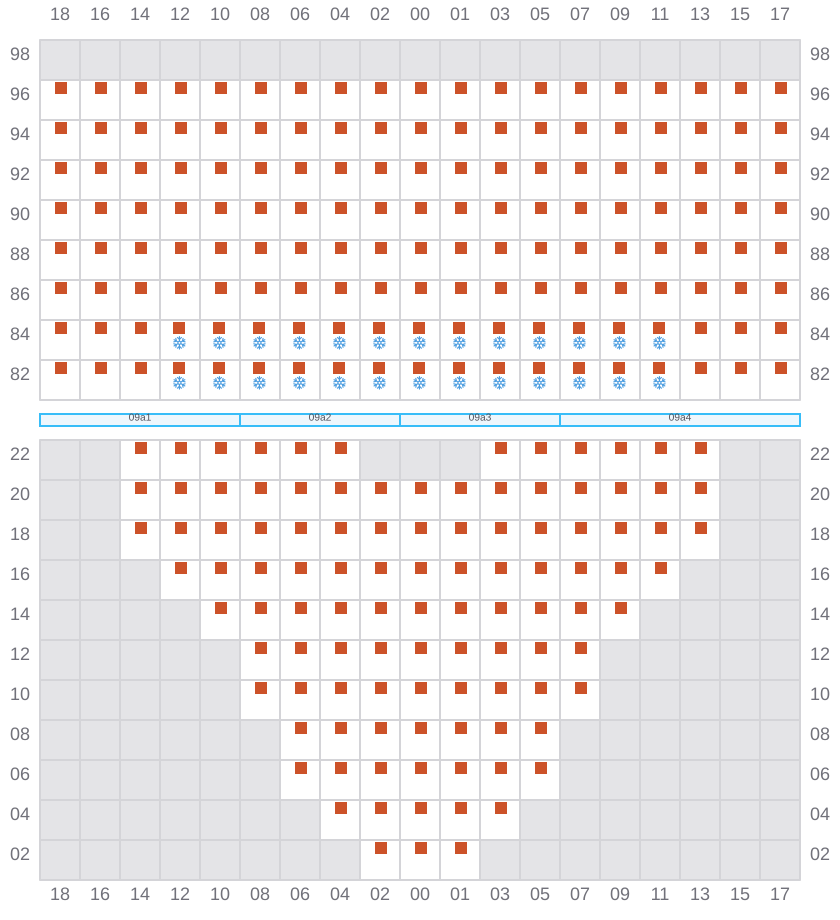

009 (010)
- →
011
- ←
- → / ?
013 (014)
- →

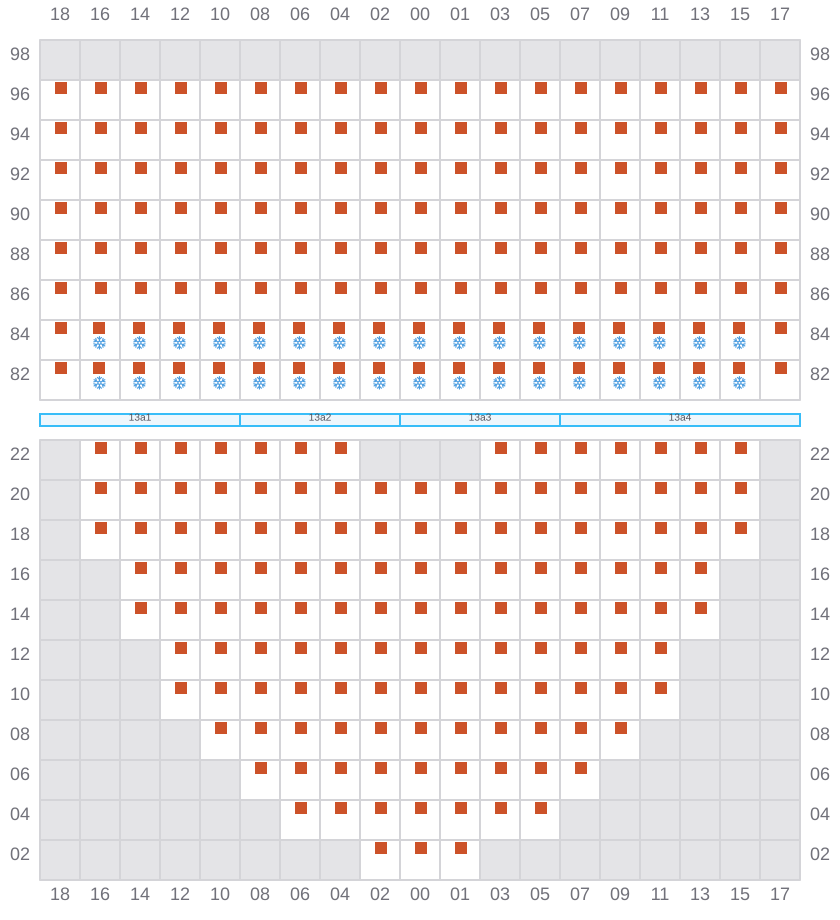

015
- ←
- → / ?

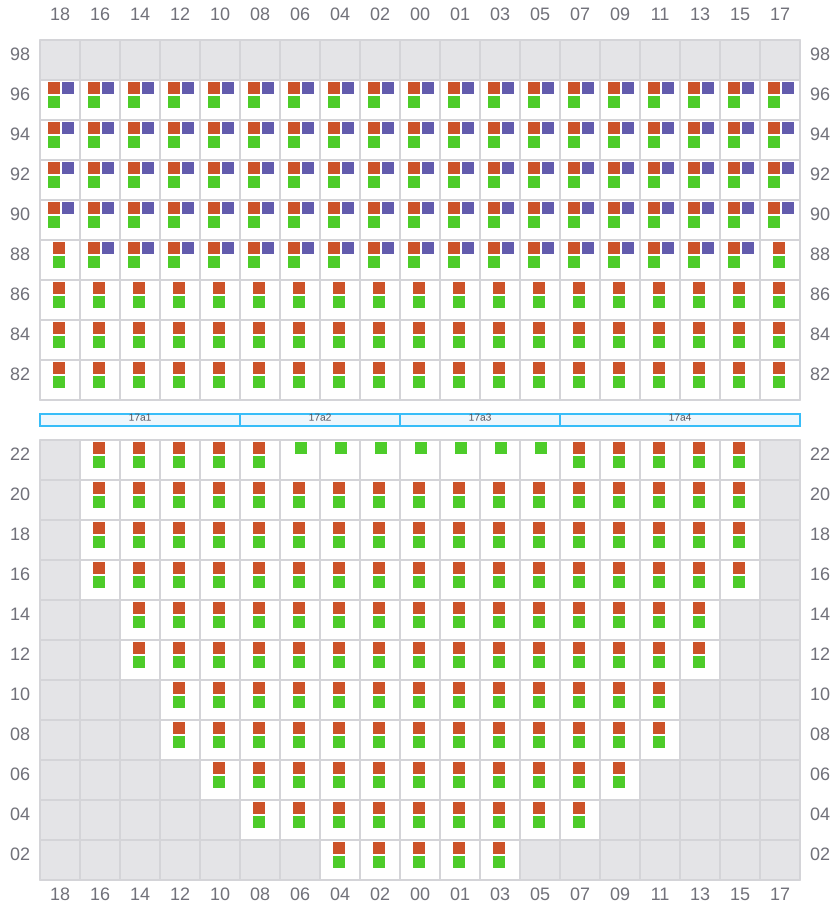

017 (018)
- →
019
- ←
- → / ?
021 (022)
- →
023
- ←
- → / ?
025 (026)
- →

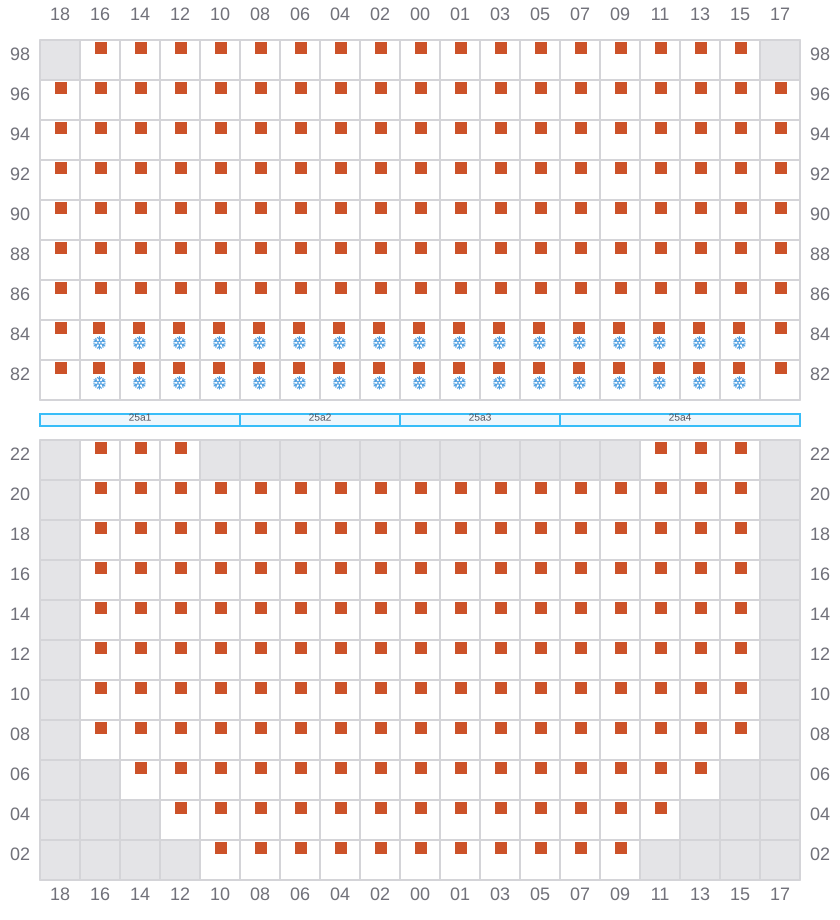

027
- ←
- → / ?

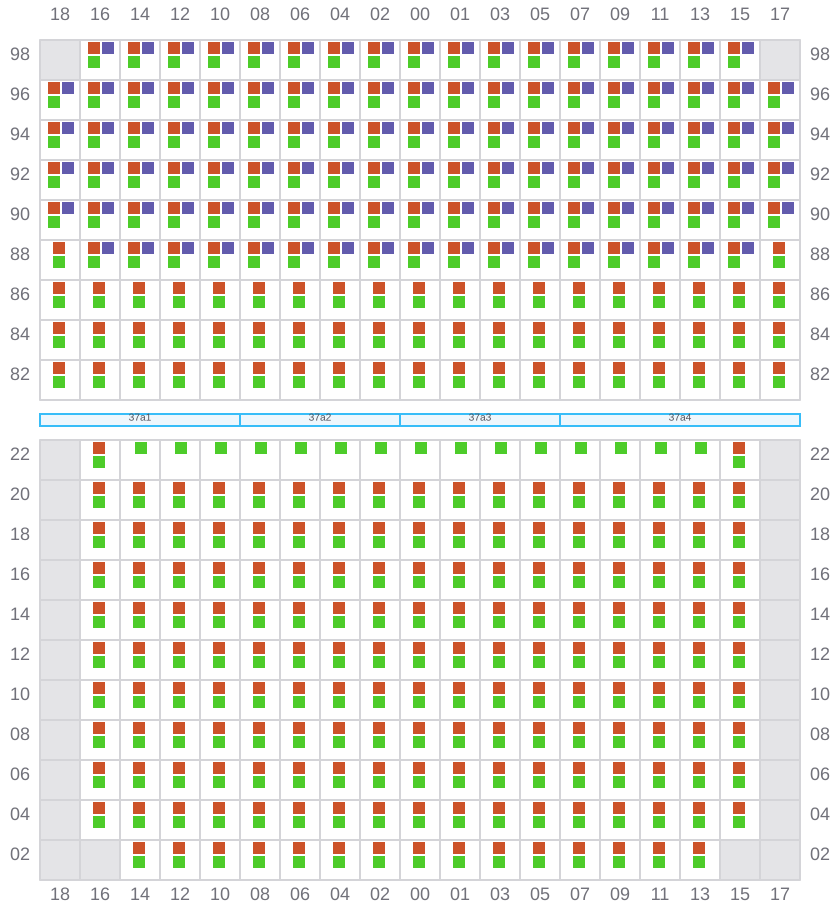

029 (030)
- →
031
- ←
- → / ?
033 (034)
- →
035
- ←
- → / ?
037 (038)
- →
039
- ←
- → / ?
041 (042)
- →
043
- ←
- → / ?
045 (046)
- →
047
- ←
- → / ?

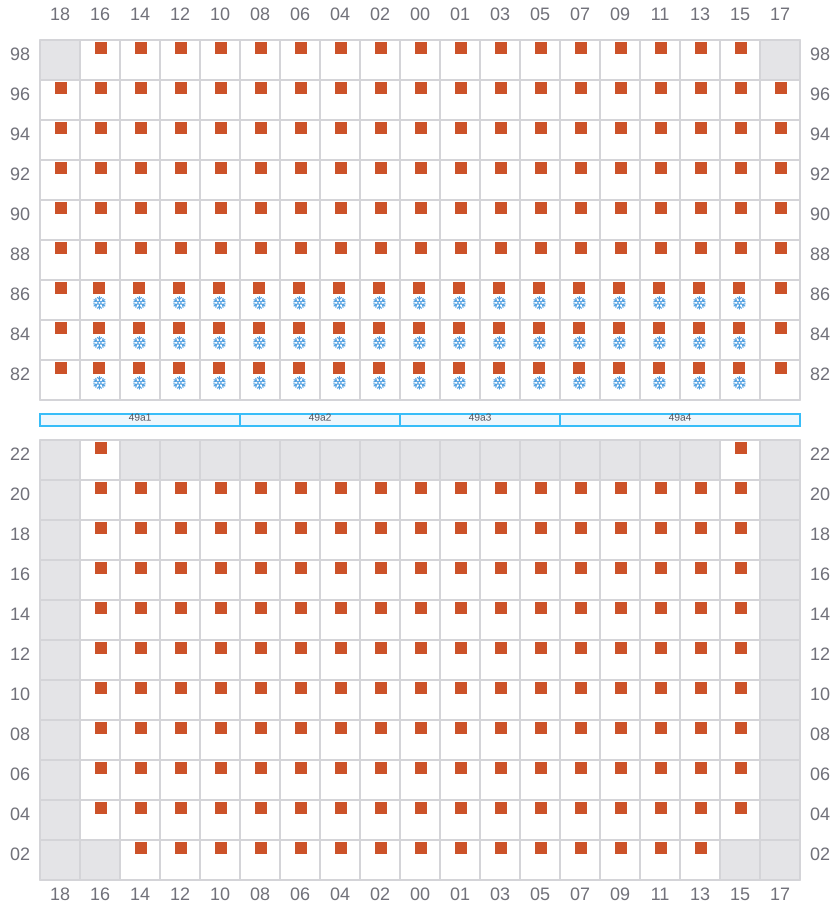

049 (050)
- →
051
- ←
- → / ?

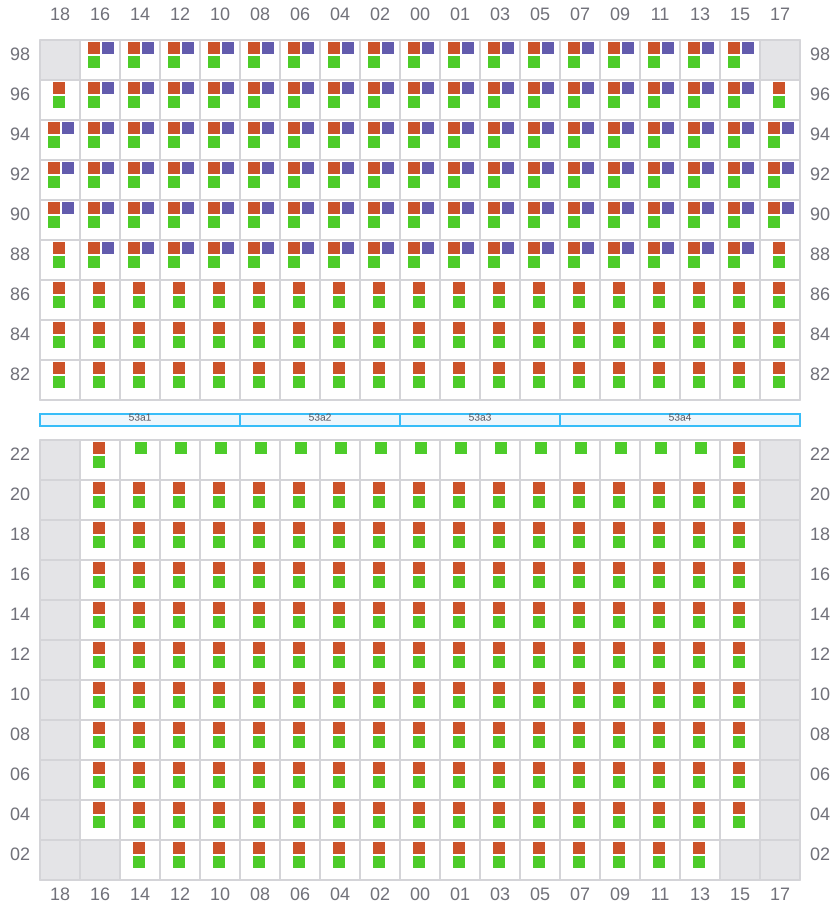

053 (054)
- →
055
- ←
- → / ?
057 (058)
- →
059
- ←
- → / ?

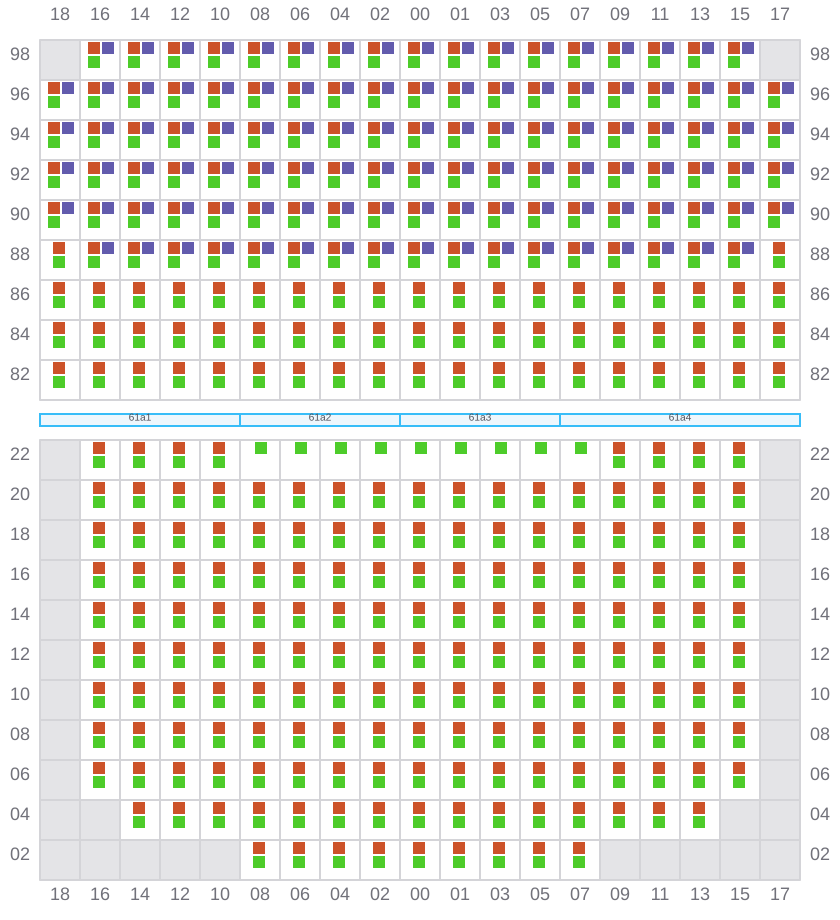

061 (062)
- →
063
- ←
- → / ?
065 (066)
- →
067
- ←
- → / ?

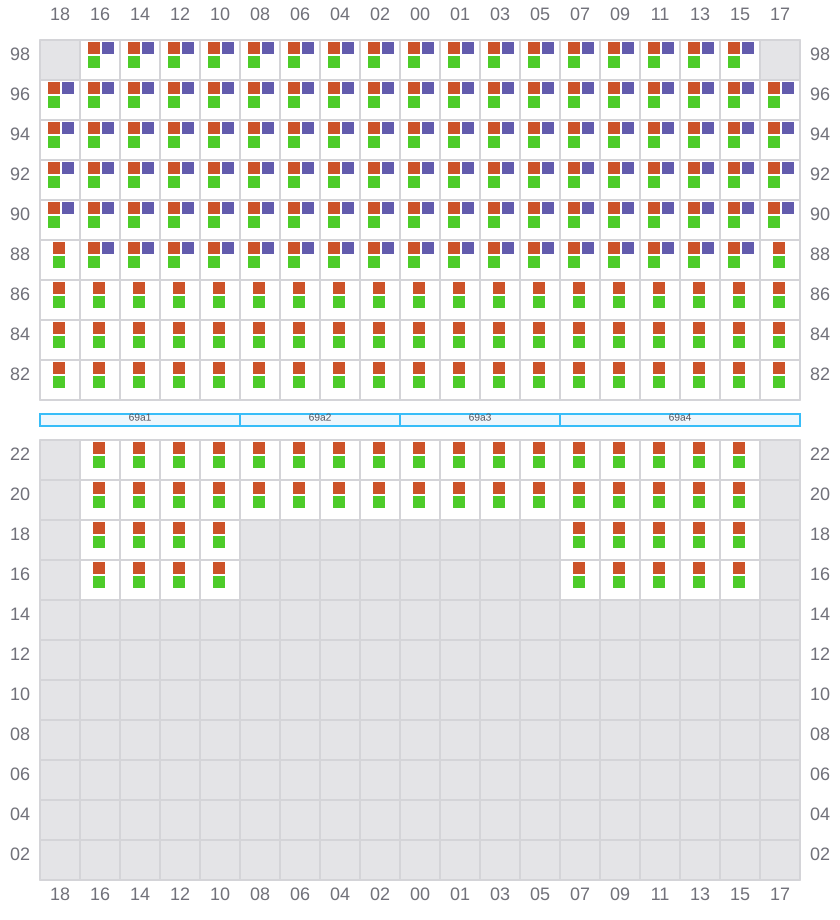

069 (070)
- →

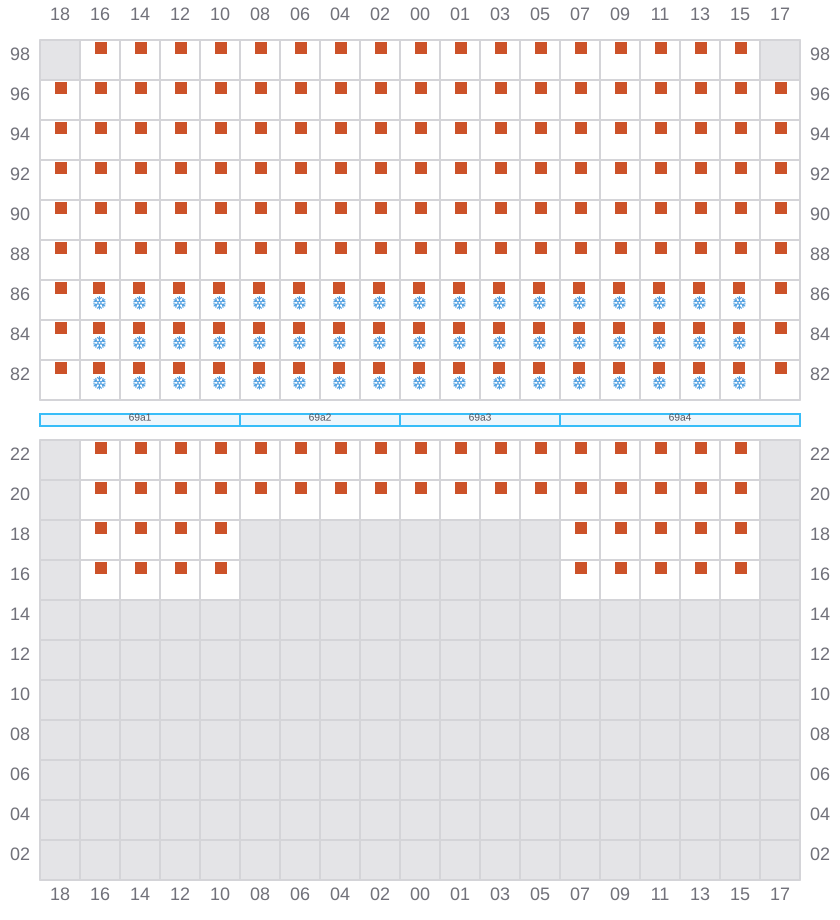

071
- ←
- → / ?

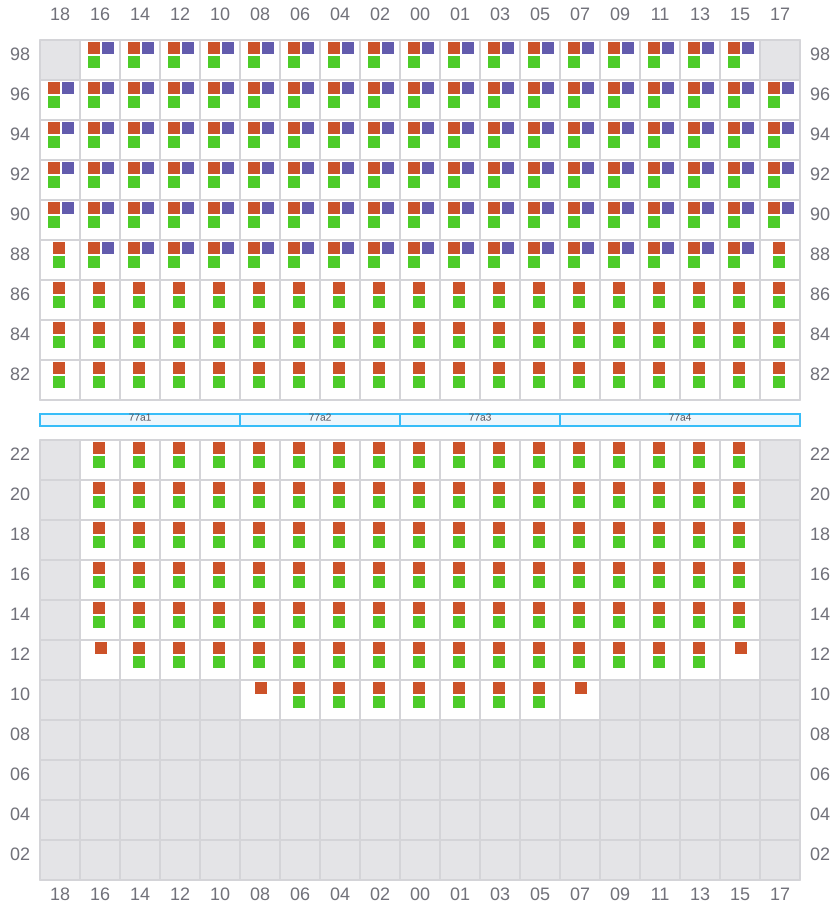

073 (074)
- →

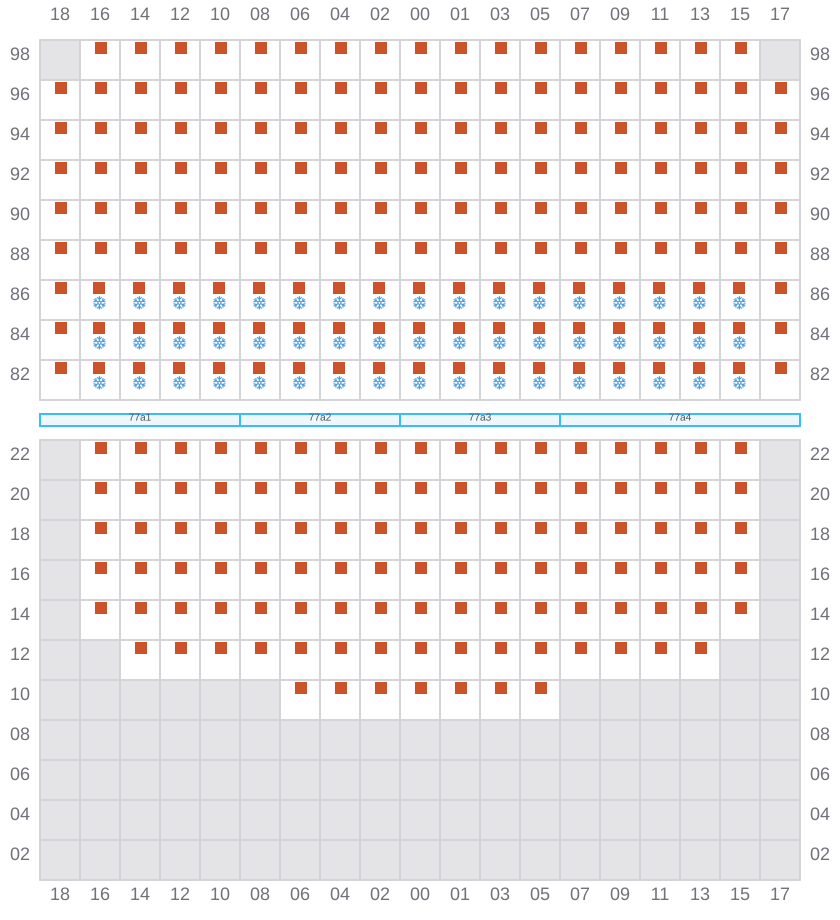

075
- ←
- → / ?
077 (078)
- →
079
- ←
- → / ?
081 (082)
- →
083
- ←
- → / ?
085 (086)
- → / ?
