EDITH MAERSK
9321548 | OXOR2 | 9321548 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:EDITH MAERSK
IMO Code:9321548
Call Sign:OXOR2
Line Operator:9321548
Class Name for Sister Ships:MAERSK E
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-

Size Summary

ISO Bays:089
Max ISO Row:22
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,788

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

Side View

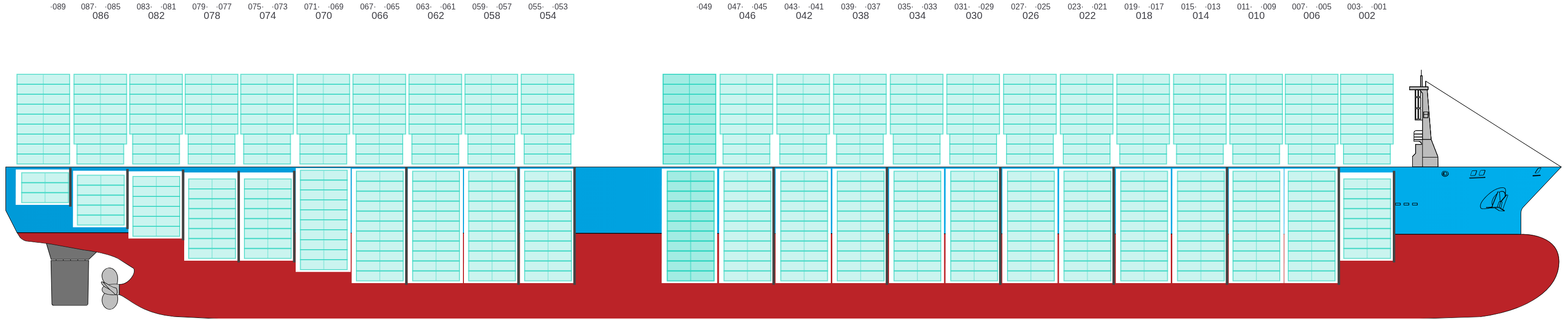

Side view of EDITH MAERSK

Hatch-Covers View

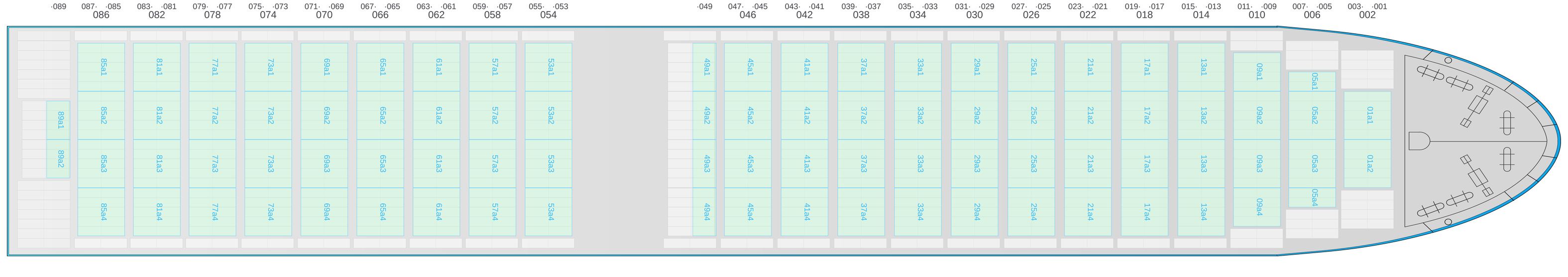

Deck view of EDITH MAERSK

ISO Bays

Legend
  • 20'
  • 40'
  • 45'
  • Reefer
  • Restricted slot

001 (002)

  • →

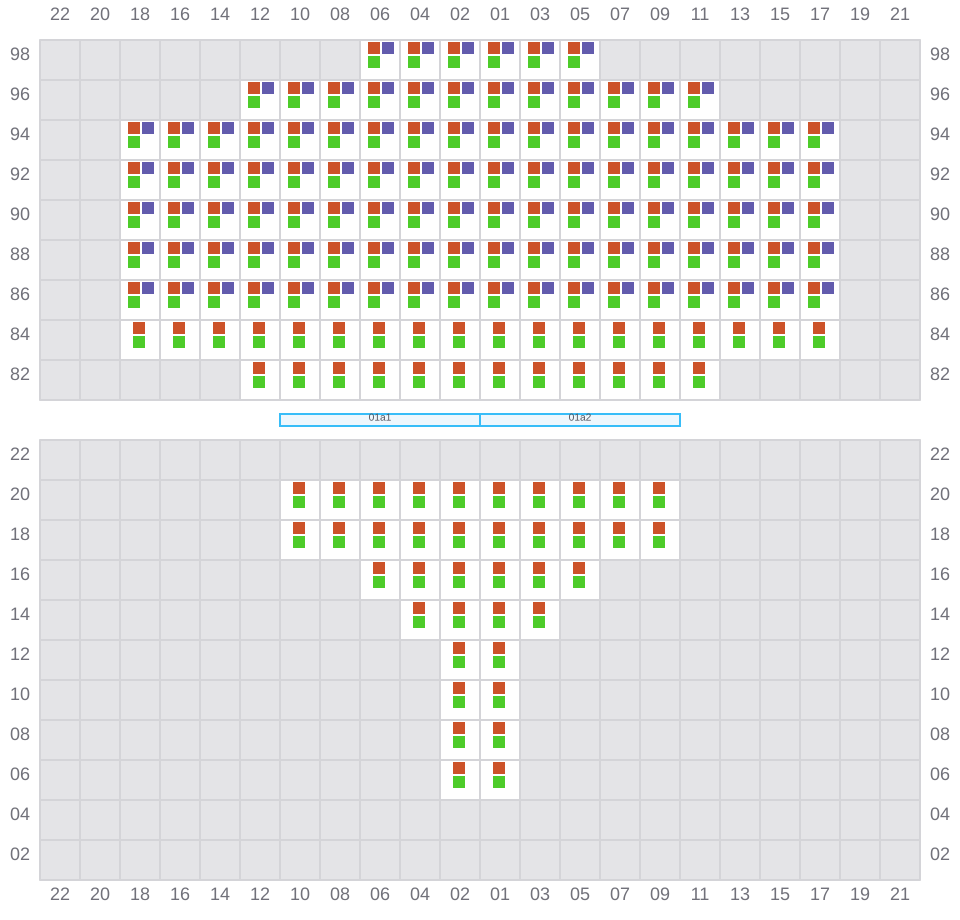

Bay 001 view and slots of EDITH MAERSK

003

  • ←

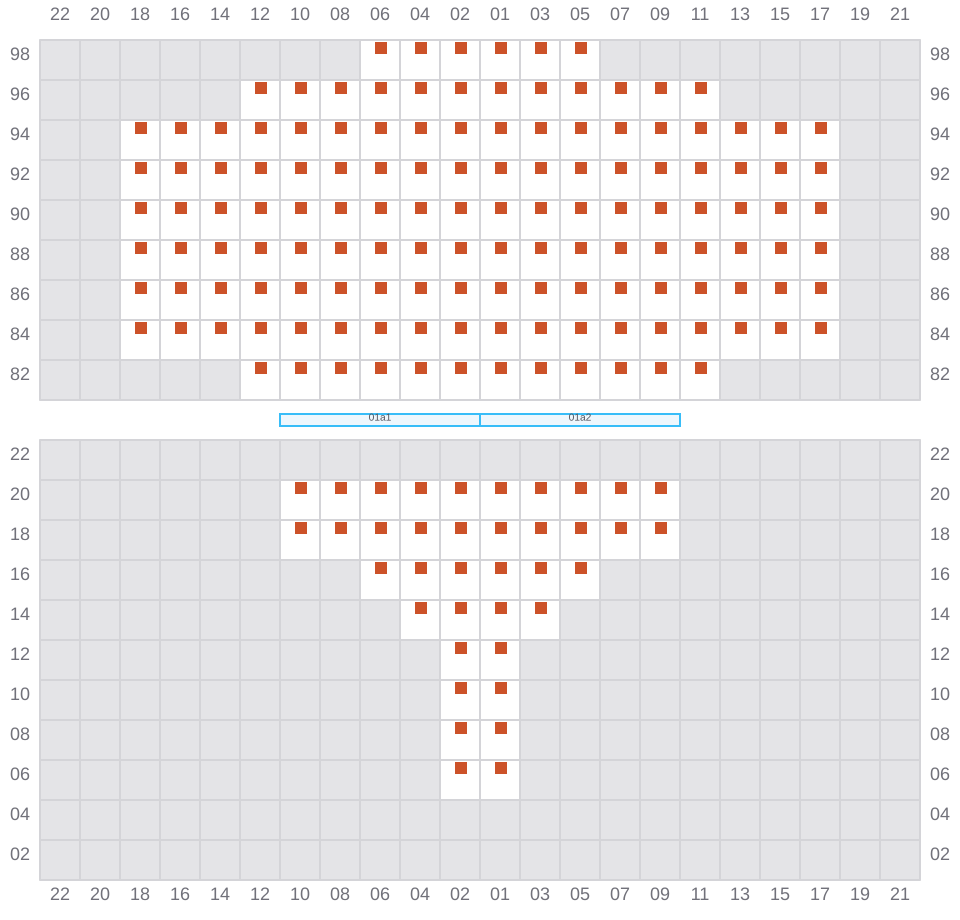

Bay 003 view and slots of EDITH MAERSK

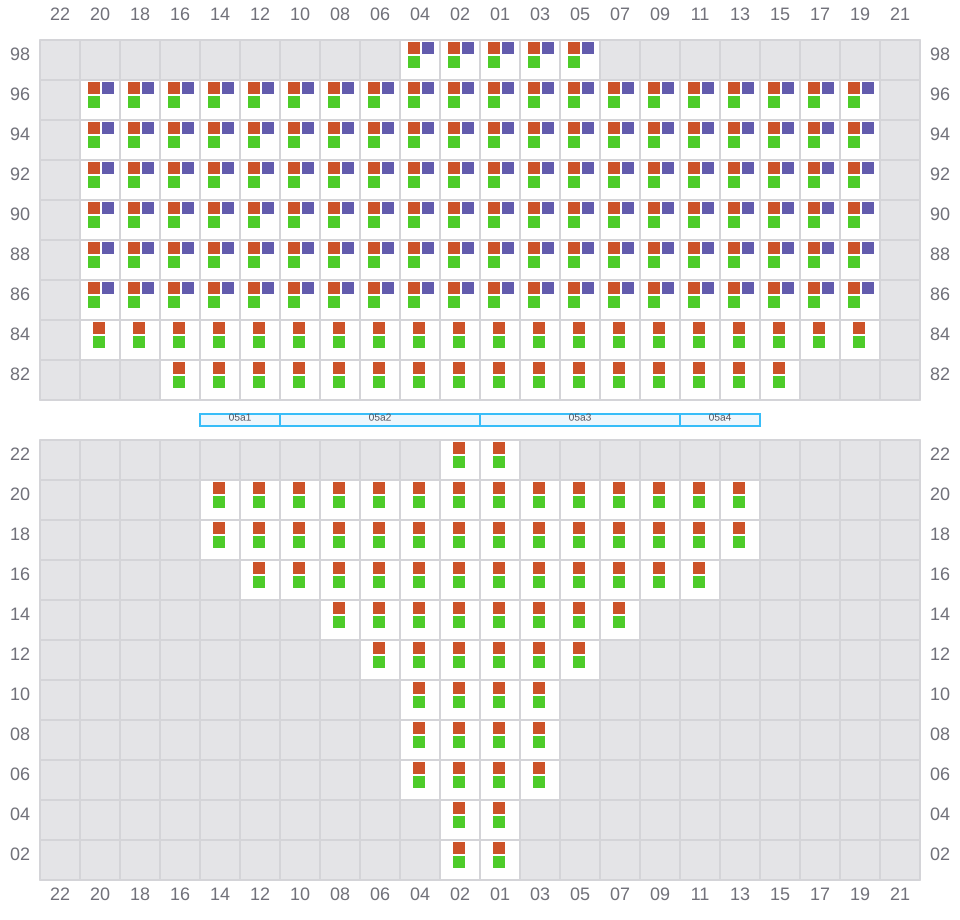

005 (006)

  • →
Bay 005 view and slots of EDITH MAERSK

007

  • ←

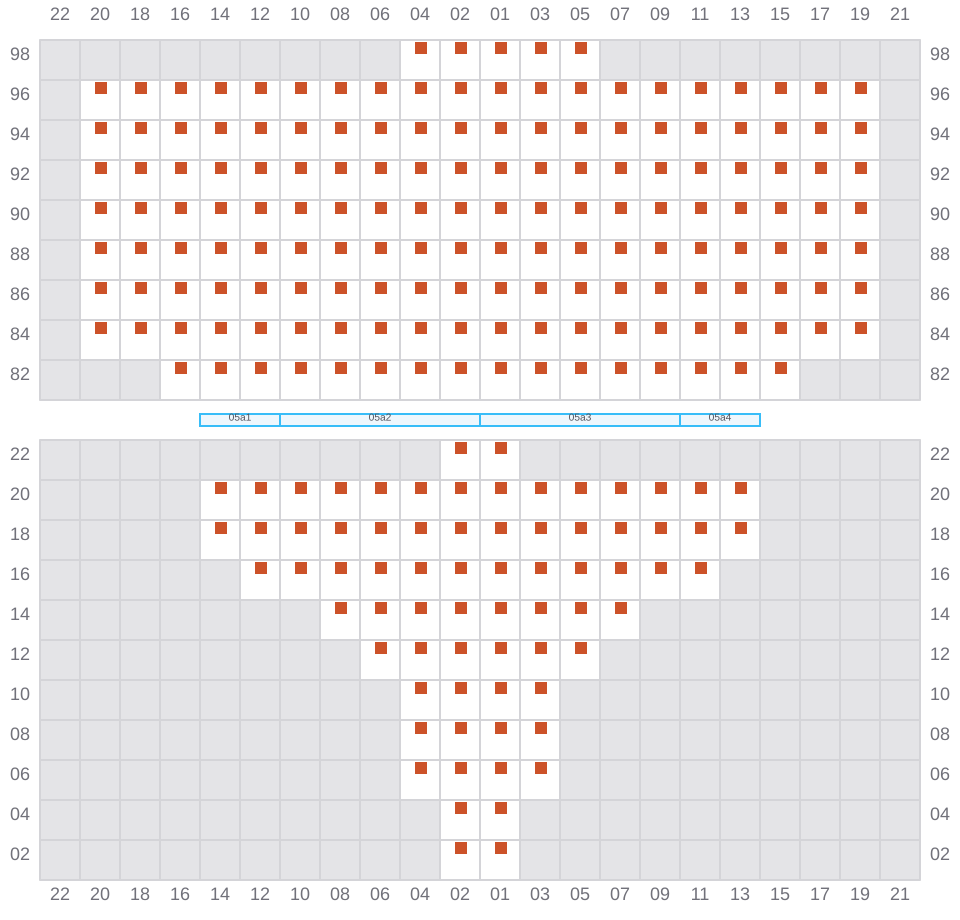

Bay 007 view and slots of EDITH MAERSK

009 (010)

  • →

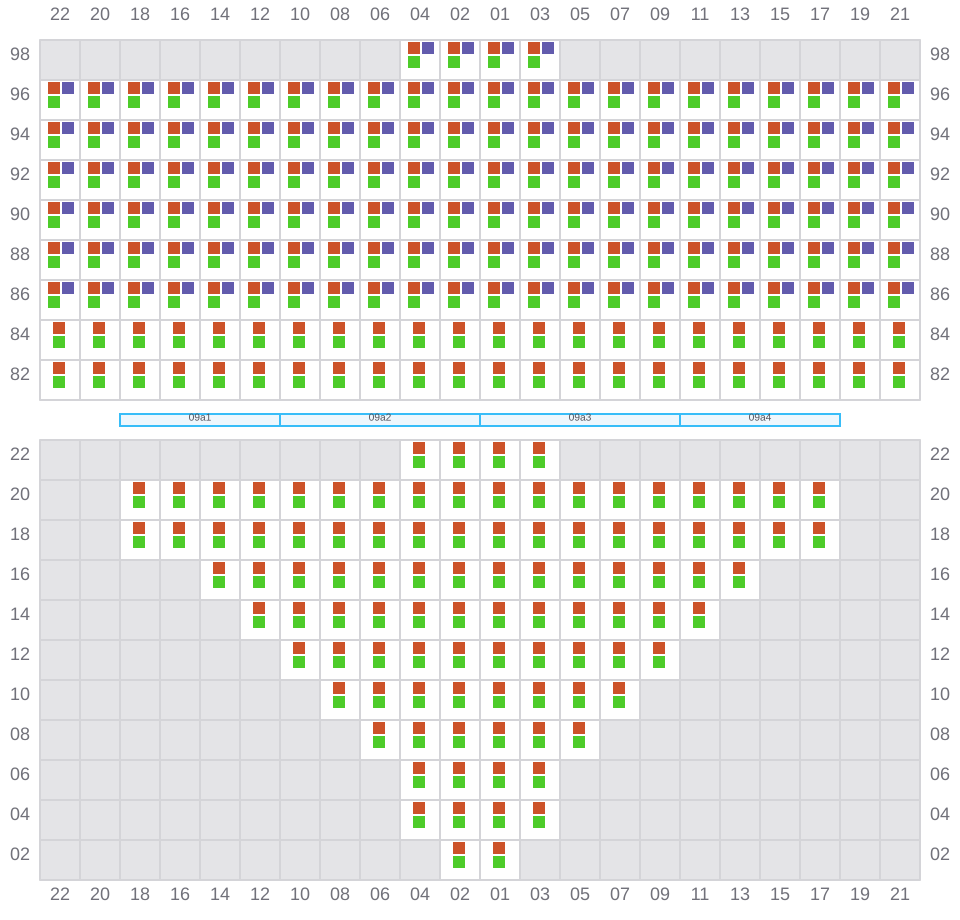

Bay 009 view and slots of EDITH MAERSK

011

  • ←

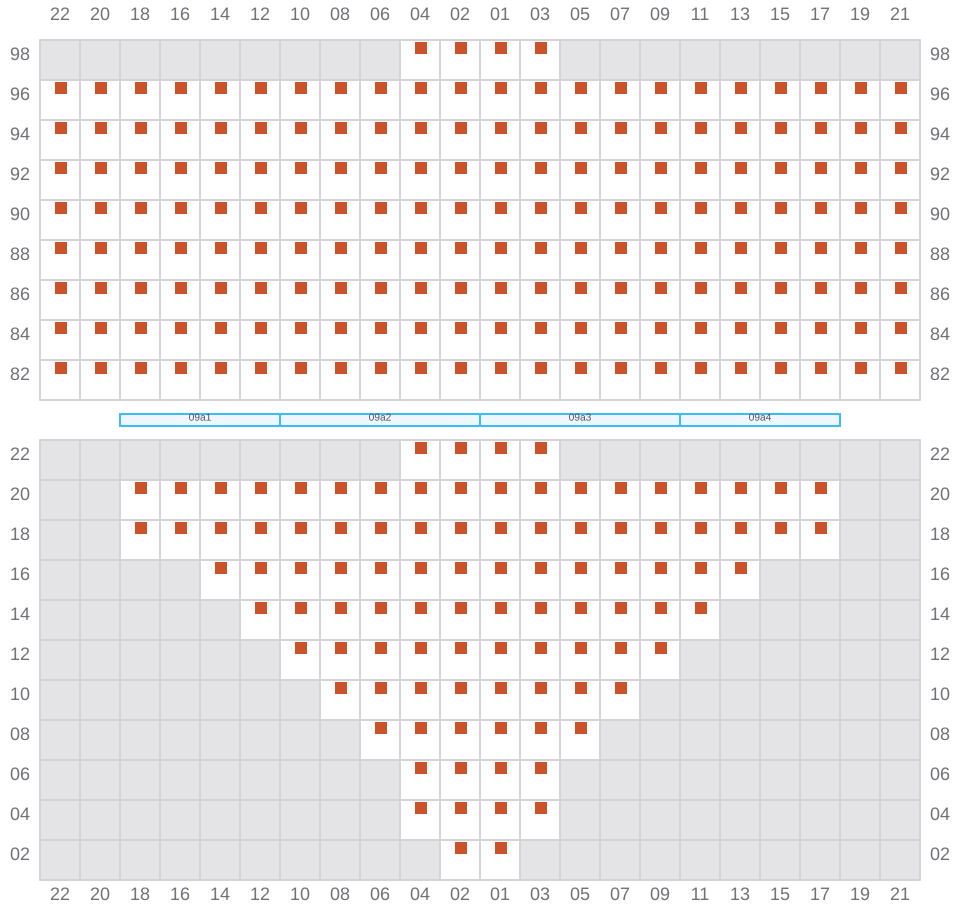

Bay 011 view and slots of EDITH MAERSK

013 (014)

  • →

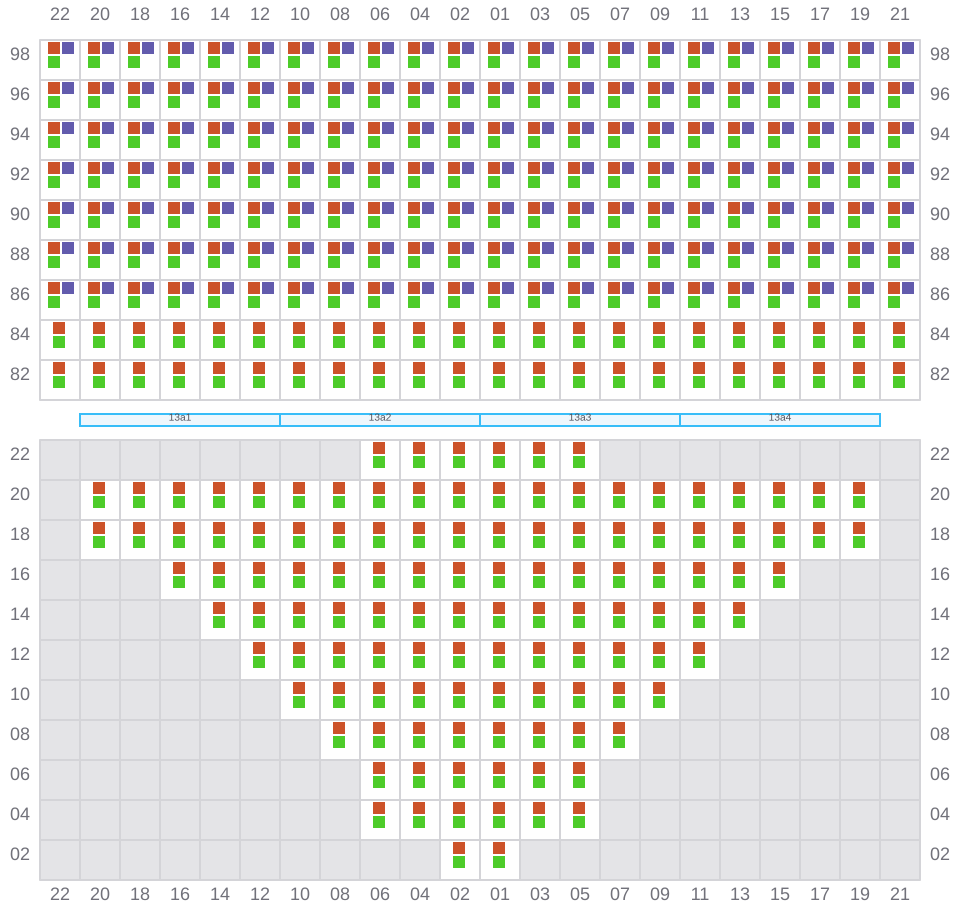

Bay 013 view and slots of EDITH MAERSK

015

  • ←

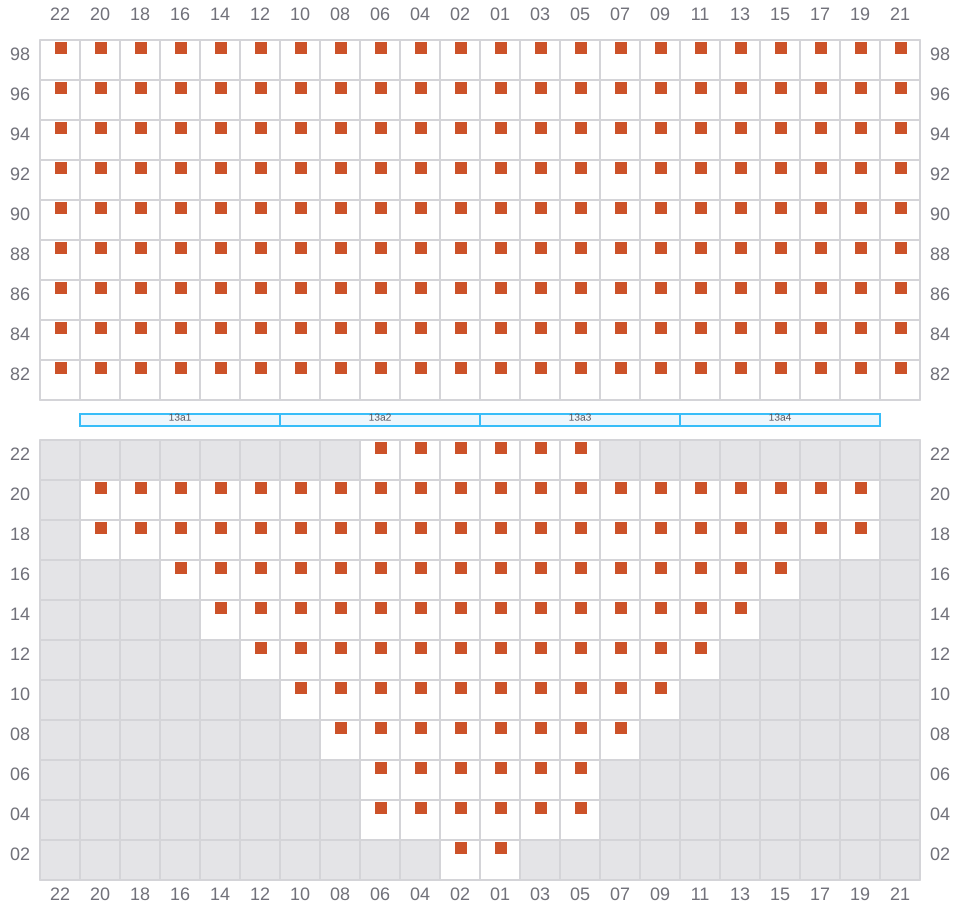

Bay 015 view and slots of EDITH MAERSK

017 (018)

  • →
  • ? / ←

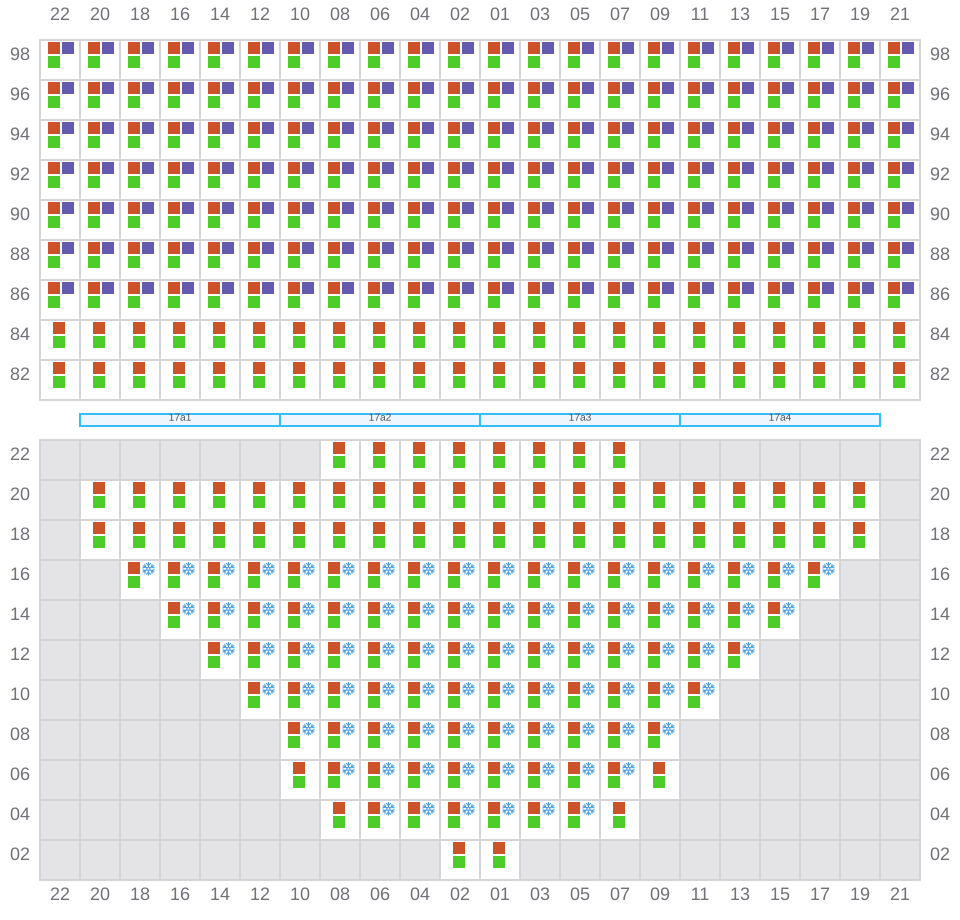

Bay 017 view and slots of EDITH MAERSK

019

  • ←
  • → / ?

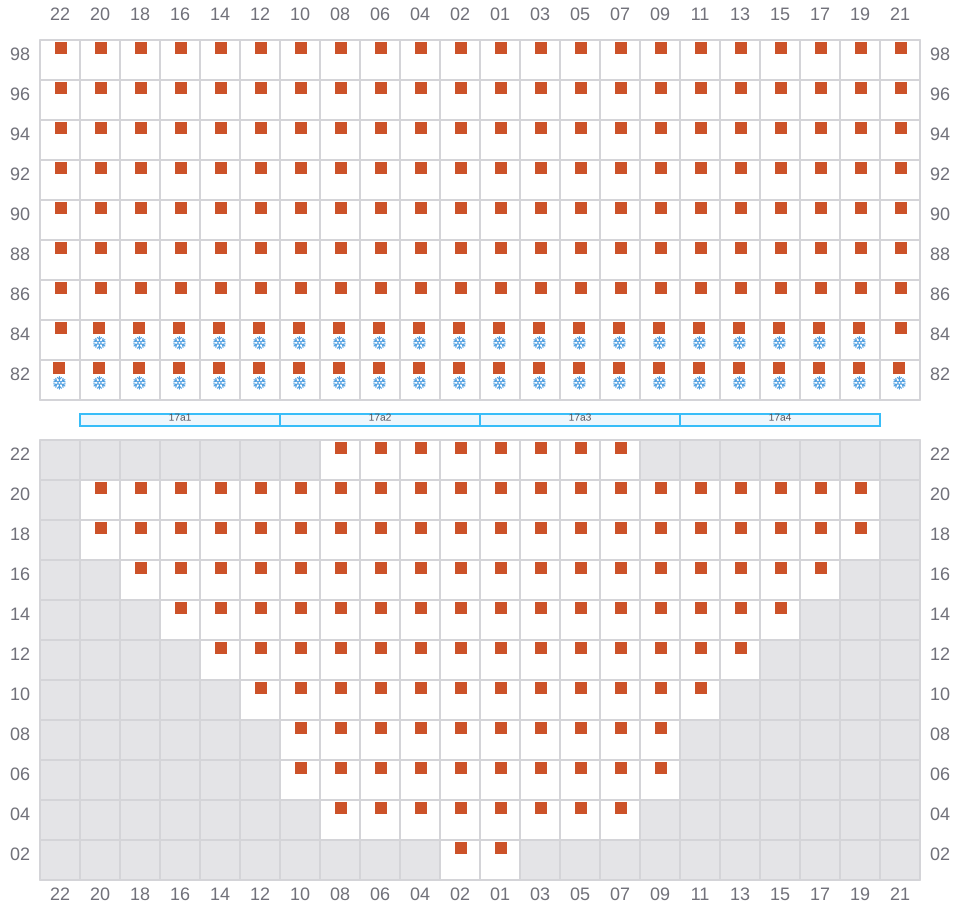

Bay 019 view and slots of EDITH MAERSK

021 (022)

  • →

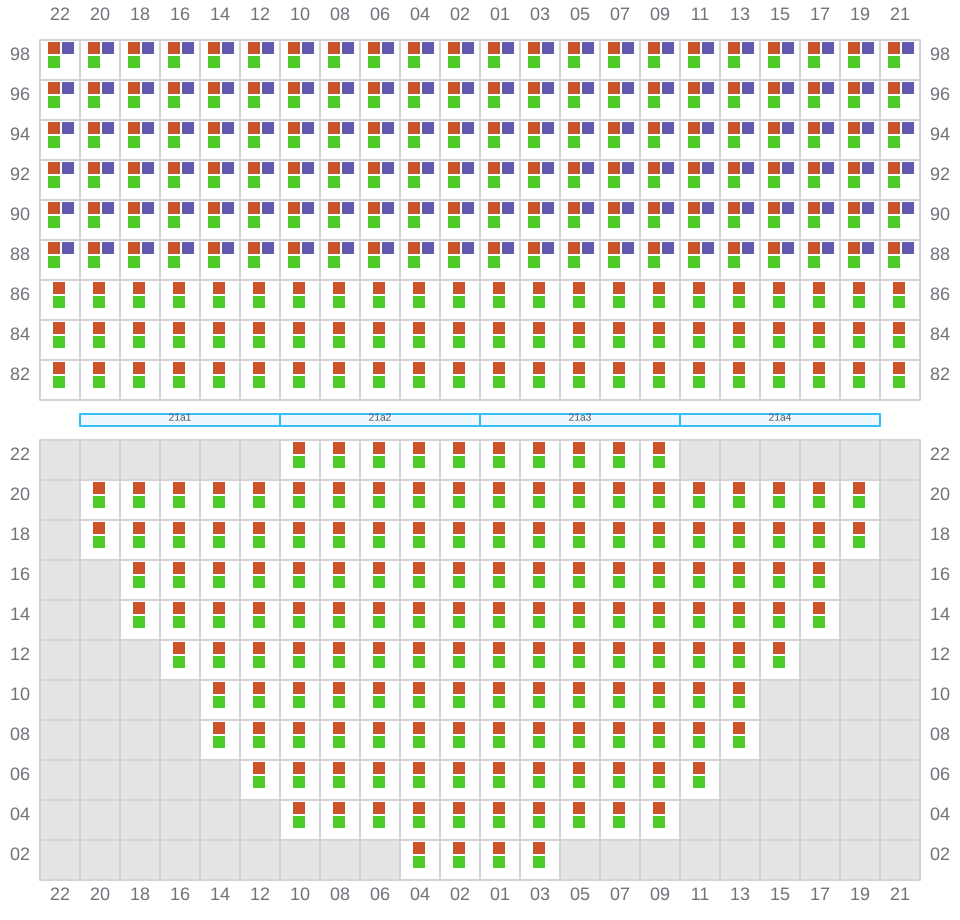

Bay 021 view and slots of EDITH MAERSK

023

  • ←

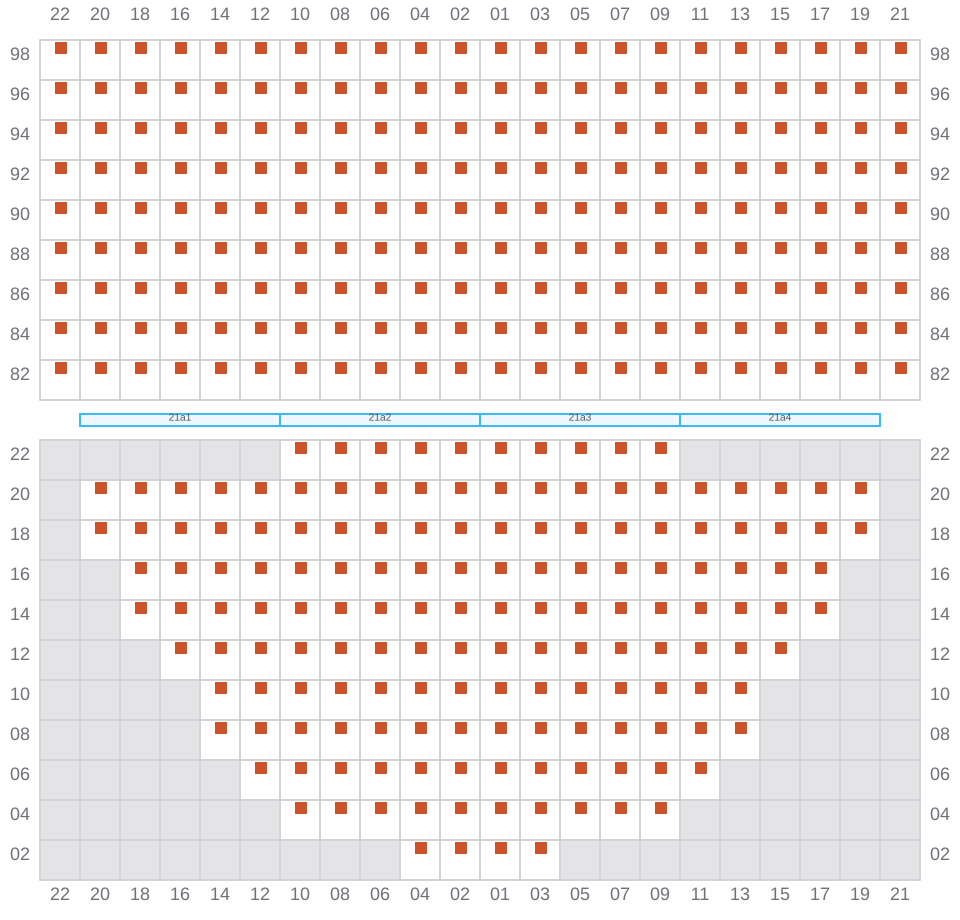

Bay 023 view and slots of EDITH MAERSK

025 (026)

  • →
  • ? / ←

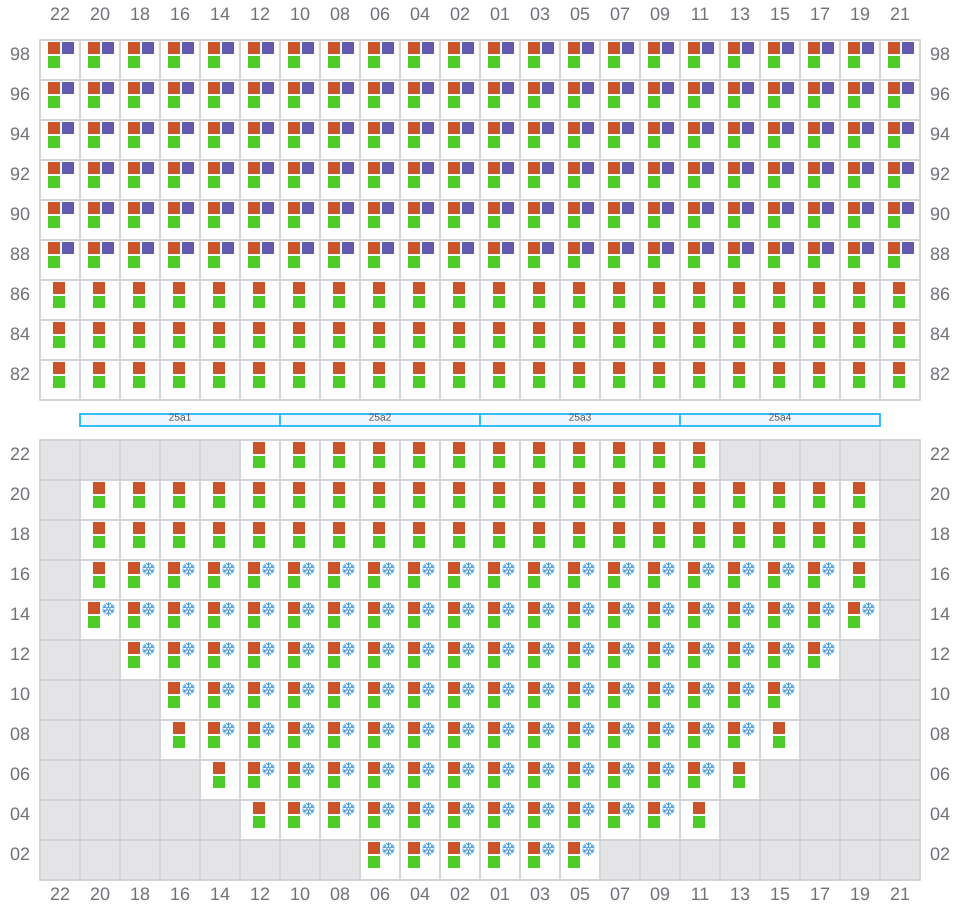

Bay 025 view and slots of EDITH MAERSK

027

  • ←
  • → / ?

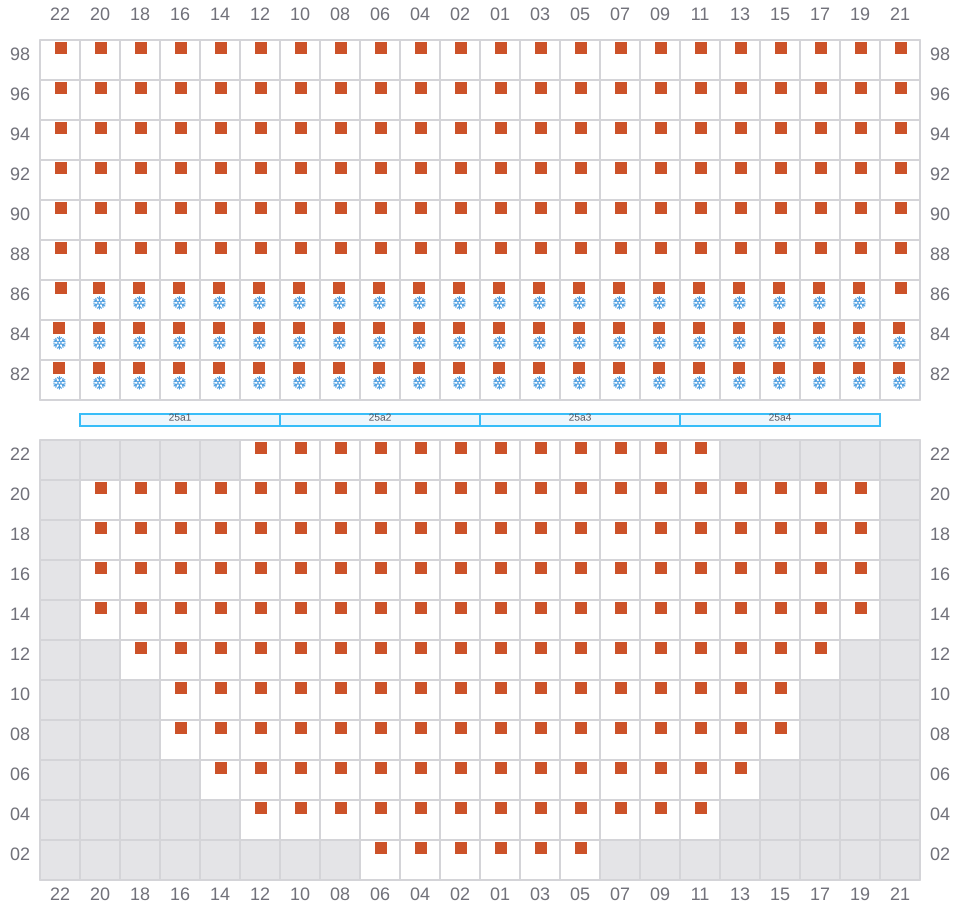

Bay 027 view and slots of EDITH MAERSK

029 (030)

  • →

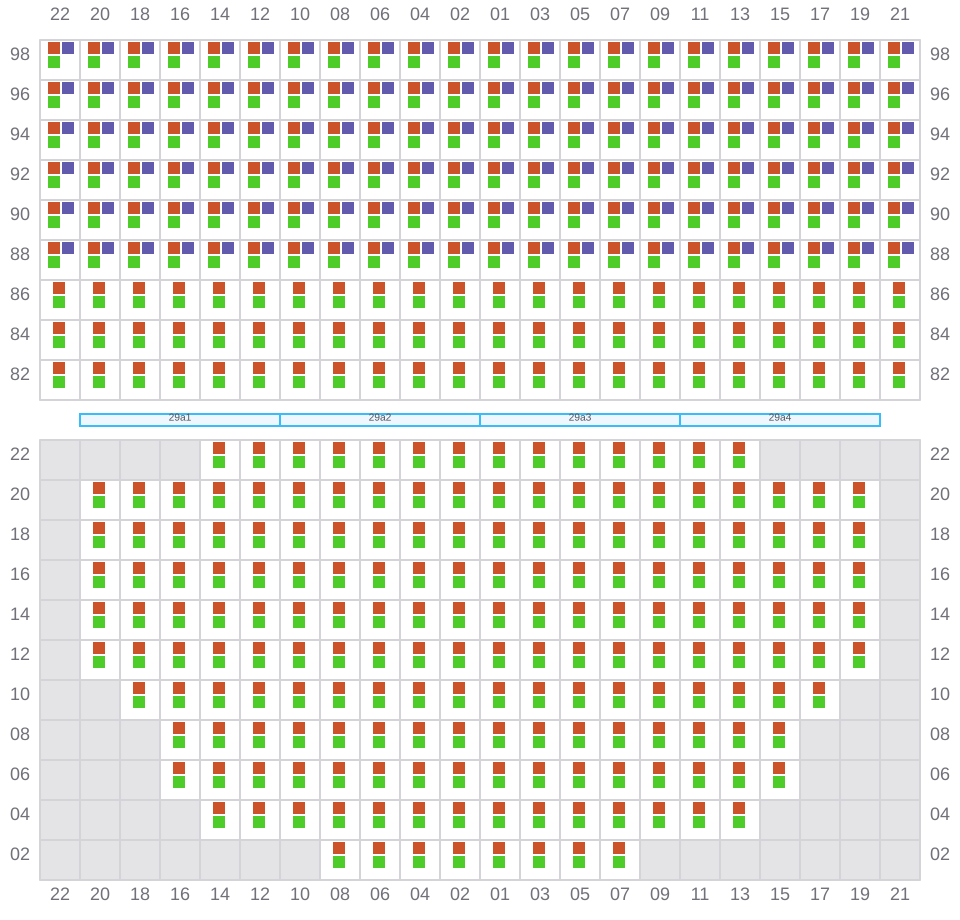

Bay 029 view and slots of EDITH MAERSK

031

  • ←
  • → / ?

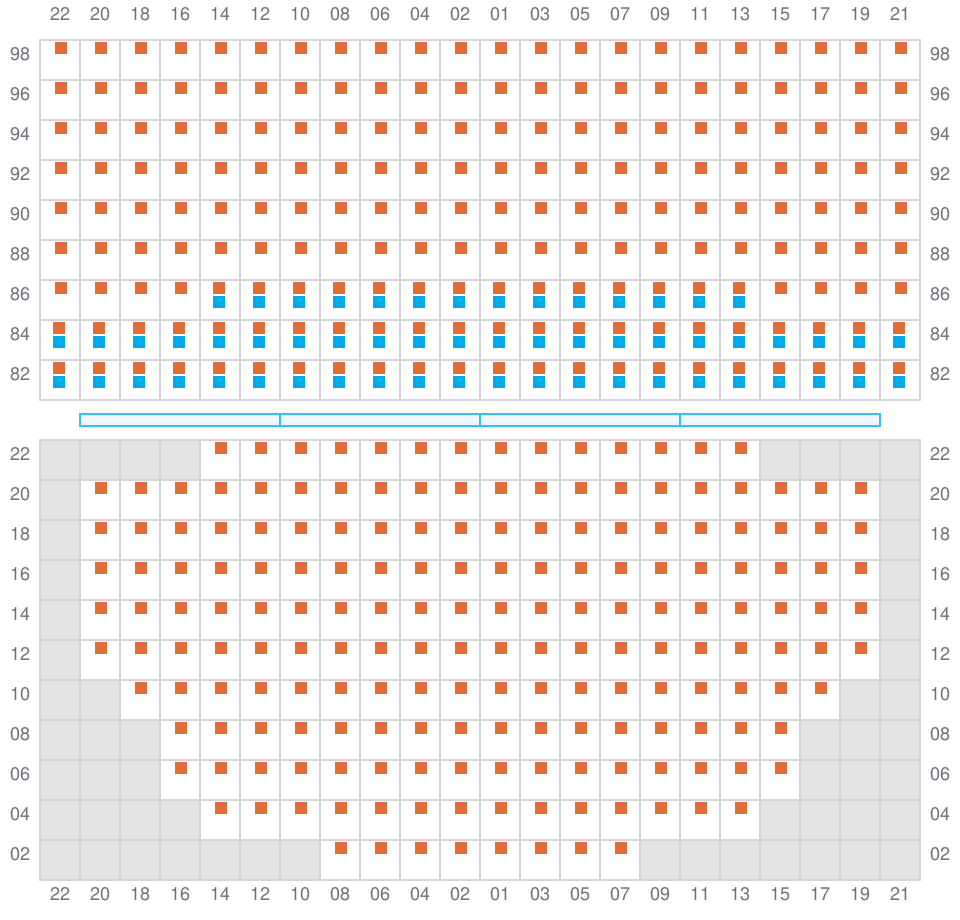

Bay 031 view and slots of EDITH MAERSK

033 (034)

  • →
  • ? / ←

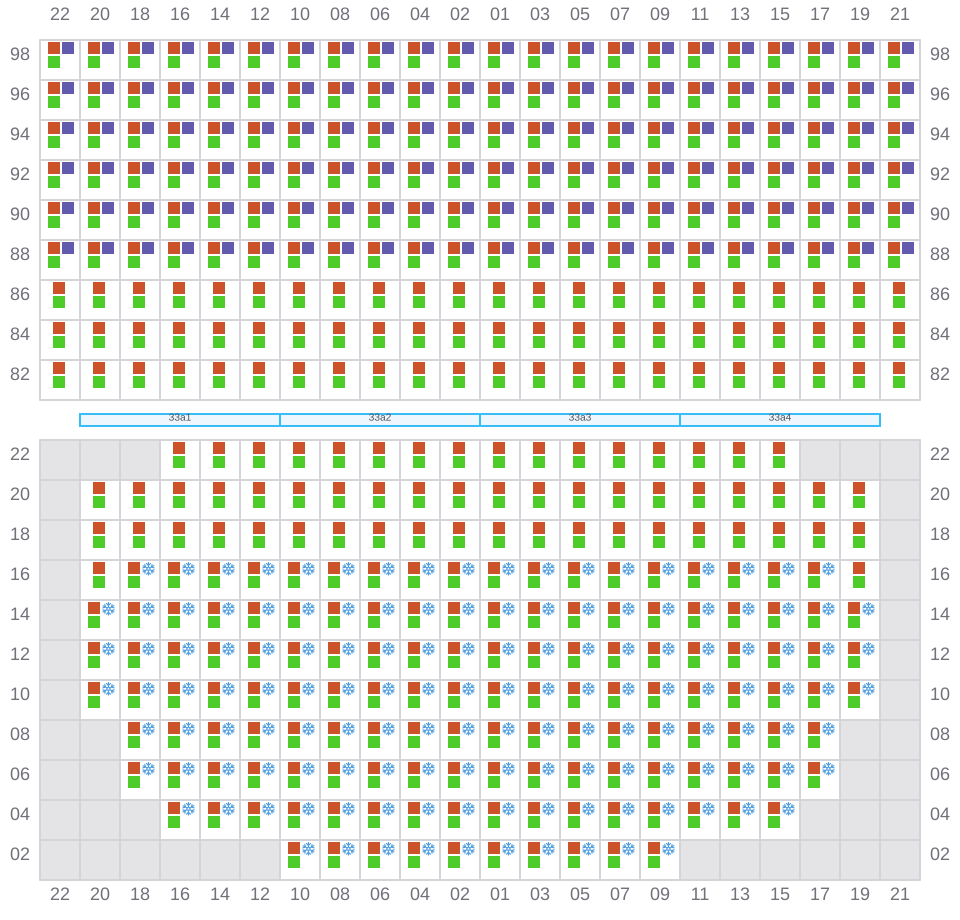

Bay 033 view and slots of EDITH MAERSK

035

  • ←
  • → / ?

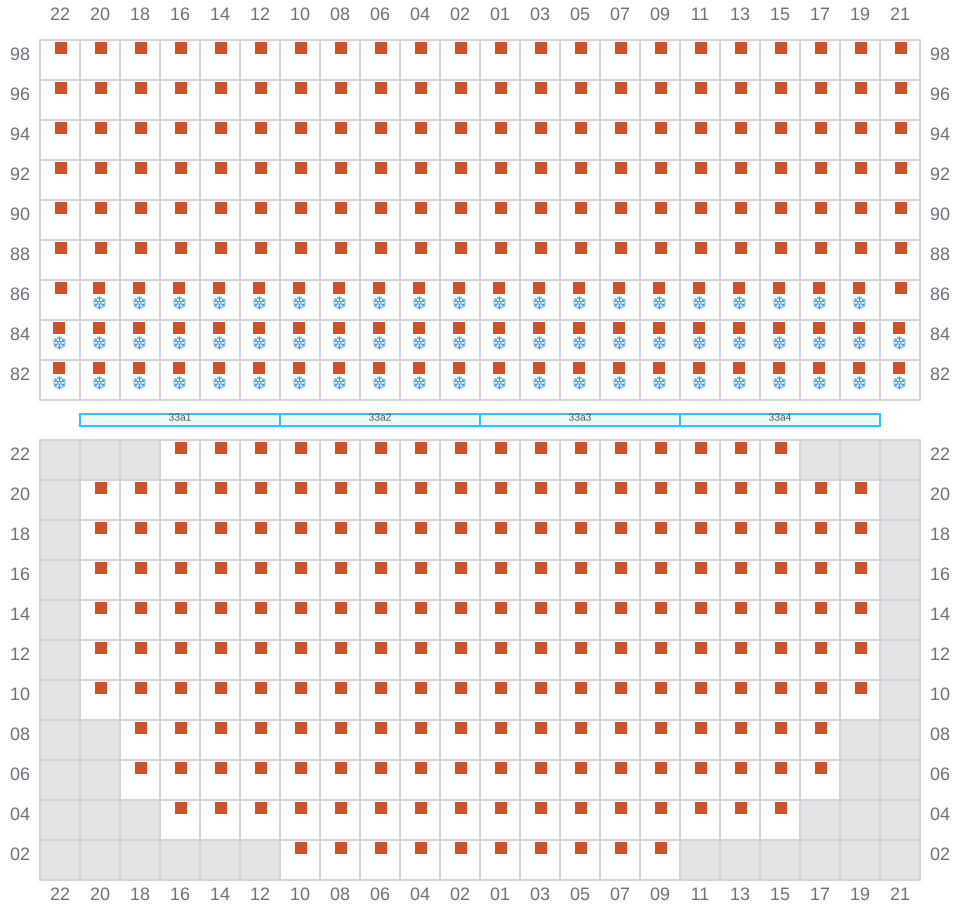

Bay 035 view and slots of EDITH MAERSK

037 (038)

  • →

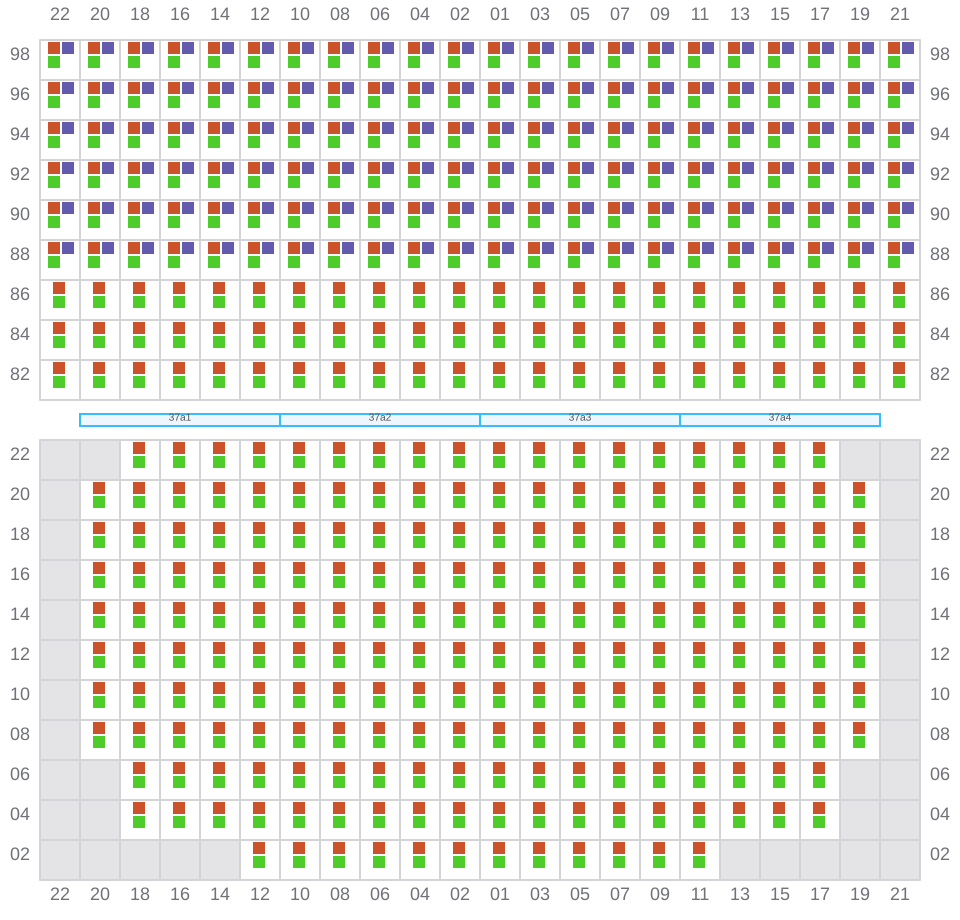

Bay 037 view and slots of EDITH MAERSK

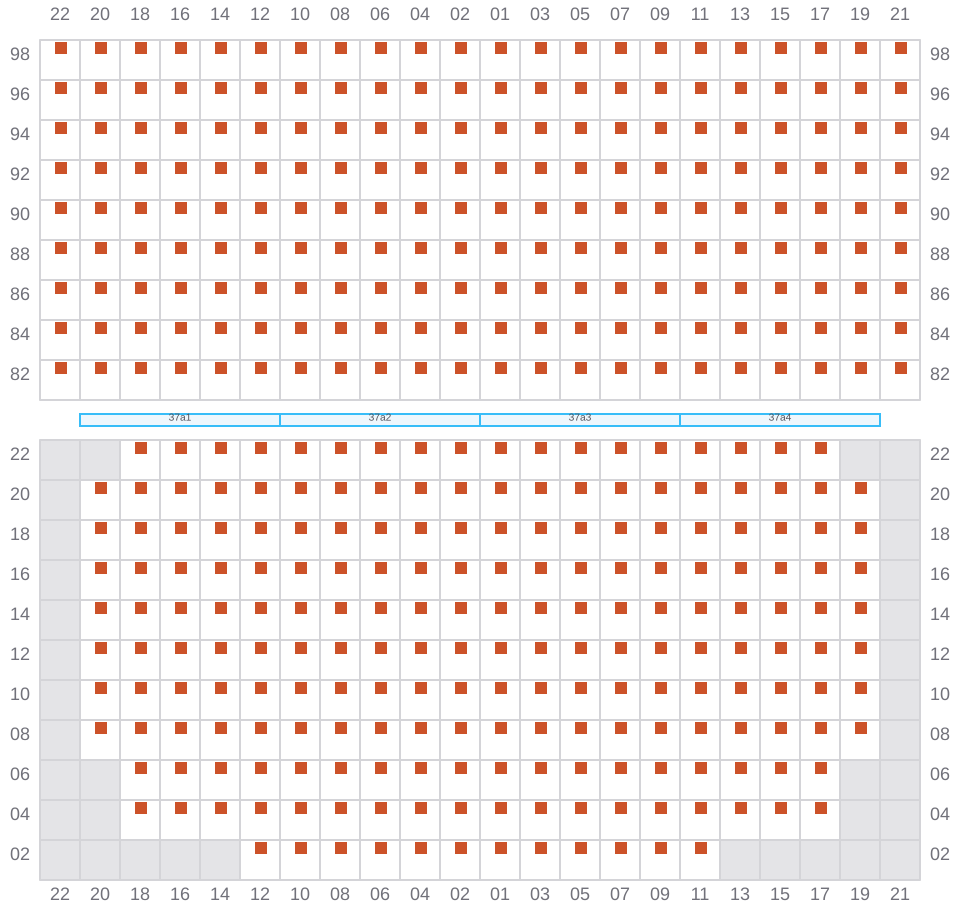

039

  • ←
Bay 039 view and slots of EDITH MAERSK

041 (042)

  • →

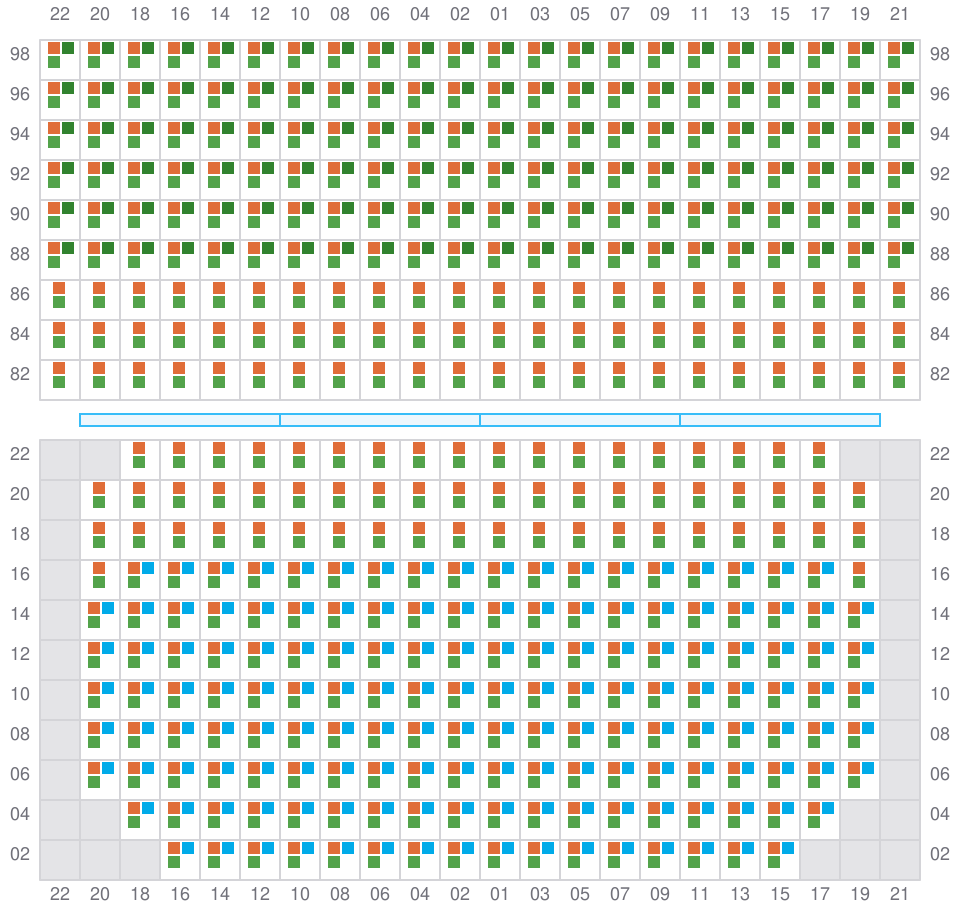

Bay 041 view and slots of EDITH MAERSK

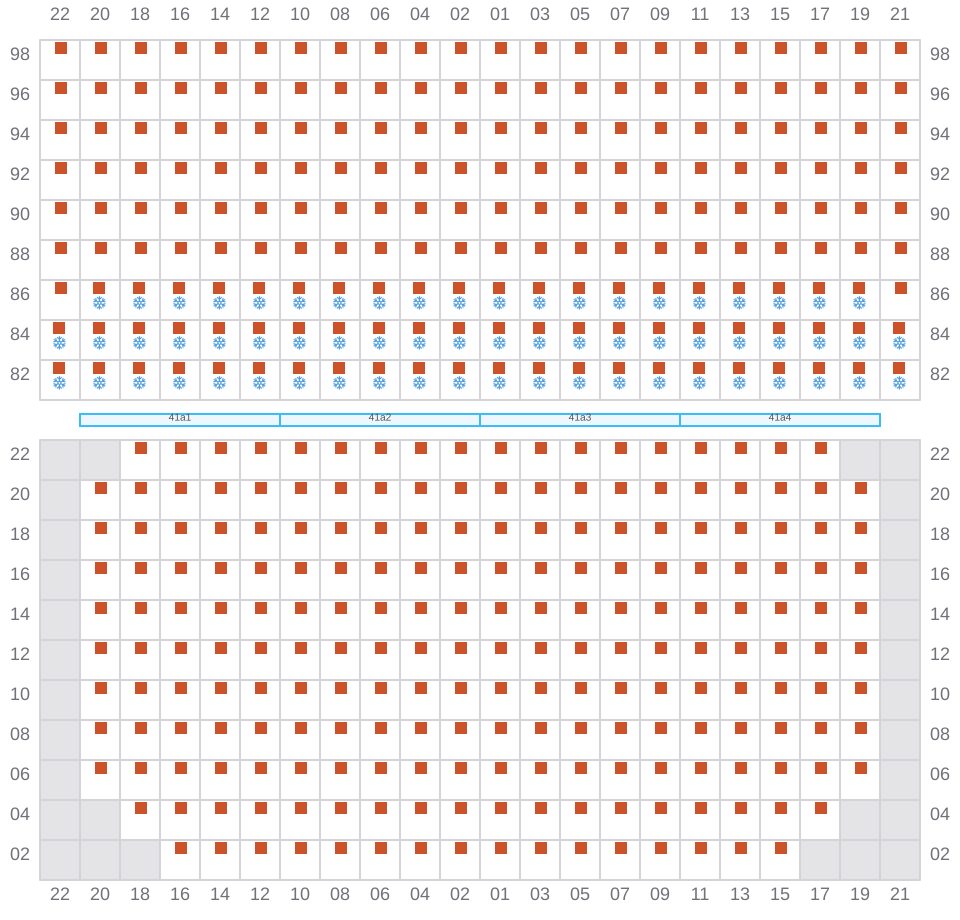

043

  • ←
  • → / ?
Bay 043 view and slots of EDITH MAERSK

045 (046)

  • →

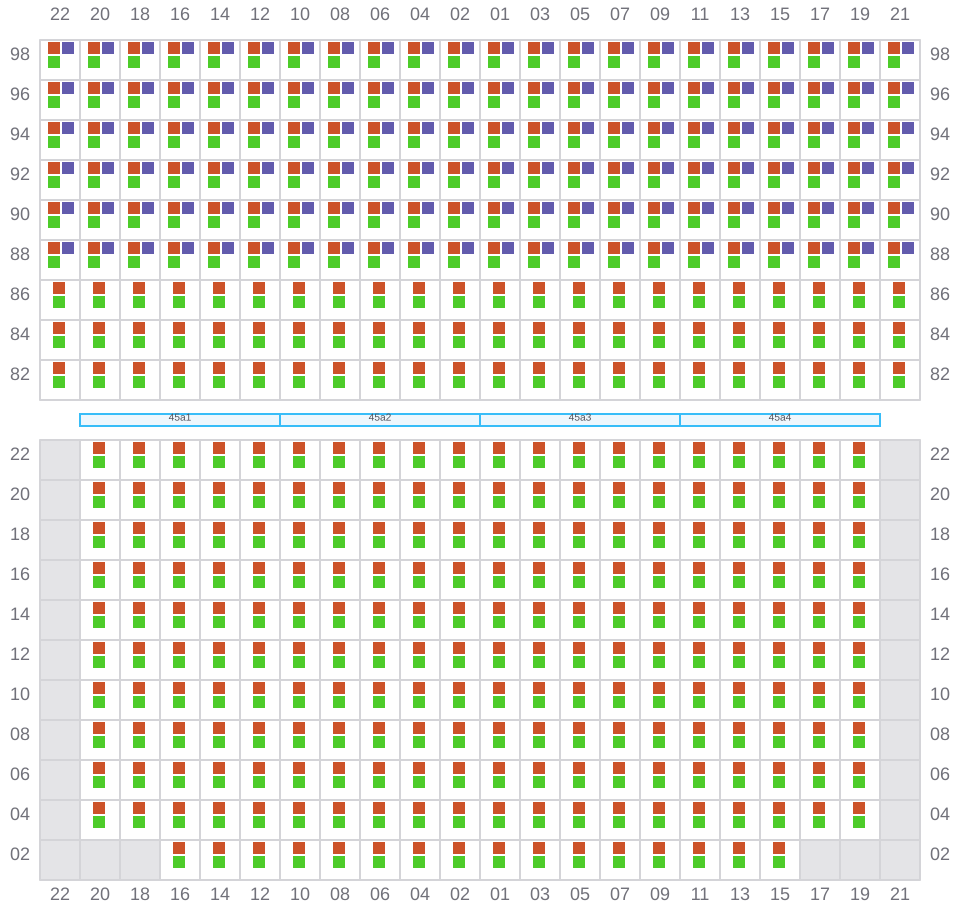

Bay 045 view and slots of EDITH MAERSK

047

  • ←
  • → / ?

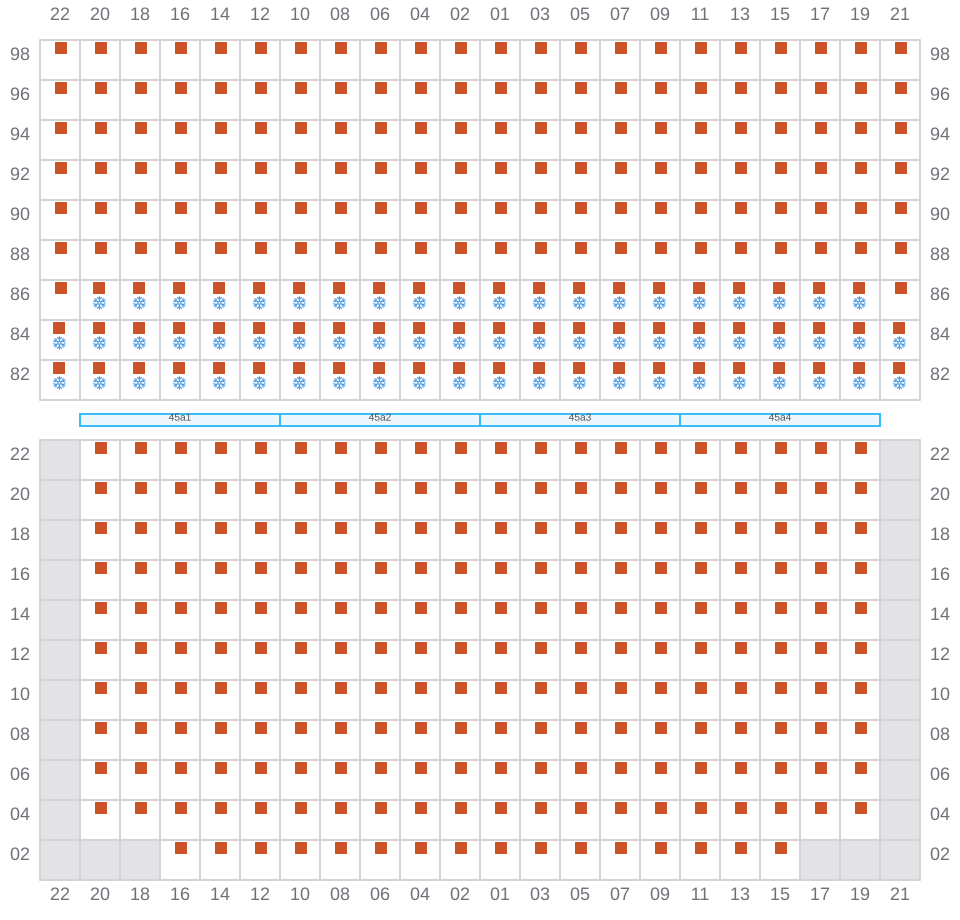

Bay 047 view and slots of EDITH MAERSK

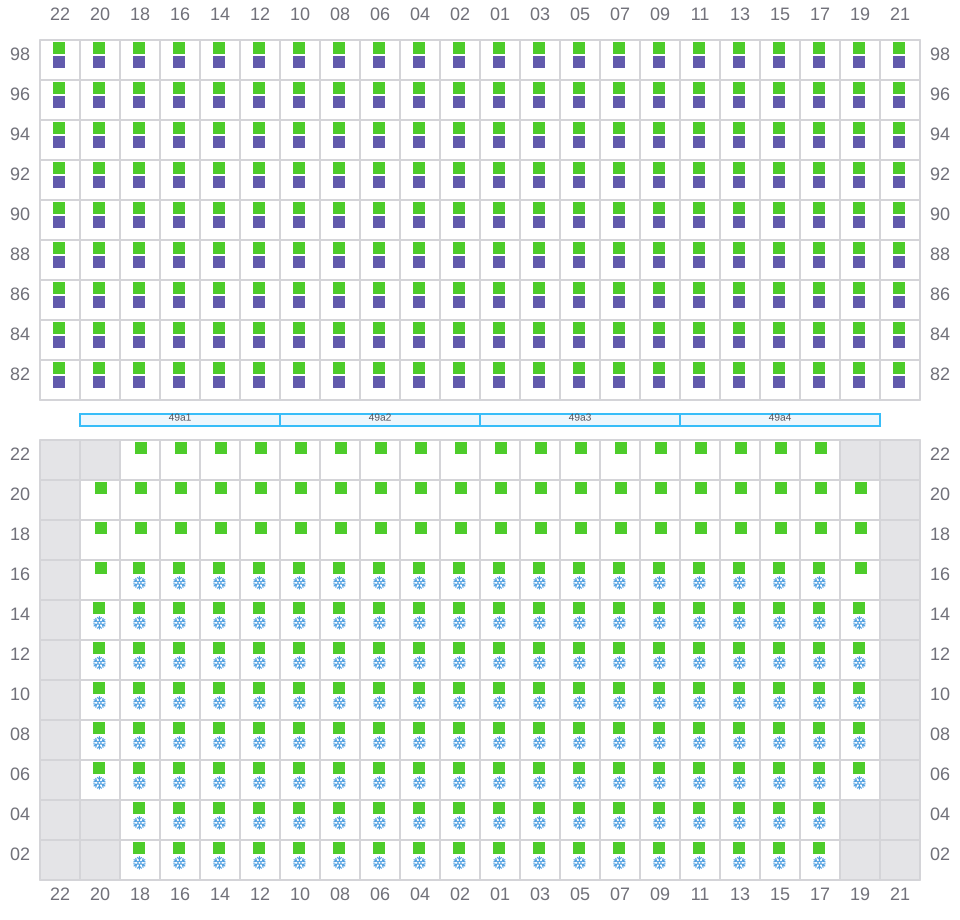

049 (050)

  • →
  • ? / ←
Bay 049 view and slots of EDITH MAERSK

051

Bay 051 view and slots of EDITH MAERSK

053 (054)

  • →

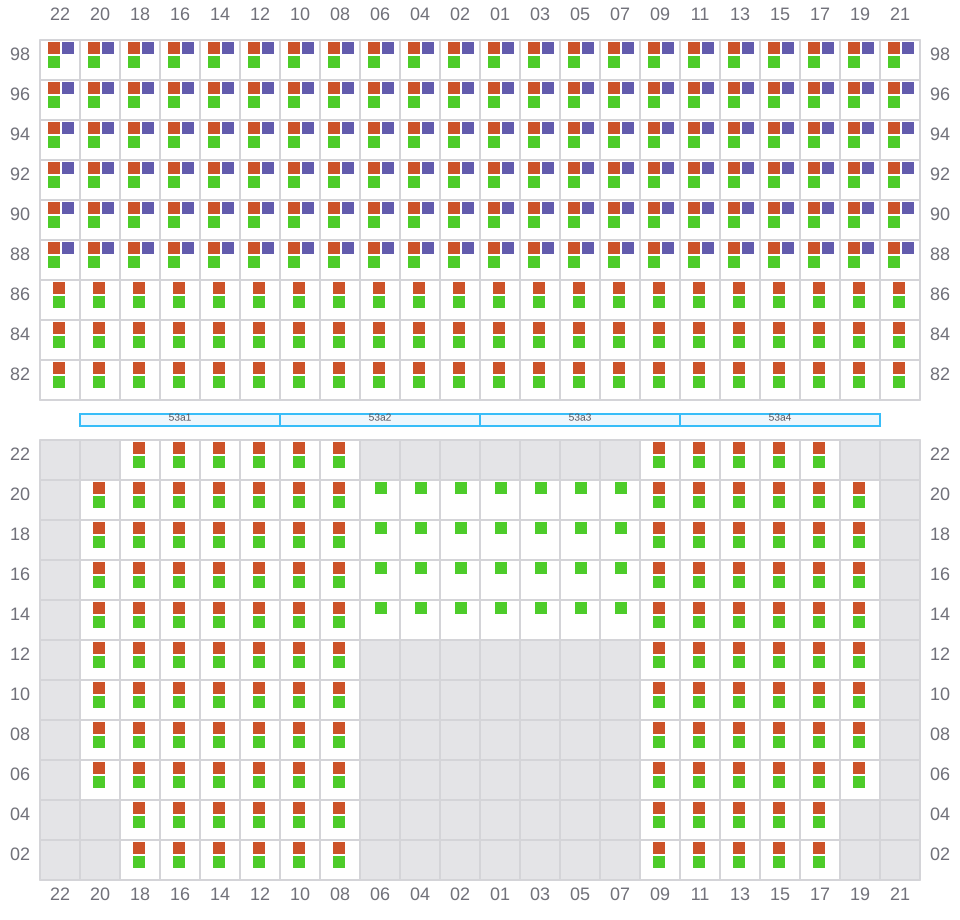

Bay 053 view and slots of EDITH MAERSK

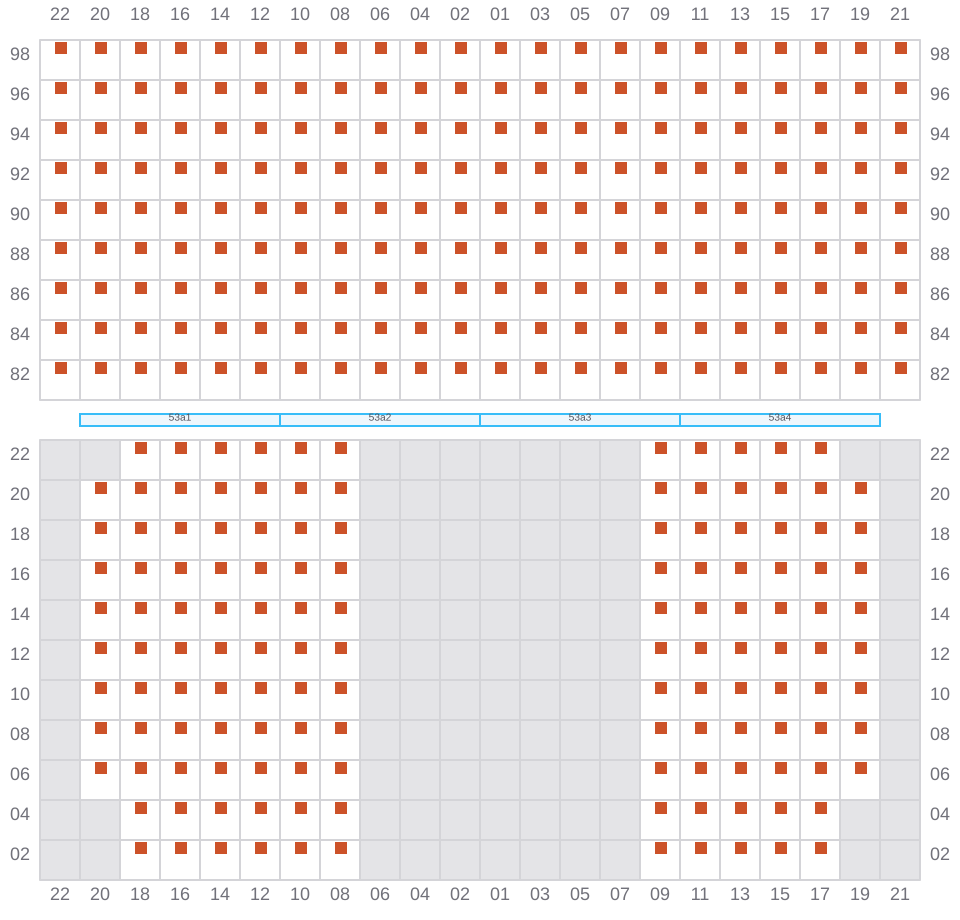

055

  • ←
Bay 055 view and slots of EDITH MAERSK

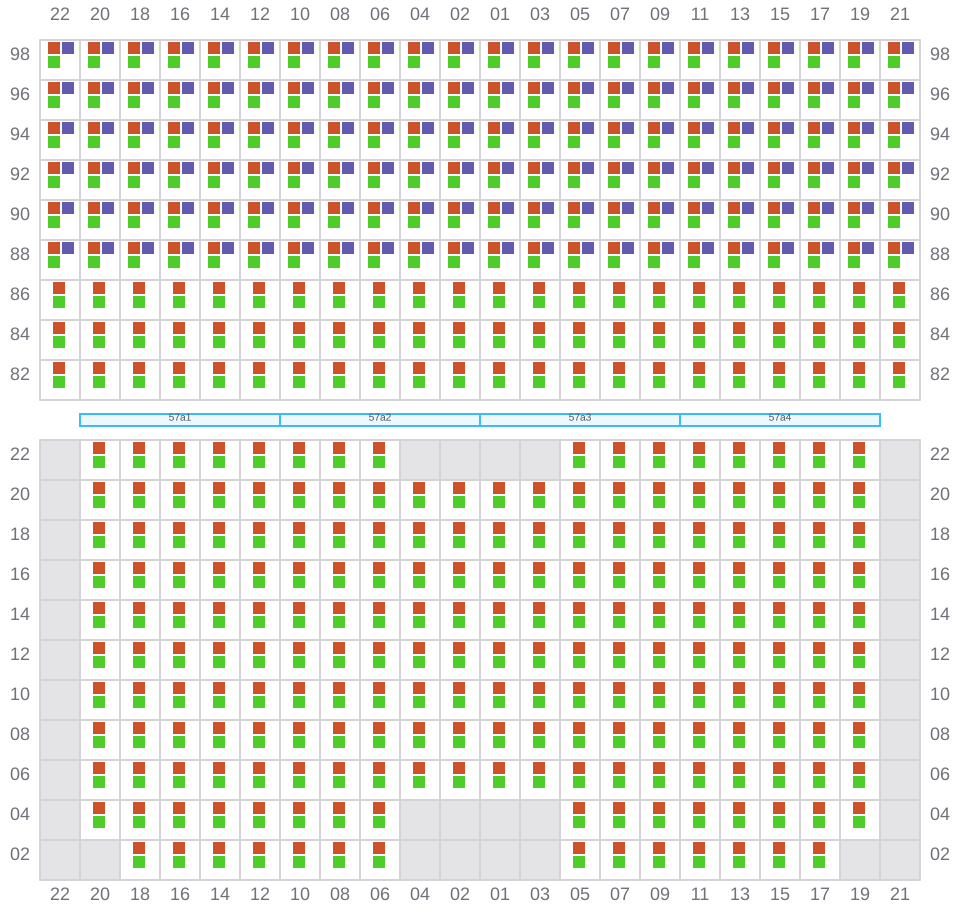

057 (058)

  • →
Bay 057 view and slots of EDITH MAERSK

059

  • ←

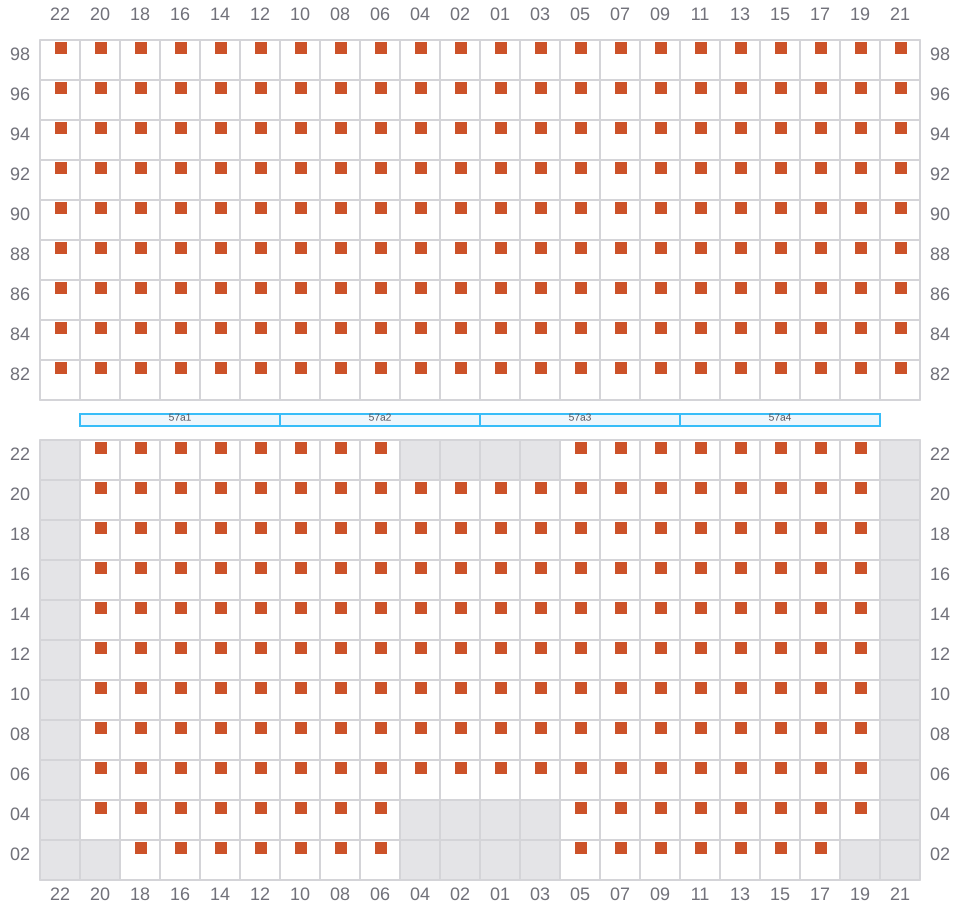

Bay 059 view and slots of EDITH MAERSK

061 (062)

  • →

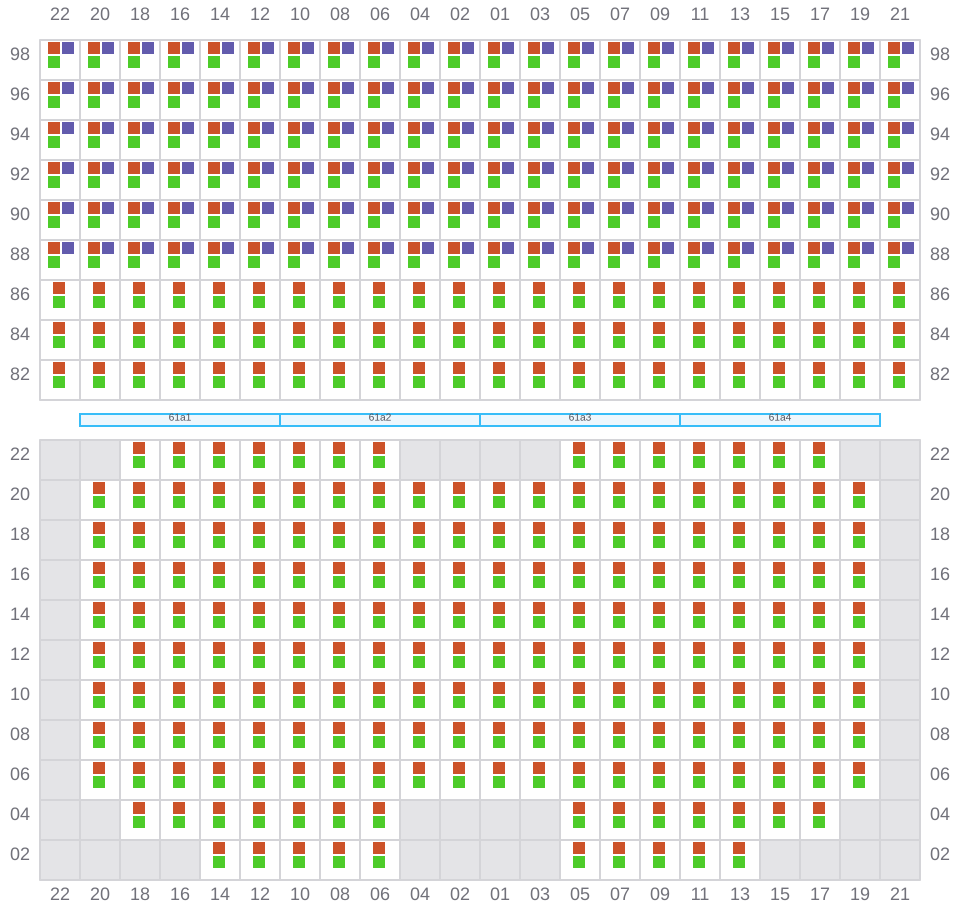

Bay 061 view and slots of EDITH MAERSK

063

  • ←

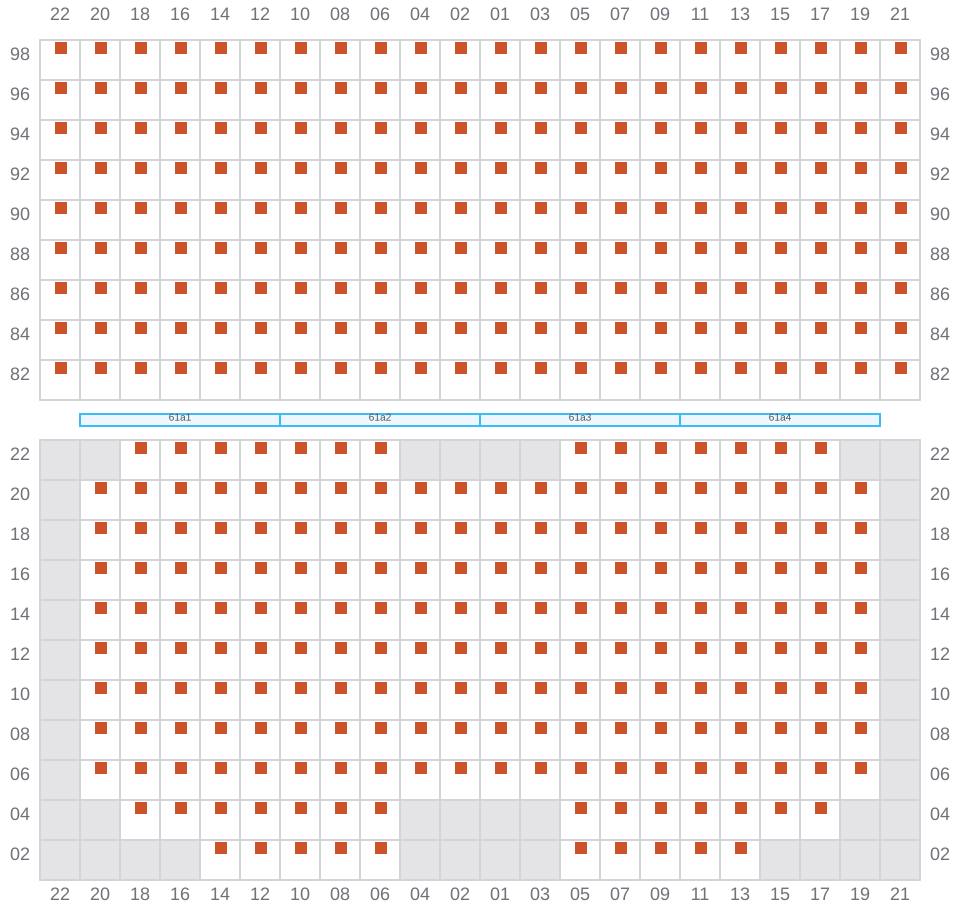

Bay 063 view and slots of EDITH MAERSK

065 (066)

  • →

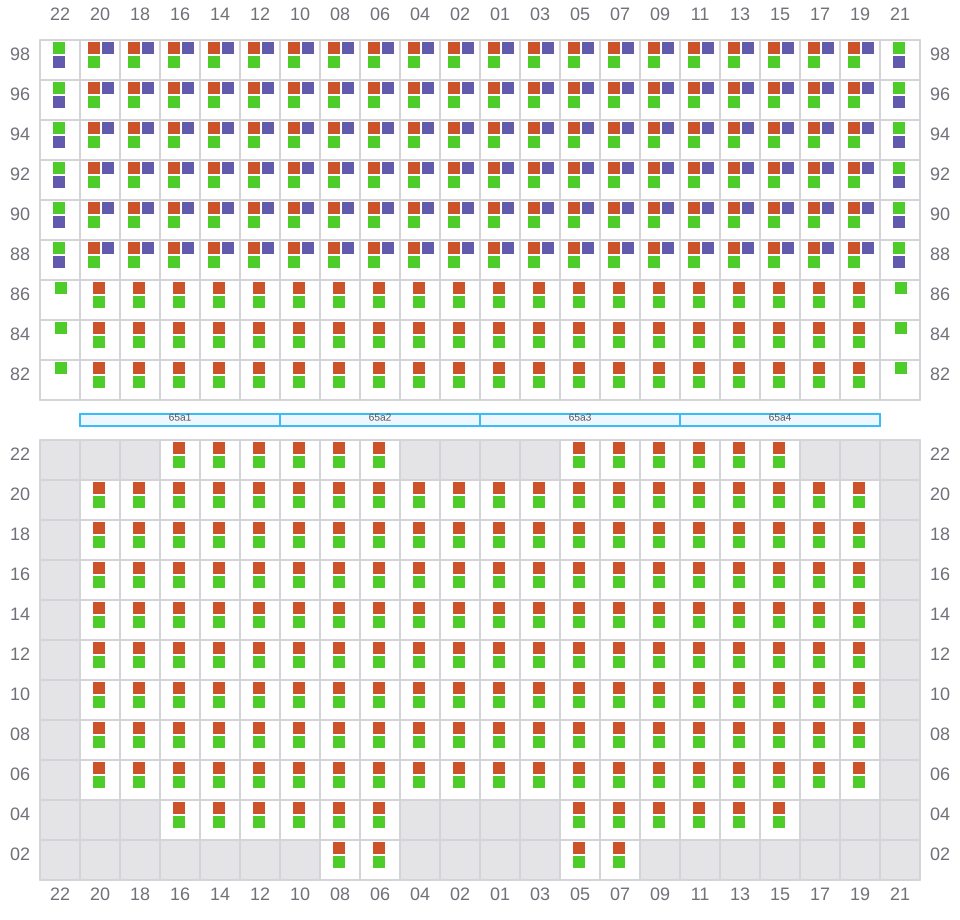

Bay 065 view and slots of EDITH MAERSK

067

  • ←

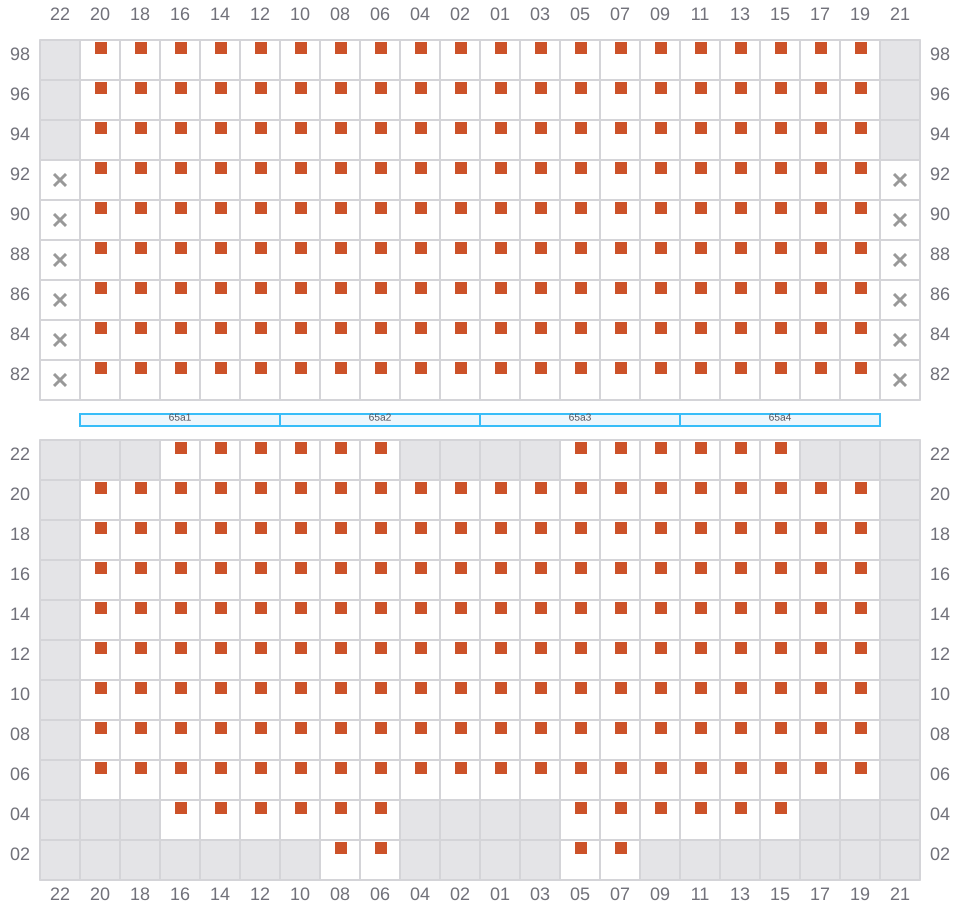

Bay 067 view and slots of EDITH MAERSK

069 (070)

  • →

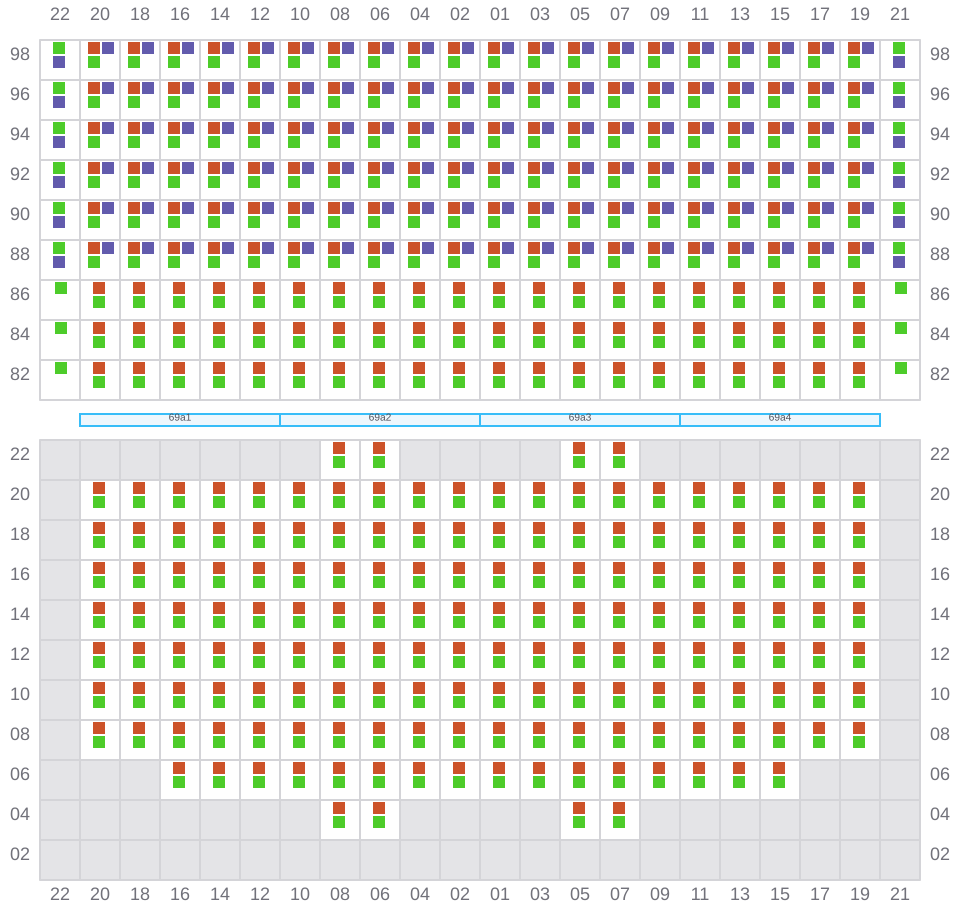

Bay 069 view and slots of EDITH MAERSK

071

  • ←

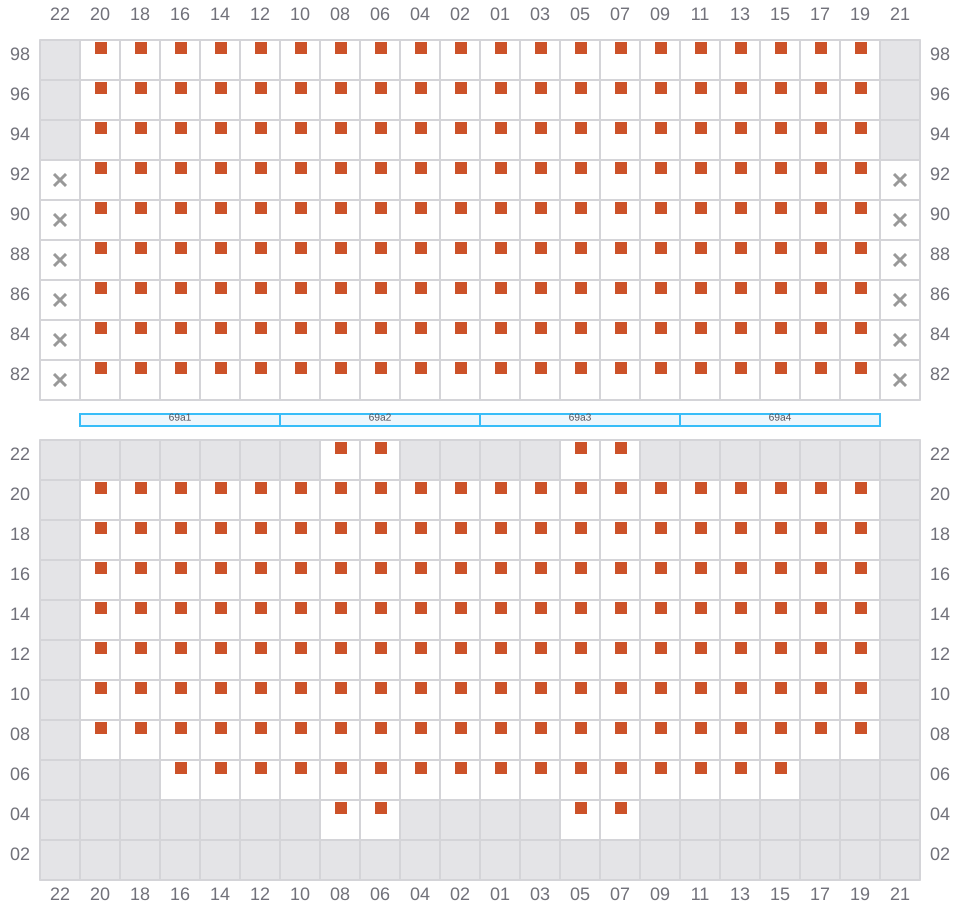

Bay 071 view and slots of EDITH MAERSK

073 (074)

  • →

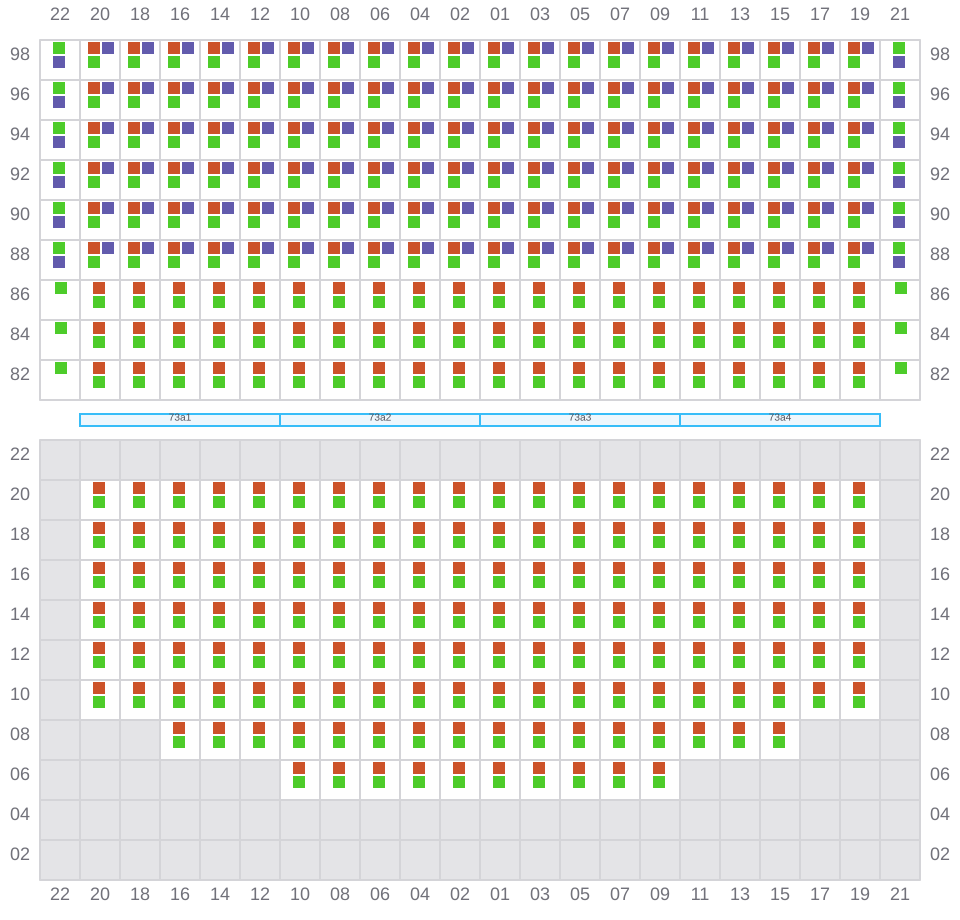

Bay 073 view and slots of EDITH MAERSK

075

  • ←

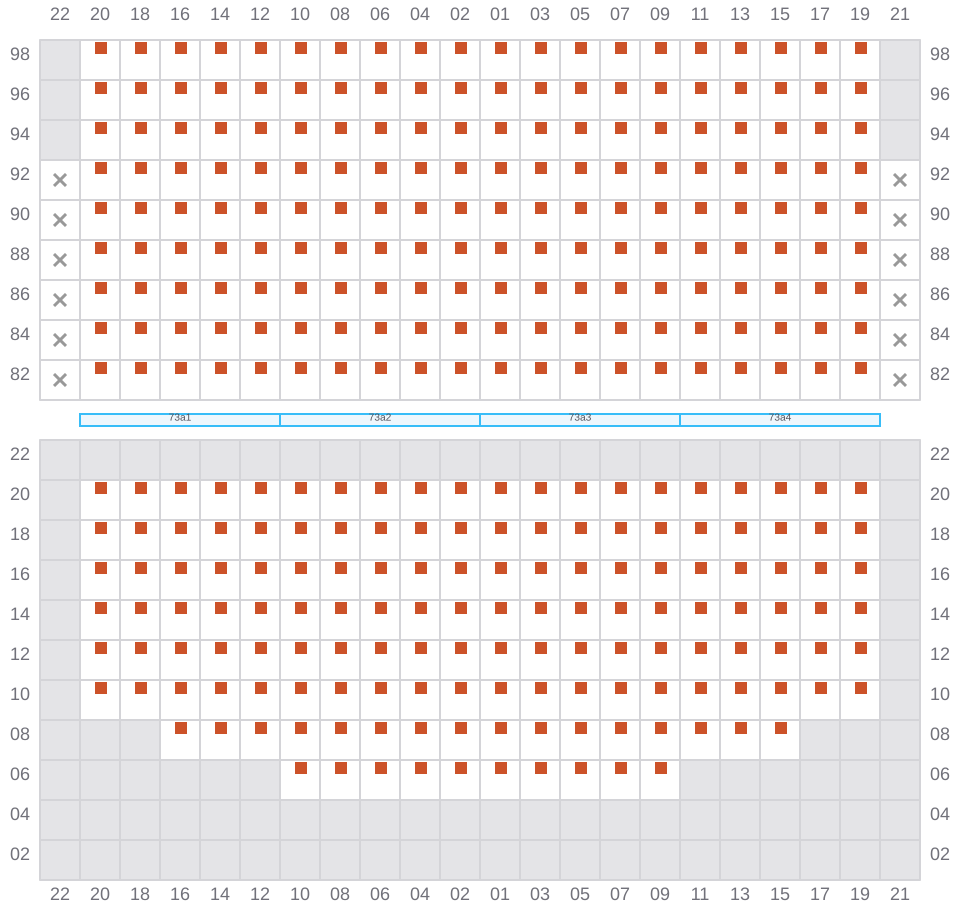

Bay 075 view and slots of EDITH MAERSK

077 (078)

  • →

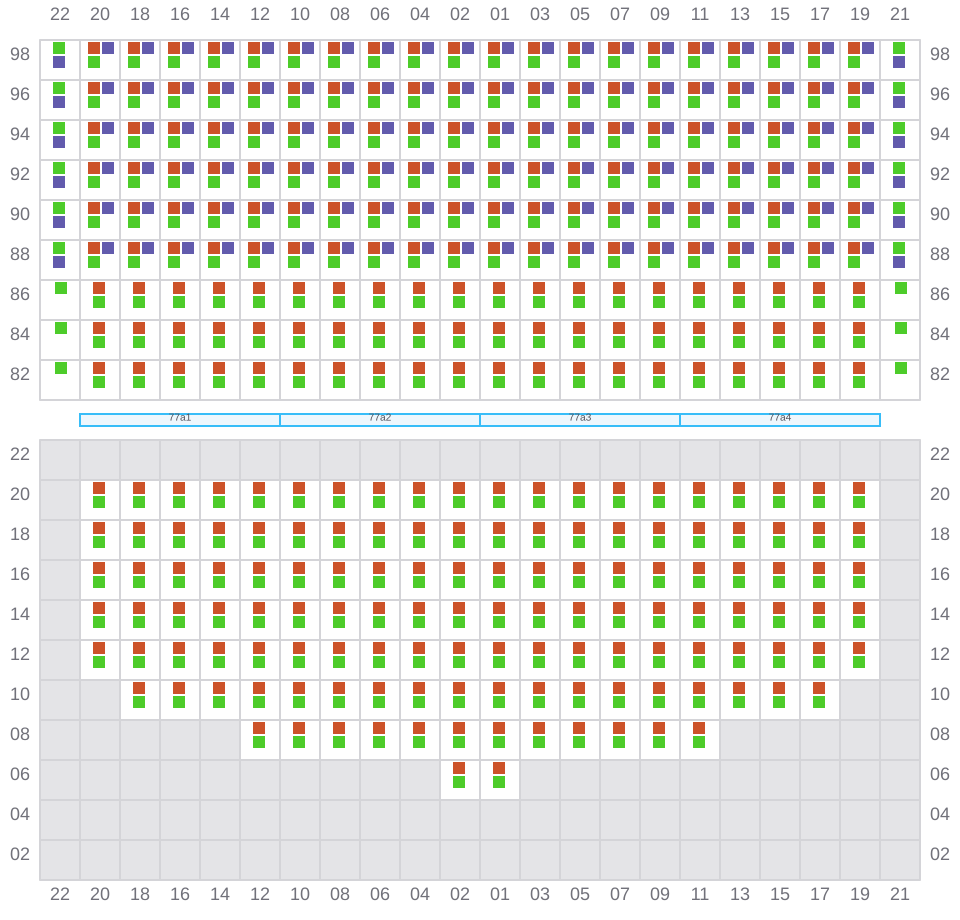

Bay 077 view and slots of EDITH MAERSK

079

  • ←

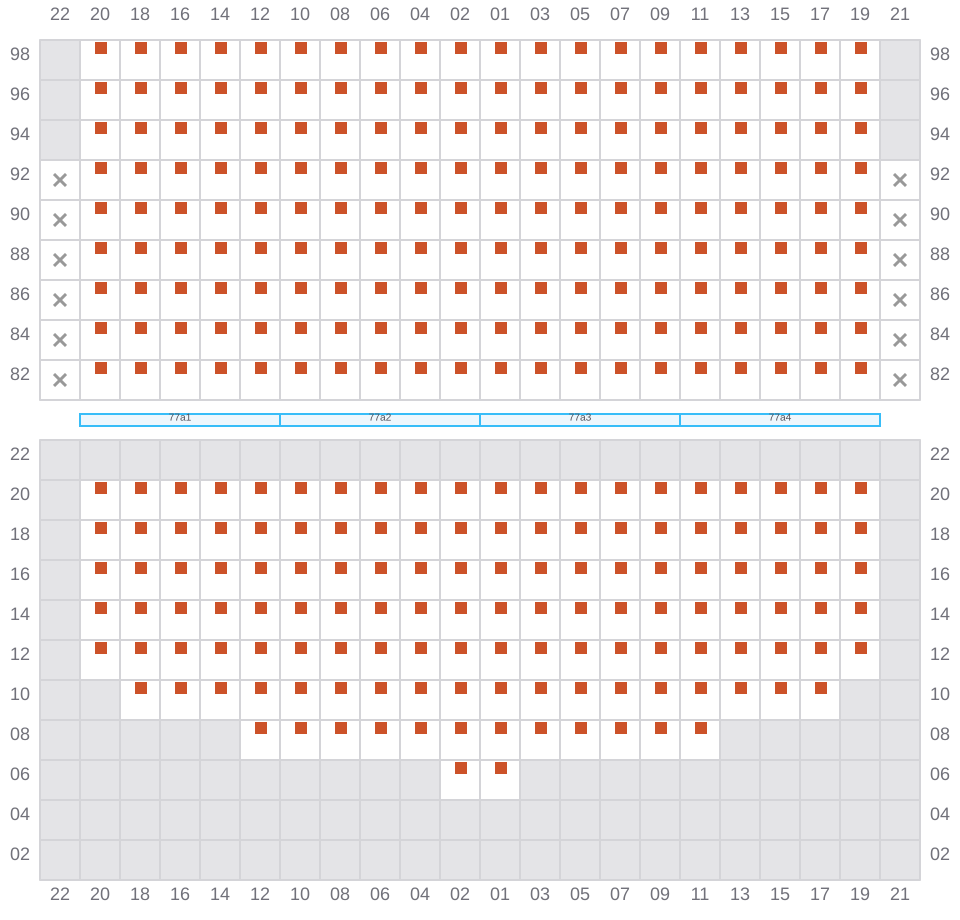

Bay 079 view and slots of EDITH MAERSK

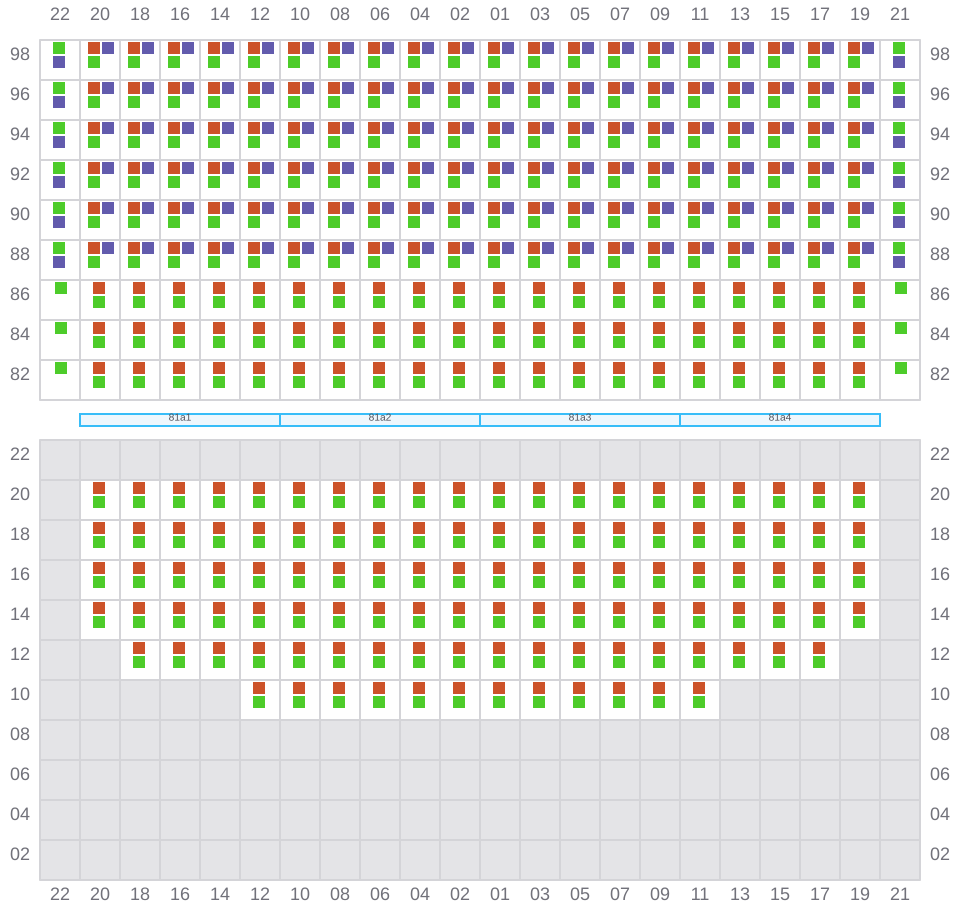

081 (082)

  • →
Bay 081 view and slots of EDITH MAERSK

083

  • ←

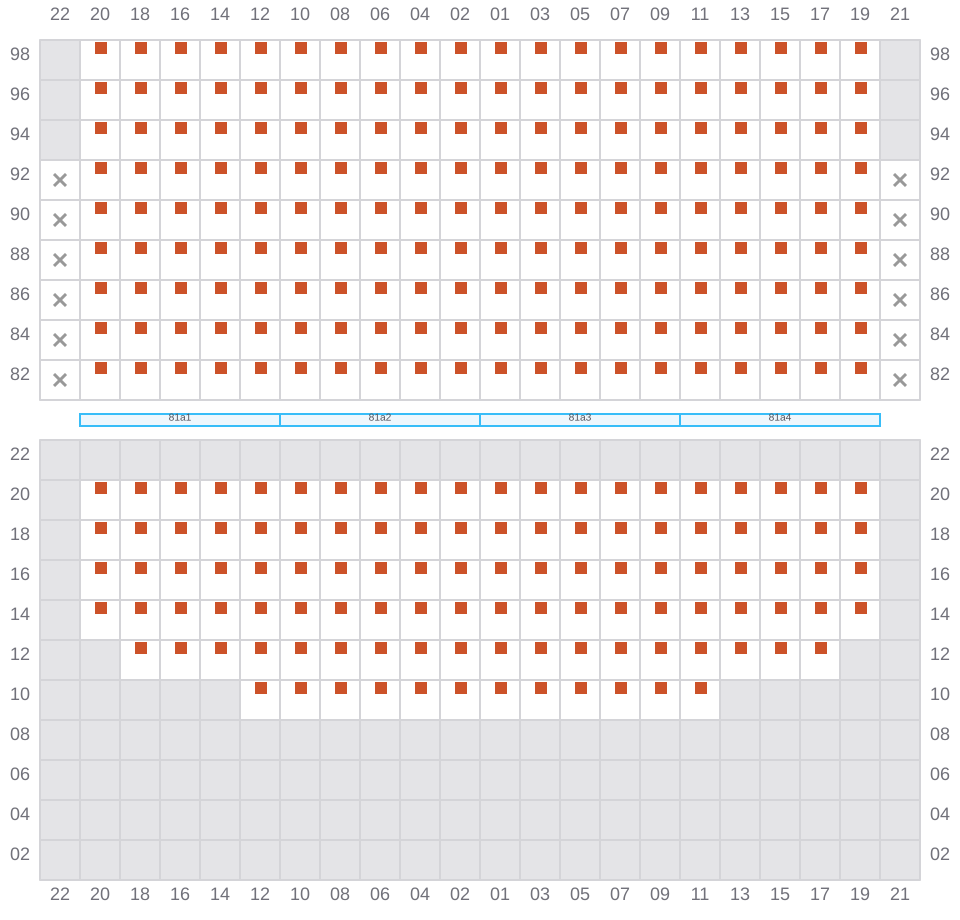

Bay 083 view and slots of EDITH MAERSK

085 (086)

  • →

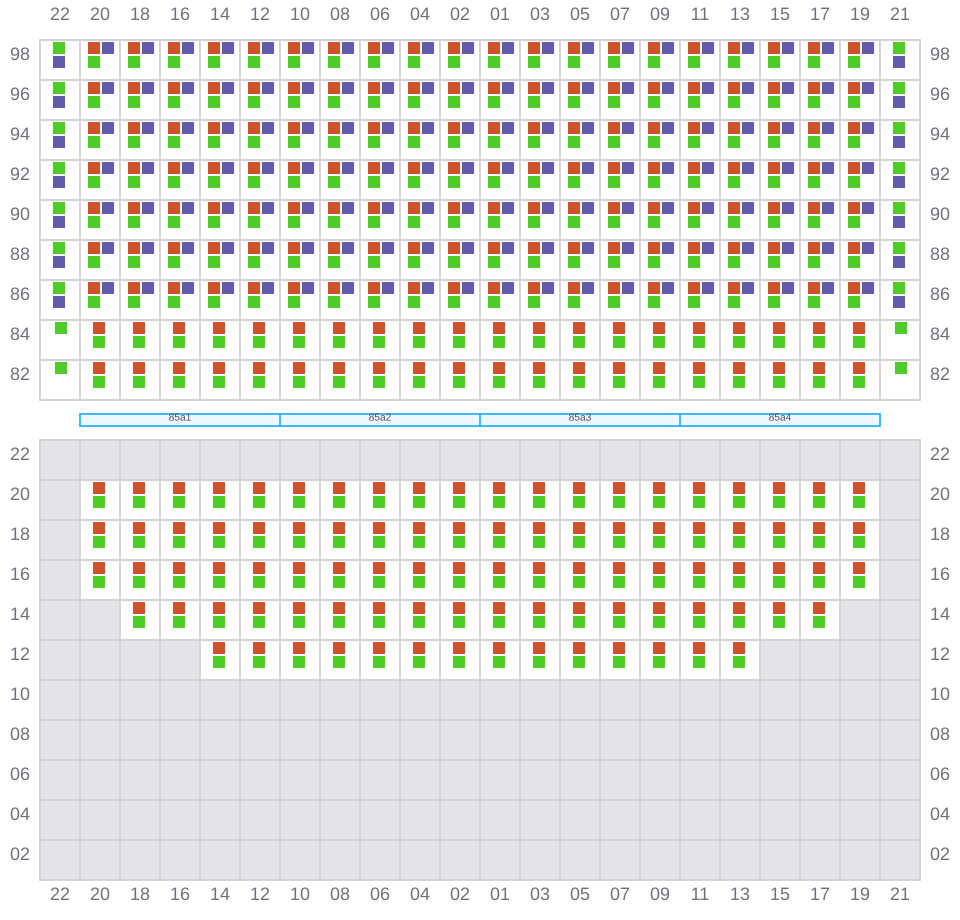

Bay 085 view and slots of EDITH MAERSK

087

  • ←

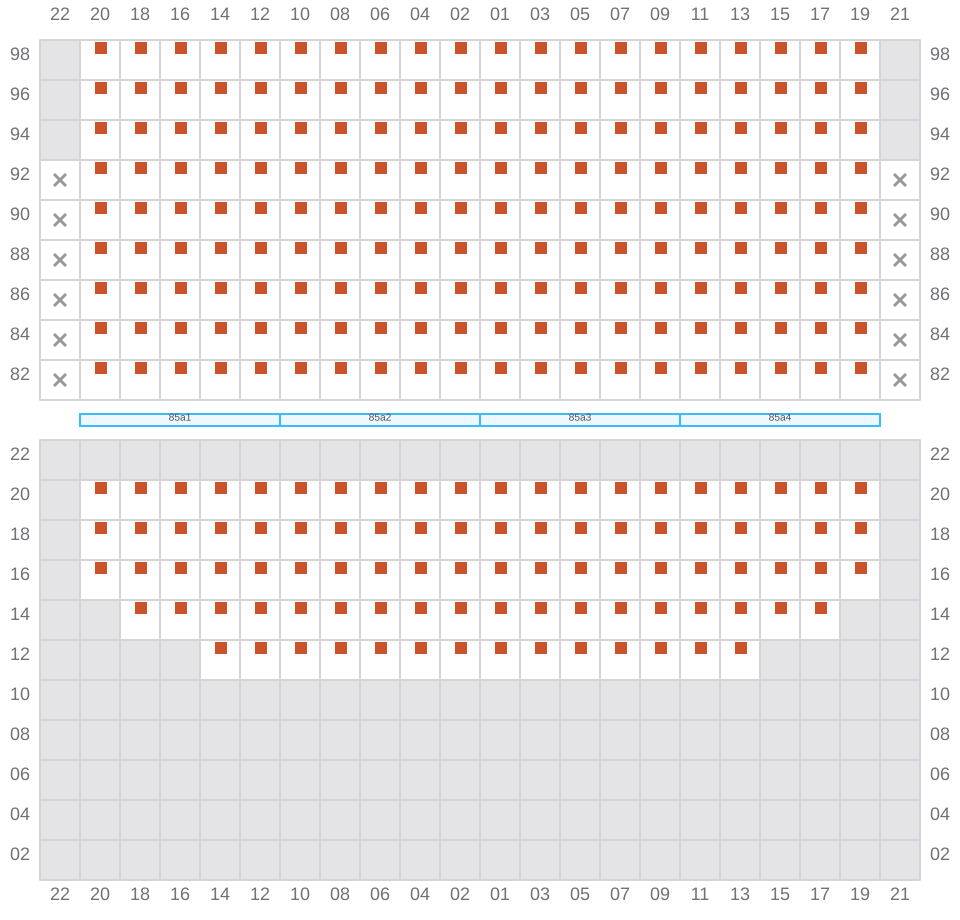

Bay 087 view and slots of EDITH MAERSK

089 (090)

  • →

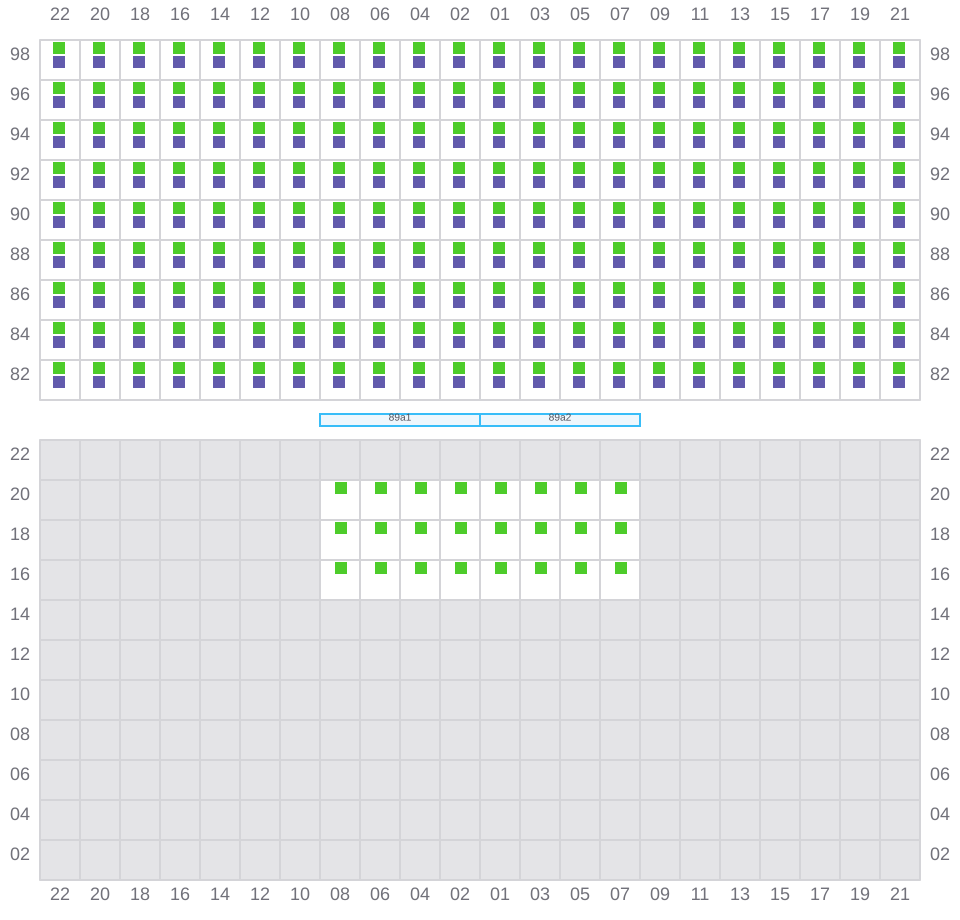

Bay 089 view and slots of EDITH MAERSK
