EF EMMA
9357808 | CQAL7 | 9357808 by ********* Last update: Fri Mar 22 2024
General Info
Ship Name:EF EMMA
IMO Code:9357808
Call Sign:CQAL7
Line Operator:9357808
Class Name for Sister Ships:04B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:037
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,710
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

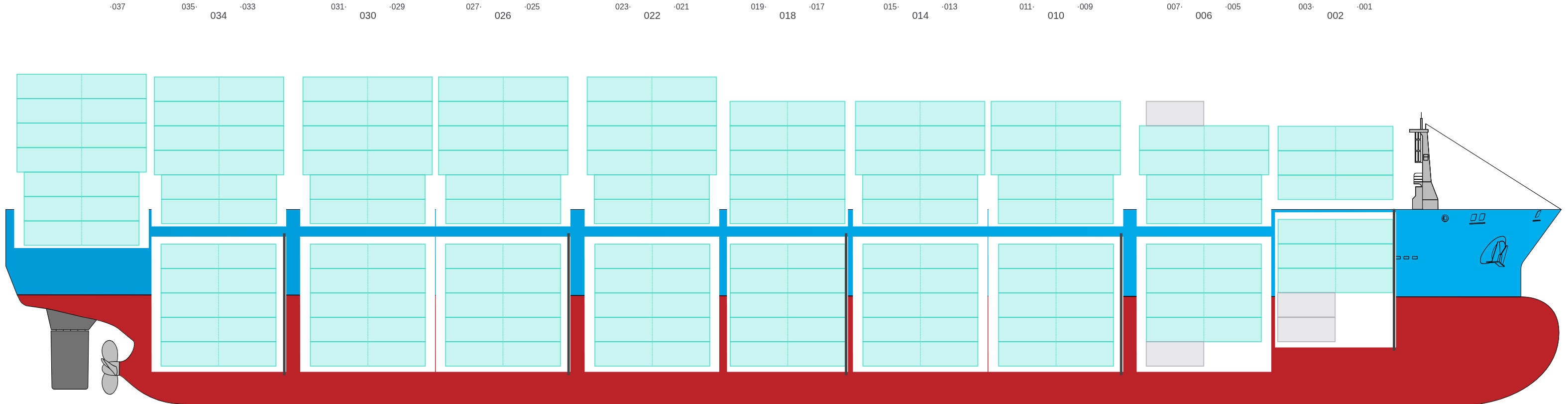

Side View
![Side view of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-sideView.png?v=1711150370106)
Hatch-Covers View
![Deck view of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-deckView.png?v=1711150370106)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

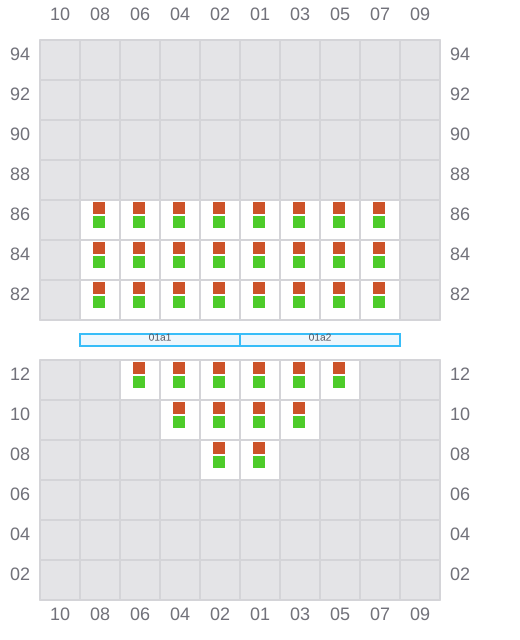

001 (002)
- →
![Bay 001 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b001.png?v=1711150370106)

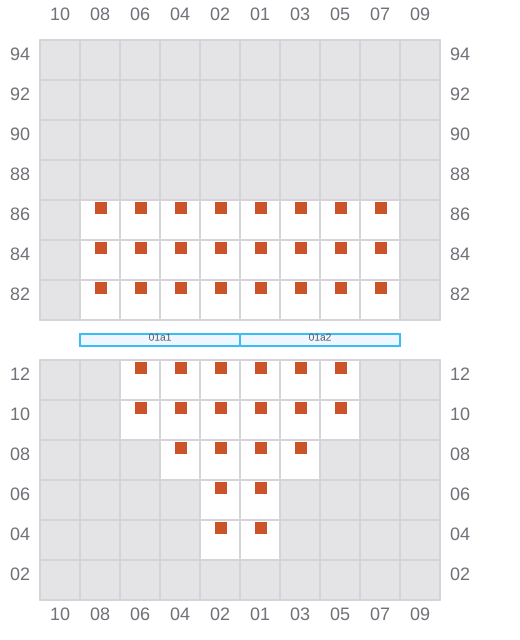

003
- ←
![Bay 003 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b003.png?v=1711150370106)

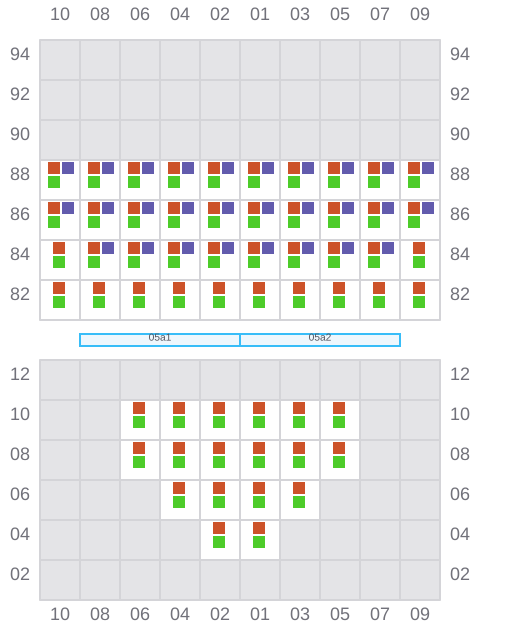

005 (006)
- →
![Bay 005 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b005.png?v=1711150370106)

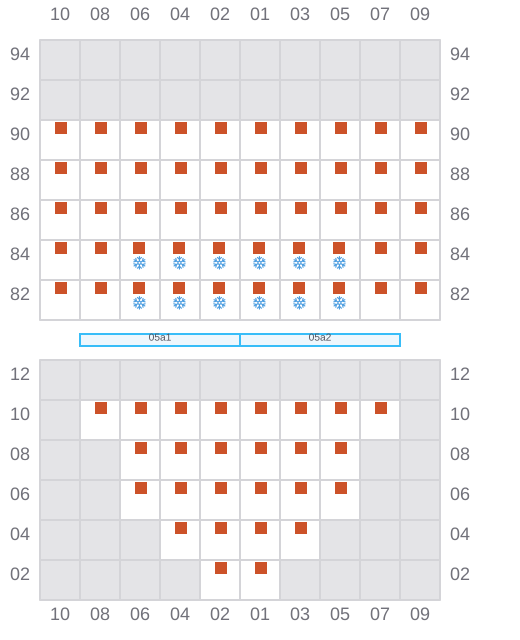

007
- ←
- → / ?
![Bay 007 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b007.png?v=1711150370106)

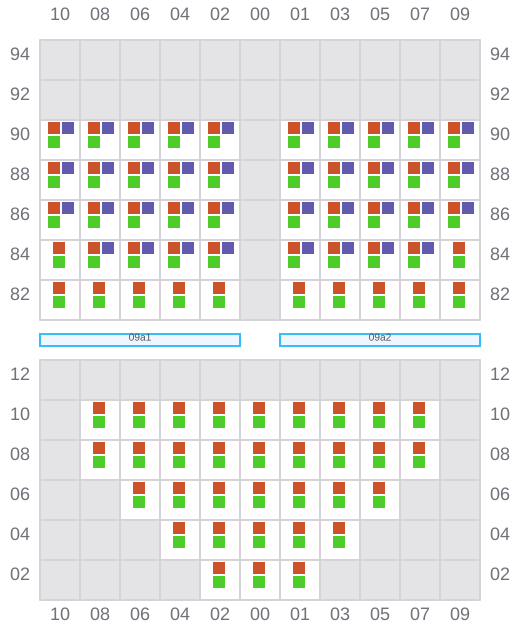

009 (010)
- →
![Bay 009 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b009.png?v=1711150370106)

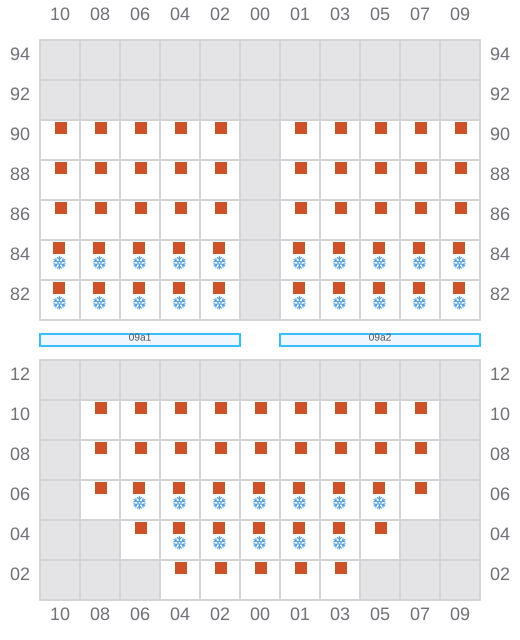

011
- ←
- →
![Bay 011 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b011.png?v=1711150370106)

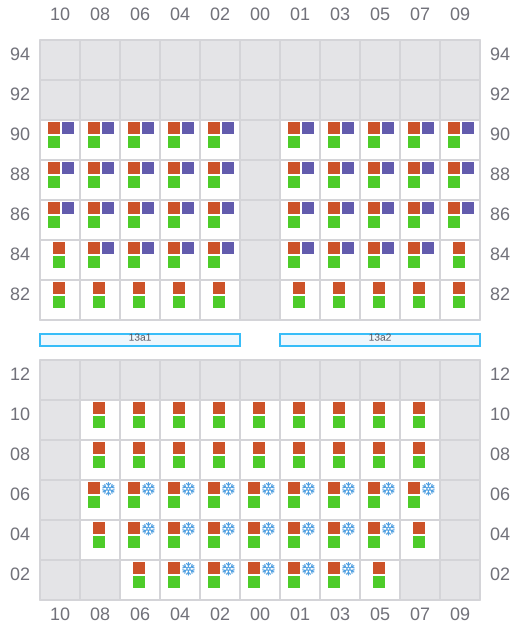

013 (014)
- →
- ? / ←
![Bay 013 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b013.png?v=1711150370106)

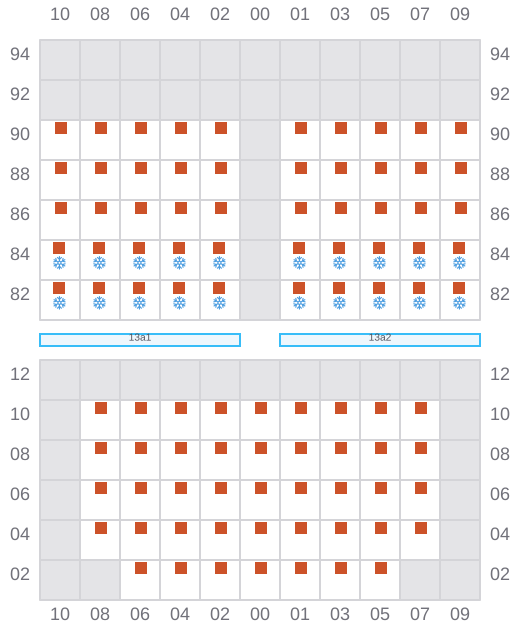

015
- ←
- → / ?
![Bay 015 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b015.png?v=1711150370106)

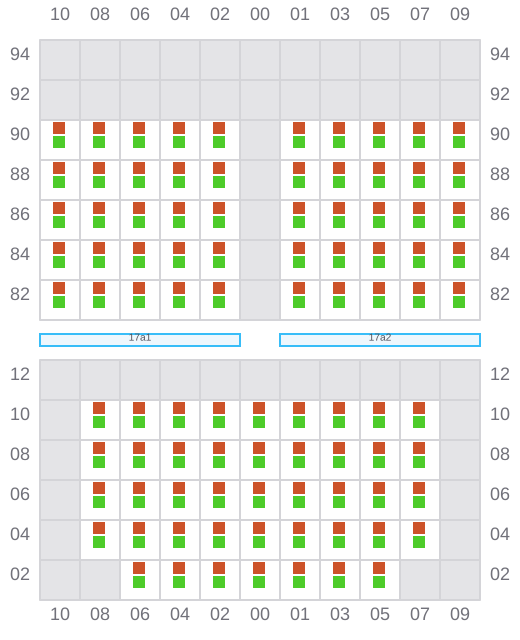

017 (018)
- →
![Bay 017 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b017.png?v=1711150370106)

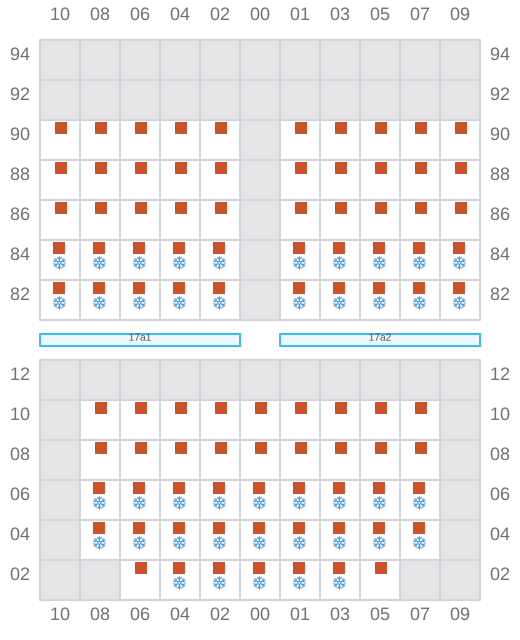

019
- ←
- →
![Bay 019 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b019.png?v=1711150370106)

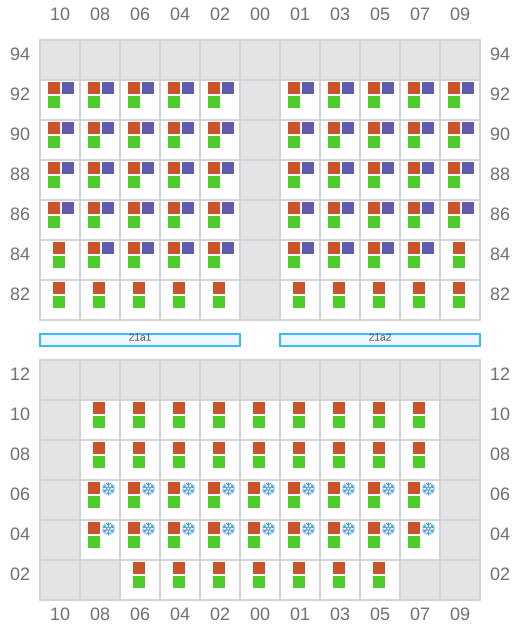

021 (022)
- →
- ? / ←
![Bay 021 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b021.png?v=1711150370106)
023
- ←
- → / ?
![Bay 023 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b023.png?v=1711150370106)

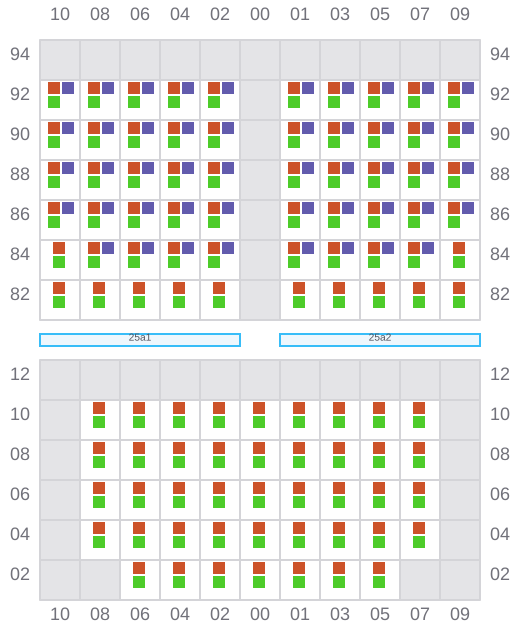

025 (026)
- →
![Bay 025 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b025.png?v=1711150370106)

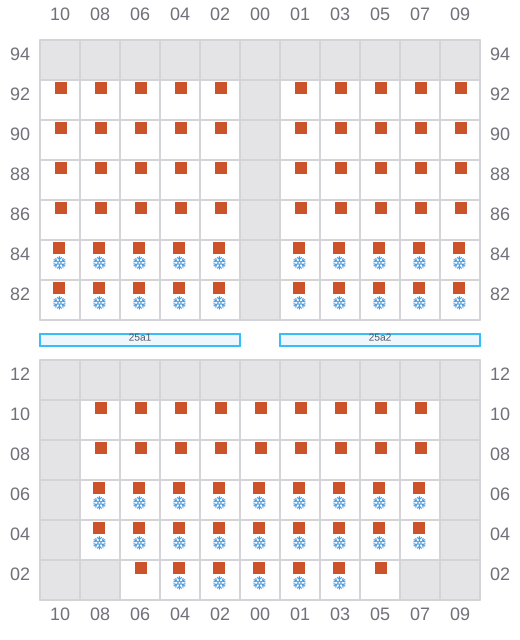

027
- ←
- →
![Bay 027 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b027.png?v=1711150370106)
029 (030)
- →
- ? / ←
![Bay 029 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b029.png?v=1711150370106)

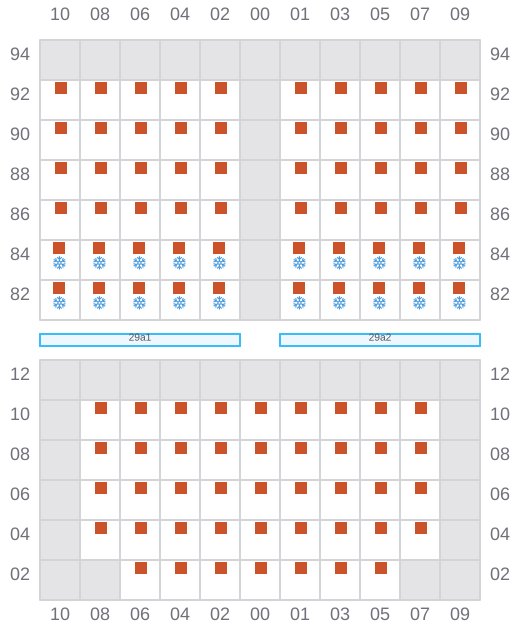

031
- ←
- → / ?
![Bay 031 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b031.png?v=1711150370106)

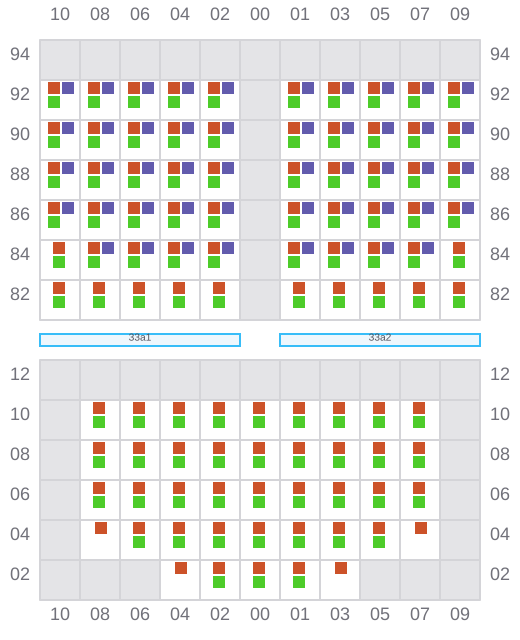

033 (034)
- →
![Bay 033 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b033.png?v=1711150370106)

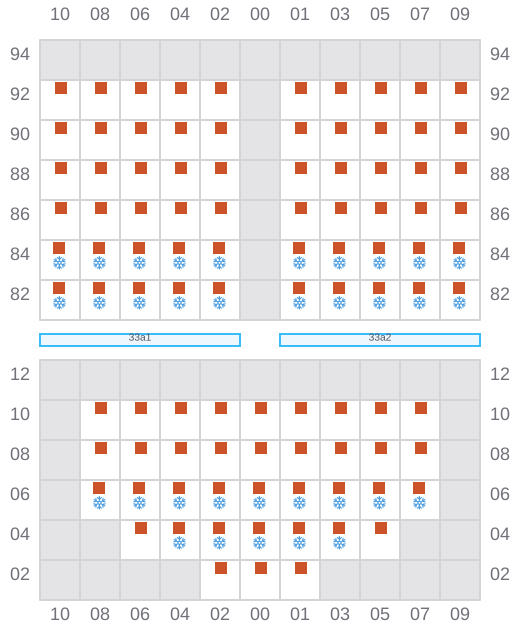

035
- ←
- →
![Bay 035 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b035.png?v=1711150370106)

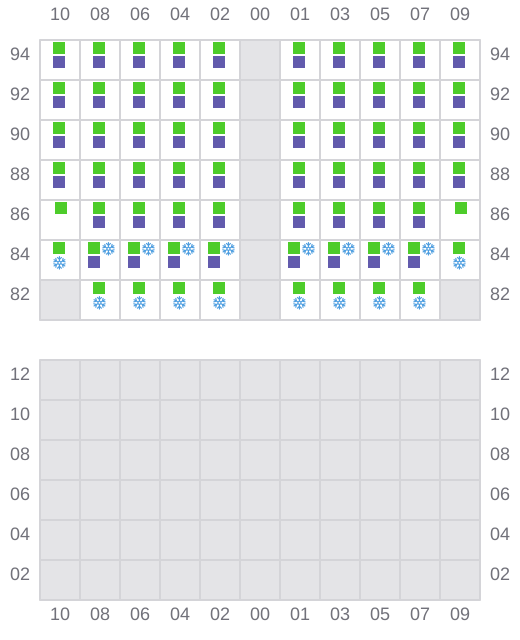

037 (038)
- → / ?
- → / ?
![Bay 037 view and slots of EF EMMA](/vessel-images/76e23b69-880d-45eb-a9e7-fd9b0bbb5d9e-b037.png?v=1711150370106)
