EGY CROWN
9216107 | 6BBI | 9216107 by ********* Last update: Tue Mar 12 2024
General Info
Ship Name:EGY CROWN
IMO Code:9216107
Call Sign:6BBI
Line Operator:9216107
Class Name for Sister Ships:38M
Year Built:2000
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,120
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

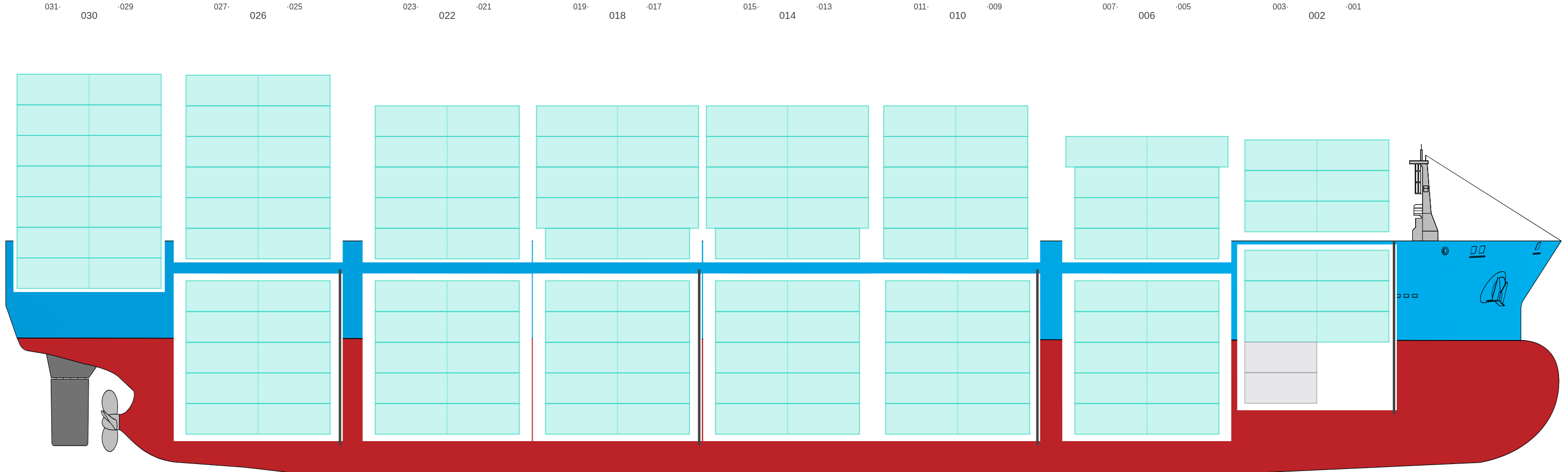

Side View
![Side view of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-sideView.png?v=1710269198376)
Hatch-Covers View
![Deck view of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-deckView.png?v=1710269198376)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

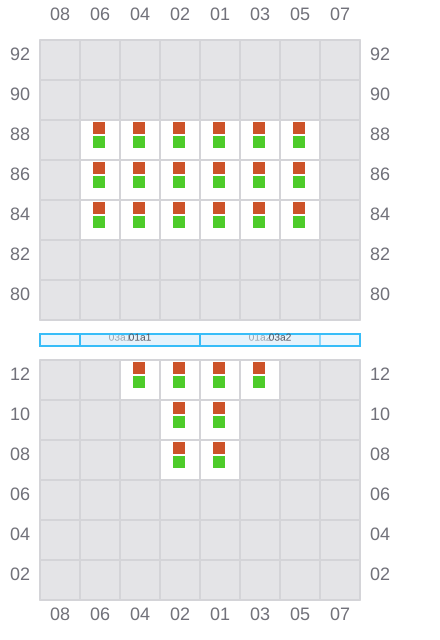

001 (002)
- →
![Bay 001 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b001.png?v=1710269198376)

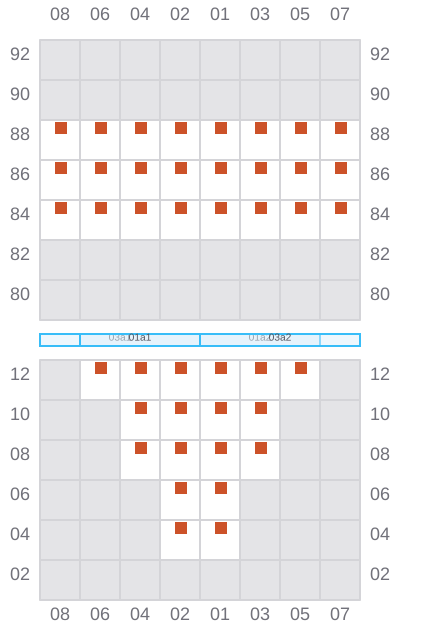

003
- ←
![Bay 003 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b003.png?v=1710269198376)

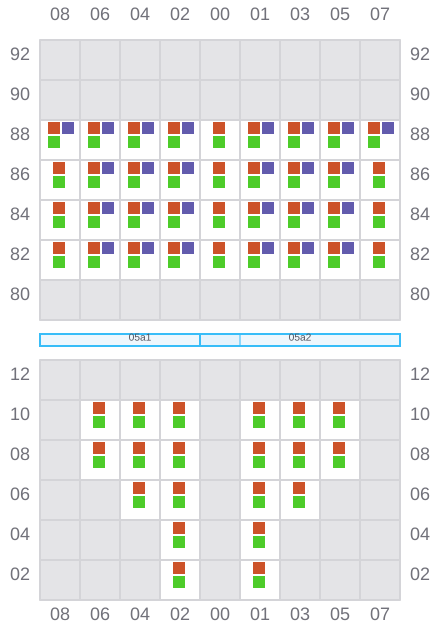

005 (006)
- →
![Bay 005 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b005.png?v=1710269198376)

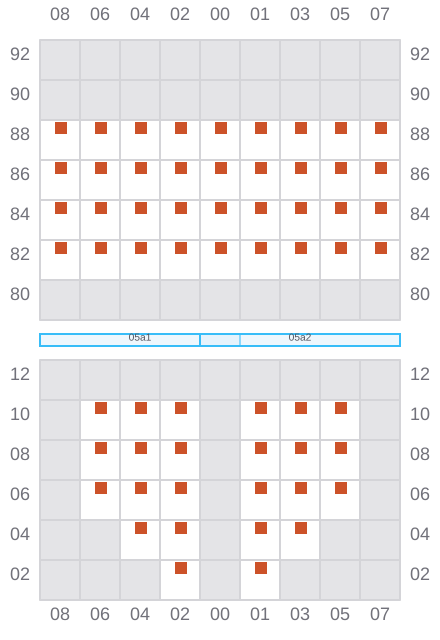

007
- ←
![Bay 007 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b007.png?v=1710269198376)

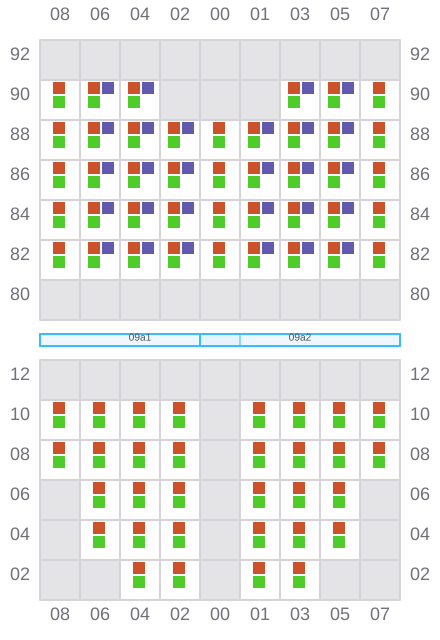

009 (010)
- →
- ← / ?
![Bay 009 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b009.png?v=1710269198376)

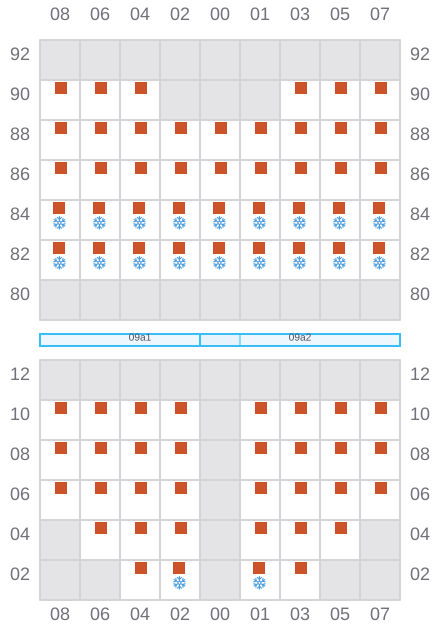

011
- ←
- →
![Bay 011 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b011.png?v=1710269198376)

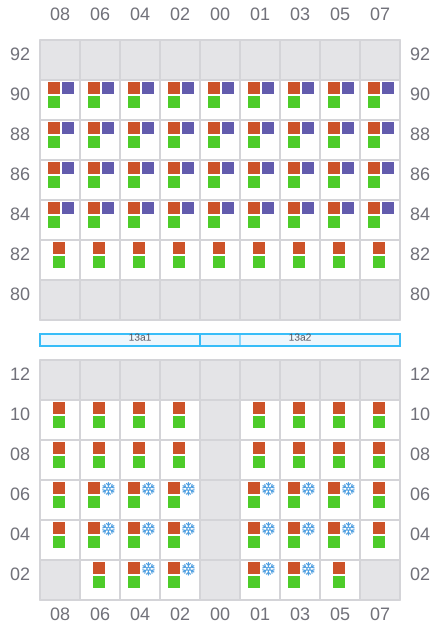

013 (014)
- →
- ←
![Bay 013 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b013.png?v=1710269198376)
015
- ←
- → / ?
![Bay 015 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b015.png?v=1710269198376)

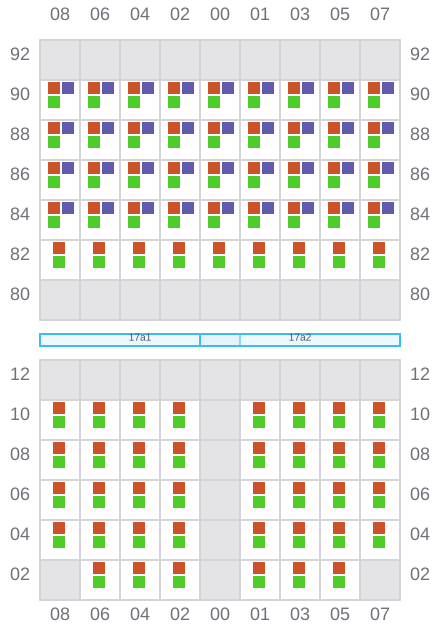

017 (018)
- →
- ← / ?
![Bay 017 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b017.png?v=1710269198376)

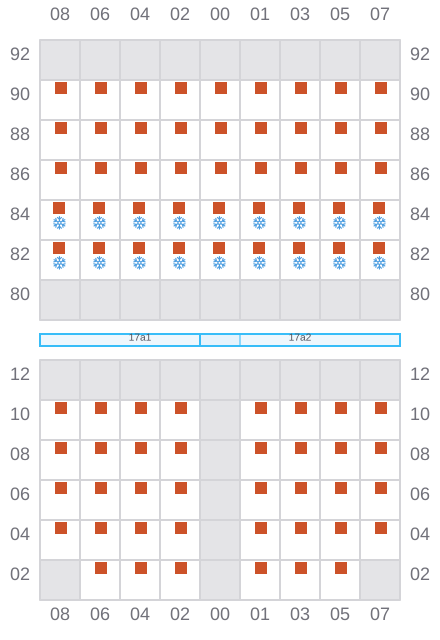

019
- ←
- → / ?
![Bay 019 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b019.png?v=1710269198376)

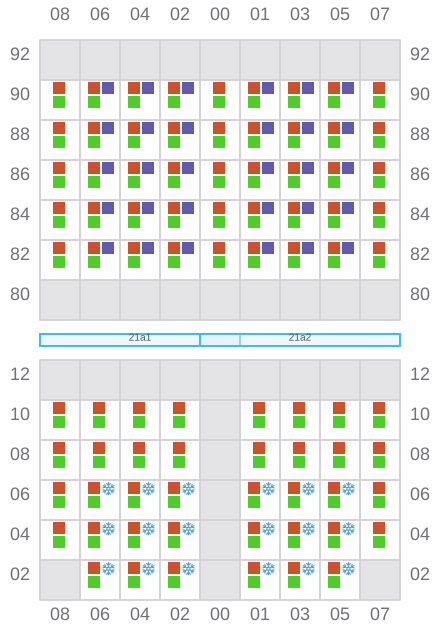

021 (022)
- →
- ←
![Bay 021 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b021.png?v=1710269198376)

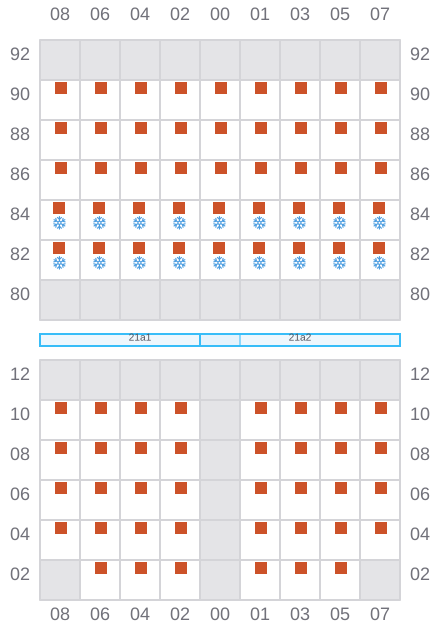

023
- ←
- →
![Bay 023 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b023.png?v=1710269198376)

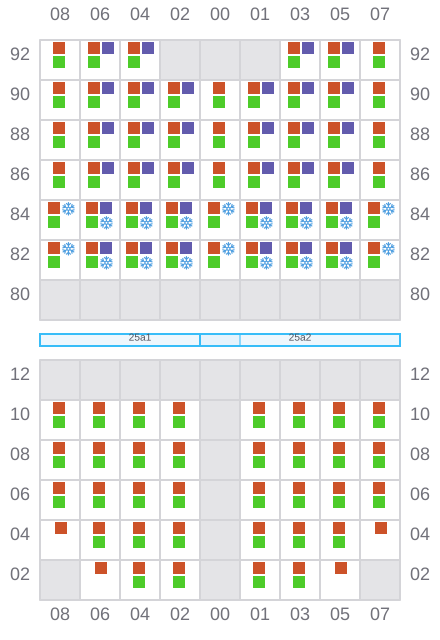

025 (026)
- →
- ← / ?
![Bay 025 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b025.png?v=1710269198376)

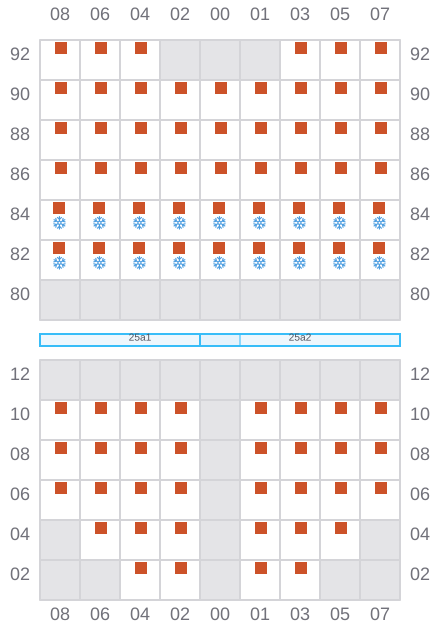

027
- ←
- → / ?
![Bay 027 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b027.png?v=1710269198376)

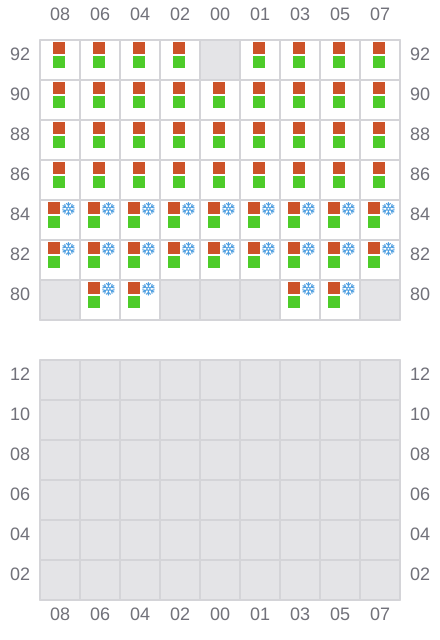

029 (030)
- → / ?
- ← / ?
![Bay 029 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b029.png?v=1710269198376)

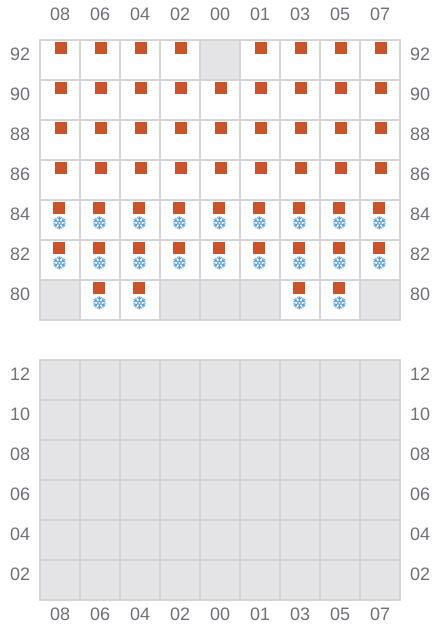

031
- ← / ?
- → / ?
![Bay 031 view and slots of EGY CROWN](/vessel-images/ff12e2ea-439d-4d92-b655-c6b39c3e88e9-b031.png?v=1710269198376)
