EGY FUTURE
9127538 | 6AKW | 9127538 by ********* Last update: Thu Mar 07 2024
General Info
Ship Name:EGY FUTURE
IMO Code:9127538
Call Sign:6AKW
Line Operator:9127538
Class Name for Sister Ships:49K
Year Built:1998
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:92
Min Above ISO Tier:80
Max Below ISO Tier:12
Min Below ISO Tier:02
Total TEU:1,129
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

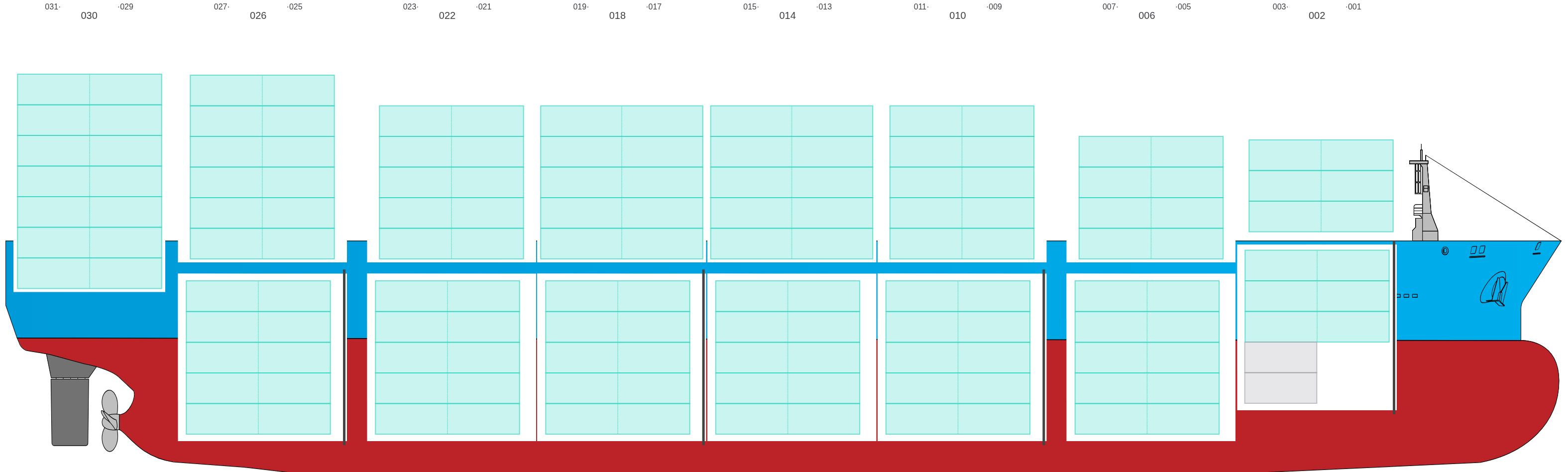

Side View
Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

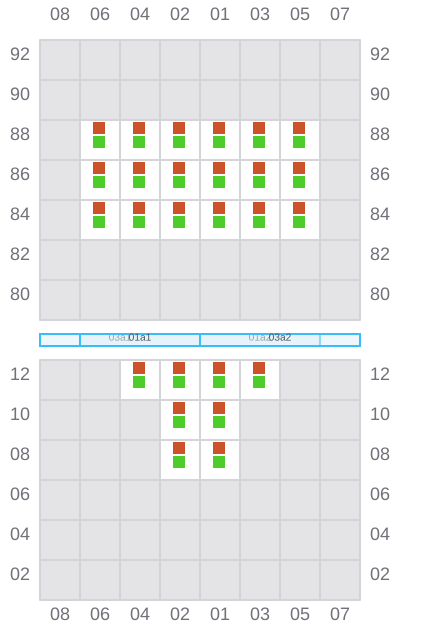

001 (002)
- →

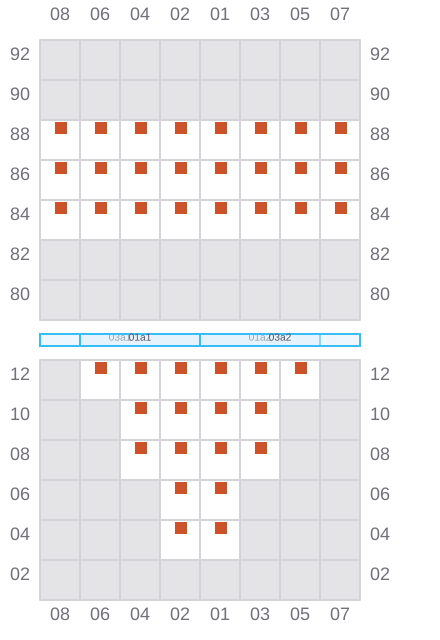

003
- ←

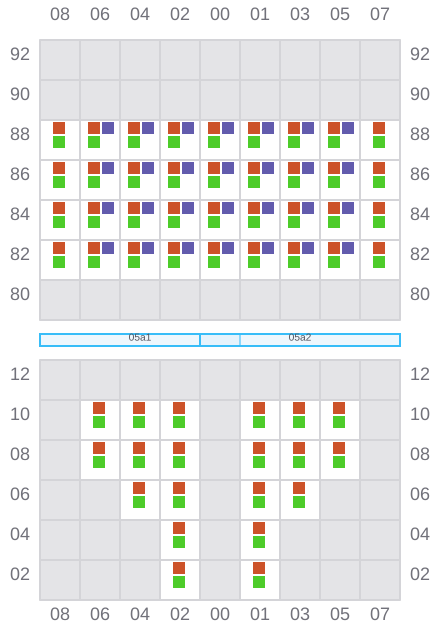

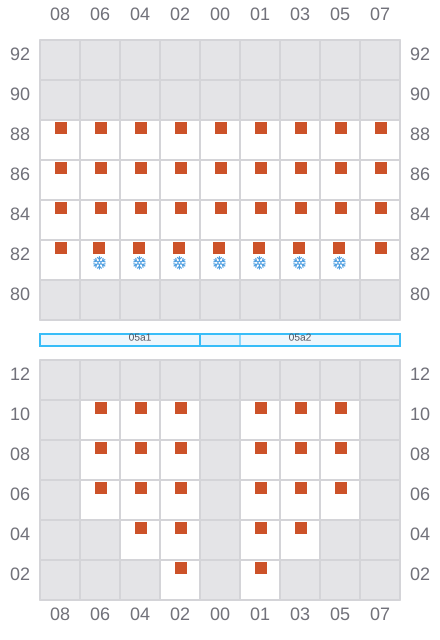

005 (006)
- →
- ? / ←
007
- ←
- → / ?

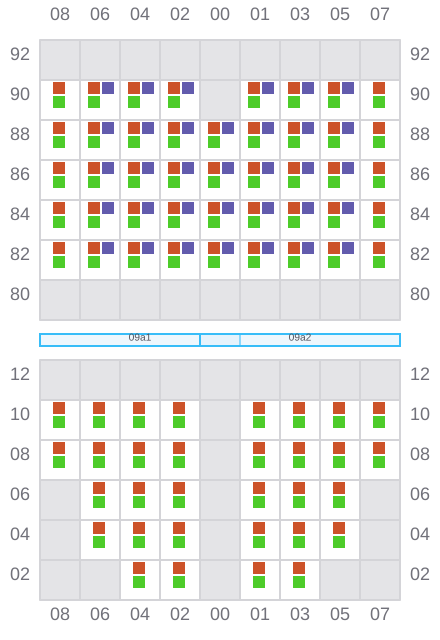

009 (010)
- →

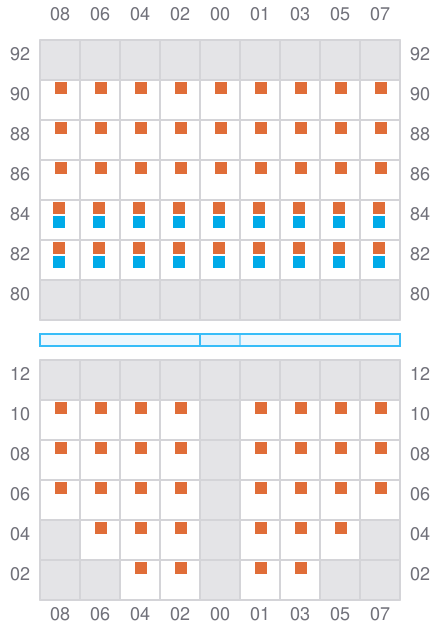

011
- ←
- → / ?
013 (014)
- →
- ? / ←

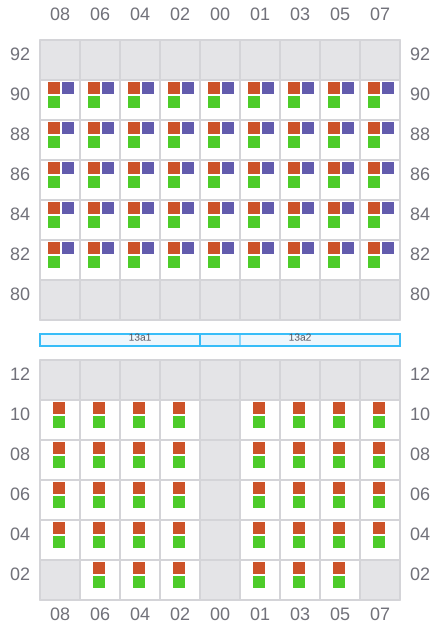

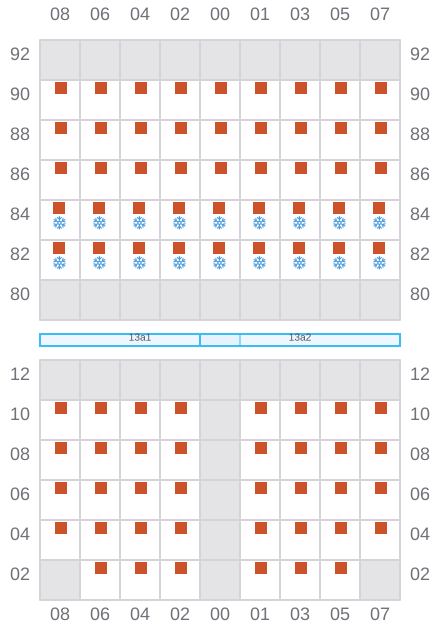

015
- ←
- → / ?

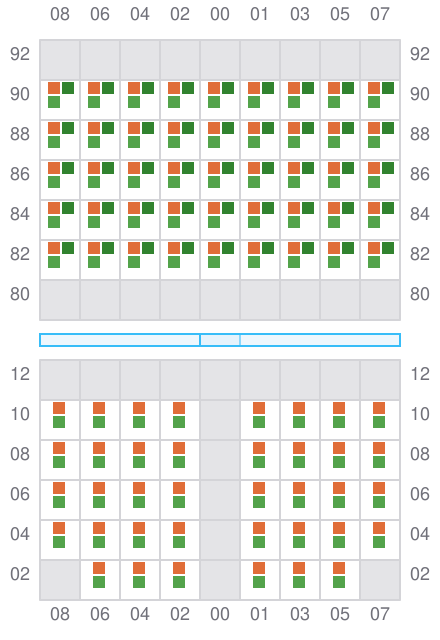

017 (018)
- →
019
- ←
- → / ?
- ? / →

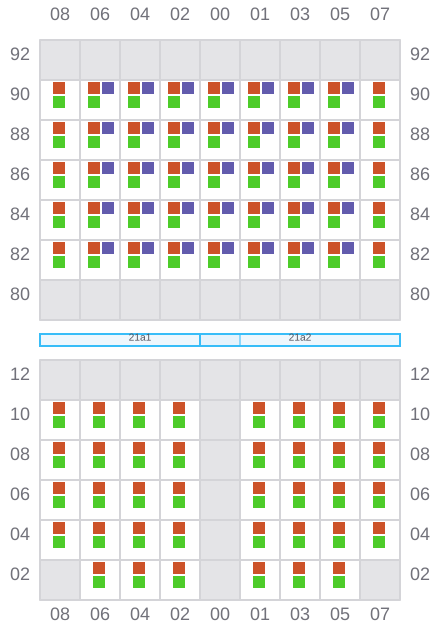

021 (022)
- →
- ? / ←

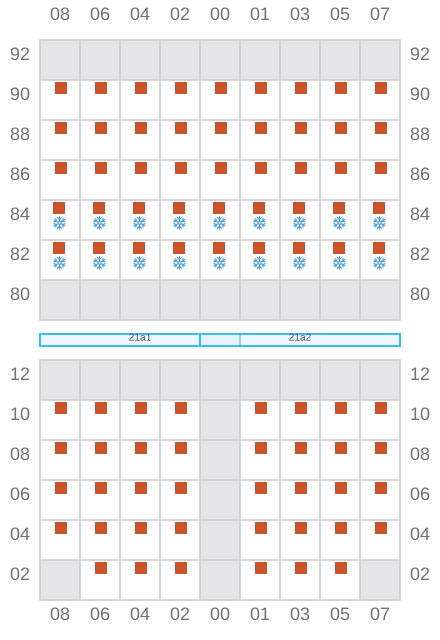

023
- ←
- → / ?

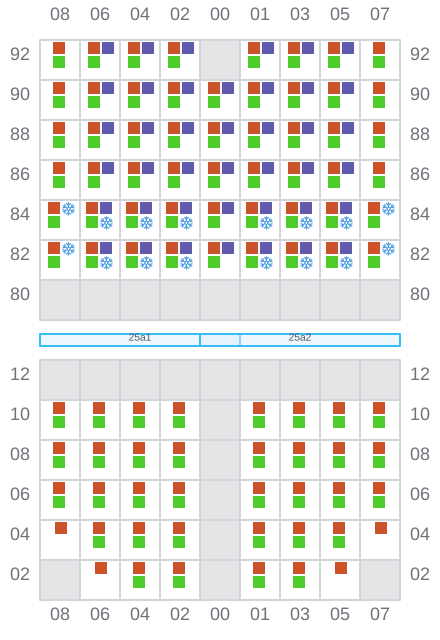

025 (026)
- →
- ← / ?
027
- ←
- → / ?

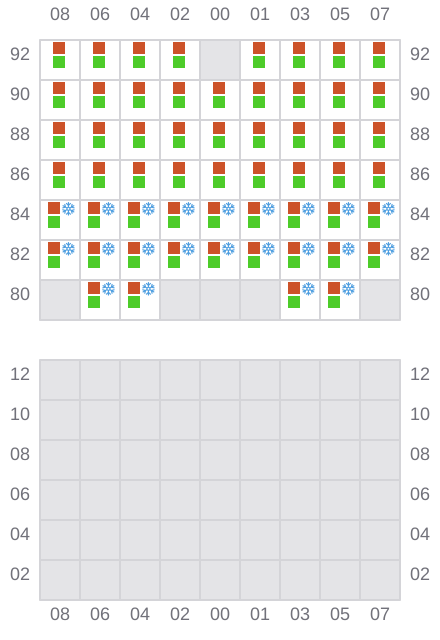

029 (030)
- → / ?
- ← / ?

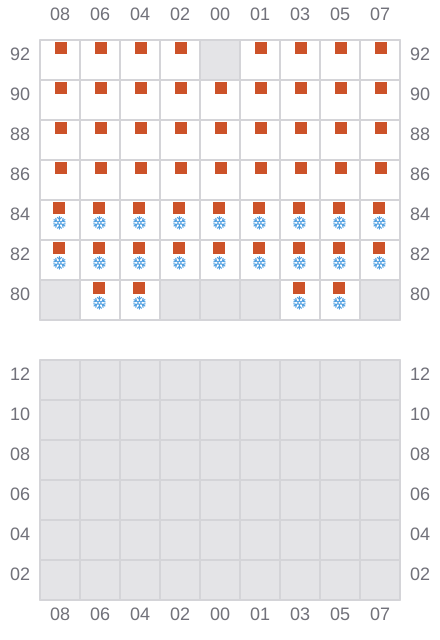

031
- ← / ?
- → / ?
