ELA
9516777 | D5BG5 | 951677 by ********* Last update: Mon Jun 24 2024

General Info

Ship Name:ELA
IMO Code:9516777
Call Sign:D5BG5
Line Operator:951677
Class Name for Sister Ships:MCC
Year Built:2012
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-

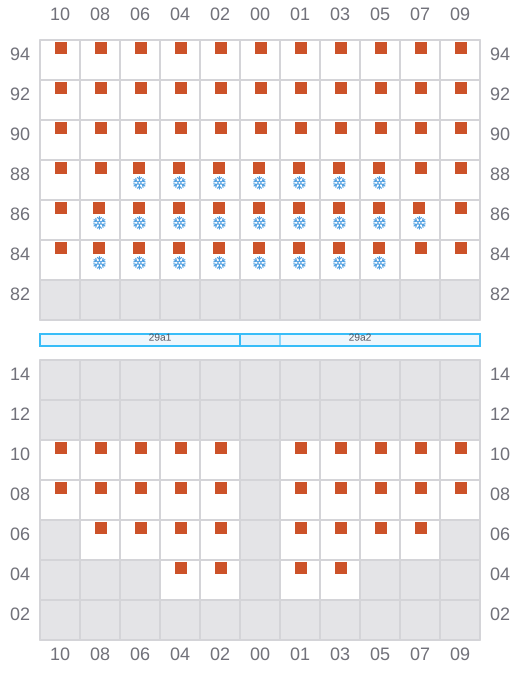

Size Summary

ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,740

Centers of Gravity

LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%
