ELBFEEDER
9388522 | 5BKK4 | 9388522 by ********* Last update: Sun Mar 24 2024
General Info
Ship Name:ELBFEEDER
IMO Code:9388522
Call Sign:5BKK4
Line Operator:9388522
Class Name for Sister Ships:21B
Year Built:2008
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:80
Max Below ISO Tier:08
Min Below ISO Tier:02
Total TEU:983
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

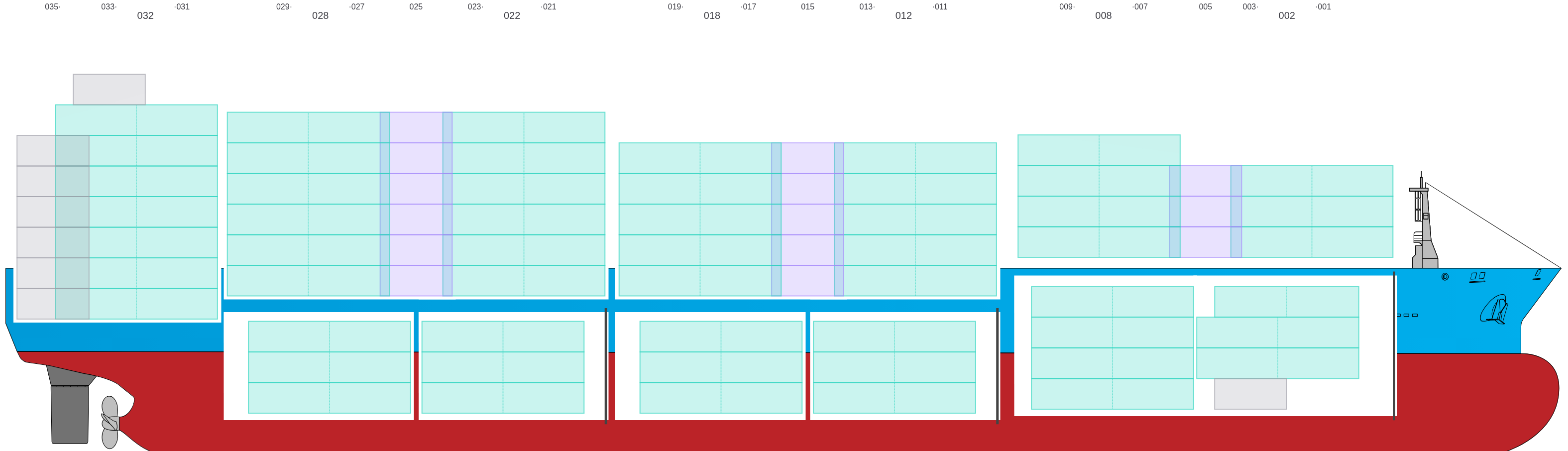

Side View
![Side view of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-sideView.png?v=1711308039102)
Hatch-Covers View
![Deck view of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-deckView.png?v=1711308039102)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

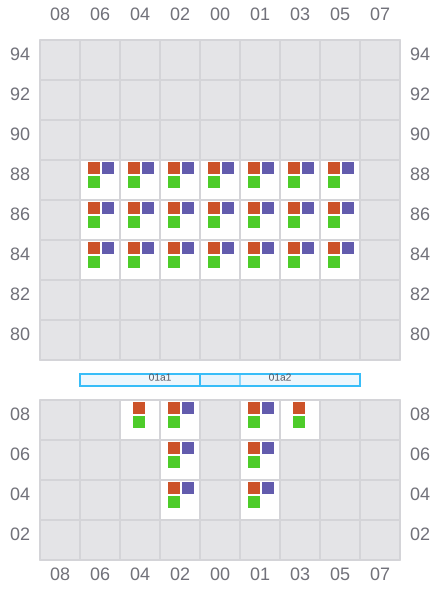

001 (002)
- →
![Bay 001 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b001.png?v=1711308039102)

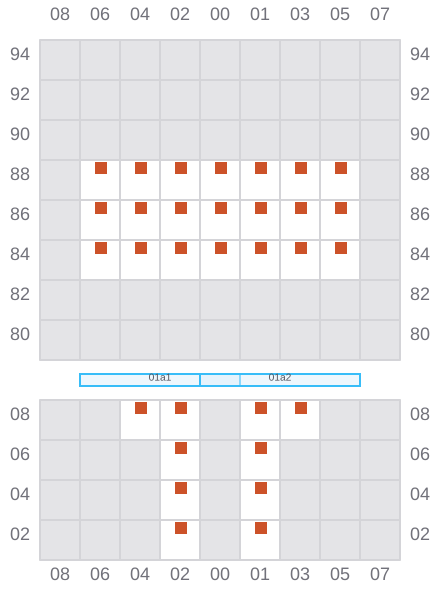

003
- ←
![Bay 003 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b003.png?v=1711308039102)

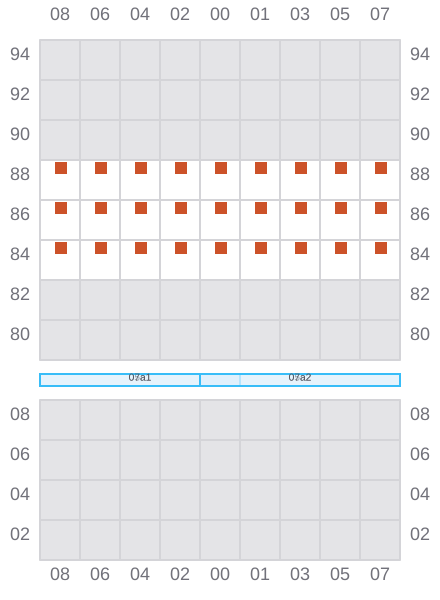

005
![Bay 005 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b005.png?v=1711308039102)
007 (008)
- →
![Bay 007 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b007.png?v=1711308039102)

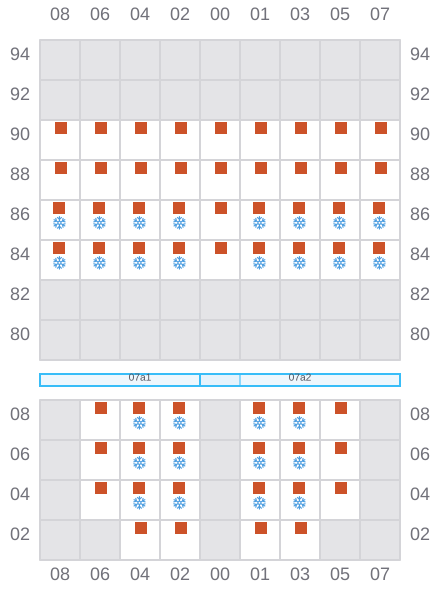

009
- ←
- →
![Bay 009 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b009.png?v=1711308039102)

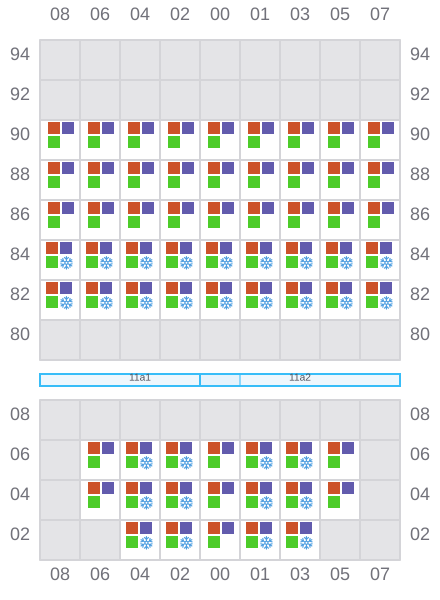

011 (012)
- →
- ←
![Bay 011 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b011.png?v=1711308039102)

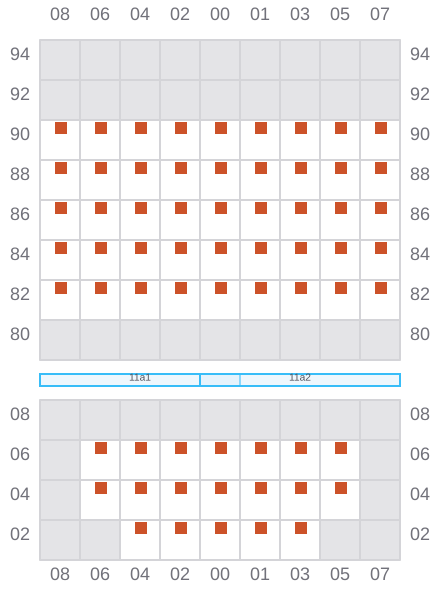

013
- ←
![Bay 013 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b013.png?v=1711308039102)

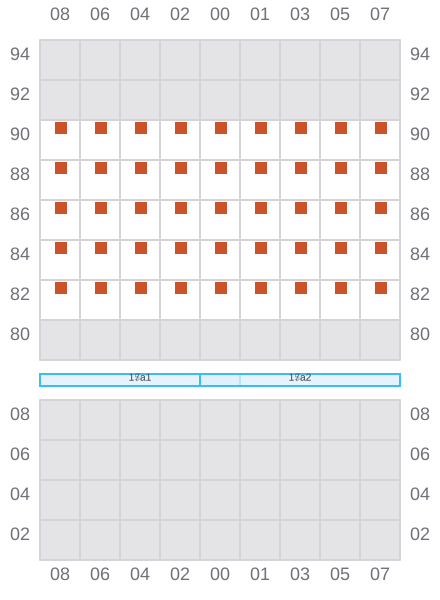

015
![Bay 015 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b015.png?v=1711308039102)

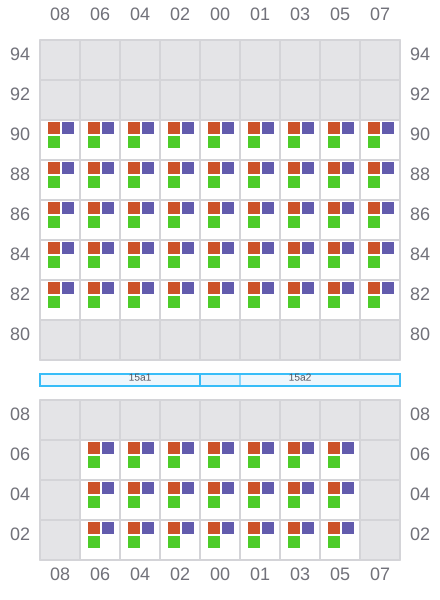

017 (018)
- →
![Bay 017 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b017.png?v=1711308039102)
019
- ←
- →
![Bay 019 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b019.png?v=1711308039102)

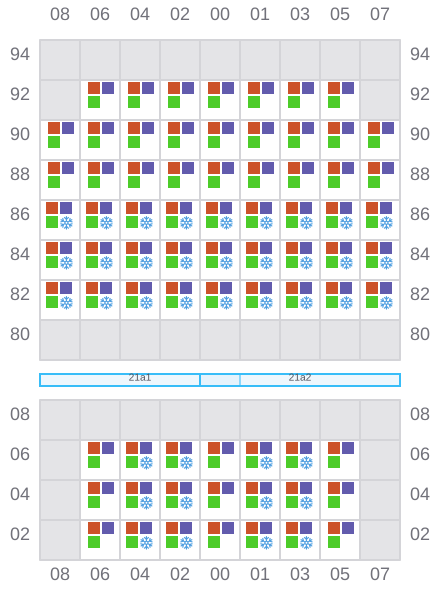

021 (022)
- →
- ←
![Bay 021 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b021.png?v=1711308039102)

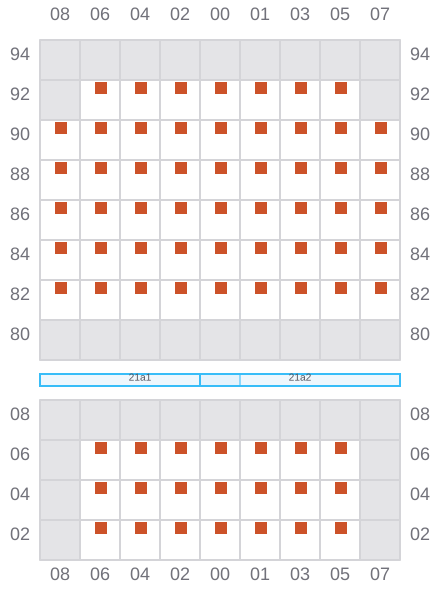

023
- ←
![Bay 023 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b023.png?v=1711308039102)

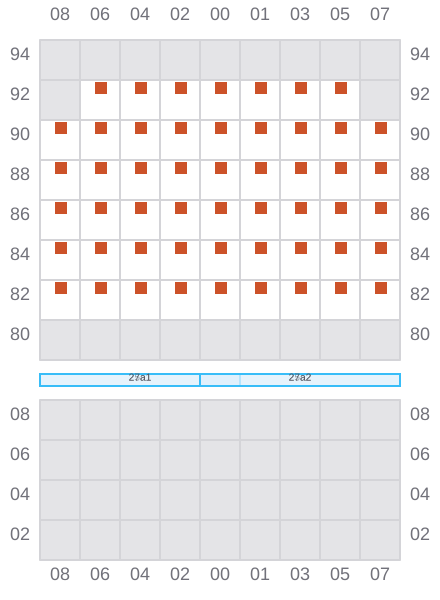

025
![Bay 025 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b025.png?v=1711308039102)

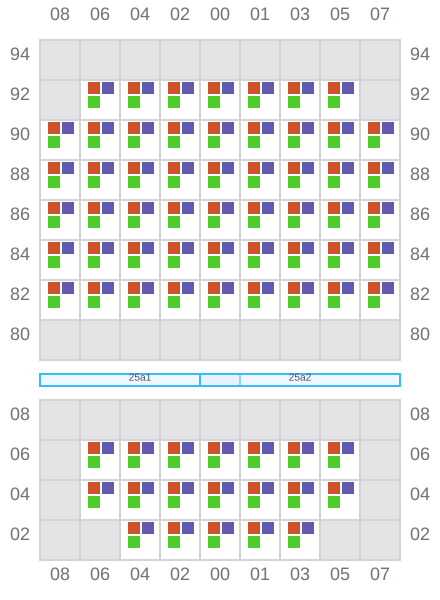

027 (028)
- →
![Bay 027 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b027.png?v=1711308039102)

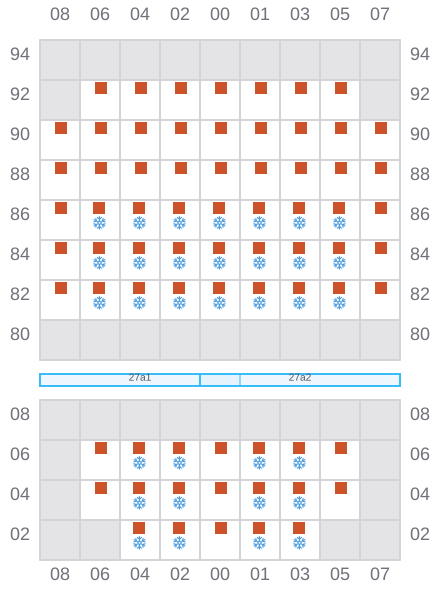

029
- ←
- →
![Bay 029 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b029.png?v=1711308039102)

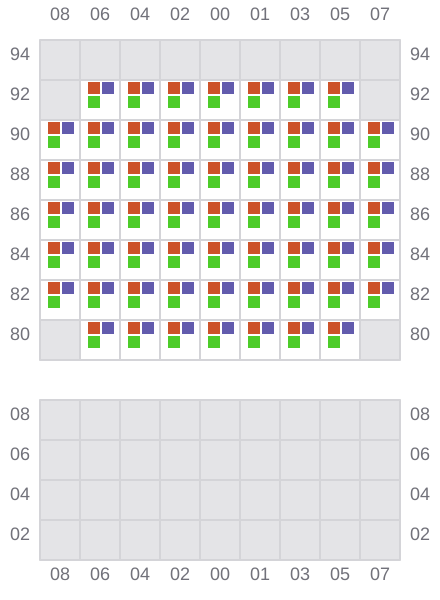

031 (032)
- → / ?
![Bay 031 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b031.png?v=1711308039102)

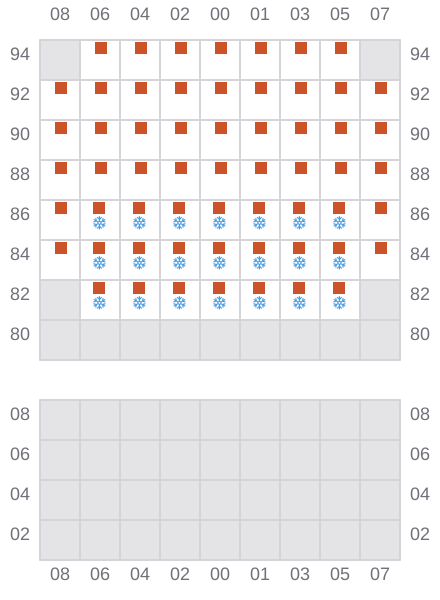

033
- ← / ?
- → / ?
![Bay 033 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b033.png?v=1711308039102)

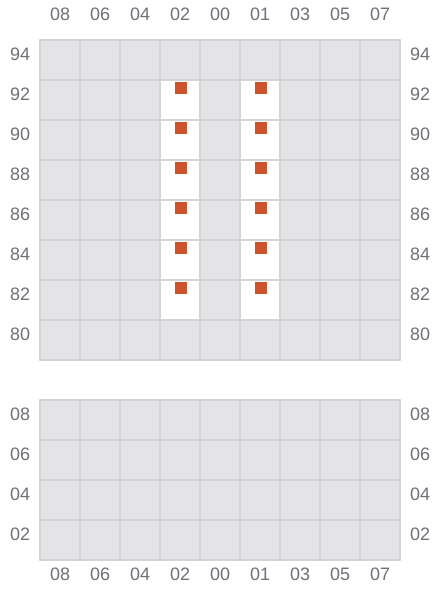

035
- ← / ?
![Bay 035 view and slots of ELBFEEDER](/vessel-images/a9a29238-9614-42f7-bdfa-3d0079fd7686-b035.png?v=1711308039102)
