ELBSTAR
9387592 | V2GK8 | 9387592 by ********* Last update: Thu Jul 25 2024
General Info
Ship Name:ELBSTAR
IMO Code:9387592
Call Sign:V2GK8
Line Operator:9387592
Class Name for Sister Ships:FDSC
Year Built:2009
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As...:-
Size Summary
ISO Bays:031
Max ISO Row:08
Center Line Row:Yes
Max Above ISO Tier:90
Min Above ISO Tier:80
Max Below ISO Tier:10
Min Below ISO Tier:02
Total TEU:889
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

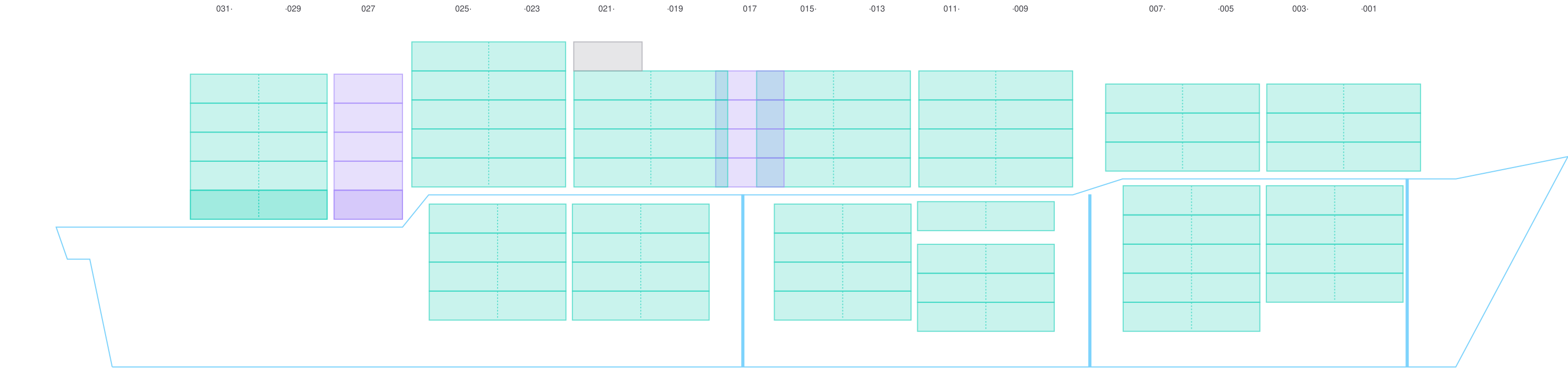

Side View

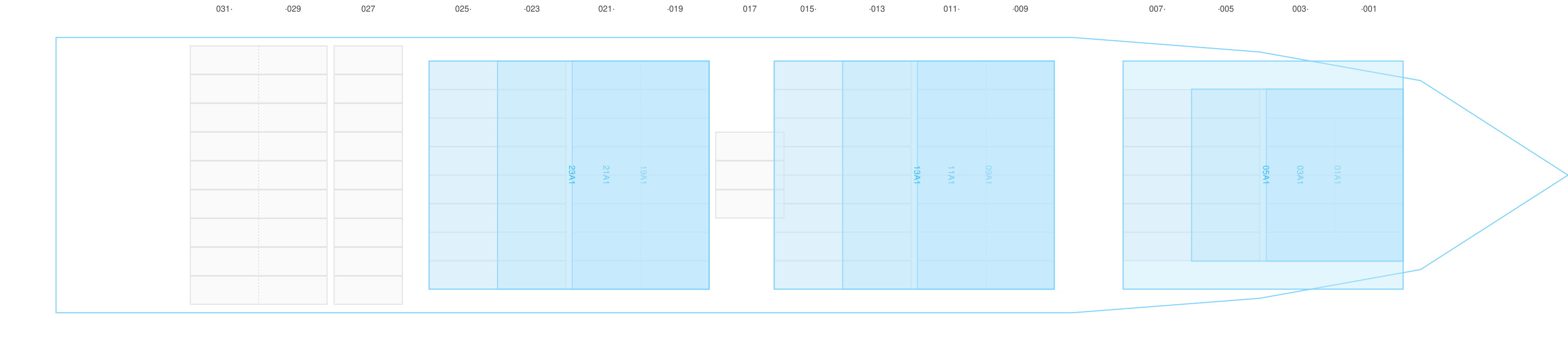

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

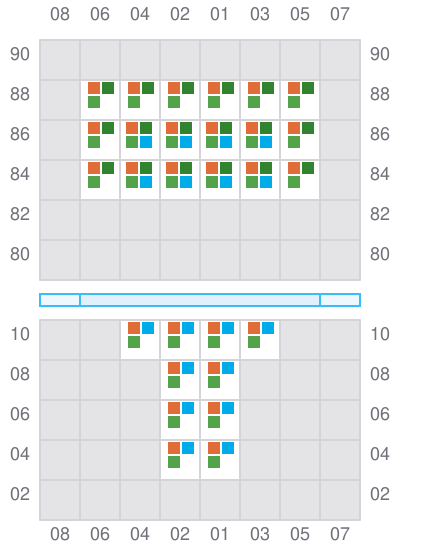

001 (002)
- →
- ←
- →

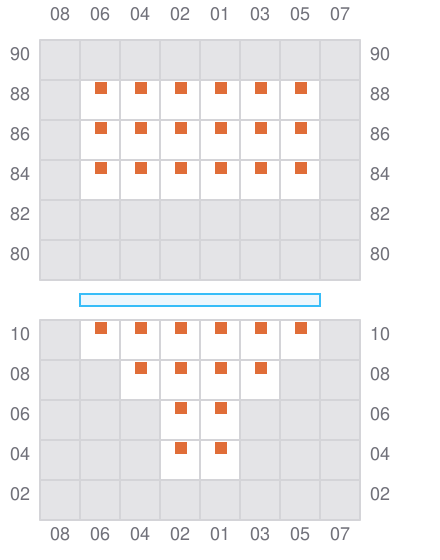

003
- ←
- →

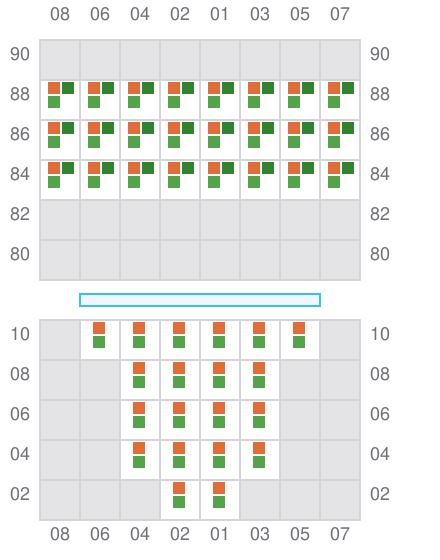

005 (006)
- →
- →

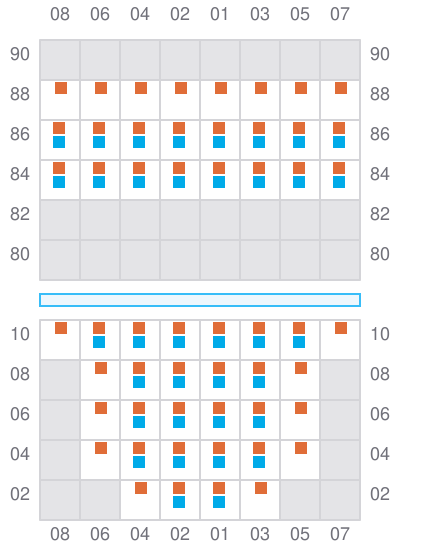

007
- ←
- →
- →

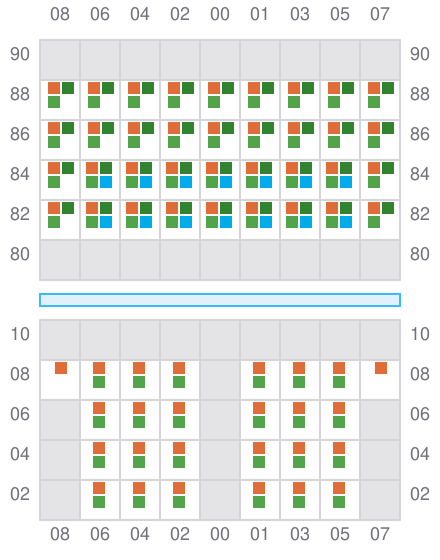

009 (010)
- →
- ← / ?
- →

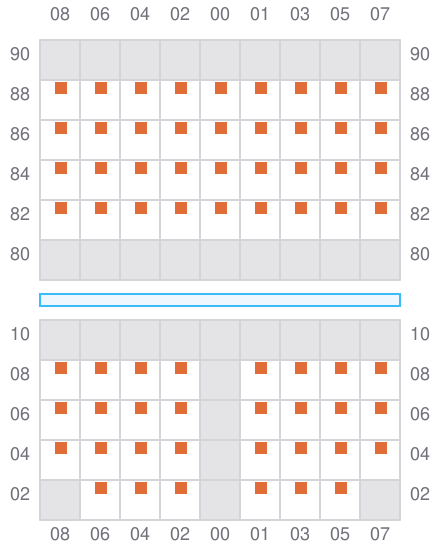

011
- ←
- →

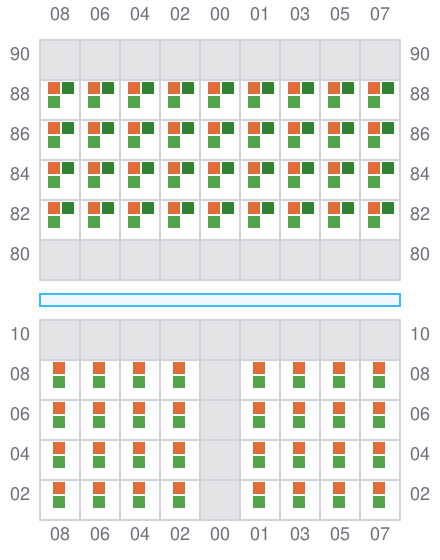

013 (014)
- →
- →

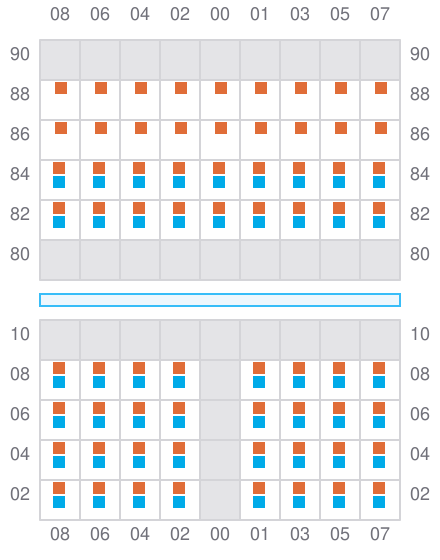

015
- ←
- →
- →

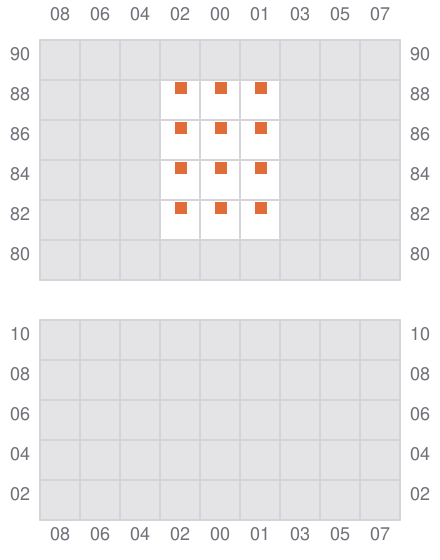

017
- → / ?

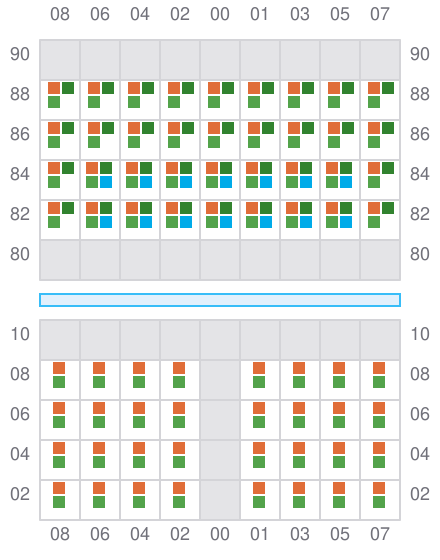

019 (020)
- →
- ← / ?
- →

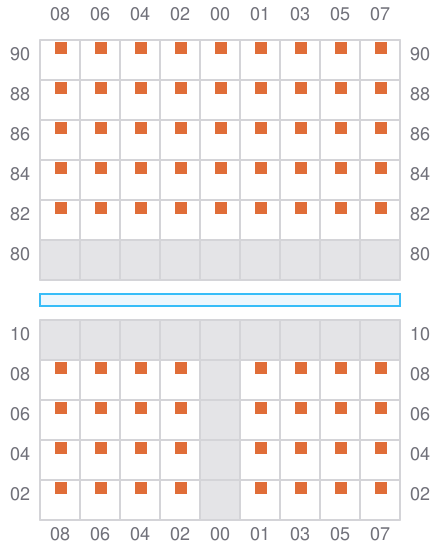

021
- ←
- →

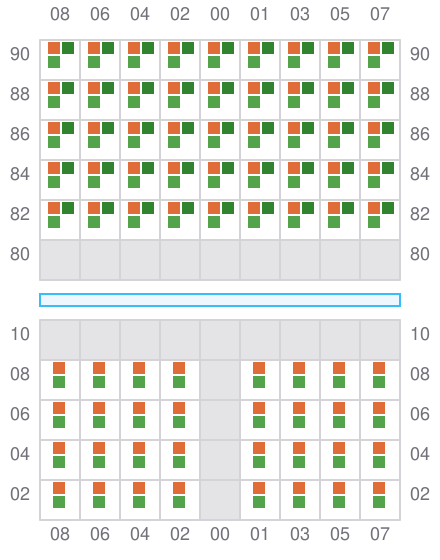

023 (024)
- →
- →

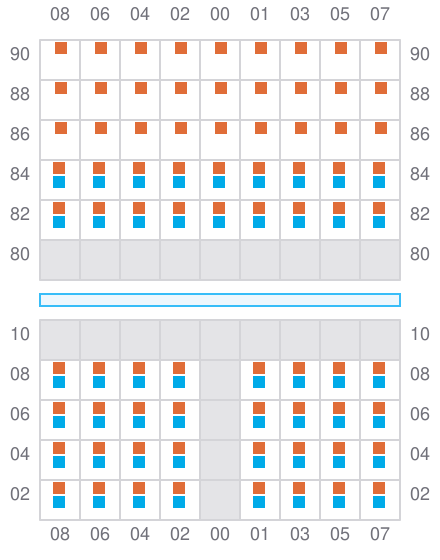

025
- ←
- →
- →

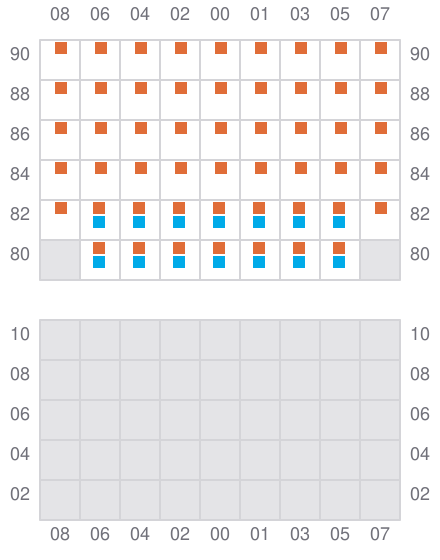

027
- ← / ?
- → / ?

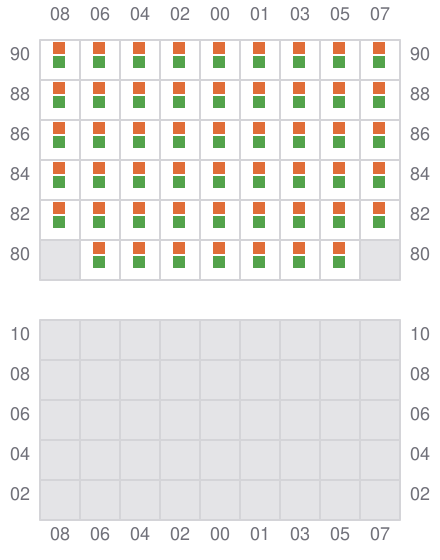

029 (030)
- → / ?
- → / ?

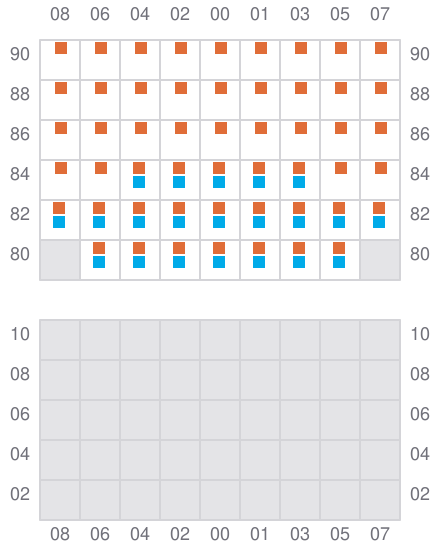

031
- ← / ?
- → / ?
- → / ?
