ELEONORA MAERSK
9321500 | OVXP2 | 9321500 by ********* Last update: Thu Mar 21 2024

General Info

Ship Name:ELEONORA MAERSK

IMO Code:9321500

Call Sign:OVXP2

Line Operator:9321500

Class Name for Sister Ships:MAERSK E

Year Built:2007

Position Format:Bay, Row, Tier

Allowed Containers:20, 40, 45

LPP (LBP):0.00

LOA (Length Overall):-

Stern to AFT PP:-

Features Informed:Standard

Also Known As (old names):-

Size Summary

ISO Bays:089

Max ISO Row:22

Center Line Row:No

Max Above ISO Tier:98

Min Above ISO Tier:82

Max Below ISO Tier:22

Min Below ISO Tier:02

Total TEU:15,788

Centers of Gravity

LCG Values:Known

LCG Data:100%

VCG Values:Known

VCG Data:100%

TCG Values:Known

TCG Data:100%

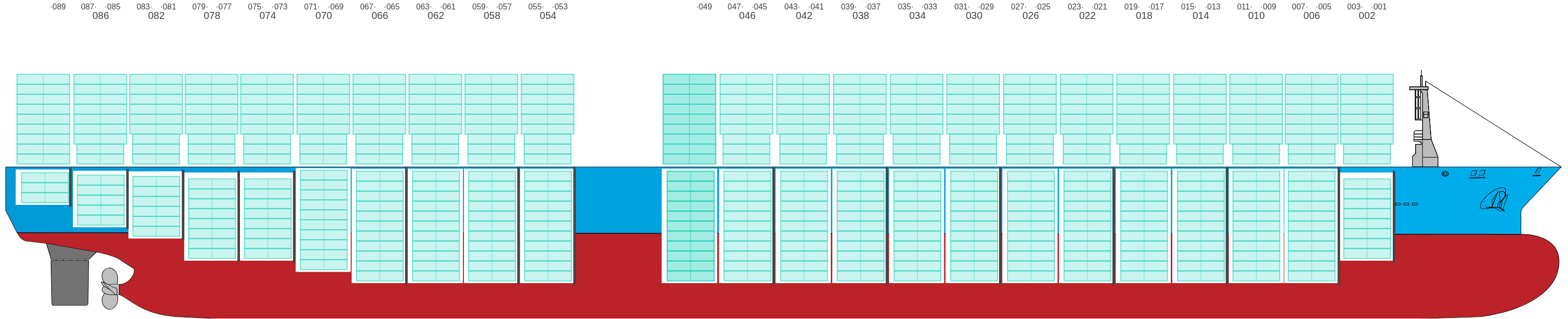

Side View

Side view of ELEONORA MAERSK

Hatch-Covers View

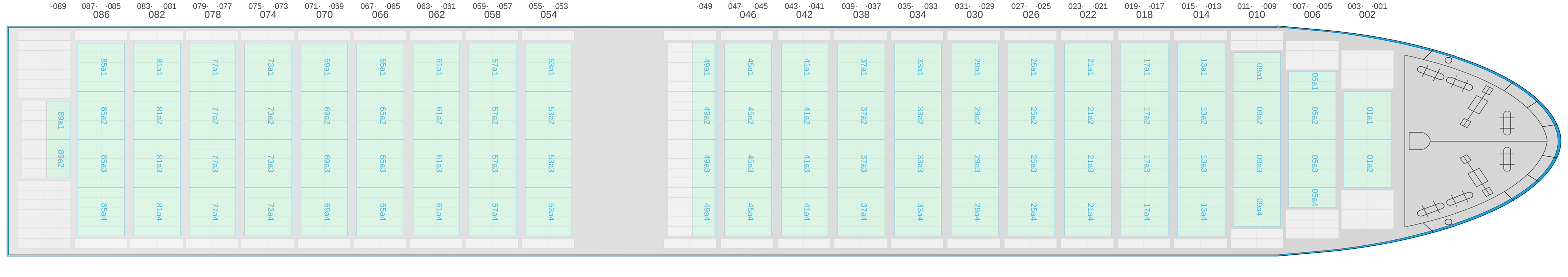

Deck view of ELEONORA MAERSK

ISO Bays

Legend

20'
40'
45'
Reefer
Restricted slot

001 (002)

→

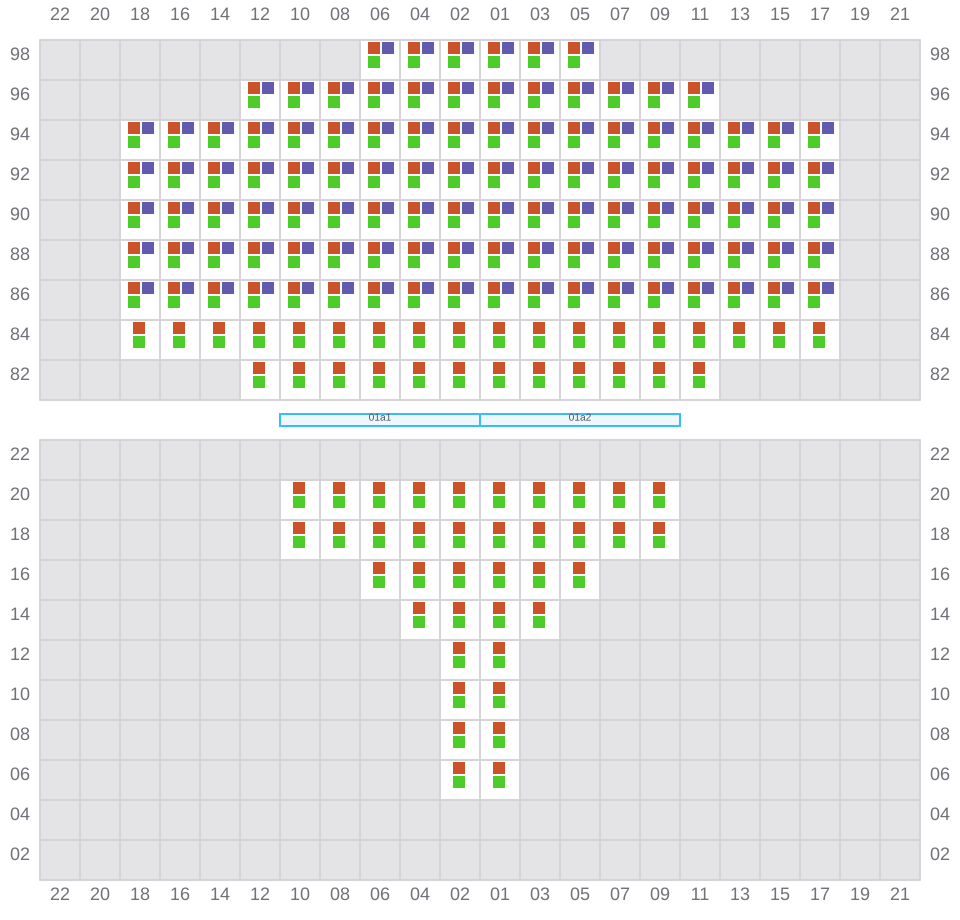

Bay 001 view and slots of ELEONORA MAERSK

003

←

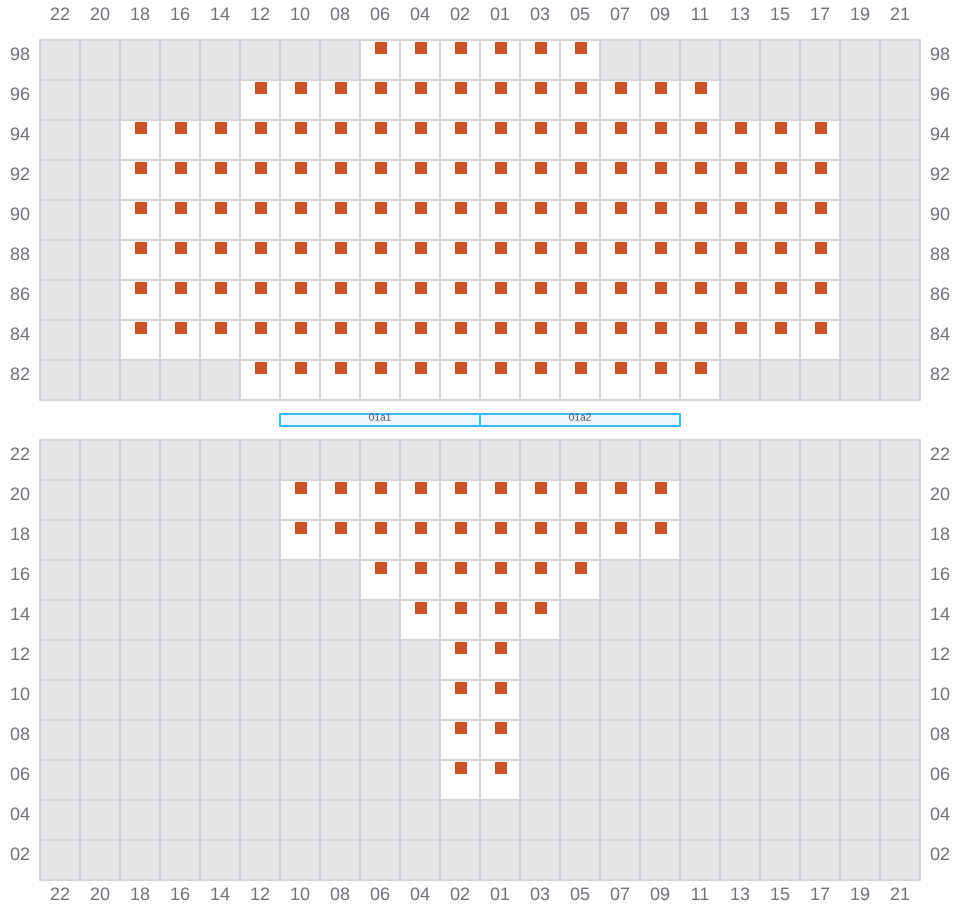

Bay 003 view and slots of ELEONORA MAERSK

005 (006)

→

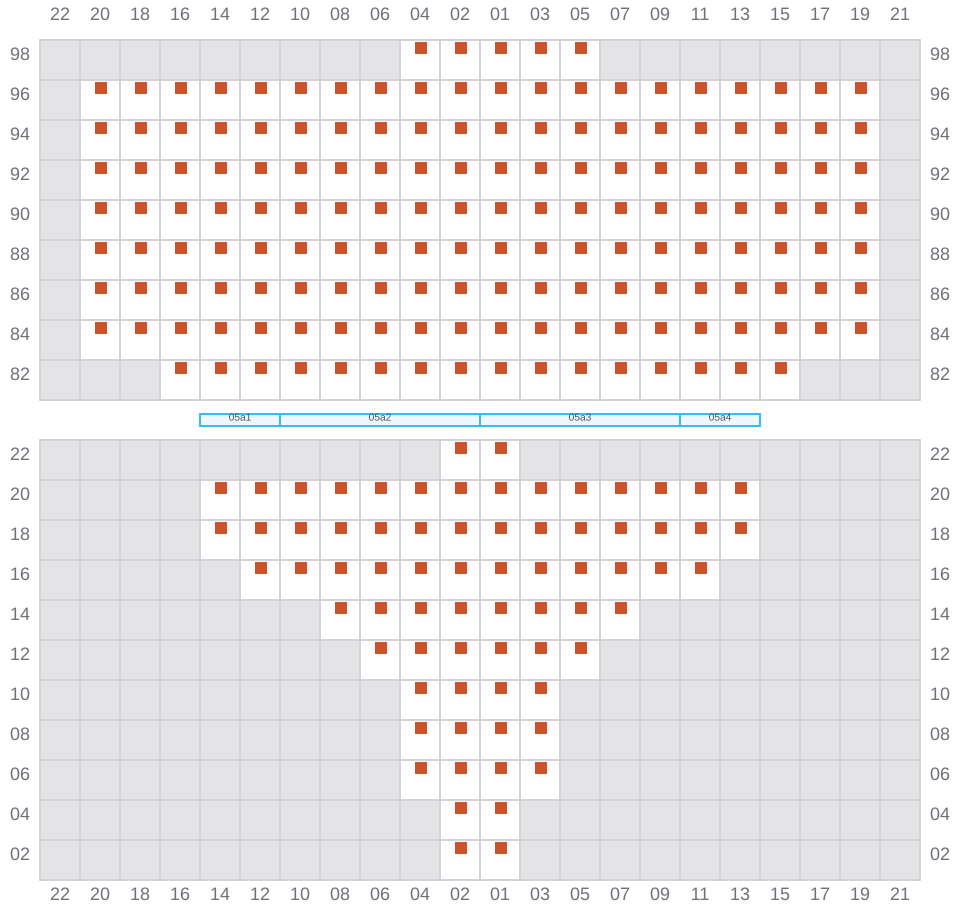

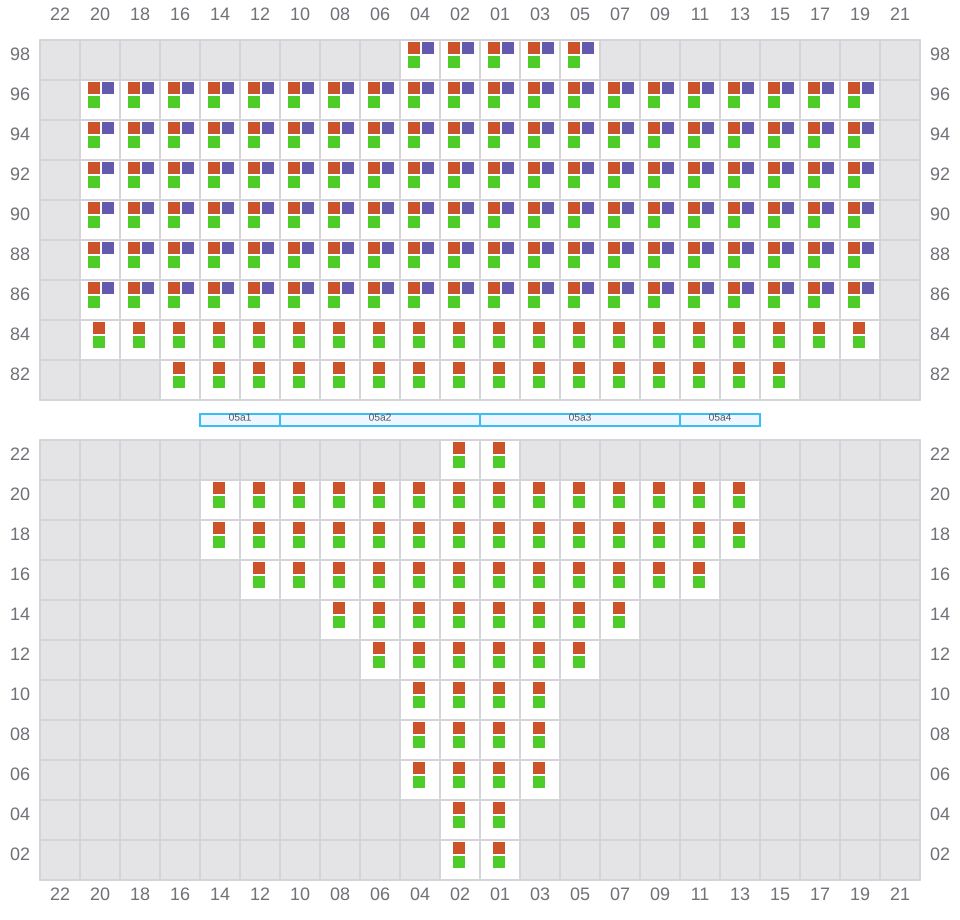

Bay 005 view and slots of ELEONORA MAERSK

007

←

Bay 007 view and slots of ELEONORA MAERSK

009 (010)

→

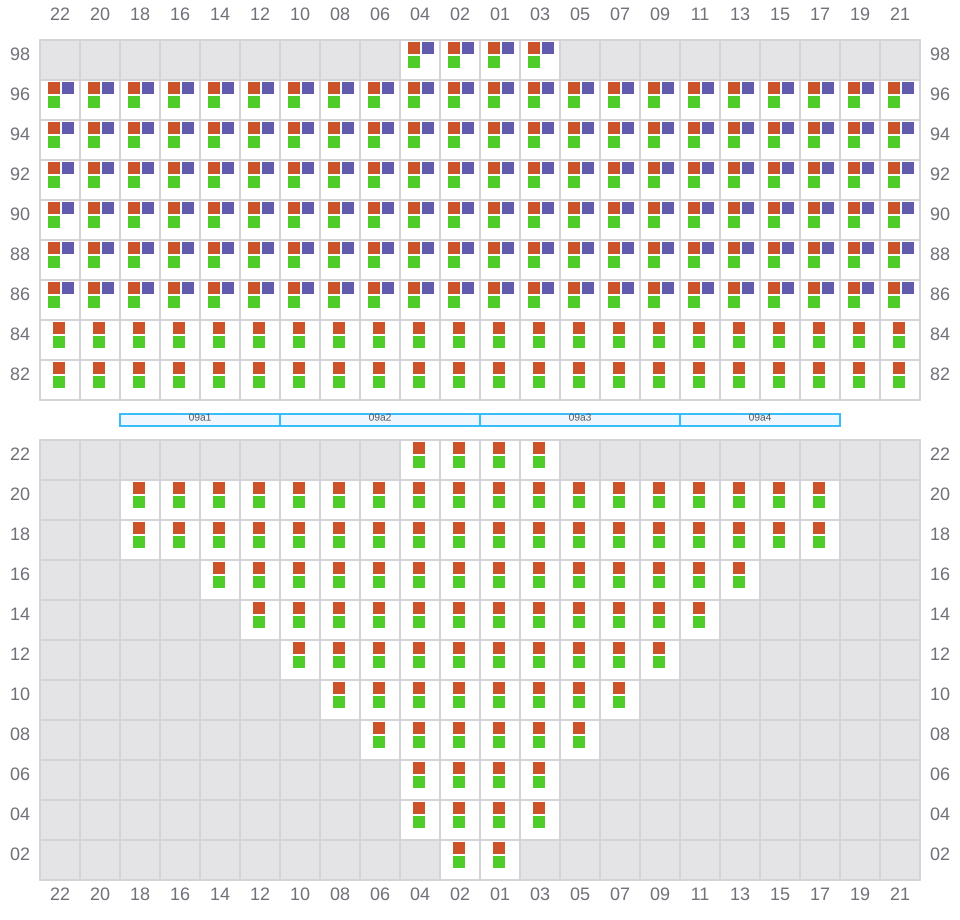

Bay 009 view and slots of ELEONORA MAERSK

011

←

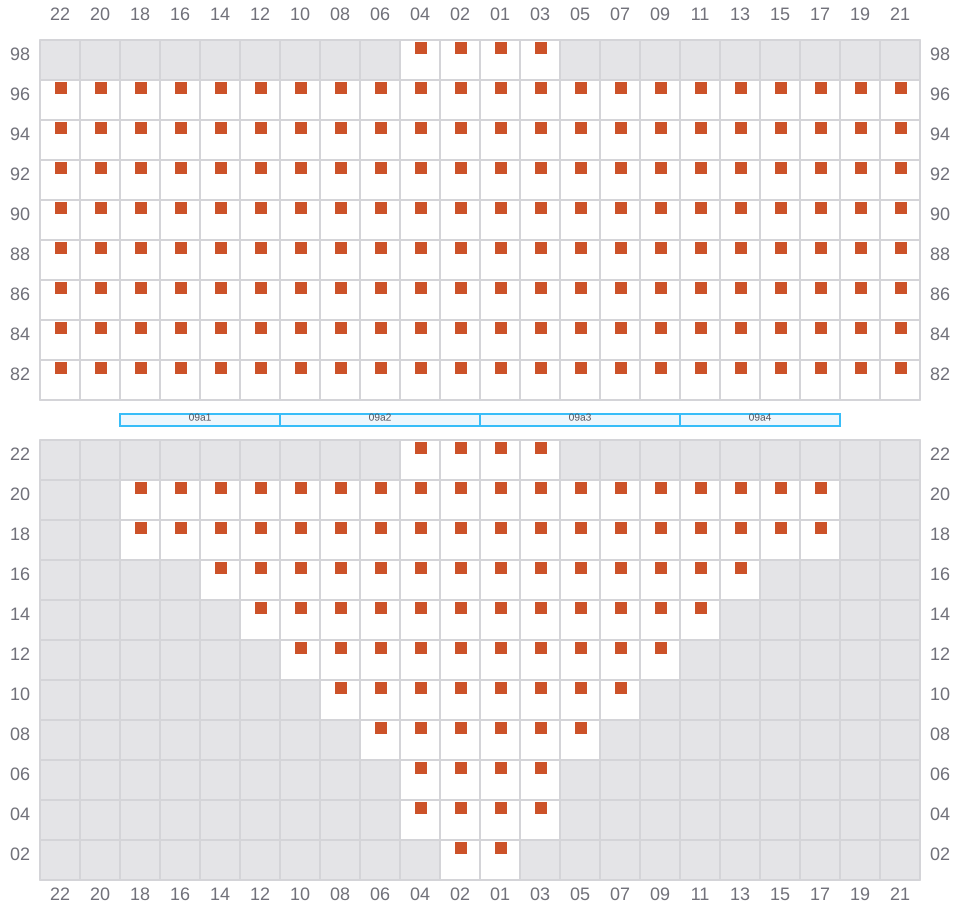

Bay 011 view and slots of ELEONORA MAERSK

013 (014)

→

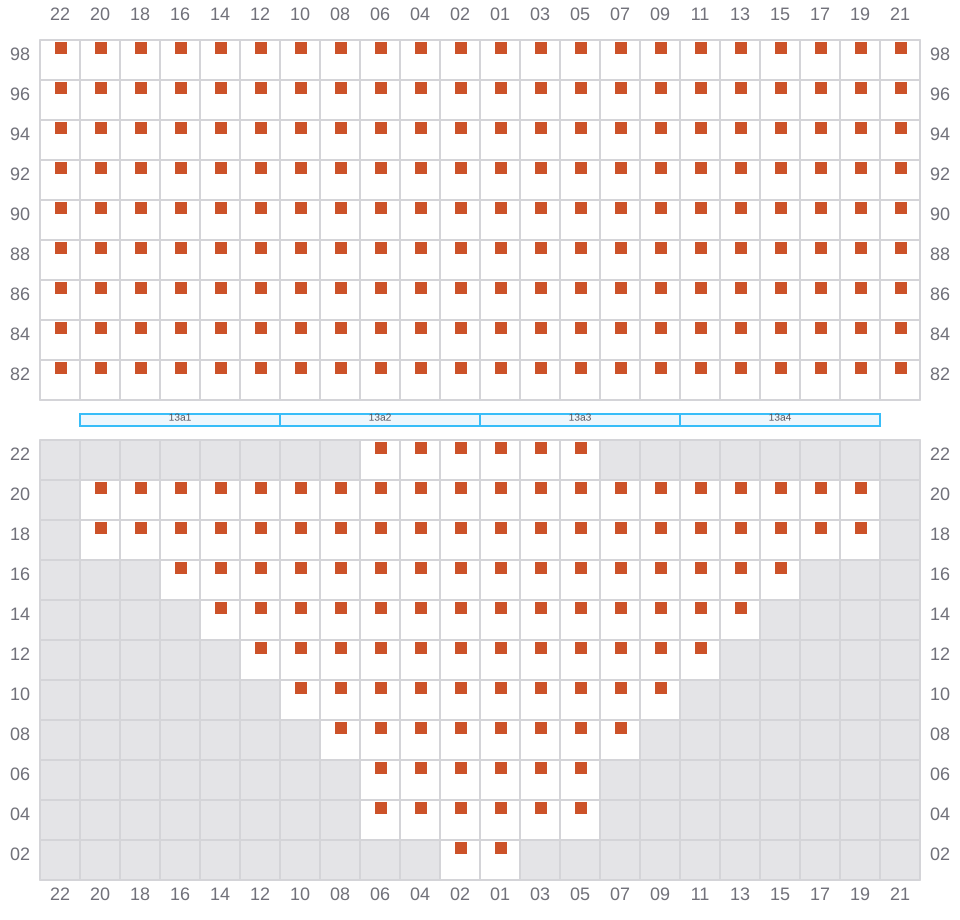

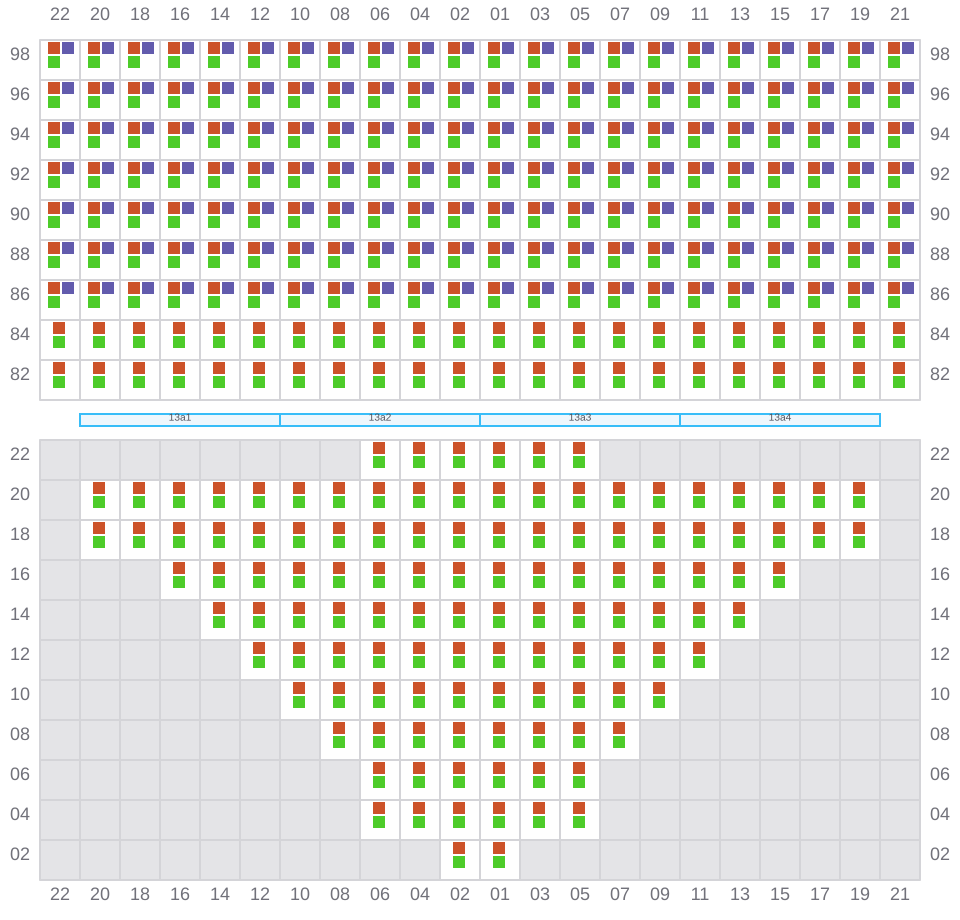

Bay 013 view and slots of ELEONORA MAERSK

015

←

Bay 015 view and slots of ELEONORA MAERSK

017 (018)

→
^? / _←

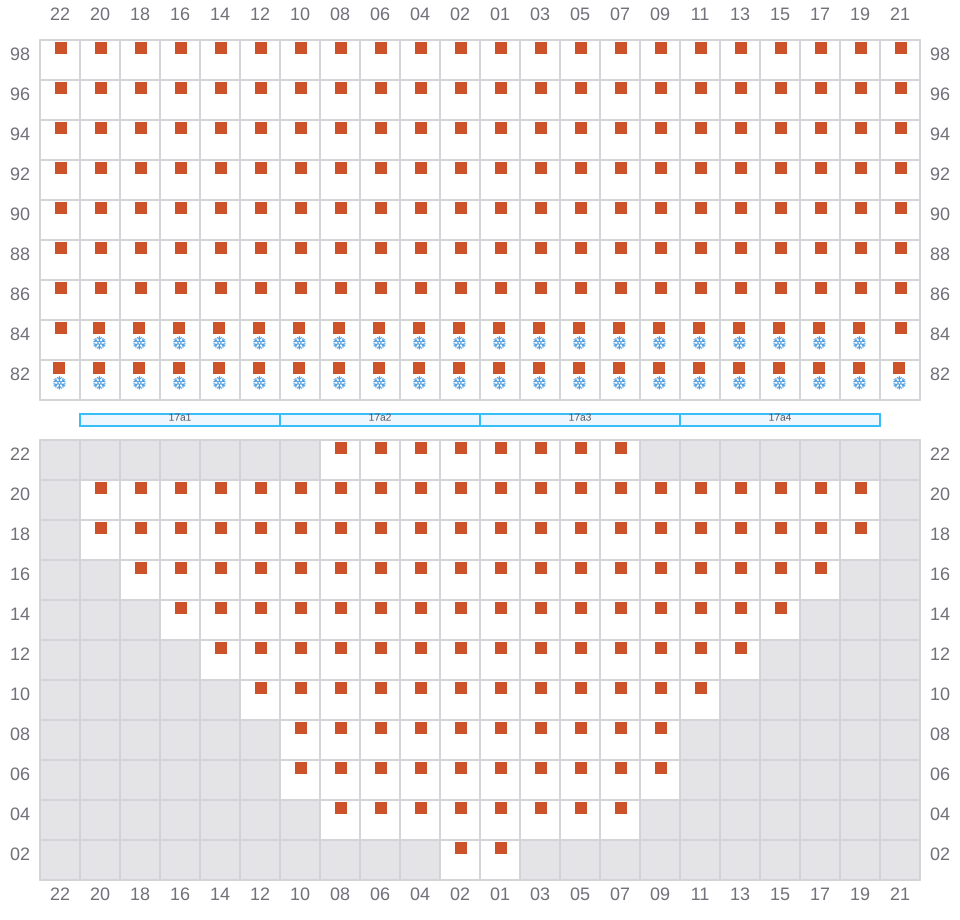

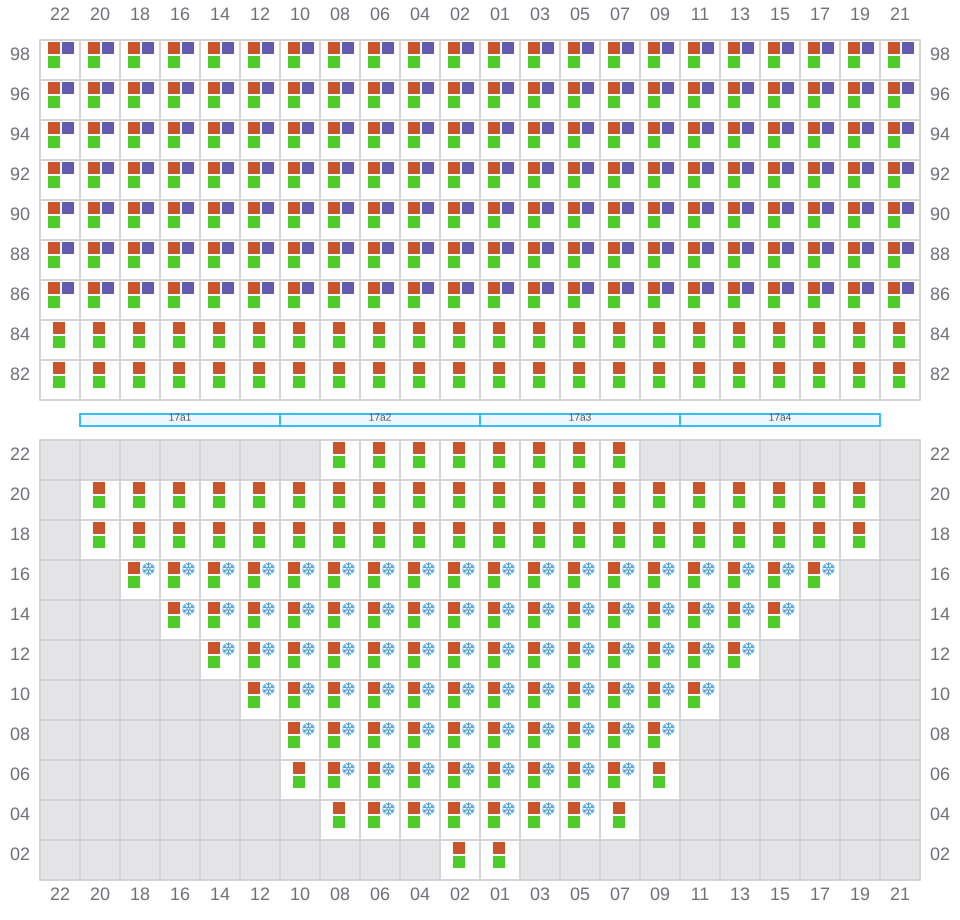

Bay 017 view and slots of ELEONORA MAERSK

019

←
^→ / _?

Bay 019 view and slots of ELEONORA MAERSK

021 (022)

→

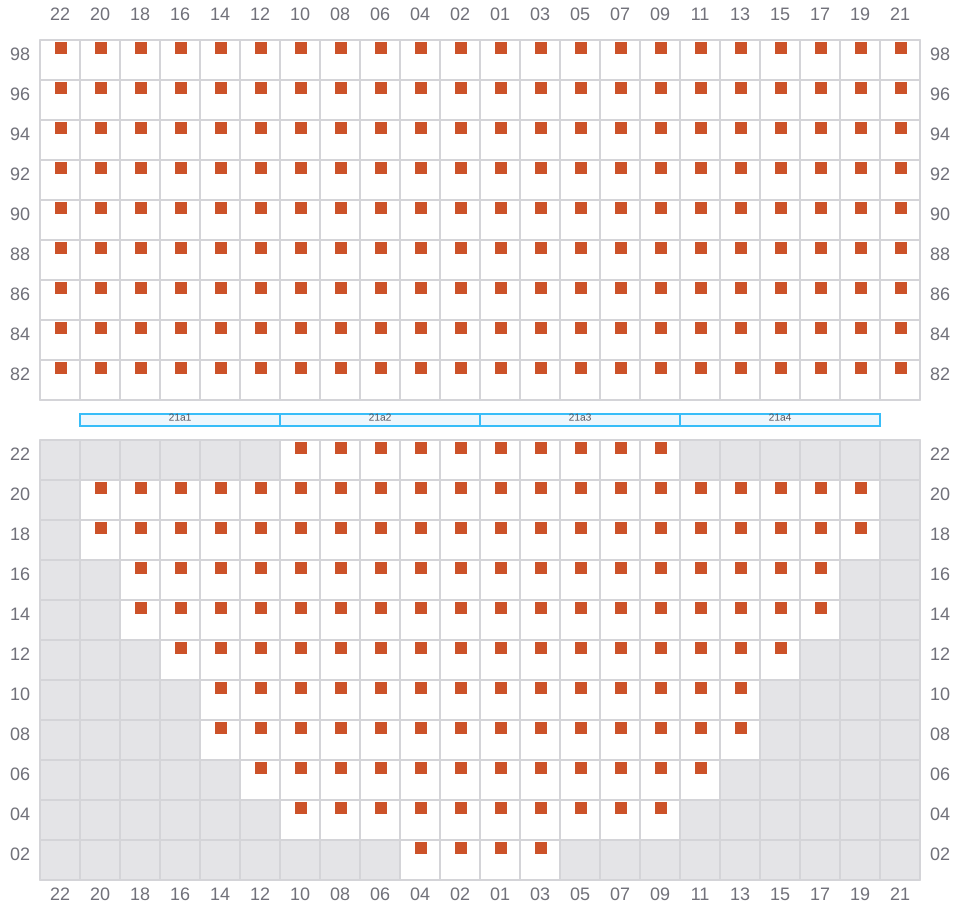

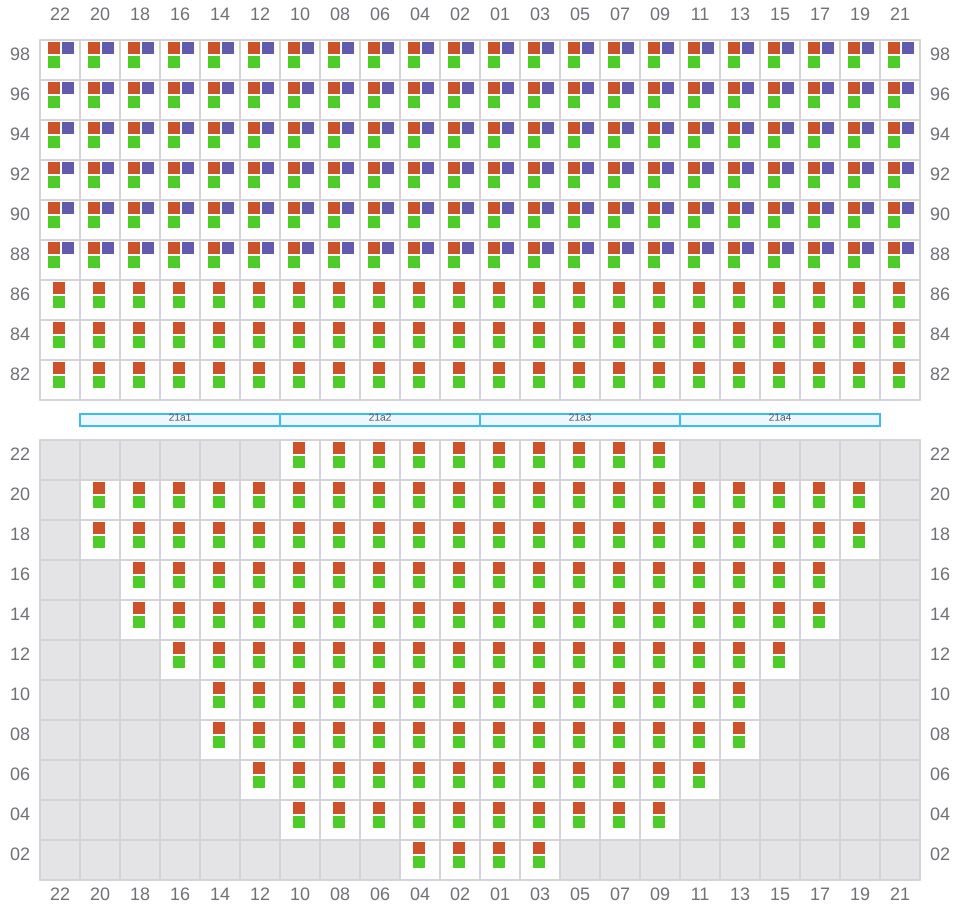

Bay 021 view and slots of ELEONORA MAERSK

023

←

Bay 023 view and slots of ELEONORA MAERSK

025 (026)

→
^? / _←

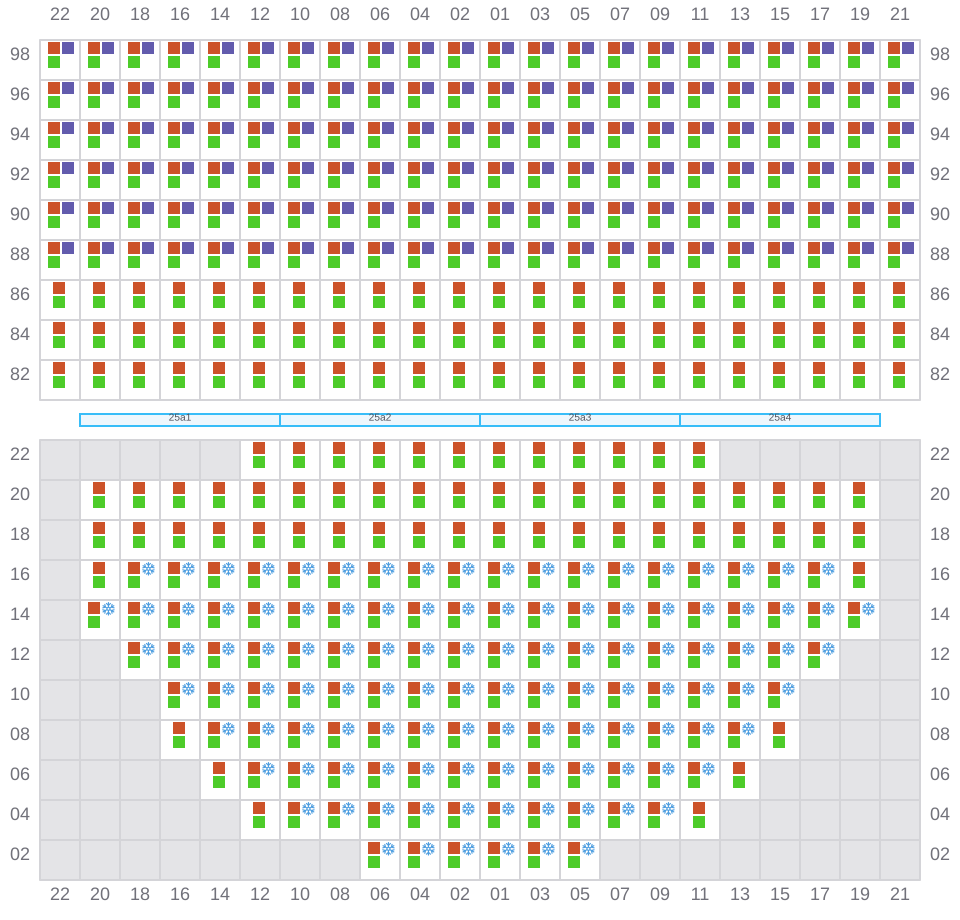

Bay 025 view and slots of ELEONORA MAERSK

027

←
^→ / _?

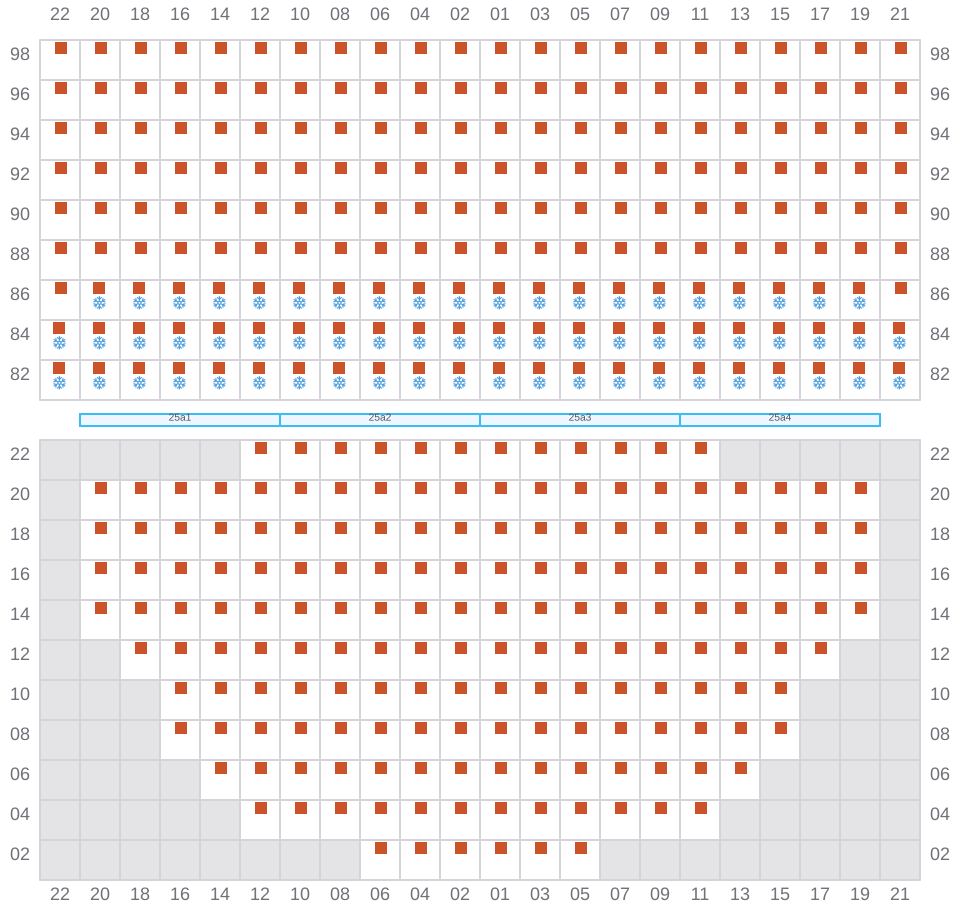

Bay 027 view and slots of ELEONORA MAERSK

029 (030)

→

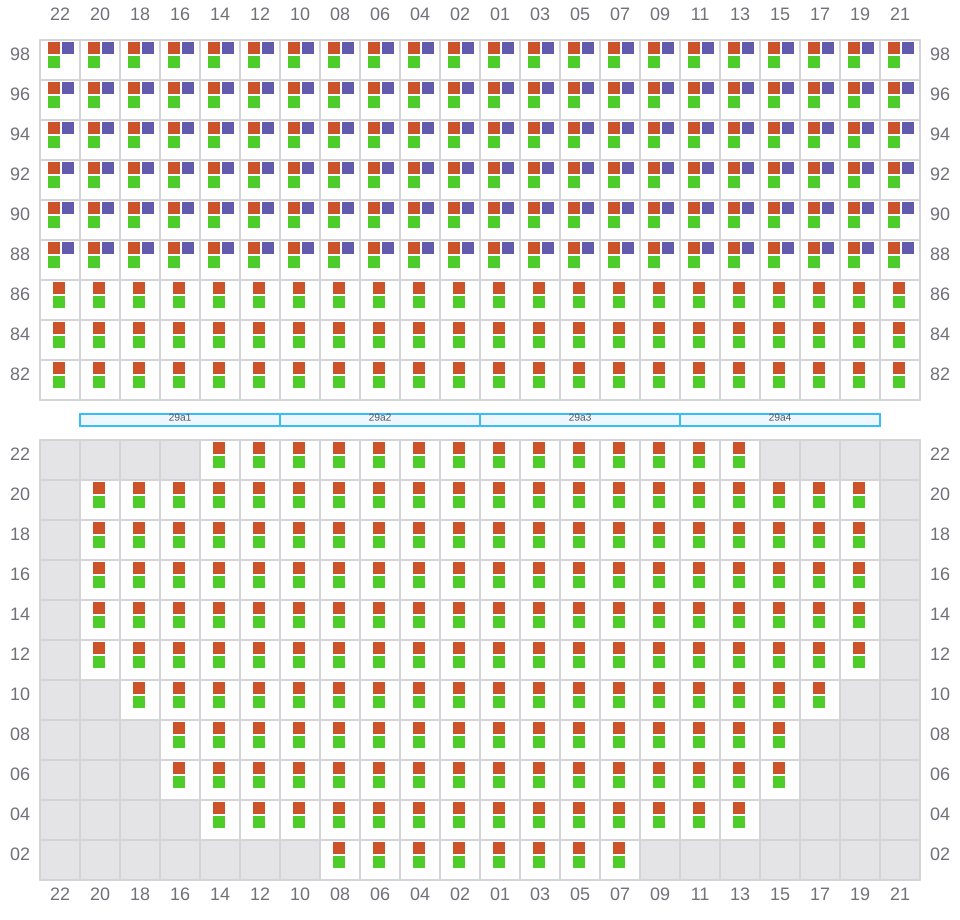

Bay 029 view and slots of ELEONORA MAERSK

031

←
^→ / _?

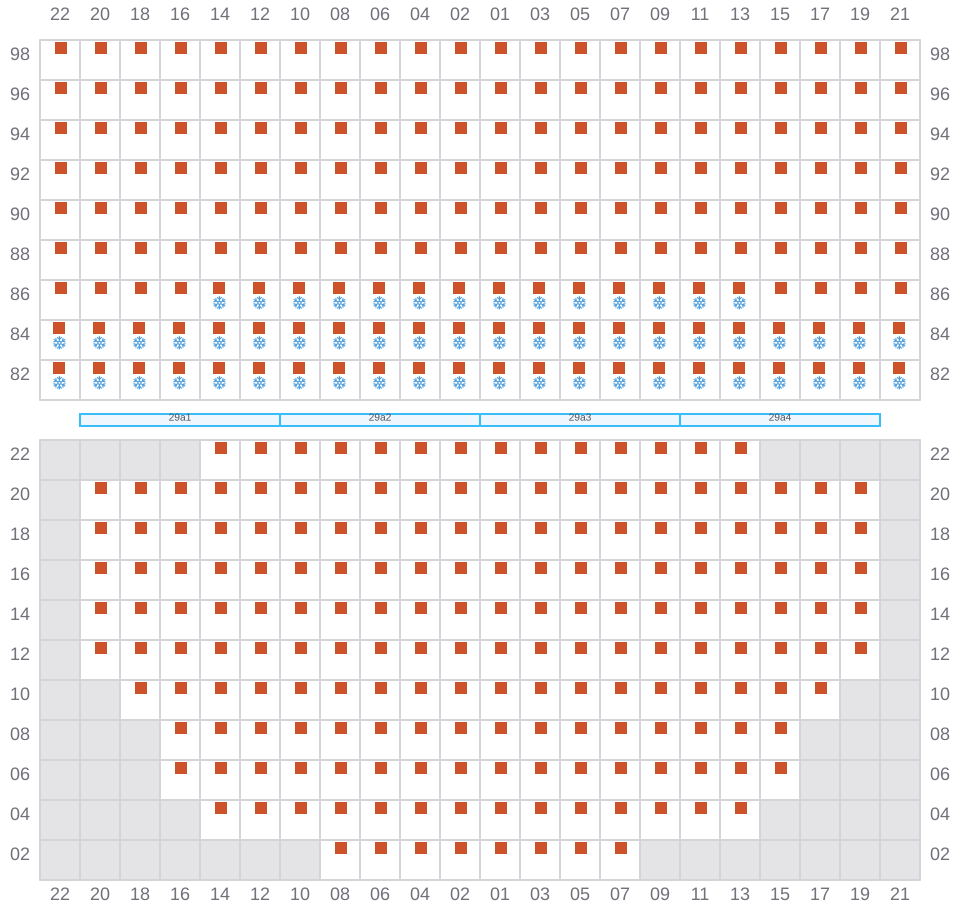

Bay 031 view and slots of ELEONORA MAERSK

033 (034)

→
^? / _←

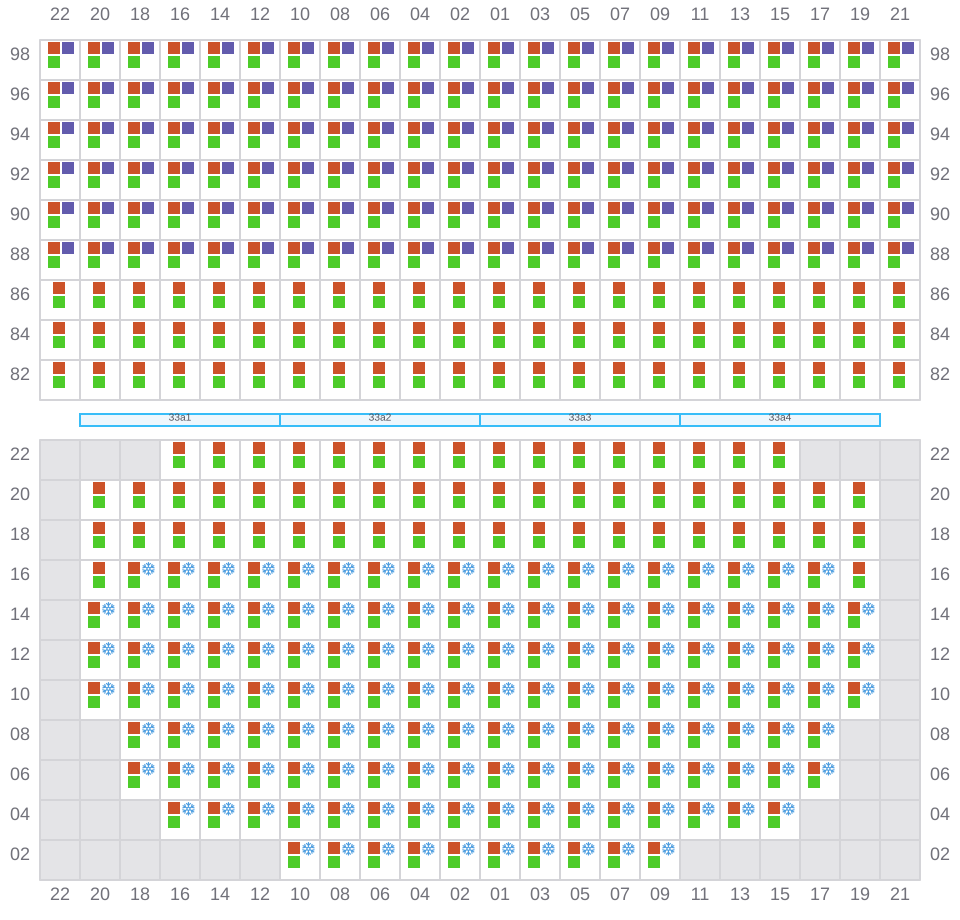

Bay 033 view and slots of ELEONORA MAERSK

035

←
^→ / _?

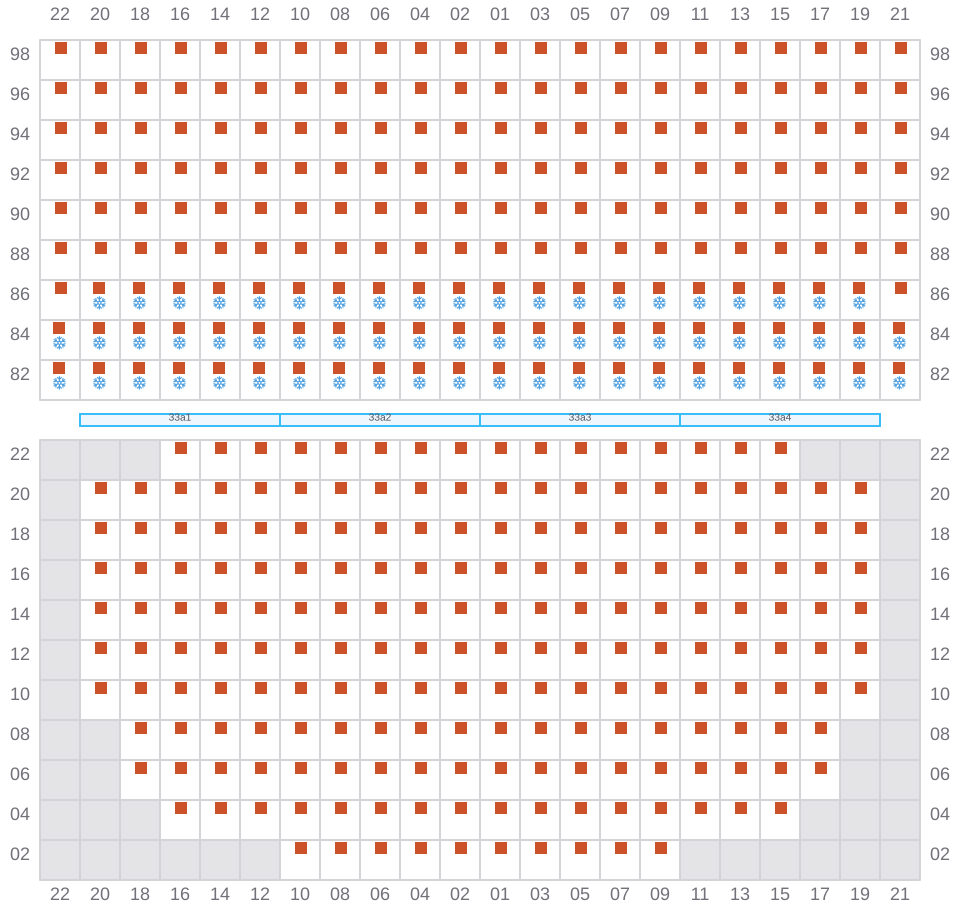

Bay 035 view and slots of ELEONORA MAERSK

037 (038)

→

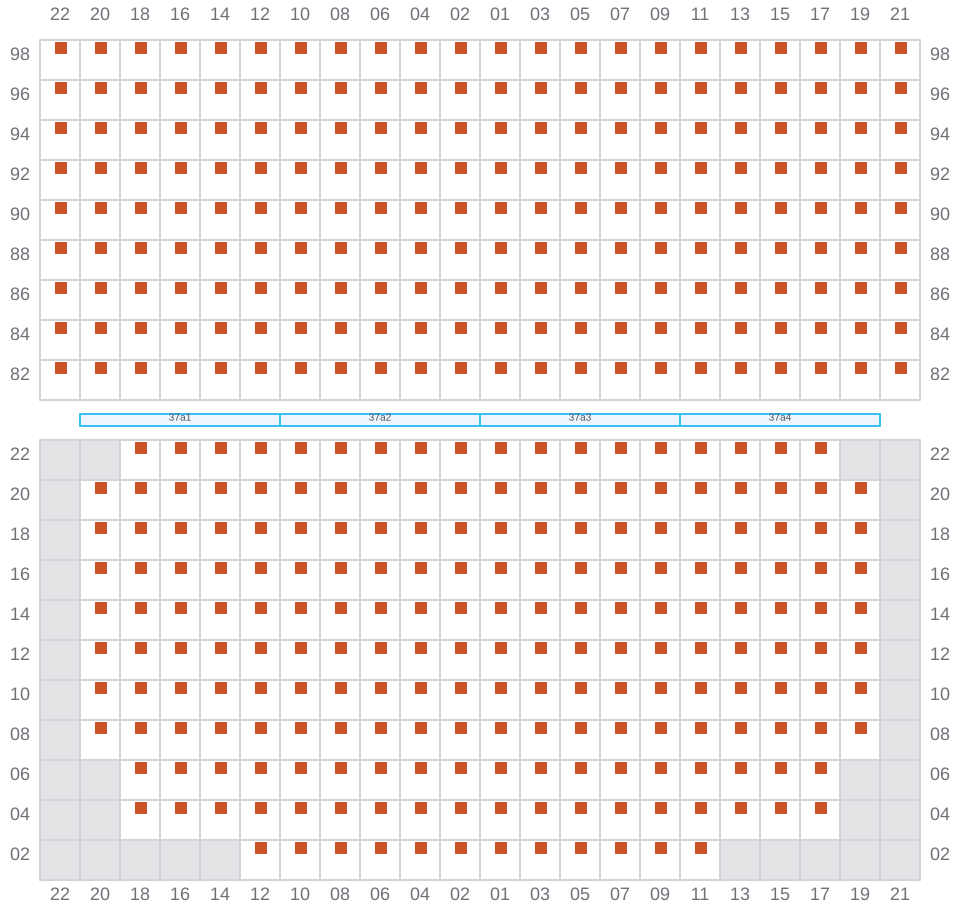

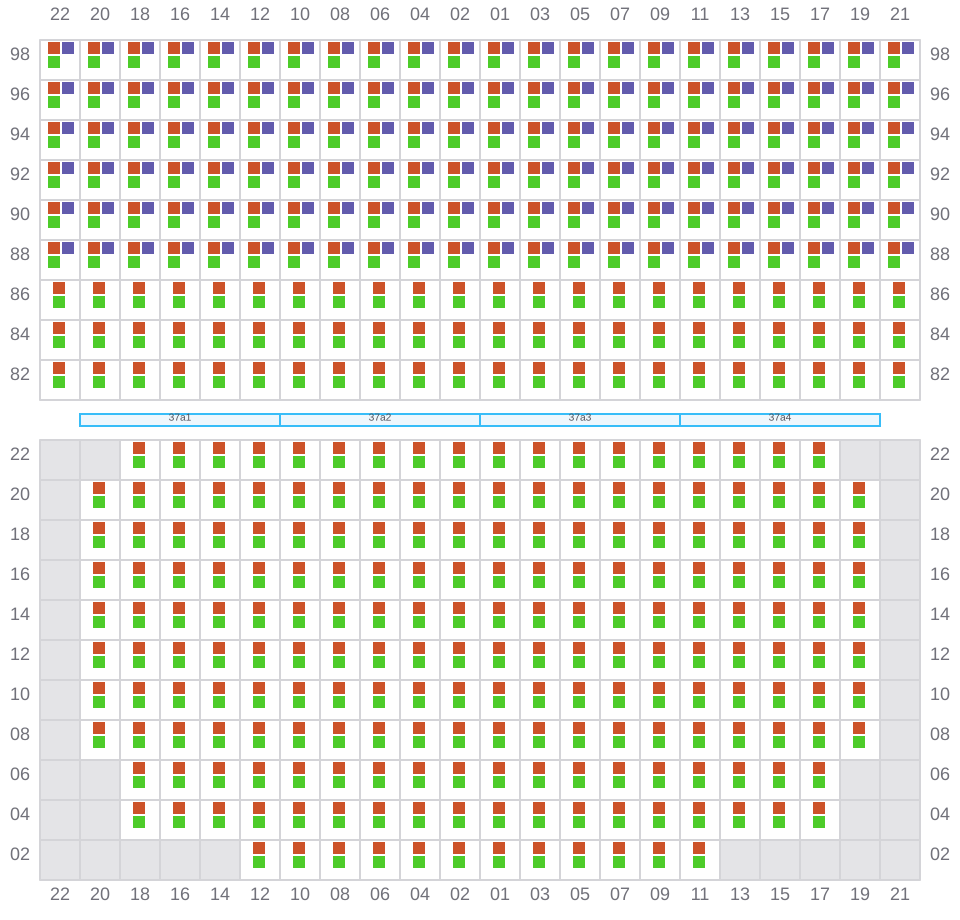

Bay 037 view and slots of ELEONORA MAERSK

039

←

Bay 039 view and slots of ELEONORA MAERSK

041 (042)

→

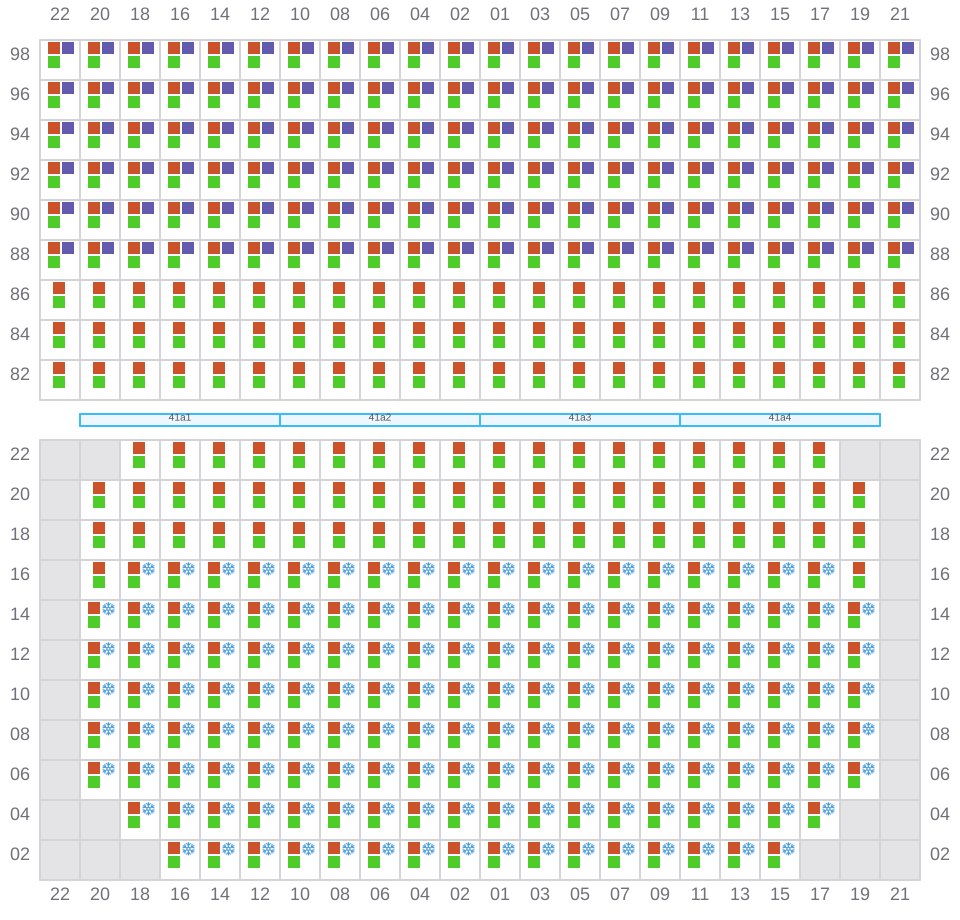

Bay 041 view and slots of ELEONORA MAERSK

043

←
^→ / _?

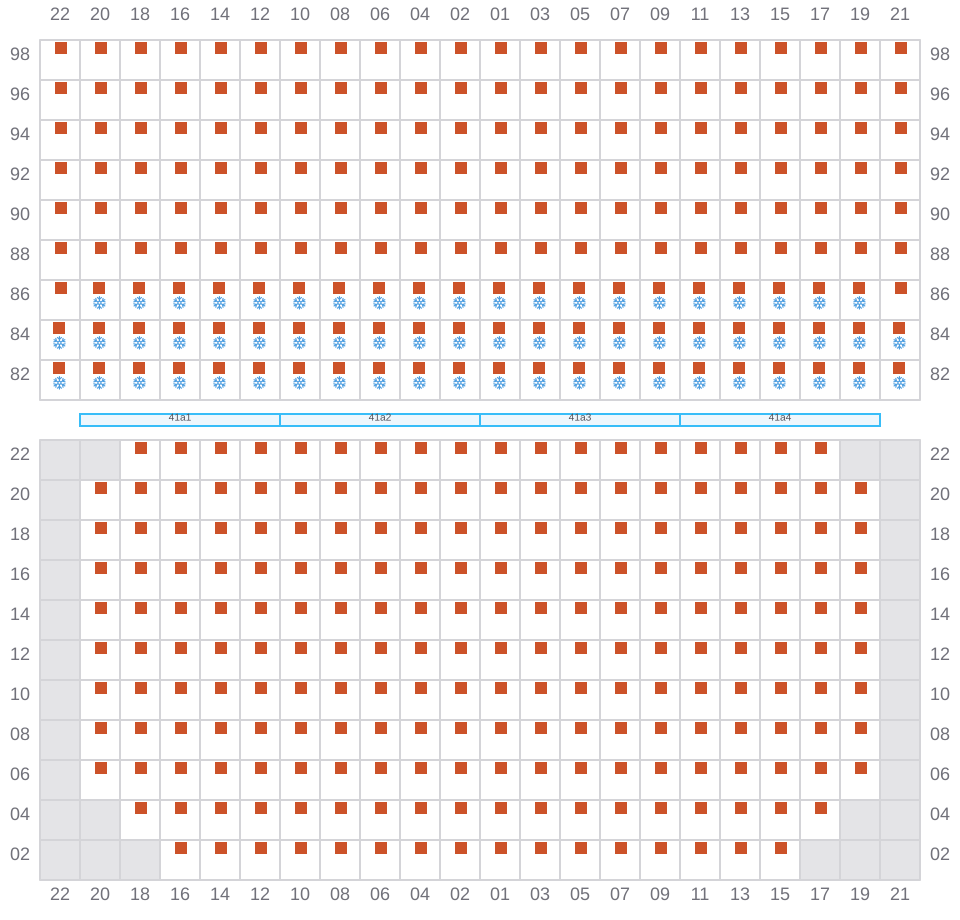

Bay 043 view and slots of ELEONORA MAERSK

045 (046)

→

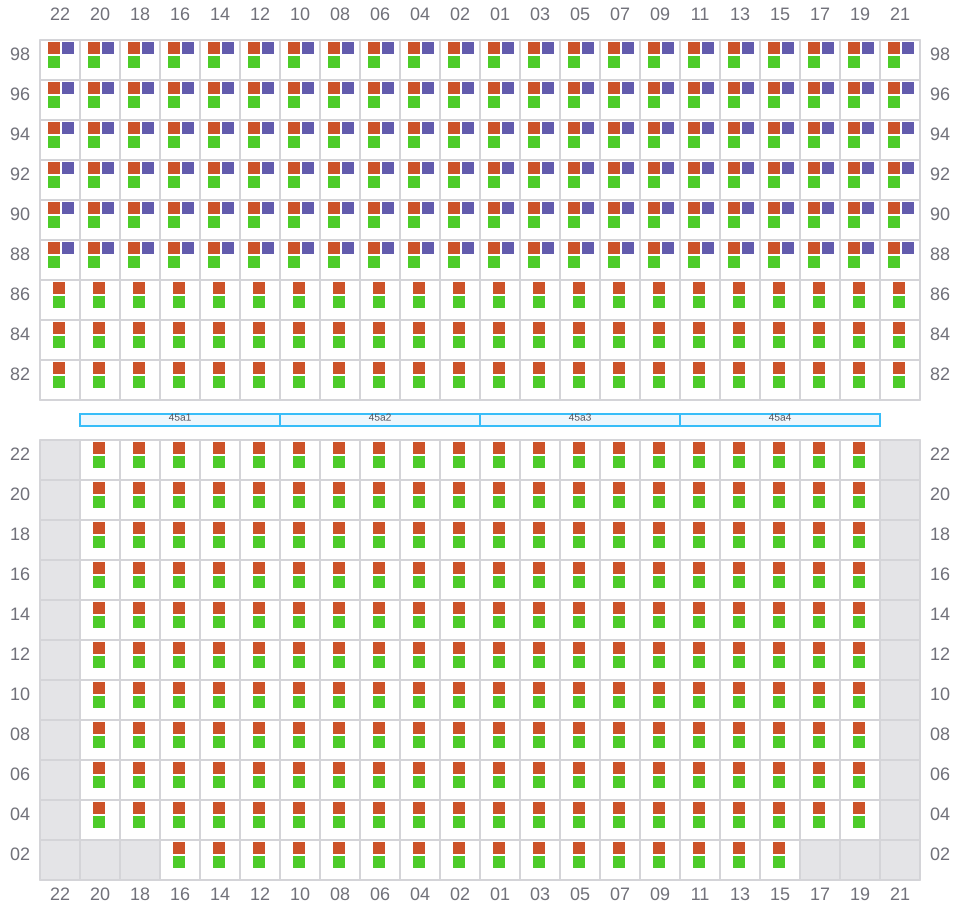

Bay 045 view and slots of ELEONORA MAERSK

047

←
^→ / _?

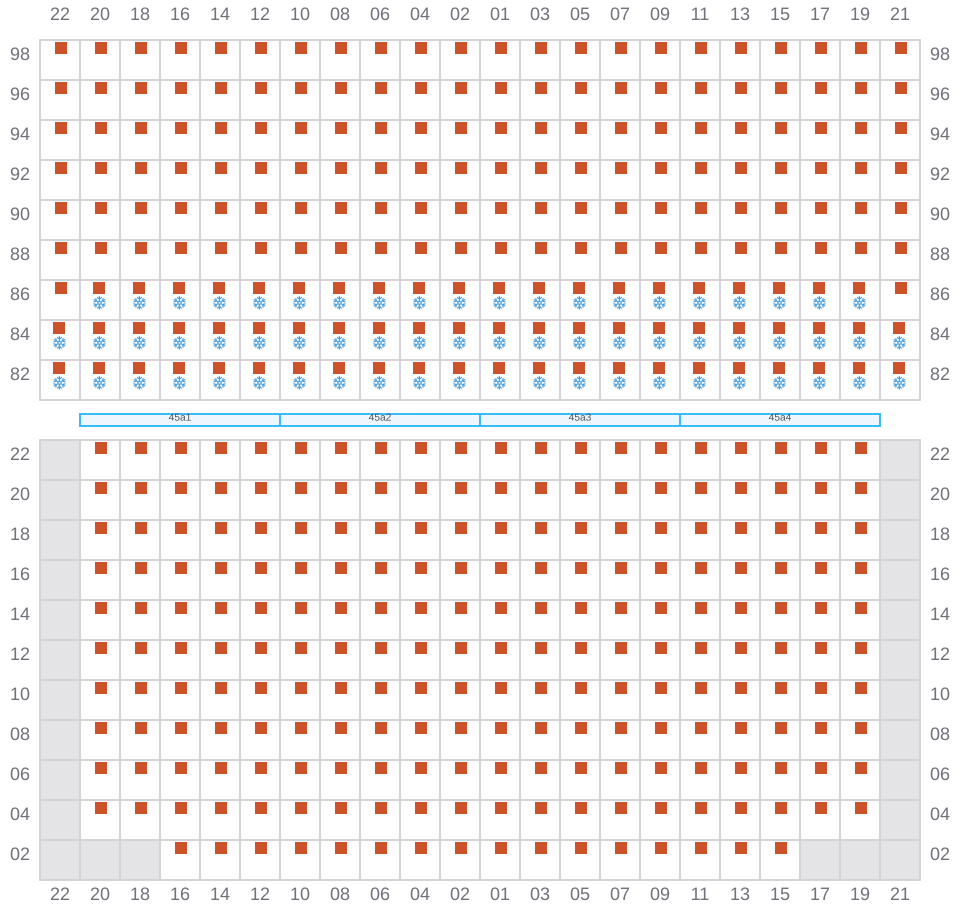

Bay 047 view and slots of ELEONORA MAERSK

049 (050)

→
^? / _←

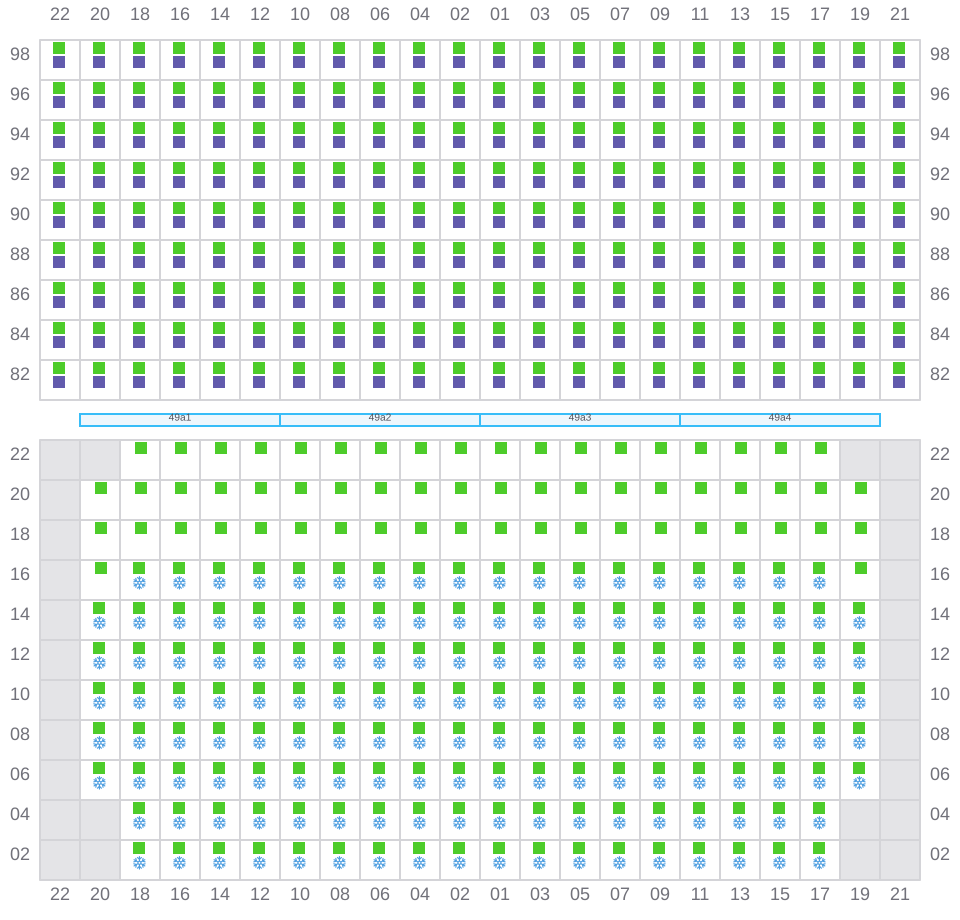

Bay 049 view and slots of ELEONORA MAERSK

051

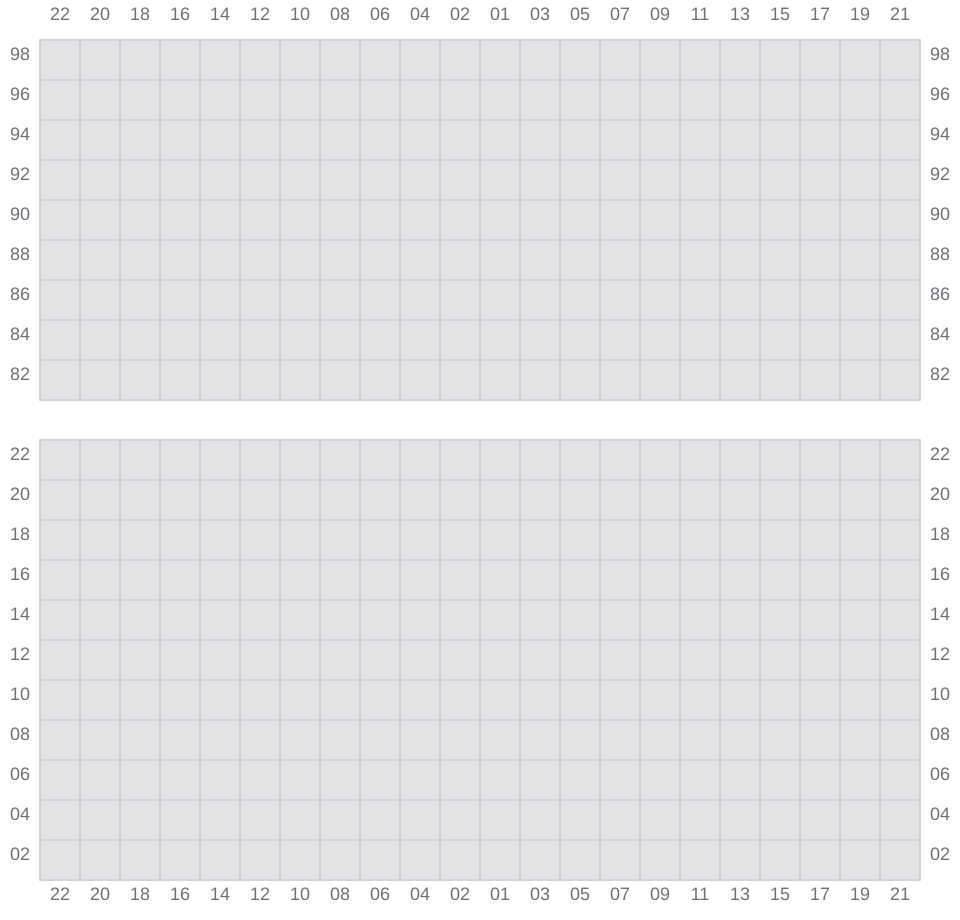

Bay 051 view and slots of ELEONORA MAERSK

053 (054)

→

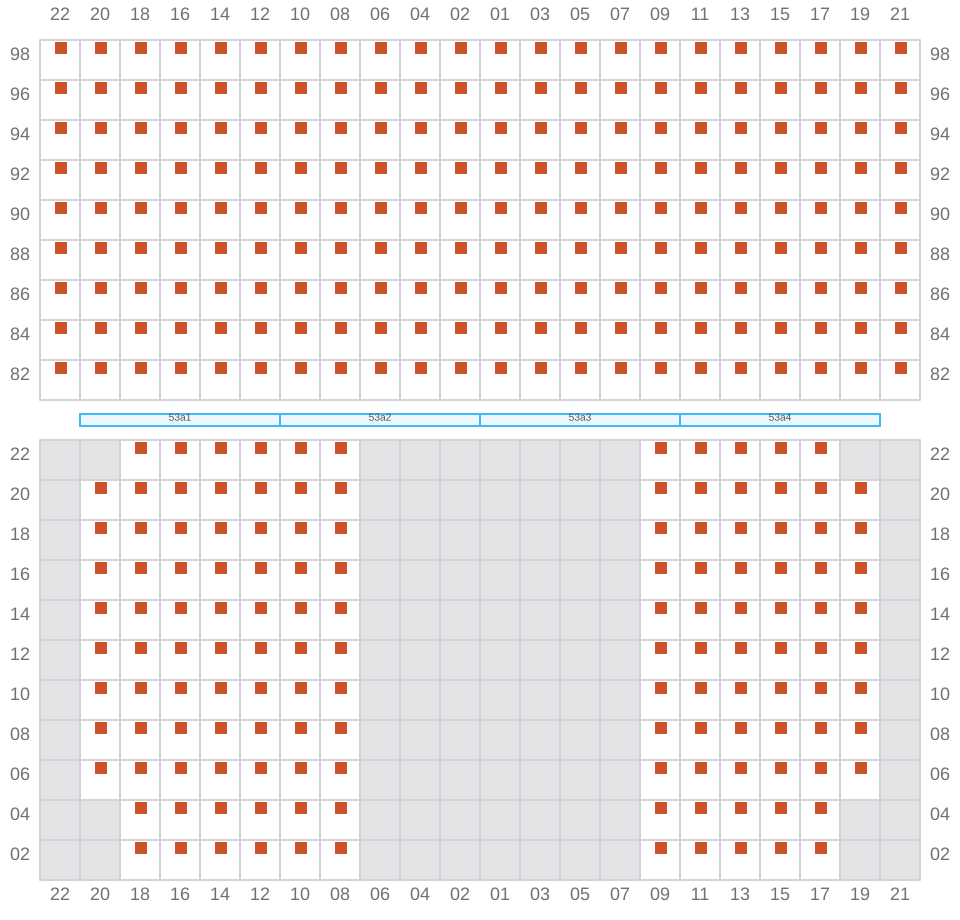

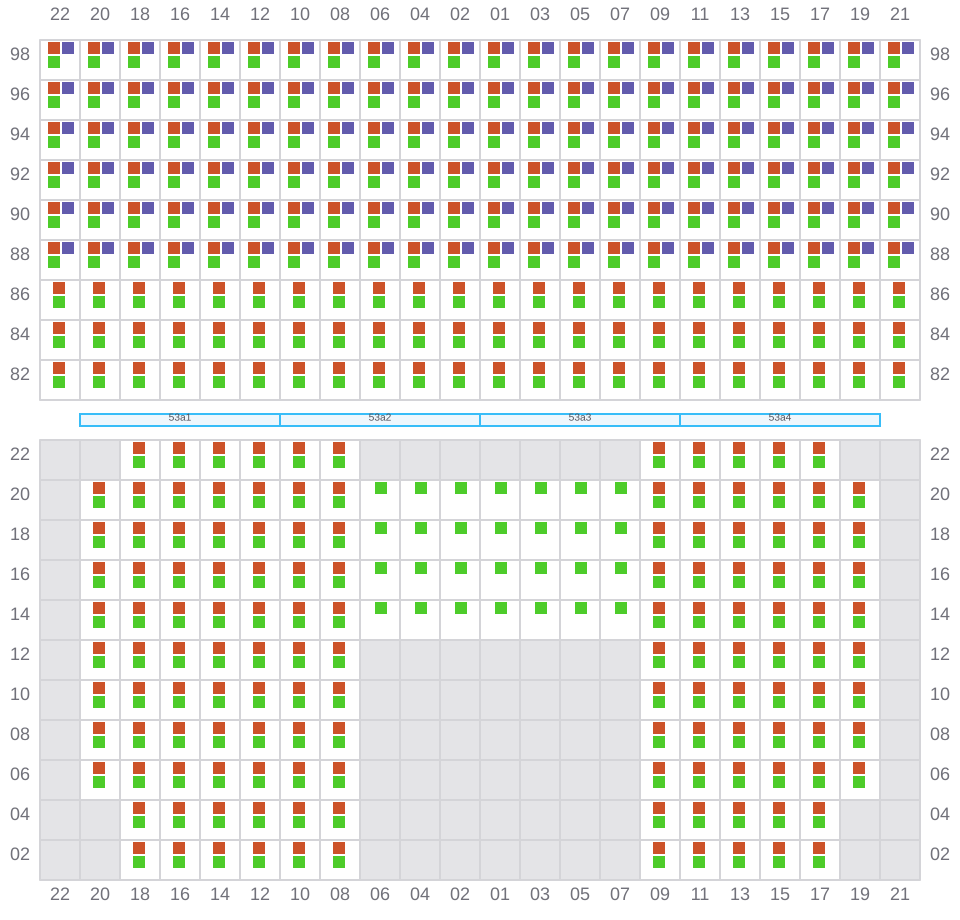

Bay 053 view and slots of ELEONORA MAERSK

055

←

Bay 055 view and slots of ELEONORA MAERSK

057 (058)

→

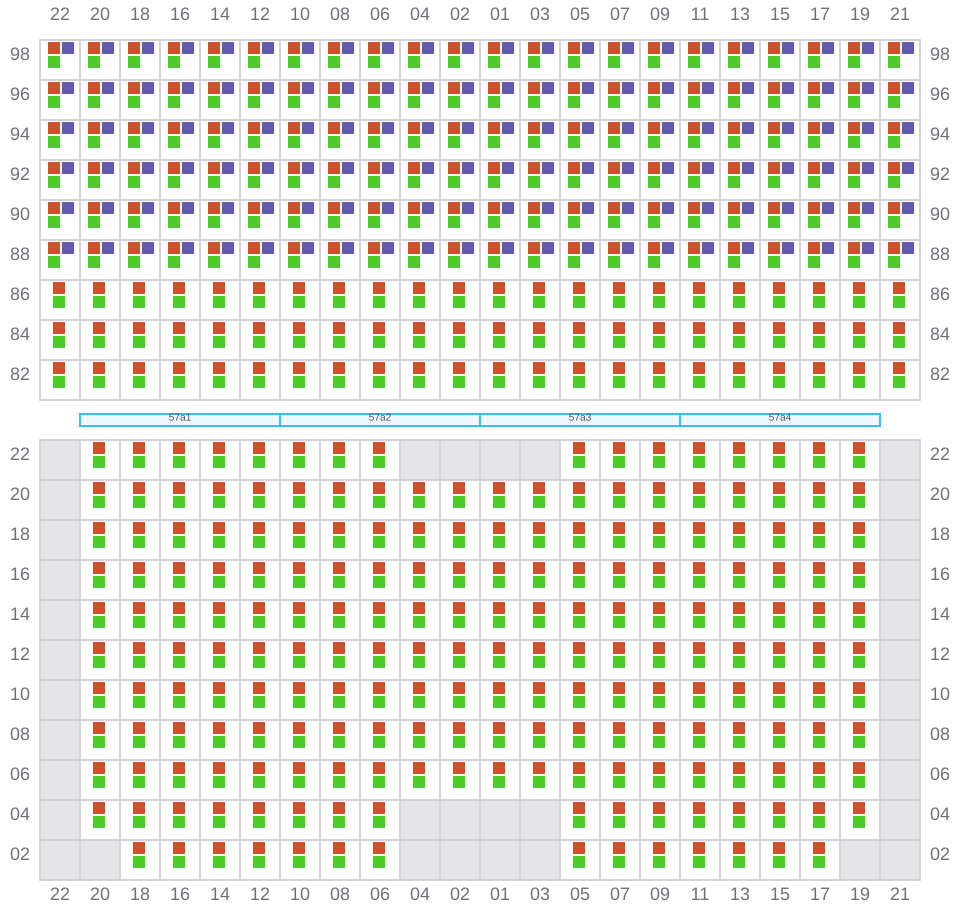

Bay 057 view and slots of ELEONORA MAERSK

059

←

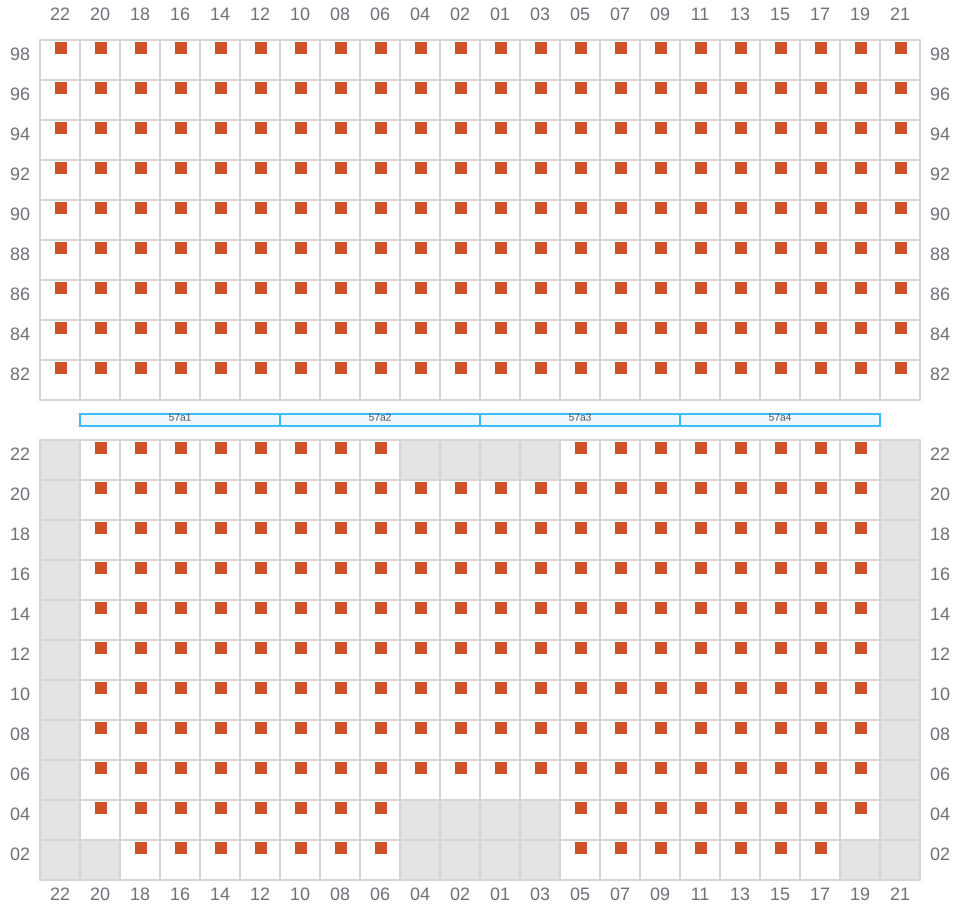

Bay 059 view and slots of ELEONORA MAERSK

061 (062)

→

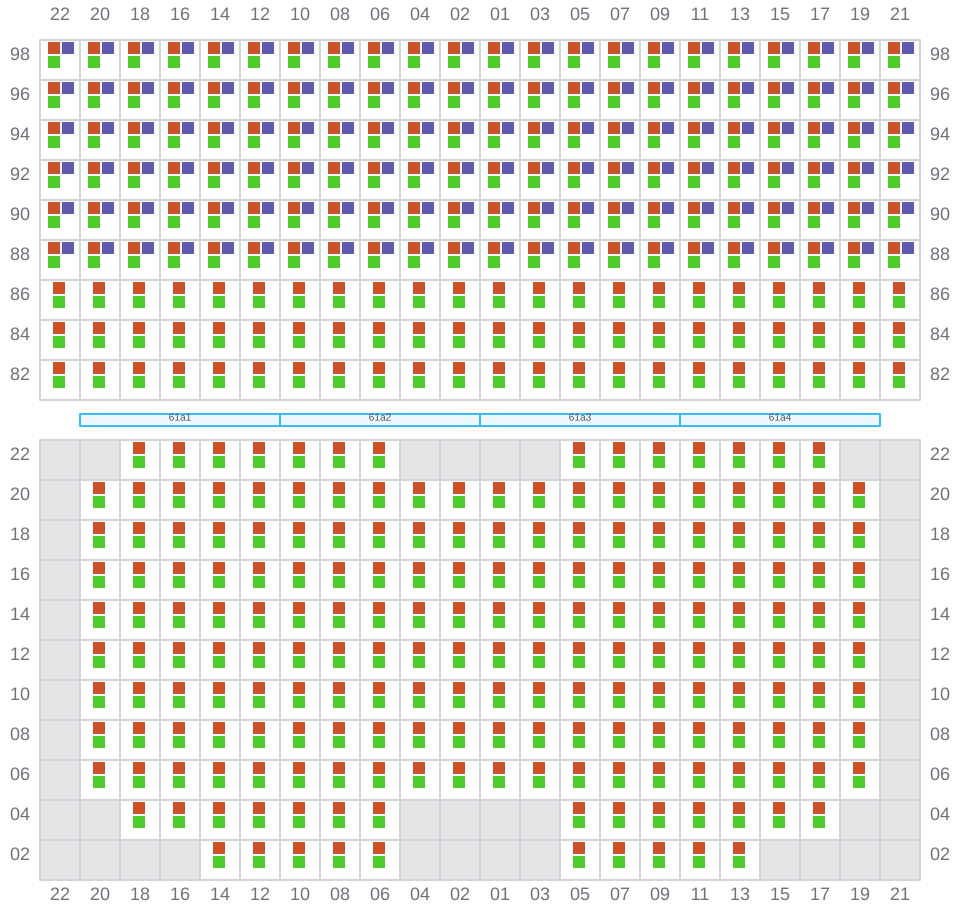

Bay 061 view and slots of ELEONORA MAERSK

063

←

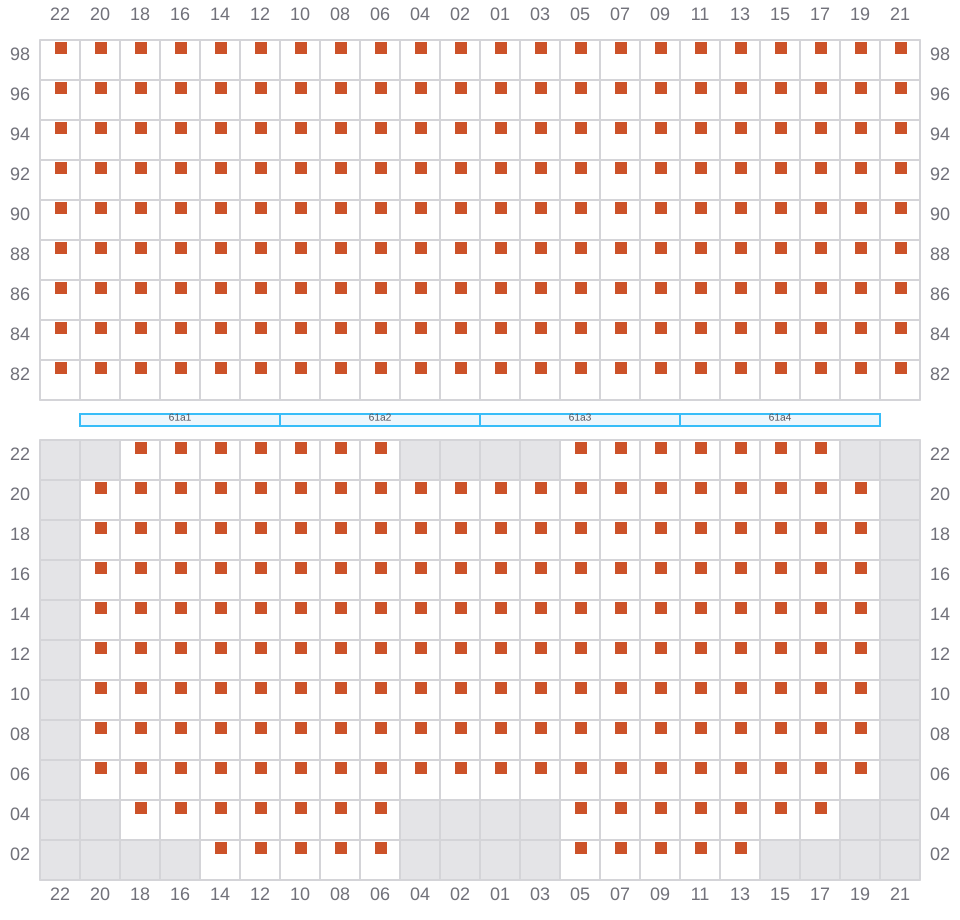

Bay 063 view and slots of ELEONORA MAERSK

065 (066)

→

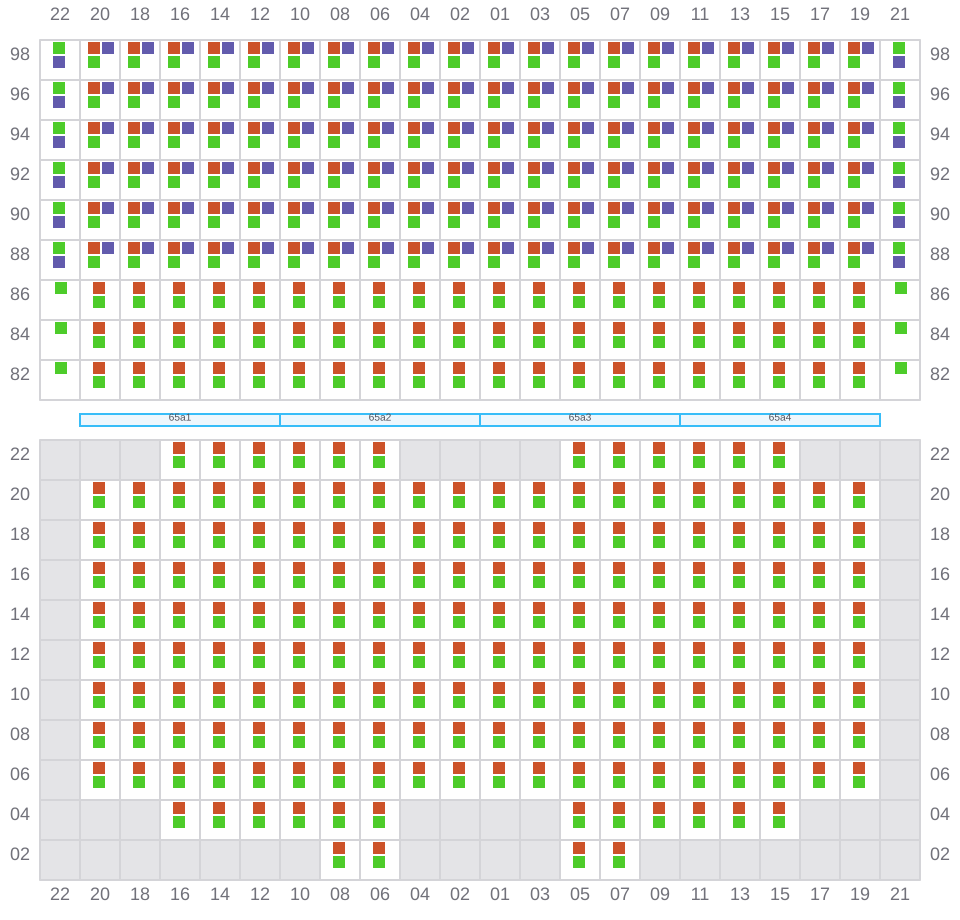

Bay 065 view and slots of ELEONORA MAERSK

067

←

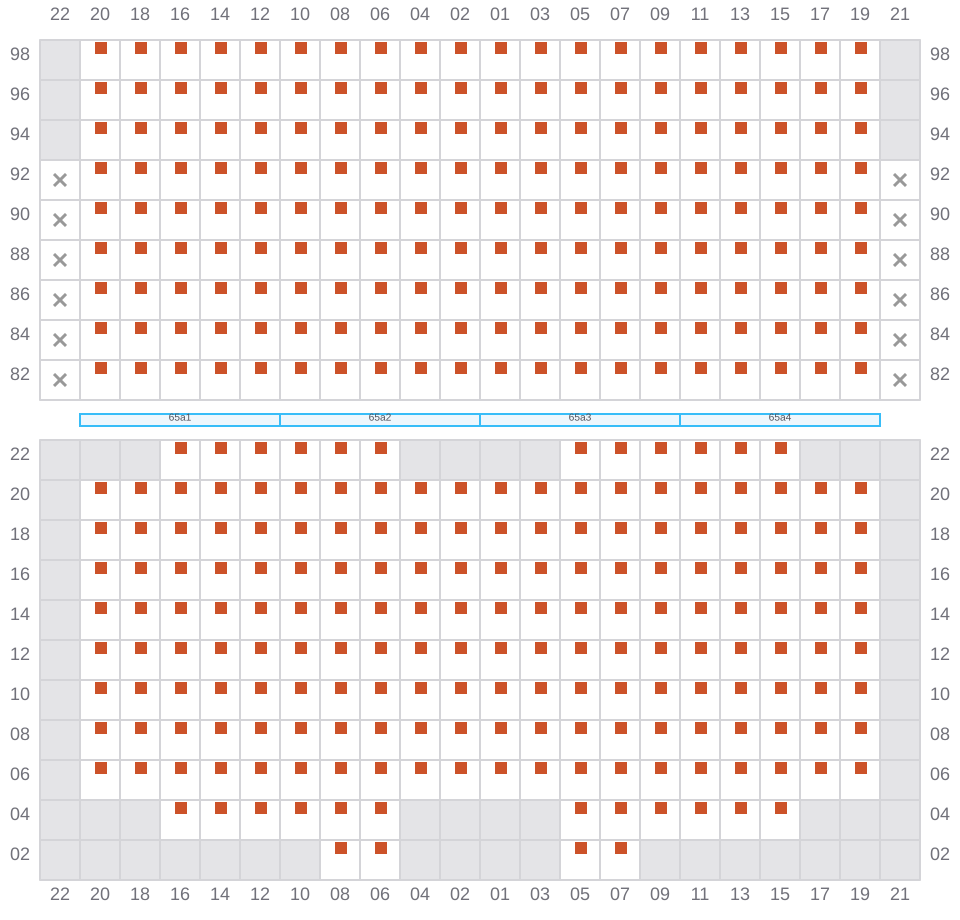

Bay 067 view and slots of ELEONORA MAERSK

069 (070)

→

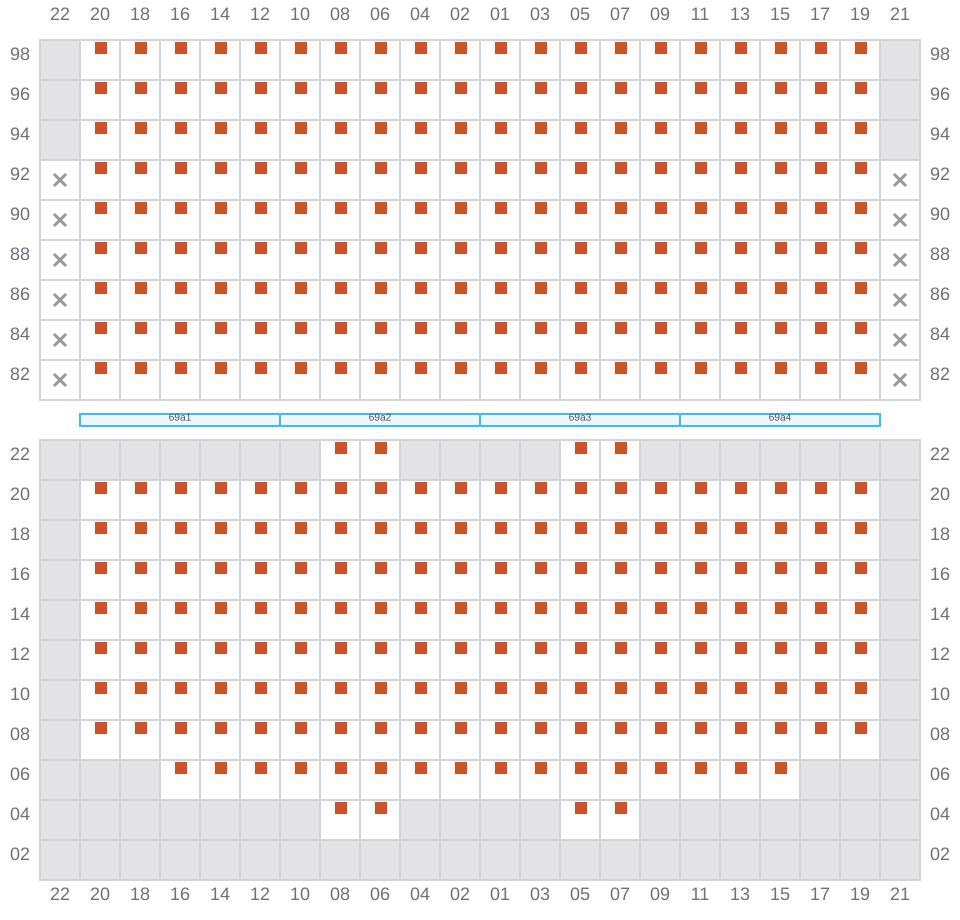

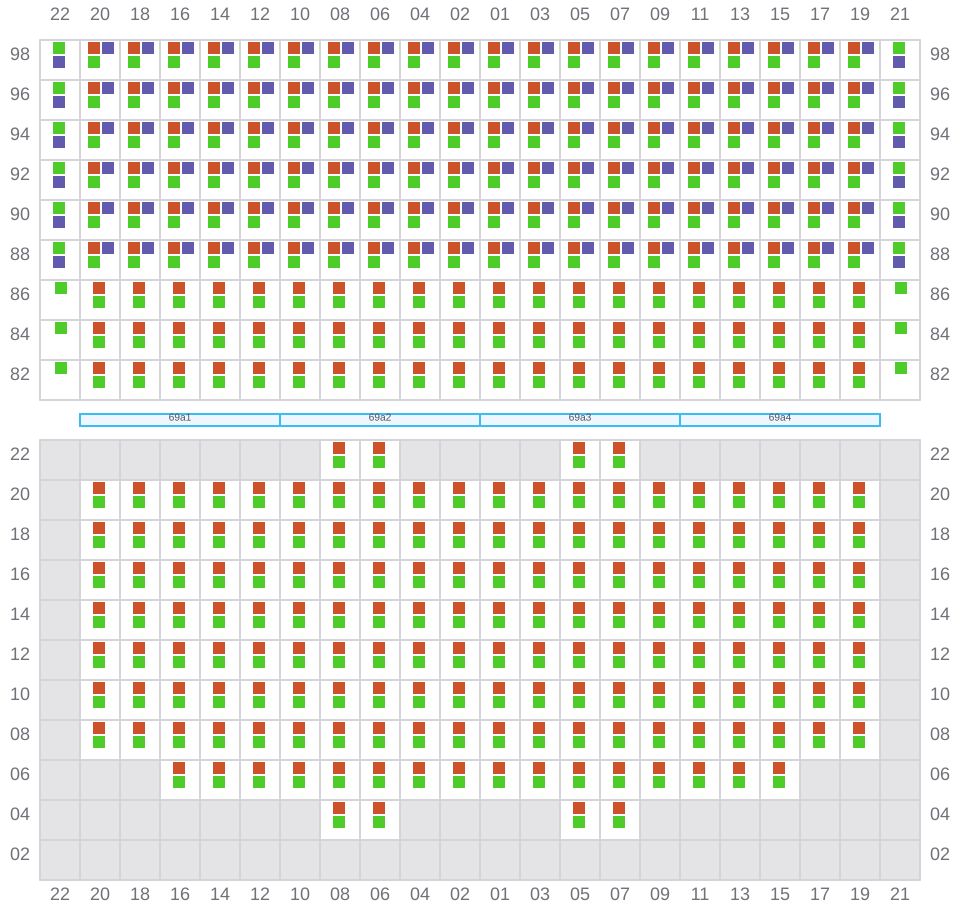

Bay 069 view and slots of ELEONORA MAERSK

071

←

Bay 071 view and slots of ELEONORA MAERSK

073 (074)

→

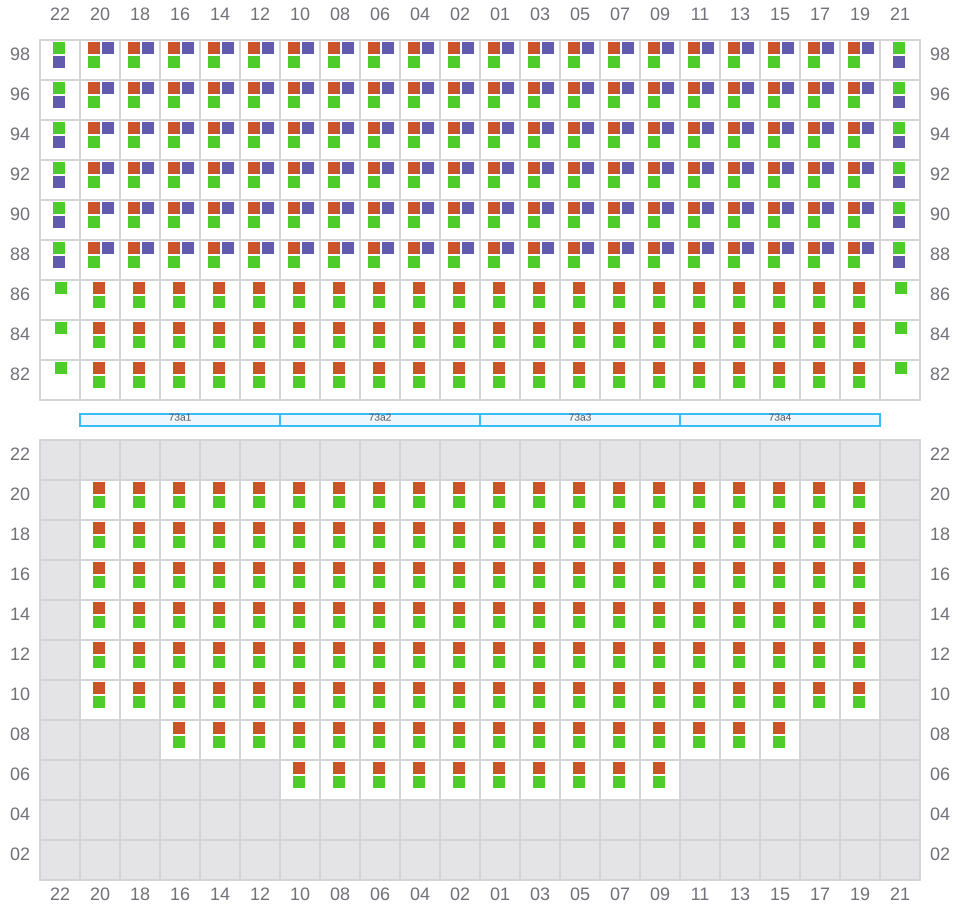

Bay 073 view and slots of ELEONORA MAERSK

075

←

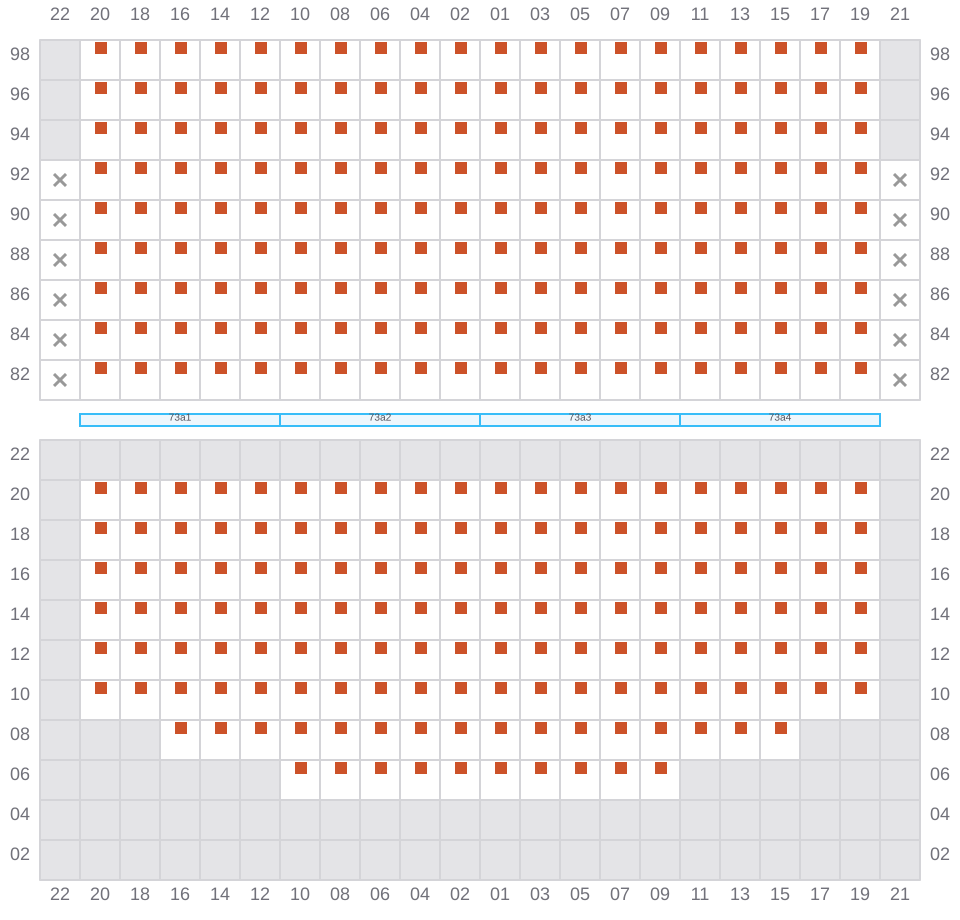

Bay 075 view and slots of ELEONORA MAERSK

077 (078)

→

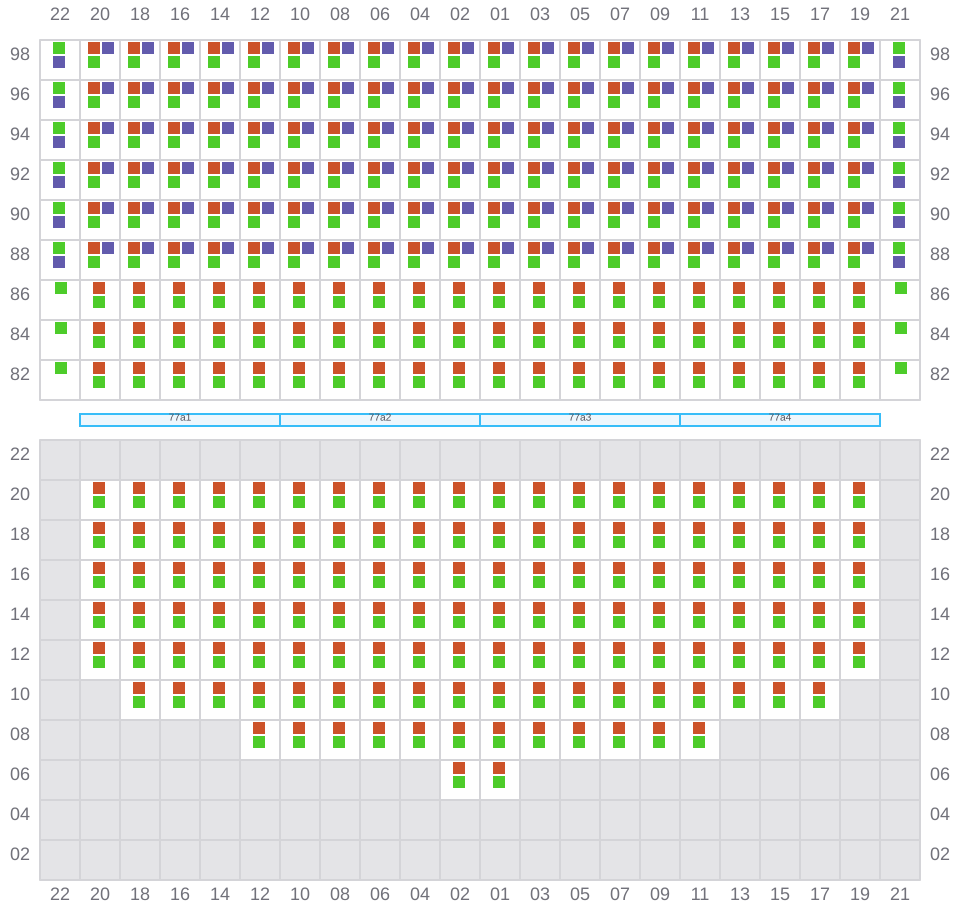

Bay 077 view and slots of ELEONORA MAERSK

079

←

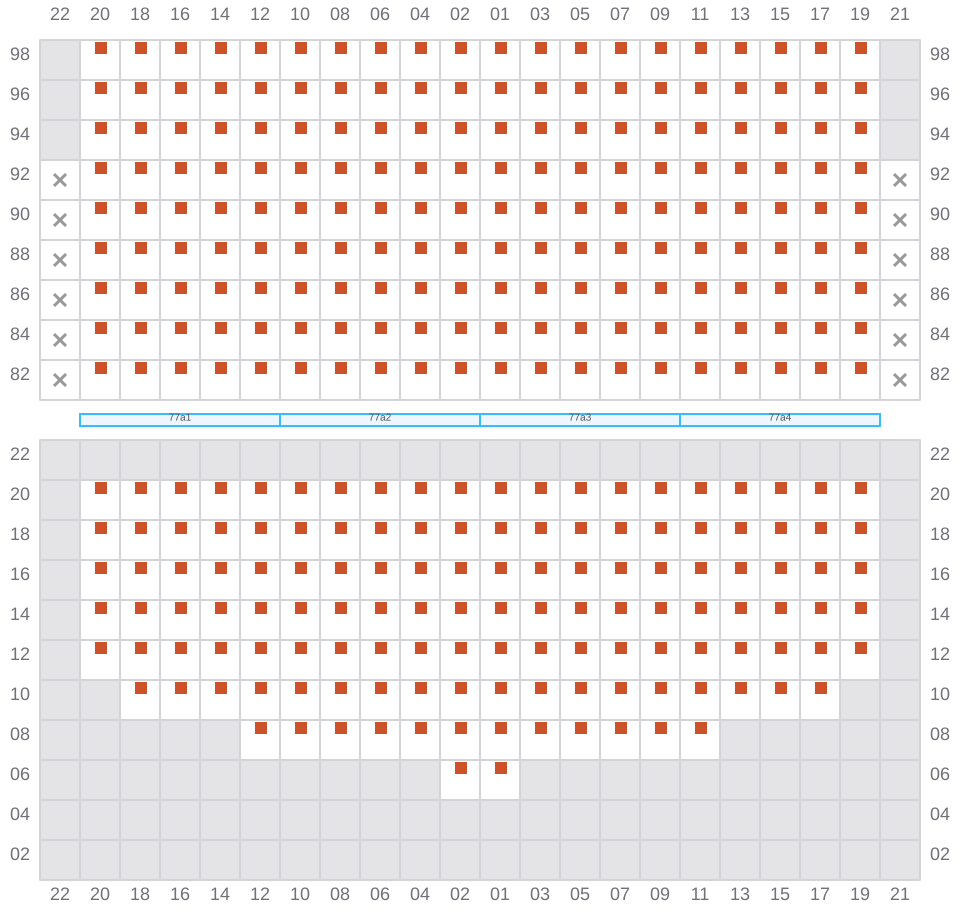

Bay 079 view and slots of ELEONORA MAERSK

081 (082)

→

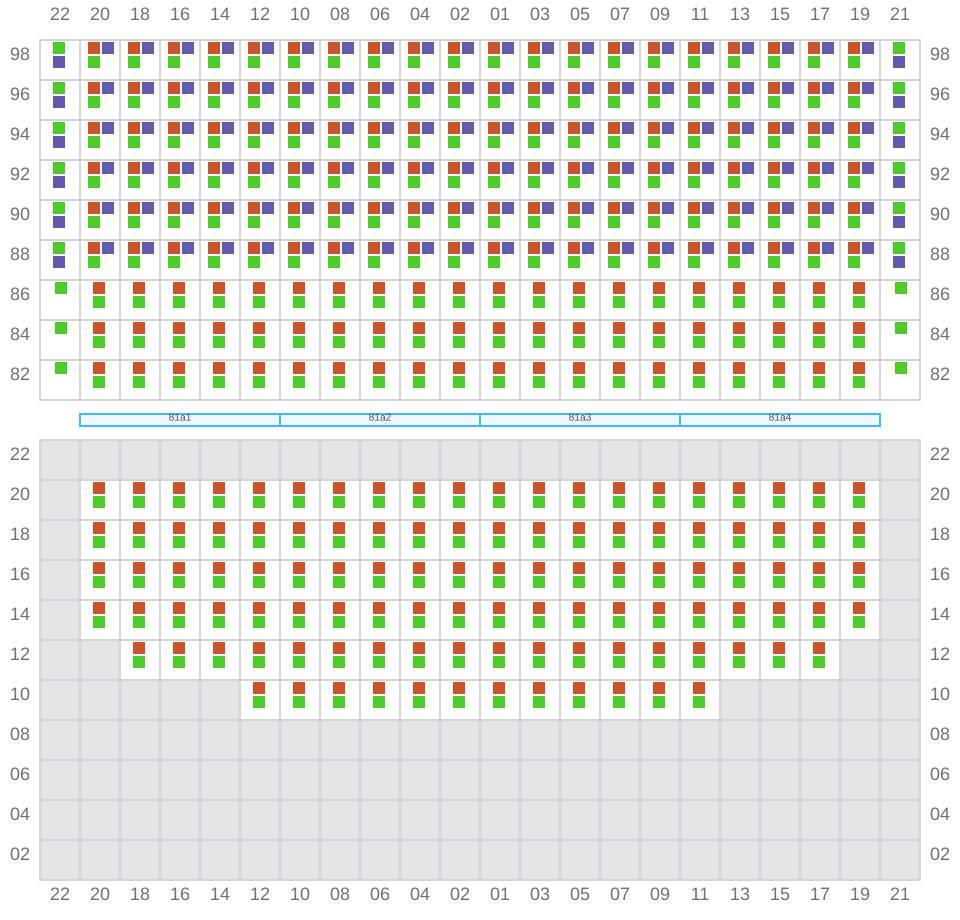

Bay 081 view and slots of ELEONORA MAERSK

083

←

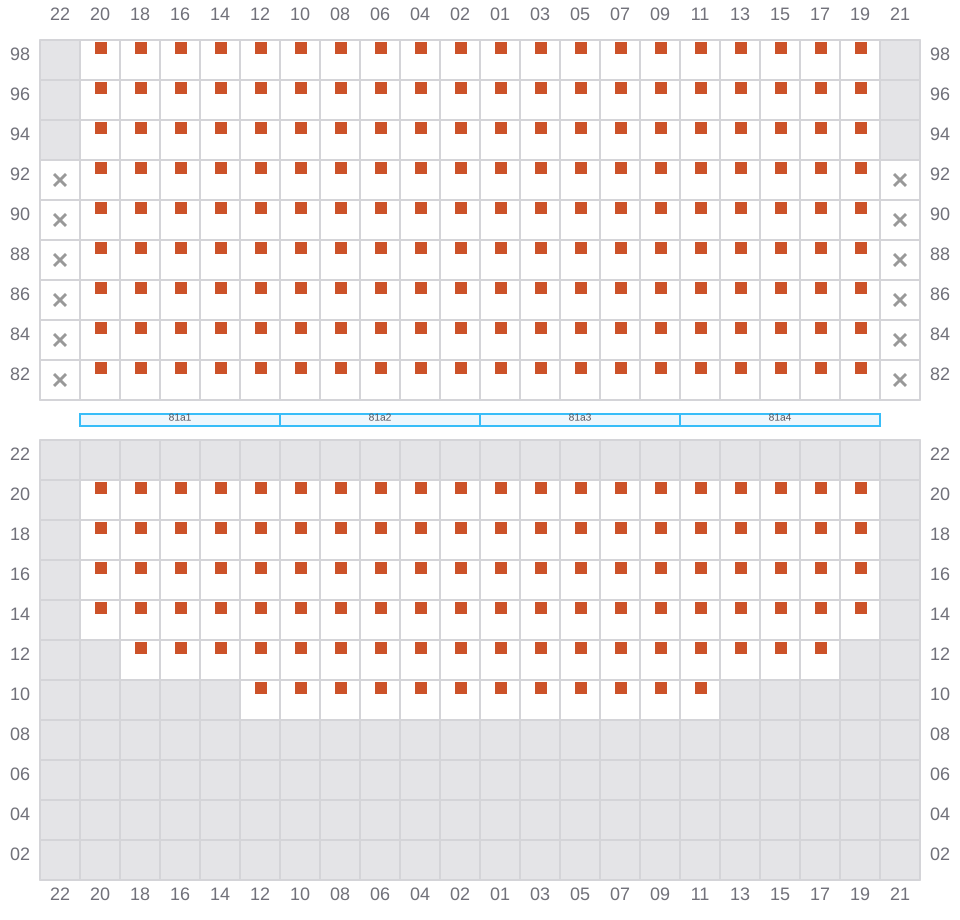

Bay 083 view and slots of ELEONORA MAERSK

085 (086)

→

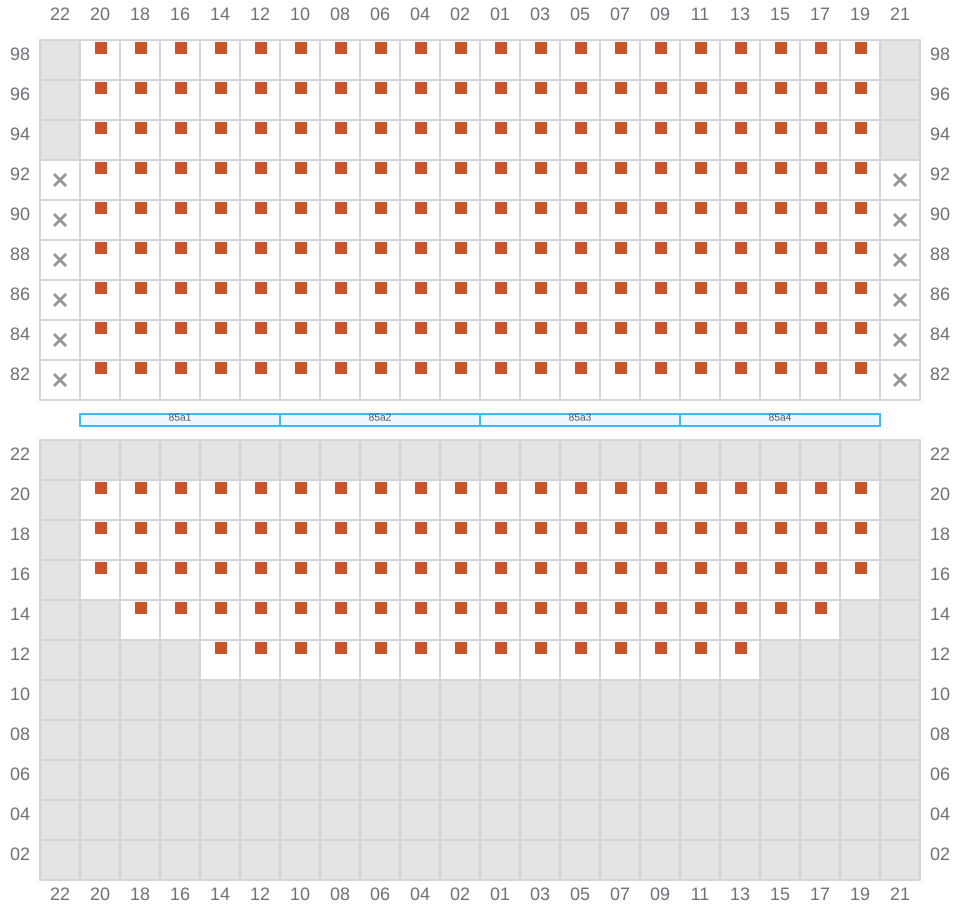

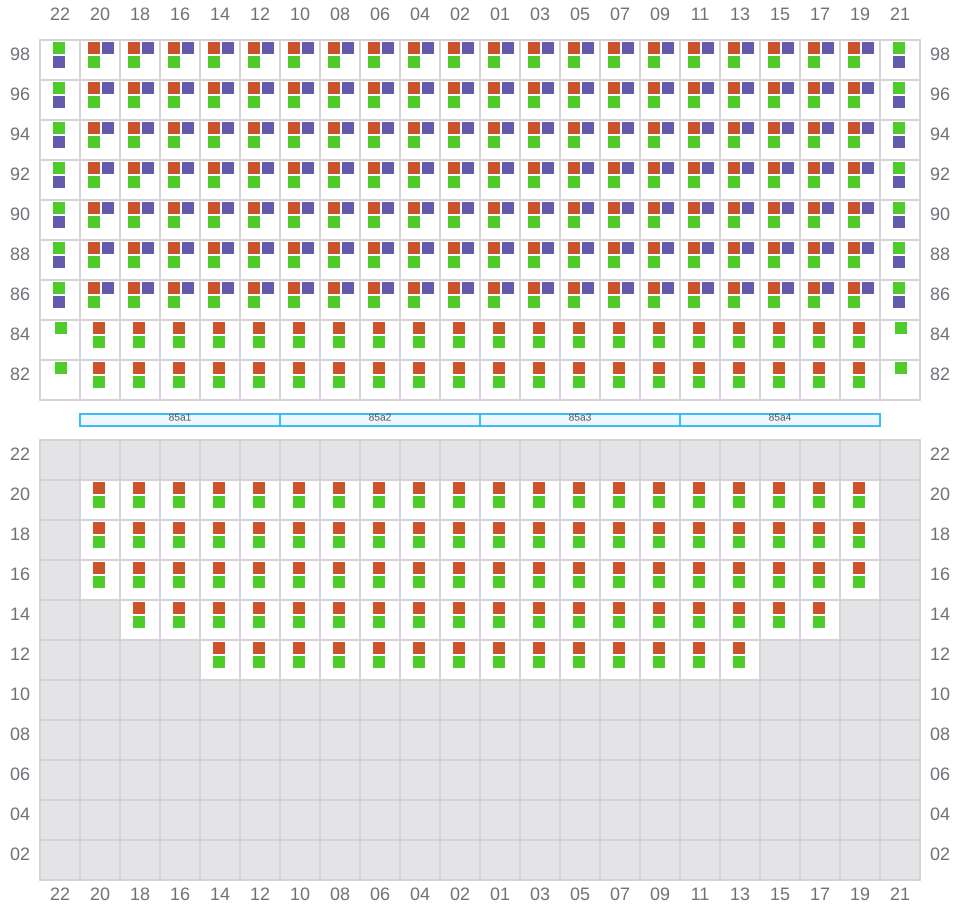

Bay 085 view and slots of ELEONORA MAERSK

087

←

Bay 087 view and slots of ELEONORA MAERSK

089 (090)

→

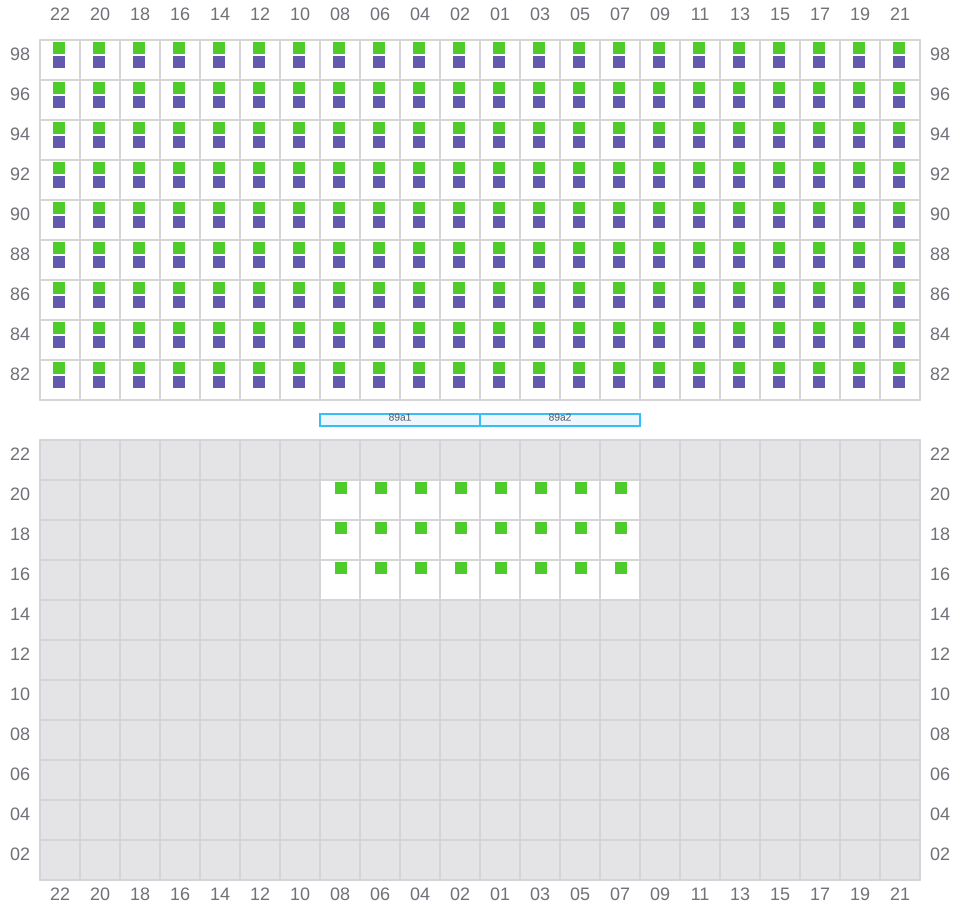

Bay 089 view and slots of ELEONORA MAERSK
