ELIZABETH
9246346 | A8DM9 | 9246346 by ********* Last update: Sat Mar 16 2024
General Info
Ship Name:ELIZABETH
IMO Code:9246346
Call Sign:A8DM9
Line Operator:9246346
Class Name for Sister Ships:3JL
Year Built:2003
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:No
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:3,648
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

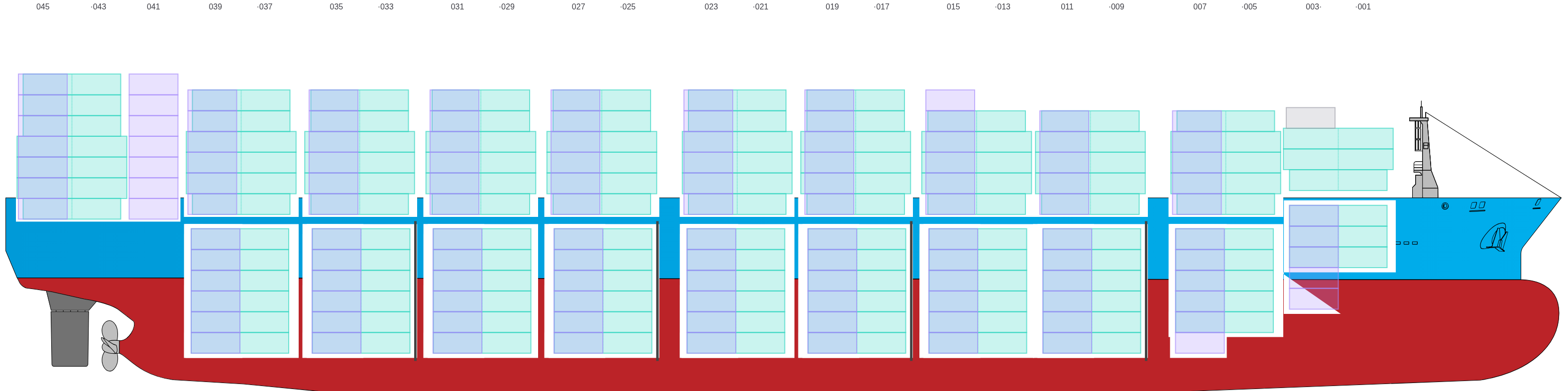

Side View
![Side view of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-sideView.png?v=1710615384983)
Hatch-Covers View
![Deck view of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-deckView.png?v=1710615384983)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

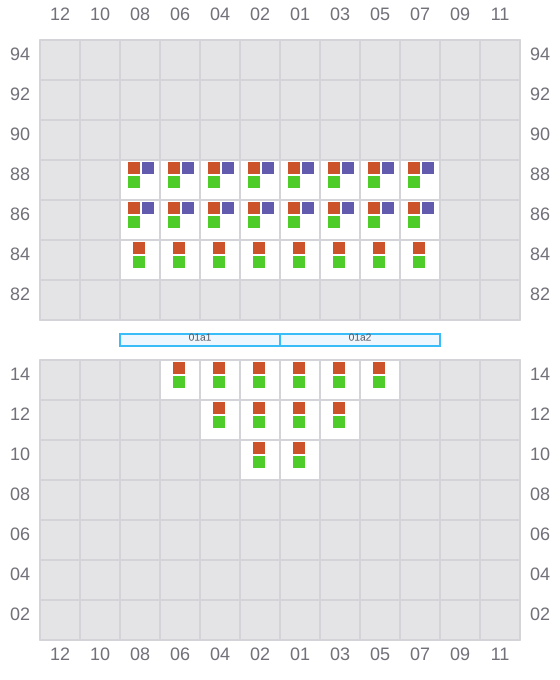

001 (002)
- →
![Bay 001 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b001.png?v=1710615384983)

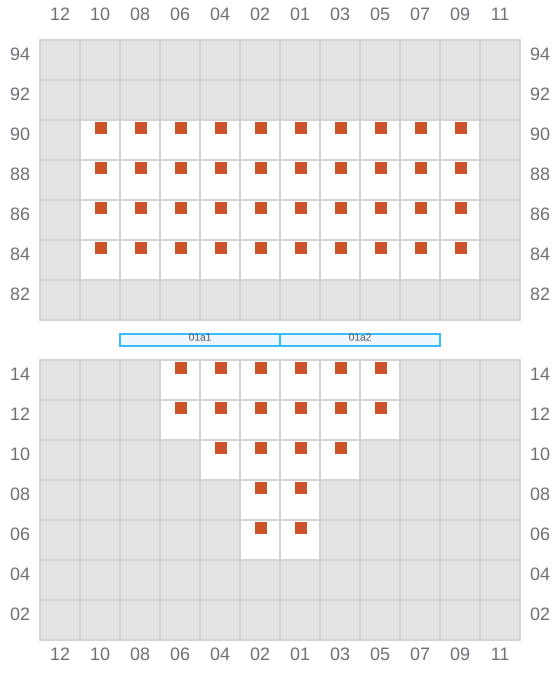

003
- ← / ?
![Bay 003 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b003.png?v=1710615384983)

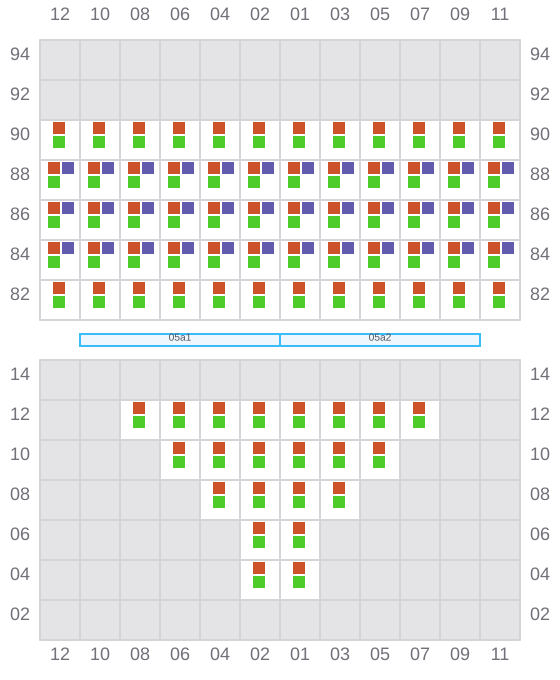

005 (006)
- →
![Bay 005 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b005.png?v=1710615384983)

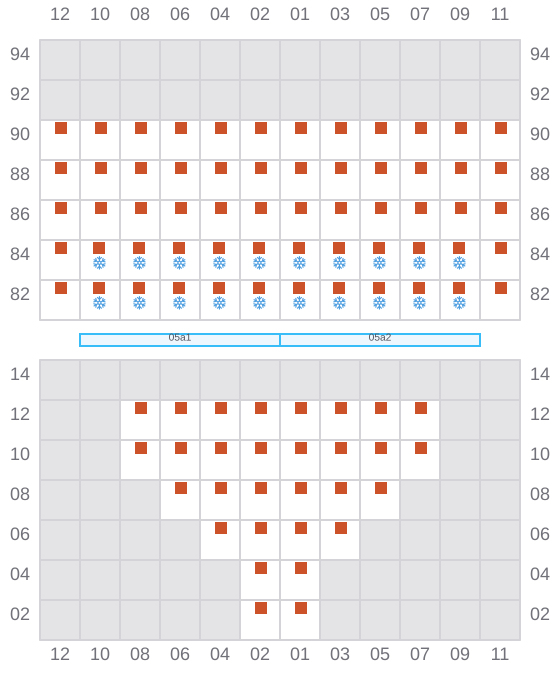

007
- → / ?
![Bay 007 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b007.png?v=1710615384983)
009 (010)
- →
![Bay 009 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b009.png?v=1710615384983)

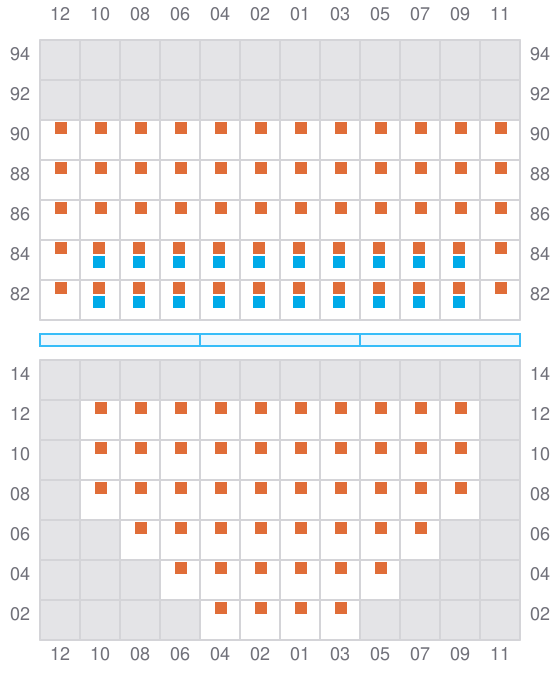

011
- → / ?
![Bay 011 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b011.png?v=1710615384983)

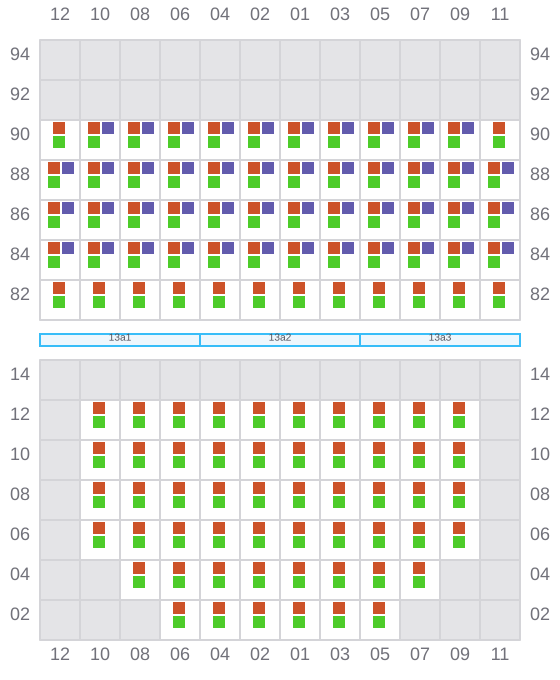

013 (014)
- →
![Bay 013 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b013.png?v=1710615384983)

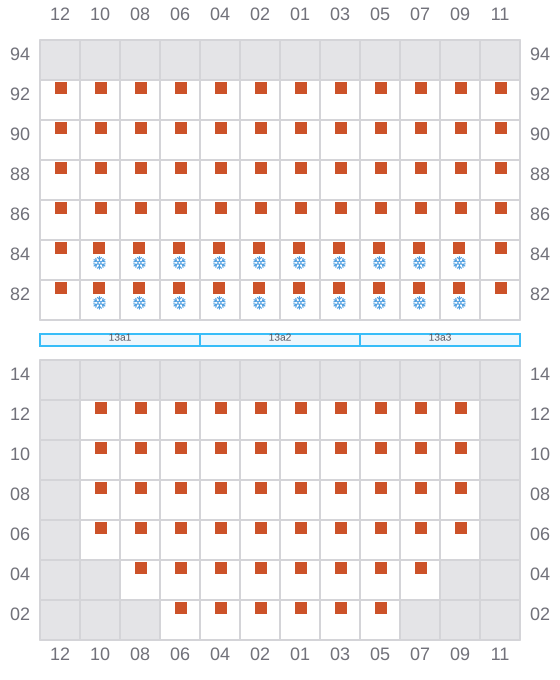

015
- → / ?
![Bay 015 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b015.png?v=1710615384983)

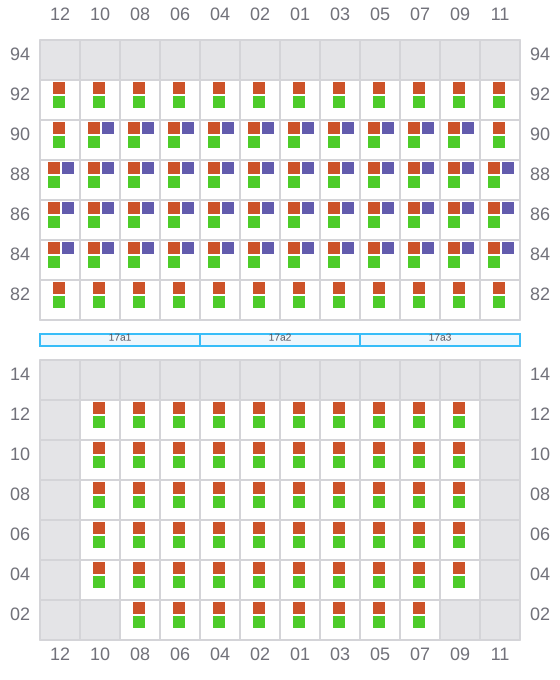

017 (018)
- →
![Bay 017 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b017.png?v=1710615384983)

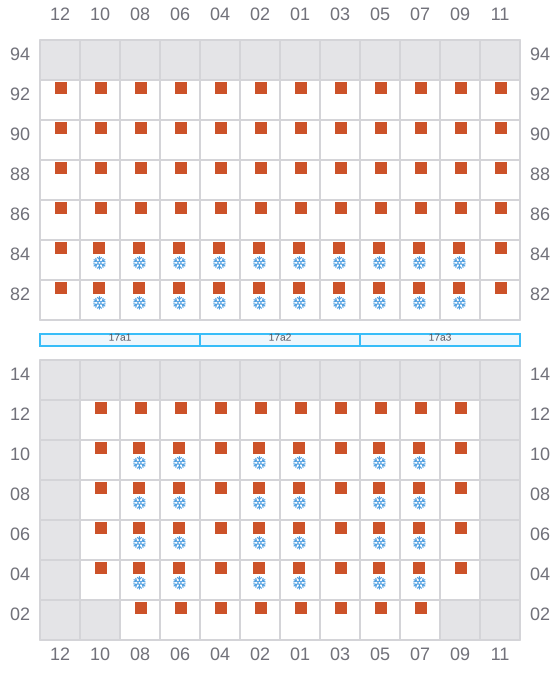

019
- →
![Bay 019 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b019.png?v=1710615384983)

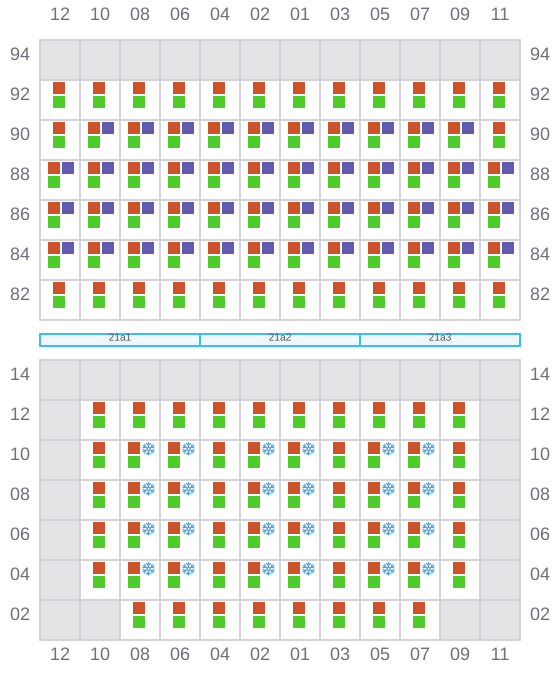

021 (022)
- →
- ? / ←
![Bay 021 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b021.png?v=1710615384983)

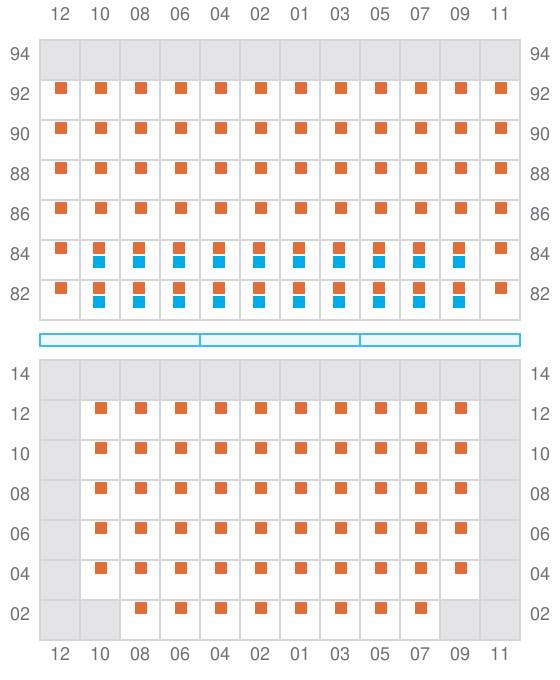

023
- → / ?
![Bay 023 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b023.png?v=1710615384983)

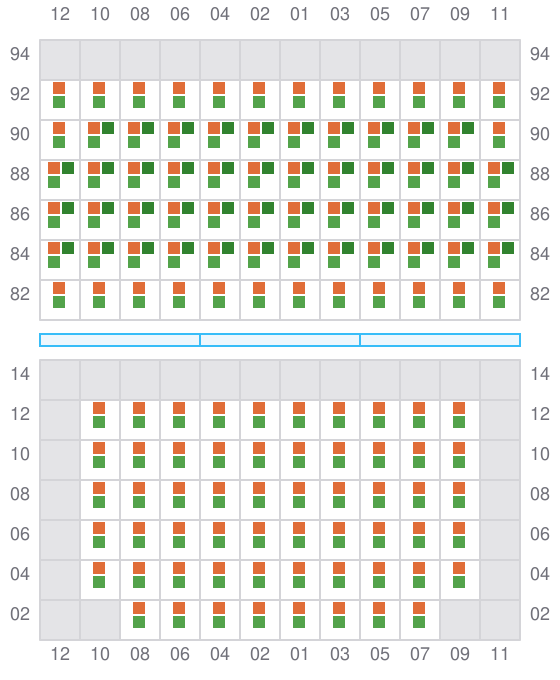

025 (026)
- →
![Bay 025 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b025.png?v=1710615384983)
027
- →
![Bay 027 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b027.png?v=1710615384983)

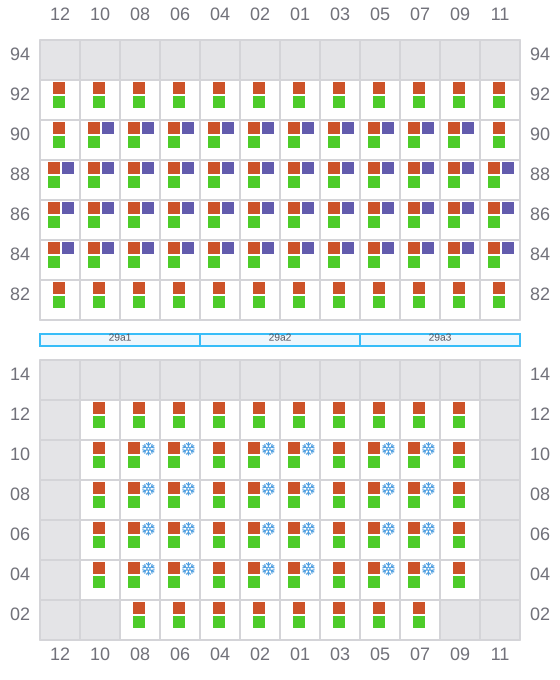

029 (030)
- →
- ? / ←
![Bay 029 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b029.png?v=1710615384983)

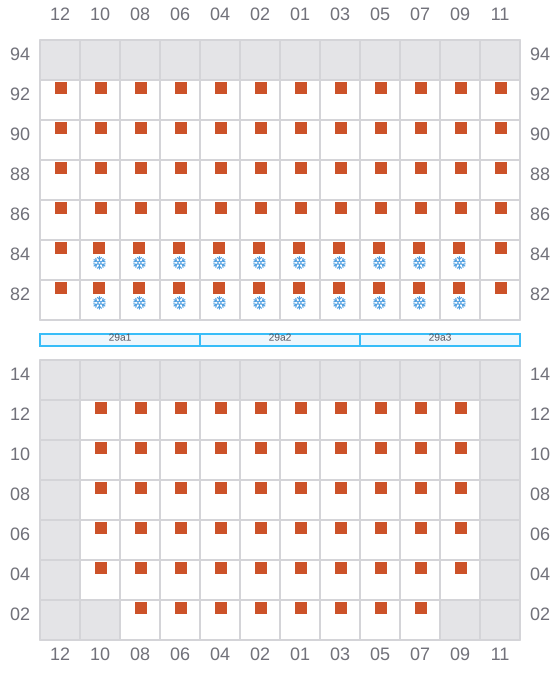

031
- → / ?
![Bay 031 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b031.png?v=1710615384983)

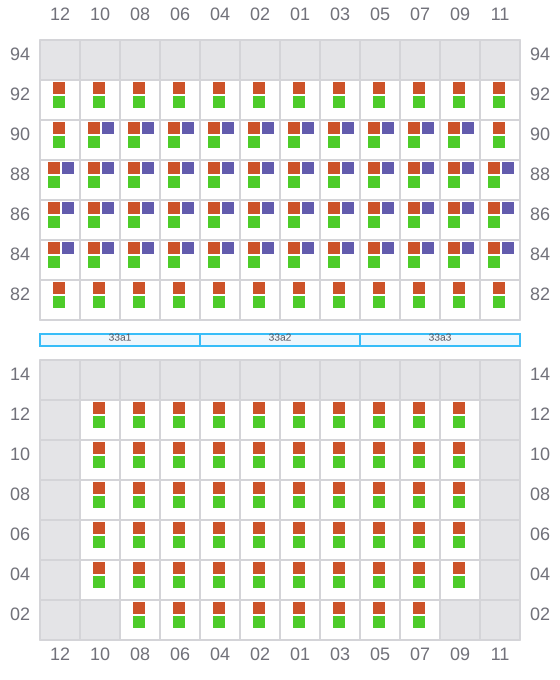

033 (034)
- →
![Bay 033 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b033.png?v=1710615384983)

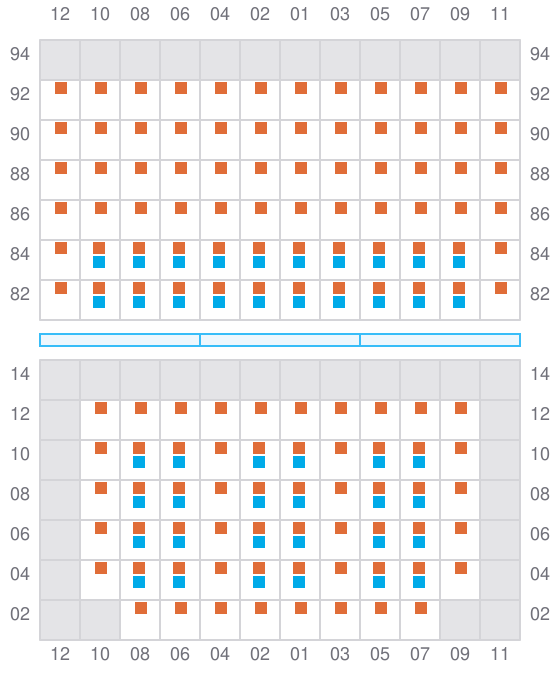

035
- →
![Bay 035 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b035.png?v=1710615384983)
037 (038)
- →
- ? / ←
![Bay 037 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b037.png?v=1710615384983)

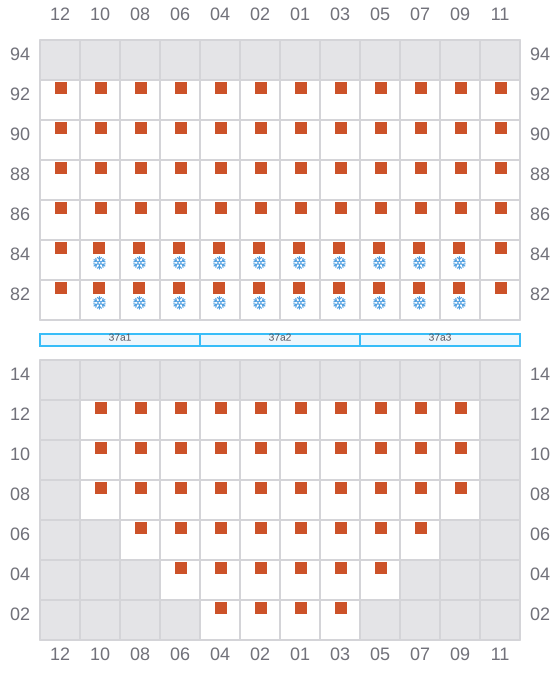

039
- → / ?
![Bay 039 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b039.png?v=1710615384983)

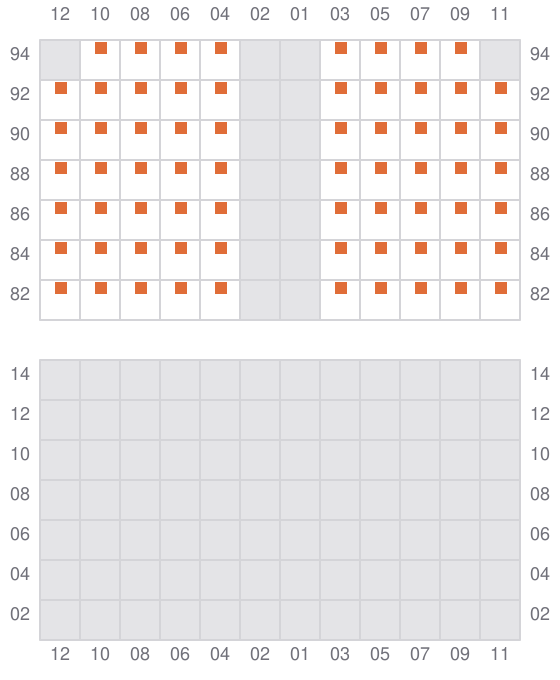

041
![Bay 041 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b041.png?v=1710615384983)

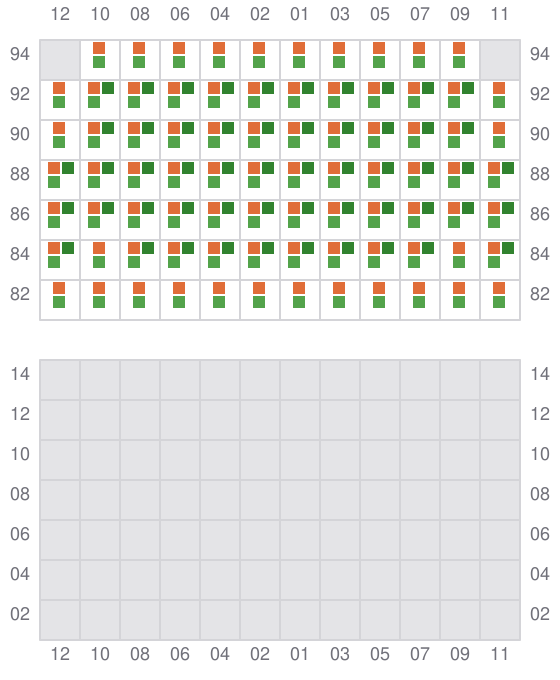

043 (044)
- → / ?
![Bay 043 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b043.png?v=1710615384983)

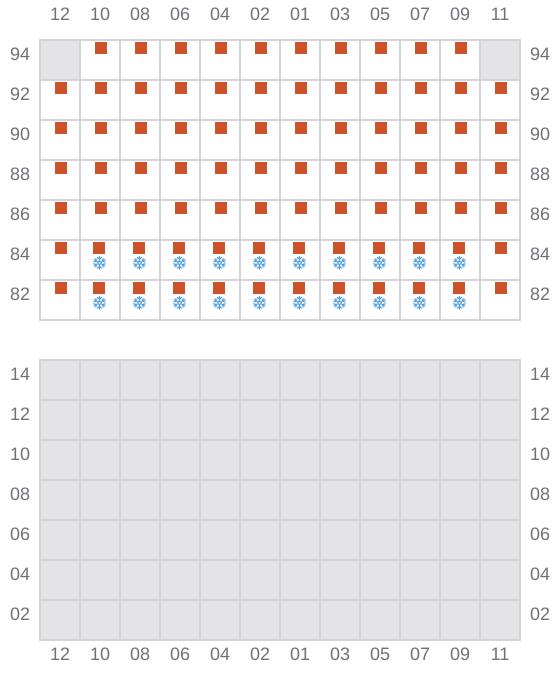

045
- → / ?
![Bay 045 view and slots of ELIZABETH](/vessel-images/e5c5d29b-2145-4245-a56b-932529b38016-b045.png?v=1710615384983)
