EM SPETSES
9403413 | A8XP6 | MSK by ************************** Last update: Thu Jun 29 2023
General Info
Ship Name:EM SPETSES
IMO Code:9403413
Call Sign:A8XP6
Line Operator:MSK
Class Name for Sister Ships:STS
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):0.00
Stern to AFT PP:-
Features Informed:
Also Known As (old names):-
Size Summary
ISO Bays:035
Max ISO Row:10
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:1,740
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

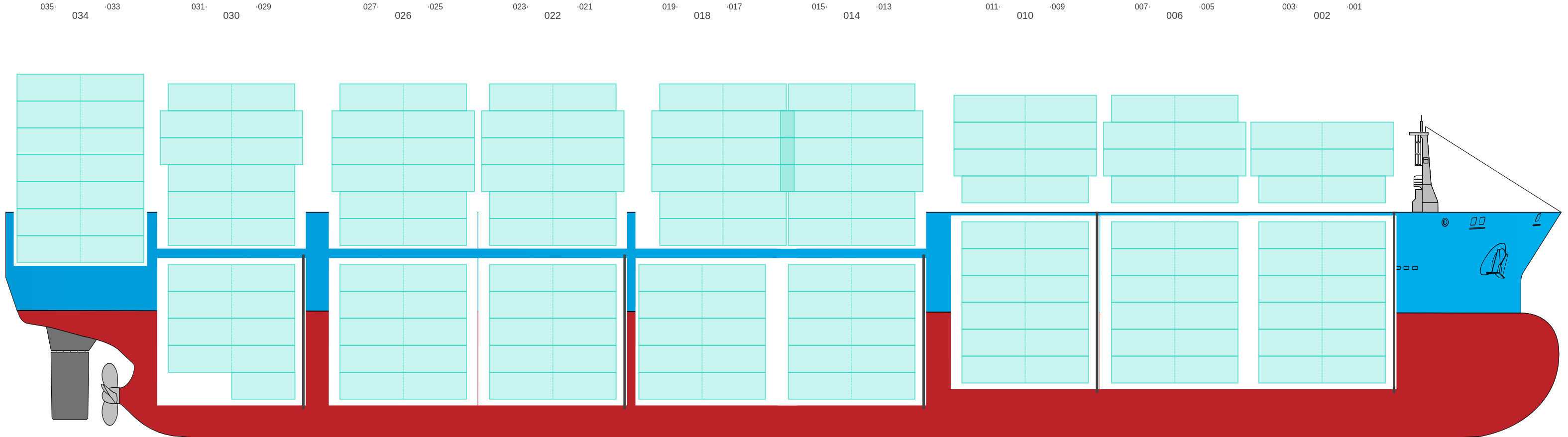

Side View
Hatch-Covers View

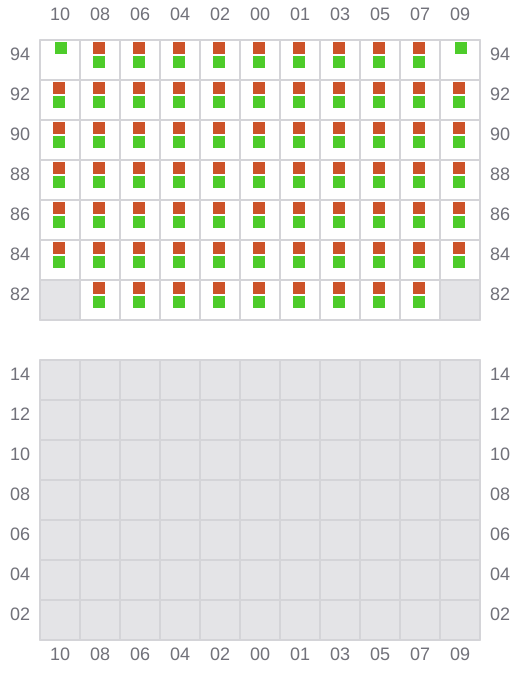

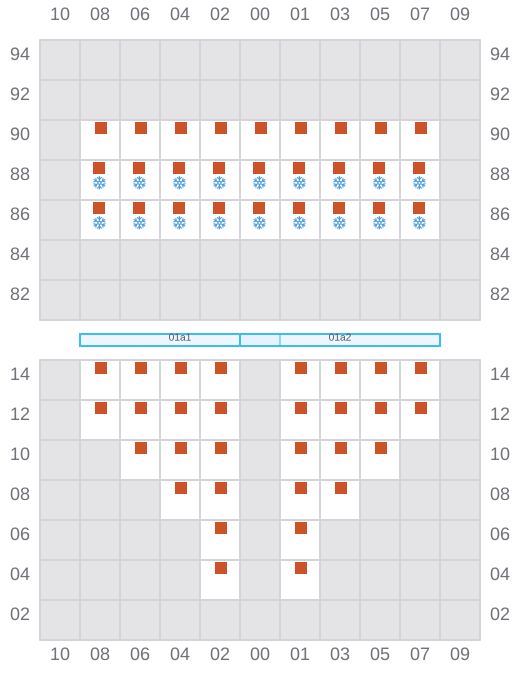

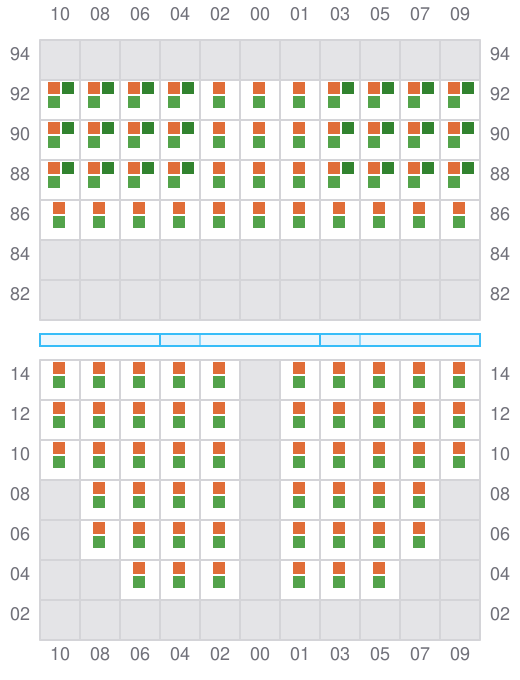

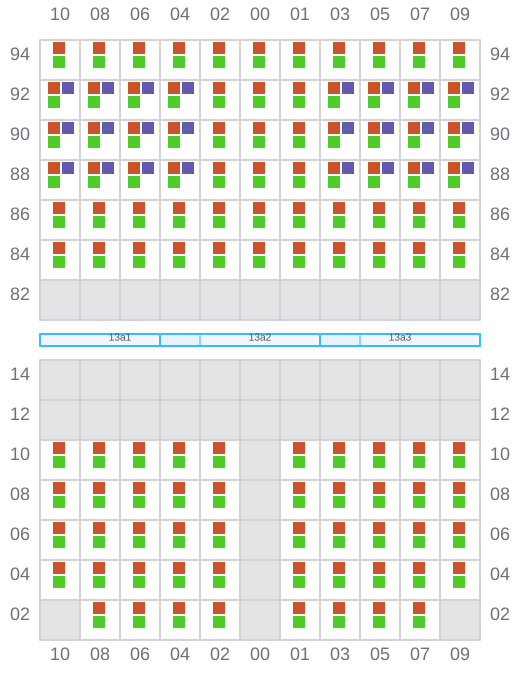

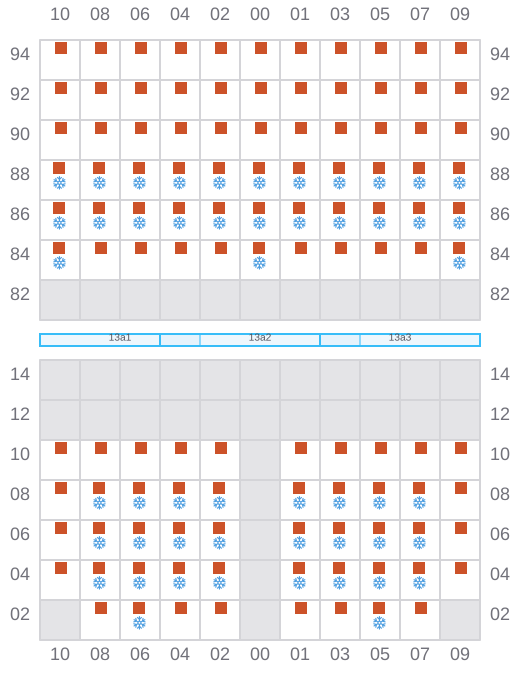

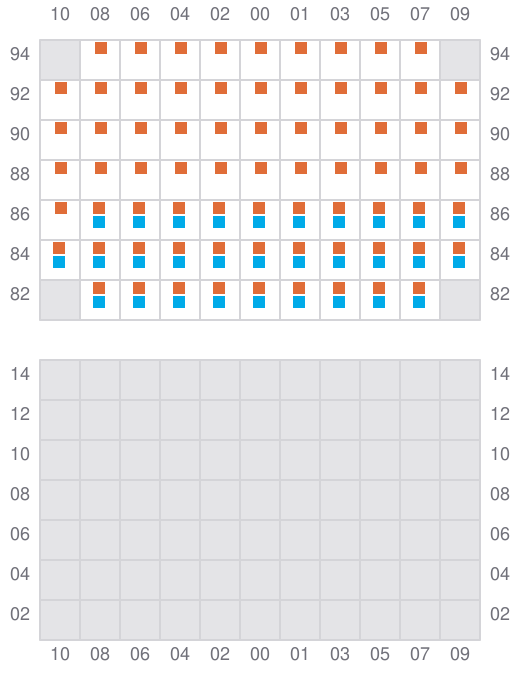

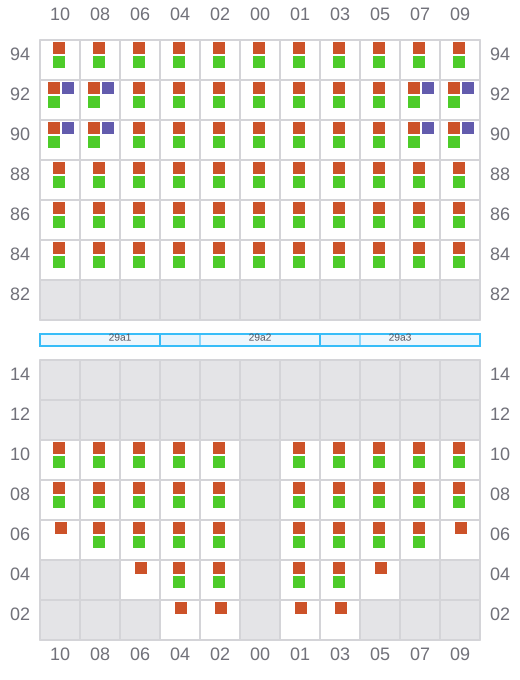

ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

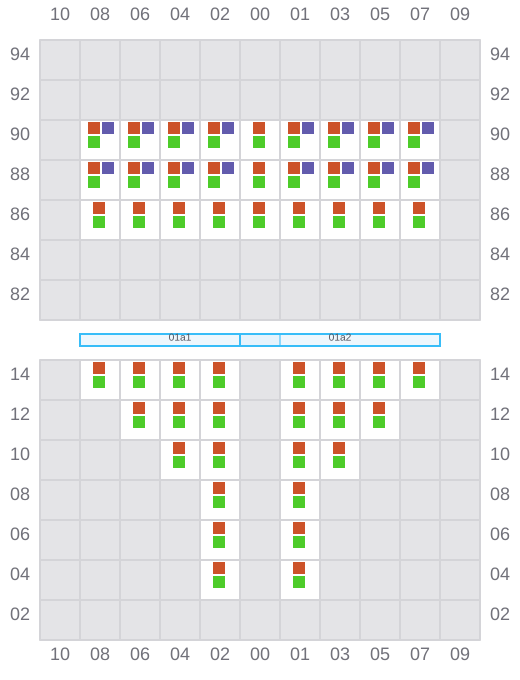

001 (002)
- →
003
- ←
- → / ?

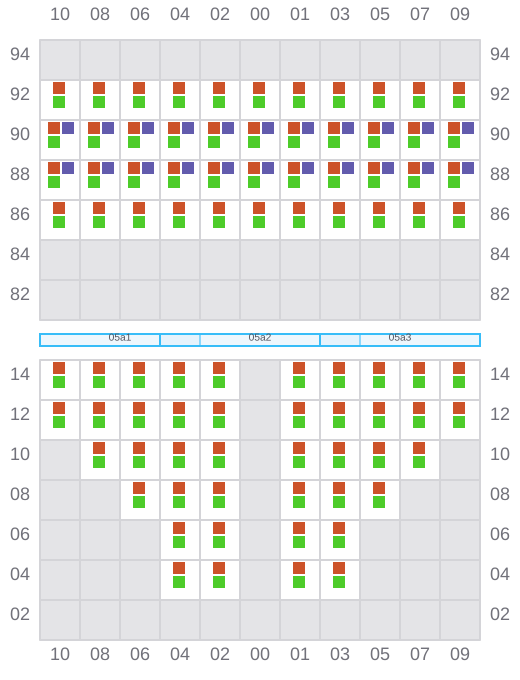

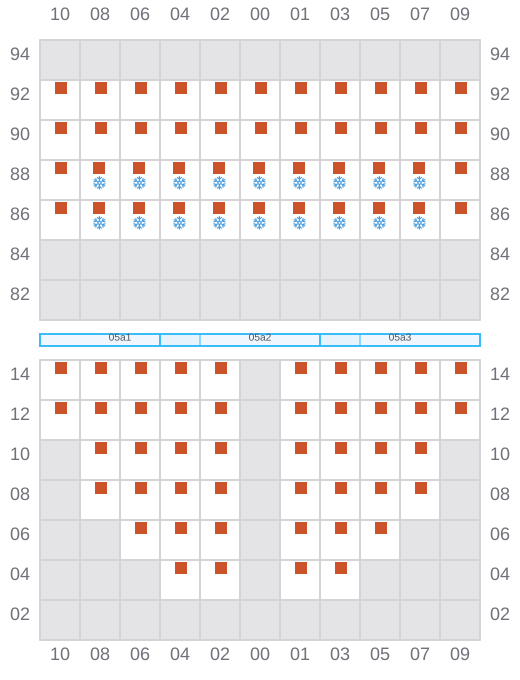

005 (006)
- →
007
- ←
- → / ?

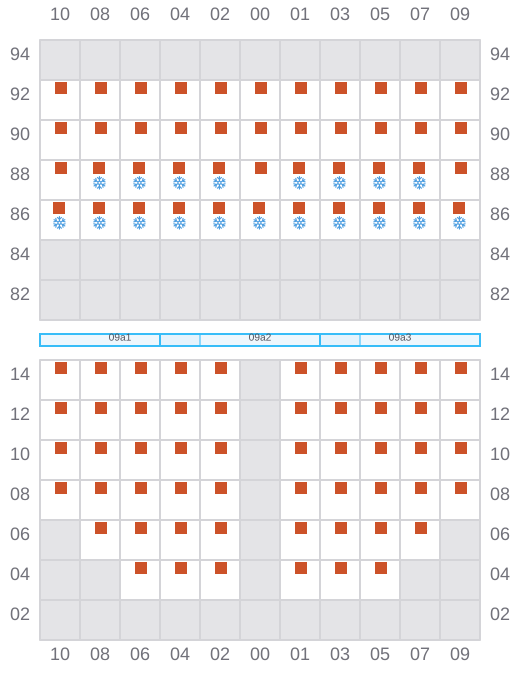

009 (010)
- →
011
- ←
- → / ?
013 (014)
- →
015
- ←
- ? / →

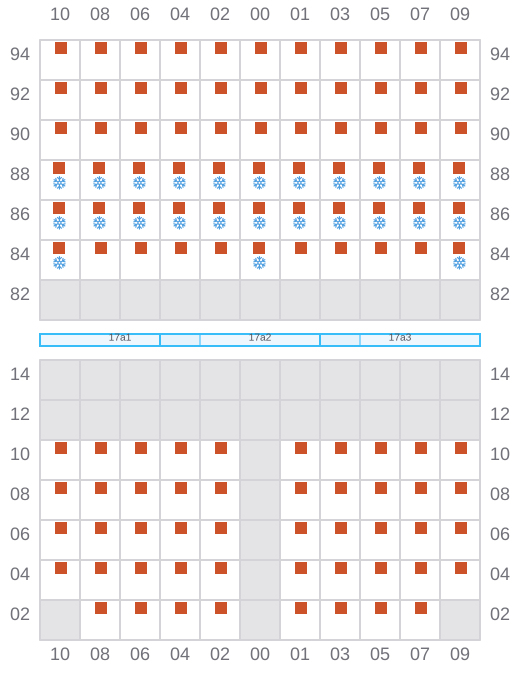

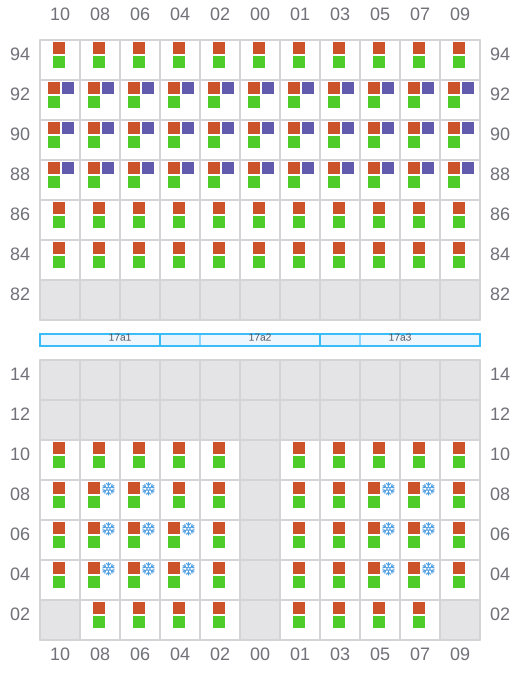

017 (018)
- →
- ? / ←
019
- ←
- → / ?

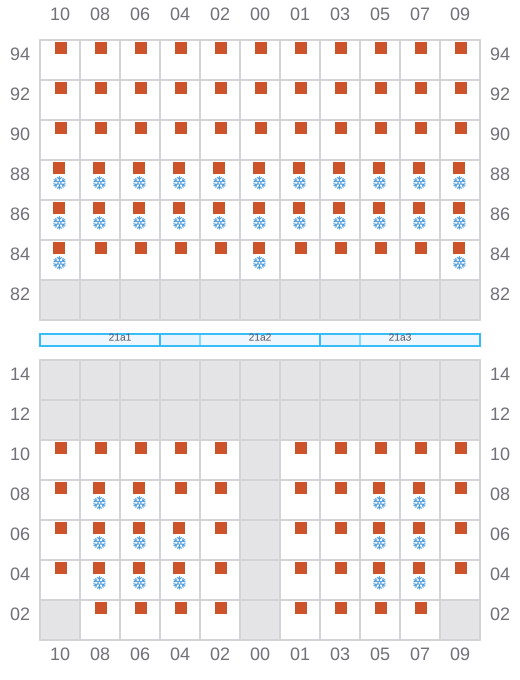

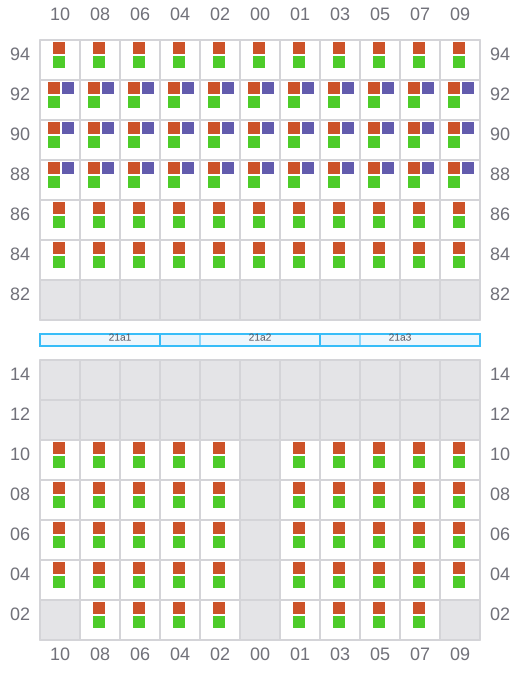

021 (022)
- →
023
- ←
- →

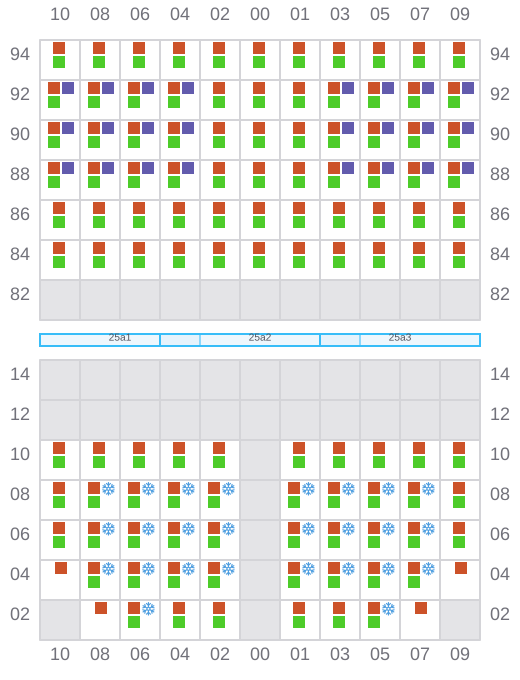

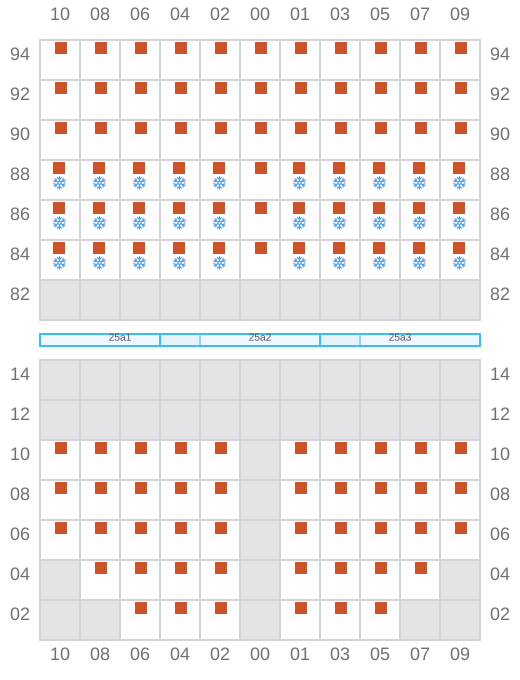

025 (026)
- →
- ? / ←
027
- ←
- → / ?

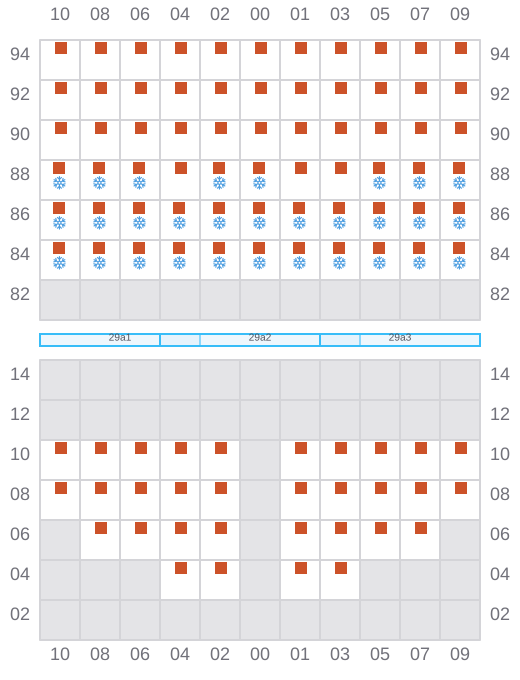

029 (030)
- →
031
- ←
- → / ?
033 (034)
- → / ?
035
- ← / ?
- → / ?
