EMMA A
9308194 | 9HA5670 | 9308194 by ********* Last update: Fri Apr 12 2024
General Info
Ship Name:EMMA A
IMO Code:9308194
Call Sign:9HA5670
Line Operator:9308194
Class Name for Sister Ships:CMA
Year Built:2007
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):201.60
LOA (Length Overall):212.84
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:045
Max ISO Row:12
Center Line Row:Yes
Max Above ISO Tier:94
Min Above ISO Tier:82
Max Below ISO Tier:14
Min Below ISO Tier:02
Total TEU:2,948
Centers of Gravity
LCG Values:Estimated
LCG Data:0%
VCG Values:Estimated
VCG Data:0%
TCG Values:Estimated
TCG Data:0%
Side View
![Side view of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-sideView.png?v=1712948240261)
Hatch-Covers View
![Deck view of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-deckView.png?v=1712948240261)
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot
001 (002)
- →
![Bay 001 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b001.png?v=1712948240261)
003
- ←
![Bay 003 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b003.png?v=1712948240261)
005 (006)
- →
![Bay 005 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b005.png?v=1712948240261)
007
- ←
![Bay 007 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b007.png?v=1712948240261)
009 (010)
- →
![Bay 009 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b009.png?v=1712948240261)
011
- ←
![Bay 011 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b011.png?v=1712948240261)
013 (014)
- →
![Bay 013 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b013.png?v=1712948240261)
015
- ←
![Bay 015 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b015.png?v=1712948240261)
017 (018)
- →
![Bay 017 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b017.png?v=1712948240261)
019
- ←
![Bay 019 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b019.png?v=1712948240261)

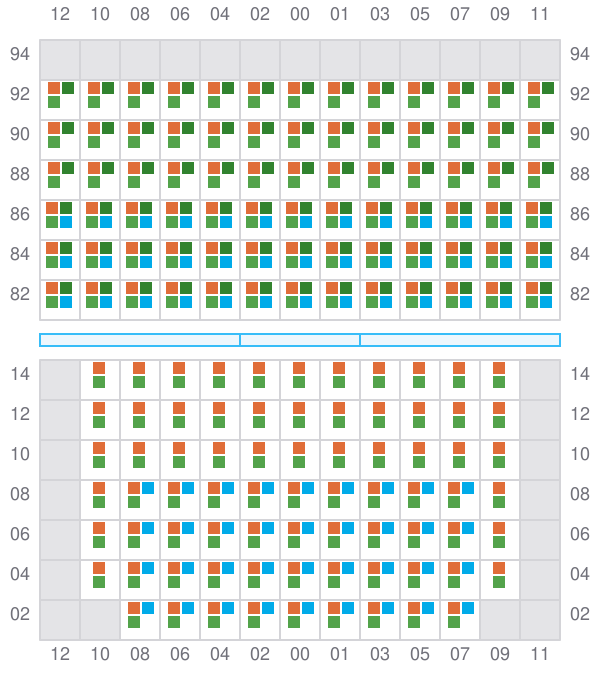

021 (022)
- →
![Bay 021 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b021.png?v=1712948240261)
023
- ←
![Bay 023 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b023.png?v=1712948240261)
025 (026)
- →
![Bay 025 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b025.png?v=1712948240261)

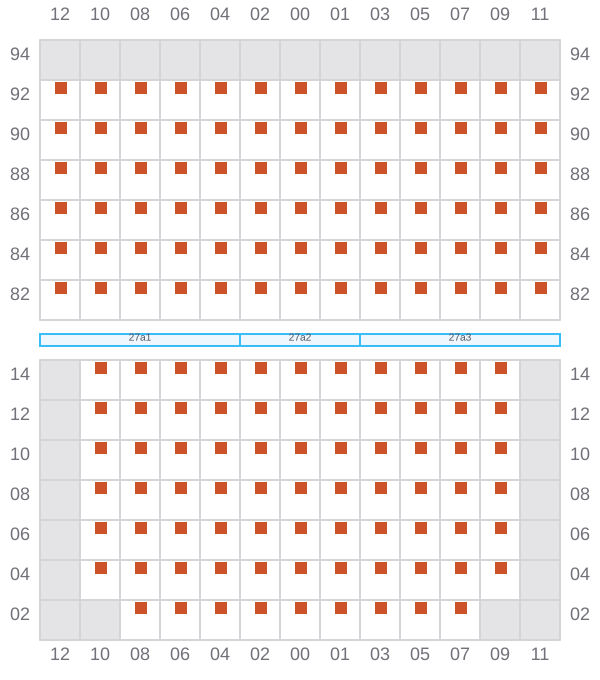

027
- ←
![Bay 027 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b027.png?v=1712948240261)
029 (030)
- →
![Bay 029 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b029.png?v=1712948240261)
031
- ←
![Bay 031 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b031.png?v=1712948240261)
033 (034)
- →
![Bay 033 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b033.png?v=1712948240261)
035
- ←
![Bay 035 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b035.png?v=1712948240261)
037 (038)
- →
![Bay 037 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b037.png?v=1712948240261)
039
- ←
![Bay 039 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b039.png?v=1712948240261)
041 (042)
- → / ?
![Bay 041 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b041.png?v=1712948240261)
043
- ← / ?
![Bay 043 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b043.png?v=1712948240261)
045 (046)
- → / ?
![Bay 045 view and slots of EMMA A](/vessel-images/1eb91c2b-1568-4480-91f2-89d1cdb9ffce-b045.png?v=1712948240261)
