EMMA MAERSK
9321483 | OYGR2 | 9321483 by ********* Last update: Thu Mar 21 2024
General Info
Ship Name:EMMA MAERSK
IMO Code:9321483
Call Sign:OYGR2
Line Operator:9321483
Class Name for Sister Ships:MAERSK E
Year Built:2006
Position Format:Bay, Row, Tier
Allowed Containers:20, 40, 45
LPP (LBP):0.00
LOA (Length Overall):-
Stern to AFT PP:-
Features Informed:Standard
Also Known As (old names):-
Size Summary
ISO Bays:089
Max ISO Row:22
Center Line Row:No
Max Above ISO Tier:98
Min Above ISO Tier:82
Max Below ISO Tier:22
Min Below ISO Tier:02
Total TEU:15,788
Centers of Gravity
LCG Values:Known
LCG Data:100%
VCG Values:Known
VCG Data:100%
TCG Values:Known
TCG Data:100%

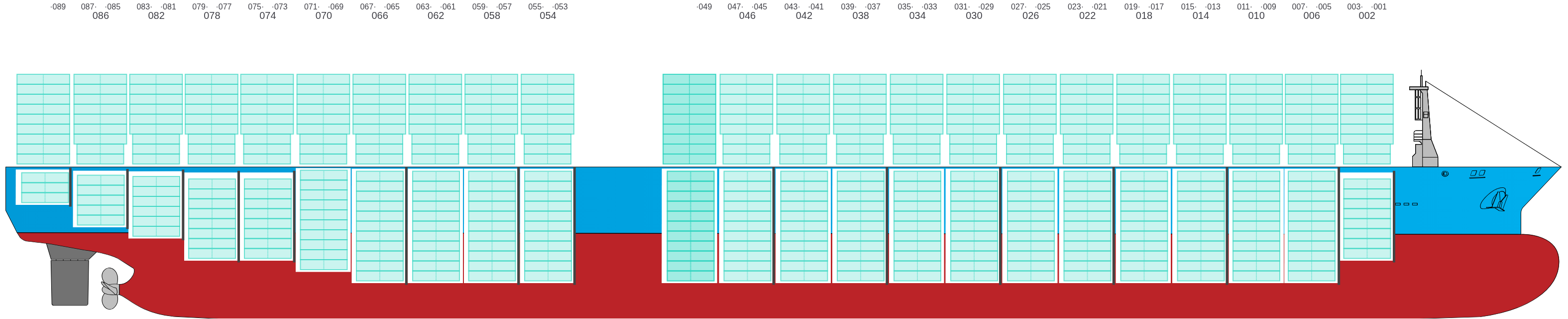

Side View

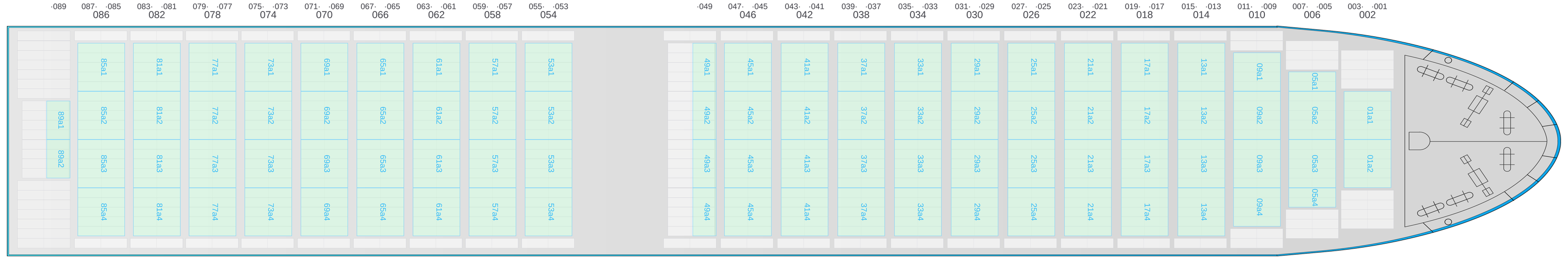

Hatch-Covers View
ISO Bays
Legend
- 20'
- 40'
- 45'
- Reefer
- Restricted slot

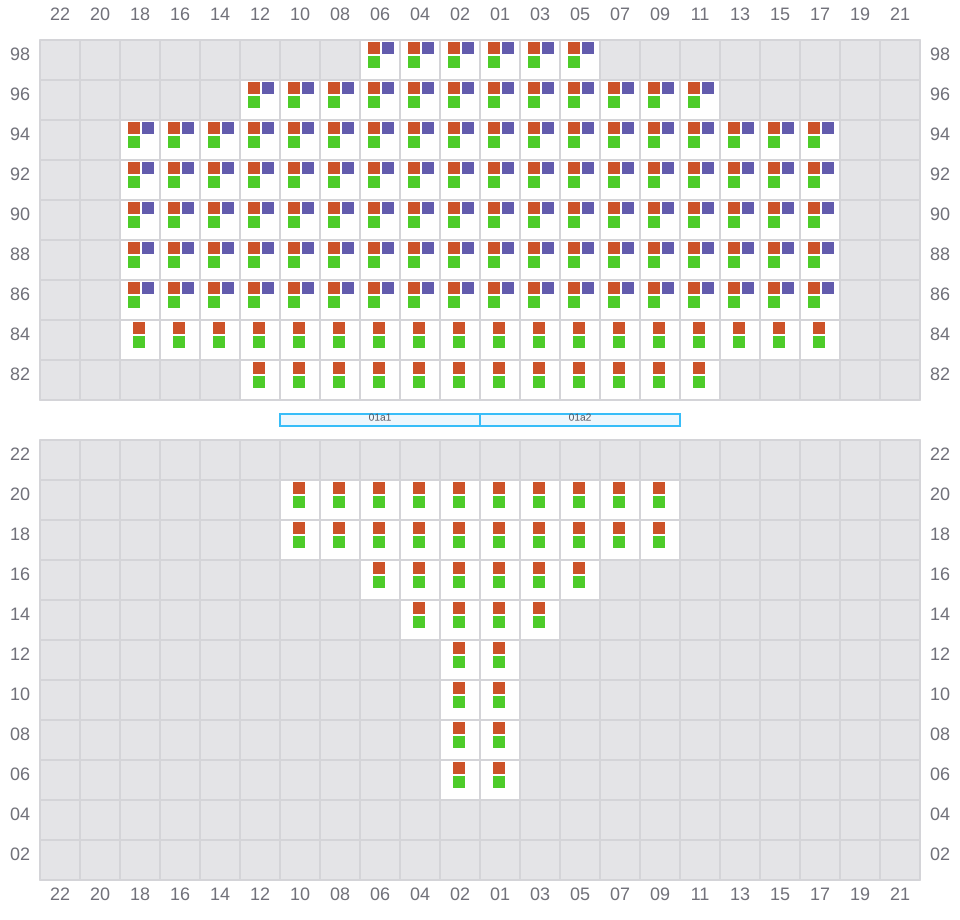

001 (002)
- →
003
- ←

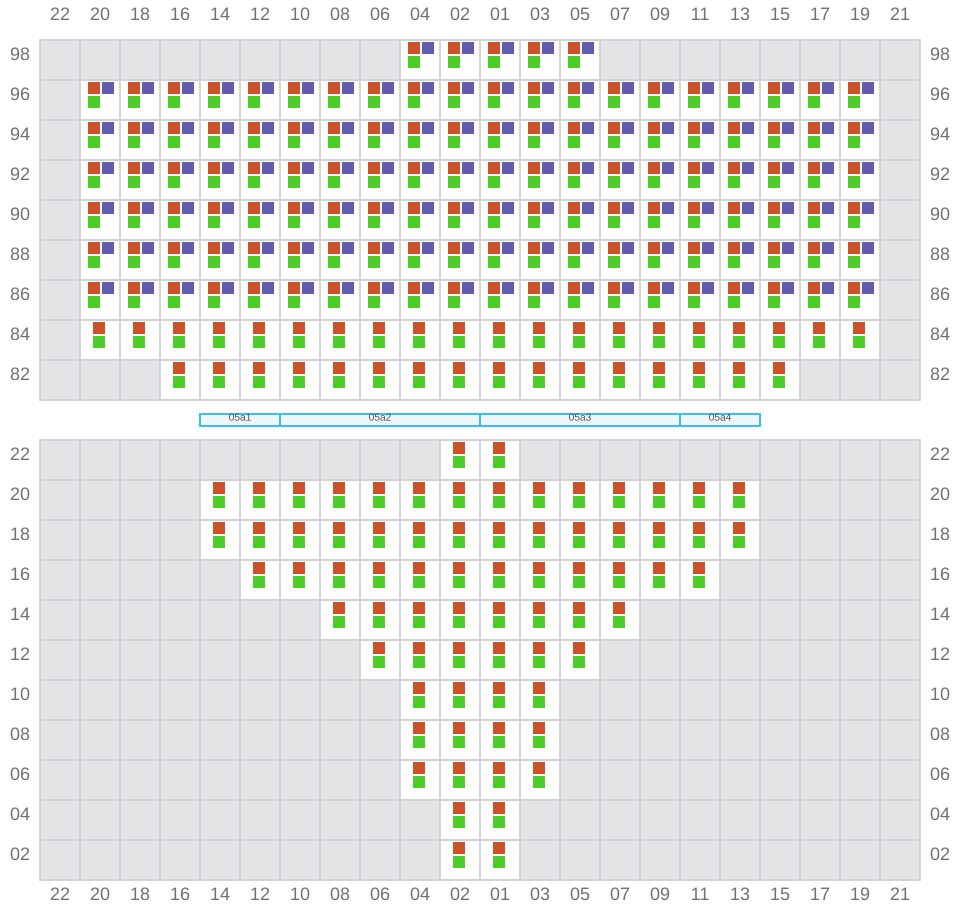

005 (006)
- →
007
- ←

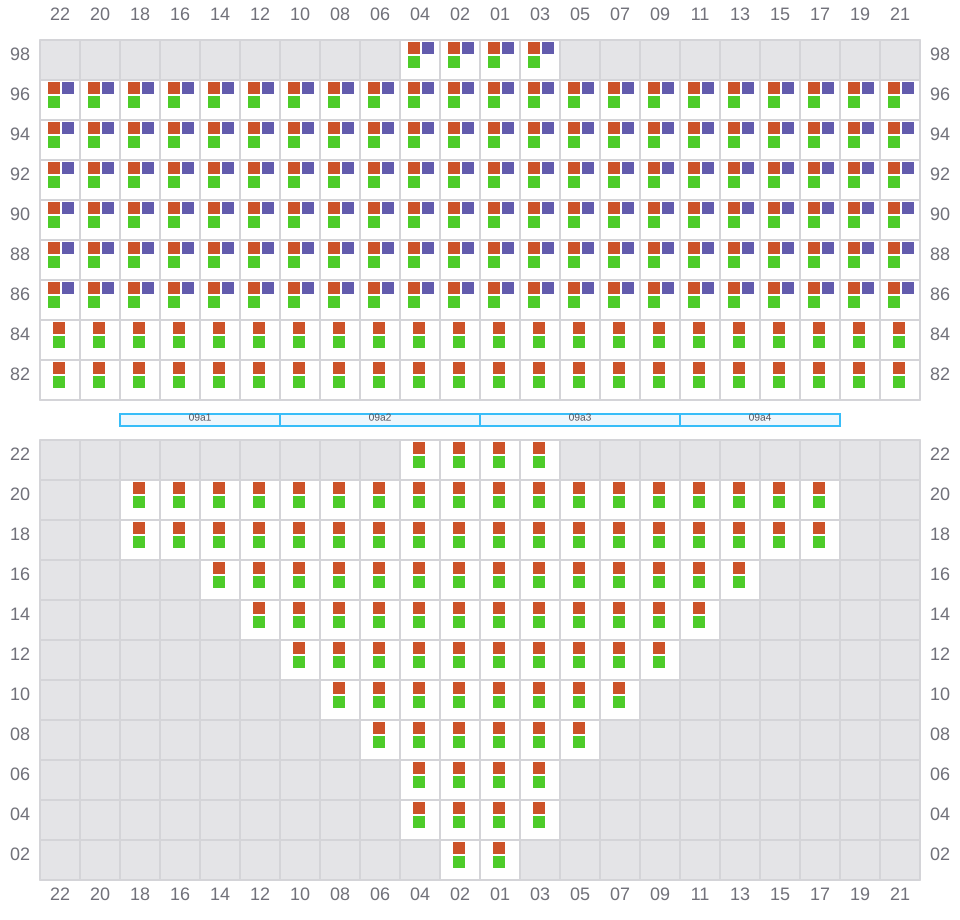

009 (010)
- →

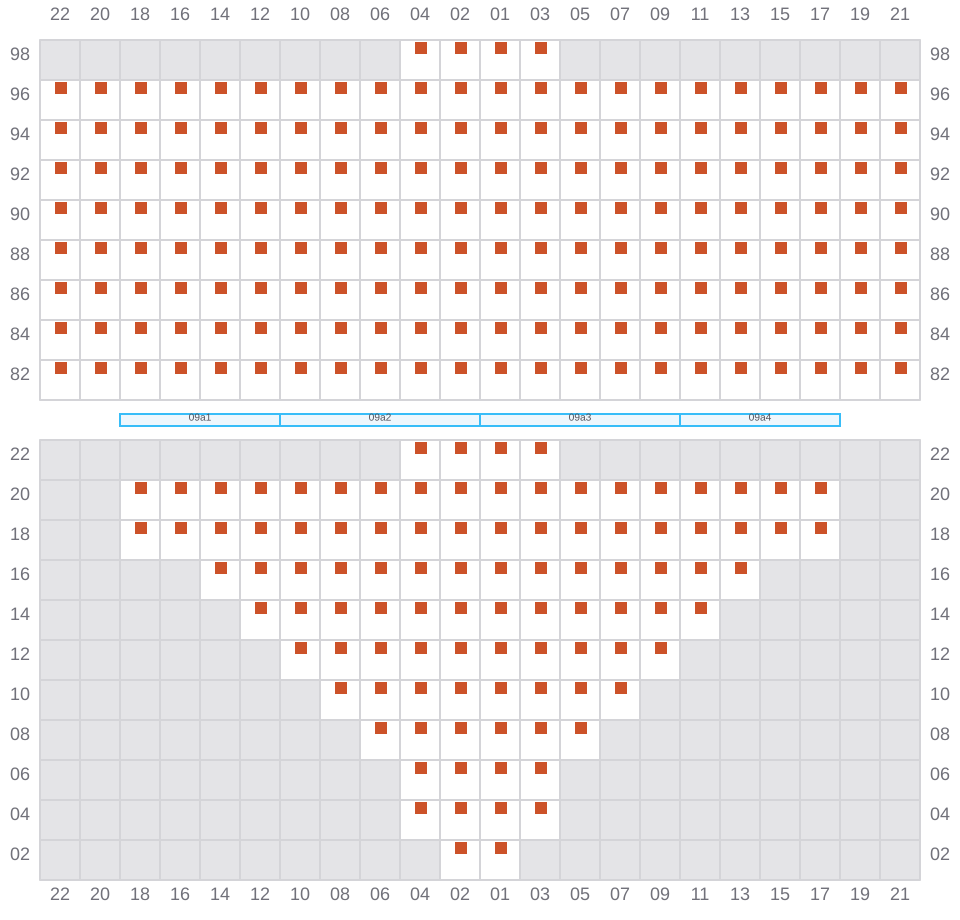

011
- ←

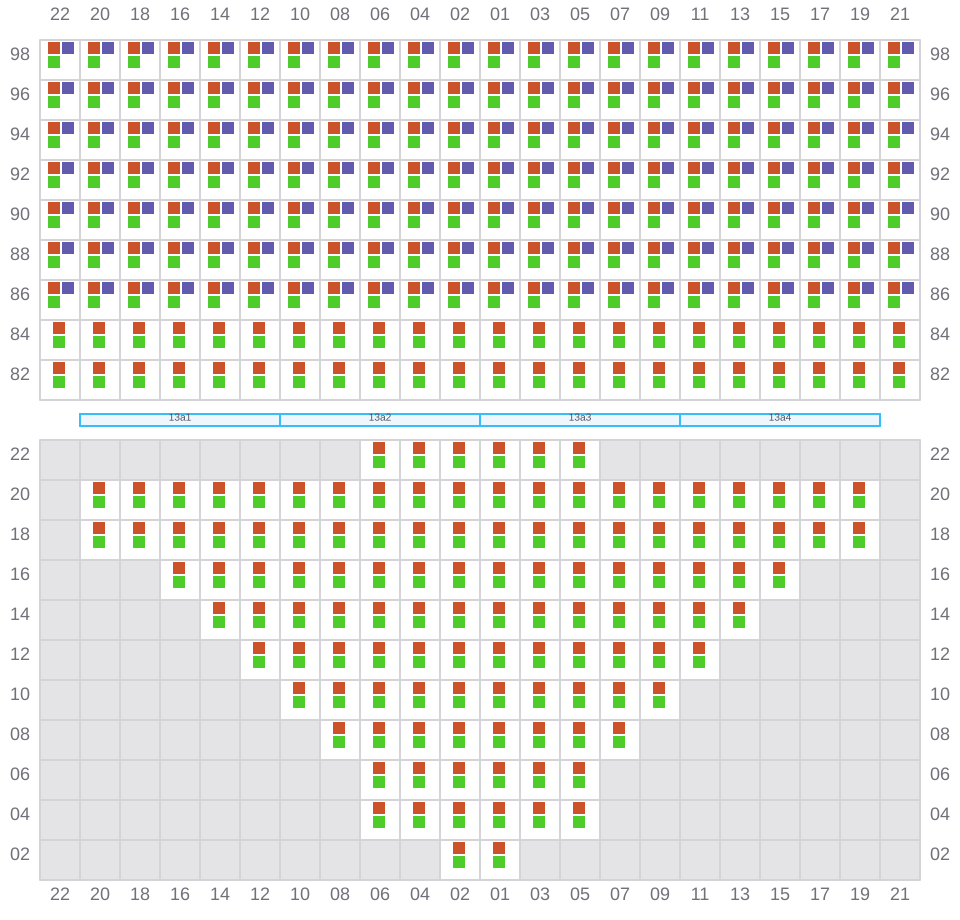

013 (014)
- →

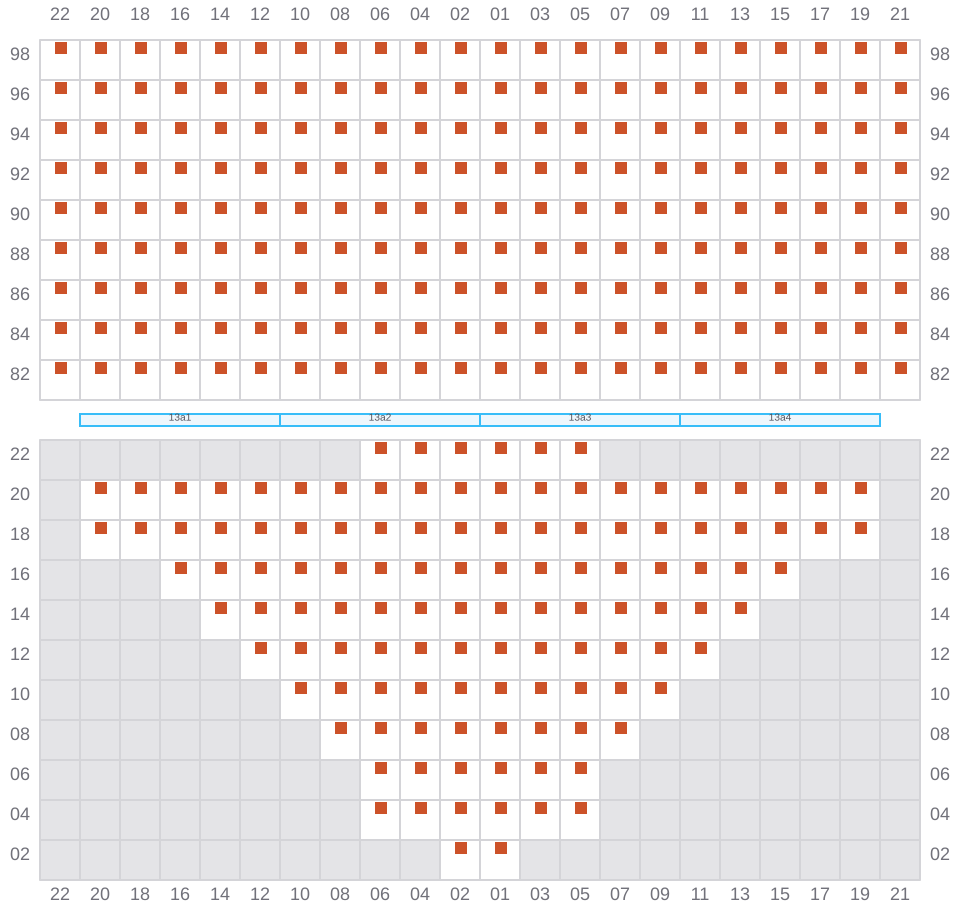

015
- ←

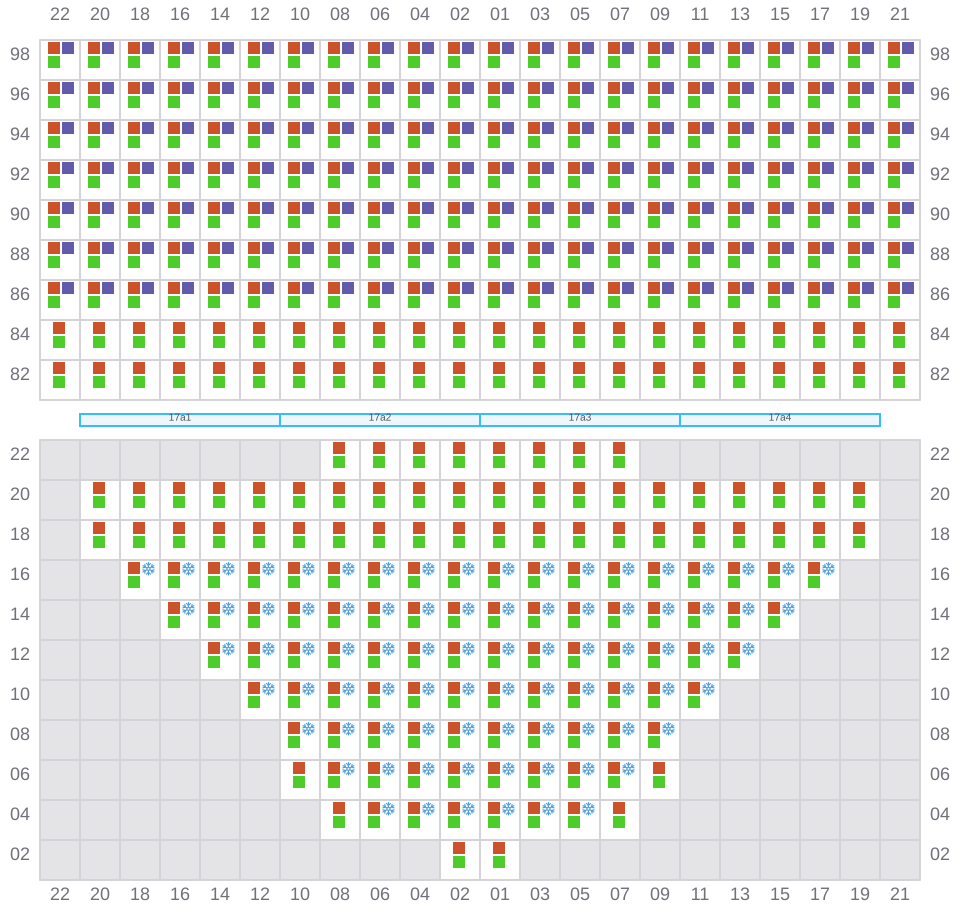

017 (018)
- →
- ? / ←

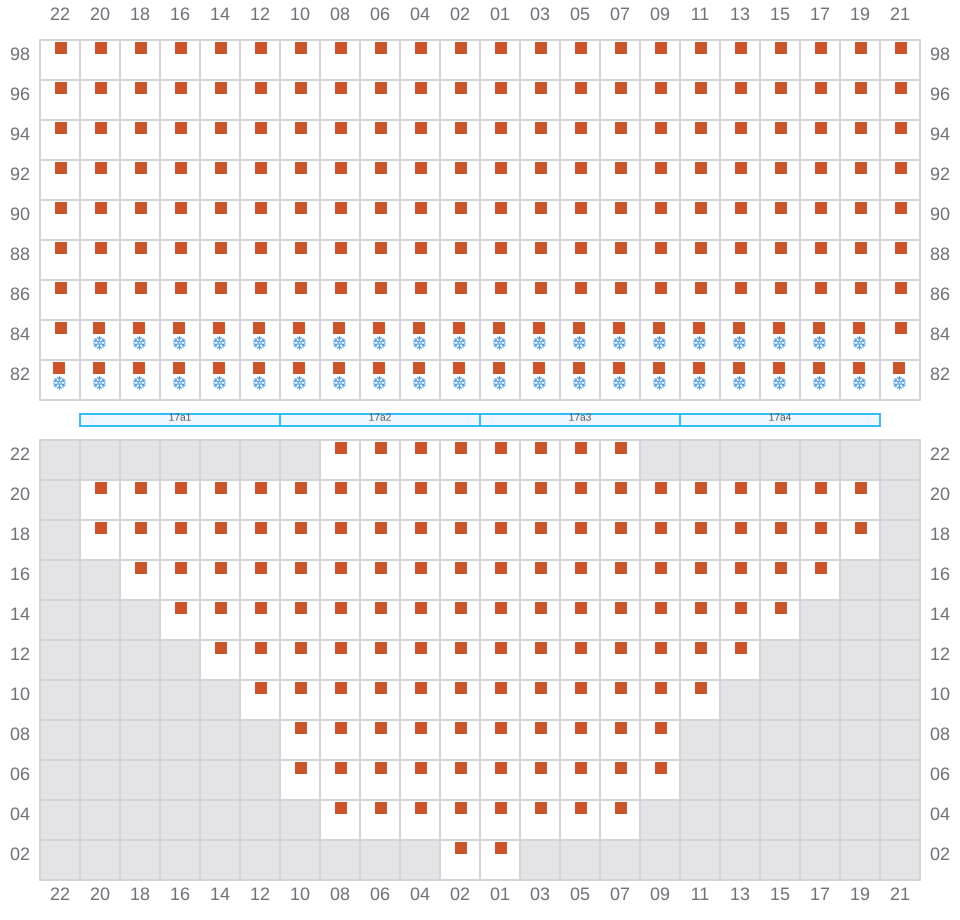

019
- ←
- → / ?

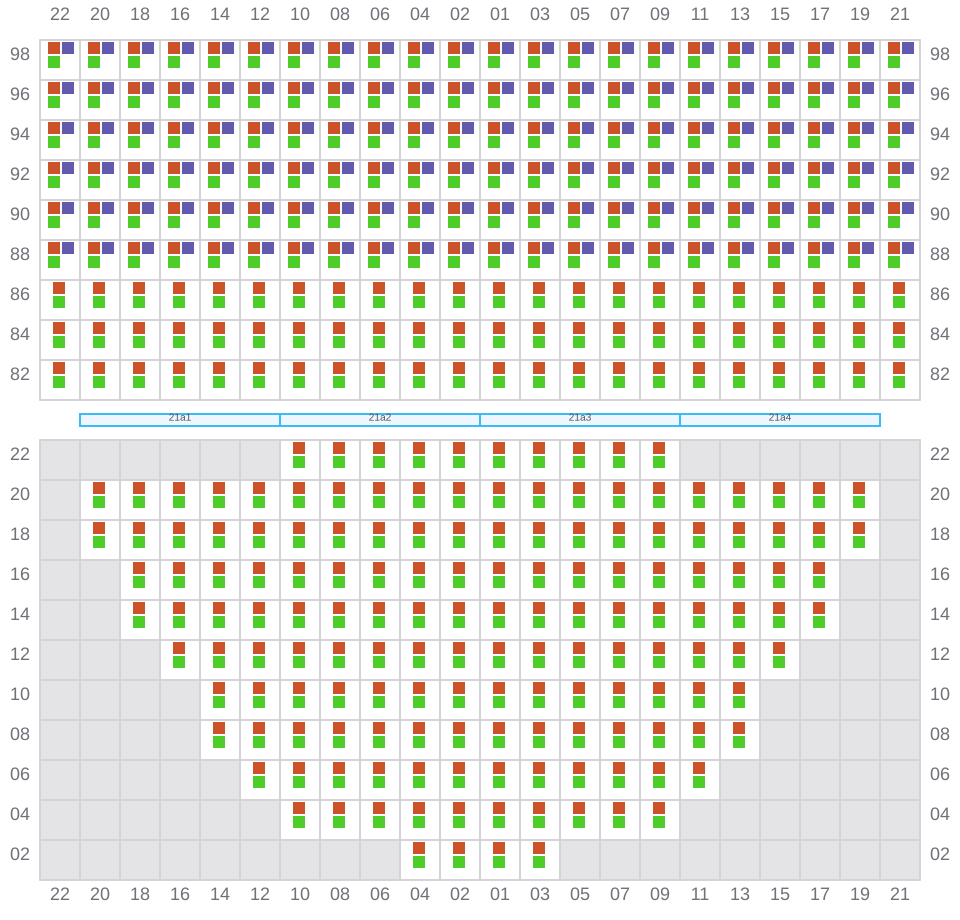

021 (022)
- →
023
- ←

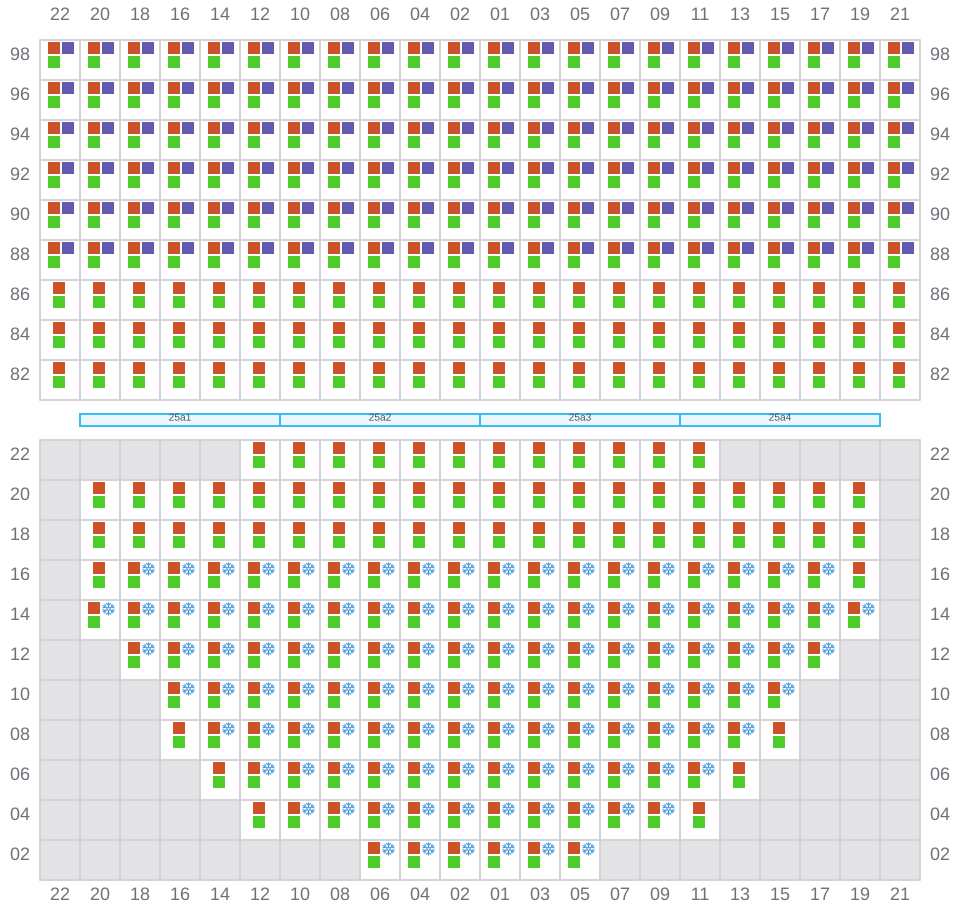

025 (026)
- →
- ? / ←
027
- ←
- → / ?

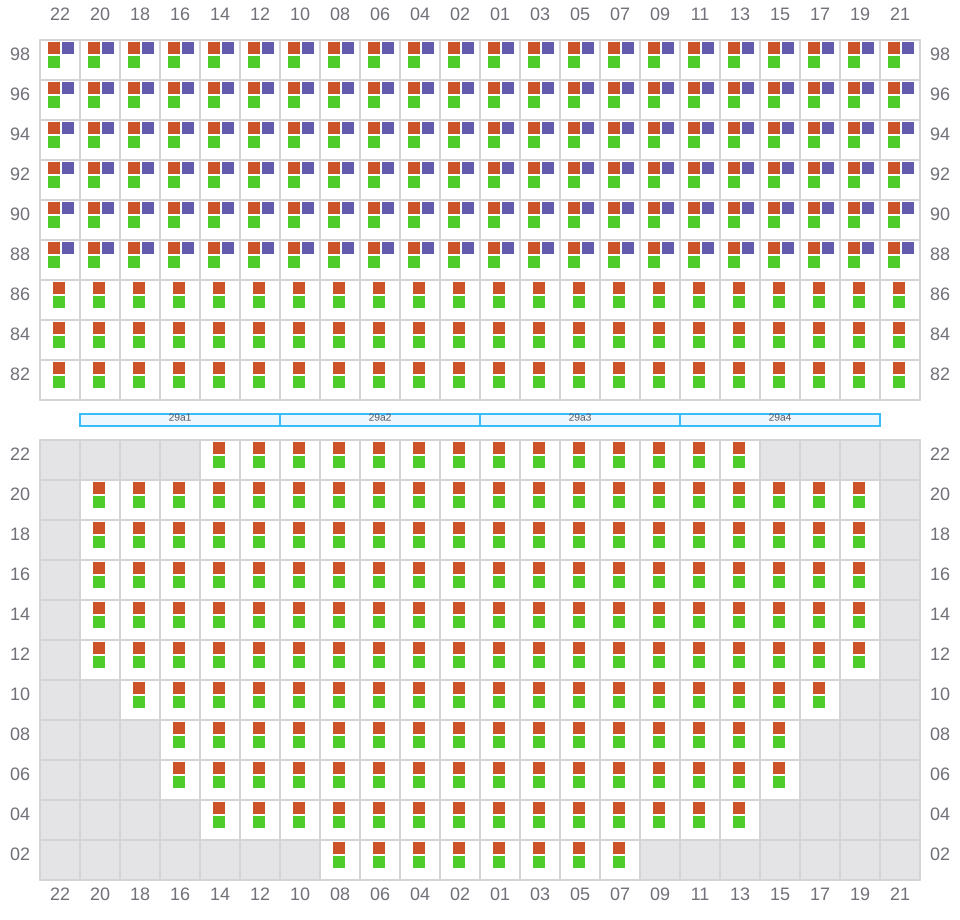

029 (030)
- →

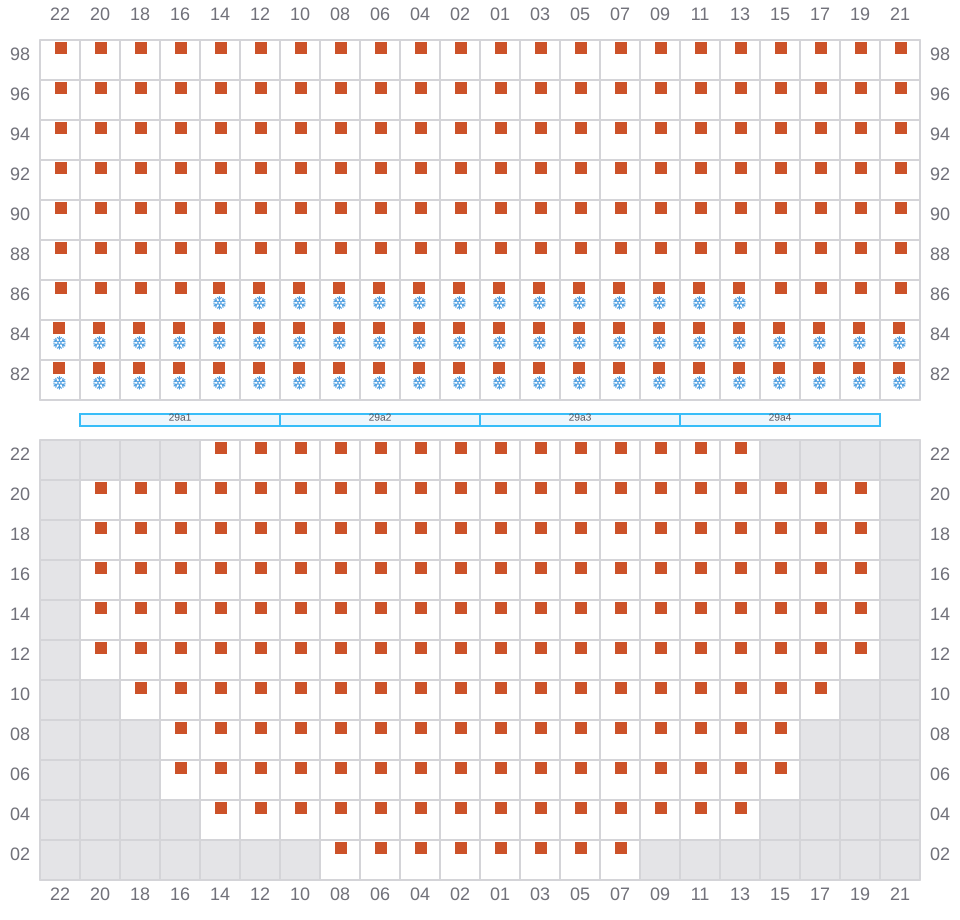

031
- ←
- → / ?
033 (034)
- →
- ? / ←

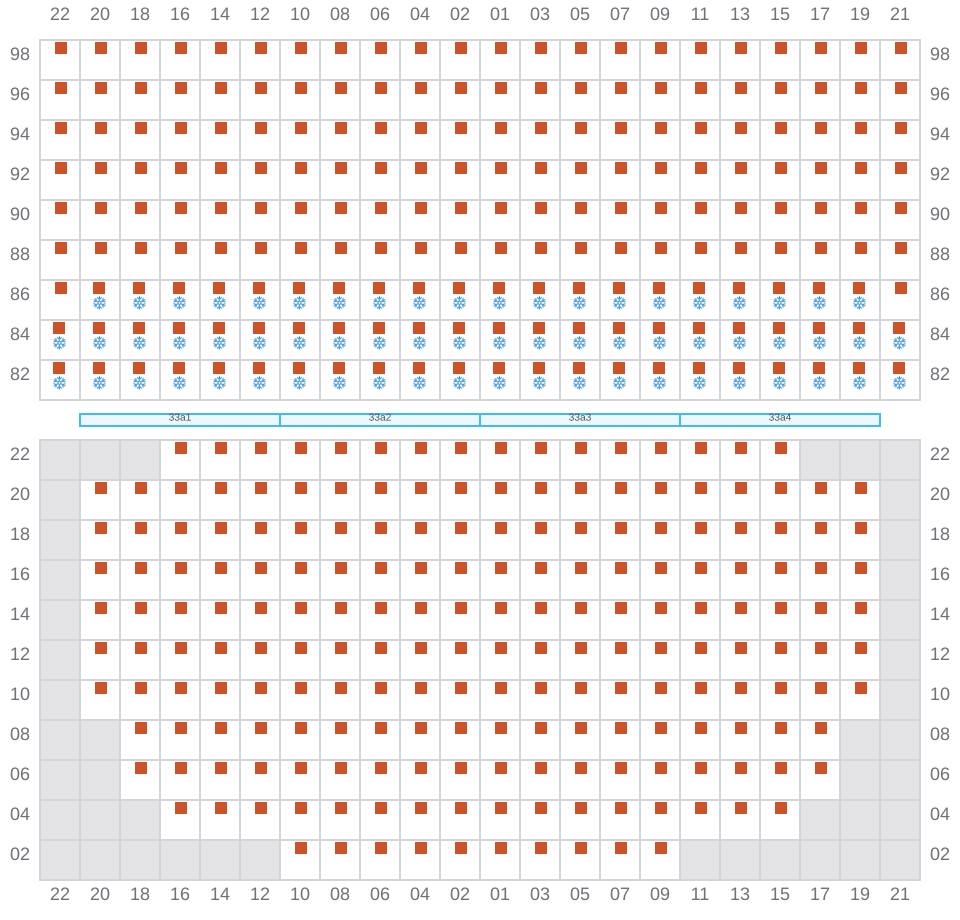

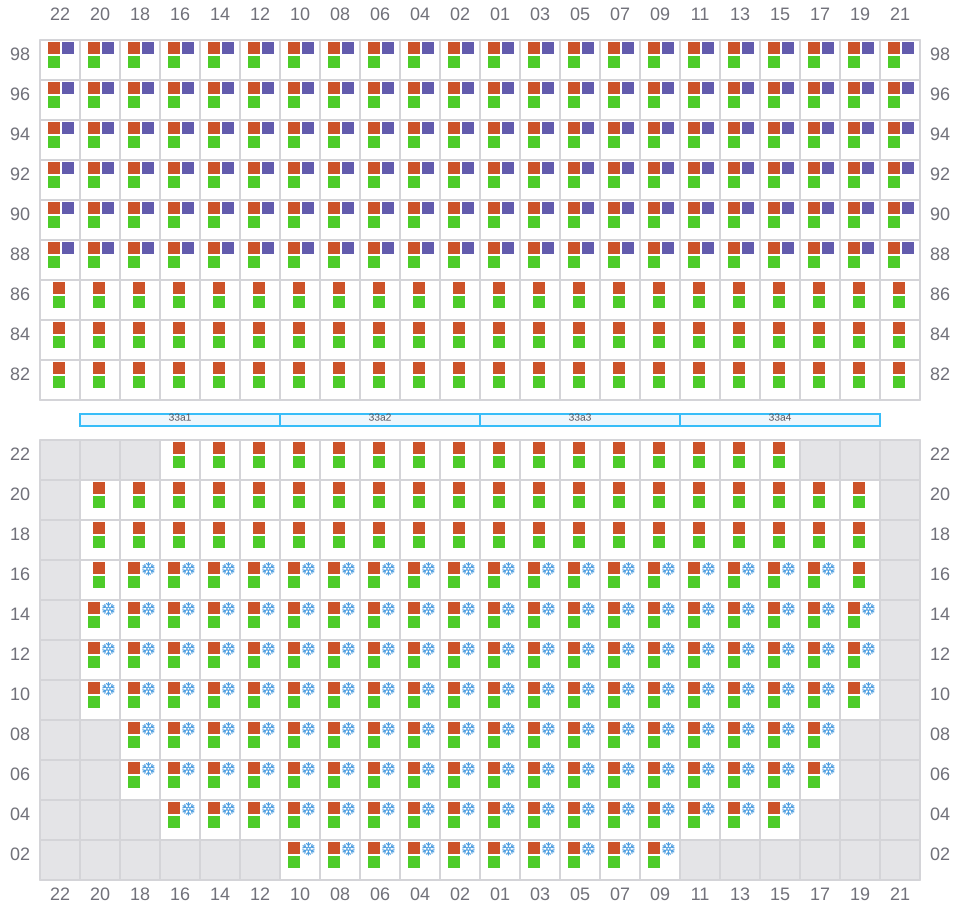

035
- ←
- → / ?

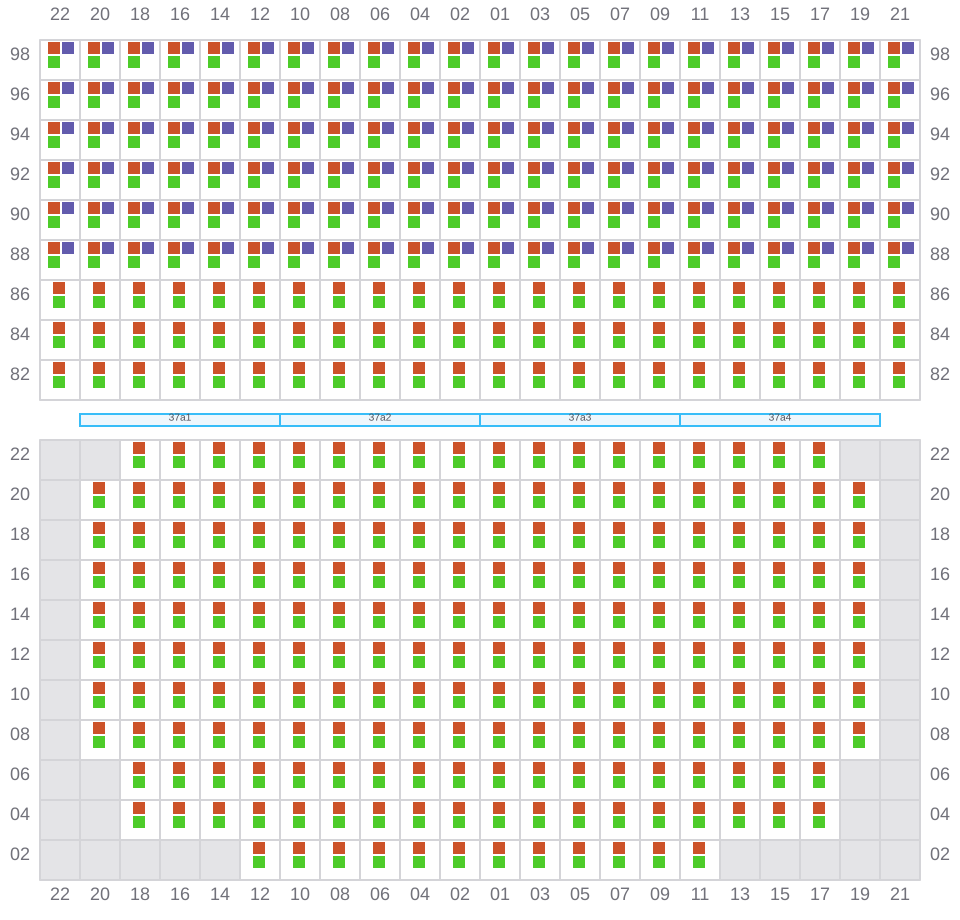

037 (038)
- →

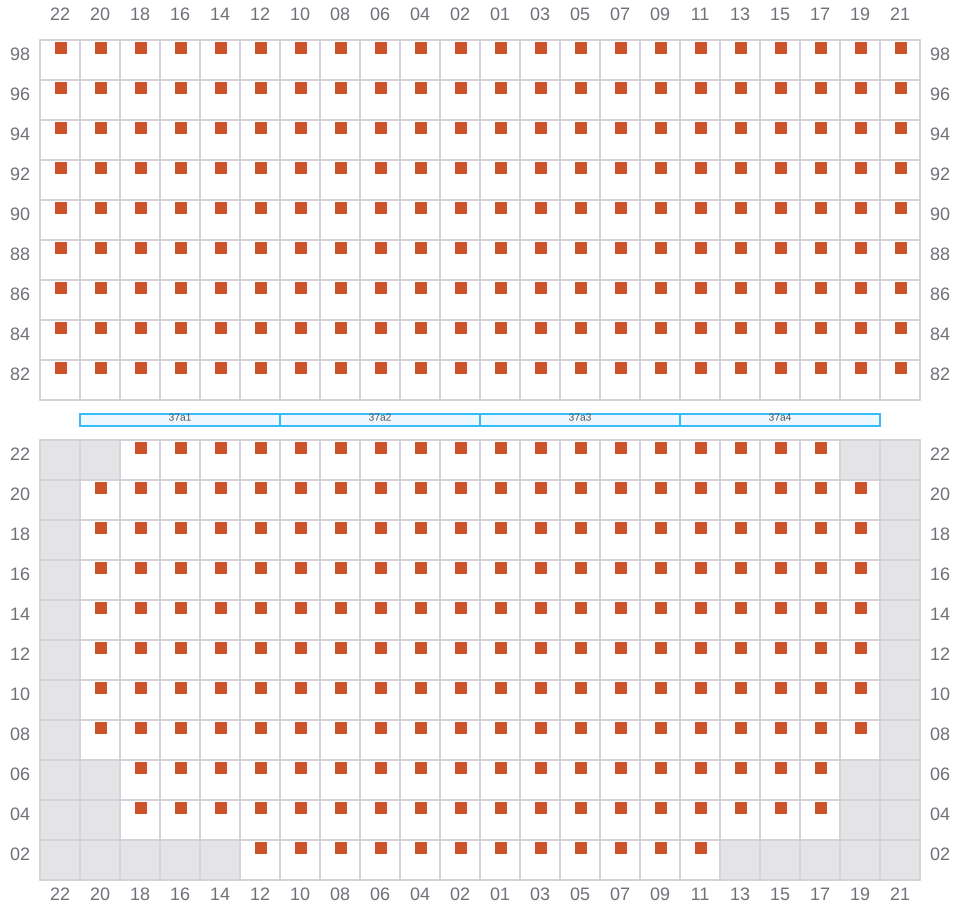

039
- ←

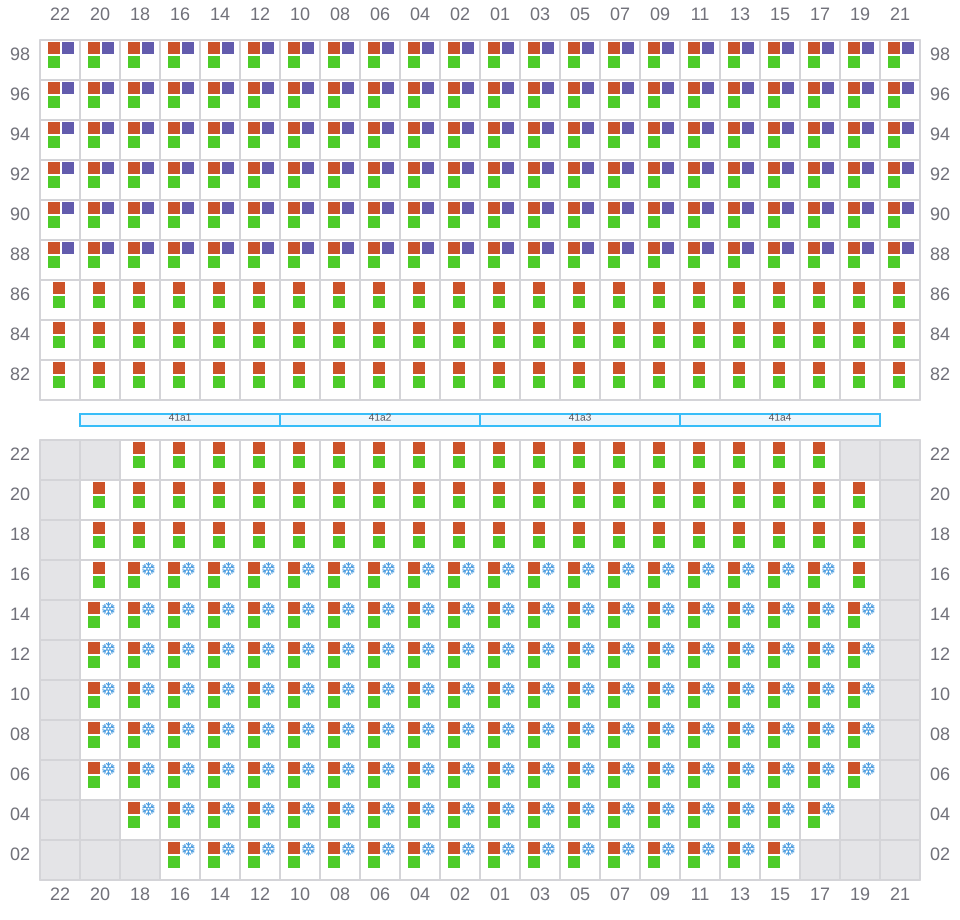

041 (042)
- →

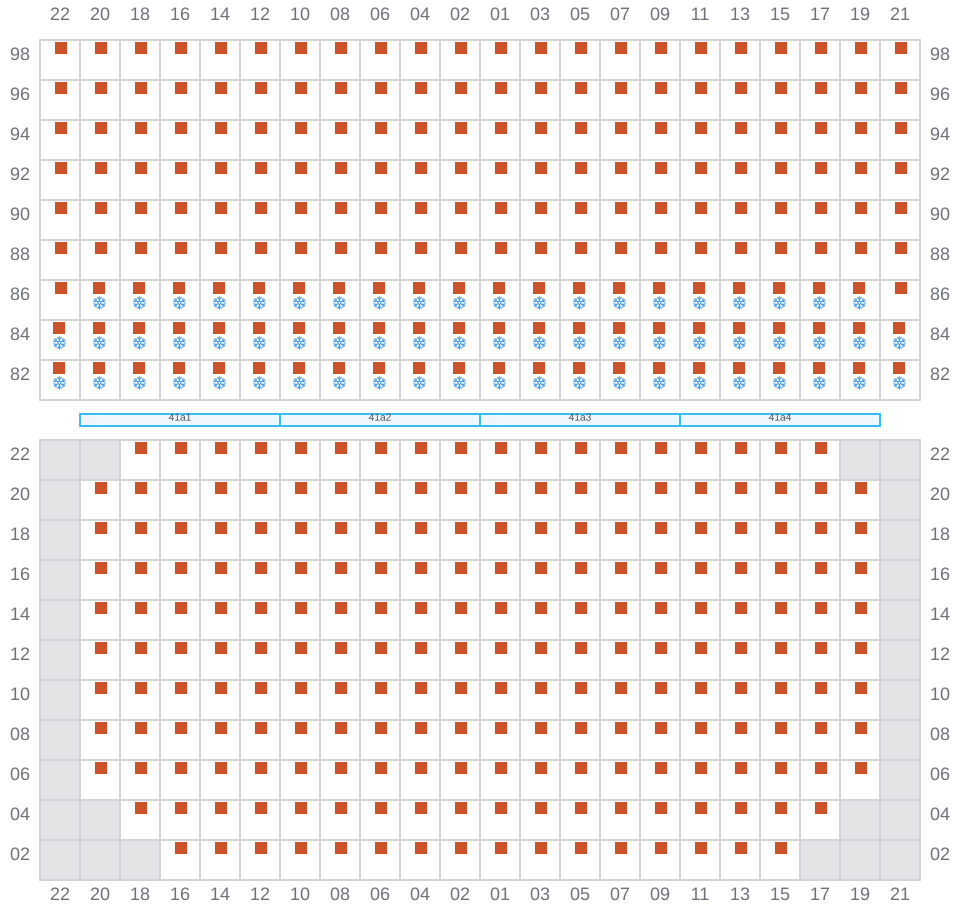

043
- ←
- → / ?

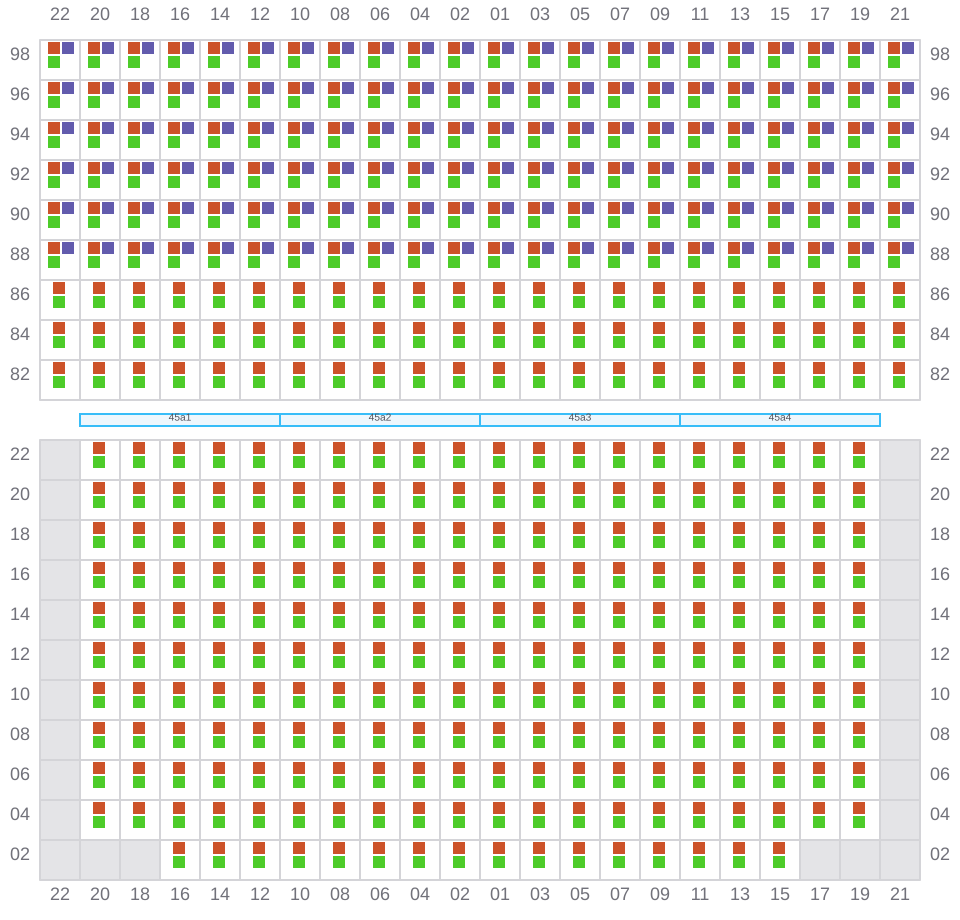

045 (046)
- →

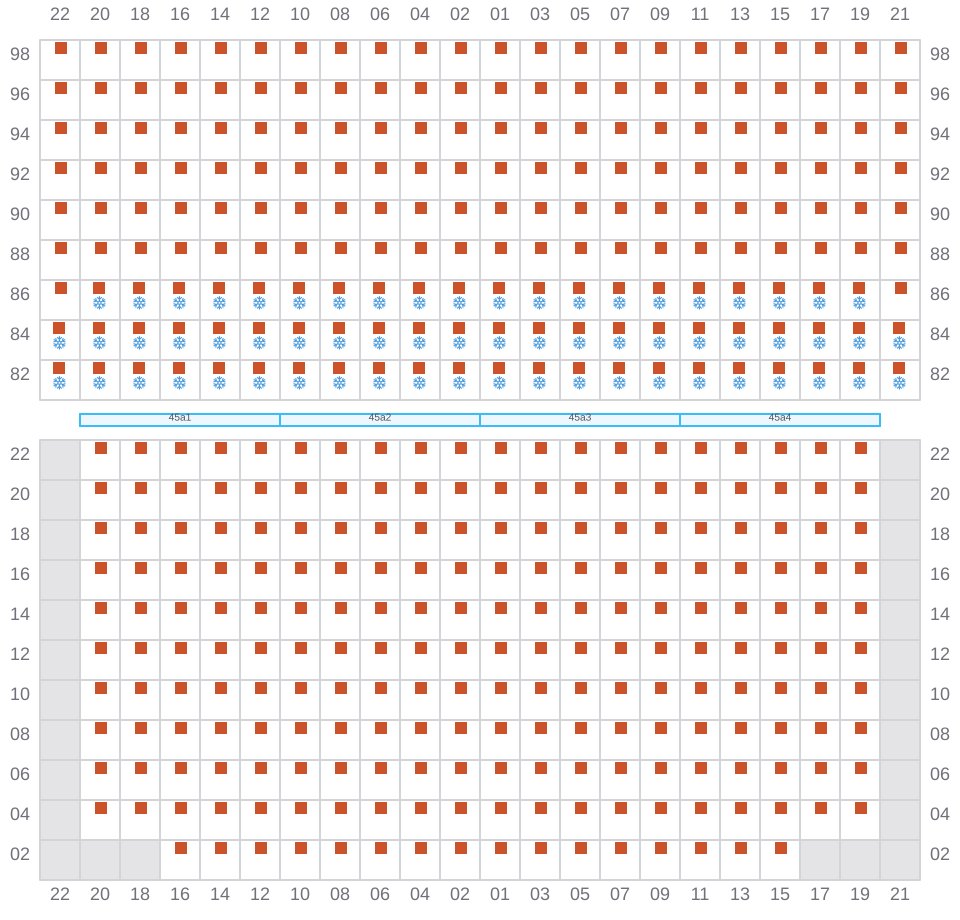

047
- ←
- → / ?

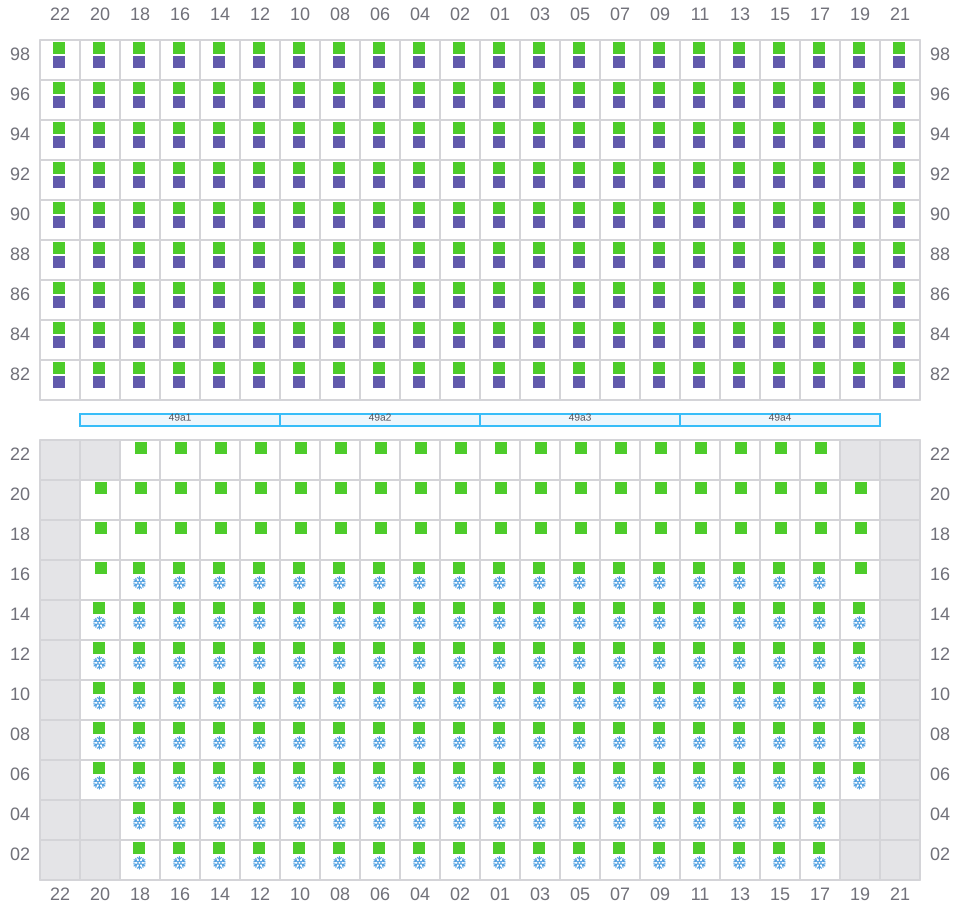

049 (050)
- →
- ? / ←
051

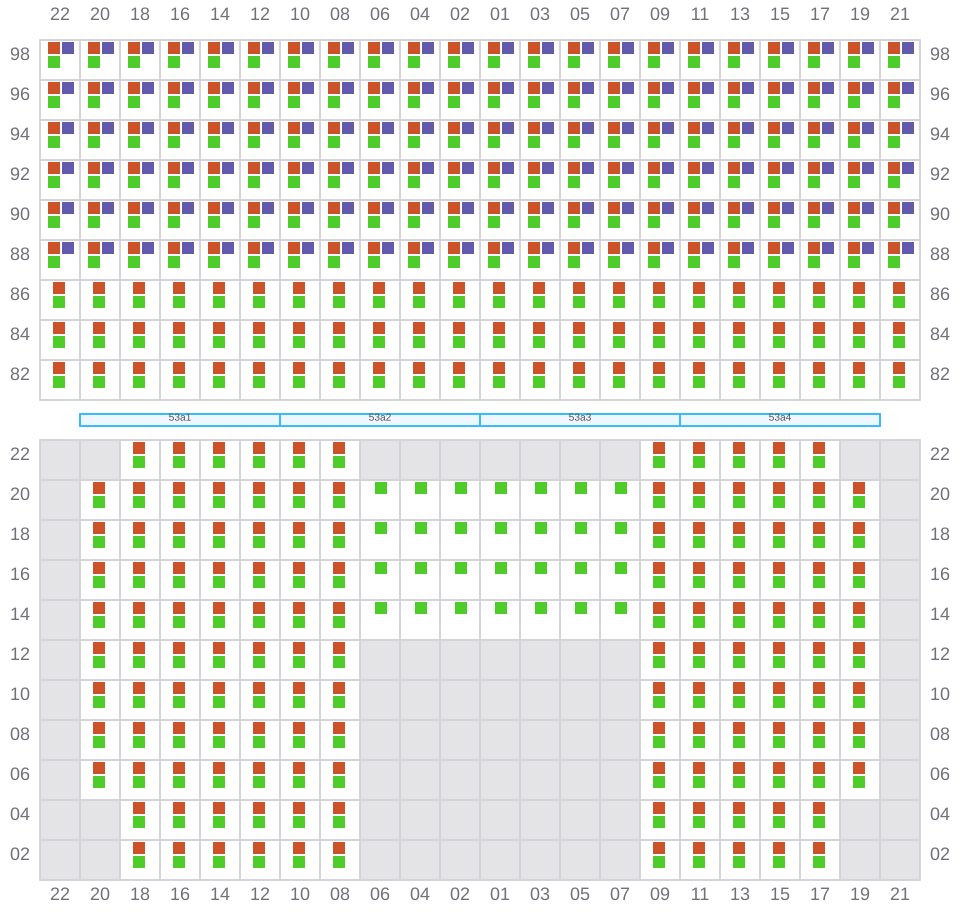

053 (054)
- →

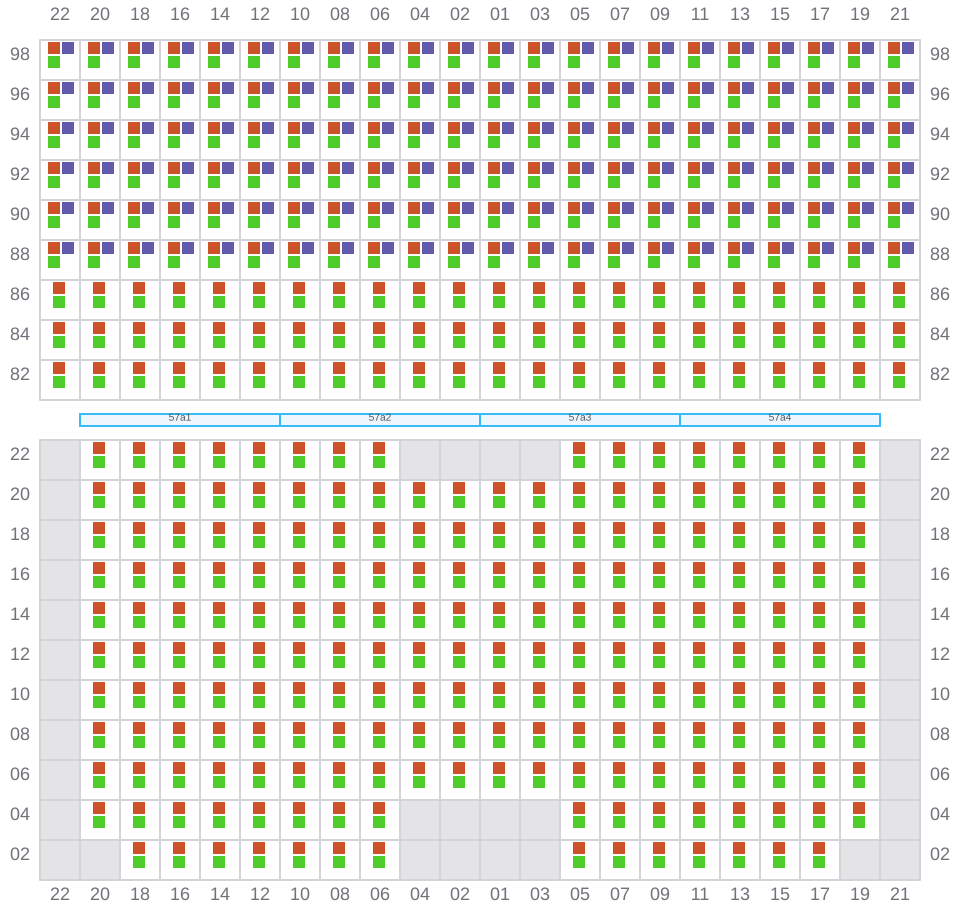

055
- ←
057 (058)
- →

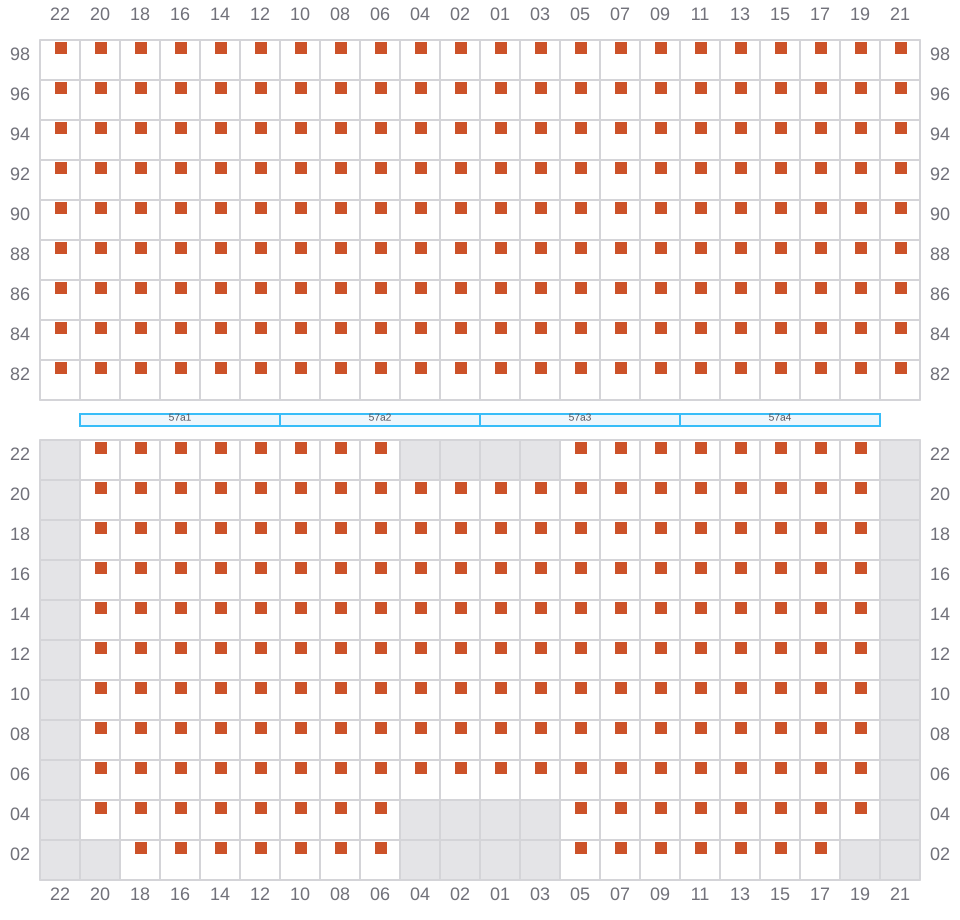

059
- ←

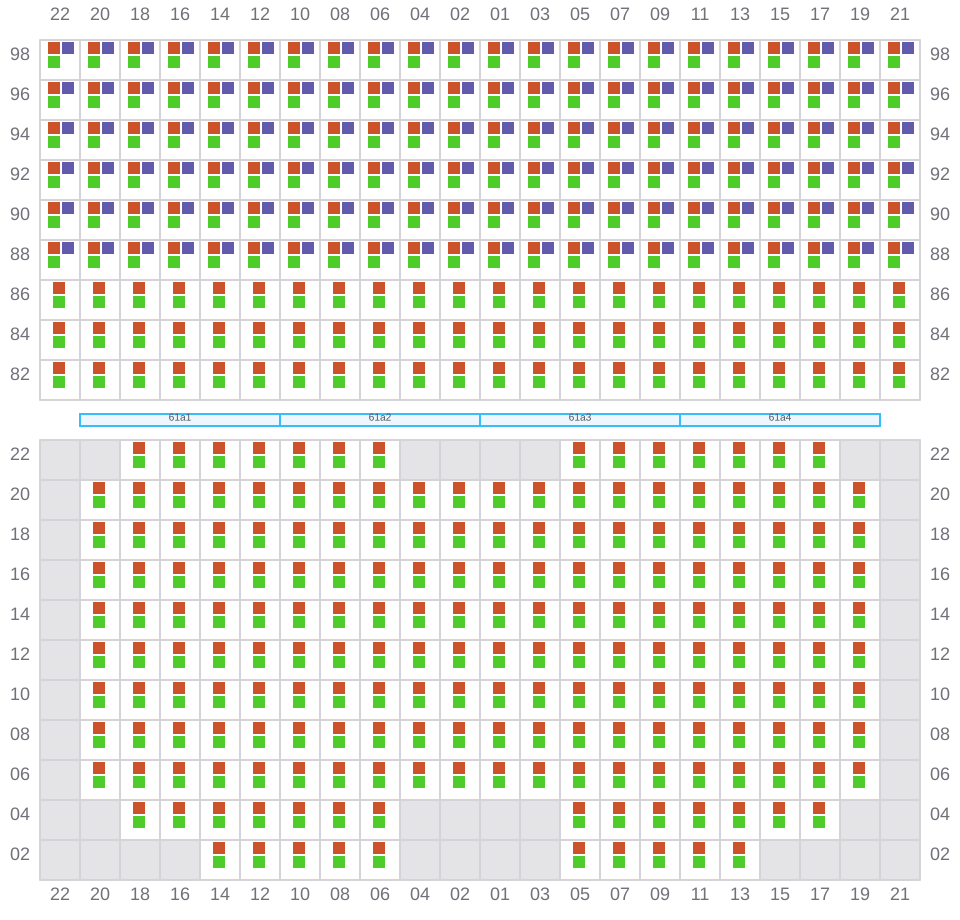

061 (062)
- →

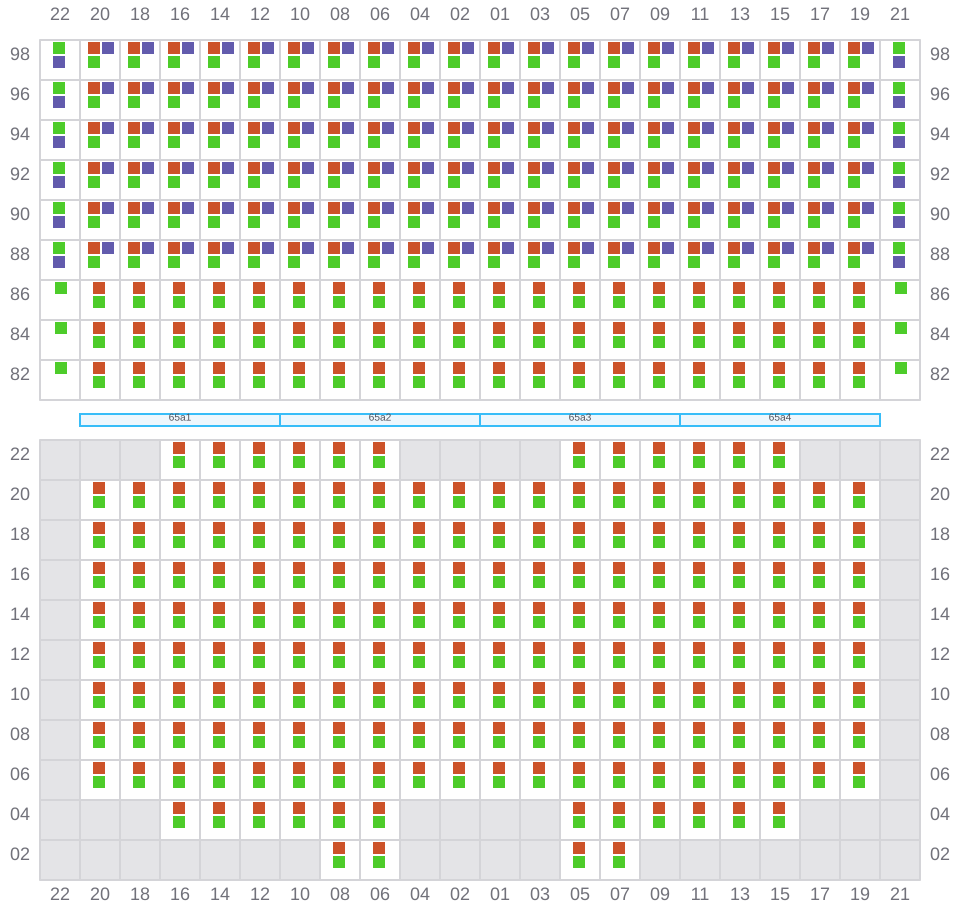

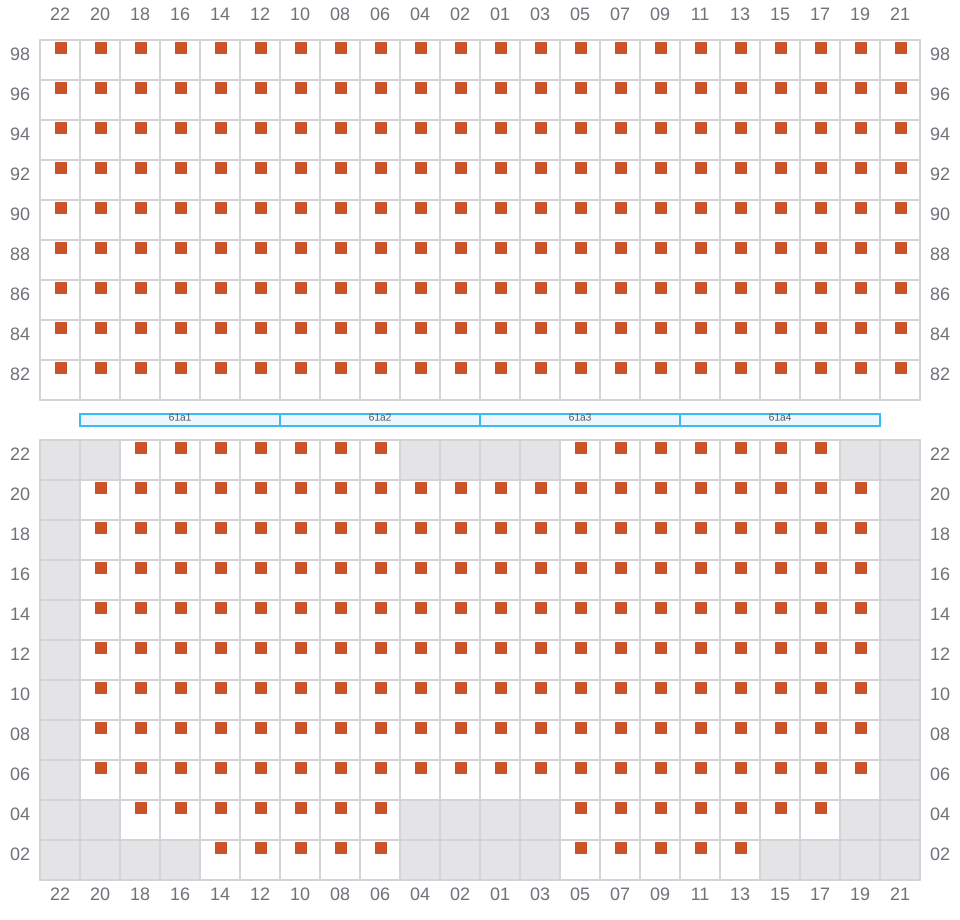

063
- ←
065 (066)
- →

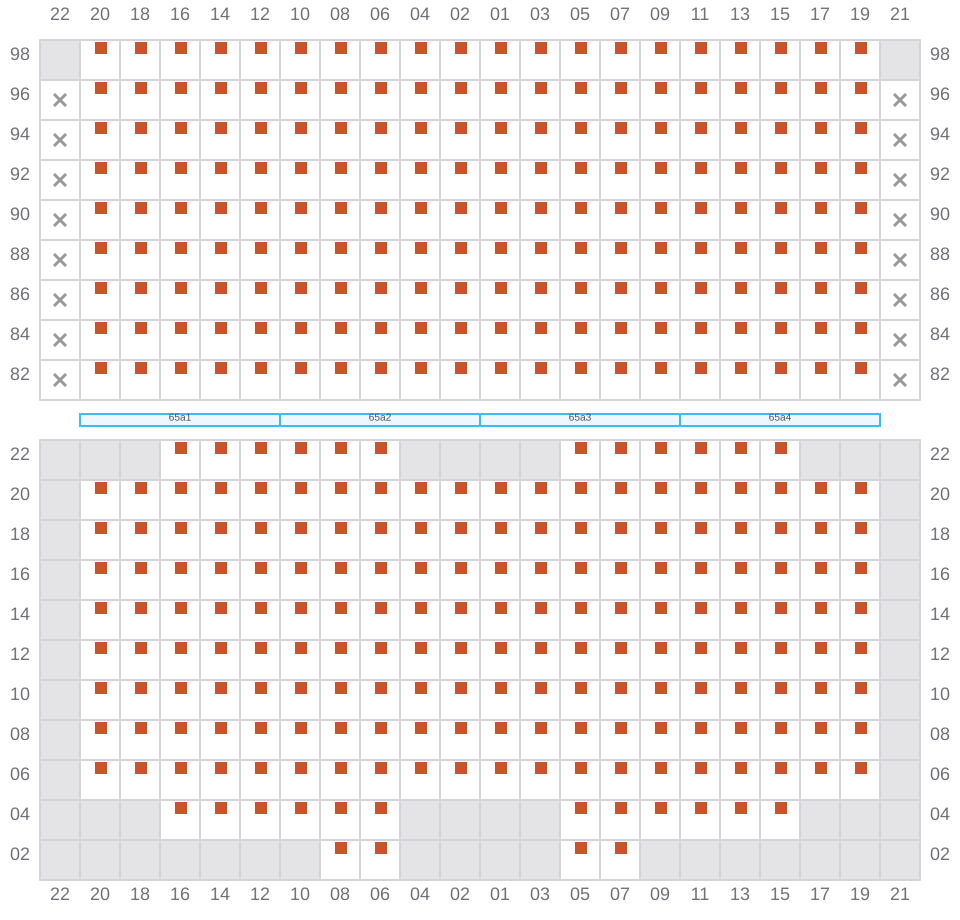

067
- ←

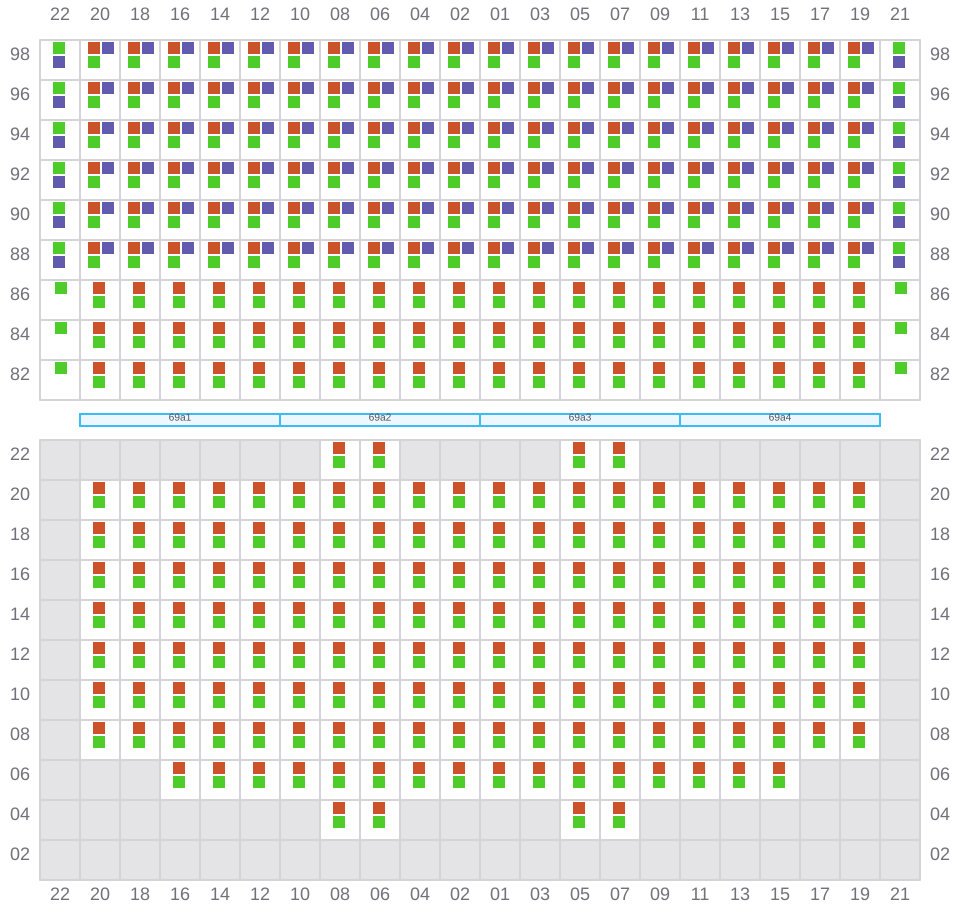

069 (070)
- →

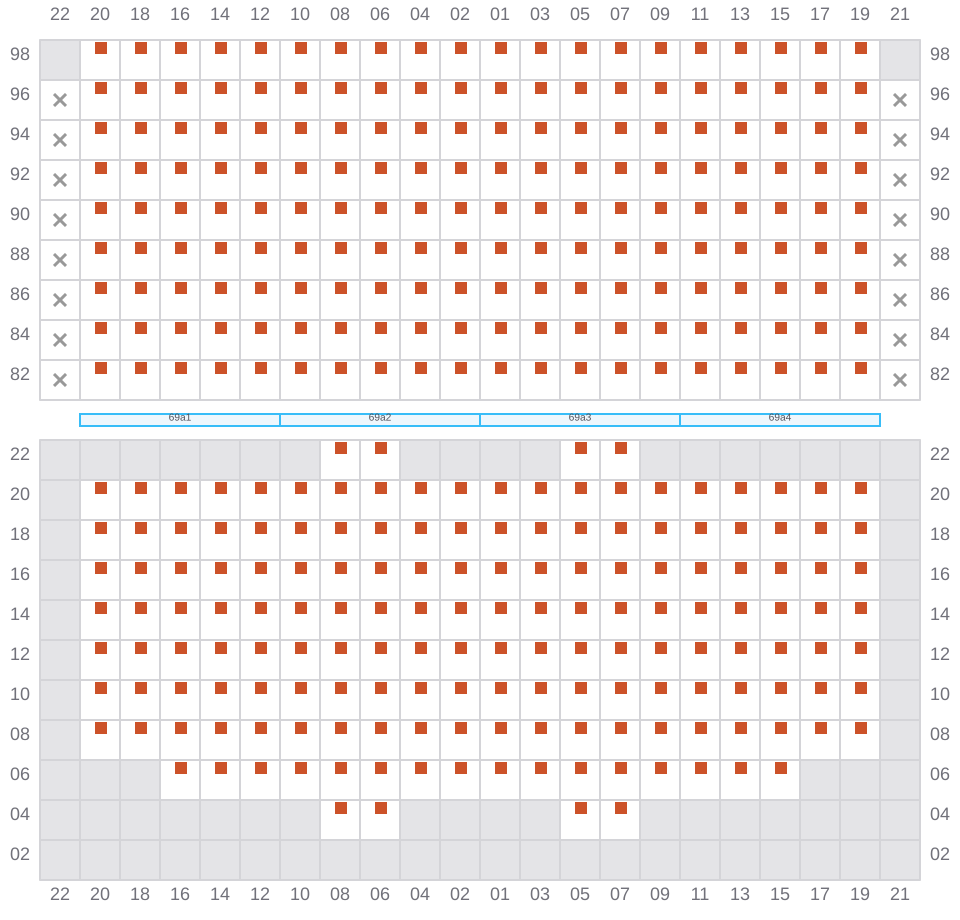

071
- ←
073 (074)
- →

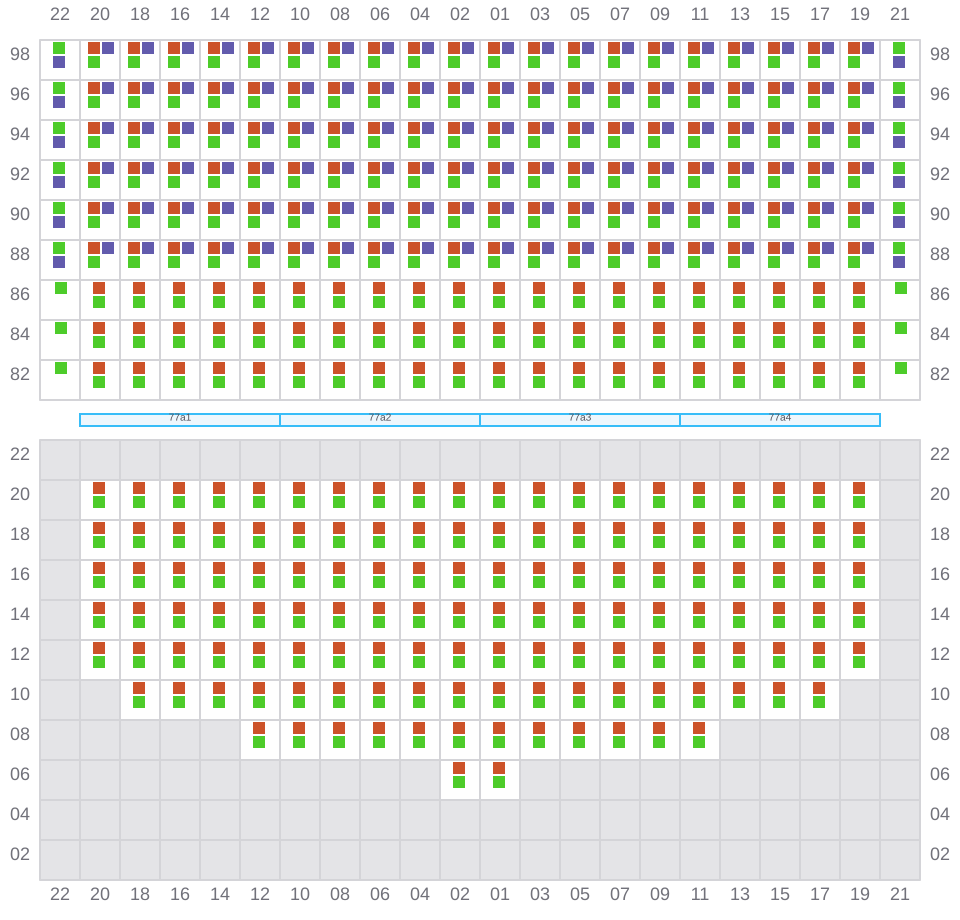

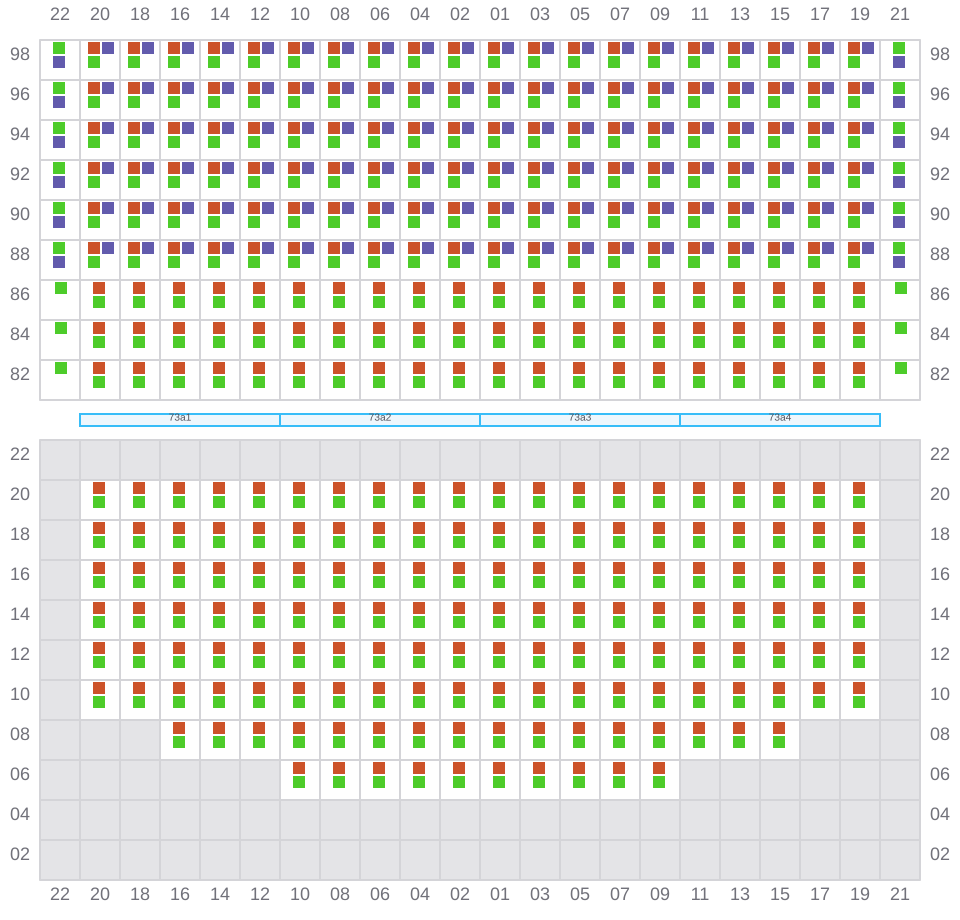

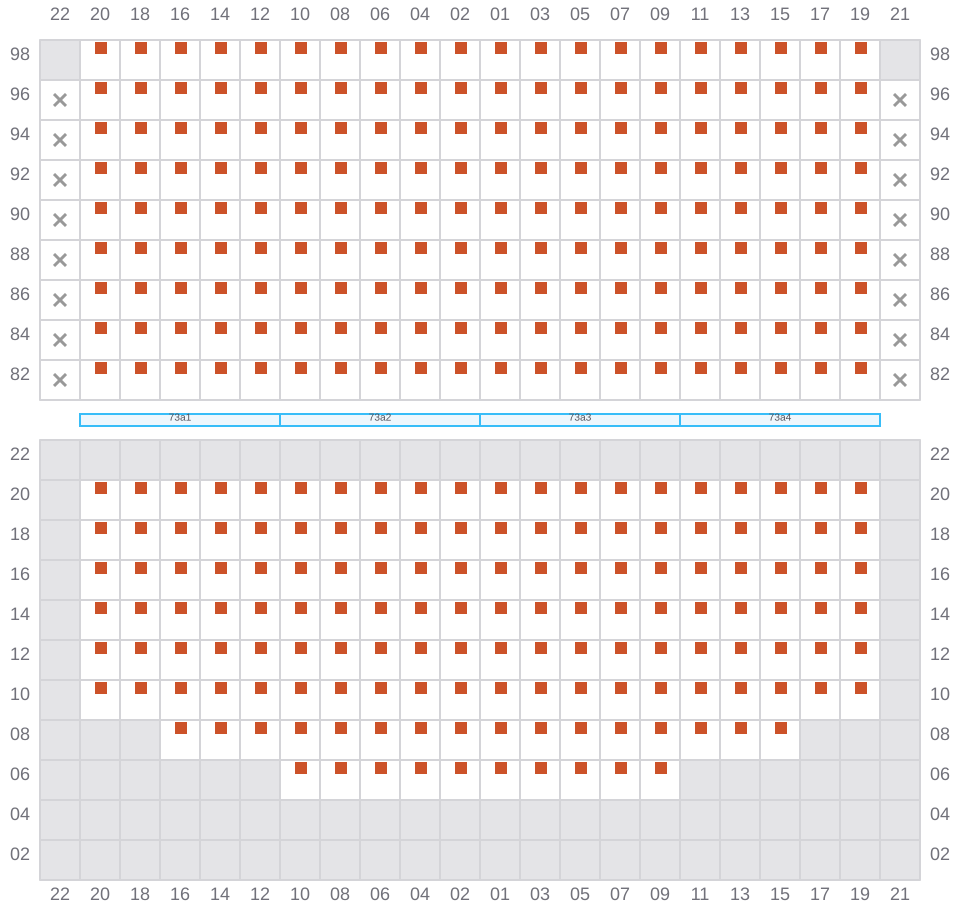

075
- ←
077 (078)
- →

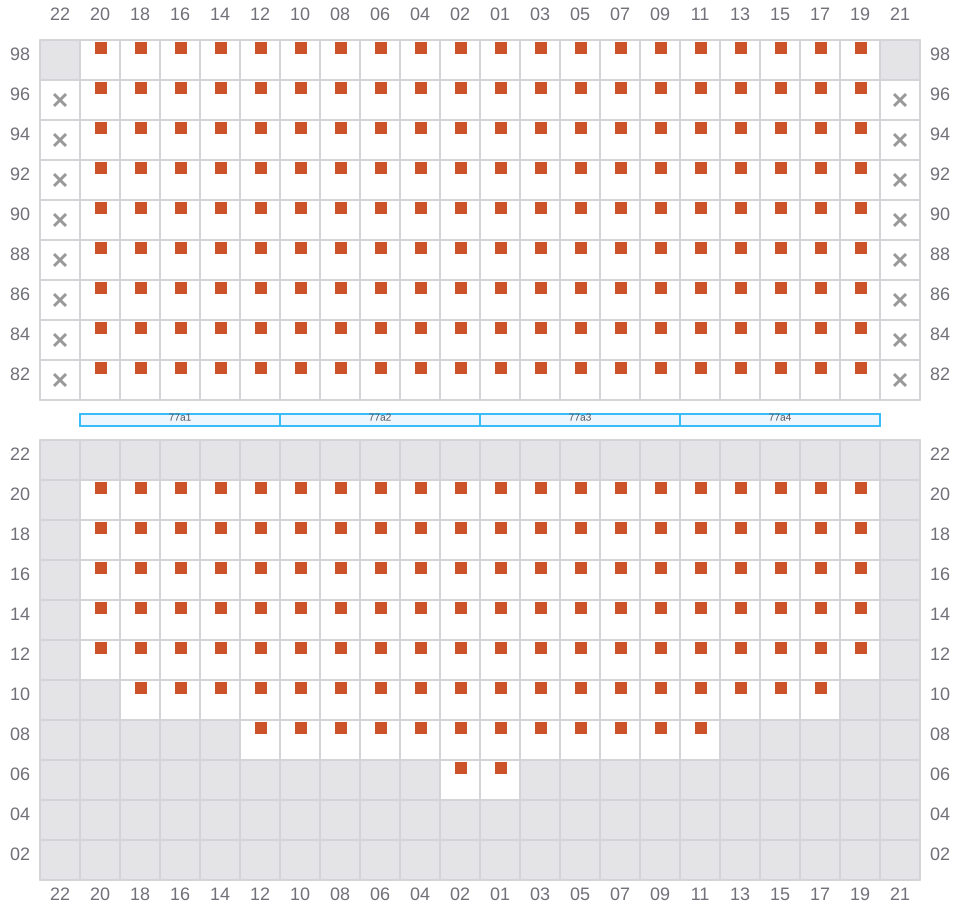

079
- ←
081 (082)
- →

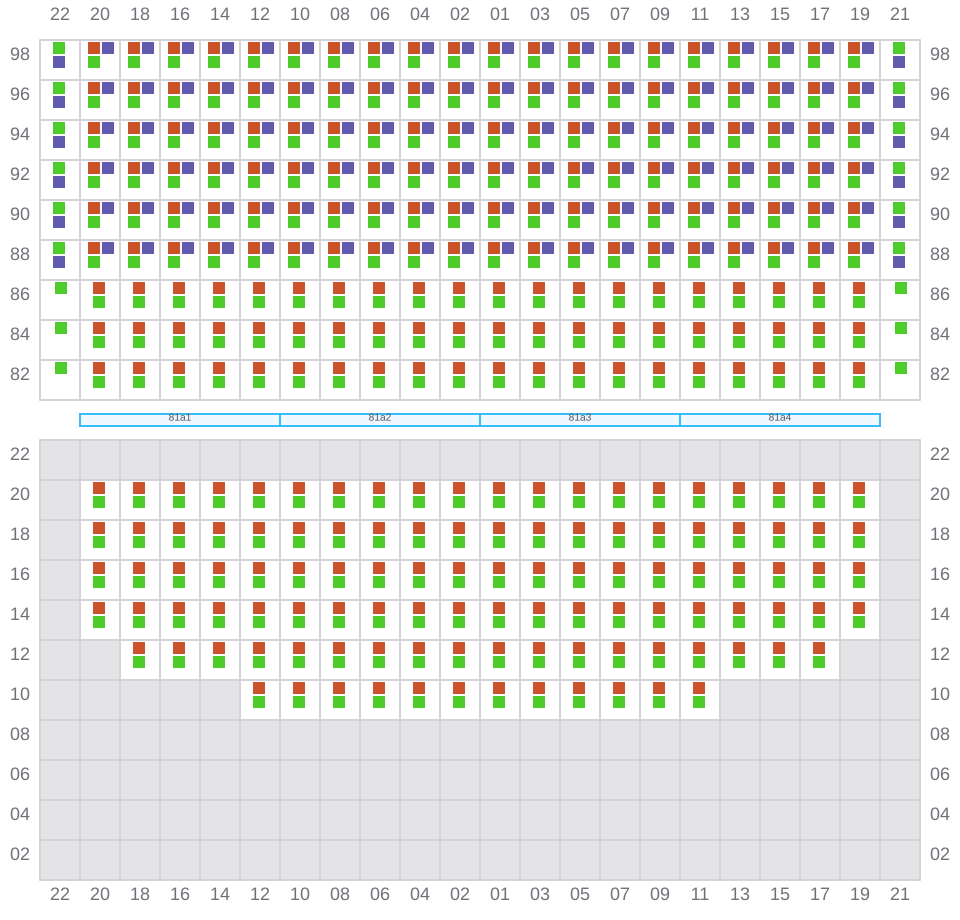

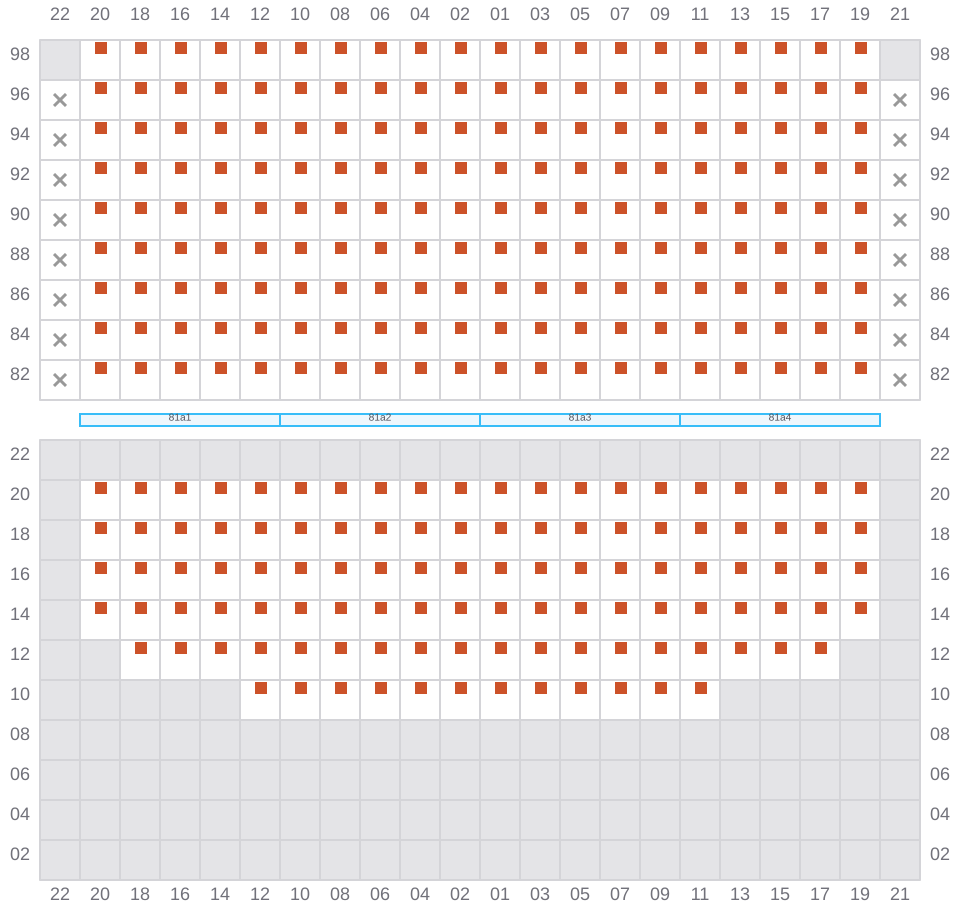

083
- ←

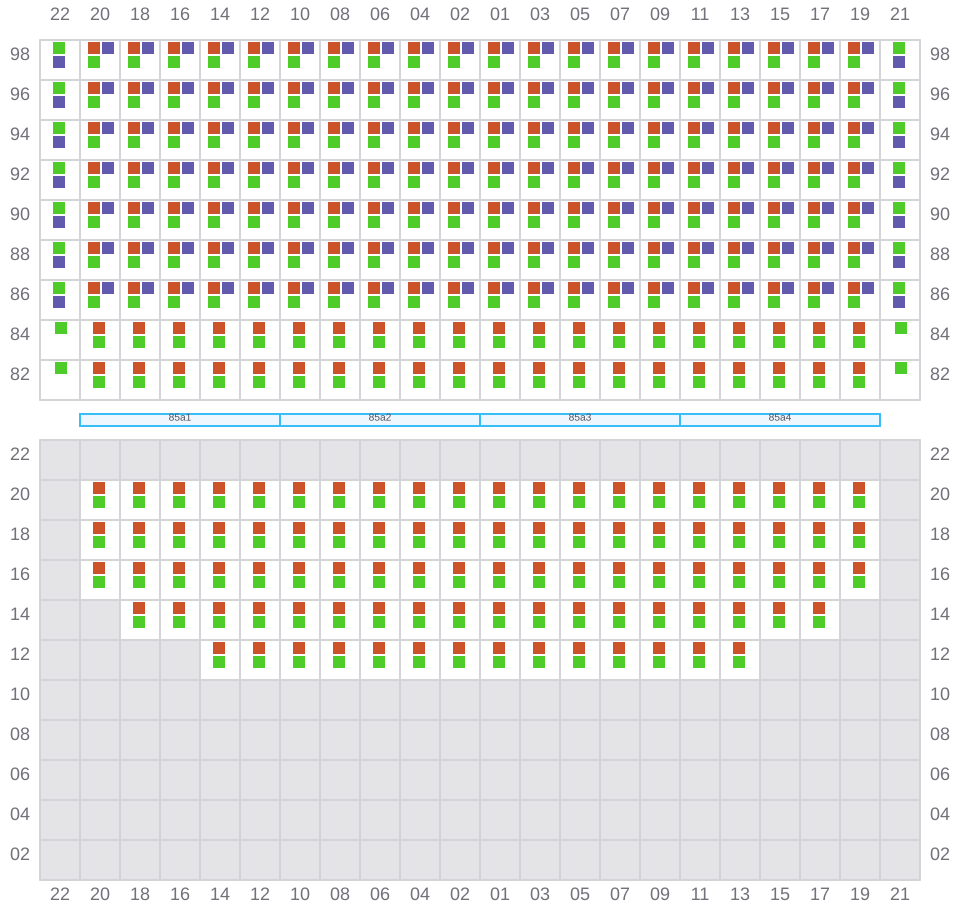

085 (086)
- →

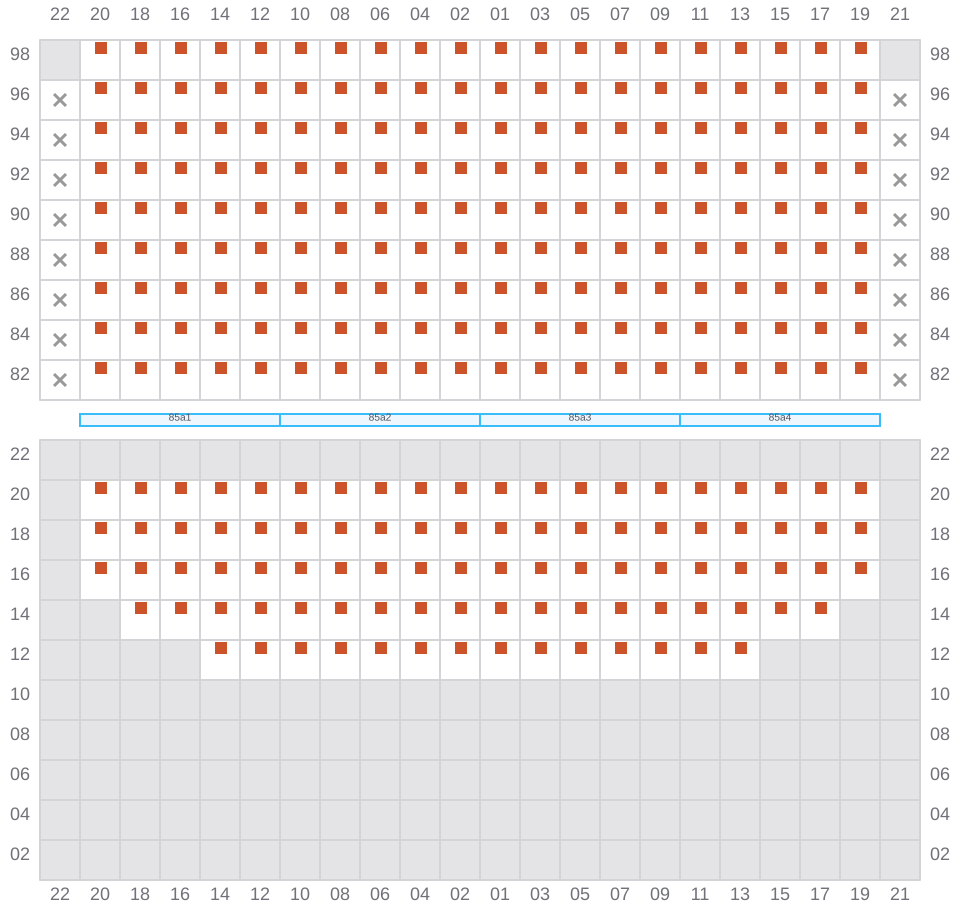

087
- ←

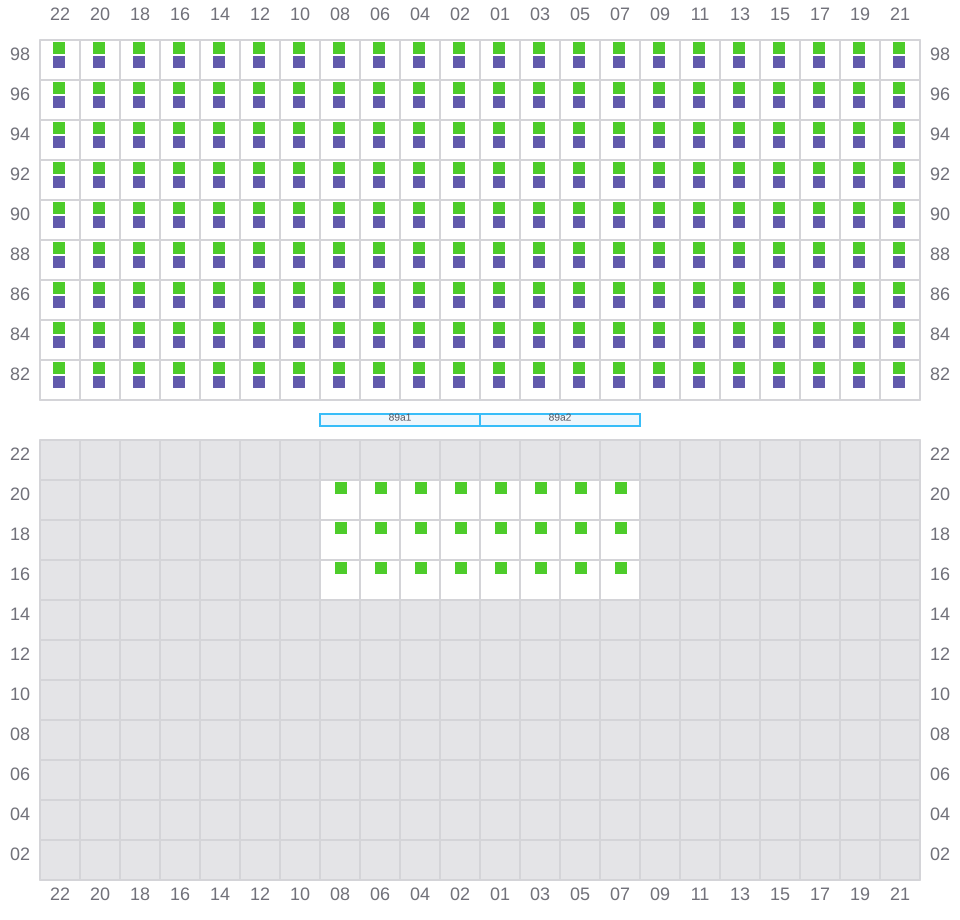

089 (090)
- →
